Use of State Sequence Analysis in Pharmacoepidemiology: A Tutorial

Jacopo Vanoli
Consuelo Rubina Nava
Chiara Airoldi
Andrealuna Ucciero
Virginio Salvi
5 and
Francesco Barone-Adesi
London School of Hygiene and Tropical Medicine (LSHTM), London WC1E 7HT, UK
School of Tropical Medicine and Global Health (TMGH), Nagasaki University, Nagasaki 852-8521, Japan
Department of Economics and Statistics “Cognetti de Martiis”, University of Turin, 10124 Turin, Italy
Department of Translational Medicine, University of Eastern Piedmont, 28100 Novara, Italy
Department of Neuroscience, ASST Fatebenefratelli Sacco, 20157 Milan, Italy
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2021, 18(24), 13398;
Submission received: 21 October 2021 / Revised: 14 December 2021 / Accepted: 16 December 2021 / Published: 20 December 2021


While state sequence analysis (SSA) has been long used in social sciences, its use in pharmacoepidemiology is still in its infancy. Indeed, this technique is relatively easy to use, and its intrinsic visual nature may help investigators to untangle the latent information within prescription data, facilitating the individuation of specific patterns and possible inappropriate use of medications. In this paper, we provide an educational primer of the most important learning concepts and methods of SSA, including measurement of dissimilarities between sequences, the application of clustering methods to identify sequence patterns, the use of complexity measures for sequence patterns, the graphical visualization of sequences, and the use of SSA in predictive models. As a worked example, we present an application of SSA to opioid prescription patterns in patients with non-cancer pain, using real-world data from Italy. We show how SSA allows the identification of patterns in prescriptions in these data that might not be evident using standard statistical approaches and how these patterns are associated with future discontinuation of opioid therapy.

1. Introduction

In the last decade, enormous progress has been made in the use of real-world data to provide information on drug use, effectiveness and safety. This has been principally due to the expansion of information technology with easier access to diverse sources such as electronic health records (EHR), administrative or health claims data, as well as disease and drug monitoring registries [1]. There is thus a pervasive need to adapt research designs and statistical methods to such rapid evolution, which affects the amount, the frequency, the type, and the nature of available information [2]. In this framework, classical statistical tools can be integrated with novel data mining techniques suitable of identifying patterns in complex data structures. Thus far, in pharmacoepidemiology, these techniques have been mainly used to identify adverse drug reactions [3], while their application to the analysis of drug prescriptions to identify longitudinal use patterns is still limited [4]. Indeed, most drug utilization studies currently rely on simple adherence measures such as medication possession ratio and proportion of days covered [5]. While these summary indicators have different advantages, they typically fail to identify the different prescription patterns of patients, which in turn can be associated with important health-outcomes [6]. To fill this gap, in this paper, we show the application of state sequence analysis (SSA) to pharmacoepidemiological data to evaluate the temporal order of prescriptions and to identify latent complex patterns. Without assuming a priori hypothesis, SSA is an effective tool to study distinctive features of homogeneous groups of sequences, exploiting their pairwise dissimilarities in unsupervised clustering [7]. The SSA method indeed looks at the life sequence as a single unit of analysis, extracts fundamental descriptive information, and makes the data easier to comprehend, differently from event history analysis [8]. Identifying in sequences also typical trajectories and recurring structures, the SSA is considered the most suitable tool for signal detection in healthcare databases [3].
While SSA has been long used in social sciences, especially for labor and family mobility research [9,10,11,12,13], its use in pharmacoepidemiology is still in its infancy [14,15,16]. SSA allows a simple and compact representation of life courses identical to the one used to code DNA molecules [9]. Thus, in social sciences, SSA is employed, for instance, to model demographic projections based on microsimulation methods [9], family file events [12], early employment insecurity [13], pathways to adulthood [11], and the prevalence of nuclear families [10]. Moreover, SSA in pharmacoepidemiology proves to be effective in evaluating the impact of regulatory measures on the prescription of sedative medications [15]; describing longitudinal patterns of disease-modifying therapies usage, grouping the population [16]; and investigating the conformity of prescribing practices of respiratory drug treatments [14].
As a worked example, we present here an application of SSA to opioid prescription patterns in patients with non-cancer pain, using real-world data from Italy. The choice of this example is partly motivated by the fact that, while the use of opioids for the management of chronic pain is increasing in many countries [17,18], there is still limited research on related prescribing patterns [19]. Moreover, it is not clear whether some patterns are associated with a longer duration of opioid use. Different studies suggest that this condition might be associated with a higher risk of drug abuse and dependence [20,21,22]. Indeed, while treatment of acute pain is rarely associated with the development of opioid abuse/dependence, chronic opioid therapy may result in opioid abuse/dependence in 3% to 19% of patients [22]. Results of a large Norwegian study suggest that even if only one-fourth of patients starting opioid therapy for chronic nonmalignant pain enter long-term treatment, a large proportion of this minority develops or is at risk for developing problematic opioid use and addiction [23].
The paper is structured as follows. Section 2 introduces the prescription data that will be used in the analysis. Section 3 presents the core steps of the SSA approach (data coding Section 3.1, measurement of dissimilarities between sequences Section 3.2, the application of clustering methods to the dissimilarity matrix Section 3.3). Section 4 and Section 5 introduce complexity measures and tools for graphical visualization. Section 6 shows how to include clusters obtained by SSA into predictive models. The main results are reported in Section 7 and Section 8, while Section 9 concludes the article with some final remarks and indications for future research.

2. Data Source and Cohort Identification

Italian administrative data were used to show the application of SSA to drug prescription data. Italy has a tax-based, universal coverage National Health System (NHS) organized in three levels: national, regional (21 regions), and local (on average 10 Local Health Authorities (LHA) per region). Healthcare is managed to the inhabitants by the LHA according to their regular address. The local health authority databases contain, among others, annual drug prescriptions dispensed by local pharmacies. In this study, we used data from the LHA of Novara (about 350,000 residents), in the Piedmont region. For each prescription contained in the database, the following information was retrieved: patient ID, age and sex, dispensing date, ATC code, formulation, number of packages and Defined Daily Dose (DDD). For the purposes of this study, we focused on opioid prescriptions (ATC code N02A), which were classified in two groups [24], “strong” (S) and “weak” (W). The former group included morphine, hydromorphone, oxycodone, fentanyl, buprenorphine and tapentadol, while the latter included codeine and tramadol. For each prescription, we assumed that the consumption started on the day of dispensing. The duration of each prescription was calculated, dividing the total amount of active substance dispensed by the relevant DDD, which is assumed to represent the average maintenance dose per day for a drug used for its main indication in adults (, accessed on 1 January 2020).
New users of opioid therapy for chronic non-cancer pain were identified in the LHA according to the following inclusion criteria:
  • Started an opioid treatment between 1 January 2012 and 31 November 2012. One year of look-back was applied to exclude prevalent users;
  • Had at least two prescriptions of opioids, with the second one occurring within 70 days after the first one;
  • Have been treated with opioids for at least one year (i.e., the last opioid prescription was dispensed at least one year after the first one);
  • Did not have any hospital discharge record in 2011 and 2012 with a diagnosis of cancer.
Cancer patients were not considered in this study for two reasons: (i) the different time pattern in the opioid use when compared with patients with chronic or non-neoplastic diseases; (ii) the use of painkillers often until the very end of their life, nullifying the possibility of studying time to cessation of the therapy.

3. The SSA Approach

In SSA, the prescription history of a subject can be described as a sequence of different categorical states. In our case, states are defined from the type of opioid therapy (strong/weak/none) assumed during each period of time. For instance, a subject could start taking weak opioids for two weeks, then have a 12-week break and finally start strong opioids until the end of the study. SSA allows to compare sequences among the different subjects with respect to the succession of their component states and to identify common patterns. In general, the core SSA process can be broken down into three main steps: data coding, measurement of dissimilarities between sequences, and application of a clustering method to identify sequence patterns [25].

3.1. Data Coding

Medication data are usually retrieved in SPELL format, in which each row represents a single prescription. To carry out SSA, it is necessary first to convert these data into an STS (state sequence) format, where each row represents a patient, as shown in Table 1.
The following step specifies the alphabet of the sequence. This is a discrete list of all possible states appearing in the data. In our case, the alphabet is composed of the following states: S, W, P, representing, respectively, strong opioid prescription, weak opioid prescription and pause period, during which no opioid prescription is dispensed. For example, the sequence SSWWPWP represents the following pattern: strong, strong, weak, weak, pause, weak, pause. Once the alphabet has been specified, it is necessary to define the length of the study period and the time unit (e.g., day, week, month, etc.) of the analysis, also called sequence granularity. These two aspects will determine the start, the end, and, therefore, the length of the sequences to be analyzed. In our example, we set the time unit equal to one week. This choice was due to the fact that opioid prescriptions typically cover one week of therapy in most of patients.
We classified the exposure status on each subject in the different weeks according to the most frequent state that appeared in the considered time unit. Thus, for example, if in a specific week a subject had three days of strong opioid therapy and four of weak opioid therapy, the state for that time unit was W. In the case of equally frequent states, we selected the first state that appears in the sequence. For each subject, the sequence started with the first prescription of opioids dispensed in 2012 and ended one year after the index prescription. Thus, for each subject, the sequence was constituted of 52 states. Notably, we included only subjects that had at least one year of opioid therapy. This means that we did not have to deal with right-truncated data (due, for example, to either cessation or death). Moreover, as the study period started with the time of the first prescription, all the sequences were left-aligned. Thus, we did not have to deal with missing states at the beginning of the sequence for some subjects (due to delayed entry in the cohort). The absence of missing states in our database made the analysis simpler and overcome the risk of creating an artifactual cluster of patients with missing states [25].

3.2. Measurement of Dissimilarities between Sequences

Once sequences were created, we estimated the degree of dissimilarity between each pair of sequences. To this aim, different measures of dissimilarity are available. Optimal Matching (OM) is one of the most used methods in bioinformatics for the evaluation of DNA sequences. The basic idea behind OM is to measure the dissimilarity of two sequences by considering how much effort is required to transform one sequence into the other one, applying some basic edit-operations (insertion, deletion, substitution) [9]. However, in settings different from bioinformatics (such as social sciences and, arguably, pharmacoepidemiology), these edit-operations do not have a direct interpretation. This makes it difficult to obtain meaningful results in these cases. For this reason, the longest common subsequence (LCS) metric was introduced as a special case of the OM to be applied to social sciences [26]. Briefly, the longer a subsequence that can be shared among two different sequences, the more they are considered similar. This metric allows to construct a dissimilarity matrix containing all the pairwise distances among the sequences (subjects) included in the dataset.

3.3. Clustering Methods

The dissimilarity matrix was then used to cluster sequences and to identify different prescription patterns [27]. Cluster analysis identifies a set of multivariate methods designed to select and group homogeneous patients with respect to their quantitative or qualitative characteristics (distances). In this study, we used hierarchical agglomerative cluster methods, which are based on an iterative procedure to assemble observations in groups [28]. These methods start considering every subject as a single group and, step by step, end with a unique cluster composed of the whole set of observed subjects. In each step, an observation is associated with an already existing cluster or forms a new cluster based on the smallest observed distance. Among the different hierarchical methods, we adopted the Ward method [29], which simultaneously minimizes the within-cluster variance and maximizes the among-clusters variance at each iteration step. The optimal number of clusters can be chosen either theoretically or empirically. In our case, the optimal number of groups was determined empirically by visual inspection of the dendrogram, a graphical representation of the cluster hierarchy based on the distance among the groups identified in the iteration (Supplementary Figure S1).

4. Complexity Measures for Sequence Patterns

The distance between sequences is useful for representing their dissimilarities but does not describe other important features, such as the number of states, the overall time spent in each state, and the number of transitions between states. On the other side, these three statistics may be difficult to interpret on their own, also considering they are strictly correlated to each other. To overcome this limit, different indicators have been proposed to summarize longitudinal characteristics of individual sequences [30]. In particular, we considered longitudinal Shannon’s entropy and Elzinga’s Turbulence. Longitudinal Shannon’s Entropy is a weighted average of the time spent in each state within the same sequence (in our case, the total amount of time spent under a specific drug regimen). Elzinga’s Turbulence [31] is instead a composite measure considering the number of possible subsequences and the variance of the consecutive time spent in each state. Further theoretical details on these indicators can be found in [30].

5. Graphical Visualization of Sequences

In SSA, graphical representations of patterns play an important role [30] in the communication of the results. In particular, the index plot is composed of horizontal lines for each sequence, separating the states with different colors [32]. When it is directly used on a large number of data, as in our case, it is usually not very helpful as it fails to capture specific patterns and leads to the over-plotting phenomenon [32]. However, this plot becomes very useful when it is employed after clustering methods, as it allows to identify characteristic features of the different clusters. The state distribution plot is another available graphical tool. It displays the general pattern of the whole set of data [30], showing the proportion of patients in the different states at each time point. Jumps and peculiar moves among vertical distributions can be interpreted following [33,34,35].

6. Predictive Models

Finally, results of sequence mining techniques can be integrated with classical statistical methods to evaluate the association between specific prescription patterns and health-related outcomes. Here, we showed an application of this approach using the results of cluster analysis and complexity measures to predict the future discontinuation of opioid therapy. This is an important outcome in opioid chronic therapy, as a longer duration of use is associated with a higher risk of abuse and dependence on these medications. For the sake of this analysis, subjects were followed from the beginning of the second year of therapy until 31 November 2015 or death, whatever occurred first, to evaluate discontinuation. Clusters identified by SSA during the first year of therapy and groups based on the tertiles of the distribution of complexity measures were used as independent variables to predict subsequent treatment discontinuation in a time-to-event analysis. Specifically, the association between clusters and tertile subgroups with the outcome was evaluated through the Kaplan–Meier method and multivariable Cox regression models adjusted by age and gender.
Preliminary data management and manipulation of the dataset was carried out using SAS. All the SSA techniques used in this paper were performed using the R package TraMineR.

7. SSA Results

Based on our selection criteria, 469 new users of opioids for the treatment of chronic non-cancer pain were identified and included in the analysis. Their characteristics are summarized in Table 2. The majority of these patients were women (71%), with a mean age of 72 years. In general, weak opioids were used more than strong ones. During the first year, 79% of subjects received weak opioid prescriptions vs. 50% receiving strong opioids. Notably, a substantial proportion of subjects (29%) received both. Women tended to use both weak and strong opioids more than men. However, use of opioids was generally low during the first year (on average, about 9 weeks of use of any type of opioids in both sexes) (Table 2). This suggests that most of the subjects had intermittent therapy during the first period of treatment. The state distribution plot, reported in Figure 1, shows changes in the proportion of patients treated with weak and strong opioids during the first year of treatment. Almost 80% of subjects started with weak opioids, but the “pause” state soon became the dominant one (because of the intermittent regimen). Moreover, since the first weeks, the number of users of weak and strong opioids became much more similar and remained constant over time. This suggests that many subjects had an early escalation from weak to strong opioids.
Results of the cluster analysis are reported in Table 3 and Figure 2. Six main clusters were identified, with cluster 1, 2 and 5 corresponding to patients mainly using weak opioids and accounting for 70% of the cohort (Table 3). By contrast, clusters 3, 4 and 6 included mainly strong opioid users. Cluster 1 and 4 had the largest use of weak and strong opioids, respectively, while clusters 2 and 3 identified subjects with the lowest use of any type of opioids.

8. Prediction of Treatment Discontinuation

The results of the cluster analysis were used to predict the future discontinuation of opioid therapy in the cohort. Figure 3 shows that the probability of treatment discontinuation was different among the clusters (p < 0.001). These results were confirmed in the Cox analysis reported in Table 4. Compared to cluster 2 (the reference group), subjects belonging to cluster 6 had a 63% lower probability of stopping opioid treatment (adjusted hazard ratio 0.36; 95% confidence interval: 0.20 to 0.65). The other clusters displayed an intermediate behavior, with their curves falling between those of cluster 2 and 6.
The probability of treatment discontinuation has also been studied according to complexity measures (Table 4 and Figure 4). Regarding entropy, the probability of discontinuing the therapy decreased throughout the tertile groups (p < 0.001). Compared to the first tertile, patients belonging to the third tertile had a 57% lower probability of discontinuation (adjusted hazard ratio 0.36; 95% confidence interval: 0.30 to 0.64). Similar findings were observed using turbulence (p < 0.001).

9. Further Considerations

Using real-world data, in this paper, we showed how SSA allows the identification of patterns in prescriptions that might not be detected using standard statistical approaches and how these patterns are associated with future discontinuation of opioid therapy. In recent years, epidemiological literature showed an increasing interest in different data mining techniques to characterize drug consumption [36,37]. Multivariate exploratory methods, such as principal component analysis, multiple correspondence analysis and agglomerative hierarchical clustering. Refs. [36,37] have been proposed, as well as latent class models [4,36,38,39]. While all these approaches have their advantages, they usually work on a limited number of class-defining variables and are thus not very suitable to evaluate complex longitudinal patterns of prescriptions. Moreover, as their implementation to real data is quite complex, their practical application in pharmacoepidemiology has been limited so far. To this extent, SSA could constitute a simpler alternative to evaluate prescription data. To date, only few epidemiological studies have exploited the potential of SSA, mainly to evaluate patterns of healthcare utilization of patients with different conditions [25,40,41,42]. Geographical disparities have been identified in care consumption on a cohort of pregnant women [40] and on the elderly with end-stage renal disease [41] with SSA. The latter has been recently employed also to detect the association between ethnicity and socio-economic status on children’s body mass index trajectories [43].
To the best of our knowledge, the authors of [14] were the first to apply SSA in pharmacoepidemiology to investigate patterns of respiratory drugs treatments. Nonetheless, the use of SSA in their paper was indeed rather limited, as it only employed index plot as a visualization tool and compared it with other methodologies. Two very recent studies made a more comprehensive use of SSA with several advantages. On the one hand, SSA was used to assess the effectiveness of regulatory restrictions in “sleeping pill” prescriptions, detecting a reduced exposure in subgroups of long-term users [15]. On the other hand, SSA helped to provide an overall characterization of disease-modifying therapies in patients with multiple sclerosis both at individual and geographical levels [16].
There are some methodological aspects that should be kept in mind when performing SSA of pharmacoepidemiological data. First, the strategy used for the assignation of the exposure status (the state) should be appropriate for the research question. In the case of equally frequent states within a specific time unit, we selected the first state that appears in the sequence. However, in some situations it could be more sensible to consider an extra state allowing for multiple exposures. For example, in our case-study, this would have resulted in an additional “SW” state. Second, the effect of the chosen time-granularity on results should be carefully evaluated. This issue was already raised by Vanasse et al. in the context of healthcare utilization [42], and it could also be relevant when SSA is applied to analyze prescriptions of specific medications. Thus, before drawing any inference from SSA of pharmacoepidemiologic data, we recommend carrying out sensitivity analyses using different levels of time-granularity.
Third, in some situations, it could be useful to analyze the patterns of different types of drugs at the same time. In this regard, multichannel sequence analysis allows several thematic sequences for one patient to be studied simultaneously and could represent in the future a very interesting extension of standard SSA for pharmacoepidemiological studies [25].
Given the nature of EHR data, SSA tools represents a potentially insightful integration of traditional approaches to study drug exposure and adverse effects. The method can be applied within the traditional case-control [44] and cohort designs [45] but also within the more recent self-matched designs [46], i.e., the self-controlled case series [47], case-crossover [48], and sequence symmetry analysis [49]. Typically, those designs are implemented using parametric regression models and carry important statistical properties [47,48], but they also require several assumptions to be met and yield measures that only answer well-defined research questions. Conversely, SSA aims at producing exploratory outputs throughout the construction of both visual and numeric data summaries that can also be easily integrated into the most widely used regression models [15,16]. SSA might also represent a valuable practical tool in hypothesis-free signal detection in pharmacovigilance [46,50] as it accommodates the analysis of a large dataset, increasingly present, for instance, in national administrative databases.
Research contributions of this study are mainly twofold. First, this paper provides an educational primer of the most important learning concepts and methods of SSA. The latter has been applied to a pharmacoepidemiology working example to propose a guide/tutorial to the scientific community. Second, we have highlighted the need of a shift in perspective to prescription data analysis from a cross-sectional and “compartmentalized” approach to a holistic one, which enables extensive exploitation of the information available throughout the application of a variety of data mining tools readily available in main statistical software.
Our working example has a limited sample size, no updated information or follow-up, and limited patient information. For this reason, it should be not considered to directly inform clinical practice but only for illustrative purposes. Further research might address these issues conducting a thorough epidemiological analysis to shed light on opioid use patterns at national, regional, and province levels. We also believe that extensive investigations would be required to assess how SSA, in pharmacoepidemiology, performs better at providing critical insights when compared to traditional approaches.
Finally, the SSA methodology could be combined with other novel approaches, such as pharmacodynamic-based classification of drugs, built on the capacity of single medications to interact with specific receptors [51,52]. In some cases, this strategy could be useful for providing a pharmacological interpretation of the results of SSA.

10. Conclusions

Our contribution shows the potential of the SSA method in pharmacoepidemiologic studies. This technique is easy to use, and its intrinsic visual nature may help investigators to untangle the latent information within prescription datasets, facilitating the individuation of specific patterns and possible inappropriate use of medications. In turn, this may also help to evaluate the effect of drug policies and adherence to medical guidelines. All these features make SSA a promising tool for future pharmacoepidemiologic research.

Supplementary Materials

The following are available online at, Figure S1. Dendrogram and identification of the six clusters; File S1. R code.

Author Contributions

Conceptualization, F.B.-A. and C.R.N.; methodology, F.B.-A., C.R.N. and J.V.; software, C.R.N. and J.V.; validation, F.B.-A., C.R.N. and J.V.; formal analysis, F.B.-A., C.R.N. and J.V.; investigation, F.B.-A., C.R.N. and J.V.; data curation, C.A., C.R.N. and J.V.; writing—original, F.B.-A., C.R.N. and J.V.; writing—review and editing, F.B.-A., C.R.N., J.V., C.A., A.U., V.S.; visualization, C.R.N. and J.V.; supervision, F.B.-A.; project administration, F.B.-A. All authors have read and agreed to the published version of the manuscript.


University of Eastern Piedmont Amedeo Avogadro: FAR-2019; University of Eastern Piedmont Amedeo Avogadro: AGING Project—Department of Excellence 290—Department of Translational Medicine.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki and approved by the local ethical committee of the “Maggiore della Carità” Hospital, Novara (protocol code CE148/20, issued on 12 June 2020).

Informed Consent Statement

Not applicable. The study was conducted using data routinely collected in the regional administrative health care databases in which authors had access to anonymized data only.

Data Availability Statement

The commented R code and the dataset are provided as online supplementary material.

Conflicts of Interest

The authors declare no conflict of interest.


The following abbreviations are used in this manuscript:
ATCAnatomical Therapeutic Chemical
DDDDefined Daily Dose
LHALocal Health Authorities
NHSNational Health System
OMOptimal Matching
SDStandard Deviation
SSAState Sequence Analysis


  1. Trifirò, G.; Gini, R.; Barone-Adesi, F.; Beghi, E.; Cantarutti, A.; Capuano, A.; Carnovale, C.; Clavenna, A.; Dellagiovanna, M.; Ferrajolo, C.; et al. The Role of European Healthcare Databases for Post-Marketing Drug Effectiveness, Safety and Value Evaluation: Where Does Italy Stand? Drug Saf. 2018, 42, 347–363. [Google Scholar] [CrossRef] [PubMed]
  2. Trifirò, G.; Sultana, J.; Bate, A. From Big Data to Smart Data for Pharmacovigilance: The Role of Healthcare Databases and Other Emerging Sources. Drug Saf. 2017, 41, 143–149. [Google Scholar] [CrossRef]
  3. Arnaud, M.; Bégaud, B.; Thurin, N.H.; Moore, N.; Pariente, A.; Salvo, F. Methods for safety signal detection in healthcare databases: A literature review. Expert Opin. Drug Saf. 2017, 16, 721–732. [Google Scholar] [CrossRef] [PubMed]
  4. Franklin, J.M.; Shrank, W.H.; Pakes, J.; Sanfélix-Gimeno, G.; Matlin, O.S.; Brennan, T.A.; Choudhry, N.K. Group-based Trajectory Models: A New Approach to Classifying and Predicting Long-Term Medication Adherence. Med. Care 2013, 51, 789–796. [Google Scholar] [CrossRef]
  5. Lam, W.; Fresco, P. Medication Adherence Measures: An Overview. BioMed Res. Int. 2015, 2015, 217047. [Google Scholar] [CrossRef] [Green Version]
  6. Franklin, J.M.; Krumme, A.A.; Tong, A.Y.; Shrank, W.H.; Matlin, O.S.; Brennan, T.A.; Choudhry, N.K. Association between trajectories of statin adherence and subsequent cardiovascular events. Pharmacoepidemiol. Drug Saf. 2015, 24, 1105–1113. [Google Scholar] [CrossRef]
  7. Studer, M.; Ritschard, G.; Gabadinho, A.; Müller, N.S. Discrepancy analysis of state sequences. Sociol. Methods Res. 2011, 40, 471–510. [Google Scholar] [CrossRef] [Green Version]
  8. Billari, F.C. Life course analysis: Two (complementary) cultures? Some reflections with examples from the analysis of the transition to adulthood. Adv. Life Course Res. 2005, 10, 261–281. [Google Scholar] [CrossRef]
  9. Billari, F.C. Sequence Analysis in Demographic Research. Can. Stud. Popul. 2001, 28, 439–458. [Google Scholar] [CrossRef]
  10. Demont, F.; Heuveline, P. Diversity and change in Cambodian households, 1998–2006. J. Popul. Res. 2008, 25, 287–313. [Google Scholar] [CrossRef] [PubMed]
  11. Bras, H.; Liefbroer, A.C.; Elzinga, C.H. Standardization of Pathways to Adulthood? An Analysis of Dutch Cohorts Born Between 1850 and 1900. Demography 2010, 47, 1013–1034. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Bürgin, R.; Schumacher, R.; Ritschard, G. Changes in the Order of Family Life Events in 20th-Century Europe: A Cross-Regional Perspective. Hist. Life Course Stud. 2017, 4, 41–58. [Google Scholar] [CrossRef]
  13. Ritschard, G.; Bussi, M.; O’Reilly, J. An Index of Precarity for Measuring Early Employment Insecurity. In Sequence Analysis and Related Approaches: Innovative Methods and Applications; Ritschard, G., Studer, M., Eds.; Life course Research and Social Policies; Springer: Cham, Switzerland, 2018; Volume 10, pp. 279–295. [Google Scholar] [CrossRef] [Green Version]
  14. Parkin, L.; Barson, D.; Zeng, J.; Horsburgh, S.; Sharples, K.; Dummer, J. Patterns of use of long-acting bronchodilators in patients with COPD: A nationwide follow-up study of new users in New Zealand. Respirology 2018, 23, 583–592. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Istvan, M.; Caillet, P.; Rousselet, M.; Guerlais, M.; Laforgue, E.J.; Gerardin, M.; Jolliet, P.; Feuillet, F.; Victorri-Vigneau, C. Change in the regulatory framework for zolpidem: What is the impact on the landscape of the prescription of sedative medications? The French national ZORRO study. Br. J. Clin. Pharmacol. 2021, 87, 3310–3319. [Google Scholar] [CrossRef]
  16. Leblanc, S.; Roux, J.; Tillaut, H.; Le Page, E.; Leray, E. Disease-modifying therapy usage in patients with multiple sclerosis in France: A 6-year population-based study. Rev. Neurol. 2021, 177, 1250–1261. [Google Scholar] [CrossRef]
  17. Vowles, K.; McEntee, M.; Julnes, P.; Frohe, T.; Ney, J.; van der Goes, D. Rates of opioid misuse, abuse, and addiction in chronic pain. Pain 2015, 156, 569–576. [Google Scholar] [CrossRef] [Green Version]
  18. Birke, H.; Kurita, G.; Sjøgren, P.; Højsted, J.; Simonsen, M.; Juel, K.; Ekholm, O. Chronic non-cancer pain and the epidemic prescription of opioids in the Danish population: Trends from 2000 to 2013. Acta Anaesthesiol. Scand. 2016, 60, 623–633. [Google Scholar] [CrossRef]
  19. Degenhardt, L.; Blanch, B.; Gisev, N.; Larance, B.; Pearson, S. The POPPY Research Programme protocol: Investigating opioid utilisation, costs and patterns of extramedical use in Australia. BMJ Open 2015, 5, e007030. [Google Scholar] [CrossRef] [Green Version]
  20. Martin, B.; Fan, M.Y.; Edlund, M.; De Vries, A.; Braden, J.; Sullivan, M. Long-Term Chronic Opioid Therapy Discontinuation Rates from the TROUP Study. J. Gen. Intern. Med. 2011, 26, 1450–1457. [Google Scholar] [CrossRef] [Green Version]
  21. Edlund, M.J.; Martin, B.C.; Fan, M.Y.; Braden, J.B.; Devries, A.; Sullivan, M.D. An analysis of heavy utilizers of opioids for chronic noncancer pain in the TROUP study. J. Pain Symptom Manag. 2010, 40, 279–289. [Google Scholar] [CrossRef]
  22. Edlund, M.J.; Martin, B.C.; Fan, M.Y.; Devries, A.; Braden, J.B.; Sullivan, M.D. Risks for opioid abuse and dependence among recipients of chronic opioid therapy: Results from the TROUP study. Drug Alcohol Depend. 2010, 112, 90–98. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Fredheim, O.M.S.; Borchgrevink, P.C.; Mahic, M.; Skurtveit, S. A pharmacoepidemiological cohort study of subjects starting strong opioids for nonmalignant pain: A study from the Norwegian Prescription Database. PAIN® 2013, 154, 2487–2493. [Google Scholar] [CrossRef]
  24. World Health Organization. Cancer Pain Relief: With a Guide to Opioid Availability; World Health Organization: Geneva, Switzerland, 1996. [Google Scholar]
  25. Roux, J.; Grimaud, O.; Leray, E. Use of state sequence analysis for care pathway analysis: The example of multiple sclerosis. Stat. Methods Med. Res. 2019, 28, 1651–1663. [Google Scholar] [CrossRef] [PubMed]
  26. Elzinga, C.H. Complexity of Categorical Time Series. Sociol. Methods Res. 2010, 38, 463–481. [Google Scholar] [CrossRef]
  27. Kaufman, L.; Rousseeuw, P.J. Finding Groups in Data: An Introduction to Cluster Analysis; John Wiley: Hoboken, NJ, USA, 1990. [Google Scholar]
  28. Romesburg, C. Cluster Analysis for Researchers; Morrisville, NC, USA, 2004. [Google Scholar]
  29. Ward, J.H. Hierarchical Grouping to Optimize an Objective Function. J. Am. Stat. Assoc. 1963, 58, 236–244. [Google Scholar] [CrossRef]
  30. Gabadinho, A.; Ritschard, G.; Müller, N.S.; Studer, M. Analyzing and Visualizing State Sequences in R with TraMineR. J. Stat. Softw. 2011, 40, 1–37. [Google Scholar] [CrossRef] [Green Version]
  31. Elzinga, C.H.; Liefbroer, A.C. De-standardization of Family-Life Trajectories of Young Adults: A Cross-National Comparison Using Sequence Analysis. Eur. J. Popul./Rev. Eur. Démogr. 2007, 23, 225–250. [Google Scholar] [CrossRef] [Green Version]
  32. Brzinsky-Fay, C.; Kohler, U.; Luniak, M. Sequence analysis with Stata. Stata J. 2006, 6, 435–460. [Google Scholar] [CrossRef] [Green Version]
  33. McVicar, D.; Anyadike-Danes, M. Predicting successful and unsuccessful transitions from school to work by using sequence methods. J. R. Stat. Soc. Ser. A Stat. Soc. 2002, 165, 317–334. [Google Scholar] [CrossRef]
  34. Ciganda, D. Employment Instability and Fertility Timing in France: An application of turbulence to Labor market trajectories. In Proceedings of the International Union for the Scientific Study of Population XXVII International Population Conference, Busan, Korea, 25–31 August 2013. [Google Scholar]
  35. Fulda, B.E. The diversity in longitudinal partnership trajectories during the transition to adulthood: How is it related to individual characteristics and regional living conditions? Demogr. Res. 2016, 35, 1101–1134. [Google Scholar] [CrossRef] [Green Version]
  36. Feuillet, F.; Bellanger, L.; Hardouin, J.B.; Victorri-Vigneau, C.; Sébille, V. On Comparison of Clustering Methods for Pharmacoepidemiological Data. J. Biopharm. Stat. 2015, 25, 843–856. [Google Scholar] [CrossRef] [PubMed]
  37. Latry, P.; Martin-Latry, K.; Labat, A.; Molimard, M.; Peter, C. Use of principal component analysis in the evaluation of adherence to statin treatment: A method to determine a potential target population for public health intervention. Fundam. Clin. Pharmacol. 2011, 25, 528–533. [Google Scholar] [CrossRef] [PubMed]
  38. Wainstein, L.; Victorri-Vigneau, C.; Sébille, V.; Hardouin, J.B.; Feuillet, F.; Pivette, J.; Chaslerie, A.; Jolliet, P. Pharmacoepidemiological characterization of psychotropic drugs consumption using a latent class analysis. Int. Clin. Psychopharmacol. 2011, 26, 54–62. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Afshar, M.; Joyce, C.; Dligach, D.; Sharma, B.; Kania, R.; Xie, M.; Swope, K.; Salisbury-Afshar, E.; Karnik, N.S. Subtypes in patients with opioid misuse: A prognostic enrichment strategy using electronic health record data in hospitalized patients. PLoS ONE 2019, 14, e0219717. [Google Scholar] [CrossRef]
  40. Le Meur, N.; Gao, F.; Bayat, S. Mining care trajectories using health administrative information systems: The use of state sequence analysis to assess disparities in prenatal care consumption. BMC Health Serv. Res. 2015, 15, 200. [Google Scholar] [CrossRef]
  41. Meur, N.L.; Vigneau, C.; Lefort, M.; Lebbah, S.; Jais, J.P.; Daugas, E.; Bayat, S. Categorical state sequence analysis and regression tree to identify determinants of care trajectory in chronic disease: Example of end-stage renal disease. Stat. Methods Med Res. 2019, 28, 1731–1740. [Google Scholar] [CrossRef]
  42. Vanasse, A.; Courteau, J.; Courteau, M.; Benigeri, M.; Chiu, Y.; Dufour, I.; Couillard, S.; Larivée, P.; Hudon, C. Healthcare utilization after a first hospitalization for COPD: A new approach of State Sequence Analysis based on the ’6W’ multidimensional model of care trajectories. BMC Health Serv. Res. 2020, 20, 177. [Google Scholar] [CrossRef] [PubMed]
  43. Moreno-Black, G.; Boles, S.; Johnson-Shelton, D.; Evers, C. Exploring Categorical Body Mass Index Trajectories in Elementary School Children. J. Sch. Health 2016, 86, 495–506. [Google Scholar] [CrossRef]
  44. Stolley, P.D. The Use of Case-Control Studies in Pharmacoepidemiology. In Drug Epidemiology and Post-Marketing Surveillance; Springer: Boston, MA, USA, 1992; pp. 49–51. [Google Scholar] [CrossRef]
  45. Creagh, T.H. The Use of Cohort Studies in Pharmacoepidemiology. In Drug Epidemiology and Post-Marketing Surveillance; Strom, B.L., Velo, G., Eds.; Springer: Boston, MA, USA, 1992; pp. 53–58. [Google Scholar] [CrossRef]
  46. Hallas, J.; Wang, S.V.; Gagne, J.J.; Schneeweiss, S.; Pratt, N.L.; Pottegård, A. Hypothesis-free screening of large administrative databases for unsuspected drug-outcome associations. Eur. J. Epidemiol. 2018, 33, 545–555. [Google Scholar] [CrossRef]
  47. Whitaker, H.J.; Hocine, M.N.; Farrington, C.P. The methodology of self-controlled case series studies. Stat. Methods Med. Res. 2009, 18, 7–26. [Google Scholar] [CrossRef] [Green Version]
  48. Consiglio, G.P.; Burden, A.M.; Maclure, M.; McCarthy, L.; Cadarette, S.M. Case-crossover study design in pharmacoepidemiology: Systematic review and recommendations. Pharmacoepidemiol. Drug Saf. 2013, 22, 1146–1153. [Google Scholar] [CrossRef] [PubMed]
  49. Lai, E.C.C.; Pratt, N.; Hsieh, C.Y.; Lin, S.J.; Pottegård, A.; Roughead, E.; Kao Yang, Y.H.; Hallas, J. Sequence symmetry analysis in pharmacovigilance and pharmacoepidemiologic studies. Eur. J. Epidemiol. 2017, 32, 567–582. [Google Scholar] [CrossRef] [PubMed]
  50. Bate, A.; Hornbuckle, K.; Juhaeri, J.; Motsko, S.P.; Reynolds, R.F. Hypothesis-free signal detection in healthcare databases: Finding its value for pharmacovigilance. Ther. Adv. Drug Saf. 2019, 10, 2042098619864744. [Google Scholar] [CrossRef] [Green Version]
  51. Salvi, V.; Mencacci, C.; Barone-Adesi, F. H1-histamine receptor affinity predicts weight gain with antidepressants. Eur. Neuropsychopharmacol. 2016, 26, 1673–1677. [Google Scholar] [CrossRef] [PubMed]
  52. Salvi, V.; Barone-Adesi, F.; D’Ambrosio, V.; Albert, U.; Maina, G. High H1-affinity antidepressants and risk of metabolic syndrome in bipolar disorder. Psychopharmacology 2016, 233, 49–56. [Google Scholar] [CrossRef] [PubMed]

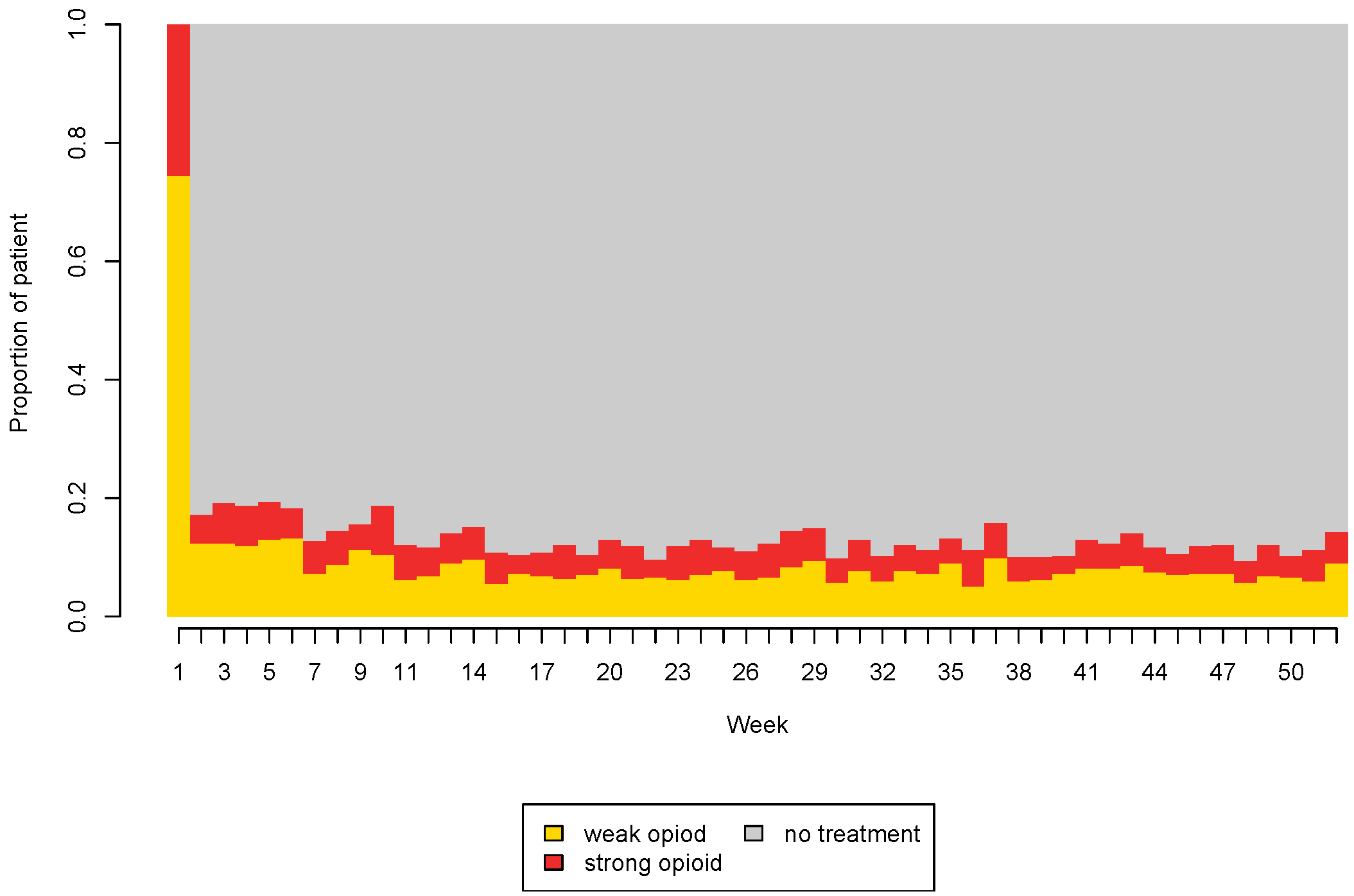

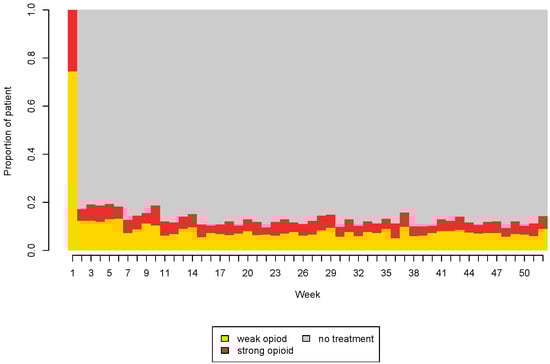

Figure 1. State distribution plot. Evolution of the proportion of patients using different types of opioids during the first year of therapy.
Figure 1. State distribution plot. Evolution of the proportion of patients using different types of opioids during the first year of therapy.
Ijerph 18 13398 g001

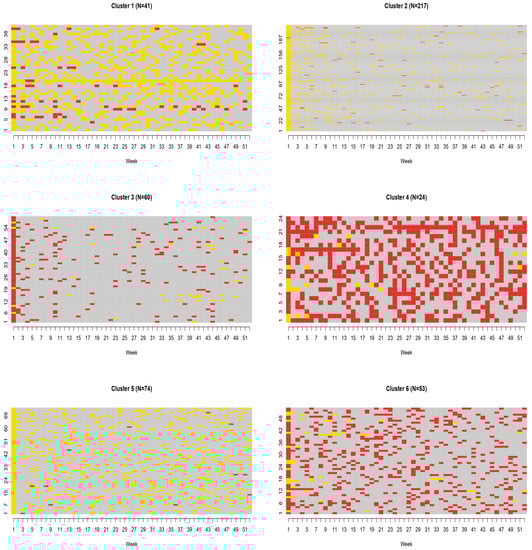

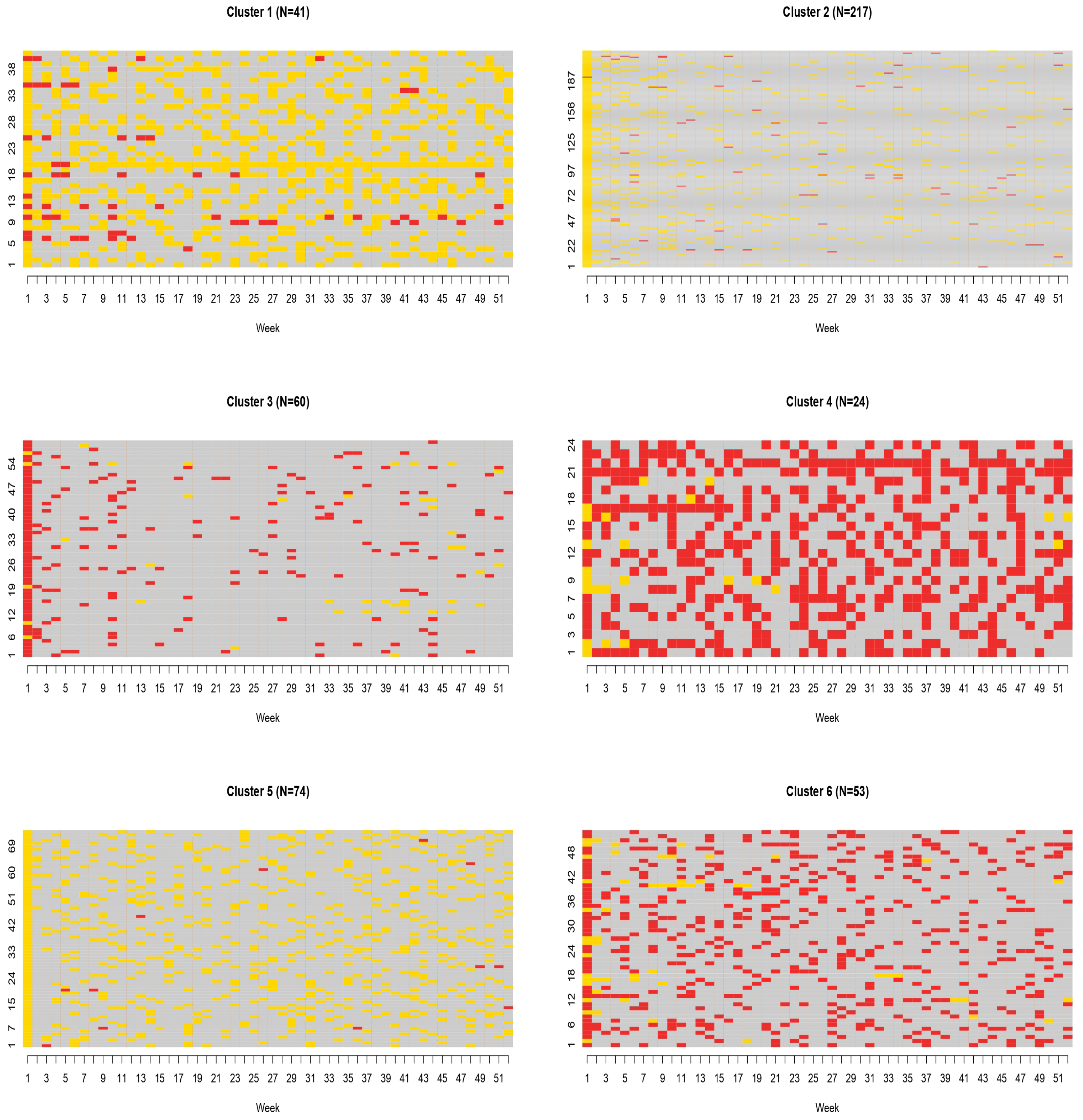

Figure 2. Index plots for weekly regimen use during the first year of opioid therapy.
Figure 2. Index plots for weekly regimen use during the first year of opioid therapy.
Ijerph 18 13398 g002

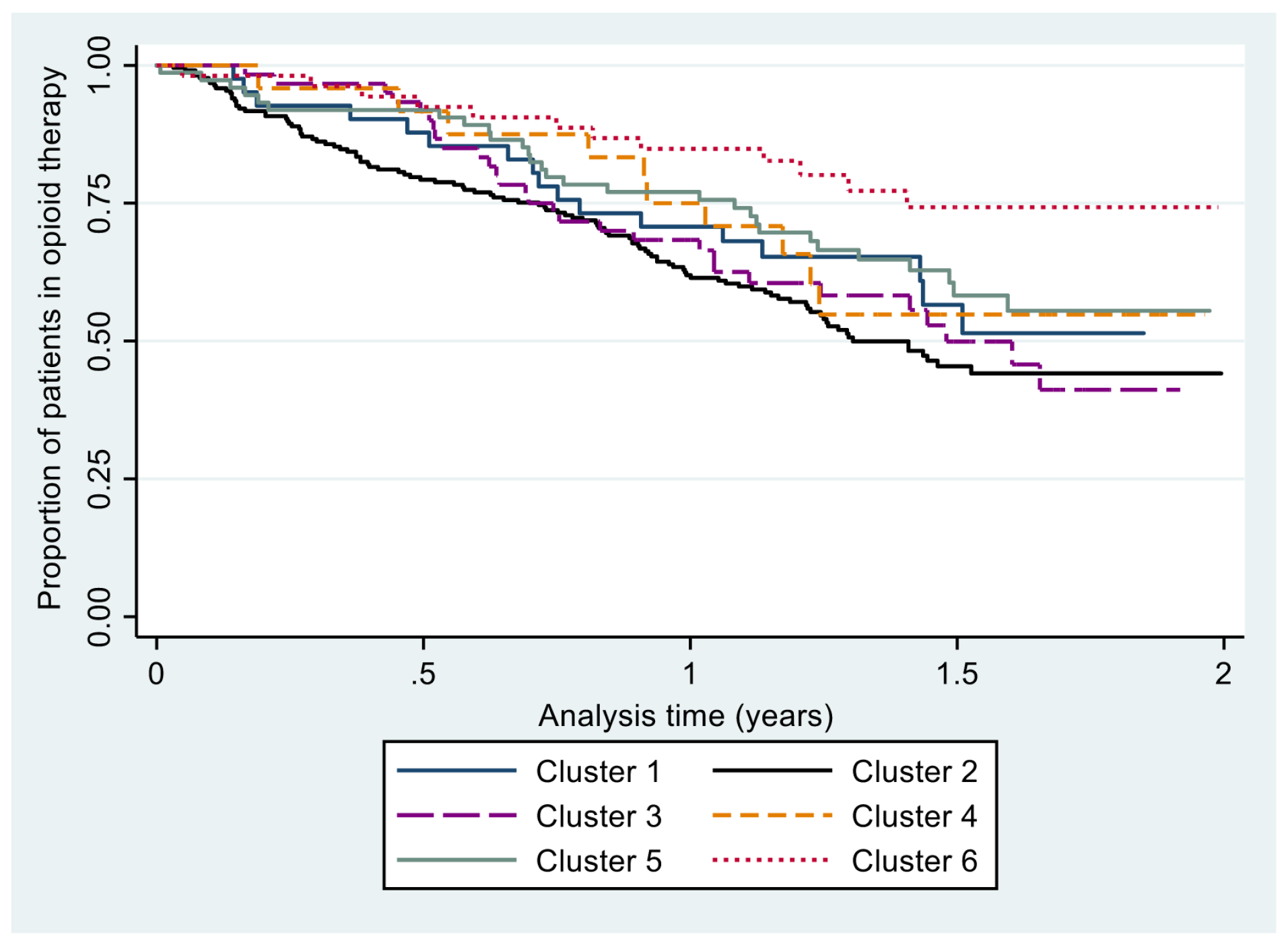

Figure 3. Time to discontinuation of the opioid therapy in the different clusters.
Figure 3. Time to discontinuation of the opioid therapy in the different clusters.
Ijerph 18 13398 g003

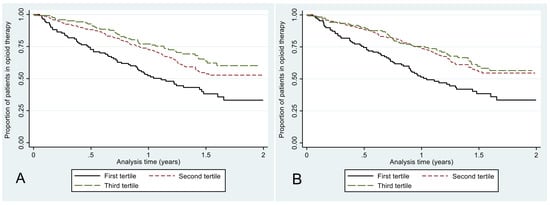

Figure 4. Time to discontinuation of the opioid therapy according to different tertiles of entropy (A) and turbulence (B).
Figure 4. Time to discontinuation of the opioid therapy according to different tertiles of entropy (A) and turbulence (B).
Ijerph 18 13398 g004
Table 1. Example of State Sequence (STS) format. W (in yellow) and S (in red) stand for weak and strong opioid medication, respectively. P (in gray) stands for pause (no treatment).
Table 1. Example of State Sequence (STS) format. W (in yellow) and S (in red) stand for weak and strong opioid medication, respectively. P (in gray) stands for pause (no treatment).
ID PatientWeek 1Week 2Week 3Week 4Week 5...Week 52
Table 2. Characteristics of the sample.
Table 2. Characteristics of the sample.
Age (SD)66.9 (14.6)73.3 (12.9)
Weeks with weak opioids in first year (SD)4.5 (5.4)5.0 (5.0)
Weeks with strong opioids in first year (SD)3.1 (5.0)3.3 (5.1)
Number of prescriptions in first year (SD)8.2 (6.5)9.6 (6.1)
Discontinued by the end of the FU (%)62 (44.6%)143 (43.3%)
Table 3. Characteristics of the subjects by clusters.
Table 3. Characteristics of the subjects by clusters.
Cluster 1Cluster 2Cluster 3Cluster 4Cluster 5Cluster 6
Women (%)33 (80.5%)142 (65.4%)42 (74%)18 (70%)55 (75%)40 (75.5%)
Age (SD)75.7 (11.4)70.0 (13.9)72.4 (11.8)65.4 (18.1)74.7 (13.4)70.6 (13.2)
Weeks with weak opioids in first year (SD)16.2 (6.7)3.7 (1.7)0.7 (1.4)1 (1.5)9.2 (1.8)1.1 (1.7)
Weeks with strong opioids in first year (SD)1.5 (2.6)1.3 (0.7)3.4 (1.9)19.8 (5.7)0.2 (0.5)9.3 (2.7)
Number of prescriptions in first year (SD)17.9 (8.7)5.3 (2.9)7.3 (4.1)20.5 (5.0)11.0 (2.7)12.7 (4.3)
Discontinued by the end of the FU (%)17 (41%)108 (50%)29 (48%)10 (42%)29 (39%)12 (23%)
Table 4. Association of clustering and complexity measures with time to discontinuation of opioid therapy. Results from crude and adjusted Cox regression. * Results adjusted by age and sex.
Table 4. Association of clustering and complexity measures with time to discontinuation of opioid therapy. Results from crude and adjusted Cox regression. * Results adjusted by age and sex.
CrudeAdjusted *
VariableHR (95% CI)HR (95% CI)
ClustersCluster 10.74 (0.44–1.23)0.75 (0.45–1.26)
Cluster 21 (ref)1 (ref)
Cluster 30.89 (0.59–1.33)0.90 (0.59–1.35)
Cluster 40.70 (0.37–1.34)0.70 (0.36–1.34)
Cluster 50.65 (0.43–0.98)0.66 (0.44–1.00
Cluster 60.36 (0.20–0.65)0.36 (0.30–0.65)
Entropy1st tertile1 (ref)1 (ref)
2nd tertile0.58 (0.41–0.78)0.56 (0.41–0.77)
3rd tertile0.43 (0.30–0.64)0.44 (0.30–0.64)
Turbulence1st tertile1 (ref)1 (ref)
2nd tertile0.53 (0.39–0.73)0.53 (0.39–0.73)
3rd tertile0.49 (0.33–0.71)0.49 (0.34–0.72)
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Vanoli, J.; Nava, C.R.; Airoldi, C.; Ucciero, A.; Salvi, V.; Barone-Adesi, F. Use of State Sequence Analysis in Pharmacoepidemiology: A Tutorial. Int. J. Environ. Res. Public Health 2021, 18, 13398.

AMA Style

Vanoli J, Nava CR, Airoldi C, Ucciero A, Salvi V, Barone-Adesi F. Use of State Sequence Analysis in Pharmacoepidemiology: A Tutorial. International Journal of Environmental Research and Public Health. 2021; 18(24):13398.

Chicago/Turabian Style

Vanoli, Jacopo, Consuelo Rubina Nava, Chiara Airoldi, Andrealuna Ucciero, Virginio Salvi, and Francesco Barone-Adesi. 2021. "Use of State Sequence Analysis in Pharmacoepidemiology: A Tutorial" International Journal of Environmental Research and Public Health 18, no. 24: 13398.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
