Accumulation of Arsenic by Plants Growing in the Sites Strongly Contaminated by Historical Mining in the Sudetes Region of Poland

by
Agnieszka Dradrach
1,
Anna Karczewska
2,*,
Katarzyna Szopka
2 and
Karolina Lewińska
3
1
Institute of Agroecology and Plant Production, Wrocław University of Environmental and Life Sciences, pl. Grunwaldzki 24a, 50-350 Wrocław, Poland
2
Institute of Soil Science and Environmental Protection, Wrocław University of Environmental and Life Sciences, ul. Grunwaldzka 53, 50-357 Wrocław, Poland
3
Department of Soil Science and Remote Sensing of Soils, Adam Mickiewicz University in Poznań, ul. Krygowskiego 10, 61-680 Poznań, Poland
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2020, 17(9), 3342; https://doi.org/10.3390/ijerph17093342
Submission received: 23 April 2020 / Revised: 6 May 2020 / Accepted: 7 May 2020 / Published: 11 May 2020
(This article belongs to the Section Environmental Remediation and Management)
Browse Figures
Versions Notes

Abstract

:
The uptake of As by various plants growing in highly enriched sites was examined in order to identify potential As accumulators and to assess the risk associated with As presence in plant shoots. Representative samples of 13 plant species, together with soil samples, were collected from various sites affected by historical As mining: mine and slag dumps, tailings and contaminated soils with As concentrations in a range 72–193,000 mg/kg. Potentially and actually soluble As forms, extracted with 0.43 M HNO3 and, 1M NH4NO3 were examined in relation to As concentrations in plant roots and shoots. The latter differed strongly among the species and within them and were in the ranges 2.3–9400 mg/kg and 0.5–509 mg/kg, respectively. The majority (over 66%) of plant samples had As shoot concentrations above 4 mg/kg, an upper safe limit for animal fodder. The uptake of As by plants correlated well with total and extractable soil As, though As concentrations in plants could not be predicted based on soil parameters. Equisetum spp. and C. epigejos indicated a particularly strong accumulation of As in shoots, while A. capillaris, and H. lanatus showed a limited As root-to-shoot transfer, apparently associated with species-related tolerance to As.

1. Introduction

Arsenic is a naturally occurring soil component that due to anthropogenic activities can be locally concentrated to the levels that negatively affect human health and functioning of ecosystems. If present in high concentrations, it can pose a particular risk to humans and animals because of its toxicity, mutagenicity and carcinogenicity [1,2,3]. Numerous papers have focused on the issues of drinking water pollution in black foot disease endemic areas [4,5,6], as well as on the accumulation of As by rice from soils irrigated by As-contaminated water [7,8,9,10]. Arsenic can also cause various disturbances in ecosystems, however, the ecological effects of its presence in soils in high amounts were less extensively examined [11]. Obviously, enhanced uptake of As in plants can pose a considerable risk to wild and domestic consumers by entering a food chain.
Arsenic is usually poorly soluble in soils and is poorly taken up by plants [12,13,14,15]. The aboveground parts of plants usually contain small concentrations of As, below 1 mg/kg [16,17]. The permissible level of As in dry fodder has been established at a level of 4 mg/kg [18,19]. It has been proved that several plant species growing in strongly contaminated sites can develop various tolerance mechanisms that lead to reduced uptake of As, either by adaptation of the arsenate uptake system or by avoidance and exclusion [20,21,22,23,24,25]. Mycorrhiza, as well as rhizospheric and endophytic bacteria can additionally reduce the influx of As to plant roots therefore supporting the tolerance to its high concentrations in soils [26,27,28]. On the other hand, however, some plants species, particularly those growing in aquatic conditions or wetlands, can intensively take up As and tolerate its high concentrations in shoots. An extreme case of that phenomenon is As-hyperaccumulating species [29,30], though, their natural occurrence was not reported from Europe. However, there are several reports on strong accumulation of As in plants growing in strongly polluted sites, in particular in those affected by mining activity, so that its concentrations in plant shoot tissues can be as high as tens, hundreds or even thousands mg/kg [15,31,32,33,34,35,36,37,38,39].
There are three historical As mining sites in the Sudetes (SW Poland) where As ores were exploited and processed over centuries: Złoty Stok (former German name: Reichenstein, N 50°26–28’, E 16°51–54’), Radzimowice (N 50°56’27–44’’, E 15°57–58’) and Czarnów (N 50°48’15–34’’, E 15°54–55’’), of which Złoty Stok, that operated until 1962, was the largest one. The concentrations of As in waste rocks disposed on numerous waste dumps, and those in tailings and soils, are there as high as thousands mg/kg [40,41,42,43,44], while the concentrations of soil As, considered environmentally safe, have been set by Polish law at the levels 10–100 mg/kg, depending on soil properties and land usage [45,46].
It is important to examine the uptake of As by various plant species in such unfavorable conditions, and to recognize the factors governing As translocation to plant shoots, often described by a translocation factor TF (1) [47]. Another biogeochemical index, a bioaccumulation factor BAF, based on total concentrations of As in soils and plant tissues, is commonly used to assess the potential of As uptake from soils (2) [48]. Another index, a bioconcentration factor BCF (defined in analogy to aquatic environments), based the concentrations in soil pore water or on potential or actual solubility/extractability, is sometimes preferred for the assessment of a real risk associated with the presence of toxic elements in soils and its uptake by plants (3) [49,50,51]:
TF = As   in   shoots As   in   roots
BAF   ( shoots   or   roots ) = As   in   plant   material   ( shoots   or   roots ) total   As   in   soil
BCF   ( shoots   or   roots ) = As   in   plant   material   ( shoots   or   roots ) soluble   ( extractable )   As   in   soil
The main aims of this research were: (1) to examine total concentrations of As in plant shoots and roots in the mine activity-affected sites strongly enriched in As in order to assess the risk for potential consumers; (2) to recognize plant species that accumulate relatively high concentrations of As in their shoots and show high values of As bioavailability indices; (3) to check suitability of two ISO-approved extracting solutions for the prediction of As uptake by plants.

2. Materials and Methods

2.1. Experimental Areas

The study was carried out in eight areas situated in three historical As mining centres: Złoty Stok, Radzimowice and Czarnów (Table 1). Some of those areas (1,5) were partly barren surfaces of large mine dumps, some others (4,6,7) were situated in forests with numerous smaller mine or slag dumps scattered there throughout, or in grasslands (2,3). Area 6 was additionally affected by acid mine and rock drainage (AMD and ARD). The areas 2 and 7 were typical hay meadows, either occasionally flooded by tailings (2) or affected in the past by ore mining and smelting (7). Area 3 was a dry grassland where soils developed of pure tailings accumulated at the foreland of impoundment. Finally, area 8 represented a mosaic of forested land patches and grasslands with mine dumps of various sizes. In all those areas, soils contained very high concentrations of As [40].

2.2. Soil and Plant Sampling

On the basis of a screening study, representative species of grass and herbaceous plants, commonly occurring in all the areas, were chosen for analysis (Table S1). Additionally, two kinds of tree seedlings, that started to inhabit the dumps, were included in the study. In June, i.e. in the time of grass flowering, plant samples were collected from each area in representative 6–8 points.
The plants were sampled, including aboveground parts and roots (or rhizomes), together with about 2 kg lumps of topsoil (0–20 cm). The aboveground parts of plants were separated in the field by harvesting directly above the crowns (or above soil surface), while the soil lumps with underground parts of plants were transported to the laboratory, where the roots were carefully removed from soil. Soil and plant material was then air-dried and prepared for analysis. Material collected from each sampling point was represented by three subsamples, so all the analysis were performed in triplicates. For statistical analysis, aimed to compare As uptake by various plants, only those species were taken into account that were represented by at least four samples (Table S1).

2.3. Soil Analysis

Air-dried soil samples were homogenized, ground, and sieved to 2 mm under special safety conditions that involved a vacuum-driven fume hood and personal protection for technicians (protective clothes, masks and glasses). Aliquots of fine soil material (ca. 200 g) were then analyzed. Soil texture was determined by a sieve-and-hydrometer method [59]. Soil pH was measured potentiometrically in a suspension (1:2.5, v:v) with 1M KCl. Organic carbon (Corg) content in soil was analyzed on the CS-MAT 5500 instrument (Strohlein, Kaarst,. Germany). For determination of “pseudototal” As (termed further “total”), soil samples were digested with aqua regia (HNO3 + HCl, 1 + 3) in microwave oven, according to ISO 14466. Potentially soluble forms of As were extracted from soil with 0.43 M HNO3 (ISO 17402), and actually soluble As species–with 1 M NH4NO3 (ISO 19730). Additionally, a soluble P, considered phytoavailable, was determined by a lactate/Ca method [60,61], a routine procedure used in Poland, as the concentrations of P in soil pore water can considerably affect As uptake by plants [62,63,64,65]. Concentrations of As and P in digests and extracts were determined by ICP-AES, on an iCAP 7400 system (Thermo Scientific, Waltham, MA, USA), with determination limits 0.002 and 0.02 mg/L, respectively. All reagents and deionized water were of ultra-pure quality, and all the labware used was either new or thoroughly cleaned prior to usage. Validation of analytical methods involved analysis of two solid CRMs, certified for aqua-regia extracted elements (CNS 392 i CRM 027). All the results of control analyses were considered satisfactory, falling in the range 98–104% of As certified values. Due to the lack of a suitable CRMs, the analytical correctness of As determination in HNO3 and NH4NO3 extracts, was verified via standard addition.

2.4. Plant Analysis

Oven-dried (60 °C, 24 h) and ground samples of plant material were pretreated with 30% hydrogen peroxide and digested in concentrated HNO3, in a microwave system. The digests were diluted with deionized water and filtered through 0.45 μm syringe filters. The concentrations of As in the digests were determined by ICP-AES as in soil digest. Validation of analytical method involved the analysis of plant CRMs: BCR-414 and DC-7349. Additionally, the analytical results obtained with ICP-AES were randomly controlled by ICP-MS 8800 Triple Quad (Agilent, Santa Clara, CA, USA). The differences between the results obtained with these two methods remained below 20%.

2.5. The Indices of As Uptake and Root-to-Shoot Transfer

In order to characterize the uptake of As by plants in relation to soil As concentrations, as well as to assess the rate of its translocation from roots to the aboveground parts, appropriate indices were calculated. A translocation factor TF was determined as the ratio of As concentrations in plant shoots to those in roots [47]. Shoot/root bioaccumulation factor (BAF) was defined as the ratio of As concentrations in plant material to total As concentrations in soil. Shoot and root bioconcentration factors BCF were calculated in relation to soluble As in soil [50,51], i.e. to its fraction extractable with 1M NH4NO3 or with 0.43 M HNO3.

2.6. Statistics

Basic descriptive statistics was applied to evaluate the distributions of data sets obtained from chemical analyses. When necessary, the sets of variables were normalized by log 10 transformation prior to further calculations. For each data sets and each plant species, median values and 25% and 75% percentiles were calculated and visualized in the form of box-and-whiskers plots. Extremes and outliers were neglected in those calculations, though, they were presented in the graphs.
The relationships between log-normalized soil and plant data have been presented in diagrams. produced by the Excel software. Pearson correlation coefficients were calculated to examine the relationships between soil properties and arsenic concentrations in plant samples. Additionally, principal component analysis (PCA), the multivariate statistical technique, was applied both to the whole sets of data, and to the data characterizing particular plant species separately, in order to extract information about the associations and relationships between the variables. All statistical analyses were performed using Excel 2010 (Microsoft, Albuquerque, NM, USA) and Statistica 13 (StatSoft, Tulsa, OK, USA) softwares.

3. Results and Discussion

3.1. Soil Properties

Soil properties differed strongly both among the areas and in most cases, also within them (Table 1). Total As content in soils varied in the range: 72–193,000 mg/kg, with the smallest values in the area 7 (hay meadows and pastures in Radzimowice), and extremely high As accumulation in an alluvial soil affected by AMD and ARD in the area 6. Very high As concentrations, above 10,000 mg/kg, were also reported from various mine dumps.
Obviously, As present in soils, was mainly inherited from primary As-bearing minerals, such as arsenopyrite, loellingite, their various associations [44,55,57], as well as from secondary minerals and non-crystalline components of different susceptibility to weathering and various solubility. Therefore, the shares of potentially soluble As (extractable with HNO3) and actually soluble As (extractable with 1M NH4NO3) in soils differed strongly among the samples falling in the broad ranges 0.3–88.6% and <0.01–0.83% % of total As, respectively, with the median values: 37.1% and 0.04%. Though, in the whole set of study data, both potentially and actually soluble As concentrations were highly significantly (p < 0.001) correlated with total soil As (Table 2). They correlated also with the content of soluble (“bioavailable”) P in soils. Relatively poorer (R = 0.449), though still significant at p < 0.001, correlation between 1M NH4NO3-extractable As and soil pH was undoubtedly caused by the fact that the solubility of As tends to increase both at high pH, due to an anionic character of As-bearing ions, and at extremely low pH, due to dissolution of iron oxides [15]. The pH values in our study were spread in a broad range (2.88–7.66), likely including the zones of enhanced solubility both at low and high pH. Moreover, a relationship between a real As solubility vs. pH can be modified in the field by changing soil redox conditions followed by a possible reductive dissolution of iron oxides [15,43,66], which might have not been reflected after soil drying in lab conditions.

3.2. Arsenic Concentrations in Plants

Box-whiskers plots (Figure 1) show the concentrations of As in shoots and roots of plant species examined. The pictures illustrate a large diversity of plant capability to take up As from soils and to accumulate it in their tissues. Minimum and maximum As concentrations determined in plant samples differed dramatically, more that by three orders of values. However, the median As concentrations, determined separately for particular plant species, listed in Table S2, and indicated in graph as black squares, did not differ so largely.

3.2.1. As in Plant Shoots

Total concentrations of As in the aboveground parts of plants were in a broad range 0.5–509 mg/kg, indicating that the plants growing in our study area can accumulate very high amounts of As in their shoots. The median value, determined for the whole set of results, was 8.9 mg/kg, which was comparable with As concentrations in plant shoots reported by various authors from contaminated environments [15,16,67,68,69,70]. It should be stressed, however, that the majority of results, i.e. 66%, exceeded the value 4 mg/kg, considered a safe concentration of As in animal fodder. In particular, an upper quartile of analytical data should attract special attention, as 25% of all plant samples had the shoot As concentrations above 26.9 mg/kg, and 10% of results exceeded 50.8 mg/kg. Moreover, statistical calculations neglected several outliers and extreme values (i.e. the results > 61 mg/kg) that made up further 8% of particularly high As concentrations. The highest species-related median value of shoot As concentration, 47.5 mg/kg, was determined in Equisetum spp., a genus that was already reported as As accumulator [33,40,71]. Its high As accumulation capability can be attributed either to special, genus-related physiological features, not yet more closely examined, or explained by its particular tolerance to temporary soil flooding and As mobilization in reducing conditions.
A relatively high median value of As concentrations in the shoots, 26.8 mg/kg, were also reported for C. epigejos, a dominating grass species in the areas 2 and 3. Two extremely high values of As concentrations in plant shoots (478 and 509 mg/kg) were also reported for the representatives of this grass species. They grew in soils with neutral pH (pH > 6.8) and considerably high concentrations of 1M NH4NO3-extractable As (>2.5 mg/kg). It can be supposed that, unlike three other grass species: H. lanatus, F. rubra and A. capillaris, growing in same conditions (in the areas 1, 2 and 3), the populations of bush grass C. epigejos examined in this study did not evolve the mechanisms of tolerance based on As avoidance or reduced influx to the shoots [21,23,72].

3.2.2. As in Plant Roots

As concentrations in plant roots were, in general, much higher and much more differentiated than those in the aboveground parts of plants (Figure 1) and ranged from 2.3 to 9400 mg/kg. Extremely high As concentrations in plant roots (2400 mg/kg and higher), apparently associated with very strong soil enrichment in As, were reported for two grass species: A. capillaris and H. lanatus, while C. epigejos and S. vulgaris had the highest median values of root As (126 and 147 mg/kg, respectively). On the contrary, relatively low root As were reported in the case of D. flexuosa growing in acidic mine soils, and L. corniculatus, that had the median root As: 11.3 and 10.8 mg/kg.

3.3. Translocation Factor TF

Translocation factor TF is a parameter that characterizes plant ability to transfer elements from roots to shoots. The values of TF calculated for all the plants growing in the study areas ranged broadly (0.004–26.8), though, they were generally very low (Figure 2), with a median 0.17, which is a typical feature for As [15,16,39,73,74].
Most of the species-determined median values of TF remained below 0.20. The exceptions were: an unusually high median of 0.82 obtained for D. flexuosa, a grass growing in forest habitats in strongly acidic soils (pH 2.88–4.32) on the dumps, as well as the medians for spruce seedlings P. abies on acidic mine dump soils: 0.37, the horsetail Equisetum spp.: 0.28, and ferns Dryopteris spp.: 0.21 (Table S2). It should be stressed, however, that singular exceptionally high values of TF were noted for various species. The TF values above 10 were reported in the cases of F. rubra, A. capillaris and Dryopteris spp., and they all were associated with strongly acidic soils (pH below 3.8).

3.4. Bioaccumulation Factor BAF

BAF values, that relate the accumulation of element in plant shoots or roots to its total concentrations in soils, did not differ from those described in similar studies, and were in general very low. The shoot BAF values were in the range <0.001–0.179, with 90% cases below 0.025, and a median value 0.003. The single cases of considerably high BAF coefficients, above 0.1, were noted for grasses: C. epigejos (0.179, 0.117), F. rubra (0.174) and A. capillaris (0.116), as well as for a common bird’s-foot trefoil L. corniculatus (0.164) and Dryopteris spp. (0.105). The horsetail (Equisetum spp.) indicated a relatively high median shoot BAF: 0.008. The relationships between As concentrations in plant shoots and total As in soils are illustrated in the Figure 3. The cases listed above appear as outliers protruding above a cloud of the other data. A clear tendency of increasing As in shoots with increasing soil total As was confirmed by a high correlation coefficient (R = 0.640), significant at p < 0.001 (Table 3).
The root BAF values differed strongly within our study, and were obviously higher than the shoot BAFs, falling in the range <0.001–1.13, with a median 0.020. An extraordinarily high BAF value (>1.0) referred to C. epigejos growing in soil with slightly acidic pH (4.82). The latter result was checked twice and should be considered as a case of unusually strong capability of that particular bush grass genotype to accumulate As in its roots. No similar cases of such a strong As accumulation in the roots of this grass species are in fact reported in the literature. The median values of root BAF, determined for single plant species separately, were in the range 0.002–0.062, with the lowest values (<0.003) obtained for the ferns Dryopteris spp. and the grass D. flexuosa that grew in acidic soils and poorly accumulated As in roots/rhizomes. On the contrary, three other grass species: H. lanatus, A. capillaris and C. epigejos, as well as the representative of Loteae family, L. corniculatus, had the highest median values of root BAF, above 0.050. All these three grass species were earlier reported to develop the mechanisms of As tolerance, based on either avoidance or exclusion and apparently supported by mycorrhiza and rhizospheric bacteria. Those mechanisms can be responsible for an increased accumulation of As in plant roots [23,26,28]. The highest values of root BAF were associated with soils highly enriched in As, with its total concentrations in the range 103–104 mg/kg.

3.5. As Extractability and Plant Uptake. Bioconcentration Factors BCF

Considering a limited As solubility in soils, we presumed that the correlations between As concentrations in plant tissues and actually or potentially soluble soil As in soils should be stronger compared to those with total soil As. Correlation coefficients between 1M NH4NO3-extractable As in soils and As concentrations in plant roots and shoots, determined for the whole collection of samples, were indeed relatively high (R: 0.503 and 0.599, respectively), and highly significant (Table 3). Similarly high and significant were correlations between the root and shoot As and 0.43 M HNO3-extractable soil As (R: 0.576 and 0.584). All those R values were, however, lower than corresponding R coefficients calculated for total soil As, and a graphical illustration of plant shoot As vs. soluble soil As (Figure 3) proved a large diversity of experimental data.
The values of related root and shoot actual bioconcentration factor BCF (calculated in relation to actual As solubility) differed strongly, and were in the ranges <0.1–1210 for shoots and <0.1–8290 for roots, with the medians: 7.4 and 41.5. The BCF values depended on extractable soil As, and decreased with increasing pool of potentially or actually soluble pool of soil As (Table 4). In other words, the higher was the pool of soluble As in soil, the smaller part of this pool was taken up and accumulated by plants.
This effect was associated with a decrease in As root-to-shoot translocation factor TF along with increasing As root concentrations (Figure 4). Apparently, the mechanisms that prevented As from being translocated to the aboveground parts of plants were particularly efficient at high As root concentrations.
Plant species-related values of the shoot BCF turned out to be the lowest (<0.1) for A. capillaris, known for its ability to develop various mechanisms of tolerance to high soil As [21,23,31], and the highest in the cases of Dryopteris spp. and D. flexuosa growing in acidic soils. Apparently, low soil pH and associated low extractability of As, did not prevent As from being taken up by plant roots and translocated to the shoots (fronds). This phenomenon should be more closely examined from the standpoint of plant physiology. Changing As uptake by plants in their various phonological phases should be considered as a factor of variability [75]. The median shoot BCF values, determined separately for each plant species, were in a relatively narrow range 3.4–12.4, with the highest values obtained for horsetail, ferns and red clover. A considerably efficient uptake of soluble As by horsetail and ferns can probably be explained by an intermittent increase in As solubility in periodically occurring wet conditions, typical for the habitats of area 6. Such an effect was not reflected by the results of As extractability, determined in dried soil samples. Seasonal differences in As accumulation by plants growing in floodplain soils and the importance of soil moisture conditions were clearly documented by Simmler et al. [39], similarly to the effects of soil moisture on As uptake by rice [8].
Similarly to the shoot BCFs, the root BCF values also showed a large diversity, although they were poorly correlated with each other (R = 0.273). It means that some plants that easily accumulated soluble As in their roots did not translocate it easily to the shoots. This observation reflects the differences between tolerant and non-tolerant plants. For instance, some samples of tolerant plant species: L. corniculatus, H. lanatus, A. capillaris and F. rubra, that had the root BCF values exceeding 1000, turned out to poorly translocate As to shoots.
A lack of clear correspondence between As extractability with 1M NH4NO3 and As plant uptake, (in the whole data set and within the data characterizing single plant species), indicates that this extraction cannot be used for prediction of As accumulation by plants. Similar statement refers also to HNO3-extractable As. Consequently, a risk that As concentrations in plants growing in strongly enriched soils exceed a value of 4 mg/kg, considered a safe threshold, cannot be simply predicted based on soil extractions.
Moreover, a multivariate PCA analysis (Figure S1), similarly to single correlations (Table 3) proved that shoot and root As concentrations correlate better with total than with extractable soil As. Though, the PCA analysis performed for single species separately indicated that (in some cases) the close associations between extractable As in soils and As in plants did exist, and those parameters were governed by the same principal components. For instance, the analysis indicated the strong associations between shoot and root As concentrations in major plant species, including H. lanatus and C. epigejos (Figure S1), which was reflected by their close neighborhood in related PCA graphs. In the case of ferns Dryopteris spp., however, there was no such an association, which means that different factors governed As accumulation in their roots (rhizomes) and fronds.
Another kind of associations, revealed by the PCA graphs, was those among soil pH, “available” P, and (sometimes) a 1M NH4NO3-extractable soil As, which proved to be usually governed by the same principal components. It should be stressed again, however, that the concentrations of As in the shoots and roots of various plant species did not show any clear relationships with those soil parameters.

4. Conclusions

Our study showed that majority (over 66%) of plant samples collected from the sites affected by As mining and processing contained in their aboveground parts relatively high concentrations of As, above 4 mg/kg, an upper limit for safe animal fodder. Very high As concentrations in plant shoots were typical for extremely enriched soils, but they occurred also in the sites with total As below 1000 mg/kg. As concentrations in plant shoots proved to differ strongly among the species and within them. Despite the fact that they were correlated with total and extractable soil As, it would not be possible to simply predict As concentrations in plants based on soil parameters.
Equisetum spp. and C. epigejos indicated a particularly strong accumulation of As in their shoots, associated with the high values of TF. Very high shoot concentrations of As were also found in some samples of A. capillaris, in spite of the capability of this species to develop the mechanisms of tolerance that normally limit As root-to-shoot transfer.
The cases of particularly intensive uptake of As by plants require a closer examination with special focus on possible seasonal and weather-related variations in soil As extractability and the dynamics of As accumulation by plants. Another issue that should be further investigated, is a pH-dependence of mechanisms responsible for As accumulation in plant roots and limiting its translocation to the aboveground parts of plants. Apparently, such mechanisms did not develop in plants growing in acidic mine soils.

Supplementary Materials

The following are available online at https://www.mdpi.com/1660-4601/17/9/3342/s1, Table S1: Plant species examined; Table S2: Median As concentrations in shoots and roots and median values of transfer factor TF for plant species examined; Figure S1: The results of principal component analysis performed for all data and selected plant species separately.

Author Contributions

Conceptualization, A.D., A.K. and K.L.; methodology, A.D.; software, A.D. and A.K.; validation, A.K. and K.S.; formal analysis, A.D. and K.S.; investigation, A.D., K.S., K.L. and A.K.; resources, A.D.; data curation, A.D. and K.S.; writing—original draft preparation, A.D.; writing—review and editing, A.K., K.S. and K.L.; visualization, A.D. and K.S.; supervision, A.K.; project administration, A.K. and A.D.; funding acquisition, A.K., K.S. and A.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the SCIENCE CENTRE OF POLAND, grant number 2016/21/B/ST10/02221. The APC was co-financed by WROCLAW UNIVERSITY OF ENVIRONMENTAL AND LIFE SCIENCES under the Leading Research Groups support project from the subsidy increased for the period 2020–2025 in the amount of 2% of the subsidy referred to Art. 387 (3) of the Law of 20 July 2018 on Higher Education and Science, obtained in 2019.

Acknowledgments

We would like to express the special thanks to Sebastian Świerszcz for his assistance in plant sampling, as well as to Bernard Gałka for technical help in all the field and laboratory works.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hughes, M.F.; Beck, B.D.; Chen, Y.; Lewis, A.S.; Thomas, D.J. Arsenic exposure and toxicology: A historical perspective. Toxicol. Sci. 2011, 123, 305–332. [Google Scholar] [CrossRef] [Green Version]
  2. Jomova, K.; Jenisova, Z.; Feszterova, M.; Baros, S.; Liska, J.; Hudecova, D.; Rhodes, C.J.; Valko, M. Arsenic: Toxicity, oxidative stress and human disease. J. Appl. Toxicol. 2011, 31, 95–107. [Google Scholar] [CrossRef]
  3. Bhattacharjee, P.; Chatterjee, D.; Singh, K.K.; Giri, A.K. Systems biology approaches to evaluate arsenic toxicity and carcinogenicity: An overview. Int. J. Hyg. Envnviron. Health 2013, 216, 574–586. [Google Scholar] [CrossRef]
  4. Mandal, B.K.; Suzuki, K.T. Arsenic round the world: A review. Talanta 2002, 58, 201–235. [Google Scholar] [CrossRef]
  5. Buschmann, J.; Berg, M.; Stengel, C.; Winkel, L.; Sampson, M.L.; Trang, P.T.K.; Viet, P.H. Contamination of drinking water resources in the Mekong delta floodplains: Arsenic and other trace metals pose serious health risks to population. Environ. Int. 2008, 34, 756–764. [Google Scholar] [CrossRef] [PubMed]
  6. Huang, L.; Wu, H.; Van, d.K.T.J. The health effects of exposure to arsenic-contaminated drinking water: A review by global geographical distribution. Int. J. Environ. Health Res. 2015, 25, 432–452. [Google Scholar] [CrossRef] [PubMed]
  7. Marin, A.R.; Masscheleyn, P.H.; Patric, J.W.H. Soil redox-pH stability of arsenic species and its influence on arsenic uptake by rice. Plant Soil 1993, 152, 235–253. [Google Scholar] [CrossRef]
  8. Xu, X.Y.; McGrath, S.P.; Meharg, A.A.; Zhao, F.J. Growing rice aerobically markedly decreases arsenic accumulation. Environ. Sci. Tech. 2008, 42, 5574–5579. [Google Scholar] [CrossRef] [PubMed]
  9. Ma, R.; Shen, J.; Wu, J.; Tang, Z.; Shen, Q.; Zhao, F.J. Impact of agronomic practices on arsenic accumulation and speciation in rice grain. Environ. Pollut. 2014, 194, 217–223. [Google Scholar] [CrossRef] [PubMed]
  10. Islam, S.; Rahman, M.M.; Islam, M.R.; Naidu, R. Arsenic accumulation in rice: Consequences of rice genotypes and management practices to reduce human health risk. Environ. Int. 2016, 96, 139–155. [Google Scholar] [CrossRef]
  11. Carlin, D.J.; Naujokas, M.F.; Bradham, K.D.; Cowden, J.; Heacock, M.; Henry, H.F.; Lee, J.S.; Thomas, D.J.; Thompson, C.; Tokar, E.J.; et al. Arsenic and environmental health: State of the science and future research opportunities. Environ. Health Perspect. 2015, 124, 890–899. [Google Scholar] [CrossRef] [PubMed]
  12. Casado, M.; Anawar, H.M.; Garcia-Sanchez, A.; Santa Regina, I. Antimony and arsenic uptake by plants in an abandoned mining area. Comm. Soil Sci. Plant Anal. 2007, 38, 1255–1275. [Google Scholar] [CrossRef]
  13. Raab, A.; Williams, P.N.; Meharg, A.; Feldmann, J. Uptake and translocation of inorganic and methylated arsenic species by plants. Environ. Chem. 2007, 4, 197–203. [Google Scholar] [CrossRef] [Green Version]
  14. Zhao, F.J.; Ma, J.F.; Meharg, A.A.; McGrath, S.P. Arsenic uptake and metabolism in plants. New Phytol. 2009, 181, 777–794. [Google Scholar] [CrossRef] [PubMed]
  15. Wenzel, W.W. Arsenic. In Heavy Metals in Soils. Trace Metals and Metalloids in Soils and Their Bioavailability, 3rd ed.; Alloway, B.J., Ed.; Springer: Berlin, Germany, 2013; pp. 241–282. [Google Scholar]
  16. Kabata-Pendias, A. Trace Elements in Soils and Plants, 4th ed.; CRC Press: Boca Raton, FL, USA, 2011. [Google Scholar]
  17. Álvarez-Ayuso, E.; Otones, V.; Murciego, A.; García-Sánchez, A.; Santa Regina, I. Antimony, arsenic and lead distribution in soils and plants of an agricultural area impacted by former mining activities. Sci. Total Environ. 2012, 439, 35–43. [Google Scholar] [CrossRef] [PubMed]
  18. EU Directive 2002/32/EC of May, 7th, 2002 of the European Parliament and of the Council on Undesirable Substances in Animal Feed. Available online: https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=CELEX%3A32002L0032 (accessed on 7 May 2002).
  19. Adamse, P.; Van, d.F.-K.H.J.; De Jong, J. Cadmium, lead, mercury and arsenic in animal feed and feed materials–trend analysis of monitoring results. Food Addit. Contam. Part A Chem. Anal. Control Expo. Risk Assess. 2017, 34, 1298–1311. [Google Scholar] [CrossRef]
  20. Ernst, W.H.O. Mine vegetation in Europe. In Heavy Metal Tolerance in Plants: Evolutionary Aspects; Shaw, A.J., Ed.; CRC Press: Boca Raton, FL, USA, 1990; pp. 21–38. [Google Scholar]
  21. Meharg, A.; Macnair, M.R. The mechanisms of arsenate tolerance in Deschampsia cespitosa (L.) Beauv. and Agrostis capillaris L. Adaptation of the arsenate uptake system. New Phytol. 1991, 119, 291–297. [Google Scholar] [CrossRef]
  22. Macnair, M. The genetics of metal tolerance in vascular plants. New Phytol. 1993, 124, 541–559. [Google Scholar] [CrossRef]
  23. Meharg, A.A.; Hartley-Whitaker, J. Arsenic uptake and metabolism in arsenic resistant and nonresistant plant species. New Phytol. 2002, 154, 29–43. [Google Scholar] [CrossRef] [Green Version]
  24. Verbruggen, N.; Hermans, C.; Schat, H. Mechanisms to cope with arsenic or cadmium excess in plants. Curr. Opin. Plant Biol. 2009, 12, 364–372. [Google Scholar] [CrossRef]
  25. Gupta, D.K.; Corpas, F.J.; Palma, J.M. Heavy Metal Stress in Plants; Springer: Berlin, Germany, 2013; p. 240. [Google Scholar]
  26. Smith, S.E.; Christophersen, H.M.; Pope, S.; Smith, F.A. Arsenic uptake and toxicity in plants: Integrating mycorrhizal influences. Plant Soil 2010, 327, 1–21. [Google Scholar] [CrossRef]
  27. Vázquez, d.A.B.R.; Gundel, P.E.; Garcia, C.B.; García, C.A.; García, S.A.; Zabalgogeazcoa, I. Germination response of endophytic Festuca rubra seeds in the presence of arsenic. Grass For. Sci. 2014, 69, 462–469. [Google Scholar] [CrossRef]
  28. Prasad, M.N.V. Heavy Metal Stress in Plants: From Biomolecules to Ecosystems; Springer Science and Business Media: Berlin/Heidelberg, Germany, 2013. [Google Scholar]
  29. Ma, L.Q.; Komar, K.M.; Tu, C.; Zhang, W.; Cai, Y.; Kennelley, E.D. A fern that hyperaccumulates arsenic. Nature 2001, 409, 579. [Google Scholar] [CrossRef] [PubMed]
  30. Souri, Z.; Karimi, N.; Sandalio, L.M. Arsenic hyperaccumulation strategies: An overview. Front. Cell Develop. Biol. 2017, 5, 67. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Porter, E.K.; Peterson, P.J. Arsenic accumulation by plants on mine waste (United Kingdom). Sci. Total Environ. 1975, 4, 365–371. [Google Scholar] [CrossRef]
  32. Bech, J.; Poschenrieder, C.; Llugany, M.; Barcelo, J.; Tume, P.; Tobias, F.; Barranzuela, J.; Vasquez, E. Arsenic and heavy metal contamination of soil and vegetation around a copper mine in Northern Peru. Sci. Total Environ. 1997, 203, 83–91. [Google Scholar] [CrossRef]
  33. Wong, H.; Gauthier, A.; Nriagu, J. Dispersion and toxicity of metals from abandoned gold mine tailings at Goldenville, Nova Scotia, Canada. Sci. Total Environ. 1999, 228, 35–47. [Google Scholar] [CrossRef]
  34. Fitz, W.; Wenzel, W.W. Arsenic transformations in the soil–rhizosphere–plant system: Fundamentals and potential application to phytoremediation. J. Biotech. 2002, 99, 259–278. [Google Scholar] [CrossRef]
  35. Robinson, B.; Kim, N.; Marchetti, M.; Moni, C.; Schroeter, L.; Van den Dijssel, C.; Milne, G.; Clothier, B. Arsenic hyperaccumulation by aquatic macrophytes in the Taupo Volcanic Zone, New Zealand. Environ. Exp. Bot. 2006, 58, 206–215. [Google Scholar] [CrossRef]
  36. Craw, D.; Rufaut, C.; Haffert, L.; Paterson, L. Plant colonization and arsenic uptake on high arsenic mine wastes, New Zealand. Water Air Soil Pollut. 2007, 179, 351–364. [Google Scholar] [CrossRef]
  37. Bergqvist, C.; Greger, M. Arsenic accumulation and speciation in plants from different habitats. Appl. Geochem. 2012, 27, 615–622. [Google Scholar] [CrossRef] [Green Version]
  38. Martínez-Sánchez, M.J.; García-Lorenzo, M.L.; Pérez-Sirvent, C.; Bech, J. Trace element accumulation in plants from an aridic area affected by mining activities. J. Geochem. Explor. 2012, 123, 8–12. [Google Scholar] [CrossRef] [Green Version]
  39. Simmler, M.; Suess, E.; Christl, I.; Kotsev, T.; Kretzschmar, R. Soil-to-plant transfer of arsenic and phosphorus along a contamination gradient in the mining-impacted Ogosta River floodplain. Sci. Total Environ. 2016, 572, 742–754. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Karczewska, A.; Bogda, A.; Krysiak, A. Arsenic in soils in the areas of former arsenic mining and processing in Lower Silesia, SW Poland. In Arsenic in Soil and Groundwater Environments; Bhattacharya, P., Mukherjee, A.B., Loeppert, R.H., Eds.; Elsevier: Amsterdam, The Netherlands, 2007; Volume 9, pp. 411–440. [Google Scholar]
  41. Karczewska, A.; Krysiak, A.; Mokrzycka, D.; Jezierski, P.; Szopka, K. Arsenic distribution in soils of former As mining area and processing. Pol. J. Environ. Stud. 2013, 22, 175–181. [Google Scholar]
  42. Krysiak, A.; Karczewska, A. Arsenic extractability in soils in the areas of former arsenic mining and smelting, SW Poland. Sci. Total Environ. 2007, 379, 190–200. [Google Scholar] [CrossRef] [PubMed]
  43. Lewińska, K.; Karczewska, A.; Siepak, M.; Szopka, K.; Gałka, B.; Iqbal, M. Effects of waterlogging on the solubility of antimony and arsenic in variously treated shooting range soils. Appl. Geochem. 2019, 105, 7–16. [Google Scholar] [CrossRef]
  44. Wojciechowski, A.; Wierchowiec, J. Auriferous wastes from the abandoned arsenic and gold mine in Złoty Stok (Sudetes Mts., SW Poland). Geol. Q. 2009, 53, 233–240. [Google Scholar]
  45. Karczewska, A.; Kabała, C. Environmental risk assessment as a new basis for evaluation of soil contamination in Polish law. Soil. Sci. Ann. 2017, 68, 67–80. [Google Scholar] [CrossRef] [Green Version]
  46. Regulation of the Minister for the Environment of 1 September 2016, on the method how to carry out the assessment of soil contamination. Available online: http://isap.sejm.gov.pl/isap.nsf/download.xsp/WDU20160001395/O/D20161395.pdf (accessed on 11 May 2020).
  47. Antoniadis, V.; Levizou, E.; Shaheen, S.M.; Ok, Y.S.; Sebastian, A.; Baum, C.; Prasad, M.N.V.; Wenzel, W.W.; Rinklebe, J. Trace elements in the soil-plant interface: Phytoavailability, translocation, and phytoremediation–A review. Earth-Sci. Rev. 2017, 171, 621–645. [Google Scholar] [CrossRef]
  48. Buscaroli, A. An overview of indexes to evaluate terrestrial plants for phytoremediation purposes. Ecol. Indic. 2017, 82, 367–380. [Google Scholar] [CrossRef]
  49. Stoltz, E.; Greger, M. Accumulation properties of As, Cd, Cu, Pb and Zn by four wetland plant species growing on submerged mine tailings. Environ. Exp. Bot. 2002, 47, 271–280. [Google Scholar] [CrossRef]
  50. Vithanage, M.; Dabrowska, B.B.; Mukherjee, A.B.; Sandhi, A.; Bhattacharya, P. Arsenic uptake by plants and possible phytoremediation applications: A brief overview. Environ. Chem. Lett. 2012, 10, 217–224. [Google Scholar] [CrossRef]
  51. Karczewska, A.; Gałka, B.; Dradrach, A.; Lewińska, K.; Mołczan, M.; Cuske, M.; Gersztyn, L.; Litak, K. Solubility of arsenic and its uptake by ryegrass from polluted soils amended with organic matter. J. Geochem. Explor. 2017, 182, 193–200. [Google Scholar] [CrossRef]
  52. Dradrach, A.; Szopka, K.; Karczewska, A. Ecotoxicity of soil pore water on historical arsenic mine dumps -the effects of forest litter. Ecotox. Environ. Saf. 2019, 181, 202–213. [Google Scholar] [CrossRef]
  53. Karczewska, A.; Lewińska, K.; Siepak, M.; Gałka, B. Lanthanides in Soils of Historical Mining Sites in Poland. Pol. J. Environ. Stud. 2019, 28, 1517–1522. [Google Scholar] [CrossRef]
  54. Garbacz-Klempka, A.; Wardas-Lasoń, M.; Rzadkosz, S. Metallurgical waste from the Złoty Stok region. Arch. Foundry Eng. 2014, 14, 23–28. [Google Scholar]
  55. Mikulski, S.Z. Geological, mineralogical and geochemical characteristics of the Radzimowice Au–As–Cu deposit from the Kaczawa Mountains (Western Sudetes, Poland): An example of the transition of porphyry and epithermal style. Mineral. Dep. 2005, 39, 904–920. [Google Scholar] [CrossRef]
  56. Marszalek, H.; Rysiukiewicz, M.; Wasik, M.; Costa, M.R. Hydrogeochemistry of groundwater from abandoned Radzimowice mine (Sudetes, SW Poland). In Proceedings of the International Multidisciplinary Scientific GeoConference (SGEM); Surveying Geology & Mining Ecology Management: Albena Resort, Bulgaria, 2012; Volume 2, p. 135. [Google Scholar]
  57. Mochnacka, K.; Oberc-Dziedzic, T.; Mayer, W.; Pieczka, A.; Góralski, M. New insights into the mineralization of the Czarnów ore deposit (West Sudetes, Poland). Geol. Sudet. 2009, 41, 43–56. [Google Scholar]
  58. Madziarz, M. Recognition formerly exploited polimetalic ore deposits as results of prospecting and mining works after II world war in Sudety Mts. Min. Sci. 2009, 128, 141. [Google Scholar]
  59. Papuga, K.; Kaszubkiewicz, J.; Wilczewski, W.; Staś, M.; Belowski, J.; Kawałko, D. Soil grain size analysis by the dynamometer method-a comparison to the pipette and hydrometer method. Soil Sci. Ann. 2018, 69, 17–27. [Google Scholar] [CrossRef]
  60. Egnér, H.; Riehm, H.; Domingo, W.R. Investigations on chemical soil analysis as a basis for the assessment of soil nutrient status. II. Chemical extraction methods for determining phosphorus and potassium. K. Lantbr. Ann. 1960, 26, 199–215. [Google Scholar]
  61. Kabala, C.; Galka, B.; Labaz, B.; Anjos, L.; De Souza, C.R. Towards more simple and coherent chemical criteria in a classification of anthropogenic soils: A comparison of phosphorus tests for diagnostic horizons and properties. Geoderma 2018, 320, 1–11. [Google Scholar] [CrossRef]
  62. Bolan, N.S.; Mahimairaja, S.; Kunhikrishnan, A.; Choppala, G. Phosphorus–arsenic interactions in variable-charge soils in relation to arsenic mobility and bioavailability. Sci. Total Environ. 2013, 463, 1154–1162. [Google Scholar] [CrossRef]
  63. Lewińska, K.; Karczewska, A. Influence of soil properties and phosphate addition on arsenic uptake from polluted soils by velvetgrass (Holcus lanatus). Int. J. Phytorem. 2013, 15, 91–104. [Google Scholar] [CrossRef]
  64. Anawar, H.M.; Rengel, Z.; Damon, P.; Tibbett, M. Arsenic-phosphorus interactions in the soil-plant-microbe system: Dynamics of uptake, suppression and toxicity to plants. Environ. Pollut. 2018, 233, 1003–1012. [Google Scholar] [CrossRef]
  65. Ji, Y.; Luo, W.; Lu, G.; Fan, C.; Tao, X.; Ye, H.; Xie, Y.; Shi, Z.; Yi, X.; Dang, Z. Effect of phosphate on amorphous iron mineral generation and arsenic behavior in paddy soils. Sci. Total Environ. 2019, 657, 644–656. [Google Scholar] [CrossRef]
  66. Suda, A.; Makino, T. Functional effects of manganese and iron oxides on the dynamics of trace elements in soils with a special focus on arsenic and cadmium: A review. Geoderma 2016, 270, 68–75. [Google Scholar] [CrossRef]
  67. Li, X.; Thornton, I. Arsenic, antimony and bismuth in soil and pasture herbage in some old metalliferous mining areas in England. Environ. Geochem. Health 1993, 15, 135–144. [Google Scholar] [CrossRef]
  68. Tremlová, J.; Vašíčková, I.; Száková, J.; Goessler, W.; Steiner, O.; Najmanová, J.; Horáková, T.; Tlustoš, P. Arsenic compounds occurring in ruderal plant communities growing in arsenic contaminated soils. Environ. Exp. Bot. 2016, 123, 108–115. [Google Scholar] [CrossRef]
  69. Abad-Valle, P.; Álvarez-Ayuso, E.; Murciego, A.; Muñoz-Centeno, L.M.; Alonso-Rojo, P.; Villar-Alonso, P. Arsenic distribution in a pasture area impacted by past mining activities. Ecotox. Environ. Saf. 2018, 147, 228–237. [Google Scholar] [CrossRef]
  70. Kicińska, A. Arsenic, Cadmium, and Thallium Content in the Plants Growing in Close Proximity to a Zinc Works–Long-Term Observations. J. Ecol. Eng. 2019, 20, 61–69. [Google Scholar] [CrossRef]
  71. Brooks, R.R.; Holzbecher, J.; Ryan, D.E. Horsetails (Equisetum) as indirect indicators of gold mineralization. J. Geochem. Explor. 1981, 16, 21–26. [Google Scholar] [CrossRef]
  72. Porter, E.; Peterson, P.J. Arsenic tolerance in grasses growing on mine waste. Environ. Pollut. 1977, 14, 255–265. [Google Scholar] [CrossRef]
  73. Moreno-Jiménez, E.; Manzano, R.; Esteban, E.; Peñalosa, J. The fate of arsenic in soils adjacent to an old mine site (Bustarviejo, Spain): Mobility and transfer to native flora. J. Soils Sed. 2010, 10, 301–312. [Google Scholar] [CrossRef] [Green Version]
  74. Wanat, N.; Joussein, E.; Soubrand, M.; Lenain, J.F. Arsenic (As), antimony (Sb), and lead (Pb) availability from Au-mine Technosols: A case study of transfer to natural vegetation cover in temperate climates. Environ. Geochem. Health. 2014, 36, 783–795. [Google Scholar] [CrossRef]
  75. Dradrach, A.; Karczewska, A.; Szopka, K. Arsenic accumulation by red fescue (Festuca rubra) growing in mine affected soils—Findings from the field and greenhouse studies. Chemosphere 2020, 248, 126045. [Google Scholar] [CrossRef]
Ijerph 17 03342 g001 550

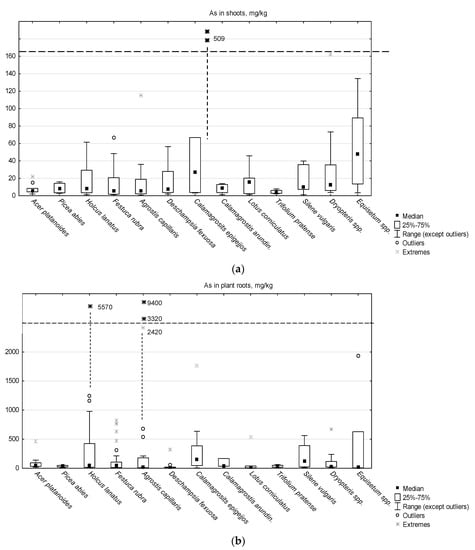

Figure 1. Arsenic concentrations in shoots (a) and roots (b) of plant species examined.
Figure 1. Arsenic concentrations in shoots (a) and roots (b) of plant species examined.
Ijerph 17 03342 g001
Ijerph 17 03342 g002 550

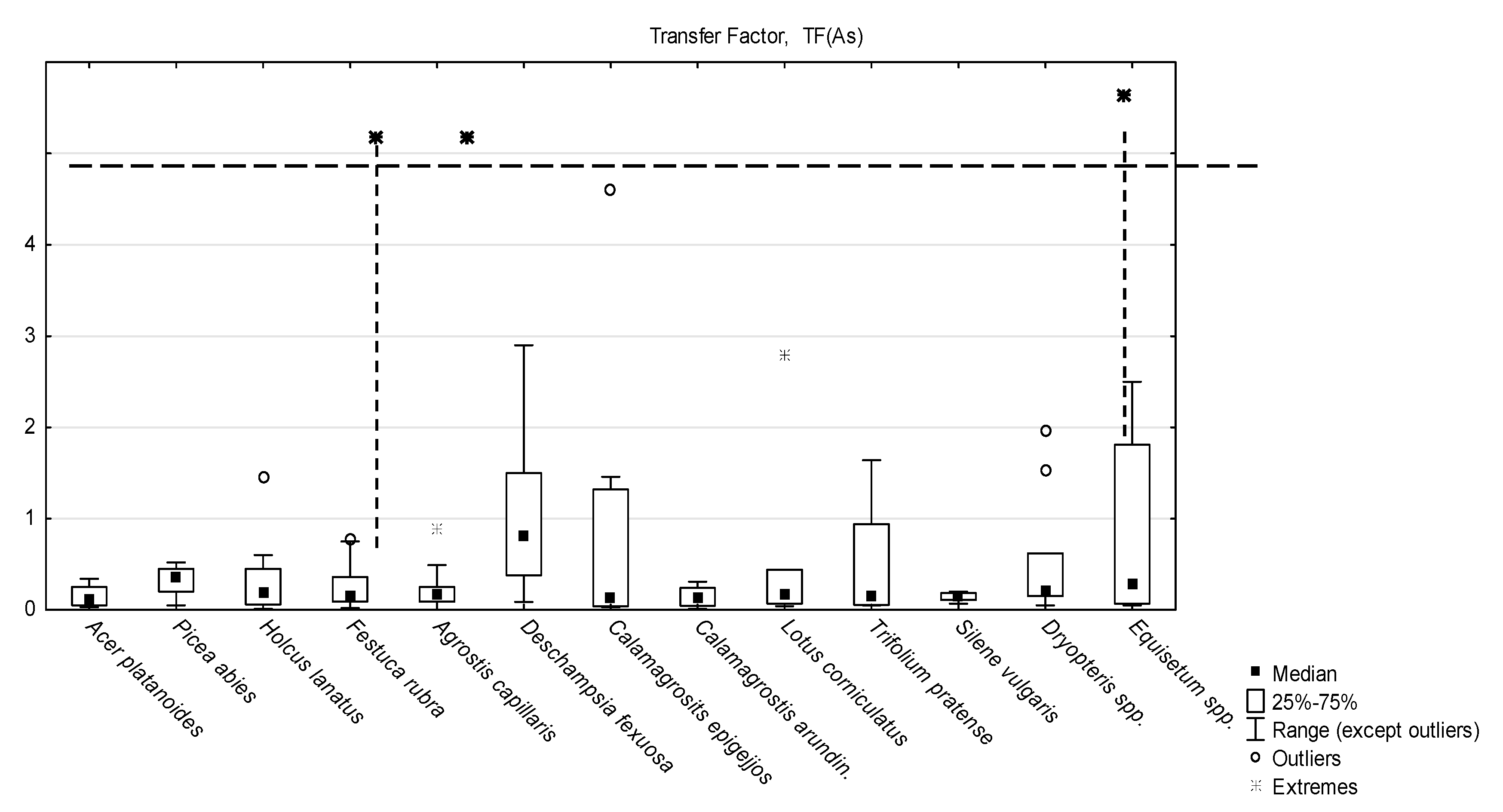

Figure 2. The values of arsenic roots to shoots transfer factor (TF).
Figure 2. The values of arsenic roots to shoots transfer factor (TF).
Ijerph 17 03342 g002
Ijerph 17 03342 g003 550

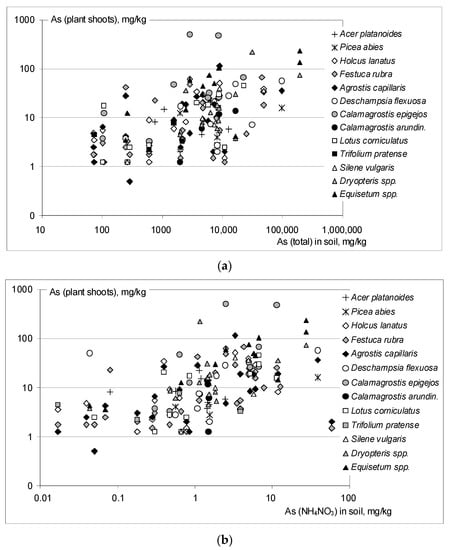

Figure 3. Arsenic concentrations in the aboveground parts of plants, as related to soil As. Graph (a) illustrates the relationships between As in the aboveground parts of plants and total soil As, and graph (b) relates the concentrations of As in the aboveground parts to 1M NH4NO3-extractable As in soils.
Figure 3. Arsenic concentrations in the aboveground parts of plants, as related to soil As. Graph (a) illustrates the relationships between As in the aboveground parts of plants and total soil As, and graph (b) relates the concentrations of As in the aboveground parts to 1M NH4NO3-extractable As in soils.
Ijerph 17 03342 g003
Ijerph 17 03342 g004 550

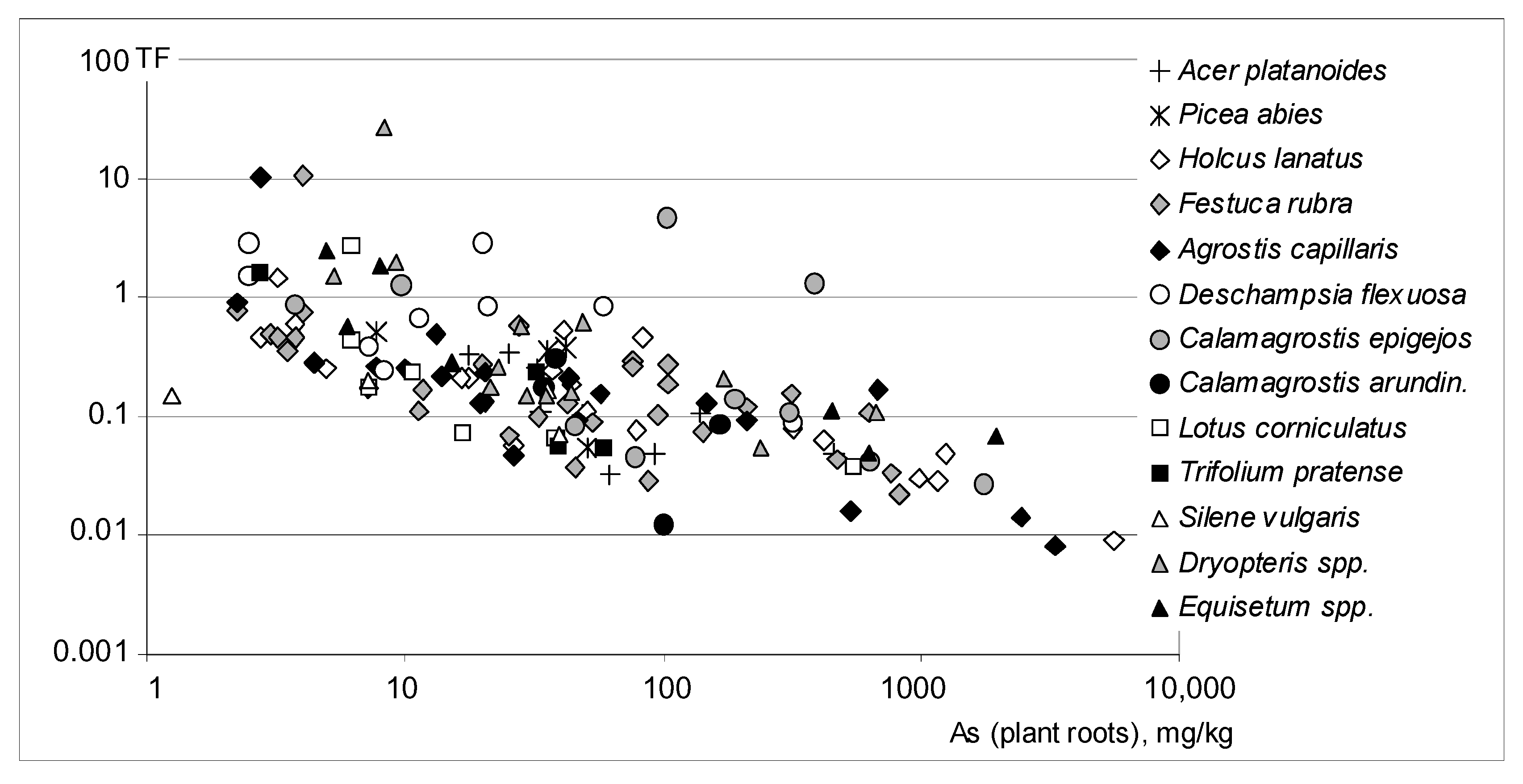

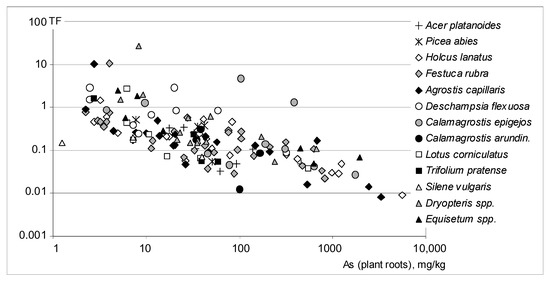

Figure 4. Roots to shoots transfer factor of arsenic (TF) as related to root As concentrations. Calculated correlation coefficient: R = −0.693, significant at p < 0.001.
Figure 4. Roots to shoots transfer factor of arsenic (TF) as related to root As concentrations. Calculated correlation coefficient: R = −0.693, significant at p < 0.001.
Ijerph 17 03342 g004
Table
Table 1. Description of experimental areas and basic soil properties.
Table 1. Description of experimental areas and basic soil properties.
Mining
Center		Area NoDescription of Area, SettingsSoil Properties (Fine Soil) *
pHAs, mg/kg
TotalHNO3-Extract.NH4NO3-Extract.
Złoty Stok
(German: Reichenstein)		1The Orchid Dump. A 2.4 ha large dump built of mine waste, covered ca. 50 years ago with a layer of humus-rich soil. It owes its name to a large population of Orchis mascula L. growing there [52,53]3.14–5.81751–48,90042–10,5000.08–4.88
2Hay meadows (ca. 6.0 ha) in a floodplain of the Trująca river, flooded periodically in the past by stormwater mixed with tailings [41]3.53–6.66102–607074–36500.30–6.04
3Foreland of tailings impoundment, a ca. 2 m-elevated plain area (1.6 ha) built of tailings [42]; dry, unmaintained grassland7.22–7.607950–22,7004710–98606.65–12.7
4Deep valley in a forested area, with spread dumps of mine wastes and heaps of slag disposed in medieval times by local smelting works [54]3.43–4.891950–16,700830–50901.45–1.52
Radzimowice
(German: Altenberg)		5Dumps of gangue rocks disposed at the Arnold shaft–A part of the Wilhelm mine that operated until 1925. Polymetallic veins of hydrothermal origin were exploited to acquire metals, mainly Fe, Cu, Pb and As [40]2.90–7.261550–14,300690–33200.20–1.56
6Forested area affected by acid mine and rock drainage (AMD and ARD) form Arnold shaft (Wilhelm mine) [55,56]2.91–4.552480–193,000650–18,9000.04–27.5
7Hay meadows in the surroundings of two shafts of the Wilhelm mine. Soils contain admixtures of mine waste rocks. Additionally, they were polluted by the emissions from a local smelter that operated until 1925 [40]3.60–4.3973–6035–780.02–0.67
Czarnow (German: Rothenzechau)8Dumps disposed by the Evelinensgluck mine that operated until 1925, and their close surroundings, partly forested, partly used as meadows and pastures [52,57,58]2.88–7.4372–98,5004–65700.05–38.7
* All data are the mean values of three replicates, as explained in Section 2.2.
Table
Table 2. Correlations coefficients between soil properties, total As and extractable As in soils, n = 146. The sets of data lacking a normal distribution were normalized by log-transformation.
Table 2. Correlations coefficients between soil properties, total As and extractable As in soils, n = 146. The sets of data lacking a normal distribution were normalized by log-transformation.
As ParameterSoil Parameters
Total As, mg/kgpH“Bioavailable” P
0.43M HNO3-extractable As, mg/kg0.835 ***0.316 ***0.811 ***
1M NH4NO3-extractable As, mg/kg0.726 ***0.449 ***0.786 ***
1M NH4NO3-extractable As, % of total−0.445 ***0.275 **−0.057
Correlations significant at p < 0.01, and < 0.001 are indicated with asterisks (**, and ***, respectively)
Table
Table 3. Correlations between soil properties and parameters that characterize As uptake by plants (n = 132). The sets of data lacking a normal distribution were normalized by log-transformation.
Table 3. Correlations between soil properties and parameters that characterize As uptake by plants (n = 132). The sets of data lacking a normal distribution were normalized by log-transformation.
Parameter of As Uptake by PlantsSoil Parameters
Total As, mg/kg0.43M HNO3-Extractable As, mg/kg1M NH4NO3-Extractable As, mg/kgpH“Bio-Available” P, mg/kg1M NH4NO3-Extractable As, % of Total
As in shoots, mg/kg0.640 ***0.584 ***0.599 ***0.430 ***0.404 ***−0.187 *
As in roots, mg/kg0.645 ***0.576 ***0.503 ***0.427 ***0.485 ***−0.227 **
TF−0.274 **−0.207 *−0.122−0.116−0.167 *0.223 **
BAF–shoots−0.674 ***−0.549 ***−0.379 **−0.133−0.338 **0.368 ***
BAF–roots−0.361 ***−0.287 **−0.223 **−0.046−0.188 *0.193
BCF–shoots−0.277 **−0.481 **−0.641 ***−0.282 **−0.473 ***−0.471 ***
BCF–roots−0.016−0.202 **−0.531 ***−0.101−0.234 **−0.531 ***
Correlations significant at p < 0.05, 0.01, and 0.001 are indicated with asterisks (*, **, and ***, respectively).
Table
Table 4. Arsenic BAF and BCF values calculated for shoots and roots of particular plant species. BCF related to 1M NH4NO3-extractable As in soils.
Table 4. Arsenic BAF and BCF values calculated for shoots and roots of particular plant species. BCF related to 1M NH4NO3-extractable As in soils.
SpeciesShoot BAFShoot BCFRoot BAFRoot BCF
RangeMedianRangeMedianRangeMedianRangeMedian
Acer platanoides<0.001–0.0140.0011.3–1033.40.001–0.1310.0207.2–41045
Picea abies<0.001–0.006<0.0010.4–8.34.5<0.002–0.0180.0041.1–32.819
Holcus lanatus<0.001–0.0660.0050.7–2067.90.002–0.6240.0513.7–291078
Festuca rubra<0.001–0.1740.003<0.1–2844.9<0.001–0.3550.01815.4–217106
Agrostis capillaris<0.001–0.1160.005<0.1–746.4<0.001–0.8850.054<0.1–829049
Deschampsia flexuosa<0.001–0.0150.0011.3–11206.3<0.001–0.0250.0020.5–135010
Calamagrostis epigejos0.002–0.1790.0050.9–20410.00.006–1.130.0627.9–279049
Calamagrostis arundin.0.001–0.0010.0010.8–9.75.90.004–0.0520.00922.7–11446
Lotus corniculatus<0.001–0.1640.0051.4–514.50.001–0.1640.0597.3–136014
Trifolium pretense0.001–0.0620.0040.8–26512.40.021–0.0650.03315.4–217107
Silene vulgaris0.001–0.0050.0021.3–125.40.004–0.0630.0186.3–17029
Dryopteris spp.<0.001–0.1050.0022.7–121010.8<0.001–0.0690.0032.9–28322
Equisetum spp.<0.001–0.0470.0081.2–96.615.30.001–0.1350.0190.7–34779
Particularly high median values are highlighted in bold.

Share and Cite

MDPI and ACS Style

Dradrach, A.; Karczewska, A.; Szopka, K.; Lewińska, K. Accumulation of Arsenic by Plants Growing in the Sites Strongly Contaminated by Historical Mining in the Sudetes Region of Poland. Int. J. Environ. Res. Public Health 2020, 17, 3342. https://doi.org/10.3390/ijerph17093342

AMA Style

Dradrach A, Karczewska A, Szopka K, Lewińska K. Accumulation of Arsenic by Plants Growing in the Sites Strongly Contaminated by Historical Mining in the Sudetes Region of Poland. International Journal of Environmental Research and Public Health. 2020; 17(9):3342. https://doi.org/10.3390/ijerph17093342

Chicago/Turabian Style

Dradrach, Agnieszka, Anna Karczewska, Katarzyna Szopka, and Karolina Lewińska. 2020. "Accumulation of Arsenic by Plants Growing in the Sites Strongly Contaminated by Historical Mining in the Sudetes Region of Poland" International Journal of Environmental Research and Public Health 17, no. 9: 3342. https://doi.org/10.3390/ijerph17093342

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
