Article

Comorbidity Patterns of Older Lung Cancer Patients in Northeast China: An Association Rules Analysis Based on Electronic Medical Records

Department of Medical Informatics, School of Public Health, Jilin University, 13002100 Changchun, China
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2020, 17(23), 9119; https://doi.org/10.3390/ijerph17239119
Submission received: 29 October 2020 / Revised: 4 December 2020 / Accepted: 4 December 2020 / Published: 6 December 2020
(This article belongs to the Section Public Health Statistics and Risk Assessment)

Abstract

:
Purposes: This study aims to identify the comorbidity patterns of older men with lung cancer in China. Methods: We analyzed the electronic medical records (EMRs) of lung cancer patients over age 65 in the Jilin Province of China. The data studied were obtained from 20 hospitals of Jilin Province in 2018. In total, 1510 patients were identified. We conducted a rank–frequency analysis and social network analysis to identify the predominant comorbidities and comorbidity networks. We applied the association rules to mine the comorbidity combination with the values of confidence and lift. A heatmap was utilized to visualize the rules. Results: Our analyses discovered that (1) there were 31 additional medical conditions in older patients with lung cancer. The most frequent comorbidities were pneumonia, cerebral infarction, and hypertension. (2) The network-based analysis revealed seven subnetworks. (3) The association rules analysis provided 41 interesting rules. The results revealed that hypertension, ischemic cardiomyopathy, and pneumonia are the most frequent comorbid combinations. Heart failure may not have a strong implicating role in these comorbidity patterns. Cerebral infarction was rarely combined with other diseases. In addition, glycoprotein metabolism disorder comorbid with hyponatremia or hypokalemia increased the risk of anemia by more than eight times in older lung cancer patients. Conclusions: This study provides evidence on the comorbidity patterns of older men with lung cancer in China. Understanding the comorbidity patterns of older patients with lung cancer can assist clinicians in their diagnoses and contribute to developing healthcare policies, as well as allocating resources.

1. Introduction

Over half of the cancer patients aged 65 or older have at least one chronic condition, and almost one-quarter have at least four [1], generally referred to as comorbidities, which have become an issue of growing importance due to the increasing number of older cancer patients [2,3]. As age increases, the comorbidity issues for older lung cancer patients become more prominent compared to those of younger patients. Age is a key negative prognostic factor, like tumor stage and the state of a patient’s health [4]. It has been widely observed that the comorbidities of cancer patients influence both prognosis and treatment plans [5]. While general knowledge has been established about the complexity created by the issue of comorbidities among older patients, very few studies have been published focusing on the disease distribution and comorbidity patterns [6].
The majority of the published studies on comorbidities seek to determine, based on large-scale health information databases and/or epidemiological studies, the prevalence [7,8,9], the relative factors [8,9,10,11,12], and the common patterns and clusters of comorbidities, as well as the relevant healthcare [10,13,14,15], which can provide insights into disease pathogenesis. In addition, some research focuses on the impact of comorbidities on the clinical outcomes of different diseases [16,17,18,19,20]. In terms of the comorbidity studies of older adults with lung cancer, published studies have predominantly focused on the prevalence of two co-occurring morbidities, and no comprehensive comorbid patterns have been reported to the best of our knowledge.
The rapidly growing electronic medical records and epidemiological data have made it possible to conduct comprehensive comorbidity analyses. Lung cancer is the most common cancer and the leading cause of cancer-related deaths in China, especially in Northeast China [21]. In this paper, we present a study on identifying the comorbidity pattens of older lung cancer patients in Northeast China. Numerous analytical methods have been utilized to study the comorbidity issue, such as prevalence statistics [22,23], the proportion of comorbidity pairs in the population [24,25], a correlation analysis [26,27], and a clustering analysis [28,29]. In recent years, machine learning methodology has been applied to comorbidity analyses, e.g., to predict comorbidities and clinical outcomes [30,31]. Association rule mining (ARM) can discover the relationships in large databases, as proposed by Agrawal et al. [32]. ARM is well-researched and commonly used in pattern mining, such as for determining clinical decisions [33], disease factors [34], and drug utilization [35]. The support and confidence, which are measures of the rules, are used to assess the relationships among comorbidities [36,37,38].
We adopted the rank–frequency analysis method to identify the main morbidities and conducted association rule- and network-based analyses to model the comorbidities.

2. Materials and Methods

2.1. Study Population and Data Collection

The data studied are the electronic medical records (EMRs) of Jilin Province, China in 2018. Jilin Province is located in the northeast of China. Due to the area’s weather and environmental pollution, the northeast area has the highest lung cancer incidence rate [39] in China. The clinical records of enrollees were taken from the tertiary grade A hospitals [40] in Jilin Province. The International Classification of Diseases 10th revision (ICD-10) is used in the public hospital diagnosis system of Jilin Province. All categories of comorbidities in this study followed the original categories of the ICD-10 system. All data used here were obtained from patients with lung cancer who were at least 65 years old. We removed patients with missing information on their gender, hospital, or case number and set the case number combined with gender and age as the primary key. Ethical approval to conduct this study was obtained from the Ethics Committee of the School of Public Health, Jilin University (grant number: ethical review 2020-02-01).

2.2. Statistical Models and Discovery of Association Rules

2.2.1. Rank—frequency Analysis

Here, we focused on the predominant comorbidities among older lung cancer patients. The Pareto principle, or the 80–20 rule, was applied here, which suggests that 80% of the impact comes from 20% of the potential causes [41]. This study hypothesized that the distribution of comorbidity is consistent with this general principle. To identify the major morbidities, this study applied a rank–frequency analysis, which is the distribution of size by rank in decreasing order of size. A rank–frequency distribution can generally be segmented into ranges, each having similar values. The most common distribution splits the distribution into two as the head and tail. We considered the head to consist of the first p-ranks; hence, 80% of the overall population can be explained by the first 20% of the heads based on the Pareto principle. We plotted the contributing morbidities in their rank order as the absolute amounts, along with a line representing their cumulative percentage contributions to the overall population. When the line is located at 80% of the cumulative contribution, the predominant comorbidity can be identified.

2.2.2. Discovery of Association Rules

Association rules are used to detect the comorbidity patterns in our study. In a clinical record database of participants, the collection of whole diagnoses and their possible combination sets are denoted as a transaction (T). The ARM method is used to extract an association rule from the T. A rule “X ⇒ Y” is derived for disease X and disease Y if X occurs in a patient and Y cooccurs in the same person [31], with X being the left-hand side (LHS) and Y being the right-hand side (RHS) of the rule.
Each association rule has three associated values: support, confidence, and lift.
  • Support measures the co-occurrence frequency of X and Y in the patient dataset, i.e., the number of patients having both X and Y divided by the total number of patients, denoted as P(X, Y).
  • Confidence measures the reliability of a rule—namely, the probability of seeing Y among patients with X, denoted as P(Y|X).
  • Lift measures the significance of the support P(X, Y) of a rule by calculating the ratio between the observed co-occurrence frequency P(X, Y) and the expected co-occurrence frequency P ( X ) × P ( Y ) when X and Y are independent—namely, P ( X , Y ) P ( X ) P ( Y ) . If the ratio is close to 1, then little information is provided by this rule. If the ratio is greater than 1, then X and Y are positively correlated; otherwise, they are negatively correlated. Overall, this method is often used to measure the interest of a rule [42].
In this study, we set the thresholds for the three parameters as follows: confidence > 0.5, lift > 2, and support > 0.01. In addition, RStudio version 3.5.1 (Lucent Technologies, Murray Hill, NJ, USA) was used to conduct and visualize the AMR analyses.

3. Results

3.1. Patient Statistics

Overall, 1510 patients were included in this study. Table 1 lists the patient statistics. The average age was 71 years, and 60.2% were male. Overall, 22.5% of the patients had no comorbidities, 15.2% had only one comorbidity, and 62.3% had two or more comorbidities.
A summary of the comorbidity data across all patients is shown in Figure 1. As shown in Figure 1a, more patients had two comorbidities than one, and, as shown in Figure 1b, comorbidities were found in both males and females.
Figure 2 summarizes the number of cases for each disease observed among the patients under study and the cumulative proportion of all the participants. The most frequently observed 31 morbidities cover 80.3% of the participants, and the most frequent comorbidity is pneumonia, with cerebral infarction, hypertension, and pleural conditions being the next three most frequent comorbidities.
Table 2 shows the number of patients with lung cancer affected by a single comorbidity, as well as the respective proportions of single and multiple comorbidities. Among the most frequent comorbidities, the proportions of multiple comorbidities were found in up to 90%. Patients were likely to have other comorbidities with the following eight diseases: heart failure, chronic ischemic heart disease, hypokalemia, fatty liver, angina pectoris, disorders of calcium metabolism, and calculus of the kidney. This result may be part of the reason why more patients had two comorbidities than one.
Figure 3 shows the average number of patients with the top 10 morbidities. For patients with heart failure, their number of comorbidities range from four to seven, which is higher than the average number.

3.2. Network-Based Analysis

We used a network representation of the comorbidities to provide a global and intuitive view of the co-occurrences among different comorbidities, as illustrated in Figure 4, showing a network of 31 comorbidities in our patient set. This figure shows the predominance of pneumonia, cerebral infarction, and hypertension among all the comorbidities. Notably, pleural conditions and heart failure were comorbid with many diseases when there were no significant differences in comorbidities (the widths of the edges are about same). This indicates that there are no specific comorbidities among lung cancer patients. A modularity analysis revealed seven subnetworks: (a) diseases of the respiratory system, including pneumonia, pleural conditions, emphysema, pulmonary collapse, respiratory failure, and chronic obstructive pulmonary disease; (b) diseases of the circulatory system—namely, cerebral infarction, hypertension, heart failure, cardiac arrhythmia, and atherosclerotic heart disease, among others; (c) endocrine and metabolic diseases—namely, type 2 diabetes, disorders of glycoprotein metabolism, hyponatremia, and hypokalemia, among others; (d) diseases of the genitourinary system, including cysts of the kidney, hyperplasia of the prostate, and calculus of the kidney; (e) diseases of the digestive system, including fatty liver and cholelithiasis; (f) anemias; and (g) degenerative diseases of the nervous system.

3.3. Derivation of the Association Rules

Table 3 shows the results of the 41 detected association rules. From this table, we can see there are 41 notable rules. The values of the support range from 0.01 to 0.06, which means that the rules occurred in 1% to 6% of the population that we studied. This is not a high prevalence, but the confidence and lift are quite significant, with a high value. The value of confidence ranges from 0.50 to 0.92, which means that the probability of observing Y (RHS) among patients with X (LHS) is over 50%. In addition, the values of lift range up to 8.58, and the average value is 4.91, which indicates the high significance of the rules.
We next visualized the support values among the 41 association rules to determine which rules are the most common. Figure 5 shows the 41-rule analysis of the comorbidities, presented as a heatmap. Although each pattern is directed with an arrow, it does not mean causation between diseases, but only represents co-occurrences. To avoid confusion, We only keep one of multiple rules with the same frequent item set.For example, rules #9 and #10 used the same combination set, so we included rule #9 in the heatmap. The colors of the grid points suggest the prevalence of the morbidities indicated by the x-axis. The darker the color is, the higher the prevalence. Here, there are nine dyads and 21 triads. The most common dyads were rules #7 and #8, which include chronic ischemic heart disease (I25) and atherosclerotic heart disease (I25.1) with heart failure (I50). The most common triad was rule #38, which includes hypertension (I10) with atherosclerotic heart disease (I25.1) and heart failure (I50).
Figure 6 shows the confidence and lift heatmaps of older lung cancer comorbidities. The confidence measures for lung cancer comorbidities with a value > 0.5 are shown in Figure 6a. The colors of the grid points indicate the probability of having the disease indicated by the x-axis, where the darker the color is, the higher the probability. Rule #12 indicates a higher probability of hypertension (I10), ischemic cardiomyopathy (I25.5), and pneumonia (J18). In addition, in rule #9, the combination of atherosclerotic heart disease (I25.1), ischemic cardiomyopathy (I25.5), and heart failure (I50) occurred much more frequently than expected, as did rules #15 and #19, which are heart failure (I50), angina pectoris (I20) with pneumonia (J18), and hypertension (I10). This study found that heart failure (I50) occurred in most rules. However, as a common geriatric disease, heart failure may not have a strong implicating role in the relevant comorbidity patterns. In addition, the results show that cerebral infarction (I63) is the second most frequent comorbidity (see Figure 2). However, it is rarely combined with other diseases, as shown in Figure 6.
In Figure 6b, rules #14 and #22 have the highest lifts. They occur about eight times more frequently than expected under statistical independence. Table 2 shows that disorders of glycoprotein metabolism comorbid with hyponatremia or hypokalemia increased the risk of anemia by more than eight times. Other rules with a relatively high lift, such as rules #9, #12, and #19, indicate that when hypertension is comorbid with ischemic heart diseases in a lung cancer patient, the occurrence of heart failure increases by six times. Notably, in rule #16, which applies when angina pectoris is comorbid with pneumonia, chronic ischemic heart disease occurs more frequently. In addition, type 2 diabetes mellitus (E11) and pericardium diseases (I31) were rarely combined with other diseases.

4. Discussion

This study conducted a comorbidity pattern analysis using a network graph and association rules to investigate the disease associations among 1510 older Chinese adults over age 65. Overall, 77.5% of the patients had comorbidities, which was significantly higher than the results for the elderly population [43,44]. Moreover, the proportions of multiple comorbidities were up to 90%, which is consistent with previous studies [21]. Further, we determined lung cancer patients to have higher proportions of multiple comorbidities and that these comorbidities are complex.
The network analysis illustration showed that there are seven subnetworks among the comorbidity networks in elderly lung cancer participants. Among diseases of the respiratory system, pneumonia is a very common disease that causes significant morbidity and mortality, especially in older patients with lung cancer [45]. There is a high prevalence of pneumonia related to cardiovascular diseases and a trend toward an increased risk of poor outcomes [46,47].
Circulatory system comorbidities are also called cardiovascular comorbidities and include cerebral infarction, hypertension, heart failure, cardiac arrhythmias, and atherosclerotic heart disease. Some studies have shown that the cardiovascular comorbidity prevalence among lung cancer patients ranges from 12.9% to 43% [48,49]. Moreover, comorbidity with cerebrovascular disorders can lead to a 20% increase of mortality in non-small cell lung cancer (NSCLC) patients, so clinicians should pay attention to this comorbidity [50]. Endocrine and metabolic comorbidities include type 2 diabetes mellitus, disorders of glycoprotein metabolism, hyponatremia, hypokalemia, etc. For lung cancer patients, those with disorders of glycoprotein metabolism or diabetes had a higher mortality than patients without this comorbidity [50]. Comorbidities associated with chronic kidney disease were also found to be a risk factor for mortality in patients with lung cancer [51,52], especially cysts of the kidney. Recently, Wenyu Wu et al. [53] conducted a retrospective cohort study and found hepatic steatosis to be an independent predictor of liver metastasis in patients with NSCLC.
Based on the analysis of AMR, the most interesting rules were related to cardiovascular comorbidities, such as angina pectoris, chronic ischemic heart disease, atherosclerotic heart disease, ischemic cardiomyopathy, and heart failure. Based on the network analysis and association rule mining, it was found that heart failure is widely comorbid with other diseases, but there is no fixed comorbidity pattern, which is consistent with previous research results [54,55]. Cerebral infarction and type 2 diabetes mellitus are very common in lung cancer patients, with an incidence of 20% and 8%, respectively; however, they rarely occur with other diseases. The incidence of cerebral infarction is also high in NSCLC, especially in patients with brain metastasis compared to those without brain metastasis [56]. In addition to the role of traditional stroke risk factors, cerebral infarctions in patients with malignant tumors have specific pathogenic mechanisms, such as ischemic stroke caused by aneurysm embolization and direct compression of the arteries in the head and neck [57].
In addition, disorders of glycoprotein metabolism comorbid with hyponatremia or hypokalemia increased the risk of anemia by more than eight times. Anemia was associated with confusion [58] and fatigue [59] in older lung cancer patients. The most common type of anemia in chronic lung disease is anemia from chronic disease [60]. Some studies suggest that disorders of glycoprotein metabolism may be useful as prognostic indicators in patients with lung cancer, such Glycoprotein nonmetastatic melanoma B (GPNMB) [61] and P-glycoprotein [62].
There are some limitations to our study. To identify the comorbidity network and patterns, this study used electronic medical records from Jilin Province in 2018, and diagnoses recorded in specific hospitals were included. Since the survival data of patients over time is not included, the effects of comorbidities on lung cancer prognosis cannot be explored.
We conducted a network analysis to mine the comorbidity subnetworks. This study only discussed the relevant contents qualitatively. However, some quantitative metrics could provide more information about the comorbidities’ patterns, such as their centrality, density, clustering coefficients, and propinquity. We will explore these quantitative metrics in future research. In the follow-up work, we will collect clinical cohort data to explore the role of clinicopathological factors, such as TNM staging and smoking history, and reveal how these factors affect lung cancer prognosis.
The association rule analysis was designed to identify combinations of morbidities. However, these combinations occurred more frequently than expected (without addressing the statistical significance). Moreover, the threshold set of association rules is experiential, and the results may vary depending on the threshold value chosen.
Notwithstanding these limitations, our study shows that the network analysis and association rules analysis can provide additional dimensions to better understand public health. Moreover, our study analyzed a population in the northeast area of China in terms of the different comorbidity patterns that should be considered when dealing with comorbidities.

5. Conclusions

In conclusion, our findings suggest that pneumonia, cerebral infarction, and hypertension are the most frequent comorbidities in older patients with lung cancer and that cardiovascular comorbidities are the most common comorbid combinations. Cerebral infarction and type 2 diabetes mellitus rarely occurred with other diseases. Disorders of the glycoprotein metabolism comorbid with hyponatremia or hypokalemia increased the risk of anemia in older patients with lung cancer. Understanding the comorbidity patterns of older patients with lung cancer will assist clinicians in their diagnoses. When clinicians choose an appropriate anticancer therapy, it is also necessary to assess the comorbidity of the patient. In addition, in terms of chronic disease management, comorbidity information can contribute to developing healthcare policies and allocating resources.

Author Contributions

Conceptualization, J.F.; data curation, X.-m.M. and L.-l.M.; funding acquisition, J.F.; methodology, J.F.; writing—original draft, J.F.; and writing—review and editing, J.F. and W.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Jilin Province Science and Technology Department Program, China, grant number 20200201450JC.

Acknowledgments

We gratefully acknowledge the Health Information Center of Jilin Province in the process of data collection.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wolff, J.L.; Starfield, B.; Anderson, G. Prevalence, expenditures, and complications of multiple chronic conditions in the elderly. Arch. Intern. Med. 2002, 162, 2269–2276. [Google Scholar] [CrossRef] [PubMed]
  2. Yancik, R.; Ries, L.A.G. Cancer and aging in America—Demographic and epidemiologic perspectives. Hematol. Oncol. Clin. N. Am. 2000, 14, 17–23. [Google Scholar] [CrossRef]
  3. Ritchie, C.S.; Kvale, E.; Fisch, M.J. Multimorbidity: An issue of growing importance for oncologists. J. Oncol. Pract. 2011, 7, 371–374. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Mellemgaard, A.; Luechtenborg, M.; Iachina, M.; Jakobsen, E.; Green, A.; Krasnik, M.; Moller, H. Role of Comorbidity on Survival after Radiotherapy and Chemotherapy for Nonsurgically Treated Lung Cancer. J. Thorac. Oncol. 2015, 10, 272–279. [Google Scholar] [CrossRef] [Green Version]
  5. Ogle, K.S.; Swanson, G.M.; Woods, N.; Azzouz, F. Cancer and comorbidity—Redefining chronic diseases. Cancer 2000, 88, 653–663. [Google Scholar] [CrossRef]
  6. Marengoni, A.; Rizzuto, D.; Wang, H.X.; Winblad, B.; Fratiglioni, L. Patterns of Chronic Multimorbidity in the Elderly Population. J. Am. Geriatr. Soc. 2009, 57, 225–230. [Google Scholar] [CrossRef]
  7. Griffith, L.E.; Gilsing, A.; Mangin, D.; Patterson, C.; van den Heuvel, E.; Sohel, N.; St John, P.; van den Akker, M.; Raina, P. Multimorbidity Frameworks Impact Prevalence and Relationships with Patient-Important Outcomes. J. Am. Geriatr. Soc. 2019, 67, 1632–1640. [Google Scholar] [CrossRef]
  8. Yang, J.; Zhang, C.C.; Zheng, J.Z.; Hou, L.H.; Xue, Y.Q.; Li, M.M. Prevalence and Related Factors of Comorbidity of Chronic Diseases among Elderly in Taiyuan, China. J. Am. Geriatr. Soc. 2019, 67, S663. [Google Scholar]
  9. Pengpid, S.; Peltzer, K. Multimorbidity in Chronic Conditions: Public Primary Care Patients in Four Greater Mekong Countries. Int. J. Environ. Res. Public Health 2017, 14, 1019. [Google Scholar] [CrossRef] [Green Version]
  10. Sanchez-Rodriguez, J.; Martinez-Almazan, E. Predictors of early readmissions in elderly patients with multimorbidity admitted to an intermediate care unit. J. Am. Geriatr. Soc. 2016, 64, S67–S68. [Google Scholar]
  11. Pes, G.M.; Licheri, G.; Soro, S.; Longo, N.P.; Salis, R.; Tomassini, G.; Niolu, C.; Errigo, A.; Dore, M.P. Overweight: A Protective Factor against Comorbidity in the Elderly. Int. J. Environ. Res. Public Health 2019, 16, 3656. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Olivares, D.E.V.; Chambi, F.R.V.; Chani, E.M.M.; Craig, W.J.; Pacheco, S.O.S.; Pacheco, F.J. Risk Factors for Chronic Diseases and Multimorbidity in a Primary Care Context of Central Argentina: A Web-Based Interactive and Cross-Sectional Study. Int. J. Environ. Res. Public Health 2017, 14, 251. [Google Scholar] [CrossRef] [PubMed]
  13. Bynum, J.P.W.; Chang, C.H.; Austin, A.; Carmichael, D.; Meara, E. Outcomes in Older Adults with Multimorbidity Associated with Predominant Provider of Care Specialty. J. Am. Geriatr. Soc. 2017, 65, 1916–1923. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Joao Forjaz, M.; Rodriguez-Blazquez, C.; Guerrero-Fernandez de Alba, I.; Gimeno-Miguel, A.; Bliek-Bueno, K.; Prados-Torres, A.; Culig, J.; Jureviciene, E.; Maggini, M.; Maguire, P.; et al. Application of the JA-CHRODIS Integrated Multimorbidity Care Model (IMCM) to a Case Study of Diabetes and Mental Health. Int. J. Environ. Res. Public Health 2019, 16, 5151. [Google Scholar] [CrossRef] [Green Version]
  15. Palmer, K.; Carfi, A.; Angioletti, C.; Di Paola, A.; Navickas, R.; Dambrauskas, L.; Jureviciene, E.; Joao Forjaz, M.; Rodriguez-Blazquez, C.; Prados-Torres, A.; et al. A Methodological Approach for Implementing an Integrated Multimorbidity Care Model: Results from the Pre-Implementation Stage of Joint Action CHRODIS-PLUS. Int. J. Environ. Res. Public Health 2019, 16, 5044. [Google Scholar] [CrossRef] [Green Version]
  16. Cho, H.; Mariotto, A.B.; Mann, B.S.; Klabunde, C.N.; Feuer, E.J. Assessing non-cancer-related health status of US cancer patients: Other-cause survival and comorbidity prevalence. Am. J. Epidemiol. 2013, 178, 339–349. [Google Scholar] [CrossRef] [Green Version]
  17. Chang, Y.S.; Huang, J.S.; Yen, C.L.; Wang, C.H.; Lai, C.H.; Wu, T.H.; Lan, Y.J.; Chang, P.H.; Yeh, K.Y. The Charlson Comorbidity Index is an Independent Prognostic Factor for Treatment-Naive Hepatocellular Carcinoma Patients with Extrahepatic Metastases. Hepato-Gastroenterology 2015, 62, 1011–1015. [Google Scholar]
  18. Iachina, M.; Green, A.; Jakobsen, E. The direct and indirect impact of comorbidity on the survival of patients with non-small cell lung cancer: A combination of survival, staging and resection models with missing measurements in covariates. BMJ Open 2014, 4, e003846. [Google Scholar] [CrossRef] [Green Version]
  19. Wong, M.L.; McMurry, T.L.; Stukenborg, G.J.; Francescatti, A.B.; Amato-Martz, C.; Schumacher, J.R.; Chang, G.J.; Greenberg, C.C.; Winchester, D.P.; McKellar, D.P.; et al. Impact of age and comorbidity on treatment of non-small cell lung cancer recurrence following complete resection: A nationally representative cohort study. Lung Cancer 2016, 102, 108–117. [Google Scholar] [CrossRef] [Green Version]
  20. Williams, C.D.; Stechuchak, K.M.; Zullig, L.L.; Provenzale, D.; Kelley, M.J. Influence of comorbidity on racial differences in receipt of surgery among US veterans with early-stage non-small-cell lung cancer. J. Clin. Oncol. Off. J. Am. Soc. Clin. Oncol. 2013, 31, 475–481. [Google Scholar] [CrossRef] [Green Version]
  21. Mu, X.M.; Wang, W.; Wu, F.Y.; Jiang, Y.Y.; Ma, L.L.; Feng, J. Comorbidity in Older Patients Hospitalized with Cancer in Northeast China based on Hospital Discharge Data. Int. J. Environ. Res. Public Health 2020, 17, 8028. [Google Scholar] [CrossRef] [PubMed]
  22. John, R.; Kerby, D.S.; Hennessy, C.H. Patterns and impact of comorbidity and multimorbidity among community-resident American Indian elders. Gerontologist 2003, 43, 649–660. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Verbrugge, L.M.; Lepkowski, J.M.; Imanaka, Y. Comorbidity and its impact on disability. Milbank Q. 1989, 67, 450–484. [Google Scholar] [CrossRef] [PubMed]
  24. Goldstein-Piekarski, A.N.; Williams, L.M.; Humphreys, K. A trans-diagnostic review of anxiety disorder comorbidity and the impact of multiple exclusion criteria on studying clinical outcomes in anxiety disorders. Transl. Psychiatry 2016, 6. [Google Scholar] [CrossRef] [PubMed]
  25. Rendas-Baum, R. Health state utility for comorbid conditions: evaluating the impact of different estimation methods. Value Health 2018, 21, S322. [Google Scholar] [CrossRef] [Green Version]
  26. Rief, W.; Nanke, A.; Emmerich, J.; Bender, A.; Zech, T. Causal illness attributions in somatoforin disorders—Associations with comorbidity and illness behavior. J. Psychosom. Res. 2004, 57, 367–371. [Google Scholar] [CrossRef] [PubMed]
  27. Schiotz, M.L.; Stockmarr, A.; Host, D.; Glumer, C.; Frolich, A. Social disparities in the prevalence of multimorbidity—A register-based population study. BMC Public Health 2017, 17. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Ng, S.K.; Holden, L.; Sun, J. Identifying comorbidity patterns of health conditions via cluster analysis of pairwise concordance statistics. Stat. Med. 2012, 31, 3393–3405. [Google Scholar] [CrossRef]
  29. Nicholson, K.; Bauer, M.; Terry, A.; Fortin, M.; Williamson, T.; Thind, A. The Multimorbidity Cluster Analysis Tool: Identifying Combinations and Permutations of Multiple Chronic Diseases Using a Record-Level Computational Analysis. J. Innov. Health Inform. 2017, 24, 962. [Google Scholar] [CrossRef] [Green Version]
  30. Pintelas, E.G.; Kotsilieris, T.; Livieris, I.E.; Pintelas, P. A review of machine learning prediction methods for anxiety disorders. In Proceedings of the 8th International Conference on Software Development and Technologies for Enhancing Accessibility and Fighting Info-exclusion, Thessaloniki, Greece, 20–22 June 2018; pp. 8–15. [Google Scholar] [CrossRef]
  31. Zandvakili, A.; Philip, N.S.; Jones, S.R.; Tyrka, A.R.; Greenberg, B.D.; Carpenter, L.L. Use of machine learning in predicting clinical response to transcranial magnetic stimulation in comorbid posttraumatic stress disorder and major depression: A resting state electroencephalography study. J. Affect. Disord. 2019, 252, 47–54. [Google Scholar] [CrossRef]
  32. Agrawal, R.; Imieliński, T.; Swami, A. Mining association rules between sets of items in large databases. In Proceedings of the 1993 ACM SIGMOD international conference on Management of data, Washington, DC, USA, 26–28 May 1993; pp. 207–216. [Google Scholar] [CrossRef]
  33. Cheng, C.W.; Chanani, N.; Venugopalan, J.; Maher, K.; Wang, M.D. icuARM-An ICU Clinical Decision Support System Using Association Rule Mining. IEEE J. Transl. Eng. Health Med. 2013, 1, 122–131. [Google Scholar] [CrossRef] [PubMed]
  34. Nahar, J.; Imam, T.; Tickle, K.S.; Chen, Y.P.P. Association rule mining to detect factors which contribute to heart disease in males and females. Expert Syst. Appl. 2013, 40, 1086–1093. [Google Scholar] [CrossRef]
  35. Pattanaprateep, O.; McEvoy, M.; Attia, J.; Thakkinstian, A. Evaluation of rational nonsteroidal anti-inflammatory drugs and gastro-protective agents use; association rule data mining using outpatient prescription patterns. BMC Med. Inform. Decis. Mak. 2017, 17. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Tai, Y.M.; Chiu, H.W. Comorbidity study of ADHD: Applying association rule mining (ARM) to National Health Insurance Database of Taiwan. Int. J. Med. Inform. 2009, 78, E75–E83. [Google Scholar] [CrossRef]
  37. Kim, H.S.; Shin, A.M.; Kim, M.K.; Kim, Y.N. Comorbidity Study on Type 2 Diabetes Mellitus Using Data Mining. Korean J. Intern. Med. 2012, 27, 197–202. [Google Scholar] [CrossRef]
  38. Wang, C.H.; Lee, T.Y.; Hui, K.C.; Chung, M.H. Mental disorders and medical comorbidities: Association rule mining approach. Perspect. Psychiatr. Care 2019, 55, 517–526. [Google Scholar] [CrossRef]
  39. Chen, W.; Sun, K.; Zheng, R.; Zeng, H.; Zhang, S.; Xia, C.; Yang, Z.; Li, H.; Zou, X.; He, J. Cancer incidence and mortality in China, 2014. Chin. J. Cancer Res. 2018, 30, 1–12. [Google Scholar] [CrossRef]
  40. The Measures for the Administration of the Hospital Grade; National Health Commission of The People’s Republic of China: Beijing, China, 1989.
  41. Sanders, R. The pareto principle: Its use and abuse. J. Serv. Mark. 1987, 1, 37–40. [Google Scholar] [CrossRef]
  42. McNicholas, P.D.; Murphy, T.B.; O’Regan, M. Standardising the lift of an association rule. Comput. Stat. Data Anal. 2008, 52, 4712–4721. [Google Scholar] [CrossRef]
  43. Yao, S.S.; Cao, G.Y.; Han, L.; Chen, Z.S.; Huang, Z.T.; Gong, P.; Hu, Y.; Xu, B. Prevalence and Patterns of Multimorbidity in a Nationally Representative Sample of Older Chinese: Results From the China Health and Retirement Longitudinal Study. J. Gerontol. Ser. A Biol. Sci. Med. Sci. 2020, 75, 1974–1980. [Google Scholar] [CrossRef]
  44. Hu, X.; Huang, J.; Lv, Y.; Li, G.; Peng, X. Status of prevalence study on multimorbidity of chronic disease in China: Systematic review. Geriatr. Gerontol. Int. 2015, 15, 1–10. [Google Scholar] [CrossRef] [PubMed]
  45. Ruuskanen, O.; Lahti, E.; Jennings, L.C.; Murdoch, D.R. Viral pneumonia. Lancet 2011, 377, 1264–1275. [Google Scholar] [CrossRef]
  46. Poling, J.; Kelly, L.; Chan, C.; Fisman, D.; Ulanova, M. Hospital admission for community-acquired pneumonia in a First Nations population. Can. J. Rural Med. Off. J. Soc. Rural Physicians Can. 2014, 19, 135–141. [Google Scholar]
  47. Cangemi, R.; Calvieri, C.; Falcone, M.; Bucci, T.; Bertazzoni, G.; Scarpellini, M.G.; Barilla, F.; Taliani, G.; Violi, F. Relation of Cardiac Complications in the Early Phase of Community-Acquired Pneumonia to Long-Term Mortality and Cardiovascular Events. Am. J. Cardiol. 2015, 116, 647–651. [Google Scholar] [CrossRef]
  48. Islam, K.M.M.; Jiang, X.; Anggondowati, T.; Lin, G.; Ganti, A.K. Comorbidity and Survival in Lung Cancer Patients. Cancer Epidemiol. Biomark. Prev. 2015, 24, 1079–1085. [Google Scholar] [CrossRef] [Green Version]
  49. Al-Kindi, S.G.; Oliveira, G.H. Prevalence of Preexisting Cardiovascular Disease in Patients with Different Types of Cancer: The Unmet Need for Onco-Cardiology. Mayo Clin. Proc. 2016, 91, 81–83. [Google Scholar] [CrossRef]
  50. Iachina, M.; Jakobsen, E.; Moller, H.; Luechtenborg, M.; Mellemgaard, A.; Krasnik, M.; Green, A. The Effect of Different Comorbidities on Survival of Non-small Cells Lung Cancer Patients. Lung 2015, 193, 291–297. [Google Scholar] [CrossRef]
  51. Wei, Y.F.; Wu, J.T.; Chen, J.Y.; Hsu, C.K.; Lee, H.S.; Hsu, Y.C. Chronic Kidney Disease Is Associated With Mortality Risk In Patients With Lung Cancer: A Nationwide Population-Based Cohort Study. Am. J. Respir. Crit. Care Med. 2016, 193. [Google Scholar] [CrossRef]
  52. Wei, Y.F.; Chen, J.Y.; Lee, H.S.; Wu, J.T.; Hsu, C.K.; Hsu, Y.C. Association of chronic kidney disease with mortality risk in patients with lung cancer: A nationwide Taiwan population-based cohort study. BMJ Open 2018, 8. [Google Scholar] [CrossRef] [Green Version]
  53. Wu, W.; Liao, H.; Ye, W.; Li, X.; Zhang, J.; Bu, J. Fatty liver is a risk factor for liver metastasis in Chinese patients with non-small cell lung cancer. Peerj 2019, 7. [Google Scholar] [CrossRef]
  54. Dominguez-Ventura, A.; Allen, M.S.; Cassivi, S.D.; Nichols, F.C., III; Deschamps, C.; Pairolero, P.C. Lung cancer in octogenarians: Factors affecting morbidity and mortality after pulmonary resection. Ann. Thorac. Surg. 2006, 82, 1175–1179. [Google Scholar] [CrossRef] [PubMed]
  55. Kravchenko, J.; Berry, M.; Arbeev, K.; Lyerly, H.K.; Yashin, A.; Akushevich, I. Cardiovascular comorbidities and survival of lung cancer patients: Medicare data based analysis. Lung Cancer 2015, 88, 85–93. [Google Scholar] [CrossRef] [PubMed]
  56. Kato, M.; Shukuya, T.; Mori, K.; Kanemaru, R.; Honma, Y.; Nanjo, Y.; Muraki, K.; Shibayama, R.; Koyama, R.; Shimada, N.; et al. Cerebral infarction in advanced non-small cell lung cancer: A case control study. BMC Cancer 2016, 16. [Google Scholar] [CrossRef] [PubMed]
  57. Lu, Z.; Han, Y.; Zhou, Y. Research progress of cancer related ischemic stroke. Chin. J. Cerebrovasc. Dis. 2018, 15, 206–211. [Google Scholar]
  58. Mancuso, A.; Migliorino, M.; De Santis, S.; Saponiero, A.; De Marinis, F. Correlation between anemia and functional/cognitive capacity in elderly lung cancer patients treated with chemotherapy. Ann. Oncol. 2006, 17, 146–150. [Google Scholar] [CrossRef] [PubMed]
  59. Balducci, L. Anemia, fatigue and aging. Transfus. Clin. Biol. 2010, 17, 375–381. [Google Scholar] [CrossRef] [PubMed]
  60. McMahon, T.J.; Prybylowski, A.C. Anemia in the Patient with Chronic Lung Disease. In Management of Anemia: A Comprehensive Guide for Clinicians; Provenzano, R., Lerma, E.V., Szczech, L., Eds.; Springer: New York, NY, USA, 2018; pp. 143–155. [Google Scholar] [CrossRef]
  61. Li, Y.N.; Zhang, L.; Li, X.L.; Cui, D.J.; Zheng, H.D.; Yang, S.Y.; Yang, W.L. Glycoprotein nonmetastatic B as a prognostic indicator in small cell lung cancer. APMIS 2014, 122, 140–146. [Google Scholar] [CrossRef]
  62. Wang, L.H.; Yang, J.Y.; Yang, S.N.; Li, Y.; Ping, G.F.; Hou, Y.; Cui, W.; Wang, Z.Z.; Xiao, W.; Wu, C.F. Suppression of NF-κB signaling and P-glycoprotein function by gambogic acid Synergistically Potentiates Adriamycin -induced Apoptosis in Lung Cancer. Curr. Cancer Drug Targets 2014, 14, 91–103. [Google Scholar] [CrossRef]

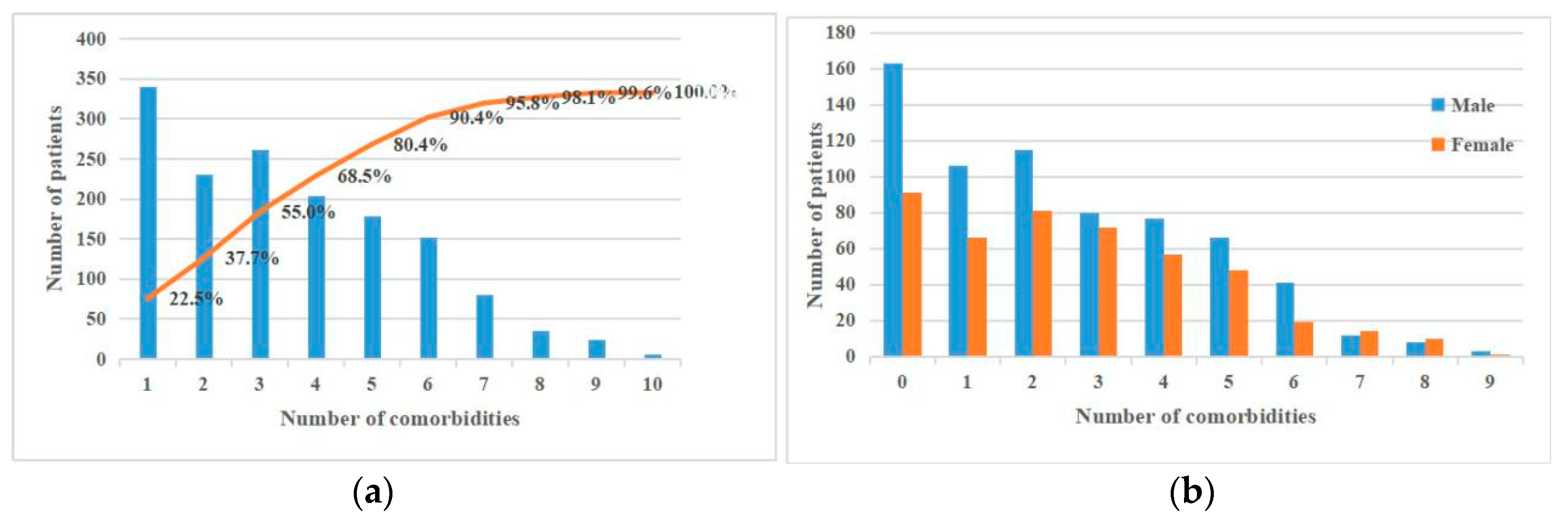

Figure 1. (a) Distribution (blue) of the number of comorbidities across all patients, where the x-axis represents the number of patients having n comorbidities ( 0 n 9 ) and the cumulative proportion distribution across all patients (orange). (b) Distributions of the numbers of comorbidities for men and women.
Figure 1. (a) Distribution (blue) of the number of comorbidities across all patients, where the x-axis represents the number of patients having n comorbidities ( 0 n 9 ) and the cumulative proportion distribution across all patients (orange). (b) Distributions of the numbers of comorbidities for men and women.
Ijerph 17 09119 g001

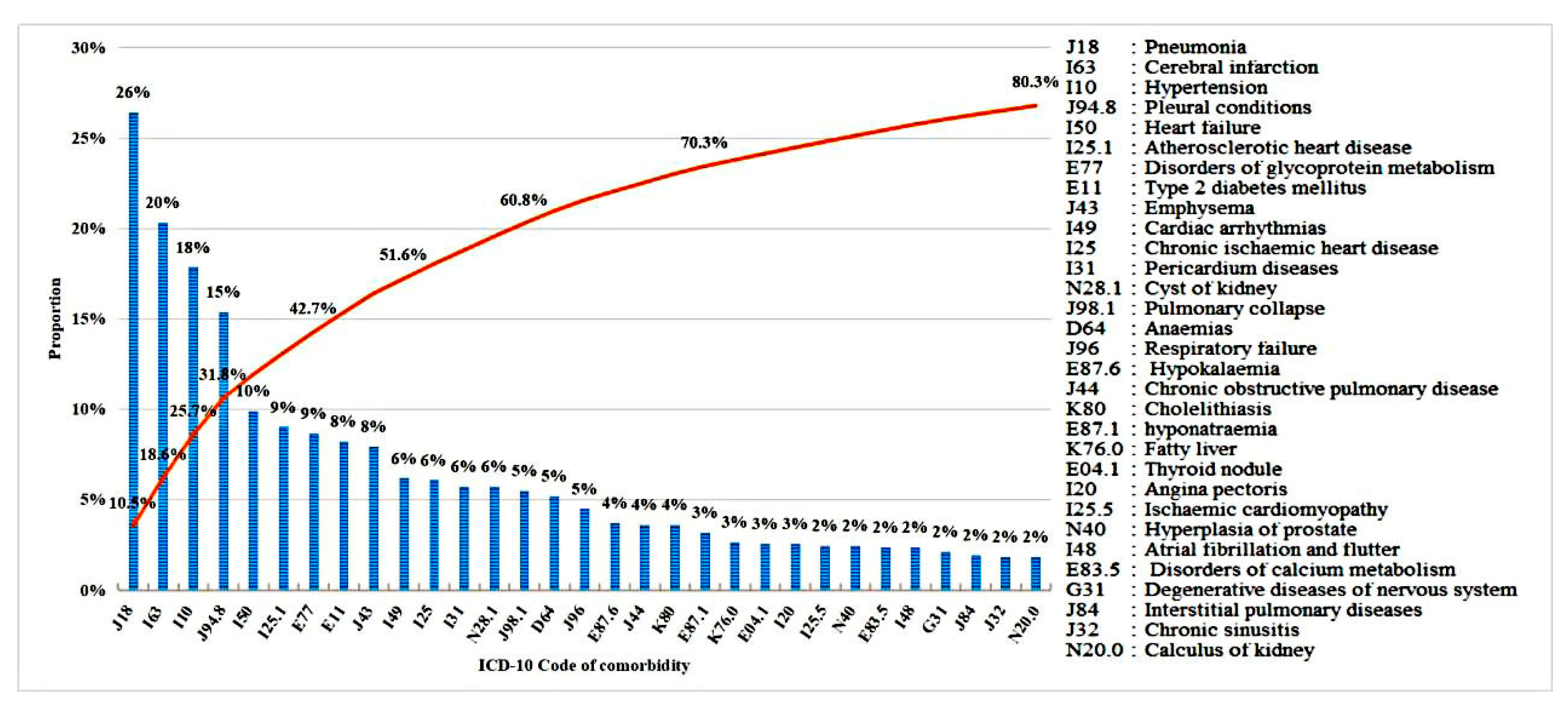

Figure 2. Distribution of the number of patients for each disease (blue) and the cumulative proportion (orange).
Figure 2. Distribution of the number of patients for each disease (blue) and the cumulative proportion (orange).
Ijerph 17 09119 g002
Figure 3. The average number of comorbidities for each co-occurring disease, ordered based on the prevalence of each disease observed in the study.
Figure 3. The average number of comorbidities for each co-occurring disease, ordered based on the prevalence of each disease observed in the study.
Ijerph 17 09119 g003

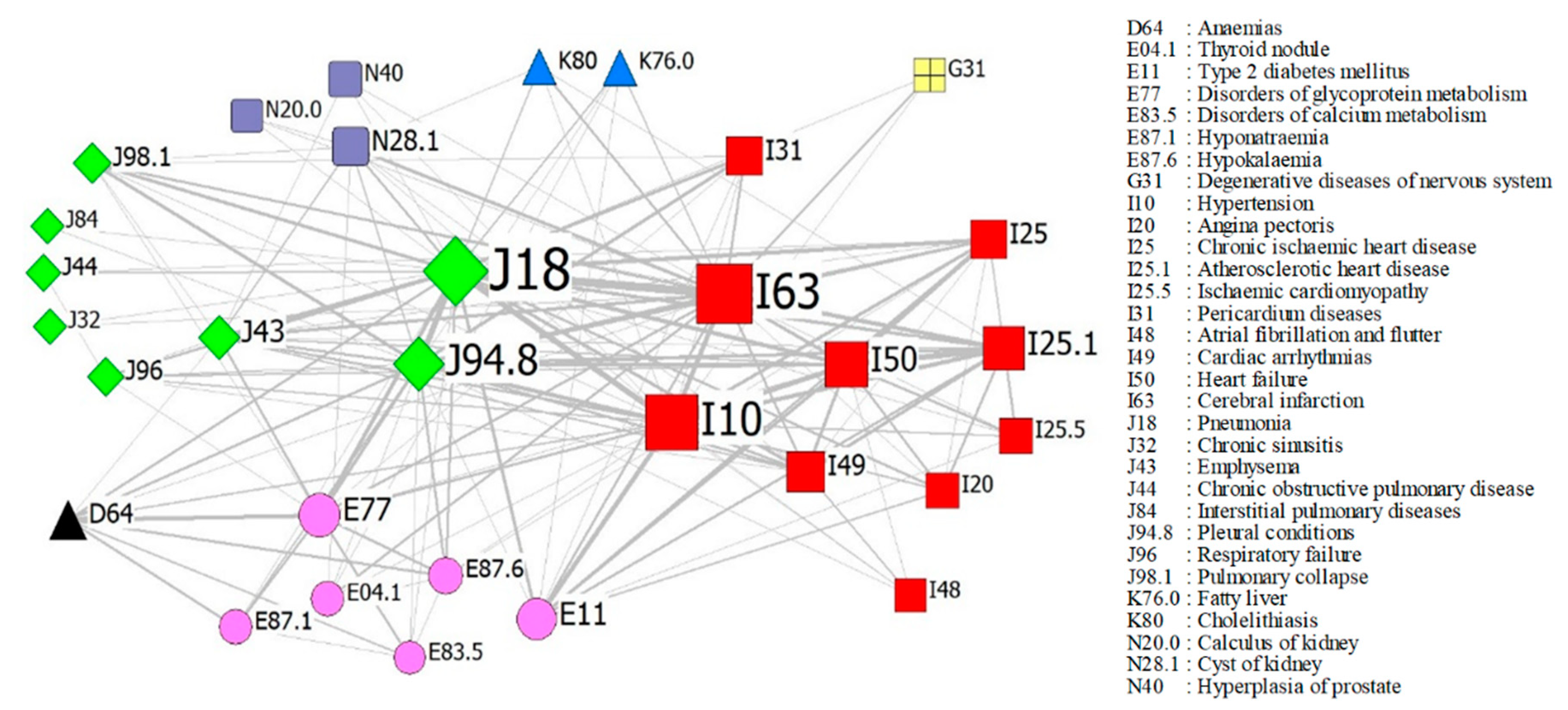

Figure 4. A network representation of comorbidities. Each node represents a disease, where nodes with the same shape denote a morbidity possessing the same International Classification of Diseases 10th revision (ICD-10) classification code, and an edge connects two nodes if patients were observed with this comorbidity. The size of a node is proportional to the frequency of the disease, and the width of an edge is proportional to the number of patients with the comorbidity.
Figure 4. A network representation of comorbidities. Each node represents a disease, where nodes with the same shape denote a morbidity possessing the same International Classification of Diseases 10th revision (ICD-10) classification code, and an edge connects two nodes if patients were observed with this comorbidity. The size of a node is proportional to the frequency of the disease, and the width of an edge is proportional to the number of patients with the comorbidity.
Ijerph 17 09119 g004

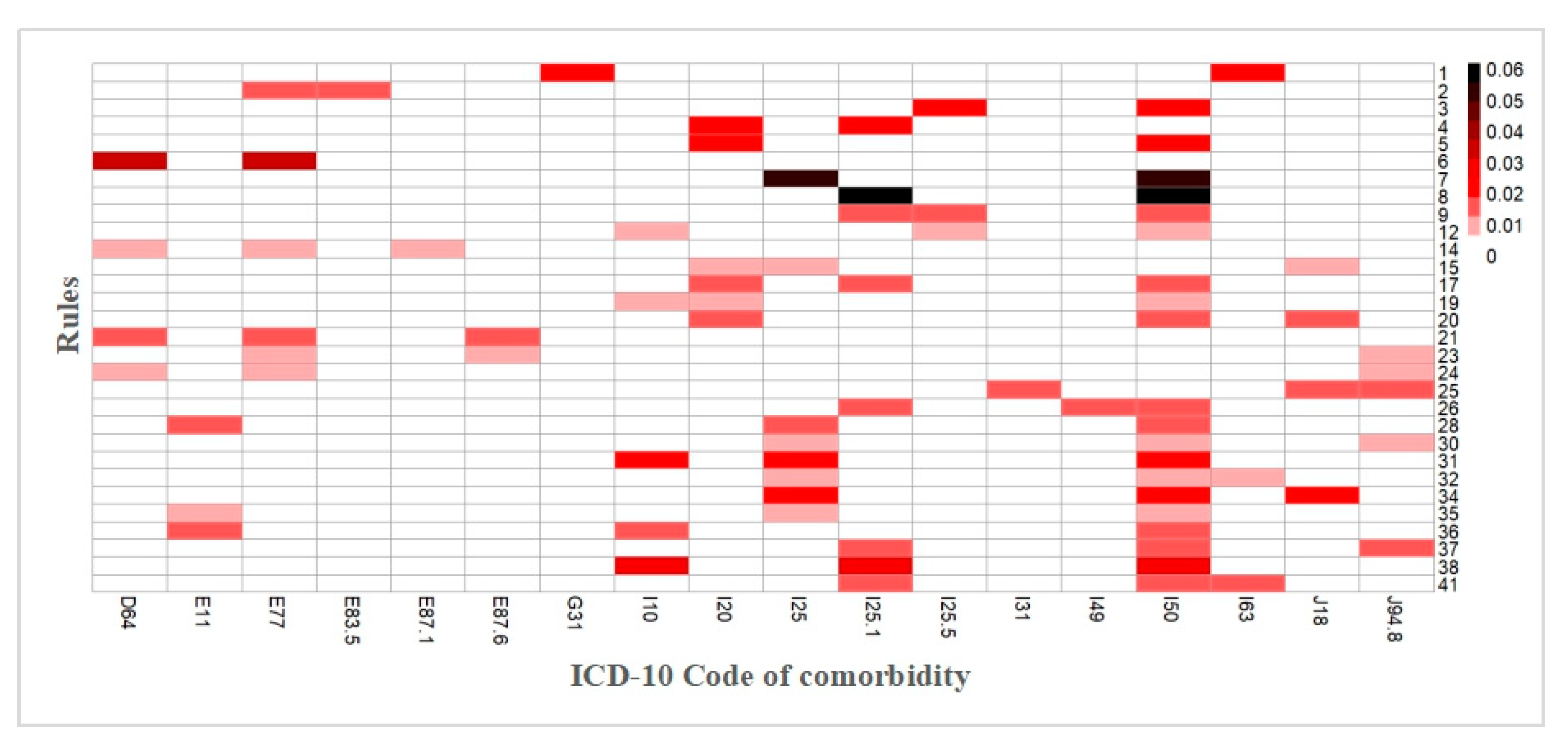

Figure 5. A heatmap showing the support values in the 41 derived association rules, where the rows are for the rules and the columns are for XX morbidities.
Figure 5. A heatmap showing the support values in the 41 derived association rules, where the rows are for the rules and the columns are for XX morbidities.
Ijerph 17 09119 g005

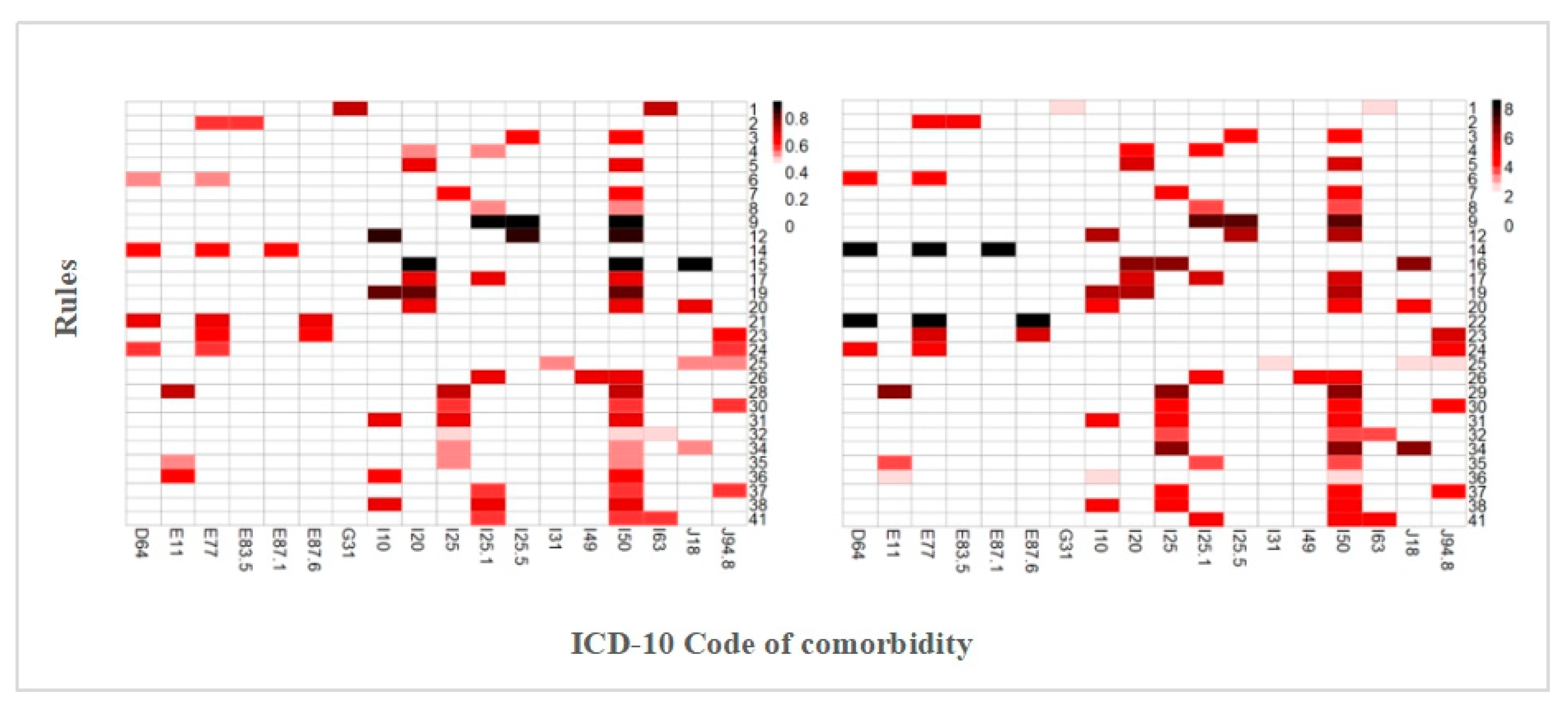

Figure 6. Heatmaps for the confidence and lift values observed in the 41 derived association rules. (a) The rows are for rules, and the columns are for XX morbidities. (b) Defined similar to (a).
Figure 6. Heatmaps for the confidence and lift values observed in the 41 derived association rules. (a) The rows are for rules, and the columns are for XX morbidities. (b) Defined similar to (a).
Ijerph 17 09119 g006
Table 1. Patient statistics.
Table 1. Patient statistics.
CharacteristicsNPercentage (%)
Total 1510100
Age(years)
65–74112474.4
75–8432921.8
85 +573.8
Gender
Male90960.2
Female60139.8
Nationality
Han1416 93.8
Korean68 4.5
Other25 1.7
Occupation
Farmers246 16.3
Retired337 22.3
Unemployed84 5.6
Workers55 3.6
Staff23 1.5
Other33 2.2
Unspecified732 48.5
Marital status
Unmarried9 0.6
Married1375 91.0
Death of a spouse59 3.8
Divorce11 0.7
Other56 3.7
No. of comorbidities
0339 22.5
1230 15.2
2262 17.3
3203 13.5
>349631.5
Table 2. Patients affected by each disease independent of comorbidities (all cases) and by each disease with a single comorbidity and multi-comorbidities.
Table 2. Patients affected by each disease independent of comorbidities (all cases) and by each disease with a single comorbidity and multi-comorbidities.
DiseaseAll Cases
(n)
Single Comorbidity
(%)
Multiple Comorbidities
(%)
Pneumonia29911.788.3
Cerebral infarction 23010.989.1
Hypertension 2028.491.6
Pleural conditions 17411.588.5
Heart failure 1120.0100.0
Atherosclerotic heart disease 1023.996.1
Disorders of glycoprotein metabolism981.099.0
Type 2 diabetes mellitus 9310.889.2
Emphysema 904.495.6
Cardiac arrhythmias701.498.6
Chronic ischemic heart disease690.0100.0
Pericardium diseases6510.889.2
Cyst of kidney651.598.5
Pulmonary collapse624.895.2
Anemia 593.496.6
Respiratory failure517.892.2
Hypokalemia 420.0100.0
Chronic obstructive pulmonary disease 417.392.7
Cholelithiasis 412.497.6
Hyponatremia 365.694.4
Fatty liver300.0100.0
Thyroid nodule 293.496.6
Angina pectoris 290.0100.0
Ischemic cardiomyopathy 283.696.4
Hyperplasia of the prostate 283.696.4
Disorders of calcium metabolism 270.0100.0
Atrial fibrillation and flutter 273.796.3
Degenerative diseases of the nervous system240.0100.0
Interstitial pulmonary diseases 2213.686.4
Chronic sinusitis 214.895.2
Calculus of the kidney 210.0100.0
Table 3. The association rules detected among lung cancer patients.
Table 3. The association rules detected among lung cancer patients.
No.RulesSupConLift
1(Degenerative diseases of the nervous system)=>(Cerebral infarction)0.020.712.60
2(Disorders of calcium metabolism)=>(Disorders of glycoprotein metabolism)0.020.564.78
3(Ischemic cardiomyopathy)=>(Heart failure)0.020.614.58
4(Angina pectoris)=>(Atherosclerotic heart disease)0.020.554.57
5(Angina pectoris)=>(Heart failure)0.020.695.20
6(Anemias)=>(Disorders of glycoprotein metabolism)0.04 0.534.53
7(Chronic ischemic heart disease)=>(Heart failure)0.05 0.624.70
8(Atherosclerotic heart disease)=>(Heart failure)0.06 *0.513.84
9(Atherosclerotic heart disease, Ischemic cardiomyopathy)=>(Heart failure)0.010.92 6.96
10(Ischemic cardiomyopathy, Heart failure)=>(Atherosclerotic heart disease)0.010.715.84
11(Ischemic cardiomyopathy, Heart failure)=>(Hypertension)0.010.592.46
12(Hypertension, Ischemic cardiomyopathy)=>(Heart failure)0.010.83 6.28
13(Anemias, Hyponatremia)=>(Disorders of glycoprotein metabolism)0.010.605.17
14(Disorders of glycoprotein metabolism, Hyponatremia)=>(Anemias)0.010.608.58
15(Angina pectoris, Chronic ischemic heart disease)=>(Pneumonia)0.010.90 2.54
16(Angina pectoris, Pneumonia)=>(Chronic ischemic heart disease)0.010.536.48
17(Angina pectoris, Atherosclerotic heart disease)=>(Heart failure)0.010.695.18
18(Angina pectoris, Heart failure)=>(Atherosclerotic heart disease)0.010.554.55
19(Hypertension, Angina pectoris)=>(Heart failure)0.010.826.17
20(Angina pectoris, Pneumonia)=>(Heart failure)0.010.654.88
21(Anemias, Hypokalemia)=>(Disorders of glycoprotein metabolism)0.010.695.92
22(Disorders of glycoprotein metabolism, Hypokalemia)=>(Anemias)0.010.588.28
23(Hypokalemia, Pleural conditions)=>(Disorders of glycoprotein metabolism)0.010.645.54
24(Anemias, Pleural conditions)=>(Disorders of glycoprotein metabolism)0.010.564.84
25(Pericardium diseases, Pneumonia)=>(Pleural conditions)0.020.522.51
26(Atherosclerotic heart disease, Cardiac arrhythmias)=>(Heart failure)0.020.675.02
27(Cardiac arrhythmias, Heart failure)=>(Atherosclerotic heart disease)0.020.584.83
28(Type 2 diabetes mellitus, Chronic ischemic heart disease)=>(Heart failure)0.010.735.53
29(Type 2 diabetes mellitus, Heart failure)=>(Chronic ischemic heart disease)0.010.526.41
30(Chronic ischemic heart disease, Pleural conditions)=>(Heart failure)0.010.594.43
31(Hypertension, Chronic ischemic heart disease)=>(Heart failure)0.020.675.02
32(Chronic ischemic heart disease, Cerebral infarction)=>(Heart failure)0.010.503.77
33(Chronic ischemic heart disease, Pneumonia)=>(Heart failure)0.020.534.00
34(Heart failure, Pneumonia)=>(Chronic ischemic heart disease)0.020.556.71
35(Type 2 diabetes mellitus, Atherosclerotic heart disease)=>(Heart failure)0.010.533.99
36(Type 2 diabetes mellitus, Heart failure)=>(Hypertension)0.020.622.59
37(Atherosclerotic heart disease, Pleural conditions)=>(Heart failure)0.020.594.45
38(Hypertension, Atherosclerotic heart disease)=>(Heart failure)0.030.675.02
39(Hypertension, Heart failure)=>(Atherosclerotic heart disease)0.030.504.14
40(Atherosclerotic heart disease, Cerebral infarction)=>(Heart failure)0.020.503.77
41(Heart failure, Cerebral infarction)=>(Atherosclerotic heart disease)0.020.584.77
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Feng, J.; Mu, X.-m.; Ma, L.-l.; Wang, W. Comorbidity Patterns of Older Lung Cancer Patients in Northeast China: An Association Rules Analysis Based on Electronic Medical Records. Int. J. Environ. Res. Public Health 2020, 17, 9119. https://doi.org/10.3390/ijerph17239119

AMA Style

Feng J, Mu X-m, Ma L-l, Wang W. Comorbidity Patterns of Older Lung Cancer Patients in Northeast China: An Association Rules Analysis Based on Electronic Medical Records. International Journal of Environmental Research and Public Health. 2020; 17(23):9119. https://doi.org/10.3390/ijerph17239119

Chicago/Turabian Style

Feng, Jia, Xiao-min Mu, Ling-ling Ma, and Wei Wang. 2020. "Comorbidity Patterns of Older Lung Cancer Patients in Northeast China: An Association Rules Analysis Based on Electronic Medical Records" International Journal of Environmental Research and Public Health 17, no. 23: 9119. https://doi.org/10.3390/ijerph17239119

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
