Integrated 3D Information for Custom-Made Bone Grafts: Focus on Biphasic Calcium Phosphate Bone Substitute Biomaterials

by
Alessandra Giuliani
1,*,†,
Maria Laura Gatto
2,†,
Luigi Gobbi
2,
Francesco Guido Mangano
3 and
Carlo Mangano
4
1
Department of Clinical Science, Polytechnic University of Marche, Via Brecce Bianche, 60131 Ancona, Italy
2
Department of Materials, Environmental Sciences and Urban Planning, Polytechnic University of Marche, Via Brecce Bianche, 60131 Ancona, Italy
3
Department of Prevention and Communal Dentistry, Sechenov First Moscow State Medical University, 119991 Moscow, Russia
4
Private Practice, 22015 Gravedona, CO, Italy
*
Author to whom correspondence should be addressed.
†
These authors equally contributed to the study.
Int. J. Environ. Res. Public Health 2020, 17(14), 4931; https://doi.org/10.3390/ijerph17144931
Submission received: 3 June 2020 / Revised: 2 July 2020 / Accepted: 5 July 2020 / Published: 8 July 2020
(This article belongs to the Special Issue Digital Dentistry for Oral Health)
Browse Figures
Versions Notes

Abstract

:
Purpose: Several studies showed that the sintering temperature of 1250 °C could affect the formation of α-Ca3(PO4)2, which is responsible for the reduction of the hardness value of biphasic calcium phosphate biocomposites, but they did not evaluate the inference of the sintering time at peak temperature on transition of β-Ca3(PO4)2 to α-Ca3(PO4)2. This analysis explored, in an innovative way, inferences and correlations between volumetric microstructure, mechanical properties, sintering temperature, and time at peak temperature in order to find the best sintering conditions for biphasic calcium phosphate composites grafted in severe alveolar bone defects. Methods: Sintered biphasic calcium phosphates (30%-hydroxyapatite/70%-tricalcium phosphate) were tested by microCT imaging for the 3D morphometric analysis, by compressive loading to find their mechanical parameters, and by X-ray diffraction to quantify the phases via Rietveld refinement for different sintering temperatures and times at the peak temperature. Data were analysed in terms of statistical inference using Pearson’s correlation coefficients. Results: All the studied scaffolds closely mimicked the alveolar organization of the jawbone, independently on the sintering temperatures and times; however, mechanical testing revealed that the group with peak temperature, which lasted for 2 hours at 1250 °C, showed the highest strength both at the ultimate point and at fracture point. Conclusion: The good mechanical performances of the group with peak temperature, which lasted for 2 hours at 1250 °C, is most likely due to the absence of the α-Ca3(PO4)2 phase, as revealed by X-ray diffraction. However, we detected its presence after sintering at the same peak temperature for longer times, showing the time-dependence, combined with the temperature-dependence, of the β-Ca3(PO4)2 to α-Ca3(PO4)2 transition.

1. Introduction

Dental implants were demonstrated to have long survival times, especially in mandibles [1,2]. However, successful implantation can be achieved only when a sufficient jawbone volume is present [2,3,4]; if diseases, trauma, cysts, or tumors occur, they often produce severe alveolar bone defects, suggesting alveolar ridge augmentation procedures before implantation [3,4,5].
Autografts and allografts have been shown to achieve varying degrees of success in restoring form and function, often still involving risks; for example, morbidity at the donor site is a common side effect of the autografts, while allografts sometimes cause disease transmission [6,7].
An ideal substitute biomaterial should be similar to the hosting bone; the major function of scaffolds is to balance temporary mechanical functions with mass transport to aid biological delivery and tissue regeneration. Scaffolds should be made of biocompatible materials and therefore never cause adverse immune responses in the host tissue after grafting. Furthermore, the degradation by-products of scaffolds must be non-cytotoxic.
A well-known potential group of scaffolds comprises bioceramics, which have been successfully used as bone substitute biomaterials (BSBs) in clinical applications for many years. They can be produced, in customized ways, with optimized 3D shapes, porosity, and topographies. Indeed, most of them are obtained at a high temperature (>1000 °C) by sintering reactions. These biomaterials include β-tricalcium phosphate (β-TCP; β-Ca3(PO4)2), sintered hydroxyapatite (HA; °Ca10(PO4)6(OH)2), or their composites called biphasic calcium phosphates (BCPs). Morphologically, porous BSBs have been designed to mimic the microstructure of trabecular bone. Indeed, a porous structure is light in weight and provides appropriate space for the ingrowth of the bone tissue, partially achieving the replacement of the biomaterial by newly formed bone [8,9].
Scaffolds act as temporary extracellular matrixes, assisting proliferation, differentiation, and biosynthesis of cells on their surface and pores. An adequate surface roughness is necessary to achieve cell fixation; moreover, scaffold morphometry plays a relevant role in order to achieve bone ingrowth. Indeed, the combination of high porosity, adequate pore dimensions, and interconnectivity are important parameters for scaffold fabrication [10,11,12] because they allow cell migration, vascularization, as well as diffusion of nutrients. Macroporosity (pores of 100–500 µm in diameter) is thought to contribute to osteogenesis by facilitating cell and ion transport, while microporosity (pores with diameter <100 µm) improves bone growth into scaffolds by increasing surface area for protein adsorption, increasing ionic solubility in the microenvironment, and providing attachment points for osteoblasts. Moreover, interconnectivity of pores provides spacing for the vasculature required for new bone formation.
Mechanical properties of scaffolds also play another important role in bone engineering. Important mechanical indices of bone include Young’s modulus, toughness, shear modulus, tensile strength, fatigue strength, and compressive strength; mimicking the properties of hosting bone at a macroscopic level is of paramount importance for a bone scaffold during the implantation stage, sustaining the regeneration of new tissue. From a mechanical point of view, calcium phosphate bioceramics appear to be brittle polycrystalline materials; their mechanical properties are governed by crystallinity, grain size, grain boundaries, porosity, composition, presence of impurities, and manufacturing processes. Bending, compressive, and tensile strengths of porous BCP scaffolds are generally: 2–11 MPa, 2–100 MPa, and 3 MPa, respectively. Scaffold strength is strongly influenced by molecular balancing, increasing with Ca/P ratio up to a maximum value of around 1.67 and decreasing suddenly after when Ca/P > 1.67. Moreover, it was shown that strength decreases almost exponentially with increasing porosity [13].
When producing BCPs by sintering, different process regimes allow the modification of scaffold performances in customized ways, once grafted in a patient bone defect. In particular, modulation of sintering temperature was shown to change the BCP biocomposite characteristics (phase’s formation, porosity, and hardness properties) [14], also using mathematical and digital models [15,16]. Sintering temperature was shown to influence the formation of α-tricalcium phosphate (α-TCP; α-Ca3(PO4)2), affect the 3D porosity of the samples [14,16], and possibly reduce the biomaterial hardness, consequently affecting performance in patients. In particular, it was shown that despite an ideal porosity, there is no bone growth on α-TCP scaffolds because of its rapid dissolution, making the environment near the surface of the biomaterial more acidic [17].
Thus, phase composition, porosity amount and distribution at a 3D level, and mechanical properties were shown to be correlated in BCPs [18,19]. In particular, BCPs with the composition of 30% HA-70% TCP were investigated in the temperature range between 1000 °C and 1300 °C [19]; data showed that consolidation, grain growth, and Vickers hardness generally increase with sintering temperature up to 1200 °C. However, cracks could occur after sintering at 1200 °C. Moreover, the same study showed that the highest compressive strength, modulus of elasticity, and toughness are achieved with sintering at 1100 °C, they decay with sintering at 1200 °C, and increase again with sintering above 1300 °C. However, the problem to find the best sintering conditions is not trivial and deserves further research: indeed, the creation of optimized processes, with correct sequences and times, could limit unwanted phase transition from β-Ca3(PO4)2 to α-Ca3(PO4)2 [15], despite the use of high sintering temperatures [14].
In this context, several computer-aided imaging techniques were used to investigate the microarchitecture of BSBs; in particular, the gold standard for a reliable 3D examination is based on high-resolution X-ray computed tomography (microCT). MicroCT was not only successfully used to reconstruct the morphometry of bone tissue at different length-scales [20,21,22,23,24] and in different environmental and genetic contexts [25,26,27,28], but it is nowadays the elective technique for the characterization of biomaterials used in bone tissue engineering [29] and also in dental districts [30,31,32,33,34,35].
We recently performed a first successful microCT test, combining morphometric 3D analysis with a new protocol of study referred to as BCP’s mechanical properties [30]; in the present study, BCP were studied again during compressive tests up to fracture, testing, for the first time to the authors’ knowledge, inferences and correlations between 3D microstructure, mechanical properties, sintering temperature, and time at peak temperature. The objective was the monitoring of β-Ca3(PO4)2 to α-Ca3(PO4)2 transition, finding the best processing conditions for biphasic calcium phosphate biocomposites.

2. Materials and Methods

Biphasic calcium phosphate (30% of HA and 70% of TCP) samples were produced by sintering of powders using two different protocols: in both of them, the first plateau of temperature reached 800 °C for 2 hours, while in the second plateau, the peak temperatures were different, namely T = 1200 °C and T = 1250 °C. Both peak temperatures samples were sintered for 2, 4, or 8 hours; afterwards, they were tested, first by microCT to get the 3D morphometric analysis and then by loading tests in continuous mode, with compression up to fracture to obtain the reference points in the stress/strain curves.

2.1. Biomaterials

Biphasic calcium phosphate samples (30%HA/70%TCP) were obtained by synthesis in the laboratory of the Biotec srl, Povolaro, Italy. Six groups of samples were produced:
  • T = 1200 °C@2h: nr.3 samples at peak sintering temperature of 1200 °C for 2 hours;
  • T = 1200 °C@4h: nr.3 samples at peak sintering temperature of 1200 °C for 4 hours;
  • T = 1200 °C@8h: nr.3 samples at peak sintering temperature of 1200 °C for 8 hours;
  • T = 1250 °C@2h: nr.3 samples at peak sintering temperature of 1250 °C for 2 hours;
  • T = 1250 °C@4h: nr.3 samples at peak sintering temperature of 1250 °C for 4 hours;
  • T = 1250 °C@8h: nr.3 samples at peak sintering temperature of 1250 °C for 8 hours.
All the scaffolds were small blocks with a volume of about 125 mm³.

2.2. High-Resolution Tomography (microCT)

A Skyscan 1174 tomograph (SkyScan-Bruker, Antwerp, Belgium) was used to perform the microCT analysis using the following experimental conditions: voltage: 50 kV; current: 800 μA; pixel size: 9.5 μm; rotation step: 0.2° for 180°; exposure time per projection: 10 s; filter for the optimization of X-ray photon energy and transmission through samples: 1 mm of Al.
We obtained 8-bit (TIFF) projections that were processed by the NRecon software (SkyScan-Bruker, Antwerp, Belgium), obtaining stacks of cross-sectional slices. The slices consisted of 8-bit (BMP) images, generated with the following settings: smoothing = 4; ring artefacts reduction = 2; beam hardening correction = 10.
The 3D reconstructions were realized using the VG Studio MAX 1.2 software (Volume Graphics, Heidelberg, Germany). Two different peaks were observed in the grey level histogram, one representing the air and the other the biphasic calcium phosphate scaffold. They were separated by the implementation of the Mixture Modeling algorithm (NIH ImageJ Plugin).
Afterwards, we measured the following quantitative morphometric indices [36]: Sample Surface to Sample Volume ratio—SS/SV (mm-1), Sample Volume to Total Volume ratio—SV/TV (%), mean Strut Thickness—S.Th. (µm), mean Strut Number—S.Nr. (mm-1), mean Porosity (%), and mean Strut Spacing—S.Sp. (µm).
Moreover, data on the eventual presence of preferential orientations were also extracted, introducing the anisotropy degree index (DA), which varies between 0, corresponding to the perfect isotropy of the scaffold structure, and 1, representing structures perfectly oriented in agreement with a single plane or axis. The last calculated parameter was the pore connectivity density—P.Conn.D (pixel−3), which gives higher values for better-connected pores and lower values for poorly connected ones.

2.3. Compressive Testing

Compressive tests, in continuum mode up to fracture, were performed in all the scaffolds, using a Material Testing Stage (MTS1) implemented within the Bruker SkyScan 1174 experimental hall, in place of the standard sample holder. During the tests, the scaffolds were submitted to loading by a dedicated software; the representing loading curve was displayed on the screen in real time, with resulting deformation measured by a precision displacement sensor.
The MST1 stage has the following characteristics: maximum force: 440 N; displacement sensor accuracy: ± 0.01 mm; load measurement accuracy = ± 4 N (± 1% of the full range); maximum object diameter: 20 mm; maximum object height (in compression mode): 23 mm.

2.4. X-ray Diffraction

All samples were also analysed using X-ray diffraction (XRD- Bruker D8 Advance, Cu-Kα-Ni and digitally filtered) after sintering. For the XRD measurements, a 2θ scan range of 4–60° with 0.012° steps and 0.15 s counts per step was set. A Rietveld refinement package (ISO 13779-3:2018) was used to quantify the different crystallographic phases. The XRD analyses were performed at the RMS Foundation (Beltlach, CH).

2.5. Statistical Analysis

All values were expressed as mean and standard deviations. The One Way Analysis of Variance tests, with All Pairwise Multiple Comparison Procedures performed by the Holm-Sidak method (SigmaStat software 3.5, Systat, San Jose, CA, USA), were used for the statistical analysis of the morphometric microCT data. The statistical significance was analyzed at three levels: p < 0.05, p < 0.01, p < 0.001.
The Pearson correlation coefficient (PCC), also referred to as Pearson’s r, was also evaluated to measure the linear correlation between two variables, X and Y, randomly selected between the microarchitecture structural indices and relevant points of the obtained Stress vs Strain curves. The software that was used for the PCC evaluation is freely available at the Alcula.com site (accessed on 30 April 2020).

3. Results

All the scaffolds had the same biphasic composition: 30% HA and 70% TCP. This balancing of phases was previously demonstrated to be good in preserving the volumes during grafting because of HA slow resorption and TCP rapid resorption favoring bone regeneration [32,33].
The investigation was focused on the analysis of microarchitecture, strength to compressive forces, and inference between these indices. In particular, possible correlations between these indices, sintering time, and temperature conditions were considered.

3.1. MicroCT Analysis

The microCT experiments were performed using a SkyScan-Bruker 1174 microCT system, equipped with a Material Testing Stage (MTS1), installed at the CISMIN Centre of the Polytechnic University of Marche (Ancona, Italy). MicroCT images of representative samples for each group of the study are reported in Figure 1: in particular, samples sintered at the peak temperature of 1200 °C for 2 hours (Figure 1a,b), samples sintered at the peak temperature of 1200 °C for 4 hours (Figure 1c,d), samples sintered at the peak temperature of 1200 °C for 8 hours (Figure 1e,f), samples sintered at the peak temperature of 1250 °C for 2 hours (Figure 1g,h), samples sintered at the peak temperature of 1250 °C for 4 hours (Figure 1i,j), and samples sintered at the peak temperature of 1250 °C for 8 hours (Figure 1k,l) were shown. At the peak temperature of 2 hours, larger pores for the group at T = 1250 °C with respect to the group at T = 1200 °C were found. No other evident morphometric mismatches between groups of the study were found from the simple visual comparison of the 3D reconstructions.
Thus, in order to get reliable information on the microarchitecture, the quantitative morphometric analysis of the complete set of samples was carried out. These data were reported in Figure 2. The characterization of the 3D mineralized microarchitecture showed that at the peak temperature of 1200°C and at increasing times of sintering, several parameters remained constant. We observed, as a trend, an increasing of S.Th. and S.Sp. and a slight decreasing of SS/SV, S.Nr, and P.Conn.D. Conversely, at the peak temperature of 1250 °C and at increasing times of sintering, the variability was much wider; indeed, while SV/TV and S.Th. decreased, the remaining indices increased at increasing times of permanence at the peak temperature. Interestingly, in the case of the group maintained for 2 hours at the peak temperature of 1200 °C, the structure was made of much more thin trabeculae with pores highly connected. However, the too small mean size of the pores (S.Sp) advises against the use of these sintering parameters.
With the exclusion of the previous group, beyond other significant deviations between corresponding data at the peak temperature of T = 1200 °C and T = 1250 °C, which were statistically detected and are reported in Figure 2 for all the indices, we found a high standard deviation for almost all the indices detected in the group maintained for 4 hours at the peak temperature of 1250 °C.

3.2. Mechanical Characterization

The strength of the scaffolds was investigated by compressive tests in the axial direction and in continuous mode up to fracture. This study is of fundamental interest: indeed, compressive forces produced during the implant insertion and afterwards, during mastication, cause a modification of the biomaterial performance and of the jaw homeostasis. When loading exceeds the resistance limit of the biomaterial, the osteoblasts start to reduce their activity, with the consequent bone resorption.
Stress (σ) and strain (ε) parameters were recorded, classically defined as below:
σ= F/A0
where F is the compressive force perpendicularly acting on the cross section A0 of the sample and
ε = |(li-l0)/l0|
where l0 is the length of the sample before loading and li is its length during testing.
The length of sample l0 was precisely determined by X-ray projections before the mechanical test of each sample. Moreover, the cross section A0 of each sample was found, by microCT morphometric analysis of the first 10 slices of contact with the loading piston of the MTS1 device, taking into account the actual contact surface, i.e., subtracting the calculated porosity from the overall area. Indeed, samples produced by sintering normally have a homogeneous porosity throughout their thickness. Thus, we arbitrarily decided to use the first 10 contact slices to have a representative situation on 100 µm of thickness, which is a reasonable volume to find A0.
The stress–strain profiles of the studied scaffolds allowed us to get the data shown in Table 1. While there is not a clear trend depending on the time of permanence at the peak temperature for samples of groups with T = 1200 °C, for samples at T = 1250 °C, as the duration of the treatment increases, yield, ultimate, and fracture stresses seemed to decrease. At T = 1250 °C, the samples with peak temperature lasting for 8 hours have values comparable to those at 1200 °C, with higher sample strains both at the ultimate point (UP) and at fracture point (FP).

3.3. Statistical Inference

The Pearson’s correlation coefficients (PCC) between indexes extracted from the overall analysis are summarized in Figure 3. Statistical inference based on PCC was focused on testing the null hypothesis that a true correlation does not exist between two indexes extracted from the microarchitecture analysis and/or from compressive testing, based on the value of the sample correlation coefficient r.
As r = 0.8 may not be an optimal value when verifying a possible correlation using high-quality devices like 3D high-resolution microCT and compressive testing equipment like MST1, we discriminated good and strong (direct/inverse) correlations when obtaining 0.80 ≤ |r| ≤ 0.89 and 0.90 ≤ |r| ≤ 0.99, respectively.
Strong direct correlations were found between specific surface and number of struts, specific surface and anisotropy degree, number of struts and pore connectivity density, and number of struts and anisotropy degree. Obviously, strong direct correlations were also found between the stress values in the yield, ultimate and fracture points, and between the strain values in the same points. Conversely, strong inverse correlations were found between specific surface and struts mean thickness, number of struts, and struts mean thickness. Good direct correlations were found between specific surface and pore connectivity density and this last parameter with the anisotropy degree, but interestingly, also between specific volume and stress at the fracture point and between struts mean thickness and stress at the ultimate point. Moreover, good inverse correlations were found between struts mean thickness and pore connectivity density, struts mean thickness and anisotropy degree, and interestingly, also between the overall porosity and stress at the fracture point.

3.4. X-ray Diffraction Analysis

X-ray diffraction (XRD) measurements of the BCPs revealed, for samples sintered at the peak temperature of 1200 °C and 1250 °C for 2 hours, not appreciable quantitatives of α-TCP and tetracalcium phosphate (TTCP) below the minimum detection limit (Table 2). Conversely, if sintering at the peak temperature of 1250 °C is prolonged for 4 hours, significant amounts of α-TCP appear. Indeed, we showed that in this condition, the composition is far away from the target 30%HA/70%TCP, with significantly lower amounts of β-TCP (around 50%) and with α-TCP contents above 19%.

4. Discussion

The recent literature widely reports successful bone regeneration using biphasic calcium phosphate scaffolds, with special reference to dental districts [30,37,38,39,40,41,42,43,44,45,46]. However, just a single study of ours described an integrated morphological, morphometric, and mechanical 3D analysis on these biomaterials [30].
In the present study, blocks of biphasic calcium phosphate scaffolds, produced by sintering at the two critical peak temperatures of 1200 °C and 1250 °C, were studied by an innovative integrated approach based on microCT morphometric 3D analysis, mechanical testing, and X-ray diffraction.
In general, all the studied scaffolds closely mimicked the alveolar organization of jawbone, having high medullar spaces interconnectivity. The mean size of the macropores (S.Sp. index) was found to be well above 100 μm in all the groups of study; this dimension is considered the recommended minimum size for bone tissue engineering because it allows bone cells migration and colonization into the scaffold, its vascularisation [47], and the consequent osteointegration of the scaffold in the jaw [33,48]. Specifically, the morphometric analysis by microCT showed that for the 3D mineralized microarchitecture of the scaffolds produced at the peak temperature of 1200 °C, several structural indices remained constant at increasing times of sintering. Conversely, we observed a much wider variability at the peak temperature of 1250 °C, with decreased BCP volumes and thinner struts at increasing times of sintering. Moreover, we observed that overall porosity and pore interconnectivity decreased for 1200 °C but increased for 1250 °C sintering over time. In this context, Bignon et al. [11] noted that BCP shows a total porosity, which decreases as a function of the temperature in the range between 1200°C and 1250 °C. The trend was similar to the profile achieved in our study, i.e., with a porosity that decreases up to 1250 °C and then grows more and more according to the sintering time. Indeed, a general rule observed in several studies of bioceramics is that shorter times at higher sintering temperatures produce similar effects to longer times at lower sintering temperatures; obviously, up to now, this was a purely indicative equivalence, justifying the present study novelty. The same study [11] also showed that the micropores change in number and distribution as a function of temperature; i.e., by increasing the temperature but maintaining the same sintering time, the micropores tend to disappear. This could explain the trend of our data on pore interconnectivity.
Several physical forces and moments act daily on the jawbone during speaking or eating. In particular, during mastication, the jaw is subjected to compressive stress that is in non-linear relation with the strain [30] because of the yielding caused by debonding of osteons at cement lines and microfractures [49]. Compressive strengths of cancellous bone were found in the range of 2–12 MPa [50,51], depending on the skeletal site; thus, developing constructs as scaffolds with mechanical strength similar to the hosting bone is of paramount importance. Indeed, mechanical properties of BCP biomaterials have been studied for several years in order to increase their performance after grafting in jawbone [11,12,13,16,17,18,19]. The mechanical testing performed in the present study did not show a relevant variability depending on the time of permanence at the peak temperature for samples of groups at T = 1200 °C; conversely, for groups at T = 1250 °C, yield, ultimate, and fracture stresses seemed to decrease as the duration of the sintering increased. Specifically, the group with peak temperature lasting for 2 hours at 1250 °C showed the highest strength both at the ultimate point (UP) and at fracture point (FP). One more time, we should refer to the Bignon et al. [11] study in discussing our data: indeed, their compressive strength curve reflects our data, indicating that there is a critical point, which in our experiments, corresponds to T = 1250 °C for 2 hours, beyond which the material changes its mechanical properties. This is most likely due to the α-TCP formation, starting from the group lasting for 4 hours at T = 1250 °C.
In this context, the formation of α-TCP was shown to be responsible for the reduction of the hardness value of BCP biocomposites [16], hitherto making the use of temperatures above 1200 °C for sintering of scaffolds used for severe alveolar bone defects challenging. Nevertheless, while some authors showed that the key experimental variables to monitor during the allotropic α↔β-tricalcium phosphate phase transformations included the composition of the starting Ca/P ratio, the maximum heat treatment temperatures, and the cooling rates [52], no studies evaluated the inference of the sintering time at peak temperature, as we did in the present experiment. Indeed, our XRD data demonstrated the absence of the α-TCP in the group, with peak temperature lasting for 2 hours at 1250 °C, but its presence for sintering at the peak temperature of 1250 °C for longer times. Ca3(PO4)2 consists of three polymorphs: Kreidler and Hummel’s phase diagram [53] indicated that β-Ca3(PO4)2, which is rhombohedral, transforms into α-Ca3(PO4)2 upon heating at 1100-1200 °C; α-Ca3(PO4)2 is monoclinic and above 1400 °C, it converts into α’-Ca3(PO4)2, which is hexagonal. While α’-Ca3(PO4)2 is only stable above 1400 °C and reverts towards α-Ca3(PO4)2 immediately after cooling from such a temperature, α-Ca3(PO4)2 is metastable at room temperature and discussion about the cooling rate required to avoid reconversion to β-Ca3(PO4)2 is nowadays wide in the scientific community. Indeed, bioceramics based on α-Ca3(PO4)2 or containing the α-Ca3(PO4)2 are usually produced to obtain a calcium phosphate material with a higher dissolution rate [54,55]. However, very recent in-vitro studies on biocompatibility of biphasic TCP, with high contents of α- Ca3(PO4)2 , seeded with cells showed that in spite of the chemical similarity of α- Ca3(PO4)2 to the mineralized component of bone tissue, α-TCP was shown to cause the suppression of cell activity because of the environment’s acidification near the surface of the biomaterial [17]. Thus, as several authors argued that low cooling rates, after TCP sintering above 1200 °C, avoid the formation of β- Ca3(PO4)2 , it is likely to expect that fast sintering at peak temperature above 1200 °C may instead contribute to the exclusive presence of β-Ca3(PO4)2 at room temperature, like happened in our group of study, with peak temperature lasting for 2 hours at 1250 °C.
Moreover, in order to verify if relevant correlations exist between the 3D microarchitecture indices and the compressive strength, the statistical inference based on PCC was evaluated. Good direct correlations were found between the scaffold volume and strength at fracture point and between the strut mean thickness and the strength at the ultimate point. Interestingly, a good inverse correlation was also found between the overall 3D porosity and strength at the fracture point. This is in agreement with previous observations of other authors [16,18], observing inverse correlations between compressive strength and percentage of macroporosity or sintering temperature.

5. Conclusions

In order to describe the general integrity of a biomaterial in terms of fracture resistance, its strength is usually studied by mechanical testing together with its microarchitecture. From the morphometric analysis, it is expected that the biomaterial mimic the morphometry of the hosting bone site; from the compressive loading, it is expected to get a biomaterial with the same stiffness of the hosting healthy bone, withstanding strain during loading, but of which is also flexible and allows energy absorption during impact loading.
The BCPs investigated in this study were proved to have a morphometric structure similar to native jawbone, independently of whether they were sintered at different peak temperatures and for different times. However, we found that the group with peak temperature lasting for 2 hours at 1250 °C showed the highest strength, both at ultimate and at fracture point. As previously shown by other authors [14,15,16], the ultimate stress achieved by samples that were sintered at the peak temperature of 1250 °C for longer times was significantly lower. This was shown to be due, for times longer than 2 hours at peak temperatures above 1200 °C, to allotropic transformation of TCP from β to α phase, shown to occur by XRD; in fact, the α phase is brittle and with reverse transformation, is not totally achieved during cooling to room temperature [14,16].

Author Contributions

Conceptualization, A.G. and C.M.; Data curation, M.L.G., L.G., and F.G.M.; Formal analysis, A.G.; Funding acquisition, F.G.M. and C.M.; Investigation, M.L.G. and L.G.; Methodology, A.G. and M.L.G.; Project administration, F.G.M. and C.M.; Resources, F.G.M. and C.M.; Software, A.G. and M.L.G.; Supervision, C.M.; Validation, F.G.M.; Visualization, L.G. and C.M.; Writing—original draft, A.G. and C.M.; Writing—review & editing, A.G., M.L.G., L.G., F.G.M., and C.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

The authors acknowledge Luca Canton of Biotec Srl (Povolaro di Dueville (Vl)-IT) for delivering samples, the RMS Foundation (Beltlach, CH) for the X-ray diffraction analyses, and the CISMIN Centre of the Polytechnic University of Marche (Ancona, Italy) for making all the instrumentation for the morphological, morphometric, and biomechanical investigation available.

Conflicts of Interest

The authors declare no conflict of interest.

Availability of Data and Materials

The datasets are available from the author upon reasonable request.

Abbreviations

BSBBone substitute biomaterial
3DThree-dimensions
BCPBiphasic calcium phosphate
MicroCTMicrotomography
PCCPearson correlation coefficient
XRDX-ray diffraction

References

  1. Mangano, F.; Macchi, A.; Caprioglio, A.; Sammons, R.L.; Piattelli, A.; Mangano, C. Survival and complication rates of fixed restorations supported by locking-taper implants: A prospective study with 1 to 10 years of follow-up. J. Prosthodont. 2014, 23, 434–444. [Google Scholar] [CrossRef] [PubMed]
  2. Mangano, F.; Shibli, J.A.; Sammons, R.L.; Veronesi, G.; Piattelli, A.; Mangano, C. Clinical outcome of narrow-diameter (3.3-mm) locking-taper implants: A prospective study with 1 to 10 years of follow-up. Int. J. Oral Maxillofac. Implants 2014, 29, 448–455. [Google Scholar] [CrossRef] [Green Version]
  3. Tamimi, F.; Torres, J.; Al-Abedalla, K.; López-Cabarcos, E.; Alkhraisat, M.; Bassett, D.C.; Gbureck, U.; Barralet, J. Osseointegration of dental implants in 3D-printed synthetic onlay grafts customized according to bone metabolic activity in recipient site. Biomaterials 2014, 35, 5436–5445. [Google Scholar] [CrossRef]
  4. Jacotti, M.; Barausse, C.; Felice, P. Posterior atrophic mandible rehabilitation with onlay allograft created with CAD-CAM procedure: A case report. Implant Dent. 2014, 23, 22–28. [Google Scholar] [CrossRef] [Green Version]
  5. Esposito, M.; Grusovin, M.G.; Felice, P.; Karatzopoulos, G.; Worthington, H.V.; Coulthard, P. The efficacy of horizontal and vertical bone augmentation procedures for dental implants—A Cochrane systematic review. Eur. J. Oral Implantol. 2009, 2, 167–184. [Google Scholar]
  6. LaPrade, R.F.; Botker, J.C. Donor-site morbidity after osteochondral autograft transfer procedures. Arthroscopy 2004, 20, e69–e73. [Google Scholar] [CrossRef]
  7. Palmer, S.H.; Gibbons, C.L.; Athanasou, N.A. The pathology of bone allograft. J. Bone Jt. Surg. Br. 1999, 81, 333–335. [Google Scholar] [CrossRef]
  8. Klawitter, J.J.; Hulbert, S.F. Application of porous ceramics for the attachment of load bearing internal orthopedic applications. J. Biomed. Mater. Res. Symp. 1971, 2, 161–229. [Google Scholar] [CrossRef]
  9. Ayers, R.A.; Wolford, L.M.; Bateman, T.A.; Ferguson, V.L.; Simske, S.J. Qualification of bone ingrowth into porous block hydroxyapatite in humans. J. Biomed. Mater. Res. 1999, 47, 54–59. [Google Scholar] [CrossRef]
  10. Jin, Q.-M.; Takita, H.; Kohgo, T.; Atsumi, K.; Itoh, H.; Kuboki, Y. Effects of geometry of hydroxyapatite as a cell substratum in BMP-induced ectopic bone formation. J. Biomed. Mater. Res. 2000, 51, 491–499. [Google Scholar] [CrossRef]
  11. Bignon, A.; Chouteau, J.; Chevalier, J.; Fantozzi, G.; Carret, J.-P.; Chavassieux, P.; Boivin, G.; Melin, M.; Hartmann, D. Effect of micro- and macroporosity of bone substitutes on their mechanical properties and cellular response. J. Mater. Sci. Mater. Electron. 2003, 14, 1089–1097. [Google Scholar] [CrossRef]
  12. Woodard, J.R.; Hilldore, A.J.; Lan, S.K.; Park, C.J.; Morgan, A.W.; Eurell, J.A.; Clark, S.G.; Wheeler, M.B.; Jamison, R.D.; Johnson, A.J.W. The mechanical properties and osteoconductivity of hydroxyapatite bone scaffolds with multi-scale porosity. Biomaterials 2007, 28, 45–54. [Google Scholar] [CrossRef] [PubMed]
  13. Dorozhkin, S.V. Calcium orthophosphate-based bioceramics. Materials 2013, 6, 3840–3942. [Google Scholar] [CrossRef] [Green Version]
  14. Brown, O.; McAfee, M.; Clarke, S.; Buchanan, F. Sintering of biphasic calcium phosphates. J. Mater. Sci. Mater. Med. 2010, 21, 2271–2279. [Google Scholar] [CrossRef] [PubMed]
  15. Huang, J.; Pan, Y.; Shao, C.Y. Preparation of b-TCP with high thermal stability by solid reaction route. J. Mater. Sci. 2003, 38, 1049–1056. [Google Scholar]
  16. Kasim, S.R.; Muhamad, N.F.; Ramakrishan, S. Effect of sintering temperature on biphasic calcium phosphate (BCP) biocomposite. Adv. Mater. Res. 2015, 1087, 475–478. [Google Scholar] [CrossRef]
  17. Safronova, T.; Selezneva, I.I.; Tikhonova, S.A.; Kiselev, A.; Davydova, G.; Shatalova, T.; Larionov, D.; Rau, J.V. Biocompatibility of biphasic α,β-tricalcium phosphate ceramics in vitro. Bioact. Mater. 2020, 5, 423–427. [Google Scholar] [CrossRef] [PubMed]
  18. Bouler, J.-M.; Royer, J.; Passuti, N.; Daculsi, G.; Trécant, M.; Delécrin, J. Macroporous biphasic calcium phosphate ceramics: Influence of five synthesis parameters on compressive strength. J. Biomed. Mater. Res. 1996, 32, 603–609. [Google Scholar] [CrossRef]
  19. Yetmez, M. Sintering Behavior and mechanical properties of biphasic calcium phosphate ceramics. Adv. Mater. Sci. Eng. 2014, 2014, 871749. [Google Scholar] [CrossRef] [Green Version]
  20. Langer, M.; Pacureanu, A.; Suhonen, H.; Grimal, Q.; Cloetens, P.; Peyrin, F. X-Ray Phase nanotomography resolves the 3D human bone ultrastructure. PLoS ONE 2012, 7, e35691. [Google Scholar] [CrossRef]
  21. Peyrin, F.; Dong, P.; Pacureanu, A.; Langer, M. Micro- and nano-CT for the study of bone ultrastructure. Curr. Osteoporos. Rep. 2014, 12, 465–474. [Google Scholar] [CrossRef]
  22. Giuliani, A.; Iezzi, G.; Mozzati, M.; Gallesio, G.; Mazzoni, S.; Tromba, G.; Zanini, F.; Piattelli, A.; Mortellaro, C. Bisphosphonate-related osteonecrosis of the human jaw: A combined 3D assessment of bone descriptors by histology and synchrotron radiation-based microtomography. Oral Oncol. 2018, 82, 200–202. [Google Scholar] [CrossRef] [PubMed]
  23. Iezzi, G.; Mangano, C.; Barone, A.; Tirone, F.; Baggi, L.; Tromba, G.; Piattelli, A.; Giuliani, A. Jawbone remodeling: A Conceptual study based on Synchrotron High-resolution Tomography. Sci. Rep. 2020, 10, 3777. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Giuliani, A.; Iezzi, G.; Mozzati, M.; Gallesio, G.; Mazzoni, S.; Tromba, G.; Zanini, F.; Piattelli, A.; Mortellaro, C. Three-dimensional microarchitecture and local mineralization of human jaws affected by bisphosphonate-related osteonecrosis. Oral Oncol. 2018, 84, 128–130. [Google Scholar] [CrossRef] [PubMed]
  25. Tavella, S.; Ruggiu, A.; Giuliani, A.; Brun, F.; Canciani, B.; Manescu, A.; Marozzi, K.; Cilli, M.; Costa, D.; Liu, Y.; et al. Bone turnover in wild type and pleiotrophin-transgenic mice housed for three months in the International Space Station (ISS). PLoS ONE 2012, 7, e33179. [Google Scholar] [CrossRef]
  26. Costa, D.; Lazzarini, E.; Canciani, B.; Giuliani, A.; Spano’, R.; Marozzi, K.; Manescu, A.; Cancedda, R.; Tavella, S. Altered bone development and turnover in transgenic mice over-expressing Lipocalin-2 in bone. J. Cell. Physiol. 2013, 228, 2210–2221. [Google Scholar] [CrossRef]
  27. Canciani, B.; Ruggiu, A.; Giuliani, A.; Panetta, D.; Marozzi, K.; Tripodi, M.; Salvadori, P.A.; Cilli, M.; Ohira, Y.; Cancedda, R.; et al. Effects of long time exposure to simulated micro- and hypergravity on skeletal architecture. J. Mech. Behav. Biomed. Mater. 2015, 51, 1–12. [Google Scholar] [CrossRef]
  28. Giuliani, A.; Mazzoni, S.; Ruggiu, A.; Canciani, B.; Cancedda, R.; Tavella, S. High-resolution X-ray tomography: A 3D exploration into the skeletal architecture in mouse models submitted to microgravity constraints. Front. Physiol. 2018, 9, 181. [Google Scholar] [CrossRef] [Green Version]
  29. Olubamiji, A.D.; Izadifar, Z.; Chen, D.X. Synchrotron Imaging Techniques for bone and cartilage tissue engineering: Potential, current trends, and future directions. Tissue Eng. Part B: Rev. 2014, 20, 503–522. [Google Scholar] [CrossRef]
  30. Mangano, F.; Mangano, F.; Gobbi, L.; Admakin, O.; Iketani, S.; Giuliani, A. comparative study between laser light stereo-lithography 3D-printed and traditionally sintered biphasic calcium phosphate scaffolds by an integrated morphological, morphometric and mechanical analysis. Int. J. Mol. Sci. 2019, 20, 3118. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Luca, R.E.; Giuliani, A.; Mănescu, A.; Heredea, R.; Hoinoiu, B.; Constantin, G.D.; Duma, V.-F.; Todea, C.D. Osteogenic potential of bovine bone graft in combination with laser photobiomodulation: An ex vivo demonstrative study in wistar rats by cross-linked studies based on synchrotron microtomography and histology. Int. J. Mol. Sci. 2020, 21, 778. [Google Scholar] [CrossRef] [Green Version]
  32. Giuliani, A.; Manescu, A.; Mohammadi, S.; Mazzoni, S.; Piattelli, A.; Mangano, C.; Iezzi, G.; Mangano, C. Quantitative kinetics evaluation of blocks versus granules of biphasic calcium phosphate scaffolds (HA/β-TCP 30/70) by synchrotron radiation X-ray microtomography. Implant. Dent. 2016, 25, 6–15. [Google Scholar] [CrossRef]
  33. Giuliani, A.; Manescu, A.; Larsson, E.; Tromba, G.; Luongo, G.; Piattelli, A.; Mangano, C.; Iezzi, G.; Mangano, C. In vivo regenerative properties of coralline-derived (Biocoral) scaffold grafts in human maxillary defects: Demonstrative and comparative study with beta-tricalcium phosphate and biphasic calcium phosphate by synchrotron radiation X-ray microtomography. Clin. Implant. Dent. Relat. Res. 2013, 16, 736–750. [Google Scholar] [CrossRef]
  34. Manescu, A.; Giuliani, A.; Mohammadi, S.; Tromba, G.; Mazzoni, S.; Diomede, F.; Zini, N.; Piattelli, A.; Trubiani, O. Osteogenic potential of dual-blocks cultured with periodontal ligament stem cells: In-vitro and synchrotron microtomography study. J. Periodontal.Res. 2016, 51, 112–124. [Google Scholar] [CrossRef] [PubMed]
  35. Mazzoni, S.; Mohammadi, S.; Tromba, G.; Diomede, F.; Trubiani, O.; Giuliani, A. role of cortico-cancellous heterologous bone in human periodontal ligament stem cell xeno—Free culture studied by synchrotron radiation phase-contrast microtomography. Int. J. Mol. Sci. 2017, 18, 364. [Google Scholar] [CrossRef] [Green Version]
  36. Parfitt, A.M.; Drezner, M.K.; Glorieux, F.H.; Kanis, J.A.; Malluche, H.; Meunier, P.J.; Ott, S.M.; Recker, R.R. Bone histomorphometry: Standardization of nomenclature. symbols. and units. Report of the ASBMR histomorphometry nomenclature committee. J. Bone Miner. Res. 1987, 2, 595–610. [Google Scholar] [CrossRef] [PubMed]
  37. Scarano, A.; Degidi, M.; Iezzi, G.; Pecora, G.; Piattelli, M.; Orsini, G.; Caputi, S.; Perrotti, V.; Mangano, C.; Piattelli, A. maxillary sinus augmentation with different biomaterials: A comparative histologic and histomorphometric study. Man. Implant. Dent. 2006, 15, 197–207. [Google Scholar] [CrossRef] [PubMed]
  38. Iezzi, G.; Piattelli, A.; Giuliani, A.; Mangano, C.; Barone, A.; Manzon, L.; Degidi, M.; Scarano, A.; Filippone, A.; Perrotti, V. Molecular, cellular and pharmaceutical aspects of bone grafting materials and membranes during maxillary sinus-lift procedures. Part 2: Detailed characteristics of the materials. Curr. Pharm. Biotechnol. 2017, 18, 33–44. [Google Scholar] [CrossRef] [PubMed]
  39. Mangano, C.; Perrotti, V.; Shibli, J.A.; Mangano, C.; Ricci, L.; Piattelli, A.; Iezzi, G. Maxillary sinus grafting with biphasic calcium phosphate ceramics: Clinical and histologic evaluation in man. Int. J. Oral Maxillofac. Implant. 2013, 28, 51–56. [Google Scholar] [CrossRef] [Green Version]
  40. Piattelli, A.; Scarano, A.; Mangano, C. Clinical and histologic aspects of biphasic calcium phosphate ceramic (BCP) used in connection with implant placement. Biomaterials 1996, 17, 1767–1770. [Google Scholar] [CrossRef]
  41. Mangano, C.; Barboni, B.; Valbonetti, L.; Berardinelli, P.; Martelli, A.; Muttini, A.; Bedini, R.; Tetè, S.; Piattelli, A.; Mattioli, M. In vivo behavior of a custom-made 3D synthetic bone substitute in sinus augmentation procedures in sheep. J. Oral Implant. 2015, 41, 240–250. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Barboni, B.; Mangano, C.; Valbonetti, L.; Marruchella, G.; Berardinelli, P.; Martelli, A.; Muttini, A.; Mauro, A.; Bedini, R.; Turriani, M.; et al. Synthetic bone substitute engineered with amniotic epithelial cells enhances bone regeneration after maxillary sinus augmentation. PLoS ONE 2013, 8, e63256. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Annibali, S.; Iezzi, G.; Sfasciotti, G.L.; Cristalli, M.P.; Vozza, I.; Mangano, C.; La Monaca, G.; Polimeni, A. histological and histomorphometric human results of HA-Beta-TCP 30/70 compared to three different biomaterials in maxillary sinus augmentation at 6 months: A preliminary report. BioMed Res. Int. 2015, 2015, 156850. [Google Scholar] [CrossRef] [PubMed]
  44. Mangano, C.; Zecca, P.A.; Van Noort, R.; Apresyan, S.; Iezzi, G.; Piattelli, A.; Macchi, A.; Mangano, C. Custom-made computer-aided-design/computer-aided-manufacturing biphasic calcium-phosphate scaffold for augmentation of an atrophic mandibular anterior ridge. case reports. Dentistry 2015, 2015, 941265. [Google Scholar] [CrossRef] [Green Version]
  45. Mangano, C.; Sinjari, B.; Shibli, J.A.; Mangano, C.; Hamisch, S.; Piattelli, A.; Perrotti, V.; Iezzi, G. A human clinical, histological, histomorphometrical, and radiographical study on biphasic HA-Beta-TCP 30/70 in maxillary sinus augmentation. Clin. Implant. Dent. Relat. Res. 2013, 17, 610–618. [Google Scholar] [CrossRef]
  46. Carrel, J.-P.; Wiskott, A.; Moussa, M.; Rieder, P.; Scherrer, S.; Durual, S. A 3D printed TCP/HA structure as a new osteoconductive scaffold for vertical bone augmentation. Clin. Oral Implant. Res. 2014, 27, 55–62. [Google Scholar] [CrossRef]
  47. Karageorgiou, V.; Kaplan, D. Porosity of 3-D biomaterial scaffolds and osteogenesis. Biomaterials 2005, 26, 5474–5491. [Google Scholar] [CrossRef]
  48. Renghini, C.; Giuliani, A.; Mazzoni, S.; Brun, F.; Larsson, E.; Baino, F.; Vitale-Brovarone, C. Microstructural characterization and in vitro bioactivity of porous glass-ceramic scaffolds for bone regeneration by synchrotron radiation X-ray microtomography. J. Eur. Ceram. Soc. 2013, 33, 1553–1565. [Google Scholar] [CrossRef] [Green Version]
  49. Pathria, M.N.; Chung, C.B.; Resnick, D.L. Acute and stress-related injuries of bone and cartilage: Pertinent anatomy, basic biomechanics, and imaging Perspective. Radiology 2016, 280, 21–38. [Google Scholar] [CrossRef] [Green Version]
  50. Fung, Y.C. Biomechanics: Mechanical Properties of Living Tissues; Springer: New York, NY, USA, 1993. [Google Scholar]
  51. Rho, J.Y.; Hobatho, M.C.; Ashman, R.B. Relations of density and CT numbers to mechanical properties for human cortical and cancellous bone. Med. Eng. Phys. 1995, 17, 347–355. [Google Scholar] [CrossRef]
  52. Brazete, D.; Torres, P.M.C.; Abrantes, J.C.C.; Ferreira, J.M.F. Influence of the Ca/P ratio and cooling rate on the allotropic α↔β-tricalcium phosphate phase transformations. Ceram. Int. 2018, 44, 8249–8256. [Google Scholar] [CrossRef]
  53. Kreidler, E.R.; Hummel, F.A. Phase relations in the system SrO-P2O5 and the influence of water vapor on the formation of Sr4P2O9. Inorg. Chem. 1967, 6, 884–891. [Google Scholar] [CrossRef]
  54. Elliot, J.C. Structure and Chemistry of the Apatites and Other Calcium Orthophosphates; Elsevier: Amsterdam, The Netherlands, 1994. [Google Scholar]
  55. Kamitakahara, M.; Ohtsuki, C.; Miyazaki, T. Behavior of ceramic biomaterials derived from tricalcium phosphate in physiological condition. J. Biomater. Appl. 2008, 23, 197–212. [Google Scholar] [CrossRef] [PubMed]
Ijerph 17 04931 g001 550

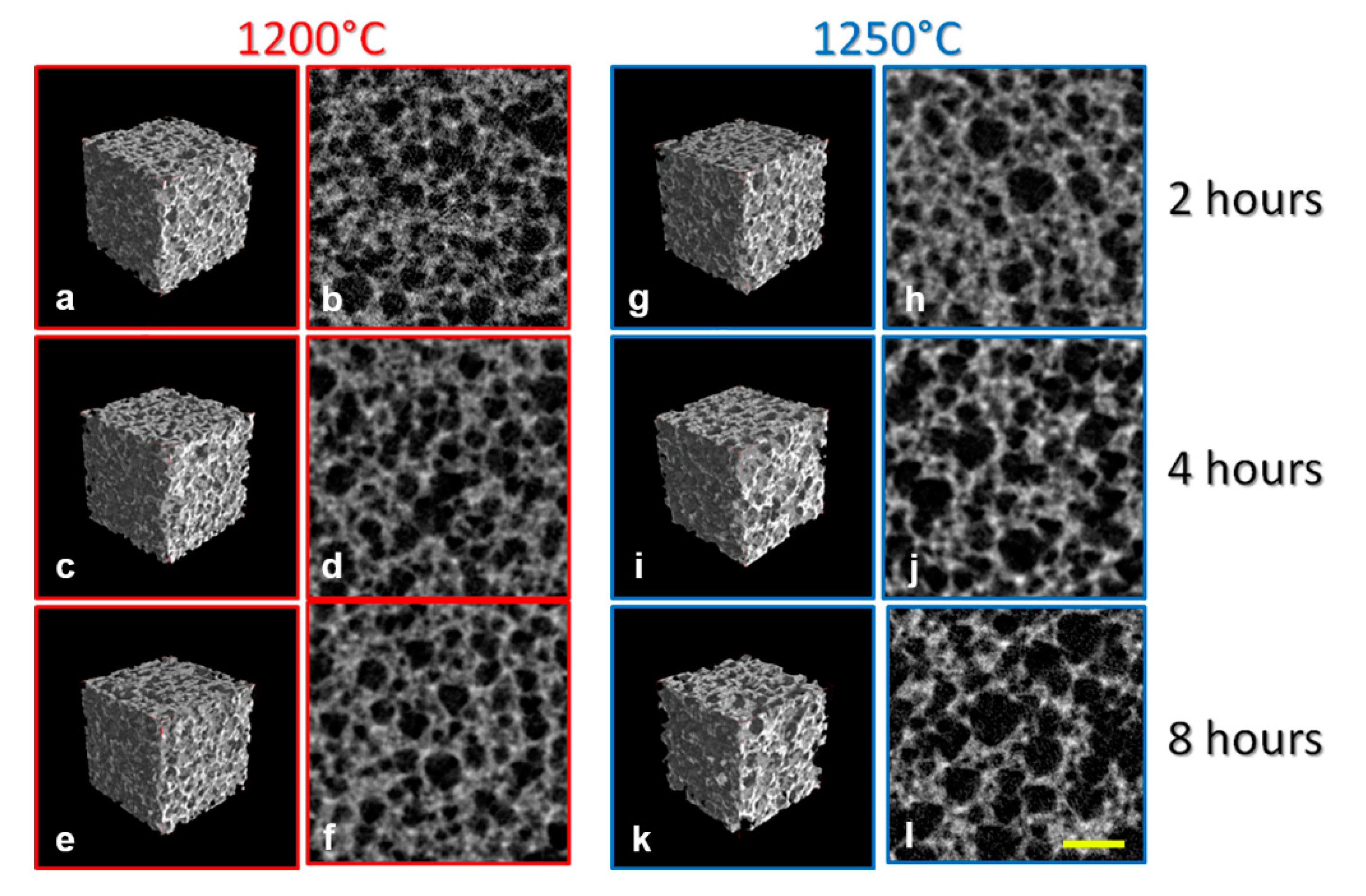

Figure 1. MicroCT analysis of the sintered biomaterials: (a–f) Samples sintered at the peak temperature of 1200 °C; (g–l) Samples sintered at the peak temperature of 1250 °C. 3D reconstructions (a,c,e,g,i,k) and axial (b,d,f,j,l) 2D sections before compressive loading; representative sample of: (a,b) T = 1200 °C@2 h group; (c,d) T = 1200°C@4 h group; (e,f) T = 1200 °C@8 h group; (g,h) T = 1250 °C@2 h group; (i,j) T = 1250 °C@4 h group; (k,l) T = 1250 °C@8 h group. Larger pores for samples sintered at T = 1250 °C with respect to those sintered at T = 1200 °C were found, independently from sintering time at the peak temperature. Yellow bar: 500 µm.
Figure 1. MicroCT analysis of the sintered biomaterials: (a–f) Samples sintered at the peak temperature of 1200 °C; (g–l) Samples sintered at the peak temperature of 1250 °C. 3D reconstructions (a,c,e,g,i,k) and axial (b,d,f,j,l) 2D sections before compressive loading; representative sample of: (a,b) T = 1200 °C@2 h group; (c,d) T = 1200°C@4 h group; (e,f) T = 1200 °C@8 h group; (g,h) T = 1250 °C@2 h group; (i,j) T = 1250 °C@4 h group; (k,l) T = 1250 °C@8 h group. Larger pores for samples sintered at T = 1250 °C with respect to those sintered at T = 1200 °C were found, independently from sintering time at the peak temperature. Yellow bar: 500 µm.
Ijerph 17 04931 g001
Ijerph 17 04931 g002 550

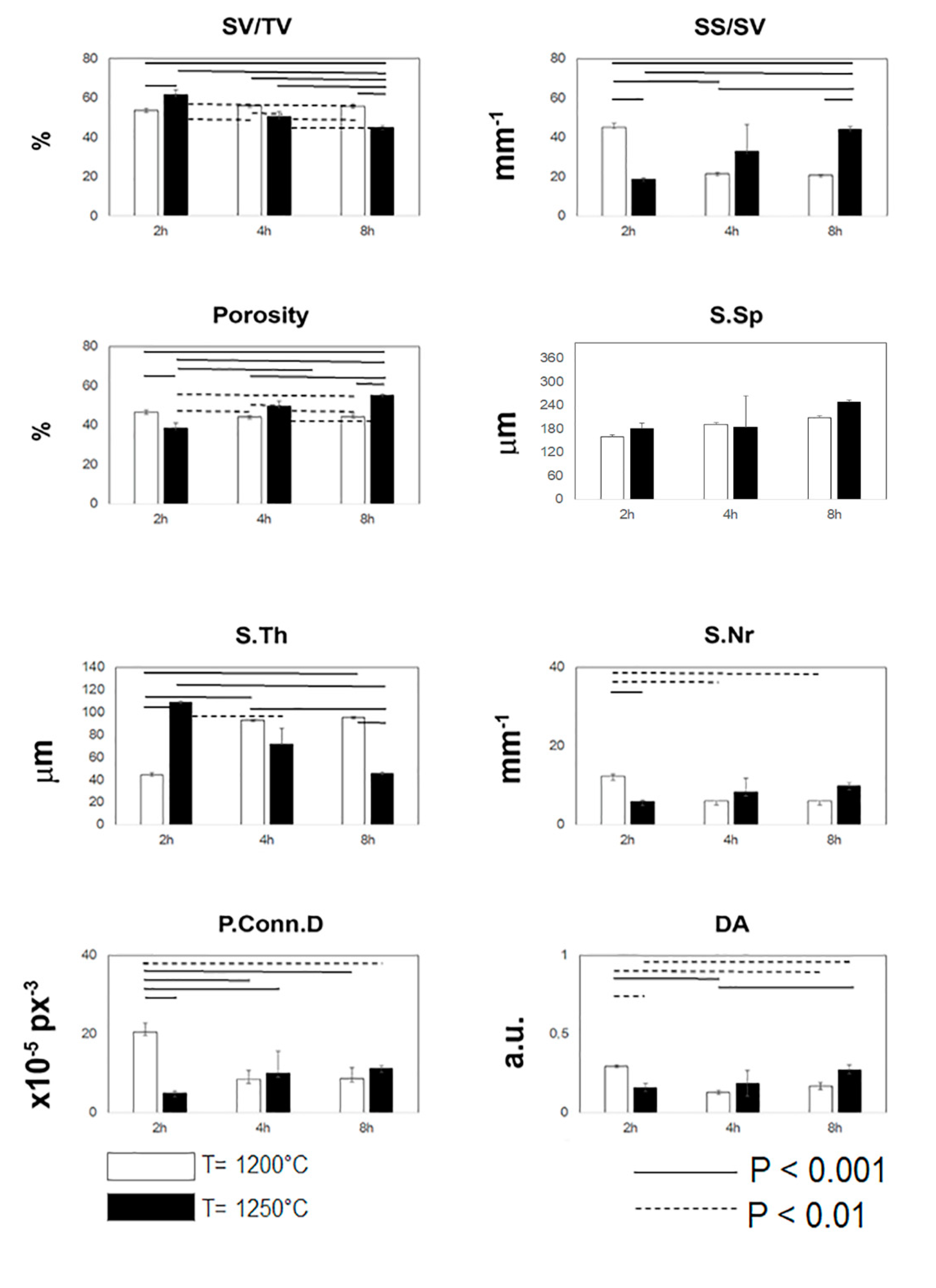

Figure 2. Morphometric 3D data, as measured in the different samples before compressive tests by microCT. Histograms graphically depict morphometric parameters as a function of the selected groups of samples. Mean and standard deviation data are indicated for each group of the study. Statistically significant differences between groups are highlighted (dashed line: p < 0.01; solid line: p < 0.001).
Figure 2. Morphometric 3D data, as measured in the different samples before compressive tests by microCT. Histograms graphically depict morphometric parameters as a function of the selected groups of samples. Mean and standard deviation data are indicated for each group of the study. Statistically significant differences between groups are highlighted (dashed line: p < 0.01; solid line: p < 0.001).
Ijerph 17 04931 g002
Ijerph 17 04931 g003 550

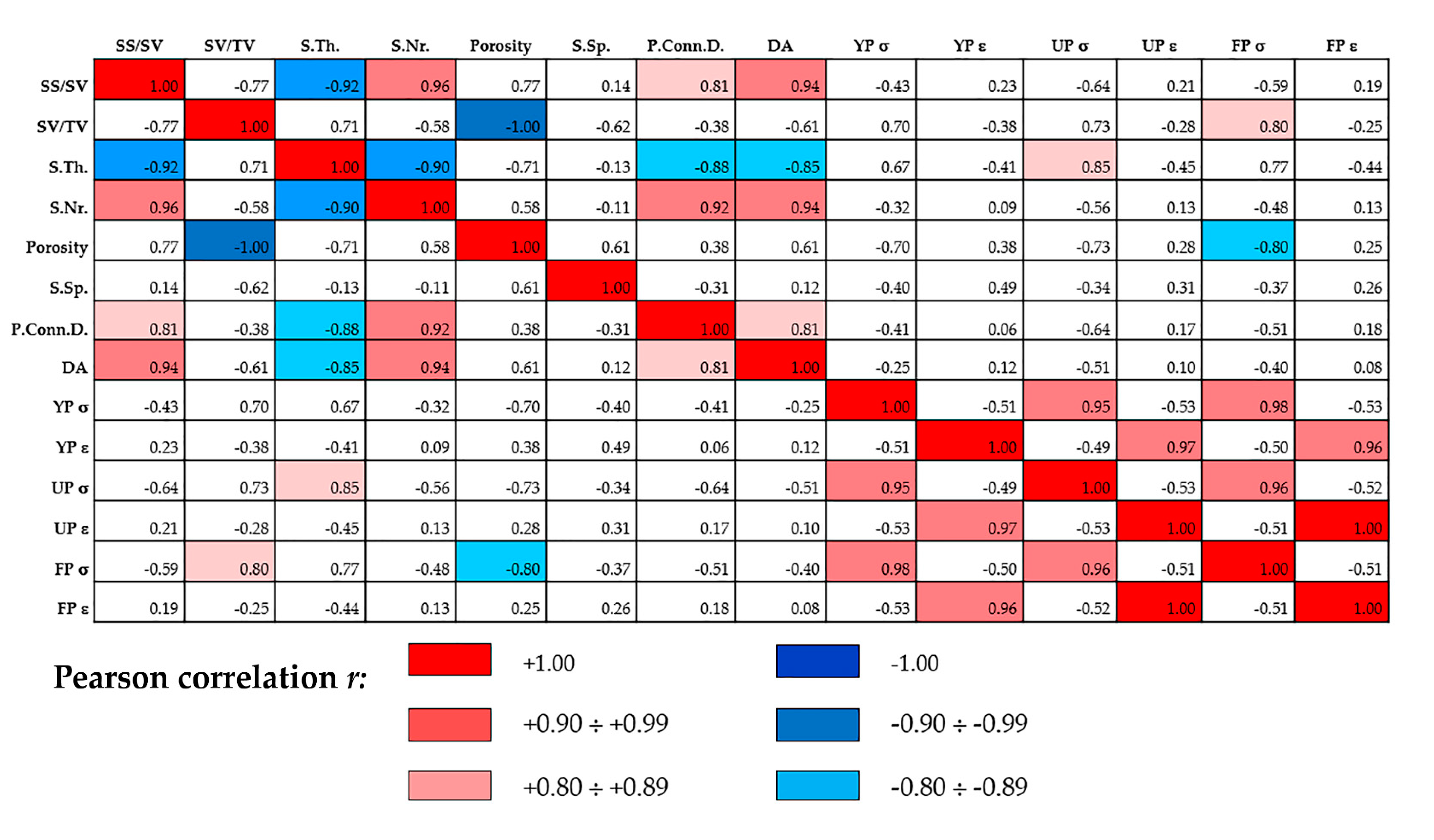

Figure 3. Pearson’s correlation coefficients of quantitative microCT and compressive test parameters. YP = Yield Point; UP = Ultimate Point; FP = Fracture Point.
Figure 3. Pearson’s correlation coefficients of quantitative microCT and compressive test parameters. YP = Yield Point; UP = Ultimate Point; FP = Fracture Point.
Ijerph 17 04931 g003
Table
Table 1. Compressive Tests. Mean (std.dev) are listed.
Table 1. Compressive Tests. Mean (std.dev) are listed.
GroupYield Point (YP)Ultimate Point (UP)Fracture Point (FP)
Stress
(MPa)		Strain
(%)		Stress
(MPa)		Strain
(%)		Stress
(MPa)		Strain
(%)
T = 1200 °C
2 hours		2.0 (0.6)2.7 (1.9)2.7 (0.1)4.6 (2.6)2.6 (0.8)5.0 (2.8)
T = 1200 °C
4 hours		1.7 (0.1)4.1 (1.3)2.9 (0.4)6.1 (1.3)2.5 (0.8)6.6 (1.6)
T = 1200 °C
8 hours		1.9 (0.2)2.2 (0.4)3.0 (0.4)3.7 (0.4)2.8 (0.2)4.0 (0.3)
T = 1250 °C
2 hours		3.2 (0.8)2.3 (0.2)4.4 (1.0)3.7 (0.7)4.0 (1.3)4.0 (0.7)
T = 1250 °C
4 hours		2.0 (0.8)2.0 (0.3)3.2 (0.6)3.4 (1.1)2.6 (0.3)3.7 (1.2)
T = 1250 °C
8 hours		1.7 (0.5)4.0 (1.0)2.6 (0.1)5.4 (1.4)2.3 (0.1)5.7 (1.3)
Table
Table 2. Quantitative evaluation of phases, as obtained by X-ray diffraction (XRD). Values are expressed as percentages (%). DL: detection limit.
Table 2. Quantitative evaluation of phases, as obtained by X-ray diffraction (XRD). Values are expressed as percentages (%). DL: detection limit.
SampleHAβ-TCPCaOα-TCPTTCP
T = 1200 °C@2hours28.2771.15>0.04 and < 0.06< DL< DL
T = 1250 °C@2hours28.5170.77>0.04 and < 0.06< DL< DL
T = 1250 °C@4hours31.0049.79< DL19.20< DL

Share and Cite

MDPI and ACS Style

Giuliani, A.; Gatto, M.L.; Gobbi, L.; Mangano, F.G.; Mangano, C. Integrated 3D Information for Custom-Made Bone Grafts: Focus on Biphasic Calcium Phosphate Bone Substitute Biomaterials. Int. J. Environ. Res. Public Health 2020, 17, 4931. https://doi.org/10.3390/ijerph17144931

AMA Style

Giuliani A, Gatto ML, Gobbi L, Mangano FG, Mangano C. Integrated 3D Information for Custom-Made Bone Grafts: Focus on Biphasic Calcium Phosphate Bone Substitute Biomaterials. International Journal of Environmental Research and Public Health. 2020; 17(14):4931. https://doi.org/10.3390/ijerph17144931

Chicago/Turabian Style

Giuliani, Alessandra, Maria Laura Gatto, Luigi Gobbi, Francesco Guido Mangano, and Carlo Mangano. 2020. "Integrated 3D Information for Custom-Made Bone Grafts: Focus on Biphasic Calcium Phosphate Bone Substitute Biomaterials" International Journal of Environmental Research and Public Health 17, no. 14: 4931. https://doi.org/10.3390/ijerph17144931

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
