Density-Based Separation of Microbial Functional Groups in Activated Sludge

by
Lin Li
,
Yaqi You
and
Krishna Pagilla
*
Department of Civil and Environmental Engineering, University of Nevada, Reno, NV 89557, USA
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2020, 17(1), 376; https://doi.org/10.3390/ijerph17010376
Submission received: 15 November 2019 / Revised: 20 December 2019 / Accepted: 27 December 2019 / Published: 6 January 2020
(This article belongs to the Section Environmental Science and Engineering)
Browse Figures
Review Reports Versions Notes

Abstract

:
Mechanistic understanding of how activated sludge (AS) solids density influences wastewater treatment processing is limited. Because microbial groups often generate and store intracellular inclusions during certain metabolic processes, it is hypothesized that some microorganisms, like polyphosphate-accumulating organisms (PAOs), would have higher biomass densities. The present study developed a density-based separation approach and applied it to suspended growth AS in two full-scale domestic water resource recovery facilities (WRRFs). Incorporating quantitative real-time PCR (qPCR) and fluorescence in situ hybridization (FISH) analyses, the research demonstrated the effectiveness of density-based separation in enriching key microbial functional groups, including ammonia-oxidizing bacteria (AOB), nitrite-oxidizing bacteria (NOB) and PAOs, by up to 90-fold in target biomass fractions. It was observed that WRRF process functionalities have significant influence on density-based enrichment, such that maximum enrichments were achieved in the sludge fraction denser than 1.036 g/cm3 for the enhanced biological phosphorus removal (EBPR) facility and in the sludge fraction lighter than 1.030 g/cm3 for the non-EBPR facility. Our results provide important information on the relationship between biomass density and enrichment of microbial functional groups in AS, contributing to future designs of enhanced biological treatment processes for improved AS settleability and performance.

1. Introduction

In suspended growth biological wastewater treatment, activated sludge (AS) is an important factor for the overall performance, influencing the efficiency of treatment process and subsequent effluent quality. In this study, we focus on the density of AS, which plays a pivotal role in two key design considerations in water resource recovery facilities (WRRFs): the settleability of biomass that directly affects solid-liquid separation in the final clarifier, and the nutrient removal/recovery efficiency. In order to achieve the two overall goals, microbial group selection is often needed. For a long time, metabolism-based microbial selection is dominant among WRRFs. Some other approaches have been established to improve the settleability of AS, like the application of classifier and hydrocyclone in full-scale WRRFs [1,2]. On one hand, to achieve successful solid-liquid separation and avoid suspended solids being discharged in the effluent, sludge flocs must settle and compact well in clarifiers, a process determined by multiple factors including the density of AS [3]. Previous studies have confirmed a correlation between sludge settleability/settling velocity and biomass density, with potential mechanisms lying at the cell, floc, and process level [2,3,4,5]. Generally, dense and strong flocs are desired for good AS settling and compaction, while sludges containing high quantities of filaments have poor compressibility and settleability [6]. The quantity and quality of extracellular polymeric substances (EPS) plays an important role in AS flocculation, and loosely bound EPS could have a negative effect on bioflocculation and sludge-water separation [7,8,9]. Microbial community composition could also affect floc and settling properties [10]. On the other hand, to ensure compliance with stringent discharge limits, WRRFs must achieve enhanced nutrient removal and recovery [11]. Functional groups in AS, such as nitrifiers, denitrifiers, and polyphosphate accumulating organisms (PAOs), govern nutrient removal and often accumulate intracellular inclusions and thus have higher cell density compared to other microbial groups [5,12,13,14]. Therefore, selecting functional microbial groups in heavier biomass can kill two birds with one stone. Several studies have been done on how average solids density is related to bacteria in AS [5,12,15], however, floc is the basic unit that exists inside biological reactors and little is known on how flocs density affects microbial ecophysiology.
Despite all the implications of AS for suspended growth biological wastewater treatment, current understanding of AS performance at the microbial community level is still incomplete [9]. In particular, relationship between microbial community assembly and activated biomass density and sludge bioactivity is yet to be fully addressed. Global studies on WRRF AS have revealed complicated microbial community structure with varying abundance of functional groups such as ammonia-oxidizing bacteria (AOB), nitrite-oxidizing bacteria (NOB), and PAOs [16,17]. Microbial functional groups often generate and store intracellular inclusions during metabolic processes; therefore, their relative abundance and spatial distribution within AS may result in varying bulk biomass density and spatial heterogeneity of density within the same biomass. This feature can potentially be leveraged for better manipulating key microbial functional groups towards effective and efficient biological wastewater treatment.
Previous studies focused on single-cell density in wastewater treatment process [5]. This is the first study to investigate biomass density on both the cell level and the floc level, with an aim to provide insights for process effects and control. First, the research established a density-based biomass separation method for enhanced biological phosphorus removal (EBPR) and non-EBPR AS and applied quantitative real-time PCR (qPCR) to quantify four target functional groups in different density layers. Second, fluorescence in situ hybridization (FISH) was employed to examine how the morphology of flocs influenced density distribution. Finally, we used multivariate analysis to study the influence of WRRF operational conditions on AS solids density and functional group distribution. We demonstrated the feasibility of density-based separation of biomass and the utility of this approach in selecting and enriching microbial functional groups. Overall, this research contributes to a critical knowledge gap at the intersection of AS microbial community, floc morphology, biomass density, and WRRF biological performance.

2. Materials and Methods

2.1. WRRFs, Sampling and Sample Preservation

AS samples were collected from two full-scale domestic WRRFs with different secondary treatment processes (Table 1). The Truckee Meadows Water Reclamation Facility (TMWRF, Reno, NV, USA) employs EBPR and serves the central Truckee Meadows region in northern Nevada. AS samples were collected from an aeration tank of the AS process at TMWRF. The South Truckee Meadows Water Reclamation Facility (STMWRF, Washoe County, NV, USA) employs conventional nitrification-denitrification treatment and supplies reclaimed water to irrigate landscaping, sports fields, and golf courses. AS samples were collected from an oxidation ditch with nitrogen removal function at STMWRF. Both facilities treat predominantly domestic municipal wastewater. All the collected activated samples were stored in 2 L sterilized high-density polyethylene bottles in the field and kept on ice during transportation (less than 30 min). Upon arrival at the laboratory, each sample was thoroughly mixed, and triplicate 2 mL aliquots were taken from the sample, rapidly frozen and kept at −20 °C before DNA extraction (no longer than two days). The remaining fresh samples were used for density separation test on the same day of sampling.

2.2. Density-Based Separation of Biomass

Isopycnic centrifugation has previously been applied successfully to “clean” samples like pure cultures of microorganisms or cells and suspensions of subcellular particles [4,5]. However, AS is a complex of microbial biomass, debris of dead microorganisms, and organic and inorganic particles. These compositions are all enmeshed in flocs rich in EPS in suspended growth biological systems [12]. In this study, we applied density-based separation to AS of full-scale domestic WRRFs using the Percoll medium. Percoll (Sigma-Aldrich, St. Louis, MO, USA) is a low-osmotic-pressure medium with a density of 1.13 ± 0.05 g/cm3. It has been widely used in cell separation and microorganism density measurement [5,12,14,19,20]. It consists of homogeneously distributed silicon particles (with the density of 2.2 g/cm3 and the size of 15–30 nm). Those particles can be homogeneously suspended in 0.15 mM NaCl solution, which can maintain appropriate osmotic pressure for cells. Here we used supernatant from fresh AS to prepare homogeneous density suspensions, in order to keep osmotic pressure as much similar to that of AS biomass as possible. A series of homogeneous density suspensions were prepared using low-osmotic-pressure Percoll colloidal particles according to the method developed by Jang and Schular [21], with some modifications. Briefly, Percoll colloidal particles were mixed with AS supernatants collected in the sample concentration step in varying ratios to reach a total volume of 100 cm3 (Table 2). The net density of each density suspension was calculated by Equation (1):
ρ n e t = V s u p × ρ s u p + V p c × ρ p c 100   mL
where ρnet is the net density of suspension a, b and c (g/cm3); Vsup is the volume of AS supernatant (cm3); ρsup is the density of AS supernatant (1.04 g/cm3 herein); VPc is the volume of Percoll colloidal particles (cm3); and ρPc is the density of Percoll colloidal particles (1.13 g/cm3 herein).
To separate biomass, 10 mL of a Percoll suspension (a, b, or c in Table 2) at a fixed density and 2 mL of a condensed AS sample was added into a 15 mL sterile centrifuge tube, and the tube was gently shaken for homogenization. The tube was then centrifuged at 2000× g for 10 min, during which solids were separated into two layers. The top layer contained sludge biomass lighter than the used density suspension; the bottom layer contained sludge biomass denser than the used density suspension. A visualization of this separation process using three density suspensions is shown in Figure 1A. The separated solids were allowed to stabilize at 4 °C for 30 min, after which biomass in the top layer was transferred into a new sterile centrifuge tube by careful pipetting. Biomass in the bottom layer was then transferred to a second new sterile centrifuge tube. When dissolved solids were occasionally introduced, three washings with ultrapure water (Quality Biological, Inc., Gaithersburg, MD, USA) were performed and Percoll colloidal particles were subsequently removed. For each AS sample, triplicate homogeneous separations were conducted, and density distribution was calculated based on TS mass in each layer. Separated sludge biomass was washed by sterile phosphate-buffered saline before downstream biomolecular analysis. Details about AS pretreatment and characterization are provided in the Supplementary Materials.

2.3. Total DNA Extraction and Quantitative Real-Time PCR

For each sample, total environmental DNA was extracted in triplicate using PowerViral Environmental RNA/DNA Isolation kit (Mo Bio Laboratories, Inc., Carlsbad, CA, USA) according to the manufacturer’s protocol. Triplicate extractions from each sample were pooled together.
Extraction yield and DNA quality were evaluated by NanoDrop One UV-Vis Spectrophotometer (Thermo Scientific, Madison, WI, USA), and subjected to conventional PCR for inhibition mitigation and PCR cloning. After sequencing verification, the cloned PCR products were used to generate calibration curves for qPCR. Details about conventional PCR, PCR cloning, sequencing, and sequence analysis are described in Supplementary Materials.
qPCR has been widely applied in the quantification of microbial groups in environmental samples [22]. Here we conducted qPCR on BioRad CFX96 Touch Real-Time PCR Detection System (BioRad, Hercules, CA, USA) as before [23] and in accordance with the MIQE guidelines [24]. Typical reaction mixtures contained 1× SsoAdvanced Universal SYBR Green Supermix (Bio Rad), 2 μL of the environmental DNA template, and primers (0.48 μM each) in a total reaction volume of 20 μL. The thermal program consisted of initial denaturation at 95 °C for 3 min, followed by 40 cycles of 10 s denaturation at 95 °C, 20 s at the annealing temperature, and 30 s extension at 75 °C. Details of qPCR conditions in this study show in Table 3. Threshold cycle (Ct) was determined using the default algorithm in CFX Manager Software (BioRad). Positive and negative controls were included in each run. A melting curve analysis was conducted after each run to verify reaction specificity [25]. Specificity was confirmed by gel electrophoresis and sequencing of randomly selected qPCR products. Assay limits and relative abundance calculation are detailed in Supplementary Materials. For each analyzed microbial functional group, an enrichment factor was calculated as the fold change in its relative abundance: relative abundance in separated sample/relative abundance in unseparated sample.

2.4. Fluorescence In Situ Hybridization

FISH was employed to obtain spatial information of microbial functional groups as well as their ecophysiology within sludge biomass. Fresh biomass samples were fixed in a newly prepared paraformaldehyde solution. In situ hybridizations were conducted according to Nielsen et al. (2009) [32] with minor modifications. Table 4 lists sequences, targets, hybridization conditions, fluorochromes, and references for the rRNA-targeted oligonucleotide probes (IDT, Coralville, IA, USA) used in this study. Samples on each slide were hybridized with 5 pmol each probe in 98 μL hybridization buffer (0.9 M NaCl, 20 mM Tris hydrochloride (pH 7.2), 0.01% sodium dodecyl sulfate, and formamide at the concentrations shown in Table 4) at 42 °C for ≤16 hours. Microscopic examinations were conducted on a confocal laser scanning microscopy (CLSM) (Leica TCS SP8) with a 63× oil immersion objective and excitation wavelengths of 488 nm and 543 nm. All image processing and analysis were performed with the standard software package provided by Leica. Additional image processing was performed using ImageJ [33].

2.5. Statistical Analysis

Statistical analysis was performed with R (3.2.4) (Boston, MA, USA) and vegan package (Oulu, Finland) [34]. Copy numbers were log-transformed when necessary to normalize the distribution and to achieve homogeneity of variance. Data were compared using the Student’s t-test or Welch’s t-test and using the Mann-Whitney U test in consideration of small sample sizes. Correlation analysis was performed to calculate the Spearman rank correlation coefficient between the dependent and independent variables. Multivariate analysis was conducted to investigate effects of WRRF operational conditions and AS characteristics (parameters in Table 1, DNA per gram of MLVSS, and total bacteria per gram of MLVSS) on density-based separation and enrichment results. We first conducted a stepwise model selection on variables using the function “ordistep” in the vegan R package, and then conducted distance-based redundancy analysis (db-RDA) with the retained factors. The relative contribution of each factor on the enrichment of each microbial functional group was determined through Permutational Multivariate Analysis of Variance (PERMANOVA) implemented by the “adonis2” function in the vegan R package.

2.6. Nucleotide Sequence Numbers

Nucleotide sequences have been deposited in the GenBank under the accession numbers MK253254-MK253257, MK332240-MK332246, MK332249, MK332330-MK332331, and MK332336-MK332338 (16S rRNA genes) and MK333402-MK333405 (amoA genes).

3. Results

3.1. Density-Based Separation of Biomass

Using three homogeneous density suspensions consisting of low-osmotic-pressure Percoll colloidal particles at different ratios, AS samples were successfully separated into different density fractions (Figure 1A). A total of six subsamples were obtained for each condensed AS sample, including two fractions lighter or heavier than 1.030 g/cm3 (designated throughout the study as 1030T and 1030B, respectively; T and B representing top and bottom), two fractions lighter or heavier than 1.036 g/cm3 (1036T and 1036B, respectively), and two fractions lighter or heavier than 1.042 g/cm3 (1042T and 1042B, respectively). In general, the majority of AS biomass had a density range of 1.030–1.042 g/cm3 (Figure 1B), with TMWRF sludge density being 1.032 g/cm3 and STMWRF sludge density being 1.037 g/cm3 according to the method by Jang and Schulaer [21].
Environmental DNA was extracted from separated sludge fractions. In many cases, separated sludge fractions yielded higher concentrations of DNA than bulk sludge. This is particularly the case for STMWRF sludge. For example, compared to a DNA yield of 26.66 ± 0.01 μg/mL for unseparated STMWRF sludge, the 1030T and 1030B fraction of sludge yielded 170.47 ± 0.45 μg/mL and 73.79 ± 0.24 μg/mL DNA, respectively. In line with enhanced DNA yields from separated sludge fractions, higher bacterial concentrations, indicated by eubacterial 16S rRNA gene copy number, were detected in all the separated fractions.

3.2. Microbial Groups in AS of Two Different Domestic WRRFs

A variety of bacterial groups were identified in both WRRFs, including AOB, Ca. Accumulibacter, Nitrobacter spp. and Nitrospira spp., as well as groups closely related to Albidiferax spp., Flavobacterium spp., Methylophilus spp., Tolumonas spp. and Rhodoferax spp. (Figure S1). Comparing the relative abundance of these microbial groups, AOB were 6.3 times more prevalent in the oxidation ditch of STMWRF than in the aeration tank of TMWRF, representing (4.8 ± 1.2) × 10−4 and (7.6 ± 2.5) × 10−5 of total eubacteria, respectively (p < 0.0005). With respect to NOB groups, the relative abundance of Nitrobacter spp. was similar in these two WRRFs, representing 0.62%−0.65% of total eubacteria (p = 0.696). The relative abundance of Nitrospira spp. was 42 times higher in STMWRF than in TMWRF, accounting for (3.9 ± 0.5) × 10−3 and (9.3 ± 3.3) × 10−5 of total eubacteria, respectively (p < 0.0005). PAOs were 4.2 time more prevalent in TMWRF than in STMWRF, representing 0.71% ± 0.07% and 0.17% ± 0.03% of total bacteria, respectively (p < 0.0005). Microscopic imaging further showed that AS flocs from TMWRF were significantly smaller than those from STMWRF (40 µm vs. 60 µm) (p < 0.005) (Figure S2). In addition, AS from STMWRF had more filamentous microbes and a relatively loose structure compared to TMWRF sludge. In contrast, TMWRF sludge showed round, compact flocs, and microbes there tended to cluster together (Figure S2).

3.3. Abundance of Target Microbial Groups after Density-based Separation

For AS collected from the aeration tank of TMWRF, separation with the density of 1.030 g/cm3, 1.036 g/cm3 and 1.042 g/cm3 all enriched AOB, NOB and PAOs (Figure 2). Similar results were observed in AS collected from the oxidation ditch of STMWRF. Maximum enrichment of individual microbial group was achieved under varying densities. For TMWRF, the sludge fraction denser than 1.036 g/cm3 had the best enrichment effect whereas for STMWRF, the sludge fraction lighter than 1.030 g/cm3 showed the maximum enrichment (Figure 2).

3.3.1. AOB Populations

Density-based separation significantly enriched AOB in sludge fractions (p < 0.0005), except in the 1042T fraction of TMWRF sludge (Figure 2). For TMWRF sludge, the highest enrichment was seen in the 1036B fraction (relative abundance (3.3 ± 0.1) × 10−5, enrichment factor 43). For STMWRF sludge, the highest enrichment was seen in the 1030T fraction (relative abundance (4.3 ± 0.4) × 10−4, enrichment factor 90). FISH analysis supported these qPCR-based observations and further indicated the spatial distribution and ecophysiology of enriched AOB in separated sludge flocs (Figure 3). In TMWRF sludge fractions, large AOB cells were embedded in compact flocs, while in STMWRF sludge fractions, small AOB were residing in loose flocs.

3.3.2. Nitrobacter spp. NOB Populations

Separation significantly enriched Nitrobacter in sludge fractions (p < 0.0005), except in the 1036T fraction of STMWRF sludge (Figure 2). For TMWRF sludge, the highest enrichment was found in the 1036B fraction (relative abundance 12.25% ± 0.89%, enrichment factor 20). For STWMRF sludge, the highest enrichment was found in the 1030T fraction (relative abundance 27.56% ± 5.5%, enrichment factor 43) (p < 0.0005). Moreover, Nitrobacter spp. tended to accumulate in denser fractions than in lighter fractions for TMWRF sludge, whereas there was no such trend for STMWRF sludge (Figure 2). FISH images further showed that Nitrobacter cells in TMWRF sludge were generally larger than those in STMWRF sludge (Figure 3).

3.3.3. Nitrospira spp. NOB Populations

Separation significantly enriched Nitrospira NOB (p < 0.0005), except in the 1042T fraction of TMWRF sludge (Figure 2). For TMWRF sludge, the greatest enrichment was seen in the 1036B fraction (relative abundance (4.0 ± 0.2) × 10−4, enrichment factor 4). For STMWRF sludge, the 1030T fraction had the greatest enrichment (relative abundance 7.6% ± 1.1%, enrichment factor 19). Similar to Nitrobacter, Nitrospira tended to accumulate in denser fractions than in lighter fractions of TMWRF sludge, whereas there was no such trend for STMWRF sludge (Figure 2). However, unlike AOB and Nitrobacter NOB, Nitrospira cells in the two WRRFs did not significantly differ in size (Figure 3).

3.3.4. PAOs Populations

Separation significantly enriched PAOs (p < 0.0005), except in the 1030T fraction of TMWRF sludge (Figure 2). The highest enrichment was found in the 1036B fraction of TMWRF sludge (relative abundance 9.1% ± 0.4%, enrichment factor 13) and the 1030T fraction of STMWRF sludge (relative abundance 9.8% ± 1.3%, enrichment factor 59). Similar to Nitrobacter and Nitrospira, PAOs tended to accumulate in denser fractions than in lighter fractions of TMWRF sludge; there was no such trend for STMWRF sludge (Figure 2). Consistently, FISH analysis showed agglomeration of PAOs in sludge flocs after separation (Figure 3). Similar to AOB and Nitrobacter spp., cells of PAOs were larger in TMWRF sludge than in STMWRF sludge (Figure 3).

4. Discussion

4.1. AS Density Distribution in Two WRRFs

The measured densities of AS in the two domestic WRRFs were consistent with previously reported density range of AS [39,40]. As shown by Figure 1B, AS in EBPR WRRF TMWRF had relatively uniform density distribution, whereas non EBPR WRRF STMWRF sludge had a wider density distribution. These differences could be partially attributed to the presence of larger, looser flocs and more filamentous microbes in STMWRF sludge (Figure S2). Flocs are highly heterogeneous, containing inert materials as dense as 1.24 g/cm3 [40]; thus sludge with more flocs may have a wider density distribution. Filamentous microbes, along with EPS matrix, could facilitate floc formation [2,41,42]. Comparing bulk and separated sludge fractions, we observed enhanced DNA extraction efficiency in separated AS fractions, likely due to floc disintegration and subsequent release of microbial cells and extracellular DNA from flocs [22,43]. Additionally, Percoll colloid particles that are coated with a water-soluble polymer may have contributed to more complete DNA recovery and removal of PCR inhibitory substances [44,45].

4.2. Enrichment of Microbial Groups by Density-Based Separation

The microbial groups identified in AS of the two WRRFs are part of the core community of abundant organisms commonly found in WWRFs [46]. In general, the abundance of AOB, NOB, and PAOs observed here was similar to others [47,48,49]. Moreover, Nitrobacter NOB were more prevalent than Nitrospira NOB in this study, likely due to faster growth of Nitrobacter than Nitrospira under higher nitrite levels [50]. It should be noted that Nitrospira is the most diverse NOB genus and forms a deeply branching lineage in the Nitrospirae phylum [49,50,51]. Thus, the true abundance of all Nitrospira populations may have been underestimated. Overall, we observed higher prevalence of AOB and NOB in STMWRF while more PAOs in TMWRF, consistent with the functions of these two WRRFs.
Density of single bacterial cells and morphology of flocs can be two critical reasons behind the enrichment of target microbial groups in separated AS biomass fractions. For instance, Winkler et al. (2013) [5] previously found that Nitrobacter winogradskyi, a typical NOB species, had a density of 1.108 ± 0.007 g/cm3 in reactors. Thus, accumulation of Nitrobacter spp. in denser fractions of TMWRF sludge was expected. However, enrichment of Nitrobacter spp. in the 1030T fraction of STMWRF sludge was unexpected. Since DNA extraction efficiency and PCR inhibition had been considered in the relative abundance calculation, this difference between TMWRF and STMWRF sludge in highest enrichment fractions was most likely attributed to AS characteristics including floc structure and/or microbial community assembly. For example, total bacterial abundance was highest in the 1030T fraction for STMWRF, and flocs from STMWRF were larger and looser. Differential ecophysiology of microbial functional groups in the two WRRFs could be another reason. As shown by FISH analysis (Figure 3), Nitrobacter cells in TMWRF sludge were generally larger than those in STMWRF sludge, indicating a higher density of Nitrobacter cells in TMWRF sludge and thus easier accumulation in denser fractions. During EBPR process, PAOs aerobically accumulate phosphorus inside their cells in the form of polyphosphate to energize anaerobic carbon uptake [13,28,47,52]. This could lead to larger, heavier PAO cells containing inclusions and thus the enrichment of such cells in denser sludge fractions, as seen here for TMWRF sludge. Ecophysiology of PAOs likely differed in the EBPR TMWRF and the non-EBPR STMWRF such that cells in STMWRF sludge were smaller in size (Figure 3). This factor, along with floc characteristics discussed above, may have led to the highest enrichment of PAOs in the 1030T fraction for STMWRF. It should be noted that our analysis focused on Ca. Accumulibacter. PAOs from diverse lineages are actively present in EBPR WRRFs, and some of them may also be present in TMWRF sludge [48]. Future research should look at the abundance and enrichment of PAOs other than Ca. Accumulibacter for a more comprehensive assessment.
Interestingly, the densest sludge fractions (ρ > 1.042 g/cm3) did not yield the maximum enrichment of any tested microbial functional group, which may be due to the dominance of inert materials rather than microbes in those sludge proportions. AS has highly complicated composition and heterogeneous structure, with flocs being the basic unit. Firm and compact flocs tend to have higher density and are difficult to deflocculate [2]. While we used slow-speed centrifuge for biomass separation with the intention to maintain original floc structure, it is possible that this procedure had slightly modified floc structure and thus contributed to the overall enrichment effects. Additionally, EPS physicochemistry, particularly polymerization degree of proteinaceous substrates, has large impact on EPS functionality [53,54], which in turn influences floc stability and AS flocculation [7,8,9]. Future research should address the impact of EPS on density-based enrichment of microbial groups.

4.3. WRRF Operational Conditions Affecting Density-Based Enrichment of Microbial Functional Groups

In order to explore practical factors that may influence and/or predict density-based enrichment of microbial functional groups, we performed multivariate analysis. Distance-based RDA (db-RDA) clearly showed that enrichment of AS microbial functional groups in TMWRF and STMWRF was largely distinct (Figure 4).
WRRF operational condition solids retention time (SRT) explained variations in the observed enrichment effects (R2Adonis = 0.126, PAdonis = 0.085). Furthermore, DNA amount per gram of MLVSS (mixed liquid volatile suspended solids), rather than MLVSS (indicator of suspended biomass) itself, significantly explained variations in the observed enrichment effects (R2Adonis = 0.302, PAdonis = 0.003). Specifically, strong correlation was observed between DNA amount per gram of MLVSS and the enrichment of Nitrobacter NOB for both WRRFs (Spearman r = 0.895, p < 0.001) (Figure S5). Extracellular DNA, secreted by live cells or by lysis of cells, is abundant in AS and constitutes an important structural component of sludge floc EPS [43,50,53]. Higher amount of extracellular DNA may suggest EPS-rich flocs that allowed better separation and enrichment of microbial functional groups. Future research should investigate the impact of EPS and other factors that can affect AS biomass separation and enrichment of microbial groups. A better understanding of sludge microbial community is also needed, as floc community assembly may influence density-based separation and enrichment, and vice versa. Future research should also verify density-based separation and enrichment at larger scales.

5. Conclusions

In this study, we demonstrated that density-based biomass separation could enrich AOB, NOB and PAOs from bulk AS of full-scale WRRFs up to 90-fold. We observed that for EBPR and non-EBPR WRRFs, maximum enrichment was achieved in different density fractions. In particular, for a full-scale domestic EBPR WRRF, the highest enrichment was achieved in the sludge fraction denser than 1.036 g/cm3; for a full-scale WRRF performing conventional biological removal of C and N, the highest enrichment was achieved in the sludge fraction lighter than 1.030 g/cm3. Microbial ecophysiology (large vs. small cell size), floc structure (compact vs. loose), sludge characteristic (e.g., DNA amount per gram of MLVSS), and operational condition (e.g., SRT) likely contributed to these differences. Overall, our results provide important information for future research on and design of enhanced biological treatment systems where microbial functional groups in AS could be preferentially recycled back to the bioreactor.

Supplementary Materials

The following are available online at https://www.mdpi.com/1660-4601/17/1/376/s1, Figure S1: Maximum likelihood tree of representative bacterial taxa identified in AS from the EBPR facility TMWRF. 16S rRNA genes were amplified from environmental DNA, cloned on the pCR4-TOPO vector, and sequenced; sequences were trimmed to the same length excluding primer biding sites. The tree was constructed using the Tamura-Nei model. Bootstrap resampling (1000 replicates) support values are shown next to the branches. The bar represents 0.05 nucleotide substitutions per site. GenBank accession numbers of published sequences are listed. Sequences identified in this study are denoted by a blue triangle, Figure S2: Representative phase contrast images (A) and CLSM images (B) of flocs in unseparated activated sludge of (1) TMWRF aeration tank and (2) STMWRF oxidation ditch. Based on measurements of 20 flocs for each WRRF, the average size of flocs in TMWRF and STMWRF was determined to be approximately 40 μm and 60 μm, respectively. TMWRF sludge showed round, compact flocs, and microbes therein tended to cluster together. STMWRF sludge had more filamentous microbes and thus a relatively loose structure, Figure S3: CLSM images of morphology and spatial organization of sludge containing (A) AOB (yellow), (B) Nitrobacter spp. NOB (yellow), (C) Nitrospira spp. NOB (yellow), and (D) PAOs (red), along with total eubacteria (blue). Shown here are (1) unseparated sludge, (2) sludge fraction lighter than 1.030 g/cm3, (3) sludge fraction denser than 1.030 g/cm3, (4) sludge fraction lighter than 1.036 g/cm3, and (5) sludge fraction denser than 1.036 g/cm3, all from TMWRF aeration tank. Scale bar indicates 20 µm, Figure S4: CLSM images of morphology and spatial organization of sludge containing (A) AOB (yellow), (B) Nitrobacter spp. NOB (yellow), (C) Nitrospira spp. NOB (yellow), and (D) PAOs (red), along with total eubacteria (blue). Shown here are (1) unseparated sludge, (2) sludge fraction lighter than 1.030 g/cm3, (3) sludge fraction denser than 1.030 g/cm3, (4) sludge fraction lighter than 1.036 g/cm3, and (5) sludge fraction denser than 1.036 g/cm3, all from STMWRF oxidation ditch. Scale bar indicates 20 µm, Figure S5: Enrichment of Nitrobacter spp. NOB was significantly correlated with DNA amount per gram of MLVSS in AS, as shown by Spearman rank correlation test.

Author Contributions

Conceptualization, K.P. and L.L.; methodology, L.L., K.P. and Y.Y.; formal analysis, L.L. and Y.Y.; writing—original draft preparation, L.L.; writing—review and editing, Y.Y. and K.P.; supervision, K.P.; project administration, K.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

This research did not receive any specific grant from funding agencies in the public, commercial, or not-for-profit sectors. The authors thank Ramesh Goel at the University of Utah (Department of Civil and Environmental Engineering) for providing L.L. with molecular biology training in his laboratory, Alexander van der Linden at the University of Nevada, Reno (Department of Biology) for providing L.L. with training on CLSM, and Kristina Kruse at the University of Nevada, Reno (Nevada Genomics Center) for assistance with DNA sequencing. We also thank Angel LaCroix at the Truckee Meadows Water Authority (previously at TMWRF) and Wes Johnson at the STMWRF for their assistance in sample collection.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Pagilla, K.R.; Jenkins, D.; Kido, W.H. Nocardia control in activated sludge by classifying selectors. Water Environ. Res. 1996, 68, 235–239. [Google Scholar] [CrossRef]
  2. Li, L.; Pagilla, K.R. Biomass density-function relationships in suspended growth biological processes—A critical review. Water Res. 2017, 111, 274–287. [Google Scholar] [CrossRef] [PubMed]
  3. Jassby, D.; Xiao, Y.; Schuler, A.J. Biomass density and filament length synergistically affect activated sludge settling: Systematic quantification and modeling. Water Res. 2014, 48, 457–465. [Google Scholar] [CrossRef] [PubMed]
  4. Schuler, A.J.; Jang, H. Causes of variable biomass density and its effects on settleability in full-scale biological wastewater treatment systems. Environ. Sci. Technol. 2007, 41, 1675–1681. [Google Scholar] [CrossRef]
  5. Winkler, M.K.H.; Kleerebezem, R.; Strous, M.; Chandran, K.; Van Loosdrecht, M.C.M. Factors influencing the density of aerobic granular sludge. Appl. Microbiol. Biotechnol. 2013, 97, 7459–7468. [Google Scholar] [CrossRef]
  6. Peng, G.; Ye, F.; Li, Y. Investigation of extracellular polymer substances (EPS) and physicochemical properties of activated sludge from different municipal and industrial wastewater treatment plants. Environ. Technol. 2012, 33, 857–863. [Google Scholar] [CrossRef]
  7. Badireddy, A.R.; Chellam, S.; Gassman, P.L.; Engelhard, M.H.; Lea, A.S.; Rosso, K.M. Role of extracellular polymeric substances in bioflocculation of activated sludge microorganisms under glucose-controlled conditions. Water Res. 2010, 44, 4505–4516. [Google Scholar] [CrossRef]
  8. Li, X.Y.; Yang, S.F. Influence of loosely bound extracellular polymeric substances (EPS) on the flocculation, sedimentation and dewaterability of activated sludge. Water Res. 2007, 41, 1022–1030. [Google Scholar] [CrossRef]
  9. Wilén, B.-M.; Jin, B.; Lant, P. The influence of key chemical constituents in activated sludge on surface and flocculating properties. Water Res. 2003, 37, 2127–2139. [Google Scholar] [CrossRef]
  10. Fredriksson, N.J.; Hermansson, M.; Wilén, B.-M. Long-term dynamics of the bacterial community in a Swedish full-scale wastewater treatment plant. Environ. Technol. 2017, 40, 912–928. [Google Scholar] [CrossRef]
  11. Stewart, M.; Palumbo, R.; Rossi, C. Performance testing and long term operations demonstrate successful application of discfilter system for stringent effluent phosphorus limits. Proc. Water Environ. Fed. 2017, 2017, 210–218. [Google Scholar] [CrossRef]
  12. Schuler, A.J.; Jenkins, D.; Ronen, P. Microbial storage products, biomass density, and settling properties of enhanced biological phosphorus removal activated sludge. Water Sci. Technol. 2001, 43, 173–180. [Google Scholar] [CrossRef]
  13. Zilles, J.L.; Peccia, J.; Kim, M.W.; Hung, C.H.; Noguera, D.R. Involvement of Rhodocyclus-related organisms in phosphorus removal in full-scale wastewater treatment plants. Appl. Environ. Microbiol. 2002, 68, 2763–2769. [Google Scholar] [CrossRef] [Green Version]
  14. Oshiki, M.; Onuki, M.; Satoh, H.; Mino, T. Separation of PHA-accumulating cells in activated sludge based on differences in buoyant density. J. Gen. Appl. Microbiol. 2010, 56, 163–167. [Google Scholar] [CrossRef] [Green Version]
  15. Schuler, A.J.; Jang, H. Microsphere addition for the study of biomass properties and density effects on settleability in biological wastewater treatment systems. Water Res. 2007, 41, 2163–2170. [Google Scholar] [CrossRef]
  16. Ju, F.; Zhang, T. Experimental design and bioinformatics analysis for the application of metagenomics in environmental sciences and biotechnology. Environ. Sci. Technol. 2015, 49, 12628–12640. [Google Scholar] [CrossRef]
  17. Wu, L.; Ning, D.; Zhang, B.; Li, Y.; Zhang, P.; Shan, X.; Zhang, Q.; Brown, M.; Li, Z.; Nostrand, J.D.V.; et al. Global diversity and biogeography of bacterial communities in wastewater treatment plants. Nat. Microbiol. 2019, 4, 1183–1195. [Google Scholar] [CrossRef] [Green Version]
  18. Jenkins, D.; Richard, M.G.; Daigger, G.T. Manual on the Causes and Control of Activated Sludge Bulking, Foaming, and Other Solids Separation Problems, 3rd ed.; CRC Press: Boca Raton, FL, USA, 2003; ISBN 978-1-56670-647-6. [Google Scholar]
  19. Strous, M.; Fuerst, J.A.; Kramer, E.H.M.; Logemann, S.; Van De Pas-Schoonen, K.T.; Webb, R.; Muyzer, G.; Kuenen, J.G. Missing lithotroph identified as new planctomycete. Nature 1999, 400, 446. [Google Scholar] [CrossRef]
  20. Hathwaik, L.T.; Redelman, D.; Samburova, V.; Zielinska, B.; Shintani, D.K.; Harper, J.F.; Cushman, J.C. Transgressive, reiterative selection by continuous buoyant density gradient centrifugation of Dunaliella salina results in enhanced lipid and starch content. Algal Res. 2015, 9, 194–203. [Google Scholar] [CrossRef]
  21. Jang, H.; Schuler, A.J. The case for variable density: A new perspective on activated sludge settling. Water Environ. Res. 2007, 79, 2298–2303. [Google Scholar] [CrossRef] [Green Version]
  22. Zhang, T.; Fang, H.H.P. Applications of real-time polymerase chain reaction for quantification of microorganisms in environmental samples. Appl. Microbiol. Biotechnol. 2006, 70, 281–289. [Google Scholar] [CrossRef]
  23. You, Y.; Hilpert, M.; Ward, M.J. Detection of a common and persistent tet(L)-carrying plasmid in chicken-waste-impacted farm soil. Appl. Environ. Microbiol. 2012, 78, 3203–3213. [Google Scholar] [CrossRef] [Green Version]
  24. Bustin, S.A.; Benes, V.; Garson, J.A.; Hellemans, J.; Huggett, J.; Kubista, M.; Mueller, R.; Nolan, T.; Pfaffl, M.W.; Shipley, G.L.; et al. The MIQE guidelines: Minimum information for publication of quantitative real-time PCR experiments. Clin. Chem. 2009, 55, 611–622. [Google Scholar] [CrossRef] [Green Version]
  25. Stubner, S. Enumeration of 16S rDNA of Desulfotomaculum lineage 1 in rice field soil by real-time PCR with SybrGreen™ detection. J. Microbiol. Methods 2002, 50, 155–164. [Google Scholar] [CrossRef]
  26. Weisburg, W.G.; Barns, S.M.; Pelletier, D.A.; Lane, D.J. 16S ribosomal DNA amplification for phylogenetic study. J. Bacteriol. 1991, 173, 697–703. [Google Scholar] [CrossRef] [Green Version]
  27. Suzuki, M.T.; Taylor, L.T.; DeLong, E.F. Quantitative analysis of small-subunit rRNA genes in mixed microbial populations via 5′-nuclease assays. Appl. Environ. Microbiol. 2000, 66, 4605–4614. [Google Scholar] [CrossRef] [Green Version]
  28. He, S.; Gall, D.L.; McMahon, K.D. “Candidatus Accumulibacter” population structure in enhanced biological phosphorus removal sludges as revealed by polyphosphate kinase genes. Appl. Environ. Microbiol. 2007, 73, 5865–5874. [Google Scholar] [CrossRef] [Green Version]
  29. Rotthauwe, J.H.; Witzel, K.P.; Liesack, W. The ammonia monooxygenase structural gene amoA as a functional marker: Molecular fine-scale analysis of natural ammonia-oxidizing populations. Appl. Environ. Microbiol. 1997, 63, 4704–4712. [Google Scholar] [CrossRef] [Green Version]
  30. Dionisi, H.M.; Layton, A.C.; Harms, G.; Gregory, I.R.; Robinson, K.G.; Sayler, G.S. Quantification of Nitrosomonas oligotropha-like ammonia-oxidizing bacteria and Nitrospira spp. from full-scale wastewater treatment plants by competitive PCR. Appl. Environ. Microbiol. 2002, 68, 245–253. [Google Scholar] [CrossRef] [Green Version]
  31. Graham, D.W.; Knapp, C.W.; Vleck, E.S.V.; Bloor, K.; Lane, T.B.; Graham, C.E. Experimental demonstration of chaotic instability in biological nitrification. ISME J. 2007, 1, 385. [Google Scholar] [CrossRef]
  32. Nielsen, P.H.; Daims, H.; Lemmer, H. FISH handbook for biological wastewater treatment: Identification and quantification of microorganisms in activated sludge and biofilms by FISH; IWA Publishing: New York, NY, USA; London, UK, 2009; ISBN 978-1-84339-231-6. [Google Scholar]
  33. Schneider, C.A.; Rasband, W.S.; Eliceiri, K.W. NIH Image to ImageJ: 25 years of image analysis. Nat. Methods 2012, 9, 671–675. [Google Scholar] [CrossRef] [PubMed]
  34. Oksanen, J. Multivariate Analysis of Ecological Communities in R: Vegan Tutorial; University of Oulu: Oulu, Finland, 2007; p. 43. [Google Scholar]
  35. Mobarry, B.K.; Wagner, M.; Urbain, V.; Rittmann, B.E.; Stahl, D.A. Phylogenetic probes for analyzing abundance and spatial organization of nitrifying bacteria. Appl. Environ. Microbiol. 1996, 62, 2156–2162. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Juretschko, S.; Timmermann, G.; Schmid, M.; Schleifer, K.-H.; Pommerening-Röser, A.; Koops, H.-P.; Wagner, M. Combined molecular and conventional analyses of nitrifying bacterium diversity in activated sludge: Nitrosococcus mobilis and Nitrospira-like bacteria as dominant populations. Appl. Environ. Microbiol. 1998, 64, 3042–3051. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Wagner, M.; Rath, G.; Koops, H.-P.; Flood, J.; Amann, R. In situ analysis of nitrifying bacteria in sewage treatment plants. Water Sci. Technol. Lond. 1996, 34, 237–244. [Google Scholar] [CrossRef]
  38. Crocetti, G.R.; Hugenholtz, P.; Bond, P.L.; Schuler, A.; Keller, J.; Jenkins, D.; Blackall, L.L. Identification of polyphosphate-accumulating organisms and design of 16S rRNA-directed probes for their detection and quantitation. Appl. Environ. Microbiol. 2000, 66, 1175–1182. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Dammel, E.E.; Schroeder, E.D. Density of activated sludge solids. Water Res. 1991, 25, 841–846. [Google Scholar] [CrossRef]
  40. Sears, K.; Alleman, J.E.; Barnard, J.L.; Oleszkiewicz, J.A. Density and activity characterization of activated sludge flocs. J. Environ. Eng. 2006, 132, 1235–1242. [Google Scholar] [CrossRef]
  41. Jenkins, D.; Wanner, J. Activated Sludge—100 Years and Counting; IWA Publishing: London, UK, 2014; ISBN 978-1-78040-493-6. [Google Scholar]
  42. Tandoi, V.; Rossetti, S.; Wanner, J. Activated Sludge Separation Problems: Theory, Control Measures, Practical Experiences; IWA Publishing: London, UK, 2017; ISBN 978-1-78040-863-7. [Google Scholar]
  43. Dominiak, D.M.; Nielsen, J.L.; Nielsen, P.H. Extracellular DNA is abundant and important for microcolony strength in mixed microbial biofilms. Environ. Microbiol. 2011, 13, 710–721. [Google Scholar] [CrossRef]
  44. Harms, G.; Layton, A.C.; Dionisi, H.M.; Gregory, I.R.; Garrett, V.M.; Hawkins, S.A.; Robinson, K.G.; Sayler, G.S. Real-Time PCR quantification of nitrifying bacteria in a municipal wastewater treatment plant. Environ. Sci. Technol. 2003, 37, 343–351. [Google Scholar] [CrossRef]
  45. Rådström, P.; Knutsson, R.; Wolffs, P.; Lövenklev, M.; Löfström, C. Pre-PCR processing. Mol. Biotechnol. 2004, 26, 133–146. [Google Scholar] [CrossRef]
  46. Saunders, A.M.; Albertsen, M.; Vollertsen, J.; Nielsen, P.H. The activated sludge ecosystem contains a core community of abundant organisms. ISME J. 2016, 10, 11–20. [Google Scholar] [CrossRef] [PubMed]
  47. Mao, Y.; Graham, D.W.; Tamaki, H.; Zhang, T. Dominant and novel clades of Candidatus Accumulibacter phosphatis in 18 globally distributed full-scale wastewater treatment plants. Sci. Rep. 2015, 5, 11857. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Stokholm-Bjerregaard, M.; McIlroy, S.J.; Nierychlo, M.; Karst, S.M.; Albertsen, M.; Nielsen, P.H. A critical assessment of the microorganisms proposed to be important to enhanced biological phosphorus removal in full-scale wastewater treatment systems. Front. Microbiol. 2017, 8. [Google Scholar] [CrossRef] [PubMed]
  49. Albertsen, M.; Hansen, L.B.S.; Saunders, A.M.; Nielsen, P.H.; Nielsen, K.L. A metagenome of a full-scale microbial community carrying out enhanced biological phosphorus removal. ISME J. 2012, 6, 1094–1106. [Google Scholar] [CrossRef]
  50. Daims, H.; Lücker, S.; Wagner, M. A new perspective on microbes formerly known as nitrite-oxidizing bacteria. Trends Microbiol. 2016, 24, 699–712. [Google Scholar] [CrossRef]
  51. Zhang, T.; Shao, M.-F.; Ye, L. 454 Pyrosequencing reveals bacterial diversity of activated sludge from 14 sewage treatment plants. ISME J. 2012, 6, 1137–1147. [Google Scholar] [CrossRef]
  52. Kong, Y.; Nielsen, J.L.; Nielsen, P.H. Microautoradiographic study of Rhodocyclus-related polyphosphate-accumulating bacteria in full-scale enhanced biological phosphorus removal plants. Appl. Environ. Microbiol. 2004, 70, 5383–5390. [Google Scholar] [CrossRef] [Green Version]
  53. Sponza, D.T. Application of toxicity tests into discharges of the pulp-paper industry in Turkey. Ecotoxicol. Environ. Saf. 2003, 54, 74–86. [Google Scholar] [CrossRef]
  54. Wang, B.-B.; Liu, X.-T.; Chen, J.-M.; Peng, D.-C.; He, F. Composition and functional group characterization of extracellular polymeric substances (EPS) in activated sludge: The impacts of polymerization degree of proteinaceous substrates. Water Res. 2018, 129, 133–142. [Google Scholar] [CrossRef]
Ijerph 17 00376 g001 550
Figure 1. Density-based homogeneous separation of AS biomass. (A) A visualization of separation of AS from the EBPR facility TMWRF, using three density suspensions a, b and c as detailed in Table 1. AS was separated into two fractions, either lighter (e.g., 1030T) or denser (e.g., 1030B) than the net density of the suspension (e.g., 1.030 g/cm3 for the density suspension a). (B) Mass distribution of AS from an aeration tank in the EBPR facility TMWRF and from an oxidation ditch with nitrogen removal function in STMWRF performing conventional treatment.
Figure 1. Density-based homogeneous separation of AS biomass. (A) A visualization of separation of AS from the EBPR facility TMWRF, using three density suspensions a, b and c as detailed in Table 1. AS was separated into two fractions, either lighter (e.g., 1030T) or denser (e.g., 1030B) than the net density of the suspension (e.g., 1.030 g/cm3 for the density suspension a). (B) Mass distribution of AS from an aeration tank in the EBPR facility TMWRF and from an oxidation ditch with nitrogen removal function in STMWRF performing conventional treatment.
Ijerph 17 00376 g001
Ijerph 17 00376 g002 550

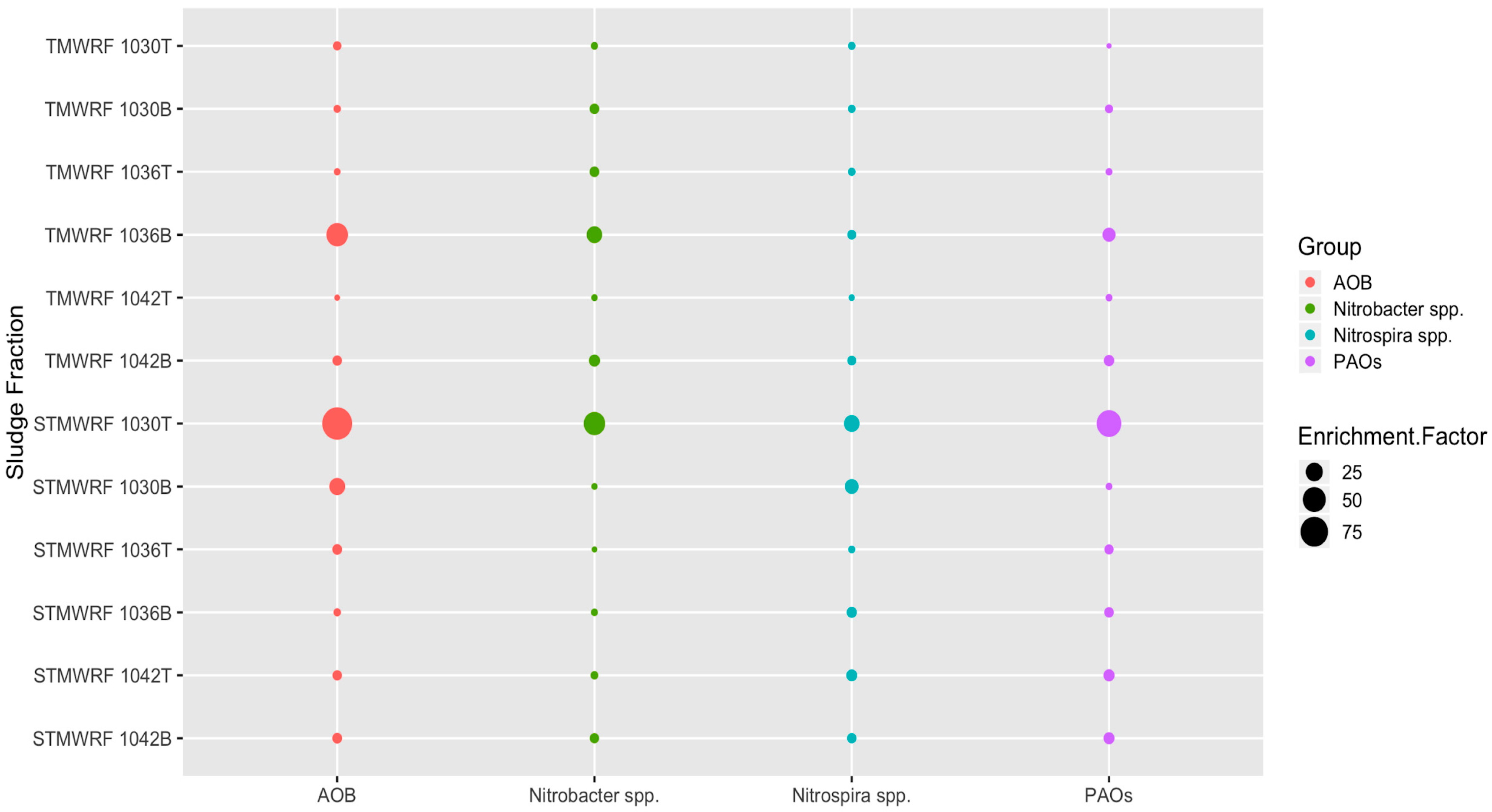

Figure 2. Enrichment factors for each microbial functional group achieved in sludge fractions separated using various homogenous densities. For example, 1030T designates the fraction lighter than 1.030 g/cm3 and 1030B designates the fraction denser than 1.030 g/cm3.
Figure 2. Enrichment factors for each microbial functional group achieved in sludge fractions separated using various homogenous densities. For example, 1030T designates the fraction lighter than 1.030 g/cm3 and 1030B designates the fraction denser than 1.030 g/cm3.
Ijerph 17 00376 g002
Ijerph 17 00376 g003 550
Figure 3. CLSM images showing morphology and spatial organization of AS containing (A) AOB (yellow), (B) Nitrobacter spp. NOB (yellow), (C) Nitrospira spp. NOB (yellow), and (D) PAOs (red), along with total eubacteria (blue). Shown here are (1) unseparated TMWRF sludge, (2) TMWRF sludge fraction with the best enrichment effects (denser than 1.036 g/cm3), (3) unseparated STMWRF sludge, (4) STMWRF sludge fraction with the best enrichment effects (lighter than 1.030 g/cm3). Scale bar indicates 20 µm.
Figure 3. CLSM images showing morphology and spatial organization of AS containing (A) AOB (yellow), (B) Nitrobacter spp. NOB (yellow), (C) Nitrospira spp. NOB (yellow), and (D) PAOs (red), along with total eubacteria (blue). Shown here are (1) unseparated TMWRF sludge, (2) TMWRF sludge fraction with the best enrichment effects (denser than 1.036 g/cm3), (3) unseparated STMWRF sludge, (4) STMWRF sludge fraction with the best enrichment effects (lighter than 1.030 g/cm3). Scale bar indicates 20 µm.
Ijerph 17 00376 g003
Ijerph 17 00376 g004 550

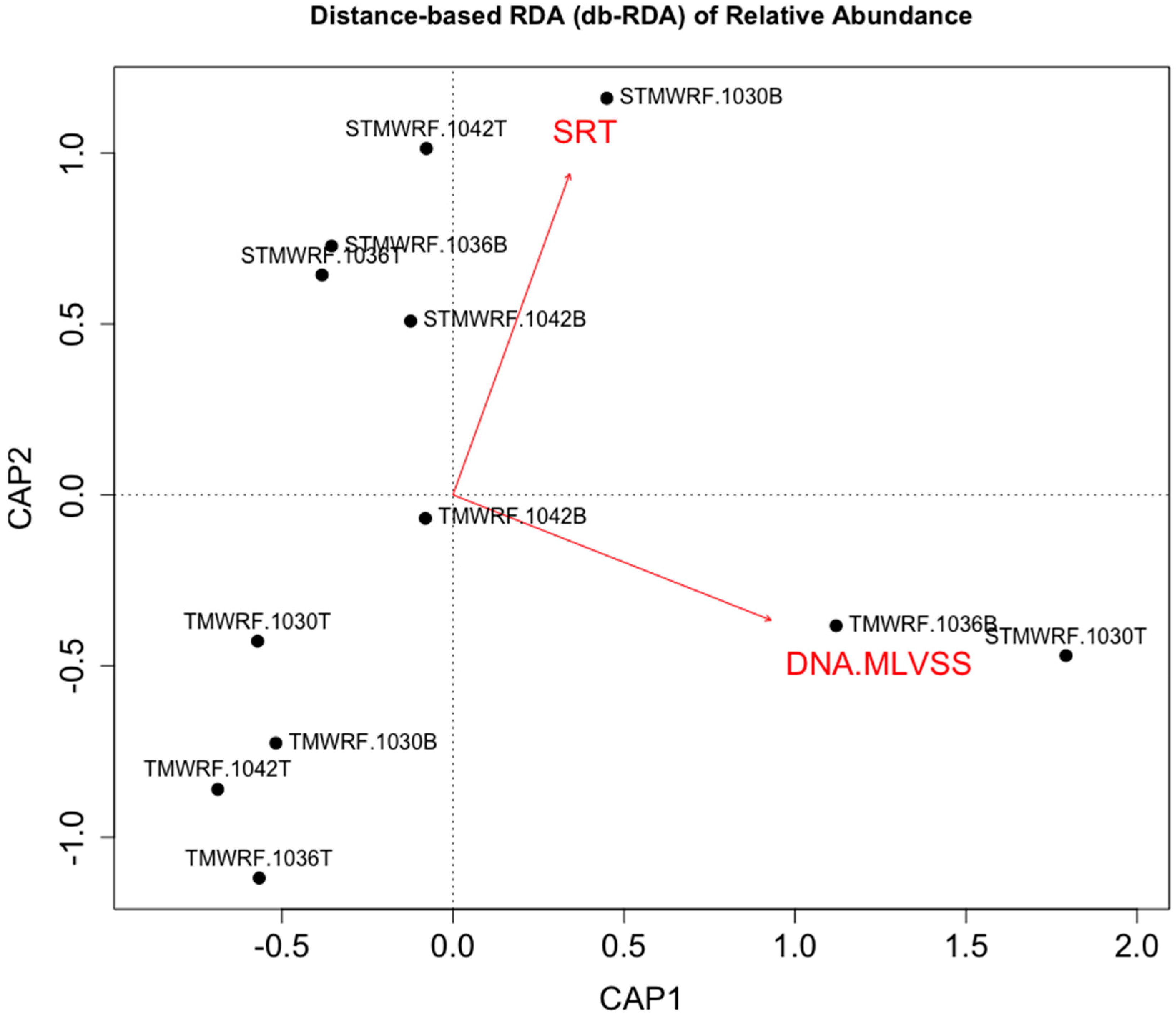

Figure 4. Distance-based redundancy analysis (db-RDA) of microbial enrichment achieved in various sludge fractions (constrained inertia = 42.76%). Enrichment factors were constrained by facility types (TMWRF employing EBPR vs. STMWRF performing conventional treatment). Both facility operational condition (SRT) and sludge characteristic (DNA amount per gram of MLVSS) explained variations in enrichment (SRT: R2Adonis = 0.126, PAdonis = 0.085; DNA/MLVSS: R2Adonis = 0.302, PAdonis = 0.003).
Figure 4. Distance-based redundancy analysis (db-RDA) of microbial enrichment achieved in various sludge fractions (constrained inertia = 42.76%). Enrichment factors were constrained by facility types (TMWRF employing EBPR vs. STMWRF performing conventional treatment). Both facility operational condition (SRT) and sludge characteristic (DNA amount per gram of MLVSS) explained variations in enrichment (SRT: R2Adonis = 0.126, PAdonis = 0.085; DNA/MLVSS: R2Adonis = 0.302, PAdonis = 0.003).
Ijerph 17 00376 g004
Table
Table 1. Description of the two full-scale domestic water resource recovery facilities and characteristics of activated sludge.
Table 1. Description of the two full-scale domestic water resource recovery facilities and characteristics of activated sludge.
ParametersTMWRF 1STMWRF 2
Source of Wastewater50% Domestic, 50% industrialMainly domestic
Biological Process 2EBPRC, N
Solids Retention Time (day)~2.512 to 15
Floc size 3 (μm)4060
Filament Abundance 4SomeCommon
MLVSS (mg/L) 531.032.5
Influent Flow Rate (×1000 m3/day)14115
Influent BOD 6 (mg/L)250330
Effluent BOD (mg/L)~57
Effluent Total N (mg/L)0.28.4
Effluent Total P (mg/L)0.42.1
Effluent TSS 7 (mg/L)2.6<5
1 TMWRF, Truckee Meadows Water Reclamation Facility (Reno, NV, USA); STMWRF, South Truckee Meadows Water Reclamation Facility (Washoe County, NV, USA); 2 The biological processes are classified as carbon (C) removal, nitrogen (N) removal, and phosphate (P) removal; EBPR, enhanced biological phosphorus removal; 3 Floc sizes were determined as the average of 20 randomly selected flocs; 4 Filament abundance was determined by six scales (few, some, common, very common, abundant, and excessive) according to a previous study [18]; 5 MLVSS, mixed liquid volatile suspended solids; 6 BOD, biochemical oxygen demand; 7 TSS, total suspended solids.
Table
Table 2. Density Composition of Suspensions.
Table 2. Density Composition of Suspensions.
Suspension LabelNet Density (g/cm3)Supernatant of AS After Centrifuge (cm3)Percoll (cm3)Total Volume (cm3)
a1.03079.420.6100
b1.03674.625.4100
c1.04269.830.2100
Table
Table 3. Primers Used in This Study and qPCR Performance.
Table 3. Primers Used in This Study and qPCR Performance.
Target GenePrimerSequence (5′-3′)Annealing Temp (°C)Length (bp)qPCR PerformanceReference
R2Efficiency
Eubacterial16S rRNA gene 127FAGAGTTTGATCMTGGCTCAG60~1500----[26]
1492RGGWTACCTTGTTACGACTT
Eubacterial 16S rRNA gene1369FCGGTGAATACGTTCYCGG601240.996691.09%[27]
1492RGGWTACCTTGTTACGACTT
PAOs 16S rRNA gene518FCCAGCAGCCGCGGTAAT653510.998595.56%[28]
846RGTTAGCTACGGCACTAAAAGG
Nitrosomonas spp. amoA geneamoA-1FGGGGTTTCTACTGGTGGT604910.999091.62%[29]
amoA-2RCCCCTCKGSAAAGCCTTCTTC
Nitrospira spp. 16S rRNA geneNSR1113FCCTGCTTTCAGTTGCTACCG601500.999493.82%[30]
NSR1264RGTTTGCAGCGCTTTGTACCG
Nitrobacter spp. 16S rRNA geneNitro119FACCCCTAGCAAATCTCAAAAAACCG602270.999492.40%[31]
Nitro1423RCTTCACCCCAGTCGCTGACC
1 Used in conventional PCR to generate nearly complete 16S rRNA gene for cloning.
Table
Table 4. Oligonucleotides Used for FISH.
Table 4. Oligonucleotides Used for FISH.
Target ProkaryoteProbeSequence (5′-3′)Formamide (%)FluorochromeReference
EubacteriaEUB 338GCTGCCTCCCGTAGGAGT35ALEX488[32]
β-Proteobacterial AOB 1Nso1225CGCCATTGTATTACGTGTGA35CY3[35]
Genus Nitrospira (sublineage 1 and 2) 2Ntspa1026AGCACGCTGGTATTGCTA20CY3[36]
Genus NitrobacterNIT3CCTGTGCTCCATGCTCCG40CY3[37]
Candidatus AccumulibacterPAOmixPAO462, PAO651 and PAO84635CY5[38]
PAO462CCGTCATCTACWCAGGGTTTAAC35CY5
PAO651CCCTCTGCCAAACTCCAG35CY5
PAO846GTTAGCTACGGCACTAAAAGG35CY5
1 AOB, ammonia-oxidizing bacteria; 2 Competitor probe: CCTGTGCTCCAGGCTCCG.

Share and Cite

MDPI and ACS Style

Li, L.; You, Y.; Pagilla, K. Density-Based Separation of Microbial Functional Groups in Activated Sludge. Int. J. Environ. Res. Public Health 2020, 17, 376. https://doi.org/10.3390/ijerph17010376

AMA Style

Li L, You Y, Pagilla K. Density-Based Separation of Microbial Functional Groups in Activated Sludge. International Journal of Environmental Research and Public Health. 2020; 17(1):376. https://doi.org/10.3390/ijerph17010376

Chicago/Turabian Style

Li, Lin, Yaqi You, and Krishna Pagilla. 2020. "Density-Based Separation of Microbial Functional Groups in Activated Sludge" International Journal of Environmental Research and Public Health 17, no. 1: 376. https://doi.org/10.3390/ijerph17010376

APA Style

Li, L., You, Y., & Pagilla, K. (2020). Density-Based Separation of Microbial Functional Groups in Activated Sludge. International Journal of Environmental Research and Public Health, 17(1), 376. https://doi.org/10.3390/ijerph17010376

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
