1. Introduction
Water scarcity continues to be a major crisis in many regions in the world. An estimated 700 million people are facing water shortages in 43 countries [
1,
2], such as India, the State of California in the US, the North China Plain and other similar arid and semi-arid areas [
3,
4,
5]. Overuse and extensive exploitation of groundwater have led to water shortage issues and frequent drought events [
5,
6], which promote reclaimed water reuse worldwide [
7]. Reclaimed water is a stable water source which can contribute a huge quantity of nutrients [
8,
9] and its reuse in agriculture can significantly increase crop production [
10]. It was estimated in a report that about 20 million ha of farmland was irrigated with reclaimed water and the amount would increase dramatically in the next few decades due to the intensive water crisis [
11]. Under the circumstance, reclaimed water also carries an appreciable amount of pollution and the contents of contaminants vary from region to region depending on the source of origin [
12]. In general, soil pH would be affected by the acidity of reclaimed water [
13]. Electrical conductivity (EC) would increase but the soil capacity of holding nutrient elements would reduce [
14]. Potentially toxic elements and organic chemicals such as polycyclic aromatic hydrocarbons were also found in the irrigated soils [
10,
13,
15,
16,
17]. As a consequence, long-term reclaimed water irrigation often caused many problems with regards to progressive accumulation in soil, which may gradually destroy the soil environment and elevate the levels of contaminants in plants and shallow groundwater [
18,
19].
Some research had been conducted to get insight into the influence of reclaimed water irrigation on PTEs contents in soils, crops as well as groundwater [
20,
21,
22,
23]. It was found that more PTEs was accumulated in top soil layer with reclaimed water irrigation than that with clean groundwater irrigation [
11,
15]. Around 80% of the cumulative load of some metals, such as Cr, were retained in the top soil layer, while about 10% of the cumulative load of Ni, Zn and Cu delivered by reclaimed water was transferred to deep soil layers [
24]. Therefore, many contaminants would have great possibility to transfer to deep soil layers as the reclaimed water would continue to play a major role in the agricultural production for many years. Previous studies mainly focused on the top soil layers [
18,
25] and paid more attention to regional content of PTEs at the horizontal scale [
16,
26]. Limited information is available regarding the estimation of PTEs concentrations in deep soil layer at the vertical scale, and the temporal variation of PTEs distribution in deep soil layers under different irrigation times were still poorly known. Thus it is crucial to assess the concentration of PTEs in deep soil layers under long-time irrigation to achieve better protection of soil and groundwater environment, as well as public health.
In the present study, an in-situ experiment was established to figure out the influence of long-term reclaimed water irrigation on deep soil layers as well as shallow groundwater quality. The experimental site consists of several plots which receive reclaimed water irrigation for 0, 13, 22 and 35 years, respectively. The objective of the present study is (1) to observe the physical properties of soil profiles with the depth of 620 cm under reclaimed water irrigation, (2) to estimate the influence of reclaimed water irrigation on the altered characteristics of soil including pH, electrical conductivity (EC), organic matter under different irrigation times, (3) to compare the vertical distribution of potentially toxic elements (As, Cd, Cr, Hg, Zn and Pb) under different reclaimed water irrigation times, and (4) to evaluate the soil and groundwater quality under the condition of over 30 years’ reclaimed water irrigation. This work will be significant in the rational use of reclaimed water resource and protection of soil environment and groundwater quality in long-time reclaimed water irrigation areas around the world.
3. Results and Discussion
3.1. Physical Analysis of Soil in Experimental Site
As the experimental plots were close to each other, the soil properties were similar as well. As a result, soil lithology was classified and merged (

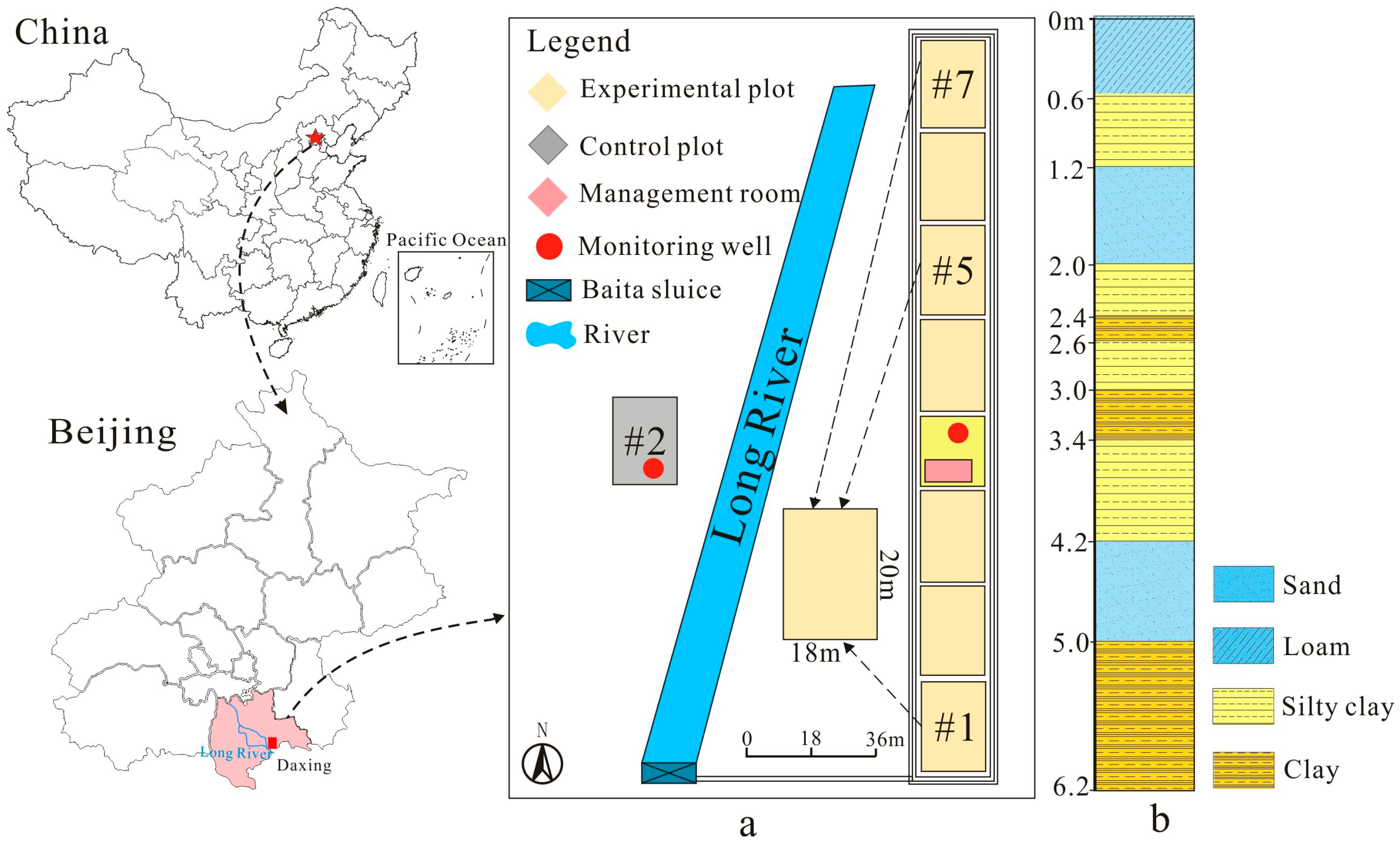

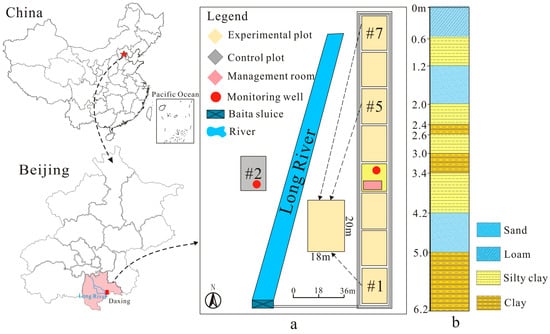

Figure 1b). As shown in
Table 2, soil in the experimental plot was classified as silty soil based on United States Department of Agriculture (USDA) classification.
Silt accounted for 62.2% and 81.8% at 0-0.5 m and 3–4.6 m, respectively. While the percentage of sand was relatively low, ranging from 0.7% at 0.5–1 m to 2.6% at 2–3 m, and the clay content accounted for 25.8% and 23.0% at 0–0.5 m and 4.6–6.2 m, respectively. The high content of silt and clay can reduce the vulnerability of the vadose zone as well as the risk of pollution.
3.2. Properties of Reclaimed Water and Groundwater for Irrigation
The physical and chemical characteristics of reclaimed water (RW) and clean groundwater (CGW) used for irrigation in this experiment are listed in
Table 3. Quality Standard for Groundwater (class III) of China (GB/T14848-93) was based on the human health benchmark value, and the class III groundwater was mainly utilized for centralized drinking, industrial production and agricultural irrigation. The pH values of RW and CGW were 7.7 and 7.5, respectively, and fell within the guideline, which ranges between 6.5–8.5. The electrical conductivity (EC) was 2120 μS/cm for RW and 946 μS/cm for CGW, indicating a moderate and low level of salinity, respectively [
33]. As expected, the content of almost all the trace elements in RW was higher than that in CGW, except for Pb (
Table 3). Cd and Hg values of RW were over the China guideline. According to the chemical characteristics, the high content of some trace elements in the RW used for irrigation may pose PTEs pollution risks.
3.3. Effects of Reclaimed Water Irrigation on Soil Characteristics
Data with different irrigation times showed the influence of reclaimed water irrigation on soil chemical properties. The statistical analysis results, including pH, EC and organic matter, are shown in
Table 4.
The mean pH values display an increasing trend at topsoil (0–200 cm) and a decreasing trend on the soil profile below 200 cm. The largest pH value existed at 100~200 cm with 22 irrigation years, which had a mean value of 8.94. Combined with

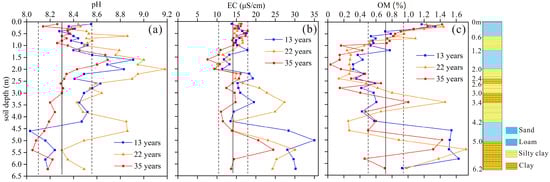

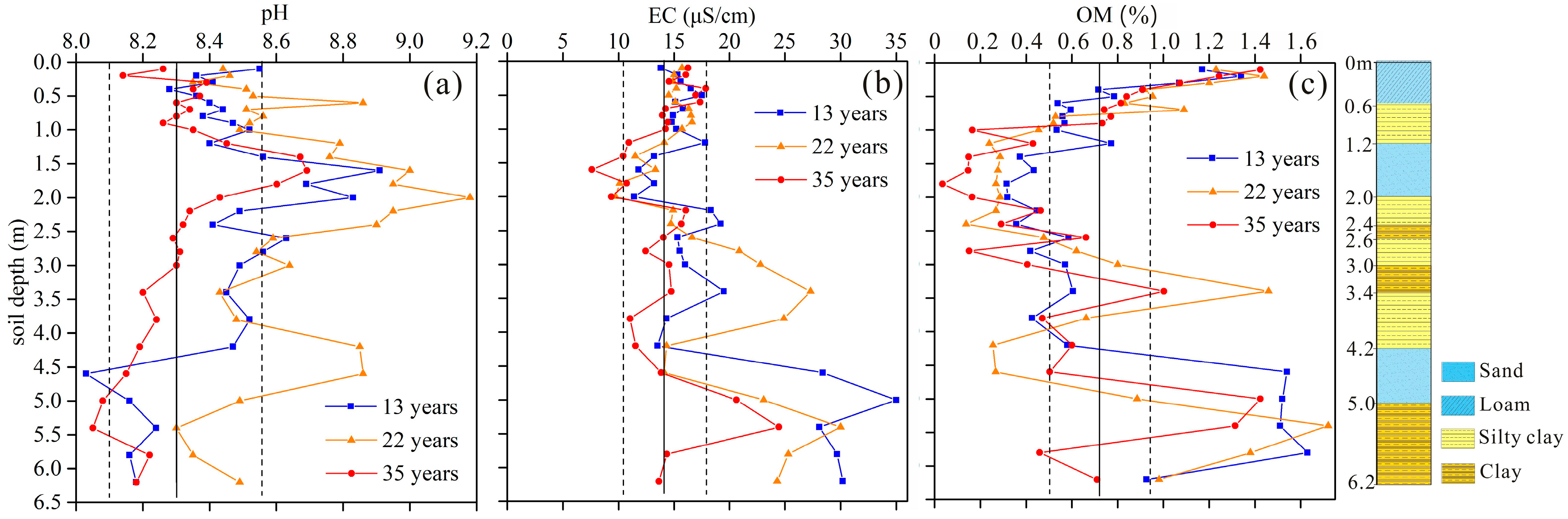

Figure 2a, soil pH values have been slightly affected at top one meter with long term irrigation time and showed no significant differences (
p > 0.05) between pH data from control plot and experimental plot.
The mean pH value was 8.57 in the plot with no reclaimed water irrigation at a depth of 100–200 cm. The increasing pH values in the soil profile (100–200 cm) was related to the alkaline pH values of the reclaimed water (the pH value of reclaimed water sampled in April 2016 was 7.6). The anaerobic environment of the clay soil layer might result in cation displacement or the addition of weak inorganic alkali, i.e., NH
4+, or excessive leaching of acid cations, which can explain the declining trend of pH below 200 cm, as well as the decreasing trend of pH values after 35 irrigation years. In the present study, reclaimed water irrigation caused an increase of pH values in the top soil layer compared to that in the control plot, while a decrease of pH values was observed in many irrigated soils where the irrigation reclaimed water was acidic [
10,
33].
Results of EC determination of water saturate soil extracts (
Table 4 and
Figure 2b) showed that long-term irrigation with reclaimed water had led to an increase in the salinity content with the increasing depth in topsoil (0–150 cm), which was related to the salts in the reclaimed irrigation water as well as a preponderance of upward water movement and evaporation at the topsoil surface [
34]. The EC values with different irrigation times showed no significant differences at the depth of 0–200 cm and higher EC values were found at sandy layers (250–350 cm and 400–500 cm). The mean EC values of sandy layers with irrigation times of 13, 22 and 35 years were 22.8, 19.2 and 14.6 μS/cm, respectively, which were higher than that of the control plot (value of 13.9 μS/cm). The EC values declined with increasing irrigation time, and were related to the continual leaching of salts to lower horizons under the high irrigation rate with reclaimed water [
35], and the mobility of sandy layers was higher than that of clay layers. Considering the field and crops tolerances to salinity, the salinity might not be a serious problem under the condition of adequate over-irrigation.
The OM concentrations in the soil profiles ranged between 0.035% and 1.72% from topsoil to lower layers (
Table 4 and
Figure 2c). Compared to the pristine concentration of reclaimed water, soil OM in the top 100 cm was increased by 9.3%, 14.9% and 32.7% with reclaimed water irrigation times of 13, 22 and 35 years, respectively. The accumulation of OM in reclaimed water irrigation field could improve soil structural properties and increase soil fertility and crop production as well [
36]. The mean content of organic matter ranged from 0.19 to 0.44% at 100–200 cm. It was relatively low with a small percentage of clay and silt. In addition, soil pH values were also higher at 100–200 cm than those at other depths, and the anaerobic alkaline soil environment could explain the decrease of organic matter. As a result, a significant increase of OM was found at 260–340 cm and 460–500 cm. High soil OM concentration was reported to be able to reduce the mobility of PTEs and the risk of leaching as well [
37]. Generally speaking, long-term reclaimed water irrigation would lead to appreciable increase of OM content, and might improve the soil quality.
3.4. Effects of Reclaimed Water Irrigation on the Accumulation of Potentially Toxic Elements
The statistical analysis of PTEs in experimental plots as well as control plot (the one with clean groundwater irrigation) was shown in

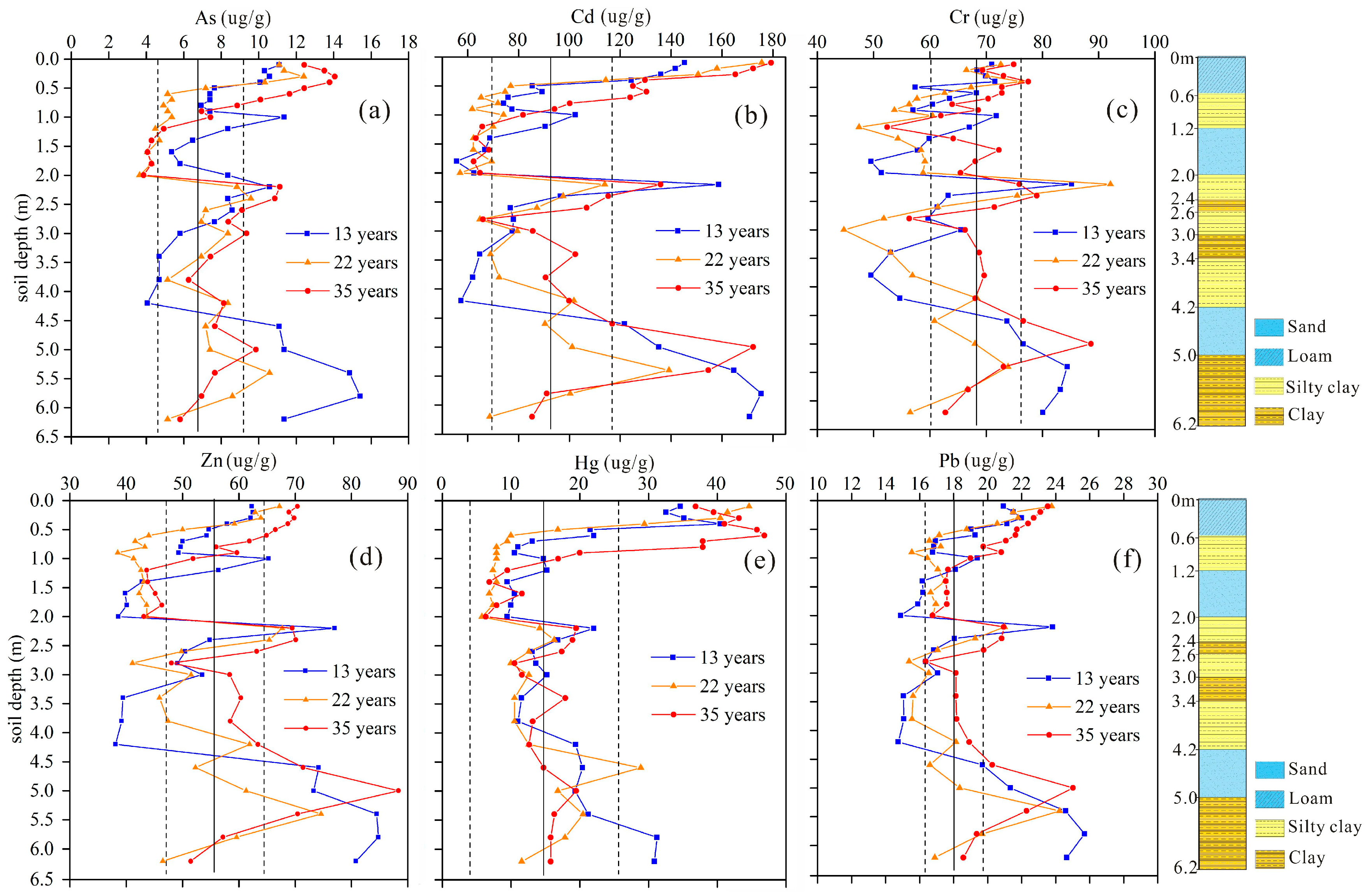

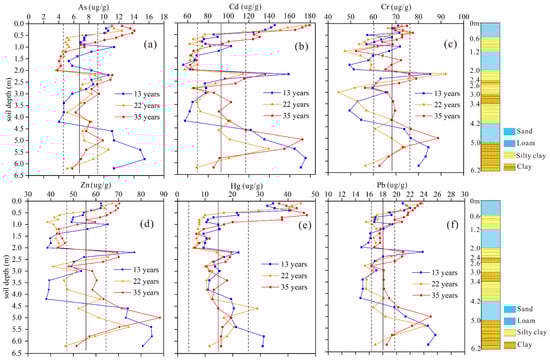

Figure 3 and
Table 5. The concentrations of most elements have an increasing trend with the increase of irrigation years compared with that of the control plot. A growth in standard deviation values also indicated that anthropogenic factors have an influence of the concentration and distribution of PTEs in soil profile [
21]. The largest soil As values were observed in top soil layer (0–100 cm) with mean values of 7.33–11.09 μg/g, while in the depth of 100–200 cm, the mean As contents decreased and varied from 4.06 to 6.87. This phenomenon was the result of large percentage of sand in the soil profile of 100–200 cm, most As was delivered by reclaimed water to deep soil layer. As a result, the As values displayed an increasing trend from 200 cm to 300 cm.
The same phenomenon could be observed in the soil profile of Cd, Cr and Zn. For the six elements examined, the highest levels of Cr, Pb and Zn were observed at 200–240 cm and 460–500 cm horizons in plots (
Figure 3), which was the result of the large percentage of clay and silt in the two layers. The soils with high content of clay and silt had strong adsorption capacity and facilitate the metals to accumulate in clay soil layers. However, PTEs accumulation in topsoil (0–100 cm) might enrich the concentrations of the associated crops and led to certain risks to crop growth or even human health [
38].
Figure 3 also suggested that longer irrigation times (35 years and 22 years) led to a decreasing trend of As, Cd, Hg, Pb and Zn in the deep layers of the soil profiles (>540 cm) compared with that with 13-year’ irrigation. For instance, the mean As contents at the depth of 500–620 cm under 13, 22 and 35 years’ irrigation were 13.87, 8.10 and 6.79 μg/g, respectively (
Table 5). The soil As value under 35 years’ irrigation was even lower than that of the control plot with groundwater irrigation. Considering the continual input of elements through reclaimed water irrigation and the adsorption of PTEs on soil particles, this could be the result of plant uptake and leaching through sandy soil layers. Additionally, high soil OM concentrations led to high adsorption and retention capacity of the clay and silty soils toward PTEs, which was the major component to fix PTEs in soils and could reduce the risk of PTEs leaching into lower layers or groundwater [
27,
30]. The mobility of PTEs was also enhanced by high loading of around 250 m
3 reclaimed water irrigation per year, which was related to much lower concentration of PTEs under long-term irrigation conditions.
3.5. Evaluation of Irrigated Soils and Shallow Groundwater Quality
To further assess the pollution status of irrigated soils by PTEs, the Pollution Load Index (
PLI) was applied to evaluate the pollution extent, which is based on the concentration factor values (
CF) of individual PTE in the soil [
39]. The
CF value is the ratio of the content of each metal (
Cm) to the background value in the soil (
Cb):
where the contents of PTEs in control soils (#2) were chosen as background values, and PTEs concentrations (
Cm) used were the values of soil samples. And PLI was defined as the geometric mean value of
CF values for the
n metals as the following equation:
Values of PLI ≤ 1 show PTE loads close to the background level, and values over 1 indicate pollution [
40]. PLI values of each soil layer were shown in

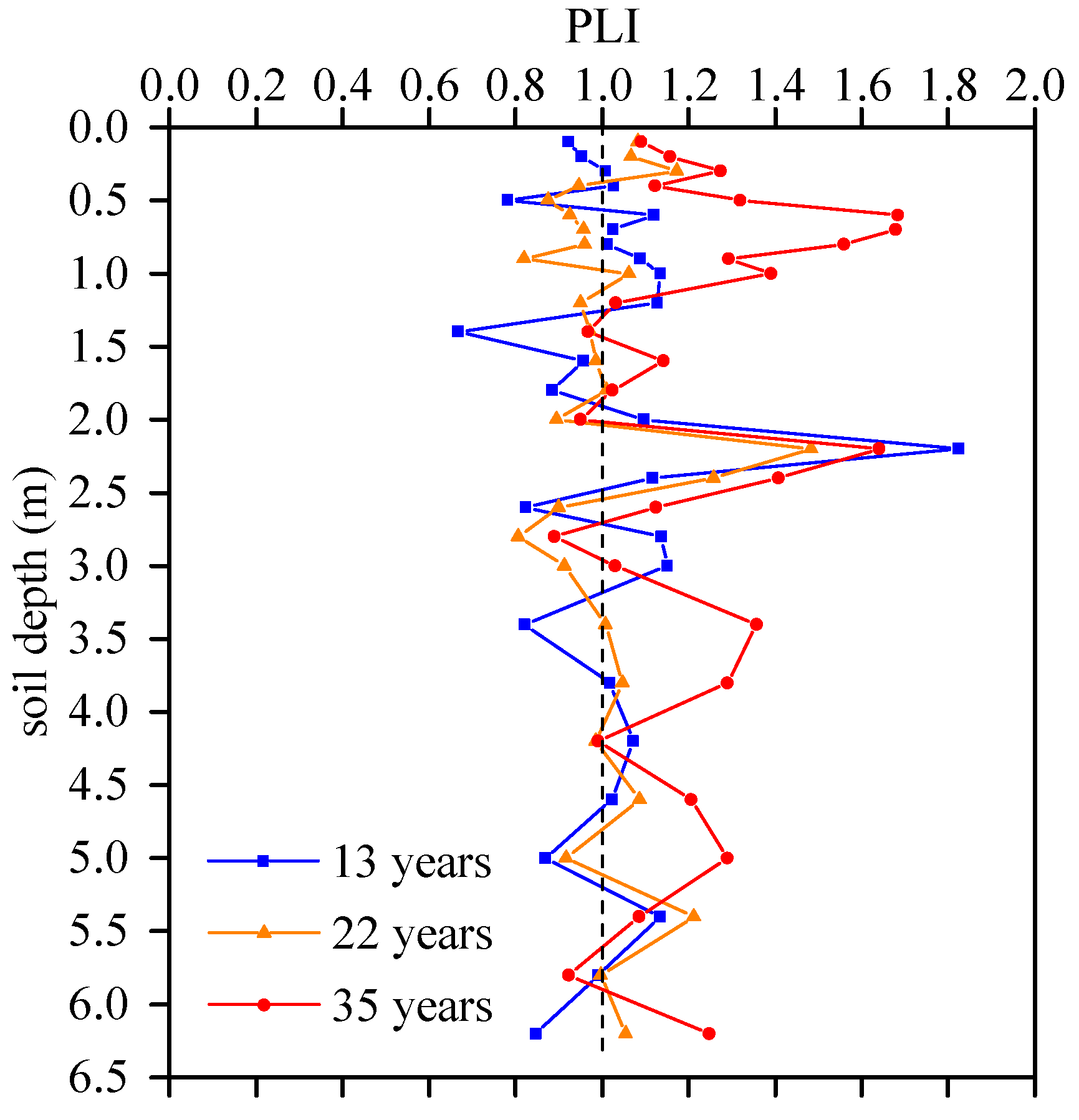

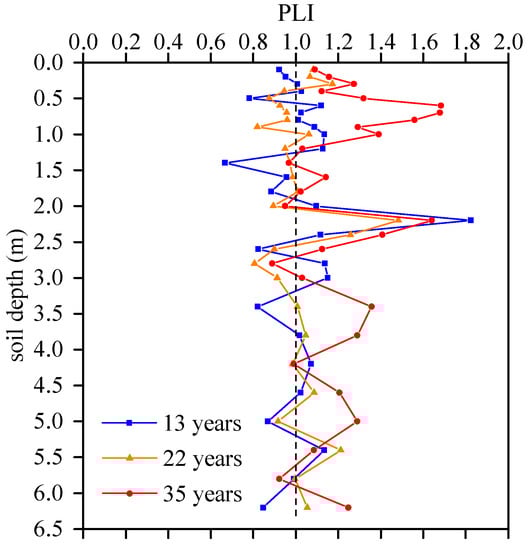

Figure 4 and indicated that most PLI values ranged between 1 and 2.
Plots with 35 years’ irrigation had the highest PLI values in topsoil (0–300 cm), which is related to large amount of reclaimed water irrigation and the adsorption of loam soil. There was a significant decrease of PLI at 60 cm for all plots, which was related to the high adsorption effect of clay and silty soil. Plots #5 and #7 had smaller PLI values at 200-230 cm than that of plot #1, which is associated with the high infiltration rate and leaching through sandy soil layers, with the progressive accumulation of PTEs, plot #7 accumulated more PTEs than that of plot #5 although they had the same infiltration rate. The PTEs concentrations exhibited a decreasing trend from 240 cm to deeper soil layers with 13 years’ irrigated time, which means the influence of reclaimed water irrigation on plot #1 is not significant and even the background values of PTEs were diluted. However, PLI value reached 1.05 and 1.24 at 620 cm for plot #5 and plot #7, respectively. The results showed that long-term reclaimed water irrigation (>30 years) had polluted deep soil environment and might have potential risk for shallow groundwater.
PTE values in groundwater under long-term reclaimed water irrigation are shown in
Table 6. Groundwater Quality Standard (class I) reflects the natural low background content of groundwater chemical components and suitable for various purposes.
Most PTEs values in groundwater fell within the guideline and similar to the background values, indicating that the PTEs in reclaimed water, including As, Cd, Zn, Hg and Pb, pose little risk to shallow groundwater quality under long-term irrigation conditions (>30 years), whereas, Cr values in shallow groundwater are higher than the guideline, which was related to the historical presence of an electroplating factory, whereby sewage discharge from the factory increased the background value of Cr in the vadose zone. Although under the condition of 35 years’ irrigation, the reclaimed water have little influence on PTEs contents in soil environment and shallow groundwater, proper management for reclaimed water irrigation, such as reduction of irrigation volume and rate of reclaimed water, is still needed when irrigation for a very long period is performed.
4. Conclusions
Reclaimed water used as irrigation water could provide soils with nutrients and organic matter, thus improving soil fertility and crop production. However, irrigation of agricultural fields with reclaimed water can change some soil physical and chemical properties. Generally speaking, the pH values and the salinity content in the top soil layer were increased compared to that in the control plot. Long-term reclaimed water irrigation also led to appreciable increase in the concentration of organic matter, and might improve the soil quality in top soil layer. PTEs would progressively accumulate on top soil layers (0–250 cm) under long-term reclaimed water irrigation. Due to the high adsorption and retention capacity of clay and sand-clay interlayers in the vadose zone, the PTEs were adsorbed and accumulated in these aquitard layers, while for the sandy layers, PTEs were inclined to leach when the infiltration rate is high and would accumulate if the infiltration rate was small, thus the concentrations of PTEs in deep soil layer with 35 and 22 years’ irrigation time were lower than that of 13 years’ irrigation time. Although under the condition of 35 years’ irrigation, the reclaimed water has little influence on the PTE contents in soil and shallow groundwater, excessive inputs of some elements could also have adverse impact on the deep soil layers and might cause pollution in shallow groundwater when irrigation is performed for a very long period. It is suggested that work for investigating the influence of reclaimed water irrigation on unsaturated-saturated system is necessary. Risk assessments should also be carried out in order to keep safe usage of reclaimed water for agriculture, as well as the protection of soil environment and groundwater quality.
