A Cross-Reconstruction Method for Step-Changed Runoff Series to Implement Frequency Analysis under Changing Environment
Abstract
:1. Introduction
2. Materials and Methods

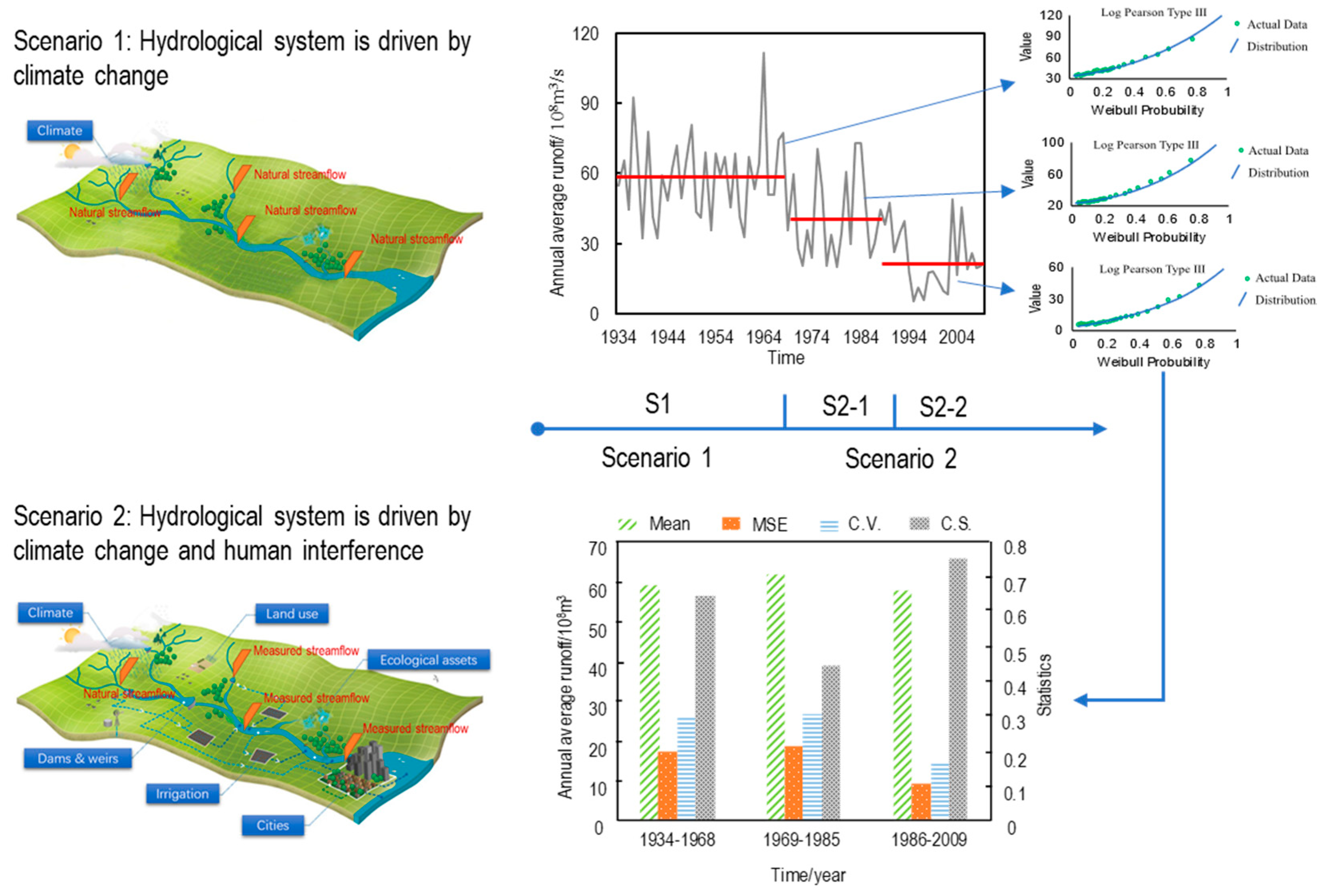

2.1. Step-Changed Runoff Series and Environment Scenarios
2.2. Pettitt Test and Iterative Cumulative Sum of Squares for Segmentation
2.2.1. Pettitt Test
2.2.2. Iterative Cumulative Sum of Squares
- (a)
- If Dk oscillates around zero, it represents that there is no change in the variance over the whole period;
- (b)
- If Dk departs from zero, it means that there are one or more shifts in variance;
- (c)
- If the maximum of exceeds the boundary values that are obtained from the asymptotic distribution of Dk, assuming constant variance, a significant shift in variance occurs at k. The 5% significant level is selected in the study, and ±1.358 is the asymptotic critical value.
2.3. Empirical Mode Decomposition
- (a)
- Identify all local extrema containing the maxima and minima of the original time series , and then fit all the local extrema with a cubic spline function to produce the lower and upper envelopes, and , respectively.
- (b)
- Compute the mean of the envelopes by .
- (c)
- Obtain the new series by .
- (d)
- Check whether is a nonstationary series; if yes, the above procedures must be repeated k times until . If not, is regarded as the first intrinsic mode function (IMF) as . The first IMF represents the highest frequency component of the original series.
- (e)
- Calculate the margin series , and the second IMF can be obtained from it. Such a procedure needs to be repeated until the last margin series is a monotone series and can’t be decomposed further. At this point, the decomposing is finished, and n-1 IMFs and a residual component are obtained where the residual represents the mean trend of the original series. If calculating the summation of all IMFs and the residual, the original series can be reconstructed as follows:
2.4. Kolmogorov–Smirnov (K-S) Test

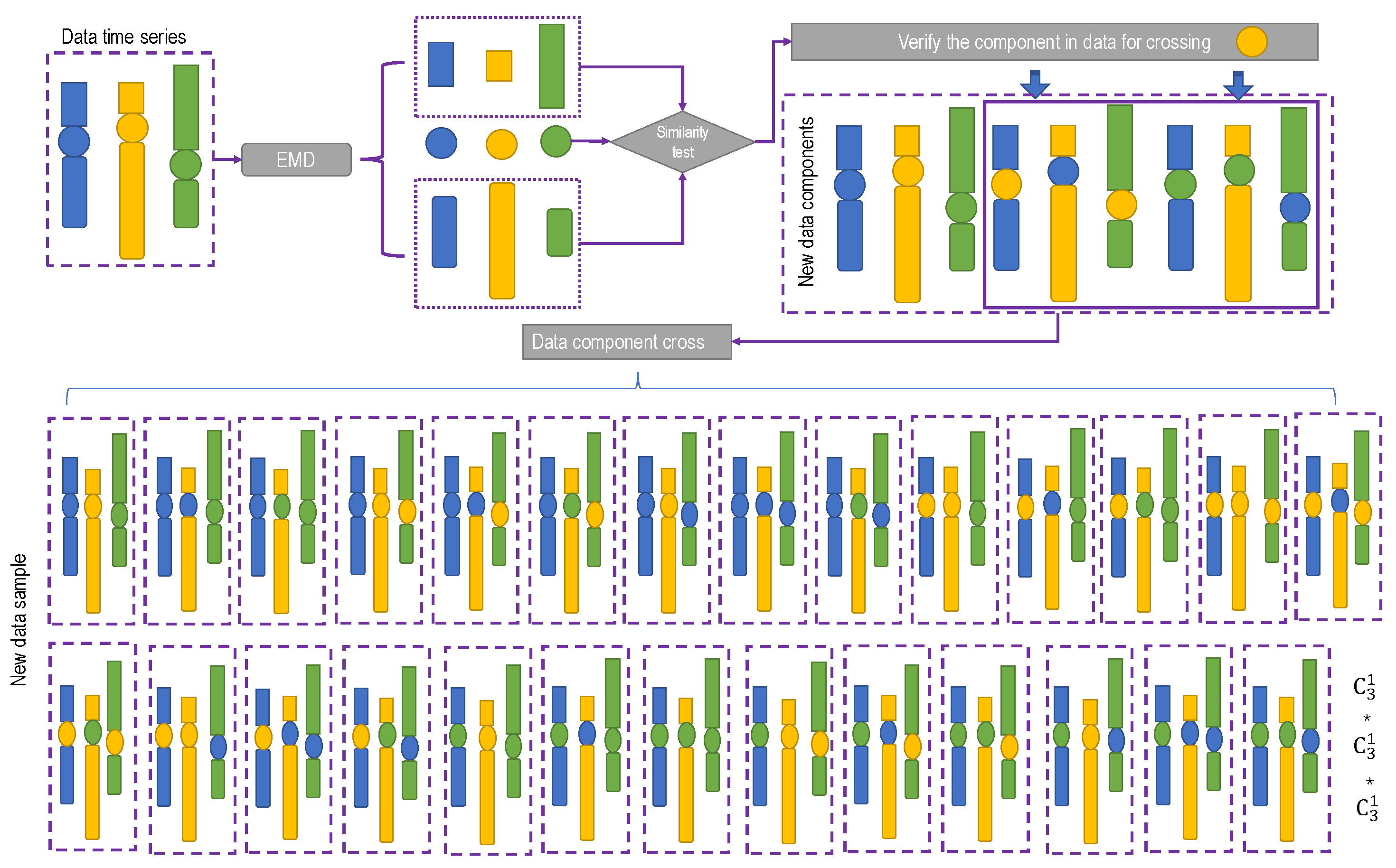

2.5. Cross and Reconstruction
2.5.1. Cross Procedure
2.5.2. Runoff Reconstruction
- (a)
- The original runoff series are segmented based on change points in mean and variance.
- (b)
- Each segmented series should take the logarithm of an extended data series with the neural network for mitigating the boundary error [30], which is then decomposed by EMD. At this moment, multiple intrinsic mode functions (IMFs) and a residual trend term (Residual) of each segment can be obtained.
- (c)

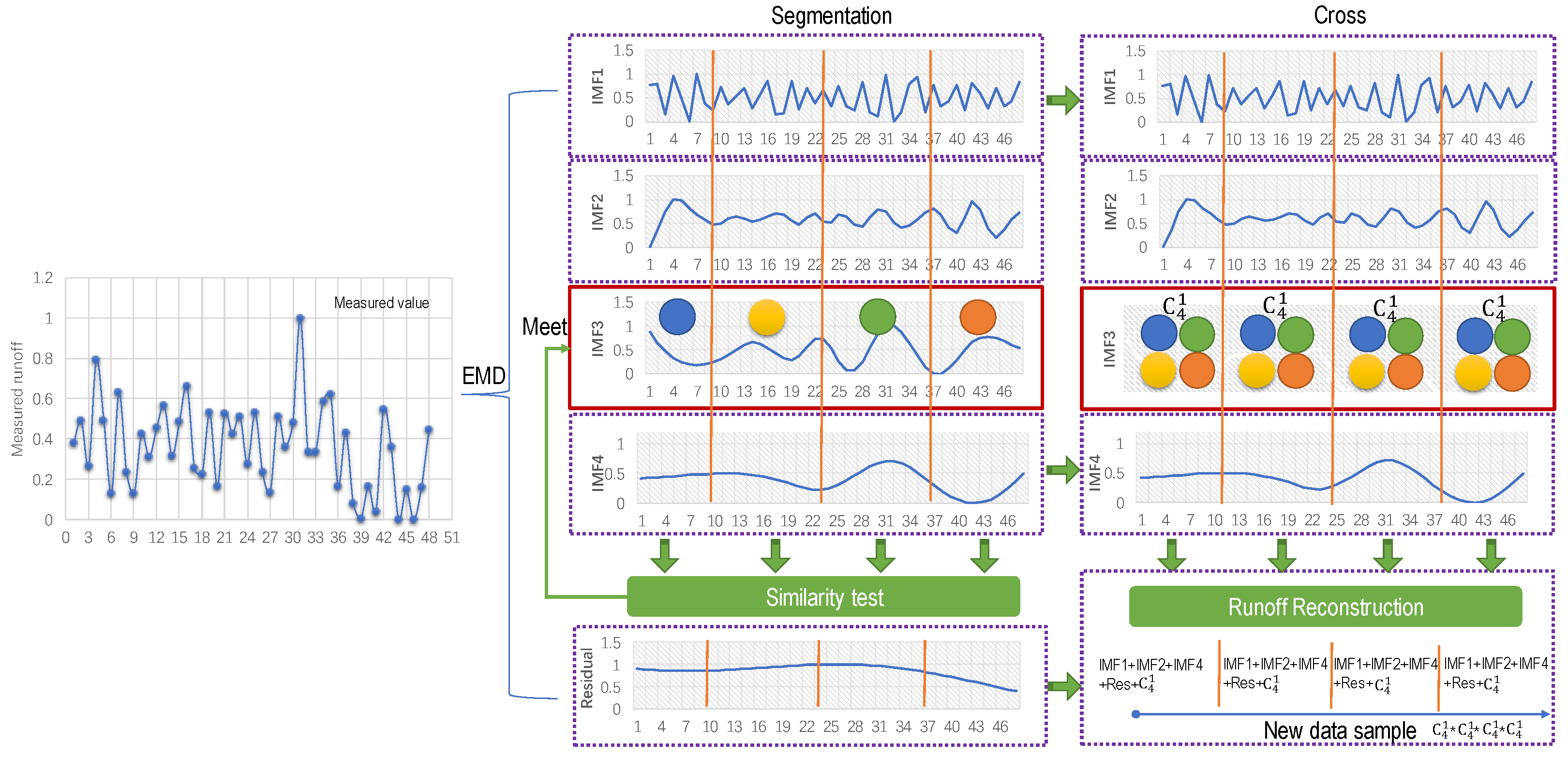

- All the IMFs are done with the similarity detection by the K-S test. The similar IMFs are combined and superimposed. Figure 3 shows that each segment can be reconstructed by when the decomposed IMFs of each segment are similar, and the original series can eventually be expanded to a new sample with the size of .

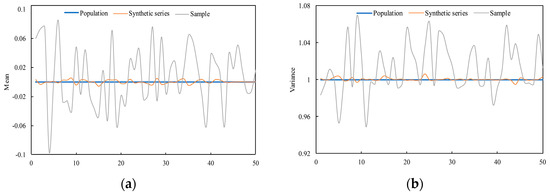

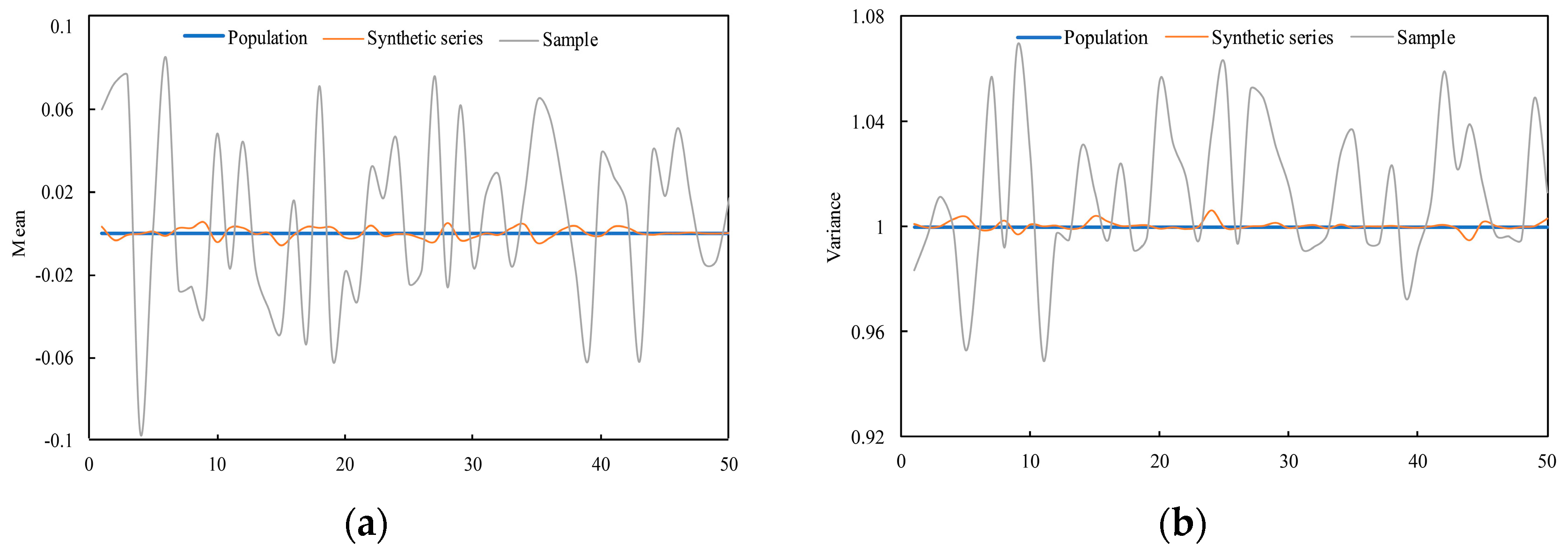

3. Method Validation
4. Application
4.1. Study Area and Data

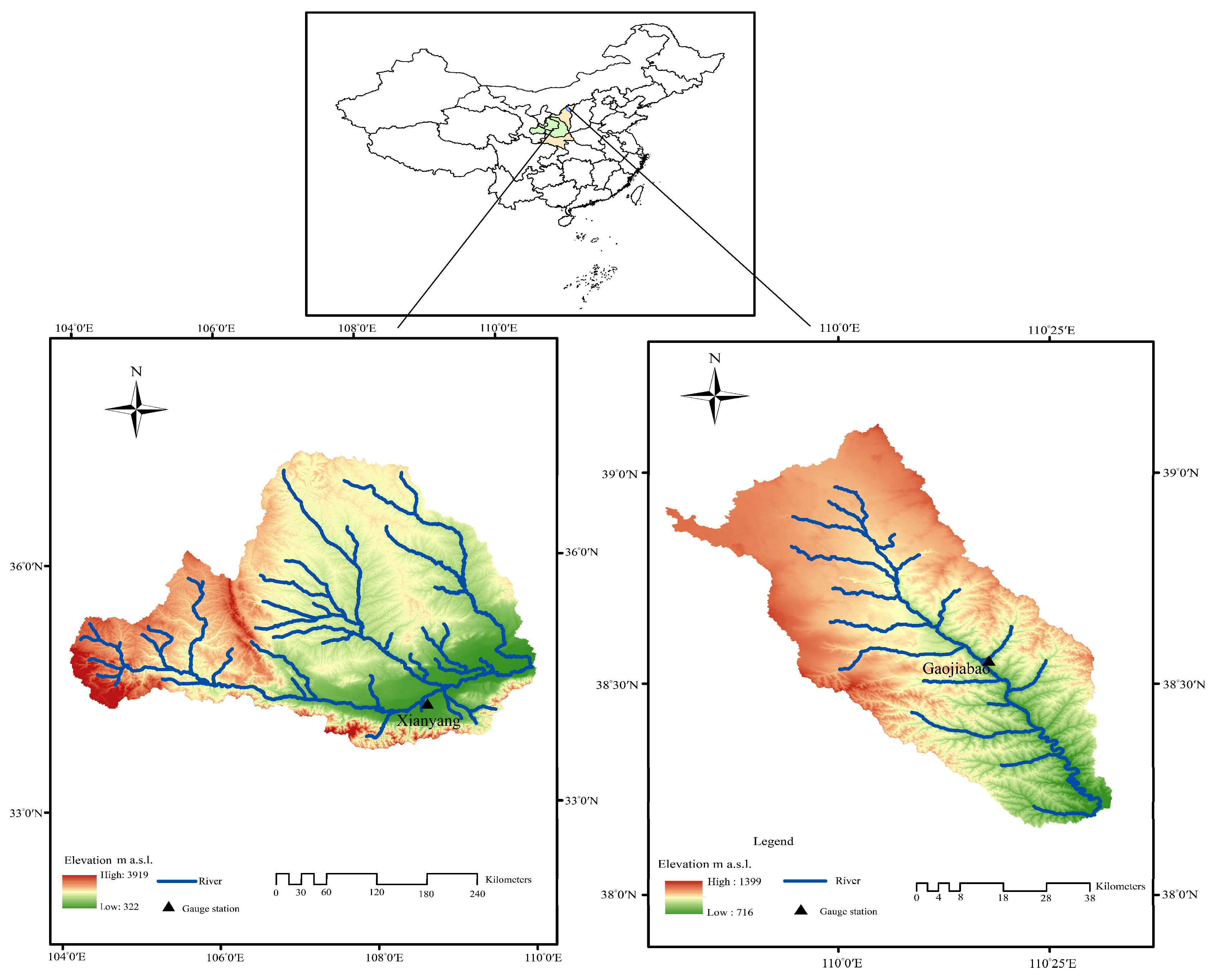

4.1.1. Study Area
4.1.2. Data
4.2. Results

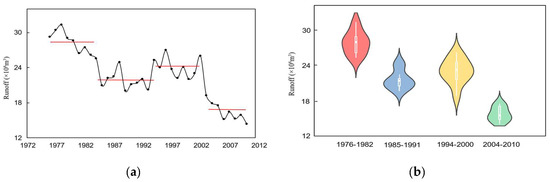

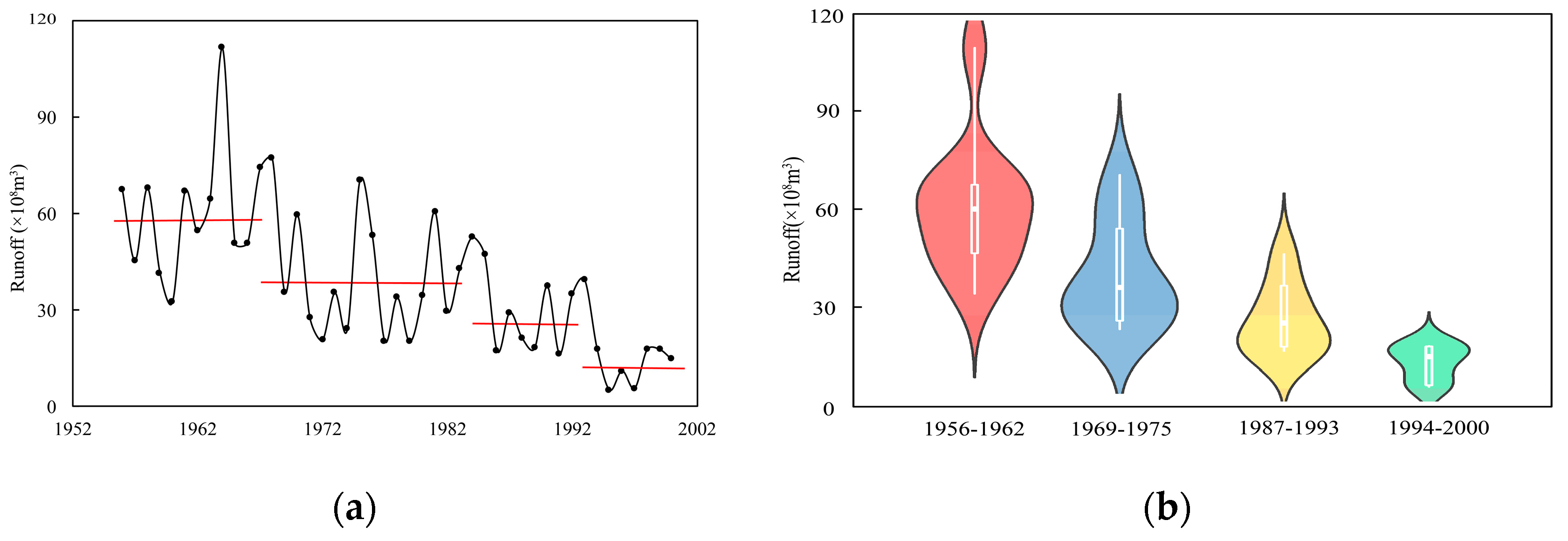

4.2.1. Segmentation

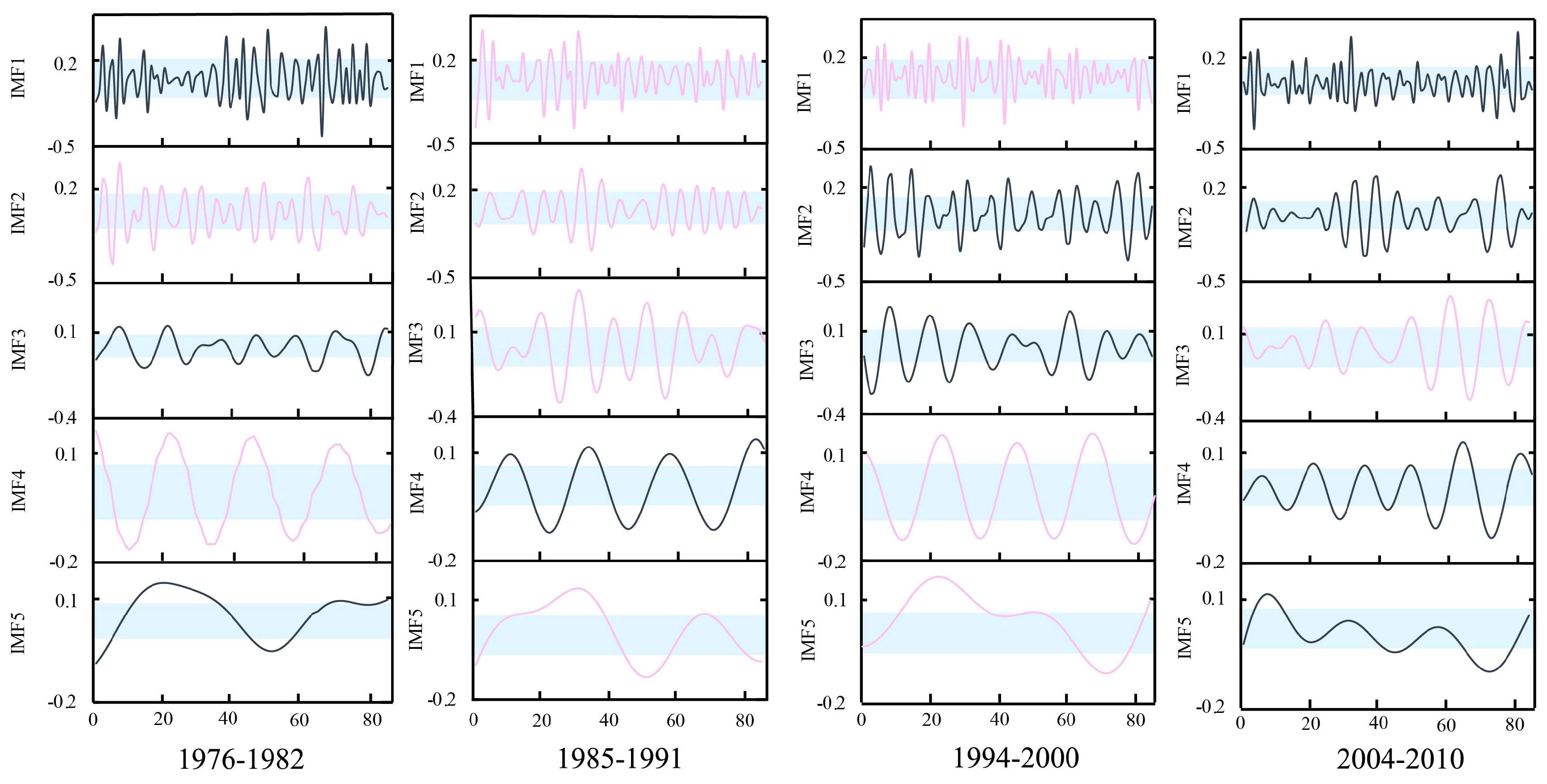

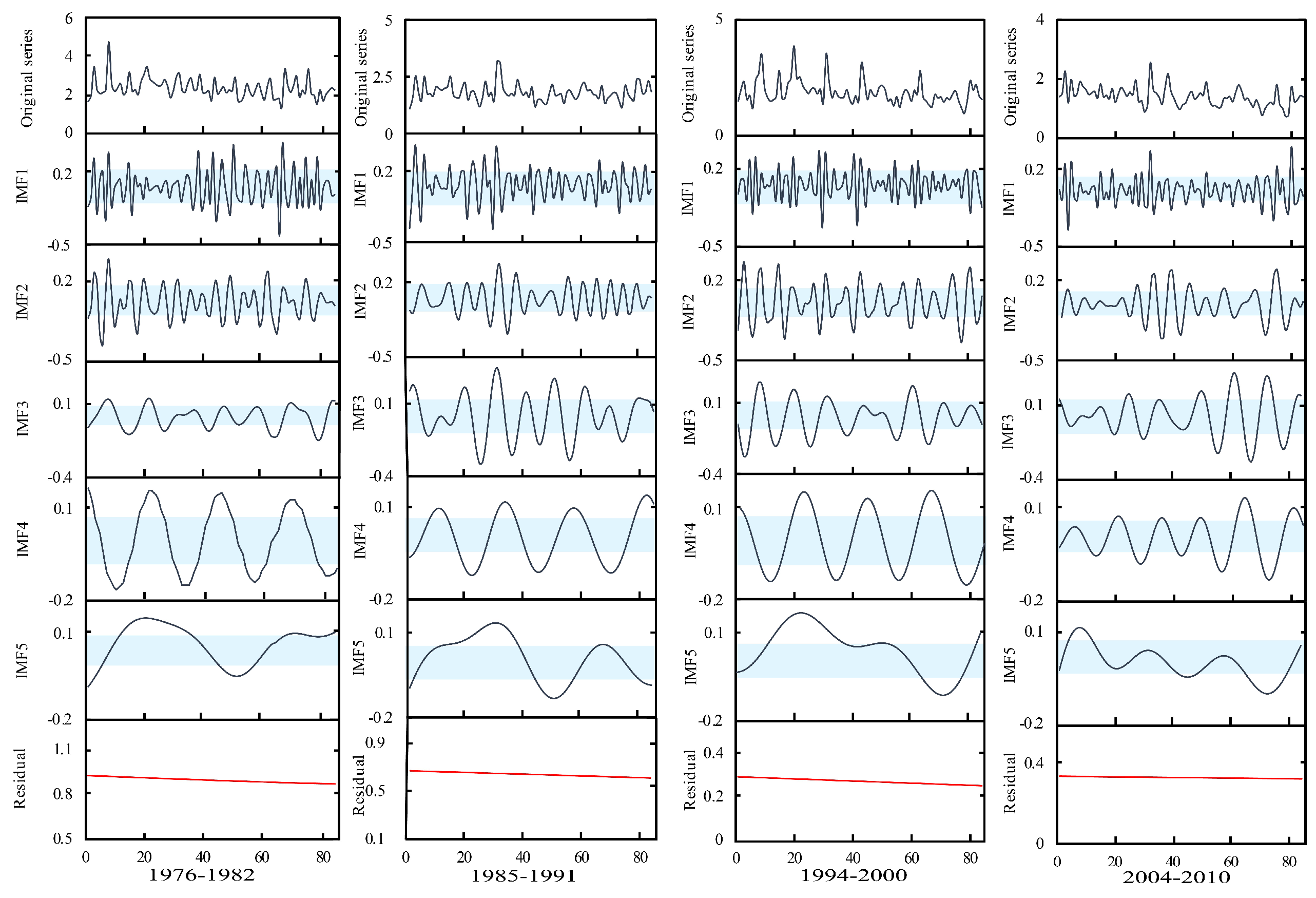

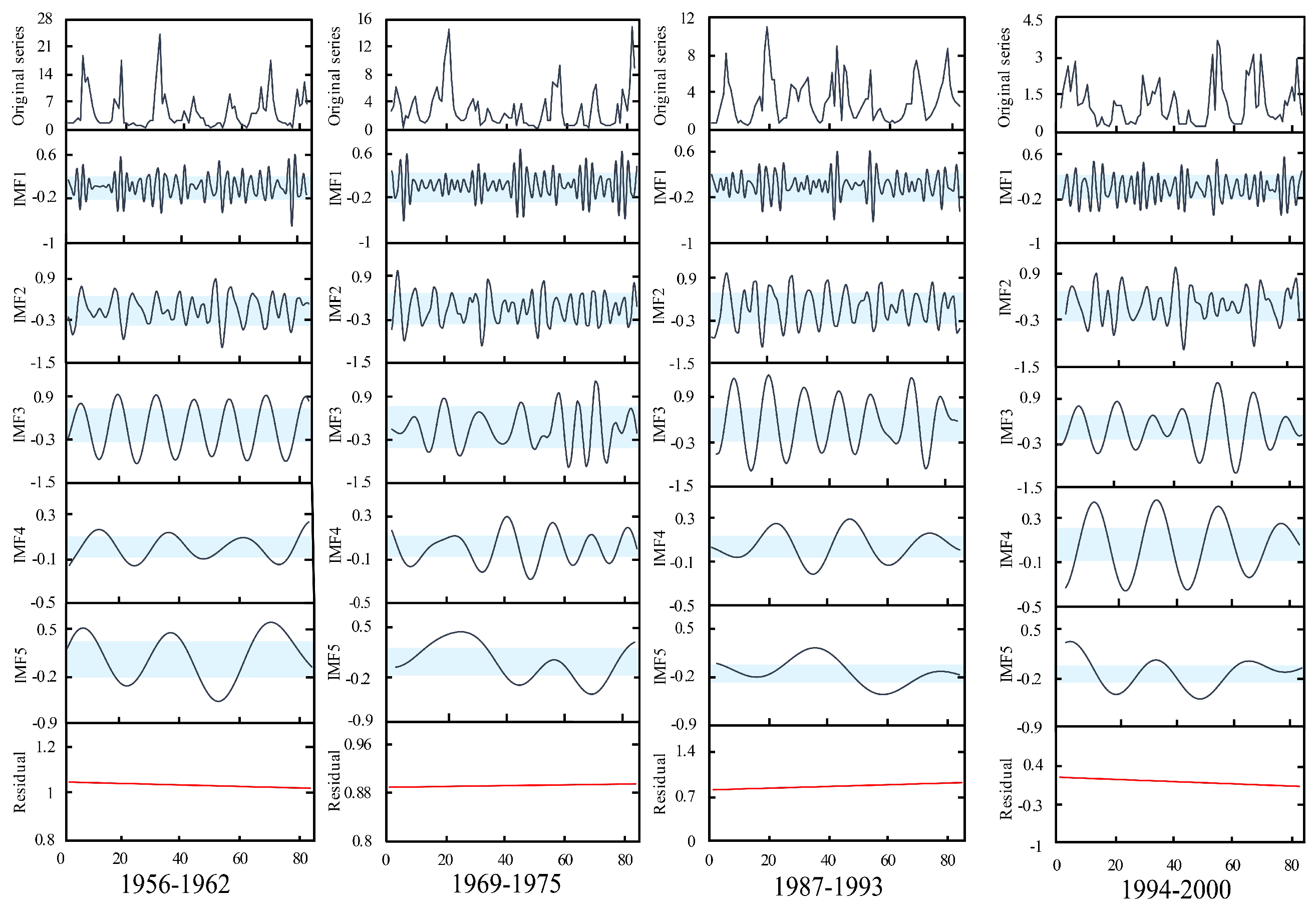

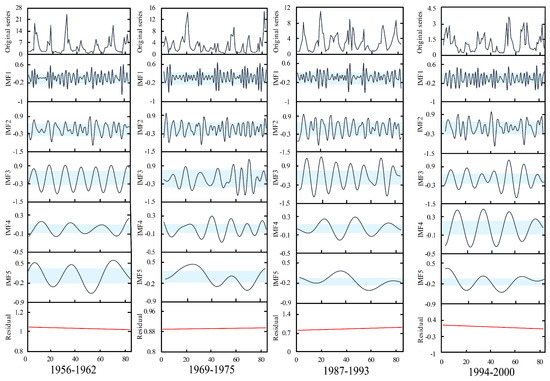

4.2.2. Decomposition

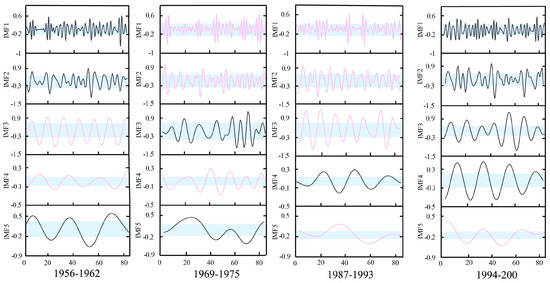

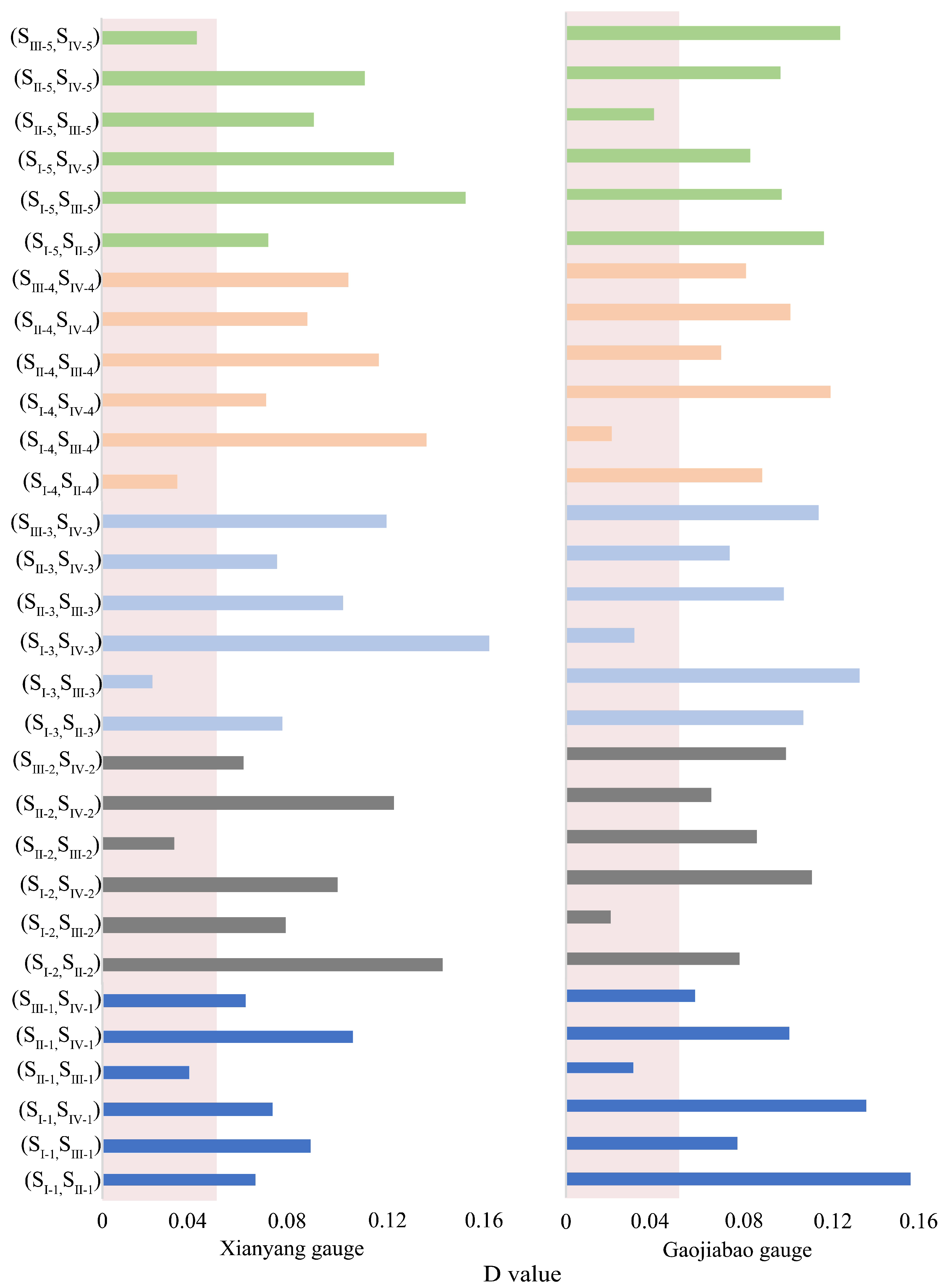

4.2.3. Kolmogorov–Smirnov (K-S) Test

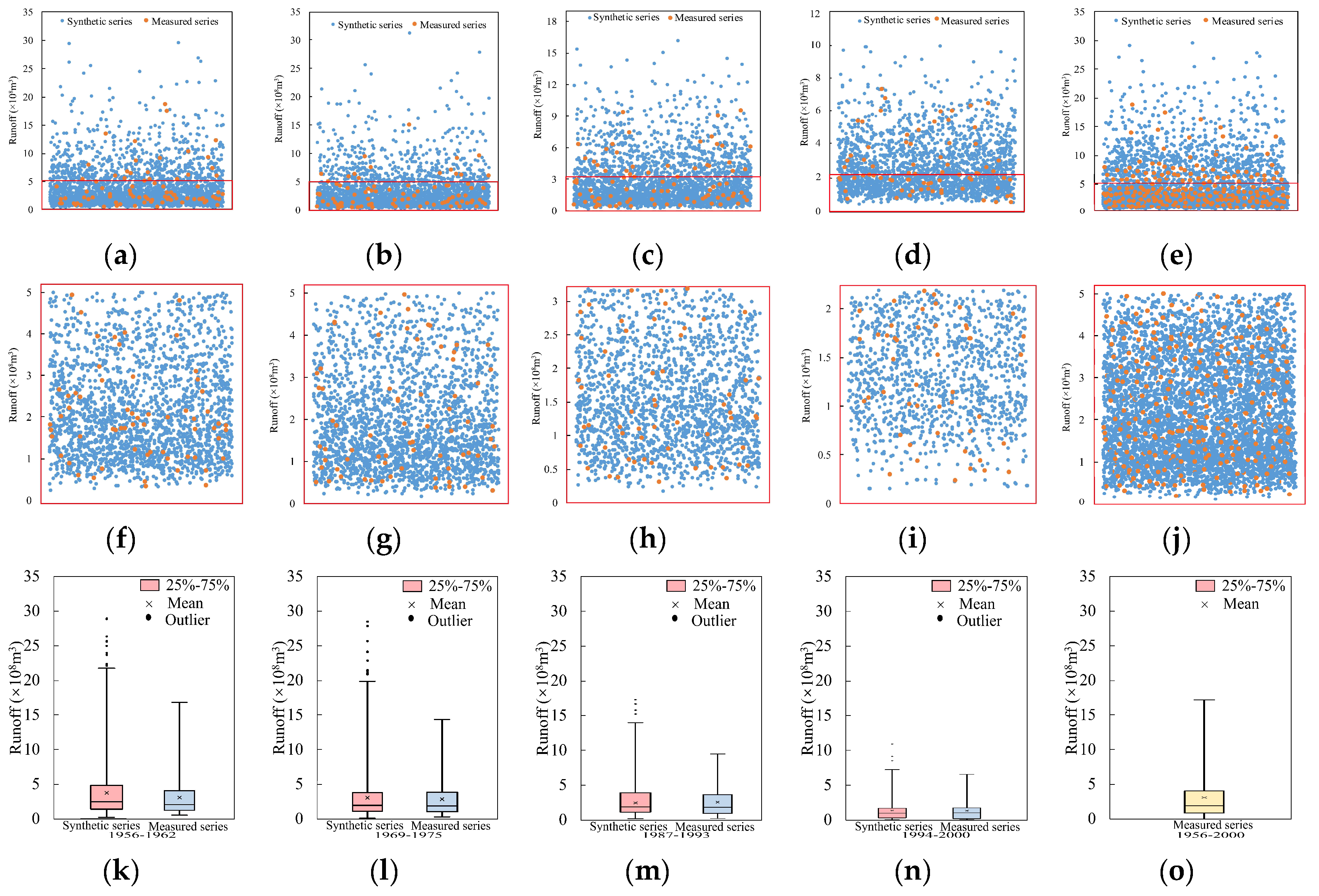

4.2.4. Cross and Reconstruction

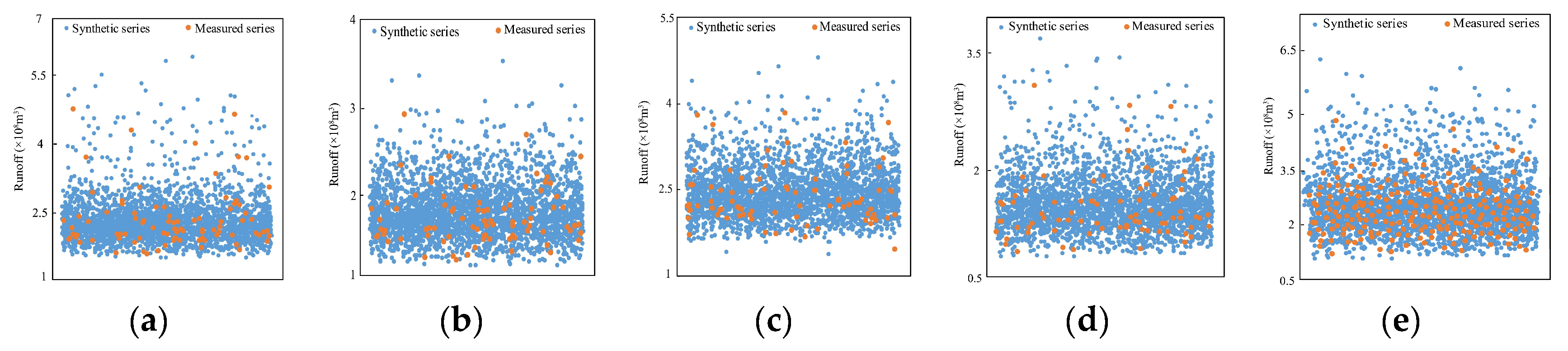

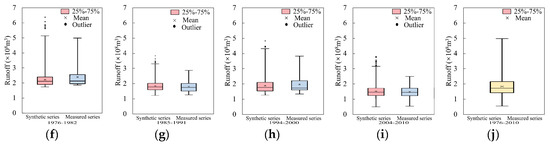

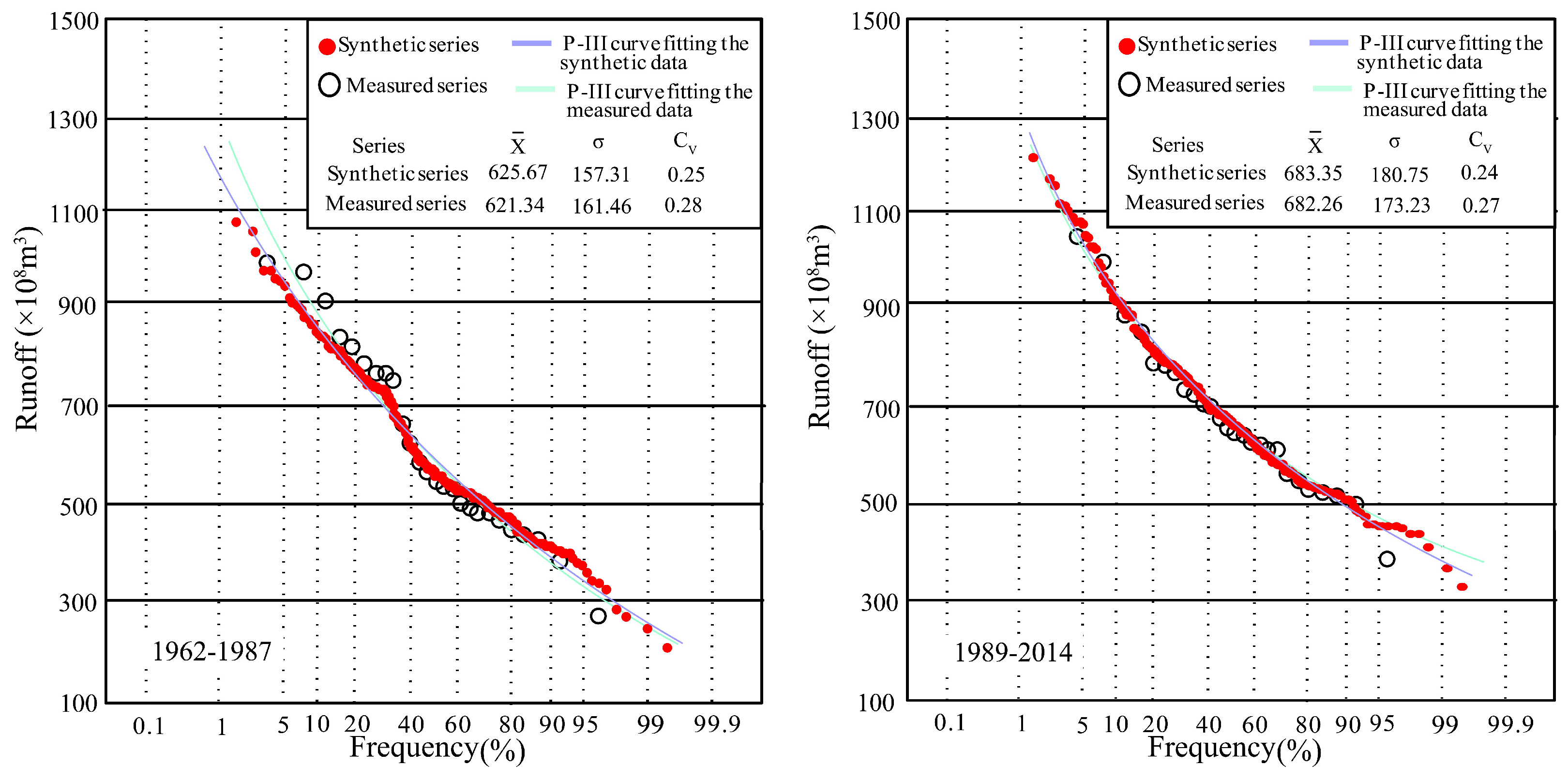

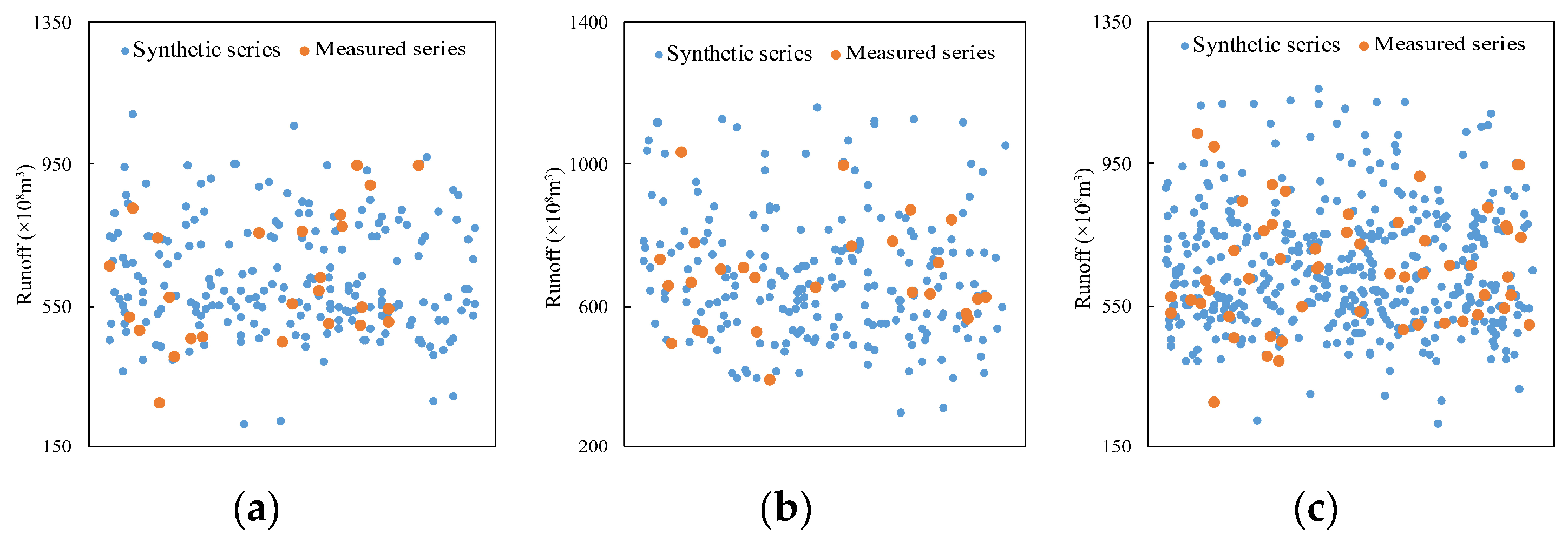

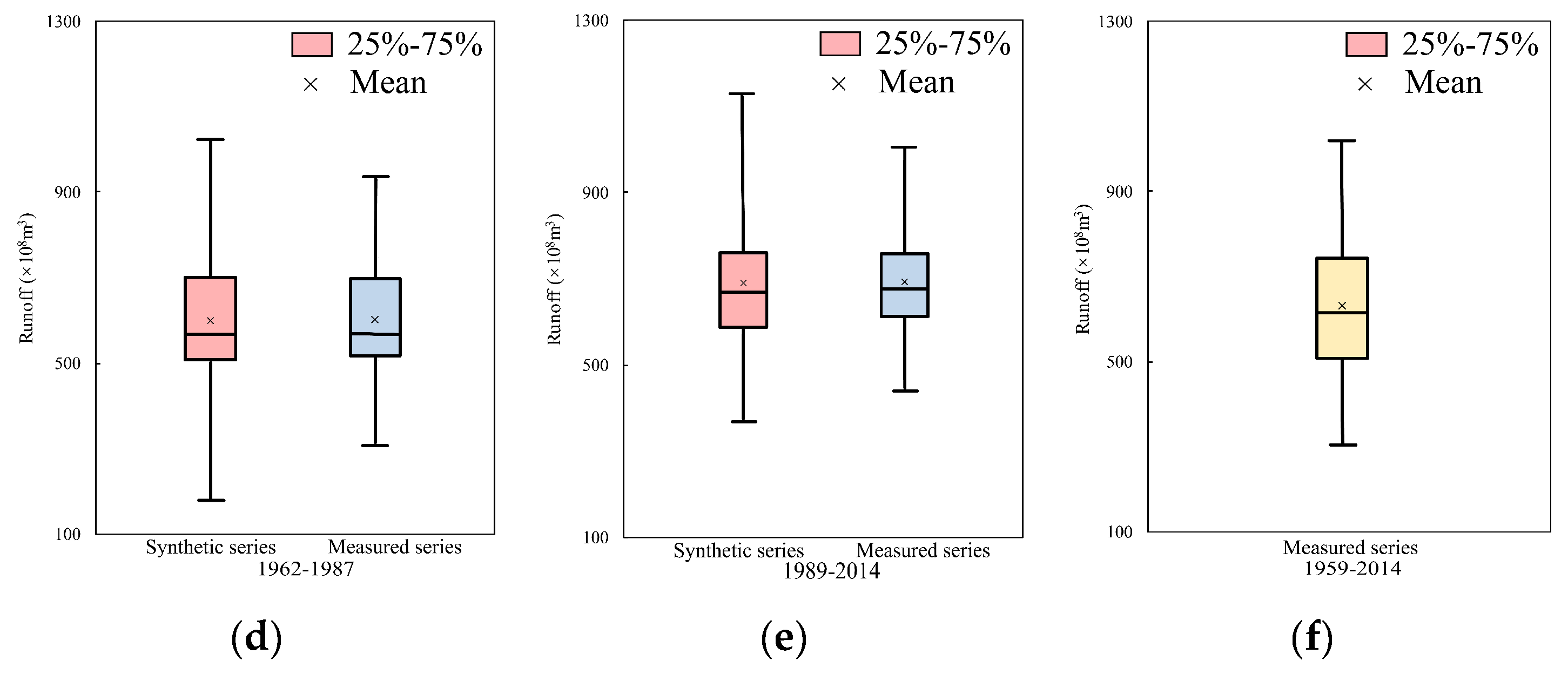

4.3. Discussion
5. Conclusions
- (a)
- The cross-reconstruction method can effectively implement the data expansion and obtain the synthetic series meeting the requirement of data capacity for frequency analysis, which is closer to the population.
- (b)
- The synthetic series obtained can cover all the measured data and contain more information about the potential data population embedded in historical measured data, reflecting more possibilities in the future. The method has achieved satisfactory performance in a different watershed, implying that it has good applicability.
- (c)

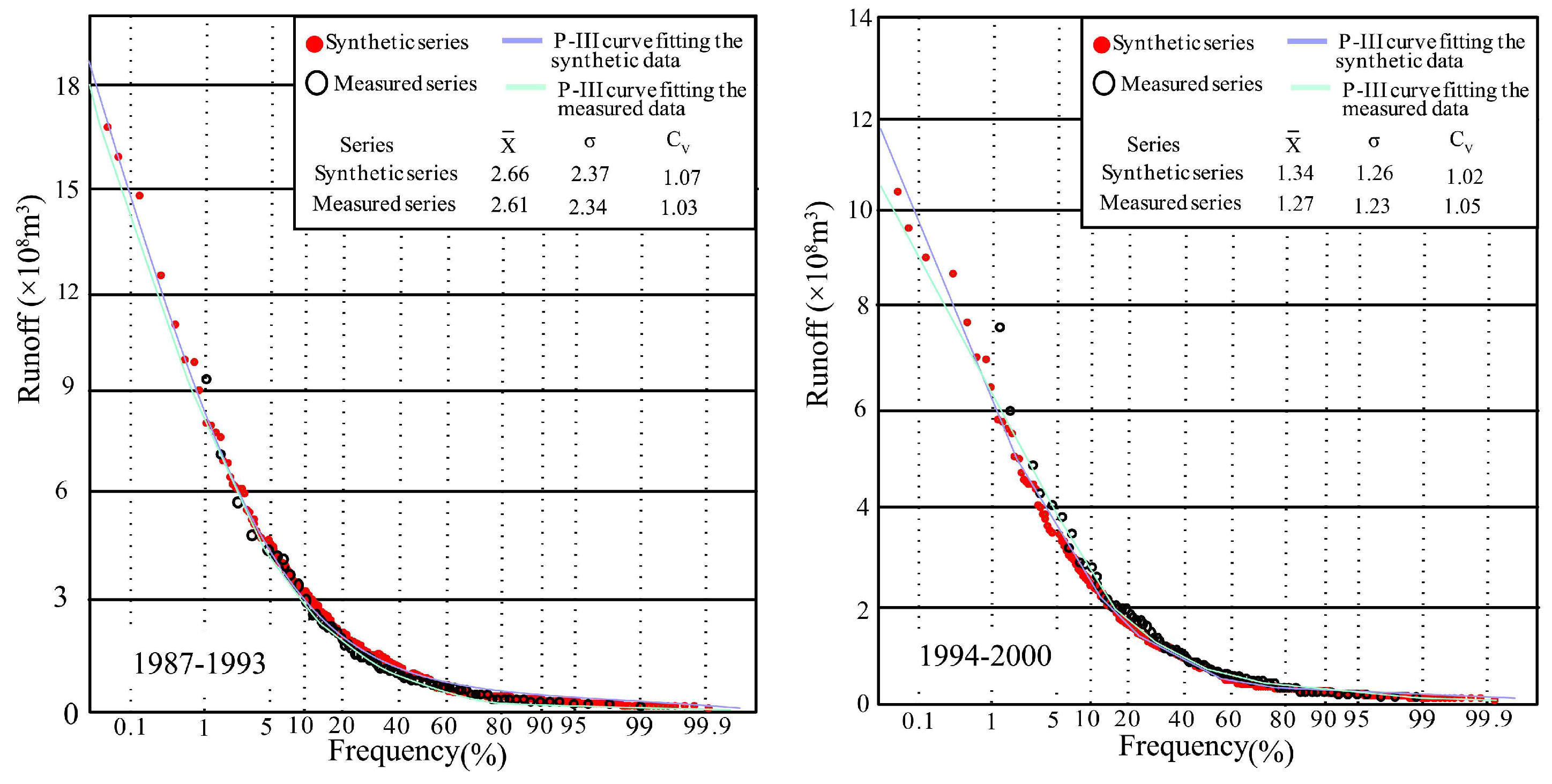

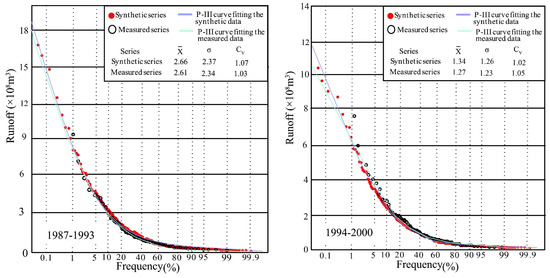

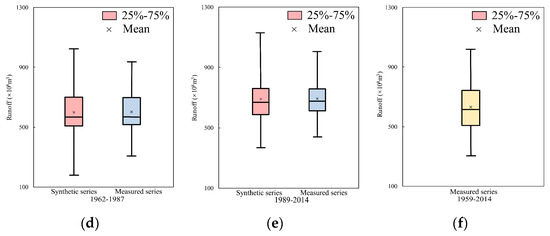

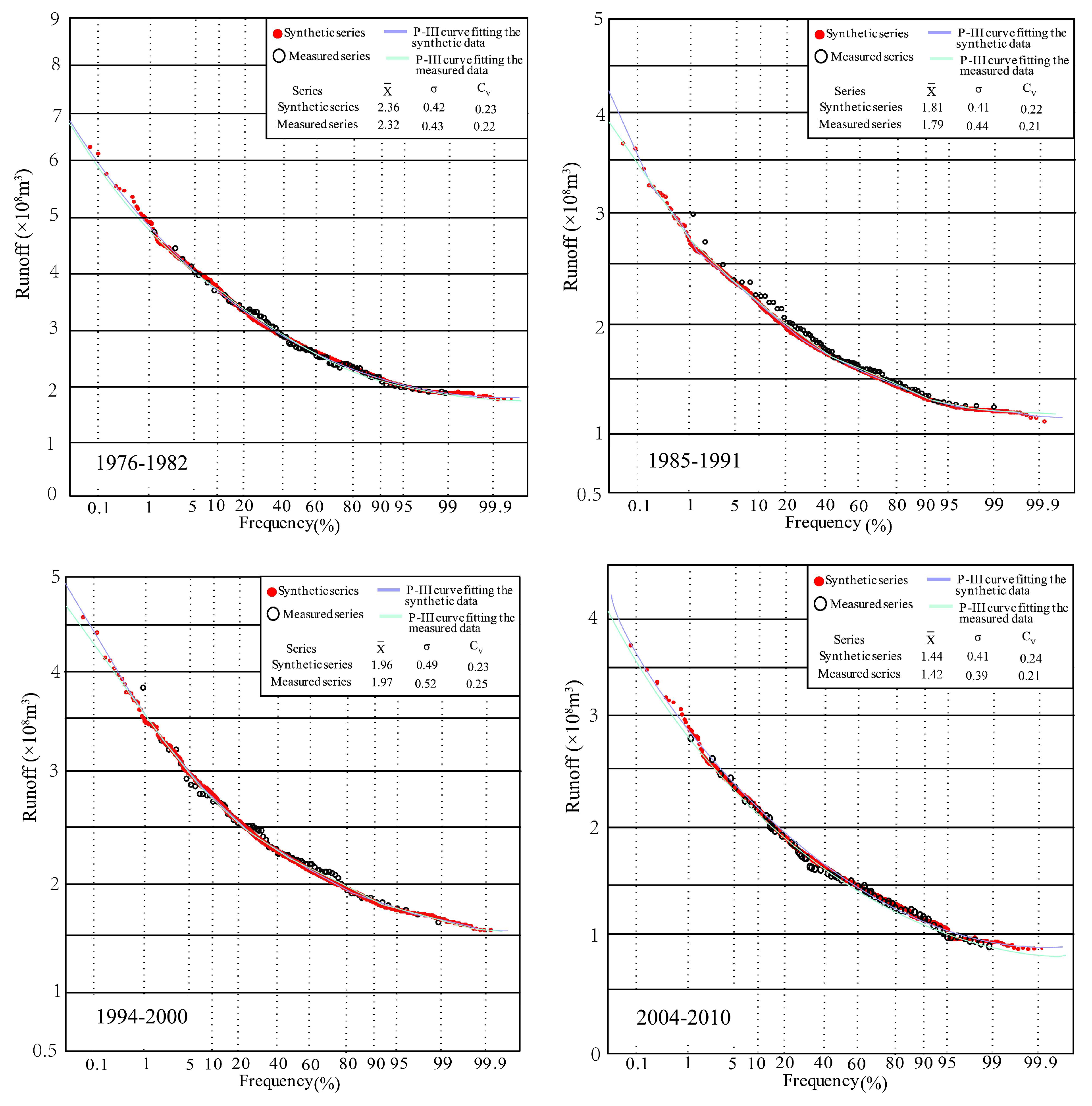

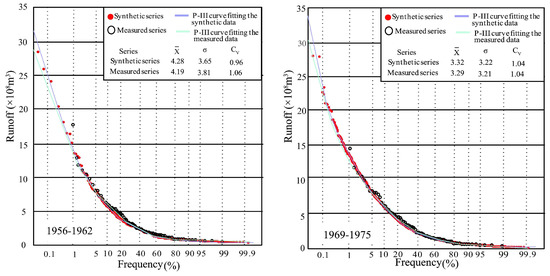

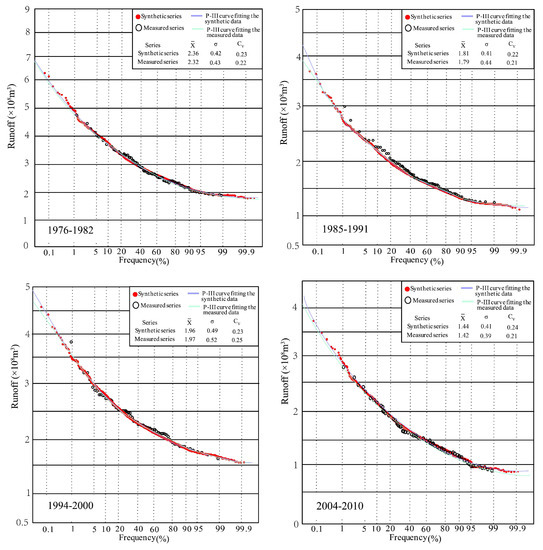

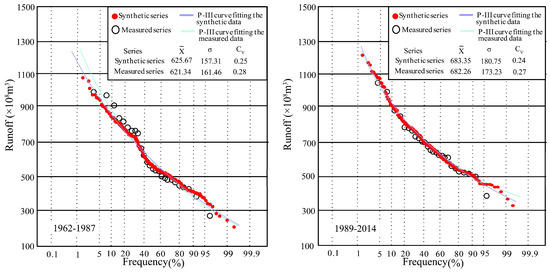

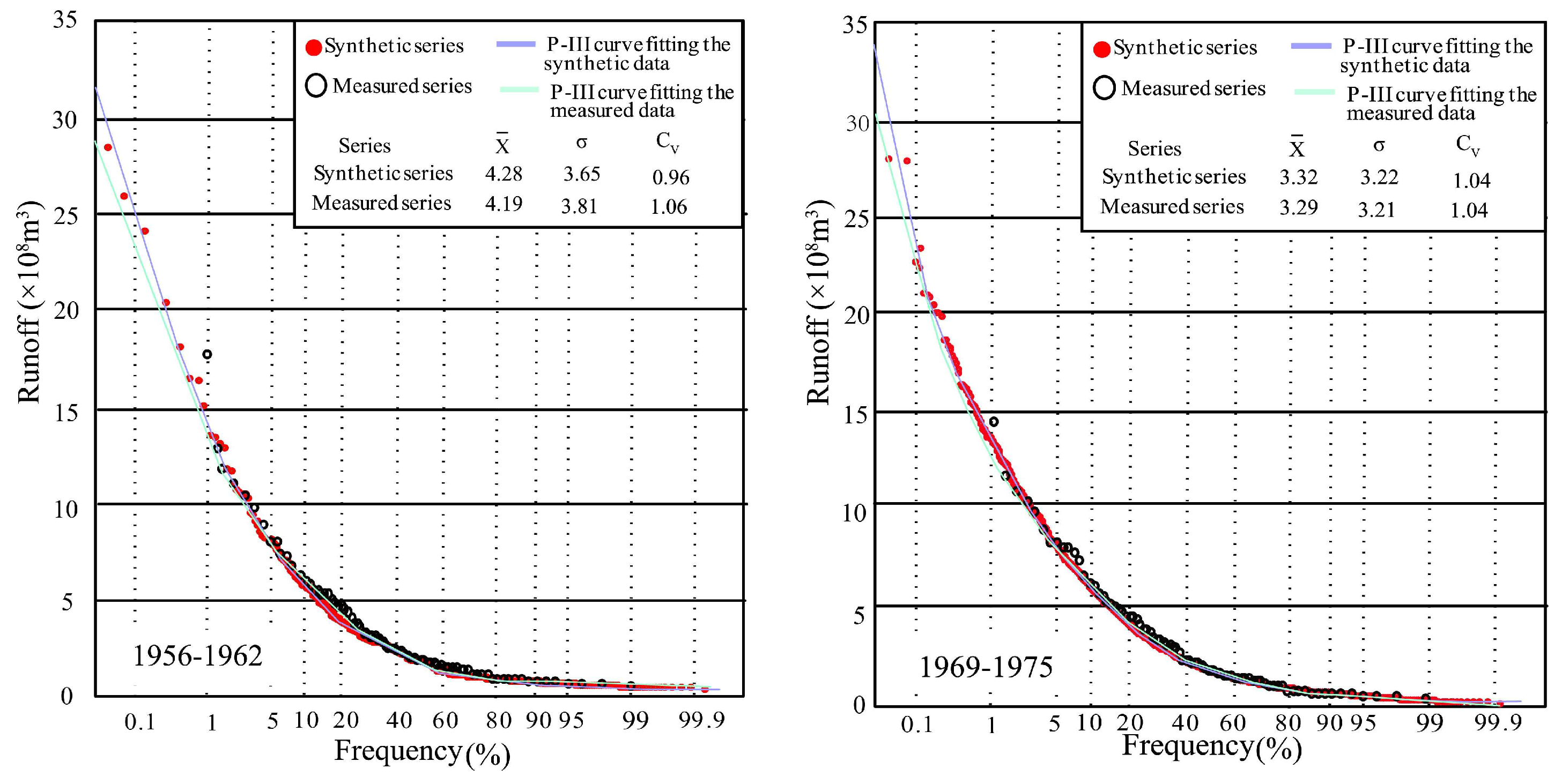

- The synthetic series presented similarity with the measured data in distribution parameters and probability curves, and has an advantage in its extreme wet value, contributing to drawing reasonable probability density curves and obtaining an accurate design value. Thus, the CR method is suggested to offer a significant guide in practical work when the extreme runoff value is needed, but it can not be obtained from the limited measured data.
- (d)
- The synthetic series is generated at different steps, and its distribution characteristics can present the changes of runoff under different environment scenarios, including climate and social development situations. These advantages are significant for calculating the strategy of water resources management under a changing environment.
