Int. J. Environ. Res. Public Health 2019, 16(1), 144; doi:10.3390/ijerph16010144

Article
Spatiotemporal Variations of Indoor PM2.5 Concentrations in Nanjing, China
1
State Key Laboratory of Pollution Control & Resource Reuse, School of the Environment, Nanjing University, Nanjing 210023, China
2
Nanjing Urban Planning & Research Center, Nanjing 210029, China
3
Jiangsu Collaborative Innovation Center of Atmospheric Environment and Equipment Technology, Nanjing University of Information Science & Technology, Nanjing 210044, China
4
State Environmental Protection Key Laboratory of Environmental Planning and Policy Simulation, Chinese Academy for Environmental Planning, Beijing 100012, China
*
Author to whom correspondence should be addressed.
Received: 10 November 2018 / Accepted: 27 December 2018 / Published: 7 January 2019

Abstract

:
Indoor fine particulate matter (PM2.5) is important since people spend most of their time indoors. However, knowledge of the spatiotemporal variations of indoor PM2.5 concentrations within a city is limited. In this study, the spatiotemporal distributions of indoor PM2.5 levels in Nanjing, China were modeled by the multizone airflow and contaminant transport program (CONTAM), based on the geographically distributed residences, human activities, and outdoor PM2.5 concentrations. The accuracy of the CONTAM model was verified, with a good agreement between the model simulations and measurements (r = 0.940, N = 110). Two different scenarios were considered to examine the building performance and influence of occupant behaviors. Higher PM2.5 concentrations were observed under the scenario when indoor activities were considered. Seasonal variability was observed in indoor PM2.5 levels, with the highest concentrations occurring in the winter and the lowest occurring in the summer. Building characteristics have a significant effect on the spatial distribution of indoor PM2.5 concentrations, with multistory residences being more vulnerable to outdoor PM2.5 infiltration than high-rise residences. The overall population exposure to PM2.5 in Nanjing was estimated. It would be overestimated by 16.67% if indoor exposure was not taken into account, which would lead to a bias in the health impacts assessment.
Keywords:
indoor PM2.5; indoor/outdoor ratio; CONTAM; health impact

1. Introduction

Due to the rapid urbanization and economic growth of China over the past few decades, the nation has experienced extremely high levels of air pollution, with PM2.5 as the dominant pollutant [1,2]. PM2.5 was identified as one of the leading risk factors for the global burden of disease (GBD) [3]. Epidemiological studies have demonstrated the associations between PM2.5 exposure and a range of health effects, such as cardiovascular and respiratory diseases, cancer, and preterm birth [4,5,6,7]. Although people spend more than 80% of their time indoors [8,9,10], most air pollution health studies typically use a few fixed-site measurements of PM2.5 to represent human exposure concentrations [11,12,13], due to the lack of indoor PM2.5 concentration data. The difference between indoor and outdoor PM2.5 concentrations may bias health effect assessments in epidemiological studies [14,15,16].
A common approach for studying indoor PM2.5 concentrations is field measurements, and a number of studies have monitored PM2.5 in residences [17,18,19]. However, indoor environments are complicated since indoor PM2.5 levels are affected by the infiltration of outdoor PM2.5 concentrations, emissions from indoor sources, and the removal of internal air via deposition, filtration, and exfiltration [20]. Due to the high cost and labor demand of indoor sampling, field measurement studies usually include data only from a few residences in a specific period [21,22], and the research on indoor air pollution on a long time scale and a large spatial scale is lacking. This will make it difficult to understand the overall level of indoor air pollution in a regional area or a city. Modeling methods have been developed to overcome the limitations of indoor sampling. CONTAM (contaminant transport program) is a multizone indoor air quality and ventilation analysis program, which is designed to help determine airflows, contaminant concentrations, and personal exposure in buildings by the National Institute of Standards and Technology, USA [23]. The program has been widely used to assess the indoor air quality performance of multiple buildings. Shrubsole et al. using CONTAM modeled the change in indoor PM2.5 exposure concentrations in London’s domestic stock due to the energy-efficient refurbishment [24]. Fabian et al. simulated the indoor concentrations of PM2.5 in multifamily housing in Boston via the CONTAM program [25]. However, the application of the CONTAM model for indoor PM2.5 simulations is rare in China. Few studies focused on indoor gaseous pollutant transport [26] and air infiltration rate distributions [27]. The characteristics of buildings and the meteorological features in China are different from those in other countries. As such, whether or not the model is appropriate for modeling PM2.5 concentrations in Chinese residences still needs to be investigated.
Moreover, most of the indoor PM2.5 studies mainly focused on the indoor levels of PM2.5, source apportionment, and the indoor-outdoor relationship [17,18,19,28,29,30]. There has been little research on the spatial and temporal distributions of indoor PM2.5 concentrations. Few studies had examined the spatial and temporal variation of PM2.5 concentrations within a single house or building [31,32,33]. However, the spatiotemporal distribution of indoor PM2.5 on the urban scale was seldom studied. Other researchers had found the large difference of indoor PM concentrations between cities and explored the associations between indoor PM exposure and health effects [21,34,35], but the variations of building characteristics and their influence on indoor PM concentrations were rarely considered in these studies. Building characteristics (e.g., building type, age, and level) have been reported to have an influence on indoor air pollution [36,37,38]. The distribution of the building envelope can modify the distribution of population exposure to PM2.5 from the outdoors across an urban area [39]. A study on the spatiotemporal variations of indoor PM2.5 concentrations is important for understanding the overall level of PM2.5 in residences in a city and improving the accuracy of exposure assessment of PM2.5.
Therefore, in this study, we performed a spatiotemporal analysis of PM2.5 in residences in Nanjing. The primary purpose of this study was to: (1) investigate the ability of the CONTAM model to predict PM2.5 concentrations in multiple residences in China by comparing the model simulations with the experimental measurements, (2) model the spatiotemporal distributions of PM2.5 concentrations in residences across Nanjing via CONTAM based on the geographically distributed residential buildings, and (3) estimate the overall population exposure to PM2.5 in Nanjing and the associated health consequences by taking into account both indoor and outdoor PM2.5 concentrations.

2. Materials and Methods

2.1. Study Area

The study was carried out in Nanjing, which is a major city in the Yangtze River Delta in East China (31°14’–32°37’ N, 118°22’–119°14’ E) (Figure 1). The city is divided into eleven districts including Xuanwu, Qinhuai, Jianye, Gulou, Pukou, Qixia, Yuhuatai, Jiangning, Luhe, Lishui, and Gaochun, with a population of more than 8.2 million people [40]. The air pollution in Nanjing is serious, with an average annual PM2.5 concentration of 47.90 μg/m3 in 2016 [41], which is much higher than the annual mean standard (35 μg/m3) of National Ambient Air Quality Standards suggested by the Ministry of Environmental Protection of China (MEPC). Nanjing has a subtropical and humid climate, with a cold winter and hot summer. In the spring and the autumn, the temperature is appropriate. Residential buildings are mainly naturally ventilated, and air conditionings are often used for heating and cooling by occupants in the winter and the summer. Natural gas is usually used as the fuel for cooking in families in Nanjing.

2.2. Study Design

A spatiotemporal analysis of PM2.5 concentrations in residences across the city was performed in this study. The project workflow can be seen in Figure 2.
First, we categorized the residential buildings in Nanjing and mapped the geographically distribution of the building categories. Second, the indoor/outdoor (I/O) ratios were modeled using the CONTAM model for each building category. The accuracy of the model for indoor PM2.5 prediction was validated by the field measurements. Third, the seasonal and annual I/O ratios of PM2.5 for each building type were calculated and assigned to the mapped building categories. The spatial distribution of outdoor PM2.5 levels in four seasons was calculated via spatial interpolation using data from air pollution monitoring stations. The outdoor PM2.5 concentrations were then matched with the spatially distributed I/O ratios and the spatiotemporal indoor PM2.5 concentrations across the city were calculated. Lastly, the population exposure concentrations to PM2.5 in Nanjing and their health impacts were estimated based on both indoor and outdoor PM2.5 exposures.

2.3. Residential Building Category

The residential buildings in Nanjing were used for the study of spatial and temporal distribution of indoor PM2.5. In total, about 209,764 residential buildings were involved in this study. The mapped residential building data were obtained from the Nanjing Urban Planning & Research Center and included the geographic locations of building footprints, names, and building stories. The age information for each building was supplemented by data from a real estate website (http://nj.house365.com/).
Building height is an important factor that can influence air permeability performance, and the Chinese government has set a related design standard for multistory and high-rise residences [42,43]. Therefore, the residences in Nanjing can be roughly divided into two categories: multistory residential buildings (≤7 stories) and high-rise residential buildings (>7 stories). In each category, the buildings were further classified into four groups according to the construction year (before 1990, 1991–2000, 2001–2010, and after 2011). Building orientation is another influencing factor of the building infiltration rate [44]. According to our previous survey [17], the residential buildings were mainly north/south facing. Therefore, the orientation of residential buildings in this study was considered to be north to south. High-rise buildings built before 1990 in Nanjing were rare [17]. Therefore, the residential buildings were divided into 8 groups, as shown in Table 1.

2.4. PM2.5 I/O Ratios of Residential Buildings

2.4.1. CONTAM Model Simulation

The CONTAM model was used to model the hourly I/O ratios of each residential building in a whole year [23]. Figure 3 illustrates an outline for the modeling approach. The specific layout of each building and its airflow paths was set up in the sketchpad of CONTAM (Figure S1). Simulations were run to investigate the influence of building characteristics and human activities on indoor PM2.5 concentrations. The input parameters of building characteristics in the model are presented in Table 1 and Table S4. Other detailed information about the model simulation are presented in the Supporting Information, in the section “CONTAM building model”.
Indoor PM2.5 simulation for each single building was run for the whole year of 2016 using the Test Reference Year-type hourly weather file for Nanjing, China (https://energyplus.net/weather). Outdoor hourly PM2.5 concentrations from nine monitoring stations in Nanjing were obtained from the China Environmental Monitoring Center (CEMC). The average hourly concentrations of these nine stations were calculated and used for modeling.
Cooking was considered as the indoor source for PM2.5 in this study. Cooking emission was modeled three times a day in each building, according to the study conducted by Fabian et al. [25]. The detailed information for the emission rate and deposition rate of PM2.5 are shown in Table S1 [46,47].
Residential buildings in China normally do not use mechanical ventilation systems, and all the residential buildings were considered naturally ventilated. Only kitchen exhaust fans during cooking were set up in the model, with the airflow of 15 m3/min.
The indoor temperatures in the summer and winter were set at 26 °C and 12 °C, respectively, according to the thermo environmental design standard for residential buildings [48]. In the spring and autumn, the temperature is suitable in Nanjing and people often keep windows opened for ventilation. Thus, the indoor residential temperature in the two seasons were set at 20 °C, which is similar to the average outdoor temperature in the spring and autumn [40].

2.4.2. Scenario Analysis

Two different scenarios were simulated to examine the residential building performance and influence of occupant behavior.
Scenario 1: Only the infiltration of outdoor air was modeled via the building components due to the permeability of the externally exposed facades of the buildings (e.g., exterior walls, windows, and doors).
Scenario 2: Windows were opened by occupants, and cooking emissions were considered. The ventilation time and schedule for opening windows was set according to the Exposure Factors Handbook of Chinese Population (Adults) (Table S2) [10]. The cooking emission was modeled three times a day, according to the study conducted by Burke et al. [46].

2.4.3. Data Collection and Analysis

The all-year hourly indoor PM2.5 concentrations in each residential building under the two scenarios were output from the CONTAM models. The hourly I/O ratios were calculated for each building category, according to the outdoor PM2.5 concentrations. Then, the seasonal and annual mean I/O ratios were calculated. For the building R08, the construction year was unknown. The I/O ratio could not be estimated due to the lack of the effective leakage area of the exterior wall. To deal with this problem, the mean I/O ratio of the multistory buildings (R01 to R04) was calculated and assigned to building R08. The I/O ratios for each type of residential building were then summarized according to the two scenarios. We assumed that the hourly, seasonal, and annual I/O ratios of PM2.5 for each building were constant and did not change with the outdoor PM2.5 concentrations. The results of the I/O ratios were then used to estimate PM2.5 concentrations in residences across the city.

2.4.4. Validation of the CONTAM Model

The ability of the CONTAM model for indoor PM2.5 prediction was verified by comparing the modeled concentrations with the measurements. Indoor/outdoor PM2.5 concentrations in 110 families in Nanjing were measured in 2016, and the characteristics of each family were investigated. Details of the measurements and data analysis were described in our previous study [17]. In this study, the specific layout of each residence was set up in the CONTAM sketchpad, according to its building characteristics. The input data of the models was set as described in Section 2.4.1. In addition to the cooking emissions, indoor smoking was also considered because there were smokers in some of the sampled families. An emission rate of 0.99 mg/min [24], with a deposition rate of 0.10 /h [49], was used for the smoking source. The schedules of window opening and indoor source emissions in each family were obtained from the time-activity survey during sampling. Indoor air simulations for the model validation were run for 24 h, according to the outdoor PM2.5 concentrations obtained from field measurements.
The modeled and measured 24-h average indoor PM2.5 concentrations in each family were compared using the American Society for Testing and Materials (ASTM) D5157 standard guide for the statistical evaluation of indoor air quality models [50,51]. Three statistical parameters (correlation coefficient (r), regression slope (M), and regression intercept (b)) were used to evaluate the accuracy of the indoor PM2.5 concentration predictions. Furthermore, three additional parameters, including the normalized mean square error (NMSE), fractional bias (FB), and fractional bias of variance (FS), were calculated.

2.5. Spatiotemporal Distributions of Indoor PM2.5 Concentrations

2.5.1. Outdoor PM2.5 Concentrations

Hourly outdoor PM2.5 concentrations in 2016 were obtained from the CEMC measurements. Data from 221 air pollution monitoring stations, which were in the area of 6°×6° including Nanjing, were selected. The seasonal and annual mean PM2.5 concentrations at each station were calculated. Kriging interpolation was used to create the spatially resolved (100 m × 100 m) outdoor PM2.5 concentrations. Then, the data for Nanjing were extracted.

2.5.2. Mapped PM2.5 I/O Ratios for Residential Buildings

The mapped footprints of residential buildings were obtained from the Nanjing Urban Planning & Research Center. The information of the building classification was added into each building, according to the building story and construction year in the geographic information system (GIS). Then, the CONTAM modeled seasonal and annual I/O ratios for each building were added into the database based on the building classifications. Lastly, the spatial distribution of PM2.5 I/O ratios for residential buildings in Nanjing was mapped (100 m×100 m). The mean seasonal and annual I/O ratios for each grid were calculated, and the results were mapped to show the differences in I/O ratios for residences in each grid across Nanjing.

2.5.3. GIS Integration

Outdoor PM2.5 concentration data processed in 2.5.1 and the I/O ratio data mentioned in Section 2.5.2 were integrated by GIS through a spatial join. Indoor PM2.5 concentrations were estimated by multiplying the outdoor PM2.5 concentrations with corresponding I/O ratios. Both the seasonal and annual indoor PM2.5 concentrations for scenarios 1 and 2 were estimated. The spatial and temporal distributions of the indoor PM2.5 concentrations were mapped across the city.

2.6. Exposure Estimation and Health Impact Evaluation

The annual PM2.5 exposure was calculated based on the indoor and outdoor concentrations and the average time spent indoors and outdoors, as seen in Equation (1).
C = C i n × T i n + C o u t × T o u t
where C is the annual PM2.5 exposure concentration, C i n is the annual PM2.5 concentrations in residences estimated in this study, C o u t is the annual outdoor PM2.5 concentration, and T i n and T o u t is the average daily time that residents spend indoors and outdoors, which is obtained from the Exposure Factors Handbook of Chinese Population (adults) [10].
Integrated exposure-response model was adopted to estimate the PM2.5 exposure-induced relative risks (RRs) of lung cancer (LC), cerebrovascular disease (stroke), ischemic heart disease (IHD), and chronic obstructive pulmonary disease (COPD) among the population in Nanjing [52]. The relative risk (RR) was calculated by Equation (2).
RRC = { 1 + ( 1 e γ ( c c 0 ) δ ) , i f   C > C 0 1                                                                         , e l s e
where C is the annual PM2.5 exposure concentration, C0 is the counterfactual concentration, and α, γ, and δ are parameters used to describe the different shapes of the C-R curve among various diseases (Table S3) [53].
Then, the health impact of PM2.5 was calculated using the equation suggested by Ostro [54], as shown in Equation (3).
ED = ( 1 1 R R ) × B × P
where ED is the excess death caused by PM2.5 for LC, stroke, IHD and COPD. B is the incidence of a given health impact for all ages and both genders obtained from GBD [55]. P is the population of Nanjing obtained from the Nanjing Statistical Yearbook [40].

2.7. Sensitivity Analysis

To explore the sensitivity of the CONTAM model to variations in the input parameters, a sensitivity analysis was carried out in this study. Five parameters including the leakage area of the exterior wall, exterior doors/windows, the penetration factor, the deposition rate, and the cooking emission rate were selected for analysis. The details of the method and results of sensitivity analysis are discussed in the Supporting Information in the section “Sensitivity Analysis” and Table S5–S6.

3. Results and Discussion

3.1. CONTAM Model Validation Result

The result of the CONTAM model validation is presented in Figure 4. A good agreement was found between the model simulations and the measurements (r = 0.940). Other parameters of the statistical analysis, including M (0.914), NMSE (0.03), FB (0.05), and FS (0.05), also showed that the agreement between the observations and model predictions is within an acceptable range [50]. The I/O ratios calculated from the measured and modeled indoor PM2.5 concentrations were also compared. The average modeled I/O ratio of the residences (1.07 ± 0.54) was close to the measured value (1.14 ± 0.56). The results in this study are consistent with previous studies, which showed that the simulated concentrations of particles in residences are in good agreement with the experimental data [25,50]. The results of the model validation demonstrated the model’s ability to predict PM2.5 concentrations in multiple residences in China with different building characteristics and indoor activities.

3.2. The I/O Ratios of Each Residential Building

The seasonally and annually averaged I/O ratios for different types of residences are shown in Figure 5. The simulation results show that high-rise residences often have relatively lower I/O ratios than multi-story buildings. The difference was more significant in scenario 1, with a nearly two-fold difference of the I/O ratio between multi-story and high-rise residences observed. In scenario 2, even though high-rise residences still showed lower I/O ratios than the multi-story buildings, the difference was much smaller compared to scenario 1. The windows and doors were closed in scenario 1 and the building characteristics may be the dominant influencing factor of outdoor PM2.5 infiltrations. According to the design standard for the energy efficiency of residential buildings in China [43], the airtightness of high-rise buildings should be higher than that of multi-story buildings. Therefore, the I/O ratios of high-rise buildings were much lower than those of multi-story residences. In scenario 2, window opening and cooking emissions were allowed, which increased indoor PM2.5 concentrations and reduced the difference in I/O ratios between different buildings. Building age is another influencing factor for outdoor PM2.5 infiltration especially in scenario 1. The older the building is, the higher I/O ratio it has. Similar conclusions can be found in previous studies, where older homes were often associated with a higher infiltration rate [19,27]. This can be attributed to changes in the building code and deterioration of the building over time [56].
From Figure 5, we can see considerable seasonal variability in the I/O ratios for different types of buildings, but the trends are quite different between the two scenarios. For scenario 1, the highest I/O ratios were found in the winter, and the lowest ratios occurred in the summer. Under scenario 1, outdoor PM2.5 was the only contributor to indoor PM2.5, and the I/O ratios varied synchronously with the outdoor PM2.5. The seasonal trends of I/O ratios were consistent with that of ambient PM2.5 [57]. In scenario 2, the trends were opposite of those in scenario 1. The highest I/O ratios were found in the summer, and the lowest ratios were found in the winter. The ventilation time in the summer (636 min/d) is over twice as much as that in the winter (281 min/d) (Table S2) [10]. The longer ventilation time can lead to an increase in the outdoor particle infiltration, which may be the possible reason for the higher I/O ratios in the summer than in the winter. The results are consistent with some other studies, which also found higher infiltration rates of particle matters in the summer than in the winter due to the frequency of opening windows in the summer [19,56]. In the colder winter period, occupants closed the windows of their residences to reduce heat loss. The reduction of ventilation time in the winter can reduce the outdoor air pollutants infiltration, but may also lead to the accumulation of air pollutants from indoor sources [58]. In this study, cooking emission is set as the only indoor source for PM2.5, and the release time of cooking lasted from half an hour to one hour every time. Kitchen fans were also set in the building models since the mechanical ventilation system is in accordance with the cooking schedule. The effect of mechanical ventilation and the relatively short period of cooking emission each day may reduce the influence of cooking emission on the average indoor PM2.5 concentration and the I/O ratios in the winter when the ventilation is insufficient. Therefore, the I/O ratios in the winter were lower than in the summer.
The spatial distribution of I/O ratios is shown in Figure 6. The spatial distributions were similar under the two scenarios. In scenario 1, residences with higher I/O ratios mainly existed in the old urban-core areas, including the Xuanwu, Qinhuai, and Gulou districts. This is likely due to multi-story and older residences being the dominant building type in the area. In the new urban areas, such as the Jianye, Yuhuatai, Jiangning, and Pukou districts, the number of high-rise residences was larger than that in the old urban-core area. Due to the protective effect of high-rise buildings, slightly decreased I/O ratios were observed around the old city center, especially in the area near the center. In suburban areas (i.e., Luhe, Lishui, and Gaochun), the I/O ratios were much higher than those in the new urban areas but lower than those in the center of the city. The spatial variation in I/O ratios across the city was smaller in scenario 2 than in scenario 1 due to the increase in indoor PM2.5 concentrations from the outdoor PM2.5 infiltration and indoor source emission. The I/O ratios in the old urban-core areas were also higher than those in the new urban areas, as shown in scenario 1. However, in the suburban areas, a slight increase in the I/O ratio was observed compared to that in the city center. In the suburbs of Nanjing, multi-story residential buildings were the dominant building type, and high-rise buildings were rarely distributed, which resulted in higher I/O ratios.

3.3. Spatial and Temporal Distributions of Indoor PM2.5 Concentrations

Indoor PM2.5 concentrations were calculated according to the outdoor concentrations and I/O ratios under the two scenarios. Figure 7 reveals a significant internal spatial difference in indoor PM2.5 levels across the city. The concentration ranges from 8.01 μg/m3 to 17.14 μg/m3, with a mean concentration of 14.75 ± 1.93 μg/m3 in scenario 1, while it ranges from 35.70 μg/m3 to 44.64 μg/m3, with a mean concentration of 39.87 ± 1.55 μg/m3 in scenario 2. The average concentration of indoor PM2.5 under the two scenarios were all lower than that of outdoors (49.28 μg/m3). The average concentration is higher under scenario 2, which is similar to the trend observed in the I/O ratios. When comparing with the indoor air quality guidelines for selected pollutants developed by the World Health Organization (WHO), the annual average indoor PM2.5 levels estimated in scenario 1 and 2 both exceeded the recommended value (10 μg/m3) [59,60].
The results of the indoor PM2.5 estimation are consistent with those reported in previous studies. The annual indoor PM2.5 concentration under scenario 2 (39.87 ± 1.55 μg/m3) is within the range of PM2.5 levels (37.08 μg/m3, 55.56 μg/m3, and 45.09 μg/m3 during the summer, winter, and transitional seasons, respectively) in residences of Nanjing measured by Shao et al. in 2016 [17]. The measurements of indoor PM2.5 concentrations in another study were much higher, with means of 40.40 μg/m3 and 64.90 μg/m3 in two dwellings [61]. Considering the variation of the source of indoor PM2.5 and influential factors [62], it is hard to compare the modeled concentrations with the measurements without considering indoor environmental conditions, such as building characteristics, occupant window-opening activities, indoor source emissions, and ventilation systems.
The seasonal variations of indoor PM2.5 in residences across Nanjing are shown in Figures S2 and S3. Considerable seasonal variability in indoor PM2.5 levels was observed under the two scenarios. In scenario 1, the highest indoor PM2.5 occurred in the winter, with a range of 23.54 ± 2.92 μg/m3, and the lowest occurred in the summer, with a range of 7.77 ± 1.09 μg/m3. Indoor PM2.5 levels during the transition seasons (i.e., spring and autumn) were 17.13 ± 2.23 μg/m3 and 11.42 ± 1.59 μg/m3, respectively. In scenario 2, the variation trends in indoor PM2.5 were similar to those in scenario 1, but the values were much higher under scenario 2. The highest indoor PM2.5 level was also observed in the winter, with a range of 49.81 ± 2.53 μg/m3, which was followed by the spring, autumn, and summer, with ranges of 40.78 ± 1.62 μg/m3, 31.86 ± 1.50 μg/m3, and 28.90 ± 1.29 μg/m3, respectively. The seasonal changes in indoor PM2.5 concentrations were consistent with those in the outdoor concentrations [57]. Similar change tendencies in indoor and outdoor PM2.5 concentrations indicated that outdoor-originating particles contributed the most to indoor PM2.5 concentrations in Nanjing.
Estimated indoor PM2.5 concentrations are a combination of I/O ratios and outdoor PM2.5 concentrations. Therefore, the spatial distribution of indoor PM2.5 levels (Figure 7) was influenced by the distributions of these two factors. Generally, the spatial distribution of indoor PM2.5 levels is consistent with that of the outdoors (Figures S4 and S5), which indicates that the spatial distribution of outdoor PM2.5 concentration was the dominant influence factors for PM2.5 concentrations in the residences. The spatial variation in indoor PM2.5 concentrations in scenario 2 was reduced compared to that in scenario 1 due to the decrease in spatial variation of I/O ratios. In the city center, in new urban district and southwest areas (where outdoor PM2.5 concentrations were higher), higher indoor PM2.5 concentrations were observed compared to those in the area to the southeast. However, the indoor PM2.5 concentrations in the center of the city or the new urban district were much lower than those in the suburban area even though the outdoor air pollution levels were similar. The lower estimated indoor PM2.5 concentrations in the urban area was due to the attenuation of the predominant building type (high-rise and newly built buildings) and their lower I/O ratios. The results indicate that building type plays a significant role in the spatial distribution of indoor PM2.5 levels, which should be considered when exploring the internal differences in indoor air pollutants within a city.

3.4. Exposure Estimation and Health Impact Evaluation

Based on the average indoor PM2.5 concentrations estimated in this study, outdoor PM2.5 concentrations, and the time residents spent indoors and outdoors, human exposure to PM2.5 concentrations in Nanjing was estimated. The PM2.5 exposure and health impact assessment were mainly calculated under scenario 2, which represents the concentration level of PM2.5 in residences under the normal living conditions. Based on the estimated indoor PM2.5 concentration in scenario 2, outdoor PM2.5 concentrations and time spent indoors and outdoors, the annual mean PM2.5 exposure concentration in Nanjing was estimated to be 41.06 μg/m3, which is lower than the outdoors (49.28 μg/m3). If the average outdoor PM2.5 concentration is used to substitute people’s exposure concentration to PM2.5, it will lead to a 16.67% overestimation.
The RRs for the four diseases were 1.33, 1.59, 1.25, and 1.58 for IHD, stroke, LC, and COPD, respectively. Based on the calculated RRs for the four diseases and the population data of Nanjing, the number of premature deaths attributable to PM2.5 exposure in 2016 were estimated to be 2498, 3866, 687, and 802 for IHD, stroke, LC, and COPD, respectively. If the PM2.5 exposure concentrations were simply substituted with the ambient concentrations, the results would be 6.44%, 8.74%, 11.80%, and 11.53% overestimated for IHD, stroke, LC, and COPD, respectively. Indoor air exposure needs to be taken into account to improve the accuracy of exposure and health impact assessments in epidemiological studies.
There are a number of limitations that need to be considered in this study. First, due to the lack of information on the building form, the buildings in Nanjing were divided into multi-story and high-rise buildings and were further classified by their construction year. This combination of the building story and age is rough, and detailed information on these buildings, such as the building form, would be needed for a more precise analysis in the future. Second, the residential building data of Nanjing were insufficient. The lack of information on building age for a portion of the residences (R08) may lead to some uncertainties in indoor PM2.5 estimation. Scenario 1 was chosen as an example for the uncertainty analysis since the indoor PM2.5 concentrations were more sensitive to the age of the buildings under this scenario. The average indoor PM2.5 concentrations were 14.55 μg/m3 and 15.79 μg/m3, respectively, when the I/O ratios of the oldest and newest multi-story buildings were used to represent the I/O ratio of building R08. The difference was small when compared to the value calculated from the mean I/O ratio of multi-story buildings (14.75 μg/m3), which indicates that the lack of information on building age for some residences had less influence on the estimation of indoor PM2.5 levels in the city. Third, in the early 1990s, some high-rise residences were built as tower buildings. However, due to the lack of information on building form in the building database, the distribution of this type of building was unknown. The I/O ratio for high-rise tower buildings built in the period from 1991 to 2000 was modeled to predict indoor PM2.5 concentrations in the city. Since the number of this type of building was very small (0.33%), the influence was found to be very small. The average indoor PM2.5 concentration estimated from the high-rise tower buildings (14.76 μg/m3) was approximately equal to that of the slab-type high-rise buildings (14.75 μg/m3).

4. Conclusions

This study modeled the spatiotemporal variations of PM2.5 concentrations in residences in Nanjing with different building characteristics using the CONTAM model. The ability of the CONTAM model to predict indoor PM2.5 in multiple residences was validated in this study, which would support the application of the model for a broad range of indoor PM2.5 predictions in Chinese residences in the future. The spatial and temporal variations of I/O ratios and indoor PM2.5 levels in Nanjing were studied based on the model results and building distribution data. Indoor PM2.5 concentrations were observed to be lower than outdoors especially when the windows were closed due to the protection of the building envelope. Seasonal variations of PM2.5 in residences were observed in this study, with the highest concentrations occurring in the winter and the lowest occurring in the summer, which is consistent with the variation trends of outdoor PM2.5. The results indicated that the major source of indoor PM2.5 pollution is the penetration of the particles from the ambient environment. During heavy-pollution days (e.g., in winter), people can reduce the time of outdoor activities and indoor ventilation when there is no significant indoor source, to reduce their exposure to outdoor air pollutions.
Building characteristics play an important role in the distribution of PM2.5 levels in residences. Older multi-story residential buildings were found to be more easily affected by outdoor PM2.5 pollutions than newly built high-rise buildings, which indicated that occupants living in older multi-story residences may be more sensitive and need more protection from ambient air pollution. The spatial distribution of indoor PM2.5 over Nanjing were observed in this study. Higher indoor PM2.5 concentrations were observed in the city center, new urban district, and the southwest area of the city due to the effect of building characteristics on outdoor PM2.5 permeability. The results indicate that building type plays a significant role in the spatial distribution of indoor PM2.5 levels, which should be considered when exploring the internal differences in indoor air pollutants within a city. The overall population exposure to PM2.5 and the health consequences in Nanjing would be overestimated if the indoor air concentrations were simply substituted with the outdoor values. This demonstrates that efforts to reduce human exposure to PM2.5 and its health impacts need to be applied based on both outdoor PM2.5 concentrations and building characteristics, which could influence the indoor PM2.5 concentrations within a city.

Supplementary Materials

The following are available online at https://www.mdpi.com/1660-4601/16/1/144/s1, Table S1: PM2.5 emission rate, penetration factor, and deposition rate. Table S2: Schedule of ventilation used as inputs for CONTAM simulation. Table S3: Fit parameters of four diseases for IER model. Table S4: Air leakage area for different residences in the CONTAM model. Table S5: Variations in parameter inputs for the sensitivity analysis. Table S6: Variations in the average annual I/O ratio for different parameters. Figure S1: The layout of multi-story and high-rise residential buildings. Figure S2: Seasonally averaged indoor PM2.5 concentrations in residences in Nanjing (Scenario 1). Figure S3: Seasonally averaged indoor PM2.5 concentrations in residences in Nanjing (Scenario 2). Figure S4: The spatial distribution of indoor/outdoor PM2.5 concentrations in residences across Nanjing (scenario 1). Figure S5. The spatial distribution of indoor/outdoor PM2.5 concentrations in residences across Nanjing (scenario 2).

Author Contributions

Conceptualization, Z.S., J.B., and Z.M. Data curation, Z.S. Formal analysis, Z.S. Resources, Z.S. and X.Y. Supervision, J.B., Z.M., and J.W. Writing—original draft, Z.S. Writing—review & editing, Z.S., J.B., and Z.M.

Funding

The National Key Research and Development Program of China, grant number 2016YFC0207603, and the Natural Science Foundation of China, grant number 71433007 and 41601546, funded this research.

Acknowledgments

This study was supported by the National Key Research and Development Program of China (2016YFC0207603) and the Natural Science Foundation of China (71433007 and 41601546).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ministry of Ecology and Environment of the People’s Republic of China. Ecological Environment Status Bulletin in China in 2017; Ministry of Ecological Environment: Beijing, China, 2018.
  2. Liu, M.; Bi, J.; Ma, Z. Visibility-Based PM2.5 Concentrations in China: 1957–1964 and 1973–2014. Environ. Sci. Technol. 2017, 51, 13161–13169. [Google Scholar] [CrossRef] [PubMed]
  3. Forouzanfar, M.H.; Afshin, A.; Alexander, L.T.; Anderson, H.R.; Bhutta, Z.A.; Biryukov, S.; Brauer, M.; Burnett, R.; Cercy, K.; Charlson, F.J.; et al. Global, regional, and national comparative risk assessment of 79 behavioural, environmental and occupational, and metabolic risks or clusters of risks, 1990–2015: A systematic analysis for the Global Burden of Disease Study 2015. Lancet 2016, 388, 1659–1724. [Google Scholar] [CrossRef]
  4. Brunekreef, B.; Holgate, S.T. Air pollution and health. Lancet 2002, 360, 1233–1242. [Google Scholar] [CrossRef]
  5. Arnold, C. Disease Burdens Associated with PM2.5 Exposure How a New Model Provided Global Estimates. Environ. Health Perspect. 2014, 122, A111. [Google Scholar] [CrossRef] [PubMed]
  6. Lin, H.; Liu, T.; Xiao, J.; Zeng, W.; Li, X.; Guo, L.; Xu, Y.; Zhang, Y.; Vaughn, M.G.; Nelson, E.J.; et al. Quantifying short-term and long-term health benefits of attaining ambient fine particulate pollution standards in Guangzhou, China. Atmos. Environ. 2016, 137, 38–44. [Google Scholar] [CrossRef]
  7. Fang, D.; Wang, Q.; Li, H.; Yu, Y.; Lu, Y.; Qian, X. Mortality effects assessment of ambient PM2.5 pollution in the 74 leading cities of China. Sci. Total Environ. 2016, 569, 1545–1552. [Google Scholar] [CrossRef]
  8. EPA. Exposure Factors Handbook, EPA/600/R-090/52F; Office of Research and Development: Washington, DC, USA, 2011.
  9. Jang, J.Y.; Jo, S.N.; Kim, S.J.; Cheong, H.K. Development of Korean Exposure Factors Handbook. Epidemiology 2008, 19, S214. [Google Scholar] [CrossRef]
  10. Duan, X. Exposure Factors Handbook of Chinese Population (Adults); China Environmental Science Press: Beijing, China, 2013. [Google Scholar]
  11. Atkinson, R.W.; Carey, I.M.; Kent, A.J.; van Staa, T.P.; Anderson, H.R.; Cook, D.G. Long-Term Exposure to Outdoor Air Pollution and Incidence of Cardiovascular Diseases. Epidemiology 2013, 24, 44–53. [Google Scholar] [CrossRef]
  12. Anderson, H.R.; Favarato, G.; Atkinson, R.W. Long-term exposure to outdoor air pollution and the prevalence of asthma: Meta-analysis of multi-community prevalence studies. Air Qual. Atmos. Health 2013, 6, 57–68. [Google Scholar] [CrossRef]
  13. Atkinson, R.W.; Carey, I.M.; Kent, A.J.; van Staa, T.P.; Anderson, H.R.; Cook, D.G. Long-term exposure to outdoor air pollution and the incidence of chronic obstructive pulmonary disease in a national English cohort. Occup. Environ. Med. 2015, 72, 42–48. [Google Scholar] [CrossRef]
  14. Avery, C.L.; Mills, K.T.; Williams, R.; McGraw, K.A.; Poole, C.; Smith, R.L.; Whitsel, E.A. Estimating Error in Using Residential Outdoor PM2.5 Concentrations as Proxies for Personal Exposures: A Meta-analysis. Environ. Health Perspect. 2010, 118, 673–678. [Google Scholar] [CrossRef] [PubMed]
  15. Che, W.W.; Frey, H.C.; Lau, A.K.H. Comparison of Sources of Variability in School Age Children Exposure to Ambient PM2.5. Environ. Sci. Technol. 2015, 49, 1511–1520. [Google Scholar] [CrossRef] [PubMed]
  16. Kearney, J.; Wallace, L.; MacNeill, M.; Xu, X.; VanRyswyk, K.; You, H.; Kulka, R.; Wheeler, A.J. Residential indoor and outdoor ultrafine particles in Windsor, Ontario. Atmos. Environ. 2011, 45, 7583–7593. [Google Scholar] [CrossRef]
  17. Shao, Z.; Bi, J.; Ma, Z.; Wang, J. Seasonal trends of indoor fine particulate matter and its determinants in urban residences in Nanjing, China. Build. Environ. 2017, 125, 319–325. [Google Scholar] [CrossRef]
  18. Rohra, H.; Tiwari, R.; Khare, P.; Taneja, A. Indoor-outdoor association of particulate matter and bounded elemental composition within coarse, quasi-accumulation and quasi-ultrafine ranges in residential areas of northern India. Sci. Total Environ. 2018, 631, 1383–1397. [Google Scholar] [CrossRef] [PubMed]
  19. Kearney, J.; Wallace, L.; MacNeill, M.; Heroux, M.-E.; Kindzierski, W.; Wheeler, A. Residential infiltration of fine and ultrafine particles in Edmonton. Atmos. Environ. 2014, 94, 793–805. [Google Scholar] [CrossRef][Green Version]
  20. Godish, T.; Spengler, J.D. Relationships between ventilation and indoor air quality: A review. Indoor Air 1996, 6, 135–145. [Google Scholar] [CrossRef]
  21. Du, Y.; Wang, Y.; Du, Z.; Zhang, Y.; Xu, D.; Li, T. Modeling of residential indoor PM2.5 exposure in 37 counties in China. Environ. Pollut. 2018, 238, 691–697. [Google Scholar] [CrossRef] [PubMed]
  22. Tang, C.H.; Garshick, E.; Grady, S.; Coull, B.; Schwartz, J.; Koutrakis, P. Development of a modeling approach to estimate indoor-to-outdoor sulfur ratios and predict indoor PM2.5 and black carbon concentrations for Eastern Massachusetts households. J. Expos. Sci. Environ. Epidemiol. 2018, 28, 125–130. [Google Scholar] [CrossRef]
  23. Dols, W.S.; Polidoro, B.J. CONTAM User Guide and Program Documentation Version 3.2; NIST Technical Note 1887; National Institute of Standards and Technology: Gaithersburg, MD, USA, 2015.
  24. Shrubsole, C.; Ridley, I.; Biddulph, P.; Milner, J.; Vardoulakis, S.; Ucci, M.; Wilkinson, P.; Chalabi, Z.; Davies, M. Indoor PM2.5 exposure in London’s domestic stock: Modelling current and future exposures following energy efficient refurbishment. Atmos. Environ. 2012, 62, 336–343. [Google Scholar] [CrossRef]
  25. Fabian, P.; Adamkiewicz, G.; Levy, J.I. Simulating indoor concentrations of NO2 and PM2.5 in multifamily housing for use in health-based intervention modeling. Indoor Air 2012, 22, 12–23. [Google Scholar] [CrossRef] [PubMed]
  26. Mao, J.; Yang, W.; Gao, N. The transport of gaseous pollutants due to stack and wind effect in high-rise residential buildings. Build. Environ. 2015, 94, 543–557. [Google Scholar] [CrossRef]
  27. Shi, S.; Chen, C.; Zhao, B. Air infiltration rate distributions of residences in Beijing. Build. Environ. 2015, 92, 528–537. [Google Scholar] [CrossRef]
  28. Barraza, F.; Jorquera, H.; Valdivia, G.; Montoya, L.D. Indoor PM2.5 in Santiago, Chile, spring 2012: Source apportionment and outdoor contributions. Atmos. Environ. 2014, 94, 692–700. [Google Scholar] [CrossRef]
  29. Han, Y.; Li, X.; Zhu, T.; Lv, D.; Chen, Y.; Hou, L.; Zhang, Y.; Ren, M. Characteristics and Relationships between Indoor and Outdoor PM2.5 in Beijing: A Residential Apartment Case Study. Aerosol Air Qual. Res. 2016, 16, 2386–2395. [Google Scholar] [CrossRef]
  30. Kalaiarasan, G.; Balakrishnan, R.M.; Sethunath, N.A.; Manoharan, S. Source Apportionment of PM2.5 Particles: Influence of Outdoor Particles on Indoor Environment of Schools Using Chemical Mass Balance. Aerosol Air Qual. Res. 2017, 17, 616–625. [Google Scholar] [CrossRef]
  31. Szigeti, T.; Dunster, C.; Cattaneo, A.; Spinazze, A.; Mandin, C.; Le Ponner, E.; Fernandes, E.D.O.; Ventura, G.; Saraga, D.E.; Sakellaris, I.A.; et al. Spatial and temporal variation of particulate matter characteristics within office buildings—The OFFICAIR study. Sci. Total Environ. 2017, 587, 59–67. [Google Scholar] [CrossRef]
  32. Prasauskas, T.; Martuzevicius, D.; Krugly, E.; Ciuzas, D.; Stasiulaitiene, I.; Sidaraviciute, R.; Kauneliene, V.; Seduikyte, L.; Jurelionis, A. Haverinen-Shaughnessy, U. Spatial and temporal variations of particulate matter concentrations in multifamily apartment buildings. Build. Environ. 2014, 76, 10–17. [Google Scholar] [CrossRef]
  33. Patel, S.; Li, J.; Pandey, A.; Pervez, S.; Chakrabarty, R.K.; Biswas, P. Spatio-temporal measurement of indoor particulate matter concentrations using a wireless network of low-cost sensors in households using solid fuels. Environ. Res. 2017, 152, 59–65. [Google Scholar] [CrossRef]
  34. Chen, C.; Zhao, B.; Weschler, C.J. Indoor Exposure to “Outdoor PM10” Assessing Its Influence on the Relationship Between PM10 and Short-term Mortality in US Cities. Epidemiology 2012, 23, 870–878. [Google Scholar] [CrossRef]
  35. Zhou, B.; Zhao, B.; Guo, X.; Chen, R.; Kan, H. Investigating the geographical heterogeneity in PM10-mortality associations in the China Air Pollution and Health Effects Study (CAPES): A potential role of indoor exposure to PM10 of outdoor origin. Atmos. Environ. 2013, 75, 217–223. [Google Scholar] [CrossRef]
  36. Persily, A.; Musser, A.; Emmerich, S.J. Modeled infiltration rate distributions for U.S. housing. Indoor Air 2010, 20, 473–485. [Google Scholar] [CrossRef] [PubMed]
  37. Jung, K.H.; Bernabe, K.; Moors, K.; Yan, B.; Chillrud, S.N.; Whyatt, R.; Camann, D.; Kinney, P.L.; Perera, F.P.; Miller, R.L. Effects of Floor Level and Building Type on Residential Levels of Outdoor and Indoor Polycyclic Aromatic Hydrocarbons, Black Carbon, and Particulate Matter in New York City. Atmosphere 2011, 2, 96–109. [Google Scholar] [CrossRef] [PubMed][Green Version]
  38. Nasir, Z.A.; Colbeck, I. Particulate pollution in different housing types in a UK suburban location. Sci. Total Environ. 2013, 445, 165–176. [Google Scholar] [CrossRef] [PubMed][Green Version]
  39. Taylor, J.; Shrubsole, C.; Davies, M.; Biddulph, P.; Das, P.; Hamilton, I.; Vardoulakis, S.; Mavrogianni, A.; Jones, B.; Oikonomou, E. The modifying effect of the building envelope on population exposure to PM2.5 from outdoor sources. Indoor Air 2014, 24, 639–651. [Google Scholar] [CrossRef]
  40. Nanjing Municipal Statistical Bureau. Statistical Yearbook of Nanjing; China Statistics Press: Nanjing, China, 2016.
  41. Nanjing Environmental Protection Agency. Nanjing Environmental Aspect Bulletin in 2016; Nanjing Environmental Protection Agency: Nanjing, China, 2017.
  42. General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China. Graduations and Test Methods of Air Permeability, Watertightness, Wind Load Resistance Performance for Building External Windows and Doors; GB/T 7106-2008; General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China: Beijing, China, 2008.
  43. Ministry of Housing and Urban-Rural Development of the People’s Republic of China. Design Standard for Energy Efficiency of Residential Buildings in Hot Summer and Cold Winter Zone; Industry standards of the People’s Republic of China JGJ 134-2010; Ministry of Housing and Urban-Rural Development of the People’s Republic of China: Beijing, China, 2010.
  44. Walton, G.N.; Dols, W.S. CONTAM User Guide and Program Documentation; NISTIR 7251; National Institute of Standards and Technology: Gaithersburg, MD, USA, 2005.
  45. Chan, W.Y.R.; Nazaroff, W.W.; Price, P.N.; Sohn, M.D.; Gadgil, A.J. Analyzing a database of residential air leakage in the United States. Atmos. Environ. 2005, 39, 3445–3455. [Google Scholar] [CrossRef][Green Version]
  46. Burke, J.M.; Zufall, M.J.; Ozkaynak, H. A population exposure model for particulate matter: Case study results for PM2.5 in Philadelphia, PA. J. Expo. Anal. Environ. Epidemiol. 2001, 11, 470–489. [Google Scholar] [CrossRef] [PubMed]
  47. Long, C.M.; Suh, H.H.; Catalano, P.J.; Koutrakis, P. Using time- and size-resolved particulate data to quantify indoor penetration and deposition behavior. Environ. Sci. Technol. 2001, 35, 2089–2099. [Google Scholar] [CrossRef]
  48. Ministry of Housing and Rural-Urban Development of Jiangsu. Design Standard of Thermo-Environment & Energy Conservation for Residential Buildings in Jiangsu Province; DGJ32/J 71-2014; Ministry of Housing and Rural-Urban Development of Jiangsu: Nanjing, China, 2014.
  49. Klepeis, N.E.; Nazaroff, W.W. Modeling residential exposure to secondhand tobacco smoke. Atmos. Environ. 2006, 40, 4393–4407. [Google Scholar] [CrossRef][Green Version]
  50. Rim, D.; Persily, A.; Emmerich, S.; Dols, W.S.; Wallace, L. Multi-zone modeling of size-resolved outdoor ultrafine particle entry into a test house. Atmos. Environ. 2013, 69, 219–230. [Google Scholar] [CrossRef]
  51. ASTM. Standard Guide for Statistical Evaluation of Indoor Air Quality Models; D5157-91; American Society for Testing and Materials: West Conshohocken, PA, USA, 2003. [Google Scholar]
  52. Burnett, R.T.; Pope, C.A., III; Ezzati, M.; Olives, C.; Lim, S.S.; Mehta, S.; Shin, H.H.; Singh, G.; Hubbell, B.; Brauer, M.; et al. An Integrated Risk Function for Estimating the Global Burden of Disease Attributable to Ambient Fine Particulate Matter Exposure. Environ. Health Perspect. 2014, 122, 397–403. [Google Scholar] [CrossRef] [PubMed]
  53. Jiang, X.; Zhang, Q.; Zhao, H.; Geng, G.; Peng, L.; Guan, D.; Kan, H.; Huo, H.; Lin, J.; Brauer, M.; et al. Revealing the Hidden Health Costs Embodied in Chinese Exports. Environ. Sci. Technol. 2015, 49, 4381–4388. [Google Scholar] [CrossRef]
  54. Ostro, B. Outdoor Air Pollution: Assessing the Environmental Burden of Disease at National and Local Levels; Environmental Burden of Disease Series, No. 5; Prüss-Üstün, A., Campbell-Lendrum, D., Corvalán, C., Woodward, A., Eds.; World Health Organization: Geneva, Switzerland, 2004; Available online: http://www.who.int/quantifying_ehimpacts/ publications/ebd5.pdf (accessed on 3 January 2019).
  55. GBD. Global Burden of Disease Study 2016 (GBD 2016) Results; Global Burden of Disease Collaborative Network; Institute for Health Metrics and Evaluation (IHME): Seattle, WA, USA, 2017; Available online: http://ghdx.healthdata.org/gbd-results-tool (accessed on 3 January 2019).
  56. MacNeill, M.; Kearney, J.; Wallace, L.; Gibson, M.; Heroux, M.E.; Kuchta, J.; Guernsey, J.R.; Wheeler, A.J. Quantifying the contribution of ambient and indoor-generated fine particles to indoor air in residential environments. Indoor Air 2014, 24, 362–375. [Google Scholar] [CrossRef] [PubMed]
  57. Zhao, W.; Cheng, J.; Guo, M.; Cao, Q.; Yin, Y.; Wang, W. Ambient Air Particulate Matter in the Yangtze River Delta Region, China: Spatial, Annual, and Seasonal Variations and Health Risks. Environ. Eng. Sci. 2011, 28, 795–802. [Google Scholar] [CrossRef]
  58. Kinney, P.L.; Chillrud, S.N.; Ramstrom, S.; Ross, J.; Spengler, J.D. Exposures to multiple air toxics in New York City. Environ. Health Perspect. 2002, 110, 539–546. [Google Scholar] [CrossRef] [PubMed]
  59. WHO. WHO Guidelines for Indoor Air Quality: Selected Pollutants; WHO Regional Office for Europe: Copenhagen, Denmark, 2010. [Google Scholar]
  60. WHO. WHO Air Quality Guidelines for Particulate Matter, Ozone, Nitrogen Dioxide and Sulfur Dioxide, Globan Update 2005; WHO Regional Office for Europe: Copenhagen, Denmark, 2006. [Google Scholar]
  61. Wang, F.; Meng, D.; Li, X.; Tan, J. Indoor-outdoor relationships of PM2.5 in four residential dwellings in winter in the Yangtze River Delta, China. Environ. Pollut. 2016, 215, 280–289. [Google Scholar] [CrossRef] [PubMed]
  62. Ji, W.; Zhao, B. Contribution of outdoor-originating particles, indoor-emitted particles and indoor secondary organic aerosol (SOA) to residential indoor PM2.5 concentration: A model-based estimation. Build. Environ. 2015, 90, 196–205. [Google Scholar] [CrossRef]
Figure 1. The location of the study area. (A) The Yangtze River Delta. (B) Nanjing.
Figure 1. The location of the study area. (A) The Yangtze River Delta. (B) Nanjing.
Ijerph 16 00144 g001

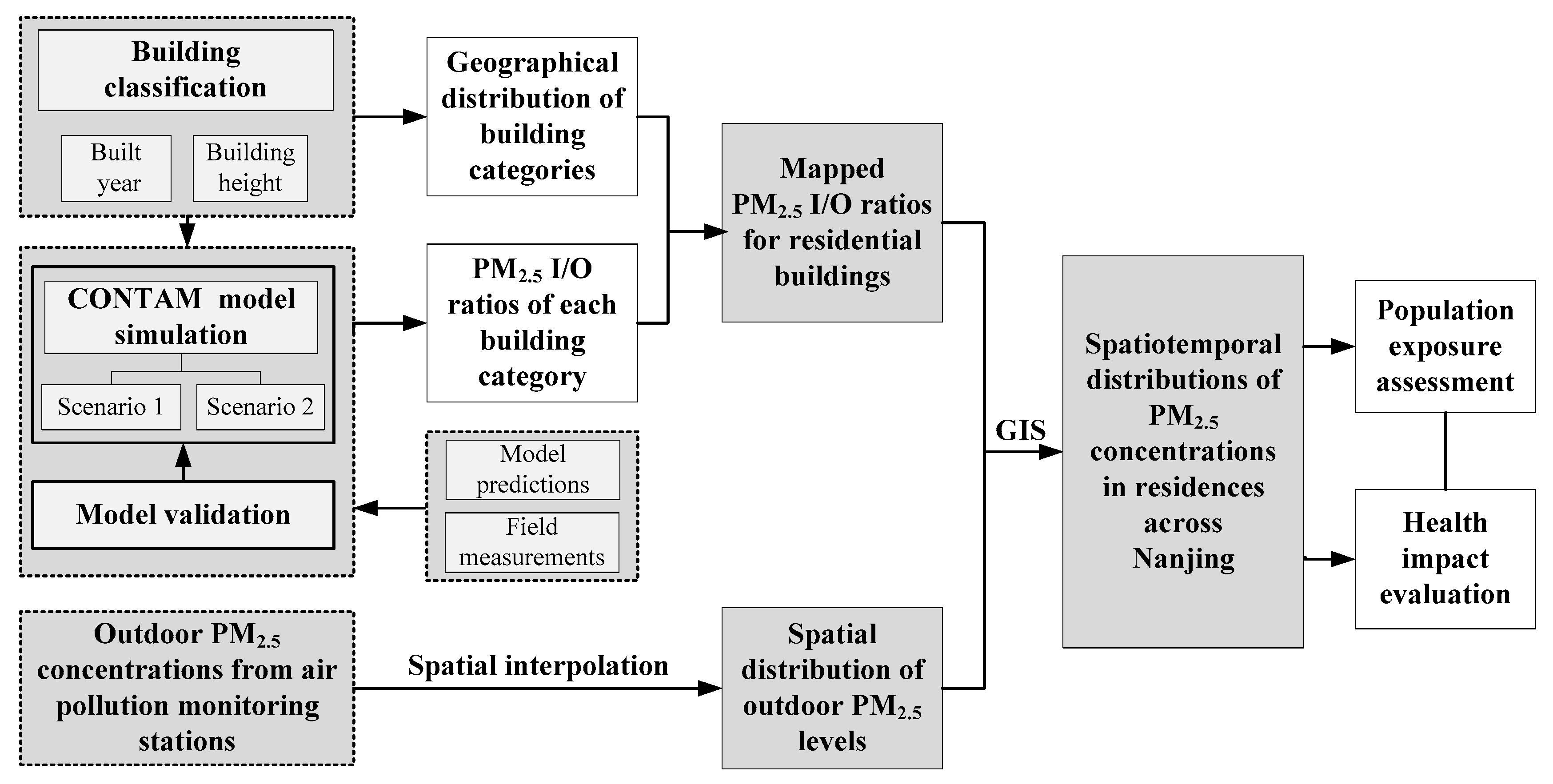

Figure 2. A flow chart of the study for indoor PM2.5 concentrations in residences. (I/O: indoor/outdoor).
Figure 2. A flow chart of the study for indoor PM2.5 concentrations in residences. (I/O: indoor/outdoor).
Ijerph 16 00144 g002

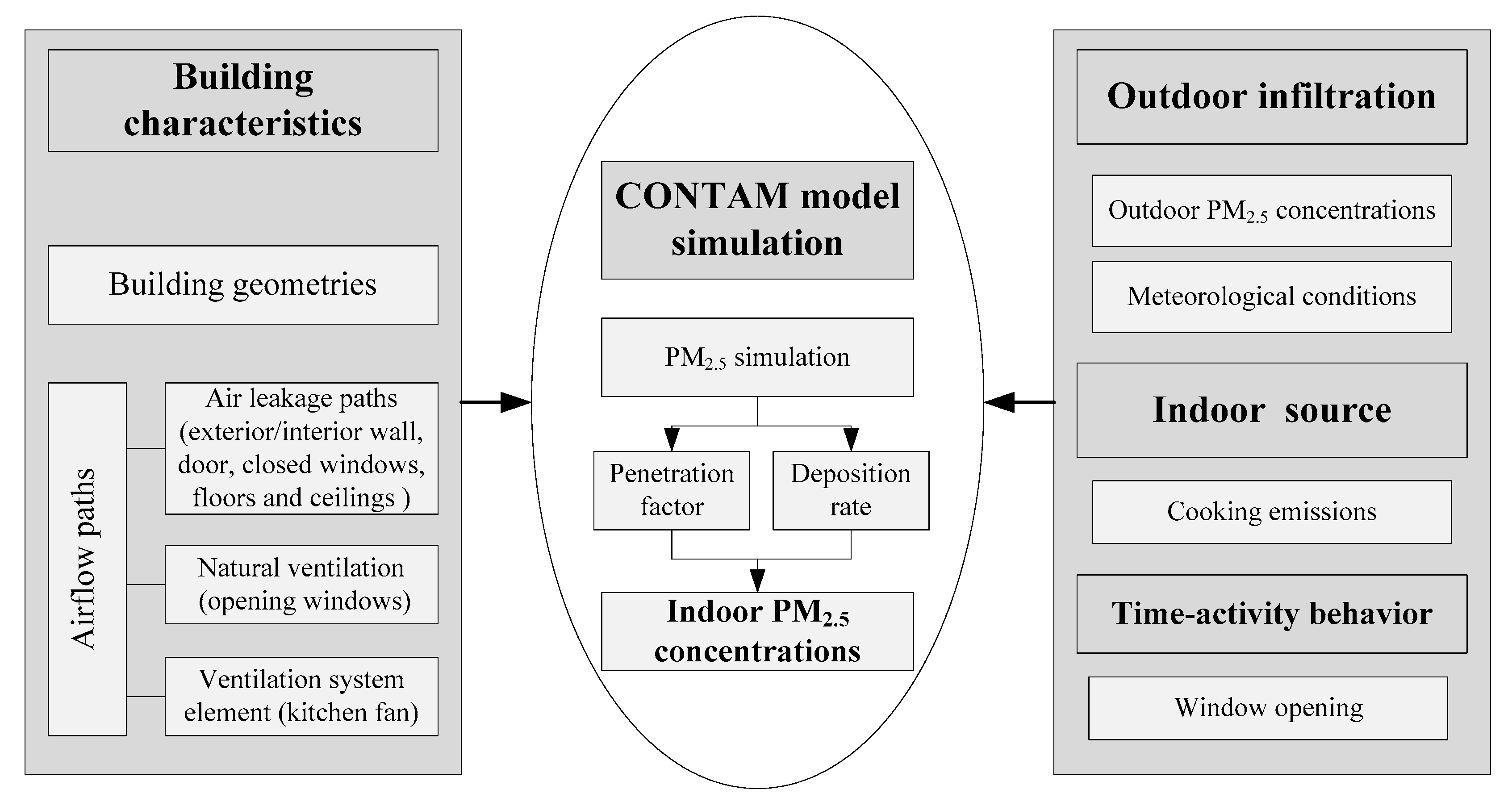

Figure 3. Conceptual diagram of the CONTAM model simulation approach.
Figure 3. Conceptual diagram of the CONTAM model simulation approach.
Ijerph 16 00144 g003
Figure 4. Scatterplots of the CONTAM model predictions versus measurements for 24-h average indoor PM2.5 concentrations. (NMSE: normalized mean square error, FB: fractional bias, and FS: fractional bias of variance)
Figure 4. Scatterplots of the CONTAM model predictions versus measurements for 24-h average indoor PM2.5 concentrations. (NMSE: normalized mean square error, FB: fractional bias, and FS: fractional bias of variance)
Ijerph 16 00144 g004

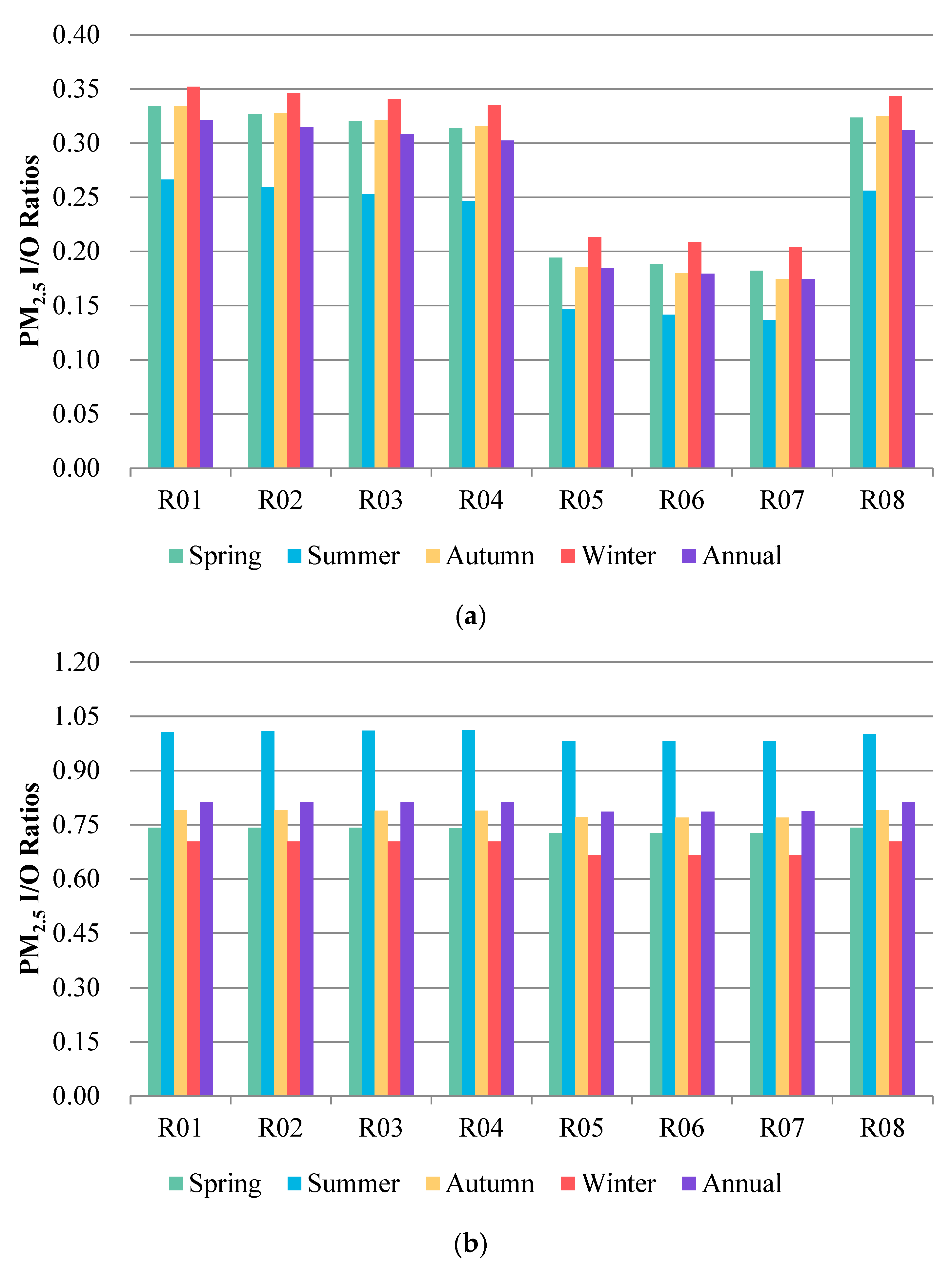

Figure 5. Average seasonal PM2.5 I/O ratios for different types of residences under Scenarios 1 (a) and Scenarios 2 (b).
Figure 5. Average seasonal PM2.5 I/O ratios for different types of residences under Scenarios 1 (a) and Scenarios 2 (b).
Ijerph 16 00144 g005

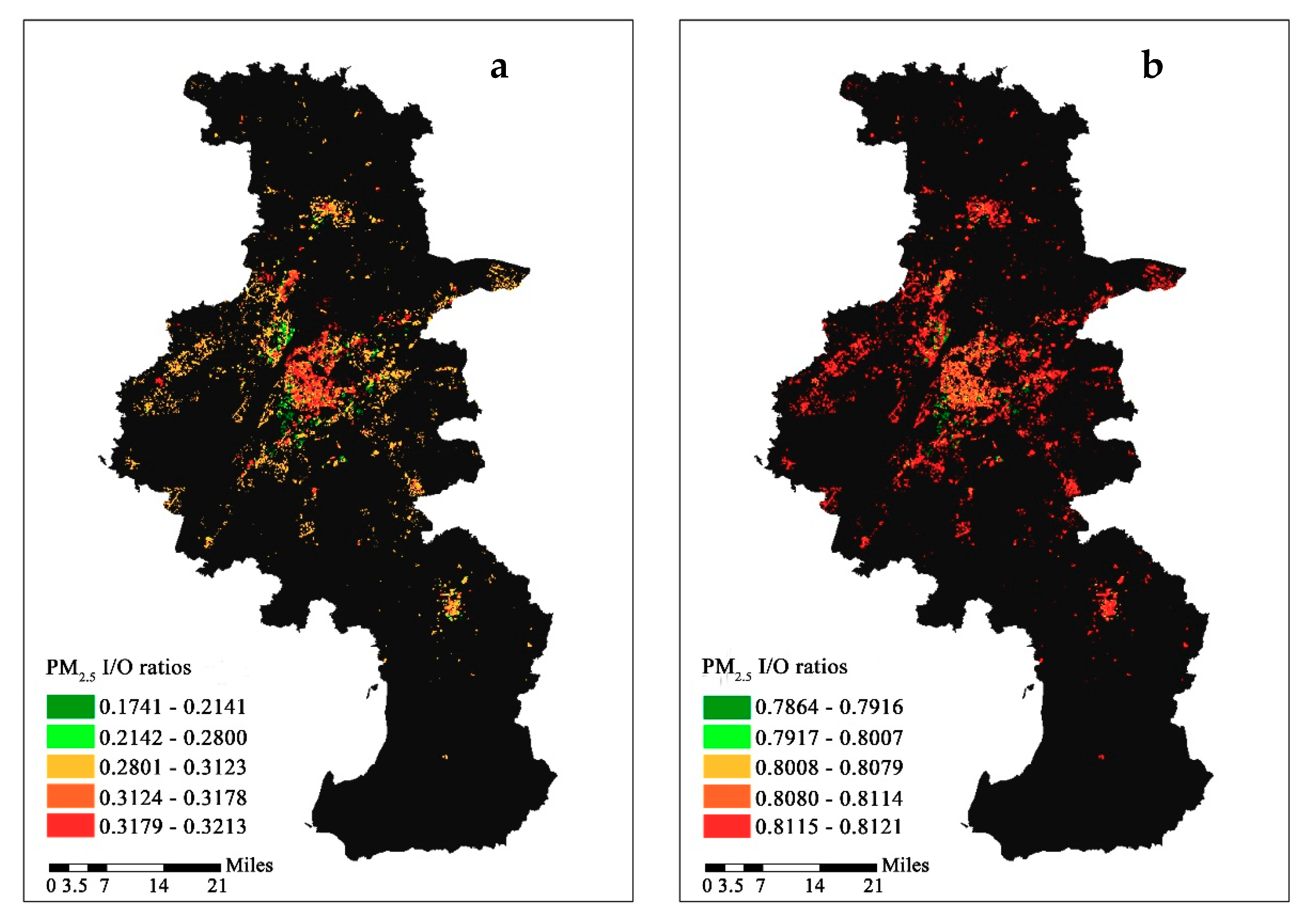

Figure 6. The annual PM2.5 I/O ratios for residences across Nanjing. (a): Scenarios 1, (b): Scenarios 2.
Figure 6. The annual PM2.5 I/O ratios for residences across Nanjing. (a): Scenarios 1, (b): Scenarios 2.
Ijerph 16 00144 g006

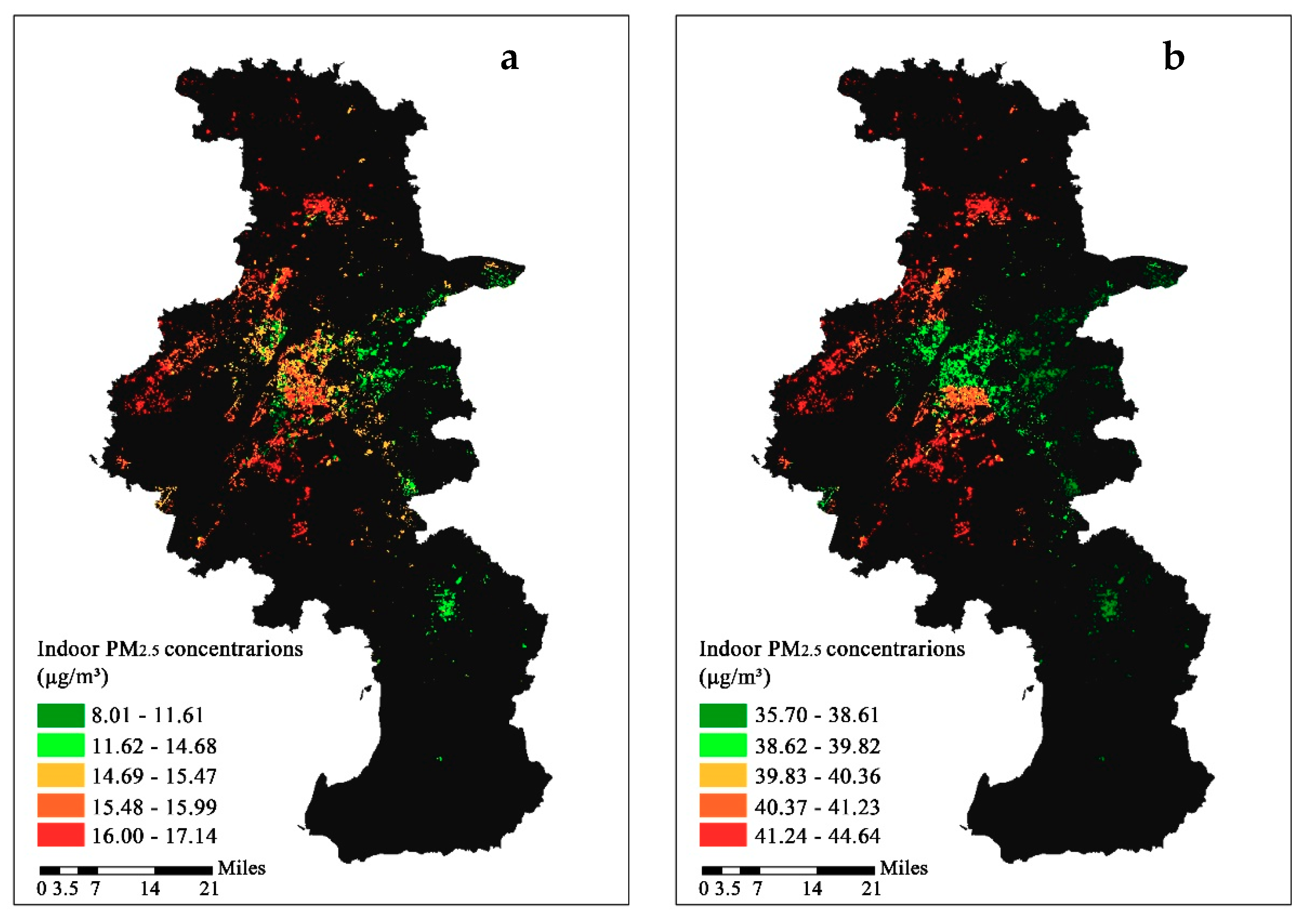

Figure 7. The spatial distributions of annual indoor PM2.5 concentrations estimated from outdoor PM2.5 concentrations. (a) Scenarios 1 and (b) Scenarios 2.
Figure 7. The spatial distributions of annual indoor PM2.5 concentrations estimated from outdoor PM2.5 concentrations. (a) Scenarios 1 and (b) Scenarios 2.
Ijerph 16 00144 g007
Table 1. Residential building descriptions and building input parameters of the model.
Table 1. Residential building descriptions and building input parameters of the model.
Building CodeConstruction YearBuilding StoryPermeability of Exterior Door and Windows a (m3/(m2·h))Effective Leakage Area of the Exterior Wall b (cm2/m2)
R01Before 1990Multistory7.51.88
R021991–2000Multistory1.69
R032001–2010Multistory1.52
R042011–nowMultistory1.36
R051991–2000High-rise4.51.08
R062001–2010High-rise0.97
R072011–nowHigh-rise0.87
R08 cUnknownMultistory7.5-
a The permeability of exterior doors and windows for each building was obtained from the design standard for the air permeability performances of multistory and high-rise residences [42]. b The effective leakage areas of the exterior were estimated according to the empirical model proposed by Chan et al. based on the floor area and construction year [45]. c For building code R08, the construction year was unknown, and the effective leakage area of the exterior wall cannot be estimated by the empirical model [45].

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Int. J. Environ. Res. Public Health EISSN 1660-4601 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
