Next Article in Journal
Occupational Safety and Hygiene of Dentists from Urban and Rural Areas in Terms of Sharp Injuries: Wound Structure, Causes of Injuries and Barriers to Reporting—Cross-Sectional Study, Poland
Next Article in Special Issue
Degradation of the Nonsteroidal Anti-Inflammatory Drug Piroxicam by Iron Activated Persulfate: The Role of Water Matrix and Ultrasound Synergy
Previous Article in Journal
Sepiolite-Based Adsorbents for the Removal of Potentially Toxic Elements from Water: A Strategic Review for the Case of Environmental Contamination in Hunan, China
Open AccessArticle

Fabrication of Surfactant-Enhanced Metal Oxides Catalyst for Catalytic Ozonation Ammonia in Water

Jiangxi Key Laboratory of Mining & Metallurgy Environmental Pollution Control, Jiangxi University of Science & Technology, Ganzhou 341000, China
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2018, 15(8), 1654; https://doi.org/10.3390/ijerph15081654
Received: 11 July 2018 / Revised: 31 July 2018 / Accepted: 1 August 2018 / Published: 3 August 2018
(This article belongs to the Special Issue Advanced Oxidation Processes (AOPs) for Water Treatment)

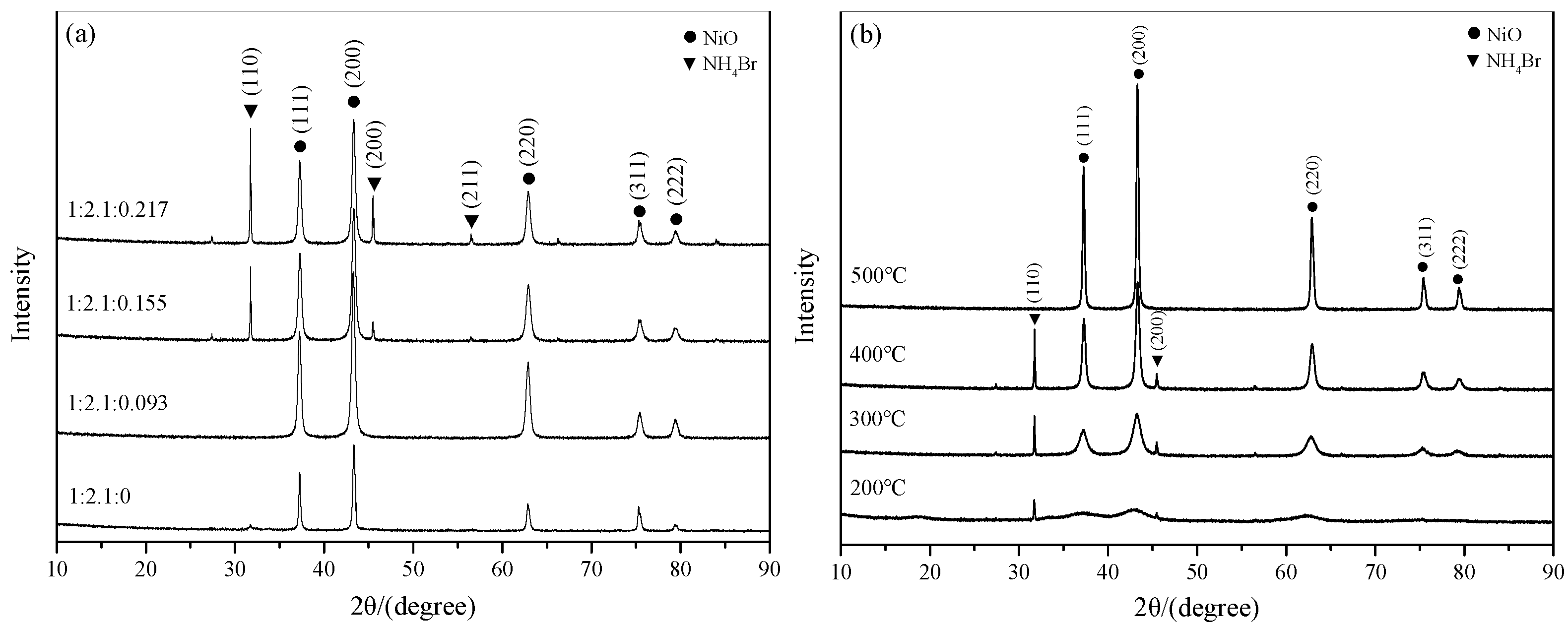

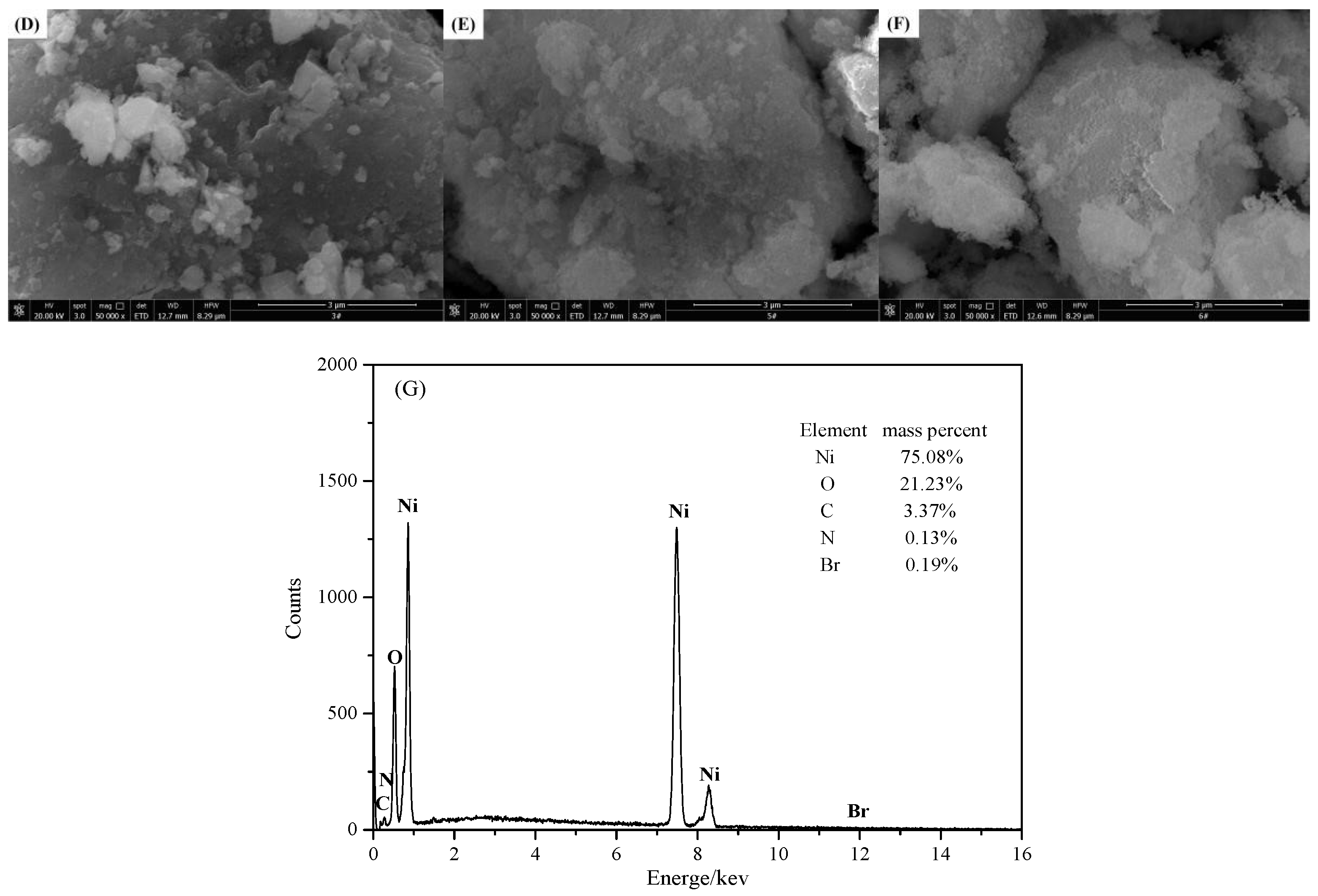

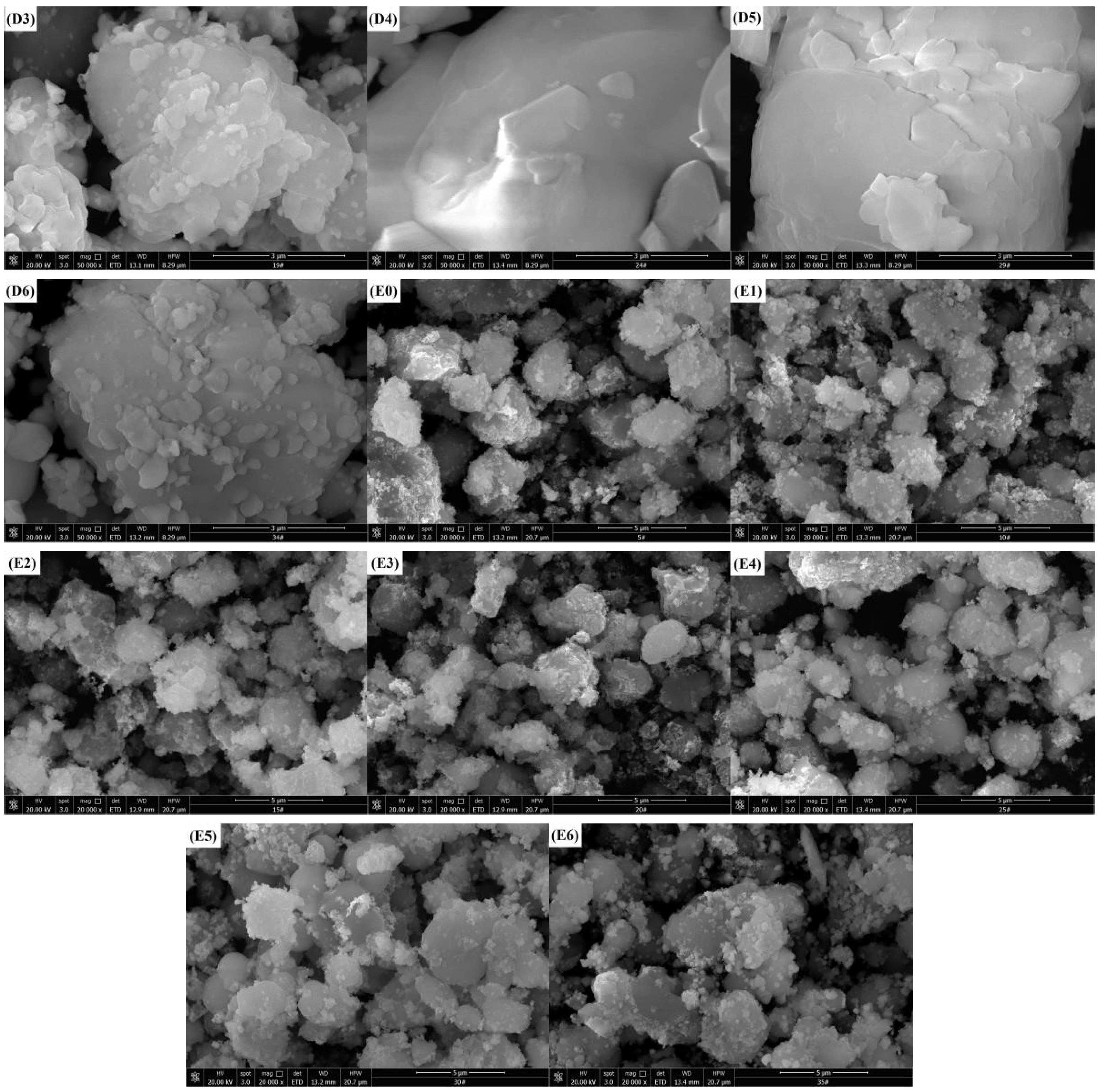

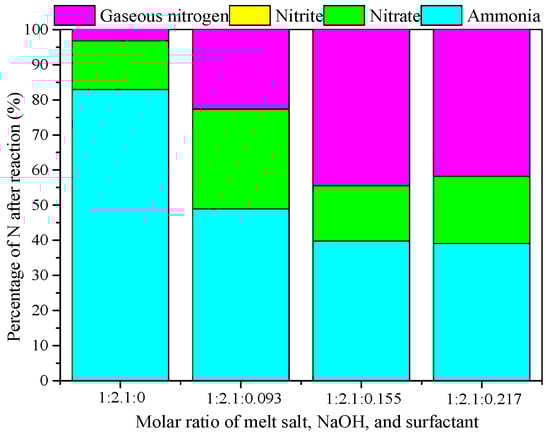

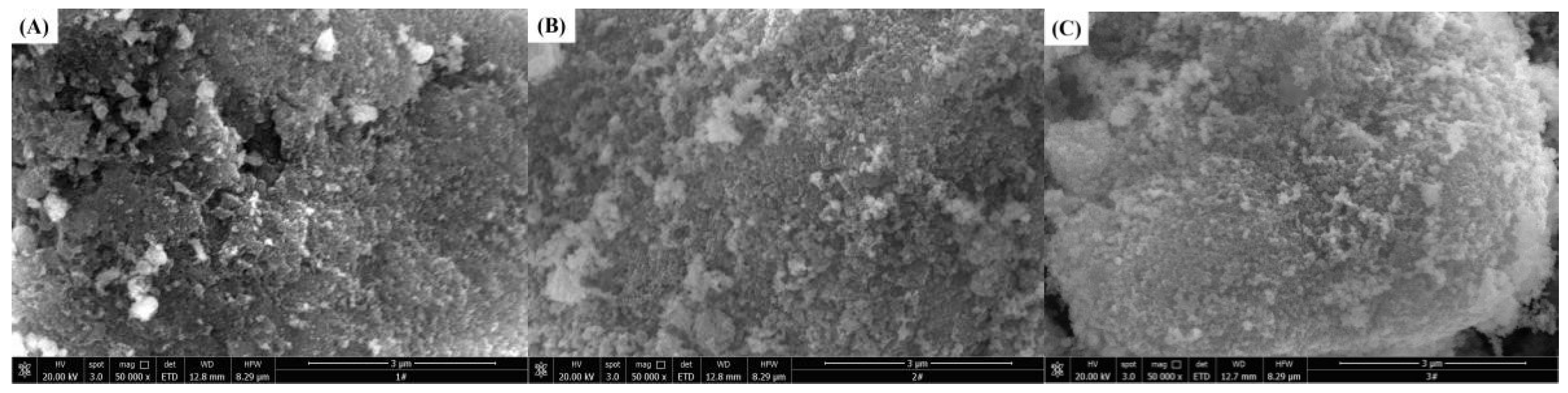

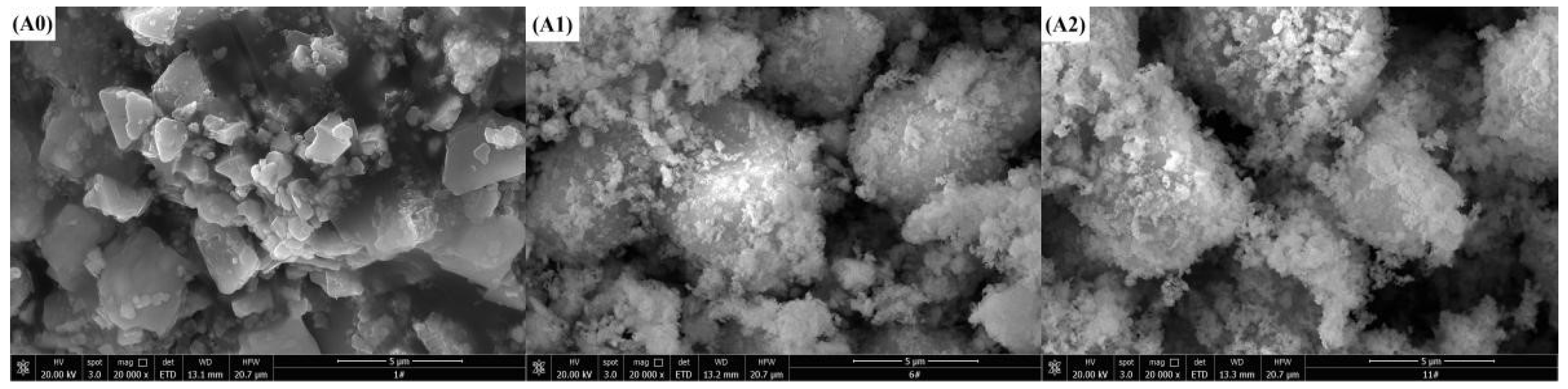

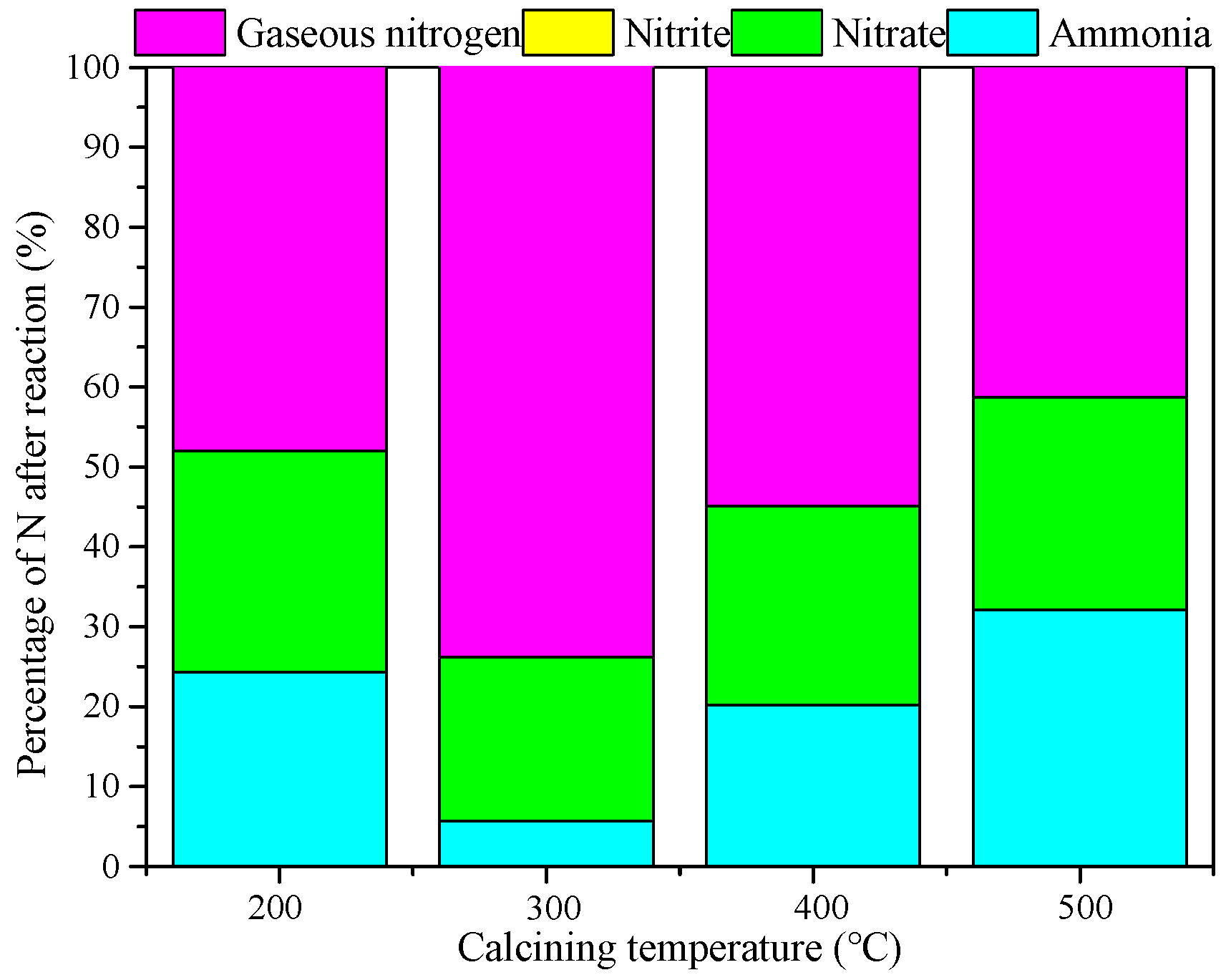

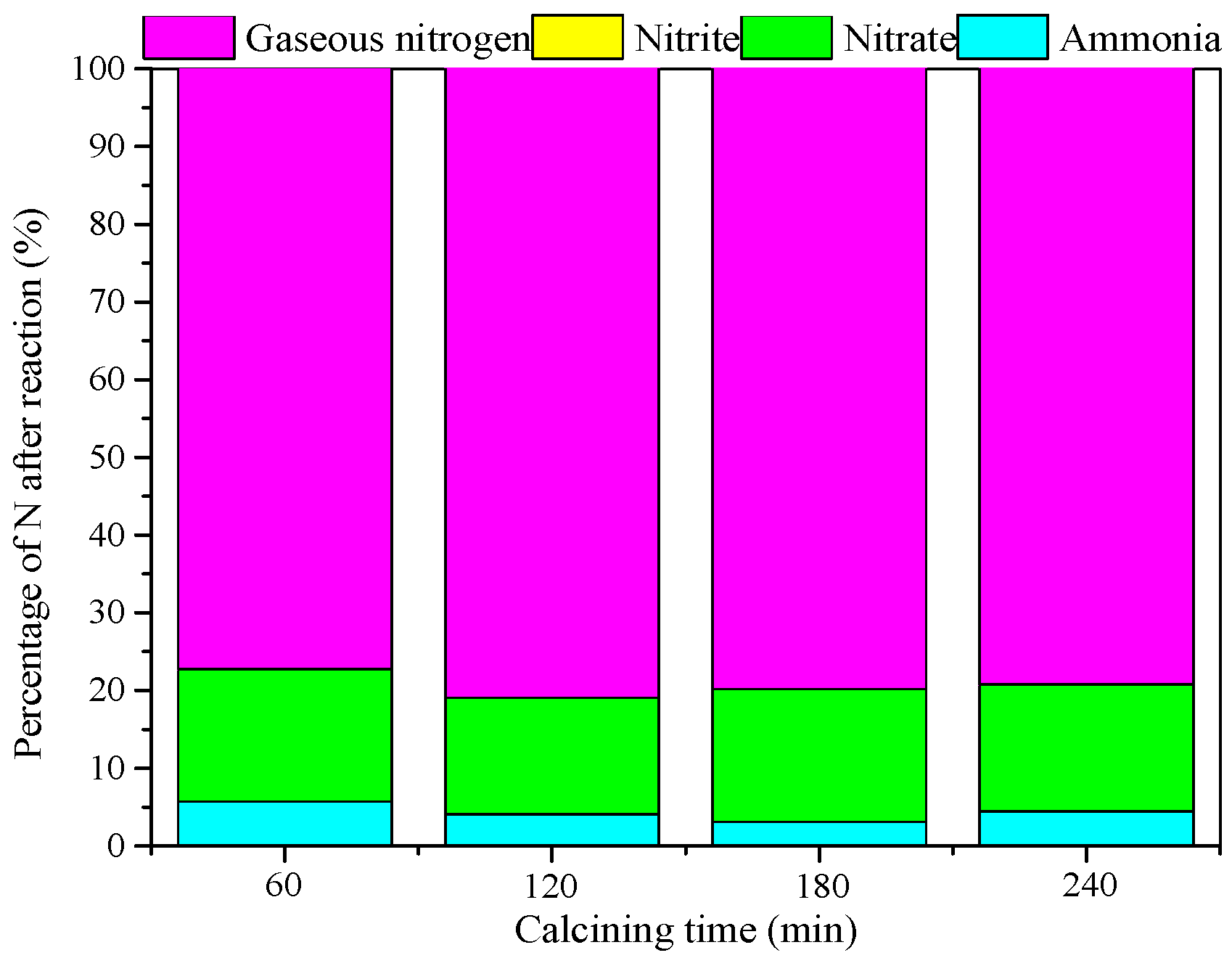

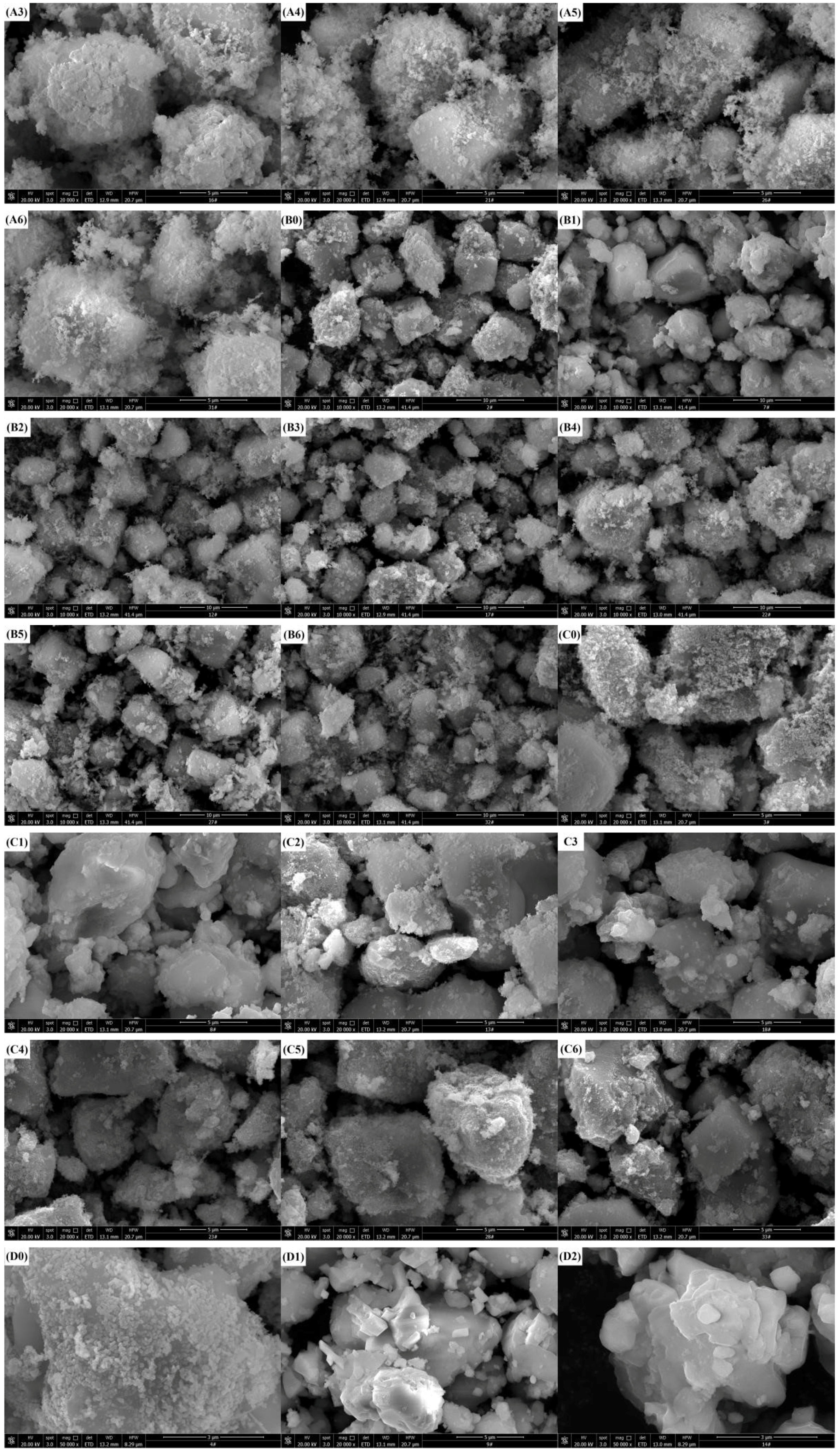

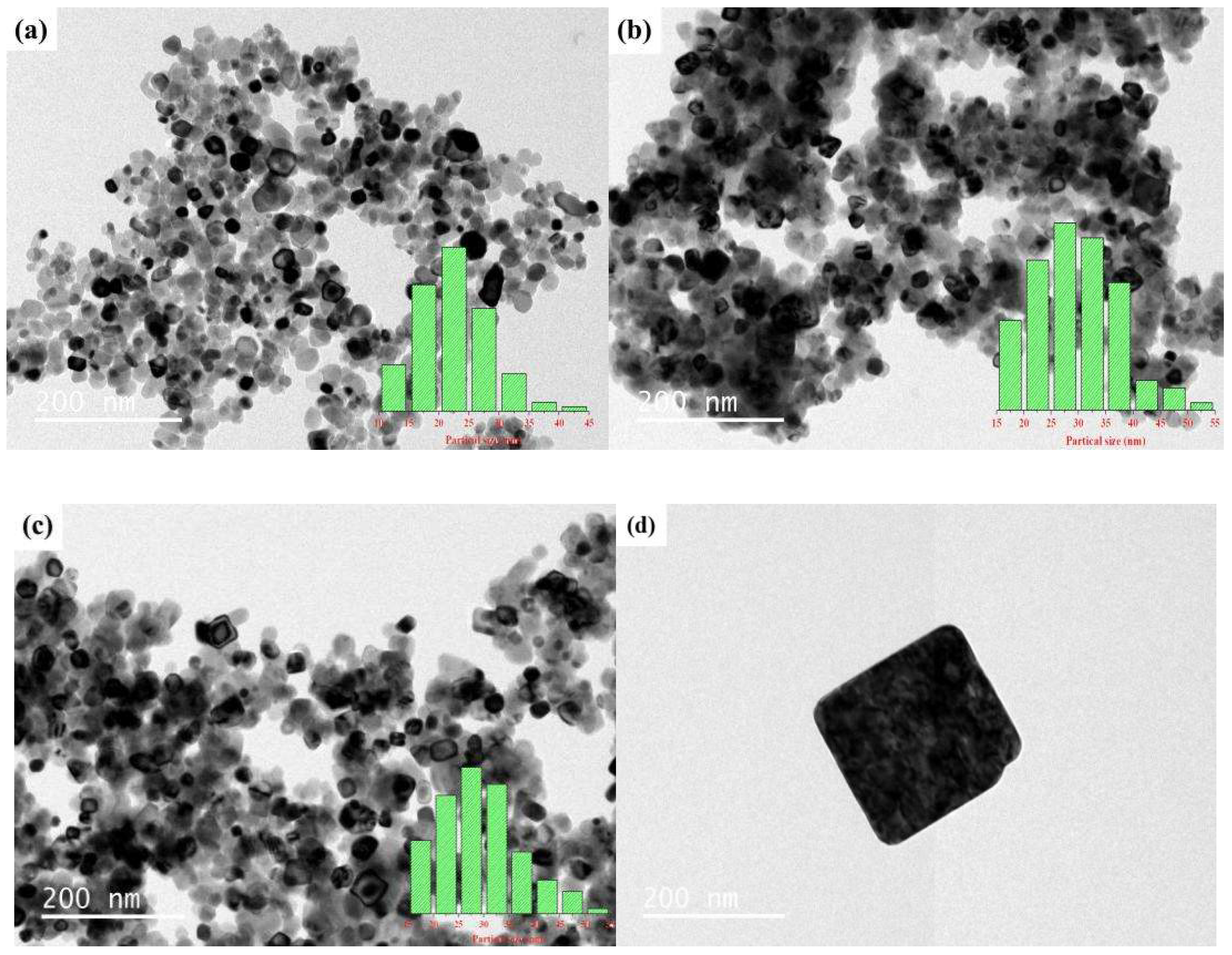

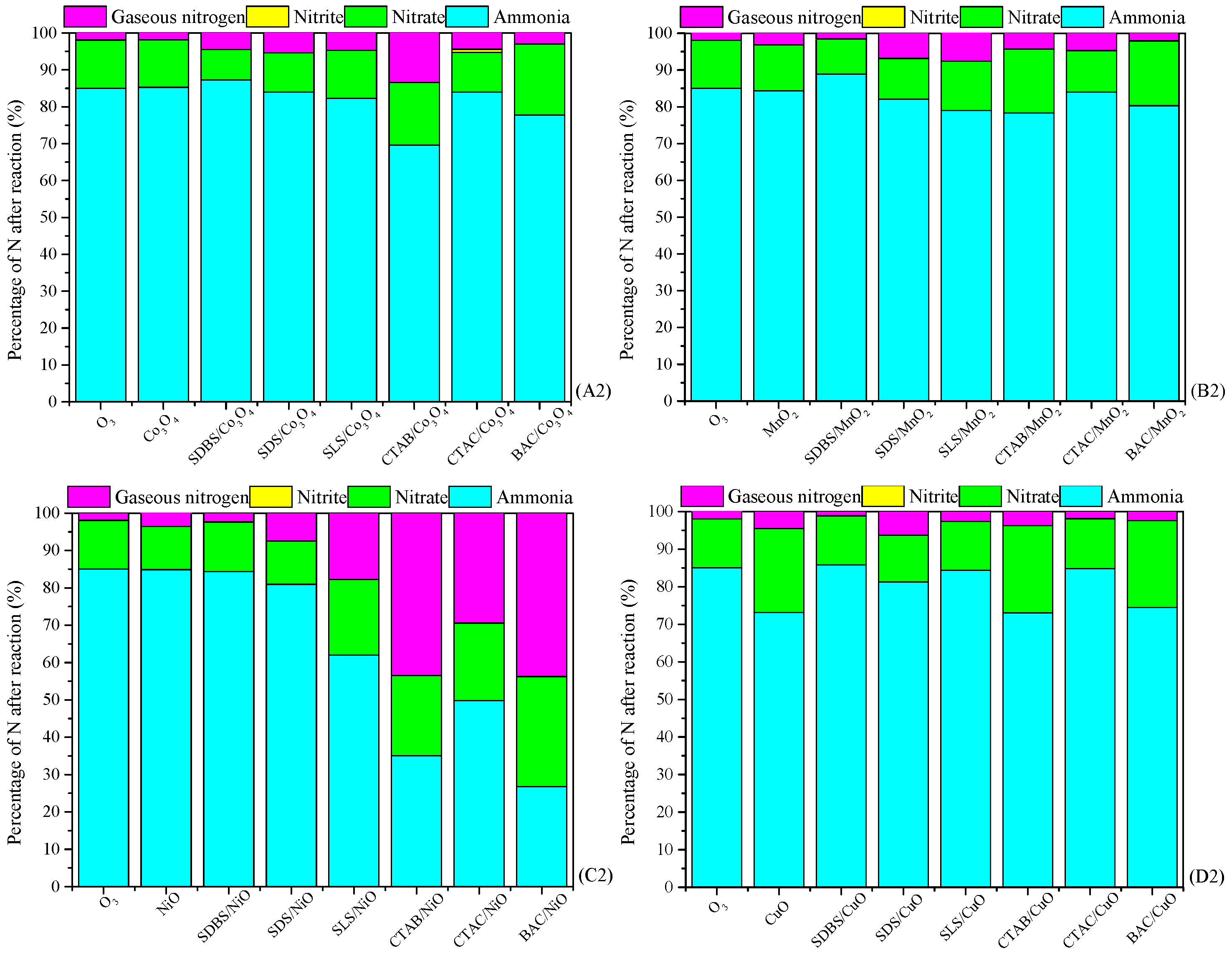

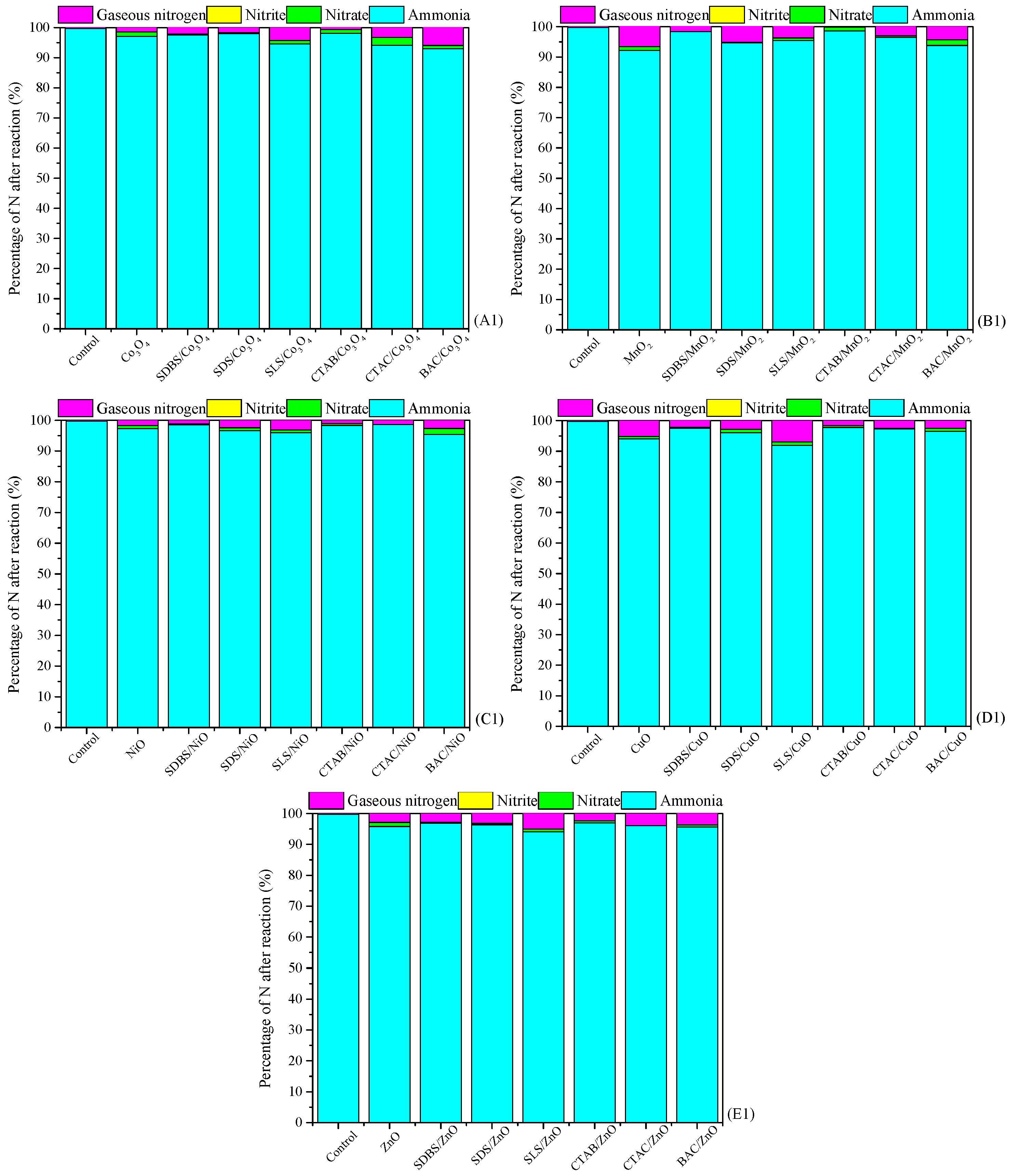

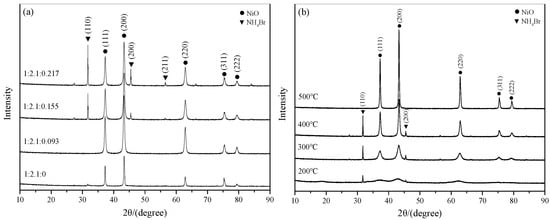

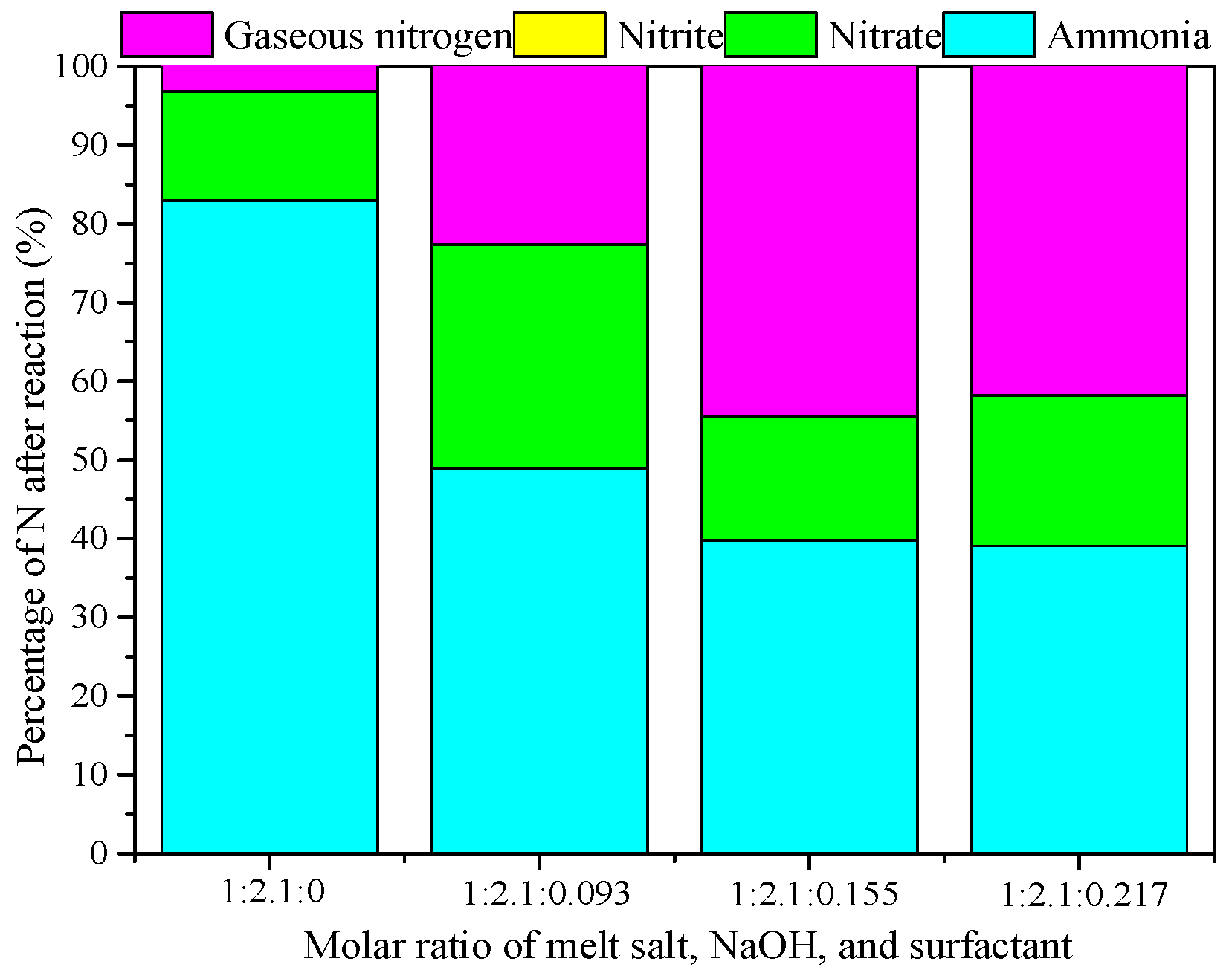

The new surfactant-enhanced metal oxides composite catalysts have been prepared using solid state method and characterized by the N2-adsorption-desorption, scanning electron microscopy (SEM), energy dispersive X-ray spectroscopy (EDS), transmission electron microscope (TEM), and X-ray diffraction (XRD) techniques. Catalytic activity of the synthesized powders has been investigated in the liquid-phase catalytic ozonation ammonia nitrogen (NH4+) (50 mg/L). Especially, the effect of parameters such as optimum molar ratio for metal salt, NaOH and surfactants, temperature, and time of calcinations was also considered. Leveraging both high catalytic activity in NH4+ degradation and more harmless selectivity for gaseous nitrogen, the CTAB/NiO catalyst is the best among 24 tested catalysts, which was generated by calcining NiCl2·6H2O, NaOH, and CTAB under the molar ratio 1:2.1:0.155 at 300 °C for 2 h. With CTAB/NiO, NH4+ removal rate was 95.93% and gaseous nitrogen selectivity was 80.98%, under the conditions of a pH of 9, ozone flow of 12 mg/min, dosage of catalyst 1.0 g/L, reaction time 120 min, and magnetic stirring speed 600 r/min in room temperature. View Full-Text
Keywords: catalytic ozonation; surfactant; metal oxide; ammonia nitrogen catalytic ozonation; surfactant; metal oxide; ammonia nitrogen
Show Figures

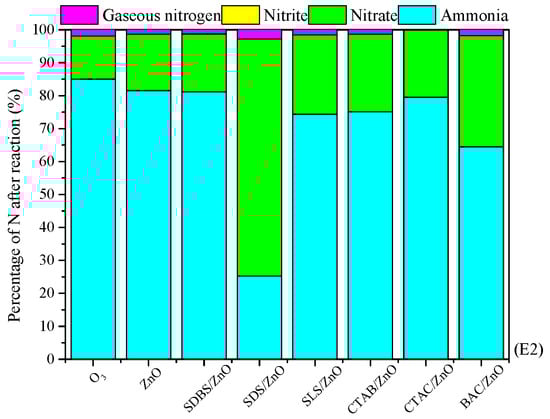

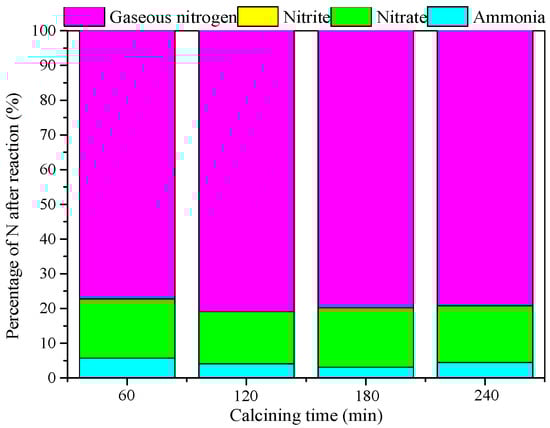

Figure 1

MDPI and ACS Style

Liu, C.; Chen, Y.; Guo, L.; Li, C. Fabrication of Surfactant-Enhanced Metal Oxides Catalyst for Catalytic Ozonation Ammonia in Water. Int. J. Environ. Res. Public Health 2018, 15, 1654.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
