Int. J. Environ. Res. Public Health 2018, 15(7), 1416; https://doi.org/10.3390/ijerph15071416

Article
Assessment of Microbiological Safety of Water in Public Swimming Pools in Guangzhou, China
1
Guangzhou Center for Disease Control and Prevention, Guangzhou 510440, China
2
School of Public Health, Sun Yat-Sen University, Guangzhou 510030, China
3
Department of Population Health and Reproduction, University of California Davis, California, CA 95616, USA
4
Western Institute for Food Safety and Security, University of California Davis, California, CA 95616, USA
*
Correspondence: [email protected] (Z.Y.); [email protected] (S.C.); Tel.: +86-138-2614-0717 (Z.Y.)
These authors contributed equally to this article.
Received: 15 June 2018 / Accepted: 3 July 2018 / Published: 5 July 2018

Abstract

:
This study assessed microbiological safety of water from public swimming pools in Guangzhou, China. Water samples from 39 outdoor municipal swimming pools were collected from late June to early September, 2013 and subjected to detection of protozoa (Giardia and Cryptosporidium) and bacteria (Pseudomonas aeruginos, total coliforms, E. coli, E. coli O157, Shigella, and Salmonella). Cryptosporidium and Giardia were both detected in 5 (12.8%) swimming pools. Total coliforms were detected in 4 (10.3%) samples with concentrations ranging from 1.3 to 154.0 MPN/100 mL while E. coli was detected in 4 (10.3%) samples with concentrations ranging from 0.5 to 5.3 MPN/100 mL. P. aeruginosa was detected in 27 (69.2%) samples but E. coli O157, Shigella and Salmonella were not detected. Among these swimming pools, 9 (23%) met the Chinese National Standard of residual chlorine levels and 24 (62%) were tested free of residual chlorine at least once. The multi-locus sequence typing (MLST) analysis showed that all P. aeruginosa isolates belonged to new sequence types (STs) with dominant ST-1764 and ST-D distributed in different locations within the area. Some P. aeruginosa strains were resistant to medically important antibiotics. Results indicate potential public health risks due to the presence of microbiological pathogens in public swimming pools in this area.
Keywords:
swimming pool; water; Giardia; Cryptosporidium; P. aeruginosa; antibiotic resistance; multi-locus sequence typing

1. Introduction

Many microbiological pathogens, including bacteria, viruses, and parasites can cause waterborne disease [1]. Waterborne disease is estimated to cause more than 2.2 million deaths per year and many cases of illness every day, including diarrhea, gastrointestinal diseases and other systemic illnesses [2,3]. Waterborne disease can have a significant impact locally and globally [4]. Waterborne infections are transmitted in numerous ways, including but not limited to ingestion, airborne or contact with contaminated water by a variety of infectious agents.
In addition to drinking water, which serves as a route for waterborne illness worldwide, especially in developing countries [5], exposure to recreational water also frequently causes outbreaks of waterborne diseases in both developed and developing countries [6,7,8,9]. For examples of recreational water related outbreaks in developed countries, there have been reports of waterborne disease associated with swimming pools in Australia [10], England and Wales [11] and other countries [12]. Most countries have programs for monitoring microbiological safety of swimming pool water. However, diverse public health and economic conditions among countries result in different microbiological and physical-chemical standards for swimming pool water even within countries of the European Union [13]. In China, a National Standard for swimming pool water quality, entitled “Hygienic Standard for Swimming Places” has been established (GB9667-1996). Major parameters in the National Standard are water temperature (22–26 °C), pH (6.5–8.5), turbidity (≤5 NTU), urea (≤3.5 mg/L), free residual chlorine levels (0.3–0.5 mg/L), total bacteria count (≤1000 cfu/mL), total coliforms (≤18 cfu/L). Although some recent works have studied water quality of swimming pools in China, most of these studies have primarily focused on the basic parameters that are highlighted in the National Standards, including pH, turbidity, urea content and total coliforms [14,15,16]. Literature on the microbiological safety of swimming pool water in China has been notably sparse. Furthermore, from a public health perspective it remains unknown if swimming pool water transmits antibiotic resistant bacteria. By detection and analysis of key waterborne protozoa and bacteria, this study evaluated the microbiological safety of water in outdoor public swimming pools in Guangzhou, which is a large metropolitan area in southern China.

2. Materials and Methods

2.1. Swimming Pools Selection and Water Sample Collection

This survey was conducted between 20 June and 4 September 2013. Due to the potential differences in public health conditions between suburban and urban districts within the Guangzhou area [17], the suburban Baiyun district and the urban Haizhu district were chosen for sampling. In total 39 pools, including 27 pools from the Baiyun district (21 residential pools, 6 pools from two water parks) and 12 pools from the Haizhu district (5 residential pools, 3 school pools, and 4 pools from one water park) were enrolled in the study. All enrolled pools were outdoor public swimming pools. Three swimming pools were exclusively for children while the remaining 36 pools were for both adults and children. Water samples were collected between 10:00 a.m. and noon, a period prior to the pools being open to swimmers. Using a submersible pump, 50 L water samples were pumped 10 cm from the bottom of the pool into two sterile 25 L carboys. Four hundred milligrams of sodium thiosulfate (Na2S2O3, XK13-001-00008, GB/T-637 standard, Guangzhou, China) was added to each carboy for dechlorination of water. Carboys were placed in containers with ice and transported to the laboratory within two hours and stored in a cold room (4 °C) upon arrival at the laboratory and before processing.
A questionnaire was filled out for each swimming pool in order to support the microbiological analysis. The questionnaires contained three sections that include general data on the swimming pools (type, location, dimensions and depth), levels of residual chlorine, and management information (opening time, hours of operation, availability of swimming-suit rentals, whether toddlers were required to wear diapers during swimming, methods used to refresh water, frequency of testing residual chlorine levels).

2.2. Detection of Microbiological Pathogens from Water

With the aid of hollow fiber ultrafiltration as described by Rhodes et al. [18], the 50 L water sample was filtered no later than 24 h after collection and concentrated to approximately 700 mL (retentate). To test for Giardia and Cryptosporidium, 500 mL of the retentate was centrifuged at 4000 rcf at 25 °C for 15 min without breaking. Supernatant was discarded by aspiration and approximately 3 mL of residual pellet was harvested. An immunomagnetic separation (IMS) procedure was carried out to separate (oo) cysts from concentrated water samples using the Dynabeads GC-Combo kit (Invitrogen Dynal AS, Oslo, Norway) according to the manufacturer’s instructions. The IMS was carried out using a Bead Retriever with the procedure of ‘GC Combo’ (Invitrogen, Finland). Immunofluorescent staining of final IMS products (approximately 50 μL) was performed using the Aqua-Glo G/C Direct kit (Waterborne, New Orleans, LA, USA) according to the manufacturer’s instructions. Slides were examined for (oo) cysts using an immunofluorescent microscope (Leica DM6000B).
All bacteria were detected according to China’s National Standard (GB) protocols. Specifically, P. aeruginosa was detected using methods described in the Hygienic Standard for Cosmetics (GB7918.4-2007, Ministry of Health, China). The methods used for detection of other bacteria were based on the National Food Safety Standard (Ministry of Health, China), i.e., GB4789.3-2010 for total coliforms, GB4789.38-2012 for E. coli, GB4789.36-2008 for E. coli O157, GB4789.5-2012 for Shigella and GB4789.4-2010 for Salmonella, respectively. The procedures for detection of these bacteria are described below.
To detect P. aeruginosa, 10 mL of retentate was resuspended in 90 mL of Soya Casein Digest Lecithin Polysorbate (SCDLP) broth and incubated at 37 °C for 24 h. Then, 100 µL of the culture was streaked on cetrimide agar and incubated at 37 °C for 24 h. For total coliforms, triplication of serially diluted retentate (1, 0.1 and 0.01 mL) were resuspended in tubes of LST (Lauryl Sulfate Tryptose) broth and incubated at 37 °C for 48 h. The most probable number (MPN) was calculated according to the number of tubes that generated positive reactions (generating bubbles). Similarly, triplication of serially diluted culture (1, 0.1, and 0.01 mL) of LST broth generating bubbles were transferred into E. coli broth and incubated at 44.5 °C for 48 h for calculating MPN of E. coli. To detect E. coli O157, 25 mL of retentate was added to 225 mL of modified E. coli broth and incubated at 37 °C for 24 h. An aliquot of the culture was streaked onto E. coli O157 chromogenic medium and incubated at 37 °C for 24 h. Red or purple colonies were chosen to cultivate on TSI (Triple Sugar Iron) agar medium at 37 °C for 24 h. For detection of Shigella, 25 mL of retentate was added to 225 mL of Shigella broth and incubated at 42 °C for 20 h. Then, an aliquot of the culture was streaked onto Shigella chromogenic medium and incubated at 37 °C for 48 h. Typical colonies were selected for cultivation on TSI (Triple Sugar Iron) agar medium at 37 °C for 24 h. For detection of Salmonella, 25 mL of retentate was added to 225 mL of Buffered Peptone Water (BPW) and incubated at 37 °C for 18 h. An aliquot of the BPW culture was added to 10 mL of TTB (Tatrathionate Broth) and incubated at 42 °C for 24 h. The culture in TTB was then streaked onto Salmonella chromogenic medium and incubated at 37 °C for 24 h. Purple or red colonies were selected for incubation on TSI (Triple Sugar Iron) agar medium at 37 °C for 24 h. Isolates of P. aeruginosa, Shigella and Salmonella were confirmed biochemically and phenotypically using the VITEK2 GN method (bioMériux, Marcy d’Etoile, France).

2.3. Testing P. aeruginosa Susceptibility to Antibiotics

P. aeruginosa susceptibility to antibiotics was tested using the VITEK2 AST-GN04 method (bioMériux, Marcy d’Etoile, France). The selection of antimicrobial agents and interpretation of minimum inhibitory concentration (MIC) (S = susceptible, IR = intermediate resistant, R = resistant) were based on the Clinical and Laboratory Standards Institute [19]. The antimicrobial agents tested are of medical importance, including piperacillin, piperacillin-tazobactam, ticarcillin-clavulanic acid, ceftazidime, cefepime, imipenem, gentamicin, tobramycin, amikacin, levofloxacin and ciprofloxacin.

2.4. Multilocus Sequence Typing (MLST) of P. aeruginosa

Two or three typical P. aeruginosa colonies were picked and homogenized in 100 μL autoclaved deionized water. The bacterial solutions were incubated at 100 °C for 10 min followed by cooling at 4 °C for 3 min, then centrifuging at 12,000× g for 3 min. The primer pairs used for PCR and sequencing are shown in Table 1. The amplification reactions and conditions for MLST of P. aeruginosa were performed as described in the PubMLST (http://pubmlst.org/paeruginosa/info/primers.shtml). Because the original temperature could not successfully amplify mutL, ppsA and trpE alleles, slightly modified conditions (primer annealing temperature) were used to optimize amplification in each reaction. The following adjusted PCR protocol was used: denaturing at 95 °C for 1 min, 35 cycles of 1 min at 95 °C (denaturing), 1 min at 55–57 °C (primer annealing, 57 °C for mutL and ppsA, 55 °C for trpE) and 1 min at 72 °C (primer extension), and a final elongation step at 72 °C for 10 min. Sequencing of all the genes were performed by Life Biological Technology Company (Shanghai, China). Sequences from the study and alleles and STs from the PubMLST (http://pubmlst.org/) were used to construct a phylogenetic tree of P. aeruginosa isolates using MLST Data Analysis-Tree drawing (https://pubmlst.org/paeruginosa/). A population snapshot was operated using the software eBRUST V3 available at the website of http://eburst.mlst.net/v3/enter_data/comparative/.

2.5. Statistical Analysis

The Chi-square (χ2) test was applied to assess the potential differences in Giardia and Cryptosporidium presence in water between suburban and urban swimming pools, because we found the prevalence of Cryptosporidium was significantly higher in children hospitalized in suburban hospitals than in urban hospitals in the same area in a previous study [17]. Logistic correlation was applied to analyze whether the presence of P. aeruginosa was associated with the levels of free residual chlorine in water.

3. Results

3.1. Characteristics of Swimming Pools

Outdoor swimming pools in the Guangzhou area mostly open between June and September. The swimming water of all enrolled pools is refreshed by refilling the pools with tap water as needed. No swimming suit rental was available in any of the surveyed swimming pools. Swimmers brought their own swimming suits and children were not required to wear diapers when swimming. The studied swimming pools had a diversity of shapes and surface areas that ranged from 100 to 1000 m2. The depth of these pools ranged from 0.3 m to 2.0 m with 1.0 to 1.3 m for the majority of the enrolled pools. All swimming pools used standard chlorination to disinfect water, and no further treatment of the water had taken place. Among the pools, 24 (62%) checked free residual chlorine levels once per day; 8 (20%) check twice per day; and 7 (18%) check 3–5 times per day. Free residual chlorine levels were >0.5 mg/L in 18 (46%) swimming pools and <0.3 mg/L in 12 (31%) of the swimming pools. The highest free chlorine level was 2.0 mg/L and the lowest free chlorine level was 0 mg/L. According to the Chinese National Standard, ‘Hygienic Standard for Swimming Places’ (GB9667-1996, China) the free residual chlorine level in swimming water should be between 0.3 mg/L and 0.5 mg/L. Our survey results showed that only 9 (23%) of the studied swimming pools had free residual chlorine levels that met this criteria.

3.2. Occurrence of Protozoa in Swimming Pool Water

Cryptosporidium and Giardia were both detected in 12.8% (5/39) of the enrolled swimming pools. Among these positive pools, 2 pools were positive for Giardia only, another 2 were positive for Cryptosporidium only, and 1 was positive for both Giardia and Cryptosporidium. Concentrations of (oo) cysts in positive pool water were 0.03 cysts/L of Giardia and 0.03–0.14 oocysts/L of Cryptosporidium. The proportional occurrences of both Giardia and Cryptosporidium were 25% (3/12) and 7.4% (2/27) in pools in the Baiyun district (suburban) and the Haizhu district (urban), respectively. There was no significant difference in the occurrence of Giardia and Cryptosporidium in swimming pools between suburban and urban areas (p = 0.159).

3.3. Occurrence of Bacteria in Swimming Pool Water

Total coliforms were detected in 4 (10.3%) of 39 swimming pools, with concentrations of 1.3, 3.2, 154.0, and 154.0 MPN/100 mL, respectively. Concentrations of total coliform in 2 of the positive pools were lower while that of the other 2 pools were higher than the 18 cfu/L specified in the Chinese Standard. E. coli was also detected in the same 4 (10.3%) of 39 swimming pools, with concentrations of 0.5, 1.3, 3.2, and 5.3 MPN/100 mL. Using the standard methods stated above, pathogenic E. coli O157, Shigella and Salmonella were not detected in any of the enrolled swimming pools. P. aeruginosa was detected in 27 (69.2%) of the swimming pools. Based on the Chinese National Standard, the free residual chlorine levels in water of these swimming pools were divided into three groups: <0.3 mg/L, 0.3–0.5 mg/L, and >0.5 mg/L. The proportional occurrence of P. aeruginosa in each group is shown in Table 2. As shown in the table, the results of logistic correlation analysis using <0.3 mg/L as the control group indicated that there was no significant relationship between the level of free residual chlorine and the presence of P. aeruginosa. (p = 0.55 and 1.00, respectively).

3.4. MLST of P. aeruginosa

Among the 27 P. aeruginosa isolates, 17 isolates were positive for all the seven housekeeping genes, therefore they were analyzed using MLST. One or more housekeeping genes in each isolate could not be amplified or sequenced, as a result, 6 alleles of acsA, ppsA and trpE; 5 alleles of aroE, mutL and nuoD; and 7 alleles of guaA were successfully sequenced (Table 3). The MLST analysis identified 11 STs from the tested isolates, all were distinct from existing STs at (http://pubmlst.org/) and therefore were novel STs. Using the curator Ellie Pinnock of PubMLST (http://pubmlst.org/), three ST types have been named as ST-1764, ST-1765 and ST-1766 and the remaining types are designated as ST-A, ST-B, ST-C, ST-D, ST-E, ST-F, ST-G and ST-H. According to the most stringent definition by the eBURST, a ST group was defined as isolates sharing identical alleles at ≥6 of the 7 loci among isolates in a group that belonged to a clonal complex. Otherwise it was singleton. Isolates stemming from a group were considered as belonging to a single clonal complex. The STs with one and two distinct loci compared to the founder strain were named single-locus variants (SLV) and double-locus variants (DLV), respectively (Table 3). Phylogenetic analysis indicated that these STs from different pools and different districts fell into the same branches with the exceptions of ST-D and ST-E in one branch, ST-C and ST-1766 in one branch, and ST-A, ST-B, and ST-1764 in one branch (Figure 1). The type and locations of these samples are listed in Table 3. To further explore the associations between the P. aeruginosa isolates from current study and P. aeruginosa isolates from the database of PubMLST, a population structure of P. aeruginosa isolates was created (Figure 2). As shown in the figure, STs and isolates of P. aeruginosa from the current study were distinct from the 1833 STs at the PubMLST, which supports the assertion of the existence of unique and novel STs of P. aeruginosa in swimming pool water in the Guangzhou area.

3.5. P. aeruginosa Susceptibility to Antibiotics

Susceptibility tests were performed on all the 27 P. aeruginosa isolates, each from different pools. Six isolates (ID# 2, 16, 17, 32, 33 and 37) exhibited different levels of susceptibility (R, IR, or S) to tested antibiotics while all the other isolates (IDs not provided) were susceptible to all tested drugs (Table 4). Among the tested drugs, 2 isolates (#2 and #37) were resistant to piperacillin, 2 isolates (#17 and #33) were resistant to imipenem, and 1 isolate (#17) was resistant to gentamicin (Table 4). The isolates #2, #16, #17 and #37 corresponded to the MLST groups of ST-A, ST-1765, ST-1766, and ST-D, respectively. All the rest of the isolates (not listed in Table 4) were susceptible to all tested drugs.

4. Discussion

According to our observations during the survey and the survey results, overall there is a lack of good practices in pool management, including water disinfection. The free residual chlorine levels of 18 (46%) swimming pools were greater than 0.5 mg/L, which is higher than that of China’s National Standard for swimming pools. However, the standards for free residual chlorine for swimming pool water in some European countries [13] are higher than the Chinese standard, which may increase the efficiency of water disinfection. On the other hand, the pools open in June through September which is the warmest season of the whole year in Guangzhou. UV radiation can lead to the formation of chlorate in the water, which reduces the concentration of free chlorine available in water and subsequently impacts the effects of chlorine disinfection. Also, because children were not required to wear diapers when swimming, there was a potential of pool water contamination by children with diarrhea, which is a reported route for swimming pool contamination with Cryptosporidium [20]. Finally, the manner of refreshing pool water (adding water when necessary instead of replacing water completely) could facilitate the accumulation of pathogens in water.
The overall prevalence of Giardia and Cryptosporidium were both 12.8% in swimming pools during the study period. No significant differences in the occurrence of the two protozoal parasites were found between pools in urban and suburban areas. This is converse to our previous findings that prevalence of Cryptosporidium was significantly higher in children hospitalized in suburban hospitals than in urban hospitals in the same area [17]. This is probably because of the different transmission routes of Cryptosporidium in children patients living in urban and suburban areas. Due to limited numbers of (oo) cysts detected from pool water we did not characterize the two parasites by genotyping, hence the genotypes and zoonotic potential of the two parasites in pool water were unknown. In our previous study we found that the dominant species of Cryptosporidium in children hospitalized for diarrhea in the same area was C. parvum, a species that infects humans and a wide range of animals [17]. Also, because of the limited numbers of oocysts detected in samples, we did not assess the viability of oocysts, therefore, it was unknown if the oocysts detected in pool water were infective. However, it is known that oocysts are resistant to chlorine and cause waterborne illness associated with swimming pools [21,22]. Cryptosporidium and Giardia are infectious to people, especially children, the elderly, others with weakened immunity (such as AIDS patients) and travelers, and may cause severe diarrhea and even death [23,24]. The two parasites are major causes of waterborne parasitic infections all over the world, including developed countries such as New Zealand, Australia and USA [25]. A challenge to control these waterborne parasites is that chlorination is ineffective against (oo) cysts [25]. Although UV irradiation [26] and ozone [27] show promising effects against (oo) cysts, these methods have not been practical for disinfection of swimming pool water. As a result, waterborne Cryptosporidium and Giardia associated with swimming occur frequently [28,29]. Therefore, it was not a surprise to detect Cryptosporidium and Giardia in swimming pool water in the area, and the results demonstrated that control of the two most common waterborne protozoa is a continuous task in Guangzhou area, as it is elsewhere.
With respect to bacterial pathogens, both total coliform and E. coli were detected in approximately 10% of the enrolled swimming pools. These indicator organisms can potentially cause various diseases, particularly in children under five years old and the elderly [6]. Presence of these organisms in water often indicates the ineffectiveness of water disinfection [30], especially the pools with total coliform concentrations higher than the National Standard in this study. The good news is that pathogenic bacteria, E. coli O157, Shigella and Salmonella were not detected in all swimming pools, including those 10% of pools that were positive for total coliforms and E. coli. However, another pathogenic bacterium, P. aeruginosa was found to be highly prevalent (69%) in studied swimming pools.
P. aeruginosa is ubiquitous in water and is resistant to chemical disinfectants such as chlorine [31]. P. aeruginosa cause a variety of disease including folliculitis, external otitis, keratitis, urinary infections and gastrointestinal infections through exposure to skin, ears, eyes, urinary track, lungs and the gut [12,30,32]. Seventy-nine percent of ear infections in swimmers were ascribed to P. aeruginosa with symptoms ranging from earache to hearing loss [33]. According to a survey of waterborne diseases in the USA between 1999 and 2008, P. aeruginosa was the second most common waterborne pathogenic micro-organism after Cryptosporidium [6]. A study reported that P. aeruginosa was detected in 95 (59%) of 161 samples of swimming pool filter backwash in Atlanta, Georgia, GA, USA [34]. In the present study we detected similarly high occurrence (69%) of P. aeruginosa in public swimming pools in the Guangzhou area. Also, the same STs or the same group of STs of P. aeruginosa were distributed among different types of pools in different complexes, and in different locations (Table 3). Our MLST (Figure 1) and population structure analysis (Figure 2) showed that STs of P. aeruginosa from swimming pools in the studied area were distinct from strains from other areas and other types of samples, indicating that unique P. aeruginosa strains were present in the aquatic environment in the area. Although our study did not determine the routes of transmission of P. aeruginosa in the area, P. aeruginosa can be carried on the equipment of swimmers [33]. Finally, several isolates of P. aeruginosa from swimming pools were resistant to some medically important antibiotics such as piperacillin, imipenem, and gentamicin (Table 4). This result is consistent with reports that P. aeruginosa isolates from water environments have lower antibiotic resistance than those of clinical specimens [35]. However, the presence of antibiotic resistant P. aeruginosa in swimming pool water indicates that swimming pool water can serve as a route for transmitting antibiotic resistant bacteria and genes, hence presenting additional risks to swimmers who use public swimming pools and workers who perform maintenance of the pools.
Waterborne illness associated with swimming pools is commonly attributed to fecal contamination of water either by swimmers or animals that have access to outdoor pools [36,37]. Other non-fecal substances, such as vomit, mucus, saliva and skin can also serve as sources of pathogenic micro-organisms in swimming pools [38]. Although there are microbiological standards using total bacteria count and total coliform for swimming water, research on microbiological safety associated with pathogens in swimming pool water has been sparse in China. Our study showed the presence of pathogens such as Cryptosporidium, Giardia and antibiotic resistant P. aeruginosa in public swimming pools that potentially pose risks to public health. Data from our study and future similar studies will provide a background for public health agencies and communities to improve the management of public swimming pools in order to prevent waterborne illness associated with swimming pools.

5. Conclusions

This is the initial work of assessing microbiological safety of water in public swimming pools in Guangzhou, China. The presence of Cryptosporidium, Giardia and antibiotic resistant P. aeruginosa in swimming water indicate potential risks to public health in this area. Results suggest the need of updating management of swimming pool facilities and treatment of swimming water in order to prevent waterborne illness associated with swimming in the area.

Author Contributions

Conceptualization, E.R.A., X.L. and S.C.; Methodology, S.H. and C.X.; Data Curation, X.W., J.L. and H.Z.; Data Analysis X.W. and X.L.; Draft Preparation, X.W.; Writing-Review & Editing, X.L. E.R.A. and S.C.; Supervision, E.R.A., Z.Y., and S.C.

Funding

This work was supported by the University Outreach and International Programs (UOIP) Seed Grant (2012) of University of California Davis and the Project for Key Medicine Discipline Construction of Guangzhou Municipality (2013-2015-07).

Acknowledgments

The authors thank the Guangzhou Center for Disease Control and Prevention for its’ kind support of this study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Leclerc, H.; Schwartzbrod, L.; Dei-Cas, E. Microbial agents associated with waterborne diseases. Crit. Rev. Microbiol. 2002, 28, 371–409. [Google Scholar] [CrossRef] [PubMed]
  2. Bitton, G. Microbiology of Drinking Water Production and Distribution, 1st ed.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2014; p. 312. [Google Scholar]
  3. WHO. Water Sanitation Hygiene. Available online: http://www.who.int/water_sanitation_health/en/ (accessed on 6 June 2018).
  4. Alhamlan, F.S.; Al-Qahtani, A.A.; Al-Ahdal, M.N. Recommended advanced techniques for waterborne pathogen detection in developing countries. J. Infect. Dev. Ctries. 2015, 9, 128–135. [Google Scholar] [CrossRef] [PubMed]
  5. WHO. Global Water Supply and Sanitation Assessment 2000 Report. Available online: http://www.who.int/water_sanitation_health/monitoring/jmp2000.pdf (accessed on 30 May 2018).
  6. Barna, Z.; Kadar, M. The risk of contracting infectious diseases in public swimming pools. A review. Ann. Ist. Super. Sanita 2012, 48, 374–386. [Google Scholar] [CrossRef] [PubMed]
  7. WHO. Water Recreation and Disease. 2005. Available online: http://www.who.int/water_sanitation_health/bathing/recreadis.pdf (accessed on 28 May 2018).
  8. Giampaoli, S.; Romano Spica, V. Health and safety in recreational waters. Bull. World Health Organ. 2014, 92, 79. [Google Scholar] [CrossRef] [PubMed]
  9. Mavridou, A.; Pappa, O.; Papatzitze, O.; Blougoura, A.; Drossos, P. An overview of pool and SPA regulations in Mediterranean countries with a focus on the tourist industry. J. Water Health 2014, 12, 359–371. [Google Scholar] [CrossRef] [PubMed]
  10. Waldron, L.S.; Ferrari, B.C.; Cheung-Kwok-Sang, C.; Beggs, P.J.; Stephens, N.; Power, M.L. Molecular epidemiology and spatial distribution of a waterborne cryptosporidiosis outbreak in Australia. Appl. Environ. Microbiol. 2011, 77, 7766–7771. [Google Scholar] [CrossRef] [PubMed]
  11. Smith, A.; Reacher, M.; Smerdon, W.; Adak, G.K.; Nichols, G.; Chalmers, R.M. Outbreaks of waterborne infectious intestinal disease in England and Wales, 1992–2003. Epidemiol. Infect. 2006, 134, 1141–1149. [Google Scholar] [CrossRef] [PubMed]
  12. Rice, S.A.; van den Akker, B.; Pomati, F.; Roser, D. A risk assessment of Pseudomonas aeruginosa in swimming pools: A review. J. Water Health 2012, 10, 181–196. [Google Scholar] [CrossRef] [PubMed]
  13. Dallolio, L.; Belletti, M.; Agostini, A.; Teggi, M.; Bertelli, M.; Bergamini, C.; Chetti, L.; Leoni, E. Hygienic Surveillance in Swimming pools: Assessment of the Water Quality in Bologna Facilities in the Period 2010–2012. Microchem. J. 2013, 110, 624–628. [Google Scholar] [CrossRef]
  14. Zhang, L.Y.; Chen, R.Y.; Li, Y. Investigation of various pathogenic bacteria in indoor swimming pool water. Chin. J. Health Lab. Technol. 2008, 18, 335–337. [Google Scholar]
  15. Zhang, H.X.; Li, D.; Guo, Q. Monitoring results of water quality of swimming pools in Dalian city during 2009–2010. Occup. Health 2011, 27, 2–3. [Google Scholar]
  16. Zhou, W.M.; Han, R.P.; Qiu, Y.R. Detection result of water quality of swimming pools in Kunming City from 2009–2011. Occup. Health 2013, 29, 990–991. [Google Scholar]
  17. Chen, X.; Atwill, E.R.; Zhong, F.; Wei, Y.; Hou, S.; Li, J.; Xu, C.; Xiao, C.; Yang, Z.; Li, X. Prevalence and risk factors of Cryptosporidium infection in children with clinical diarrhea in Guangzhou, China. J. Bacteriol. Parasitol. 2017, 8, 1–8. [Google Scholar] [CrossRef]
  18. Rhodes, E.R.; Villegas, L.F.; Shaw, N.J.; Miller, C.; Villegas, E.N. A modified EPA Method 1623 that uses tangential flow hollow-fiber ultrafiltration and heat dissociation steps to detect waterborne Cryptosporidium and Giardia spp. J. Vis. Exp. 2012, 3791–4177. [Google Scholar] [CrossRef] [PubMed]
  19. CLSI. Performance Standards for Antimicrobial Susceptibility Testing; 23th Informational Supplement (Document M100-S23); CLSI: Wayne, PA, USA, 2013. [Google Scholar]
  20. Causer, L.M.; Handzel, T.; Welch, P.; Carr, M.; Culp, D.; Lucht, R.; Mudahar, K.; Robinson, D.; Neavear, E.; Fenton, S.; et al. An outbreak of Cryptosporidium hominis infection at an Illinois recreational waterpark. Epidemiol. Infect. 2006, 134, 147–156. [Google Scholar] [CrossRef] [PubMed]
  21. MacKenzie, W.R.; Kazmierczak, J.J.; Davis, J.P. An outbreak of cryptosporidiosis associated with a resort swimming pool. Epidemiol. Infect. 1995, 115, 545–553. [Google Scholar] [CrossRef] [PubMed]
  22. Takagi, M.; Toriumi, H.; Endo, T.; Yamamoto, N.; Kuroki, T. An outbreak of cryptosporidiosis associated with swimming pools. Kansenshogaku zasshi J. Jpn. Assoc. Infect. Dis. 2008, 82, 14–19. [Google Scholar] [CrossRef]
  23. Gao, J.Z. Clinical Laboratory Parasitology; People’s Health Publishing House: Beijing, China, 2009. [Google Scholar]
  24. White, G.C. Handbook of Chlorination and Alternative Disinfectants, 4th ed.; John Wiley & Sons Inc.: New York, NY, USA, 1999. [Google Scholar]
  25. Baldursson, S.; Karanis, P. Waterborne transmission of protozoan parasites: Review of worldwide outbreaks—An update 2004–2010. Water Res. 2011, 45, 6603–6614. [Google Scholar] [CrossRef] [PubMed]
  26. Hijnen, W.A.; Beerendonk, E.F.; Medema, G.J. Inactivation credit of UV radiation for viruses, bacteria and protozoan (oo)cysts in water: A review. Water Res. 2006, 40, 3–22. [Google Scholar] [CrossRef] [PubMed]
  27. Korich, D.G.; Mead, J.R.; Madore, M.S.; Sinclair, N.A.; Sterling, C.R. Effects of ozone, chlorine dioxide, chlorine, and monochloramine on Cryptosporidium parvum oocyst viability. Appl. Environ. Microbiol. 1990, 56, 1423–1428. [Google Scholar] [PubMed]
  28. Hall, V.; Taye, A.; Walsh, B.; Maguire, H.; Dave, J.; Wright, A.; Anderson, C.; Crook, P. A large outbreak of gastrointestinal illness at an open-water swimming event in the River Thames, London. Epidemiol. Infect. 2017, 145, 1246–1255. [Google Scholar] [CrossRef] [PubMed]
  29. Levy, D.A.; Bens, M.S.; Craun, G.F.; Calderon, R.L.; Herwaldt, B.L. Surveillance for waterborne-disease outbreaks—United States, 1995–1996. MMWR CDC Surveill. Summ. Morb. Mortal. Wkly. Rep. CDC Surveill. Summ. 1998, 47, 1–34. [Google Scholar]
  30. McFeters, G.A.; Kippin, J.S.; LeChevallier, M.W. Injured coliforms in drinking water. Appl. Environ. Microbiol. 1986, 51, 1–5. [Google Scholar] [PubMed]
  31. Craun, G.F.; Calderon, R.L.; Craun, M.F. Outbreaks associated with recreational water in the United States. Int. J. Environ. Health Res. 2005, 15, 243–262. [Google Scholar] [CrossRef] [PubMed][Green Version]
  32. Mena, K.D.; Gerba, C.P. Risk assessment of Pseudomonas aeruginosa in water. Rev. Environ. Contam. Toxicol. 2009, 201, 71–115. [Google Scholar] [PubMed]
  33. Hajjartabar, M. Poor-quality water in swimming pools associated with a substantial risk of otitis externa due to Pseudomonas Aeruginosa. Water Sci. Technol. J. Int. Assoc. Water Pollut. Res. 2004, 50, 63–67. [Google Scholar] [CrossRef]
  34. Hutcheson, C.; Cira, R.; Gaines, S.L.; Jones, K.R.; Howard, W.; Hornsby, D.; Redmond, M.; Rustin, C.; Hlavsa, M.C.; Murphy, J.L.; et al. Microbes in Pool Filter Backwash as Evidence of the Need for Improved Swimmer Hygiene—Metro-Atlanta, Georgia, 2012. MMWR-Morbid. Mortal. Wkly. Rep. 2013, 62, 385–388. [Google Scholar]
  35. Reali, D.; Rosati, S. Antibiotic susceptibility and serotyping of Pseudomonas aeruginosa strains isolated from surface waters, thermomineral waters and clinical specimens. Zent. Hyg. Umweltmed. 1994, 196, 75–80. [Google Scholar]
  36. WHO. Microbial hazards. In Guidelines for Safe Recreational Water Environments. Swimming Pools and Similar Environments; WHO Press: Geneva, Switzerland, 2006. [Google Scholar]
  37. Nichols, G. Infection risks from water in natural and man-made environments. Euro Surveill. Bull. Eur. Mal. Transm. Eur. Commun. Dis. Bull. 2006, 11, 76–78. [Google Scholar] [CrossRef]
  38. Papadopoulou, C.; Economou, V.; Sakkas, H.; Gousia, P.; Giannakopoulos, X.; Dontorou, C.; Filioussis, G.; Gessouli, H.; Karanis, P.; Leveidiotou, S. Microbiological quality of indoor and outdoor swimming pools in Greece: Investigation of the antibiotic resistance of the bacterial isolates. Int. J. Hyg. Environ. Health 2008, 211, 385–397. [Google Scholar] [CrossRef] [PubMed]

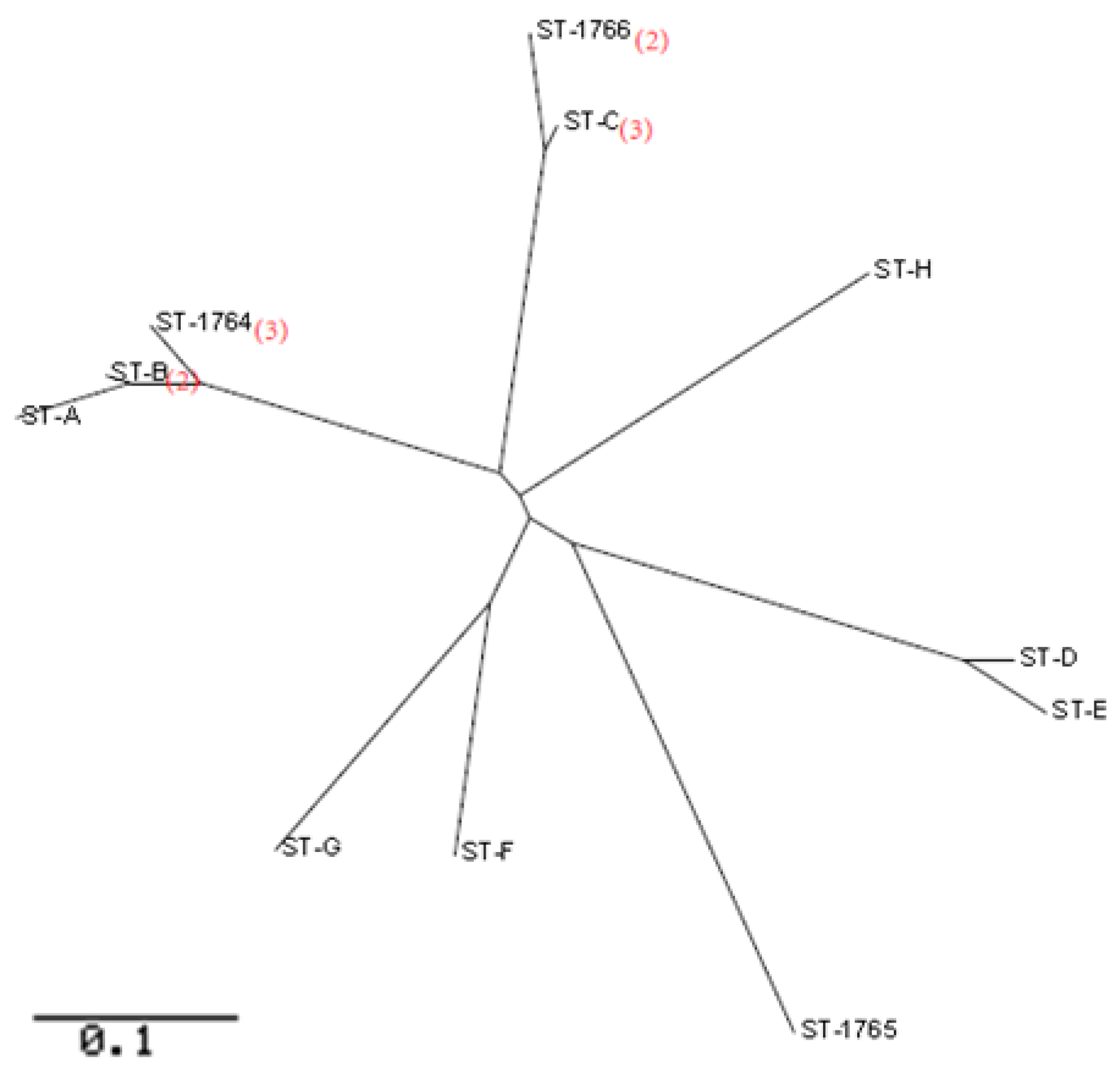

Figure 1. Phylogenetic tree of MLSTs of 17 P. aeruginosa isolates each from different swimming pools. The red digits in the parentheses denote the numbers of the STs. The number of unmarked STs was 1.
Figure 1. Phylogenetic tree of MLSTs of 17 P. aeruginosa isolates each from different swimming pools. The red digits in the parentheses denote the numbers of the STs. The number of unmarked STs was 1.
Ijerph 15 01416 g001

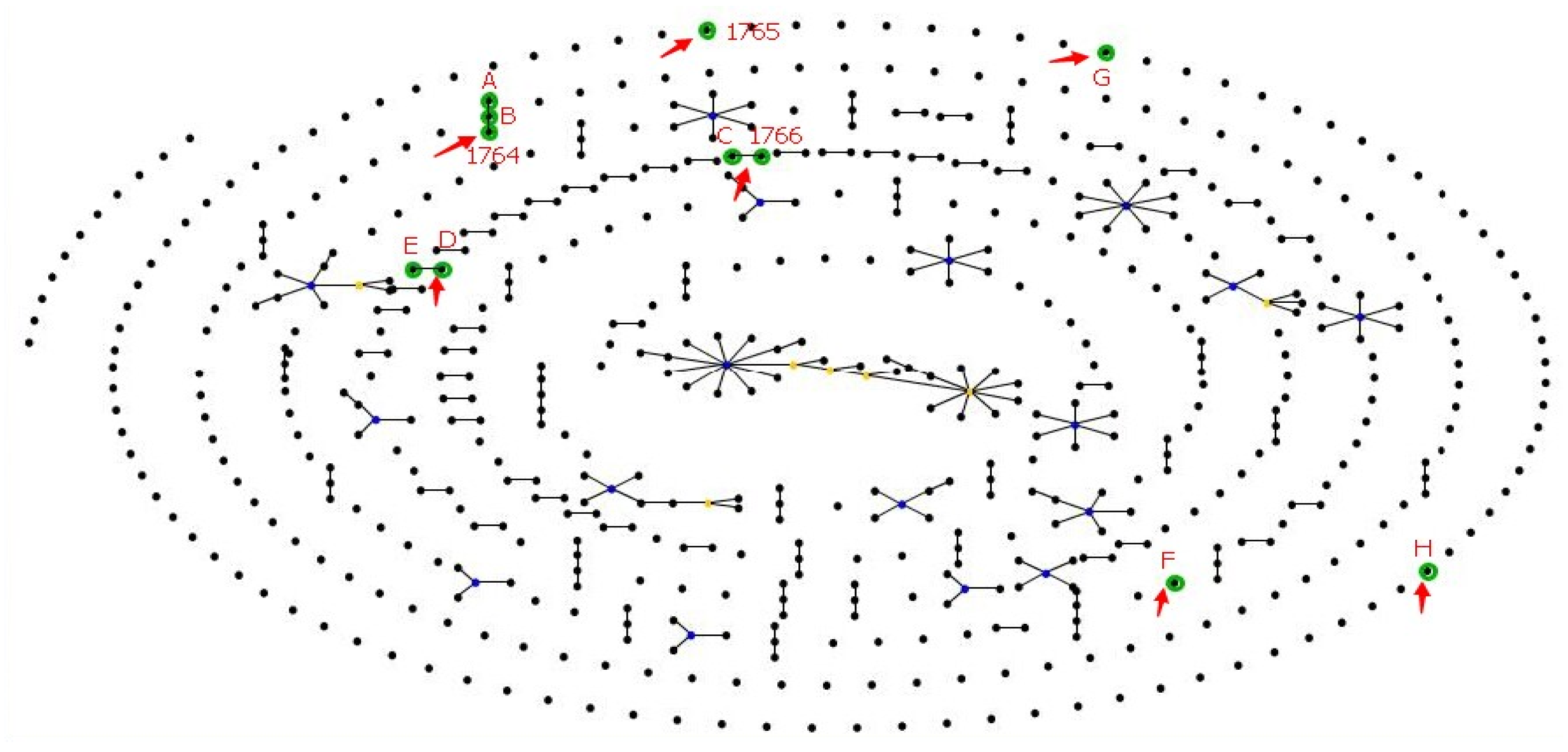

Figure 2. Population structure of the 1833 STs listed in the P. aeruginosa PubMLST database and the 11 STs from this study. Note: The figure shows all BURST groups (connected STs), singleton STs, ancestral founders (blue STs), and subgroup founders (yellow STs). Dots represent STs and lines connect single-locus variants. Purple letters and digits represent STs of P. aeruginosa from the current study and STs with green halos represent STs detected only in the current study. Line length and singleton ST placement is arbitrary.
Figure 2. Population structure of the 1833 STs listed in the P. aeruginosa PubMLST database and the 11 STs from this study. Note: The figure shows all BURST groups (connected STs), singleton STs, ancestral founders (blue STs), and subgroup founders (yellow STs). Dots represent STs and lines connect single-locus variants. Purple letters and digits represent STs of P. aeruginosa from the current study and STs with green halos represent STs detected only in the current study. Line length and singleton ST placement is arbitrary.
Ijerph 15 01416 g002
Table 1. Primers used for multi-locus sequence typing (MLST) of P. aeruginosa isolates.
Table 1. Primers used for multi-locus sequence typing (MLST) of P. aeruginosa isolates.
Locus and FunctionsPrimers Sequence (5′—3′)Size (bp)
ForwardReverse
acsAAmplificationACCTGGTGTACGCCTCGCTGACGACATAGATGCCCTGCCCCTTGAT842
SequencingGCCACACCTACATCGTCTATGTGGACAACCTCGGCAACCT390
aroEAmplificationTGGGGCTATGACTGGAAACCTAACCCGGTTTTGTGATTCCTACA825
SequencingATGTCACCGTGCCGTTCAAGTGAAGGCAGTCGGTTCCTTG495
guaAAmplificationCGGCCTCGACGTGTGGATGAGAACGCCTGGCTGGTCTTGTGGTA940
SequencingAGGTCGGTTCCTCCAAGGTCTCAAGTCGCACCACAACGTC372
mutLAmplificationCCAGATCGCCGCCGGTGAGGTGCAGGGTGCCATAGAGGAAGTC940
SequencingAGAAGACCGAGTTCGACCATATGACTTCCTCTATGGCACC441
nuoDAmplificationACCGCCACCCGTACTGTCTCGCCCATCTTGACCA1042
SequencingACGGCGAGAACGAGGACTACTTCACCTTCACCGACCGCCA366
ppsAAmplificationGGTCGCTCGGTCAAGGTAGTGGGGGTTCTCTTCTTCCGGCTCGTAG989
SequencingGGTGACGACGGCAAGCTGTATCCTGTGCCGAAGGCGATAC369
trpEAmplificationGCGGCCCAGGGTCGTGAGCCCGGCGCTTGTTGATGGTT811
SequencingTTCAACTTCGGCGACTTCCAGGTGTCCATGTTGCCGTTCC441
Table 2. Occurrence of P. aeruginosa in swimming pool water with different residual levels of free chlorine.
Table 2. Occurrence of P. aeruginosa in swimming pool water with different residual levels of free chlorine.
Residual Levels of Free Chlorine (mg/L)% (Positive/Total) Occurrence of P. aeruginosapOR (95% CI)
<0.366.7 (8/12)--
0.3 to 0.577.8 (7/9)1.001.00 (0.21, 4.71)
>0.566.7 (12/18)0.551.75 (0.28, 11.15)
Total69.2 (27/39)--
Note: OR = odds ratio, CI = confidence interval. <0.3 mg/L was used as control group.
Table 3. List of the alleles and bioinformatics analysis of STs of P. aeruginosa isolates from public swimming pools in Guangzhou, 2013.
Table 3. List of the alleles and bioinformatics analysis of STs of P. aeruginosa isolates from public swimming pools in Guangzhou, 2013.
acsAaroEguaAmutLnuoDppsAtrpEGroupSTsSLVDLVFreqPool TypeDistrict
8111112573201391ST-A111ResidentialHaizhu
8111112513201391ST-B202ResidentialBaiyun
811157513201391ST-1764113ResidentialBaiyun
53955936472ST-1766102Residential; Water parkBaiyun; Haizhu
53955136472ST-C103Residential; Water park *Baiyun; Haizhu
705722320263ST-D101SchoolHaizhu
70572234263ST-E101Water parkBaiyun
55571313743SingletonST-F--1Water parkHaizhu
8359313103SingletonST-G--1ResidentialBaiyun
3213241313625SingletonST-H--1Water parkBaiyun
39641461152SingletonST-1765--1ResidentialBaiyun
* Represents two pools from the water park located in Haizhu district.
Table 4. Phenotypic antibiotic resistance traits of P. aeruginosa from public swimming pools in Guangzhou, 2013.
Table 4. Phenotypic antibiotic resistance traits of P. aeruginosa from public swimming pools in Guangzhou, 2013.
Isolates IDPENICILLINSΒ-LACTAMCephemsCarbapenemsAminoglycosidesFluoroquinolones
PiperacillinTicarcillin-Clavulanic AcidTazobactamCeftazidimeCefepimeImipenemGentamicinTobramycinAmikacinCiprofloxacinLevofloxacin
2R *SSSSSSSSSS
16IR **SSSSSIRSSSS
17S ***SSSSRRSSSS
32IRSSSSSIRSSSS
33SSSSSRSSSSS
37RSSSSSSSSSS
All other isolatesSSSSSSSSSSS
* R = Resistant; ** IR = Intermediate Resistant; *** S = Susceptible.
