Int. J. Environ. Res. Public Health 2018, 15(6), 1290; doi:10.3390/ijerph15061290

Article
Red-Light-Running Crashes’ Classification, Comparison, and Risk Analysis Based on General Estimates System (GES) Crash Database
1
MOE Key Laboratory for Urban Transportation Complex Systems Theory and Technology, School of Traffic and Transportation, Beijing Jiaotong University, Beijing 100044, China
2
Centre for Accident Research and Road Safety-Queensland (CARRS-Q), Institute of Health and Biomedical Innovation (IHBI), Queensland University of Technology (QUT), Kelvin Grove, QLD 4059, Australia
3
Center for Advanced Transportation System Simulation, Department of Civil Environment Construction Engineering, University of Central Florida, Orlando, FL 32801, USA
4
Research Centre for Integrated Transport Innovation (rCITI), School of Civil and Environmental Engineering, University of New South Wales, Randwick, NSW 2052, Australia
*
Author to whom correspondence should be addressed.
Received: 10 April 2018 / Accepted: 4 June 2018 / Published: 19 June 2018

Abstract

:
Red-light running (RLR) has been identified as one of the prominent contributing factors involved in signalized intersection crashes. In order to reduce RLR crashes, primarily, a better understanding of RLR behavior and crashes is needed. In this study, three RLR crash types were extracted from the general estimates system (GES), including go-straight (GS) RLR vehicle colliding with go-straight non-RLR vehicle, go-straight RLR vehicle colliding with left-turn (LT) non-RLR vehicle, and left-turn RLR vehicle colliding with go-straight non-RLR vehicle. Then, crash features within each crash type scenario were compared, and risk analyses of GS RLR and LT RLR were also conducted. The results indicated that for the GS RLR driver, the speed limit displayed the highest effects on the percentages of GS RLR collision scenarios. For the LT RLR driver, the number of lanes displayed the highest effects on the percentages of LT RLR collision scenarios. Additionally, the drivers who were older than 50 years, distracted, and had a limited view were more likely to be involved in LT RLR accidents. Furthermore, the speeding drivers were more likely to be involved in GS RLR accidents. These findings could give a comprehensive understanding of RLR crash features and propensities for each RLR crash type.
Keywords:
red-light-running crash; crash types; collision scenarios; GES database; classification tree; quasi-induced exposure technique

1. Introduction

A red-light-running (RLR) crash is defined as the event that a driver, inadvertently or deliberately, runs a red light at a signalized intersection and collides with another road user who has the right-of-way [1]. RLR violation has been identified as one of the prominent contributing factors that affect the crashes occurring at signalized intersections. In addition, RLR violation has resulted in substantial numbers of severe injuries and significant property damage [2,3,4,5]. For example, in the United States, at least 697 people were killed in accidents involving red-light running in 2013, while an estimated 127,000 people were injured [6]. According to the National Statistics of Traffic Accident in Thailand 2015, 1702 red-light-running crashes at intersections were reported, or, 1.96% of all police-reported crashes were caused by drivers violating the red light [7,8].
In order to primarily reduce RLR crashes, it is crucial to focus on how to classify the RLR crashes, and why each type of RLR crashes happens. The RLR crash types can be classified based on vehicles’ pre-crash movements. For example, two different directions of straight-through vehicles would lead to right-angle crashes. A straight-through vehicle with an opposing left-turn vehicle may lead to head-on, angle, or opposite sideswipe crashes. A straight-through vehicle and a U-turn vehicle would result in rear-end, angle, right-angle, or same-direction sideswipe crashes [9]. Additionally, different types of RLR crashes may lead to different levels of severity with different expectations. Three different types of RLR behavior are observed in the field. First, the driver intends to run red lights deliberately. Second, the driver takes an inappropriate stop-go decision at the signalized intersection when encountering yellow signal [10,11]. Third, the driver fails to see the traffic light because of distraction or insufficient visibility of the signal.
So far, researchers have done lots of work in analyzing RLR rates and identifying the factors that impacted drivers’ RLR behavior [12,13,14,15,16,17]. In terms of the traffic conditions, larger intersections and higher traffic volumes were associated with higher RLR violation rates [18]. In terms of human behavior, the longer waits are more likely to encourage RLR violation. The shorter cycles provide drivers more opportunities per hour to run a red light at each change [16]. In terms of vehicle types, truck drivers had the highest RLR violation rate (18.2%), followed by small vehicle drivers (12.9%), and then bus drivers (6.9%) [13]. As for the drivers’ characteristics, younger drivers were more likely to run the red light than older drivers, and drivers who drove alone had a higher RLR rate than those who were with other passengers [12]. Moreover, male drivers were more likely to cross the intersection at the onset of red compared to female drivers [17].
Furthermore, research on estimating the likelihood of RLR occurrences with identified influential factors were also conducted [19,20]. For instance, Chen et al. identified RLR rate by fully utilizing the data obtained from stop bar detectors, downstream entrance detectors, and advance detectors [20]. They investigated the relationships between RLR frequency and influential factors, including arriving time at advance detector, approaching speed, headway, gap to the preceding vehicle on adjacent lane, cycle length, geometric characteristics, and snowing. Ren et al. developed a logistic regression model to predict whether drivers would have RLR behavior [5]. Hill used a linear regression model to estimate RLR frequency per hour by using the number of lanes on the subject approach, the number of lanes on the crossing approach, and average daily traffic [19].
To investigate the characteristics of RLR crashes and fully interpret influential factors that are contributing to RLR violations, there are many ways to collect RLR-related data. For example, video cameras are widely used to collect the observational data [21,22]. The advantage of this method is that videos could track and capture drivers’ natural behavior second by second [23]. However, many other factors cannot be collected through the video, such as age, gender, presence of police, work zone, cell phone use, etc. Contrary to the observational methods, the driving simulators could not only extract the drivers’ behavior data, but also examine many other factors [24,25,26,27], such as the effects of yellow light onset time on drivers’ perception response time, and the effects of drivers’ age on perception response time. However, the disadvantage of the driving simulator is that the experiment may be limited in only one specific RLR collision scenario at a time, which could not reflect behavior of RLR violators comprehensively. Recently, the general estimates system (GES) database published by National Highway Traffic Safety Administration (NHTSA), US, becomes one of the most widely used crash databases, which provides comprehensive information of RLR crashes. Specifically, the database can provide the vehicle’s pre-crash movement information, the drivers’ characteristics information (e.g., age, gender, alcohol or drug use), the vehicle type information, the environmental information (e.g., number of lanes, speed limit, speeding, weather, light conditions and visibility obstruction), and the distracted information.
Therefore, the primary objective of this study is to classify RLR crashes based on vehicles’ pre-crash movements by using the GES database. Based on the classifications, the crash features within each type of RLR are compared, and the propensities of different RLR driver behavior are identified. Finally, the results of this study could provide the effective countermeasures for each type of RLR collision to reduce the number of RLR crashes.

2. Methodology

2.1. Crash Database

The general estimates system (GES) database is published by NHTSA, US. The database obtains its data by the NHTSA collectors in 60 geographic sites across the United States, and by sampling from more than five million police-reported crashes annually [28]. The crash database includes three main parts: accident information, vehicle information, and driver information. The accident information contains crash characteristics and environmental conditions at the time of the crash (e.g., weather and light conditions). The vehicle information describes the vehicles characteristics, such as types of vehicle, number of lanes, speed limit and speeding. The driver information contains drivers’ age, gender, and alcohol or drug use, which describes all persons involved in the crash. By the case number and vehicle number in each database, the information could be linked to each other for each crash so that the RLR crash could be analyzed.
In this study, the RLR crash data were extracted from the GES database between 2002 and 2014. First, the RLR crash data were selected based on the crash reason (running red lights). All the crashes that were related to red-light running were extracted from the GES database. Then, the RLR crashes were restricted to those crashes that only involved two drivers. The reason is that it is better to identify who is responsible for the crash. Finally, 12,707 RLR crashes were extracted from the GES database. The independent variables used in this study are listed in Table 1, including drivers’ age, gender, alcohol or drug use, type of vehicle, number of lanes, speed limit, speeding, weather, light conditions, distracted driving, and visibility obstruction. For simplicity and ease of interpretation of the results, all the variables are classified into categorical variables.

2.2. Crash Feature Comparisons for Each RLR Crash Types Based on Classification Tree Method

In terms of vehicle’ pre-crash movements, statistical results obtained from GES database showed that 88.8% RLR drivers were going straight to cross an intersection, and 8.4% RLR drivers were turning left to cross an intersection. However, the percentage of RLR drivers who were turning right to cross an intersection was lower than others’ pre-crash movements, which was only 2.8%. Also, the right-turn on red is not allowed for all cities in United States, which would lead to the data obtained from GES being difficult to analyze clearly and deeply with regard to right-turn RLR behavior. Thus, only go-straight (GS) and left-turning (LT) drivers were considered in this study. For the GS drivers, drivers who were at fault in an RLR crash were categorized into the GS RLR subgroup; drivers who had no improper driving actions but were involved in non-red-light-running crashes were categorized into the GS non-RLR subgroup. Similarly, in term of drivers’ fault roles, the LT drivers could be divided into LT RLR subgroup and LT non-RLR subgroup. According to the drivers’ pre-crash movements and fault roles, three major typical RLR crash types were summarized, as shown in Figure 1. The RLR crash type 1 represents crashes involving a GS RLR vehicle and a GS non-RLR vehicle, which account for 66.72% of all RLR crashes. The RLR crash type 2 (accounting for 24.99%) represents crashes involving a GS RLR vehicle and a LT non-RLR vehicle, and the RLR crash type 3 (accounting for 8.28%) refers to a LT RLR vehicle and a GS non-RLR vehicle crash.
Based on the driving direction of non-RLR vehicle, the RLR crash type 1 can be summarized into two scenarios: the GS non-RLR vehicle is approaching from the left side, and the GS non-RLR vehicle is approaching from the right side. Similarly, the RLR crash type 2 includes three scenarios: the LT non-RLR vehicle is approaching from the left side, the LT non-RLR vehicle is approaching from the right side, and the LT non-RLR vehicle is approaching from the opposing direction. The RLR crash type 3 includes three scenarios: the GS non-RLR vehicle is approaching from the left side, the GS non-RLR vehicle is approaching from the right side, and the GS non-RLR vehicle is approaching from the opposing direction. Thus, a total of eight major typical RLR scenarios are summarized based on the three different RLR crash types, which are shown in Figure 2.
In order to compare the crash features for each RLR crash type, three classification tree models were developed. The classification tree model has been proved to be an efficient and explicit interpretable method to explore the relationship between dependent and independent variables, which can straightforwardly yield predictions for the related factors, incorporating the optimal splitting rules in an “if-then” series of statements [29]. In addition, the tree mode is usually presented graphically as hierarchical structures, so that it is easy for people to understand.

2.3. Comparison of GS and LT RLR Behavior Propensities Using the Quasi-Induced Exposure Technique

In order to assess the crash risks of GS and LT RLR and compare the GS RLR behavior and LT RLR behavior, the quasi-induced exposure technique was used in this study. The relative crash involvement ratio (RAIR) was used in the quasi-induced exposure analysis as the measure of crash-causing propensity [30,31]. The factors included drivers’ age, gender, and alcohol or drug use, type of vehicle, number of lanes, speed limit and speeding, weather and light conditions, distracted driving, and visibility obstruction. Thus, the RAIR was equal to the ratio of the percentage of a specific subgroup of RLR drivers to the percentage of the same subgroup of non-RLR drivers, and the Equations (1) and (2) for GS and LT group are shown as follows:
RAIR GS , i = N 1 G S , i / N 1 G S , i N 2 G S , i / N 2 G S , i ,
RAIR LT , i = N 1 L T , i / N 1 L T , i N 2 L T , i / N 2 L T , i ,
where RAIR GS , i is the RAIR for drivers of GS group in type i condition, N 1 G S , i is the number of GS RLR drivers in type i condition, and N 2 G S , i is the number of GS non-RLR drivers in type i condition. Similarly, RAIR LT , i is the RAIR for drivers of LT group in type i condition, N 1 L T , i is the number of LT RLR drivers in type i condition, and N 2 L T , i is the number of LT non-RLR drivers in type i condition.
In addition, the p-values generated from a logistic regression qualitatively could be used to show the statistical significance of those RAIR comparisons between different types of drivers, vehicles, or environments [32,33]. Thus, logistic regression model was built to test the significance of RLR crash risk factors based on techniques of induced exposure. In this study, the dependent variable was the RLR crash or not (Y = 1 for RLR crashes and Y = 0 for non-RLR crashes). The hypothesis testing of logistic regression model was based on the 0.05 significance level.

3. Analysis of RLR Crash Types Based on Classification Tree Models

The classification tree model was used to analyze RLR crash types. The independent variables were used for comparing crash features within each crash type, including type of vehicle, number of lanes, speed limit, speeding, and weather and light conditions. The minimum numbers of cases for parent and child nodes of each classification tree model were both set as 50. The cross-validation method (10-fold) was used to assess the preference value of the tree structure generalizing to a larger population.

3.1. RLR Crash Type #1: GS RLR and GS Non-RLR

The results of classification tree for RLR crash type 1 showed that the speed limit for the road of GS non-RLR vehicle (p = 0.001, chi-square = 18.450) and light conditions (p = 0.004, chi-square = 14.447) were significantly associated with the percentage of collisions with GS non-RLR vehicle from the right side and left side. Figure 3 illustrated the classification tree diagram for the GS RLR and GS non-RLR crash type.
When an RLR driver was going straight to cross an intersection, the percentage of collisions with GS non-RLR vehicle from the right side was slightly higher than that from the left side (53.0% vs. 47.0%). Generally, if drivers have adequate time to respond to the collision, the possibility of crash occurrence would reduce. For the GS non-RLR drivers in the same situation, the distances to the conflict points between non-RLR vehicle and RLR vehicles from right or left directions seem to be different, and the distance with left side RLR vehicle is smaller than that with right side RLR vehicle (see Figure 1: RLR collision type 1). Thus, the GS non-RLR vehicle would have limited time and space to react to the left side conflicting RLR vehicle, which might be the possible reason of the higher probability of collision between GS RLR vehicle and GS non-RLR vehicle from the right side.
The results also showed that the percentage of collisions with GS non-RLR vehicle from the right side was slightly higher than that from the left side when speed limit for the road of GS non-RLR vehicle was smaller than 25 mph (41.9% vs. 58.1%) or the speed limit was between 25 mph and 35 mph (46.8% vs. 53.2%). When the speed limit for the road of GS non-RLR vehicle was higher than 35 mph, the percentage of collisions with GS non-RLR vehicle from the right side was similar to that from the left side (50.2% vs. 49.8%). One possible reason is that drivers’ reaction time to the conflicting vehicle is insufficient no matter where the RLR vehicle is, due to the higher operating speed.
In addition, when the speed limit for the road of GS non-RLR vehicle was between 25 mph and 35 mph, the light conditions played an important role in crashes with GS RLR and GS non-RLR. Specially, if the RLR crashes occurred during daytime, the percentage of collisions with GS non-RLR vehicle from the right side was higher than that from the left side (45.3% vs. 54.7%); if the RLR crashes occurred at night with light, the percentage of collisions with GS non-RLR vehicle from the right side was similar to that from the left side (50.5% vs. 49.5%). However, if the RLR crashes occurred at night without light, or at dusk/dawn, the percentage of collisions with GS non-RLR vehicle from the left side was higher than that from the right side (60.4% vs. 39.6%).

3.2. RLR Crash Type #2: GS RLR and LT Non-RLR

The results of classification tree for RLR crash type 2 showed that the speed limit for the road of LT non-RLR vehicle (p < 0.001, chi-square = 157.673), speed limit for the road of GS RLR vehicle (p < 0.001, chi-square = 70.787) and light conditions (p < 0.001, chi-square = 70.894) were significantly associated with the percentage of collisions with LT non-RLR vehicle from the right side, left side, and opposite approach. Figure 4 illustrated the classification tree diagram for the GS RLR and LT non-RLR crash type.
When an RLR driver was going straight to cross a signalized intersection, the percentage of collisions with LT non-RLR vehicle from the right side was highest (48.0%), followed by the collision with LT non-RLR vehicle from the opposing direction (46.1%) and the collision with LT non-RLR vehicle from the left side (6.0%). One possible reason for the highest percentage of collisions with LT non-RLR vehicle from the right side might be related to drivers’ visual field. The right side LT non-RLR driver’s visual field might be obscured by the left hand side A-pillar (windshield frame), which would lead to a blind area from the left of the vehicle path at the entrance to the intersection departure lane [34]. Hence, it would result in the highest percentage of collisions with LT non-RLR vehicle from the right side.
The results also showed that the percentage of collisions with LT non-RLR vehicle from the right side was highest when speed limit for the road of LT non-RLR vehicle was smaller than 35 mph. However, when the speed limit for the road of LT non-RLR vehicle was higher than 35 mph, the percentage of collisions with LT non-RLR vehicle from the opposing direction was highest (60.2%). Compared to the approaching GS RLR vehicle from the left and right side, the relative approaching speed for LT non-RLR vehicle was higher during the approaching process of GS RLR vehicle from opposing direction. Thus, it would be more difficult to avoid the collision with LT non-RLR vehicle from opposing direction due to higher relative speed, and hence would lead to higher percentage of head-on collisions.
Furthermore, when the speed limit was higher than 35 mph, the number of lanes for the LT non-RLR vehicle showed significant association with the percentages of different collision scenarios for the GS RLR and LT non-RLR crash type. If the number of lanes was equal or less than two, the percentage of collisions with LT non-RLR vehicle from the right side was highest (54.7%); if the number of lanes was higher than two, the percentage of collisions with LT non-RLR vehicle from the opposing direction was highest.

3.3. RLR Crash Type #3: LT RLR and GS Non-RLR

The results of classification tree for RLR crash type 3 (LT RLR and GS non-RLR) showed that only the number of lanes for LT RLR vehicle (p < 0.001, chi-square = 154.805) was significantly associated with the percentage of collisions with GS non-RLR vehicle from the right side, left side, and opposite approach. Figure 5 illustrated the classification tree diagram for the LT RLR and GS non-RLR crash type.
The results showed that when an RLR vehicle made a left turn at a signalized intersection, the percentage of collisions with GS non-RLR vehicle from the left side was highest (47.9%), followed by the collision with GS non-RLR vehicle from the opposing approach (39.6%), and the collision with GS non-RLR vehicle from the right side (12.5%). For the LT drivers, drivers’ left visual field might be obscured by the left hand side A-pillar (windshield frame), which would increase the difficulty to detect the left side non-RLR vehicle, and then might lead to a higher percentage of collisions with GS non-RLR vehicle from the left side.
Additionally, it was found that the number of lanes for LT RLR vehicle played an important role in LT RLR and GS non-RLR crash type. If the number of lanes was equal or less than two, the percentage of collisions with GS non-RLR vehicle from the left side was highest (66.8%); if the number of lanes was higher than two, the percentage of collisions with GS non-RLR vehicle from the opposite direction was highest (76.9% and 55.6%). Previous studies found that the number of lanes influenced the operating speed, and the increased number of lanes would lead to a higher uptrend of the operating speed [35]. As the number of lanes increased, the relative approaching speed between the LT RLR vehicle and GS non-RLR vehicle from the opposing direction also increased, which might lead to higher crash risks. Another possible reason was that more opposing lanes made it more difficult to judge the gap between oncoming vehicles, and hence, increased the collisions with opposing vehicles.

4. Results and Discussion of RLR Behavior Propensity Analysis

In this section, quasi-induced exposure technique was used to compare GS and LT RLR behavior propensity, and the results of RLR behavior propensity were shown in Table 2. Furthermore, two logistic regression models were established to test the relationship between factors and relative RLR crash risks obtained from techniques of induced exposure for GS group and LT group, respectively (as shown in Table 3).
For the GS group, drivers’ age (p < 0.001), light conditions (p = 0.009), distracted driving (p < 0.01), visibility obstruction (p < 0.001), and speeding (p < 0.001) significantly impacted the GS RLR risk. Specifically, the U-shaped pattern of drivers’ age was shown in the GS group (as shown in Figure 6). The young driver group (younger than 20 years old) had the highest RLR risk, followed by the group older than 60 years. The middle-aged groups (30–59 years) had the lowest risk. The possible reason is that young drivers tend to drive more recklessly [36,37]. As for the drivers who are over 60 years old, they might react more slowly to signal changes than younger drivers due to degraded visual ability, deterioration of muscle strength, and reaction time [36]. Therefore, they need more time to make stop–go decisions [38]. For the distracted driving, distractions such as the use of cell phone or other in-vehicle tasks might lead to higher probability of RLR behavior, as distractions could lead to a delayed recognition of critical traffic events while driving [39,40,41]. Also, drivers’ visibility obstruction increased the possibility of RLR behavior, as well as the poor light conditions. If the drivers’ visual field is restricted or visibility is low, they may not have timely perception of the yellow or red signal, and then break the proper space cushion that provides drivers enough reaction time to slow down before the stop line at the onset of red signal [42,43]. For the speeding drivers, they were more likely to run red lights which might be due to the longer distance required to stop. Besides, factors such as number of lanes (p < 0.001), speed limit (p < 0.001) had been found to influence the possibility of GS RLR significantly as well. For the GS drivers, the increased number of lanes would increase the possibility of RLR violations, as well as the speed limit.
Drivers’ age (p = 0.024), light conditions (p < 0.001), distracted driving (p < 0.001), visibility obstruction (p < 0.001), and speeding (p = 0.011) were significant factors for the LT RLR group, which was also shown in Table 2 and Table 3. The possible reason is similar to the GS group. In addition, it was found that vehicle types (p = 0.023) had significant effects on the LT RLR possibility. For the LT RLR crashes, heavy vehicle drivers were more likely to run red lights. Due to a complex vehicle structure and operation requirement, heavy vehicle drivers normally need longer stop distances and more space to perform a turn, which might motivate the driver to pass through the intersection rather than stop. In addition, the longer time and increased effort required by the heavy vehicles to accelerate after stopping for a red light might also lead to the heavy vehicle driver’s RLR behavior [44,45].
Furthermore, there were significant differences between drivers’ age, distracted driving, visibility obstruction, light conditions, and speeding in the GS and LT RLR risks. As shown in Figure 6, drivers who were over 50 years old, distracted drivers, drivers who had obstructed visibility, or drivers who were under dark conditions were more likely to have an LT RLR crash. In addition, the speeding drivers were more likely to be involved in GS RLR crashes. Compared to the GS drivers, the LT drivers usually decelerate to change to the exclusive left turn lane, or the shared left-turn/through lane in advance, and observe the signal and the surrounding traffic at the same time, which might need more effort in risk detection and response. In consideration of the complex operations involved in left-turn, the older drivers would require a longer time to detect and react to signal changes [21,36]. Adverse driving conditions, such as distraction, limited field of view, and poor light conditions would exacerbate the difficulty in performing left-turn. Eventually, the weak detecting ability and limited visual conditions lead to an increase in LT RLR crash risk. For the speeding drivers, they tended to underestimate the time and distance that the vehicle required to stop from a high speed in a straight-forward approach situation. Consequently, speeding drivers were more likely to involve in GS RLR crashes.

5. Conclusions

This study presented three RLR crash types with consideration of vehicles’ pre-crash movements (GS RLR vehicle colliding with GS non-RLR vehicle, GS RLR vehicle colliding with LT non-RLR vehicle, and LT RLR vehicle colliding with GS non-RLR vehicle) based on the crash data obtained from the GES database. For each RLR crash type, two or three RLR collision scenarios were categorized according to different approaches of the non-RLR vehicle. In order to compare crash features for different RLR collision scenarios within each crash type and identify the effects of factors related to vehicle and environment on the likelihood of crash occurrence, three corresponding classification tree models were developed. The results showed that (1) for the GS drivers, the probability of collision with non-RLR vehicles from the right side was highest; (2) when the speed limit for non-RLR vehicle was larger than 35 mph, the probability of collision with GS non-RLR vehicles from the right side was highest, and the probability of collision with LT non-RLR vehicles from the opposing side was highest; (3) for the LT driver, the probability of collision with GS non-RLR vehicles from the left side was highest; (4) when the number of lanes for LT RLR vehicle was no less than two, the probability of collision with GS non-RLR from the opposing direction was highest. Moreover, the results of risk analyses of GS and LT behavior indicated that the drivers who were older than 50 years, or distracted, or had a limited view, were more likely to be involved in LT RLR crashes, and speeding drivers were more likely to be involved in GS RLR crashes. According to the results of this study, appropriate engineering countermeasures need to be considered to reduce RLR crashes. For the intersection design and operation, a sufficient sight distance could help drivers reduce reaction times and detect traffic signal or potential conflicting vehicles in time. For the light conditions, the illumination contrast of signal lights and surrounding environment should be taken into account to enhance the visibility of signal lights and reduce the crash occurrence rate. Furthermore, warning information could also be used to provide advance information to drivers about signals ahead, especially in adverse weather conditions.
However, the limitations of this study should be noted. As the GES data come from a range of different police investigations, the reliability problem of the database has been raised by many traffic experts. However, the GES database has been widely used in many studies as an empirical traffic crash database for exploring crash characteristics, and it was often demonstrated as being reliable [46]. Nevertheless, it is still suggested that the same study be conducted using a different empirical database, and that the results be compared. Secondly, for some influencing factors, such as visibility obstruction and distraction, the data obtained from GES database could not provide complete samples for each specific classification of these factors. It is recommended that future research conduct these studies using driving simulators to explore the systematic influence mechanism of different visibility obstruction and distraction. Thirdly, because of the limited information of traffic phase, the effects of traffic signal related factors (such as phase and length) on the LT RLR behaviors are not discussed. Finally, more human factors could be considered in future research, such as drivers’ reaction time, which might be very important in analyzing drivers’ RLR behaviors propensity.

Author Contributions

X.Y. and Y.Z. conceived paper structure and proposed methodology; Y.Z. and J.W. extracted crash data; Y.Z. and X.L. analyzed the data; Y.Z. wrote the original paper; X.Y., X.L., J.W. and V.V.D. contributed improvement of this paper.

Funding

This research was funded by the National Natural Science Foundation of China [91746201 and 71621001].

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Baratian-Ghorghi, F.; Zhou, H.; Zech, W.C. Red-light running traffic violations: A novel time-based method for determining a fine structure. Transp. Res. Part A Policy Pract. 2016, 93, 55–65. [Google Scholar] [CrossRef]
  2. Young, K.L.; Salmon, P.M.; Lenné, M.G. At the cross-roads: An on-road examination of driving errors at intersections. Accid. Anal. Prev. 2013, 58, 226–234. [Google Scholar] [CrossRef] [PubMed]
  3. Polders, E.; Cornu, J.; De, C.T.; Daniels, S.; Brijs, K.; Brijs, T.; Hermans, E.; Wets, G. Drivers’ behavioral responses to combined speed and red light cameras. Accid. Anal. Prev. 2015, 81, 153–166. [Google Scholar] [CrossRef] [PubMed]
  4. Jahangiri, A.; Rakha, H.; Dingus, T.A. Red-light running violation prediction using observational and simulator data. Accid. Anal. Prev. 2016, 96, 316–328. [Google Scholar] [CrossRef] [PubMed]
  5. Ren, Y.; Wang, Y.; Wu, X.; Yu, G.; Ding, C. Influential factors of red-light running at signalized intersection and prediction using a rare events logistic regression model. Accid. Anal. Prev. 2016, 95, 266–273. [Google Scholar] [CrossRef] [PubMed]
  6. McCarthy, N. The Most Dangerous US Cities for Red-Light Running. 2015. Available online: https://www.statista.com/chart/3717/red-light-running (accessed on 12 August 2015).
  7. Kanitpong, K.; Jensupakarn, A.; Jensupakarn, P.; Jiwattanakulpaisarn, P. National Statistics of Traffic Accident in Thailand 2015; ThaiRoads Foundation: Bangkok, Thailand, 2015. [Google Scholar]
  8. Jensupakarn, A.; Kanitpong, K. Influences of motorcycle rider and driver characteristics and road environment on red light running behavior at signalized intersections. Accid. Anal. Prev. 2018, 113, 317–324. [Google Scholar] [CrossRef] [PubMed]
  9. Kweon, Y.J. Development of a Safety Evaluation Procedure for Identifying High-Risk Signalized Intersections in the Virginia Department of Transportation’s Northern Virginia District; Crash Rates; Virginia Transportation Research Council: Charlottesville, VA, USA, 2007. [Google Scholar]
  10. Wang, L.; Zhang, L.; Zhou, K.; Zhang, W.B.; Wang, X. Prediction of red-light running on basis of inductive-loop detectors for dynamic all-red extension. Transp. Res. Rec. J. Transp. Res. Board 2012, 2311, 44–50. [Google Scholar] [CrossRef]
  11. Xiang, W.; Yan, X.; Weng, J.; Li, X. Effect of auditory in-vehicle warning information on drivers’ brake response time to red-light running vehicles during collision avoidance. Transp. Res. Part F Traffic Psychol. Behav. 2016, 40, 56–67. [Google Scholar] [CrossRef]
  12. Porter, B.E.; Berry, T.D. A nationwide survey of self-reported red light running: Measuring prevalence, predictors, and perceived consequences. Accid. Anal. Prev. 2001, 33, 735–741. [Google Scholar] [CrossRef]
  13. Alomari, B.H.; Almasaeid, H.R. Red light violations at rural and suburban signalized intersections in Jordan. J. Crash Prev. Inj. Control 2003, 4, 169–172. [Google Scholar]
  14. Neale, V.L.; Perez, M.A.; Lee, S.E.; Stone, S.; Dingus, T.A. Intersection Decision Support: Evaluation of a Violation Warning System to Mitigate Straight Crossing Path Collisions; Virginia Center for Transportation Innovation & Research: Charlottesville, VA, USA, 2006. [Google Scholar]
  15. Retting, R.A.; Ferguson, S.A.; Farmer, C.M. Reducing red light running through longer yellow signal timing and red light camera enforcement: Results of a field investigation. Accid. Anal. Prev. 2008, 40, 327–333. [Google Scholar] [CrossRef] [PubMed]
  16. Bonneson, J.; Zimmerman, K.; Brewer, M. Engineering Countermeasures to Reduce Red-Light-Running; Countermeasures; Texas Transportation Institute, Texas A&M University System: College Station, TX, USA, 2002. [Google Scholar]
  17. Wang, X.; Yu, R.; Zhong, C. A field investigation of red-light-running in Shanghai, China. Transp. Res. Part F Traffic Psychol. Behav. 2016, 37, 144–153. [Google Scholar] [CrossRef]
  18. Porter, B.E.; England, K.J. Predicting red-light running behavior—A traffic safety study in three urban settings. J. Saf. Res. 2000, 31, 1–8. [Google Scholar] [CrossRef]
  19. Hill, S.E.; Lindly, J.K. Red Light Running Prediction and Analysis; Distance; UTCA Report, No. 02112; UTCA: Tuscaloosa, AL, USA, 2003. [Google Scholar]
  20. Chen, P.; Yu, G.; Wu, X.; Ren, Y.; Li, Y. Estimation of red-light running frequency using high-resolution traffic and signal data. Accid. Anal. Prev. 2017, 102, 235–247. [Google Scholar] [CrossRef] [PubMed]
  21. Yang, C.Y.D.; Najm, W.G. Analysis of Red Light Violation Data Collected from Intersections Equipped with Red Light Photo Enforcement Cameras; Human Factors; National Technical Information Service: Springfield, VA, USA, 2006. [Google Scholar]
  22. Mccartt, A.T.; Hu, W. Effects of red light camera enforcement on red light violations in Arlington county, Virginia. J. Saf. Res. 2014, 48, 57–62. [Google Scholar] [CrossRef] [PubMed]
  23. Dingus, T.A.; Klauer, S.G.; Neale, V.L.; Petersen, A.; Lee, S.E.; Sudweeks, J.; Perez, M.A.; Hankey, J.; Ramsey, D.J.; Gupta, S.; et al. The 100-Car Naturalistic Driving Study Phase II—Results of the 100-Car Field Experiment; Behavior; National Technical Information Service: Springfield, VA, USA, 2006. [Google Scholar]
  24. Caird, J.K.; Chisholm, S.L.; Edwards, C.J.; Creaser, J.I. The effect of yellow light onset time on older and younger drivers’ perception response time (PRT) and intersection behavior. Transp. Res. Part F Traffic Psychol. Behav. 2007, 10, 383–396. [Google Scholar] [CrossRef]
  25. Boyle, L.N.; Lee, J.D. Using driving simulators to assess driving safety. Accid. Anal. Prev. 2010, 42, 785–787. [Google Scholar] [CrossRef] [PubMed]
  26. Haque, M.M.; Ohlhauser, A.D.; Washington, S.; Boyle, L.N. Decisions and actions of distracted drivers at the onset of yellow lights. Accid. Anal. Prev. 2016, 96, 290–299. [Google Scholar] [CrossRef] [PubMed]
  27. Machiani, S.G.; Abbas, M. Assessment of driver stopping prediction models before and after the onset of yellow using two driving simulator datasets. Accid. Anal. Prev. 2015, 96, 308–315. [Google Scholar] [CrossRef] [PubMed]
  28. National Highway Traffic Safety Administration (NHTSA). General Estimates System (GES); US Department of Transportation: Washington, DC, USA, 2014. [Google Scholar]
  29. Harb, R.; Yan, X.; Radwan, E.; Su, X. Exploring precrash maneuvers using classification trees and random forests. Accid. Anal. Prev. 2009, 41, 98–107. [Google Scholar] [CrossRef] [PubMed]
  30. Stamatiadis, N.; Deacon, J.A. Trends in highway safety: Effects of an aging population on accident propensity. Accid. Anal. Prev. 1995, 27, 443–459. [Google Scholar] [CrossRef]
  31. Huang, H.; Chin, H.C. Disaggregate propensity study on red light running crashes using quasi-induced exposure method. J. Transp. Eng. 2009, 135, 104–111. [Google Scholar] [CrossRef]
  32. Hing, J.Y.; Stamatiadis, N.; Aultmanhall, L. Evaluating the impact of passengers on the safety of older drivers. J. Saf. Res. 2003, 34, 343–351. [Google Scholar] [CrossRef]
  33. Yan, X.; Radwan, E.; Birriel, E. Analysis of red light running crashes based on quasi-induced exposure and multiple logistic regression method. Transp. Res. Rec. J. Transp. Res. Board 2005, 1908, 70–79. [Google Scholar] [CrossRef]
  34. Murphy, T. A-pillar conflict visibility vs. roof crush. Ward’s Auto World, 1 August 2011. [Google Scholar]
  35. Fildes, B.N.; Fletcher, M.R.; Corrigan, J.M. Speed Perception 2: Driver’s Judgements of Safety and Travel Speed on Rural Curved Roads and at Night; Report CR60; Federal Office of Road Safety, Department of Transport and Communications: Canberra, Australia, 1989. [Google Scholar]
  36. Rifaat, S.M.; Chin, H.C. Analysis of Severity of Single-Vehicle Crashes in Singapore. In Proceedings of the 84th Annual Meeting of Transportation Research Board, Washington, DC, USA, 9–13 January 2005. [Google Scholar]
  37. Kockelman, K.M.; Kweon, Y.J. Driver injury severity: An application of ordered Probit models. Accid. Anal. Prev. 2002, 34, 313–321. [Google Scholar] [CrossRef]
  38. Huang, H.; Chin, H.C.; Haque, M.M. Severity of driver injury and vehicle damage in traffic crashes at intersections: A Bayesian hierarchical analysis. Accid. Anal. Prev. 2008, 40, 45–54. [Google Scholar] [CrossRef] [PubMed]
  39. Li, X.; Yan, X.; Wu, J.; Radwan, E.; Zhang, Y. A rear-end collision risk assessment model based on drivers’ collision avoidance process under influences of cell phone use and gender—A driving simulator based study. Accid. Anal. Prev. 2016, 97, 1–18. [Google Scholar] [CrossRef] [PubMed]
  40. Mccartt, A.T.; Hellinga, L.A.; Bratiman, K.A. Cell phones and driving: Review of research. Traffic Inj. Prev. 2006, 7, 89–106. [Google Scholar] [CrossRef] [PubMed]
  41. Hancock, P.A.; de Ridder, S.N. Behavioural accident avoidance science: Understanding response in collision incipient conditions. Ergonomics 2003, 46, 1111–1135. [Google Scholar] [CrossRef] [PubMed]
  42. Harb, R.; Radwan, E.; Yan, X.; Abdel-Aty, M. Light truck vehicles (LTVS) contribution to rear-end collisions. Accid. Anal. Prev. 2007, 39, 1026–1036. [Google Scholar] [CrossRef] [PubMed]
  43. Harb, R.; Radwan, E.; Yan, X. Larger size vehicles (LSVS) contribution to red light running, based on a driving simulator experiment. Transp. Res. Part F Traffic Psychol. Behav. 2007, 10, 229–241. [Google Scholar] [CrossRef]
  44. Doerzaph, Z.R.; Bhagavathula, R. Identification of Factors Related to Violation Propensity: Mining the Data of the Franklin Intersections; Virginia Tech Transportation Institute: Blacksburg, VA, USA, 2011. [Google Scholar]
  45. Yan, X.; Radwan, E.; Mannila, K.K.; Richards, S. Investigation of truck-involved angle crashes based on GES and FARS crash databases. Open Transp. J. 2009, 3, 52–62. [Google Scholar] [CrossRef]
  46. Wang, C.; Lu, L.; Lu, J.; Wang, T. Correlation between crash avoidance maneuvers and injury severity sustained by motorcyclists in single-vehicle crashes. J. Crash Prev. Inj. Control 2016, 17, 188–194. [Google Scholar] [CrossRef] [PubMed]
Figure 1. The three red-light-running (RLR) crash types obtained from the general estimates system (GES) database. Note: the green line indicates the approaching path of non-RLR vehicle; the red line indicates the approaching path of RLR vehicle. GS represents vehicle’s go straight movement and LT represents vehicle’s left-turning movement.
Figure 1. The three red-light-running (RLR) crash types obtained from the general estimates system (GES) database. Note: the green line indicates the approaching path of non-RLR vehicle; the red line indicates the approaching path of RLR vehicle. GS represents vehicle’s go straight movement and LT represents vehicle’s left-turning movement.
Ijerph 15 01290 g001
Figure 2. RLR collision scenarios for the three crash types. Note: the green line indicates the approaching path of non-RLR vehicle; the red line indicates the approaching path of RLR vehicle. GS represents vehicle’s go straight movement and LT represents vehicle’s left-turning movement.
Figure 2. RLR collision scenarios for the three crash types. Note: the green line indicates the approaching path of non-RLR vehicle; the red line indicates the approaching path of RLR vehicle. GS represents vehicle’s go straight movement and LT represents vehicle’s left-turning movement.
Ijerph 15 01290 g002

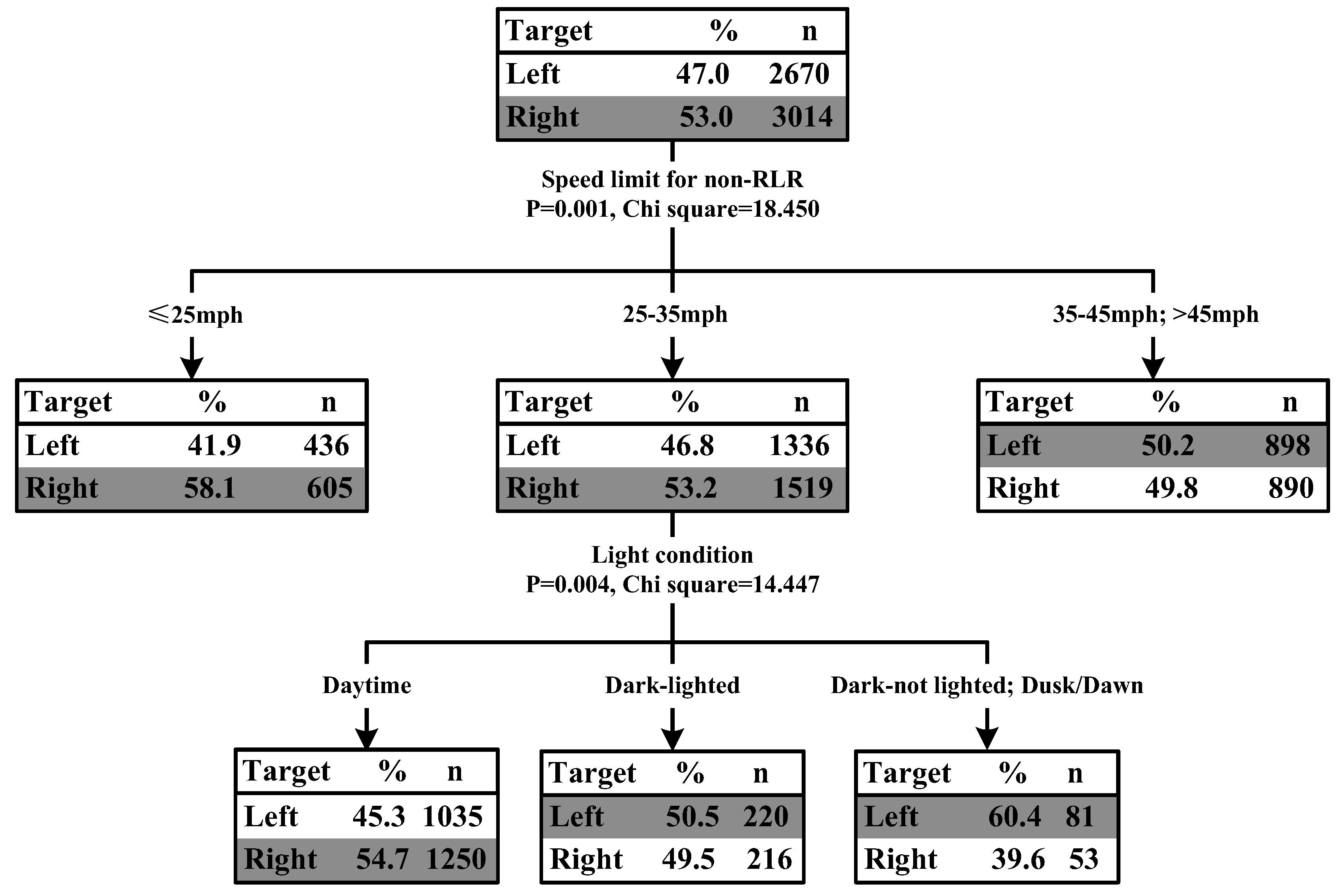

Figure 3. Tree model for RLR crash types #1 go-straight (GS) RLR and GS non-RLR.
Figure 3. Tree model for RLR crash types #1 go-straight (GS) RLR and GS non-RLR.
Ijerph 15 01290 g003

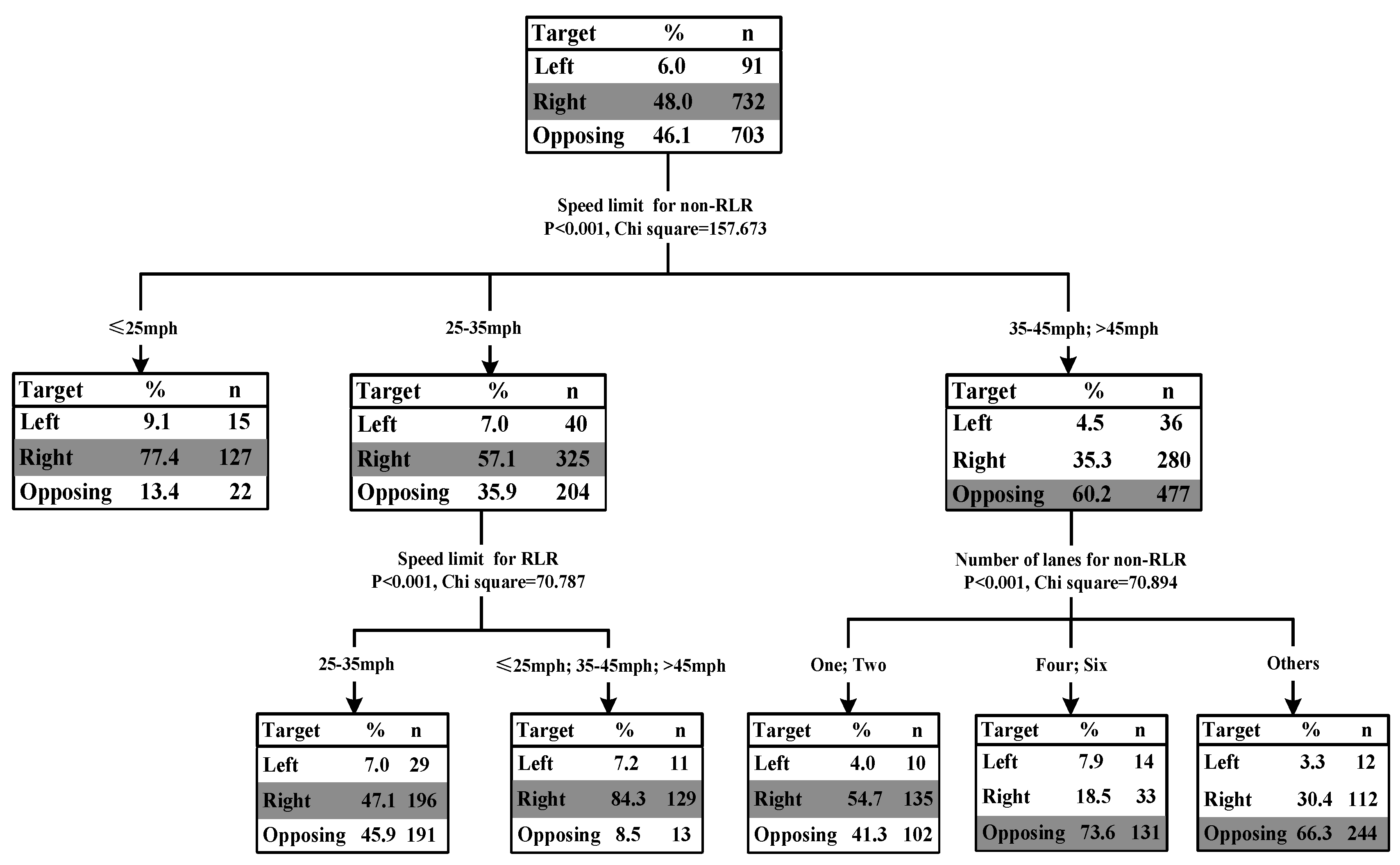

Figure 4. Tree model for RLR crash type #2 GS RLR and left-turn (LT) non-RLR.
Figure 4. Tree model for RLR crash type #2 GS RLR and left-turn (LT) non-RLR.
Ijerph 15 01290 g004

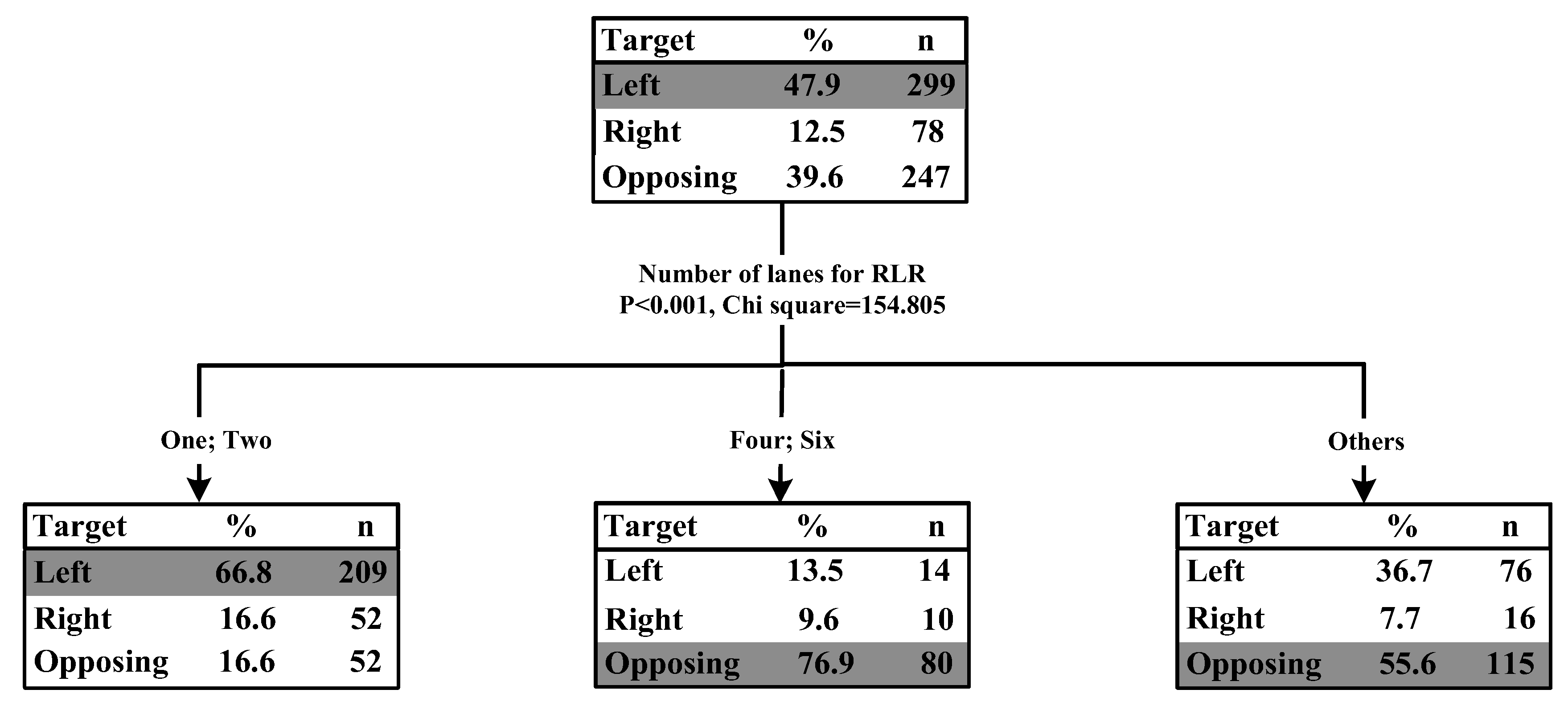

Figure 5. Tree model for RLR crash type #3 LT RLR and GS non-RLR.
Figure 5. Tree model for RLR crash type #3 LT RLR and GS non-RLR.
Ijerph 15 01290 g005
Figure 6. RAIRs for GS and LT groups under different conditions.
Figure 6. RAIRs for GS and LT groups under different conditions.
Ijerph 15 01290 g006
Table 1. Independent variables used in this study.
Table 1. Independent variables used in this study.
VariablesDefinitionCategorical Values
AgeIndicates drivers’ age at the time of the crash.
Six groups are divided in this study.
<20
20–29
30–39
40–49
50–59
≥60
GenderIndicates the sex of drivers involved in the crash.Male
Female
Alcohol or drug useIndicates whether alcohol/drug use involved in crash.No
Yes
Types of vehicleIndicates a classification of vehicle based on its general configuration.Car
Light vehicle
Heavy vehicle
Others
Number of lanesIndicates the number of travel lanes.One
Two
Four
Six
Others
Speed limitIndicates posted speed limit in miles per hour.
Four groups are divided in this study.
<25 mph
25–35 mph
36–45 mph
>45 mph
SpeedingIndicates whether the driver’s speed is larger than the posted speed limit.No
Yes
WeatherIndicates the atmospheric conditions.
Two groups are divided in this study.
Clear
Adverse
Light conditionsIndicates the type/level of light that exists at the time of the crash.Daylight
Dark—Not lighted
Dark—Lighted
Dawn/Dusk
DistractedIndicates whether the driver is distracted before the crash occurs.No
Yes
Visibility obstructionIndicates whether the driver’s vision is obstructed before the crash occurs.No
Yes
Table 2. Relative crash involvement ratio (RAIR) comparisons between GS group and LT group.
Table 2. Relative crash involvement ratio (RAIR) comparisons between GS group and LT group.
FactorsGS GroupLT Group
NON-RLR%RLR%RAIRNON-RLR%RLR%RAIR
Age
<206.26%13.82%2.2098.57%14.61%1.705
20–2921.52%25.07%1.16520.86%21.77%1.044
30–3919.79%16.15%0.81618.90%14.21%0.752
40–4919.89%15.35%0.77220.00%15.31%0.765
50–5916.66%12.33%0.74015.66%13.42%0.857
≥6015.89%17.27%1.08616.01%20.68%1.292
Distracted
No96.54%67.68%0.70197.77%71.18%0.728
Yes3.46%32.32%9.3372.23%28.82%12.931
Visibility obstruction
No98.80%95.86%0.97098.89%92.72%0.938
Yes1.20%4.14%3.4571.11%7.28%6.547
Light conditions
Daylight78.23%78.94%1.00978.64%71.85%0.914
Dark—Not lighted3.29%2.72%0.8272.20%6.20%2.813
Dark—Lighted15.51%15.08%0.97215.46%19.98%1.292
Dawn/Dusk2.97%3.27%1.0983.70%1.97%0.533
Speeding
No99.71%98.33%0.98699.80%99.22%0.994
Yes0.29%1.67%5.6960.20%0.78%3.841
Note: RLR represents red-light running. RAIR represents drivers’ relative crash involvement ratio. GS represents vehicle’s go straight movement and LT represents vehicle’s left-turning movement.
Table 3. Logistic regression results of RLR crashes for GS group and LT group.
Table 3. Logistic regression results of RLR crashes for GS group and LT group.
FactorsdfGS GroupsLT Groups
BSig.Exp (B)BSig.Exp (B)
Age (<20)5---0.000------0.024---
Age (20–29)1−0.6480.0000.523−0.3960.0870.673
Age (30–39)1−0.9590.0000.383−0.7210.0060.486
Age (40–49)1−1.0730.0000.342−0.7280.0040.483
Age (50–59)1−1.0840.0000.338−0.5370.0380.584
Age (≥60)1−0.6460.0000.524−0.2270.3610.797
Distracted (Yes)12.8500.00017.2923.0160.00020.406
Visibility obstruction (Yes)11.6500.0005.2061.3570.0003.884
Light conditions (Daylight)3---0.009------0.000---
Light conditions (Dark—Not lighted)1−0.2610.0690.7701.2540.0003.505
Light conditions (Dark—Lighted)1−0.1980.0040.8210.5280.0021.695
Light conditions (Dawn/Dusk)10.0980.4741.103−0.3420.3820.711
Speeding (Yes)11.9450.0006.9901.9810.0117.252
Number of lanes (One)4---0.000------------
Number of lanes (Two)10.6270.0101.872---------
Number of lanes (Four)10.9850.0002.679---------
Number of lanes (Six)11.3200.0003.742---------
Number of lanes (Others)10.8190.0012.268---------
Speed limit (≤25 mph)3---0.000--- ---
Speed limit (25–35 mph)10.1640.0341.178---------
Speed limit (35–45 mph)10.3870.0001.473---------
Speed limit (>45 mph)10.2010.0581.223---------
Vehicle types (Car)3------------0.023---
Vehicle types (Light vehicle)1---------−0.1920.2810.826
Vehicle types (Heavy vehicle)1---------0.5990.0121.820
Vehicle types (Others)1---------−0.1170.5280.889
Constants1−0.4520.0810.637−1.7880.0000.167
Note: df represents degrees of freedom. B represents coefficient value. Sig. represents p value. Exp (B) represents odd ratio.

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Int. J. Environ. Res. Public Health EISSN 1660-4601 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
