Int. J. Environ. Res. Public Health 2018, 15(10), 2095; https://doi.org/10.3390/ijerph15102095

Article
Evaluating Economic Growth, Industrial Structure, and Water Quality of the Xiangjiang River Basin in China Based on a Spatial Econometric Approach
1
School of Business, Central South University, Changsha 410083, China
2
Institute of Big Data and Internet Innovation, Hunan University of Commerce, Changsha 410205, China
3
School of Information and Safety Engineering, Zhongnan University of Economics and Law, Wuhan 430073, China
4
Institute of Finance, Guangzhou University, Guangzhou 510006, China
*
Authors to whom correspondence should be addressed.
Received: 30 July 2018 / Accepted: 20 September 2018 / Published: 25 September 2018

Abstract

:
This research utilizes the environmental Kuznets curve to demonstrate the interrelationship between economic growth, industrial structure, and water quality of the Xiangjiang river basin in China by employing spatial panel data models. First, it obtains two variables (namely, CODMn, which represents the chemical oxygen demand of using KMnO4 as chemical oxidant, and NH3-N, which represents the ammonia nitrogen content index of wastewater) by pretreating the data of 42 environmental monitoring stations in the Xiangjiang river basin from 2005 to 2015. Afterward, Moran’s I index is adopted to analyze the spatial autocorrelation of CODMn and NH3-N concentration. Then, a comparative analysis of the nonspatial panel model and spatial panel model is conducted. Finally, this research estimates the intermediate effect of the industrial structure of the Xiangjiang river basin in China. The results show that spatial autocorrelation exists in pollutant concentration and the relationship between economic growth and pollutant concentration shapes as an inverted-N trajectory. Moreover, the turn points of the environmental Kuznets curve for CODMn are RMB 83,001 and RMB 108,583 per capita GDP. In contrast, the turn points for NH3-N are RMB 50,980 and RMB 188,931 per capita GDP. Additionally, the environmental Kuznets curve for CODMn can be explained by industrial structure adjustment, while that for NH3-N cannot. As a consequence, the research suggests that the effect of various pollutants should be taken into account while making industrial policies.
Keywords:
economic growth; water quality; spatial effects; industrial structure

1. Introduction

Water is an indispensable substance for human life, economic development, and social progress. With the rapid development of the economy and frequent human activities, the demand for water is increasing, which gives rise to pressure on ecosystems, and especially water ecosystems. At present, a water crisis that includes water shortages, pollution, and quality deterioration is increasingly prominent and has become the main bottleneck in restricting sustainable development of human economy and society [1].
Xiangjiang River is the largest river in the Hunan Province, China. With dense towns, a large population, and concentrated industry, the river basin hosts 60% of the population and 81% of the total industrial output value of Hunan Province, which makes it the main economic belt with the densest population and fastest urbanization development in Hunan [2]. However, the rapid development of the economy and constant discharge of industrial, domestic, and agricultural wastewater in recent years have resulted in the degeneration of the Xiangjiang River Basin’s ecological function. Even worse, the discharge of pollutants in some river sections has exceeded the maximum capacity that a natural water environment can stand. The severe exceeding of ammonia nitrogen, total phosphorus, and chemical oxygen demand in Xiangjiang River Basin has led to horrible river pollution in the Hunan Province [3,4]. In view of this, pollution control in the Xiangjiang river basin is highly valued by the state and local governments of China. In July 2009, the Chinese government launched a special treatment project for heavy-metal pollution in the Xiangjiang basin, investing 595 billion yuan in total. In March 2011, the State Council of China approved the implementation plan for the treatment of heavy-metal pollution in the Xiangjiang basin, which has become the first pilot project of regional heavy-metal pollution control by the State Council of China. The main flow area in the Xiangjiang basin, Chang-Zhu-Tan city group, became the pilot area constructing a two-oriented society in 2007, which is a major policy measure to explore ways for conserving resources and protecting the environment without damaging economic growth in China. A series of policies to protect the Xiangjiang river were also implemented here, such as emission trading and ecological compensation institutions.
Economic growth has had significant impact on changes of environmental quality. Consumption of resources and pollutant discharge caused by economic growth inevitably bring about environmental degeneration. Meanwhile, economic growth could reduce pollutant discharge and improve the environment by advancing technology, improving the economic scale, as well as increase revenue. The debate over the role that economic growth plays in determining environmental quality has been rapidly gaining importance [5,6]. Starting with the influential studies of Grossman and Krueger [7], and Selden and Song [8], a number of studies on the hypothesis of an Environmental Kuznets Curve (EKC) have investigated this relationship for various pollutants, regions, and time periods [2,9].
The EKC hypothesis depicts a long-term relationship between economic growth and environmental quality [10]. According to this view, the link between environmental quality and economic levels varies with the economic development stage. As a consequence, in the early stages of the development process, economic growth could lead to environmental degradation in the early stages of the development process, but once economic development exceeds a certain threshold, further increase in per capita income would help reduce pollution emissions and improve environmental quality. In addition, according to Panayotou [11], a high development level would lead to better regulations, greener technologies, and higher expenditures to protect the environment. At present, a large number of studies on EKC at home and abroad have selected many specific pollutant indicators such as atmosphere, water bodies, and solid waste in different regions for analysis and verification. In a meta-analysis of 121 usable observations gathered from a set of 25 studies, Cavlovic et al. [12] found that environmental indicators are divided into 11 categories, namely, toxic emissions, urban air quality, deforestation, heavy particulate, urban quality, water quality/pollution, heavy metals, SO2, combustion byproducts, hazardous waste, and CO2.
It is possible that, in analyzing situations of different countries or different periods of a single country, researchers have drawn different conclusions because of the use of different regression equations, pollution indicators, or control variables. In other words, the relationship presented multiple and mixed types [13,14]. Some scholars found a traditional inverted U-shaped trend [15,16,17], yet others found that the turning point does not exist, but shows a linear relationship [18]. Moreover, some scholars found an N-shaped or inverted U-shaped relationship [19,20], while others, like Moomaw and Unruh (1997) [21], found that the relationship varied greatly in different countries [22,23,24] or even that there was no significant relationship between economic growth and environmental quality [25]. In addition, there was also evidence that testing results depended on specific econometric models [26,27]. In summary, the EKC has shown various forms, such as U-shaped, N-shaped, and linear. In other words, various environmental indicators of different regions do not follow a specific evolutionary trajectory.
In existing empirical studies on EKC, model analysis is usually performed based on cross-sectional data from different geographic regions or administrative divisions. A general assumption is that pollution emissions between regions are uncorrelated. That is to say, the economic growth of a region only affects the environmental quality of itself, rather than the surrounding environment, which is obviously inconsistent with reality. It should be taken into consideration that environmental pollution may exist in spatial autocorrelation or spatial dependence [28]. On the one hand, almost all spatial data might have spatial or spatial autocorrelation characteristics [29], and pollution-emission data may be no exception. On the other hand, there are strong regional clusters of pollution-source distribution, energy-consumption structure, and pollution-control investment capacity in different regions, which also makes pollution discharge have a certain spatial correlation [30]. If the effects of this spatial correlation are ignored, the estimation of the EKC model might have a bias or a parametric test that produces errors. Therefore, spatial metric analysis methods should be used when dealing with EKC-related regional data [31,32,33].
However, there are not many literatures using spatial econometric models to study EKC, or especially dealing with the watershed environmental problem. Su et al. [34] employed spatial regression to analyze the determinants of dissolved oxygen (DO) and nutrients in the Qiantang River, China. Chang [35] examined spatial patterns of water-quality trends for 118 sites in the Han River basin of South Korea. Wang et al. [36] employed statistical tools, the GIS technique, and the EKC method to analyze the spatiotemporal relationship of riverwater quality with the economic growth in the Jiulong River Basin of the Western Taiwan Strait Economic Zone. Yang et al. [37] utilized spatial regression to evaluate the impact of watershed characteristics on stream NO3NO2-N concentration in the Cedar River Watershed, Iowa. In a meta-analysis of 255 EKC studies published between 1995 and 2010 [38], only 35 studies used water-quality indicators as the dependent variable in comparison to 214 studies that used air, climate, and energy indicators. Of the few studies that focused on water pollution, only 10 have performed at a lake and watershed level. Paolo et al. [39] examined the nexus between economic growth and water usage using a country’s water footprint as an indicator of water impact and found an N-shaped curve for the relationship between water footprint per capita and GNI per capita, and grey water footprint per capita and GNI per capita.
In view of this, this research utilizes the environmental Kuznets curve to demonstrate the interrelationship between economic growth, industrial structure, and water quality of the Xiangjiang river basin in China by establishing spatial panel data models. First, it obtains two variables (CODMn and NH3-N) by pretreating the data of 42 environmental monitoring stations in the Xiangjiang river basin from 2005 to 2015. Afterward, Moran’s I index is adopted to analyze the spatial autocorrelation of CODMn and NH3-N concentration. Then, a comparison between the nonspatial panel model and spatial panel model is conducted and the mediating effect of the industrial structure is evaluated. The remainder of this paper is organized as follows: the second part introduces the EKC model and the spatial econometric model with an EKC hypothesis; the third part describes the research site, data processing, and the correlation and multicollinearity of the variables; the fourth part is the empirical results and discussion; the fifth part draws conclusions and policy recommendations.
We contribute to the emerging literature in several ways: first, for the research method, the inverted N-shaped space panel EKC model is adopted; second, regarding the research content, the EKC formation mechanism of a watershed is analyzed from the perspective of industrial-structure adjustment; and third, for the research data, nonpublic pollutant-concentration data collected by the government, rather than commonly used emission data, are used.

2. Materials

2.1. Study Site

The Xiangjiang River, which traverses from its source in Xin’an of the Guangxi Province to its confluence with the Yangtze River in Dongting Lake, is one of the major and important rivers in Hunan Province, southern China. The location of each environmental monitoring station in Xiangjiang River Basin is shown in Figure 1. The river has a length of approximately 856 km (with 660 km in the Hunan Province), a catchment area of approximately 94,660 km2 [40], and it covers eight cities, namely, Yongzhou, Chenzhou, Hengyang, Loudi, Zhuzhou, Xiangtan, Changsha, and Yueyang. The water of the Xiangjiang River is used for irrigation, and domestic and industrial purposes. In the Hunan Province, there are abundant reserves of nonferrous metals. Most of the ores used for mining, mineral processing, and the smelting of nonferrous and rare metals are found in the middle and lower reaches of the Xiangjiang River, while effluents from these intensive mining and industrial activities are heavily loaded into the river [41]. Moreover, many large cities, such as Changsha, Xiangtan, and Zhuzhou, are located in the middle and lower reaches of the Xiangjiang River. With the development of industrial production and the enlargement of cities, the middle and lower reaches of the Xiangjiang River have been seriously polluted in recent years [42]. Various heavy industries operate in the Xiangjiang river basin, including chemical, dyeing, electroplating, and food plants. In the last eight years, this area has nearly doubled its GDP, increasing from about 190 billion dollars in 1996 to 360 billion dollars in 2003. This basin exemplifies some direct water-pollution problems, and many typical water-pollution problems that occur during the process of urbanization in developing countries. The case study of the Xiangjiang River, therefore, provides a good opportunity to examine the spatial determinants of water pollution.

2.2. Data and Processing

Existing research indicates that water quality is mainly affected by point-source pollution that is caused by industrial wastewater and urban/domestic sewage and nonpoint-source pollution that is caused by agricultural activities, soil erosion, and solid waste [43,44,45]. As GDP represents the level of social and economic development of a place, in general, the higher the GDP is, the more frequent corresponding economic activities are, and the more obvious the environmental impact is. With the development of economy and society and the constant improvement of urbanization, the contradiction between population increase and a serious shortage of water resources is becoming increasingly conspicuous. Population density can directly reflect the social production activities of a region. Higher population density leads to a higher demand for water and greater pollutant emissions. Natural precipitation also brings the pollutants of the surrounding areas into the river and further pollutes the water.
With a dense population, developed economy, and high-level urbanization, the Xiangjiang river basin area enjoys the rapid development of agriculture and forestry, a large number of enterprises, and abundant rainfall. The main pollution of the area is derived from industrial pollution, domestic wastewater pollution, and agricultural pollution, among which heavy-metal pollution is particularly serious [46,47]. Pollutants mainly include CODMn, NH3-N, mercury, arsenic, and hexavalent chromium. In this paper, we focus on the eutrophication of the Xiangjiang river basin that is caused by organic pollution and nutrients. The quality of the measured data of total phosphorus is extremely poor, many of which are lower than the minimum detection index of 0.01. Consequently, we selected CODMn and NH3-N as the water-quality indicators of Xiangjiang river basin; and took per capita GDP (pergdp), primary industry (primary), industry (indus), population (pop), urbanization level (ur), and precipitation as control variables.
In this paper, we extracted water-quality data from the 42 environmental monitoring stations in the Xiangjiang river basin. Then, we matched the 42 monitoring stations with corresponding counties according to map coordinates. It should be noted that (1) there are more than one monitoring sites in some areas, for example, Bailang, Toushan, and Xiao Dongjiang are nestled in Zixing City, so we regarded the average data in the above three places as the environmental quality data in Zixing City; (2) several monitoring stations measure more than one district. For instance, the Lilang monitoring station supervises the Yuhua District and Changsha County. Thus, we merged the above two places into one area in our article and took the sum data as the research object. Based on this, 26 observations were selected.
Additionally, the data related to the economic income and social development of the Xiangjiang river basin were obtained from the “2005–2015 Statistical Yearbook of Hunan Province”, among which GDP (pergdp) was treated at a constant price based on the 2005 price index. The unit of population (pop) density was “Ten thousand people per square kilometer”, primary industry (primary) refers to the proportion of the added value of the primary industry to the GDP, and industry (indus) refers to the proportion of industrial added value to the GDP.

2.3. Correlations and Multicollinearity of Variables

The monitoring results revealed that the average concentration of CODMn ranks the highest from 2005 to 2015 of all the pollutants in the Xiangjiang River Basin. Table 1 shows that the maximum value was 8.27 mg/L, while the minimum was 0.25 mg/L. In addition, average concentration of NH3-N was nearly 0.64 mg/L, which is also at a relatively high level. Specifically, the concentration of CODMn and NH3-N in the Liuyang and Zhenshui rivers (the tributaries of Xiangjiang and the corresponding monitoring stations are SanJiaoZhou, HeShiDu, and ZhenShuiRuXiangJiangKou) were higher on the whole, while reaching an average of 4.65 mg/L and 1.89 mg/L, respectively. The main reason is that a large number of industrial and papermaking enterprises are distributed on both banks of the Liuyang and Zhenshui rivers, but sewage discharge has not been effectively controlled. However, the concentrations of the two pollutants showed a trend of rising first and then decreasing because of the comprehensive remediation of environmental pollution in the basin. The main measures include the regulation of livestock and poultry-farming pollution, elimination and renovation of industrial pollution sources, and strengthening centralized and harmless disposal of domestic sewage and domestic waste in towns and townships.
Data-analysis results demonstrate that the concentration of major pollutants in each section of the Xiangjiang river basin is gradually increasing from upstream to downstream. Figure 2 reveals the pollution of major cities along the Xiangjiang river basin. The darker color indicates the higher concentration of contaminants. It can be seen from the figure that the concentrations of CODMn and NH3-N of Changsha, Loudi, and Xiangtan in the lower reaches of the basin are significantly higher than those of Chenzhou and Yongzhou in the upstream part.
Table 2 shows the variable correlation coefficient matrix. It can be seen that the correlation coefficients of most variables are low or moderate. Most variables have strong and significant correlation, while the correlation between CODMn (NH3-N) concentration and primary (precipitation) is rather weak and insignificant. In addition, there is a certain correlation between every two control variables. To further test multicollinearity, a Variance Inflation Factor (VIF) test was used. The VIF test showed that the biggest value is 9.32, which indicates that multicollinearity might exist. We also found that the variable (ur) had no significant effect on the CODMn (NH3-N) coefficient. When the (ur) was deleted, the biggest value of VIF became 4.93, indicating that there was no multicollinearity between the variables [2,48].

3. Methodology

Spatial regression was employed to analyze the relationship between water-pollution indicators and economic growth considering the spatial correlation of water pollution. Spatial regression models typically include three categories, which are spatial lag (SAR, Equation (1)), spatial error (SEM, Equation (2)) and spatial Durbin mode (SDM, Equation (3)). Spatial lag regression is expressed as follows:
y i t = λ w i j y i t + β x i t + α i + γ t + ε i t
where y i t is the water-pollution indicator of monitoring station i in year t. x i t is the GDP of area i in year t indicating the level of economic growth. Z i t is the set of other explanatory variables, including population density, rate of urbanization, and industrial structure. α i are unobserved country-specific effects; γ t is the time-specific effect; ε i t is the normally distributed error term; λ is the spatial autoregressive coefficient; and ( w i j ) is the spatial weight matrix that describes the relationship between every two sites.
Spatial error regression is given as:
y i t = β x i t + α i + σ i t σ i t = λ w i j σ i t + ε i t
where σ i t denotes the spatially autocorrelated error term. Term λ reflects the spatial autocorrelation coefficient of the error term. The other parameters are the same as the above mentioned.
Some spatially autocorrelated variables in the spatial-error model were omitted in the regression, while the model consequently generated a spatially autocorrelated error. The spatial lag model assumes that, besides explanatory variables, the water-quality variable in one site is affected by the spatially weighted concentrations in its neighborhood. The SAR and SEM models both consider county interactions. However, when studying the spatial difference of river pollutants, water flow direction from upstream to downstream directly leads to unidirectional (from upstream to downstream) spatial influence. At the same time, a spatial relationship occurs when the dependent variable can be predicted as a function of spatially lagged values of the independent variables. Therefore, the two spatial-interaction situations need to be considered simultaneously. The spatial Durbin model specification provides a function containing spatially lagged values, both of the dependent variable and the independent variables, which is specified as:
y i t = λ w 1 i j y i t + β x i t + λ w 2 i j X i t + α i + δ t + ε i t
w 1 i j is a unidirectional contiguity matrix, namely w 1 i j = 1 if j is the nearest upstream region of i, otherwise w 1 i j = 0. w 2 i j is a threshold distance and the spatial matrix in which the element w 2 i j is calculated using the square of the reciprocal of the geographic distance between counties i and j. Distance-based weights are defined as follows:
w 2 i j = 0 ,   if   i = j w 2 i j = 1 / d i j 2 ,   if   d i j 77 w 2 i j = 0 ,   if   d i j > 77
where d i j is the distance in kilometers between counties i and j. The 77 km distance was the cut-off parameter above which interactions were assumed to be negligible. This distance was chosen so that each county interacted with at least one other county. This cut-off parameter is important since there must be a limit to the range of spatial dependence allowed by the spatial-weight matrix [49,50,51]. This is due to the asymptotical features required to obtain consistent estimates for the model parameters. We use the inverse-squared distance in order to reflect gravity relation. The two matrices were both row-standardized so that each row summed to one and the coefficients that emerged from the subsequent regression could be readily interpreted by virtue. Under the definitions of w 1 i j and w 2 i j , the spatial Durbin model took account of the two interaction cases simultaneously.
Due to the introduction of a spatial-weight matrix, spatial econometric models arouse an endogenous variable problem. If spatial econometric models were still estimated by ordinary least squares (OLS), estimated coefficients would be biased. Therefore, spatial panel models are generally estimated with the maximum likelihood method [52]. As each county has characteristics that do not change or change very little over time, such as unobservable geographic characteristics and resources endowment, this can lead to parameter homogeneity in each spatial unit. In this paper, we primarily focused on the fixed effects of the estimation procedure. The time period affected control for time-specific shocks that affect economic factors such as economic crises, oil shocks, and national environmental policy, which leads the coefficients to vary in each time unit. For completeness, we also estimated the random-effect model and used the Hausman diagnostic test to determine which model provided a better fit for the data. Two models were analyzed, while the Robust Lagrange Multiplier (LM) tests and their robustness (Robust-LM) were used to determine the form of spatial relationships. To verify if the spatial panel data models offered a more appropriate specification, we tested which spatial panel data model was the best-fitting for the data with the Wald and LR tests. We used the null hypotheses (H0: γ = 0) of the Wald test to examine whether the SDM model could be simplified to the SAR model. We also explored the null hypothesis (H0: γ + β λ = 0) of the LR test to determine whether the SDM model could be simplified to the SAR model or SEM model. If both of the null hypotheses were rejected, the spatial Durbin model provided the best fitting.

4. Empirical Results and Discussion

4.1. Spatial Autocorrelation for CODMn and NH3-N

This part uses Moran index analysis to comprehensively evaluate the spatial autocorrelation of CODMn and NH3-N. The Moran Index was introduced by Australian statistician Patrick Alfred Pierce Moran in 1950. The range of Moran’s I values concentrates in the interval (−1, 1), where 1 and −1, respectively, denote the strongest positive spatial autocorrelation and strongest negative spatial autocorrelation [53]. Table 3 suggests that Moran’s I index values of the CODMn and NH3-N in the Xiangjiang River from 2005 to 2015 were all positive and in the range of (0, 1), which indicates that there exists spatial autocorrelation between the two types of pollutants. Especially for NH3-N, its Moran index reached the highest—0.871 in 2015. Therefore, the river CODMn and NH3-N patterns depended both on neighboring patterns and on a set of local independent parameters. All these results demonstrate the need to incorporate spatial analysis when interpreting the spatial determinants of CODMn and NH3-N.

4.2. Empirical Estimation and Results

A suitable model is a prerequisite for reliable empirical results. In order to detect which model best fits the data, this paper first conducts a nonspatial panel model analysis, then examines whether there exists spatial correlation among spatial units by the classic LM tests and the Robust LM tests. As shown in Table 4 and Table 5 referring to the results of classical LM tests on CODMn, the null hypothesis of no spatially lagged dependent variable and the null hypothesis of no spatially autocorrelated error term were respectively rejected at 10% and 5% significance level. In the robust LM tests, both of the hypotheses were not rejected when the OLS is included. While referring to the results of classical LM tests on the NH3-N, both of the hypotheses were strongly rejected at a 1% significance level, while both of the hypotheses were rejected for the OLS in the robust LM tests. These results show that spatial panel models are better than nonspatial interaction effects of traditional mixed panel data models. In terms of a model-fitting effect, the SDM model had the most significant regression coefficient compared with the SAR or SEM model. To further judge the fitting effect of the SDM model, we estimated the spatial Durbin model and then performed the Wald and LR tests. According to the results of the Wald and LR tests on CODMn and NH3-N, both of the null hypotheses were rejected at the 1% significance level. Furthermore, we conducted the Hausman test, and the result of CODMn and NH3-N were respectively rejected at 5% and 1% significance level. These results imply that the SDM model is more appropriate than the SAR or SEM model in reflecting the impact of spatial autocorrelation on regression results. Therefore, we adopt the SDM model with fixed effects to study the spatial effect of economic development on water quality in the river basin.
This shows that, for CODMn and NH3-N, estimated coefficients of the cubic polynomial of per capita GDP (Pergdp3) are highly significant, which presents that the relationship between economic growth and the concentration of these two pollutants cannot validate the traditional environmental Kuznets curve hypothesis. However, it shows a back-N style, as displayed in Figure 3. The first turning point of the environmental Kuznets curve for CODMn is at approximately RMB 83,001; the second turning point is at approximately RMB 108,583. By contrast, for NH3-N, the first turning point is at approximately RMB 50,980; the second turning point is at approximately RMB 188,931.
The EKC of other watersheds are different, for example, Jiang (2014) [46] studied the EKC of the Qiantang river basin districts in Hangzhou, Jinhua, and Quzhou from 2005 to 2012; the results showed that the EKC was U-shaped, inverted U-shaped, and N-shaped. Moreover, the EKC of the Changjiang river basin and Taihu river basin was U-shaped; of the Haihe river basin, and Huanghe river basin was S-shaped; and of the Huaihe river basin and Liaohe river basin was tilted-S-shaped. Compared with these basins, the EKC of the Xiangjiang river basin was inverted N-shaped. The reason may be due to a series of targeted environmental protection measures being implemented in the Xiangjiang River Basin, especially since 2005, such as the Comprehensive Management Plan of Ecological Environment in Xiangjiang River Basin of Hunan Province (2009), the Hunan Xiangjiang Protection Regulations (2012), and the Regulations on Prevention and Control of Water Pollution in Xiangjiang River Basin, Changsha City (2016). These laws and regulations regulate the economic activities of the river basin in specific aspects to improve environmental quality.
Taking the 2016 data as an example, for the environmental Kuznets curve of the pollutant NH3-N, the per capita real GDP of 11 districts or counties of the Xiangjiang river basin are in the upward phase of the inverted “N” curve, namely, Lusong District, Shifeng District, Yuelu District, Kaifu District, Yuhua District/Changsha County, Furong District, Tianxin District, Wangcheng District, Xiangtan City, Louxing District, and Zixing City. As for the environmental Kuznets curve of the pollutant CODMn, 10 districts or counties are in the upward phase, namely, Lusong District, Shifeng District, Yuelu District, Kaifu District, Yuhua District, Changsha County, Tianxin District, Wangcheng District, Xiangtan City, and Zixing City.
Since the diagnostic results above have suggested that the SDM with fixed effects is the best fit, we limited the interpretation of coefficient estimates to it. As shown in Table 4, focusing on the estimated coefficient of primary industry (primary), industry (indus), and population (pop), the elastic coefficients were −6.726415, −2.326853 and −2.405921, respectively. By contrast, the results described in Table 5 are 1.028606, 0.6328895, and −4.974618, which indicates that primary industry (primary) and industry (indus) have a negative effect on increasing CODMn concentration and have no obvious effect on increasing NH3-N concentration. Similarly, results also show that population (pop) has a negative effect both on CODMn and NH3-N, while precipitation (pre) has a negative effect on CODMn while having no obvious effect on NH3-N. Estimated coefficient λ is significantly positive in both Table 4 and Table 5 indicating that the spatial factor has a significant effect on the concentration of these two pollutants.
In summary, the per capita GDP of the Xiangjiang river basin, especially the primary industry output value and industrial output value, population density, and precipitation have different effects on the concentration of pollutants in the basin, especially the impact on CODMn. The reason might be that the Xiangjiang river basin is an economic region in which the first and second industries are the mainstay and advantageous. It is known as the “hometown of nonferrous metals” in which the heavy chemical industry, steel, nonferrous metals, chemicals, and building materials are at the top of the industrial structure. Economic and industrial development have caused serious heavy-metal pollution in Xiangjiang, especially CODMn. Ammonia-nitrogen pollution is mainly caused by domestic wastewater discharged from the cross-strait population and agricultural nonpoint source pollution. With the development of the first industry on the coast, the use of chemical fertilizers and pesticides has been increasing year by year, while the discharge of domestic sewage has also increased.
Research results of Lesage and Pace [54], and Elhorst [55] show that the estimation coefficient of models cannot directly reflect the marginal effect of the independent variable on the dependent variables. The direct and indirect effects of each explanatory variable are listed in Table 6. As is described in the table, the direct effect on CODMn, the per capita GDP (pergdp, pergdp2, pergdp3), primary industry (primary), industry (indus), and population (pop) are significant. The primary industry (primary) in particular has the maximum effect (−6.7732). Additionally, the population (pop) of NH3-N has the maximum effect (−4.841386), while precipitation (pre) has the minimum effect (−0.000111).
For the direct effect on CODMn and NH3-N, the per capita GDP was rejected at a 5% significance level and 10% significance level, respectively, which indicates that the per capita GDP has a large spillover effect on the water quality of adjacent areas.
The main reason is that water pollution in the Xiangjiang river basin is serious, and water pollution presents a cross-regional feature. Water pollution in different regions of the basin has spatial correlation. Specifically, when per capita GDP increases in a certain region, water pollution in the adjacent areas is aggravated. The impact of the primary industry on CODMn and NH3-N is not significant, which indicates that the increase in the output value of the primary industry in one region has no effect on the water quality of the adjacent regions. In addition, the impact of industrial and population density on CODMn is not significant, but that on NH3-N is significant, which implies that industrial output value and population density has a positive impact on NH3-N pollution in the adjacent areas but has no effect on CODMn.
In summary, in the process of spatial interaction, the space effect is basically reflected in the form of direct effect, while the spatial feedback effect is relatively weak. However, we cannot ignore the indirect influence of the spatial spillover effect of economic development on water pollution.

4.3. Intermediate Effect of Industrial Structure

The existing literature shows that there are three factors that determine the shape of the environmental Kuznets curve: scale efficiency, structural effect, and technical effect. In the case where other effects are fixed, the scale effect refers to the concentration of pollutants increasing according to the scale of economic activities; the structural effect refers to the decrease of pollutant concentration when economic activities become clean and green; and the technical effect is the reduced concentration of pollutants when clean technology is used in economic activities. The key points in this section is the structural effect, that is, whether the industrial structure adjustment can change the shape of the EKC curve.
According to Judd and Kenny [56], Baron and Kenny [57], MacKinnon et al. [58], and James Kroes et al. [59], this part carries out a series of tests to verify whether industrial structure has a mediating effect in adjusting the relationship between economic growth and environmental changes. The results show that: (1) when the impact of the economy alone on the environment was considered, the per capita GDP was significantly correlated with CODMn and NH3-N, which indicates that economic growth had a certain influence on the environment (as shown in Table 7); (2) per capita GDP is significantly correlated with the primary industry (Primary) and industry (Indus), implying that economic growth had a certain influence on the development of primary and industries (see Table 8); (3) when considering economic development and the impact of an industrial structure on the environment, the industrial structure has significant impact on CODMn (see Table 4). Therefore, it can be concluded that the industrial structure has a mediating effect on adjusting the relationship between economic growth and CODMn concentration change. The impact of an industrial structure on NH3-N concentration, however, is not significant (see Table 5), which shows that there is at least one nonsignificant situation. Therefore, the Sobel test was continued, in which test statistic z was −0.4228 and 0.3312, respectively, which meant it failed to pass the tests. We can then conclude that the industrial structure is not significant to adjusting the relationship between economic growth and the NH3-N concentration change.
In our models, per capita GDP was nonlinearly related to industrial structure and environmental quality; so it was no longer possible to talk about the indirect effect of per capita GDP on environmental quality through the industrial structure as a single quantity. As Hayes et al. [60] describe, we used the rate at which a change in pergdp changes CODMn concentration indirectly through changes in the industrial structure, denoted as θ , to measure this instantaneous indirect effect. Based on previous estimates, the instantaneous indirect effect of pergdp, corresponding to primary and indus, respectively, is as follows:
θ p r i m a r y = ( p r i m a r y p e r g d p ) ( C O D M n p r i m a r y ) = ( 0.0716853 + 2 × 0.0102196 × pergdp + 3 × ( 0.0004045 ) × ( pergdp ) 2 ) × ( 6.7732 ) = 0.4855 0.1384 pergdp + 0.0082 ( pergdp ) 2 θ i n d u s = ( i n d u s p e r g d p ) ( C O D M n i n d u s ) = ( 0.0516433 + 2 × ( 0.0077573 ) × pergdp + 3 × ( 0.0002928 ) × ( pergdp ) 2 ) × ( 2.41538 ) = 0.1247 + 0.0375 pergdp 0.0021 ( pergdp ) 2
Figure 4 graphically depicts the U-shape relationship between pergdp and θ p r i m a r y . Observe that, when pergdp is between 45,319 and 123,462, the instantaneous indirect effect is negative, meaning that, as pergdp increases, CODMn concentration decreases through pergdp’s effect on the primary. To the contrary, as pergdp increases, CODMn concentration increases through pergdp’s effect on indus when pergdp is between 44,497 and 123,462 (Figure 5).

5. Conclusions and Policy Implications

This paper examined the CODMn and NH3-N EKC hypothesis using a spatial Durbin model to avoid coefficient-estimation deviation covering the period of 2005–2015 of the Xiangjiang river basin. The results showed that: (1) there exists spatial correlation between CODMn/NH3-N and the per capita GDP has a significant influence on CODMn / NH3-N; (2) the turning points of the CODMn and NH3-N environmental Kuznets curves were (83,001, 108,583) and (50,980, 188,931), respectively; (3) the industrial structure can explain the change of the EKC of CODMn, but cannot explain the EKC of NH3-N, which indicates that the industrial structure has a mediating effect on CODMn but not on NH3-N. Compared with conventional estimation techniques, the spatial econometric approach is seldom used in the validation of a CODMn / NH3-N environmental Kuznets curve. This paper proves that taking spatial autocorrelation into consideration, the spatial panel model is a more proper method, which proposes a more reliable result.
In view of the conclusions above, we make the following policy recommendations to solve environmental problems brought about by economic growth: (1) Spatial measurement results demonstrate that there is an inverted N-shaped relationship between environmental quality and economic development, which indicates a positive interaction between them. Therefore, local government should attach great importance to the inevitability that economic development brings pressure to the environment, and should not simply pursue GDP growth at the expense of environmental pollution. The relationship between economic development and environmental protection should be better dealt with. (2) The reality that upstream and downstream pollution emissions have a strong positive spatial correlation indicates that local government may choose a way to achieve economic development by sacrificing the environmental quality of the surrounding areas. Therefore, it is necessary to stop shortsighted behavior and promote overall environmental quality and consider spatial correlation in the environmental planning of each region. For local government, inter-regional environmental cooperation is of great necessity in dealing with the contradiction between economic development and environmental pollution. Additionally, the national government should pay more attention to the spatial correlation of environmental pollution in the basin so as to implement policies coordinating regional economic development and ecological protection. (3) As the impact of an industrial structure on different pollutants is different, the control of pollutant discharges should be strengthened in a targeted manner during the economic development. Moreover, the reduction effects of different pollutant emissions should be taken into consideration when formulating industrial policies.

Author Contributions

All the authors contributed to this manuscript. X.C. designed this research, modified the mathematical formulas and wrote the manuscript. G.Y. and J.L. conceived the research model, carried out experimental study and wrote the manuscript. X.L. guided the research direction and proposed the framework of analysis. Y.C. collected the data and revised the manuscript. All authors read and approved the final manuscript.

Funding

This research is supported by the National Science Foundation of China (No. 71601148, No. 71790615, and No. 71431006), Key Project of Philosophy and Social Sciences Research, Ministry of Education PRC (16JZD013), Key Laboratory of Hunan Province for Mobile Business Intelligence (2015TP1002), Mobile E-business Collaborative Innovation Center of Hunan Province, Resource-conserving & Environment-friendly Society and Ecological Civilization 2011 Collaborative Innovation Center of Hunan Province and the China Postdoctoral Science Foundation (No. 2016M592393).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nsubuga, F.N.; Namutebi, E.N.; Nsubuga-Ssenfuma, M. Water resources of uganda: An assessment and review. J. Water Resourc. Prot. 2014, 6, 1297–1315. [Google Scholar] [CrossRef]
  2. Liu, H.; Fang, C.; Zhang, X.; Wang, Z.; Bao, C.; Li, F. The effect of natural and anthropogenic factors on haze pollution in Chinese cities: A spatial econometrics approach. J. Clean. Prod. 2017, 165, 323–333. [Google Scholar] [CrossRef]
  3. Qian, Y.; Zheng, M.H.; Gao, L.; Zhang, B.; Liu, W.; Jiao, W.; Zhao, X.; Xiao, K. Heavy metal contamination and its environmental risk assessment in surface sediments from lake Dongting, People’s Republic of China. Bull. Environ. Contam. Toxicol. 2005, 75, 204–210. [Google Scholar] [CrossRef] [PubMed]
  4. Yao, Z.G.; Bao, Z.Y.; Gao, P. Environmental geochemistry of heavy metals in sediments of Dongting lake. Geochimica 2006, 35, 629–638. [Google Scholar]
  5. Stern, D.I.; Common, M.S. Is there an environmental kuznets curve for sulphur? J. Environ. Econ. Manag. 2001, 41, 162–178. [Google Scholar] [CrossRef]
  6. Copeland, B.R.; Taylor, M.S. Trade, growth, and the environment. J. Econ. Lit. 2004, 42, 7–71. [Google Scholar] [CrossRef]
  7. Grossman, G.M.; Krueger, B.A. Economic growth and the environment. Q. J. Econ. 1995, 110, 353–377. [Google Scholar] [CrossRef]
  8. Selden, T.M.; Song, D. Environmental quality and development: Is there a kuznets curve for air pollution emissions? J. Environ. Econ. Manag. 1994, 27, 147–162. [Google Scholar] [CrossRef]
  9. Du, Y.; Sun, X.X. Economic development and environmental quality—A case study of china prefecture-level cities. Environ. Prog. Sustain. Energy 2017, 36, 1290–1295. [Google Scholar] [CrossRef]
  10. Omisakin, O.A. Economic growth and environmental quality in nigeria: Does environmental kuznets curve hypothesis hold? Soc. Sci. Electr. Publ. 2009, 1, 14–18. [Google Scholar]
  11. Panayotou, T. Empirical Tests and Policy Analysis of Environmental Degradation at Different Stages of Economic Development; International Labour Organization: Geneva, Switzerland, 1993; pp. 2927–2978. [Google Scholar]
  12. Cavlovic, T.A.; Baker, K.H.; Berrens, R.P.; Gawande, K. A meta-analysis of environmental kuznets curve studies. Agric. Resour. Econ. Rev. 2000, 29, 32–42. [Google Scholar] [CrossRef]
  13. Galeotti, M.; Manera, M.; Lanza, A. On the Robustness of Robustness Checks of the Environmental Kuznets Curve; Pergamon Press: Oxford, UK, 2008. [Google Scholar]
  14. Ulucak, R.; Bilgili, F. A reinvestigation of ekc model by ecological footprint measurement for high, middle and low income countries. J. Clean. Prod. 2018, 188, 144–157. [Google Scholar] [CrossRef]
  15. Ahmed, K. Environmental kuznets curve and pakistan: An empirical analysis. Procedia Econ. Financ. 2012, 1, 4–12. [Google Scholar] [CrossRef]
  16. Apergis, N.; Ozturk, I. Testing environmental kuznets curve hypothesis in Asian countries. Ecol. Indic. 2015, 52, 16–22. [Google Scholar] [CrossRef]
  17. Ozturk, I.; Acaravci, A. The long-run and causal analysis of energy, growth, openness and financial development on carbon emissions in Turkey. Energy Econ. 2013, 36, 262–267. [Google Scholar] [CrossRef]
  18. Farhani, S.; Ozturk, I. Causal relationship between CO2 emissions, real gdp, energy consumption, financial development, trade openness, and urbanization in Tunisia. Environ. Sci. Pollut. Res. 2015, 22, 15663–15676. [Google Scholar] [CrossRef] [PubMed]
  19. Friedl, B.; Getzner, M. Determinants of CO2 emissions in a small open economy. Ecol. Econ. 2003, 45, 133–148. [Google Scholar] [CrossRef]
  20. Ge, X.; Zhou, Z.; Zhou, Y.; Ye, X.; Liu, S. A spatial panel data analysis of economic growth, urbanization, and nox emissions in China. Int. J. Environ. Res. Public Health 2018, 15, 725. [Google Scholar] [CrossRef] [PubMed]
  21. Moomaw, W.R.; Unruh, G.C. Are environmental kuznets curves misleading us? The case of CO2 emissions. Environ. Dev. Econ. 2001, 2, 451–463. [Google Scholar] [CrossRef]
  22. Governance, D.K. Institutions and the environment-income relationship: A cross-country study. Environ. Dev. Econ. 2009, 11, 705–723. [Google Scholar]
  23. Jaunky, V.C. The CO2, emissions-income nexus: Evidence from rich countries. Energy Policy 2011, 39, 1228–1240. [Google Scholar] [CrossRef]
  24. Onafowora, O.A.; Owoye, O. Bounds testing approach to analysis of the environment kuznets curve hypothesis. Energy Econ. 2014, 44, 47–62. [Google Scholar] [CrossRef]
  25. Lantz, V.; Feng, Q. Assessing income, population, and technology impacts on CO2, emissions in Canada: Where’s the ekc? Ecol. Econ. 2006, 57, 229–238. [Google Scholar] [CrossRef]
  26. Chowdhury, R.R.; Moran, E.F. Turning the curve: A critical review of kuznets approaches. Appl. Geogr. 2012, 32, 3–11. [Google Scholar] [CrossRef]
  27. Wang, Z.X.; Hao, P.; Yao, P.Y. Non-linear relationship between economic growth and CO2 emissions in China: An empirical study based on panel smooth transition regression models. Int. J. Environ. Res. Public Health 2017, 14, 1568. [Google Scholar] [CrossRef] [PubMed]
  28. Kühn, I. Incorporating spatial autocorrelation may invert observed patterns. Divers. Distrib. 2010, 12, 66–69. [Google Scholar] [CrossRef]
  29. Anselin, L. Spacestat Tutorial: A Workbook for Using Spacestat in the Analysis of Spatial Data; National Center for Geographic Information and Analysis; University of California: Santa Barbara, CA, USA, 1992. [Google Scholar]
  30. Poon, J.P.; Casas, I.; He, C. The impact of energy, transport, and trade on air pollution in China. Eurasian Geogr. Econ. 2006, 47, 568–584. [Google Scholar] [CrossRef]
  31. Anselin, L. The maximum likelihood approach to spatial process models. In Spatial Econometrics: Methods and Models; Kluwer Academic: Boston, MA, USA; London, UK, 1988; pp. 57–59. [Google Scholar]
  32. Tang, D.; Xu, H.; Yang, Y. Mutual influence of energy consumption and foreign direct investment on haze pollution in China: A spatial econometric approach. Pol. J. Environ. Stud. 2018, 27, 1743–1752. [Google Scholar] [CrossRef]
  33. Xu, X.; Wang, Y. Study on spatial spillover effects of logistics industry development for economic growth in the Yangtze River delta city cluster based on spatial durbin model. Int. J. Environ. Res. Public Health 2017, 14, 1508. [Google Scholar] [CrossRef] [PubMed]
  34. Su, S.; Xiao, R.; Xu, X.; Zhang, Z.; Mi, X.; Wu, J. Multi-scale spatial determinants of dissolved oxygen and nutrients in Qiantang River, China. Reg. Environ. Chang. 2013, 13, 77–89. [Google Scholar] [CrossRef]
  35. Chang, H. Spatial analysis of water quality trends in the Han river basin, South Korea. Water Res. 2008, 42, 3285–3304. [Google Scholar] [CrossRef] [PubMed]
  36. Chen, N.W.; Wang, L.J.; Liu, H.; Wu, J.Z.; Liu, T. A spatio-temporal correlation analysis of water quality and economic growth in the Jiulong River basin. J. Ecol. Rural Environ. 2012, 28, 19–25. [Google Scholar]
  37. Yang, X.; Jin, W. Gis-based spatial regression and prediction of water quality in river networks: A case study in Iowa. J. Environ. Manag. 2010, 91, 1943–1951. [Google Scholar] [CrossRef] [PubMed]
  38. Jordan, B.R. The environmental kuznets curve: Preliminary meta-analysis of published studies, 1995–2010. In Dans Workshop on Original Policy Research; Georgia Tech-School of Public Policy: Atlanta, GA, USA, 2010. [Google Scholar]
  39. Paolo Miglietta, P.; De Leo, F.; Toma, P. Environmental kuznets curve and the water footprint: An empirical analysis. Water Environ. J. 2017, 31, 20–30. [Google Scholar] [CrossRef]
  40. Shen, Z.; Wenjiang, D.; Licheng, Z.; Xibao, C. Geochemical characteristics of heavy metals in the Xiangjiang River, China. Hydrobiologia 1989, 176, 253–262. [Google Scholar] [CrossRef]
  41. Zhang, Q.; Li, Z.; Zeng, G.; Li, J.; Fang, Y.; Yuan, Q.; Wang, Y.; Ye, F. Assessment of surface water quality using multivariate statistical techniques in red soil hilly region: A case study of Xiangjiang watershed, China. Environ. Monit. Assess. 2009, 152, 123–131. [Google Scholar] [CrossRef] [PubMed]
  42. Dong, W.; Zhang, L.; Zhang, S. The research on the distribution and forms of heavy metals in the Xiangjiang River sediments. Chin. Geogr. Sci. 1992, 2, 42–55. [Google Scholar] [CrossRef]
  43. Alvarez, S.; Asci, S.; Vorotnikova, E. Valuing the potential benefits of water quality improvements in watersheds affected by non-point source pollution. Water 2016, 8, 112. [Google Scholar] [CrossRef]
  44. Asare, F.; Palamuleni, L.G.; Ruhiiga, T. Land use change assessment and water quality of ephemeral ponds for irrigation in the North West province, South Africa. Int. J. Environ. Res. Public Health 2018, 15, 1175. [Google Scholar] [CrossRef] [PubMed]
  45. Cheng, P.; Meng, F.; Wang, Y.; Zhang, L.; Yang, Q.; Jiang, M. The impacts of land use patterns on water quality in a trans-boundary river basin in northeast China based on eco-functional regionalization. Int. J. Environ. Res. Public Health 2018, 15, 1872. [Google Scholar] [CrossRef] [PubMed]
  46. Jiang, B.F.; Sun, W.L. Assessment of heavy metal pollution in sediments from Xiangjiang River (China) using sequential extraction and lead isotope analysis. J. Cent. South Univ. 2014, 21, 2349–2358. [Google Scholar] [CrossRef]
  47. Xiao, Q.; Gao, Y.; Hu, D.; Tan, H.; Wang, T. Assessment of the interactions between economic growth and industrial wastewater discharges using co-integration analysis: A case study for China’s Hunan province. Int. J. Environ. Res. Public Health 2011, 8, 2937–2950. [Google Scholar] [CrossRef] [PubMed]
  48. Kang, Y.Q.; Zhao, T.; Yang, Y.Y. Environmental kuznets curve for CO2 emissions in China: A spatial panel data approach. Ecol. Indic. 2016, 63, 231–239. [Google Scholar] [CrossRef]
  49. Maddison, D. Environmental kuznets curves: A spatial econometric approach. J. Environ. Econ. Manag. 2006, 51, 218–230. [Google Scholar] [CrossRef]
  50. Abreu, M.; De Groot, H.; Florax, R. Space and growth: A survey of empirical evidence and methods. Reg. Et Dev. 2004, 21, 13–44. [Google Scholar] [CrossRef]
  51. Madariaga, N.; Poncet, S. Fdi in Chinese cities: Spillovers and impact on growth. World Econ. 2007, 30, 837–862. [Google Scholar] [CrossRef]
  52. Elhorst, J.P. Dynamic spatial panels: Models, methods, and inferences. J. Geogr. Syst. 2012, 14, 5–28. [Google Scholar] [CrossRef]
  53. Anselin, L.; Bera, A. Spatial Dependence in Linear Regression Models with an Introduction to Spatial Econometrics; Marcel Dekker: New York, NY, USA, 1998. [Google Scholar]
  54. James LeSage, R.K.P. Introduction to Spatial Econometrics; Chapman and Hall/CRC: Boca Raton, FL, USA, 2009. [Google Scholar]
  55. Elhorst, J.P. Spatial Econometrics: From Cross-Sectional Data to Spatial Panels; Springer: Heidelberg, Germany; New York, NY, USA; Dordrecht, The Netherlands; London, UK, 2014. [Google Scholar]
  56. Judd, C.M.; Kenny, D.A. Process analysis: Estimating mediation in treatment evaluations. Eval. Rev. 1981, 5, 602–619. [Google Scholar] [CrossRef]
  57. Reuben, M.; Baron, D.A.K. The moderator-mediator variable distinction in social psychological research: Conceptual, strategic, and statistical considerations. J. Pers. Soc. Psychol. 1986, 51, 1173–1182. [Google Scholar]
  58. MacKinnon, D.P.; Lockwood, C.M.; Hoffman, J.M.; West, S.G.; Sheets, V. A comparison of methods to test mediation and other intervening variable effects. Psychol. Methods 2002, 7, 83–104. [Google Scholar] [CrossRef] [PubMed]
  59. Kroes, J.; Subramanian, R.; Subramanyam, R. Operational compliance levers, environmental performance, and firm performance under cap and trade regulation. Manuf. Serv. Oper. Manag. 2012, 14, 186–201. [Google Scholar] [CrossRef]
  60. Andrew, F.; Hayes, K.J.P. Quantifying and testing indirect effects in simple mediation models when the constituent paths are nonlinear. Multivar. Behav. Res. 2010, 45, 627–660. [Google Scholar]
Figure 1. Location of environmental monitoring stations in the Xiangjiang river basin.
Figure 1. Location of environmental monitoring stations in the Xiangjiang river basin.
Ijerph 15 02095 g001

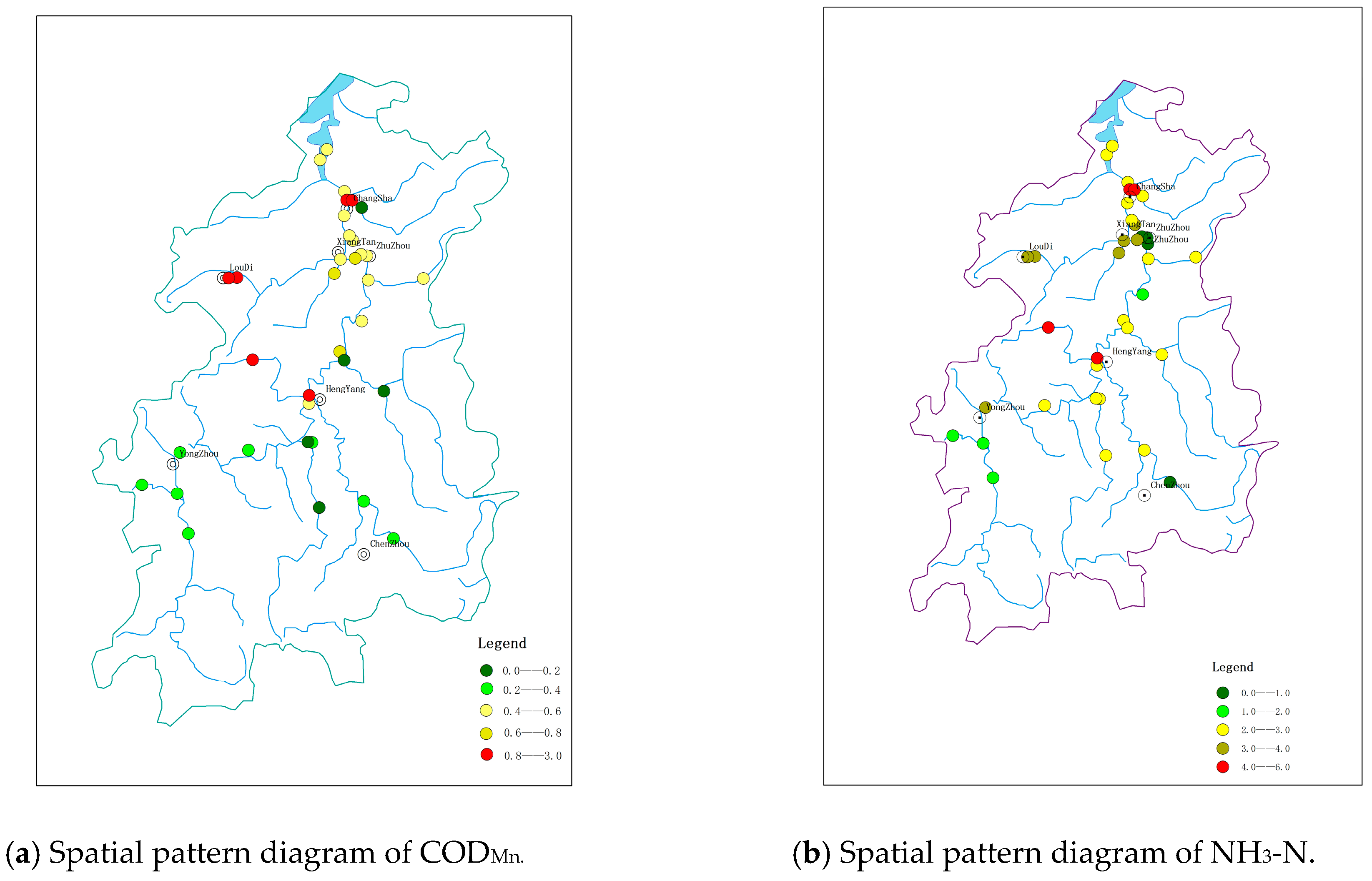

Figure 2. Spatial pattern diagram of water-environment quality.
Figure 2. Spatial pattern diagram of water-environment quality.
Ijerph 15 02095 g002
Figure 3. Environmental Kuznets Curve (EKC) of CODMn and NH3-N. Notes: Blue curve denotes CODMn and the black denotes NH3-N. Overall concentration of NH3-N is actually lower than that of CODMn, the curve of it is adjusted upwards for the aesthetics of the figure.
Figure 3. Environmental Kuznets Curve (EKC) of CODMn and NH3-N. Notes: Blue curve denotes CODMn and the black denotes NH3-N. Overall concentration of NH3-N is actually lower than that of CODMn, the curve of it is adjusted upwards for the aesthetics of the figure.
Ijerph 15 02095 g003

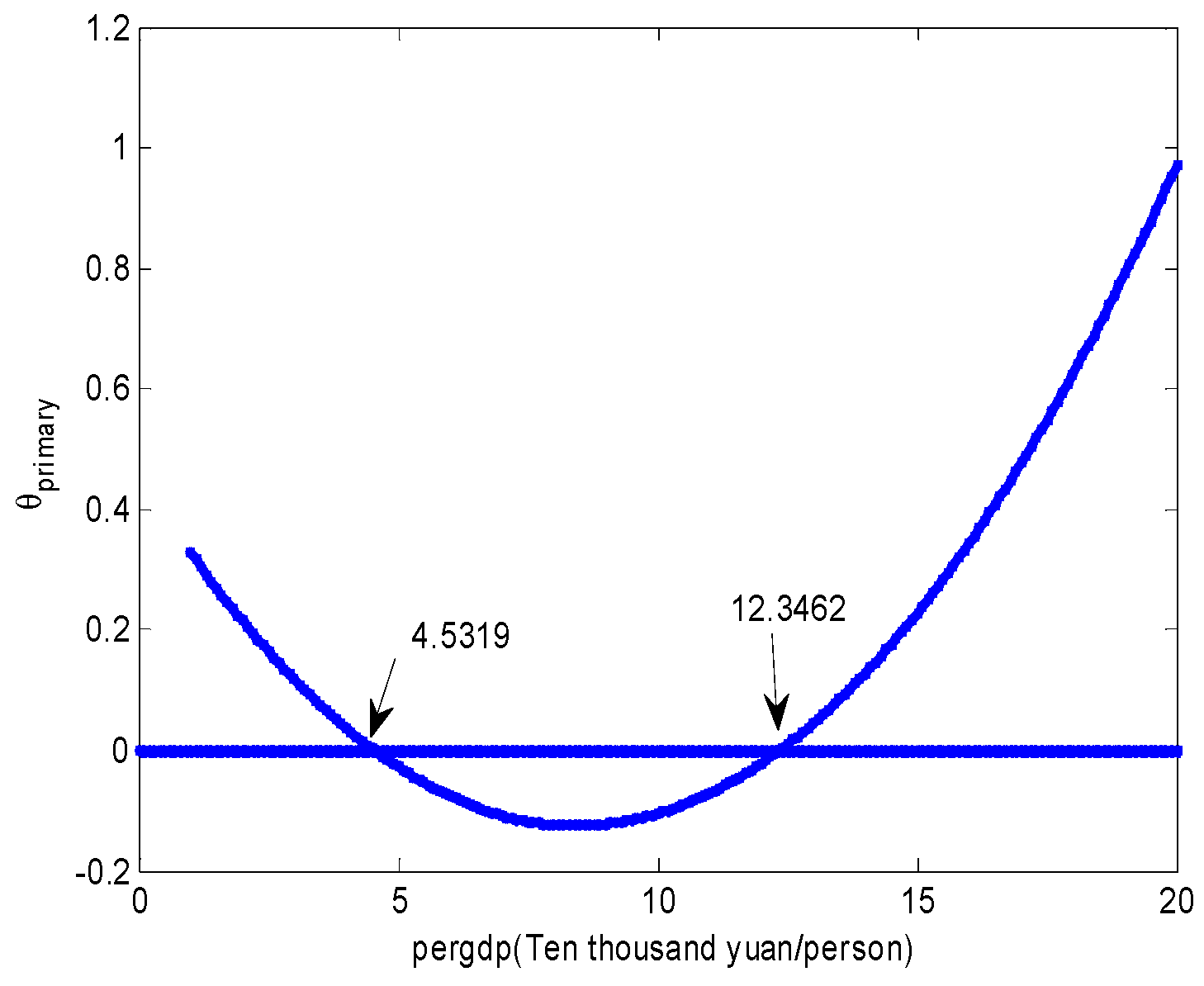

Figure 4. The instantaneous indirect effect of pergdp on CODMn concentration through primary.
Figure 4. The instantaneous indirect effect of pergdp on CODMn concentration through primary.
Ijerph 15 02095 g004
Figure 5. The instantaneous indirect effect of pergdp on CODMn concentration through indus.
Figure 5. The instantaneous indirect effect of pergdp on CODMn concentration through indus.
Ijerph 15 02095 g005
Table 1. Data statistics for water-quality pollutant concentration in 2005–2015 in the Xiangjiang River.
Table 1. Data statistics for water-quality pollutant concentration in 2005–2015 in the Xiangjiang River.
VariablesUnitSample SizeMeanMaximumMinimunStd.Dev
CODMnmg/L2862.7063078.270.251.112028
NH3-Nmg/L2860.55499684.170.0280.6375492
Pergdp10,000 yuan/person2863.23005815.196420.57124532.394778
primary%2860.1322080.3872620.0002180.104902
indus%2860.3982970.8332310.0753460.156605
pop10,000 people/km22860.1347131.2682240.0094880.222809
ur%28659.8563510018.5126.1837
precipitationmillimeter2861368.7532151804253.0147
Table 2. Correlation coefficient matrix and Variance Inflation Factor (VIF) test.
Table 2. Correlation coefficient matrix and Variance Inflation Factor (VIF) test.
VariablesVIFCODMnNH3-NPergdpPrimaryIndusPopPrecipitation
CODMn1.071
NH3-N1.770.58 ***1
Pergdp4.930.11 *0.44 ***1
Primary2.71−0.06−0.32 ***−0.74 ***1
Indus1.53−0.21 ***−0.38 ***−0.06−0.22 ***1
Pop3.640.28 ***0.58 ***0.79 ***−0.52 **−0.35 ***1
Precipitation1.05−0.19 ***−0.070.16 ***−0.12 **0.080.061
Note: The symbol * denotes p < 0.1, ** denotes p < 0.05, and *** denotes p < 0.01.
Table 3. Moran’s I values for CODMn and NH3-N between 2005 and 2015.
Table 3. Moran’s I values for CODMn and NH3-N between 2005 and 2015.
Variables20052006200720082009201020112012201320142015
CODMn0.4540.3360.1150.1780.3050.0620.0680.1930.1690.2580.408
NH3-N0.6470.5730.5650.5690.6330.6390.3380.5670.3550.6320.871
Note: All the Moran’s I statistics were calculated at a 99% confidence interval.
Table 4. Estimation results for CODMn.
Table 4. Estimation results for CODMn.
VariablesCODMn
OLSSARSEMSDM
XX × W
Pergdp−0.769125 **
(−2.33)
−0.814879 ***
(−2.67)
−0.8491968 ***
(−2.78)
−0.8627394 ***
(−2.56)
1.586722 ***
(3.07)
Pergdp20.0568525
(1.43)
0.0632209 *
(1.72)
0.0629587 *
(1.72)
0.0906988 **
(2.13)
−0.1469894 **
(−2.18)
Pergdp3−0.0017309
(−1.13)
−0.0019929
(−1.40)
−0.0018965
(−1.36)
−0.0031909 **
(−1.96)
0.0047774 *
(1.73)
primary−7.307696 ***
(−3.34)
−7.089124 ***
(−3.52)
−7.416741 **
(3.66)
−6.726415 ***
(−3.43)
−4.344041
(−1.49)
indus−2.161912 *
(−1.86)
−1.775304
(−1.61)
−1.842487 *
(1.69)
−2.326853 **
(−2.07)
−5.136943 ***
(−2.56)
pop−2.429998
(−1.38)
−2.338575
(−1.45)
−2.133634
(−1.31)
−2.405921
(−1.45)
0.3432917
(−0.12)
pre−0.0002118
(−0.90)
−0.0002282
(−1.06)
−0.0001922
(−0.85)
−0.0000604 **
(−2.11)
−0.0001505
(0.26)
λ 0.095021
(1.40)
0.1135916
(1.52)
0.1003935 *
(1.91)
Log likelihood−237.9421−237.2963−236.7877−222.8622
Lagrange Multiplier (LM) spatial lag3.5722 *
LM spatial error4.3314 **
Robust LM spatial lag0.2122
Robust LM spatial error0.8078
Durbin–Watson1.68431.73901.6887 1.7900
Wald Test 30.2044 ***30.8764 ***
LR Test 28.8703 ***27.8688 ***
Hausman test 27.9928 **
Spatial fixed effectsYESYESYESYES
Time fixed effectsYESYESYESYES
R20.05630.06040.04450.153
Note: The symbol * denotes p < 0.1. ** denotes p < 0.05. *** denotes p < 0.01.
Table 5. Estimation results for NH3-N.
Table 5. Estimation results for NH3-N.
VariablesNH3-N
OLSSARSEMSDM
XX × W
Pergdp−0.2304252 *
(−1.75)
−0.3599694 ***
(−3.06)
−0.2796854 **
(−2.40)
−0.3831458 ***
(−2.90)
0.5121585 **
(−2.52)
Pergdp20.0225424
(1.42)
0.0395953 ***
(2.79)
0.0279102 *
(1.95)
0.04656 ***
(2.83)
−0.0602376 **
(−2.26)
Pergdp3−0.0002884 *
(−0.44)
−0.0010476 *
(−1.90)
−0.0006139
(−1.14)
−0.0012895 **
(−2.02)
0.0022042 **
(−2.02)
primary0.8327864
(0.90)
1.190792
(1.53)
0.7400716
(0.91)
1.028606
(1.33)
−2.10261 *
(−1.87)
indus0.0973589
(0.20)
0.4293576
(1.04)
0.121705
(0.29)
0.6328895
(1.46)
0.1612411
(0.21)
pop−5.441929 ***
(−7.28)
−5.197749 ***
(−8.32)
−4.009296 ***
(−6.22)
−4.974618 ***
(−7.59)
1.229716
(−1.12)
pre−0.0002017 **
(−2.02)
−0.0001833 **
(−2.20)
0.0002131 **
(−2.16)
−0.0002387
(−1.10)
0.0001564
(0.67)
λ 0.5099835 ***
(7.96)
0.474194 ***
(5.82)
0.4745402 ***
(7.34)
44.0426
Log-likelihood7.123334.273121.5694
LM spatial lag32.1044 ***
LM spatial error18.5332 ***
Robust LM spatial lag29.1668 ***
Robust LM spatial error6.6632 **
Durbin-Watson1.58471.68301.6677 1.6600
Wald Test 20.0846 ***27.0840 **
LR Test 19.3777 ***44.6156 ***
Hausman test 49.4105 ***
Spatial fixed effectsYESYESYESYES
Time fixed effectsYESYESYESYES
R20.31840.18690.19110.2286
Note: The symbol * denotes p < 0.1. ** denotes p < 0.05. *** denotes p < 0.01.
Table 6. Direct and indirect effects of each explanatory variable.
Table 6. Direct and indirect effects of each explanatory variable.
VariablesCODMnNH3-N
Direct EffectIndirect EffectTotal EffectDirect EffectIndirect EffectTotal Effect
pergdp−0.81844 **
(−2.39)
1.6124 ***
(3.06)
0.79401
(1.19)
−0.3247845 **
(−2.36)
0.518729 **
(1.88)
0.19339
(0.54)
pergdp20.08473 **
(1.97)
−0.14809 **
(−2.14)
−0.0633
(−0.73)
0.0395103 ***
(2.28)
−0.06006 *
(−1.65)
−0.02055
(−0.44)
pergdp3−0.002987 *
(−1.79)
0.004793 *
(1.68)
0.00118
(0.49)
−0.0012895 **
(−1.49)
0.0023856
(−1.58)
0.001367
(0.70)
primary−6.7732 ***
(−3.57)
−5.2055 *
(−1.76)
−11.988 ***
(−3.33)
0.8134952
(1.08)
−2.45148
(−1.61)
−1.637988
(−0.85)
indus−2.41538 **
(−2.22)
−5.4209 ***
(−2.57)
−7.8363 ***
(−3.20)
0.6585608
(1.52)
0.56817
(0.51)
1.2267
(0.91)
pop−2.4034
(−1.69)
−0.56609
(−0.19)
−2.9695
(−0.78)
−4.841386 ***
(−6.93)
−0.58244
(−0.37)
−5.4238 ***
(−2.67)
pre−0.000578
(−0.10)
0.0001696
(0.29)
−0.0001118
(0.44)
−0.0002219 *
(−1.88)
0.000111
(0.64)
−0.000111
(−0.85)
Note: The symbol * denotes p < 0.1, ** denotes p < 0.05, and *** denotes p < 0.01.
Table 7. Impact of the economy on the environment.
Table 7. Impact of the economy on the environment.
VariablesCODMnNH3-N
pergdp−0.6344118 ***
(−2.59)
−0.4388021 ***
(−3.64)
pergdp20.0404943 *
(1.831)
0.0547024 ***
(3.71)
pergdp3−0.009982 *
(−1.89)
−0.00160061 ***
(−2.82)
Pop−2.542371
(−1.47)
−5.144074 ***
(−7.82)
pre−0.0002308
(−0.25)
−0.0001765
(−0.83)
λ 0.171587 ***
(2.77)
0.461027 ***
(5.76)
Spatial fixed effectsYesYes
Time fixed effectsYesYes
Log-likelihood−234.025840.6721
R20.08030.1857
Note: The symbol * denotes p < 0.1, *** denotes p < 0.01.
Table 8. Impact of the economy on the industry.
Table 8. Impact of the economy on the industry.
VariablesPrimaryIndus
pergdp−0.0716853 ***
(−7.8)
0.0516433 ***
(3.02)
pergdp20.0102196 ***
(9)
−0.0077573 ***
(−3.77)
pergdp3−0.0004045 ***
(−9.21)
0.0002928 ***
(3.69)
Pop−0.03464
(0.68)
−0.0969328
(−1.07)
pre−8.14 × 10−6
(0.5)
0.0000677 **
(2.30)
λ 0.1769211 *
(1.67)
0.1155647
(0.64)
Spatial fixed effectsYESYES
Time fixed effectsYESYES
Log-likelihood763.3026600.1801
R20.63330.4397
Note: The symbol * denotes p < 0.1, ** denotes p < 0.05, *** denotes p < 0.01.

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Int. J. Environ. Res. Public Health EISSN 1660-4601 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
