Determination and Distribution of Polycyclic Aromatic Hydrocarbons in Rivers, Sediments and Wastewater Effluents in Vhembe District, South Africa

Department of Hydrology and Water Resources, University of Venda, Private Bag X5050, Thohoyandou 0950, South Africa
Department of Chemical Sciences, Yaba College of Technology, P.M.B. 2011 Yaba, Lagos 101212, Nigeria
College of Science, Engineering and Technology, Nanotechnology and Water Sustainability Research Unit, Florida Science Campus, University of South Africa, 1710 Roodepoort, Johannesburg 2000, South Africa
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2016, 13(4), 387;
Received: 2 February 2016 / Revised: 19 March 2016 / Accepted: 28 March 2016 / Published: 30 March 2016


Polycyclic aromatic hydrocarbons are very toxic and persistent environmental contaminants. This study was undertaken to assess the concentrations and possible sources of 16 PAHs (Polycyclic aromatic hydrocarbons) classified by the United State Environmental Protection Agency as priority pollutants in water and sediments of the Mvudi and Nzhelele Rivers. Effluents from Thohoyandou wastewater treatment plant and Siloam waste stabilization ponds were also investigated. Diagnostic ratios were used to evaluate the possible sources of PAHs. PAHs in the water samples were extracted using 1:1 dichloromethane and n-hexane mixtures, while those in the sediment samples were extracted with 1:1 acetone and dichloromethane using an ultrasonication method. The extracts were purified using an SPE technique and reconstituted in n-hexane before analyses with a gas chromatograph time of flight—mass spectrometer. The results obtained indicate the prevalence of high molecular weight PAHs in all the samples. PAHs concentrations in water and sediment samples from all the sampling sites were in the range of 13.174–26.382 mg/L and 27.10–55.93 mg/kg, respectively. Combustion of biomass was identified as the major possible source of PAHs. Effluents from wastewater treatment facilities were also considered as major anthropogenic contributions to the levels of PAHs found in both river water and sediments. Mvudi and Nzhelele Rivers show moderate to high contamination level of PAHs.

1. Introduction

Polycyclic aromatic hydrocarbons (PAHs) are ubiquitous in the environment and are part of numerous organic contaminants that are persistent in the environment, have long transport potential and can cause adverse environmental effects [1,2]. Some of them are susceptible to dispersion on a global scale because, in addition to having environmental persistence, they are “semi-volatile”, i.e., under environmental conditions they move between the atmosphere and the earth’s surface in repeated, temperature-driven cycles of deposition and volatilisation [3,4]. PAHs are truly multimedia contaminants which occur in all parts of the environment: atmosphere, inland and sea waters, sediments, soils and vegetation [2,3].
There are thousands of PAH compounds in the environment but in practice PAH analysis is restricted to a few compounds—mostly the 16 priority compounds (Naphthalene, Acenaphthylene, Acenaphthene, Fluorene, Phenanthrene, Anthracene, Fluoranthene, Pyrene, Benz[a]anthracene, Chrysene, Benzo[b]fluoranthene, Benzo[k]fluoranthene, Benzo[a]pyrene, Indeno[1,2,3-cd]pyrene, Dibenzo[a,h]anthracene and Benzo[ghi]perylene) listed by US EPA as potentially toxic [5]. Individual PAHs differ substantially in their physical and chemical properties [6,7]. Generally, PAHs are hydrophobic with very little solubility in water which decreases with increasing molecular weight or the number of fused aromatic rings. The high molecular weight (HMW) PAHs (≥ 4 fused aromatic rings) are less water-soluble, less volatile and more lipophilic than lower molecular weight (LMW) PAHs (≤3 fused aromatic rings) [2,3,8]. PAHs are not part of the 12 priority pollutants of the Stockholm convention but are listed by the United States Environmental Protection Agency and the European Commission as priority pollutants [9,10,11]. The widespread occurrence of PAHs is largely due to their formation and release in all processes of incomplete combustion of organic materials. The last century of industrial development caused a significant increase of PAH concentrations in the natural environment [2,8].
Natural sources of pyrogenic PAH such as volcanic activity and forest fires do not significantly contribute to overall PAH emission [12,13]. These pollutants are mostly formed during the incomplete combustion and pyrolysis of fossil fuels or wood and from the release of petroleum products [7,14]. Other sources of PAHs include petroleum spills, oil seepage and diagenesis of organic matter in anoxic sediments [2,15]. PAHs are also found in coal tar, crude oil, creosote and roofing tar and a few are used in medicine or to make dyes, plastics, and pesticides [6,16,17]. PAHs have also some beneficial applications as some of them are produced for commercial use; these include naphthalene, fluorene, anthracene, phenanthrene, fluoranthene, and pyrene [18]. Exposure to PAHs causes a variety of negative health impacts which includes: reproductive defects, DNA mutations, leukemia and cancer of the lung, bladder, bone, brain and scrotal [19,20]. Several water and sediments quality guidelines for the assessment of ecological risk of PAHs on benthic and other aquatic organisms are widely reported in the literature [21,22,23,24]. The effect range low (ERL) and effect range medium (ERM) based approaches formulated by Long and MacDonald [25] have been widely applied [26].
Although PAHs have received much attention in terms of scientific research in some developed countries because of the adverse effects they have on the environment, animals and human health, major data gaps exist on its sources and levels in developing countries [12,27,28]. South Africa is a leading industrialized nation in the African continent but it has not put much emphasis on the monitoring of the levels of PAHs in its environment [27,28]. There is also limited knowledge on the extent to which burning of waste/forest contributes to the PAHs emissions in South Africa [27,28,29]. The contribution of wastewater as potential sources of PAHs in sediments and soil when used for irrigation in South Africa is also lacking. This study was conducted to determine the levels and distribution of PAHs in Surface water and sediments including wastewater effluents in Vhembe District of South Africa.
The study area is located in Vhembe District which is situated between longitudes 28°54′20.66′′ E and 31°04′31.19′′ E and latitudes 22°7′26.59′′ S and 23°26′6.49′′ S in the northern region of Limpopo Province of South Africa (Figure 1). The study area is made up of various urban and semi-urban settlements as well as numerous scattered rural villages. Land is predominantly used for commercial/subsistence agriculture and rural settlements. Solid waste disposal sites and wastewater treatment facilities also make up part of land use. Furthermore, the study area is characterised by fired brick-making, pottery, paint industries and wood creosote (rich in PAHs) treatment plants. Burning of lands in preparation for agriculture, refuse and burning of vehicle tyres are common features in the study area. This region is characterised by a warm wet season which is associated with high temperatures up to 40 °C and is usually between October and March, with peak precipitation in January and February. The cool dry season has a temperature range between 12 and 22 °C and begins from April to September [30].

2. Materials and Methods

2.1. Chemicals

Acetone (99.8%), dichloromethane (99.5%), n-hexane (99.8%) and acetonitrile were purchased from Merck (pty) Ltd (Johannesburg, South Africa). Sodium chloride and anhydrous sodium sulphate were obtained from Fluka (Steinheim, Germany). Solid phase extraction (SPE) C18 cartridges and certified reference materials of 16 USEPA PAHS were purchased from Sigma-Aldrich (St. Louis, MO, USA). All reagents were used without any further purification.

2.2. Sampling

Water and sediment samples were collected from three different points in Mvudi (30°28′28′′ E and 23°0′13′′ S) and Nzhelele (30°22′19′′ E and 22°2′08′′ S) Rivers. Wastewater effluent samples were also collected from Thohoyandou wastewater treatment plant (WWTP) (30°28′48′′ E and 23°0′00′′ S) and Siloam wastewater stabilisation ponds (WSPs) (30°11′10′′ E and 30°11′23′′ S). The samples were transported on ice chest to Hydrology and Water Resources laboratory of the University of Venda. The water samples were kept at 4 °C in EPA vials with Teflon crew cap as recommended for PAH samples before analysis [31]. The sediment samples were placed into polyethylene plastic bags and transported in a similar fashion as the water samples. In the laboratory, sediment samples were air dried, homogenized, ground gently with an agate pestle and mortar and sieved with a 500 µm analytical sieves.

2.3. Extraction and Analyses of PAHs

Liquid-liquid extraction was used for the extraction of PAHs in water samples. EPA [31] method and slightly modified procedure reported by Nekhavhambe et al. [32] was employed. 75 g of NaCl was added to 500 mL of the sample in a separating funnel. PAHs in the sample were extracted three times using a mixture of dichloromethane and n-hexane. After vigorous shaking, the extract was dehydrated using anhydrous sodium sulfate, and concentrated to 2.0 mL with a rotary evaporator at 35–40 °C. Organic contaminants in extracts were purified using SPE florisil columns, and was concentrated and reconstituted using 1 mL of n-hexane and analysed using gas chromatography time of flight mass spectrometer (GC-TOF-MS). The extraction of sediment samples was performed using the method outlined by Oluseyi et al. [33] where 1 g of each sediment sample was weighed into pre-cleaned 25 mL amber glass bottles. 10 mL of 1:1 acetone:dichloromethane were added, respectively. The bottles were sealed with screw cap closure lined with a PTFE-faced silicone rubber septum and shaken vigorously to suspend the contents. The bottles were then sonicated in a high performance ultrasonic bath with microprocessor control for precision time and temperature controlled operation for 60 min at 50 °C. The sample bottles were intermittently inverted and shaken to continually re-suspend the samples. SPE clean-up of the sediment extracts was carried out with 6 mL Supelco C18 SPE cartridges. The extraction solutions were each loaded and aspirated through the cartridge under gentle vacuum at a flow rate of less than 2 mL/min. The collected extract was reconstituted in 1 mL n-hexane and analysed using GC-TOF-MS.

2.4. Validation Studies and Preparation of Calibration Standards

Spiked recovery method was used for validation studies for both the water and sediment samples. The samples were spiked with 1 µL of 100 mg/L standard mixture consisting of 16 PAHs to 500 mL pre-extracted water samples. Double-distilled water (500 mL) was first pre-extracted in triplicate with 30 mL dichloromethane as a blank sample. The spiked samples were then extracted and analysed. PAHs standards were used for the calibration of the instrument. The calibration standards were prepared by serial dilution from stock solution.

2.5. Instrument and Analytical Conditions

Analyses of PAHs were performed using gas chromatograph (Model 7890 series, Agilent Technologies Inc., Wilmington, DE, USA) coupled to a LECO Pegasus 4D Time of Flight mass spectrometer (St. George, MI, USA). The column set comprised of a primary column, Rxi-5SilMS (30 m × 0.25 mm internal diameter, 0.25 µm stationary film thickness) and a secondary column Rxi-200 (1 m × 0.15 mm internal diameter, 0.15 µm stationary film thickness). Helium was used as the carrier gas whereas nitrogen, compressed air and liquid nitrogen were used for the operation of the quad jet thermal modulator. The sample injector temperature was set at 250 °C and samples were injected at a volume of 1 µL in splitless mode. The flow of carrier gas was set at a rate of 1.5 mL/min. The oven temperature was programmed as follows: 80 °C held for 0.5 min; ramped from 80 to 220 °C at 20 °C/min, then 220–300 °C at 10 °C/min. The mass spectrometry conditions were set as follows: Ionisation: electron ionisation at −70 eV; source temperature: 180 °C; stored mass range: 47–350 µm; acquisition rate: 20 spectra/second; detector voltage: −1500 V.

3. Results

3.1. Calibration and Percentage Recovery

The calibration graph obtained by plotting the peak areas against the concentration of the analyte from the certified reference materials were all linear with correlation coefficients ranging between 0.971 and 0.999. Acceptable recoveries in the range of 95.9%–149% were obtained.

3.2. PAH Concentrations

PAHs do not usually exist as separate entities in environmental media; they are often regarded as a mixture and the total concentration of their mixture is often used to describe their distribution. 16 PAHs recommended by the United State Environmental Protection Agencies (US EPA) were investigated in this study but only 10 of them were determined in all of the sampling sites during the course of this study (Table 1) while the other 6 were below detectable limits. The concentrations of PAHs in Mvudi and Nzhelele River water varied between 0.126 and 7.510 mg/L and below detection limits to 7.805 mg/L, respectively. Mvudi River water (16.585 mg/L) recorded higher total PAH levels than Nzhelele River water (15.134 mg/L). Similarly, the levels of PAHs determined in Mvudi and Nzhelele River sediments range between 0.266 and 21.60 mg/kg and 0.206 and 13.71 mg/kg, respectively. The total PAHs in Mvudi River sediment (55.93 mg/kg) was also higher than Nzhelele River sediment (27.10 mg/kg). The levels of PAHs in Thohoyandou WWTP and Siloam WSPs ranges from below detection limit to 7.510 mg/L and 8.310 mg/L, respectively. The effluents from Siloam WSPs recorded higher total PAHs levels (26.38 mg/L) than Thohoyandou WWTP (13.17 mg/L) (Table 1). This reasoning can be supported by another study by Qi et al. [34] who reported total PAHs in the range of 0.245–0.4040 mg/L and 0.43–2.860 mg/L in wastewater effluent and wastewater from small sewer in Beijing, China. Both sources were regarded as contributors of PAH loadings into river sources. Therefore, both wastewater treatment facilities in this study can be regarded as point sources of PAHs contamination to the rivers.
Generally, the lower molecular weight (LMW) PAHs were present in lower concentrations in all sampling sites except for fluorene. Fluoranthene and benzo[b]fluoranthene were present in higher concentration when compared to other PAHs in all sampling sites. Nekhavhambe et al. [32] reported the levels of PAHs in some rivers and sediments in Vhembe District of South Africa. They reported a mean value of 0.1092 mg/L and 0.056 mg/L for Mutshundudi and Nzhelele Rivers waters and 11.711 mg/kg and 7.035 mg/kg for both rivers sediments, respectively. Their results showed lower total PAH concentrations in the Mutshundudi and Nzhelele Rivers and their sediments when compared to the results of this study (Table 1). PAHs are known for their persistence in the environment and more PAHs could have accumulated within 8 years, thus the higher concentration in this study. This is similar to reasons for the findings of Elder and Dresler [35] on the accumulation and bio-concentration of PAHs in estuarine environment in Florida, USA. Also, only 6 PAHs were used for computing the total PAH concentrations in the water and sediments of those rivers whereas 10 PAHs were considered in this study (Table 1).
Generally, the concentrations of PAHs were higher in the sediments of both river than in the water samples. This is due to the hydrophobic nature of PAHs [36]. PAHs tends to adsorb on the surface of sediments because they are not soluble in water. The results of this study showed higher levels of PAHs than those reported by Sibiya et al. [37] on the application of solid phase extraction (SPE) method for polycyclic aromatic hydrocarbons in water samples in Johannesburg area, South Africa; also, 5 PAHs were used for computing the total PAHs in their study.
Correlation analysis reveals that only naphthalene (r = 0.974, p < 0.05) and benzo[b]fluoranthene (r = 0.965, p < 0.05) correlated positively and significantly in the water and sediments of Mvudi River, acenapthene (r = −1.00, p < 0.01), pyrene (r = −1.00, p < 0.01) and fluoranthene (r = −0.99, p < 0.01), correlated negatively but significantly of the same river. Other PAHs did not show any significant correlation. The mean difference of levels of each of the PAHs in water and sediments of Mvudi River varied significantly for all PAHs determined except acenapthene and acenapthylene. Similarly, in the water and sediments of Nzhelele River, acenathylene (r = 0.971, p < 0.05), pyrene (r = 0.999, p < 0.01), flouranthene (r = 0.968, p < 0.01) and benzo[b]fluoranthene (r = 0.995, p < 0.01) correlated positively and significantly. Phenanthrene (r = −1.00, p < 0.01), acenapthene (r = −1.00, p < 0.01) and benzo[a]pyrene (r = −0.999, p < 0.01) correlated negatively but significantly. The mean difference between the levels of each of the PAHs in water and sediments of Nzhelele River varied significantly for all PAHs except for acenapthene and benzo[a]pyrene. Anthracene was not computed because it was found below the detection limit of the analytical instrument.

3.3. Sources of PAHs

The sources of PAHs can either be petrogenic i.e., released from petroleum products or pyrogenic due to the combustion of biomass. Diagnostic ratios have been designed and used to distinguish the sources of PAHs due to their stability, physical and chemical attributes [38,39]. The most commonly used ratios for the source identification of PAHs are presented in Table 1 and Table 2.
Table 1 shows the diagnostic ratios of the PAHs obtained in this study and their possible sources. The ratio of Anthracene/(Anthracene+Phenanthrene), in Mvudi and Nzhelele Rivers and sediments were >0.1 except for Nzhelele River water which implies that the source of the PAHs was from pyrogenic sources due to the combustion of bushes and other biomass [39]. This ratio was not applied to the effluents from Thohoyandou WWTP and Siloam WSPs as anthracene was not detected in their samples.
The ratio (Low Molecular weight PAHs)/(High Molecular weight PAHs) gave values of <1 for all the sampling sites supporting the fact that the source of the PAHs was more likely to be due to the combustion of biomass. Also, the use of Fluoranthene/(Fluoranthene+Pyrene) ratio gave values of >0.5, which further comfirms a pyrogenic source. Otherwise, values of <0.4 would have implied that the source of the PAHs was due to the use of petroleum products. Burning of farmland for agriculture and refuse is a common practice around Thohoyandou. Generally, the source of PAHs in both river systems and the wastewater treatment facilities (WWTFs) can be attributed to pyrogenic activities although petrogenic contribution cannot be ruled out. Most PAHs that are persistent in environmental media are usually from pyrogenic sources rather than petrogenic sources.

3.4. PAH Compositions

The composition pattern of PAHs detected in the samples by the number of rings are shown in Figure 2. Generally, the high molecular weight (HMW) PAHs with ≥4 rings was predominant in the rivers, sediments and WWTFs samples making up to 74.7%, 76.9%, 69.83%, 50.7%, 54% and 87% in Mvudi River, Nzhelele River, Thohoyandou WWTP, Silaom WSPs, Mvudi sediments and Nzhelele sediments, respectively (Figure 3). This may be attributed to their low solubility in water, less volatility due to their molecular size and higher persistence in aqueous environment when compared to the low molecular weight (LMW) PAHs [41]. The major source of HMW PAHs can be linked to anthropogenic activities [42].
HMW PAHs are more persistent than LMW PAHs in the environment due to their increased resistance to oxidation, reduction and vapourisation as molecular weight increases [43]. LMW PAHs such as naphthalene and fluorene have more significant acute toxicity to aquatic organisms than HMW PAHs but are non-carcinogenic. Some HMW PAHs such as benzo[a]pyrene and benzo[b] fluoranthene are carcinogenic and mutagenic to a wide variety of organisms including fish, birds and mammals [44]. Five molecular weight PAHs were more prevalent in the water of Mvudi and Nzhelele Rivers and effluent of Thohoyandou WWTP. Four ring PAHs were only prevalent in the sediments of Nzhelele River. Siloam WSPs and the sediments of Mvudi River contained more of three ring PAHs than others. Two ring PAHs were the least determined in all the sampling sites. Generally, HMW PAHs were higher in all the sampling sites than LMW PAHs.
The physical and chemical characteristics of PAHs vary in accordance to their number of rings. The greater the number of rings is, the higher the molecular weight. As the molecular weight increases, the solubility of PAHs decreases with an increase in melting and boiling point. The number of rings in PAHs also determine their toxicity [45]. Nasher et al. [39] reported the prevalence of HMW PAHs in water collected around Langkawi Island in Malaysia. They attributed their findings to anthropogenic activities such as incomplete fuel combustion and vehicle engine emissions. Zhao et al. [46] and Okedeyi et al. [29] also reported the prevalence of HMW PAHs in their studies around Mai Po inner deep bay of Hong Kong and coal fired power plants in South Africa, respectively. The comparisons of Total PAH obtained in this study and different parts of the world is presented in Table 3.

3.5. Health Risk Assessment

The three major routes of exposure of PAHs to humans are inhalation, ingestion and dermal contact [43,45]. The potential toxicity of PAHs in water and sediments can be calculated in relation to benzo[a]pyrene, which is the most carcinogenic PAH. The potential toxicity can be calculated using the relation reported by Nekhavhambe et al. [32] in Equation (1):
Total TEQ = i C i × T E F i
where TEQ = toxic equivalent quotient, Ci =concentration of individual PAHs, TEFi = toxic equivalent factor relative to benzo[a]pyrene. The values obtained are presented in Table 4. The computed TEQ values were higher in the sediment samples than the river water and effluent samples. The TEQ values of the effluents from WWTFs are high; with respect to benzo[a]pyrene, workers in the wastewater treatment facilities must be protected from direct contact with the wastewater in order to reduce the likelihood of skin cancer [54].
The potential toxicity of PAHs in the sediments on the surrounding aquatic organisms and their ecosystem was also assessed. PAHs levels in the sediments were compared with the US National Oceanic sediment quality guidelines [23]. Table 4 shows the recommended ERL (effect range low) and ERM (effect range median) target values. Values above the recommended ERM values indicate the likelihood of occurrence of high negative toxic effect in that area. Mild toxic effect is expected if the PAHs concentrations range between ERL and ERM values [25]. No negative effect is expected for PAH concentrations lower than ERL values. From the results presented in Table 5, there is a high probability of risk for the organisms that live in both Mvudi and Nzhelele Rivers. Anthracene, naphthalene and phenanthrene exceeded the ERL values but fell within the ERM values for both rivers, suggesting a mild negative toxic effects on aquatic organisms present in the rivers. Pyrene exceeded the ERL value in Nzhelele River sediments but fell within the ERM value; conversely, pyrene was below the ERL value in Mvudi River. Acenaphthene, acenaphthylene and fluoranthene exceeded ERM values for both rivers. Benzo[a]pyrene and flourene only exceeded the ERM values for the Mvudi River. Based on the results of this study, occasionally adverse biological effects (such as cancer and reproductive and physiological disorders) may occur in fish, birds and mammals [56].

4. Conclusion

The distribution of PAHs in the samples indicates a possible health risk to humans and aquatic organisms as some of the individual PAHs exceeded the ERM recommended values. Mvudi River sediment was the most contaminated site investigated. LMW PAHs contributed little to the total PAH concentration in all the sampling sites. Sediment samples were more contaminated than the water samples. WWTFs in Vhembe District are regarded as potential sources of PAHs in both river waters and sediments. Results from diagnostic ratios favour a pyrogenic source of PAH pollution over a petrogenic source, although the contribution of the latter cannot be ignored.


The authors wish to thank the Research and Publication Committee of the University of Venda for funding this study (Grant no. S357).

Author Contributions

Joshua N. Edokpayi performed the sample collection and analyses. John. O. Odiyo, Titus A.M. Msagati and Elizabeth O. Popoola contributed immensely to writing and discussion of the final manuscript. All the authors approved the final manuscript for publication.

Conflicts of Interest

The authors declare no conflict of interest.


The following abbreviations are used in this manuscript:
WWTPWastewater treatment plant
WSPsWaste stabilization ponds
WWTFsWastewater treatment facilities
ERLEffect range low
ERMEffect range medium
PAHsPolycyclic aromatic hydrocarbons
DWAFDepartment of Water Affairs and Forestry
WHOWorld Health Organization
US EPAUnited States Environmental Protection Agency


  1. Keshavarzifard, M.; Zakaria, M.P.; Hwai, T.S.; Yusuff, F.M.; Mustafa, S. Distributions and source apportionment of sediment-associated polycyclic aromatic hydrocarbons (PAHs) and hopanes in rivers and estuaries of Peninsular Malaysia. Environ. Sci. Pollut. Res. 2015, 22, 9424–9437. [Google Scholar] [CrossRef] [PubMed]
  2. Wild, S.R.; Jones, K.C. Polynuclear aromatic hydrocarbons in the United Kingdom environment: A preliminary source inventory and budget. Environ. Pollut. 1995, 88, 91–108. [Google Scholar] [CrossRef]
  3. Wania, F.; Mackay, D. Tracking the distribution of persistent organic pollutants. Environ. Sci. Technol. 1996, 30, 390–396. [Google Scholar] [CrossRef] [PubMed]
  4. Kawamura, K.; Suzuki, I.; Fujii, Y.; Wanatabe, O. Ice core record of polycyclic aromatic hydrocarbons over past 400 years. Naturwissenschaften 1994, 81, 502–505. [Google Scholar] [CrossRef]
  5. Zhang, Y.; Tao, S. Global atmospheric emission inventory of polycyclic aromatic hydrocarbons (PAHs). Atmos. Environ. 2009, 43, 812–819. [Google Scholar]
  6. Maliszewska-Kordybach, B. Sources, concentrations, fate and effects of polycyclic aromatic hydrocarbons (PAHs) in the Environment—Part A: PAHs in Air. Pol. J. Environ. Stud. 1999, 8, 131–136. [Google Scholar]
  7. El-Shahawi, M.S.; Hamza, A.; Bashammakh, A.S.; Al-Saggaf, W.T. An overview on the accumulation, distribution, transformations, toxicity and analytical methods for the monitoring of persistent organic pollutants. Talanta 2010, 80, 1587–1597. [Google Scholar] [CrossRef] [PubMed]
  8. Van Jaarsveld, J.A.; Van Pul, W.A.J.; De Leeuw, F.A. Modelling transport and deposition of persistent organic pollutants in the European region. Atmos. Environ. 1997, 31, 1011–1024. [Google Scholar] [CrossRef]
  9. US EPA. Priority Pollutants. 2014. Available online: (accessed on 21 August 2015). [Google Scholar]
  10. Loos, R. Analytical Methods for the New Proposed Priority Substances of the European Water Framework Directive (WFD); Publications Office of the European Union: Ispra, Italy, 2012; pp. 1–71. [Google Scholar]
  11. Bruzzoniti, M.C.; Fungi, M.; Sarzanini, C. Determination of EPA’s priority pollutant polycyclic aromatic hydrocarbons in drinking waters by solid phase extraction-HPLC. Anal. Method 2010, 2, 739–745. [Google Scholar] [CrossRef]
  12. Ogunfowokan, A.O.; Asubiojo, O.I.; Fatoki, O.S. Isolation and determination of polycyclic aromatic hydrocarbons in surface runoff and sediments. Water Air Soil Pollut. 2003, 147, 245–261. [Google Scholar] [CrossRef]
  13. Schuetzle, D.; Jensen, T.E.; Ball, J.C. Polar polynuclear aromatic hydrocarbon derivatives in extracts of particulates: Biological characterization and techniques for chemical analysis. Environ. Int. 1985, 11, 169–181. [Google Scholar] [CrossRef]
  14. Vasilakos, C.; Levi, N.; Maggos, T.; Hatzianestis, J.; Michopoulos, J.; Helmis, C. Gas–particle concentration and characterization of sources of PAHs in the atmosphere of a suburban area in Athens, Greece. J. Hazard. Mater. 2007, 140, 45–51. [Google Scholar] [CrossRef] [PubMed]
  15. Venkatesan, M.I. Occurrence and possible sources of perylene in marine sediments—A review. Mar. Chem. 1988, 25, 1–27. [Google Scholar] [CrossRef]
  16. Ramdahl, T.; Alfheim, I.; Bjorseth, A. PAH emission from various sources and their evolution over last decades. In Mobile Source Emission including Polycyclic Organic Species; Rondia, D., Cooke, M., Haroz, R.K., Eds.; D. Reidel Publishing Company: Dordrecht, The Netherlands, 1983; pp. 277–297. [Google Scholar]
  17. Sims, R.C.; Overcash, M.R. Fate of polynuclear aromatic compounds (PNAs) in soil-plant systems. Residue Rev. 1983, 88, 1–68. [Google Scholar]
  18. Franck, H.G.; Stadelhofer, J.W. Industrial Aromatic Chemistry—Raw Products, Processes, Products; Springer: Berlin, Germany, 1987; pp. 308–380. [Google Scholar]
  19. Nadal, M.; Schuhmacher, M.; Domingo, J.L. Levels of PAHs in soil and vegetation samples from Tarragona Country, Spain. Environ. Pollut. 2004, 132, 1–11. [Google Scholar] [CrossRef] [PubMed]
  20. Song, M.; Chu, S.; Letcher, R.J.; Seth, R. Fate, partitioning, and mass loading of polybrominated diphenyl ethers (PBDEs) during the treatment processing of municipal sewage. Environ. Sci. Technol. 2006, 40, 6241–6246. [Google Scholar] [CrossRef] [PubMed]
  21. Canadian Council of Ministers of the Environment. Canadian Sediment Quality Guidelines for the Protection of Aquatic Life: Summary Tables; Canadian Council of Ministers of the Environment: Winnipeg, MB, Canada, 2001.
  22. Long, E.R.; MacDonald, D.D.; Smith, L.; Calder, F.D. Incidence of adverse biological effects within ranges of chemical concentrations in marine and estuarine sediments. Environ. Manag. 1995, 19, 81–97. [Google Scholar] [CrossRef]
  23. US EPA. Provisional Guidance for Quantitative Risk Assessment of Polycyclic Aromatic Hydrocarbons; EPA/600/R/089; Office of Research and Development, US EPA: Washington, DC, USA, 1993.
  24. Macdonald, D.D.; Carr, R.S.; Calder, F.D.; Long, E.R.; Ingersoll, C.G. Development and evaluation of sediment quality guidelines for Florida coastal waters. Ecotoxicology 1996, 5, 253–278. [Google Scholar] [CrossRef] [PubMed]
  25. Long, E.R.; Macdonald, D.D. Recommended uses of empirically derived, sediment quality guidelines for marine and estuarine ecosystems. Human Ecol. Risk Assess. 1998, 4, 1019–1039. [Google Scholar] [CrossRef]
  26. Khairy, M.A.; Kolb, M.; Mostafa, A.R.; EL-Fiky, A.; Bahadir, M. Risk assessment of polycyclic aromatic hydrocarbons in a Mediterranean semi-enclosed basin affected by human activities (Abu Qir Bay, Egypt). J. Hazard. Mater. 2009, 170, 389–397. [Google Scholar] [CrossRef] [PubMed]
  27. Nieuwoudt, C.; Pieters, R.; Quinn, L.P.; Kylin, H.; Borgen, A.R.; Bouwman, H. Polycyclic Aromatic Hydrocarbons (PAHs) in Soil and Sediment from Industrial, Residential, and Agricultural Areas in Central South Africa: An Initial Assessment. Soil Sediment Contam. 2011, 20, 188–206. [Google Scholar]
  28. Okedeyi, O.O.; Nindi, M.M.; Dube, S.; Awofolu, O.R. Distribution and potential sources of polycyclic aromatic hydrocarbons in soils around coal-fired power plants in South Africa. Environ. Monit. Assess. 2013, 185, 2073–2082. [Google Scholar] [CrossRef] [PubMed]
  29. Vosloo, R.; Bouwman, H. Survey of Certain Persistent Organic Pollutants in Major; WRC report 1213/1/05; South African Waters: Pretoria, South Africa, 2005.
  30. Edokpayi, J.N.; Odiyo, J.O.; Msagati, T.A.M.; Potgieter, N. Temporal variations in physico-chemical and microbiological characteristics of Mvudi River, South Africa. Int. J. Environ. Res. Public Health 2015, 12, 4128–4140. [Google Scholar] [CrossRef] [PubMed]
  31. US EPA. Method 3510c: Separatory Funnel Liquid-Liquid Extraction. Available online: (accessed on 20 May 2015).
  32. Nekhavhambe, T.J.; Van Ree, T.; Fatoki, O.S. Determination and distribution of polycyclic aromatic hydrocarbons in rivers, surface runoff, and sediments in and around Thohoyandou, Limpopo Province, South Africa. Water SA 2014, 40, 415–424. [Google Scholar] [CrossRef]
  33. Oluseyi, T.; Olayinka, K.; Alo, B.; Smith, R.M. Comparison of extraction and contaminated soil samples. Afr. J. Environ. Sci. Technol. 2011, 5, 482–493. [Google Scholar]
  34. Qi, W.; Liu, H.; Pernet-Coudrier, B.; Qu, J. Polycyclic aromatic hydrocarbons in wastewater, WWTPs effluents and in the recipient waters of Beijing, China. Environ. Sci. Pollut. Res. 2013, 20, 4254–4260. [Google Scholar] [CrossRef] [PubMed]
  35. Elder, J.F.; Dresler, P.V. Accumulation and bioconcentration of polycyclic aromatic hydrocarbons in a nearshore estuarine environment near a Pensacola (Florida) creosote contamination site. Environ. Pollut. 1988, 49, 117–132. [Google Scholar] [CrossRef]
  36. Kannan, K.; Johnson-Restrepo, Y.; Yohn, S.; Giesy, J.; Long, D. Spatial and temporal distribution of polycyclic aromatic hydrocarbons in sediments from Michigan Inland lakes. Environ. Sci. Technol. 2005, 39, 4700–4706. [Google Scholar] [CrossRef] [PubMed]
  37. Sibiya, P.; Potgieter, M.; Cukrowskaa, E.; Jonssonb, J.A.; Chimuka, L. Development and Application of Solid Phase Extraction Method for Polycyclic Aromatic Hydrocarbons in Water Samples in Johannesburg Area, South Africa. South. Afr. J. Chem. 2012, 65, 206–213. [Google Scholar]
  38. Yunker, M.B.; Macdonald, R.W.; Vingarzan, R.; Mitchell, R.H.; Goyette, D.; Sylvestre, S. PAHs in the Fraser River basin: A critical appraisal of PAH ratios as indicators of PAH source and composition. Org. Geochem. 2002, 33, 489–515. [Google Scholar] [CrossRef]
  39. Nasher, E.; Heng, L.Y.; Zakaria, Z.; Surif, S. Assessing the ecological risk of polycyclic aromatic hydrocarbons in sediments at Langkawi Island, Malaysia. Sci. World J. 2013, 2013, 1–3. [Google Scholar] [CrossRef] [PubMed]
  40. Brandli, R.C.; Bucheli, T.D.; Kupper, T.; Mayer, J.; Stadelmann, F.X.; Tarradellas, J. Fate of PCBs, PAHs and their source characteristic ratios during composting and digestion of source-separated organic waste in full-scale plants. Environ. Pollut. 2007, 148, 520–528. [Google Scholar] [CrossRef] [PubMed]
  41. Zakaria, M.P.; Mahat, A.A. Distribution of polycyclic aromatic hydrocarbon (PAHs) in sediments in the Langat Estuary. Costal Mar. Sci. 2006, 30, 387–395. [Google Scholar]
  42. Dickhut, R.M.; Canuel, E.A.; Gustafson, K.E.; Liu, K.; Arzayus, K.M.; Walker, S.E.; Edgecombe, G.; Gaylor, M.O.; Macdonald, E.H. Automotive sources of carcinogenic polycyclic aromatic hydrocarbons associated with particulate matter in the Chesapeake Bay region. Environ. Sci. Technol. 2000, 34, 4635–4640. [Google Scholar] [CrossRef]
  43. Neff, M. Polycyclic Aromatic Hydrocarbons in the Aquatic Environment: Sources, Fates and Biological Effects; Applied Science Publishers: London, UK, 1979. [Google Scholar]
  44. Eisler, R. Polycyclic Aromatic Hydrocarbon Hazards to Fish, Wildlife, and Invertebrates: A Synoptic Review; Contaminant Hazard Reviews Report 11, Biological Report 85(1.11); US Department of the Interior, Fish and Wildlife Service: Laurel, MD, USA, 1987.
  45. Weast, R.C. Handbook of Chemistry and Physics, 1968–1969, 49th ed.; The Chemical Rubber Company: Cleveland, OH, USA, 1968. [Google Scholar]
  46. Zhao, Z.; Zhuang, Y.; Gu, J. Abundance, composition and vertical distribution of polycyclic aromatic hydrocarbons in sediments of the Mai Po Inner Deep Bay of Hong Kong. Ecotoxicology 2012, 21, 1734–1742. [Google Scholar] [CrossRef] [PubMed]
  47. Hsieh, C.Y.; Lee, C.L.; Miaw, C.L.; Wang, Y.K.; Gau, H.S. Characteristics and distribution of polycyclic aromatic hydrocarbons in sediments from Donggang River and its tributaries, Taiwan. J. Environ. Sci. Health A Tox. Hazard. Subst. Environ. Eng. 2010, 45, 1689–1701. [Google Scholar] [CrossRef] [PubMed]
  48. Tzoraki, O.; Karaouzas, I.; Patrolecco, L.; Skoulikidis, N.; Nikolaidis, N.P. Polycyclic aromatic hydrocarbons (PAHs) and heavy metal occurrence in bed sediments of a temporary river. Water Air Soil Pollut. 2015, 226, 421. [Google Scholar] [CrossRef]
  49. Asagbra, M.C.; Adebayo, A.S.; Anumudu, C.I.; Ugwumba, O.A.; Ugwumba, A.A.A. Polycyclic aromatic hydrocarbons in water, sediment and fish from the Warri River at Ubeji, Niger Delta, Nigeria. Afr. J. Aquat. Sci. 2015, 40, 193–199. [Google Scholar] [CrossRef]
  50. Souza, H.M.L.; Taniguchi, S.; Bícego, M.C.; Oliveira, L.A.; Oliveira, T.C.S.; Barroso, H.S.; Zanotto, S.P. Polycyclic Aromatic Hydrocarbons in Superficial Sediments of the Negro River in the Amazon Region of Brazil. J. Braz. Chem. Soc. 2015, 26, 1438–1449. [Google Scholar] [CrossRef]
  51. Jiang, B.; Zheng, H.L.; Huang, G.Q.; Ding, H.; Li, X.G.; Suo, H.T.; Li, R. Characterization and distribution of polycyclic aromatic hydrocarbon in sediments of Haihe River, Tianjin, China. J. Environ. Sci. 2007, 19, 306–311. [Google Scholar] [CrossRef]
  52. Kanzari, F.; Syakti, A.D.; Asia, L.; Malleret, L.; Mille, G.; Jamoussi, B.; Abderrabba, M.; Doumenq, P. Aliphatic hydrocarbons, polycyclic aromatic hydrocarbons, polychlorinated biphenyls, organochlorine, and organophosphorous pesticides in surface sediments from the Arc River and the Berre lagoon, France. Environ. Sci. Pollut. Res. Int. 2012, 19, 559–576. [Google Scholar] [CrossRef] [PubMed]
  53. Malik, A.; Verma, P.; Singh, A.K.; Singh, K.P. Distribution of polycyclic aromatic hydrocarbons in water and bed sediments of the Gomti River, India. Environ. Monit. Assess. 2011, 172, 529–545. [Google Scholar] [CrossRef] [PubMed]
  54. Qiao, M.; Wang, C.; Huang, S.; Wang, D.; Wang, Z. Composition, sources, and potential toxicological significance of PAHs in the surface sediments of the Meiliang Bay, Taihu Lake, China. Environ. Int. 2006, 32, 28–33. [Google Scholar] [CrossRef] [PubMed]
  55. US EPA. Development of a Relative Potency Factor (RPF) Approach for Polycyclic Aromatic Hydrocarbon (PAH) Mixtures: EPA/635/R-08/012A; US EPA: Washington, DC, USA, 2010.
  56. Long, E.R.; Macdonald, D.D.; Severn, C.G.; Hong, C.B. Classifying probabilities of acute toxicity in marine sediments with empirically derived sediment quality guidelines. Environ. Toxicol. Chem. 2000, 19, 2598–2601. [Google Scholar] [CrossRef]

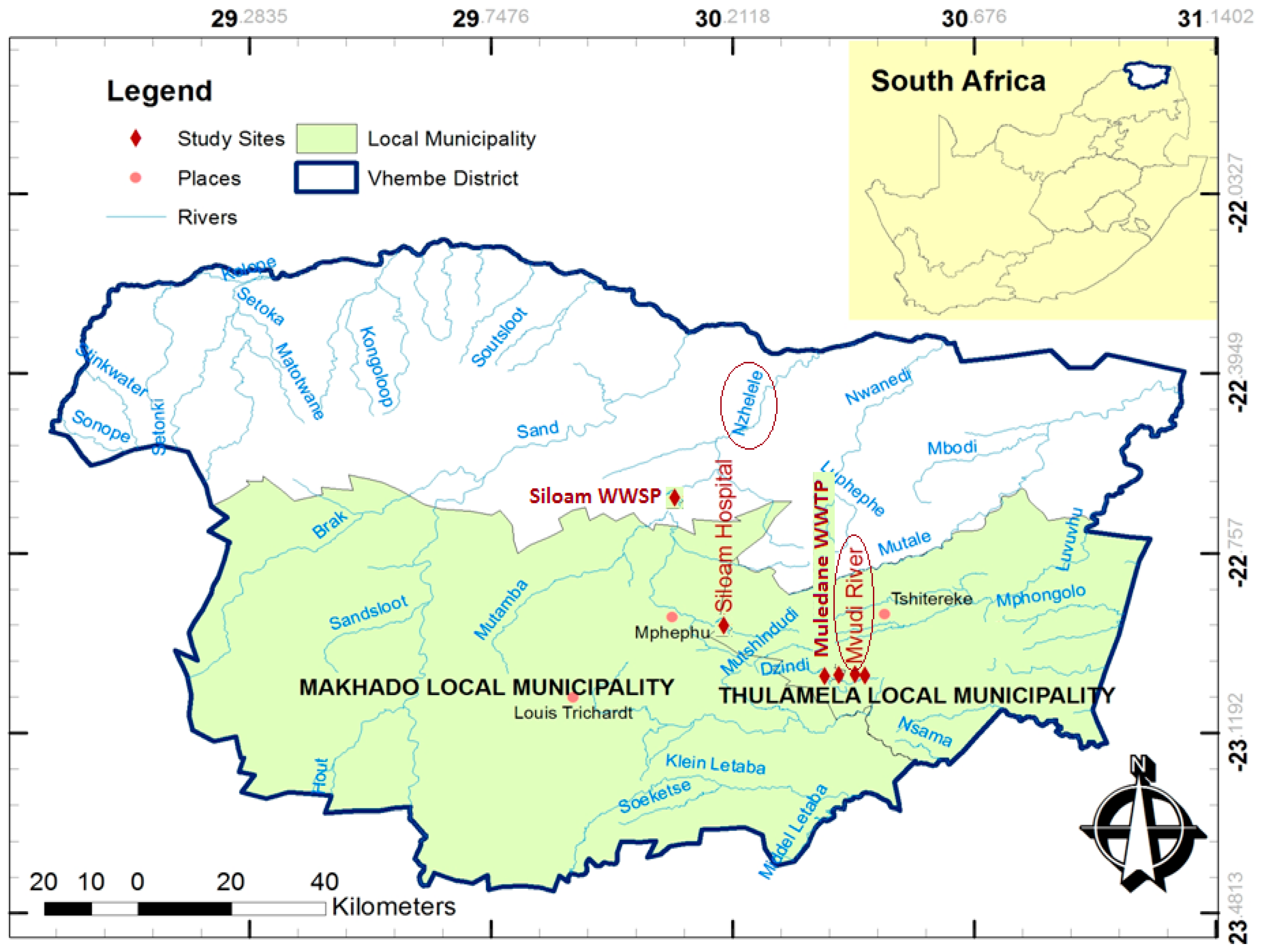

Figure 1. Map of Vhembe District.
Figure 1. Map of Vhembe District.
Ijerph 13 00387 g001

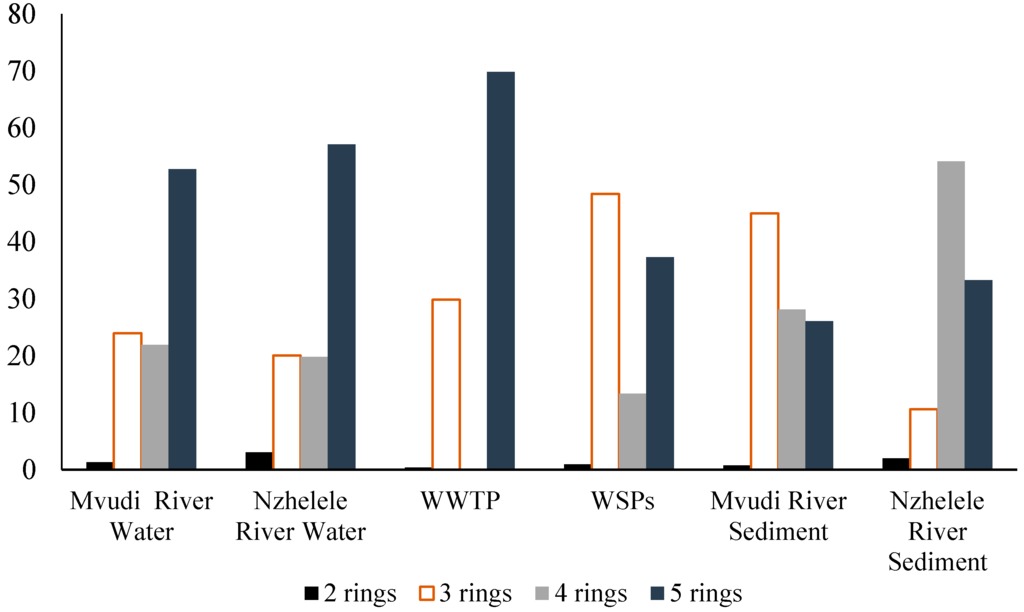

Figure 2. Percentage PAHs composition in the various sampling points.
Figure 2. Percentage PAHs composition in the various sampling points.
Ijerph 13 00387 g002

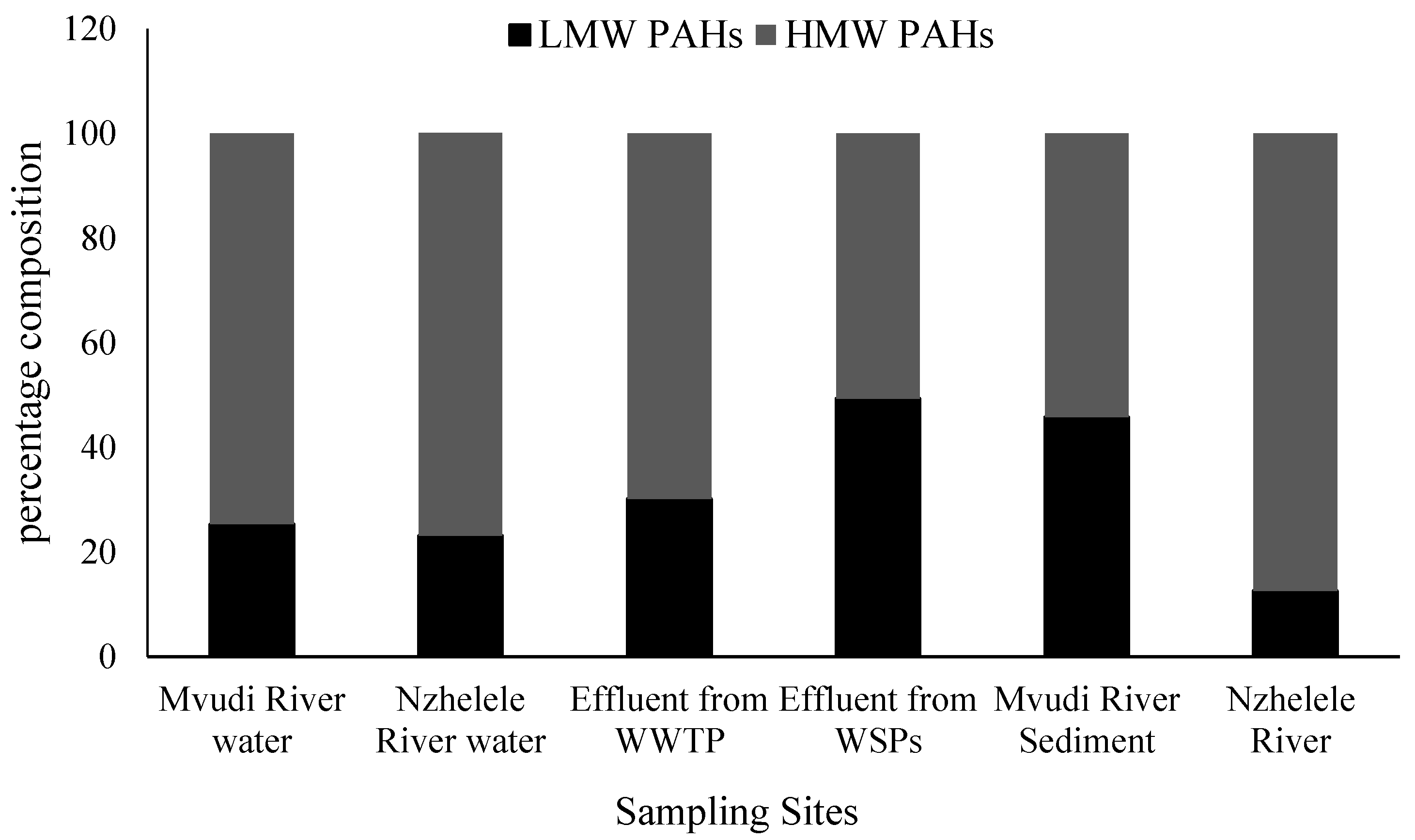

Figure 3. Percentage composition of LMW and HMW PAHs.
Figure 3. Percentage composition of LMW and HMW PAHs.
Ijerph 13 00387 g003
Table 1. PAHs concentration in the sampling sites.
Table 1. PAHs concentration in the sampling sites.
PAHs (mg/L or mg/kg)RingsMvudi River WaterNzhelele River WaterWWTPWSPsMvudi River SedimentNzhelele River Sediment
Naphthalene 20.2220.4580.0470.2540.5000.206
Anthracene 30.256BdlBdlBdl0.4400.540
Fluorene 32.4800.0022.2006.27021.600.311
Phenanthrene 30.1260.1771.7286.4950.7780.206
Acenaphthene 20.5790.423BdlBdl0.7381.135
Acenaphthylene 20.5370.765BdlBdl1.5410.725
Pyrene 41.1380.573Bdl1.1860.2660.961
Fluoranthene 42.4982.423Bdl2.34015.4713.71
Benzo[a]pyrene 51.2390.8401.6591.4473.8591.050
LMW PAHs 4.2003.4933.97513.0225.603.410
HMW PAHs 12.3911.649.19913.3630.9323.69
Total PAHs 16.5915.1313.1726.3855.9327.10
LMW/HMW 0.3400.3000.6000.9700.8400.140
Flu/Flu+Py 0.6900.930-0.6700.9800.930
Ant/Ant+Phen 0.6700.070--0.3600.520
Flu is fluoranthene, Py is pyrene, Ant is anthracene, phen is phenanthrene and Bdl is below detection limit.
Table 2. Characteristic diagnostic ratios values for particular pollution emission sources.
Table 2. Characteristic diagnostic ratios values for particular pollution emission sources.
Diagnostic RatioPetrogenicPyrogenicReferences
Ant/Ant+Phen<0.1>0.1Brandli et al. [40]
Flu/Flu+Py<0.4>0.4Brandli et al. [40]
LMW/HMW>1<1Nasher et al. [39]
Fuel combustionGrass/coal/wood combustion
Ant is anthracene, Phen is phenanthrene, Flu is fluoranthene and Py is pyrene.
Table 3. Total concentrations of PAH in river sediments from different locations in the world.
Table 3. Total concentrations of PAH in river sediments from different locations in the world.
LocationTotal PAHs (ng·g−1)Number of PAH CompoundsReference
Klang River, Malaysia3803.2–7442.716Keshavarifard et al. [1]
Donggang River, Taiwan23–253416Hsieh et al. [47]
Evrotas River, Greece0.3–195.48Tzoraki et al. [48]
Warri River, Nigeria42–2298.711Asagbra et al. [49]
Negro River, Brazil5.6–118716Souza et al. [50]
Haihe River, China774.81–255,371.9116Jiang et al. [51]
Arc River, France153–131117Kanzari et al. [52]
Gomti River, India5.24–3722.8716Malik et al. [53]
Nzhelele River, South Africa206–13,71010This study
Mvudi River, South Africa440–21,60010This study
Table 4. TEF and TEQ values of PAHs.
Table 4. TEF and TEQ values of PAHs.
PAHsTEF ValuesMvudi River WaterNzhelele River WaterWWTPWSPsMvudi River SedimentNzhelele River Sediment
Naphthalene0.001 b0.0002220.0004580.0000470.0002540.00050.000204
Anthracene0.01 b0.00256BdlBdlBdl0.00440.0054
Fluorene0.001 b0.002480.001670.00220.006270.02160.000311
Phenanthrene0.001 b0.00012580.0001770.0017280.00650.0007780.000497
Acenaphthene0.001 b0.0005790.000423BdlBdl0.0007380.001135
Acenaphthylene0.001 b0.00053680.000765BdlBdl0.001540.000725
Pyrene0.001 a0.0011380.000573Bdl0.0011860.0002660.000961
Fluoranthene0.08 a0.199840.19384Bdl 0.187212.37610.968
Benzo[b]fluoranthene0.8 a6.0086.2446.0326.7128.5926.376
Benzo[a]pyrene1 a1.2390.841.6591.4473.8591.05
TEQ 7.45437.2827.69508.360424.8618.40
a = US EPA [55], b = Nekhavhambe et al. [32]. Bdl is below detection limit.
Table 5. Concentrations of PAHs in Mvudi and Nzhelele Rivers sediment and toxicity guidelines.
Table 5. Concentrations of PAHs in Mvudi and Nzhelele Rivers sediment and toxicity guidelines.
PAHsERL (ng·g−1)ERM (ng·g−1) Mvudi Sediment (ng·g−1)Nzhelele Sediment (ng·g−1)

Share and Cite

MDPI and ACS Style

Edokpayi, J.N.; Odiyo, J.O.; Popoola, O.E.; Msagati, T.A.M. Determination and Distribution of Polycyclic Aromatic Hydrocarbons in Rivers, Sediments and Wastewater Effluents in Vhembe District, South Africa. Int. J. Environ. Res. Public Health 2016, 13, 387.

AMA Style

Edokpayi JN, Odiyo JO, Popoola OE, Msagati TAM. Determination and Distribution of Polycyclic Aromatic Hydrocarbons in Rivers, Sediments and Wastewater Effluents in Vhembe District, South Africa. International Journal of Environmental Research and Public Health. 2016; 13(4):387.

Chicago/Turabian Style

Edokpayi, Joshua N., John O. Odiyo, Oluwaseun E. Popoola, and Titus A. M. Msagati. 2016. "Determination and Distribution of Polycyclic Aromatic Hydrocarbons in Rivers, Sediments and Wastewater Effluents in Vhembe District, South Africa" International Journal of Environmental Research and Public Health 13, no. 4: 387.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
