Evaluation of the Survivability of Microorganisms Deposited on Filtering Respiratory Protective Devices under Varying Conditions of Humidity

by
Katarzyna Majchrzycka
1,*,
Małgorzata Okrasa
1,
Justyna Skóra
2 and
Beata Gutarowska
2
1
Department of Personal Protective Equipment, Central Institute for Labour Protection—National Research Institute, Łódź 90-133, Poland
2
Institute of Fermentation Technology and Microbiology, Lodz University of Technology, Łódź 90-924, Poland
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2016, 13(1), 98; https://doi.org/10.3390/ijerph13010098
Submission received: 9 September 2015 / Revised: 9 November 2015 / Accepted: 16 December 2015 / Published: 4 January 2016
Browse Figures
Versions Notes

Abstract

:
Bioaerosols are common biological factors in work environments, which require routine use of filtering respiratory protective devices (FRPDs). Currently, no studies link humidity changes in the filter materials of such devices, during use, with microorganism survivability. Our aim was to determine the microclimate inside FRPDs, by simulating breathing, and to evaluate microorganism survivability under varying humidity conditions. Breathing was simulated using commercial filtering facepiece respirators in a model system. Polypropylene melt-blown nonwoven fabrics with moisture contents of 40%, 80%, and 200%, were used for assessment of microorganisms survivability. A modified AATCC 100-2004 method was used to measure the survivability of ATCC and NCAIM microorganisms: Escherichia coli, Staphylococcus aureus, Bacillus subtilis, Candida albicans and Aspergillus niger. During simulation relative humidity under the facepiece increased after 7 min of usage to 84%–92% and temperature increased to 29–30 °C. S. aureus survived the best on filter materials with 40%–200% moisture content. A decrease in survivability was observed for E. coli and C. albicans when mass humidity decreased. We found that B. subtilis and A. niger proliferated for 48–72 h of incubation and then died regardless of the moisture content. In conclusion, our tests showed that the survivability of microorganisms on filter materials depends on the amount of accumulated moisture and microorganism type.

1. Introduction

Biological factors constitute a very important problem of occupational medicine and public health. The threat posed by biological agents is increasingly seen as a global issue, mainly due to the rapid spread of microorganisms over time, and across work and living environments due to modern pace of work and life. It is estimated that, at least, several hundred million people worldwide are exposed to these factors in processes related to their work environment [1,2]. This problem is particularly acute in tropical and subtropical countries, where people often come in contact with numerous parasites and inhale harmful bioaerosols [3,4,5]. In the temperate zone, a significant number of cases of diseases caused by biological factors is observed, not only among health professionals [6] and dentists [7], but also people employed in agricultural production [8,9,10,11,12,13,14], wood industry [15,16], composting plants [17,18,19], sewage and solid waste treatment plants [20,21], and the dairy industry [22,23].
In the work environment, biological agents occur most often in the form of bioaerosols. Therefore, it is common to use personal protective equipment (PPE), particularly, disposable and reusable filtering respiratory protective devices (FRPDs). The lack of adequate protection of the respiratory system in workers exposed to biological agents can lead to asthma, allergic alveolitis, organic dust toxic syndrome (ODTS), byssinosis, chronic bronchitis, allergic rhinitis, irritation of mucous membranes, sick building syndrome (SBS), and certain infectious diseases and cancer [1,24,25,26].
There are many theories and studies on the selection of FRPDs in relation to biological hazards [27,28,29]. In addition to FRPDs (respirators), surgical masks are often used in the work environment. According to EU regulations, these belong to the group of medical devices whose primary function is to control infections. They are designed to prevent the spread of infection from the wearer’s exhaled breath to potentially susceptible persons [30]. These masks are not a good means of protecting workers from exposure to biological agents, especially in the work environment with a high concentration of organic dust including microorganisms.
Previous studies have tested the survivability of microorganisms on filter materials, which constitute the basic structural material of FRPDs [31,32,33,34,35,36,37,38,39]. The growth of microorganisms on filter materials is mainly influenced by the availability of organic matter, humidity and temperature, the addition of biocide and the type of microorganism [40,41]. The results have outlined a new direction for the development of protective properties of FRPDs against bioaerosols, i.e., biocidal properties of filter materials for the construction of reusable FRPDs. The materials are designed to protect against proliferation of microorganisms, deposited on them during FRPD use, so that the respirator itself is not a source of infection for the user. Furthermore, it is important to carry out studies on the survivability of microorganisms on filter materials under conditions similar to those prevailing in the work environment where FRPDs are typically used. This makes it possible to adequately evaluate the extent to which FRPDs protect against bioaerosols in the “worst-case” scenario.
Currently, no studies link humidity changes occurring in filter materials during FRPD use with the survivability of the deposited microorganisms. Therefore, the aim of this study was to determine the microclimate inside the FFRs during simulated breathing, and to evaluate the survivability of different types of microorganisms deposited on the filter materials of the FRPDs under varying humidity conditions.

2. Experimental Section

2.1. Tested Respirators and Filter Materials

The level of humidity in the FRPDs during breathing cycles was measured using commercial reusable FFRs, consistent with the requirements of a harmonized standard [42] under EU directive 89/686/EEC [43]. In terms of safety parameters, these were filtering facepieces of protection class III (FF P3). The filtration efficiency of such equipment relative to aerosol particles (NaCl) and fog paraffinic oil is 99% at the volume flow rate of 95 L/min. The FFRs were designed to be reusable (symbol “R” according to EN 149) against any aerosols, in accordance with the requirements of the standards applicable to the common EU market. The FFRs consisted of six layers of filter materials. All filter materials were made of polypropylene polymer and produced using two different manufacturing procedures. Inner and outer layers of the FFRs were made of thin spun-bonded nonwoven fabric. The basic filtering layers, responsible for filtration efficiency, were produced using the melt-blown technology. This ensured thin fibres, which directly affected the filtration efficiency against harmful particles of aerosols. The two outer layers were made of nonwovens with surface weights of 40 g/m2 ± 5% and 80 g/m2 ± 5%, the three middle layers of nonwoven fabric had a total surface weight of 90 g/m2 ± 15% and the inner layer of nonwoven had a surface weight of 17 g/m2 ± 5%.
To test the survivability of microorganisms in the FRPDs, polypropylene melt-blown nonwoven fabrics were used, as they were considered responsible for catching harmful microorganisms from a stream of contaminated air. Commercially-produced fabrics were used to construct the above FFRs. On average, the surface weight of each nonwoven fabric sample was 30 g/m3 ± 10%.

2.2. Experimental Design and Test Conditions

Microclimate inside the FFRs

The test stand used to simulate breathing in our experiments is shown in Figure 1.
Ijerph 13 00098 g001 1024

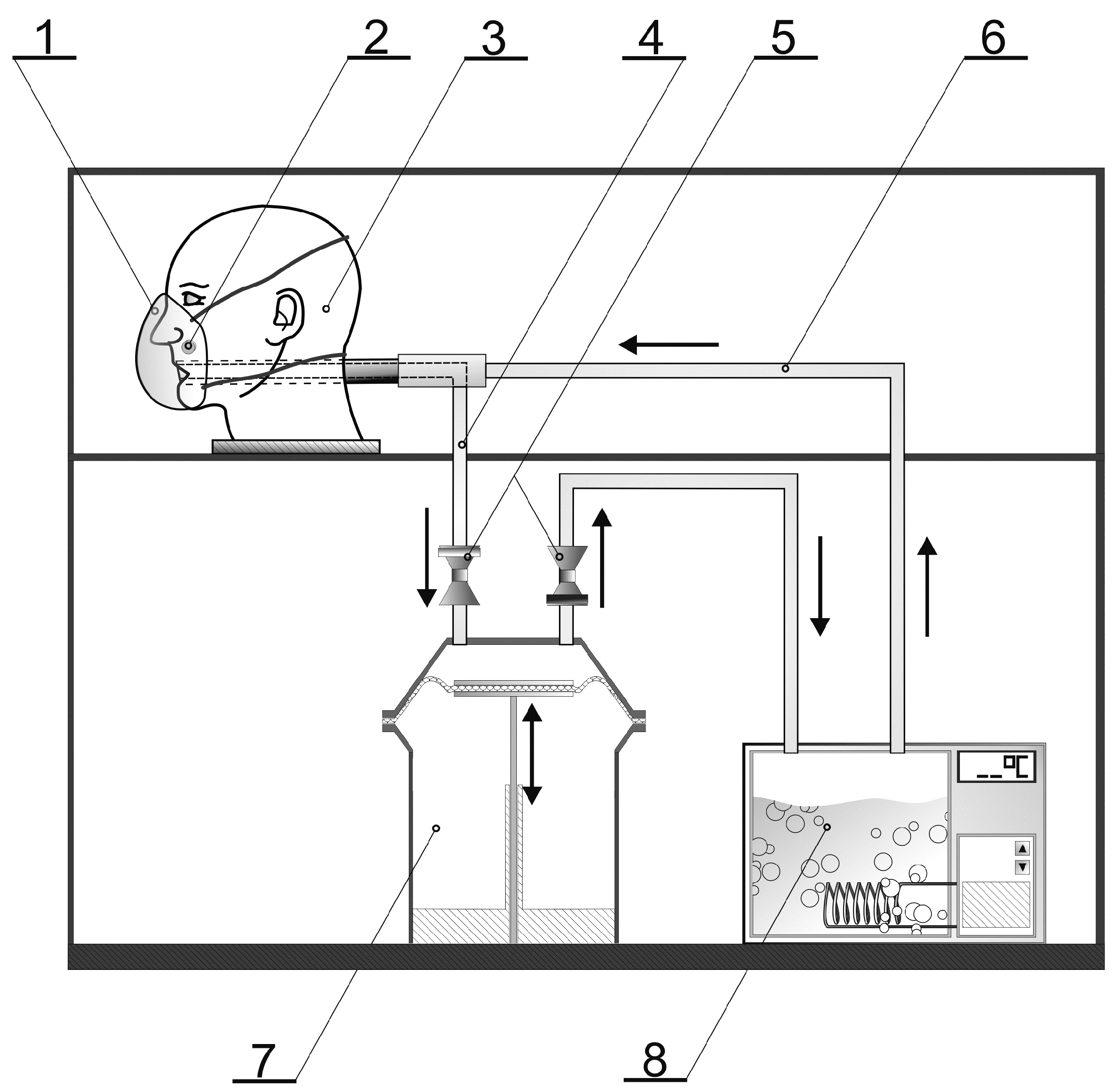

Figure 1. The scheme of the test stand used to simulate breathing cycles while wearing an FFR (1—FFR, 2—integrated temperature and humidity data logger, 3—Sheffield dummy head, 4—inhalation line, 5—valves, 6—exhalation line, 7—breathing machine, 8—saturator).
Figure 1. The scheme of the test stand used to simulate breathing cycles while wearing an FFR (1—FFR, 2—integrated temperature and humidity data logger, 3—Sheffield dummy head, 4—inhalation line, 5—valves, 6—exhalation line, 7—breathing machine, 8—saturator).
Ijerph 13 00098 g001
The test stand consisted of a breathing machine, a Sheffield dummy head on which an FFR was mounted, and a saturator located in the exhalation line between the dummy head and the breathing machine. The breathing machine was set at 25 cycles/min and 2 L/stroke, which corresponded to 25 inhalations and 25 exhalations per minute with respiratory volume of 2 liters. The airflow pattern of the breathing machine was sinusoidal. The saturator was set at a temperature exceeding 37 °C, so that the temperature of the air exhaled from the dummy head’s mouth, after passing through the system, was 37 ± 2 °C. The relative humidity and temperature of the environment was monitored in the respiratory space between the dummy head and the tested FFRs. Integrated temperature and humidity data logger 1-Wire® Hygrochron™ (type DS1923, Maxim Integrated) was used. The temperature and relative humidity of the environment were 23–25 °C and 47%–55%, respectively.
The study was conducted according to the following procedure: an FFR was placed on the dummy head, the simulation of breathing was carried out for 3.5 h, the FFR was taken off the dummy head, a one-hour break in the use of FFR was simulated (e.g., a lunch break), the FFR was again placed on the dummy head, the simulation of breathing was carried out for another 3.5 h, and the FFR was taken off the dummy head. Two series of simulations were performed. Each series was conducted using a new FFR. The accuracy of fit was based on the determination of a nominal protection factor, i.e., potential maximum protection factor calculated using the maximum percentage inward leakage permitted for FFRs of third protection class according to European standards [42]. However, it is worth mentioning that this level of protection is unlikely to be achieved in real conditions of use of FFRs.

2.3. Microorganisms

The study involved testing five strains from pure culture collections. Four were obtained from the American Type Culture Collection (ATCC), Escherichia coli 10536, Staphylococcus aureus 6538, Candida albicans 10231, Aspergillus niger 16404, and one, Bacillus subtilis 01644, was obtained from the National Collection of Agricultural and Industrial Microorganisms (NCAIM). The strains were selected based on their taxonomic classification (i.e., Gram-positive cocci, Gram-negative rods, Gram-positive bacilli, yeast, and mold). The strains were also characterized by their varying survivability in the environment i.e., whether they produced endospores (B. subtilis), spores (A. niger), or just vegetative cells (E. coli, S. aureus, C. albicans). Moreover, according to Directive 2000/54/ EC [44] and the Classification of Harmful Biological Factors (developed by the Institute of Rural Health in Lublin) [45], the species selected for testing belong to Risk Group II and may pose a potential threat to humans in the work environment.
The microorganisms were stored on agar slants: bacteria on TSA (Tryptic Soy Agar, Merck, Germany), and molds and yeasts on MEA (Malt Extract Agar, Merck, Germany) at a temperature of 4 °C. Bacteria were activated in TSB medium (Tryptic Soy Broth, Merck, Germany) and fungi in MEB medium (Malt Extract Broth, Merck, Germany) at a temperature of 30 °C for 24 h (bacteria), 27 °C for 24 h (yeasts) and 72 h (moulds).
A microorganism inoculum was prepared. Bacteria and yeast colonies were transferred into 10 mL of TSB and MEB medium, respectively, and incubated in conditions as described above. In the case of mold, colonies from MEA slants were washed using 10 mL distilled water with 0.01% of Tween®80. The number of microorganisms in the inoculum was determined using the plate count method and a Thom chamber. The average density of the suspension of microorganisms ranged from 1.3 × 108 to 1.3 × 1010 cfu/mL (bacteria) or from 3.9 × 107 to 6.5 × 107 cfu/mL (fungi). Verifying the density of the inoculum in the Thoma cell counting chamber, in the inoculum approximately 20% of all microorganism cells constituted to B. subtilis spores and 99% to A. niger spores. Removal efficiency of the tested microorganisms was 52.2% ± 4.1%.

2.4. Survivability of Microorganisms on Filter Materials

The survivability of microorganisms on filter materials was measured using a modified quantitative method, AATCC 100-2004 [46] with the following modification: the maximum incubation time following the estimated time of use for reusable FFR was 120 h.
The tests were conducted for samples of filter materials with a surface area of 4 cm2 each. Three levels of the mass humidity of the materials (40%, 80%, and 200%) were determined. Humidity levels of 40% and 80% were determined according to the results of the breathing simulation and corresponded to the estimated humidity of the filter material during a break in the usage of respirators and during breathing with a half mask. Humidity 200% was chosen as a model of very high humidity of the filter material (worst-case scenario). Three levels of the mass humidity of the materials were determined by applying sterile distilled water onto the samples. Sterile distilled water was applied homogenously onto the samples using a pipette with sterile tips for the distribution of small water droplets over the whole sample. Mass humidity (H), defined as the amount of moisture accumulated in the filter material, was determined by a gravimetric method (Radwag moisture analyzer MA 50/1.R, Poland) and calculated using the formula:
H = m H 2 O m m × 100 %
m H 2 O : the mass of water (g); m m : the mass of the filter material with an area of 4 cm2 (average mass mm = 0.0125 g).
Next, 10 µL of standardized inoculum of microorganisms was applied evenly in the same way using pipette with sterile tips. Filter material samples were prepared in two independent repetitions of the experiment and placed in a climatic chamber (Binder, Germany) at 28 °C and relative humidity RH of 80%. The samples were collected at 0 (immediately after inoculum application) 8, 24, 48, 72, and 120 h.
The samples were then placed in 50 mL of sterile saline (0.85% NaCl) and shaken for 10 min (150 rev/min, shaker Elpin+, Poland) to wash out the microorganisms from the tested materials. Bacteria were incubated at 30 °C for 24–48 h on TSA medium and fungi on MEA medium at 27 °C for 3–5 days. The number of microorganisms (cfu/sample) was determined in two independent experiments using the plate count method (dilutions from 100 to 105 in three repetitions). This resulted in a 30 repetitions for one microorganism, for each humidity level and for each incubation time.
The survival rate of microorganisms on the filter material after different incubation periods (S) was determined using the formula:
S = N t N 0 × 100 %
N0, Nt: the number of microorganisms present on the filter material (cfu/sample); N0: at time t = 0 h; Nt: after a certain period of incubation (t = 8, 24, 48, 72, 120 h).

2.5. Statistical Analysis

The arithmetic mean and standard deviation for the number of microorganisms on the surface of the tested materials were calculated. Differences between the number of microorganisms after a particular incubation time and the control samples were analysed using one-way analysis of variance (ANOVA). Differences were considered significant at p < 0.05. All data were analyzed using the statistical software program Origin 6.1.

3. Results and Discussion

3.1. Microclimate inside the FFRs

The results of temperature measurements performed directly under the facepiece are shown in Figure 2.
Ijerph 13 00098 g002 1024

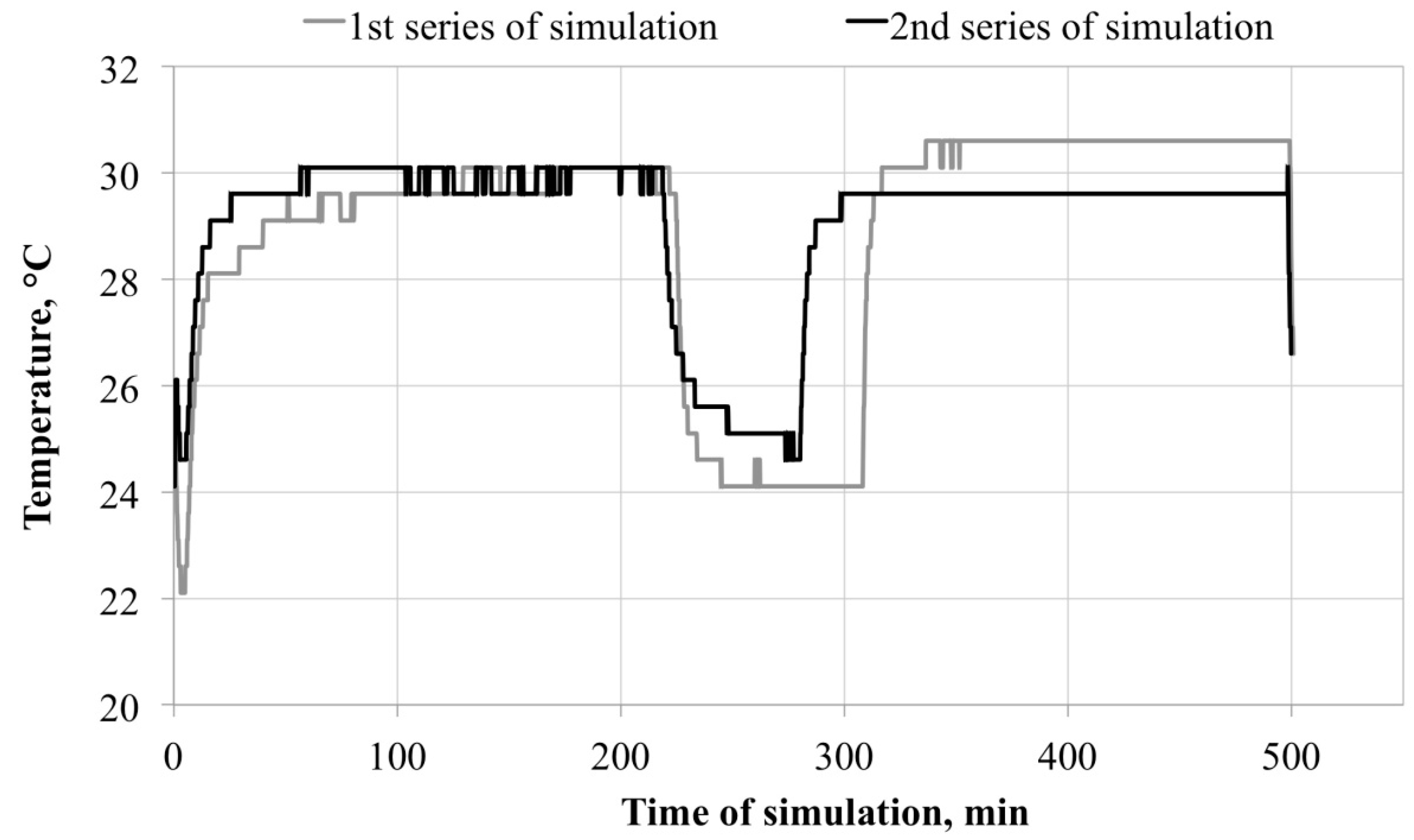

Figure 2. Temperature changes inside the FFRs during simulated breathing cycles.
Figure 2. Temperature changes inside the FFRs during simulated breathing cycles.
Ijerph 13 00098 g002
In the first and second series of simulated breathing cycles, a microclimate with similar temperature was created inside the FFRs. After one hour of breathing, the temperature in the FFR under the facepiece reached 29–30 °C. Differences between the two series were not statistically significant. The temperature inside the FFR was stable and lower than the normal body temperature of a healthy worker. The microclimate temperature inside the FFR was only slightly affected by breaks in the use of the equipment.
The values of relative humidity in the space directly under the facepiece are shown in Figure 3.
Ijerph 13 00098 g003 1024

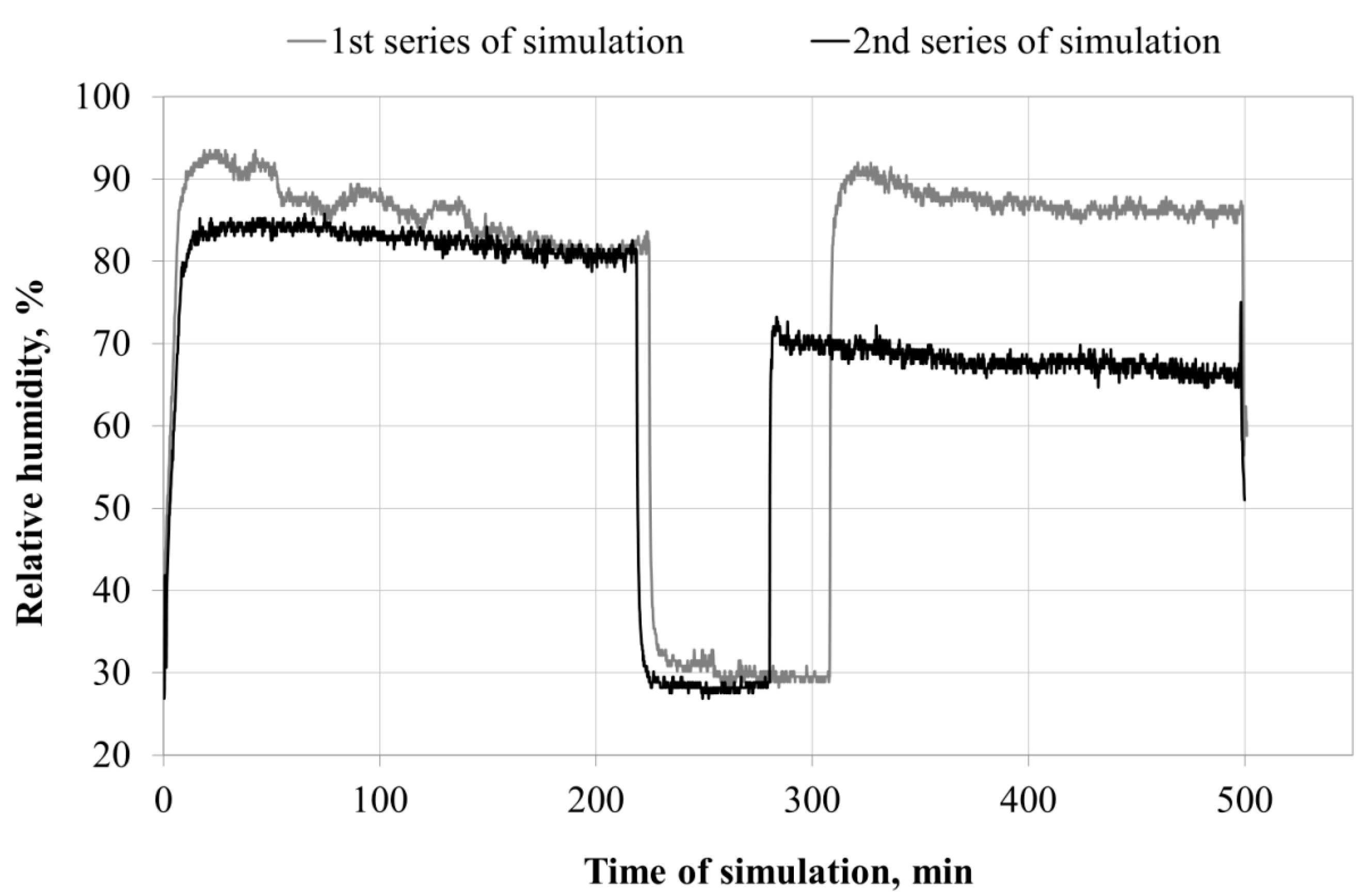

Figure 3. Changes in relative humidity inside the FFR during simulated breathing cycles.
Figure 3. Changes in relative humidity inside the FFR during simulated breathing cycles.
Ijerph 13 00098 g003
The values of relative humidity inside the FFR microclimate obtained during the two series of simulations show that the start of simulation is followed by an immediate sharp increase in relative humidity up to 84%–92% (first and second series) inside the respirator. The relative humidity within the entire simulated breathing time ranged from 80% to 92%. When the simulation of breathing was started again after a one-hour break, the relative humidity inside the FFR increased again to 91% (first series) and 69% (second series).
The difference in relative humidity changes inside the FFR (22%) between both series may result from the course of moisture condensation on the surface of the filter materials, and the rate of migration of the collected liquid to various structural layers of the FFR. This can be attributed to differences in the production of particular FFRs and in head adjustments in the successive phases of series I and II. The phenomena accompanying moisture deposition on filter materials were described by Raynor and Leith [47]. They found that the behavior of a liquid during deposition on filter materials is more diverse than that of particulate matter. Agglomerates of accumulated moisture move, dry up, and break off (Figure 4). After merging into one whole, droplets smoothly flow down the filter materials. The amount of the collected condensing liquid depends on the geometry of the filter, filtration efficiency and the surface tension of the retained liquid relative to the force of gravity. The collected water is drained from the fibers as soon as the minimum saturation is reached. It was observed that the air that passes during the breathing phase can cause migration of accumulated moisture into the filtering devices, and the air stream that comes from the moistened filter may be saturated with water vapor.
Ijerph 13 00098 g004 1024

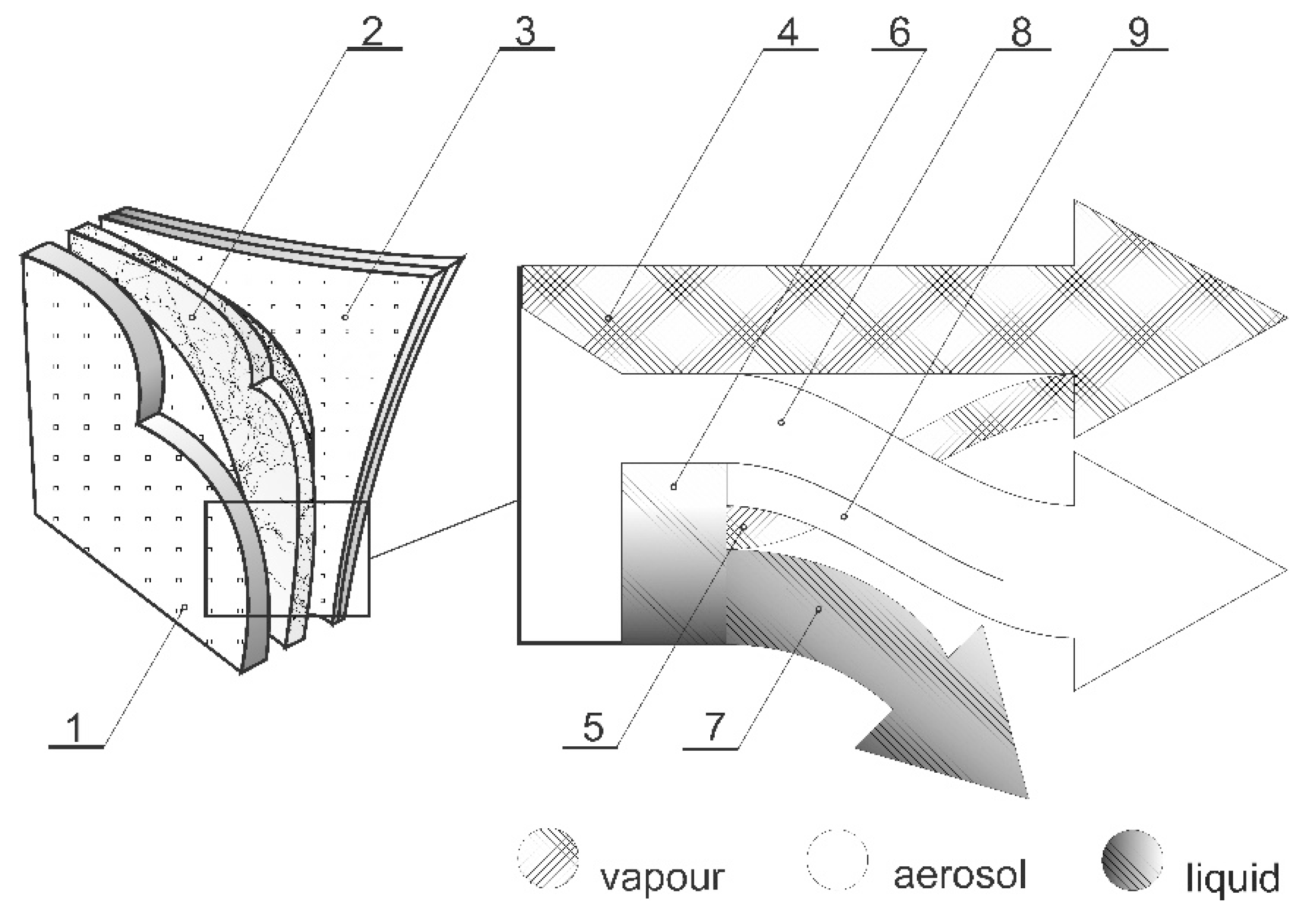

Figure 4. Moisture distribution in the FFR during its use (1—inner layer, 2—filtering layer, 3—outer layers, 4—vapor penetration, 5—evaporation, 6—collected water, 7—drained water, 8—penetration of droplets, 9—re-entrainment). Adapted from Raynor and Leith [47].
Figure 4. Moisture distribution in the FFR during its use (1—inner layer, 2—filtering layer, 3—outer layers, 4—vapor penetration, 5—evaporation, 6—collected water, 7—drained water, 8—penetration of droplets, 9—re-entrainment). Adapted from Raynor and Leith [47].
Ijerph 13 00098 g004
The amount of water accumulated on the filter materials has a strong impact on the pressure drop on these materials (breathing resistance) [48,49,50]. There is a slight increase in the pressure drop in the initial breathing phase. It then increases exponentially due to the accumulation of liquid on the surface of the filter materials and the formation of menisci between fibers. Eventually, the pressure drop reaches a constant level and a balance between the process of moisture retention and evaporation is created. These changes could affect the breathing resistance during the simulation of breathing in the FFRs, thus causing differences in the ability to adapt the FFRs to the dummy head model.
Both, literature data and results of the breathing simulations in the FFR confirm the fact that the conditions prevailing inside the respirators are favorable for the continuous gathering of moisture from the exhaled air. This study shows that it is maintained as long as the FFR is used even if its operation is interrupted. These conditions may affect the survivability of microorganisms deposited on the filter materials during the use of FFR at the workplace and during breaks.

3.2. Survivability of Microorganisms on Filter Materials

Table 1 shows the number of microbial cells present on the filter materials after incubation at various levels of mass humidity. It is assumed that the set mass humidity values of 40%, 80%, and 200% are disadvantageous, suboptimal, and optimal conditions, respectively, for the growth of microorganisms.
Table
Table 1. The number of microorganisms on filter materials after different time intervals.
Table 1. The number of microorganisms on filter materials after different time intervals.
MicroorganismMass Humidity, %The Number of Cells on the Nonwoven Fabric after Incubation, cfu/sample (n = 6)
0 h8 h24 h48 h72 h120 h
Escherichia coli40M: 8.75 × 105M: 9.53 × 105M: 1.79 × 104 *M: 9.18 × 101 *M: 2.07 × 101 *M: 9.83 × 100 *
SD: 1.42 × 105SD: 1.14 × 105SD: 4.05 × 103SD: 3.82 × 101SD: 1.18 × 101SD: 6.91 × 100
80M: 1.76 × 106M: 2.77 × 106 *M: 4.45 × 105 *M: 1.93 × 105 *M: 1.11 × 104 *M: 2.75 × 102 *
SD: 7.34 × 105SD: 3.95 × 105SD: 1.92 × 105SD: 1.72 × 104SD: 6.45 × 103SD: 1.08 × 102
200M: 2.77 × 106M: 2.82 × 106M: 2.21 × 106 *M: 1.82 × 106 *M: 1.62 × 106 *M: 2.50 × 103 *
SD: 2.73 × 105SD: 9.81 × 105SD: 3.93 × 105SD: 6.17 × 105SD: 1.83 × 105SD: 7.90 × 102
Staphylococcus aureus40M: 1.93 × 104 *M: 3.23 × 104 *M: 4.78 × 104 *M: 5.95 × 104 *M: 1.14 × 105M: 4.02 × 105 *
SD: 8.91 × 103SD: 4.08 × 103SD: 1.87 × 104SD: 2.08 × 104SD: 2.08 × 105SD: 2.19 × 105
80M: 1.36 × 104M: 1.74 × 105 *M: 8.75 × 105 *M: 1.06 × 106 *M: 1.27 × 106 *M: 1.58 × 106 *
SD: 3.29 × 103SD: 2.99 × 104SD: 1.93 × 105SD: 2.41 × 105SD: 2.43 × 105SD: 1.46 × 105
200M: 1.57 × 104M: 1.51 × 105 *M: 1.14 × 106 *M: 1.34 × 106 *M: 2.01 × 106 *M: 2.48 × 106 *
SD: 1.65 × 104SD: 3.69 × 104SD: 1.61 × 105SD: 1.70 × 105SD: 3.22 × 105SD: 4.60 × 105
Bacillus subtilis40M: 4.37 × 103M: 6.97 × 103 *M: 1.67 × 104 *M: 4.38 × 104 *M: 9.58 × 104 *M: 7.13 × 104 *
SD: 1.50 × 103SD: 1.10 × 103SD: 8.16 × 103SD: 1.82 × 104SD: 2.64 × 104SD: 1.45 × 104
80M: 6.70 × 103M: 1.69 × 105 *M: 1.98 × 105M: 2.02 × 105 *M: 1.61 × 105 *M: 1.04 × 105 *
SD: 2.74 × 103SD: 4.58 × 104SD: 2.35 × 105SD: 7.65 × 104SD: 1.46 × 105SD: 1.81 × 104
200M: 1.30 × 104M: 1.15 × 105 *M: 2.04 × 105 *M: 5.37 × 105 *M: 4.24 × 105 *M: 5.21 × 104 *
SD: 5.93 × 103SD: 1.70 × 104SD: 6.29 × 104SD: 2.99 × 105SD: 1.47 × 105SD: 3.72 × 104
Candida albidans40M: 3.10 × 103M: 5.61 × 104M: 2.65 × 104 *M: 1.78 × 104 *M: 1.57 × 104 *M: 1.50 × 104 *
SD: 1.33 × 103SD: 6.20 × 104SD: 5.89 × 103SD: 3.29 × 103SD: 1.66 × 103SD: 5.42 × 103
80M: 2.78 × 103M: 5.03 × 104 *M: 4.94 × 104 *M: 4.63 × 104M: 4.44 × 104 *M: 3.12 × 104 *
SD: 1.47 × 103SD: 8.82 × 103SD: 1.60 × 104SD: 5.83 × 104SD: 1.32 × 104SD: 1.35 × 104
200M: 2.48 × 103M: 5.32 × 104 *M: 3.81 × 104 *M: 2.97 × 104 *M: 2.96 × 104 *M: 2.96 × 104 *
SD: 8.68 × 102SD: 1.97 × 104SD: 1.52 × 104SD: 9.94 × 103SD: 2.21 × 104SD: 1.84 × 104
Aspergillus niger40M: 1.38 × 103M: 1.22 × 103M: 1.27 × 103M: 1.82 × 103M: 1.57 × 103M: 1.10 × 103
SD: 5.46 × 102SD: 8.82 × 102SD: 8.62 × 102SD: 7.11 × 102SD: 5.66 × 102SD: 5.21 × 102
80M: 2.33 × 103M: 1.60 × 103M: 2.08 × 103M: 2.61 × 103M: 2.27 × 103M: 1.08 × 103 *
SD: 1.06 × 103SD: 5.69 × 102SD: 7.55 × 102SD: 1.78 × 103SD: 9.84 × 102SD: 2.14 × 102
200M: 2.07 × 103M: 1.72 × 103M: 2.32 × 103M: 3.19 × 103M: 2.65 × 103M: 1.49 × 103
SD: 1.02 × 103SD: 3.92 × 102SD: 7.55 × 102SD: 1.90 × 103SD: 4.64 × 102SD: 5.04 × 102
Notes: n: number of samples, M: mean, SD: standard deviation, * statistically significant difference between the number of cells on the nonwoven fabric at each incubation time and the time t0, based on ANOVA.
The number of microorganisms on the tested nonwoven fabric after eight hours of incubation varied significantly for S. aureus and B. subtilis under the three mass humidity conditions, for E. coli at a mass humidity of 80%, and for C. albicans at a mass humidity of 80% and 200%. In the following incubation times, a decrease in the number of E. coli cells was observed compared to the number of cells deposited on the material at the time t0. The number of cells of the remaining bacteria and yeast increased significantly within 24 h—five days of incubation relative to t0. In general there were no statistically significant changes in the numbers of the mold A. niger in all tested incubation times and mass humidity conditions.
The dynamics of changes in the number of microorganisms in subsequent incubation times on the tested filter material is expressed as the survival rate. This parameter depending on the accumulated moisture in the filter materials is shown in Figure 5a–f.
Ijerph 13 00098 g005 1024

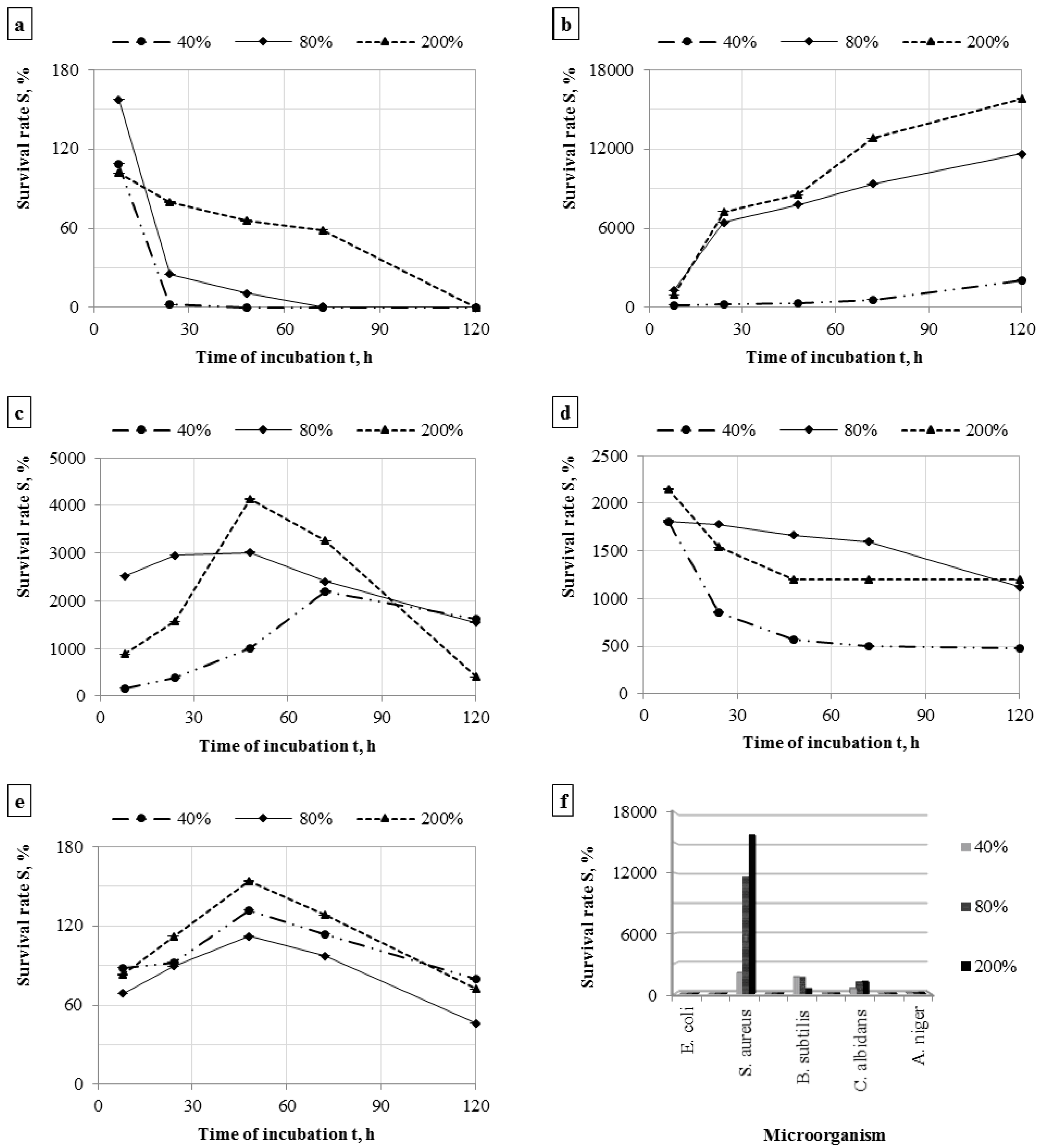

Figure 5. The survival rate of bacteria during incubation on the filter materials, number of samples n = 6 (a) Escherichia coli; (b) Staphylococcus aureus; (c) Bacillus subtilis; (d) Candida albidans; (e) Aspergillus niger; and (f) the survival rate of microorganisms after 120 h of incubation on the filter materials with different moisture content.
Figure 5. The survival rate of bacteria during incubation on the filter materials, number of samples n = 6 (a) Escherichia coli; (b) Staphylococcus aureus; (c) Bacillus subtilis; (d) Candida albidans; (e) Aspergillus niger; and (f) the survival rate of microorganisms after 120 h of incubation on the filter materials with different moisture content.
Ijerph 13 00098 g005
The model study shows that the survivability of microorganisms on the filter materials in the FFRs depends on the amount of moisture accumulated in the filter material and, above all, on the type of microorganism. The best survivability on filter materials with a moisture content of 40%–200% was demonstrated by Staphylococcus aureus (Figure 5f). A decrease in survivability on the filter material was observed for yeast Candida albicans (Figure 5d) and bacteria Escherichia coli (Figure 5a). The polypropylene nonwoven fabric was probably not a conducive environment for proliferation of these species due to their decrease. As for Bacillus subtilis and Aspergillus niger, it is demonstrated that these microorganisms proliferate on filter materials within 48–72 h of incubation and then probably die (Figure 5c,e).
The results confirm the previous observations of Gutarowska and Michalski [40] and Majchrzycka et al. [41]. The authors argue that the survivability of microorganisms on the nonwoven filter can be varied. The type of microorganism, the physiological condition, and the structure of the cell wall have a high impact in this case.
Pasanen et al. (1993) argue that storing respirator filters in high humidity conditions results in heavy microbial contamination, particularly when the filter material is biodegradable. Filters exposed to microorganisms present in an agriculture barn and in a wastewater treatment plant were stored at 98% RH for up to 35 days and tested. After the storage, the number of bacteria including actinomycetes was 1–3 orders of magnitude higher, and the concentration of fungi was larger or smaller, depending on the tested respirator filter [51]. In other studies, Pasanen et al. (1994) indicate a strong correlation between the visual growth of mold Stachybotrys chartarum and cellulose content in filters at RH 100%. It is also shown that at high humidity, S. chartarum is capable of producing mycotoxins on the respirator filter [34].
The effect of humidity on survivability of microorganisms on the filter material was confirmed by Maus et al. [36] who demonstrated that the viability of Micrococcus luteus and Escherichia coli declined within one hour after collection on ventilation filter media when no nutrients were present and the test was performed at low relative humidity (30%–60%). The study also suggests that bacteria cannot generally use modern filter materials as nutrients. For surviving, the bacteria use the more organic substances contained in the filtered air, coming from the user of the filtering device.
Wang et al. [33] showed that bacteria are unable to strongly colonize polypropylene respirator filter materials. They tested the survival and potential growth of Bacillus subtilis and Pseudomonas fluorescens. The bacteria were aerosolized and loaded on the respirator filters under three nutritional conditions: water, saliva, and TSB with 0–13 days of incubation. The authors showed that P. fluorescens cells couldn’t survive for more than three days on the respirator filter, while B. subtilis spores can remain viable for more than thirteen days.
Brosseau et al. [31] investigated the survivability of microorganisms on eighteen types of respirator filters and five types of surgical masks stored at RH 85%. They showed that culturable cells could be recovered from filters following a five-day storage period. In their study, B. subtilis subsp. niger and Staphylococcus epidermidis showed high survivability and Mycobacterium abscessus demonstrated lower survivability.
In our study, the survival rate after five days was the lowest for E. coli (0%–0.1%) (depending on the moisture content) and A. niger (46%–80%). The highest survival rate was observed for bacteria S. aureus (2083-15,796%). As for other microorganisms, the rate ranged from 483% to 1632% (Figure 5f). The results show that if a worker exposed to the tested microorganisms uses the FFR, they may grow on the filter material and be harmful to the user’s health.
Brosseau et al. [39] suggest that policies regarding reuse, handling, and disposal of respirators and surgical masks should be carefully considered. If used respirators are stored in plastic bags, the humidity and nutrients collected on the filter material may favor microbial growth or survival [33].
Active microorganism forms, capable to growth on FFRP during usage and also microbial fragments and unculturable microorganisms in the laboratory conditions (VBNC) can be collected from the filter materials. Therefore, it is important to study the whole microorganism population directly from the material sample. In this way we can assess the biodiversity of used FFRP at workplaces.
Johnson et al. [35] studied the phenomenon of migration of microorganisms from the outer and inner layers of the FFR. They found that the reuse of respirators is burdened with a high risk of contamination of all their elements. Microorganisms can spread on the user’s skin, especially during handling and storage of equipment.
The results obtained by breathing simulation presented in this paper indicate that biocides that exhibit antimicrobial efficacy even at a moisture content of 40% should be used in reusable FFRs, practically from the very start of their use.

4. Conclusions

The simulation of breathing shows that moisture content and temperature after 7 min of usage increased to 84%–92% and 29–30 °C, respectively. This condition is maintained as long as the FFR is used. This points to the fact that even with short-term use of the FFR favorable conditions for rapid growth of microorganisms deposited on the filter material can occur. The survivability of microorganisms on the filter material depends on the microorganism species and moisture content. At mass humidity ranging from 40% to 200%, the filter material is an appropriate environment for increase of survivability of S. aureus and B. subtilis, and the yeast C. albicans for five days. The environment, however, is not favorable for the development of E. coli and mold A. niger. This indicates that in workplaces where FFRs are used to protect workers against bioaerosols is necessary to develop and comply with appropriate rules for limited re-use and storage of FFRs, such as those defined in the guidance for healthcare institutions to protect health care workers from risks of exposure to infectious respiratory illnesses [52]. It is particularly important to store FFRs in a cool dry place in the intervals between each use and to maintain hygienic requirements when donning and performing a user seal check of previously used FFRs. It is also worth mentioning that one of the promising new directions of research related to the problem of microbial growth in the FFR is the use of filter materials containing bioactive agent in the construction of filtering equipment for protection of respiratory track against bioaerosols.

Acknowledgments

The publication is based on the results of Phase III of the National Program “Safety and working conditions improvement”, financed in the years 2014–2016 in the field of research and development work by the Ministry of Science and Higher Education and the National Centre for Research and Development (the Program coordinator is the Central Institute for Labour Protection—National Research Institute). We would like to express our gratitude to Malwina Wdówka for technical assistance during this research.

Author Contributions

Katarzyna Majchrzycka conceived and designed the experiments; Małgorzata Okrasa and Justyna Skóra performed the experiments; Katarzyna Majchrzycka, Małgorzata Okrasa, Justyna Skóra and Beata Gutarowska analyzed the data and wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lacey, J.; Dutkiewicz, J. Bioaerosols and occupational lung disease. J. Aerosol. Sci. 1994, 25, 1371–1404. [Google Scholar] [CrossRef]
  2. Corrao, C.R.N.; Mazzotta, A.; la Torre, G.; de Giusti, M. Biological risk and occupational health. Ind. Health 2012, 50, 326–337. [Google Scholar] [CrossRef] [PubMed]
  3. Reanprayoon, P.; Yoonaiwong, W. Airborne concentrations of bacteria and fungi in Thailand border market. Aerobiologia 2012, 28, 49–60. [Google Scholar] [CrossRef]
  4. Sudharsanam, S.; Swaminathan, S.; Ramalingam, A.; Thangavel, G.; Annamalai, R.; Steinberg, R.; Balakrishanan, K.; Srikanth, P. Characterization of indoor bioaerosols from a hospital ward in a tropical setting. Afr. Health Sci. 2012, 12, 217–225. [Google Scholar] [CrossRef] [PubMed]
  5. Krysińska-Traczyk, E.; Pande, B.N.; Skórska, C.; Sitkowska, J.; Prażmo, Z.; Cholewa, G.; Dutkiewicz, J. Exposure of Indian agricultural workers to airborne microorganisms, dust and endotoxin during handling of various plant products. Ann. Agric. Environ. Med. 2005, 12, 269–275. [Google Scholar]
  6. Coggins, M.A.; Hogan, V.J.; Kelly, M.; Fleming, G.T.A.; Roberts, N.; Tynan, T.; Thorne, P.S. Workplace exposure to bioaerosols in podiatry clinics. Ann. Occup. Hyg. 2012, 56, 746–753. [Google Scholar] [CrossRef] [PubMed]
  7. Szymańska, J. Dental bioaerosol as an occupational hazard in a dentist’s workplace. Ann. Agric. Environ. Med. 2007, 14, 203–207. [Google Scholar] [PubMed]
  8. Hansen, V.M.; Meyling, N.V.; Winding, A.; Eilenberg, J.; Madsen, A.M. Factors affecting vegetable growers’ exposure to fungal bioaerosols and airborne dust. Ann. Occup. Hyg. 2012, 56, 170–181. [Google Scholar] [CrossRef] [PubMed]
  9. Martin, E.; Ernst, S.; Lotz, G.; Linsel, G.; Jäckel, U. Microbial exposure and respiratory dysfunction in poultry hatchery workers. Environ. Sci. Process. Impacts 2013, 15, 478–484. [Google Scholar] [CrossRef] [PubMed]
  10. Viegas, S.; Faísca, V.M.; Dias, H.; Clérigo, A.; Carolino, E.; Viegasa, C. Occupational exposure to poultry dust and effects on the respiratory system in workers. J. Toxicol. Environ. Health 2013, 76, 230–239. [Google Scholar] [CrossRef] [PubMed]
  11. Jerez, S.B.; Cheng, Y.; Bray, J. Exposure of workers to dust and bioaerosol on a poultry farm. J. Appl. Poult. Res. 2014, 23, 7–14. [Google Scholar] [CrossRef]
  12. Lawniczek-Walczyk, A.; Gorny, R.L.; Golofit-Szymczak, M.; Niesler, A.; Wlazlo, A. Occupational exposure to airborne microorganisms, endotoxins and beta-glucans in poultry houses at different stages of the production cycle. Ann. Agric. Environ. Med. 2013, 20, 259–268. [Google Scholar] [PubMed]
  13. Sowiak, M.; Bródka, K.; Buczyńska, A.; Cyprowski, M.; Kozajda, A.; Sobala, W.; Szadkowska-Stańczyk, I. An assessment of potential exposure to bioaerosols among swine farm workers with particular reference to airborne microorganisms in the respirable fraction under various breeding conditions. Aerobiologia 2012, 28, 121–133. [Google Scholar] [CrossRef]
  14. Lee, S.A.; Liao, C.H. Size-selective assessment of agricultural workers’ personal exposure to airborne fungi and fungal fragments. Sci. Total Environ. 2014, 466, 725–732. [Google Scholar] [CrossRef] [PubMed]
  15. Rusca, S.; Charrière, N.; Droz, P.O.; Oppliger, A. Effects of bioaerosol exposure on work-related symptoms among Swiss sawmill workers. Int. Arch. Occup. Environ. Health 2008, 81, 415–421. [Google Scholar] [CrossRef] [PubMed]
  16. Alwis, K.U.; Mandryk, J.; Hocking, A.D. Exposure to biohazards in wood dust: Bacteria, fungi, endotoxins, and (1 3)-beta-d-glucans. Appl. Occup. Environ. Hyg. 1999, 14, 598–608. [Google Scholar] [CrossRef] [PubMed]
  17. Gutarowska, B.; Skóra, J.; Stępień, Ł.; Szponar, B.; Otlewska, A.; Pielech-Przybylska, K. Assessment of microbial contamination within working environments of different types of composting plants. J. Air Waste Manage. Assoc. 2015, 65, 466–478. [Google Scholar] [CrossRef] [PubMed]
  18. Le Goff, O.; Godon, J.J.; Milferstedt, K.; Bacheley, H.; Steyer, J.P.; Wéry, N. A new combination of microbial indicators for monitoring composting bioaerosols. Atmos. Environ. 2012, 61, 428–433. [Google Scholar] [CrossRef]
  19. Wéry, N. Bioaerosols from composting facilities—A review. Front. Cell. Infect. Microbiol. 2014, 4. [Google Scholar] [CrossRef]
  20. Hagemeyer, O.; Bünger, J.; van Kampen, V.; Raulf-Heimsoth, M.; Drath, C.; Merget, R.; Brüning, T.H.; Broding, H.C. Occupational allergic respiratory diseases in garbage workers: Relevance of molds and actinomycetes. Adv. Exp. Med. Biol. 2013, 788, 313–320. [Google Scholar] [PubMed]
  21. Carducci, A.; Federigi, I.; Verani, M. Virus occupational exposure in solid waste processing facilities. Ann. Occup. Hyg. 2013, 57, 1115–1127. [Google Scholar] [CrossRef] [PubMed]
  22. Simon, X.; Duquenne, P. Assessment of workers’ exposure to bioaerosols in a French cheese factory. Ann. Occup. Hyg. 2014, 58, 677–692. [Google Scholar] [CrossRef] [PubMed]
  23. Kullman, G.J.; Thorne, P.S.; Waldron, P.F.; Marx, J.J.; Ault, B.; Lewis, D.M.; Siegel, P.D.; Olenchock, S.A.; Merchant, J.A. Organic dust exposures from work in dairy barns. Am. Ind. Hyg. Assoc. J. 1998, 59, 403–413. [Google Scholar] [CrossRef] [PubMed]
  24. Douwes, J.; Thorne, P.; Pearce, N.; Heederik, D. Bioaerosol health effects and exposure assessment: Progress and prospects. Ann. Occup. Hyg. 2003, 47, 187–200. [Google Scholar] [CrossRef] [PubMed]
  25. Dutkiewicz, J.; Cisak, E.; Sroka, J.; Wójcik-Fatla, A.; Zając, V. Biological agents as occupational hazards-selected issues. Ann. Agric. Environ. Med. 2011, 18, 286–293. [Google Scholar] [PubMed]
  26. Peters, S.; Kromhout, H.; Olsson, A.C.; Wichmann, H.-E.; Bruske, I.; Consonni, D.; Brüske, I.; Consonni, D.; Landi, M.T.; Caporaso, N.; et al. Occupational exposure to organic dust increases lung cancer risk in the general population. Thorax 2012, 67, 111–116. [Google Scholar] [CrossRef] [PubMed]
  27. Fisher, E.M.; Shaffer, R.E. Considerations for recommending extended use and limited reuse of filtering facepiece respirators in health care settings. J. Occup. Environ. Hyg. 2014, 11, D115–D128. [Google Scholar] [CrossRef] [PubMed]
  28. National Institute for Occupational Safety and Health (NIOSH). NIOSH Guide to the Selection and Use of Particulate Respirators Certified Under 42 CFR 84 (96-101). Available online: http://www.cdc.gov/niosh/docs/96-101/ (accessed on 1 September 2015).
  29. Harber, P.; Barnhart, S.; Boehlecke, B.A.; Beckett, W.S.; Gerrity, T.; McDiarmid, M.A.; Nardbell, E.; Repsher, L.; Brousseau, L.; Hodous, T.K.; et al. Respiratory protection guidelines. Am. J. Respir. Crit. Care Med. 1996, 154, 1153–1165. [Google Scholar] [CrossRef] [PubMed]
  30. Food and Drug Administration (FDA). Guidance for Industry and FDA Staff: Surgical Masks—Premarket Notification [510(k)] Submissions. Available online: http://www.fda.gov/OHRMS/DOCKETS/98fr/03d-0137-gdl0002.pdf (accessed on 1 September 2015).
  31. Brosseau, L.M.; McCullough, N.V.; Vesley, D. Bacterial survival on respirator filters and surgical masks. J. Am. Biol. Saf. Assoc. 1997, 2, 32–43. [Google Scholar]
  32. Reponen, T.A.; Wang, Z.; Willeke, K.; Grinshpun, S.A. Survival of mycobacteria on N95 personal respirators on JSTOR. Infect. Control Hosp. Epidemiol. 1999, 20, 237–241. [Google Scholar] [CrossRef] [PubMed]
  33. Wang, Z.; Reponen, T.; Willke, K.; Grinshpun, S.A. Survival of bacteria on respirator filters. Aerosol Sci. Technol. 1999, 30, 300–308. [Google Scholar] [CrossRef]
  34. Pasanen, A.-L.; Nikulin, M.; Berg, S.; Hintikka, E.-L. Stachybotrys atra corda may produce mycotoxins in respirator filters in humid environments. Am. Ind. Hyg. Assoc. J. 1994, 55, 62–65. [Google Scholar] [CrossRef]
  35. Johnson, B.; Winters, D.R.; Shreeve, T.R.; Coffey, C.C. Respirator filter reuse test using the laboratory simulant mycobacterium tuberculosis (H37RA strain). J. Am. Biol. Saf. Assoc. 1998, 3, 105–116. [Google Scholar]
  36. Maus, R.; Goppelsröder, A.; Umhauer, H. Viability of bacteria in unused air filter media. Atmos. Environ. 1997, 31, 2305–2310. [Google Scholar] [CrossRef]
  37. Maus, R.; Goppelsröder, A.; Umhauer, H. Survival of bacterial and mold spores in air filter media. Atmos. Environ. 2001, 35, 105–113. [Google Scholar] [CrossRef]
  38. Jankowska, E.; Reponen, T.; Willeke, K.; Grinshpun, S.A.; Choi, K.J. Collection of fungal spores on air filters and spore reentrainment from filters into air. J. Aerosol Sci. 2000, 31, 969–978. [Google Scholar] [CrossRef]
  39. Brosseau, L.M.; McCullough, N.V.; Vesley, D. Mycobacterial aerosol collection efficiency of respirator and surgical mask filters under varying conditions of flow and humidity. Appl. Occup. Environ. Hyg. 1997, 12, 435–445. [Google Scholar] [CrossRef]
  40. Gutarowska, B.; Michalski, A. Microbial Degradation of Woven Fabrics and Protection against Biodegradation. Available online: http://www.intechopen.com/books/woven-fabrics/microbial-degradation-of-the-woven-fabrics-and-protection-against-biodegradation (accessed on 1 September 2015).
  41. Majchrzycka, K.; Gutarowska, B.; Brochocka, A. Aspects of tests and assessment of filtering materials used for respiratory protection against bioaerosols. Part II: Sweat in the environment, microorganisms in the form of a bioaerosol. Int. J. Occup. Saf. Ergon. 2010, 16, 275–280. [Google Scholar] [CrossRef] [PubMed]
  42. Respiratory Protective Devices. Filtering Half Masks to Protect against Particles. Requirements, Testing, Marking; BSI: London, UK, 2001. [Google Scholar]
  43. Directive 89/686/EEC—Personal Protective Equipment of 21 December 1989 on the Approximation of the Laws of the Member States Relating to Personal Protective Equipment. Available online: https://osha.europa.eu/en/legislation/directives/34 (accessed on 1 September 2015).
  44. Directive 2000/54/EC—Biological Agents at Work. Available online: https://osha.europa.eu/en/legislation/directives/exposure-to-biological-agents/77 (accessed on 1 September 2015).
  45. Dutkiewicz, J.; Śpiewak, R.; Jabłoński, L.; Szymańska, J. Biological Occupational Risk Factors. Classification, Exposed Occupational Groups, Measurement, Prevention; Ad Punctum: Lublin, Poland, 2007. [Google Scholar]
  46. Antibacterial Finishes on Textile Materials: Assessment of. AATCC Technical Manual, 2010. Available online: http://shanghaijifa.com/UploadFile/201104/AATCC2010%E8%8B%B1%E6%96%87%E7%89%88.pdf (accessed on 1 September 2015).
  47. Raynor, P.C.; Leith, D. The influence of accumulated liquid on fibrous filter performance. J. Aerosol Sci. 2000, 31, 19–34. [Google Scholar] [CrossRef]
  48. Walsh, D.C.; Stenhouse, J.I.T.; Scurrah, K.L.; Graef, A. Effect of solid and liquid aerosol particle loading on fibrous filter material performance. J. Aerosol. Sci. 1996, 27, 617–618. [Google Scholar] [CrossRef]
  49. Agranovski, I.E.; Braddock, R.D. Filtration of liquid aerosols on nonwettable fibrous filters. AIChE J. 1998, 44, 2784–2790. [Google Scholar] [CrossRef]
  50. Agranovski, I.E.; Braddock, R.D. Filtration of liquid aerosols on wettable fibrous filters. AIChE J. 1998, 44, 2775–2783. [Google Scholar] [CrossRef]
  51. Pasanen, A.L.; Keinanen, J.; Kalliokoski, P.; Martikainen, P.I.; Ruuskanen, J. Microbial growth on respirator filters from improper storage. Scand. J. Work Environ. Health 1993, 19, 421–425. [Google Scholar] [CrossRef] [PubMed]
  52. Centers for Disease Control and Prevention (CDC). Recommended Guidance for Extended Use and Limited Reuse of N95 Filtering Facepiece Respirators in Healthcare Settings. Available online: http://www.cdc.gov/niosh/topics/hcwcontrols/recommendedguidanceextuse.html (accessed on 26 October 2015).

Share and Cite

MDPI and ACS Style

Majchrzycka, K.; Okrasa, M.; Skóra, J.; Gutarowska, B. Evaluation of the Survivability of Microorganisms Deposited on Filtering Respiratory Protective Devices under Varying Conditions of Humidity. Int. J. Environ. Res. Public Health 2016, 13, 98. https://doi.org/10.3390/ijerph13010098

AMA Style

Majchrzycka K, Okrasa M, Skóra J, Gutarowska B. Evaluation of the Survivability of Microorganisms Deposited on Filtering Respiratory Protective Devices under Varying Conditions of Humidity. International Journal of Environmental Research and Public Health. 2016; 13(1):98. https://doi.org/10.3390/ijerph13010098

Chicago/Turabian Style

Majchrzycka, Katarzyna, Małgorzata Okrasa, Justyna Skóra, and Beata Gutarowska. 2016. "Evaluation of the Survivability of Microorganisms Deposited on Filtering Respiratory Protective Devices under Varying Conditions of Humidity" International Journal of Environmental Research and Public Health 13, no. 1: 98. https://doi.org/10.3390/ijerph13010098

APA Style

Majchrzycka, K., Okrasa, M., Skóra, J., & Gutarowska, B. (2016). Evaluation of the Survivability of Microorganisms Deposited on Filtering Respiratory Protective Devices under Varying Conditions of Humidity. International Journal of Environmental Research and Public Health, 13(1), 98. https://doi.org/10.3390/ijerph13010098

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
