# Model Averaging for Improving Inference from Causal Diagrams

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

#### 1.1. Uncertainty in Causal Modeling

#### 1.2. Averaging Models to Avoid Investigator Bias

## 2. Methods

#### 2.1. Example from the PIN Study

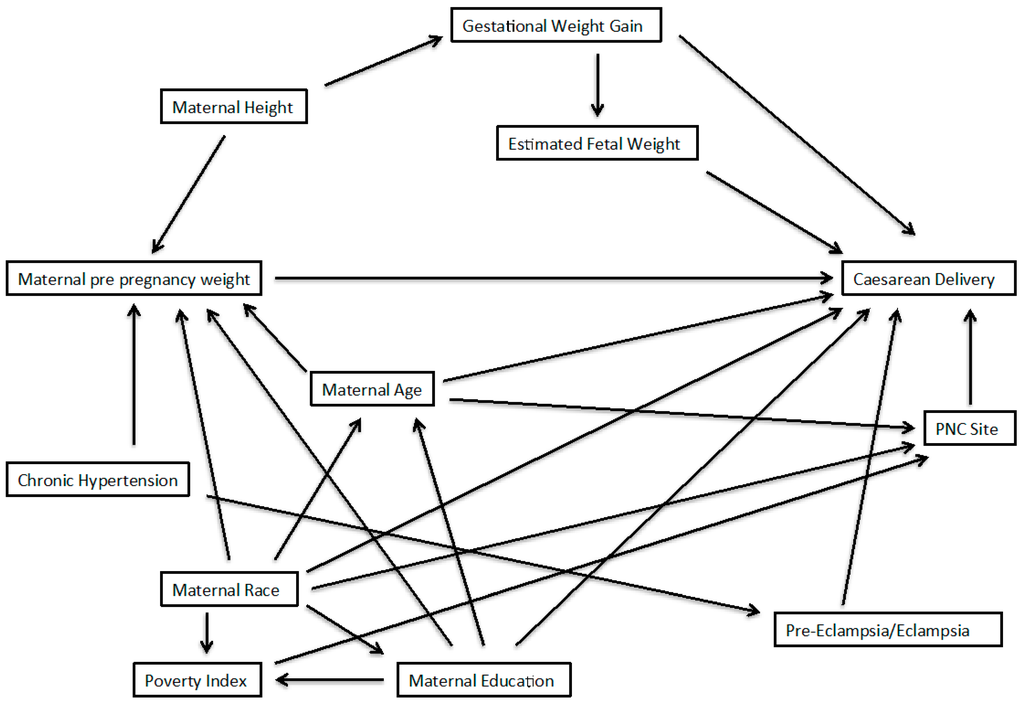

**Figure 2.**Directed Acyclic graph to obtain an unbiased effect of pre-pregnancy weight on cesarean delivery; adapted from Vahratian et al. (2005). Sufficient sets from this DAG are determined using DAGGITY software.

#### 2.2. Three Approaches for Model Averaging

## 3. Results

Adjustment Set | Covariates | Overweight vs. Normal | Obese vs. Normal | ||||
---|---|---|---|---|---|---|---|

Risk Ratio | 95% CI | Risk Ratio | 95% CI | AIC | Weight | ||

1 | Chronic hypertension, gestational weight gain, maternal age, maternal education, maternal race | 1.38 | 0.92, 2.09 | 1.75 | 1.23, 2.50 | 552.56 | 0.43 |

2 | Chronic hypertension, maternal age, maternal education, maternal race, maternal height | 1.27 | 0.84, 1.92 | 1.46 | 1.04, 2.08 | 552.74 | 0.39 |

3 | Gestational weight gain, maternal age, maternal education, maternal race, pre-eclampsia/eclampsia | 1.38 | 0.91, 2.09 | 1.74 | 1.22, 2.48 | 555.12 | 0.12 |

4 | Maternal age, maternal education, maternal height, maternal race, pre-eclampsia/eclampsia | 1.29 | 0.85, 1.95 | 1.48 | 1.05, 2.10 | 556.43 | 0.06 |

AIC Averaged values | 1.33 | 0.86, 2.03 | 1.62 | 1.09, 2.39 |

Overweight vs. Normal | Obese vs. Normal | |||
---|---|---|---|---|

Adjustment Set | Risk Ratio | 95% CI | Risk Ratio | 95% CI |

1 | 1.41 | 0.93, 2.11 | 1.86 | 1.32, 2.62 |

2 | 1.35 | 0.92, 2.00 | 1.48 | 1.06, 2.06 |

3 | 1.38 | 0.91, 2.09 | 1.74 | 1.22, 2.48 |

4 | 1.33 | 0.89, 1.97 | 1.43 | 1.02, 2.01 |

Average | 1.37 | 0.92, 2.04 | 1.61 | 1.15, 2.27 |

Overweight vs. Normal | Obese vs. Normal | |||||
---|---|---|---|---|---|---|

Adjustment Set | Risk Ratio | 95% Interval ^{†} | Risk Ratio | 95% Interval ^{†} | ||

Mean | Median | Mean | Median | |||

1 | 1.39 | 1.36 | 0.92, 2.02 | 1.78 | 1.76 | 1.28, 2.46 |

2 | 1.34 | 1.31 | 0.90, 1.93 | 1.45 | 1.42 | 1.07, 1.98 |

3 | 1.40 | 1.38 | 0.87, 2.08 | 1.76 | 1.73 | 1.18, 2.50 |

4 | 1.34 | 1.32 | 0.87, 1.96 | 1.43 | 1.41 | 1.01, 1.99 |

Average | 1.37 | 1.34 | 0.89, 2.01 | 1.60 | 1.57 | 1.07, 2.35 |

**95% Intervals represent the 2.5th and 97.5th percentile of the parameter estimates obtained by bootstrap resampling.**

^{†}Averaging Approach | Overweight | Obese |
---|---|---|

Akaike’s Information | 2.36 | 2.19 |

Inverse Variance | 2.22 | 1.97 |

Bootstrap resampling | 2.26 | 2.20 |

^{1}Upper limit divided by lower limit.

## 4. Discussion

## 5. Conclusions

## Supplementary Material

## 1. AIC Model Averaging

_{i}models I = 1,2…R receive a value relative to the model with the smallest AIC value, or AIC

_{min}. This, of course, gives the model with the smallest AIC a value of zero. Next, models are given weights based on a transformation of the likelihood into a relative probability via the following formula:

## 2. Inverse Variance Weighting

_{i}, as:

## 3. Software code for recreating model averaged results for bootstrap and AIC techniques

SAS code********************************************************************************* ***** Model averaging via bootstrapping ***** [email protected] ***** Example from PIN study (UNC, Chapel Hill) ***** To request PIN data, please visit: ***** http://www.cpc.unc.edu/projects/pin/datause ********************************************************************************; ** Import data;procimportout=one datafile='YOUR Directory' dbms=csv replace; getnames=yes;run; ** Recode variables from data so there are 0 references;dataone; set one; bmi = C_BMIIOM -2; medu = edu -1; height = C_INCHES -65.04; *Center height at mean; if ind =0then induction =0; else induction =1; run; ********************************************* ***** Bootstrap data, 1000 replications *********************************************;procsurveyselectdata=one out=pinboot seed =280420141method = urs samprate =100outhits rep =1000;run; ***************************************************************** ***** Fit 4 minimally sufficient models, output data from each *****************************************************************; * Model 1: adjust: hypertension, gestational weight gain, maternal age/edu/race; ods output ParameterEstimates = m1out;procgenmoddata=pinboot desc; by Replicate; class bmi(ref=first); model cesarean = bmi hyper C_WTGAIN mom_age medu race /dist=binomial link=log;run; * Model 2: adjust: hypertension, maternal age/edu/race/height; ods output ParameterEstimates = m2out;procgenmoddata=pinboot desc; by Replicate; class bmi(ref=first); model cesarean = bmi hyper mom_age medu race height/dist=binomial link=log;run; * Model 3: adjust: gestational weight gain, maternal age/edu/race, eclampsia; ods output ParameterEstimates = m3out;procgenmoddata=pinboot desc; by Replicate; class bmi(ref=first); model cesarean = bmi C_WTGAIN mom_age medu race eclamp/dist=binomial link=log;run; * Model 4: adjust: maternal age/edu/race/height, eclampsia; ods output ParameterEstimates = m4out;procgenmoddata=pinboot desc; by Replicate; class bmi(ref=first); model cesarean = bmi mom_age medu race height eclamp/dist=binomial link=log;run; ********************************************** ****Extract BMI values from each dataset ****First, for overweight vs normal **********************************************;datam1over (keep = Estimate Replicate model); set m1out; if Parameter = 'bmi' AND Level1 =1; model =1; run;datam2over (keep = Estimate Replicate model); set m2out; if Parameter = 'bmi' AND Level1 =1; model =2; run;datam3over (keep = Estimate Replicate model); set m3out; if Parameter = 'bmi' AND Level1 =1; model =3; run;datam4over (keep = Estimate Replicate model); set m4out; if Parameter = 'bmi' AND Level1 =1; model =4; run; **** Pool datasets and summarize estimate;dataover; set m1over m2over m3over m4over; exp = exp(Estimate); run; *summary of bootstrap estimates by adjustment set;procunivariatedata=over; by model; var exp; output out= over1a mean=mean pctlpts =2.5,50,97.5pctlpre=ci;run; *Model average of overweight versus normal weight;procunivariatedata=over; var exp; output out= over1b mean=mean pctlpts =2.5,50,97.5pctlpre=ci;run; ********************************************** ** Repeat above for obese versus normal *********************************************;datam1obese (keep = Estimate Replicate model); set m1out; if Parameter = 'bmi' AND Level1 =2; model =1; run;datam2obese (keep = Estimate Replicate model); set m2out; if Parameter = 'bmi' AND Level1 =2; model =2; run;datam3obese (keep = Estimate Replicate model); set m3out; if Parameter = 'bmi' AND Level1 =2; model =3; run;datam4obese (keep = Estimate Replicate model); set m4out; if Parameter = 'bmi' AND Level1 =2; model =4; run; **** Pool datasets and summarize estimate;dataobese; set m1obese m2obese m3obese m4obese; exp = exp(Estimate); run; *summary of bootstrap estimates by adjustment set;procunivariatedata=obese; by model; var exp; output out= obese1a mean=mean pctlpts =2.5,50,97.5pctlpre=ci;run; *Model average of overweight versus normal weight;procunivariatedata=obese; var exp; output out= obese1b mean=mean pctlpts =2.5,50,97.5pctlpre=ci;run; *end of file;R code########################################################################### ##### Multi-model inference with AIC weighting ########################################################################### ## Load relevant libraries and set working directory library(Epi) library(foreign) library(MuMIn) library(boot) setwd('Your directory') ## load and summarize data PIN <- read.csv('PIN.csv',header=T) str(PIN) ## Re-code BMI and Education so there is a zero referent ## also center height and record induction PIN$BMI <- PIN$C_BMIIOM - 2 PIN$m_edu <- PIN$edu - 1 PIN$height <- PIN$C_INCHES - 65.04 # center height PIN$induction <- as.numeric(ifelse(PIN$ind==0,0,1)) # categorize induction into 0,1 #################################################### ## Average over all minimally sufficient adjustment sets #################################################### ## restrict data to exclude missings. Necessary for averaging with AIC! keep <- c('cesarean','BMI','hyper','C_WTGAIN','mom_age','m_edu', 'race','height','eclamp') PIN1 <- na.omit(PIN[keep]) attach(PIN1) ################################################################# ## NOTE: some models run with reduced adjustment sets to obtain ## starting values that help with model convergence ################################################################# ## model 1: hypertension, gestational weight gain, maternal age/edu/race m1a <- glm(cesarean ~ factor(BMI) + hyper + C_WTGAIN + mom_age + m_edu + race, family=binomial(link='log')) m1 <- glm(cesarean ~ factor(BMI) + hyper + C_WTGAIN + mom_age + m_edu + race, family=binomial(link='log')) summary(m1) ci.exp(m1) ## model 2: hypertension, maternal age/edu/race/height m2a <- glm(cesarean ~ factor(BMI) + hyper + mom_age + m_edu + race, family=binomial(link='log')) m2 <- glm(cesarean ~ factor(BMI) + hyper + mom_age + m_edu + race + height, family=binomial(link='log'), start=c(coef(m2a),0)) summary(m2) ci.exp(m2) ## model 3: gestational weight gain, maternal age/edu/race, eclampsia m3 <- glm(cesarean ~ factor(BMI) + C_WTGAIN + mom_age + m_edu + race + eclamp, family=binomial(link='log')) summary(m3) ci.exp(m3) ## model 4: maternal age/edu/race/height, eclampsia m4a <- glm(cesarean ~ factor(BMI) + mom_age + m_edu + race + eclamp, family=binomial(link='log')) m4 <- glm(cesarean ~ factor(BMI) + mom_age + m_edu + race + eclamp + height, family=binomial(link='log'), start=c(coef(m4a),0)) summary(m4) ci.exp(m4) ## Average the results of the four models above models <- list(m1,m2,m3,m4) AIC_avg <- model.avg(models, rank=AIC, cumsum(weight)<=0.95) summary(AIC_avg) confint(AIC_avg) #end of file

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Robins, J.M.; Greenland, S. The role of model selection in causal inference from nonexperimental data. Am. J. Epidemiol.
**1986**, 123, 392–402. [Google Scholar] [PubMed] - Wynder, E.L.; Higgins, I.T.; Harris, R.E. The wish bias. J. Clin. Epidemiol.
**1990**, 43, 619–621. [Google Scholar] [PubMed] - Cope, M.B.; Allison, D.B. White hat bias: Examples of its presence in obesity research and a call for renewed commitment to faithfulness in research reporting. Int. J. Obes.
**2010**, 34, 84–88. [Google Scholar] - Cope, M.B.; Allison, D.B. White hat bias: A threat to the integrity of scientific reporting. Acta Paediatr.
**2010**, 99, 1615–1617. [Google Scholar] [PubMed] - Greenland, S.; Pearl, J.; Robins, J.M. Causal diagrams for epidemiologic research. Epidemiology
**1999**, 10, 37–48. [Google Scholar] [CrossRef] [PubMed] - Pearl, J. Causality: Models, Reasoning, and Inference; Cambridge University Press: New York, NY, USA, 2000. [Google Scholar]
- Raftery, A.E. Bayesian model selection in social research. Sociol. Methodol.
**1995**, 25, 111–163. [Google Scholar] [CrossRef] - Viallefont, V.; Raftery, A.E.; Richardson, S. Variable selection and Bayesian model averaging in case-control studies. Stat. Med.
**2001**, 20, 3215–3230. [Google Scholar] [CrossRef] [PubMed] - Burnham, K.P.; Anderson, D.R. Model Selection and Multimodel Inference: A Practical Information-theoretic Approach, 2nd ed.; Springer: New York, NY, USA, 2002. [Google Scholar]
- VanderWeele, T.J.; Robins, J.M. Four types of effect modification: A classification based on directed acyclic graphs. Epidemiology
**2007**, 18, 561–568. [Google Scholar] [CrossRef] [PubMed] - Shrier, I.; Platt, R.W. Reducing bias through directed acyclic graphs. BMC Med. Res. Methodol.
**2008**, 8, 70. [Google Scholar] [CrossRef] [PubMed] - Lash, T.L.; Fox, M.P.; MacLehose, R.F.; Maldonado, G.; McCandless, L.C.; Greenland, S. Good practices for quantitative bias analysis. Int. J. Epidemiol.
**2014**, 43, 1969–1985. [Google Scholar] [CrossRef] [PubMed] - Schisterman, E.F.; Cole, S.R.; Platt, R.W. Overadjustment bias and unnecessary adjustment in epidemiologic studies. Epidemiology
**2009**, 20, 488–495. [Google Scholar] [CrossRef] [PubMed] - Naimi, A.I.; Cole, S.R.; Westreich, D.J.; Richardson, D.B. A comparison of methods to estimate the hazard ratio under conditions of time-varying confounding and nonpositivity. Epidemiology
**2011**, 22, 718–723. [Google Scholar] [CrossRef] [PubMed] - Cole, S.R.; Frangakis, C.E. The consistency statement in causal inference: A definition or an assumption? Epidemiology
**2009**, 20, 3–5. [Google Scholar] [CrossRef] - Sobel, M.E. What do randomized studies of housing mobility demonstrate? Causal inference in the face of interference. J. Am. Stat. Assoc.
**2006**, 101, 1398–1407. [Google Scholar] [CrossRef] - Greenland, S. Randomization, statistics, and causal inference. Epidemiology
**1990**, 1, 421–429. [Google Scholar] [CrossRef] [PubMed] - Cole, S.R.; Platt, R.W.; Schisterman, E.F.; Chu, H.; Westreich, D.; Richardson, D.; Poole, C. Illustrating bias due to conditioning on a collider. Int. J. Epidemiol.
**2010**, 39, 417–420. [Google Scholar] [CrossRef] [PubMed] - Savitz, D.A.; Dole, N.; Williams, J.; Thorp, J.M.; McDonald, T.; Carter, A.C.; Eucker, B. Determinants of participation in an epidemiological study of preterm delivery. Paediatr. Perinat. Epidemiol.
**1999**, 13, 114–125. [Google Scholar] [CrossRef] [PubMed] - Vahratian, A.; Siega-Riz, A.M.; Savitz, D.A.; Zhang, J. Maternal pre-pregnancy overweight and obesity and the risk of cesarean delivery in nulliparous women. Ann. Epidemiol.
**2005**, 15, 467–474. [Google Scholar] [CrossRef] [PubMed] - Buckland, S.T.; Burnham, K.P.; Augustin, N.H. Model selection: An integral part of inference. Biometrics
**1997**, 53, 603–618. [Google Scholar] [CrossRef] - Hoeting, J.A.; Madigan, D.; Raftery, A.E.; Volinsky, C.T. Bayesian model averaging: A tutorial. Statist. Sci.
**1999**, 14, 382–401. [Google Scholar] - Rothman, K.J.; Greenland, S.; Lash, T.L. Modern Epidemiology, 3rd ed.; Lippincott Williams & Wilkins: Philadelphia, PA, USA, 2008. [Google Scholar]
- Cochrane Collaboration. In Cochrane Handbook for Systematic Reviews of Interventions; Higgins, J.P.T.; Green, S. (Eds.) Wiley-Blackwell: Hoboken, NJ, USA, 2008.
- Efron, B.; Tibshirani, R. An Introduction to the Bootstrap; Chapman & Hall: New York, NY, USA; CRC Press: Boca Raton, FL, USA, 1993. [Google Scholar]
- Poole, C. Low P-values or narrow confidence intervals: Which are more durable? Epidemiology
**2001**, 12, 291–294. [Google Scholar] [CrossRef] [PubMed] - Dominici, F.; Wang, C.; Crainiceanu, C.; Parmigiani, G. Model selection and health effect estimation in environmental epidemiology. Epidemiology
**2008**, 19, 558–560. [Google Scholar] [CrossRef] [PubMed] - Richardson, D.B.; Cole, S.R. Model averaging in the analysis of leukemia mortality among Japanese A-bomb survivors. Radiat. Environ. Biophys.
**2012**, 51, 93–95. [Google Scholar] [CrossRef] [PubMed] - Greenland, S. Invited commentary: Variable selection versus shrinkage in the control of multiple confounders. Am. J. Epidemiol.
**2008**, 167, 523–529. [Google Scholar] [CrossRef] [PubMed] - Rubin, D.B. The design versus the analysis of observational studies for causal effects: Parallels with the design of randomized trials. Stat. Med.
**2007**, 26, 20–36. [Google Scholar] [CrossRef] [PubMed] - Brookhart, M.A.; Schneeweiss, S.; Rothman, K.J.; Glynn, R.J.; Avorn, J.; Sturmer, T. Variable selection for propensity score models. Am. J. Epidemiol.
**2006**, 163, 1149–1156. [Google Scholar] [CrossRef] [PubMed] - Greenland, S.; Robins, J.M.; Pearl, J. Confounding and collapsibility in causal inference. Stat. Sci.
**1999**, 14, 29–46. [Google Scholar]
