4.1. Oceanographic and Meteorological Trends (1899–2011)
Precipitation in San Juan since 1899 (
Figure 2) shows marked wet (1948–1952, 2003–2006; 2009–2011) and dry periods (e.g., 1971–1977, 1982–1984, 1990–1995). A slight (not significant) downward trend in precipitation (−0.95 mm/year) is observed over the 1899–2011 period, primarily driven by the higher number of dry years observed in this region between about 1950 and the late 1990s. There has been a marked rise in positive annual and daily rainfall anomalies since the 1990s (
Figure 2). Numbers of dry days are increasing (especially in January, February, March and June) while wet days show a significant decreasing trend (
Figure 2). These results agree with regional trends and climate projections for the Caribbean Region [
13].
A significant positive trend was observed in annual mean maximum and minimum air temperatures, as well as in seasonal minimum and maximum temperature extremes (
Figure 3). The entire Caribbean region warmed significantly over the period 1961–2009 [
13,
43]. The annual percentage of warm days and nights, analyzed through the TX90p and TN90p indices, has significantly increased. Our results are also consistent with trends observed over parts of northern South America, where nighttime (minimum) temperature indices show the largest rates of warming [
44]. Daytime (maximum) temperature indices also show warming over much of South America, but at lower rates.

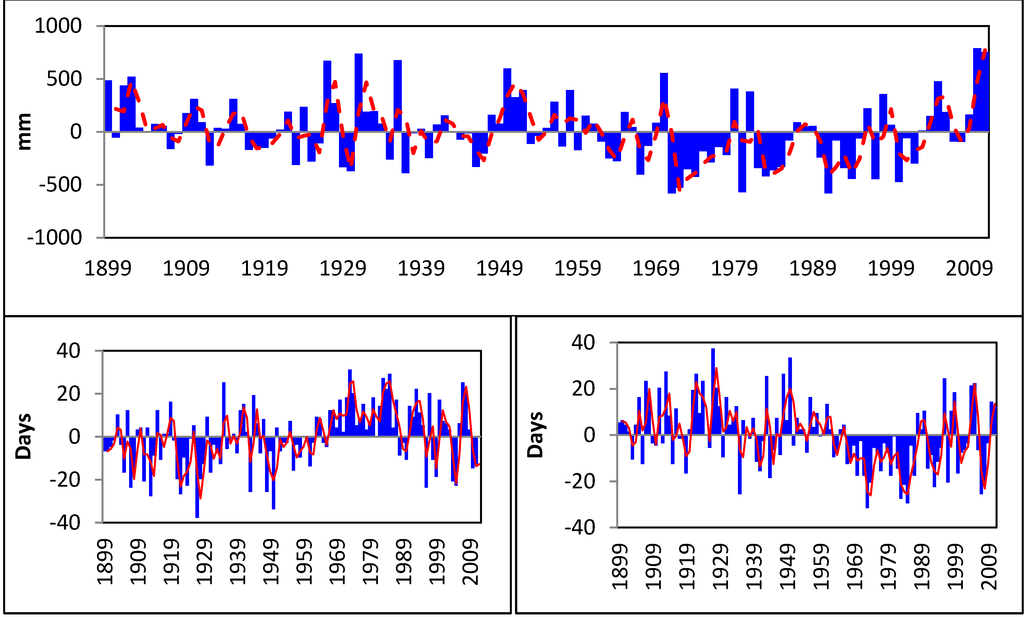

Figure 2.
Upper Panel: Annual rainfall anomaly (blue bars) and moving average (red broken line). Lower Left: Anomalies for dry days (blue bars) and moving average (red line); Lower Right: Anomalies for wet days (blue bars) and moving average (red line); 1899–2011.
Figure 2.
Upper Panel: Annual rainfall anomaly (blue bars) and moving average (red broken line). Lower Left: Anomalies for dry days (blue bars) and moving average (red line); Lower Right: Anomalies for wet days (blue bars) and moving average (red line); 1899–2011.

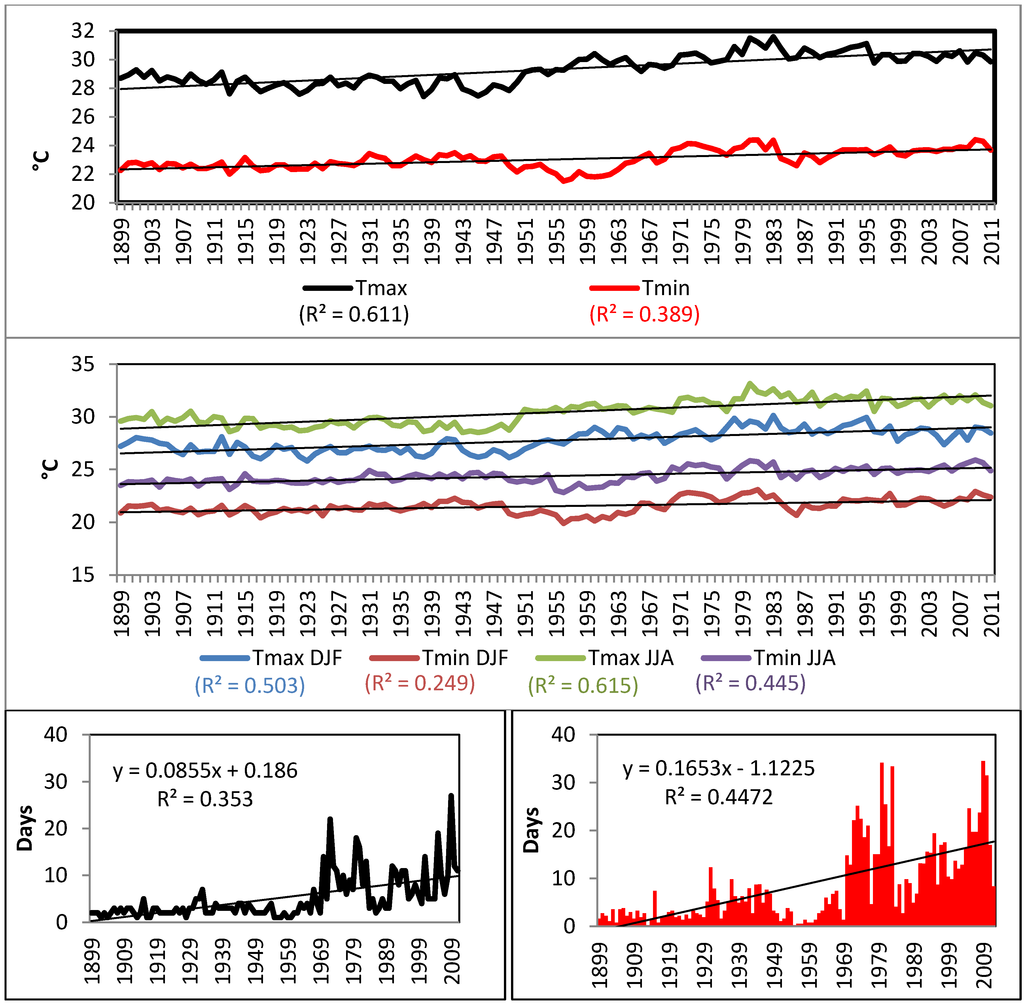

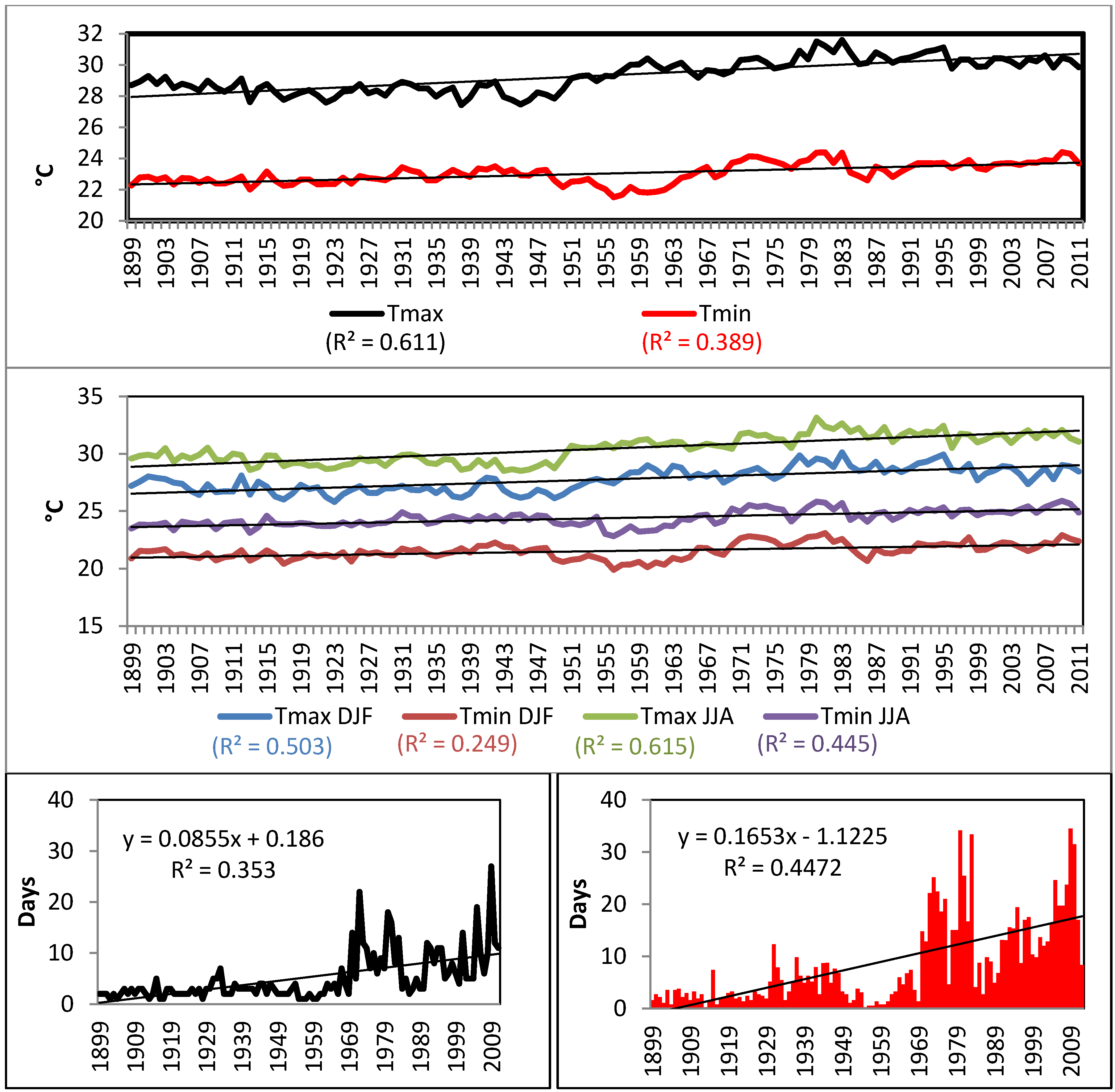

Figure 3.
Upper Panel: Time series of annual average minimum and average maximum air surface temperature. Middle: Seasonal Trends in annual average minimum and maximum air temperature. DJF indicates December-January-February and JJA indicates June-July-August. Lower Left: Consecutive days > 90th percentile Tmin (25 °C). Lower Right: TN90p (San Juan 1899–2011).
Figure 3.
Upper Panel: Time series of annual average minimum and average maximum air surface temperature. Middle: Seasonal Trends in annual average minimum and maximum air temperature. DJF indicates December-January-February and JJA indicates June-July-August. Lower Left: Consecutive days > 90th percentile Tmin (25 °C). Lower Right: TN90p (San Juan 1899–2011).
There was a significant increasing trend with the number of days per year when SLP records were <10th percentile. The minimum values for SLP occurred between August and November. These are months of high tropical cyclone activity in the Caribbean Sea and the North Atlantic. Maximum SLP showed a significant downward trend, suggesting that SLP amplitude is diminishing over time (
Table 3). This is consistent with the displacement of the Intertropical Convergence Zone (ITCZ) away from the equator toward the northern subtropics and possibly the effects of a stronger subtropical jet on the northern Caribbean Sea [
45,
46,
47,
48].
Higher MSL values in San Juan Bay occurred between August and October. The timing of the extreme (maximum annual MSL) also occurred during this period. Sea-level extremes (90th percentile) rose by up to 1.5 mm/year. in the San Juan Bay area (
Figure 4), in line with previously estimated Sea Level Rise from NOAA (1.65 mm/year.). Clearly, higher sea level extremes occur superimposed on a gradually increasing mean sea level [
49].
SST values are also increasing in the Caribbean Sea [
43], especially between June and December. Extreme high SSTs in the period 1981–2012 were normally more frequent in September, October, and November. The 90th percentile showed an upward trend in all seasons, with larger trends in September, October, and November (+0.84 °C) compared to winter and spring (
Figure 5).
Average wind speed decreased between 1978 and 2012, while wind direction amplitude increased. Wind speed was usually lower when the wind direction turned from the south. As Maximum Air Surface Temperature and Sea Surface Temperature increased, Minimum Air Surface Temperature in San Juan decreased, primarily at night. The concurrent slightly long-term trend of decreasing precipitation led us to conclude that this night-time cooling was likely due to an increase in the occurrence of clear skies along the north coast. In the San Juan area, southerly winds lead to a decrease in moisture in the lee of the mountains of the Cordillera Central (i.e., the northern coast). When winds blow from the Northeast, higher humidity typically occurs along the north side of the island.
Table 3.
Ocean and meteorological Mann-Kendall trend analysis. Positive “S” indicates a positive trend. Negative “S” values indicate negative trends. If p < 0.05, the slope is significantly different from zero.
Table 3.
Ocean and meteorological Mann-Kendall trend analysis. Positive “S” indicates a positive trend. Negative “S” values indicate negative trends. If p < 0.05, the slope is significantly different from zero.
ID | S | p-value (Two-Tailed) | Test Interpretation |
---|
CWD | −195 | 0.63 | Accept H0 |
CDD | 516 | 0.20 | Accept H0 |
#Days > 1 mm | −1382 | 0.001 | Reject H0 |
Max Consecutive days > 90th (13 mm) | −169 | 0.66 | Accept H0 |
Max Consecutive days R10 mm | 66 | 0.86 | Accept H0 |
#Days < 1 mm | 1403 | 0.001 | Reject H0 |
R10 | −676 | 0.09 | Accept H0 |
R20 | −407 | 0.31 | Accept H0 |
Max Consecutive days > 95th (22.1 mm) | −412 | 0.26 | Accept H0 |
Max Consecutive days> R20 mm | −119 | 0.75 | Accept H0 |
Max Consecutive days > 99th (49.8 mm) | −74 | 0.82 | Accept H0 |
#Days > 99th (49.8 mm) | 168 | 0.67 | Accept H0 |
#Days > 95th (22.1 mm) | −544 | 0.18 | Accept H0 |
TN10p | −1167 | 0.002 | Reject H0 |
TX10p | −1313 | 0.001 | Reject H0 |
TN90p | 3102 | 0.0001 | Reject H0 |
TX90p | 3535 | 0.0001 | Reject H0 |
WSDI | 3109 | 0.0001 | Reject H0 |
CSDIX | −1263 | 0.001 | Reject H0 |
CSDIN | −1124 | 0.003 | Reject H0 |
SLP Annual Max | −310 | 0.0001 | Reject H0 |
SLP Annual Min | 36 | 0.591 | Accept H0 |
SLP Annual Average | −184 | 0.004 | Reject H0 |
SLP #Days < 10th percentile | 146 | 0.014 | Reject H0 |
SLP Monthly Max | −1816 | 0.0001 | Reject H0 |
MSL Max | 242 | 0.0001 | Reject H0 |
MSL Min | 212 | 0.002 | Reject H0 |
MSL Average | 225 | 0.001 | Reject H0 |
SST Annual Max | 219 | 0.0001 | Reject H0 |
SST Annual Min | 99 | 0.09 | Accept H0 |
Wind Speed Annual Average | −81 | 0.238 | Accept H0 |
Wind Speed Annual Max | −255 | 0.0001 | Reject H0 |

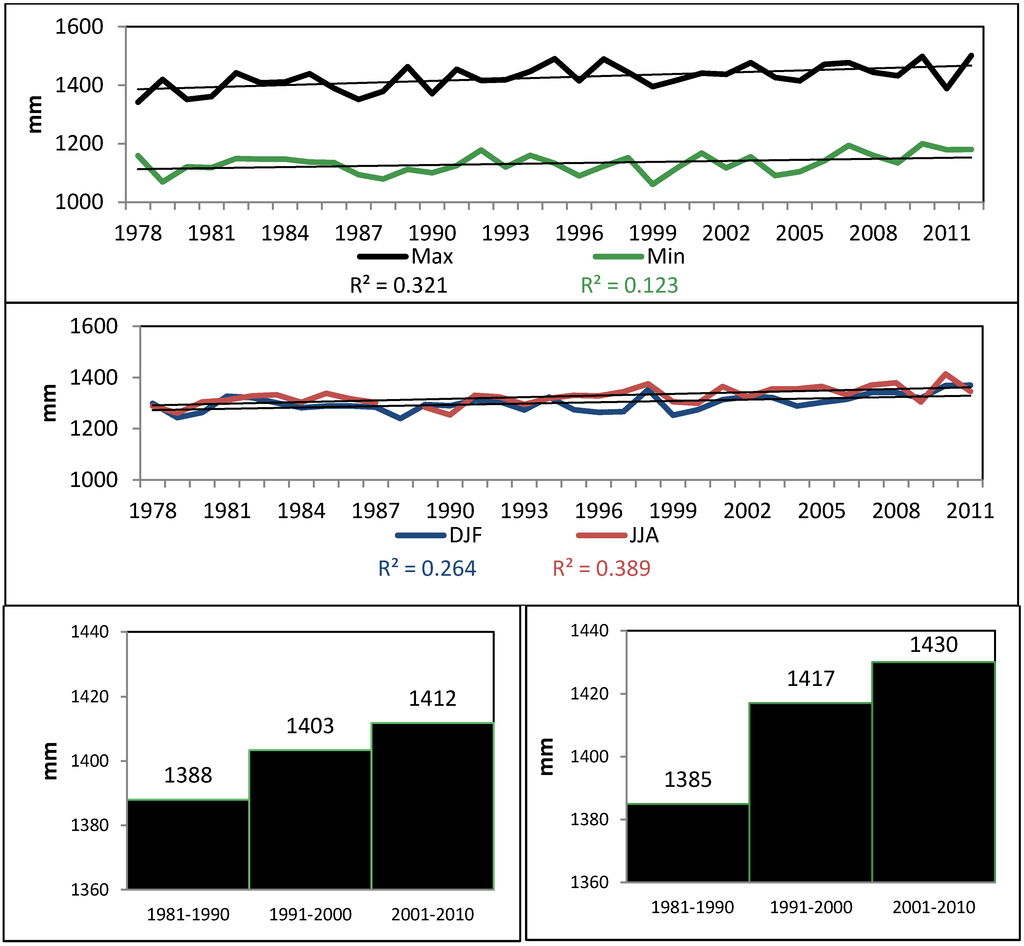

Figure 4.
Upper Panel: Annual Maximum and Minimum Mean Sea Level. Middle: Seasonal Mean Sea Level (DJF-December, January and February; JJA-June, July and August). Lower Left: Maximum Annual Mean Sea Level trends. Lower Right: Mean Sea Level annual 90th percentile per decade.
Figure 4.
Upper Panel: Annual Maximum and Minimum Mean Sea Level. Middle: Seasonal Mean Sea Level (DJF-December, January and February; JJA-June, July and August). Lower Left: Maximum Annual Mean Sea Level trends. Lower Right: Mean Sea Level annual 90th percentile per decade.

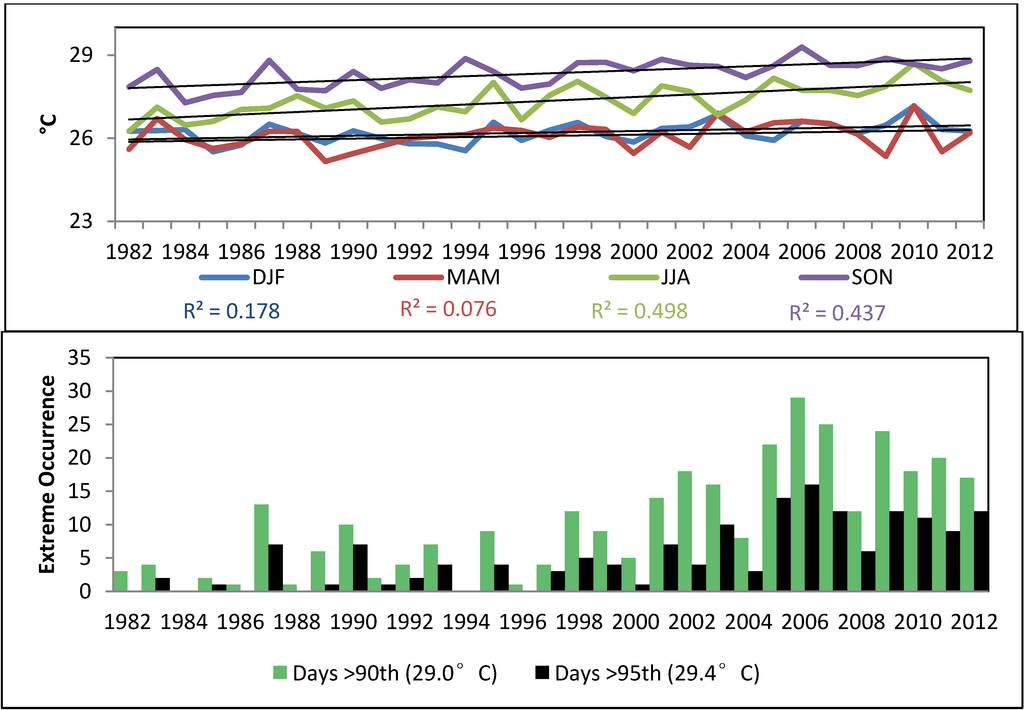

Figure 5.
Top Panel: Seasonal Sea Surface Temperature trends (AVHRR Pathfinder v5.2 SST, extracted in a 4x4 km2 area in the Atlantic Ocean immediately off San Juan 1981–2012). Lower Panel: Number of days showing extremely high SST (above the 90th percentile: 29 °C, and 95th percentile: 29.4 °C).
Figure 5.
Top Panel: Seasonal Sea Surface Temperature trends (AVHRR Pathfinder v5.2 SST, extracted in a 4x4 km2 area in the Atlantic Ocean immediately off San Juan 1981–2012). Lower Panel: Number of days showing extremely high SST (above the 90th percentile: 29 °C, and 95th percentile: 29.4 °C).
4.2. Association between Dengue Fever and Ocean- and Meteorological Change (1992–2011)
Dengue records collected since 1992 show that this disease has a seasonal periodicity in Puerto Rico (
Figure 6). Three phases are normally observed during each period. A pre-epidemic phase occurs between February and May (
i.e., weeks 10–20), with rising dengue cases (
Figure 6). This is a time when seasonal air and ocean temperatures start to rise, when there is relatively abundant precipitation due to passage of winter cold fronts, and there is an increasing numbers of mosquitoes. Epidemics are then observed from about June (week 23) to October (week 40), when temperatures have risen the fastest and reach maxima, and until after maxima in temperature and precipitation are reached. The post-epidemic phase, when dengue fever cases decrease, occurs from November to January. The phases we identify here are slightly out of phase with those described previously [
6].
The Pearson correlation analysis showed that dengue cases were significantly associated with at least 5 variables (SST, AST, Rainfall, MSL, and SLP). The strongest association was with SST and AST. Correlation between SST and dengue cases increased significantly if data were separated in five year periods (1992–1996,
r = 0.04; 1997–2001,
r = 0.26; 2002–2006,
r = 0.45; 2007–2011,
r = 0.56). Two of the largest and longest epidemics in Puerto Rico history occurred in the last period,
i.e., in 2007 and 2010. The PCA shows that four environmental factors together explained 72% of the variance in the dengue data. Sea Surface Temperature dominated the first PCA factor (0.90), followed by Minimum Air Surface Temperature (0.79) and MSL (0.79). Mean Sea Level, however, is highly correlated with SST (
r = 0.74), as is Minimum Air Surface Temperature (
r = 0.53). Thus, autocorrelation issues inflate these statistics (
Table 4).
Warmer SST and more variable wind speed and direction in Puerto Rico correspond to a more northerly position of the ITCZ. In general, warm years registered in SST are associated with wet years (especially in the late rainy season when rainfall was above normal e.g., 2003–2006; 2009–2011) while cooler episodes are associated with drier periods (especially in the early rainy season when rainfall was below normal e.g., 1982–1986; 1990–1995). Previous studies have not found an association between these parameters, dengue, and episodes of El Niño South Oscillation (ENSO) [
18,
21]. We did not find a relationship with ENSO either.

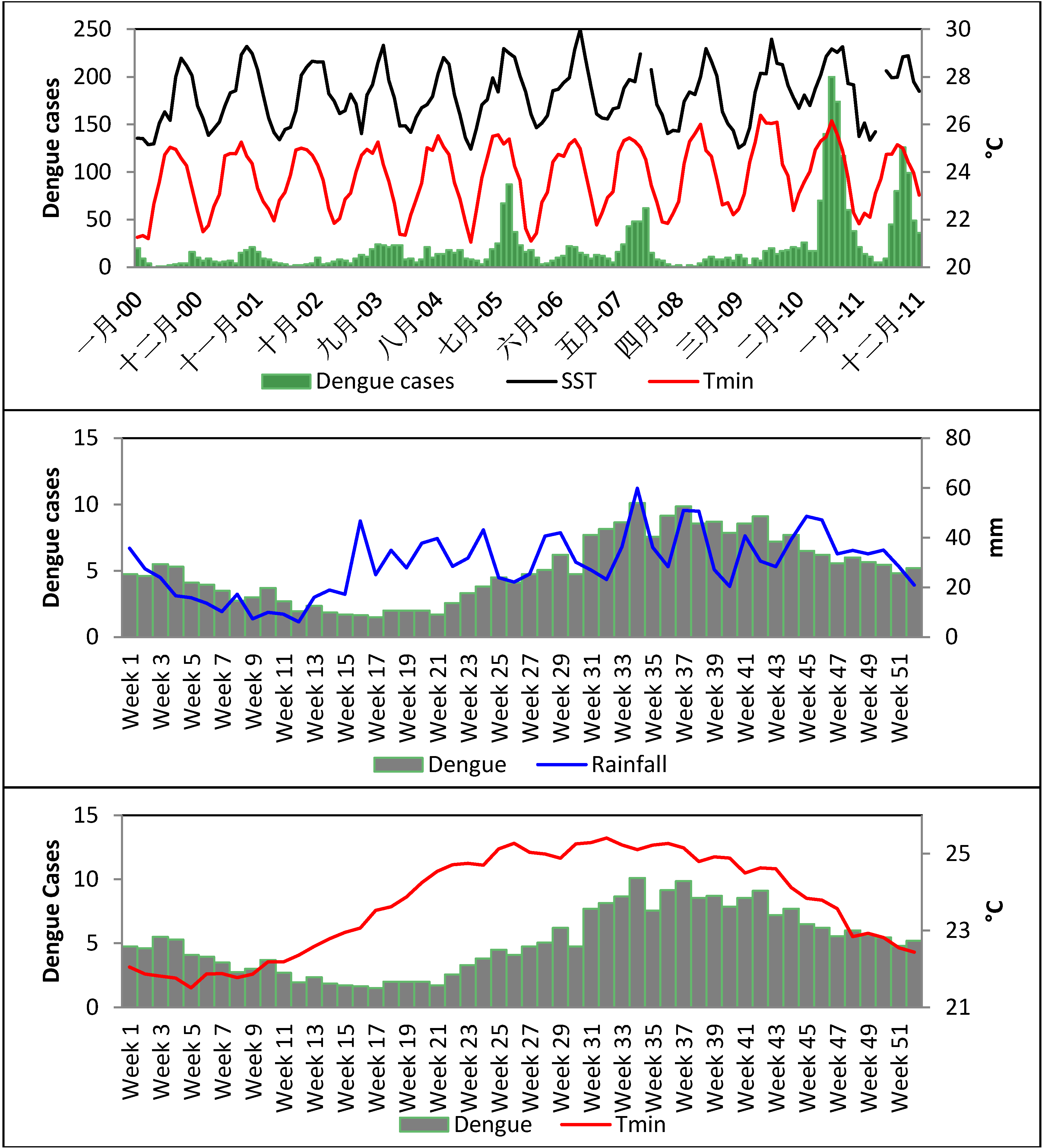

Figure 6.
Upper: Monthly sea surface temperature (SST), minimum air surface temperature (Tmin) and monthly dengue cases (2000–2011). Middle: Weekly rainfall and dengue. Lower: Minimum air surface temperature and weekly dengue cases.
Figure 6.
Upper: Monthly sea surface temperature (SST), minimum air surface temperature (Tmin) and monthly dengue cases (2000–2011). Middle: Weekly rainfall and dengue. Lower: Minimum air surface temperature and weekly dengue cases.
Our results also show a link between dengue fever, rainfall, and changes in minimum air surface temperature. While warm nights (TN90p) and nocturnal warm spells (consecutive days > 25 °C) seemed to have a small role to play in dengue occurrence (
r = 0.33), maximum air surface temperature patterns didn’t seem to have a strong influence on dengue. Higher maximum temperatures tend to decline egg hatching rates while higher minimum daytime temperatures are likely leading to shorter virus incubation periods in the vector, shorter viral development rates, and shorter mosquito larvae development times [
6,
50,
51]. Many researchers suggest that both
Aedes aegypti and
Aedes albopictus have excellent adaptation skills regarding rising temperatures and extreme conditions [
52]. Other scientists have found that higher temperatures produce significantly smaller adults since as temperatures increase, the mosquito development time is reduced [
51,
52].
Table 4.
Monthly correlation matrix Pearson. 1992–2011.
Table 4.
Monthly correlation matrix Pearson. 1992–2011.
Periods | Variables | Dengue Cases | SST | SLP | Rainfall | Tmax | Tmin | MSL |
---|
1992–2011 | Dengue Cases | 1 | 0.36 | −0.31 | 0.22 | 0.16 | 0.25 | 0.33 |
SST | 0.36 | 1 | −0.63 | 0.48 | 0.63 | 0.72 | 0.74 |
SLP | −0.31 | −0.63 | 1 | −0.40 | −0.36 | −0.41 | −0.59 |
Rainfall | 0.22 | 0.48 | −0.39 | 1 | 0.19 | 0.38 | 0.29 |
Tmax | 0.16 | 0.63 | −0.35 | 0.19 | 1 | 0.90 | 0.47 |
Tmin | 0.25 | 0.72 | −0.41 | 0.38 | 0.90 | 1 | 0.53 |
MSL | 0.33 | 0.74 | −0.59 | 0.29 | 0.47 | 0.53 | 1 |
The correlation between SST and dengue incidence is high for San Juan. For example, monthly dengue transmission rates between 2000 and 2011 were 3.4 times higher (95% CI: 1.9–6.1) for each 1 °C increase in SST and 2.2 higher (95% CI: 1.3–3.5) for each 1 °C increase in Minimum Air Surface Temperature. These factors were further accelerated in the 2007-2011 period, with monthly dengue transmission being a factor of 5.2 higher (95% CI: 1.9–13.9) for 1 °C increases in Sea Surface Temperature.
The number of days per year when precipitation is >10 mm/24 h also leads to higher number of consecutive days with dengue transmission (
r = 0.35). No significant results were obtained with R20 (>20 mm/24 h), suggesting that excessive rainfall events have no incremental effect on dengue cases. Nevertheless, the number of wet days a year is a predictor for dengue. When more consecutive wet days occurred in a year, dengue incidence increased. Higher rainfall leads to an increase in breeding sites of the mosquito vector [
50], which would contribute to the increase in dengue occurrence.
The diversity and distribution of mosquitoes in Puerto Rico have not been studied extensively, and background literature on the ecology of these vectors is limited [
53]. The observation of
Aedes albopictus in San Juan, is recent, which suggests that this species is a relatively recent introduction to the island. As sea level rises, the boundaries of the estuary of San Juan Bay are moving inland. The strong correlation between dengue, MSL, and the high incidence of mosquitoes (now both
Aedes aegypti and Aedes albopictus) in brackish environments [
15,
54,
55,
56], also suggest that the risk of dengue cases is increasing as the perimeter of the estuary expands. Therefore, even though there is still lack of concrete evidence that vectors are proliferating in brackish waters on the island, these findings encourage further research on vector ecology. There exist a substantial need in San Juan to study these vectors within the estuary’s boundaries given the possibility that brackish water-adapted
Aedes aegypti and
Aedes albopictus, may play an up till now unrecognized role in transmitting dengue and chikungunya in coastal urban areas [
54]. Chikungunya virus was also detected in San Juan-Puerto Rico for the first time in 2014, with over 200 cases reported island-wide by the time of this writing in mid-2014 alone [
57]. This presents a new and clear threat to public health concerning vector-borne diseases.
There have been several years with epidemic dengue outbreaks in Puerto Rico, specifically 1994, 1998, 2007 and 2010 [
22,
23,
24,
58,
59,
60]. In San Juan, 65% of the confirmed cases in 1994 were patients younger than 30 years old (
Figure 7). The most affected age-group in 1998 were individuals 10–14 years old (3.1 cases per 1000 individuals). In 2007, a total of 17,000 cases were reported island-wide, with an incidence rate of 4.8/1000 individuals, predominantly in the 10–19 age group [
58]. In many dengue-prone countries, young children bear the greatest burden of the disease; yet, a gradual shift in peak attack rate towards older age groups has also been noted [
58]. In Puerto Rico, and especially in San Juan, teenagers still are consistently the age group that suffers the most infections.

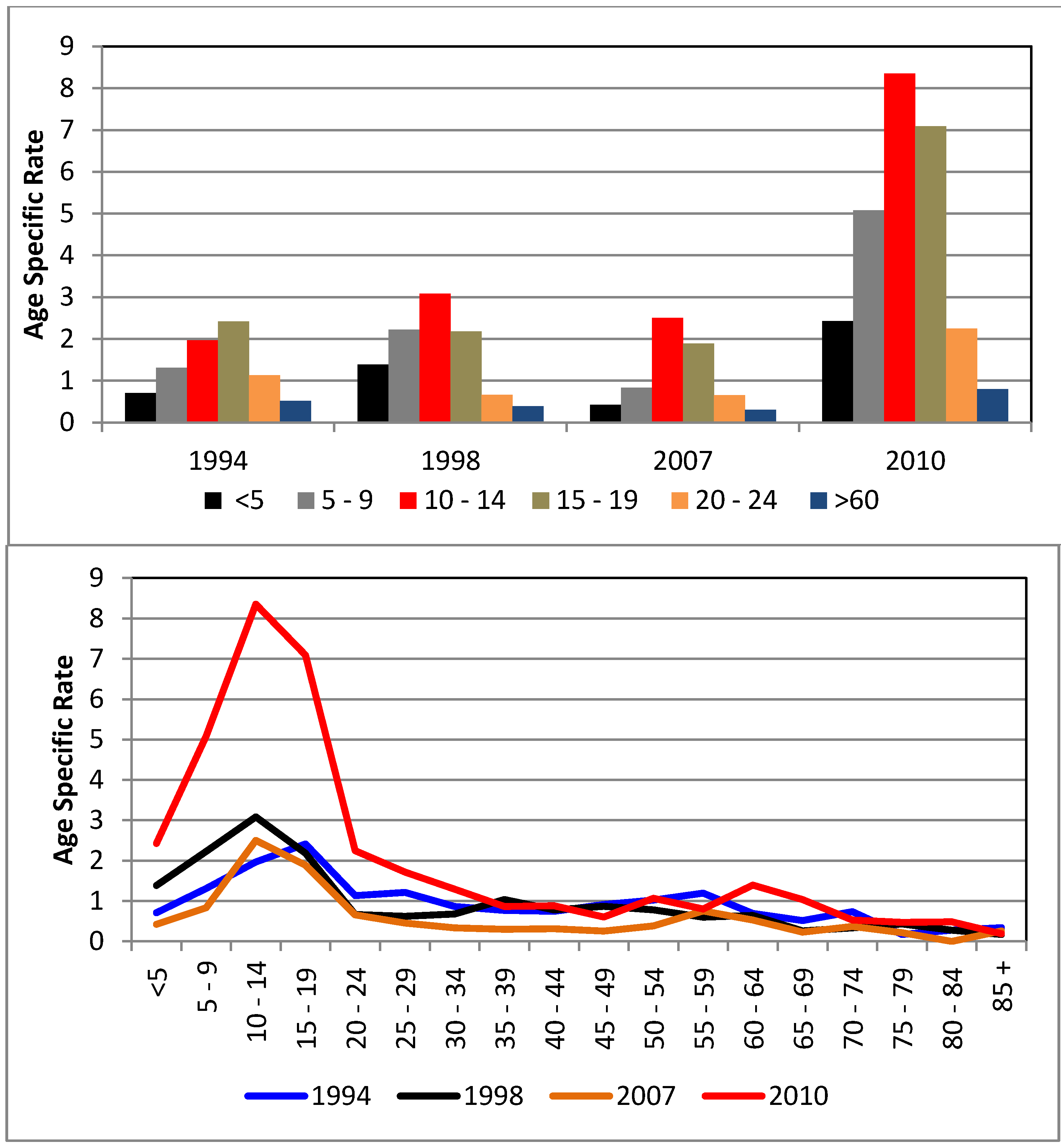

Figure 7.
Comparison of age-specific dengue incidence rates per 1000 inhabitants in epidemic years (1994, 1998, 2007, and 2010) in San Juan. Upper Panel: Age-specific dengue incidence rates (age groups <24 years old and >60 years old). Lower Panel: Age-specific dengue incidence rates (all age groups).
Figure 7.
Comparison of age-specific dengue incidence rates per 1000 inhabitants in epidemic years (1994, 1998, 2007, and 2010) in San Juan. Upper Panel: Age-specific dengue incidence rates (age groups <24 years old and >60 years old). Lower Panel: Age-specific dengue incidence rates (all age groups).
Of particular concern in Puerto Rico were the high numbers of patients observed in 2010 (more than 12,000 confirmed dengue cases with 40 deaths) [
24,
58,
59]. The 10–14 age group accounted for 23% of incidences (the age-specific incidence rate was 8.4/1000 inhabitants) followed by the 15–19 age group (7.1/1000 inhabitants). The third group was comprised of the 5–9 age group (5.1/1000 inhabitants), with 13% of the confirmed cases [
24]. This has been the deadliest outbreak registered in Puerto Rico and in the United States thus far [
24,
60].
All four dengue virus serotypes occurred during each of these epidemics, but usually one serotype seems to be dominant over the others. Exposure and infection by one dengue serotype leads to lifelong serotype-specific immunity and short term cross protection against another serotype [
59]. For example, in 1994 and 1998, dengue virus serotype 2 dominated in San Juan. During the 1998 dengue epidemic, type 3 virus also occurred frequently in Puerto Rico after an absence of 20 years [
24]. In the 2007 epidemic, nearly 70% of the cases in San Juan were confirmed as virus type 3. During the 2010 outbreak, virus 1 dominated, followed by virus 4, with 48% and 20% respectively.
2010 was a year of a pan-American dengue outbreak. Over 1.7 million cases were reported across America and the Caribbean [
61,
62]. Two main factors may have enhanced virus transmission in the northern Caribbean Sea, one may have been low population immunity against the circulating serotype (types 1 and 4), as in the French West Indies [
62], and climatic conditions. 2010 was one of the warmest years since 1850 in San Juan [
63] and in the Caribbean Sea in general (SST 1 °C above the average between 1978–2012). It was also the wettest year on record since 1899 (788 mm above the average 1899–2011). 2010 also showed the second highest Mean Sea Level since 1978 (the maximum in our time series records was in 2012), the second highest mean Air Surface Temperature since 1899 (the maximum was in 2009), and the lowest monthly average Sea Level Pressure (1978–2012).
The oceanographic and climate conditions or the serotype profile are clearly not the only factors that define the temporal patterns or pathological ecology of dengue [
64]. Other important factors include immunity and mobility of the population, socio-economic factors (inequality and poverty), public policy, implementation of surveillance systems, dengue control programs, deficient septic tanks conditions, among others, also play a role [
35,
50,
38,
64,
65,
66,
67]. Our research primarily emphasizes the need for interdisciplinary collaboration to incorporate assessments of temporal patterns of dengue transmission, environmental information, and of climate change projections into the design of climate change adaptation programs, along with social data.
