2009, 7(2), 97-112; https://doi.org/10.3390/md7020097

Article
Broad-Spectrum Antimicrobial Epiphytic and Endophytic Fungi from Marine Organisms: Isolation, Bioassay and Taxonomy
Department of Biotechnology, School of Environmental and Chemical Engineering, Dalian Jiaotong University, Dalian 116028, P.R. China
*
Author to whom correspondence should be addressed.
Received: 26 March 2009; in revised form: 12 April 2009 / Accepted: 16 April 2009 / Published: 1 June 2009

Abstract

:
In the search for new marine derived antibiotics, 43 epi- and endophytic fungal strains were isolated from the surface or the inner tissue of different marine plants and invertebrates. Through preliminary and secondary screening, 10 of them were found to be able to produce broad-spectrum antimicrobial metabolites. By morphological and molecular biological methods, three active strains were characterized to be Penicillium glabrum, Fusarium oxysporum, and Alternaria alternata.
Keywords:
Epi- and endophytic; marine derived fungi; antimicrobial activity; taxonomy

1. Introduction

Since the discovery and application of penicillin, antibiotics have saved billions of lives and played an important role in human history. Unexpectedly, many pathogenic microorganisms, e.g. methicillin-resistant Staphylococcus aureus (MRSA) and vancomycin-resistant Enterococcus faecium (VREF), have developed resistance towards current antibiotics and this trend has become more and more serious [1]. Additionally, some almost vanished pathogens such as Mycobacterium tuberculosis have revived and threaten the public health again; meanwhile some new emerging infectious diseases, e.g. cryptococcal meningitis and toxoplasmosis, have also become prevalent [1,2]. All these new problems call for more novel antibiotics.
Encouraged by the idea of “Drugs from the Sea”, the chemists have identified lots of bioactive compounds with novel structures from the rich marine bio-resource in the recent fifty years [35]. Among them, marine derive fungi have contributed an important proportion. Many marine fungal strains were isolated, screened, and reported to produce novel antimicrobial compounds belonging to the alkaloids, macrolides, terpenoids, peptide derivatives and other structure types [68]. These marine fungal derived compounds have provided us with new choices with which to fight infectious diseases. For example, the marine fungus Pestalotia sp. isolated from the surface of the brown alga Rosenvingea sp. was able to produce a new chlorinated benzophenone compound pestalone, which showed potent antibiotic activity against MRSA (MIC=37 ng/mL) and VREF (MIC=78 ng/mL), revealing its potential as new antibiotic. It was also interesting that this fungus produced pestalone only when it was co-cultured with a marine bacterium strain CNJ-328, suggesting that the production of this antibiotic was stimulated by bacterial competition [9]. This example may explain why these marine fungi produce antimicrobial secondary metabolites. These antibiotics may be used as chemical defense weapons against other microorganism in the marine environment, for the producers themselves or even for their host.
Epiphytic and endophytic fungi live on the surface and in the inner tissues or even in the cell of their hosts, respectively. Current studies indicate that complex interactions existe between the host and their epi/endophytic fungi, e.g. the host provides organic nutrition and epi/endophytes act as chemical guards [6,10], so compared with free-living marine fungi, the epi/endophytic marine fungi have drawn more interest from natural product chemists in the search for novel antimicrobial or other active compounds. By Bugni and Ireland’s statistics, among the 272 new compounds reported from marine derived fungi till 2002, over 85% were produced by epi/endophytes isolated from plants, invertebrates, and woody substrates [6].
Until now, most of the isolation and screening of marine epi- and endophytic fungi reported was from tropical sea areas; some temperate sea areas with high biodiversity were relatively ignored. Dalian is located on the tip of the Liaodong Peninsula, between China’s inner sea Bohai Sea and the Yellow Sea. Its marine ecological environment is influenced by the Yellow Sea Warm Current, Western Liaoning Coastal Current, Southern Liaoning Coastal Current, and the freshwater from some rivers, which has created diversified habitats suitable for marine plants, invertebrates, and microorganisms. As a less investigated zone, the Dalian sea area probably embodies a rich source of marine derived fungi capable of producing novel antimicrobial compounds. The purpose of this study was to search for antibiotic-producing epi- and endophytic fungal strains from the local marine habitats. In this paper, we report the isolation, bioassay, and taxonomy of broad-spectrum antimicrobial epi- and endophytic fungal strains from the local seaweeds, sea grass, sponge, and other invertebrates.

2. Results and Discussion

2.1. Sample Collection and Strains Isolation

In the intertidal zone of the Fujiazhuang coastline (121° 36′ 13.82″ E, 38° 48′ 36.66″ N) of Dalian, four species of red alga, two species of brown alga, two species of green alga, one species of higher plant (sea grass), and three species of invertebrates were collected, as shown in Table 1. Although this sampling was carried out in October when the water temperature was lower than in the blooming summer, the result still reflected the biodiversity of this sea area. It was worth noting that the rich Hymeniacidon perlevvis sponge resource found in the Dalian sea area possibly contains a large amount of marine fungi for drug discovery. The fungal isolation from these organisms resulted in 43 strains, including 23 epiphytic isolates and 20 endophytic ones. Comparing the origins, the sponge Hymeniacidon perlevvis, the brown alga Sargassum thunbergii, and the red alga Gracilaria lemaneiformis yielded many more cultivable isolates than other substrates.

2.2. Preliminary antimicrobial assay

The disks cut from the 7-day PSA (potato sucrose agar) plate cultures of the 43 isolates were screened for their antimicrobial activity against six test organisms spread on specific medium plates. The result showed that 88.4% of the epi- and endophytes possessed inhibitory activities against one or more test organisms (Figure 1). 79.1% inhibited Gram positive bacteria (Staphylococcus epidermidis and/or Bacillus subtilis), 62.8% inhibited Gram negative bacteria (Pseudomonas fluorescens, P. aeruginosa, and/or Escherichia coli), and 48.9% inhibited both G+ and G bacteria. It was also found that 37.2% of them could inhibit the growth of fungus Candida albicans besides test bacteria. Ten isolates (23.3%) were able to inhibit no less than four kinds of test organisms.
As for their origins (Figure 2), the results revealed the common existence of antimicrobial epi/endophytic fungi from different hosts, including seaweeds belonging to three phyla, marine vascular plant, and three types of invertebrates, including coelenterate, mollusc, and sponge. The broad existence of antimicrobial epi-/endophytes, was probably originated from nutritional competition between epi-/endophytes and other marine organisms, or was due to their participation in the hosts’ chemical defensive mechanisms, as proposed by Bugni et al [6]. Compared with other hosts, the red alga Gracilaria lemaneiformis, the brown alga Sargassum thunbergii, and the sponge Hymeniacidon perlevis provided more activite fungal isolates.
However, antimicrobial substances secreted by microorganisms could be small molecular secondary metabolites, i.e. antibiotics, or large molecules such as polysaccharides, peptides, enzymes and so on. To determine the ability of the above active strains as antibiotic-producers, sixteen isolates (listed in Figure 3), with relatively broader antimicrobial spectrum or stronger activities shown in preliminary assay, were selected for secondary assay.

2.3. Secondary antimicrobial assay

After 7 days’ fermentation in PSB (potato sucrose broth) on a shaker, the ethyl acetate-methanol extracts of 16 selected active strains were re-screened of their antimicrobial activity using a paper disc agar diffusion method. The dose of extract on each paper disc (50 μL from 2.5 mL in total) was equal to the amount of extractable substances in 1 mL of ferment liquid.
As shown in Figure 3, the 16 active isolates were indeed able to produce some antimicrobial organic substances under the condition of aerobic liquid fermentation. Among them, 15 isolates’ activity spectrum covered both G+ and G bacteria, 13 isolates could produce antibiotics inhibiting no less than four kinds of test organisms, and eight isolates could inhibit both bacteria and fungi. It was interesting that most of the antibacterial fungi could inhibited both of the two G+ bacteria and no less than two kinds of G bacteria, revealing the possible existence of some antibiotics with broad-spectrum antibacterial mechanism or/and diverse antibiotics with different specific mechanisms. The phenomenon that all the antifungal isolate possessed anti-G+ and G activity also supported the above deduction.
It was noteworthy that five isolates not only exhibited broad spectrum activity but also were potent enough to compare with the positive controls ampicillin and nystatin. They were isolate DLEP2008001 from the red alga Ahnfeltiopsis flabelliformis, isolate DLEP2008014 and DLEN2008016 from the brown alga Sargassum thunbergii, isolate DLEP2008020 from the sea grass Zostera marina, and isolate DLEP2008005 from the sponge Hymeniacidon perlevvis. The diameters of their inhibition zones against specific test organisms were close to or even larger than those of the positive controls; furthermore, isolates DLEP2008014, DLEN2008016, and DLEP2008005 showed broader antimicrobial spectra than ampicillin and nystatin against the test organisms.
As is known, in hospitals Pseudomonas aeruginosa is an important prevalent pathogen that often causes infections after surgeries and other infections and many strains of this bacterium have developed drug resistance towards many antibiotics, e.g., penicillins, some cephalosporins and cotrimoxazole [11]. Fungal isolate DLEP2008014 and DLEN2008016’ crude extracts, especially the latter, showed considerable inhibitory activity against P. aeruginosa, suggesting their potential use as new anti-P. aeruginosa antibiotic-producers. Yeast Candida albicans could cause human genitalia infections, e.g., vaginitis, and oral infection of infants and AIDS patients [12,13]. Isolate DLEP2008005’s products inhibited C. albicans remarkably and were worth investigating for its effective principals. Some Staphylococcus epidermidis and P. fluorescens isolates were also pathogens of some prostatitis, septicaemia, and infectious shock [1416], therefore the five isolates’ unignorable activity against these two test bacteria were also valuable for further study.

2.4. Molecular and Morphological Taxonomy

To determine the taxonomy of the three isolates with the broadest antimicrobial profiles, the isolates DLEP2008014, DLEN2008016 and DLEP2008005 their ITS1-5.8S-ITS2 ribosomal DNA sequence information and morphological characteristics were investigated.
Their ITS1-5.8S-ITS2 rDNA sequences were amplified by PCR and the lengths were 501 bp for the isolate DLEP2008014, 515 bp for the isolate DLEN2008016, and 463 bp for the isolate DLEP2008005, respectively. The sequence data had been submitted to and deposited at GenBank (accession numbers: FJ618522, FJ618520, and FJ618521, sequently).
A BLASTN search of the ITS (internal transcribed spacer) of the isolate DLEP2008014 revealed that it was highly similar to several small-spored species of genus Alternaria in GenBank, including A. alternata (identity: 100%), A. longipes (100%), A. tenuis (100%), A. tenuissima (100%), A. bokurai (100%), A. gaisen (100%), and A. citri (99%). In a phylogenic tree constructed by NJ algorithm (Figure 7), the isolate DLEP2008014 was also placed on the same clade with the above species (degree of confidence: 100%) while clearly branched from the large-spored group of this genus (supported by 1000 bootstrap replicates).
To identify this isolate with extremely similar ITS sequence to several Alternaria species, its colonial and microscopic morphology were studied. After 7 days of cultivation on 1/4 PCA plates at 25°C under natural illumination, the colonies were embossed, floccose, greenblack in center and white on margins on the top, and brown on the reverse side, reaching the diameter of 46–52 mm. After 5 day’s cultivation on PDA plates at 25°C in darkness, the colonies were embossed, light olive-grey, and floccose on the top, and brown on the reverse side, reaching the diameter of 45–55 mm. Its conidiophores were extended by sympodial branching, pale to brown, multi-septate, 17–40 × 3.5–4.5 μm. The conidia were solitary or in chain, brown, subclavate or ovoid or ellipsoid, smooth-walled or with tiny thorns, transversely 3–10-septate and longitudinally or obliquely 0–3-septate, with cylindric or tapered short rostra, 8–35 × 2.5–4.5 μm. Its remarkable characteristics included branching conidia chains with 1–5 conidia on long side branch, short rostra of the conidia, non-incrassate septum, which were in accordance with the characteristics of Alternaria alternata (Fr.) Keissl [17]. So, on the basis of molecular analysis and morphology, the isolate DLEP2008014 was identified as A. alternata (Fr.) Keissl.
As was known, although the ITS1-5.8S-ITS2 sequences were commonly used as a taxonomic tool on the level of species within a genus in fungal identification for their fairly high divergency [6], it was limited when distinguishing closely related species that had identical or nearly identical ITS sequences, e.g., the small-spored group of Genus Alternaria [18,19]. IGS region with the biggest variation might be used as a useful tool to resolve this question, however by now its application was still limited by the poorly accumulated sequence data in open databases such as GenBank. Thus, to identify the species of Genus Alternaria, the ITS were recommended to distinguish small-spored group and large-spored group, while for exact identification to species level, the classic morphology was now still the most credible method.
The BLASTN result of the ITS of the isolate DLEN2008016 showed high similarity to Penicillium glabrum (99%) and Penicillium sclerotiorum (98%). The phylogenic tree also exhibited similar genetic relationship. After 7 days of cultivation on MEA plate at 25°C in darkness, its colonies were velutinous and a little rugous, consisted of white to yellowish mycelia covered by grey-green sporulating structures, didn’t produce exudate, and attained a diameter of 22–30 mm. On the reverse side, the colonies were yellowish brown. The conidiophores were smooth, 58–120 × 3.0–3.5 μm, inflated in the end (4–4.5 μm), monoverticillate, terminating in a whorl of 3–7 flask-shaped phialides (5.8–8.0 × 2.5–3.5 μm) with short necks. The conidia were globose to subglobose, smooth-walled, 2–3 μm. According to the above characteristics, the isolate DLEN2008016 was identified as Penicillium glabrum (Wehmer) Westling [20].
As for isolate DLEP2008005, its ITS BLASTN result only showed 100% identity with a lot of isolates of Fusarium oxysporum. And the phylogenic analysis also showed its clear differentiation with other close species in the genus of Fusarium, firmly supporting the BLASTN result. The conclusion of molecular taxonomy was also supported by the following morphology investigation.
After five days in darkness and three days under natural illumination of cultivation on PDA plate at 25°C, its colonies were floccose, white to purplish, and attained a diameter of 22–30 mm. On the reverse side, the colonies were grey purple. The microconidia were oval-ellipsoid, straight or a little curved, generally abundantly, borne in groups on the top of phialides, mostly non-septate, 3.5–7.0 × 1.7–2.5 μm. Simple phialides were short, flask-shaped to cylindrical, 9.6–25 × 2.1–3.0 μm, arising solitarily and laterally on the hyphae or from its short branches. Macroconidia were sparse, falcate, 3-(5)-septate, 32.2–40 × 3.5–4.5 μm, with a beak shaped apex and a small basal cell. Chlamydospores were globose to subglobose, generally solitary, occasionally terminal or intercalary in pairs or in chains, hyaline, smooth-walled, 6.0–9.0 μm. According to the above morphological characteristics and the ITS information, the isolate DLEP2008005 was identified as Fusarium oxysporum Schltdl [21].
Therefore, by molecular and morphological methods, the above three active fungal strains were identified as Alternaria alternata, Penicillium glabrum, and Fusarium oxysporum. The phylogenetic analysis showed clear homology of the three isolates with respective reference species and their evolutionary relationships with other species in the same genus, family, or class (Figure 7). It was noticed that the three antimicrobial Ascomycota isolates belonged to three different classes, Eurotiomycetes, Sordariomycetes, and Dothideomycetes, respectively.
Until now, Alternaria spp. were not commonly reported as producers of antimicrobial antibiotics [2223], the related reports of marine derived isolates were even more scarcer [24], so the broad antimicrobial profile of A. alternata isolate DLEP2008014 is probably of value for the discovery of new antibiotics.
As is known, terrestrial and marine Penicillium spp. are important antibiotic-producers [67, 2526], so it was not difficult to understand that the endophytic P. glabrum isolate DLEN2008016 of alga Sargassum thunbergii was able to produce broad-spectrum antimicrobial substances, which maybe hinted at some chemical defense function. This P. glabrum isolate of new origin could also possibly be a producer of new antibiotics.
Terrestrial Fusarium avenaceum, F. bostrycoides, F. solani, F. equiseti, F. oxysporum and some unidentified Fusarium spp. were reported to produce structurally diversified antimicrobial compounds [2735], and three marine derived Fusarium spp. were also been reported to produce the novel antibacterial cyclodepsipeptide enniatin B [36], the sesterterpene neomangicol B [37], and the antifungal compound fusarielin E [38], which revealed the potential of fungi of genus Fusarium as producers of abundant novel antibiotics, so the F. oxysporum isolate DLEP2008005 derived from sponge was also expected to be a good antibiotic-producer candidate.

3. Conclusions

In total 43 epi- and endophytic fungi were isolated and cultured from each sample of the eight species of alga, one species of higher plant (sea grass), and three species of invertebrates (sponge, coelenterate, and mollusk) collected at intertidal zone of Dalian, China. The bioassay data showed globally that each host was inhabited by active epi and/or endophytic fungi capable of inhibiting one to six test organisms. This phenomenon was speculated to be derived from the natural need of chemical defense for the epi/endophytes themselves or for their hosts in marine ecosystem.
Compared with the other hosts, the red alga Gracilaria lemaneiformis, the brown alga Sargassum thunbergii, and the sponge Hymeniacidon perlevis provided more culturable epi/endophytic strains and more active ones as well. Furthermore, two strains from S. thunbergii and one strain from H. perlevis exhibited remarkable inhibitory activity against five or all of the Gram positive Staphylococcus epidermidis and Bacillus subtilis, the Gram negative Pseudomonas fluorescens, P. aeruginosa, and Escherichia coli, and the yeast Candida albicans. Compared with the positive control ampicillin and nystatin, the three strains showed comparable activity and even broader antimicrobial spectrum. By molecular and morphological taxonomy, they were identified as Alternaria alternata isolate DLEP2008014, Penicillium glabrum isolate DLEN2008016, and Fusarium oxysporum isolate DLEP2008005. On count of their broad-spectrum antimicrobial activity and previous related reports, these three marine epi/endophytic fungi were expected to be new potential producers of new antibiotics. Their origin, taxonomy, and bioactivities should be also of some value in promoting our understanding of marine ecosystem.

4. Experimental Section

4.1. Sample Collection and Strains Isolation

The samples were collected from the intertidal zone of Fujiazhuang coast in Dalian City of Liaoning Province, China, in October of 2008. The fresh and healthy samples were identified in situ and put into sterile bottles with seawater of the site to keep fresh in short time and then taken back to laboratory in less than 2 hours. On a clean air bench, the samples were washed with sterile seawater two times, then gently shaken with sterile glass beads in flasks at 60 rpm for 10 min on shakers, and finally washed again with sterile seawater two times to remove temporarily and loosely adhering free-living fungi. After the above process, the samples were transferred onto a PSA plate (containing boiled juice of 200 g potato pieces/L, sucrose 20 g/L, chloramphenicol 0.2 g/L, agar 20 g/L, crude sea salt 20 g/L) and rubbed on the medium surface to inoculate the epiphytic fungi. Subsequently, these samples were put into 75% aqueous ethanol for 10 seconds to kill the residual epiphytes, washed with sterile seawater to remove the ethanol, and dried with sterile tissue paper. Then the samples were cut into pieces using a sterilized knife and transferred onto PSA plate to let the kerfs close to the medium to inoculate endophytic fungi. The plates were incubated at 28°C for 3~7 days to observe the emerging mycelial growth. The colonies were purified using repeated hyphal tipping method until pure epi/endophytic cultures were obtained. To determine the endophytes, the colonies from surface-inoculating plates and tissue pieces-inoculating plates were compared, and only the colonies grew from the kerfs of tissue pieces and not from the surface were identified as true endophytic fungi [39]. The pure strains were inoculated onto agar slants and immersed with sterile liquid paraffin for preservation at 4°C.

4.2. Preliminary antimicrobial assay

For antimicrobial assay, Staphylococcus epidermidis ATCC 12228 and Bacillus subtilis ATCC 6633 were used as examples of Gram positive test bacteria, Pseudomonas fluorescens ATCC 13525, P. aeruginosa ATCC 9027, and Escherichia coli ATCC 11229 were adapted as the Gram negative test bacteria, and Candida albicans ATCC 10231 was selected as the test fungus. After incubation for 24–48 h at 37°C, the test organism lawns were washed with 0.85% NaCl sterile solution and diluted to 0.5 MCF to be used as standard inoculum suspension, which was stored at 4°C and used within 7 days. The specific medium for test bacteria or fungi were poured into Petri dishes and inoculated with 100 μL of the suspension. Then the inoculums were distributed by a sterile glass rod (L-shaped) on the surface of the medium. The Mueller Hinton Agar medium was used for cultivation of the test bacteria, and the Sabouraud Dextrose Agar medium was used for cultivation of C. albicans.
Disks (5 mm diameter) of the cultures of the fungal isolates (7 days old-grown on PSA plate at 28°C) were cut using a sterile borer and picked up to place on the surface of the above medium seeded with test organisms [40]. The plates were refrigerated at 4°C overnight for complete diffusion of antibiotics, thereafter they were incubated at 37°C for 16 h. The diameter of the inhibition zone was measured and the average of three repeated agar disks was taken to assess the strength of antimicrobial activity.

4.3. Secondary antimicrobial assay

Fungal strains selected by preliminary screening were inoculated into 250 mL conical flasks containing 50 mL of PSB broth medium and were shaken on a thermostatic shaker with the rotary speed of 180rpm at 28°C. The medium contained potato 200 g/L, sucrose 20 g/L, crude sea salt 20 g/L. After 7 days of fermentation, the cultures were centrifuged at 5000 rpm at 4°C to isolate the mycelia and the ferment broths. The mycelia were extracted with 100 mL of methanol overnight and the broths were extracted with 150 mL of ethyl acetate in total three times to yield the methanol extract and the ethyl acetate extract, respectively, then the two extracts of each strain were filtered, combined, and evaporated to dryness in vacuo by rotary evaporator. The resulting crude extract was finally dissolved in 2.5 mL of methanol for assay. In a clean air bench, 50 μL of extract was added using a pipette to a sterile paper disc (6 mm diameter, Whatman), which was air dried and placed on the surface of the medium seeded with test organisms [41]. Likewise, the plates were incubated and measured for inhibition zones. The average of three repeated paper disks was taken to evaluate the activity. The broad spectrum antibacterial agent ampicillin (dose: 60 μg/mL) and antifungal agent nystatin (dose: 200 μg/mL) were taken as positive control and methanol was used as negative and blank control.

4.4. Morphological Taxonomy

Isolate DLEP2008014 was inoculated onto PDA Petri dishes and incubated for 5 days at 25°C in darkness to observe the colonies’ morphology and measured their diameters. A filtrate paper tape with a square hole in center was wetted, placed on a glass slide and sterilized. Then a few mycelia were inoculated on the margin of the square hole of the paper tape and incubated together with a piece of wet filtrate paper in a Petri dish for two days. The morphology of the conidia chains was observed under a Nikon 80i upright microscope, and then the filtrate paper tape was removed and the morphology of the conidia observed by the usual glass slide specimen method. This isolate was also cultivated on 1/4 PCA (potato carrot agar) Petri dishes for 7 days at 25°C under natural illumination for colonial morphological survey [17].
Isolate DLEN2008016 was cultivated on MEA plates for 7 days at 25°C in darkness to observe the colonies’ morphology and measured their diameters. A cellulose tape was used to attach the conidiophores and conidia from the colonial margins. Then put the cellulose tape on the glass slide with the inoculated side upwards, added a drop of lactophenol cotton blue stain, and observed their morphology by usual glass slide specimen method [20].
Isolate DLEP2008005 was cultivated on PDA plates for 5 days at 25°C in darkness to measure the colonies’ diameters, and was continuously incubated for 3 days under natural illumination to observe the colonies’ morphology. A square piece of culture medium was cut together with mycelia, put on a sterile glass slide, and covered with a coverslip, and the the slide incubated in the Petri dish for a week. The coverslip was transferred to a new slide to make a usual glass slide specimen for observation [21].

4.5. Molecular Taxonomy

The fungal DNA isolation was performed using the Universal Genomic DNA Extraction Kit DV811A (Takara, Dalian, P.R. China) according to the manufacturer’s protocol. The procedure included cell lysis, digestion of RNA by RNase A, removing of precipitates and cell debris, DNA shearing, DNA precipitation and purification. The DNA was obtained dissolved in 50 μL elution buffer supplied by the manufacturer.
PCR was then performed using TaKaRa Ex Taq polymerase (Takara, Dalian, P.R. China) and the primer pair ITS1 and ITS4 in an Takara Thermal cycler Dice TP600 due to the following protocol: 1) initial denaturation 94°C/5 min; 2) denaturation 94°C/0.5 min; 3) annealing 55°C/0.5 min; 4) extension 72°C/1 min; 5) final extension 72°C/5 min; steps 2) – 4) repeated 30 times [42]. Then the PCR product mixture was analyzed by DNA electrophoresis on agarose gel, purified using TaKaRa Agarose Gel DNA Purification Kit DV805A, and sequenced by an ABI PRISMTM 3730XL sequencer (Takara, Dalian, P.R. China) with the primer Seq Forward (5′-GAGCGGATAACAATTTCACACAGG-3′). The sequence data had been submitted to and deposited at GenBank (accession numbers: FJ618520 to FJ618522).
The ITS1-5.8 S-ITS2 rDNA sequences (463–515 bp) were used to search the GenBank database with the BlastN 2.2.19+ algorithm to reveal closest matches to the ITS1-5.8 S-ITS2 rDNA sequences for known species. Sequences were aligned with representative fungal ITS1-5.8 S-ITS2 rDNA sequences using Clustal X version 1.81 and a phylogenetic tree was constructed using the Molecular Evolutionary Genetics Analysis (MEGA) software version 4.0. Bootstrap values were calculated using 1,000 bootstrap samples, and neighbor-joining was used to infer tree topologies. The phylogenetic tree was rooted with Peziza depressa.

Acknowledgements

Thanks are due for their the help on morphological taxonomy to Dr. Bingda Sun and Prof. Xinzhong Liu of Key Laboratory of Systematic Mycology and Lichenology, Institute of Microbiology, The Chinese Academy of Sciences. The financial support from the Scientific and Technological Fund of Dalian (No. 2008J23JH041) and the Chinese National Programs for High Technology Research and Development (No. 2006AA09Z426) is gratefully acknowledged.

References and Notes

  1. Cassell, GH; Mekalanos, J. Development of antimicrobial agents in the era of new and reemerging infectious diseases and increasing antibiotic resistance. J Am Med Assoc 2001, 285, 601–605. [Google Scholar] [CrossRef]
  2. Daszak, P; Cunningham, AA; Hyatt, AD. Emerging infectious diseases of wildlife--threats to biodiversity and human health. Science 2000, 287, 443–449. [Google Scholar] [CrossRef] [PubMed]
  3. Faulkner, DJ. Highlights of marine natural products chemistry (1972–1999). Nat Prod Rep 2000, 17, 1–6. [Google Scholar] [CrossRef] [PubMed]
  4. Proksch, P; Edrada, RA; Ebel, R. Drugs from the seas--current status and microbiological implications. Appl Microbiol Biotechnol 2002, 59, 125–134. [Google Scholar] [CrossRef] [PubMed]
  5. Marris, E. Marine natural products: Drugs from the deep. Nature 2006, 443, 904–905. [Google Scholar] [CrossRef] [PubMed]
  6. Bugni, TS; Ireland, CM. Marine-derived fungi: a chemically and biologically diverse group of microorganisms. Nat Prod Rep 2004, 21, 143–63. [Google Scholar] [CrossRef] [PubMed]
  7. Bhadury, P; Mohammad, BT; Wright, PC. The current status of natural products from marine fungi and their potential as anti-infective agents. J Ind Microbiol Biotechnol 2006, 33, 325–337. [Google Scholar] [CrossRef] [PubMed]
  8. Saleem, M; Ali, MS; Hussain, S; Jabbar, A; Ashraf, M; Lee, YS. Marine natural products of fungal origin. Nat Prod Rep 2007, 24, 1142–1152. [Google Scholar] [CrossRef] [PubMed]
  9. Cueto, M; Jensen, PR; Kauffman, C; Fenical, W; Lobkovsky, E; Clardy, J. Pestalone, a new antibiotic produced by a marine fungus in response to bacterial challenge. J Nat Prod 2001, 64, 1444–1446. [Google Scholar] [CrossRef] [PubMed]
  10. Tan, RX; Zou, WX. Endophytes: a rich source of functional metabolites. Nat Prod Rep 2001, 18, 448–59. [Google Scholar] [CrossRef] [PubMed]
  11. Jung, R; Fish, DN; Obritsch, MD; Maclaren, R. Surveillance of multi-drug resistant Pseudomonas aeruginosa in an urban tertiary-care teaching hospital. Pharmacotherapy 2005, 25, 1353–1364. [Google Scholar] [CrossRef] [PubMed]
  12. Johnstone, HA; Marcinak, JF. Candidiasis in the breastfeeding mother and infant. J Obstet Gynecol Neonatal Nurs 1990, 19, 171–173. [Google Scholar] [CrossRef] [PubMed]
  13. Egusa, H; Soysa, NS; Ellepola, AN; Yatani, H; Samaranayake, LP. Oral candidosis in HIV-infected patients. Curr HIV Res 2008, 6, 485–499. [Google Scholar] [CrossRef] [PubMed]
  14. Kikuchi, K. Hospital infections by specific organisms and their management. 2. Staphylococcus epidermidis. Nippon Naika Gakkai Zasshi 2008, 97, 2673–2637. [Google Scholar] [CrossRef] [PubMed]
  15. McCann, MT; Gilmore, BF; Gorman, SP. Staphylococcus epidermidis device-related infections: pathogenesis and clinical management. J Pharm Pharmacol 2008, 60, 1551–1571. [Google Scholar] [PubMed]
  16. Pappas, G; Karavasilis, V; Christou, L; Tsianos, EV. Pseudomonas fluorescens infections in clinical practice. Scand J Infect Dis 2006, 38, 68–70. [Google Scholar] [CrossRef] [PubMed]
  17. Zhang, TY. Flora Fungorum Sinicorum: Genus of Alternaria; Science Press: Beijing, China, 2003; Volume 16, pp. 32–36. [Google Scholar]
  18. Kusaba, M; Tsuge, T. Nuclear ribosomal DNA variation and pathogenic specialization in Alternaria fungi known to produce host-specific toxins. Appl Environ Microbiol 1994, 60, 3055–3062. [Google Scholar] [PubMed]
  19. Wang, HK; Zhang, TY; Zhang, M. Junwu Xitong (Mycosystema) 2001, 20, 168–173.
  20. Pitt, JI. The Genus Penicillium and its teleomorphic states Eupenicillium and Talaromyces. Academic Press: London, U.K, 1979; pp. 170–172. [Google Scholar]
  21. Nelson, PE; Toussoun, TA; Marasas, W. Fusarium species – An Illustrated Manual for Identification; The Pennsylvania State University Press: London, U.K, 1983; pp. 142–145. [Google Scholar]
  22. Raviraja, NS; Maria, GL; Sridhar, KR. Antimicrobial Evaluation of Endophytic Fungi Inhabiting Medicinal Plants of the Western Ghats of India. Eng Life Sci 2006, 6, 515–520. [Google Scholar] [CrossRef]
  23. Musetti, R; Polizzotto, R; Vecchione, A; Borselli, S; Zulini, L; D’Ambrosio, M; di Toppi, LS; Pertot, I. Antifungal activity of diketopiperazines extracted from Alternaria alternata against Plasmopara viticola: an ultrastructural study. Micron 2007, 38, 643–650. [Google Scholar] [CrossRef] [PubMed]
  24. Maria, GL; Sridhar, KR; Raviraja, NS. Antimicrobial and enzyme activity of mangrove endophytic fungi of southwest coast of India. J Agri Tech 2005, 1, 67–80. [Google Scholar]
  25. Broadbent, D. Antibiotics produced by fungi. Bot Rev 1966, 32, 219–242. [Google Scholar] [CrossRef]
  26. Demain, AL. Pharmaceutically active secondary metabolites of microorganisms. Appl Microbiol Biotechnol 1999, 52, 455–463. [Google Scholar] [CrossRef] [PubMed]
  27. Cajori, FA; Otani, TT; Hamilton, MA. The isolation and some properties of an antibiotic from Fusarium bostrycoides. J Biol Chem 1954, 208, 107–114. [Google Scholar] [PubMed]
  28. Burmeister, HR; Bennett, GA; Vesonder, RF; Hesseltine, CW. Antibiotic Produced by Fusarium equiseti NRRL 5537. Antimicrob. Agents Chemother 1974, 5, 634–639. [Google Scholar] [CrossRef] [PubMed]
  29. Vesonder, RF; Tjarks, LW; Rohwedder, WK; Burmeister, HR; Laugal, JA. Equisetin, an antibiotic from Fusarium equisetiNRRL 5537 identified as a derivative of N-methyl-2,4-pyrollidone. J. Antibiot 1979, 32, 759–61. [Google Scholar] [CrossRef] [PubMed]
  30. Gerber, NN; Ammar, MS. New antibiotic pigments related to fusarubin from Fusarium solani (Mart.) Sacc. II. Structure elucidations. J Antibiot 1979, 32, 685–688. [Google Scholar] [CrossRef] [PubMed]
  31. Kurobane, I; Vining, LC; McInnes, AG; Gerber, NN. Metabolites of Fusarium solani related to dihydrofusarubin. J Antibiot 1980, 33, 1376–1379. [Google Scholar] [CrossRef] [PubMed]
  32. Golinski, P; Wnuk, S; Che kowski, J; Visconti, A; Schollenberger, M. Antibiotic Y: biosynthesis by Fusarium avenaceum (Corda ex Fries) Sacc., isolation, and some physicochemical and biological properties. Appl Environ Microbiol 1986, 51, 743–745. [Google Scholar] [PubMed]
  33. Baker, RA; Tatum, JH; Nemec, SJ. Antimicrobial activity of naphthoquinones from. Fusaria Mycopathologia 1990, 111, 9–15. [Google Scholar] [CrossRef]
  34. Kobayashi, H; Sunaga, R; Furihata, K; Morisaki, N; Iwasaki, S. Isolation and structures of an antifungal antibiotic, fusarielin A, and related compounds produced by a Fusarium sp. J Antibiot 1995, 48, 42–52. [Google Scholar] [CrossRef] [PubMed]
  35. Saepudin, E; Harrison, P. The biosynthesis of antibiotic F-244 in Fusarium sp. ATCC 20788: origin of the carbon, hydrogen, and oxygen atoms. Can J Chem 1995, 73, 1–5. [Google Scholar] [CrossRef]
  36. Jiang, Z; Barret, MO; Boyd, KG; Adams, DR; Boyd, ASF; Burgess, JG. JM47, a cyclic tetrapeptide HC-toxin analogue from a marine Fusarium species. Phytochemistry 2002, 60, 33–38. [Google Scholar] [CrossRef] [PubMed]
  37. Renner, MK; Jensen, PR; Fenical, W. Neomangicols: structures and absolute stereochemistries of unprecedented halogenated sesterterpenes from a marine fungus of the genus Fusarium. J Org Chem 1998, 63, 8346–8354. [Google Scholar] [CrossRef]
  38. Gai, Y; Zhao, LL; Hu, CQ; Zhang, HP. Fusarielin E, a new antifungal antibiotic from Fusarium sp. Chin Chem Lett 2007, 18, 954–956. [Google Scholar] [CrossRef]
  39. Wang, S; Li, XM; Teuscher, F; Li, DL; Diesel, A; Ebel, R; Proksch, P; Wang, BG. Chaetopyranin, a benzaldehyde derivative, and other related metabolites from Chaetomium globosum, an endophytic fungus derived from the marine red alga Polysiphonia urceolata. J Nat Prod 2006, 69, 1622–1625. [Google Scholar] [CrossRef] [PubMed]
  40. Malibari, AA. Isolation and screening of antibiotics producing streptomycetes from western region soils of Saudi Arabia. J King Abdulaziz Univ: Sci 1991, 3, 31–42. [Google Scholar] [CrossRef]
  41. Eleeyinmi, AF. Chemical composition and antibacterial activity of gongronema latifolium. J. Zhejiang univ 2007, 8, 352–358. [Google Scholar] [CrossRef]
  42. White, TJ; Bruns, T; Lee, S; Taylor, J. Innis, MA, Gelfand, DH, Sninsky, JJ, White, TJ, Eds.; PCR Protocols: A Guide to Methods and Applications; Academic Press: San Diego, CA, U.S.A, 1990; pp. 315–322. [Google Scholar]

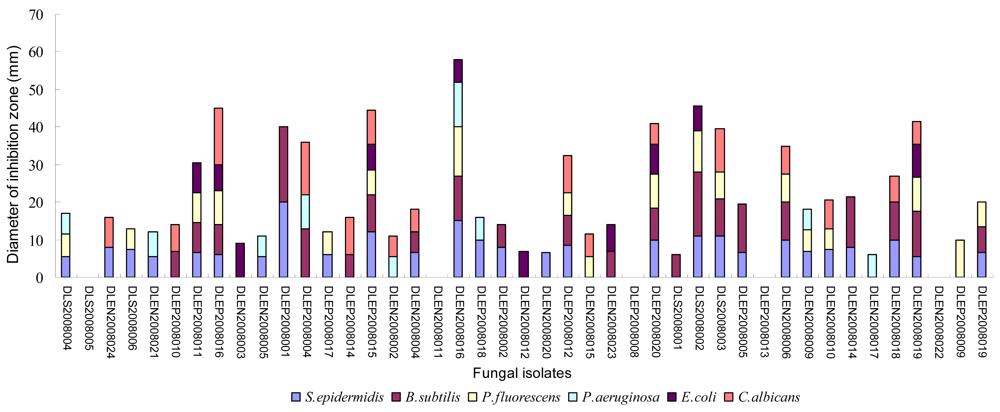

Figure 1. The antimicrobial activities of the fungal isolates against six test microorganisms in the preliminary assay.
Figure 1. The antimicrobial activities of the fungal isolates against six test microorganisms in the preliminary assay.
Marinedrugs 07 00097f1

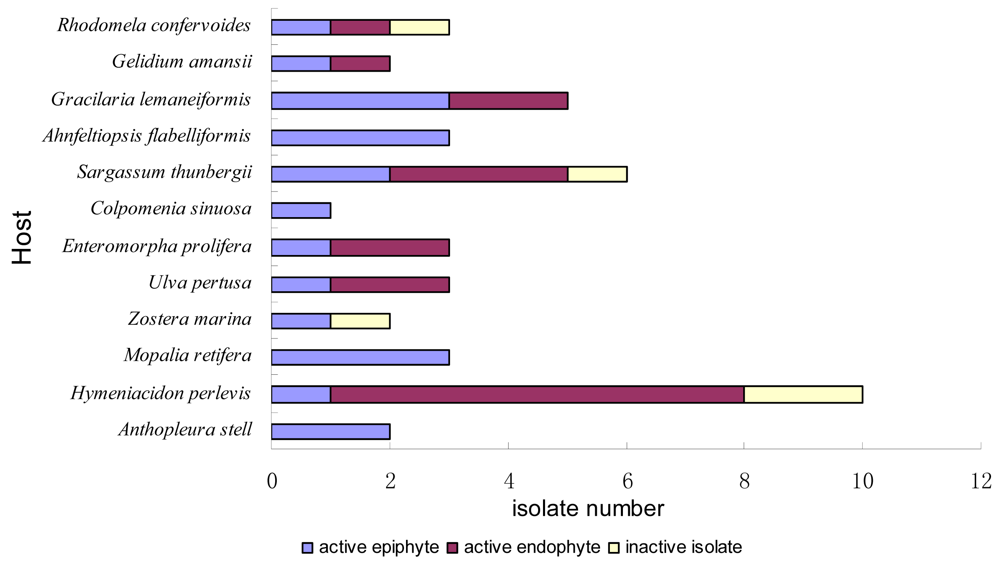

Figure 2. The host origins of antimicrobial fungal isolates.
Figure 2. The host origins of antimicrobial fungal isolates.
Marinedrugs 07 00097f2

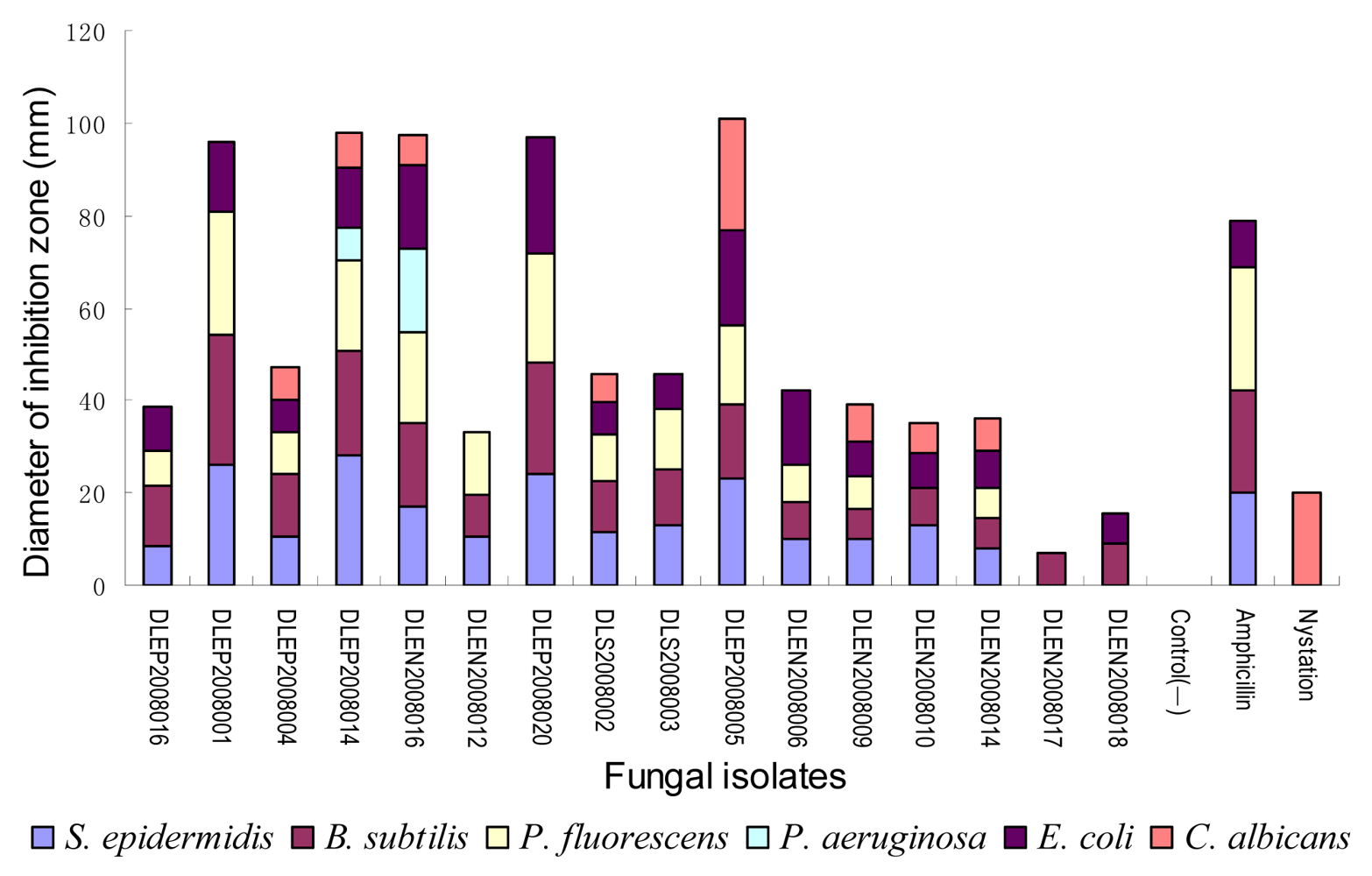

Figure 3. The antimicrobial activity of 16 isolates in the secondary assay (paper disk agar diffusion method). Positive control: ampicillin (dose: 60 μg/mL) for antibacterial test, nystatin (dose: 200 μg/mL) for antifungal test; negative and blank control: methanol.
Figure 3. The antimicrobial activity of 16 isolates in the secondary assay (paper disk agar diffusion method). Positive control: ampicillin (dose: 60 μg/mL) for antibacterial test, nystatin (dose: 200 μg/mL) for antifungal test; negative and blank control: methanol.
Marinedrugs 07 00097f3
Figure 4. Colonies of culture DLEP2008014 grown on 1/4 PCA for seven days under natural illumination (A), colonies on PDA for five days in darkness (B), image of conidia chains cultured on filtrate paper for two days (C), image of conidia cultured on filtrate paper for two days (D–F).
Figure 4. Colonies of culture DLEP2008014 grown on 1/4 PCA for seven days under natural illumination (A), colonies on PDA for five days in darkness (B), image of conidia chains cultured on filtrate paper for two days (C), image of conidia cultured on filtrate paper for two days (D–F).
Marinedrugs 07 00097f4
Figure 5. Colonies of culture DLEN2008016 grown on MEA for seven days (A), image of conidia and conidiophores from a seven-day MEA culture (B–D).
Figure 5. Colonies of culture DLEN2008016 grown on MEA for seven days (A), image of conidia and conidiophores from a seven-day MEA culture (B–D).
Marinedrugs 07 00097f5
Figure 6. Colonies of isolate DLEP2008005 on PDA for 7 days in darkness (A), image of microconidia (B), image of macroconidia (C–D), image of microconidia generated on the top of phialides (E), and image of chlamydospores (F).
Figure 6. Colonies of isolate DLEP2008005 on PDA for 7 days in darkness (A), image of microconidia (B), image of macroconidia (C–D), image of microconidia generated on the top of phialides (E), and image of chlamydospores (F).
Marinedrugs 07 00097f6

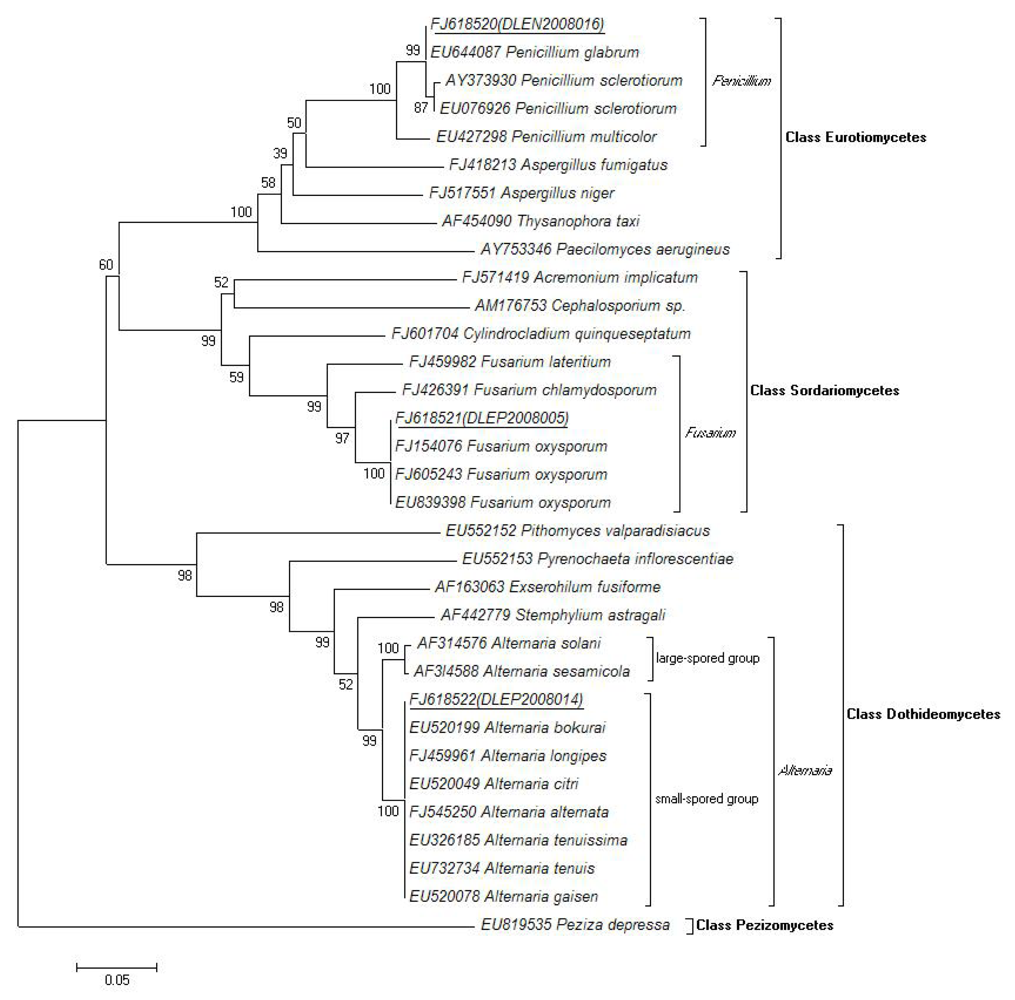

Figure 7. Phylogenetic tree of ITS1-5.8S-ITS2 rDNA sequences of the three isolates, DLEP2008014, DLEN2008016, DLEP2008005, compared with sequences obtained from public databases. NJ-tree was constructed using ITS1-5.8S-ITS2 rDNA sequences. Bootstrap values were calculated using 1,000 replications and Peziza depressa was used as out-group.
Figure 7. Phylogenetic tree of ITS1-5.8S-ITS2 rDNA sequences of the three isolates, DLEP2008014, DLEN2008016, DLEP2008005, compared with sequences obtained from public databases. NJ-tree was constructed using ITS1-5.8S-ITS2 rDNA sequences. Bootstrap values were calculated using 1,000 replications and Peziza depressa was used as out-group.
Marinedrugs 07 00097f7
Table 1. The result of sample collection and the epi- and endophytic fungal isolation.
Table 1. The result of sample collection and the epi- and endophytic fungal isolation.
origintypeStrain numberorigintypeStrain number
SeaweedsUlva pertusaepi-DLEP2008012
Rhodophytaendo-DLEN2008015
Rhodomela confervoidesepi-DLS2008004endo-DLEN2008023
epi-DLS2008005Higher plants
endo-DLEN2008024Magnoliophyta
Gelidium amansiiepi-DLS2008006Zostera marinaepi-DLEP2008008
endo-DLEN2008021epi-DLEP2008020
Gracilaria lemaneiformisepi-DLEP2008010Invertebrates
epi-DLEP2008011Mollusca
epi-DLEP2008016Mopalia retiferaepi-DLS2008001
endo-DLEN2008003epi-DLS2008002
endo-DLEN2008005epi-DLS2008003
Ahnfeltiopsis flabelliformisepi-DLEP2008001Spongia
epi-DLEP2008004Hymeniacidon perlevisepi-DLEP2008005
epi-DLEP2008017epi-DLEP2008013
Phaeophytaendo-DLEN2008006
Sargassum thunbergiiepi-DLEP2008014endo-DLEN2008009
epi-DLEP2008015endo-DLEN2008010
endo-DLEN2008002endo-DLEN2008014
endo-DLEN2008004endo-DLEN2008017
endo-DLEN2008011endo-DLEN2008018
endo-DLEN2008016endo-DLEN2008019
Colpomenia sinuosaepi-DLEP2008018endo-DLEN2008022
ChlorophytaCoelenterata
Enteromorpha proliferaepi-DLEP2008002Anthopleura stellepi-DLEP2008009
endo-DLEN2008012epi-DLEP2008019
endo-DLEN2008020
