Polyene Macrolactams from Marine and Terrestrial Sources: Structure, Production Strategies, Biosynthesis and Bioactivities

by
Wei Zhao
1,2,†,
Hong Jiang
2,†,
Xiao-Wan Liu
3,
Jian Zhou
2 and
Bin Wu
4,*
1
Polytechnic Institute, Zhejiang University, Hangzhou 310015, China
2
Fujian Provincial Key Laboratory of Screening for Novel Microbial Products, Fujian Institute of Microbiology, Fuzhou 350007, China
3
The State Key Laboratory of Marine Pollution and Department of Biomedical Sciences, City University of Hong Kong, Hong Kong SAR 999077, China
4
Ocean College, Zhejiang University, Zhoushan 321000, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Mar. Drugs 2022, 20(6), 360; https://doi.org/10.3390/md20060360
Submission received: 1 May 2022 / Revised: 24 May 2022 / Accepted: 25 May 2022 / Published: 27 May 2022
Browse Figures
Versions Notes

Abstract

:
Over the past few decades (covering 1972 to 2022), astounding progress has been made in the elucidation of structures, bioactivities and biosynthesis of polyene macrolactams (PMLs), but they have only been partially summarized. PMLs possess a wide range of biological activities, particularly distinctive fungal inhibitory abilities, which render them a promising drug candidate. Moreover, the unique biosynthetic pathways including β-amino acid initiation and pericyclic reactions were presented in PMLs, leading to more attention from inside and outside the natural products community. According to current summation, in this review, the chem- and bio-diversity of PMLs from marine and terrestrial sources are considerably rich. A systematic, critical and comprehensive overview is in great need. This review described the PMLs’ general structural features, production strategies, biosynthetic pathways and the mechanisms of bioactivities. The challenges and opportunities for the research of PMLs are also discussed.

Graphical Abstract

1. Introduction

Microorganisms have a remarkable capacity for producing a wide range of unique bioactive secondary metabolites. A substantial number of them have developed into a supply of lead medicines, diagnostic reagents and biological probes. Among diverse microorganisms, Streptomyces and Micromonospora in the Actinomycetes family showed great potential in the discovery of drug leads or drug candidates. For instance, Streptomyces, a Gram-positive bacteria, is a rich reservoir of natural products [1,2], including anthraquinone (e.g., adriamycin), lactones (e.g., rapamycin), flavonoids (e.g., O-methylated phenylpropanoids) [3] and so on. Micromonospora, a genus of Micromonosporaceae, witnessed the recent growth of new actinomycetes-derived compounds, such as macrolides, spirotetronates, ansa-macrolides, angucycline, non-ribosomal peptide synthase (NPRS), PKS-NRPS hybrids and terpenes [2]. Both the two genera of bacteria are the main producers of polyene macrolactams (PMLs), which is a relatively small but growing family. PMLs exhibited a large spectrum of bioactivities such as antimicrobial (bombyxamycin A-C (11,12,42) [4], BE-14106 (22) [5] and ML449 (28) [6], antifungal (auroramycin (37) [7]), antitumor (vicenistatin (32) [8] and leinamycin (48) [9]) and anti-parasitic activities (lobosamides (13–15) [10] and sagamilactam (73) [11]), modulation of Bcl-xl function (incednine (35) [12]) and anti-inflammatory properties (cyclamenol A (1) [13]) (Table 1). Some typical PMLs compounds such as hitachimycin (49), BE-14106 (22), sceliphrolactam (17), heronamides (25–27, 62–72), cremimycin (80) and macrotermycins (30–31,76,79) produced by Streptomyces sp. had impressive antifungal properties.
With the development of resistance to azoles [14,15,16], amphotericin B [17] is often considered the last defensive line for life-threatening fungal infections but its application is limited because of its high cytotoxicity. In the clinic, most antifungal agents target ergosterol biosynthetic pathways with only a few showing no relation to ergosterol targets [18]. It is encouraging that some PMLs with antifungal abilities have a unique antifungal mechanism. Although Alvarez R. et al. reviewed bio and chemical synthetic pathways of PMLs, there are only a few comprehensive reviews on PMLs [19]. Here, we provided an updated review on the structural classification, microbial sources, production strategies, biosynthetic pathways and bioactivities of PMLs. The remaining challenges and future opportunities are also discussed.

2. PMLs Structure

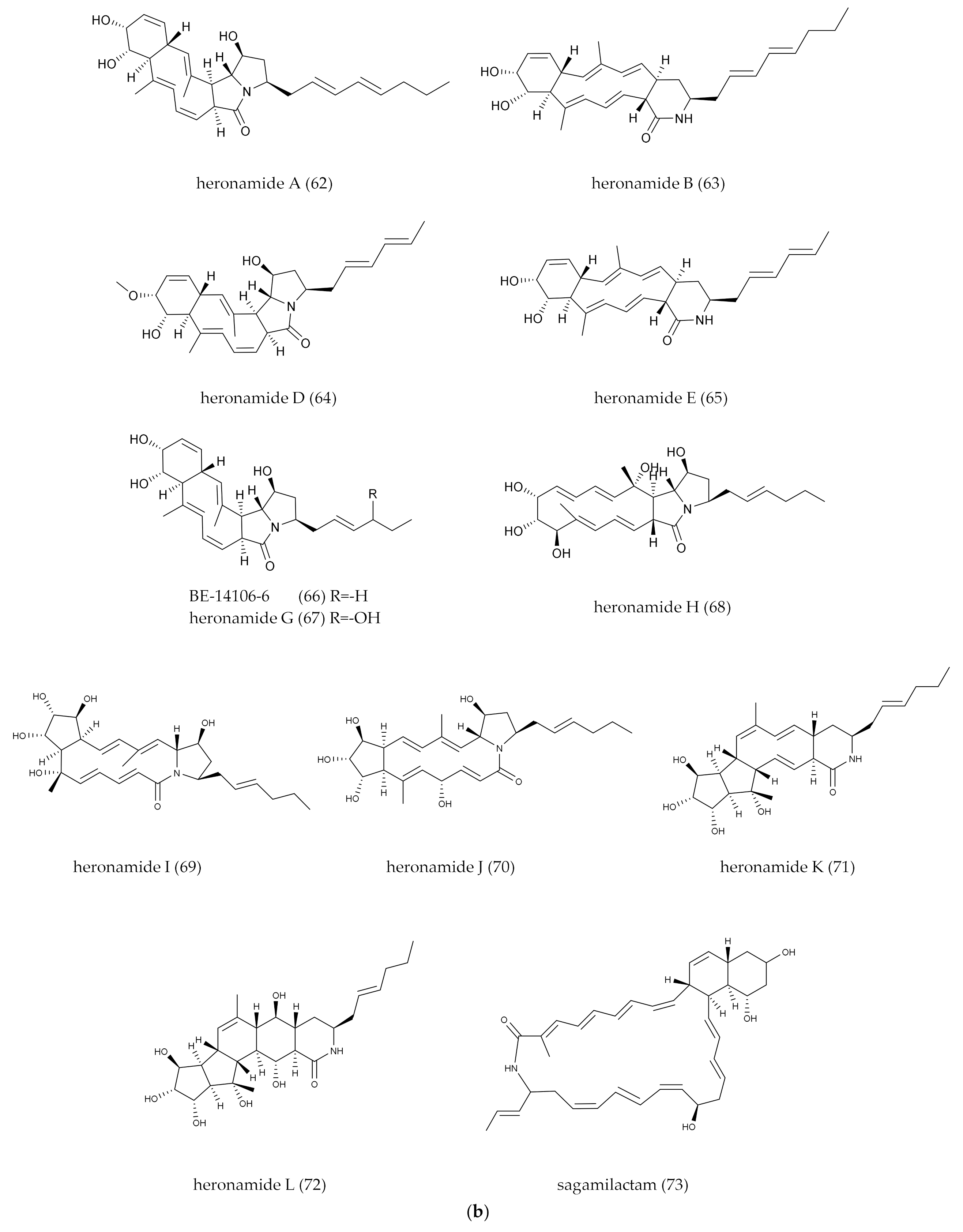

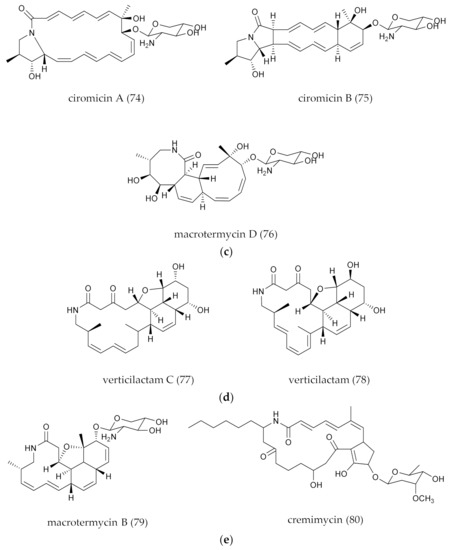

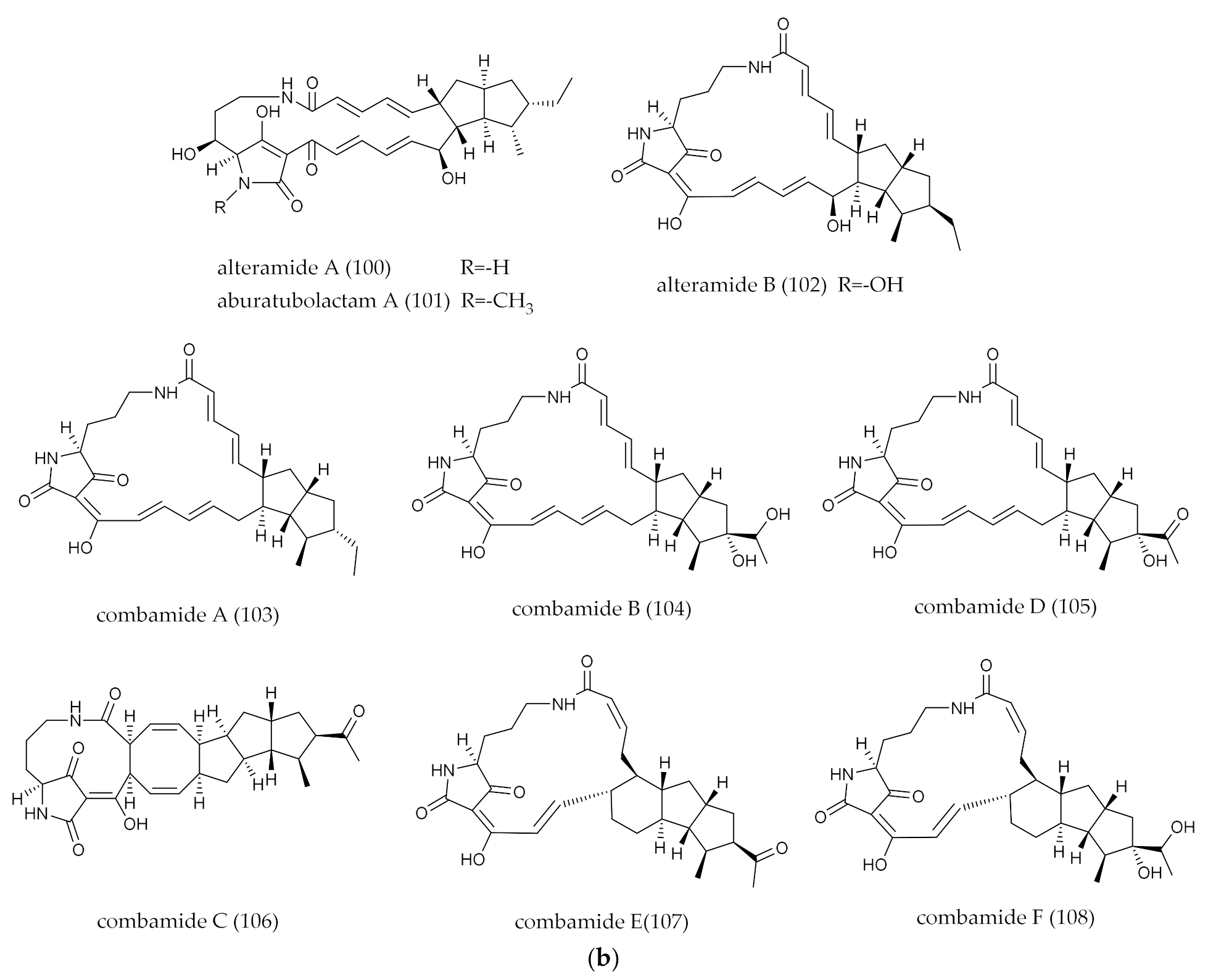

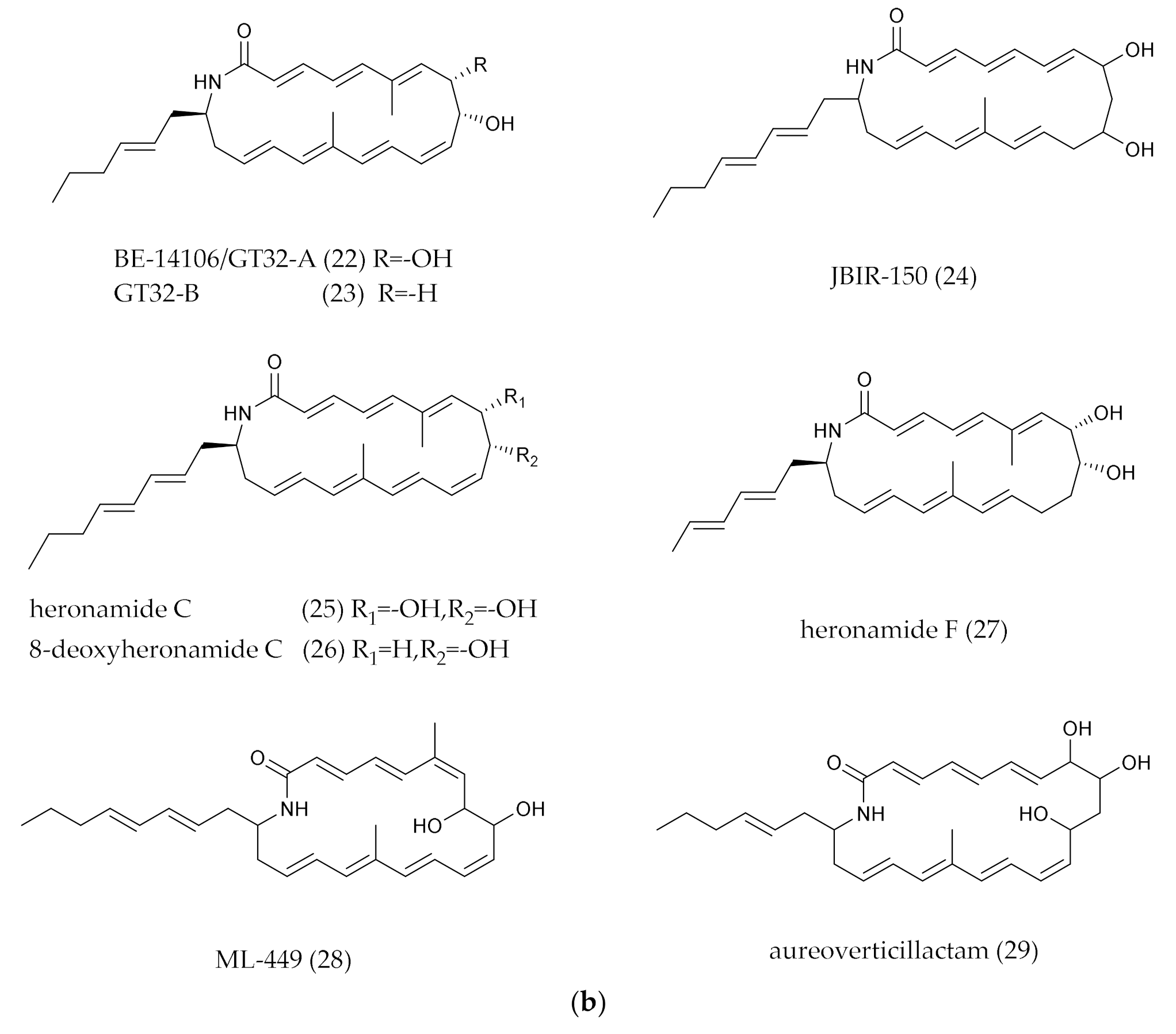

The structure of PMLs is characterized by a ubiquitous 16–34 membered lactam ring with numerous double bonds. Hydrophilic groups, particularly the amide groups, are located in the closed ring of the carbon skeleton. There must be at least three olefinic bonds on the primary carbon skeleton. Five distinctive secondary structural features, including a ring with hydroxyl and methyl groups, the hydrophobic structure with hydrocarbon chains and a possible linkage to a glycoside, intramolecular epoxidation and intramolecular polycyclic structure. Despite the resources of PMLs being diverse (marine, sea island, forest soil, insects and plants), the marine-derived PMLs are gradually increasing in recent years, indicating that the marine environment is a non-negligible space for PMLs mining. According to the features of the PMLs’ structures from 1972 to 2021, we classified them into two major groups, mono- and polycyclic, and then subdivide them into smaller branches that contain aliphatic chains, sugar groups and epoxidation groups. Among all PMLs, polycyclic tetramate macrolactams (PTMs) are different from others in the initial pathway, so they were classified as a separate branch in the polycyclic group. The detailed information on PMLs’ structures, bioactivities and producers was shown in Figure 1a–e, Figure 2a–e and Figure 3a,b) and Table 1.
Table
Table 1. The structure, producing strain, resources, biological activity and access strategy information of polyene macrolactams.
Table 1. The structure, producing strain, resources, biological activity and access strategy information of polyene macrolactams.
NOCompoundCharacterMemberStrainResourceBiological ActivityAccess StrategyRef.
1cyclamenol AMono-ring20Streptomyces sp. MHW 846DefaultCytotoxicity, Anti-inflammatoryNatural screening and isolation[13]
2–6kenalactams A–EMono-ring22–32Nocardiopsis sp. CG3(DSM 106572)SaltpanC-E Cytotoxicity antibacterial; anti-viral (HCV); C-antifungal,Bioassay-guided metabolomic analyses[20]
7micromonosporin AMono-ring24Micromonospora sp.Peat swampUnable to be evaluatedNatural screening and isolation[21]
8–9agA and agBMono-ring24Streptomyces sp. CS149 mutantsInsectsCytotoxicityCombinatorial Biosynthesis and Mutasynthesis[22,23]
10FW05328-1Mono-ring26Micromonospora sp.MarineCytotoxicityNatural screening and isolation[24]
11bombyxamycin AMono-ring26Streptomyces sp. SD53InsectsAntibacterial and CytotoxicityInsect-bacterial mutualisms[4]
12bombyxamycin CMono-ring26Streptomyces sp.InsectsAntibacterialInsect-bacterial mutualisms[25]
13–15lobosamide A/B/CMono-ring26Micromonospora sp. RL09-050-HVF-AMarineAnti-trypanosomalGenomic mining[10]
16micromonolactamMono-ring26Micromonospora sp. CMS I2-32MarineNo activity to bacterial and fungalChemical screening (LC-DAD-ESIMS)[26]
17sceliphrolactamMono-ring26Streptomyces caementariumMudAnti-fungalInsect-bacterial mutualisms[27,28]
18–19mirilactams A/BMono-ring26Micromonospora sp. RL09-050-HVF,Actinosynnema mirumMarineLack of anti-trypanosomal activityNatural screening and isolation[10,29]
20salinilactam AMono-ring26Salinispora tropicaMarineDefaultGenome-Guided Discovery[30]
21streptolactam AMono-ring26Streptomyces sp. OUCMDZ-3159MarineAntifungalNatural screening and isolation[31]
22BE-14106 (GT32-A)Mono-ring/fatty acidchain20Streptomyces spSea island soilAntibacterial, CytotoxicityNatural screening and isolation[5,32]
23GT-32 BMono-ring/fatty acidchain20Streptomyces spSoilWeak antibacterial, CytotoxicityNatural screening and isolation[33]
24JBIR-150Mono-ring/fatty acidchain20Streptomyces sp.MarineCytotoxicityBioassay-guided and chemical screening (LC-DAD-ESIMS)[34]
25heronamides CMono-ring/fatty acidchain20Streptomyces sp.MarineNon-cytotoxic, Effect on cell morphologyChemical screening (LC-DAD-ESIMS)[35]
268-deoxyheronamide CMono-ring/fatty acidchain20Streptomyces sp.MarineNon-cytotoxic, target membraneBioassay-guided[36]
27heronamides FMono-ring/fatty acid chain20Streptomyces sp. SCSIO 03032MarineCytotoxicityChemical screening (LC-DAD-ESIMS)[37]
28ML449Mono-ring/fatty acidchain20Streptomyces MP39-85MarineAntibacterial, CytotoxicityBioassay-guided[6]
29aureoverticillactamMono-ring/fatty acidchain22Streptomyces aureoverticillatus (NPS001583)MarineAntibacterial, CytotoxicityBioassay-guided[38]
30–31macrotermycins A/CMono-ring/Glycosylation20Amycolatopsis sp. M39InsectsAnti-bacterial and antifungal parasiteBioassay-guided metabolomic analyses[39]
32–33vicenistatin/vicenistatin MMono-ring/Glycosylation20Streptomyces halstedii HC34Sea island soilAntitumor or Against xenografted modelsNatural screening and isolation[8]
34sannastatinMono-ring/Glycosylation20Streptomyces sannanensisAnimal wasteCytotoxicityNatural screening and isolation[40]
35incednineMono-ring/Glycosylation24Streptomyces sp. ML694-90F3DefaultInhibit anti-apoptoticNatural screening and isolation[12]
36silvalactamMono-ring/Glycosylation24Streptomyces sp.PlantAnti-G+ bacteria, Cytotoxic activityNatural screening and isolation[41]
37auroramycinMono-ring/Glycosylation24Streptomyces roseoporous NRRL 15998DefaultAnti-fungal, anti-MASACRISPR-Cas mediated genome editing[7]
38–39sipanmycins A and BMono-ring/Glycosylation24Streptomyces sp. CS149InsectsCytotoxicityCombinatorial biosynthesis and mutasynthesis[23]
40mirilactam EMono-ring/epoxidation26Actinosynnnema mirum NBRC 14,064PlantNot antibacterial activity and cytotoxicityCo-culture[29]
41mirilactam DMono-ring/epoxidation26Actinosynnnema mirum NBRC 14,064PlantNo antibacterial activity and cytotoxicityCo-culture[29]
42bombyxamycin BMono-ring/epoxidation26Streptomyces sp. SD53InsectsAntibacterial, cytotoxicityInsect-bacterial mutualisms[4]
43dracolactam BMono-ring/epoxidation26Micromonospora wenchangensis HEK-797MarineDefaultCo-culture[42]
44pretilactamMono-ring/epoxidation26Actinosynnema pretiosum ATCC 31565DefaultNo anti-bacterial (Bs and Ca)Genome-Guided Discovery[43]
45streptolactam CMono-ring/epoxidation26Streptomyces sp. OUCMDZ-3159MarineAntifungal (Ca)Natural screening and isolation
46–47cyclamenol E-FMono-ring/A five-member ring20Streptomyces sp. OUCMDZ-4348Sand, the AntarcticE antitumor, no cytotoxicityBioassay-guided[44]
48leinamycinMono-ring/A five-member ring20Streptomycetes sp. S-140, Streptomyces atroolivaceusSoilAntibacterial, antitumorGenomic mining[9,45,46]
49hitachimycin/stubomycin.Mono-ring/A five-member ring22Actinomycete
strain No. KM-4927/Streptomyces strain No. KG-2245		SoilAntiprotozoal/antifungalNatural screening and isolation[18]
50–51niizalactam A and BMono-ring/A five-member ring26Streptomyces sp. NZ-6TerrestrialNo antimicrobial activity and cytotoxicityCo-culture[47]
52piceamycinMono-ring/A five-member ring26Streptomyces sp. SD53InsectsAntibacterial, CytotoxicityInsect-bacterial mutualisms[25]
53viridenomycinMono-ring/A five-member ring26Streptomyces gannmycicusSoilCytotoxicityNatural screening and isolation[48,49]

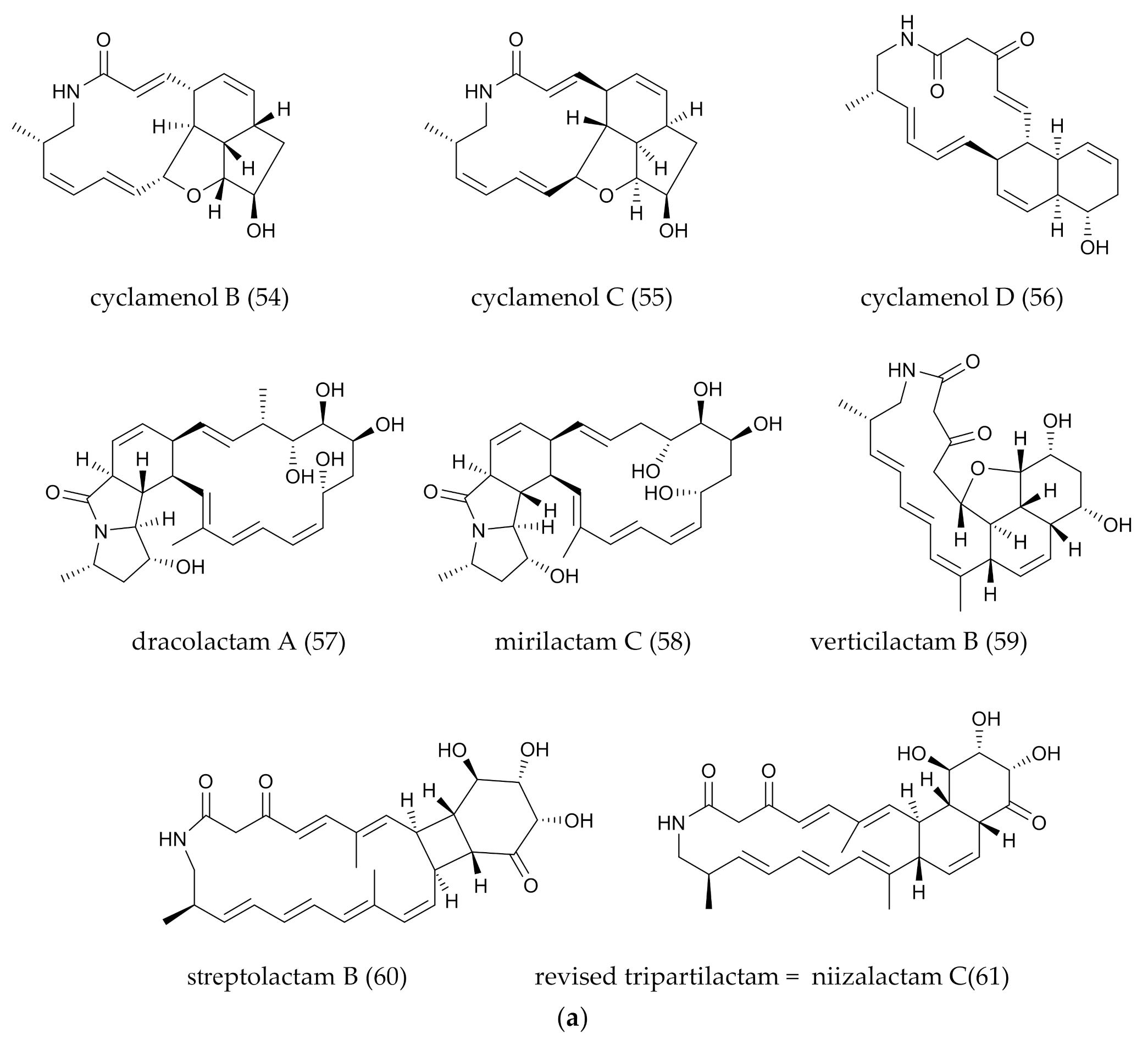

54–56cyclamenol B–DPolycyclic20–22Streptomyces sp. OUCMDZ-4348Sand, AntarcticOnly B selective cytotoxicityBioassay-guided[13]
57dracolactam APolycyclic26Micromonospora wenchangensis HEK-797MarineDefaultCo-culture[42]
58mirilactam CPolycyclic26Actinosynnnema mirum NBRC 14,064PlantNo antibacterial activity and cytotoxicityCo-culture[29]
59verticlactam BPolycyclic24Streptomyces avermitilis SUKA17/Streptomyces spiroverticillatus JC-8444DefaultAnti-parasiticMetabonomics LC/MS[50]
60streptolactam BPolycyclic26Streptomyces sp. OUCMDZ-3159MarineNo prominent cytotoxic activityNatural screening and isolation[31]
61tripartilactamPolycyclic26Streptomyces strain SNA112InsectsNa+/K+ATPase inhibitorInsect-bacterial mutual and Chemical screening (LC-DAD-UV)[51]
61niizalactam CPolycyclic26Streptomyces sp. NZ-6TerrestrialNo antimicrobial activity and cytotoxicityCo-culture[47]
62–63heronamides A/BPolycyclic/fatty acid chain28Streptomyces sp. CMB-M0406MarineNo antibacterial activity and cytotoxicityChemical screening (LC-DAD-ESIMS)[35]
64–65heronamides D–EPolycyclic/fatty acid chain28Streptomyces sp. SCSIO 03032MarineNo antibacterial activity and cytotoxicityOSMC (alternative medium)[37]
67–72heronamides G–LPolycyclic/fatty acid chain28Streptomyces niveusForest soilNo antibacterial activity and cytotoxicityBioassay-guided[52]
73sagamilactamPolycyclic/fatty acid chain34Actinomadura sp. K13-0306Sea island soilAnti-trypanosomalChemical screening (LC-DAD-ESIMS)[11]
74–75ciromicins A–BPolycyclic/glycosylation22Nocardiopsis sp. FU40DefaultCytotoxicityCo-culture and metabolomic[53]
76macrotermycin DPolycyclic/glycosylation20Amycolatopsis sp. M39InsectsNo antibacterial and antifungal activityBioassay-guided metabolomic[39]
77verticilactam CPolycyclic/epoxidation24Streptomyces avermitilis SUKA17DefaultAnti- malaria parasiteHeterologous expression[50]
78verticilactamPolycyclic/epoxidation24Streptomyces spiroverticillatus JC-8444DefaultNo biological effectsChemical screening (LC-DAD-ESIMS)[54]
79macrotermycins BPolycyclic/glycosylation and Epoxidation20Amycolatopsis sp. M39InsectsNo antibacterial and antifungal activityBioassay-guided metabolomic analyses[39]
80cremimycinPolycyclic/fatty acid chain/glycosylation22Streptomyces sp.
MJ635-86F5		SoilAnti-G + bacterial, CytotoxicityNatural screening and isolation[55]
81cylindramidePolycyclic/PTM26Halichondria cylindrataMarineCytotoxicity (B16)Natural screening and isolation[56]
82discodermidePolycyclic/PTM26Discodermia dissolutaMarineCytotoxicity and antifungalNatural screening and isolation[57]
83HSAFPolycyclic/PTM26Lysobacter enzymogenes, Streptomyces sp. SR107SoilAnti-fungalBioassay-guided[58,59]
843-deOH-HSAFPolycyclic/PTM26Lysobacter enzymogenesSoilLost antifungal
activity		Gene knockout[60]
85geodin APolycyclic/PTM26GeodiaMarineCytotoxicityBioassaydirected[61]
86clifednamide APolycyclic/PTM26Streptomyces sp. strain JV178Garden soilDefaultCombinatorial biosynthesis[62]
87–88frontalamides A–BPolycyclic/PTM26Streptomyces sp. SPB78MarineAntifungalOSMAC + chemical screening[63]
89–95pactamide A--GPolycyclic/PTM26Streptomyces pactum SCSIO
02999		DefaultCytotoxicityPromoter engineering and heterologous expression[64]
96butremycinPolycyclic/PTM26Micromonospora sp. K310MangroveWeak antibacterialLC- MS[65]
97ikarugamycinPolycyclic/PTM26Streptomyces sp. NO 8603SoilAntiprotozoal, anti-G+ bacterialNatural screening and isolation[66]
98–99lysobacteramide A and BPolycyclic/PTM26Lysobacter enzymogenes C3DefaultCytotoxicity; B- Anti-fungalOSMC[67]
100alteramide APolycyclic/PTM26Alteromonas sp.MarineCytotoxicityNatural screening and isolation[68]
101aburatubolactam APolycyclic/PTM26Streptomyces sp. SCRC A-20MarineInhibit superoxide anion generationDefault[69]
102alteramide BPolycyclic/PTM26Lysobacter enzymogenes C3DefaultAnti-fungal(yeast and Ca)Natural screening and isolation[70]
103–108combamides A−FPolycyclic/PTM26Streptomyces sp. S10Garden soilF weakly inhibited SPI-1Combinatorial Biosynthesis[71]

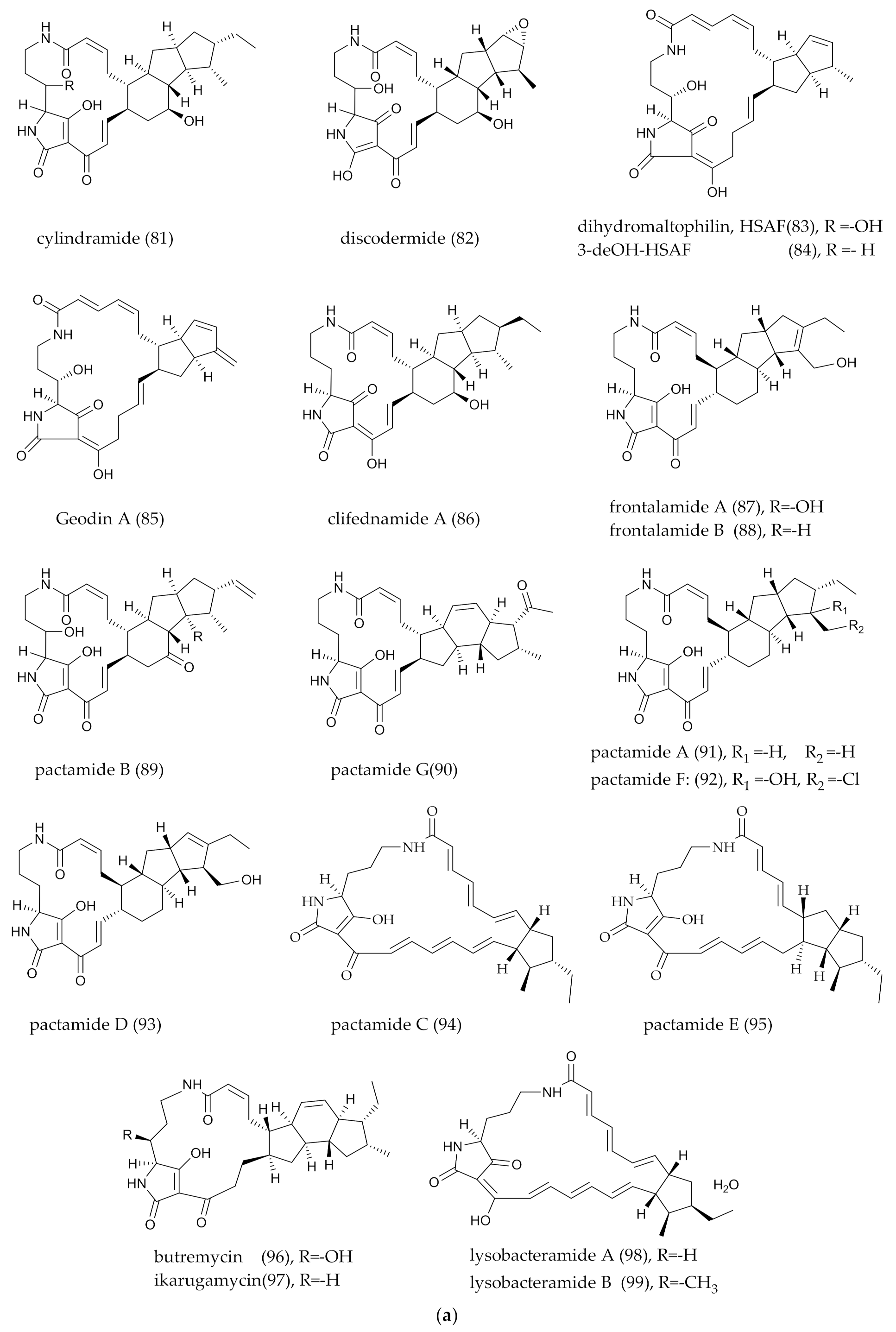

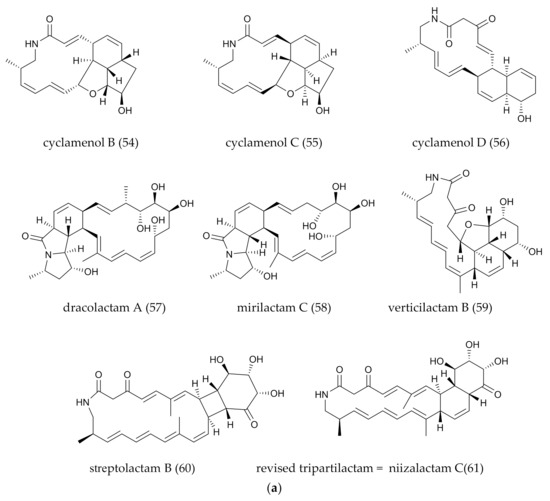

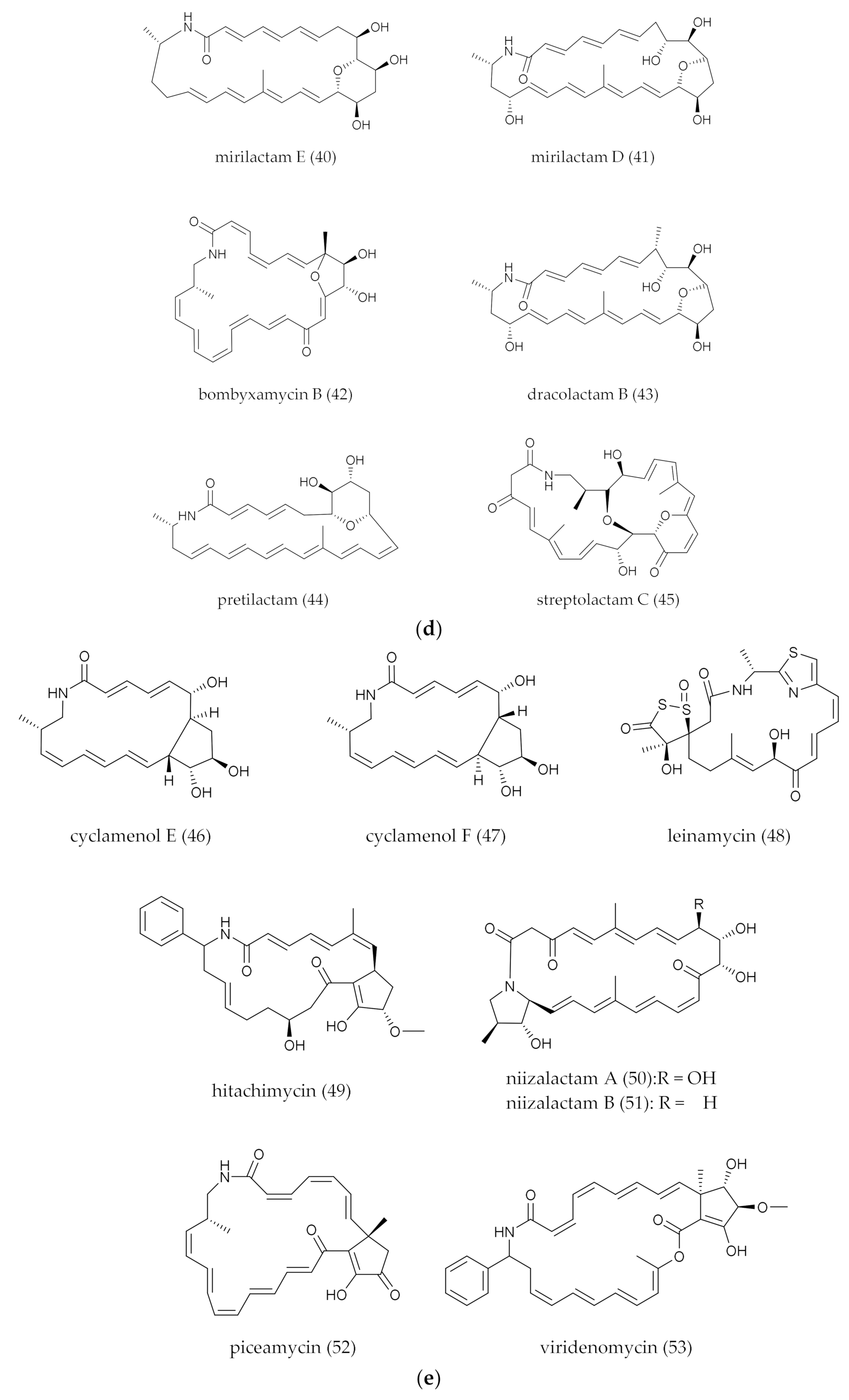

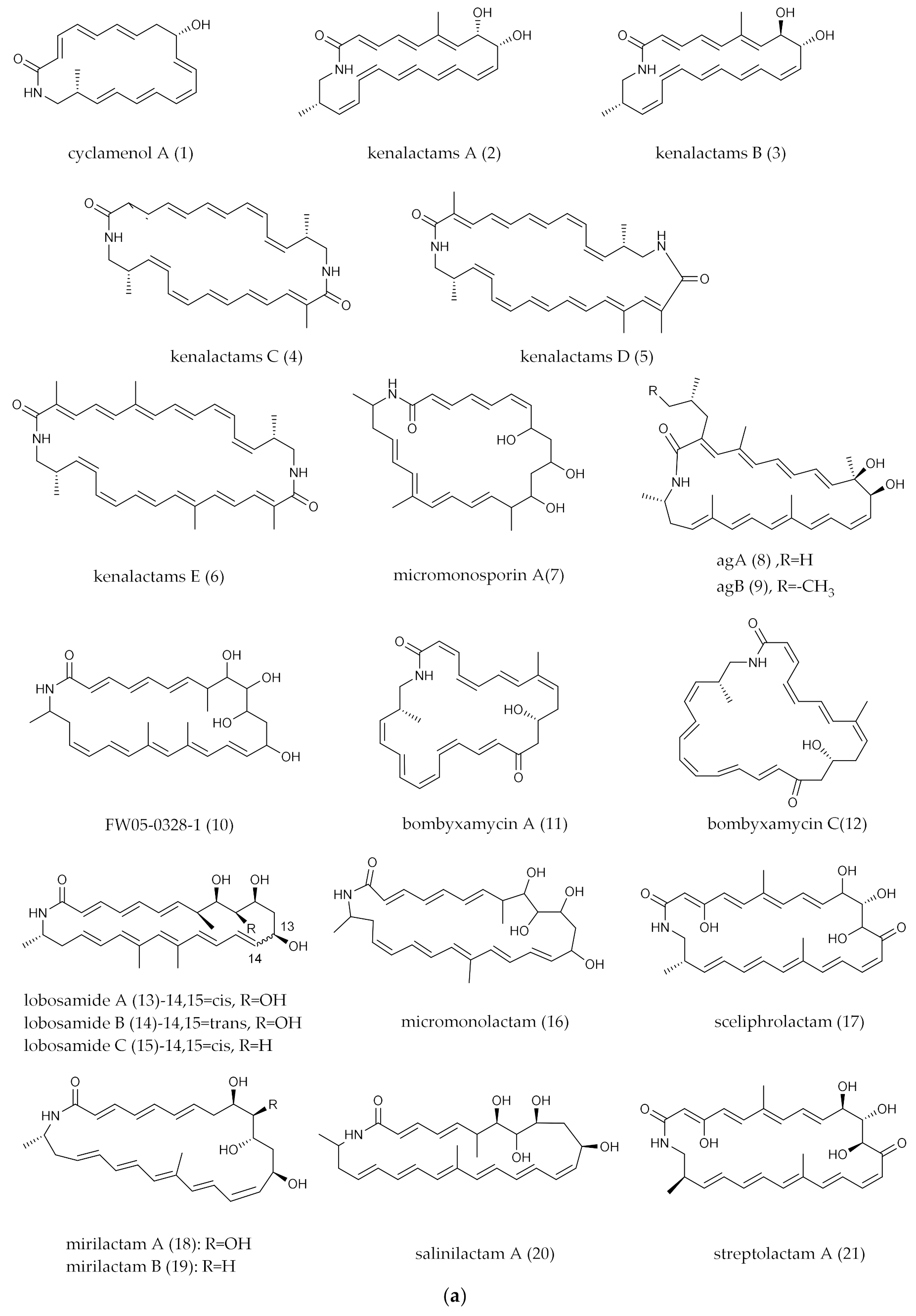

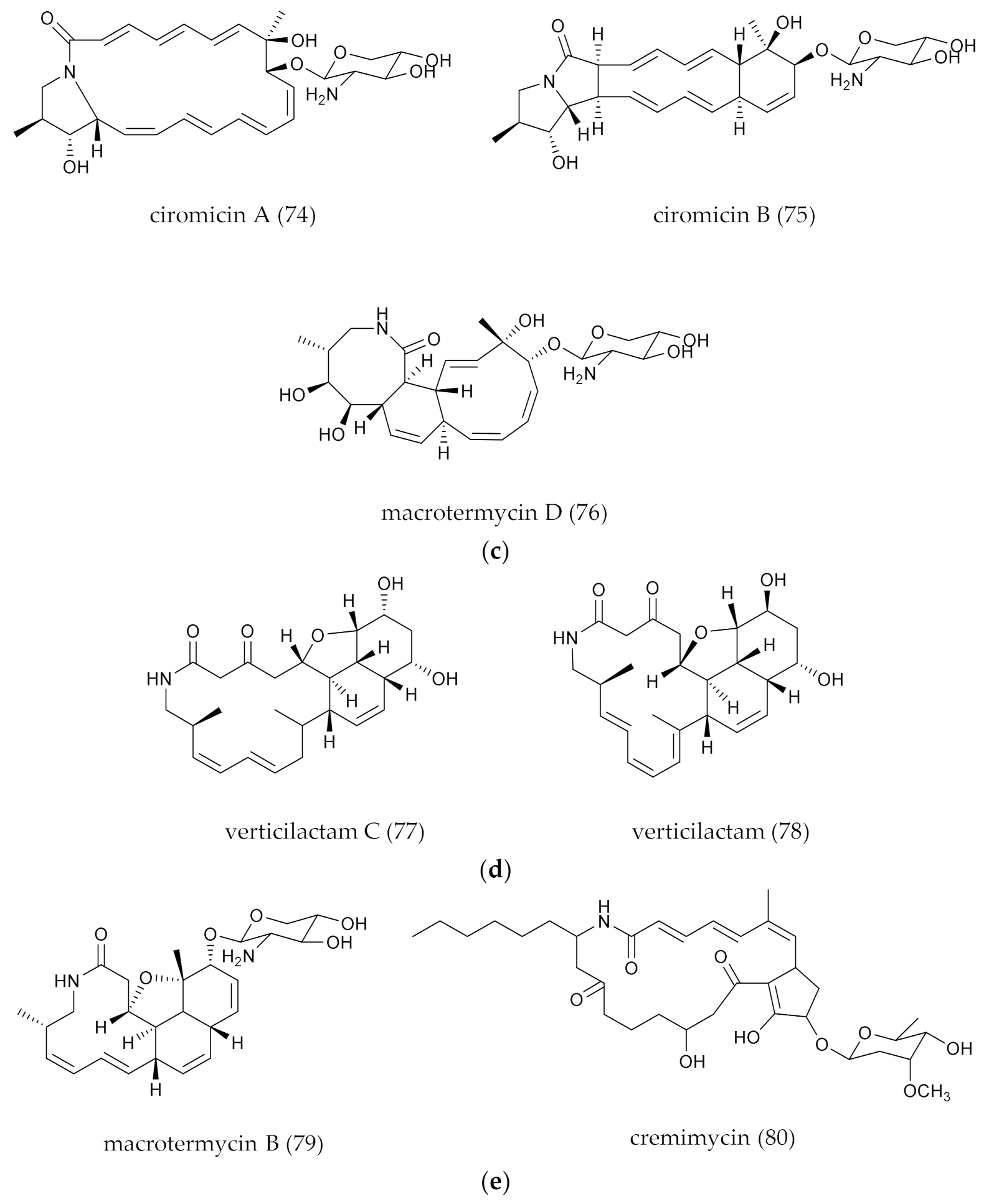

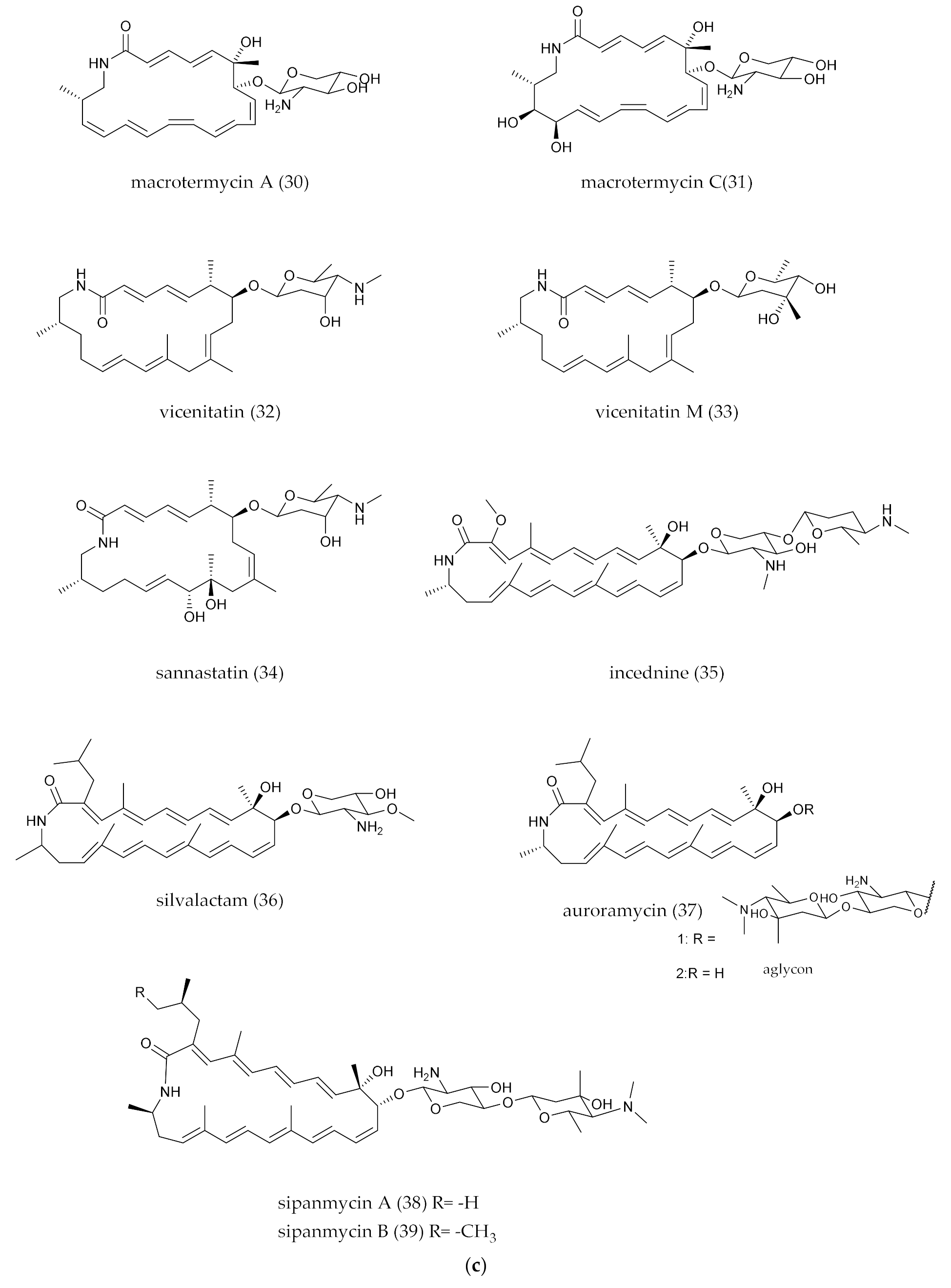

NO—corresponding to the serial number of the structure in Figure 1, Figure 2 and Figure 3. Member—means how many atoms are in the single-closed ring structure. Default means not mentioned in the original reference.

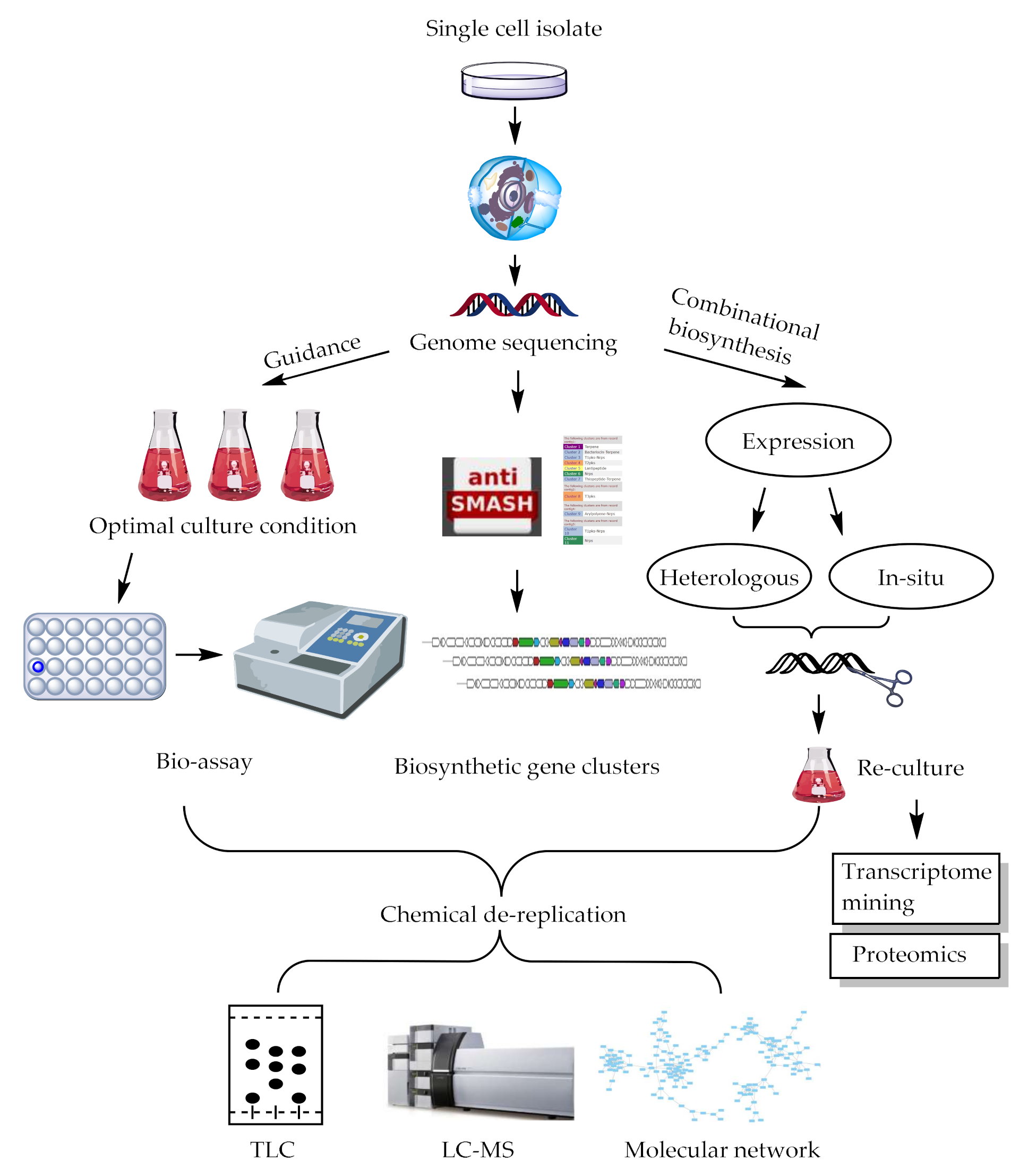

3. PMLs Production Strategies

For years, scientists devoted considerable efforts to the discovery of novel bioactive compounds in the hope of finding drug leads or drug candidates. However, the frequent rediscovery of known natural compounds has become increasingly common and chemists squandered far too much attention on repetitive screening. Seeking new microorganisms for a new type of chemical scaffolds has proven to be effective [72,73]. In addition to genomic mining for microorganism de-replication, chemical informatics methods are also critical. Moreover, scientists have developed several combinatorial biosynthetic techniques to combine with complicated metabolic networks, largely in Streptomyces, obtaining a variety of natural compounds, including PMLs. A schematic of these strategies was shown in Figure 4.

3.1. Culture Strategies for PMLs Production

3.1.1. Elicitors Supplementary

In addition to the genetic-engineering-oriented combinative biosynthesis method, the traditional simple and inexpensive method of adding elicitors [74], also known as allelochemical such as sceptrin [75], γ-butyrolactone [76,77,78], methyl-lenomycin furan and D-homoserine lactones (HSLs) synthesized by Gram-negative bacteria [79] were used to increase the diversity of chemical structures of secondary metabolites thereof. Macroporous resins were added into the culture medium to manipulate the inhibition of transcription feedback effect in the synthesis of secondary metabolites [80]. Previous studies demonstrated that the presence of elicitors can effectively activate the expression of silenced gene clusters and enhance the expression of the functional gene [81]. The methodology of supplementing growth media with elicitors was usually applied in combination with genetic manipulation to optimize culture conditions.

3.1.2. Bacterial Co-Cultivation

In some cases, silent or cryptic BGCs (Biosynthetic Gene Clusters) in a microorganism could be activated by the interaction with other microbial species. Compared to genetic manipulations, the co-incubation method is a more promising and effective method to induce the production of novel secondary metabolites [82], which may expand the chemical diversity of the second metabolites of microorganisms.
Mirilactams A–E (18–19, 58, 40–41) [10,29], dracolactams A–B (57, 43) [42] and niizalactams A–C (50–51,61) [47] are natural products produced by co-cultured with the mycolic acid-containing bacterium (Tsukamurella pulmonis). T. pulmonis tends to produce new intramolecular polycyclic compounds lacking antibacterial activities, cytotoxicities and anti-trypanosomal, activities as shown in Table 1. However, from the available data, for the activities of intramolecular polycyclic PMLs shown in Table 1, it is noticeable that some of intramolecular polycyclic PMLs analogues, including frontalamides (87–88) [63], ikaugamycin (97) [66], are shown to possess antifungal and anti-protozoal activities. In contrast to many other published literature, this is no special phenomenon in nature, and these compounds showed ecological significance. We hypothesized that the mycolic acid-containing bacterium may reduce the side-effects of these compounds on their survival, for example, secreting the corresponding enzyme to modify the compound to decrease toxicity. However, in effect, adding mirilactam A to the medium of mycolic acid-containing bacteria has not led to the appearance of mirilactam C–E (58, 40–41) [29]. This result demonstrated that mirilactam C–E (58, 40–41) was not produced by biotransformation from mirilactam A, and the combination culture probably induced the function of specific enzymes in the process of epoxidation and cyclization in the gene cluster of mirilactam C–E substance biosynthesis.
Interestingly, mirilactams C–E (58, 40–41) and a series of typical intramolecular polycyclic compounds produced by Streptomyces in pure culture did not show any antimicrobial activities. Heronamides (25–27, 62–72) and heronamide C (25) showed notable morphologically reversible non-cytotoxic effects on mammalian cells. Deoxyheronamide C also displayed cell membrane-associated bioactivities. Apart from the above two compounds from the family of heronamides, no other heronamides exhibited cytotoxicity and antibacterial activity [35,37,52,83]. These results do not conform with the rules of nature due to the fact that bacteria produced these useless compounds involving large metabolic costs in terms of energy and nutrients. By using Hes1-immobilized beads, iso-micromonolactam was a possible activator of neural stem cells, implying the potentially latent function of PMLs [84]. The underlying cause of this phenomenon deserves an in-depth investigation chemically and biologically in the future.

3.2. Chemical Analytical De-Replication

The biological taxonomic de-duplication method was based in the comparison of 16S rDNA and the analysis of morphology. Due to the similarity of biological morphology and the fact that 16S rDNA can only be identified at the genus level, many microbial species containing different secondary metabolite biosynthetic gene clusters with slight differences in morphology and 16S rDNA sequences would be overlooked. Due to the fact that a large number valuable isolates were neglected by the means of taxonomic deduplication, chemical deduplication is especially important. Remarkably, many studies used the genomic prescience of natural products to choose the prioritization of feature response data for further isolation. A wide variety of statistical and analytical techniques based on algorithms of machine learning combined with visualized response map was applied to improve prioritization, such as global natural products social molecular networking (GNPS) and MS-based visualizing techniques [85,86,87]. With the assistance of genomic analysis [88] and predicting potential drug candidates from organisms and monitoring metabolites and mapping analysis of metabolomics via liquid chromatography-mass spectrometry (LC-MS)/MS [53,72], the known metabolites were identified and excluded. Thus, the hunting zone for novel substances was effectively narrowed, whereby macrotermycins A–D (30–31,76,79) [39], aplysiatoxin homologues [89] and amicoumacin antibiotics [90] were discovered from a complex secondary metabolic profile. Another metabolomic approach for de-replication was achieved by employing nuclear Magnetic Resonance hyphenated with liquid chromatography (LC-NMR). With the continuous expansion of the NMR spectra database, analyzing NMR spectra by artificial intelligence algorithm, for example, the star “DP4-AI” [91], will hopefully replace manual analysis in the future. This method can realize the rapid identification of trace compounds and improve the accuracy thereof.

3.3. Genetic Tools for PMLs Biosynthesis

3.3.1. Genomic Mining

One of the traditional genomic mining methods for obtaining novel bioactive natural products was based on the isolation of rare actinomycetes from neglected environments. In this process, 16S rRNA gene sequencing was applied for preliminary microbial identification and de-replication [92]. However, although nucleic acid sequence homology reached 99%, it was not certain that the strain can produce the same secondary metabolites because it contained different functional genes [93], which induces difficulties for 16S rRNA gene-dependent genomic mining.
In recent years, most PMLs were obtained from actinomycetes by another genomic mining method. The method was used to screen rarely related key genes and the fragment of synthase genes as signature probes. It was also applied in whole genome sequence (WGS) scanning [94]. WGS, a powerful tool, is used to predict the types of microbial secondary metabolites, but somehow the costs of this method are still high, particularly in the High-Through Screening (HTS) process.
The formation of small artificial meta-genomics may be an economically viable approach, involving meta-genome sequencing, splicing, and restoring the individual draft genome sequence from a different genus. Firstly, around three or more mixed strains with a wide variety of genera were selected based on 16S rRNA gene sequence to create a direct small metagenome. Then, the results of the metagenomic sequencing artificial combination were spliced and assembled completely according to the whole genome sequence of the corresponding strains in the NCBI database. Lastly, the functional gene clusters associated with secondary metabolites were found and identified. The key to this approach is reliance on bioinformatics tools of how to assemble the genome sequencing results from the directed construction of small metagenomes and assign them to each strain accurately. The discovery-based approach combined with biosynthetic gene analysis complements the knowledge-based approach by exploring the vast combinatorial biosynthesis repertoire found in nature [94].

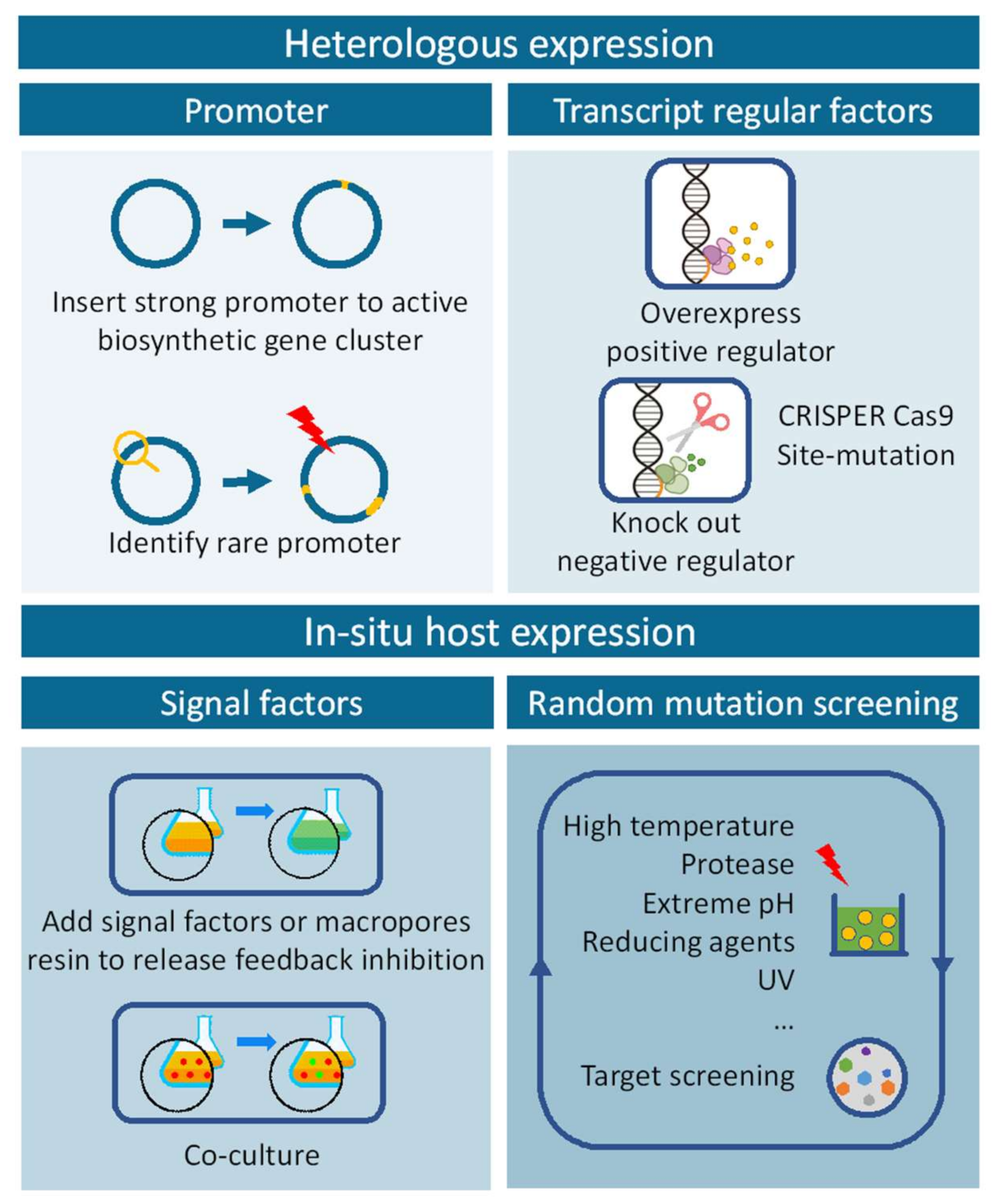

3.3.2. Heterologous or In Situ Expression and Synthetic Biology

Historically, obtaining secondary metabolites by expressing genomic modules in the heterologous hosts was a common approach. However, many secondary metabolites are difficult to biosynthesize by this method because the lack of specific precursors, suitable alien promoters, biosynthetic functional protein in the host and the display of toxicity to hosts. In 2011, Gomez-Escribano and Bibb [81] proposed an innovative idea that constructs a background “clean” expression host, Streptomyces coelicolor M145, to improve the production of metabolites transcribed by alien biosynthetic gene clusters. From then on, more and more evidence showed that the engineered S. coelicolor host without native BGCs was appropriate for the heterologous expression of a wide spectrum of BGCs [95,96], which significantly and exponentially increased the yields of natural products, such as mithramycin A [97]. The methods mentioned before are summarized as follows: combined bacterial or fungal genome scanning, whole-genome sequencing and comparative genomics analysis technology to determine some specific biosynthetic gene clusters. The identification and confirmation of the products produced by heterologous expression in engineered bacterial hosts were difficult to a certain extent [7]. Nevertheless, cloning the BGCs larger than 100 kb in length is still a challenge in heterologous expressions [98].
To enhance the production of PMLs by heterologous expression, a strong constitutive promoter such as PermE* is often added to the biosynthetic cluster, and negative expression regulatory cassettes are always deleted during genomic manipulation [62]. These strategies have made a successful biosynthesis of new PTMs by introducing BGCs into S.lividans [99].
Actinomycetes generally contain many silenced groups, which belong to the secondary metabolite generation branch pathway, and can only be activated in some special facts or conditions. For instance, in 2019, Lim et al. successfully obtained auroramycin with the novel structural potent antibiotic family of PMLs from Streptomyces roseosporus via activating the biosynthesis pathway by CRISPR-Cas9 mutation technology [7].
In addition, although the inactivated endogenous biosynthetic pathways of various engineered hosts have been constructed by knockout or site mutation, the major ones were mainly still Streptomyces. There were a few reports on the construction of Micromonospora and other engineered hosts for target BGCs expression. Therefore, with more and more novel biosynthetic genomic clusters explored and revealed, the development of various rational types of hosts is in urgent need of research. The process described in the above was illustrated in a schematic of Figure 5.
Synthetic biology is a theoretically feasible method that exchanges promoters, SD sequences, ORFs and terminators and assembling them into new biological systems such as novel metabolic pathways to explore rare secondary metabolites. All existing combinatorial biosynthetic strategies were mapped out based on the biosynthetic assembly line: that is, proteins of known function corresponding to their encoding genes, manipulation of which affords the engineered biosynthetic pathways that produce the directed natural products. The typical merit of the knowledge-based combinatorial biosynthesis method is that it modifies the targeted functional moiety and keeps the rest of the scaffold unchanged. For instance, overexpressing a transcriptional activator leads to the discovery of largimycins from Streptomyces in Leinamycin Family [99].
With the understanding of each component gene scaffold in controlling the biosynthesis pathway of natural products, the modular functional protein of different microbials would be recombined into a new natural product assembly line, which might artificially obtain novel compounds by using microbial BGCs.

3.3.3. Chemical Synthesis under the Guidance of Bioinformatics

In 2022, Lei Li et al. combined sequence-based metagenomic mining with bio-informatical analysis to identify and predicted six natural active menaquinone-binding (MK binding) antibiotics (MBAs) [100]. Moreover, chemical synthesis was creatively applied to obtain the six predicted MBAs instead of synthesis by microorganisms in vivo. The results of this study suggested that the approach might be applicable to access novel PMLs in the future.

4. PMLs Biosynthetic Pathways

The strategies for the discovery of natural products of microbial origin are usually based on detailed information on the biosynthetic pathways of the corresponding substances. Therefore, after recognizing the structures of new natural products, it is imperative to acquire knowledge of their biosynthetic pathways in vitro and in vivo.
PMLs have five main structural features, including a ring skeleton with hydroxyls and methyl groups, hydrocarbon chains, a possible linkage to a glycoside, intramolecular epoxidation and intramolecular polycyclic structure.
PMLs’ structural diversity and diverse biological activities were largely due to a variety of non-proteinogenic β-amino acids in their polyketide starter units, different PKS-I synthetic enzyme modular compositions involving ketone synthase (KS), acyl-transferase (AT), acyl carrier protein (ACP), ketone reductase (KR), dehydrogenase (DH), thioesterase (TE) and specific post-PKS PMLs made by combining polyketide synthase (PKS-I) and non-ribosomal polypeptide synthase (NRPS) as well as polyketide reductase (KR). Condensation–adenylation–thiolation (C-A-PCP) elements were included in the NRPS minimal module. To produce the above mature products, precursor substances discharged from multi-enzymatic assembly lines might be subjected to one or more decoration courses of acylations, alkylations, hydroxylations, glycosylations, hetrocyclizations and intermolecular cyclizations. Antibiotic action normally necessitates these post-modifications and tailoring.
The biosynthesis processes of the compounds would be narrated by separating them into the following four phases based on the structural properties of the aforementioned PMLs and important enzymes engaged in the biosynthetic route. The first phase was the formation of β-amino acid starter units and then transferring them into the PKS I type assembly; the second was chain extension and the formation of olefinic bonds in the ring as well as cyclization by thioesterase; the third was intramolecular epoxidation and intramolecular polycyclic formation in post-modification processes; the last was glycosylation modification. According to the structure of PMLs, not all PMLs compounds were synthesized through the four complete processes mentioned above. PTMs have different biosynthetic pathways from the corresponding polyenic amino acid, which were illustrated in detail by Guangtao Zhang et al. [101].

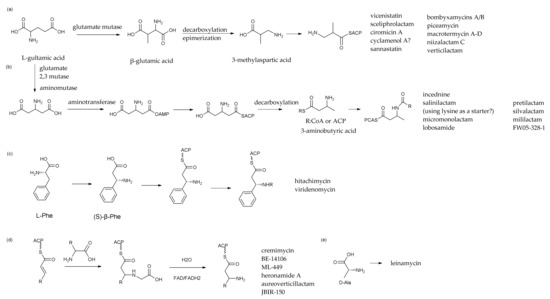

4.1. PMLs Initial β-Amino Acid Units

Brandon I. Morinaka et al. evaluated the data of bacterial meta-genomes deposited in the Genebank database and found that a variety of microorganisms may produce β-amino acid-containing products [102]. The structural variety of macrolactam polyketides is generated by the presence of diverse β-amino acid starting units in their polyketide skeletons because amino groups of amino acids are essential to the formation of their structures. In addition, incorporating these β-amino acids into their polyketide skeletons was a key process. Five types of amino acid initiation units of related compounds were summarized in Figure 6 by a comparative analysis of the structures of the six types of known polyene macrocyclic lactams and comparing the relevant literature on the biosynthetic pathway of macrolactams [103]. Thus far, several β-amino acid starting units in the biosynthesis of macrolactam polyketides have been revealed, as has the process for selective incorporation [104].
These aminomutase, decarboxylase, aminotransferase and acyltransferase were involved in the biosynthesis of β-amino acid units. There include glutamate amino-mutase, lysine amino-mutase, arginine amino-mutase, S-adenosyl-l-methionine (SAM) motif and pyridoxal 5′-phosphate (PLP)-binding motif in the family of amino-mutases. More and more studies focused on the functional genes encoding amino-mutase were conducted, which would shed light on finding new amino mutases that can trace back to the specific structural units in the future.
The first mode of synthesis for β-amino acid starter units involved in PMLs, which was represented for the biosynthetic of vicenistatin (32) [105,106,107], β- glutamate derived from L-glutamic acid by the action of glutamate amino-mutase-realized intramolecular rearrangement of the α-amino group to the β-position, was decarboxylation and epimerization to 3-Methylaspartate (Figure 6). For instance, 3-MeAsp needed to be decarboxylated to 3-aminoisobutyrate before being accepted by the ACP module and entering the phase of PKS I-type carbon chain extension. By investigating the compound structures and the BGCs gene cluster, we summarized and proposed that, except for 3-MeAsp, there are many other PMLs implicated in this metabolic route, such as sceliphrolactam (17), ciromicin A (74), sannastatin (34), bombyxamycin A (11), piceamycin (52), macrotermycin A–D (30–31,76,79), niizalactam C (58), verticilactam (59) and so on.
To confirm the beginning unit of the amino acid involved in the biosynthesis route of kenalactam A (2), 11 amino acids were added separately into the medium, and then the products were characterized using the LC-MS technique by Omar Messaoudi et al. (2018). As a consequence, L-alanine is likely to be the first unit in the structure of kenalactam A [20] because the amide groups in kenalactam A are separated by one carbon from the methyl branched chain at C24, which may mean that 3-methyl aspartic acid is the starting unit of amino acid for biosynthesis.
The result that contradicts the aforementioned authors’ experimental findings were deduced from the reported synthesis pathway of β-amino acid analogues such as vicenistatin (32), sceliphrolactam (17) [28] and so on. In addition, although β-amino acid is the beginning unit of amino acid for biosynthesis, L-alanine could be a protecting group for avoiding self-cyclization and for connecting to the starter unit and eventually integrating into the PKS I-type biosynthetic pathway of kenalactam A (2) via Michael addition reactions [104]. Additional research is needed to support this hypothesis.
The second mode represented for incednine (35) biosynthesis [108,109,110,111], β-glutamate derived from α-L-glutamate by the action of glutamate 2,3-aminomutase is decarboxylated to (S)-β-aminobutyrate by the PLP-dependent β-glutamate decarboxylase IdnL3 (Figure 6). Then, the mentioned β-amino acid combined with acyltransferase (AT module) constructed a β-keto acyl intermediate. Michael’s addition to an α,β-unsaturated acyl intermediate in the polyketide pathway is also involved. By analyzing the enzyme function and the result of the amino acid site-mutation replacement experiment, it was found that the adenylation enzyme in synthesis was likely to be the substrate of the β-amino acid starter unit. Many types of research revealed that the different amino acid residues in the 220th bit can affect the activity of the IdnlL enzyme, and the specificity of the substrate is determined by the function of the enzyme [109].
A set of glutamate 2,3-aminomutase and β-glutamate decarboxylase gene sequences was found in actinomyces, which can produce salinilactam A (20) [30], micromonolactam (16) [26], lobosamide(13–15) [10], pretilactam (44) [43], silvalactam (36) [41] and mirilactam, suggesting that β-aminobutyrate may be the starter unit in biosynthetic pathways of these polyketides. However, the results of the isotope amino acid feeding experiment were not always consistent with the consequence of biosynthetic gene clusters such as in the case of salinilactam A (20). Previous results indicated two possibilities for the initial amino acid of FW05-328-1. The first possibility was that L-glutamic acid was converted to β-glutamate by aminotransferase, and then decarboxylation and epimerization were occurred in the catalysis of the various modularized enzyme to produce 3-methyl aspartic acid or 3-amino butyrate, which would enter the PKS I-type biosynthesis pathway as an amino initiating unit. Another possibility was that FW05-328-1 had a different carbon skeleton by processing a methyl group at the α position, which revealed that it may start with an α-amino acid unit rather than a β-amino acid unit. Since the above processes have not been experimentally validated, more experiments will be needed to fill the gaps.
Hitachimycin (49) is a representative PMLs compound containing a five-membered ring. Compared with others, hitachimycin is a macrolactam with β-phenylalanine as the starter position of its polyketide skeleton. Its biosynthesis pathway was through the characteristic of L-phenylalanine for initial amino acids, 2,3-aminomutase, making it change into β-phenylalanine, and then through modular type I-PKS biosynthesis, which contains five PKS synthetases and four amino acid carrier enzymes, a characteristic of the amidohydrolase for completing the synthesis of the compounds. Moreover, the characteristic intramolecular five-membered ring by Michael addition or a Nazarov cyclization mechanism for formation is present [112].
The cyclo-pentyl group was easily assembled in the biosynthetic process through enzyme factories and spontaneous reactions. The chemical total synthetic steps of the cyclo-pentyl group were reduced from eleven to five by chemists in eight years from 2000 to 2008 [49,113,114,115].
In addition, although the compounds such as cremimycin (80) [116], BE14106 (22) [32], ML449 (28) [6], JBIR150 (24) [34] and aureoverticillactam (29) [38] had different medium-chain β-amino acid starter units, they had similar amino acid incorporation mechanism in the PKS biosynthetic pathway.
Cremimycin (80) is a representative PMLs since the structural unit of polyene macrolactam, medium-length fatty chain and the five-membered ring was located in the structure at the same time. For instance, 3-amino nonanoate derived from glycine was combined with the β-position of a non-2-enoic acid thioester by Michael in cremimycin [116]. Thirty-three open-reading frames (ORF) were involved in the biosynthetic gene cluster, which encoded eight polyketide synthases, six deoxysugar enzymes and a characteristic group of five β-amino acid transfer enzymes [110,117,118]. Keita Amagai et al. proposed the biosynthetic pathway of cremimycin [117] in microorganisms by gene knockout, heterologous expression and feeding precursors. In the process of polyketide biosynthesis, the major precursor of propionate extender unit was methylmalonyl-CoA the primary metabolite but succinyl-CoA was also. The most common source of succinyl-CoA came from the TCA cycle [117].
Last but not least, leinamycin (48) was a thiazole-type heterocyclic PMLs compound. The uncommon 1,3-dioxy-1, 2-dithioalkanes were conjugated into the macrolactam ring in the structure of Leinamycin. Experiments on the location of the LNM biosynthetic gene cluster, sequence analysis, gene knockdown and mutant screening revealed that Leinamycin was produced by an AT-less NRPS-PKS hybrid system using D-alanine as a starter [6,119]. D-amino acids were activated by the A module. LNM biosynthesis and chain extension processes were carried out by discrete A and ACP modules, with an extra NRPS and six PKS added throughout the synthesis phase (Cheng 2003). L-Cys, which catalyzed the production of the thiazole group, was the particular substrate of the lnmI gene [45].
In summary, the biosynthetic pathway of β-amino acid was identified and validated using a variety of genetic manipulations, including deducing genomic information, isotope amino acid addition experiments, heterologous expression of BGCs, gene knockout and structural biology and enzymology functional tests in vitro.

4.2. PMLs Extender Unit Incorporation and Cyclization

Processing carbon chain extenders in the biosynthetic of polyene macrolactam was performed by catalyzing PKS I enzymes, affecting the members of macrolactam and the number of olefinic bonds of macro-cyclic. The combination and arrangement of different functional modules, for instance, KS-AT-DH-ER-KR-TE, may change the intra-cyclic carbon members, the position and number of unsaturated double bonds and the introduction of methyl groups [120,121].
Specifically, the KS domain catalyzed the condensation of the extender unit to an acyl-starting substrate or a developing polyketide chain in a Claisen-type reaction. KR, DH, and ER domains convert to the resultant β-keto moiety to form a β-hydroxy group, anα, β-double bond or a completely reduced methylene [122]. During polyketide chain elongation, alkylations, hydroxylations and hetero cyclizations may occur. Finally, the extended polyketide chain was usually liberated from the PKS assembly line by a thioesterase (TE) domain-catalyzed hydrolysis or macrocyclization. It should be mentioned that during the carbon chain extension of cremimycin (80), the natural truncated DH-split functional region was specifically used to form hydroxyl groups [123]. The significance of this biological phenomenon was worthy of further study and discussion, which could be used as a theoretical reference for designing and establishing new PKS assembly lines in the future.

4.3. Epoxy Groups and Intramolecular Polycyclic Systems

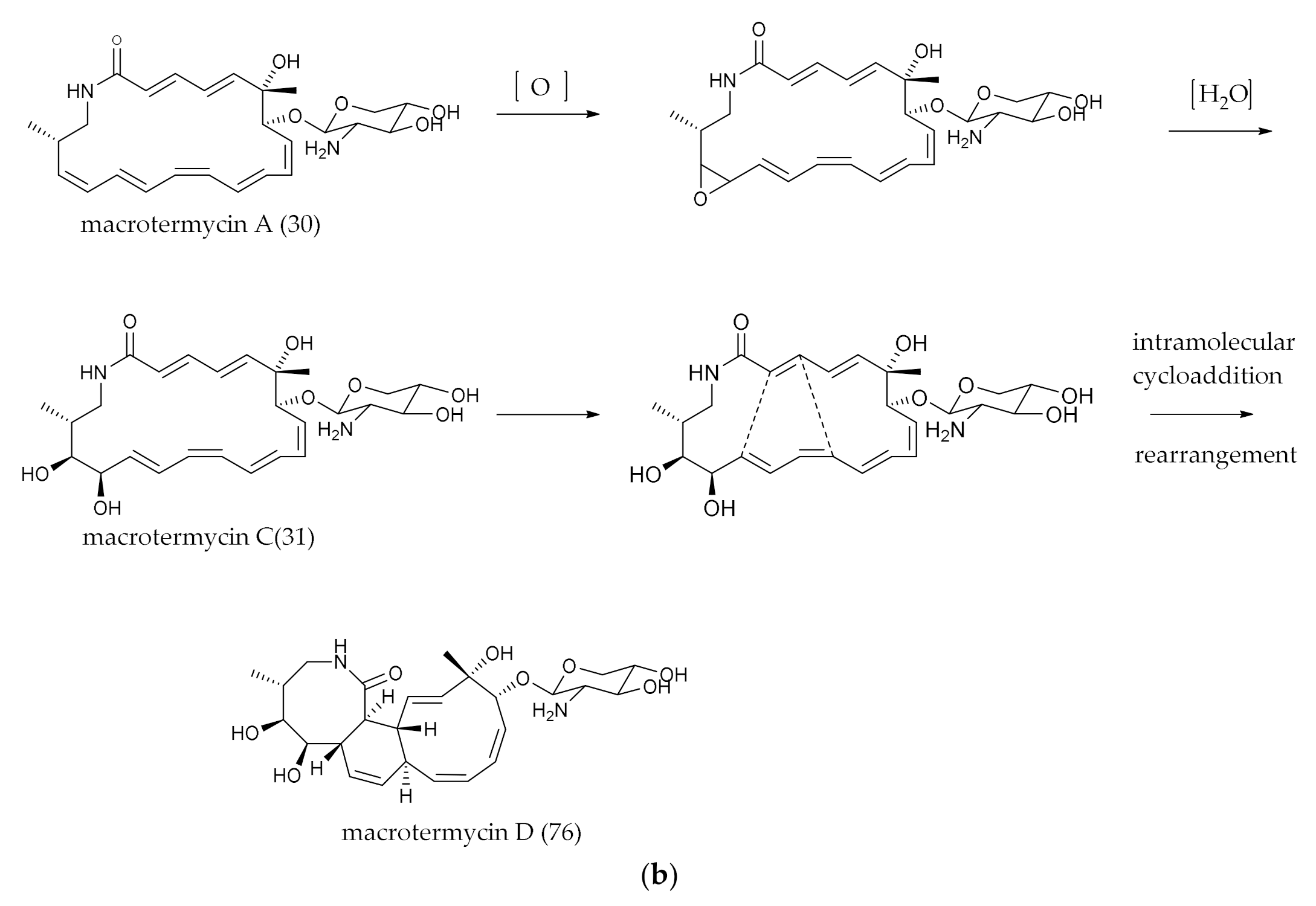

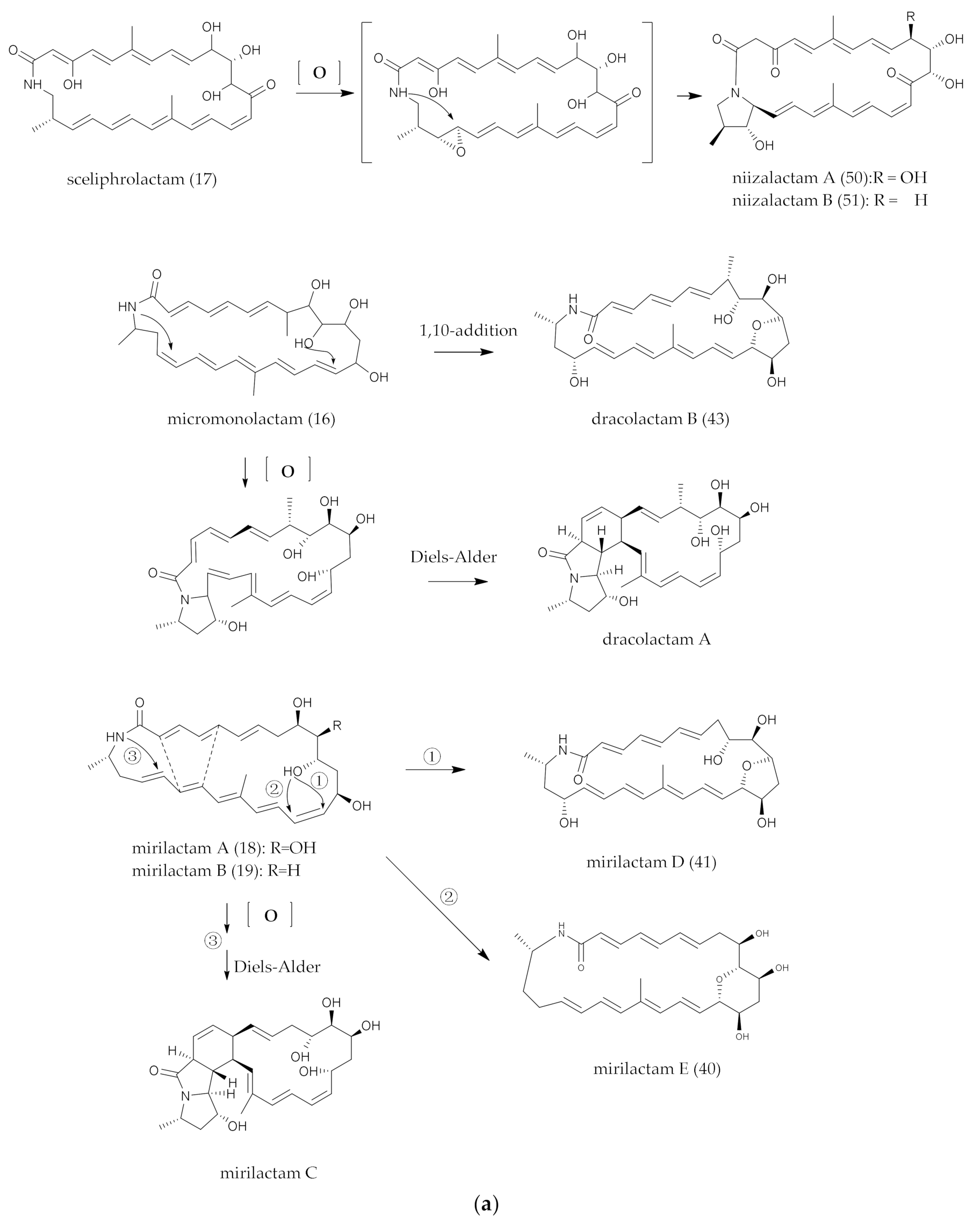

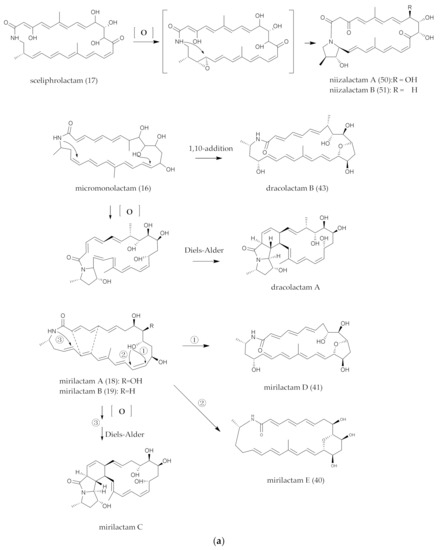

The released polyketide intermediates were further modified by intramolecular epoxy and cyclization, which were crucial for the biological activities of the natural polyketides. From the literature, it was found that epoxy groups and intramolecular polycyclic structures formed by intramolecular oxidation and cycloaddition reactions were not unique cases in polyene macrocyclic lactam compounds. As shown in Figure 7, the processes of structural change have been predicted and represented as micromonolactam (16), sceliphrolactam, (17) mirilactam A (18) and B (19) macrotermycin A (30), which are accordingly conversed to niizalactam A–B (50, 51), dracolactam A–B (57, 43), mirilactam C–E (58, 40–41) and macrotermycin C (31) and D (76).
In 2018, Shotaro Hoshino et al. speculated that the final epoxidized structure of mirilactam C (58) and D (41) [29] might be formed because of -NH or intramolecular nucleophilic-attacking C-11 site. This was similar to the synthesis of dracolactam A (57) and B (43) [42], according to the analysis by Schulze et al. miR-biosynthesis gene cluster and the structure and biosynthesis pathway of structural analogues. The epoxidation mechanism of mirilactam E (40) was different from that of dracolactam B (43) (Figure 7a). Mirilactam E (40) formed an epoxidation structure through a nucleophilic attack on C-14 by hydroxyl groups at the C-10 site. Within the biosynthetic gene cluster, miR-L was the sole enzyme that was presumed to encode the function of P450, which may interact with the hydroxyl group at the C-10 position. Studies had shown that the biosynthesis of mirilactam C–E (58, 40–41) from mirilactam A (18) was not the result of the biotransformation of co-cultured MACA. The most likely reason was that the coexistence of MACA stimulated the cryptic P450 enzyme-producing bacteria in the biosynthesis pathway of mirilactam A (18) and led to intramolecular oxidation and cyclization and ultimately the generation of mirilactam C–E (58, 40–41).
In brief, due to the existence of polyene bonds, there were more possibilities for intramolecular changes. The process was similar, but the mechanism may be different. For example, the [6π + 4π] [124,125] and [4π + 2π] cycloaddition reaction [122] pathways may be caused by the changes in the energy levels of the bonding and antibonding orbitals in the pericyclic reactions. Heronamides were produced via two spontaneous pathways involving alternative thermal [6π + 4π] [29] and photochemical [6π + 6π] intramolecular cycloadditions. Similarly, ciromicin B (75) was predicted from the product of ciromicin A (74) [6π + 6π] cycloaddition by photocatalytic pathway [126]. PTMs are also an important branch of PLMs [101] (Figure 3a,b), and a series of results from combinatorial biological experiments has shown that OX genes are involved in the formation of intramolecular multiple rings [127]. Wherefore, whether these reactions were formed by a non-enzymatic system (photocatalytic thermal-catalytic [36,126]) or an enzymatic system [128] was indefinite, since the enzymes associated with Diels–Alder cycloaddition reactions are rare in nature; furthermore, more experimental results are needed for elaboration.

4.4. Glycosylated Groups

Antibacterial, fungal and cytotoxic activities were presented in glycosylated polyene macrolactams. Sannastatin (34) was derived from its biosynthetic precursor vicenistatin through a selective epoxidation process in S. Sannanensis [40]. The sugar group of sannastatin (34) was the same as vicenistatin (32). In some events, sugar affected their bioactivity and pharmacological application. For instance, vicenistatin D-vicenisamine replaced with D-mycarose completely lost activity [107]. In the process of sugar biosynthesis, the substrate recognition of glycosyltransferase played a key role in the diversity of the products. Therefore, the modification of glycol groups in natural products often involved genetic manipulation of glycosyltransferases.
Auroramycin (37) containing a unique disaccharide motif was essential for its antimicrobial bioactivity. According to the putative sugar biosynthesis pathway, kasO*p was used and associated with CRISPR-Cas9-mediated genome editing by glycosyltransferase to regulate 3, 5-epi-lemonose biosynthesis [129]. Ultimately, specific alterations to the glycosylation pattern were made, and five analogues were synthesized. A comparative examination of activity revealed that the unique disaccharide moiety, namely C-methylation of the outer sugar unit, was critical for auroramycin’s antifungal action.
In the structures of sipanmycin A and B (38, 39), the mode of the core structure with two sugar moieties were the same as auroramycin (37). In 2018, Mónica G. Malmierca et al. conducted an important experiment on the sipanmycin A and B’s route of biosynthesis and revealed that the cooperation of two different glycosyltransferases achieved the incorporation of the same sugar [23].
In addition, from Table 1, such kinds of compounds containing sugar groups were mainly explored using natural screening, and there was a scarce screening method targeting the glycosylation group. While this highlights the lack of a predictive model for using glycosylation chemistry for natural product optimization, it also suggested that effective glycol-diversification strategies, for example, chemo-enzymatic or bottom-up synthetic biology, can provide unique opportunities for improving and/or broadening natural product therapeutic potential [130].

5. Mechanism of Action

Polyene macrolactams (PMLs) are a unique class of substances in microbial metabolism. Many of them have biological activities such as antibacterial, cytotoxicity, regulation of Bcl-XL function [12] and the inhibition of adhesion of leukemia cells. Their specific mode of action in fungi had attracted the interest of researchers. The different binding sites can prevent cross-resistance between two drug classes with the same target [131].
Stubomycin (hitachimycin) (49) inhibited the synthesis of DNA, RNA and protein in yeast Saccharomyces cells in addition to causing holes on the surface of the cell membrane [18]. For specific performance inhibiting essential proton pump Pma1p, a P-type ATPase is a potentially effective therapeutic approach for fungal infection [18].
Leinamycin (LNM) (48) belongs to the family of polyene macrolactams and had a wide range of antimicrobial and antitumor activities. LNM, in particular, was demonstrated to have a distinct DNA-damaging mechanism of action involving activation by cellular thiols [132]. In the presence of sulfhydryl, a reductive cofactor, LNM, caused DNA alkylation, resulting in single-stranded DNA breaks [133]. Individual disulfide alkyl groups had different DNA shearing mechanisms in vitro compared with intact LNM [45].
Auroramycin (37) was a rare member of polyene macrolactams with antifungal bioactivity. The action of auroramycin in yeast cells was that it disrupted the structural organization of the vacuolar and the integrity of membranes, which differed from amphotericin B. Auroramycin was able to cause ionic stress and hyperpolarization of the yeast plasma membrane, which resulted in the microcosmic phenomenon of cation leakage from the cytoplasm [134].
Heronamide C (25) may have potential antifungal activities due to its saturated hydrocarbon chain and its ability to be inserted into the phospholipid bilayer: that is to say, passing the corresponding membrane phospholipid target. In the study, the authors detected the morphological changes of yeast cells after the compound treatment and speculated that heronamide C might induce the abnormal accumulation of cell wall substances by regulating the lipid function of the cell membrane and activating the membrane protein, and this eventually results in the changes in cell morphology [135,136].
The mechanisms of HASF (83) and analogues were different from other antifungal agents: that is, HASF interfering with sphingolipid biosynthesis in Candida albicans [137]. The mode of action of alteramide B was β-tubulin binding, which induced a ROS-mediated apoptosis pathway [70].

6. The Challenges and Opportunities of Current Research on PMLs

Antifungal medications included polyene macrolides such as amphotericin B and nystatin, as well as non-polyene-lactam lactamides, which were represented by penicillin. PMLs produced by binding polyene to the structural groups of macrocyclic lactams had a wide range of activities, and their various structural types may have unique active mechanisms, making them a kind of reserve prodrug for future human resistance to unknown diseases. However, for the time being, this family of chemicals was still in the early stages of the study, with some technical challenges that we would have to work through jointly.

6.1. Bottleneck Limitation for PMLs Isolation and Storage

The isolation and purification of polyene, as well as the identification of its absolute configuration, are problematic due to the instability of natural polyene products. Polyene macrocyclic lactamides possessing glycoside groups or carboxyl groups can exploit the hydrophilicity of the material itself by continually spreading the target from the aqueous phase to the organic phase following salt generation in the isolation and purification process. The targets were swiftly separated by a repeated partition of aqueous and organic phases, and other compounds with medium and long branched aliphatic chains showed obvious lipophilic characteristics. After concentration, precipitation and recrystallization of the crude extracts, a significant number of pure target products of the above listed were obtained [138].
Sceliphrolactam (17), micromololactam (16), FW05328-1 (10) and other PMLs contain monocyclic polyene lactam structures. There were many hydroxyl and methyl groups in the rings, but there were no additional branched chains similar to fatty chains or carboxyl groups. To obtain such compounds, microorganic extracts experienced numerous and complicated isolation steps. Because the compounds were easily degraded in the stimulation of light, temperature, heat and oxygen, the acquisition of large-scale highly purified samples would become critical in future research and application.
Fortunately, Christopher S et al. used sporopolleninexine capsules (SpECs) derived from the spores of the plant Lycopodium clavatum to extend the half-life of the compound and successfully isolated an active polyene antibiotic “marinomycin A” with a particularly short half-life in natural light in 2019 [138]. The SpECs had a porous shell structure with multidirectional, nanoscale channels that may encapsulate and release compounds in a regulated manner, and they can be employed as an appropriate medium for the storage and transport of photo-unstable polyene compounds. The findings provided new information on how to isolate and purify photo-unstable polyene molecules. Based on the structure of SpECs and other similar polymers, the core of the idea was to cross-link the corresponding groups with an affinity for polyene compounds in the interior of the porous shell structure to form artificial semi-synthetic specific materials similar to current macroporous resin materials, while also providing light protection and rapid and targeted separation of polyene compounds. This would have paved the way for large-scale procurement of polyene macrolactam compounds in the future, as well as their pharmaceutical application and medication delivery.
With further investigation, it was found that many natural small molecules or macromolecular proteins in the organic body were in a metastable/transition state. The molecule stayed in an inactive state as a complex with a protective agent (such as an amino group/protein); otherwise, the corresponding enzymes will remove the protective agent to activate the molecular. The extraction and purification of meta-stable molecular pose a challenge but we believed that with the acceleration of development and understanding of research on bio-macromolecule complexes, scientists will persistently approach and restore the truest condition and function of polyene macrolactams existing in vivo. In addition to the above-mentioned protective effect of artificial porous shell materials on polyene macrocyclic lactams, it is possible to combine protein substances and polyene macrocyclic lactam to form a stable complex for isolation, purification, preservation and application in the future.

6.2. PMLs Poor Solubility Blocking Bioactivities Assessment

Because the presence of hydrophobic groups such as medium and long aliphatic chains or amino acid phenylalanine in PMLs leading to their poor solubility, these affect BE-14106 (22), hitachimycin (49) and aureoverticillactam (29). These types of PMLs were difficult to use directly for the assessment of activities (katsuhisa kojiri et al., 1992; stubomycin., 1981). The problem of polyene macrolactam solubility could be solved by chemical semi-synthetic approaches in which the -OH group was attached to the sugar group or PEG, etc., to increase the solubility of compounds in the future.

6.3. Multidisciplinary Effort toward Further PMLs Discovery

6.3.1. Innovation of Strain Source

The new source implied that there was a high likelihood of discovering chemicals with novel structures. Nevertheless, the possibilities of identifying new strains that can be cultured as mono-clones were dwindling within the confines of existing technologies. As a result, several researchers have explored the sky, seas and mines to find unusual natural strains and create novel methods for obtaining hitherto “difficult or un-cultivable” microbial strains. As a result, streaming single-cell separation and fluorescent marker combination of a single cell in situ culture techniques have been required for isolating the unusual, new species of microbial strains.

6.3.2. Establishment of Chemical Tool Enzymology Library

Afterward, data collection about the key enzyme involved in each node of the novel PLM biosynthetic pathways was performed. Following that, heterologous expression, purification and the construction of the appropriate PKS enzymology library to produce several related high purity proteases from the PKS and NRPS biosynthetic routes were performed. Under mild in vitro conditions, the integration of enzyme engineering and chemical engineering was performed to execute or replicate biological substances synthesis processes in the body, i.e., constructing bionic biosynthesis.
From genes to proteins, the artificial transformation of the PKS enzyme system afforded the directionally known enzyme AT; the substrate specificity of adenosine, polyketone peptidase KQ, acyltransferase, transaminase, methyltransferase, methoxy-transferase, decarboxylase, thioester enzyme, glycosylation enzyme and glycosyl-transferase in the PKS natural products assembly process; and improved enzymology tools.
Specific matching and protein combinations would need to be made to ensure the smooth coordination function of the key nodes’ proteins in the PKS assembly line. To obtain the crystal structure [111,123] of biosynthetic enzymes X-ray diffraction, structural biology and physics methods were required. The surface interaction among proteins has already been observed using a Frozen Electron Microscope (FEM). A kinetics model for observing the movement of proteins should be built based on NMR data. A “high-speed cell machine” would be created to better understand the real kinetics mode of enzymes involved in the biosynthetic pathway and the relationship between enzymes and specific substrates. It will be more efficient in vitro and can lower the reaction barrier for the elucidation of new structures of synthetic compounds.
Currently, physics-based tools, such as X-ray crystal diffraction technology, have limited the establishment of biologic synthetase databases to some extent because the high purity, solubility and uniformity of protein crystal are difficult to obtain. It is necessary to design linkers artificially and add crosslinking and protective agents to stabilize the protein structure that meets detection demands, particularly for the protein complex in the transition state. These artificial components cannot be fully reproduced in the organism’s reaction process. Moreover, the crystal structure simply depicts the motion of the protein in a specific space and time frame. NMR technology can study the structure and motion state of protein molecules indestructibly, but it is limited to detecting proteins with a molecular weight of 20 KDa. The development of frozen electron microscopy (cryo-EM) technology has greatly broadened the scope of protein structure research, which will be no longer limited by the study of protein crystal structure but will be understood with the interface of protein interaction.

6.3.3. Pharmacology and Mechanism of Bioactivity

Many PMLs draw much attention due to the multiple types of physiological activities and immunomodulatory activities. However, the mechanism for the bioactivity of PMLs remains insufficiently understood. Research on PMLs is also dependent on the progress and development of physics observation methods. With the advancement of bioinformatics and chemical informatics, biological fluorescein, isotope labelling technology, marking biological macromolecular protein via fluorescence microscope, microscope principle and scanning electron microscopy (SEM), drugs and proteins exist in the signal pathways of living organisms and can be visually and dynamically observed. This accelerates the understanding of the new compound structure and the mode of attachment of small molecules to a macromolecular protein, promoting the progress of mechanism research and providing assistance in new drug research and development processes. It is important to study the development of antifungal PMLs lead-drugs, which are currently in short supply in clinical trials.

7. Conclusions

This paper reviewed the discoveries, structural characteristics, producing strains, mechanism of actions, biosynthetic pathways and problems in the research of PMLs, as well as some possible solutions and research orientation. Hopefully, this paper will help scientists in exploring PMLs in the future.
In summary, due to the existence of active double-bond groups in PMLs, PMLs have fused into multiple groups to form a variety of structural classes and correspond to a variety of biological activities. Although the isolation and structural elucidation of these compounds have a long history, their biosynthesis pathways, especially those forming intramolecular cyclization, are still not clear. The study on in vivo peri-cyclic reactions and intramolecular cycloaddition chemical reaction mechanisms can better guide their chemical synthesis modification, as well as bionic synthesis.

Author Contributions

Conceptualization, methodology and project administration, B.W.; writing—original draft preparation, W.Z. and H.J.; writing—review and editing, X.-W.L.; validation and supervision, J.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the NSFC (No. 41876148 and 42176098), the Fujian Natural Science Foundation (No.2021J01336) and Fujian Science and Technology Project (No. 2020R10050012).

Data Availability Statement

The data that support the findings of this review are openly available in references listed in this manuscript.

Acknowledgments

The authors would like to specifically acknowledge the effort of the layout and drawings provided by two lead contribution classmates (Yichao Ge and Chengzhen Zhou) who come from Zhejiang University.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Van Bergeijk, D.A.; Terlouw, B.R.; Medema, M.H.; van Wezel, G.P. Ecology and genomics of Actinobacteria: New concepts for natural product discovery. Nat. Rev. Microbiol. 2020, 18, 546–558. [Google Scholar] [CrossRef] [PubMed]
  2. Qi, S.; Gui, M.; Li, H.; Yu, C.; Li, H.; Zeng, Z.; Sun, P. Secondary Metabolites from Marine Micromonospora: Chemistry and Bioactivities. Chem. Biodiver. 2020, 17, e2000024. [Google Scholar] [CrossRef] [PubMed]
  3. Barka, E.A.; Vatsa, P.; Sanchez, L.; Gaveau-Vaillant, N.; Jacquard, C.; Meier-Kolthoff, J.P.; Klenk, H.P.; Clément, C.; Ouhdouch, Y.; van Wezel, G.P. Taxonomy, Physiology, and Natural Products of Actinobacteria. Microbiol. Mol. Biol. Rev. 2016, 80, 1–43. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Shin, Y.H.; Beom, J.Y.; Chung, B.; Shin, Y.; Byun, W.S.; Moon, K.; Bae, M.; Lee, S.K.; Oh, K.B.; Shin, J.; et al. Bombyxamycins A and B, Cytotoxic Macrocyclic Lactams from an Intestinal Bacterium of the Silkworm Bombyx mori. Org. Lett. 2019, 21, 1804–1808. [Google Scholar] [CrossRef] [PubMed]
  5. Kojiri, K.; Nakajima, S.; Suzuki, H.; Kondo, H.; Suda, H. A new macrocyclic lactam antibiotic, BE-14106. I. Taxonomy, isolation, biological activity and structural elucidation. J. Antibiot. 1992, 45, 868–874. [Google Scholar] [CrossRef] [Green Version]
  6. Jørgensen, H.; Degnes, K.F.; Dikiy, A.; Fjaervik, E.; Klinkenberg, G.; Zotchev, S.B. Insights into the evolution of macrolactam biosynthesis through cloning and comparative analysis of the biosynthetic gene cluster for a novel macrocyclic lactam, ML-449. Appl. Environ. Microbiol. 2010, 76, 283–293. [Google Scholar] [CrossRef] [Green Version]
  7. Lim, Y.H.; Wong, F.T.; Yeo, W.L.; Ching, K.C.; Lim, Y.W.; Heng, E.; Chen, S.; Tsai, D.J.; Lauderdale, T.L.; Shia, K.S.; et al. Auroramycin: A Potent Antibiotic from Streptomyces roseosporus by CRISPR-Cas9 Activation. Chembiochem 2018, 19, 1716–1719. [Google Scholar] [CrossRef]
  8. Shindo, K.; Kamishohara, M.; Odagawa, A.; Matsuoka, M.; Kawai, H. Vicenistatin, a novel 20-membered macrocyclic lactam antitumor antibiotic. J. Antibiot. 1993, 46, 1076–1081. [Google Scholar] [CrossRef] [Green Version]
  9. Hara, M.; Asano, K.; Kawamoto, I.; Takiguchi, T.; Katsumata, S.; Takahashi, K.; Nakano, H. Leinamycin, a new antitumor antibiotic from Streptomyces: Producing organism, fermentation and isolation. J. Antibiot. 1989, 42, 1768–1774. [Google Scholar]
  10. Schulze, C.J.; Donia, M.S.; Siqueira-Neto, J.L.; Ray, D.; Raskatov, J.A.; Green, R.E.; McKerrow, J.H.; Fischbach, M.A.; Linington, R.G. Genome-Directed Lead Discovery: Biosynthesis, Structure Elucidation, and Biological Evaluation of Two Families of Polyene Macrolactams against Trypanosoma brucei. ACS Chem. Biol. 2015, 10, 2373–2381. [Google Scholar] [CrossRef]
  11. Kimura, T.; Iwatsuki, M.; Asami, Y.; Ishiyama, A.; Hokari, R.; Otoguro, K.; Matsumoto, A.; Sato, N.; Shiomi, K.; Takahashi, Y.; et al. Anti-trypanosomal compound, sagamilactam, a new polyene macrocyclic lactam from Actinomadura sp. K13-0306. J. Antibiot. 2016, 69, 818–824. [Google Scholar] [CrossRef] [PubMed]
  12. Futamura, Y.; Sawa, R.; Umezawa, Y.; Igarashi, M.; Nakamura, H.; Hasegawa, K.; Yamasaki, M.; Tashiro, E.; Takahashi, Y.; Akamatsu, Y.; et al. Discovery of incednine as a potent modulator of the anti-apoptotic function of Bcl-xL from microbial origin. J. Am. Chem. Soc. 2008, 130, 1822–1823. [Google Scholar] [CrossRef] [PubMed]
  13. Shen, J.; Fan, Y.; Zhu, G.; Chen, H.; Zhu, W.; Fu, P. Polycyclic Macrolactams Generated via Intramolecular Diels-Alder Reactions from an Antarctic Streptomyces Species. Org. Lett. 2019, 21, 4816–4820. [Google Scholar] [CrossRef] [PubMed]
  14. Jeanvoine, A.; Rocchi, S.; Bellanger, A.P.; Reboux, G.; Millon, L. Azole-resistant Aspergillus fumigatus: A global phenomenon originating in the environment? Med. Mal. Infect. 2020, 50, 389–395. [Google Scholar] [CrossRef] [PubMed]
  15. Meis, J.F.; Chowdhary, A.; Rhodes, J.L.; Fisher, M.C.; Verweij, P.E. Clinical implications of globally emerging azole resistance in Aspergillus fumigatus. Philos. Trans. R. Soc. B Biol. Sci. 2016, 371, 20150460. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Pristov, K.E.; Ghannoum, M.A. Resistance of Candida to azoles and echinocandins worldwide. Clin. Microbiol. Infect. 2019, 25, 792–798. [Google Scholar] [CrossRef]
  17. Kaur, L.; Abhijeet; Jain, S.K. Safe and Effective Delivery of Amphotericin B: A Survey of Patents. Recent Pat. Nanotechnol. 2017, 11, 214–234. [Google Scholar] [CrossRef]
  18. Ottilie, S.; Goldgof, G.M.; Cheung, A.L.; Walker, J.L.; Vigil, E.; Allen, K.E.; Antonova-Koch, Y.; Slayman, C.W.; Suzuki, Y.; Durrant, J.D. Two inhibitors of yeast plasma membrane ATPase 1 (ScPma1p): Toward the development of novel antifungal therapies. J. Cheminform. 2018, 10, 6. [Google Scholar] [CrossRef] [Green Version]
  19. Alvarez, R.; de Lera, A.R. Natural polyenic macrolactams and polycyclic derivatives generated by transannular pericyclic reactions: Optimized biogenesis challenging chemical synthesis. Nat. Prod. Rep. 2021, 38, 1136–1220. [Google Scholar] [CrossRef]
  20. Messaoudi, O.; Sudarman, E.; Bendahou, M.; Jansen, R.; Stadler, M.; Wink, J. Kenalactams A-E, Polyene Macrolactams Isolated from Nocardiopsis sp. CG3. J. Nat. Prod. 2019, 82, 1081–1088. [Google Scholar] [CrossRef]
  21. Thawai, C.; Kittakoop, P.; Tanasupawat, S.; Suwanborirux, K.; Thebtaranonth, Y. Micromonosporin A, a novel 24-membered polyene lactam macrolide from Micromonospora sp. isolated from peat swamp forest. Chem. Biodiver. 2010, 1, 640–645. [Google Scholar] [CrossRef] [PubMed]
  22. Malmierca, M.G.; Pérez-Victoria, I.; Serrano, J.M.; Reyes, F.; Olano, C. New Sipanmycin Analogues Generated by Combinatorial Biosynthesis and Mutasynthesis Approaches Relying on the Substrate Flexibility of Key Enzymes in the Biosynthetic Pathway. Appl. Env. Microb. 2019, 86, e02453-19. [Google Scholar] [CrossRef] [PubMed]
  23. Malmierca, M.G.; Pérez-Victoria, I.; Martín, J.; Reyes, F.; Méndez, C.; Olano, C.; Salas, J.A. Cooperative involvement of glycosyltransferases in the transfer of aminosugars in the 1 biosynthesis of the macrolactam sipanmycin by Streptomyces sp. CS149. Appl. Environ. Microbiol. 2018, 84, e01462-18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Nie, Y.L.; Wu, Y.D.; Wang, C.X.; Lin, R.; Xie, Y.; Fang, D.S.; Jiang, H.; Lian, Y.Y. Structure elucidation and antitumour activity of a new macrolactam produced by marine-derived actinomycete Micromonospora sp. FIM05328. Nat. Prod. Res. 2018, 32, 2133–2138. [Google Scholar] [CrossRef] [PubMed]
  25. Shin, Y.H.; Kang, S.; Byun, W.S.; Jeon, C.W.; Oh, D.C. Absolute Configuration and Antibiotic Activity of Piceamycin. J. Nat. Prod. 2020, 83, 277–285. [Google Scholar] [CrossRef]
  26. Skellam, E.J.; Stewart, A.K.; Strangman, W.K.; Wright, J.L. Identification of micromonolactam, a new polyene macrocyclic lactam from two marine Micromonospora strains using chemical and molecular methods: Clarification of the biosynthetic pathway from a glutamate starter unit. J. Antibiot. 2013, 66, 431–441. [Google Scholar] [CrossRef]
  27. Oh, D.C.; Poulsen, M.; Currie, C.R.; Clardy, J. Sceliphrolactam, a Polyene Macrocyclic Lactam from a Wasp-Associated Streptomyces sp. Org. Lett. 2011, 13, 752–755. [Google Scholar] [CrossRef]
  28. Low, Z.J.; Pang, L.M.; Ding, Y.; Cheang, Q.W.; Le Mai Hoang, K.; Thi Tran, H.; Li, J.; Liu, X.W.; Kanagasundaram, Y.; Yang, L.; et al. Identification of a biosynthetic gene cluster for the polyene macrolactam sceliphrolactam in a Streptomyces strain isolated from mangrove sediment. Sci. Rep. 2018, 8, 1594. [Google Scholar] [CrossRef]
  29. Hoshino, S.; Ozeki, M.; Wong, C.P.; Zhang, H.; Hayashi, F.; Awakawa, T.; Morita, H.; Onaka, H.; Abe, I. Mirilactams C-E, Novel Polycyclic Macrolactams Isolated from Combined-Culture of Actinosynnema mirum NBRC 14064 and Mycolic Acid-Containing Bacterium. Chem. Pharm. Bull. 2018, 66, 660–667. [Google Scholar] [CrossRef] [Green Version]
  30. Udwary, D.W.; Zeigler, L.; Asolkar, R.N.; Singan, V.; Lapidus, A.; Fenical, W.; Jensen, P.R.; Moore, B.S. Genome sequencing reveals complex secondary metabolome in the marine actinomycete Salinispora tropica. Proc. Natl. Acad. Sci. USA 2007, 104, 10376–10381. [Google Scholar] [CrossRef] [Green Version]
  31. Wang, P.; Wang, D.; Zhang, R.; Wang, Y.; Kong, F.; Fu, P.A.-O.; Zhu, W.A.-O. Novel Macrolactams from a Deep-Sea-Derived Streptomyces Species. Mar. Drugs 2021, 19, 13. [Google Scholar] [CrossRef] [PubMed]
  32. Jørgensen, H.; Degnes, K.F.; Sletta, H.; Fjaervik, E.; Dikiy, A.; Herfindal, L.; Bruheim, P.; Klinkenberg, G.; Bredholt, H.; Nygård, G.; et al. Biosynthesis of macrolactam BE-14106 involves two distinct PKS systems and amino acid processing enzymes for generation of the aminoacyl starter unit. Chem. Biol. 2009, 16, 1109–1121. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Takahashi, I.; Oda, Y.; Nishiie, Y.; Ochiai, K.; Mizukami, T. GT32-B new 20-membered macrocyclic lactam antibiotic. J. Antibiot. 1997, 50, 186–188. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Kawahara, T.; Fujiwara, T.; Kagaya, N.; Shin-Ya, K. JBIR-150, a novel 20-membered polyene macrolactam from marine-derived Streptomyces sp. OPMA00071. J. Antibiot. 2018, 71, 390–392. [Google Scholar] [CrossRef] [PubMed]
  35. Raju, R.; Piggott, A.M.; Conte, M.M.; Capon, R.J. Heronamides A-C, new polyketide macrolactams from an Australian marine-derived Streptomyces sp. A biosynthetic case for synchronized tandem electrocyclization. Org. Biomol. Chem. 2010, 8, 4682–4689. [Google Scholar] [CrossRef]
  36. Sugiyama, R.; Nishimura, S.; Matsumori, N.; Tsunematsu, Y.; Hattori, A.; Kakeya, H. Structure and biological activity of 8-deoxyheronamide C from a marine-derived Streptomyces sp.: Heronamides target saturated hydrocarbon chains in lipid membranes. J. Am. Chem. Soc. 2014, 136, 5209–5212. [Google Scholar] [CrossRef]
  37. Zhang, W.; Li, S.; Zhu, Y.; Chen, Y.; Chen, Y.; Zhang, H.; Zhang, G.; Tian, X.; Pan, Y.; Zhang, S.; et al. Heronamides D-F, polyketide macrolactams from the deep-sea-derived Streptomyces sp. SCSIO 03032. J. Nat. Prod. 2014, 77, 388–391. [Google Scholar] [CrossRef]
  38. Mitchell, S.S.; Nicholson, B.; Teisan, S.; Lam, K.S.; Potts, B. Aureoverticillactam, a Novel 22-Atom Macrocyclic Lactam from the Marine Actinomycete Streptomyces aureoverticillatus. J. Nat. Prod. 2004, 67, 1400–1402. [Google Scholar] [CrossRef]
  39. Beemelmanns, C.; Ramadhar, T.R.; Kim, K.H.; Klassen, J.L.; Cao, S.; Wyche, T.P.; Hou, Y.; Poulsen, M.; Bugni, T.S.; Currie, C.R.; et al. Macrotermycins A–D, Glycosylated Macrolactams from a Termite-Associated Amycolatopsis sp. M39. Org. Lett. 2017, 19, 1000–1003. [Google Scholar] [CrossRef]
  40. Yang, S.X.; Gao, J.M.; Zhang, A.L.; Laatsch, H. RETRACTED: Sannastatin, a novel toxic macrolactam polyketide glycoside produced by actinomycete Streptomyces sannanensis. Bioorganic. Med. Chem. Lett. 2011, 21, 3905–3908. [Google Scholar] [CrossRef]
  41. Schulz, D.; Nachtigall, J.; Geisen, U.; Kalthoff, H.; Imhoff, J.F.; Fiedler, H.P.; Süssmuth, R.D. Silvalactam, a 24-membered macrolactam antibiotic produced by Streptomyces sp. Tü 6392. J. Antibiot. 2012, 65, 369–372. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Hoshino, S.; Okada, M.; Awakawa, T.; Asamizu, S.; Onaka, H.; Abe, I. Mycolic Acid Containing Bacterium Stimulates Tandem Cyclization of Polyene Macrolactam in a Lake Sediment Derived Rare Actinomycete. Org. Lett. 2017, 19, 4992–4995. [Google Scholar] [CrossRef] [PubMed]
  43. Wang, J.; Hu, X.; Sun, G.; Li, L.; Wu, L. Genome-Guided Discovery of Pretilactam from Actinosynnema pretiosum ATCC 31565. Molecules 2019, 24, 2281. [Google Scholar] [CrossRef] [Green Version]
  44. Shen, J.; Wang, J.; Chen, H.; Wang, Y.; Fu, P. Cyclamenols E and F, two diastereoisomeric bicyclic macrolactams with cyclopentane moiety from an Antarctic Streptomyces species. Org. Chem. Front. 2019, 7, 310–317. [Google Scholar] [CrossRef]
  45. Cheng, Y.Q.; Tang, G.L.; Shen, B. Identification and Localization of the Gene Cluster Encoding Biosynthesis of the Antitumor Macrolactam Leinamycin in Streptomyces atroolivaceus S-140. J. Bacteriol. 2002, 184, 7013. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Tang, G.L.; Cheng, Y.Q.; Shen, B. Leinamycin Biosynthesis Revealing Unprecedented Architectural Complexity for a Hybrid Polyketide Synthase and Nonribosomal Peptide Synthetase. Chem. Biodiver. 2004, 11, 33–45. [Google Scholar] [CrossRef]
  47. Hoshino, S.; Okada, M.; Wakimoto, T.; Zhang, H.; Hayashi, F.; Onaka, H.; Abe, I. Niizalactams A-C, Multicyclic Macrolactams Isolated from Combined Culture of Streptomyces with Mycolic Acid-Containing Bacterium. J. Nat. Prod. 2015, 78, 3011–3017. [Google Scholar] [CrossRef] [PubMed]
  48. Nakagawa, M.; Furihata, K.; Hayakawa, Y.; Seto, H. Structure of viridenomycin. Tetrahedron Lett. 1991, 32, 659–662. [Google Scholar] [CrossRef]
  49. Mulholland, N.P.; Pattenden, G. A silicon-tethered tandem radical cyclisation–trapping strategy to the fully substituted cyclopentene ring in viridenomycin. Tetrahedron 2008, 64, 7400–7406. [Google Scholar] [CrossRef]
  50. Nogawa, T.A.-O.; Terai, A.; Amagai, K.A.-O.; Hashimoto, J.; Futamura, Y.; Okano, A.; Fujie, M.; Satoh, N.; Ikeda, H.A.-O.; Shin-Ya, K.A.-O.; et al. Heterologous Expression of the Biosynthetic Gene Cluster for Verticilactam and Identification of Analogues. J. Nat. Prod. 2020, 83, 3598–3605. [Google Scholar] [CrossRef]
  51. Park, S.H.; Moon, K.; Bang, H.S.; Kim, S.H.; Kim, D.G.; Oh, K.B.; Shin, J.; Oh, D.C. Tripartilactam, a Cyclobutane-Bearing Tricyclic Lactam from a Streptomyces sp. in a Dung Beetle’s Brood Ball. Org. Lett. 2012, 14, 1258–1261. [Google Scholar] [CrossRef] [PubMed]
  52. Ding, N.; Han, L.; Jiang, Y.; Li, G.; Zheng, Z.; Cao, B.; Guan, P.; Mu, Y.; Lin, B.; Huang, X. Heronamides G–L, polyene macrolactams from Streptomyces niveus. RSC Adv. 2018, 8, 17121–17131. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Derewacz, D.K.; Covington, B.C.; McLean, J.A.; Bachmann, B.O. Mapping Microbial Response Metabolomes for Induced Natural Product Discovery. ACS Chem. Biol. 2015, 10, 1998–2006. [Google Scholar] [CrossRef] [Green Version]
  54. Nogawa, T.; Okano, A.; Takahashi, S.; Uramoto, M.; Konno, H.; Saito, T.; Osada, H. Verticilactam, a New Macrolactam Isolated from a Microbial Metabolite Fraction Library. Org. Lett. 2011, 12, 4564–4567. [Google Scholar] [CrossRef] [PubMed]
  55. Igarashi, M.; Tsuchida, T.; Kinoshita, N.; Kamijima, M.; Sawa, R.; Sawa, T.; Naganawa, H.; Hamada, M.; Takeuchi, T.; Yamazaki, K.; et al. Cremimycin, a novel 19-membered macrocyclic lactam antibiotic, from Streptomyces sp. J. Antibiot. 1998, 51, 123–129. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Kanazawa, S.; Fusetani, N.; Matsunaga, S. Cylindramide: Cytotoxic tetramic acid lactam from the marine sponge Halichondria cylindrata Tanita & Hoshino. Tetrahedron Lett. 1993, 34, 1065–1068. [Google Scholar]
  57. Gunasekera, S.P.; Gunasekera, M.; McCarthy, P. Discodermide: A new bioactive macrocyclic lactam from the marine sponge Discodermia dissoluta. J. Org. Chem. 1991, 56, 4830–4833. [Google Scholar] [CrossRef]
  58. Lou, L.; Qian, G.; Xie, Y.; Hang, J.; Chen, H.; Zaleta-Rivera, K.; Li, Y.; Shen, Y.; Dussault, P.H.; Liu, F. Biosynthesis of HSAF, a Tetramic Acid-containing Macrolactam from Lysobacter enzymogenes. J. Am. Chem. Soc. 2011, 133, 643–645. [Google Scholar] [CrossRef] [Green Version]
  59. Li, Y.; Chen, H.; Ding, Y.; Xie, Y.; Wang, H.; Cerny, R.L.; Shen, Y.; Du, L. Iterative Assembly of Two Separate Polyketide Chains by the Same Single-Module Bacterial Polyketide Synthase in the Biosynthesis of HSAF. Angew. Chem. Int. Ed. 2014, 53, 7654–7660. [Google Scholar] [CrossRef] [Green Version]
  60. Li, Y.; Huffman, J.; Li, Y.; Du, L.; Shen, Y. 3-Hydroxylation of the polycyclic tetramate macrolactam in the biosynthesis of antifungal HSAF from Lysobacter enzymogenes C3. MedChemComm 2012, 3, 982–986. [Google Scholar] [CrossRef]
  61. Capon, R.J.; Skene, C.; Lacey, E.; Gill, J.H.; Wadsworth, D.; Friedel, T. Geodin A magnesium salt: A novel nematocide from a southern australian marine sponge, Geodia. J. Nat. Prod. 1999, 62, 1256–1259. [Google Scholar] [CrossRef] [PubMed]
  62. Qi, Y.; Ding, E.; Blodgett, J. Native and Engineered Clifednamide Biosynthesis in Multiple Streptomyces spp. ACS Synth. Biol. 2018, 7, 357–362. [Google Scholar] [CrossRef] [PubMed]
  63. Blodgett, J.; Oh, D.C.; Ca, O.S.; Currie, C.R.; Kolter, R.; Clardy, J. Common biosynthetic origins for polycyclic tetramate macrolactams from phylogenetically diverse bacteria. Proc. Natl. Acad. Sci. USA 2010, 107, 11692–11697. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Saha, S.; Zhang, W.; Zhang, G.; Zhu, Y.; Chen, Y.; Liu, W.; Yuan, C.; Zhang, Q.; Zhang, H.; Zhang, L.; et al. Activation and characterization of a cryptic gene cluster reveals a cyclization cascade for polycyclic tetramate macrolactams. Chem. Sci. 2017, 8, 1607–1612. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Kyeremeh, K.; Acquah, K.S.; Sazak, A.; Houssen, W.; Tabudravu, J.; Deng, H.; Jaspars, M. Butremycin, the 3-hydroxyl derivative of ikarugamycin and a protonated aromatic tautomer of 5′-methylthioinosine from a Ghanaian Micromonospora sp. K310. Mar. Drugs 2014, 12, 999–1012. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Jomon, K.; Kuroda, Y.; Ajisaka, M.; Sakai, H. A new antibiotic, ikarugamycin. J. Antibiot. 1972, 25, 271–280. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Xu, L.; Wu, P.; Wright, S.J.; Du, L.; Wei, X. Bioactive Polycyclic Tetramate Macrolactams from Lysobacter enzymogenes and Their Absolute Configurations by Theoretical ECD Calculations. J. Nat. Prod. 2015, 78, 1841–1847. [Google Scholar] [CrossRef]
  68. Shigemori, H.; Bae, M.A.; Yazawa, K.; Sasaki, T.; Kobayashi, J. Alteramide A, a new tetracyclic alkaloid from a bacterium Alteromonas sp. associated with the marine sponge Halichondria okadai. J. Org. Chem. 1992, 57, 4317–4320. [Google Scholar] [CrossRef]
  69. Bae, M.-A.; Yamada, K.; Ijuin, Y.; Tsuji, T.; Yazawa, K.; Uemura, D. Aburatubolactam A, a novel inhibitor of superoxide anion generation from a marine microorganism. Heterocycl. Commun. 1996, 2, 315–318. [Google Scholar] [CrossRef]
  70. Ding, Y.; Li, Y.; Li, Z.; Zhang, J.; Lu, C.; Wang, H.; Shen, Y.; Du, L. Alteramide B is a microtubule antagonist of inhibiting Candida albicans. Biochim. Biophys. Acta Gen. Subj. 2016, 1860, 2097–2106. [Google Scholar] [CrossRef] [Green Version]
  71. Liu, Y.; Wang, H.; Song, R.; Chen, J.; Li, T.; Li, Y.; Du, L.; Shen, Y. Targeted Discovery and Combinatorial Biosynthesis of Polycyclic Tetramate Macrolactam Combamides A–E. Org. Lett. 2018, 20, 3504–3508. [Google Scholar] [CrossRef] [PubMed]
  72. Azizah, M.; Pripdeevech, P.; Thongkongkaew, T.; Mahidol, C.; Ruchirawat, S.; Kittakoop, P. UHPLC-ESI-QTOF-MS/MS-Based Molecular Networking Guided Isolation and Dereplication of Antibacterial and Antifungal Constituents of Ventilago denticulata. Antibiotics 2020, 9, 606. [Google Scholar] [CrossRef] [PubMed]
  73. Shi, Y.; Pan, C.; Cen, S.; Fu, L.; Cao, X.; Wang, H.; Wang, K.; Wu, B. Comparative metabolomics reveals defence-related modification of citrinin by Penicillium citrinum within a synthetic Penicillium-Pseudomonas community. Environ. Microbiol. 2019, 21, 496–510. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. De Felicio, R.; Ballone, P.; Bazzano, C.F.; Alves, L.F.G.; Sigrist, R.; Infante, G.P.; Niero, H.; Rodrigues-Costa, F.; Fernandes, A.Z.N.; Tonon, L.A.C.; et al. Chemical elicitors induce rare bioactive secondary metabolites in deep-sea bacteria under laboratory conditions. Metabolites 2021, 11, 107. [Google Scholar] [CrossRef] [PubMed]
  75. Wang, B.; Waters, A.L.; Sims, J.W.; Fullmer, A.; Ellison, S.; Hamann, M.T. Complex marine natural products as potential epigenetic and production regulators of antibiotics from a marine Pseudomonas aeruginosa. Microb. Ecol. 2013, 65, 1068–1075. [Google Scholar] [CrossRef] [Green Version]
  76. Biarnes-Carrera, M.; Breitling, R.; Takano, E. Butyrolactone signalling circuits for synthetic biology. Curr. Opin. Chem. Biol. 2015, 28, 91–98. [Google Scholar] [CrossRef]
  77. Barreales, E.G.; Payero, T.D.; Jambrina, E.; Aparicio, J.F. The Streptomyces filipinensis Gamma-Butyrolactone System Reveals Novel Clues for Understanding the Control of Secondary Metabolism. Appl. Environ. Microbiol. 2020, 86, e00443-20. [Google Scholar] [CrossRef]
  78. Liu, L.; Ji, M.; Wang, F.; Tian, Z.; Wang, S. N-acyl-L-homoserine lactones release and microbial community changes in response to operation temperature in an anammox biofilm reactor. Chemosphere 2020, 262, 127602. [Google Scholar] [CrossRef]
  79. Readel, E.; Portillo, A.; Talebi, M.; Armstrong, D.W. Enantiomeric separation of quorum sensing autoinducer homoserine lactones using GC-MS and LC-MS. Anal. Bioanal. Chem. 2020, 412, 2927–2937. [Google Scholar] [CrossRef]
  80. Luo, H.; Liu, H.; Cao, Y.; Xu, D.; Mao, Z.; Mou, Y.; Meng, J.; Lai, D.; Liu, Y.; Zhou, L. Enhanced production of botrallin and TMC-264 with in situ macroporous resin adsorption in mycelial liquid culture of the endophytic fungus Hyalodendriella sp. Ponipodef. Molecules 2014, 19, 14221–14234. [Google Scholar] [CrossRef] [Green Version]
  81. Gomez-Escribano, J.P.; Bibb, M.J. Engineering Streptomyces coelicolor for heterologous expression of secondary metabolite gene clusters. Microb. Biotechnol. 2011, 4, 207–215. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  82. Liu, C.; Kakeya, H. Cryptic Chemical Communication: Secondary Metabolic Responses Revealed by Microbial Co-culture. Chem. Asian J. 2020, 15, 327–337. [Google Scholar] [CrossRef] [PubMed]
  83. Chen, H.; Cai, K.; Yao, R. A new macrolactam derivative from the marine actinomycete HF-11225. J. Antibiot. 2018, 71, 477–479. [Google Scholar] [CrossRef] [PubMed]
  84. Arai, M.A.; Tanaka, M.; Tanouchi, K.; Ishikawa, N.; Ahmed, F.; Sadhu, S.K.; Ishibashi, M. Hes1-Binding Compounds Isolated by Target Protein Oriented Natural Products Isolation (TPO-NAPI). J. Nat. Prod. 2017, 80, 538–543. [Google Scholar] [CrossRef] [PubMed]
  85. Gao, Y.L.; Wang, Y.J.; Chung, H.H.; Chen, K.C.; Shen, T.L.; Hsu, C.C. Molecular networking as a dereplication strategy for monitoring metabolites of natural product treated cancer cells. Rapid Commun. Mass Spectrom. 2020, 34, e8549. [Google Scholar] [CrossRef] [Green Version]
  86. Yang, J.Y.; Sanchez, L.M.; Rath, C.M.; Liu, X.; Boudreau, P.D.; Bruns, N.; Glukhov, E.; Wodtke, A.; de Felicio, R.; Fenner, A.; et al. Molecular networking as a dereplication strategy. J. Nat. Prod. 2013, 76, 1686–1699. [Google Scholar] [CrossRef] [Green Version]
  87. Saha, S.; Esposito, G.; Urajová, P.; Mareš, J.; Ewe, D.; Caso, A.; Macho, M.; Delawská, K.; Kust, A.; Hrouzek, P.; et al. Discovery of Unusual Cyanobacterial Tryptophan-Containing Anabaenopeptins by MS/MS-Based Molecular Networking. Molecules 2020, 25, 3786. [Google Scholar] [CrossRef]
  88. Medema, M.H.; Paalvast, Y.; Nguyen, D.D.; Melnik, A.; Dorrestein, P.C.; Takano, E.; Breitling, R. Pep2Path: Automated mass spectrometry-guided genome mining of peptidic natural products. PLoS Comput. Biol. 2014, 10, e1003822. [Google Scholar] [CrossRef]
  89. Ding, C.Y.G.; Pang, L.M.; Liang, Z.X.; Goh, K.K.K.; Glukhov, E.; Gerwick, W.H.; Tan, L.T. MS/MS-Based Molecular Networking Approach for the Detection of Aplysiatoxin-Related Compounds in Environmental Marine Cyanobacteria. Mar. Drugs 2018, 16, 505. [Google Scholar] [CrossRef] [Green Version]
  90. Wang, T.; Lu, Q.; Sun, C.; Lukianov, D.; Osterman, I.A.; Sergiev, P.V.; Dontsova, O.A.; Hu, X.; You, X.; Liu, S.; et al. Hetiamacin E and F, New Amicoumacin Antibiotics from Bacillus subtilis PJS Using MS/MS-Based Molecular Networking. Molecules 2020, 25, 4446. [Google Scholar] [CrossRef]
  91. Howarth, A.; Ermanis, K.; Goodman, J.M. DP4-AI automated NMR data analysis: Straight from spectrometer to structure. Chem. Sci. 2020, 11, 4351–4359. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  92. Brandão, P.; Torimura, M.; Kurane, R.; Bull, A. Dereplication for biotechnology screening: PyMS analysis and PCR-RFLP-SSCP (PRS) profiling of 16S rRNA genes of marine and terrestrial actinomycetes. Appl. Microbiol. Biotechnol. 2002, 58, 77–83. [Google Scholar] [PubMed]
  93. Carro, L.; Nouioui, I. Taxonomy and systematics of plant probiotic bacteria in the genomic era. AIMS Microbiol. 2017, 3, 383–412. [Google Scholar] [CrossRef]
  94. Pan, G.; Xu, Z.; Guo, Z.; Hindra Ma, M.; Yang, D.; Zhou, H.; Gansemans, Y.; Zhu, X.; Huang, Y.; Zhao, L.X. Discovery of the leinamycin family of natural products by mining actinobacterial genomes. Proc. Natl. Acad. Sci. USA 2017, 114, E11131–E11140. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  95. Flinspach, K.; Westrich, L.; Kaysser, L.; Siebenberg, S.; Gomez-Escribano, J.P.; Bibb, M.; Gust, B.; Heide, L. Heterologous expression of the biosynthetic gene clusters of coumermycin A(1), clorobiocin and caprazamycins in genetically modified Streptomyces coelicolor strains. Biopolymers 2010, 93, 823–832. [Google Scholar] [CrossRef] [PubMed]
  96. Linares-Otoya, L.; Linares-Otoya, V.; Armas-Mantilla, L.; Blanco-Olano, C.; Crüsemann, M.; Ganoza-Yupanqui, M.L.; Campos-Florian, J.; König, G.M.; Schäberle, T.F. Identification and heterologous expression of the kocurin biosynthetic gene cluster. Microbiology 2017, 163, 1409–1414. [Google Scholar] [CrossRef]
  97. Novakova, R.; Núñez, L.E.; Homerova, D.; Knirschova, R.; Feckova, L.; Rezuchova, B.; Sevcikova, B.; Menéndez, N.; Morís, F.; Cortés, J.; et al. Increased heterologous production of the antitumoral polyketide mithramycin A by engineered Streptomyces lividans TK24 strains. Appl. Microbiol. Biotechnol. 2018, 102, 857–869. [Google Scholar] [CrossRef]
  98. Sekurova, O.N.; Schneider, O.; Zotchev, S.B. Novel bioactive natural products from bacteria via bioprospecting, genome mining and metabolic engineering. Microb. Biotechnol. 2019, 12, 828–844. [Google Scholar] [CrossRef] [Green Version]
  99. Becerril, A.; Pérez-Victoria, I.; Ye, S.; Braña, A.F.; Martín, J.; Reyes, F.; Salas, J.A.; Méndez, C. Discovery of Cryptic Largimycins in Streptomyces Reveals Novel Biosynthetic Avenues Enriching the Structural Diversity of the Leinamycin Family. ACS Chem. Biol. 2020, 15, 1541–1553. [Google Scholar] [CrossRef]
  100. Li, L.; Koirala, B.; Hernandez, Y.; MacIntyre, L.W.; Ternei, M.A.; Russo, R.; Brady, S.F. Identification of structurally diverse menaquinone-binding antibiotics with in vivo activity against multidrug-resistant pathogens. Nat. Microbiol. 2022, 7, 120–131. [Google Scholar] [CrossRef]
  101. Zhang, G.; Zhang, W.; Saha, S.; Zhang, C. Recent Advances in Discovery, Biosynthesis and Genome Mining of Medicinally Relevant Polycyclic Tetramate Macrolactams. Curr. Top. Med. Chem. 2016, 16, 1727–1739. [Google Scholar] [CrossRef] [PubMed]
  102. Morinaka, B.I.; Lakis, E.; Verest, M.; Helf, M.J.; Scalvenzi, T.; Vagstad, A.L.; Sims, J.; Sunagawa, S.; Gugger, M.; Piel, J. Natural noncanonical protein splicing yields products with diverse β-amino acid residues. Science 2018, 359, 779–782. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  103. Miyanaga, A.; Kudo, F.; Eguchi, T. Mechanisms of β-amino acid incorporation in polyketide macrolactam biosynthesis. Curr. Opin. Chem. Biol. 2016, 35, 58–64. [Google Scholar] [CrossRef]
  104. Kudo, F.; Miyanaga, A.; Eguchi, T. Biosynthesis of natural products containing β-amino acids. Nat. Prod. Rep. 2014, 31, 1056–1073. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  105. Ogasawara, Y.; Kakinuma, K.; Eguchi, T. Involvement of glutamate mutase in the biosynthesis of the unique starter unit of the macrolactam polyketide antibiotic vicenistatin. J. Antibiot. 2005, 58, 468–472. [Google Scholar] [CrossRef]
  106. Miyanaga, A.; Iwasawa, S.; Shinohara, Y.; Kudo, F.; Eguchi, T. Structure-based analysis of the molecular interactions between acyltransferase and acyl carrier protein in vicenistatin biosynthesis. Proc. Natl. Acad. Sci. USA 2016, 113, 1802–1807. [Google Scholar] [CrossRef] [Green Version]
  107. Minami, A.; Eguchi, T. Substrate flexibility of vicenisaminyltransferase VinC involved in the biosynthesis of vicenistatin. J. Am. Chem. Soc. 2007, 129, 5102–5107. [Google Scholar] [CrossRef]
  108. Takaishi, M.; Kudo, F.; Eguchi, T. A unique pathway for the 3-aminobutyrate starter unit from L-glutamate through β-glutamate during biosynthesis of the 24-membered macrolactam antibiotic, incednine. Org. Lett. 2012, 14, 4591–4593. [Google Scholar] [CrossRef]
  109. Takaishi, M.; Kudo, F.; Eguchi, T. Identification of the incednine biosynthetic gene cluster: Characterization of novel β-glutamate-β-decarboxylase IdnL3. J. Antibiot. 2013, 66, 691–699. [Google Scholar] [CrossRef] [Green Version]
  110. Cieślak, J.; Miyanaga, A.; Takaku, R.; Takaishi, M.; Amagai, K.; Kudo, F.; Eguchi, T. Biochemical characterization and structural insight into aliphatic β-amino acid adenylation enzymes IdnL1 and CmiS6. Proteins 2017, 85, 1238–1247. [Google Scholar] [CrossRef]
  111. Cieślak, J.; Miyanaga, A.; Takaishi, M.; Kudo, F.; Eguchi, T. Functional and structural characterization of IdnL7, an adenylation enzyme involved in incednine biosynthesis. Acta Crystallogr. F Struct. Biol. Commun. 2019, 75 Pt 4, 299–306. [Google Scholar] [CrossRef] [PubMed]
  112. Kudo, F.; Kawamura, K.; Uchino, A.; Miyanaga, A.; Eguchi, T. Genome Mining of the Hitachimycin Biosynthetic Gene Cluster: Involvement of a Phenylalanine-2,3-aminomutase in Biosynthesis. ChemBioChem 2015, 16, 909–914. [Google Scholar] [CrossRef] [PubMed]
  113. Batsanov, A.S.; Knowles, J.P.; Lightfoot, A.P.; Maw, G.; Thirs, C.E.; Twiddle, S.; Whiting, A. A novel, efficient, diastereo- and enantioselective Mukaiyama aldol-based synthesis of a vinyl cyclopentanone core derivative of viridenomycin. Organic. Lett. 2007, 9, 5565–5568. [Google Scholar] [CrossRef] [PubMed]
  114. Constandinos, B.L. A concise synthesis of the functionalised cyclopentane unit in the antitumoural antibiotic viridenomycin. Tetrahedron Lett. 2005, 46, 1913–1915. [Google Scholar]
  115. Mulholland, N.P.; Pattenden, G. A route to the fully substituted cyclopentane unit of viridenomycin using a tandem radical cyclisation–trapping strategy. Tetrahedron Lett. 2005, 46, 937–939. [Google Scholar] [CrossRef]
  116. Amagai, K.; Kudo, F.; Eguchi, T. Biosynthetic pathway of macrolactam polyketide antibiotic cremimycin. Tetrahedron 2011, 67, 8559–8563. [Google Scholar] [CrossRef]
  117. Amagai, K.; Takaku, R.; Kudo, F.; Eguchi, T. A unique amino transfer mechanism for constructing the β-amino fatty acid starter unit in the biosynthesis of the macrolactam antibiotic cremimycin. ChemBioChem 2013, 14, 1998–2006. [Google Scholar] [CrossRef]
  118. Kawasaki, D.; Chisuga, T.; Miyanaga, A.; Kudo, F.; Eguchi, T. Structural Analysis of the Glycine Oxidase Homolog CmiS2 Reveals a Unique Substrate Recognition Mechanism for Formation of a β-Amino Acid Starter Unit in Cremimycin Biosynthesis. Biochemistry 2019, 58, 2706–2709. [Google Scholar] [CrossRef]
  119. Tang, G.L.; Cheng, Y.Q.; Shen, B. Chain initiation in the leinamycin-producing hybrid nonribosomal peptide/polyketide synthetase from Streptomyces atroolivaceus S-140. Discrete, monofunctional adenylation enzyme and peptidyl carrier protein that directly load D-alanine. J. Biol. Chem 2007, 282, 20273–20282. [Google Scholar] [CrossRef] [Green Version]
  120. Dhakal, D.; Sohng, J.K.; Pandey, R.P. Engineering actinomycetes for biosynthesis of macrolactone polyketides. Microb. Cell Factories 2019, 18, 137. [Google Scholar] [CrossRef]
  121. Chen, H.; Bian, Z.; Ravichandran, V.; Li, R.; Zhang, Y. Biosynthesis of polyketides by trans-AT polyketide synthases in Burkholderiales. Crit. Rev. Microbiol. 2019, 45, 162–181. [Google Scholar] [CrossRef] [PubMed]
  122. Miyanaga, A. Michael additions in polyketide biosynthesis. Nat. Prod. Rep. 2019, 36, 531–547. [Google Scholar] [CrossRef] [PubMed]
  123. Kawasaki, D.; Miyanaga, A.; Chisuga, T.; Kudo, F.; Eguchi, T. Functional and Structural Analyses of the Split-DH Domain in the Biosynthesis of Macrolactam Polyketide Cremimycin. Biochemistry 2019, 58, 4799–4803. [Google Scholar] [CrossRef] [PubMed]
  124. Zhang, C.; Wang, X.; Chen, Y.; He, Z.; Yu, P.; Liang, Y. Dynamical Trajectory Study of the Transannular [6+4] and Ambimodal Cycloaddition in the Biosynthesis of Heronamides. J. Org. Chem. 2020, 85, 9440–9445. [Google Scholar] [CrossRef]
  125. Yu, P.; Patel, A.; Houk, K.N. Transannular [6 + 4] and Ambimodal Cycloaddition in the Biosynthesis of Heronamide A. J. Am. Chem. Soc. 2015, 137, 13518–13523. [Google Scholar] [CrossRef]
  126. Booth, T.J.; Alt, S.; Capon, R.J.; Wilkinson, B. Synchronous intramolecular cycloadditions of the polyene macrolactam polyketide heronamide C. Chem. Commun. 2016, 52, 6383–6386. [Google Scholar] [CrossRef] [Green Version]
  127. Li, Y.; Wang, H.; Liu, Y.; Jiao, Y.; Li, S.; Shen, Y.; Du, L. Biosynthesis of the Polycyclic System in the Antifungal HSAF and Analogues from Lysobacter enzymogenes. Angew. Chem. Int. Ed. Engl. 2018, 57, 6221–6225. [Google Scholar] [CrossRef]
  128. Klas, K.; Tsukamoto, S.; Sherman, D.H.; Williams, R.M. Natural Diels-Alderases: Elusive and Irresistable. J. Org. Chem. 2015, 80, 11672–11685. [Google Scholar] [CrossRef] [Green Version]
  129. Yeo, W.L.; Heng, E.; Tan, L.L.; Lim, Y.W.; Ching, K.C.; Tsai, D.J.; Jhang, Y.W.; Lauderdale, T.L.; Shia, K.S.; Zhao, H.; et al. Biosynthetic engineering of the antifungal, anti-MRSA auroramycin. Microb. Cell Fact. 2020, 19, 3. [Google Scholar] [CrossRef] [Green Version]
  130. Elshahawi, S.; Shaaban, K.A.; Kharel, M.K.; Thorson, J.S. A comprehensive review of glycosylated bacterial natural products. Chem. Soc. Rev. 2015, 44, 7591–7697. [Google Scholar]
  131. Genilloud, O. Actinomycetes: Still a source of novel antibiotics. Nat. Prod. Rep. 2017, 34, 1203–1232. [Google Scholar] [CrossRef] [PubMed]
  132. Huang, S.X.; Yun, B.S.; Ma, M.; Basu, H.S.; Church, D.R.; Ingenhorst, G.; Huang, Y.; Yang, D.; Lohman, J.R.; Tang, G.L.; et al. Leinamycin E1 acting as an anticancer prodrug activated by reactive oxygen species. Proc. Natl. Acad. Sci. USA 2015, 112, 8278–8283. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  133. Imani Nejad, M.; Yang, D.; Shen, B.; Gates, K.S. Oxidative activation of leinamycin E1 triggers alkylation of guanine residues in double-stranded DNA. Chem. Commun. 2018, 54, 256–259. [Google Scholar] [CrossRef] [PubMed]
  134. Wong, J.H.; Alfatah, M.; Kong, K.W.; Hoon, S.; Yeo, W.L.; Ching, K.C.; Jie Hui Goh, C.; Zhang, M.M.; Lim, Y.H.; Wong, F.T.; et al. Chemogenomic profiling in yeast reveals antifungal mode-of-action of polyene macrolactam auroramycin. PLoS ONE 2019, 14, e0218189. [Google Scholar] [CrossRef] [PubMed]
  135. Fujita, K.; Sugiyama, R.; Nishimura, S.; Ishikawa, N.; Arai, M.A.; Ishibashi, M.; Kakeya, H. Stereochemical Assignment and Biological Evaluation of BE-14106 Unveils the Importance of One Acetate Unit for the Antifungal Activity of Polyene Macrolactams. J. Nat. Prod. 2016, 79, 1877–1880. [Google Scholar] [CrossRef]
  136. Kanoh, N.; Itoh, S.; Fujita, K.; Sakanishi, K.; Sugiyama, R.; Terajima, Y.; Iwabuchi, Y.; Nishimura, S.; Kakeya, H. Asymmetric Total Synthesis of Heronamides A-C: Stereochemical Confirmation and Impact of Long-Range Stereochemical Communication on the Biological Activity. Chemistry 2016, 22, 8586–8595. [Google Scholar] [CrossRef]
  137. Ding, Y.; Li, Z.; Li, Y.; Lu, C.; Wang, H.; Shen, Y.; Du, L. HSAF-induced antifungal effects in Candida albicans through ROS-mediated apoptosis. RSC Adv. 2016, 6, 30895–30904. [Google Scholar] [CrossRef] [Green Version]
  138. Bailey, C.S.; Zarins-Tutt, J.S.; Agbo, M.; Gao, H.; Diego-Taboada, A.; Gan, M.L.; Hamed, R.B.; Abraham, E.R.; Mackenzie, G.; Evans, P.A.; et al. A natural solution to photoprotection and isolation of the potent polyene antibiotic, marinomycin A. Chem. Sci. 2019, 10, 7549–7553. [Google Scholar] [CrossRef] [Green Version]
Marinedrugs 20 00360 g001a 550Marinedrugs 20 00360 g001b 550Marinedrugs 20 00360 g001c 550Marinedrugs 20 00360 g001d 550
Figure 1. (a) Mono-ring PMLs (the substituents in the mono-ring of PMLs generally contain polyene and amide groups as well as polyhydroxyl and methyl groups). (b) Mono-ring PMLs with fatty acid chain. (c) Mono-ring PMLs with glycosylated groups. (d) Mono-ring PMLs with intramolecular epoxidation groups. (e) Mono-ring PMLs containing a five-membered ring.
Figure 1. (a) Mono-ring PMLs (the substituents in the mono-ring of PMLs generally contain polyene and amide groups as well as polyhydroxyl and methyl groups). (b) Mono-ring PMLs with fatty acid chain. (c) Mono-ring PMLs with glycosylated groups. (d) Mono-ring PMLs with intramolecular epoxidation groups. (e) Mono-ring PMLs containing a five-membered ring.
Marinedrugs 20 00360 g001aMarinedrugs 20 00360 g001bMarinedrugs 20 00360 g001cMarinedrugs 20 00360 g001d
Marinedrugs 20 00360 g002a 550Marinedrugs 20 00360 g002b 550Marinedrugs 20 00360 g002c 550
Figure 2. (a) Polycyclic PMLs (the macro-ring of PMLs generates an intramolecular polycyclic system through intramolecular addition reactions.). (b) Polycyclic PMLs with fatty acid chain. (c) Polycyclic PMLs with glycosylated groups. (d) Polycyclic PMLs with intramolecular epoxidation groups. (e) Polycyclic PMLs with sugar, epoxidation or five-member ring groups.
Figure 2. (a) Polycyclic PMLs (the macro-ring of PMLs generates an intramolecular polycyclic system through intramolecular addition reactions.). (b) Polycyclic PMLs with fatty acid chain. (c) Polycyclic PMLs with glycosylated groups. (d) Polycyclic PMLs with intramolecular epoxidation groups. (e) Polycyclic PMLs with sugar, epoxidation or five-member ring groups.
Marinedrugs 20 00360 g002aMarinedrugs 20 00360 g002bMarinedrugs 20 00360 g002c
Marinedrugs 20 00360 g003a 550Marinedrugs 20 00360 g003b 550
Figure 3. (a) Polycyclic tetramate macrolactams (PTMs), a branch of polycyclic PMLs. (b) Polycyclic tetramate macrolactams (PTMs), a branch of polycyclic PMLs.
Figure 3. (a) Polycyclic tetramate macrolactams (PTMs), a branch of polycyclic PMLs. (b) Polycyclic tetramate macrolactams (PTMs), a branch of polycyclic PMLs.
Marinedrugs 20 00360 g003aMarinedrugs 20 00360 g003b
Marinedrugs 20 00360 g004 550
Figure 4. An overview of discovery strategy of natural products.
Figure 4. An overview of discovery strategy of natural products.
Marinedrugs 20 00360 g004
Marinedrugs 20 00360 g005 550
Figure 5. The workflow for discovery of new compounds in heterologous or in situ hosts expressing.
Figure 5. The workflow for discovery of new compounds in heterologous or in situ hosts expressing.
Marinedrugs 20 00360 g005
Marinedrugs 20 00360 g006 550
Figure 6. The comparison and analysis of PMLs’ biosynthetic starter units. (a–e) represent five different β-amino acid initiation modes.
Figure 6. The comparison and analysis of PMLs’ biosynthetic starter units. (a–e) represent five different β-amino acid initiation modes.
Marinedrugs 20 00360 g006
Marinedrugs 20 00360 g007a 550Marinedrugs 20 00360 g007b 550
Figure 7. (a) Conjectures on the formation of intramolecular Epoxy and polycyclic groups. (b) Conjectures on the formation of intramolecular Epoxy and polycyclic groups.
Figure 7. (a) Conjectures on the formation of intramolecular Epoxy and polycyclic groups. (b) Conjectures on the formation of intramolecular Epoxy and polycyclic groups.
Marinedrugs 20 00360 g007aMarinedrugs 20 00360 g007b
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zhao, W.; Jiang, H.; Liu, X.-W.; Zhou, J.; Wu, B. Polyene Macrolactams from Marine and Terrestrial Sources: Structure, Production Strategies, Biosynthesis and Bioactivities. Mar. Drugs 2022, 20, 360. https://doi.org/10.3390/md20060360

AMA Style

Zhao W, Jiang H, Liu X-W, Zhou J, Wu B. Polyene Macrolactams from Marine and Terrestrial Sources: Structure, Production Strategies, Biosynthesis and Bioactivities. Marine Drugs. 2022; 20(6):360. https://doi.org/10.3390/md20060360

Chicago/Turabian Style

Zhao, Wei, Hong Jiang, Xiao-Wan Liu, Jian Zhou, and Bin Wu. 2022. "Polyene Macrolactams from Marine and Terrestrial Sources: Structure, Production Strategies, Biosynthesis and Bioactivities" Marine Drugs 20, no. 6: 360. https://doi.org/10.3390/md20060360

APA Style

Zhao, W., Jiang, H., Liu, X. -W., Zhou, J., & Wu, B. (2022). Polyene Macrolactams from Marine and Terrestrial Sources: Structure, Production Strategies, Biosynthesis and Bioactivities. Marine Drugs, 20(6), 360. https://doi.org/10.3390/md20060360

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
