Synthesis and Antifouling Activity Evaluation of Analogs of Bromosphaerol, a Brominated Diterpene Isolated from the Red Alga Sphaerococcus coronopifolius

by
Kyriakos C. Prousis
1,
Stefanos Kikionis
2,
Efstathia Ioannou
2,
Silvia Morgana
3,
Marco Faimali
3,
Veronica Piazza
3,*,
Theodora Calogeropoulou
1,* and
Vassilios Roussis
2,*
1
Institute of Chemical Biology, National Hellenic Research Foundation, 48 Vassileos Constantinou Avenue, 11653 Athens, Greece
2
Section of Pharmacognosy and Chemistry of Natural Products, Department of Pharmacy, National and Kapodistrian University of Athens, Panepistimiopolis Zografou, 15771 Athens, Greece
3
Institute for the Study of Anthropic Impacts and Sustainability in Marine Environment (IAS), National Research Council (CNR), Via De Marini 6, 16149 Genova, Italy
*
Authors to whom correspondence should be addressed.
Mar. Drugs 2022, 20(1), 7; https://doi.org/10.3390/md20010007
Submission received: 22 November 2021 / Revised: 9 December 2021 / Accepted: 14 December 2021 / Published: 22 December 2021
(This article belongs to the Special Issue Tribute to Dr. Guido Cimino’s 80th Birthday and His Outstanding Achievements on Marine Natural Products)
Browse Figures
Versions Notes

Abstract

:
Marine biofouling is an epibiotic biological process that affects almost any kind of submerged surface, causing globally significant economic problems mainly for the shipping industry and aquaculture companies, and its prevention so far has been associated with adverse environmental effects for non-target organisms. Previously, we have identified bromosphaerol (1), a brominated diterpene isolated from the red alga Sphaerococcus coronopifolius, as a promising agent with significant antifouling activity, exerting strong anti-settlement activity against larvae of Amphibalanus (Balanus) amphitrite and very low toxicity. The significant antifouling activity and low toxicity of bromosphaerol (1) motivated us to explore its chemistry, aiming to optimize its antifouling potential through the preparation of a number of analogs. Following different synthetic routes, we successfully synthesized 15 structural analogs (2–16) of bromosphaerol (1), decorated with different functional groups. The anti-settlement activity (EC50) and the degree of toxicity (LC50) of the bromosphaerol derivatives were evaluated using cyprids and nauplii of the cirriped crustacean A. amphitrite as a model organism. Derivatives 2, 4, and 6–16 showed diverse levels of antifouling activity. Among them, compounds 9 and 13 can be considered as well-performing antifoulants, exerting their activity through a non-toxic mechanism.

1. Introduction

Marine biofouling is an epibiotic biological process that is characterized by the attachment of various micro- and macro-organisms of the marine environment on submerged surfaces [1,2,3,4,5]. It is a build-up process in which the initial conditioning film formation occurring over swamped surfaces is followed by a biofilm adhesion caused by bacterial and algal cell colonization leading to the settlement of macrofouling organisms [6,7,8,9].
Marine biofouling represents a global phenomenon generating undoubtedly profound economic and ecological problems that needs to be addressed vigorously. It affects almost any kind of submerged surface, including aquaculture systems, coastal electric power stations, various underwater constructions, and marine vessels [10,11,12]. It has been and remains a major issue for the shipping industry with an outstanding financial cost, mandating huge capital investments for its control and efficient management, often associated until recently with detrimental environmental effects. The attachment of microbial slimes, algae, and marine sessile organisms, such as barnacles and mussels, on the rough surfaces of ship hulls results in increased weight and hydrodynamic frictional resistance, accounting for a tremendous increase in fuel consumption, greenhouse gas emissions, dry-docking time, vessel maintenance, and marine transport cost [13,14,15,16,17,18].
Several antifouling methods have been developed over the years, with the most effective being based mainly on biocidal chemicals incorporated in coatings and paints. The antifouling organotin-based paints that have been widely applied, such as tributyltin (TBT), have been proven very effective in preventing fouling [19,20,21,22]. However, they are characterized by severe toxicity for marine life and therefore are nowadays prohibited worldwide by the International Maritime Organization (IMO) [23]. Their replacement by copper-based coatings and booster biocides, such as diuron, Irgarol 1051, SeaNine 211, and zinc pyrithione, failed to adequately address the issue of environmental impact [24], and most of them have already been banned by many European countries [25]. Inert, silicon-based and polymer-based coatings that were subsequently applied as an alternative approach have been proven inefficient since they are expensive, difficult to apply, and not durable enough to provide long-lasting hull protection, while the environmental impact of their additives still remains undetermined [26].
Concerning marine ecosystem and human health, an ecological approach is unquestionably the only way forward for antifouling technology [27,28]. The ideal candidate for biofouling control should be environmentally safe, providing maximum fouling protection. The solution for alternative, effective, non-toxic antifouling agents could be lying in the chemistry of marine natural products [29,30,31,32,33]. In the very competitive marine ecosystem, organisms, such as seaweeds, sponges, corals, and other invertebrates, have developed various chemical and biological defense mechanisms to protect their surfaces from fouling. Secondary metabolites (e.g., sulfated polyphenols, steroids, terpenoids, and alkaloids) and biopolymers have been reported to be involved in different interactions of marine life for the repellence, inhibition, and suppression of settlement and growth of fouling organisms [33]. Many isolated compounds from marine prokaryotes and eukaryotes have shown antifouling activity, fulfilling the U.S. Navy Program standards of EC50 values < 25.0 mg/L, with actual EC50 values less than 5 mg/L. Among them, macroalgal secondary metabolites have been regarded as non-toxic antifouling agents with great potential [34,35].
In the framework of our research investigations, we have previously identified bromosphaerol (1), a brominated diterpene isolated from the red alga Sphaerococcus coronopifolius, as a promising agent with significant antifouling activity [36,37]. In these studies, bioassays conducted using larvae of the cirriped crustacean Amphibalanus (Balanus) amphitrite showed that bromosphaerol (1) exerted significant anti-settlement activity with an EC50 value of 0.23 mg/L, combined with extremely low toxicity (LC50 > 100 mg/L), resulting in an impressive therapeutic ratio (TRC = LC50/EC50) of 434.78. The significant antifouling activity and low toxicity of bromosphaerol (1) motivated us to explore its chemistry, aiming to optimize its antifouling potential through the preparation of a number of analogs. Herein, we report the synthesis of a series of bromosphaerol derivatives, along with the evaluation of their antifouling activity.

2. Results and Discussion

In order to improve the antifouling potential of the brominated diterpene bromosphaerol (1), 15 structural analogs involving transformations at Δ1 double bond and positions C-11, C-16, and C-17 (2–16) were designed and synthesized (Figure 1 and Figures S1–S46). Our strategy for obtaining initial structure-antifouling activity relationships for bromosphaerol involved (a) introducing polar groups at C-1 and/or C-2 (2–6 and 8), (b) removing the C-11 hydroxyl group (9 and 10), and (c) substituting C-2 with functional groups (ester and oxime), while the Δ1 double bond was repositioned to C-1–C-10 to allow for the generation of an extended conjugated system (7 and 11–16).
Initially, our synthetic efforts were focused on introducing an epoxide ring at the Δ1 double bond of 1. This was achieved using p-chloroperbenzoic acid in dichloromethane, which resulted in a mixture of the two diastereomeric epoxides 2 and 3 (Figure 2) in a 65:35 ratio and 75% overall yield, both of which were subsequently isolated in pure form. The configuration at the chiral centers C-1 and C-2 of 2 was deduced as 1S,2R on the basis of NOE enhancements of H-1 and H-2 with H3-19 and H3-20, respectively.
Subsequently, we aimed at introducing a carbonyl functionality at C-1 or C-2. Therefore, bromosphaerol (1) was subjected to a hydroboration/oxidation sequence, using a borane tetrahydrofuran complex and sodium perborate, followed by pyridinium chlorochromate (PCC)-mediated oxidation of the generated alcohols. The above synthetic strategy resulted in a mixture of the ketone 4 and the precursor alcohol 5 due to incomplete oxidation, in a 1:0.7 ratio and a 41% yield. As a side product of the reaction, compound 6 was isolated in 45% yield (Figure 2). Compound 6, bearing an oxygen bridge between C-1 and C-17, was formed during the hydroboration step through an SN2 nucleophilic attack of the C-1 epimer of 5 on the brominated carbon C-17 and could not be oxidized further upon PCC treatment.
In a next step, we attempted to synthesize the bromohydrin derivatives 7a and 8a of 1 through treatment with N-bromoacetamide in the presence of perchloric acid in a mixture of water/dioxane. Instead, we isolated the α,β-unsaturated ketone 7, and the C-2 brominated compound 8 (Figure 2). Compound 7 could be generated from the intermediate bromohydrin 7a through oxidation of the C-2 alcohol followed by E2 elimination of the C-1 bromine and subsequent formation of the C-1–C-10 double bond. Compound 7 was also isolated as the single product from the oxidation of the mixture of the diastereomeric epoxides 2 and 3 using Jones reagent. On the other hand, hypobromous acid generated in situ from NBA and perchloric acid reacted, with the Δ1 double bond affording the 2α-bromo C-1 carbocation intermediate, which reacted further with the C-11 alcohol to produce the corresponding compound 8 bearing a bromine atom at C-2 and an additional fused furan ring composed of C-1, C-10, C-9, and C-11. The stereochemistry at the chiral centers C-1, C-2, and C-11 was deduced as 1R,2S,11R on the basis of the cross-peaks observed in the NOESY spectrum, as well as the measured coupling constants. In particular, the coupling constant measured between H-1 and H-10 (J = 11.8 Hz) allowed for the determination of the configuration of the oxygenated H-1 as axial, whereas the coupling constant measured between H-1 and H-2 (J = 3.2 Hz) allowed for the determination of the configuration of the bromomethine H-2 as equatorial. Additionally, the NOE correlations of H-1 with H-9, H3-11, and H-17b, as well as of H3-11 with H-9 and H-14, dictated that the stereochemistry at C-11 remained as R. This proposed mechanism is supported by the relative cis stereochemistry of H-1 and H-2 in compound 8. In the case of the formation of a bromonium ion intermediate, an anti-addition would be expected, resulting in a trans relative stereochemistry of H-1 and H-2.
Furthermore, the regiomeric olefins 9 and 10 were formed in 70% and 10% yield, respectively, by an elimination reaction of the hydroxyl group at C-11 upon treatment of 1 with trimethylsilyl trifluoromethanesulfonate in the presence of acetic anhydride (Figure 3). Compounds 9 and 10, named bromosphaerenes B and A, respectively, were previously isolated from S. coronopifolius by Fattorusso et al. (1983), and their structures were confirmed through dehydration of bromosphaerol (1) upon heating at 100 °C with phosphorus oxychloride–pyridine to afford bromosphaerene A (10) as the major product [38]. In contrast, our synthetic method provided preferentially bromosphaerene B (9).
The α,β-unsaturated ketone 7 was proven to be a valuable synthetic intermediate toward the synthesis of a number of analogs. Thus, the Horner–Wadsworth–Emmons reaction of 7 with triethyl phosphonoacetate afforded the unsaturated ester 11 in 90% yield (Figure 4), as a mixture of E,Z geometric isomers (in a 6 to 4 ratio). Finally, a series of oxime derivatives (12–16) were obtained in good to excellent yields (56 to 98%), using ketone 7 and various substituted alkoxyamines in the presence of pyridine (Figure 4).
The results of the settlement inhibition assay performed on cypris larvae of A. amphitrite and the mortality test carried out on the stage II nauplii of the same model organism for bromosphaerol derivatives 2, 4, and 6–16 are shown in Table 1, summarizing the EC50 values obtained for cyprids settlement test (after 72 h), the LC50 values obtained for cypris larvae mortality (after 72 h), and the LC50 values of naupliar mortality (after 48 h). According to the guidelines of the U.S. Navy Program that require an EC50 (settlement inhibition) value lower than 25 mg/L for a compound to be considered as a promising natural antifoulant, 9 of the 13 derivatives tested in this study meet this requirement. In particular, compounds 2, 4, 6, and 7, which bear an oxygen moiety at C-1 or C-2, exhibit similar EC50 values ranging from 10.44 to 8.75 mg/L. Conversely, the introduction of a bromine substituent at C-2 abolishes activity. This is also the case for the α,β-unsaturated ester analog 11. Interestingly, derivative 9, in which the hydroxyl at C-11 was eliminated to form the exocyclic double bond, exhibited potent antifouling activity with an EC50 < 0.5 mg/L. Surprisingly, the endocyclic elimination congener 10 was less potent (EC50 = 3.87 mg/L). Furthermore, the activity of derivatives 12–16 was influenced significantly by the nature of the oxime functionality. Thus, the unsubstituted oxime compound 12 and the carboxy oxime derivative 14 were inactive, in contrast to the methoxy oxime analog 13 and the methyl ester congener of 14, compound 15, that possess EC50 < 0.5 mg/L. This is also the case for dimethylaminoethyl oxime derivative 16 showing EC50 < 0.5 mg/L. Thus, analogs 9, 13, 15, and 16 exhibit very promising antifouling efficacy.
Concerning the toxicity observed on cypris larvae, the LC50 (72 h) values are >50 mg/L for derivatives 9 and 13, while 15 and 16 demonstrated substantial toxicity towards this larval stage (LC50 values of 2.7 and 12.5 mg/L, respectively). This was also observed for the epoxy derivative 2 and the tetrahydrofuranyl analog 6, possessing LC50 values of 25.2 and 10.2 mg/L, respectively. Gratifyingly, all the other compounds were not toxic against cypris larvae with LC50 values > 50 mg/L. However, all synthetic analogs displayed quite high toxicity towards the naupliar stage, with LC50 (48 h) values between 1.19 and 21.64 mg/L with the exception of the inactive 8 and 14 demonstrating LC50 values > 50 mg/L.
As previously reported [36], although the therapeutic ratio (TR) is traditionally calculated by taking into account naupliar mortality, measuring mortality on the same larval stage on which settlement is evaluated (cypris larvae, competent larval stage) is also important since TR should actually indicate whether the mechanism of settlement inhibition is based on a toxic effect. In addition, the LC50 on nauplii can be considered as a good index of toxicity against non-target organisms since nauplii are considered as a representative zooplankton organism. It is evident that naupliar response to the tested bromosphaerol derivatives is very different from that of cyprids; indeed, naupliar mortality occurs at lower concentrations than mortality of cyprids. Table 1 reports the TR values calculated taking into account both nauplii (TRN) and cyprids (TRC) mortality values. High TR values indicate a low toxicity anti-settlement mechanism for the tested compounds. For derivatives showing promising EC50 values (9, 13, 15, and 16), the TRN is quite low (ranging from 2.38 to 3.62), while higher values are observed for TRC, especially for derivatives 9 and 13 (>100). Concerning cyprids mortality, 9 and 13 showed LC50(cypris) values higher than the maximum tested concentration (50 mg/L). Looking at the two more promising in terms of antifouling efficacy derivatives (9 and 13), the TRN values are much lower than the TRC values. Taking into account only the TRN values, we can assert that analogs 9 and 13 are characterized by good antifouling properties (EC50 < 0.5 mg/L) but may exhibit some toxicity against non-target organisms, as mentioned above. Conversely, considering the TRC values (>100) of 9 and 13, both derivatives can be considered as well-performing antifoulants, exerting their activity through a non-toxic mechanism.

3. Materials and Methods

3.1. General Experimental Procedures

1D and 2D NMR spectra were recorded on Bruker DRX 400 (Bruker BioSpin GmbH, Rheinstetten, Germany) and Varian 300 and Varian 600 (Varian, Inc., Palo Alto, CA, USA) spectrometers, using standard Bruker or Varian pulse sequences. Chemical shifts internally referenced to residual solvent signals are given on a δ (ppm) scale. High-resolution ESI and APCI mass spectra were measured on a Thermo Scientific LTQ Orbitrap Velos mass spectrometer (ThermoFisher Scientific, Bremen, Germany). Column chromatography separations were performed with Kieselgel Si 60 (Merck, Darmstadt, Germany). HPLC separations were conducted on a CECIL 1100 Series liquid chromatography pump (Cecil Instruments Ltd., Cambridge, UK) equipped with a GBC LC-1240 refractive index detector (GBC Scientific Equipment, Braeside, VIC, Australia), using a 250 mm × 22 mm i.d. Techsil 10 ODS column (Wellington House, Cheshire, UK) for reversed-phase HPLC or a 250 mm × 10 mm i.d. Kromasil 100-10-SIL (Akzonobel, Eka Chemicals AB, Separation Products, Bohus, Sweden) for normal-phase HPLC. TLC was performed on Kieselgel 60 F254 (0.2 mm) precoated aluminum or glass plates (Merck, Darmstadt, Germany), and spots were visualized after spraying with H2SO4 in MeOH (20% v/v) reagent and heating at 100 °C for 1 min.

3.2. Biological Material

Specimens of S. coronopifolius were collected by scuba diving in the bay of Palaiokastritsa, Corfu, Greece, at a depth of 15–40 m in August 2013. A voucher specimen of the alga has been deposited at the Herbarium of the Section of Pharmacognosy and Chemistry of Natural Products, Department of Pharmacy, National and Kapodistrian University of Athens (ATPH/MP0226).

3.3. Extraction and Isolation

Air-dried algal tissues (0.5 kg dry weight) were exhaustively extracted with mixtures of CH2Cl2/MeOH (3:1) at room temperature. Evaporation of the solvents in vacuo afforded a dark green oily residue (18 g) that was subjected to vacuum column chromatography over silica gel, using cHex with increasing amounts of EtOAc and subsequently EtOAc with increasing amounts of MeOH as the mobile phase to yield 15 fractions (1–15). Fraction 3 (cHex/EtOAc 80:20, 10.9 g) was subjected to preparative reversed-phase HPLC using MeOH 100% as the mobile phase to afford sphaerococcenol A (2.1 g) and bromosphaerol (1) (4.45 g).

3.4. Synthesis of Analogs of Bromosphaerol

3.4.1. Synthesis of Analogs 2 and 3

To a stirred solution of bromosphaerol (1) (19.3 mg, 0.043 mmol) in anhydrous CH2Cl2 (0.8 mL), a solution of m-chloroperoxybenzoic acid 77% (14.45 mg, 0.065 mmol) in CH2Cl2 (0.8 mL) was added dropwise at 0 °C, and the reaction mixture was stirred for 2 h at 25 °C. Upon completion of the reaction (monitored by TLC), saturated aqueous Na2SO3 solution (2.0 mL) was added. The pH was adjusted to 7 by the addition of 5% aqueous NaHCO3 solution, and the reaction mixture was extracted with CH2Cl2 (3 × 15 mL). The combined organic layers were dried over anhydrous Na2SO4, concentrated under reduced pressure, dried in vacuo to afford a mixture of the diastereomeric epoxides 2 and 3 in a 65:35 ratio (15 mg, 75%), which was subjected to flash column chromatography (elution system: petroleum ether 40–65 °C/acetone, 40:60 to 95:10) and subsequently normal-phase HPLC using cHex/EtOAc (75:25) as eluent to afford 2 (9.5 mg) and 3 (3.8 mg) in pure form.
Compound 2: Gummy solid; 1H NMR (600 MHz, CDCl3) δ 0.94 (3H, d, J = 6.9 Hz, H3-19), 0.97 (3H, d, J = 6.9 Hz, H3-20), 1.22 (1H, m, H-7b), 1.31 (3H, s, H3-15), 1.42 (3H, s, H3-16), 1.46 (1H, m, H-6b), 1.59 (1H, d, J = 10.8 Hz, H-9), 1.66 (1H, m, H-4), 1.68 (1H, m, H-12b), 1.73 (1H, m, H-6a), 1.74 (1H, m, H-12a), 1.75 (1H, m, H-7a), 1.87 (1H, ddd, J = 16.6, 6.4, 1.0 Hz, H-3b), 1.97 (1H, m, H-13β), 1.99 (1H, m, H-3a), 2.04 (1H, qd, J = 6.9, 1.6 Hz, H-18), 2.42 (1H, qd, J = 13.0, 4.3 Hz, H-13α), 2.72 (1H, dd, J = 10.8, 2.0 Hz, H-10), 3.26 (1H, m, H-2), 3.45 (1H, dd, J = 4.3, 2.0 Hz, H-1), 3.76 (1H, d, J = 10.9 Hz, H-17b), 3.98 (1H, dd, J = 13.0, 3.5 Hz, H-14), 4.21 (1H, dd, J = 10.9, 1.9 Hz, H-17a); 13C NMR (75 MHz, CDCl3) δ 14.0 (C-15), 19.9 (C-3), 20.8 (C-20), 24.9 (C-18), 25.7 (C-6), 25.8 (C-19), 30.1 (C-13), 33.3 (C-16), 35.9 (C-10), 36.2 (C-7), 39.4 (C-17), 41.0 (C-8), 41.8 (C-5), 42.7 (C-4), 46.0 (C-12), 48.8 (C-9), 54.5 (C-2), 55.1 (C-1), 68.3 (C-14), 72.6 (C-11); HR-ESIMS m/z 485.0662 [M+Na]+ (calcd. for C20H3279Br2O2Na, 485.0661).
Compound 3: Gummy solid; 1H NMR (400 MHz, CDCl3) δ 0.85 (3H, d, J = 6.8 Hz, H3-19), 0.94 (3H, d, J = 6.8 Hz, H3-20), 1.13 (1H, td, J = 13.9, 3.0 Hz, H-7b), 1.18 (3H, s, H3-15), 1.40 (1H, ddd, J = 14.6, 12.3, 5.2 Hz, H-3b), 1.45 (3H, s, H3-16), 1.52 (1H, d, J = 11.8 Hz, H-9), 1.64 (1H, m, H-12b), 1.67 (1H, m, H-6b), 1.71 (1H, m, H-12a), 1.80 (1H, m, H-4), 1.85 (1H, m, H-10), 1.86 (1H, m, H-7a), 1.88 (1H, m, H-6a), 2.00 (1H, m, H-18), 2.03 (1H, m, H-13β), 2.05 (1H, m, H-3a), 2.49 (1H, qd, J = 13.0, 4.8 Hz, H-13α), 3.06 (1H, dd, J = 6.6, 4.8 Hz, H-1), 3.37 (1H, m, H-2), 3.38 (1H, d, J = 10.1 Hz, H-17b), 3.86 (1H, d, J = 10.1 Hz, H-17a), 3.98 (1H, dd, J = 13.0, 4.0 Hz, H-14); 13C NMR (400 MHz, CDCl3, determined through HMBC correlations) δ 15.7 (C-15), 18.5 (C-19), 22.1 (C-3), 23.4 (C-20), 24.7 (C-6), 27.0 (C-18), 30.7 (C-13), 33.2 (C-16), 36.6 (C-7), 40.6 (C-8), 41.1 (C-10), 42.1 (C-5), 43.8 (C-17), 44.2 (C-12), 45.4 (C-4), 50.7 (C-9), 53.9 (C-2), 54.3 (C-1), 67.7 (C-14), 72.7 (C-11); HR-ESIMS m/z 485.0662 [M+Na]+ (calcd. for C20H3279Br2O2Na, 485.0661).

3.4.2. Synthesis of Analogs 4–6

To a stirred solution of bromosphaerol (1) (63 mg, 0.14 mmol) in anhydrous THF (1.2 mL), a BH3.THF complex solution (1M in THF) (0.42 mL, 0.422 mmol) was added dropwise at −10 °C, and the reaction mixture was stirred for 3 h at 25 °C. Subsequently, water (0.5 mL) was added dropwise, and the resulting mixture was stirred for 15 min at 25 °C. Following that, NaBO3.4H2O (43 mg, 0.28 mmol) was added, and the mixture was stirred for 12 h at 25 °C. The precipitated solid was filtered off, washed with THF, and discarded. Subsequently, solid sodium chloride was added to the filtrate, and the mixture was extracted with EtOAc (3 × 20 mL). The combined organic layers were dried over anhydrous Na2SO4 and concentrated under reduced pressure. The residue was dissolved in anhydrous CH2Cl2 (2.9 mL), PCC (67 mg, 0.31 mmol) was added, and the resulting mixture was stirred at 25 °C for 2 h. The reaction mixture was diluted with CH2Cl2 (10 mL), and the mixture was filtered through a pad of celite and silica gel (1:1). The solids were washed with CH2Cl2 (50 mL), the filtrate was evaporated in vacuo, and the residue was purified by flash column chromatography (elution system: petroleum ether 40–65 °C/acetone, 90:10) to afford 6 (25 mg, 45% yield) and a mixture of 4 and 5 in a 1:0.7 ratio (27 mg, 41% yield) that was subsequently subjected to normal-phase HPLC using cHex/EtOAc (50:50) as eluent to yield 4 (11.1 mg) and 5 (6.7 mg) in pure form.
Compound 4: Gummy solid; 1H NMR (600 MHz, CDCl3) δ 0.88 (3H, d, J = 6.9 Hz, H3-19), 0.97 (3H, d, J = 6.9 Hz, H3-20), 1.24 (1H, m, H-7b), 1.28 (3H, s, H3-15), 1.31 (3H, s, H3-16), 1.42 (1H, d, J = 10.6 Hz, H-9), 1.63 (1H, m, H-12b), 1.67 (1H, m, H-6b), 1.69 (1H, m, H-12a), 1.87 (1H, m, H-6a), 1.93 (1H, m, H-7a), 1.97 (1H, m, H-13β), 2.04 (1H, ddd, J = 6.6, 4.2, 2.2 Hz, H-4), 2.13 (1H, m, H-18), 2.31 (1H, m, H-3b), 2.33 (1H, m, H-2b), 2.41 (1H, m, H-13α), 2.47 (1H, m, H-3a), 2.84 (1H, m, H-2a), 2.87 (1H, d, J = 10.6 Hz, H-10), 3.65 (1H, dd, J = 11.0, 1.8 Hz, H-17b), 3.91 (1H, d, J = 11.0 Hz, H-17a), 3.95 (1H, dd, J = 12.6, 3.7 Hz, H-14); 13C NMR (400 MHz, CDCl3, determined through HMBC correlations) δ 14.2 (C-15), 19.6 (C-19), 24.9 (C-6), 25.0 (C-20), 26.5 (C-18), 30.0 (C-13), 34.8 (C-16), 36.3 (C-7), 36.2 (C-3), 36.5 (C-10), 38.3 (C-17), 40.9 (C-5), 41.0 (C-8), 44.0 (C-2), 44.1 (C-4), 46.2 (C-12), 51.8 (C-9), 67.9 (C-14), 72.5 (C-11), 212.1 (C-1); HR-ESIMS m/z 485.0663 [M+Na]+ (calcd. for C20H3279Br2O2Na, 485.0661).
Compound 5: Gummy solid; 1H NMR (600 MHz, CDCl3) δ 1.02 (3H, d, J = 6.7 Hz, H3-20), 1.05 (3H, d, J = 6.7 Hz, H3-19), 1.22 (1H, m, H-7b), 1.32 (3H, s, H3-15), 1.38 (3H, s, H3-16), 1.50 (1H, m, H-3b), 1.53 (1H, m, H-2b), 1.59 (1H, m, H-12b), 1.60 (1H, m, H-6b), 1.61 (1H, d, J = 10.1 Hz, H-9), 1.67 (1H, m, H-3a), 1.74 (1H, m, H-4), 1.76 (1H, m, H-6a), 1.79 (1H, m, H-12a), 1.83 (1H, m, H-7a), 1.92 (1H, m, H-13β), 1.93 (1H, m, H-2a), 1.98 (1H, m, H-18), 2.29 (1H, t, J = 10.1 Hz, H-10), 2.44 (1H, qd, J = 13.2, 3.7 Hz, H-13α), 3.49 (1H, dd, J = 10.6, 1.4 Hz, H-17b), 3.97 (1H, d, J = 10.6 Hz, H-17a), 3.99 (1H, m, H-14), 4.00 (1H, m, H-1); 13C NMR (400 MHz, CDCl3, determined through HMBC correlations) δ 14.4 (C-15), 18.7 (C-3), 21.1 (C-19), 25.3 (C-20), 26.4 (C-18), 27.6 (C-6), 29.9 (C-13), 32.3 (C-16), 33.9 (C-2), 36.7 (C-7), 40.8 (C-17), 41.7 (C-8), 43.1 (C-4), 43.8 (C-5), 45.4 (C-12), 45.9 (C-10), 52.2 (C-9), 67.3 (C-1), 69.9 (C-14), 72.3 (C-11); HR-ESIMS m/z 463.0847 [M-H]− (calcd. for C20H3379Br2O2, 463.0853).
Compound 6: Gummy solid; 1H NMR (600 MHz, CDCl3) δ 0.94 (3H, d, J = 6.9 Hz, H3-20), 1.01 (1H, m, H-6b), 1.06 (3H, d, J = 6.9 Hz, H3-19), 1.16 (3H, s, H3-15), 1.22 (1H, m, H-4), 1.25 (1H, m, H-7b), 1.30 (3H, s, H3-16), 1.31 (1H, d, J = 11.2 Hz, H-9), 1.47 (1H, td, J = 13.3, 6.2 Hz, H-2b), 1.54 (1H, ddd, J = 14.0, 4.5, 3.0 Hz, H-12b), 1.58 (1H, m, H-3b), 1.63 (1H, ddd, J = 14.0, 13.0, 4.6 Hz, H-12a), 1.71 (1H, m, H-2a), 1.81 (1H, ddd, J = 14.3, 13.3, 7.3 Hz, H-3a), 1.86 (1H, m, H-7a), 1.88 (1H, m, H-6a), 2.06 (1H, dddd, J = 13.0, 4.6, 4.2, 3.0 Hz, H-13β), 2.10 (1H, qd, J = 6.9, 2.0 Hz, H-18), 2.18 (1H, d, J = 11.2 Hz, H-10), 2.47 (1H, qd, J = 13.0, 4.5 Hz, H-13α), 3.58 (1H, d, J = 8.3 Hz, H-17b), 3.87 (1H, d, J = 8.3 Hz, H-17a), 3.96 (1H, dd, J = 13.0, 4.2 Hz, H-14), 4.74 (1H, brd, J = 4.8 Hz, H-1); 13C NMR (150 MHz, CDCl3) δ 16.1 (C-15), 18.8 (C-3), 20.2 (C-19), 22.4 (C-6), 26.9 (C-20), 27.3 (C-18), 30.7 (C-13), 32.0 (C-2), 33.9 (C-16), 36.7 (C-7), 40.3 (C-8), 42.0 (C-10), 44.1 (C-12), 48.3 (C-9), 48.5 (C-5), 50.7 (C-4), 68.3 (C-14), 73.0 (C-11), 76.2 (C-17), 81.9 (C-1); HR-ESIMS m/z 385.1735 [M+H]+ (calcd. for C20H3479BrO2, 385.1737).

3.4.3. Synthesis of Analogs 7 and 8

To a stirred solution of bromosphaerol (1) (220 mg, 0.48 mmol) in anhydrous 1,4-dioxane (1.4 mL), a solution of 70% HClO4 (0.28 mL, 1.8 mmol) and water (1.4 mL) was added dropwise, followed by the addition of a suspension of N-bromoacetamide (0.13 g, 0.95 mmol) in water (0.5 mL). The reaction mixture was stirred for 2 h at 25 °C (the completion of the reaction was monitored by TLC), saturated aqueous Na2S2O3 solution (1 mL) was added, and the resulting mixture was stirred for 30 min. Subsequently, the mixture was poured into ice water and extracted with CH2Cl2 (3 × 15 mL). The combined organic layers were washed with NaHCO3, dried over anhydrous Na2SO4, and concentrated under reduced pressure. The residue was purified by flash column chromatography (elution system: petroleum ether 40–65 °C/acetone, 90:10) to afford compound 7 (141 mg, 40% yield) and 8 (152 mg, 38%).
Compound 7: Gummy solid; 1H NMR (600 MHz, CDCl3) δ 0.84 (3H, d, J = 6.7 Hz, H3-19), 0.99 (3H, d, J = 6.7 Hz, H3-20), 1.14 (3H, s, H3-15), 1.34 (3H, s, H3-16), 1.39 (1H, m, H-7b), 1.44 (1H, m, H-6b), 1.50 (1H, m, H-12b), 1.64 (2H, m, H-6a, H-12a), 1.86 (1H, m, H-18), 1.92 (1H, m, H-7a), 2.00 (1H, m, H-4), 2.02 (1H, m, H-13β), 2.15 (1H, s, H-9), 2.24 (1H, m, H-3b), 2.38 (1H, dd, J = 13.1, 5.9 Hz, H-3a), 2.45 (1H, qd, J = 12.8, 5.7 Hz, H-13α), 3.55 (1H, d, J = 11.2 Hz, H-17b), 3.91 (1H, d, J = 11.2 Hz, H-17a), 4.02 (1H, dd, J = 12.8, 3.7 Hz, H-14), 6.97 (1H, s, H-1); 13C NMR (75 MHz, CDCl3) δ 15.2 (C-15), 18.7, 24.2, 26.1, 26.8, 29.7, 29.7, 33.5, 37.1, 37.2, 41.5, 44.6, 45.1, 46.9, 52.8 (C-9), 66.8 (C-14), 71.7 (C-11), 130.0 (C-1), 161.1 (C-10), 200.0 (C-2); HR-ESIMS m/z 461.0688 [M+H]+ (calcd. for C20H3179Br2O2, 461.0685).
Compound 8: Gummy solid; 1H NMR (600 MHz, CDCl3) δ 0.97 (3H, d, J = 6.0 Hz, H3-19), 1.19 (3H, s, H3-16), 1.19 (3H, d, J = 6.0 Hz, H3-20), 1.21 (3H, s, H3-15), 1.23 (1H, m, H-7b), 1.32 (1H, d, J = 12.7 Hz, H-9), 1.64 (1H, ddd, J = 13.6, 4.1, 2.7 Hz, H-7a), 1.72 (1H, dd, J = 13.2, 7.7 Hz, H-12b), 1.78 (1H, m, H-6b), 1.83 (1H, m, H-4), 1.91 (1H, m, H-18), 2.03-2.07 (3H, m, H-3b, H-6a, H-12a), 2.22 (1H, m, H-13b), 2.32 (1H, ddt, J = 16.3, 11.0, 8.3 Hz, H-13a), 2.49 (1H, ddd, J = 16.8, 3.2, 1.4 Hz, H-3a), 2.58 (1H, dd, J = 12.7, 11.8 Hz, H-10), 3.34 (1H, dd, J = 11.8, 3.2 Hz, H-1), 3.47 (1H, dd, J = 10.5, 2.0 Hz, H-17b), 3.78 (1H, d, J = 10.5 Hz, H-17a), 3.87 (1H, t, J = 8.3 Hz, H-14), 4.58 (1H, q, J = 3.2 Hz, H-2); 13C NMR (75 MHz, CDCl3) δ 15.7 (C-15), 23.9 (C-20), 26.1 (C-19), 26.7 (C-18), 28.9 (C-16), 29.6 (C-6), 30.2 (C-3), 31.2 (C-13), 32.8 (C-12), 38.4 (C-17), 39.2 (C-7), 42.7 (C-8), 42.6 (C-5), 43.5 (C-10), 46.2 (C-4), 51.7 (C-2), 52.9 (C-9), 59.4 (C-14), 72.9 (C-1), 80.9 (C-11); HR-ESIMS m/z 546.9822 [M+Na]+ (calcd. for C20H3179Br3OΝa, 546.9817).

3.4.4. Synthesis of Analogs 9 and 10

To a solution of bromosphaerol (1) (100 mg, 0.216 mmol), a catalytic amount of trimethylsilyl triflate (2 μL, 0.011 mmol) was added in acetic anhydride (0.43 mL, 0.432 mmol) at −10 °C. The reaction was stirred for 1 h, quenched with water (1 mL), and extracted with CH2Cl2 (3 × 15 mL). The combined organic layers were washed with saturated aqueous NaHCO3 solution (5 mL), dried over anhydrous Na2SO4, and evaporated under reduced pressure. Compounds 9 (65 mg, 70% yield) and 10 (9 mg, 10% yield) were isolated by flash column chromatography (elution system: petroleum ether 40–65 °C/acetone 90:10). Comparison of the spectroscopic and physical characteristics of 9 and 10 with those reported in the literature [38] allowed for their identification.

3.4.5. Synthesis of Analog 11

To a solution of compound 7 (28 mg, 0.061 mmol) and triethylphosphonoacetate (0.14 g, 0.61 mmol) in a mixture of abs. EtOH and anhydrous THF (1:1) (0.40 mL), a solution of sodium ethanolate, prepared from Na (14 mg, 0.61 mmol) in abs. EtOH (0.29 mL) was added dropwise. The reaction mixture was stirred for 12 h at 25 °C, quenched with water (5.0 mL), and diluted with diethyl ether (10 mL). Subsequently, the aqueous layer was extracted with diethyl ether (3 × 15 mL). The combined organic layers were washed successively with 5% aqueous HCl solution, 5% aqueous NaHCO3 solution, and water, dried over anhydrous Na2SO4, and evaporated in vacuo. Compound 11 (29.5 mg, 90% yield) was isolated as a mixture of Ε,Ζ geometric isomers after purification by flash column chromatography (elution system: hexane/acetone 90:10).
Compound 11: Gummy solid; 1H NMR (600 MHz, CDCl3) δ 0.85 and 0.90 (3H, 2d, J = 6.6 Hz), 1.00 and 1.03 (3H, 2d, J = 6.9 Hz), 1.12 and 1.15 (3H, 2s), 1.25-1.44 (7H, m), 1.63-2.10 (9H, m), 2.22-2.55 (2H, m), 3.47-3.71 (2H, m), 3.90 (1H, d, J = 11.2 Hz), 4.02-4.19 (3H, m), 5.54 and 5.67 (1H, 2s), 7.00 (0.4H, s), 8.19 (0.6H, s); 13C NMR (75 MHz, CDCl3) δ 14.6, 15.0, 15.5, 15.4, 18.9, 18.8, 21.4, 24.7, 24.6, 26.5, 26.3, 27.3, 27.2, 28.4, 29.7, 29.8, 29.9, 30.1, 30.5, 37.8, 38.1, 38.2, 41.7, 42.9, 44.4, 44.5, 44.9, 45.1, 46.2, 46.7, 52.6, 52.8, 59.6, 59.7, 67.4, 67.9, 72.2, 72.3, 112.7, 115.2, 126.5, 130.8, 147.1, 147.5, 153.0, 154.3, 166.8, 167.5; HR-ESIMS m/z 553.0921 [M+Na]+ (calcd. for C24H3679Br2O3Na 553.0923).

3.4.6. Synthesis of Analogs 12–16

To a solution of compound 7 (0.05 mmol) in anhydrous pyridine (0.45 mL), the appropriate alkoxyalkylamine salt (0.1 mmol) was added, and the reaction mixture was stirred for 12 h at 25 °C. Subsequently, the solvent was evaporated under reduced pressure, and to the residue, CH2Cl2 (10 mL) and water (5 mL) were added. The aqueous layer was extracted with CH2Cl2 (2 × 10 mL), and the combined organic layers were dried over anhydrous Na2SO4 and concentrated under reduced pressure. The final products were isolated after purification by flash column chromatography.
Following the general procedure described above, using compound 7 (21 mg, 0.045 mmol), pyridine (0.4 mL), and hydroxylamine hydrochloride (6.3 mg, 0.09 mmol), compound 12 was obtained (20.6 mg, 95% yield, mixture of E,Z geometric isomers) after purification by flash column chromatography (elution system: petroleum ether 40–65 °C/acetone, 80:20).
Compound 12: Gummy solid; 1H NMR (600 MHz, CDCl3) δ 0.87 and 0.89 (3H, 2d, J = 6.7 Hz), 1.04–1.02 (3H, m), 1.13 and 1.14 (3H, 2s), 1.33–1.45 (2H, m), 1.43 and 1.48 (3H, 2d, J = 6.9 Hz), 1.61–1.65 (2H, m), 1.81–2.27 (8H, m), 2.40–2.55 (1H, m), 3.49–3.56 (1H, m), 3.87–3.94 (1H, m), 4.03 (1H, dd, J = 12.7, 3.7 Hz), 6.98 (0.67H, s), 7.31–7.33 (0.67H, bs), 7.57 (0.33H, s), 7.70 (0.33H, t, J = 7.7 Hz); 13C NMR (75 MHz, CDCl3) δ 15.4, 17.4, 18.8, 18.9, 24.0, 24.5, 24.6, 26.3, 26.4, 27.2, 27.3, 29.8, 29.9, 30.0, 30.1, 37.6, 37.7, 37.8, 38.1, 40.6, 42.6, 44.3, 44.9, 46.3, 47.2, 52.5, 52.7, 67.5, 67.7, 72.1, 118.1, 124.4, 136.4, 146.5, 149.6, 149.7; HR-ESIMS m/z 476.0796 [M+H]+ (calcd. for C20H3279Br2NO2, 476.0794), m/z 498.0617 [M+Na]+ (calcd. for C20H3179Br2NO2Νa, 498.0614).
Following the general procedure described above, using compound 7 (20 mg, 0.043 mmol), pyridine (0.4 mL), and methoxyamine hydrochloride (7.2 mg, 0.086 mmol), compound 13 was obtained (21 mg, 98% yield, mixture of E,Z geometric isomers) after purification by flash column chromatography (elution system: petroleum ether 40–65 °C/acetone, 90:10).
Compound 13: Gummy solid; 1H NMR (600 MHz, CDCl3) δ 0.86 and 0.88 (3H, 2d, J = 6.7 Hz), 1.02–1.04 (3H, m), 1.14 and 1.15 (3H, 2s), 1.34–1.43 (2H, m), 1.39 and 1.42 (3H, 2s), 1.58–1.68 (2H, m), 1.78–2.31 (8H, m), 2.45–2.51 (1H, m) 3.49–3.54 (1H, m), 3.86 and 3.92 (3H, 2s), 3.85–3.90 (1H, m), 4.03 (1H, dd, J = 12.7, 3.9 Hz), 6.96 (0.29H, s), 7.46 (0.71H, s); 13C NMR (75 MHz, CDCl3) δ 15.4, 15.5, 18.0, 18.9, 24.1, 24.6, 24.7, 26.3, 26.4, 27.1, 27.2, 29.9, 29.96, 30.0, 37.6, 37.7, 37.76, 37.8, 38.1, 40.6, 42.6, 44.3, 44.4, 44.9, 46.2, 47.2, 52.4, 52.7, 61.8, 61.9, 67.4, 67.7, 72.17, 72.20, 118.6, 124.4, 146.5, 149.7, 156.2, 156.3; HR-ESIMS m/z 490.0952 [M+H]+ (calcd. for C21H3479Br2NO2, 490.0951), m/z 512.0772 [M+Na]+ (calcd. for C21H3379Br2NO2Νa, 512.0770).
Following the general procedure described above, using compound 7 (25.5 mg, 0.055 mmol), pyridine (0.45 mL), and O-(carboxymethyl)hydroxylamine hemihydrochloride (24.1 mg, 0.22 mmol), compound 14 was obtained (28.3 mg, 96% yield, mixture of E,Z geometric isomers) after purification by flash column chromatography (elution system: CH2Cl2/MeOH, 90:10).
Compound 14: Gummy solid; 1H NMR (600 MHz, CDCl3/CD3OD) δ 0.81 and 0.84 (3H, 2d, J = 6.8 Hz), 0.97 and 0.99 (3H, 2d, J = 6.9 Hz), 1.07 and 1.09 (3H, 2s), 1.29 and 1.35 (3H, 2s), 1.32–1.40 (2H, m), 1.51–1.66 (2H, m), 1.76–2.16 (8H, m), 2.41–2.49 (1H, m), 3.45–3.50 (1H, m), 3.85–3.89 (1H, m), 3.98–4.02 (1H, m), 4.46–4.47 (2H, m), 6.91 (0.42H, s), 7.42 (0.58H, s); 13C NMR (150 MHz, CDCl3/CD3OD) δ 15.4, 15.5, 18.4, 18.8, 18.9, 21.9, 24.0, 24.5, 24.6, 26.3, 26.4, 27.2, 27.3, 29.88, 29.90, 29.94, 30.00, 37.5, 37.6, 37.7, 37.9, 40.5, 42.5, 44.4, 44.5, 44.7, 44.8, 46.3, 47.2, 52.6, 52.8, 67.2, 67.4, 70.2, 70.3, 72.1, 72.2, 118.4, 123.6, 148.5, 151.5, 156.1, 158.1, 173.9, 174.4; HR-ESIMS m/z 556.0674 [M+Na]+ (calcd. for C22H3379Br2NO4Νa, 556.0669).
Following the general procedure described above, using compound 7 (30 mg, 0.065 mmol), pyridine (0.5 mL), and methyl 2-(aminooxy)acetate hydrochloride (27.3 mg, 0.26 mmol) [39], compound 15 was obtained (20.5 mg, 56% yield, mixture of E,Z geometric isomers) after purification by flash column chromatography (elution system: petroleum ether 40–65 °C/acetone, 90:10).
Compound 15: Gummy solid; 1H NMR (300 MHz, CDCl3) δ 0.85 and 0.89 (3H, 2d, J = 6.7 Hz), 1.02 and 1.04 (3H, 2d, J = 7.2 Hz), 1.14 and 1.16 (3H, 2s), 1.37 and 1.42 (3H, 2s), 1.37–1.45 (2H, m), 1.59–1.67 (2H, m), 1.78–2.26 (8H, m), 2.40–2.55 (1H, m), 3.48–3.56 (1H, m), 3.77 and 3.75 (3H, 2s), 3.86–3.93 (1H, m), 4.03 (1H, dd, J = 12.4, 3.7 Hz), 4.57–4.66 (2H, m), 6.93 (0.38H, s), 7.55 (0.62H, s); 13C NMR (75 MHz, CDCl3) δ 15.4, 15.5, 18.3, 18.8, 18.9, 24.0, 24.5, 24.7, 26.3, 26.4, 27.1, 27.3, 29.9, 29.93, 29.97, 30.0, 37.64, 37.67, 37.7, 38.0, 40.5, 42.4, 44.3, 44.4, 44.9, 46.3, 47.1, 52.0, 52.1, 52.5, 52.7, 67.4, 67.5, 70.4, 70.6, 72.1, 72.2, 118.7, 124.0, 147.3, 150.0, 155.0, 157.8, 170.8, 171.0; HR-APCIMS m/z 548.1008 [M+H]+ (calcd. for C23H3679Br2NO4, 548.1006).
Following the general procedure described above, using compound 7 (21 mg, 0.045 mmol), pyridine (0.4 mL), and O-(N,N-dimethylaminoethyl)hydroxylamine hydrochloride [40] (32 mg, 0.18 mmol), compound 16 was obtained (17.5 mg, 81% yield, mixture of E,Z geometric isomers) after purification by flash column chromatography (elution system: CH2Cl2/MeOH, 95:5).
Compound 16: Gummy solid; 1H NMR (300 MHz, CDCl3/CD3OD) δ 0.78 (3H, d, J = 7.0 Hz), 0.94 (3H, d, J = 6.9 Hz), 1.05 (3H, s), 1.27 (3H, s), 1.17–2.11 (11H, m), 2.33 and 2.41 (6H, 2 s), 2.33–2.47 (2H, m), 2.71–2.83 (2H, m), 3.41–3.47 (1H, m), 3.81–3.87 (1H, m), 3.97 (1H, dd, J = 12.7, 3.7 Hz), 4.12–4.25 (2H, m), 6.89 (0.34H, s), 7.41 (0.66H, s); 13C NMR (75 MHz, CDCl3/CD3OD) δ 15.0, 15.1, 18.6, 23.8, 24.3, 24.4, 26.1, 26.2, 27.1, 29.0, 29.3, 29.6, 29.8, 29.9, 37.3, 37.4, 37.6, 37.9, 40.6, 42.5, 44.3, 44.4, 44.5, 44.8, 45.2, 46.1, 47.0, 52.5, 52.7, 57.3, 57.5, 67.8, 67.9, 69.9, 70.9, 118.4, 123.7, 151.0, 154.8; HR-APCIMS m/z 547.1533 [M+H]+ (calcd. for C24H4179Br2N2O2, 547.1529).

3.5. Evaluation of Settlement Inhibitory Activity

Cypris larvae were obtained from laboratory cultures of the crustacean cirriped A. amphitrite brood stock. Twenty to thirty adult barnacles were reared in 800 mL aerated beakers containing filtered natural seawater (FNSW) at 20 ± 1 °C, with a 16 h:8 h light:dark (L:D) cycle. They were fed every two days with nauplii of Artemia salina (100 mL, 20–35 larvae/mL) and Tetraselmis suecica (100 mL, 2 × 105 cells/mL). Twenty beakers containing adults reared under the above-mentioned conditions produced nauplii throughout the year. Nauplii were collected with a 5 mL pipette by positioning the beaker near a light source and reared in 500 mL beakers containing 0.22 µm FNSW gently aerated at 28 ± 1 °C with a 16 h:8 h L:D cycle. Nauplii were fed every 48 h with T. suecica (5 × 105 cells/mL) until, after 5–6 days, they reached the cyprid stage.
Newly metamorphosed cyprids were filtered and maintained in 0.22 µm FNSW at 6 °C for 4 days before being used in settlement assays [41]. Settlement tests were performed by adding 15–20 cyprids (for each replicate) to 24-well polystyrene plates containing 2 mL of bromosphaerol derivatives at different concentrations (0, 0.5, 5, and 50 mg/L). Four replicates were prepared for each concentration of each derivative, and the reported results are the mean values of the four replicates. The 24-well plates were stored for 72 h at 28 °C with a 16:8 L:D cycle. After 24, 48, and 72 h, the number of settled, non-settled, and dead larvae was measured under a stereomicroscope. EC50 values (concentration of bromosphaerol derivatives causing 50% settlement inhibition to exposed organisms) were calculated with the results obtained after 72 h. Additionally, at the same time, LC50(cypris) values were calculated as the concentration of bromosphaerol derivatives causing 50% mortality to the exposed organisms.

3.6. Evaluation of Toxicity

Acute environmental toxicity of bromosphaerol derivatives was tested by using stage II nauplii of A. amphitrite. Nauplii were obtained from adult brood stock as described above, collected, and immediately filtered in 0.22 µm FNSW. The toxicity assay was set within 2–4 h from nauplii collection. The test was performed by adding 15 to 25 stage II nauplii to 24-well polystyrene plates containing 2 mL of bromosphaerol derivatives at different concentrations (0, 0.5, 5, and 50 mg/L). Four replicates were prepared for each concentration of each derivative, and the reported results are the mean values of the four replicates. The plates were stored for 48 h at 20 °C with a 16:8 L:D cycle. After 24 and 48 h, the number of dead larvae was observed under a stereomicroscope. LC50(nauplii) values were calculated as the concentration of bromosphaerol derivatives causing 50% mortality to the exposed organisms after 48 h of contact.

3.7. Statistical Analysis

Settlement inhibition (EC50) at 72 h and mortality (LC50) values at 48 h (for nauplii) and 72 h (for cyprids) were calculated using trimmed Spearman–Karber analysis [42]. The therapeutic ratio (TN) was defined as LC50/EC50. This index was calculated using mortality values measured for larvae at naupliar stage (TRN) and for larvae at cypris stage (TRC).

4. Conclusions

Following different synthetic routes, we successfully synthesized 15 structural analogs (2–16) of bromosphaerol (1) decorated with different functional groups. The anti-settlement activity (EC50) and the degree of toxicity (LC50) of the bromosphaerol derivatives were evaluated using cyprids and nauplii of A. amphitrite as a model organism. Derivatives 2, 4, and 6–16 showed diverse levels of antifouling activity, with four of them (9, 13, 15, and 16) displaying a bioactivity comparable to the one of the naturally occurring molecule. Among them, compounds 9 and 13 can be considered as well-performing antifoulants, exerting their activity through a non-toxic mechanism. The chemical diversity of these derivatives provides new insights on structure–activity relationship studies regarding settlement inhibition, helping to understand the antifouling mechanism of bromosphaerol (1), while potentially serving as bioinspired alternatives in antifouling coatings and paints.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/md20010007/s1, Figures S1–S46: 1D and 2D NMR spectra of compounds 1–16.

Author Contributions

Conceptualization, E.I., T.C. and V.R.; methodology, K.C.P., E.I., T.C. and V.R.; formal analysis, K.C.P., E.I., T.C. and V.R.; investigation, K.C.P., S.K., E.I., S.M., M.F. and V.P.; resources, E.I., T.C. and V.R.; writing—original draft preparation, K.C.P., S.K. and V.P.; writing—review and editing, E.I., T.C. and V.R.; visualization, K.C.P., S.K. and E.I.; supervision, E.I., T.C. and V.R.; project administration, E.I. and V.R.; funding acquisition, E.I., T.C. and V.R. All authors have read and agreed to the published version of the manuscript.

Funding

This research was partially supported by the Cooperation 2011 Action of the Operational Programme “Competitiveness and Entrepreneurship” with co-funding by the European Social Fund (ESF) and National Resources, Greece (project GSRT-EPANII-11ΣYN-5-1274 “MariPaints”). Part of the current work was financially supported by the project “OPENSCREEN-GR: An Open-Access Research Infrastructure of Chemical Biology and Target-Based Screening Technologies for Human and Animal Health Agriculture and the Environment” (2018–2020) (MIS 5002691), which is implemented under the Action “Reinforcement of the Research and Innovation Infrastructure”, funded by the Operational Programme “Competitiveness, Entrepreneurship and Innovation” (NSRF 2014–2020) and co-financed by Greece and the European Union (European Regional Development Fund).

Data Availability Statement

The data presented in this study are available in Supplementary Material.

Acknowledgments

Access to the infrastructure obtained by the research project “Center for the study and sustainable exploitation of Marine Biological Resources” (CMBR, MIS 5002670) in the framework of the National Roadmap for Research Infrastructures is gratefully acknowledged. The involvement of Stavroula Konstantopoulou and Thalia Sokali in the extraction and isolation of bromosphaerol is gratefully acknowledged.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Almeida, J.R.; Correia-da-Silva, M.; Sousa, E.; Antunes, J.; Pinto, M.; Vasconcelos, V.; Cunha, I. Antifouling potential of nature inspired sulfated compounds. Sci. Rep. 2017, 7, 42424. [Google Scholar] [CrossRef] [Green Version]
  2. Bloecher, N.; Floerl, O. Efficacy testing of novel antifouling coatings for pen nets in aquaculture: How good are alternatives to traditional copper coatings? Aquaculture 2020, 519, 734936. [Google Scholar] [CrossRef]
  3. Chen, L.; Duan, Y.; Cui, M.; Huang, R.; Su, R.; Qi, W.; He, Z. Biomimetic surface coatings for marine antifouling: Natural antifoulants, synthetic polymers and surface microtopography. Sci. Total Environ. 2021, 766, 1444692. [Google Scholar] [CrossRef] [PubMed]
  4. Feng, K.; Ni, C.; Yua, L.; Zhou, W.; Li, X. Synthesis and antifouling evaluation of indole derivatives. Ecotoxicol. Environ. Saf. 2019, 182, 109423. [Google Scholar] [CrossRef] [PubMed]
  5. Zhao, L.; Chen, R.; Lou, L.; Jing, X.; Liu, Q.; Liu, J.; Yu, J.; Liu, P.; Wang, J. Layer-by-layer-assembled antifouling films with surface microtopography inspired by Laminaria japonica. Appl. Surf. Sci. 2020, 511, 145564. [Google Scholar] [CrossRef]
  6. Kolter, R.; Greenberg, E.P. The superficial life of microbes. Nature 2006, 441, 300–302. [Google Scholar] [CrossRef]
  7. Leonardi, A.K.; Ober, C.K. Polymer-based marine antifouling and fouling release surfaces: Strategies for synthesis and modification. Annu. Rev. Chem. Biomol. Eng. 2019, 10, 241–264. [Google Scholar] [CrossRef]
  8. Liu, S.; Guo, W. Anti-Biofouling and healable materials: Preparation, mechanisms, and biomedical applications. Adv. Funct. Mater. 2018, 28, 1800596. [Google Scholar] [CrossRef]
  9. Talluri, S.N.L.; Winter, R.M.; David, R.; Salem, D.R. Conditioning film formation and its influence on the initial adhesion and biofilm formation by a cyanobacterium on photobioreactor materials. Biofouling 2020, 36, 183–199. [Google Scholar] [CrossRef]
  10. Chavan, P.; Kumar, R.; Kirubagaran, R.; Venugopalan, V.P. Comparative toxicological effects of two antifouling biocides on the marine diatom Chaetoceros lorenzianus: Damage and post-exposure recovery. Ecotoxicol. Environ. Saf. 2017, 144, 97–106. [Google Scholar] [CrossRef]
  11. Jagerbrand, A.K.; Brutemark, A.; Sveden, J.B.; Gren, I.M. A review on the environmental impacts of shipping on aquatic and nearshore ecosystems. Sci. Total Environ. 2019, 695, 133637. [Google Scholar] [CrossRef]
  12. Majik, M.S.; Rodrigues, C.; Mascarenhas, S.; D’Souza, L. Design and synthesis of marine natural product-based 1H-indole-2,3-dione scaffold as a new antifouling/antibacterial agent against fouling bacteria. Bioorganic Chem. 2014, 54, 89–95. [Google Scholar] [CrossRef]
  13. Callow, M.E.; Callow, J.E. Marine biofouling: A sticky problem. Biologist 2002, 49, 10–14. [Google Scholar] [PubMed]
  14. Cho, Y.; Jeon, K.H.; Lee, S.B.; Park, H.; Lee, I. Evaluation of in-service speed performance improvement by means of FDR-AF (frictional drag reducing anti-fouling) marine coating based on ISO19030 standard. Sci. Rep. 2021, 11, 1062. [Google Scholar] [CrossRef] [PubMed]
  15. Hunsucker, K.Z.; Ralston, E.; Gardner, H.; Swain, G. Specialized grooming as a mechanical method to prevent marine invasive species recruitment and transport on ship hulls. In Impacts of Invasive Species on Coastal Environments; Makowski, C., Finkl, C.W., Eds.; Springer International Publishing AG: Cham, Switzerland, 2019; pp. 247–265. [Google Scholar] [CrossRef]
  16. Kamensky, K.M.; Hellum, A.M.; Mukherjee, R.; Naik, A.; Moisander, P.H. Underwater shear-based grooming of marine biofouling using a non-contact Bernoulli pad device. Biofouling 2020, 36, 951–964. [Google Scholar] [CrossRef] [PubMed]
  17. Manolakis, I.; Azhar, U. Recent Advances in mussel-inspired synthetic polymers as marine antifouling coatings. Coatings 2020, 10, 653. [Google Scholar] [CrossRef]
  18. Schultz, M.P.; Bendick, J.A.; Holm, E.R.; Hertel, W.M. Economic impact of biofouling on a naval surface ship. Biofouling 2011, 27, 87–98. [Google Scholar] [CrossRef]
  19. Almeida, E.; Diamantino, T.C.; de Sousa, O. Marine paints: The particular case of antifouling paints. Prog. Org. Coat. 2007, 59, 2–20. [Google Scholar] [CrossRef]
  20. Finnegan, C.; Ryan, D.; Enright, A.M.; Garcia-Cabellos, G. A review of strategies for the detection and remediation of organotin pollution. Crit. Rev. Environ. Sci. Technol. 2018, 48, 77–118. [Google Scholar] [CrossRef]
  21. Szeto, W.; Leung, M.K.H.; Leung, D.Y.C. Recent developments of titanium dioxide materials for aquatic antifouling application. J. Mar. Sci. Technol. 2021, 26, 301–321. [Google Scholar] [CrossRef]
  22. Yebra, D.M.; Kiil, S.; Dam-Johansen, K. Antifouling technology-past, present and future steps towards efficient and environmentally friendly antifouling coatings. Prog. Org. Coat. 2004, 50, 75–104. [Google Scholar] [CrossRef]
  23. Schøyen, M.; Green, N.W.; Hjermann, D.Ø.; Tveiten, L.; Beylich, B.; Øxnevad, S.; Beyer, J. Levels and trends of tributyltin (TBT) and imposex in dogwhelk (Nucella lapillus) along the Norwegian coastline from 1991 to 2017. Mar. Environ. Res. 2018, 144, 1–8. [Google Scholar] [CrossRef] [PubMed]
  24. Thomas, K.V.; Brooks, S. The environmental fate and effects of antifouling paint biocides. Biofouling 2010, 26, 73–88. [Google Scholar] [CrossRef]
  25. Chapman, J.; Hellio, C.; Sullivan, T.; Brown, R.; Russell, S.; Kiterringham, E.; Nor, L.; Regan, F. Bioinspired synthetic macroalgae: Examples from nature for antifouling applications. Int. Biodeter. Biodegr. 2014, 86, 6–13. [Google Scholar] [CrossRef]
  26. Readman, J.W. Development, occurrence and regulation of antifouling paint biocides: Historical review and future trends. In Antifouling Paint Biocides. The Handbook of Environmental Chemistry; Konstantinou, I., Ed.; Springer: Heidelburg, Germany, 2006; Volume 50, pp. 1–15. [Google Scholar] [CrossRef]
  27. Pistone, A.; Scolaro, C.; Visco, A. Mechanical properties of protective coatings against marine fouling: A Review. Polymers 2021, 13, 173. [Google Scholar] [CrossRef] [PubMed]
  28. Tian, J.; Xu, K.; Hu, J.; Zhang, S.; Cao, G.; Shao, G. Durable self-polishing antifouling Cu-Ti coating by a micron-scale Cu/Ti laminated microstructure design. J. Mater. Sci. Technol. 2021, 79, 62–74. [Google Scholar] [CrossRef]
  29. Fusetani, N. Antifouling marine natural products. Nat. Prod. Rep. 2011, 28, 400–410. [Google Scholar] [CrossRef] [PubMed]
  30. Gu, Y.; Yu, L.; Mou, J.; Wu, D.; Xu, M.; Zhou, P.; Ren, Y. Research strategies to develop environmentally friendly marine antifouling coatings. Mar. Drugs 2020, 18, 371. [Google Scholar] [CrossRef]
  31. Kirschner, C.M.; Brennan, A.B. Bio-inspired antifouling strategies. Annu. Rev. Mater. Res. 2012, 42, 211–229. [Google Scholar] [CrossRef]
  32. Selim, M.S.; El-Safty, S.A.; Shenashen, M.A.; Higazy, S.A.; Elmarakbi, A. Progress in biomimetic leverages for marine antifouling using nanocomposite coatings. J. Mater. Chem. B 2020, 8, 3701–3732. [Google Scholar] [CrossRef]
  33. Wang, K.L.; Wu, Z.H.; Wang, Y.; Wang, C.Y.; Xu, Y. Mini-Review: Antifouling natural products from marine microorganisms and their synthetic analogs. Mar. Drugs 2017, 15, 266. [Google Scholar] [CrossRef] [Green Version]
  34. Dahms, H.U.; Dobretsov, S. Antifouling compounds from marine macroalgae. Mar. Drugs 2017, 15, 265. [Google Scholar] [CrossRef]
  35. Saha, M.; Goecke, F.; Bhadury, P. Mini review: Algal natural compounds and extracts as antifoulants. J. Appl. Phycol. 2018, 30, 1859–1874. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Piazza, V.; Roussis, V.; Garaventa, F.; Greco, G.; Smyrniotopoulos, V.; Vagias, C.; Faimali, M. Terpenes from the red alga Sphaerococcus coronopifolius inhibit the settlement of barnacles. Mar. Biotechnol. 2011, 13, 764–772. [Google Scholar] [CrossRef]
  37. Protopapa, M.; Kotsiri, M.; Mouratidis, S.; Roussis, V.; Ioannou, E.; Dedos, S.G. Evaluation of antifouling potential and ecotoxicity of secondary metabolites derived from red algae of the genus Laurencia. Mar. Drugs 2019, 17, 646. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Cafieri, F.; Ciminiello, P.; Santacroce, C.; Fattorusso, E. Three diterpenes from the red alga Sphaerococcus coronopifolius. Phytochemistry 1983, 22, 1824–1825. [Google Scholar] [CrossRef]
  39. Schade, D.; Kotthaus, J.; Klein, N.; Kotthaus, J.; Clement, B. Prodrug design for the potent cardiovascular agent Nω-hydroxy-l-arginine (NOHA): Synthetic approaches and physicochemical characterization. Org. Biomol. Chem. 2011, 9, 5249–5259. [Google Scholar] [CrossRef] [PubMed]
  40. Walters, I.; Birch, L.; Hill-Cousins, J.; Collingwood, S.P.; Stevenson, C.S. Indolinones Compounds and Their Use in The Treatment of Fibrotic Diseases. U.S. Patent WO 2017/109513 A1, 29 June 2017. [Google Scholar]
  41. Rittschof, D.; Clare, A.S.; Gerhart, D.J.; Sister Avelin, M.; Bonaventura, J. Barnacle in vitro assays for biologically active substance: Toxicity and settlement inhibition assay using mass cultured Balanus amphitrite Darwin. Biofouling 1992, 6, 115–122. [Google Scholar] [CrossRef]
  42. Finney, D.J. Bioassay and the practice of statistical inference. Int. Stat. Rev. Rev. Int. Stat. 1979, 47, 1–12. [Google Scholar] [CrossRef]
Marinedrugs 20 00007 g001 550

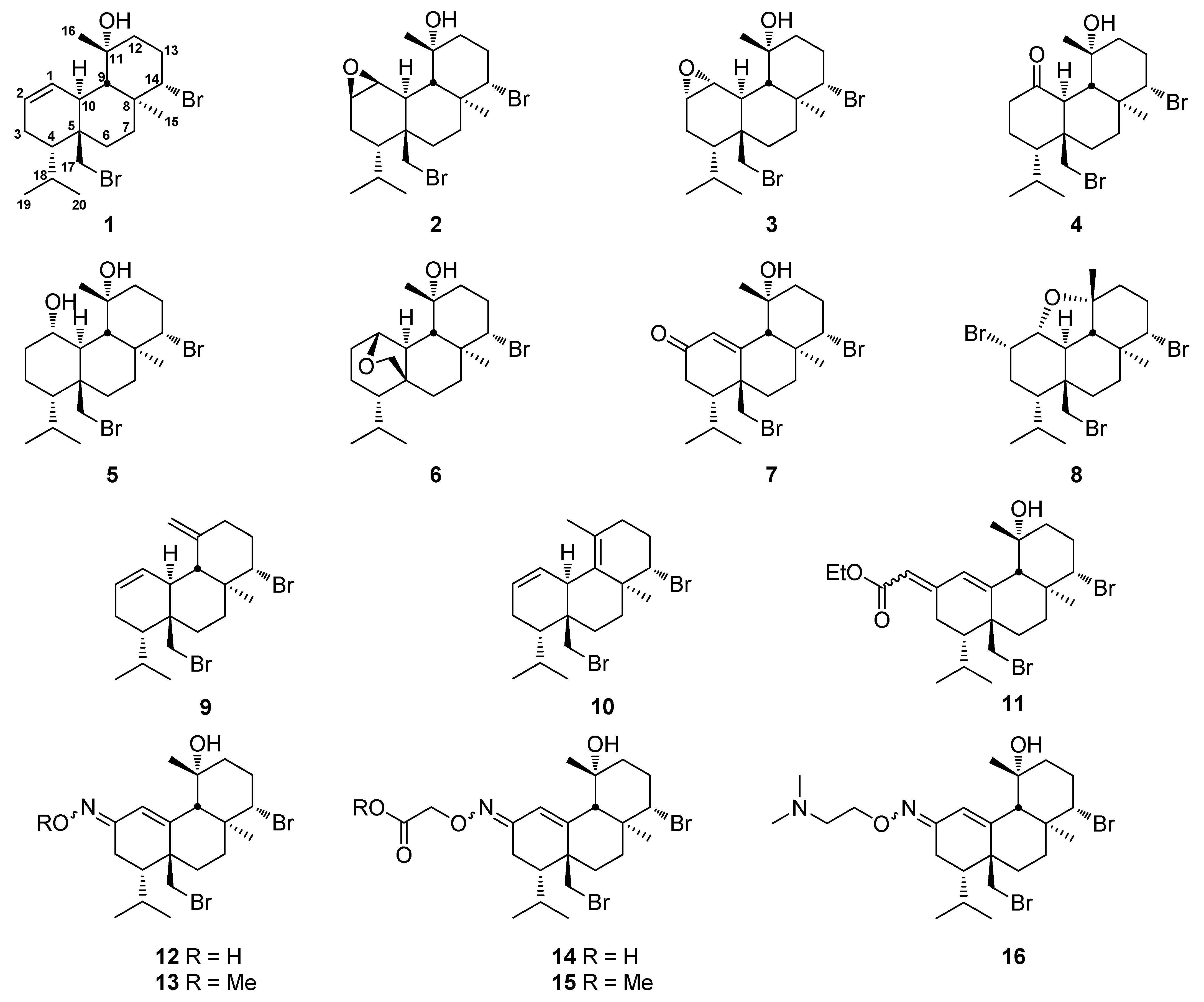

Figure 1. Bromosphaerol (1) and its synthetic derivatives 2–16.
Figure 1. Bromosphaerol (1) and its synthetic derivatives 2–16.
Marinedrugs 20 00007 g001
Marinedrugs 20 00007 g002 550

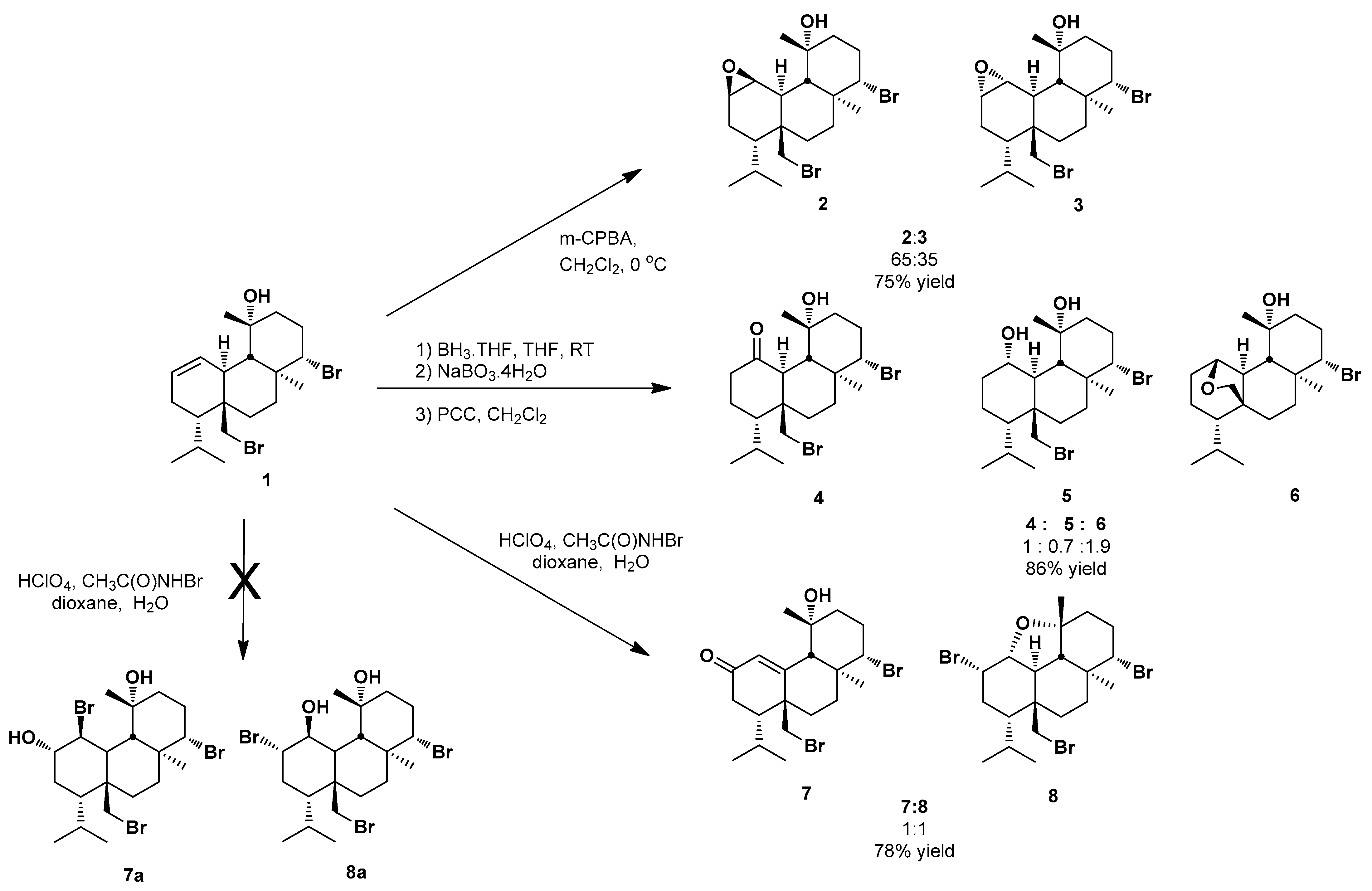

Figure 2. Synthesis of bromosphaerol derivatives 2–8.
Figure 2. Synthesis of bromosphaerol derivatives 2–8.
Marinedrugs 20 00007 g002
Marinedrugs 20 00007 g003 550

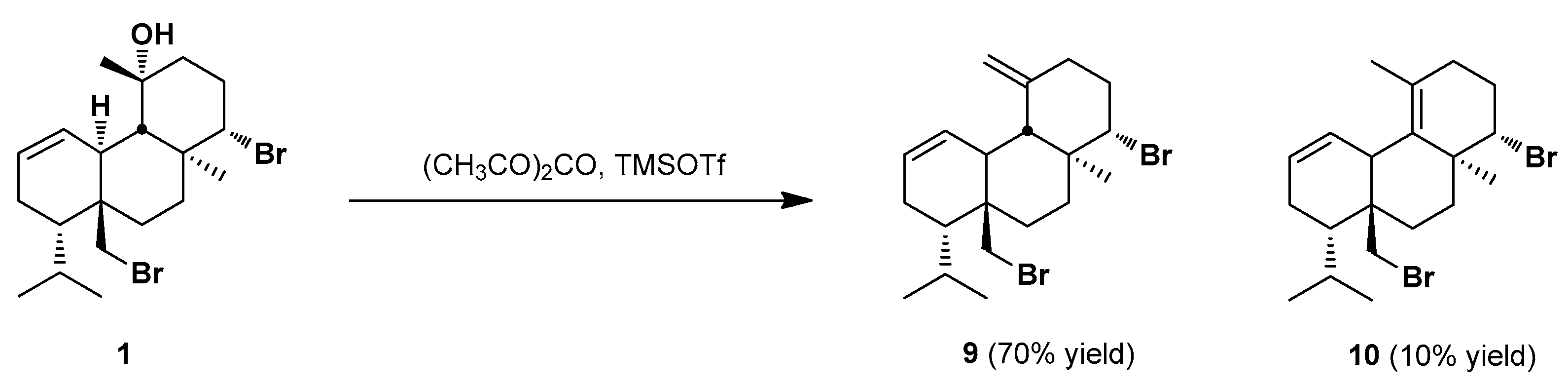

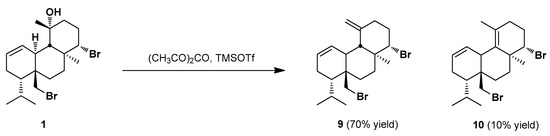

Figure 3. Synthesis of bromosphaerol derivatives 9 and 10.
Figure 3. Synthesis of bromosphaerol derivatives 9 and 10.
Marinedrugs 20 00007 g003
Marinedrugs 20 00007 g004 550

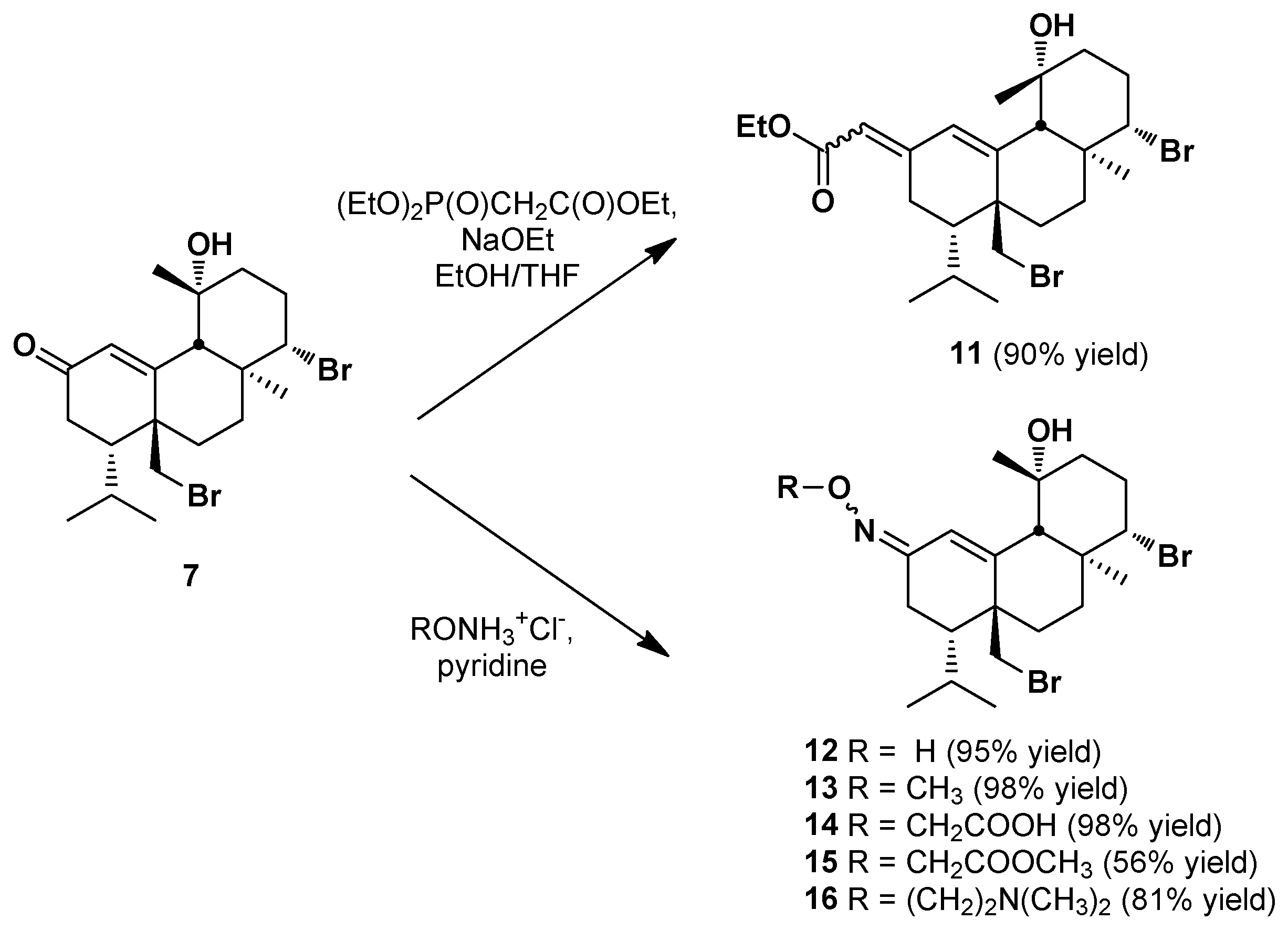

Figure 4. Synthesis of bromosphaerol derivatives 11–16.
Figure 4. Synthesis of bromosphaerol derivatives 11–16.
Marinedrugs 20 00007 g004
Table
Table 1. EC50, LC50(cypris), and LC50(nauplii) values (in mg/L, with 95% confidence limits in parentheses) for cypris larvae settlement inhibition, cypris larvae mortality, and naupliar mortality of Amphibalanus amphitrite after exposure for 72, 72, and 48 h, respectively, to bromosphaerol derivatives 2, 4, and 6–16, as well as therapeutic ratios for bromosphaerol derivatives 2, 4, and 6–16 calculated against both LC50(nauplii) values from naupliar toxicity test (TRN) and LC50(cypris) values from cyprids toxicity assay (TRC).
Table 1. EC50, LC50(cypris), and LC50(nauplii) values (in mg/L, with 95% confidence limits in parentheses) for cypris larvae settlement inhibition, cypris larvae mortality, and naupliar mortality of Amphibalanus amphitrite after exposure for 72, 72, and 48 h, respectively, to bromosphaerol derivatives 2, 4, and 6–16, as well as therapeutic ratios for bromosphaerol derivatives 2, 4, and 6–16 calculated against both LC50(nauplii) values from naupliar toxicity test (TRN) and LC50(cypris) values from cyprids toxicity assay (TRC).
CompoundsEC50 (72 h)
Cypris Larvae
Settlement Inhibition		LC50(cypris) (72 h)
Cypris Larvae
Mortality		LC50(nauplii) (48 h)
Naupliar Mortality		TRN
(LC50(nauplii)/EC50)		TRC
(LC50(cypris)/EC50)
10.23 (0.17–0.30)>1003.63 (3.05–4.33)15.78434.78
210.44 †25.2 †2.75 (2.47–3.07)0.262.39
47.19 (4.57–11.3)>501.27 †0.176.95
67.53 (5.82–9.73)10.2 †7.57 (6.10–9.38)1.001.32
78.75 (6.75–11.34)>5011.53 (9.53–13.95)1.31>5.71
8>50>50>50n.d. ‡n.d. ‡
9<0.5>501.19 †2.38>100
103.87 †>502.31 †0.5912.90
11>50>5021.64 (16.57–28.28)n.d. ‡n.d. ‡
12>50>501.21 †n.d. ‡n.d. ‡
13<0.5>501.26 †2.52>100
14>50>50>50n.d. ‡n.d. ‡
15<0.512.5 †1.81 †3.6225.00
16<0.52.7 †1.36 †2.725.40
† Confidence limits could not be defined. ‡ TR values were not calculated for derivatives with high EC50 values (not considered promising as antifoulants).
