Mar. Drugs 2018, 16(9), 330; https://doi.org/10.3390/md16090330

Communication
New Antibacterial Bagremycins F and G from the Marine-Derived Streptomyces sp. ZZ745
by 1,†, 2,†, 2,* and 1,*
1
Ocean College, Zhoushan Campus, Zhejiang University, Zhoushan 316021, China
2
College of Pharmaceutical Sciences, Zhejiang University, Hangzhou 310058, China
*
Correspondence: [email protected] (X.L.); [email protected] (Z.Z.); Tel.: +86-135-7547-6388 (X.L.); +86-136-7585-9706 (Z.Z.)
These authors contributed equal to this work.
Received: 11 August 2018 / Accepted: 10 September 2018 / Published: 12 September 2018

Abstract

:
As part of our research to discover novel bioactive natural products from marine microorganisms, five bagremycin analogues, including the previously unreported bagremycins F (1) and G (2), were isolated from a marine actinomycete Streptomyces sp. ZZ745. The structures of these compounds were determined by means of NMR spectroscopic analysis, HRESIMS data, and optical rotation. Both bagremycins F (1) and G (2) showed antibacterial activity against Escherichia coli, with MIC values of 41.8 and 61.7 μM, respectively.
Keywords:
Streptomyces sp. ZZ745; bagremycin F; bagremycin G; antibacterial activity

1. Introduction

More than 60% of new drugs with small molecules are derived from natural products, indicating that natural products are important sources for the discovery and development of new drugs [1]. Marine actinomycetes are one of the richest producers of bioactive natural products [2,3,4,5]. For example, salinosporamide A from the marine Salinospora strain CNB-392 entered clinical trials against multiple myeloma only three years after its discovery [6], and abyssomicin C from marine Verrucosispora strain AB 18-032 is the first natural product that inhibits p-aminobenzoate biosynthesis, a pathway used only by microorganisms [7].
Bagremycins are bacterial secondary metabolites and belong to phenol esters formed from p-hydroxystyrene and p-hydroxybenzoic acid. The first two bagremycins A and B, from the soil actinomycete Streptomyces sp. Tü 4128, were reported in 2001 [8]. Since then, no new bagremycins have been reported until our recent publication, which reported three new bagremycins C–E from a mangrove-derived actinomycete Streptomyces sp. Q22 [9]. Both bagremycins A and B showed antibacterial activity against Arthrobacter aurescens DSM20166 and Streptomyces viridochromogenes Tü 57 [8]. Bagremycin C inhibited the proliferation of different glioma cell lines; induced apoptosis in human glioma U87-MG cells in a dose- and time-dependent manner; and arrested the U87-MG cell cycle at the G0/G1 phase [9]. The biosynthesis of bagremycins was also investigated, and several genes including bagA, bagB, bagC, and bagI are involved in bagremycin biosynthesis [10,11,12].
As part of our research for discovering novel bioactive compounds from marine-derived microorganisms [9], a marine strain ZZ745 was isolated from a coastal mud. A scale up culture of the strain ZZ745 in Gause’s liquid medium produced two new members of bagremycins, named bagremycins F (1) and G (2), together with the known bagremycins A (3), B (4), and E (5) (Figure 1). Herein, we reported the isolation and culture of the strain ZZ745, as well as the isolation, structural elucidation, and antibacterial activity of the isolated compounds.

2. Results and Discussion

The strain ZZ745 (Supplementary materials, Figure S1) isolated from a sample of coastal mud was identified as Streptomyces sp. ZZ745, according to the results from its 16S rDNA sequence analysis (Supplementary materials, Table S1 and Figure S2). A crude extract prepared from a 50 L culture of the strain ZZ745 in Gause′s liquid medium was fractionated by repeated column chromatography, followed by purification with high performance liquid chromatography (HPLC) to give 15. On the basis of the NMR spectral analysis and comparison of their NMR data with those reported from the literatures, 35 were identified as bagremycins A (3), B (4), and E (5) [8,9]. Their 13C and 1H NMR data are shown in the Supplementary materials (Supplementary materials, Table S2).
Compound 1 was obtained as a colorless amorphous powder and gave ion peaks at m/z 431.1270 [M + H]+ and 453.1089 [M + Na]+ in the (+)-HRESIMS, corresponding to a molecular formula of C21H22N2O6S. The 13C NMR spectrum (Supplementary materials, Figure S4) of 1 showed 21 carbon signals, fifteen of which were attributed to the scaffold of 1, resonating at δC 126.5 (C-1), 113.1 (C-2), 140.4 (C-3), 147.7 (C-4), 113.2 (C-5), 119.1 (C-6), 165.7 (C-7), 150.5 (C-8), 122.0 (C-9, C-13), 127.1 (C-10, C-12), 134.7 (C-11), 135.8 (C-14), and 114.3 (C-15). The 1H NMR spectrum (Supplementary materials, Figure S3) displayed the signal at δH 6.78 (1H, d, J = 8.2 Hz, H-5); 7.10 (1H, d, J = 8.2 Hz, H-6); 7.21 (2H, d, J = 8.6 Hz, H-9, H-13); 7.55 (2H, d, J = 8.6 Hz, H-10, H-12); 6.74 (1H, dd, J = 17.7, 10.9 Hz, H-14); 5.29 (1H, dd, J = 10.9, 0.6 Hz, Ha-15); and 5.82 (1H, dd, J = 17.7, 0.6 Hz, Hb-15) (Table 1). The 1H and 13C NMR data for the scaffold of 1 were very similar to those of bagremycins C (6) and D (7) [9], suggesting that the core structures of 1, 6, and 7 had the same substitution pattern. The remaining six carbons were assigned to an N-acetylcysteine methyl ester moiety, comprising of the following 13C and 1H NMR signals: δC 35.5 (δH 2.98, dd, J = 13.1, 8.4 Hz and 3.11, dd, J = 13.1, 5.4 Hz, CH2-16); δC 52.2 (δH 4.25, m, NH-CH-17); δC 171.0 and 169.3 (C-18 and C-19); δC 22.2 (δH 1.81, s, CH3-20); δC 51.9 (δH 3.54, s, CH3-21) and (δH 8.41, d, J = 7.5 Hz, NH). The significant HMBC correlations (Figure 2) from H2-16 to C-2 (δ 113.1), placed the N-acetylcysteine methyl ester on C-2. Since both 1 and 6 are not only levorotatory, but also have nearly identical structures, it was legitimate to assume that both compounds had the same absolute configuration at C-17 of the amino acid moiety. Since the absolute configuration of C-17 of 6 was determined as 17S [9], it was concluded that the configuration of C-17 of 1 was also 17S. The structure of 1 was a new member of bagremycins, named bagremycin F. Its 13C and 1H NMR data were fully assigned by the HSQC and HMBC correlations (Table 1 and Figure 2).
Since bagremycin F (1) was a methyl ester of bagremycin C (6), it was possible that 1 could be an artifact formed by esterification of the carboxylic acid of 6 by MeOH, which was used as the solvent for extraction. To prove this possibility, an ethanol extract prepared from the mycelia of the strain ZZ745 was analyzed by HPLC-HRESIMS. The results (Supplementary materials, Figures S23 and S24) showed that bagremycin F (1) was detected in the ethanol crude extract. Therefore, it was clear that 1 was not an artifact, but a new naturally occurring compound.
The molecular formula of C16H13NO4 for 2 was deduced from the (+)-HRESIMS at m/z 284.0929 [M + H]+ and 306.0734 [M + Na]+, as well as its 13C data. The 13C and 1H NMR spectra (Supplementary materials, Figures S10 and S11) of 2 showed the signals for one p-hydroxybenzoic acid ester carbonyl (δC 164.3), one formamide unit (δC 160.2; δH 8.33, 9.78), twelve aromatic carbons and seven aromatic protons, including: δC 118.1 (C-1), 121.9 (C-2), 126.2 (C-3), 152.6 (C-4), 114.8 (C-5), 126.9 (C-6), 150.4 (C-8), 122.1 (C-9, C-13), 127.1 (C-10, C-12), 134.7 (C-11), and δH 8.90 (d, J = 2.2 Hz, H-2); 6.99 (d, J = 8.5 Hz, H-5); 7.74 (dd, J = 8.5, 2.2 Hz, H-6); 7.20 (d, J = 8.6 Hz, H-9, H-13); 7.54 (d, J = 8.6 Hz, H-10, H-12); and an exocyclic double bond (δC 135.8, 114.3; δH 6.74, 1H, dd, J = 17.6, 10.9 Hz, 5.82, 1H, dd, J = 17.6, 0.7 Hz, 5.27, 1H, dd, J = 10.9, 0.7 Hz) (Table 1). These NMR data indicated that 2 was an analogue of bagremycins. The molecular formula, together with the 1H and 13C NMR data of 2, revealed that its structure was nearly identical to that of 4, except for the acetyl group in 4, which was replaced by the formyl group in 2. Literature search revealed that 2 was a new member of bagremycins, which was named bagremycin G.
The biosynthetic pathway for bagremycins A (3) and B (4) was previously proposed, as described in Reference [10]. They are the condensation products of 3-amino-4-hydroxybenzoic acid (3,4-AHBA) and trans-coumaric acid, which is derived from l-tyrosine or l-phenylalanine. Accordingly, bagremycins F (1) and G (2) should share the same biosynthetic pathway as that of bagremycins A (3) and B (4) and may be derived from bagremycin A (3) (Figure 3).
The antibacterial activity of 15 against methicillin-resistant Staphylococcus aureus (MRSA), Escherichia coli, and Candida albicans was evaluated using the micro broth dilution method [15]. Gentamicin (an antibiotic against both Gram-positive and Gram-negative bacteria) and amphotericin B (an antifungal drug) were used as positive controls. As shown in Table 2, bagremycins F (1) and G (2) showed antibacterial activity against E. coli, with MIC values of 41.8 and 67.1 μM, respectively, but were inactive against MRSA and C. albicans in a concentration of 116.2 μM for 1 and 176.5 μM for 2.
Bagremycin C (6) was previously reported to have strong growth inhibitory activity against glioma cells [9]. Therefore, bagremycins F (1) and G (2) were also evaluated for their activity against human glioma U87-MG and U251 cell lines by sulforhodamine B (SRB) assay [9,16]. Doxorubicin (DOX) was used as a positive control. The results showed that both bagremycins F (1) and G (2) were not active against both cell lines, even at a concentration as high as 100 μM.

3. Materials and Methods

3.1. General Experimental Procedures

Ultraviolet-visible (UV) and infrared radiation (IR) spectra were recorded on a METASH UV-8000 spectrometer (Shanghai METASH Instruments Co. Ltd., Shanghai, China) and a Bruker TENSOR II high performance FT-IR spectrometer (Bruker, Karlsruhe, Germany), respectively. Optical rotation was measured on an Autopol I polarimeter (Rudolph Research Analytical, Hackettstown, NJ, USA). HRESIMS data was obtained from an Agilent 6230 time-of-flight liquid chromatography–mass spectrometry (TOF LC-MS) (Agilent, CA, USA). NMR spectra were acquired on a Bruker 500 spectrometer (Fällanden, Switzerland), and chemical shifts were expressed in δ (ppm). Sephadex LH-20 (GE Healthcare, Stockholm, Sweden) and octadecyl-functionalized silica gel (ODS, Cosmosil 75C18-Prep, Nacalai Tesque Inc., Kyoto, Japan) were used for column chromatography. HPLC separation was conducted on an Agilent 1260 HPLC system with a diode array detector (DAD), using a Zorbax SB-C18 column (250 × 9.4 mm, 5 μm, Agilent Technologies, Palo Alto, CA, USA). All solvents were purchased from the Shanghai Lingfeng Co., Ltd. (Shanghai, China). Amphotericin B (>95.0%) and gentamicin (99.6%) were obtained from Meilune Biotechnology Co. Ltd. (Dalian, China), and doxorubicin (DOX, >98.0%) from Sigma-Aldrich. Human glioma U87-MG and U251 cells were obtained from the Cell Bank of the Chinese Academy of Sciences. Gause’s medium was bought from Guangdong Huankai Microbial Science and Technology Co. Ltd. (Guangzhou, China). Methicillin-resistant Staphylococcus aureus ATCC 43300 (MRSA), Escherichia coli ATCC 25922, and Candida albicans were gifts from Professors Zhongjun Ma, Pinmei Wang, and Bin Wu, respectively.

3.2. Isolation and Identification of Strain ZZ745

Strain ZZ745 was isolated from a sample of marine mud, which was collected from a coastal area located at the Jintang Island of Zhoushan (Zhejiang, China), in September 2016. Summarily, soil (1.0 g) was transferred into a sterile tube containing 9 mL sterile sea water to make a 1 × 10−1 g/mL suspension, after shaking for 10 min on a rotary shaker at 180 rpm. A diluted suspension (1 × 10−3 g/mL, 200 μL) from the 1 × 10−1 g/mL suspension was dispersed evenly on the surface of Gause’s agar medium in a plate, and then incubated for seven days at room temperature. The single colony (strain ZZ745) was shifted onto the surface of Gause’s agar medium in another plate, and then incubated for another six days for securing pure strain. The pure strain ZZ745 was finally transferred onto slant with Gause’s agar medium, and then stored at 4 °C for further use.
The strain ZZ745 was identified by 16S rDNA sequence analysis, which was conducted by Legenomics (Hangzhou, China). Its 16S rDNA sequence has been deposited in GenBank (accession number: MH734530). A voucher strain (Streptomyces sp. ZZ745) was preserved at the Laboratory of the Institute of Marine Biology, Ocean College, Zhejiang University, China.

3.3. Large Scale Culture of Strain ZZ745

The pure colony of strain ZZ745 from slant was refreshed and inoculated into 250 mL Gause’s liquid medium in a 500 mL Erlenmeyer flask, which was cultured at 28 °C for five days in a shaker at 180 rpm, to make seed broth. The seed broth of 5 mL was transferred into a 500 mL Erlenmeyer flask containing 250 mL Gause’s liquid medium, and then cultured for 21 days at the same conditions for the culture of seed broth. A total of 50 L culture was prepared for this study.

3.4. Isolation of Compounds 15

The total 50 L culture was separated into two parts of mycelia and supernatant by centrifugation. The mycelia were extracted with MeOH (3 × 300 mL). The methanolic solutions were combined and evaporated under reduced pressure to give a crude extract A (3.3 g). The supernatant was partitioned with EtOAc (3 × 25 L), and the EtOAc solutions were combined and evaporated under reduced pressure to afford a crude extract B (5.5 g). A combination of the extracts A and B (8.8 g) was fractionated by an ODS column eluting with 20%, 40%, 60%, 80%, and 100% MeOH, to give five fractions A–E. The fraction C was further separated by a Sephadex LH-20 column eluting with 50% MeOH to furnish subfractions C1 and C2, based on the results from thin layer chromatography (TLC) analysis. Compounds 1 (1.2 mg, tR 30.2 min, acetonitrile:H2O, 48:52) and 2 (1.3 mg, tR 34.4 min, MeOH:H2O, 60:40) were obtained from the subfractions C1 and C2, respectively, by HPLC purification through a Zorbax SB-C18 column (250 × 9.4 mm, 5 μm). Similarly, the fraction D was separated by an ODS column eluting with 75% MeOH to give subfractions D1 and D2, based on the results from TLC analysis. By HPLC purification using the same Zorbax SB-C18 column, 3 (8.2 mg, tR 18.5 min, MeOH:H2O, 75:25) and 4 (22.1 mg, tR 24.3 min, MeOH:H2O, 75: 25) were purified from the subfraction D1, and 5 (19.8 mg, tR 29.2 min, MeOH:H2O, 80:20) from the subfraction D2.
Bagremycin F (1): colorless amorphous powder; molecular formula C21H22N2O6S; [α] D 20 −14.0 (c 0.04, MeOH); UV (MeOH) λmax (log ε) 201 (3.49), 250 (2.92), 331 (2.34) nm; IR (KBr) νmax 3317, 2921, 2853, 1714, 1461, 1254, 1171, 1033 cm−1; 13C and 1H NMR data (in DMSO-d6), see Table 1, HRESIMS m/z 431.1270 [M + H]+ (calcd. for C21H23N2O6S, 431.1277) and 453.1089 [M + Na]+ (calcd. for C21H22N2NaO6S, 453.1096).
Bagremycin G (2): colorless amorphous powder; molecular formula C16H13NO4; UV (MeOH) λmax (log ε) 201 (3.14), 247 (2.97), 321 (1.92) nm; IR (KBr) νmax 3380, 2918, 2853, 1714, 1540, 1464, 1256, 1198, 1050 cm−1; 13C and 1H NMR data (in DMSO-d6), see Table 1, HRESIMS m/z 284.0929 [M + H]+ (calcd. for C16H14NO4, 284.0923) and 306.0734 [M + Na]+ (calcd. for C16H13NNaO4, 306.0742).

3.5. Antimicrobial Activity Assay

The antimicrobial activity of 15 against MRSA, E. coli, and C. albicans was determined by the micro broth dilution method, as described in the previous study in Reference [15].

3.6. Antitumor Activity Assay

The activity of 15 against human glioma U87-MG and U251 cells was evaluated by SRB assay and DOX was used as a positive control. U87-MG and U251 cells were cultured in MEM (Minimum Essential Medium, Gibco, Grand Island, NY, USA) and DMEM (Dulbecco’s Modified Eagle Medium, Gibco, Grand Island, NY, USA), both adding 10% FBS (Fetal Bovine Serum, PAA Laboratories Inc., Toronto, ON, Canada), respectively. All glioma cells were incubated at 37 °C in a humidified incubator with 5% CO2. Cells after the third generation were used for the experiment. The detailed procedure for SRB assay was described in previous publications in References [9,16].

4. Conclusions

Marine actinomycetes, especially from the Streptomyces genus, are important sources for the discovery of novel bioactive natural products. In this study, we isolated and identified five bagremycin derivatives (15) from the culture of the marine-derived actinomycete Streptomyces sp. ZZ745 in Gause’s liquid medium. Bagremycins F (1) and G (2) are the two new members of bagremycins, which enriched the structural diversity of the bagremycin family. Bagremycins F (1) and G (2) showed antibacterial activity against E. coli.

Supplementary Materials

The following are available online at https://www.mdpi.com/1660-3397/16/9/330/s1, Figure S1: Colony picture of strains ZZ745, Figure S2: 16S rDNA sequence of Streptomyces sp. ZZ745, Figures S3–S16: NMR, HRESIMS, UV, and IR spectra of bagremycins F (1) and G (2), Figures S17–S22: NMR spectra of bagremycins A (3), B (4), and E (5), Figure S23: HPLC profile of bagremycin F (1) and ethanol crude extract, Figure S24: the analytic result of the ethanol crude extract by HPLC-HRESIMS, Table S1: Sequences producing significant alignments of strain ZZ745, Table S2: NMR data of bagremycins A (3), B (4), and E (5) (in DMSO-d6).

Author Contributions

D.Z. conducted the main experiments, including the isolation and culture of stain ZZ745, the isolation and structural elucidation of compounds, and the antimicrobial activity assay; C.S. performed the antitumor activity assay; X.L. and Z.Z. designed the experiments and wrote the manuscript.

Funding

This research was funded by the National Key R&D Program of China (No. 2017YFE0102200) and the National Natural Science Foundation of China (Nos. 81773587 and 81773769).

Acknowledgments

The authors thank Jianyang Pan at Pharmaceutical Informatics Institute of Zhejiang University for performing the NMR spectrometry.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Newman, D.J.; Cragg, G.M. Natural products as sources of new drugs from 1981 to 2014. J. Nat. Prod. 2016, 79, 629–661. [Google Scholar] [CrossRef] [PubMed]
  2. Abdelmohsen, U.R.; Bayer, K.; Hentschel, U. Diversity, abundance and natural products of marine sponge-associated actinomycetes. Nat. Prod. Rep. 2014, 31, 381–399. [Google Scholar] [CrossRef] [PubMed]
  3. Manivasagan, P.; Venkatesan, J.; Sivakumar, K.; Kim, S.K. Pharmaceutically active secondary metabolites of marine actinobacteria. Microbiol. Res. 2014, 169, 262–278. [Google Scholar] [CrossRef] [PubMed]
  4. Jensen, P.R.; Moore, B.S.; Fenical, W. The marine actinomycete genus Salinispora: A model organism for secondary metabolite discovery. Nat. Prod. Rep. 2015, 32, 738–751. [Google Scholar] [CrossRef] [PubMed]
  5. Bibi, F.; Faheem, M.; Azhar, E.I.; Yasir, M.; Alvi, S.A.; Kamal, M.A.; Ullah, I.; Nasser, M.I. Bacteria from marine sponges: A source of new drugs. Curr. Drug Metab. 2017, 18, 11–15. [Google Scholar] [CrossRef] [PubMed]
  6. Fenical, W.; Jensen, P.R.; Palladino, M.A.; Lam, K.S.; Lloyd, G.K.; Potts, B.C. Discovery and development of the anticancer agent salinosporamide A (NPI-0052). Bioorg. Med. Chem. 2009, 17, 2175–2180. [Google Scholar] [CrossRef] [PubMed][Green Version]
  7. Hughes, C.C.; Fenical, W. Antibacterials from the sea. Chemistry 2010, 16, 12512–12525. [Google Scholar] [CrossRef] [PubMed]
  8. Bertasso, M.; Holzenkampfer, M.; Zeeck, A.; Dall’Antonia, F.; Fiedler, H.P. Bagremycins A and B, novel antibiotics from Streptomyces sp. Tü 4128. J. Antibiot. 2001, 54, 730–736. [Google Scholar] [CrossRef] [PubMed]
  9. Chen, L.; Chai, W.; Wang, W.; Song, T.; Lian, X.Y.; Zhang, Z. Cytotoxic bagremycins from mangrove-derived Streptomyces sp. Q22. J. Nat. Prod. 2017, 80, 1450–1456. [Google Scholar] [CrossRef] [PubMed]
  10. Zhu, Y.; Liao, S.; Ye, J.; Zhang, H. Cloning and characterization of a novel tyrosine ammonia lyase-encoding gene involved in bagremycins biosynthesis in Streptomyces sp. Biotechnol. Lett. 2012, 34, 269–274. [Google Scholar] [CrossRef] [PubMed]
  11. Zhu, Y.; Xu, D.; Liao, S.; Ye, J.; Zhang, H. Cloning and characterization of bagB and bagC, two co-transcribed genes involved in bagremycin biosynthesis in Streptomyces sp. Tü 4128. Ann. Microbiol. 2013, 63, 167–172. [Google Scholar] [CrossRef]
  12. Liu, F.; Xu, D.; Zhang, Y.; Zhu, Y.; Ye, J.; Zhang, H. Identification of bagI as a positive transcriptional regulator of bagremycin biosynthesis in engineered Streptomyces sp. Tü 4128. Microbiol. Res. 2015, 173, 18–24. [Google Scholar] [CrossRef] [PubMed]
  13. Holden, H.M.; Thoden, J.B.; Gilbert, M. Enzymes required for the biosynthesis of N-formylated sugars. Curr. Opin. Struct. Biol. 2016, 41, 1–9. [Google Scholar] [CrossRef] [PubMed]
  14. Fales, K.R.; Njoroge, F.G.; Brooks, H.B.; Thibodeaux, S.; Torrado, A.; Si, C.; Tott, J.L.; Mc Cowan, J.R.; Roth, K.D.; Thrasher, K.J.; et al. Discovery of N-(6-fluoro-1-oxo-1,2-dihydroisoquinolin-7-yl)-5-[(3R)-3-hydroxypyrrolidin-1-yl]thiophene-2-sulfonamide (LSN 3213128), a potent and selective nonclassical antifolate aminoimidazole-4-carboxamide ribonucleotide formyltransferase (AICARFT) inhibitor effective at tumor suppression in a cancer xenograft model. J. Med. Chem. 2017, 60, 9599–9616. [Google Scholar] [PubMed]
  15. Ye, X.; Anjum, K.; Song, T.; Wang, W.; Yu, S.; Huang, H.; Lian, X.Y.; Zhang, Z. A new curvularin glycoside and its cytotoxic and antibacterial analogues from marine actinomycete Pseudonocardia sp. HS7. Nat. Prod. Res. 2016, 30, 1156–1161. [Google Scholar] [CrossRef] [PubMed]
  16. Liang, Y.; Xie, X.; Chen, L.; Yan, S.; Ye, X.; Anjum, K.; Huang, H.; Lian, X.Y.; Zhang, Z. Bioactive polycyclic quinones from marine Streptomyces sp. 182SMLY. Mar. Drugs 2016, 14, 10. [Google Scholar] [CrossRef] [PubMed]

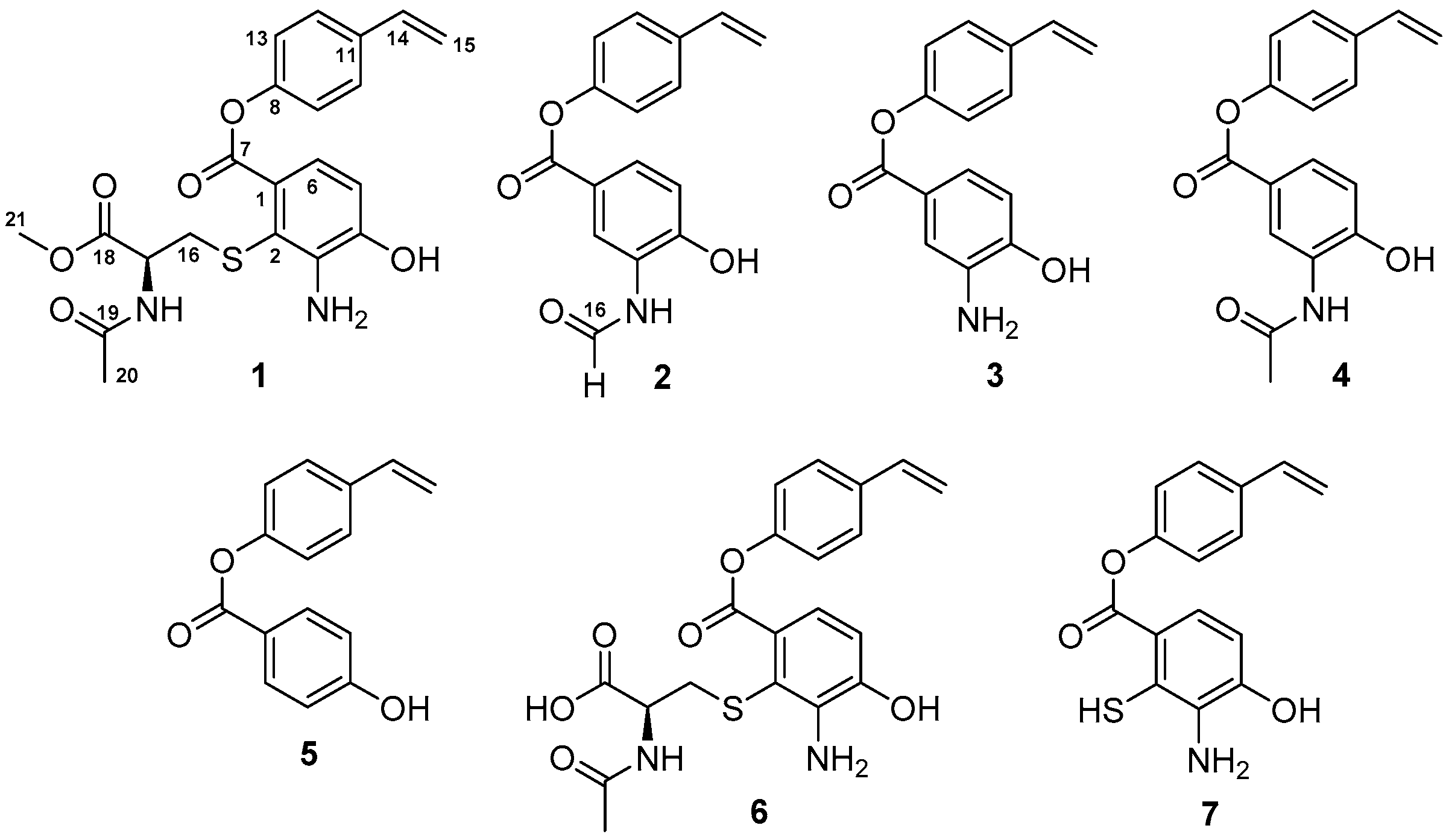

Figure 1. Structures of 17.
Figure 1. Structures of 17.
Marinedrugs 16 00330 g001

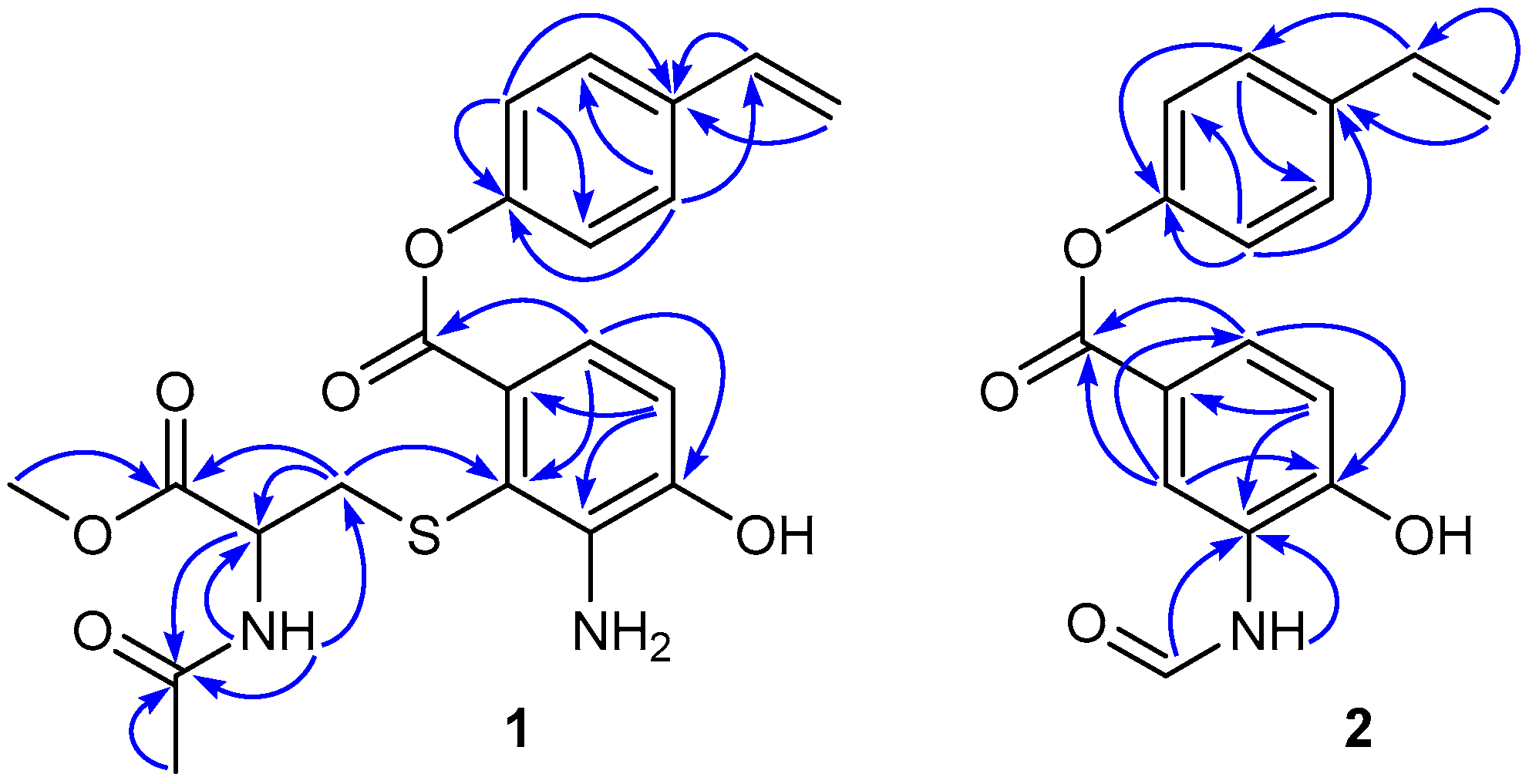

Figure 2. Key HMBC correlations of bagremycins F (1) and G (2).
Figure 2. Key HMBC correlations of bagremycins F (1) and G (2).
Marinedrugs 16 00330 g002

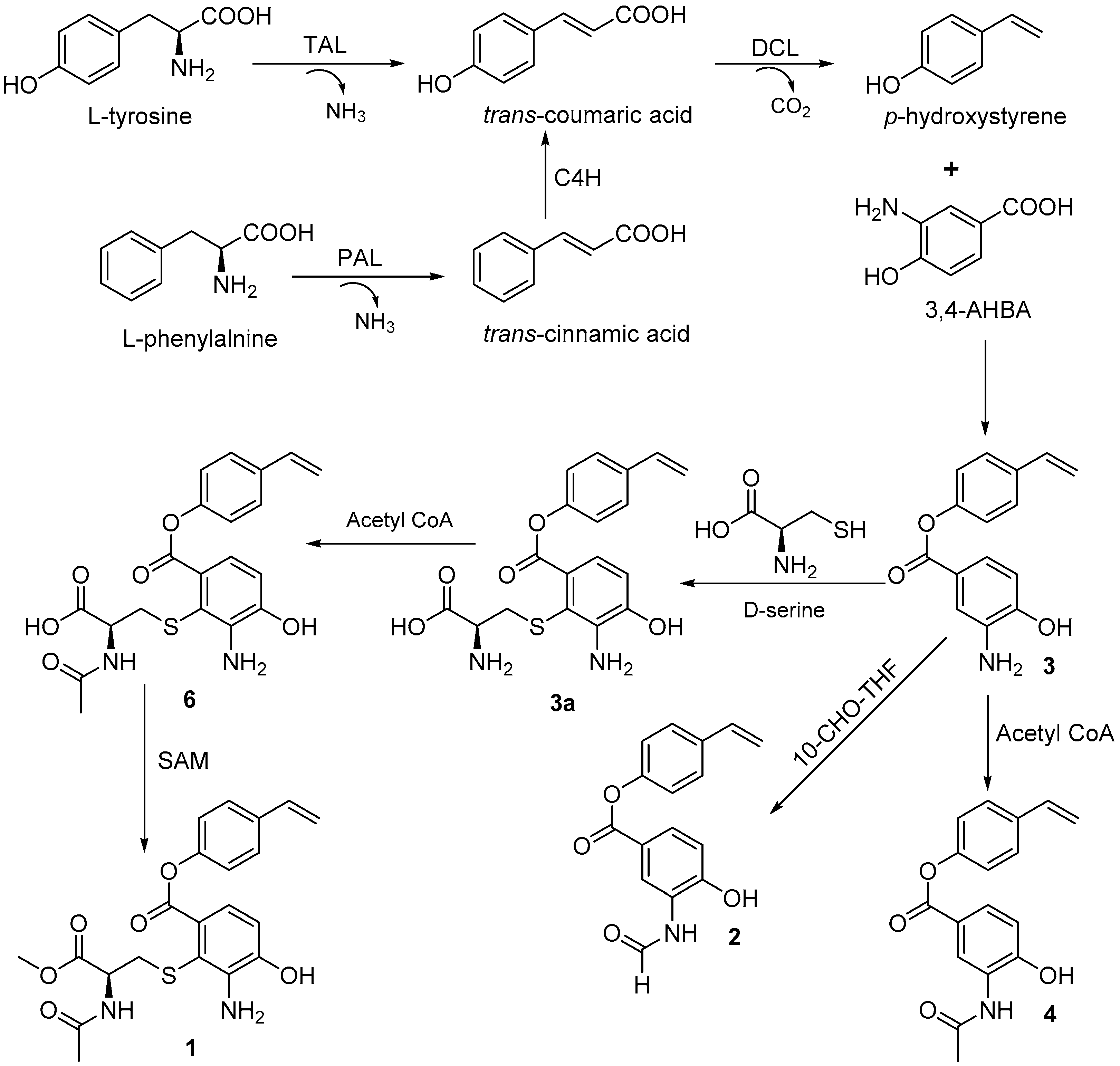

Figure 3. Proposed biosynthetic pathway of bagremycins (C4H: cinnamate 4-hydroxylase; 10-CHO-THF: 10-formyltetrahydrofolate [13,14]; DCL: decarboxylase; PAL: phenylalanine ammonia lyase; SAM: S-adenosylmethionine; TAL: tyrosine ammonia lyase; 3,4-AHBA: 3-amino-4-hydroxybenzoic acid).
Figure 3. Proposed biosynthetic pathway of bagremycins (C4H: cinnamate 4-hydroxylase; 10-CHO-THF: 10-formyltetrahydrofolate [13,14]; DCL: decarboxylase; PAL: phenylalanine ammonia lyase; SAM: S-adenosylmethionine; TAL: tyrosine ammonia lyase; 3,4-AHBA: 3-amino-4-hydroxybenzoic acid).
Marinedrugs 16 00330 g003
Table 1. 13C (125 MHz) and 1H (500 MHz) NMR data of bagremycins F (1) and G (2) (in DMSO-d6).
Table 1. 13C (125 MHz) and 1H (500 MHz) NMR data of bagremycins F (1) and G (2) (in DMSO-d6).
No.12
δC, TypeδH (J in Hz)HMBCδC, TypeδH (J in Hz)HMBC
1126.5, C 118.1, C
2113.1, C 121.9, CH8.90, d (2.2)C3, C4, C6, C7
3140.4, C 126.2, C
4147.7, C 152.6, C
5113.2, CH6.78, d (8.2)C1, C3, C4114.8, CH6.99, d (8.5)C1, C4
6119.1, CH7.10, d (8.2)C2, C4, C7126.9, CH7.74, dd (8.5, 2.2)C2, C4, C7
7165.7, C 164.3, C
8150.5, C 150.4, C
9122.0, CH7.21, d (8.6)C8, C11, C13122.1, CH7.20, d (8.6)C8, C11, C13
10127.1, CH7.55, d (8.6)C8, C12, C14127.1, CH7.54, d (8.6)C8, C12, C14
11134.7, C 134.7, C
12127.1, CH7.55, d (8.6)C8, C10, C14127.1, CH7.54, d (8.6)C8, C10, C14
13122.0, CH7.21, d (8.6)C8, C9, C11122.1, CH7.20, d (8.6)C8, C9, C11
14135.8, CH6.74, dd (17.7, 10.9)C10, C11, C12135.8, CH6.74, dd (17.6, 10.9)C10, C11, C12
15114.3, CH25.29, dd (10.9, 0.6);
5.82, dd (17.7, 0.6)
C11, C14114.3, CH25.27, dd (10.9, 0.7);
5.82, dd (17.6, 0.7)
C11, C14
1635.5, CH22.98, dd (13.1, 8.4);
3.11, dd (13.1, 5.4)
C2, C17, C18160.2, CH8.33, d (1.6)C3
1752.2, CH4.25, mC18, C19
18171.0, C
19169.3, C
2022.2, CH31.81, sC19
2151.9, CH33.54, sC18
NH 8.41, d (7.5)C17, C19 9.78, sC3
Table 2. Antimicrobial activity of 15 (MIC in μM).
Table 2. Antimicrobial activity of 15 (MIC in μM).
MicroorganismsCompoundsGentamicinAmphotericin B
12345
E. coli41.867.1125.473.9112.41.44
MRSA116.2176.5125.4110.9116.50.36
C. albicans116.2176.5121.4104.395.7 1.08
