Stereochemical Determination of Five-Membered Cyclic Ether Acetogenins Using a Spin-Spin Coupling Constant Approach and DFT Calculations

by
Adrián Gutiérrez-Cepeda
1,2,
Antonio Hernández Daranas
1,3,*,
José J. Fernández
1,4,*,
Manuel Norte
1,4 and
María L. Souto
1,4,*
1
University Institute of Bio-Organic Chemistry "Antonio González", Center for Biomedical Research of the Canary Islands (CIBICAN), University of La Laguna, Astrofísico Francisco Sánchez 2, La Laguna 38206, Tenerife, Spain
2
Department of Chemistry, Chemistry Institute, Sciences Faculty, Autonomous University of Santo Domingo, University City, Santo Domingo 1355, Dominican Republic
3
Department of Chemical Engineering and Pharmaceutical Technology, University of La Laguna, La Laguna 38206, Tenerife, Spain
4
Department of Organic Chemistry, University of La Laguna, La Laguna 38206, Tenerife, Spain
*
Authors to whom correspondence should be addressed.
Mar. Drugs 2014, 12(7), 4031-4044; https://doi.org/10.3390/md12074031
Submission received: 25 February 2014 / Revised: 28 March 2014 / Accepted: 10 April 2014 / Published: 1 July 2014
Browse Figures
Versions Notes

Abstract

:
Five-membered rings are of particular interest, due to their presence in some of the most common molecules in chemistry and biology. Despite their apparent simplicity, the structural resolution of these rings is complex, due to their inherent conformational flexibility. Here, we describe an application of a recently reported simple and efficient NMR protocol based on the measurement of spin-spin coupling constants to achieve the challenging relative configurations of five new halogenated C15 tetrahydrofuranyl-acetogenins, marilzafurollenes A–D (1–4) and 12-acetoxy-marilzafurenyne (5), isolated from the red alga, Laurencia marilzae. Although DFT chemical shift calculations were used to connect remote stereocenters, the NMR-based approach seems advantageous over computational techniques in this context, as the presence of halogens may interfere with reliable calculations.

Graphical Abstract

1. Introduction

Marine organisms synthesize a multitude of molecules with fascinating chemical structures and potent biological properties [1]. However, to make full use of marine natural products in drug discovery, accurate structure determination is required [2,3]. For this reason, the development of effective methods to solve stereochemical problems has recently taken the limelight. In this context, new techniques based on NMR spectroscopy and/or modern computational calculations, especially DFT, is paying off [4,5,6]. Nevertheless, the elucidation of some molecular architectures, like flexible five-membered rings, are still problematic. Recently, we presented a simple and efficient spin-spin coupling constant approach designed for the stereochemical analysis of five-membered rings [7]. As a result, this usually complex problem can be easily solved in most cases by the measurement of a few coupling constants without the need for any conformational consideration.
Marinedrugs 12 04031 g001 1024

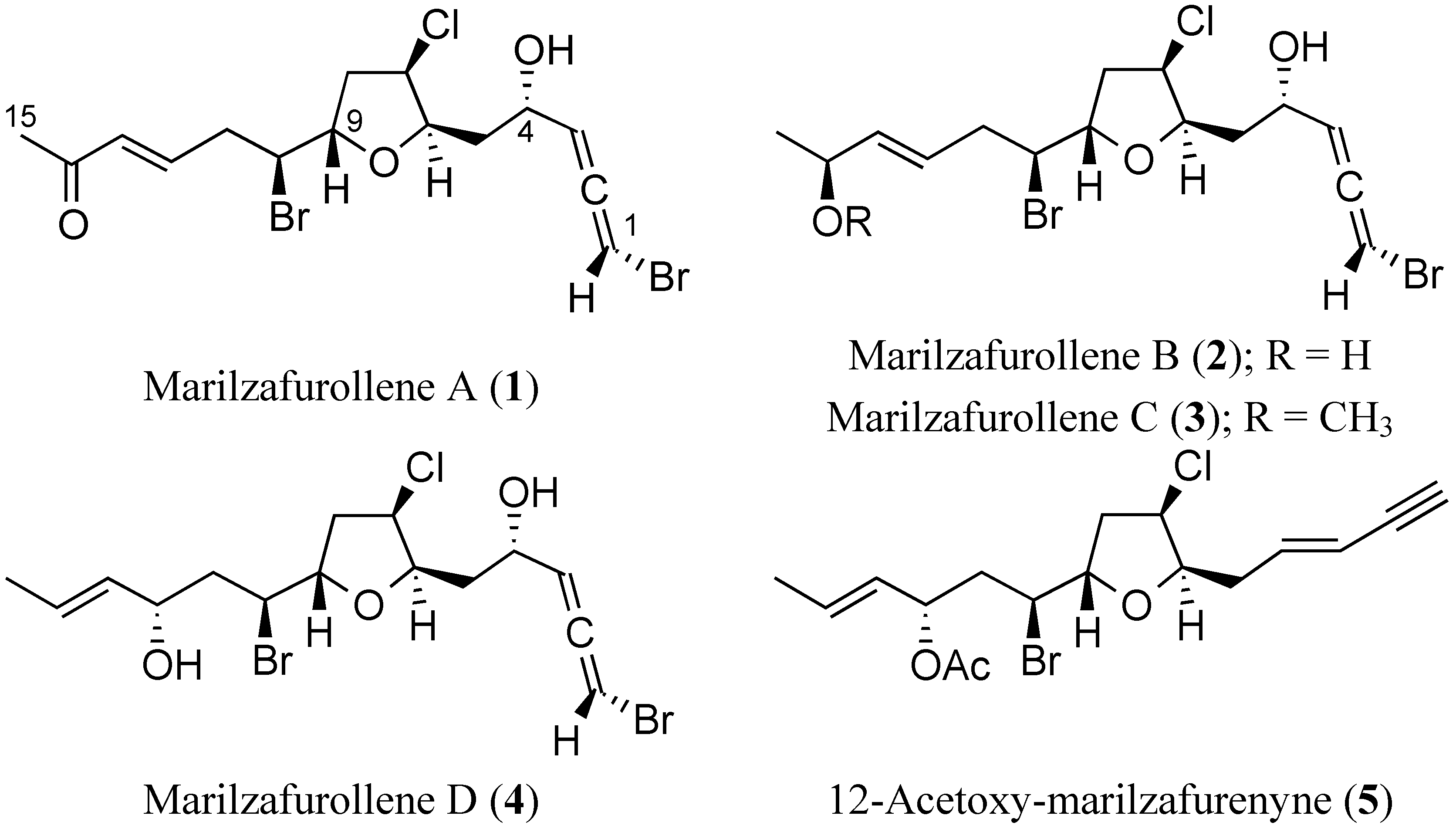

Figure 1. The structures of the new metabolites.
Figure 1. The structures of the new metabolites.
Marinedrugs 12 04031 g001
In the context of our ongoing studies of natural products from marine organisms [8,9,10], we now report the structures of five new halogenated C15 tetrahydrofuranyl-acetogenins (Figure 1). Marilzafurollenes A–D (1–4) along with 12-acetoxy-marilzafurenyne (5) were isolated from the red alga, Laurencia marilzae Gil-Rodríguez, Sentíes et M.T. Funjii [11], and their structures were elucidated by spectroscopic studies. Naturally occurring C15 tetrahydrofuranyl derivatives belong to a wider family of halogenated C15-acetogenins isolated from red algae of the species Laurencia [12], the majority of the structures of which have only partially had their relative configurations assigned or still need to be investigated to confirm or correct their reported structures [1,13,14]. The challenging relative configurations of the five-membered rings of compounds 1–5 were established by our simple and effective J-based methodology [7]. In addition, a detailed study of NMR chemical shifts by DFT calculation analysis was also undertaken with the aim of connecting remote chiralities within these tetrahydrofuranyl-acetogenins [15].

2. Results and Discussion

Fresh specimens of the alga, Laurencia marilzae, were extracted at room temperature using CH2Cl2/MeOH (1:1, v/v). The resulting extract was studied using a multi-step chromatographic fractionation sequence, including Sephadex LH-20, silica gel and normal-phase HPLC to yield compounds 1–5.
Marilzafurollene A (1) was isolated as an optically active white amorphous solid. Its molecular formula was deduced to be C15H19Br2ClO3 by ESI-HRMS and isotopic pattern analysis of the four pseudomolecular [M + Na]+ ions at m/z: 462.9298, 464.9296, 466.9330 and 468.9385 (ratio: 38:100:97:42, calcd.: 462.9287, 464.9267, 466.9246 and 468.9217). From its 13C NMR data (Table 1), along with the analysis of the HSQC experiment, the presence of a bromoallene moiety was evident (δC 200.6 (s), 104.1 (d) and 74.9 (d)), as were two other olefinic carbon signals (δC 143.2 (d) and 133.4 (d)), five heteroatom-bearing methines (δC 80.0, 79.1, 66.4, 63.2 and 55.6), three methylenes (δC 40.9, 38.5 and 38.3), one methyl (δC 23.7), and one carbonyl carbon (δC 198.5). The 1H-1H COSY spectrum, as well as the HSQC correlations, revealed the presence of a single-spin system comprising C-3→C-13, including a double bond between C-12 and C-13, and heteroatoms located on carbons C-4, C-6, C-7, C-9 and C-10 (Table 1 and Table 2).
Table
Table 1. 13C NMR (150 MHz) data for compounds 1–5 in CDCl3 (δ (ppm)).
Table 1. 13C NMR (150 MHz) data for compounds 1–5 in CDCl3 (δ (ppm)).
C12345
174.9, CH74.8, CH74.8, CH74.8, CH77.0, CH
2200.6, C200.6, C200.8, C200.6, C82.0, C
3104.1, CH104.1, CH104.2, CH104.1, CH111.9, CH
466.4, CH66.5, CH66.6, CH66.6, CH140.7, CH
538.3, CH238.1, CH238.2, CH238.2, CH235.0, CH2
680.0, CH79.7, CH79.8, CH79.8, CH82.1, CH
763.2, CH63.3, CH63.4, CH63.4, CH62.3, CH
840.9, CH240.7, CH240.9, CH241.1, CH241.0, CH2
979.1, CH79.1, CH79.1, CH80.0, CH79.6, CH
1055.6, CH57.3, CH57.9, CH56.2, CH54.8, CH
1138.5, CH238.5, CH238.4, CH243.1, CH240.8, CH2
12143.2, CH126.2, CH128.5, CH70.4, CH72.8, CH
13133.4, CH137.6, CH135.8, CH133.3, CH128.7, CH
14198.5, C68.5, CH77.7, CH127.5, CH130.0, CH
1527.3, CH323.4, CH321.3, CH317.7, CH317.8, CH3
OCH3 56.0, CH3
CO(Ac) 170.2, C
CH3(Ac) 21.3, CH3
Table
Table 2. 1H NMR (600 MHz) data for marilzafurollenes A–C (1–3) in CDCl3 (δ (ppm)).
Table 2. 1H NMR (600 MHz) data for marilzafurollenes A–C (1–3) in CDCl3 (δ (ppm)).
CMarilzafurollene A (1)Marilzafurollene B (2)Marilzafurollene C (3)
16.13, dd (2.2, 5.6)6.13, dd (2.2, 5.7)6.13, ddd (1.5, 2.2, 5.6)
35.52, dd (5.6, 5.6)5.52, dd (5.5, 5.7)5.53, dd (5.6, 5.6)
44.56, ddd (3.6, 5.6, 8.2)4.57, ddd (3.6, 5.5, 7.7)4.57, ddd (3.4, 5.6, 8.0)
52.13, ddd (3.6, 8.8, 14.4)2.15, ddd (3.6, 9.1, 14.5)2.14, ddd (3.4, 8.7, 14.0)
1.88, ddd (3.6, 8.2, 14.4)1.86, ddd (3.5, 7.7, 14.5)1.87, ddd (3.1, 8.0, 14.0)
64.48, ddd (3.0, 3.6, 8.8)4.46, ddd (3.3, 3.5, 9.1)4.46, ddd (2.5, 3.1, 8.7)
74.55, ddd (0.8, 3.0, 4.8)4.53, ddd (0.8, 3.3, 4.8)4.54, ddd (2.5, 3.4, 4.5)
8α 2.55, ddd (4.8, 9.6, 13.9)α 2.52, ddd (4.8, 9.6, 13.9)α 2.52, ddd (4.5, 8.9, 14.1)
β 2.42, ddd (0.8, 6.2, 13.9)β 2.39, ddd (0.8, 6.2, 13.9)β 2.39, ddd (3.4, 6.3, 14.1)
94.46, ddd (3.0, 6.2, 9.6)4.47, ddd (3.1, 6.2, 9.6)4.47, ddd (3.4, 6.3, 8.3)
104.10, ddd (3.0, 5.2, 8.5)4.06, ddd (3.1, 5.7, 7.9)4.03, ddd (3.4, 4.6, 8.6)
112.90, m (2H)2.70, m (2H)2.71, m (2H)
126.83, ddd (7.0, 7.0, 15.9)5.72, ddd (6.4, 7.0, 15.6)5.67, ddd (7.0, 7.2, 15.5)
136.18, br d (15.9)5.65, br dd (6.1, 15.6)5.48, dddd (1.5, 1.5, 6.8, 15.5)
14 4.30, dd (6.1, 6.3)3.72, dd (6.6, 6.8)
152.28, s (3H)1.28, d (6.3) (3H)1.24, d (6.5) (3H)
OCH3 3.28, s (3H)
HMBC cross-peaks from H-6 (δH 4.48) to C-9 (δC 79.1) established an ether linkage between these positions, indicating the presence of a tetrahydrofuran ring in the molecule and, therefore, placed the remaining hydroxy group at C-4. Moreover, the HMBC correlations from the vinyl proton H-13 (δH 6.18) and the methyl singlet (δH 2.28) to the ketone carbon C-14 (δC 198.5) completed the planar structure of 1.
The stereochemical relationships between the different chiral centers of 1 were mostly based on the analysis of homo- and hetero-nuclear J couplings. Thus, the nJC,H values were accurately measured using the HSQC-HECADE (Heteronuclear couplings from ASSCI-Domain Experiments with E.COSY-type cross peaks) experiment. The value of the coupling constant between H-12 and H-13 (3JH-12,H-13 = 15.9 Hz) indicated the E geometry for the double bond. The relative configuration of the oxolane ring was solved by using the NMR-based approach developed by our research group. Therefore, the relative cis orientation between H-6 and H-7 was deduced from the 2JC,H value of 5.2 Hz for H-6/C-7, while a 2JC,H value of −5.7 Hz for one of the diastereotopic H-8 methylene protons (δH 2.42) and C-7 suggested a trans orientation between H-7 and H-8a. The relative configuration of the C-9 stereocenter was determined by evaluating the relationship between methine H-10 and these stereospecifically defined H8-methylene protons. In this case, a small value for 3JC-10,H-8a (0.5 Hz) and a large coupling constant for 3JC-10,H-8b (6.0 Hz) were consistent with a cis configuration for H-8a and H-9 (Figure 2).
In order to complete the structural determination of 1, the relative configurations for the 1,3-methine system C-4/C-6, as well as for the C-9/C-10 segment were determined via J-based configuration analysis (Figure 3) [16]. Accordingly, based on the observed homo- and hetero-nuclear J couplings, H-4 was found to be erythro to H-5b (δH 2.13) and H-6 threo to H-5a (δH 1.88). Similarly, our data were consistent with a threo relationship between H-9 and H-10. Therefore, the relative configuration within the C-3→C-13 moiety of 1 was determined to be 4S*,6R*,7R*,9S*,10S*. Finally, the intensive positive rotation of 1, as well as the existence of a positive Cotton effect, enabled the absolute configuration of the bromoallene moiety to be assigned as S [17,18,19,20].
Marinedrugs 12 04031 g002 1024

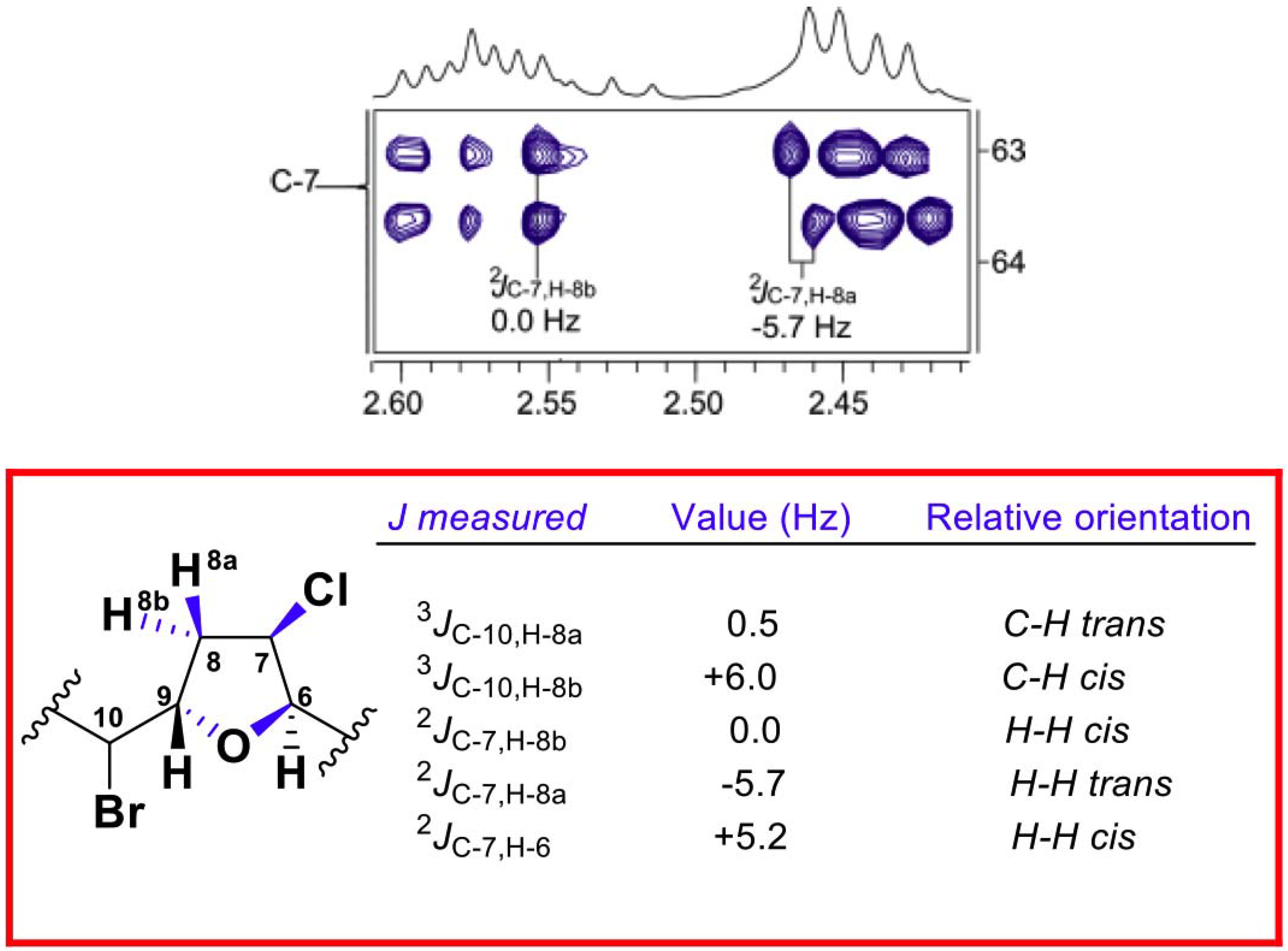

Figure 2. Representative section of the HSQC-HECADE spectrum (600 MHz, CDCl3, see Supplementary Figure S7), calculated JC,H values and configuration analysis for the oxolane ring of marilzafurollene A (1).
Figure 2. Representative section of the HSQC-HECADE spectrum (600 MHz, CDCl3, see Supplementary Figure S7), calculated JC,H values and configuration analysis for the oxolane ring of marilzafurollene A (1).
Marinedrugs 12 04031 g002
Marinedrugs 12 04031 g003 1024

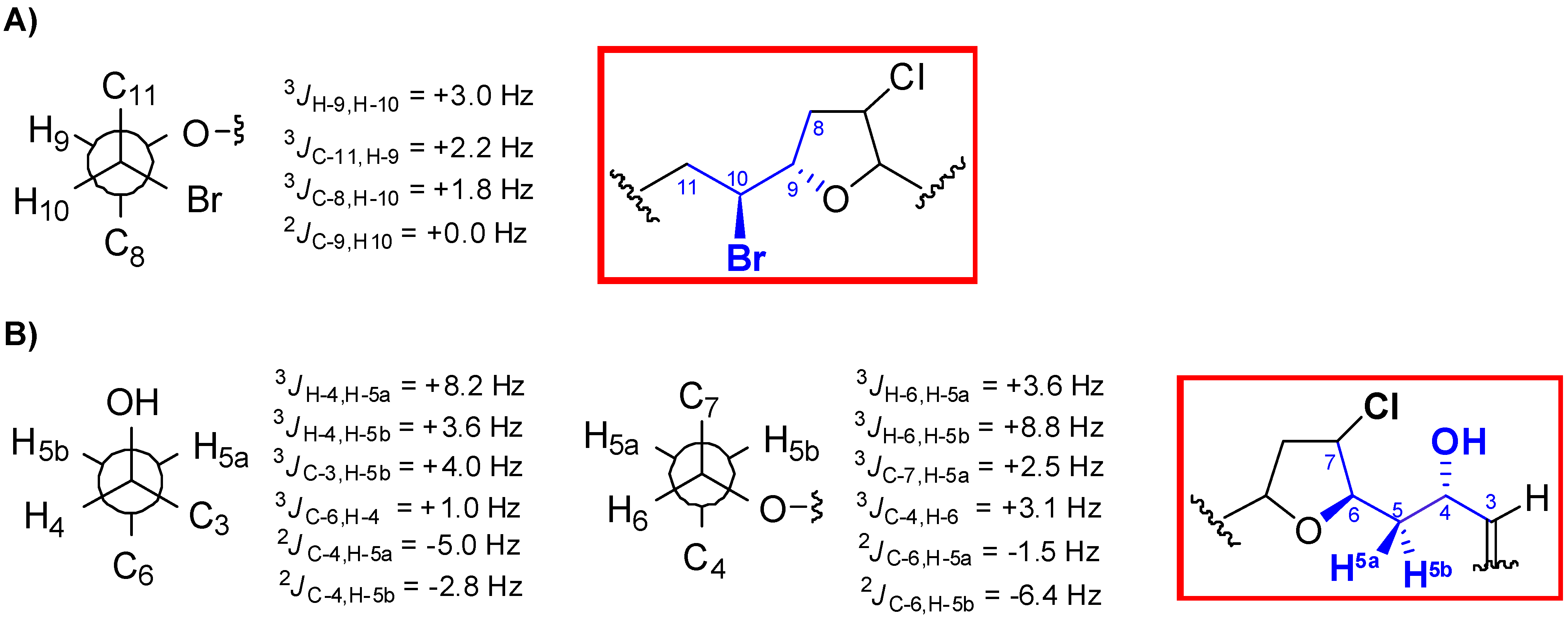

Figure 3. J-based configuration analysis for the (A) C-9/C-10 and (B) C-4/C-6 fragments of marilzafurollene A (1).
Figure 3. J-based configuration analysis for the (A) C-9/C-10 and (B) C-4/C-6 fragments of marilzafurollene A (1).
Marinedrugs 12 04031 g003
The last step in the elucidation of the stereochemical relationships of 1 was the connection between the configurations of the bromoallene and the C-4/C-10 stereocluster. We approached this task using quantum mechanical calculations of theoretical NMR chemical shifts that have also been shown to be effective in complex marine natural products [21]. Thus, taking into account that the allene configuration can be considered as absolute, we built models of the two possible diastereoisomers (Sa,4S,6R,7R,9S,10S (diastereoisomer 1a) and Sa,4R,6S,7S,9R,10R (diastereoisomer 1b)) and performed conformational searches on each one using 5000 steps of a hybrid MCMM (Monte Carlo Multiple Minimum), Low-Mode sampling and the MMFF94 (Merck Molecular Force Field) force field. Redundant conformers were eliminated using an RMSD cutoff of 1.0 Å. All the resulting structures within an energy window of 10 kJ/mol of the global minimum found (69 conformers for 1a and 54 for 1b) were further submitted to density functional theory (DFT) calculations [22]. Due to the existence of bromine in this molecule, we used the B3LYP (Becke three-parameter Lee-Yang-Parr exchange functional) functional with the LACVP ** basis set to calculate the isotropic chemical shieldings and relative energy values for each conformer [23]. Still, as expected, calculations for those carbon atoms attached to bromine showed higher than average errors; thus, their values were not included in the subsequent analysis. Fortunately, this heavy atom effect is very local and does not significantly affect nearby atoms [5]. Although the experimental NMR data were obtained using chloroform as the solvent, all calculations were performed in vacuo, as this has been shown to be a valid approach [21,22,24]. Finally, we estimated average chemical shift values according to the relative Boltzmann population of each conformer (NMR calculations were performed for all conformers within the selected 10-kJ/mol threshold). The result was that the correlations obtained after the linear regression of those calculated against the experimental values were almost identical for the 13C chemical shifts (R2 0.9957 vs. 0.9956), but slightly better for the Sa,4S,6R,7R,9S,10S diastereoisomer using the 1H chemical shifts (R2 0.9820 vs. 0.9706) (Figure 4, Supplementary Figure S19 and Table S2). Moreover, we also used the computed chemical shift values to calculate the so-called DP4 parameter, which found the Sa,4S,6R,7R,9S,10S isomer as the most likely solution, with a probability value of 99.7% [24]. Despite this kind of solution, based on theoretical calculations, having a degree of uncertainty, the fact that it is in accordance with the biogenetic hypothesis proposed below further supports it.
Marinedrugs 12 04031 g004 1024

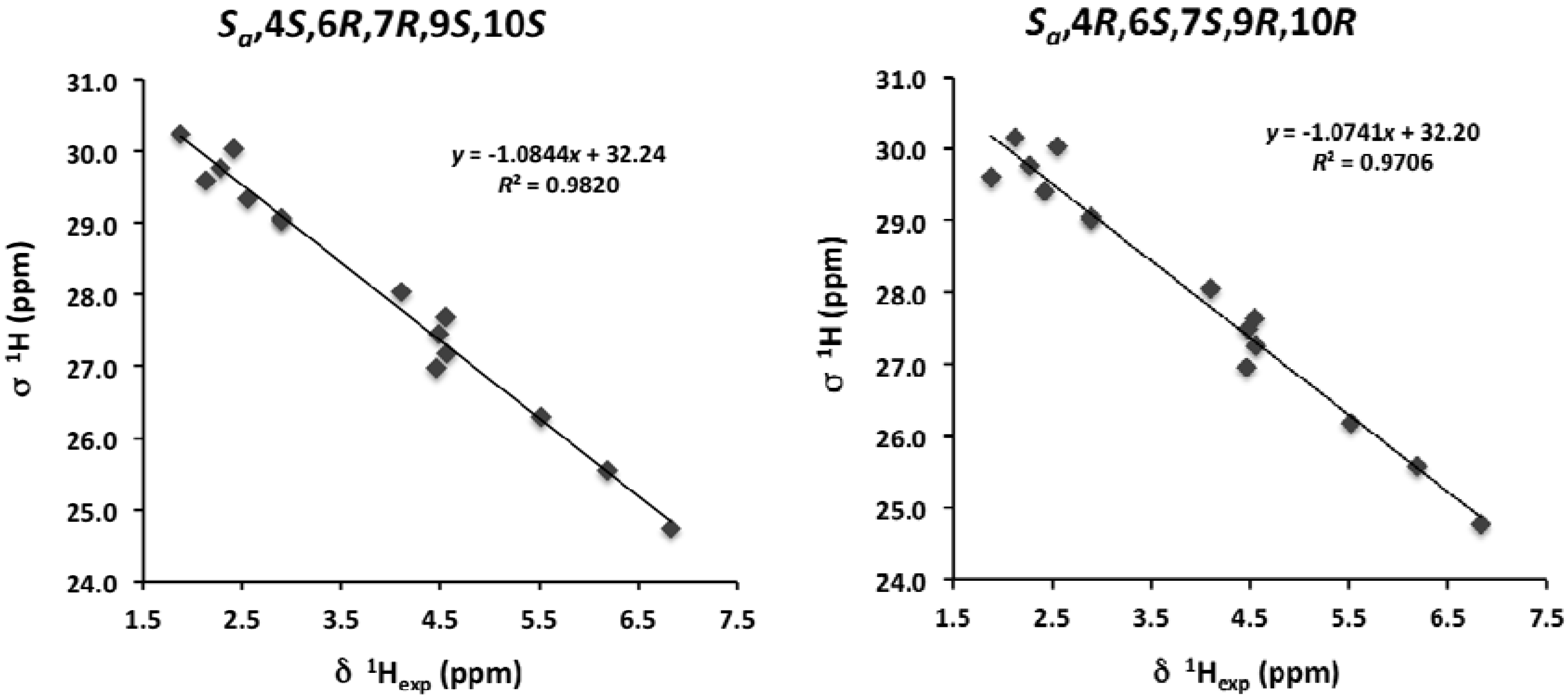

Figure 4. 1H correlations between calculated isotropic shieldings and experimentally observed chemical shifts for the two studied diastereoisomers of marilzafurollene A (1). Fitting parameters are indicated.
Figure 4. 1H correlations between calculated isotropic shieldings and experimentally observed chemical shifts for the two studied diastereoisomers of marilzafurollene A (1). Fitting parameters are indicated.
Marinedrugs 12 04031 g004
The ESI-HRMS spectrum of marilzafurollene B (2) established a molecular formula of C15H21Br2ClO3 (m/z calcd. for [M + Na]+ 464.9444, 466.9423, 468.9403, 470.9373; found 464.9453, 466.9432, 468.9418, 470.9395). A detailed comparison of the 1H and 13C NMR data of compounds 1 and 2 (Table 1 and Table 2) revealed a great similarity in their structures and suggested that compound 2 contained an additional hydroxy group (δC 68.5, δH 4.30, dd, J = 6.1, 6.3 Hz) instead of the carbonyl group. This was also supported by the HMBC and 1H-1H COSY analyses.
Marilzafurollene C (3), albeit unstable (see the Experimental Section), was shown to have the formula C16H23Br2ClO3; thus, the 1H NMR spectrum of 3 was nearly identical to that of 2, except for the presence of the O-methyl group at δH 3.28 in 3 and the relative upfield shift of H-14 (δH 4.30 in 2 vs. δH 3.72 in 3) (Table 2). These changes indicate that a methoxy group replaces the hydroxy group at C-14 in 3. This was further confirmed by observation of the 13C NMR spectrum (an additional methyl peak appeared at δC 56.0 ppm, and C-14 was significantly deshielded in 3 compared to 2). In order to solve the relative configuration of the remote stereocenter at C-14, we calculated 1H and 13C chemical shifts of the two possible diastereoisomers at the DFT level as a diagnostic tool. According to our results, the 4S*,6R*,7R*,9S*,10S*,14S* diastereoisomer showed a slightly better match with the experimental data (R2 0.971 vs. 0.968 using δ 1H) and a DP4 probability of 98.7% (Supplementary Table S3 and Figure S20).
Marilzafurollene D (4) was analyzed for the same molecular formula as 2, C15H21Br2ClO3, and showed similar spectral features to those of 2 (Table 1 and Table 3). A comparison of the spectroscopic data clearly showed that compounds 2 and 4 were structural isomers. Thus, the analysis of the 1H-1H COSY correlations indicated the position of the E double bond to be between C-13–C-14, as well as the hydroxy group at C-12 in 4. Furthermore, chemical shift differences between 2 and 4 were observed for H-9 and particularly for H-10, while values observed for H-4, H2-5, H-6, H-7 and H2-8 remained virtually the same. Therefore, we thought that these variations could be explained either by the proximity of the hydroxy group at C-12 or by a change in the relative configurations of the carbon atoms. Again, an NMR configurational analysis performed using the above-described methods provided conclusive proof of the relative configurations at all the stereogenic centers of the molecule. This time, because of the overlapping 1H NMR signals observed in CDCl3, a different solvent (C6D6) was also used to record the experimental data (see Supplementary Information). The results of the NMR measurements are shown in Figure 5 and the conclusion was that the relative configurations of C-4, C-6, C-7, C-9 and C-10 were identical to those of compounds 1–3, whereas the relative configuration of the new chiral center at C-12 was assigned as 12S* (Figure 5C). Again, the absolute configuration of the bromoallene moiety was also established as S based on the observation of a positive Cotton effect [17].
Table
Table 3. 1H NMR (600 MHz) data for compounds 4 and 5 in CDCl3 (δ (ppm)).
Table 3. 1H NMR (600 MHz) data for compounds 4 and 5 in CDCl3 (δ (ppm)).
CMarilzafurollene D (4)12-Acetoxy-marilzafurenyne (5)
16.12, dd (2.1, 5.6)2.84, br d (1.7)
35.52, dd (5.6, 5.6)5.64, dd (1.7, 16.1)
44.57, ddd (3.7, 5.6, 7.8)6.20, ddd (7.4, 7.4, 16.1)
52.15, ddd (3.7, 8.9, 14.3)2.60, ddd (6.8, 7.4, 14.7)
1.87, ddd (3.6, 7.8, 14.3)2.50, ddd (6.8, 7.4, 14.7)
64.47, ddd (3.4, 3.6, 8.9)4.19, ddd (2.8, 6.8, 6.8)
74.54, dd (3.4, 4.5)4.49, dd (2.8, 4.8)
8α 2.56, ddd (4.5, 9.5, 13.9)α 2.56, ddd (4.8, 9.8, 13.9)
β 2.40, dd (6.2, 13.9)β 2.38, dd (6.1, 13.9)
94.42, ddd (2.8, 6.2, 9.5)4.39 ddd (2.5, 6.1, 9.8)
104.35, ddd (2.8, 2.8, 11.3)4.05 ddd (2.5, 3.1, 10.7)
112.09, ddd (3.4, 11.3, 15.0)2.22, ddd (3.3, 10.7, 14.3)
1.91, ddd (2.8, 8.9, 15.0)2.17, ddd (3.1, 9.8, 14.3)
124.41, ddd (3.4, 6.7, 8.9)5.48, ddd (3.3, 7.0, 9.8)
135.54, br dd (6.7, 15.2)5.43, br dd (7.0, 15.1)
145.74, dq (6.4, 15.2)5.80, dq (6.5, 15.1)
151.70, d (6.4) (3H)1.69, br d (6.5) (3H)
CH3(Ac) 2.05, s (3H)
Marinedrugs 12 04031 g005 1024

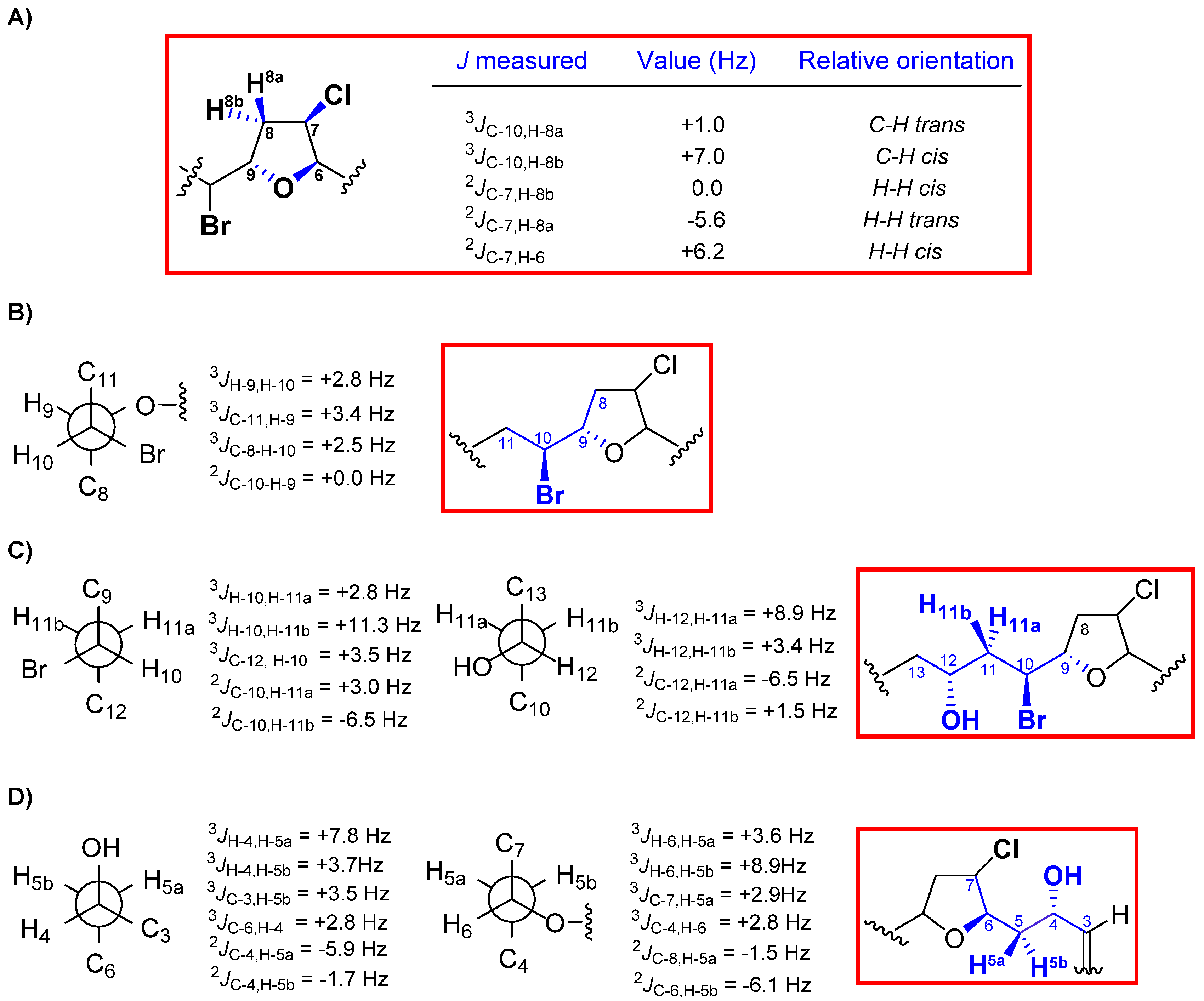

Figure 5. (A) Configuration analysis for the oxolane ring; (B) C-9/C-10; (C) C-10/C-12; and (D) C-4/C-6 fragments of marilzafurollene D (4).
Figure 5. (A) Configuration analysis for the oxolane ring; (B) C-9/C-10; (C) C-10/C-12; and (D) C-4/C-6 fragments of marilzafurollene D (4).
Marinedrugs 12 04031 g005
12-Acetoxy-marilzafurenyne (5) has the molecular formula C17H22BrClO3, as deduced from mass spectral data (ESI-HRMS ions at m/z 411.0332, 413.0320, 415.0298; ([M + Na]+). The IR spectrum revealed absorption bands at 3293, 2326 (terminal alkyne moiety), 1733 (ester carbonyl group), 1645 (double bond) and 1050 (ether functionality) cm−1. The 13C NMR data of compound 5 (Table 1) exhibited signals for 17 carbons corresponding to two quaternary carbons, ten methines, three methylenes and two methyl groups. Among these carbons, one was assigned as a carbonyl, two were halogenated, three were bonded to oxygen and four were olefinic. The presence of a terminal enyne moiety was evident from the tertiary carbon resonances at δC 77.0, 111.9 and 140.7 and the quaternary carbon at δC 82.0. Furthermore, the 1H NMR spectrum (Table 2) showed signals at δH 2.84 (1H, br d, J = 1.7 Hz), 5.64 (1H, dd, J = 1.7, 16.1 Hz) and 6.20 (1H, ddd, J = 7.4, 7.4, 16.1 Hz), supporting the presence of the E-enyne unit. A detailed study of the 1D and 2D NMR data of compound 5 compared with those of compound 4 concluded that both compounds possessed a similar structure, but with the significant difference of the conjugated terminal enyne functionality instead of a bromoallene unit in 5. In addition, the 1H NMR spectrum of 5 included a signal for an additional acetate methyl group (δH 2.05 (s)) and a new deshielded oxygenated methine (δH 5.48 (ddd, J = 3.3, 7.0, 9.8 Hz)) that bears it. The acetate functionality present in the molecule was placed at C-12 on the basis of HMBC NMR cross-peaks observed between the methine and methylene protons, H-12 and H2-11, and the corresponding carbonyl ester carbon (Table 1).
The relative configuration of the C-6→C-10 moiety was assigned as identical to that of Molecules 1–4 on the basis of the observed similarity in their 3JHH and chemical shift values (Table 3). One more time, the relative configuration at C-12 was studied using the 1H and 13C chemical shift DFT calculations. Thus, the calculated values for the 4S*,6R*,7R*,9S*,10S*,12S* diastereoisomer showed a better match with the experimental data (R2 0.986 vs. 0.965 for δ 1H) and a DP4 probability of 100% (Supplementary Table S4 and Figure S21).
The biogenesis of the large family of halogenated cyclic acetogenins, all functionalized at C-6, C-7, C-9, C-10, C-12 and C-13, has been suggested by Murai as ultimately arising from (Z,Z,Z)-hexadeca-4,7,10,13-tetraenoic acid via (Z)-6,7-epoxide 6 (or a closely related precursor) and electrophilic bromination events [25]. Based on this work, Braddock recently proposed a hypothesis concerning the biosynthesis of an interesting subset of these halogenated C15 acetogenins, the obtusallenes [26], whose initial steps could explain the biogenetic origin of compounds 1–5. Thus, it seems reasonable to suggest that these compounds derive from epoxide 6 by nucleophilic ring-opening with chloride to provide a threo-hydroxychloride derivative (Scheme 1). Subsequent bromoetherification gives a trans-tetrahydrofuran intermediate that evolves to generate bicyclic oxonium ions, which, in turn, can be fragmented to give compounds 4–5 and the allylic precursors of compounds 1–3. Lastly, the terminal bromoallene moiety in compounds 1–4 may be produced biosynthetically by bromonium ion formation on the terminal enyne, followed by nucleophilic attack of water. Finally, it has to be noted that the configurations proposed by us for these molecules (1–5) are consistent with this biogenetic proposal.
Marinedrugs 12 04031 g006 1024

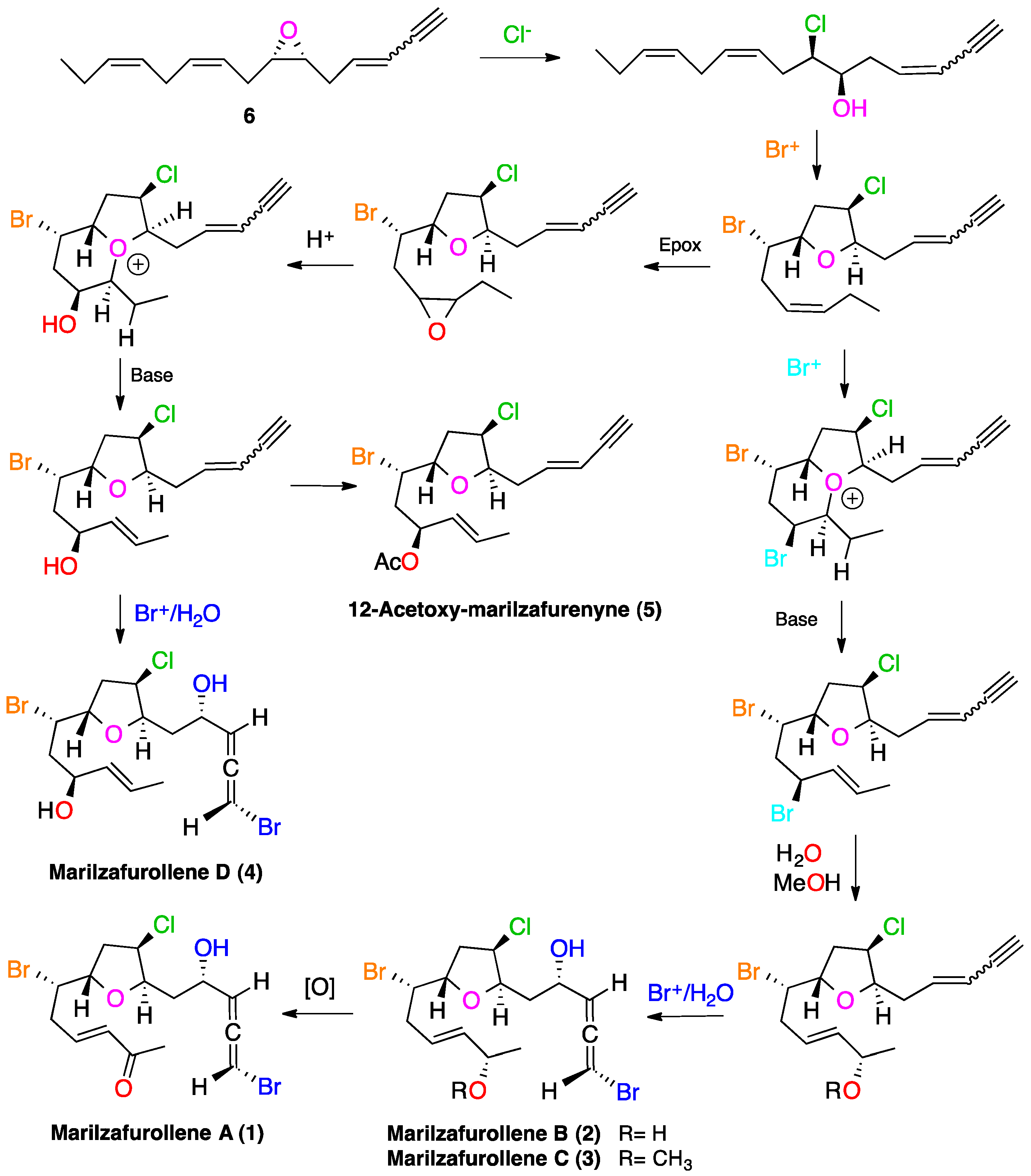

Scheme 1. Suggested biogenesis of marilzafurollenes A–D (1–4) and 12-acetoxy-marilzafurenyne (5).
Scheme 1. Suggested biogenesis of marilzafurollenes A–D (1–4) and 12-acetoxy-marilzafurenyne (5).
Marinedrugs 12 04031 g006

3. Experimental Section

3.1. General Experimental Procedures

Optical rotations were measured at room temperature in CHCl3 using a sodium lamp. IR spectra were recorded using methanolic solutions over a NaCl disk. NMR spectra were recorded on a 600 MHz equipped with a 5-mm TCI (Triple Resonance CryoProbe) inverse detection cryo-probe. 1H and 13C NMR chemical shifts were referenced either to the CDCl3 or C6D6 solvent peaks at 300 K (CDCl3: δH 7.26, δC 77.0; C6D6: δH 7.16, δC 128.4). COSY, HSQC, HMBC and ROESY experiments were performed using standard pulse sequences. 3JH,H values were measured from 1D 1H NMR. The HSQC-HECADE pulse sequence was used to measure long-range heteronuclear coupling constants. All experiments were performed in the phase-sensitive mode (States-TPPI (Time-Proportional Phase-Incrementation frequency discrimination) or echo-antiecho for quadrature detection in F1) and used gradient coherence selection. The HSQC-HECADE experiment was recorded using DIPSI during the 40 ms of the isotropic mixing period using a bandwidth of 10 kHz, and a J-scale factor of 1 was used. Prior to Fourier transformation, zero filling was performed to expand the data to at least double the number of acquired data points. HPLC separations were carried out with a preparative silica column (10 μ, 19 × 150 mm) and a photodiode array detector. TLC was visualized by spraying with phosphomolybdic acid reagent (10% in EtOH) and heating.

3.2. Computational Methods

Conformational searches were performed using the Macromodel software (version 8.5, Schrödinger Inc., San Diego, CA, USA) and the MMFF94 force field. Solvation effects were simulated using the generalized Born/surface area (GBSA) solvation model with chloroform. Extended non-bonded cutoff distances (a van der Waals cutoff of 8.0 Å and an electrostatic cutoff of 20.0 Å) were used. Local minima within 10 kJ of the global minimum were saved. Analysis of the results was undertaken using Maestro software.
Quantum mechanical calculations were carried out with the Jaguar package (Jaguar; Schrödinger LLC, New York, NY, USA). Single-point energy calculations were performed at the DFT theoretical level in the gas phase. The B3LYP hybrid functional with the LACVP ** basis set was used. Chemical shifts were calculated using the gauge-including atomic orbital (GIAO) method. Chemical shifts were calculated from their shielding constants that were first averaged according to their relative Boltzmann populations using a Schrödinger Inc. python script. Proton chemical shifts for each methyl group were averaged due to their conformational freedom.

3.3. Biological Material

Specimens of Laurencia marilzae Gil-Rodríguez, Sentíes et M.T. Funjii [11], were collected by hand in the intertidal zone at Paraíso Floral (Tenerife, Canary Islands, Spain). A voucher specimen was deposited at the Department of Biología Vegetal, Botánica, University of La Laguna, Tenerife (TFC Phyc 9860 (Herbarium code of University of La Laguna)).

3.4. Extraction and Isolation

Fresh alga (1.3 kg) was extracted with CH2Cl2:MeOH (1:1, v/v) at room temperature and the solvent removed in vacuo to give a dark-green viscous oil (42.9 g). The extract was subjected to Sephadex LH-20 (n-Hex:CH2Cl2:MeOH (2:1:1)) column chromatography. Selected fractions exhibiting similar TLC profiles were rechromatographed on a medium-pressure normal-phase chromatography using a Lobar LiChroprep Si 60 column with n-hexane:EtOAc (4:1). Final purifications were achieved on a μ-Porasil HPLC column, 10 μ, 19 × 150 mm, using n-hexane:EtOAc (9:1 and 7:3), yielding compounds 1 (1.8 mg), 2 (2.2 mg), 3 (1.2 mg), 4 (0.8 mg) and 5 (1.0 mg).
Marilzafurollene A (1): white, amorphous substance; [α]D25 +32 (c 0.06, CHCl3); UV (MeOH) λmax (logε) 205 (3.58) nm; CD (CH3CN): λmax (Δε) 217 (+0.46) nm; IR (CHCl3) νmax 3439, 3060, 2928, 2859, 1962, 1729, 1674, 1663, 1447, 1368, 1263, 1072 cm−1; 1H and 13C NMR data (CDCl3), see Table 1 and Table 2; ESI-HRMS m/z 462.9298, 464.9296, 466.9330, 468.9385 [M + Na]+ (38:100:97:42) (calcd. for C15H1979Br235ClO3Na, 462.9287; C15H1979Br81Br35ClO3Na, 464.9267; C15H1981Br235ClO3Na, 466.9246; C15H1981Br237ClO3Na, 468.9217).
Marilzafurollene B (2): white, amorphous substance; [α]D25 +60 (c 0.10, CHCl3); UV (MeOH) λmax (logε) 203 (3.49) nm; CD (CH3CN): λmax (Δε) 221 (+0.67) nm; IR (CHCl3) νmax 3413, 2965, 2930, 1962, 1724, 1634, 1444, 1376, 1266, 1194, 1065 cm−1; 1H and 13C NMR data (CDCl3), see Table 1 and Table 2; ESI-HRMS m/z 464.9453, 466.9432, 468.9418, 470.9395 [M + Na]+ (46:100:71:15) (calcd. for C15H2179Br235ClO3Na, 464.9444; C15H2179Br81Br35ClO3Na, 466.9423; C15H2181Br235ClO3Na, 468.9403; C15H2181Br237ClO3Na, 470.9373).
Marilzafurollene C (3): white, amorphous substance; 1H and 13C NMR data (CDCl3), see Table 1 and Table 2. Complementary spectroscopic data are not available due to the fast degradation of the sample.
Marilzafurollene D (4): white, amorphous substance; [α]D25 +22 (c 0.08, CHCl3); UV (MeOH) λmax (logε) 204 (3.52) nm; CD (CH3CN): λmax (Δε) 218 (+0.62) nm; IR νmax (CHCl3) 3413, 2965, 2856, 1962, 1724, 1634, 1444, 1376, 1266, 1194, 1065 cm−1; 1H and 13C NMR data (CDCl3), see Table 1 and Table 3; 1H and 13C NMR data (C6D6), see Supplementary Table S1; ESI-HRMS m/z 464.9445, 466.9428, 468.9416, 470.9414 [M + Na]+ (49:100:74:12) (calcd. for C15H2179Br235ClO3Na, 464.9444; C15H2179Br81Br35ClO3Na, 466.9423; C15H2179Br81Br37ClO3Na, 468.9394; C15H2181Br237ClO3Na, 470.9373).
12-Acetoxy-marilzafurenyne (5): white, amorphous substance; [α]D25 −13 (c 0.07, CHCl3); UV (MeOH) λmax (logε) 225 (2.79) nm; IR νmax (CHCl3) 3293, 2926, 2326, 1960, 1733, 1645, 1378, 1259, 1188, 1050 cm−1; 1H and 13C NMR data (CDCl3), see Table 1 and Table 3; ESI-HRMS m/z 411.0332, 413.0320, 415.0298 [M + Na]+ (77:100:26) (calcd. for C17H2279Br35ClO3Na, 411.0339, C17H2281Br35ClO3Na, 413.0318, C17H2279Br37ClO3Na, 413.0309, C17H2281Br37ClO3Na, 415.0289).

4. Conclusions

We have demonstrated the value of our simple and efficient NMR protocol based on the measurement of spin-spin coupling constants to achieve the challenging relative configurations of five new halogenated C15 tetrahydrofuranyl-acetogenins isolated from indigenous species of Laurencia (Laurencia marilzae). Furthermore, a detailed study of NMR chemical shifts by DFT calculations was also undertaken with the aim of connecting remote chiralities within these tetrahydrofuranyl-acetogenins. Inspection of the isolated structures also provides new insights into the biosynthetic pathway of this class of compounds.

Supplementary Files

  • Supplementary File 1:

    Supplementary Information (PDF, 9065 KB)

    • Acknowledgments

    This work was supported by grants SAF2011-28883-C03-01 (Ministry of Economy and Competitiveness of Spain), EU FP7-KBBE-3-245137 (MAREX: Exploring Marine Resources for Bioactive Compounds: From Discovery to Sustainable Production and Industrial Applications) and EU FP7-REGPOT-2012-CT2012-316137 (IMBRAIN: Improving Biomedical Research and Innovation in the Canary Islands). A. Gutiérrez-Cepeda acknowledges MAEC-AECID (Scholarship Programme from the Ministry of Foreign Affairs & Cooperation, and from the Spanish International Cooperation Agency) The authors thank M.C. Gil-Rodríguez (Department of Biología Vegetal, University of La Laguna) for the taxonomic classification of the alga.

    Author Contributions

    Adrián Gutiérrez-Cepeda conducted alga collection and extraction, natural products isolation and contributed to structural determination. Antonio Hernández Daranas performed computational chemistry, NMR spectral measurements, analyzed data as well as contributed to writing and revising the manuscript. Manuel Norte gave constructive comments for the results and discussion parts of the manuscript. José J. Fernández and María L. Souto conceived and designed the research, analyzed and interpreted the data, performed the structural elucidation and drafted the manuscript.

    Conflicts of Interest

    The authors declare no conflict of interest.

    References

    1. Blunt, J.W.; Copp, B.R.; Keyzers, R.A.; Munro, M.H.G.; Prinset, M.R. Marine natural products. Nat. Prod. Rep. 2014, 31, 160–258. [Google Scholar] [CrossRef]
    2. Gerwick, W.H.; Moore, B.S. Lessons from the past and charting the future of marine natural products drug discovery and chemical biology. Chem. Biol. 2012, 27, 85–98. [Google Scholar] [CrossRef]
    3. Molinski, T.F.; Dalisay, D.S.; Lievens, S.L.; Saludes, J.P. Drug development from marine natural products. Nat. Rev. Drug Discov. 2009, 8, 69–83. [Google Scholar]
    4. Bifulco, G.; Dambruoso, P.; Gomez-Paloma, L.; Riccio, R. Determination of relative configuration in organic compounds by NMR spectroscopy and computational methods. Chem. Rev. 2007, 107, 3744–3779. [Google Scholar] [CrossRef]
    5. Lodewyk, M.W.; Siebert, M.R.; Tantillo, D.J. Computational prediction of 1H and 13C chemical shifts: A useful tool for natural product, mechanistic, and synthetic organic chemistry. Chem. Rev. 2012, 112, 1839–1862. [Google Scholar] [CrossRef]
    6. Saielli, G.; Nicolaou, K.C.; Ortiz, A.; Zhang, H.; Bagno, A. Addressing the stereochemistry of complex organic molecules by density functional theory-NMR: Vannusal B in retrospective. J. Am. Chem. Soc. 2011, 133, 6072–6077. [Google Scholar] [CrossRef]
    7. Napolitano, J.G.; Gavín, J.A.; García, C.; Norte, M.; Fernández, J.J.; Hernández Daranas, A. On the configuration of five-membered rings: A spin-spin coupling constant approach. Chem. Eur. J. 2011, 17, 6338–6347. [Google Scholar] [CrossRef]
    8. Napolitano, J.G.; Norte, M.; Fernández, J.J.; Hernández Daranas, A. Corozalic acid: A key biosynthetic precursor with phosphatase inhibition activity. Chem. Eur. J. 2010, 16, 11576–11579. [Google Scholar]
    9. Gutiérrez-Cepeda, A.; Fernández, J.J.; Gil, L.V.; López-Rodríguez, M.; Norte, M.; Souto, M.L. Nonterpenoid C15 acetogenins from Laurencia marilzae. J. Nat. Prod. 2011, 74, 441–448. [Google Scholar]
    10. Gutiérrez-Cepeda, A.; Fernández, J.J.; Norte, M.; Souto, M.L. New bicyclotridecane C15 nonterpenoid bromoallenes from Laurencia marilzae. Org. Lett. 2011, 13, 2690–2693. [Google Scholar]
    11. Gil-Rodríguez, M.C.; Sentíes, A.; Díaz-Larrea, J.; Cassano, V.; Fujii, M.T. Laurencia marilzae sp. nov. (Ceramiales, Rhodophyta) from the Canary Islands, Spain, based on morphological and molecular evidence. J. Phycol. 2009, 45, 264–271. [Google Scholar] [CrossRef]
    12. Wang, B.-G.; Gloer, J.B.; Ji, N.-Y.; Zhao, J.-C. Halogenated organic molecules of Rhodomelaceae origin: Chemistry and biology. Chem. Rev. 2013, 113, 3632–3685. [Google Scholar] [CrossRef]
    13. Holmes, M.T.; Briton, R. Total synthesis and structural revision of laurefurenynes A and B. Chem. Eur. J. 2013, 19, 12649–12652. [Google Scholar] [CrossRef]
    14. Ji, N.-Y.; Li, X.-M.; Li, K.; Wang, B.-G. Corrigendum: Laurendecumallenes A–B and laurendecumenynes A–B, halogenated nonterpenoid C(15)-acetogenins from the marine red alga Laurencia decumbens. J. Nat. Prod. 2010, 73, 1192. [Google Scholar]
    15. Cen-Pacheco, F.; Rodríguez, J.; Norte, M.; Fernández, J.J.; Hernández Daranas, A. Connecting discrete stereoclusters by using DFT and NMR spectroscopy: The case of nivariol. Chem. Eur. J. 2013, 19, 8525–8532. [Google Scholar] [CrossRef]
    16. Matsumori, N.; Kaneno, D.; Murata, M.; Nakamura, H.; Tachibana, K. Stereochemical determination of acyclic structures based on carbon-proton spin-coupling constants. A method of configuration analysis for natural products. J. Org. Chem. 1999, 64, 866–876. [Google Scholar]
    17. The absolute configuration of the bromoallene moiety was proposed according to the Lowe-Brewster’s rule, and confirmed by CD data through comparison with related compounds whose absolute configurations were assigned from X-ray diffraction data.
    18. Lowe, G. The absolute configuration of allenes. J. Chem. Soc. Chem. Commun. 1965, 17, 411–413. [Google Scholar]
    19. Elsevier, C.J.; Vermeer, P.; Gedanken, A.; Runge, W. Synthesis and absolute configurations of halogenoallenes. J. Org. Chem. 1985, 50, 364–367. [Google Scholar]
    20. Guella, G.; Chiasera, G.; Mancini, I.; Öztunç, A.; Pietra, F. Twelve-membered O-bridged cyclic ethers of red seaweeds in the genus Laurencia exist in solution as slowly interconverting conformers. Chem. Eur. J. 1997, 3, 1223–1231. [Google Scholar] [CrossRef]
    21. Domínguez, H.J.; Crespín, G.D.; Santiago Benítez, A.J.; Gavín, J.A.; Norte, M.; Fernández, J.J.; Hernández Daranas, A. Stereochemistry of complex marine natural products by quantum mechanical calculations of NMR chemical shifts: Solvent and conformational effects on okadaic acid. Mar. Drugs 2014, 12, 176–192. [Google Scholar] [CrossRef]
    22. Smith, S.G.; Channon, J.A.; Paterson, I.; Goodman, J.M. The stereochemical assignment of acyclic polyols: A computational study of the NMR data of a library of stereopentad sequences from polyketide natural products. Tetrahedron 2010, 66, 6437–6444. [Google Scholar]
    23. Rassolov, V.A.; Ratner, M.A.; Pople, J.A.; Redfern, P.C.; Curtiss, L.A. 6–31G* basis set for third-row atoms. J. Comp. Chem. 2001, 22, 976–984. [Google Scholar] [CrossRef]
    24. Smith, S.G.; Goodman, J.M. Assigning stereochemistry to single diastereoisomers by GIAO NMR calculation: The DP4 probability. J. Am. Chem. Soc. 2010, 132, 12946–12959. [Google Scholar] [CrossRef]
    25. Murai, A. Biosynthesis of cyclic bromoethers from red algae. In Comprehensive Natural Product Chemistry; Barton, D., Nakanishi, K., Meth-Cohn, O., Eds.; Pergamon: Elmsford, NY, USA, 1999; Volume 1, pp. 303–324. [Google Scholar]
    26. Braddock, D.C. A hypothesis concerning the biosynthesis of the obtusallene family of marine natural products via electrophilic bromination. Org. Lett. 2006, 8, 6055–6058. [Google Scholar] [CrossRef]
