Article

Genetic Mapping and QTL Analysis of Fruit Traits in Melon (Cucumis melo L.)

by
Haiyong Zhao
1,2,
Taifeng Zhang
1,2,
Xiaobing Meng
1,2,
Jiayan Song
1,2,
Chen Zhang
1,2 and
Peng Gao
1,2,*
1
College of Horticulture and Landscape Architecture, Northeast Agricultural University, No. 600, Changjiang Road, Harbin 150030, China
2
Key Laboratory of Biology and Genetic Improvement of Horticulture Crops (Northeast Region), Ministry of Agriculture and Rural Affairs, Harbin 150030, China
*
Author to whom correspondence should be addressed.
Curr. Issues Mol. Biol. 2023, 45(4), 3419-3433; https://doi.org/10.3390/cimb45040224
Submission received: 22 March 2023 / Revised: 7 April 2023 / Accepted: 11 April 2023 / Published: 14 April 2023
(This article belongs to the Special Issue Genetic Sight: Plant Traits during Postharvest)
Browse Figures
Versions Notes

Abstract

:
Melon (Cucumis melo L.) is an important horticultural cash crop and its quality traits directly affect consumer choice and market price. These traits are controlled by genetic as well as environmental factors. In this study, a quantitative trait locus (QTL) mapping strategy was used to identify the potential genetic loci controlling quality traits of melons (i.e., exocarp and pericarp firmness and soluble solid content) based on newly derived whole-genome single nucleotide polymorphism-based cleaved amplified polymorphic sequence (SNP-CAPS) markers. Specifically, SNPs of two melon varieties, M4-5 and M1-15, as revealed by whole-genome sequencing, were converted to the CAPS markers, which were used to construct a genetic linkage map comprising 12 chromosomes with a total length of 1414.88 cM, in the F2 population of M4-5 and M1-15. The six identified QTLs included: SSC6.1 and SSC11.1 related to soluble solid content; EF12.1 associated with exocarp firmness; and EPF3.1, EPF3.2 and EPF7.1 related to edible pericarp firmness. These genes were located on five chromosomes (3, 6, 7, 11, and 12) in the flanking regions of the CAPS markers. Moreover, the newly developed CAPS markers will be useful in guiding genetic engineering and molecular breeding in melon.

1. Introduction

Melon (Cucumis melo L.) is a Cucurbitaceae vegetable crop widely cultivated in many countries, including China. In fact, melons constitute an important component of fruit and vegetable production in China [1]. Melon quality is determined by various characteristics [2]; for instance, melon is popular for its sweet taste, pleasant flavor, and high nutritional value [3]. The sensory quality of melon fruit depends largely on its soluble solid content (SSC) and its volatile aromatic components. In addition, melon fruit has a high SSC, including organic acids, multiple vitamins, and soluble proteins [4,5,6], which not only determines melon flavor but also is commonly used for the quality evaluation of melon. One of the most crucial characteristics related to SSC is the sugar concentration [6] as sugar is the main component that affects the quality and flavor of melon fruit, and is also the basic raw material for the synthesis of vitamins, pigments and aromatic substances. In addition, sugar provides the osmotic catalyst for fruit cell enlargement [7].
The firmness of melon fruit refers to the resistance of the flesh to external pressure. It is essential for sensory attributes, and can suit different needs of consumers, and thus has been used as one of the indicators of melon quality [8]. As a typical quantitative trait affected by genetic and environmental factors, the firmness trait of melon is quite complex. It can be affected by germplasm genetic differences and is typically manifested as the fruit harvest and ripening index [9,10]. The firmness of melon can be affected by cellular contents, such as intercellular space, cellulose, and starch contents. During the melon fruit ripening and softening process, the respiration rate increases, the starch and other substances are degraded, and pectin, which plays an essential role in the cell wall support, is decomposed into fructose, glucose, and other polysaccharide substances, resulting in reduced fruit firmness [11].
These traits have shown great variation since domestication, and their genetic bases have been extensively studied [12,13]. Multiple molecular tools have been developed to help researchers map traits in many crop varieties and link them to certain genomic loci or genes [14,15], thus accelerating plant breeding. The use of molecular markers has facilitated the unraveling of molecular mechanisms underlying different traits [16,17]. The identified markers have accelerated genetic crop breeding based on marker assisted selection (MAS). Several genetic maps of melon have been established since Pitrat [18] first used morphological markers to create a linkage map of melon [19,20,21]. QTL analysis has been used to link genomic regions to fruit traits, such as form, dimension, firmness, weight, and SSC. For instance, Argyris et al. identified 78 QTLs related to the traits of sugar and organic acid contents using near-isogenic and hybridized melon lines [6]. Paris et al. [22] identified 57 QTLs in 81 melon recombinant inbred lines (RILs) that are related to multiple quality traits, including 10 related to SSCs. In another study, 27 QTLs were linked to traits including shape, size, and pulp content in the F2 population of melon [23].
The next–generation sequencing (NGS) method has been widely used to understand the genetic mechanisms regulating melon fruit diversity [24,25]. The Spanish Institute of Agricultural Sciences successfully constructed the first melon reference genome (the double-haploid line DHL92 of C. melo ssp. Melo) in 2012 [26]. In 2020, the latest version of the melon reference genome (Melon (DHL92) v4) was released [27]. This improved melon genome assembly has greatly facilitated the designing of high-density genetic markers [28].
In this study, the F2 populations of the thick-skinned melon (M4-5, low SSC) and thin-skinned melon (M1-15, high SSC) were used to construct the CAPS markers, which were further used to identify QTLs related to melon quality traits. Based on previous studies that deployed CAPS markers to elucidate melon fruit quality traits [29], we further assessed the effectiveness of SNP-CAPS markers and using this method, we successfully identified a QTL (SSC6.1) that is associated with the trait of soluble solid content in melon. Thus, this study provides further knowledge on marker-assisted breeding of specific fruit varieties.

2. Materials and Methods

2.1. Plant Materials

P1 (M4-5) has a round shape, low SSC, and slow growth rate; P2 (M1-15) has an oval shape, high SSC, and fast plant growth rate. Usage of the P1 (M4-5, female) and P2 (M1-15, male) seeds was approved by the Key Laboratory of Biology and Genetic Improvement of Horticultural Crops (Northeast Region), Ministry of Agriculture, Northeast Agricultural University, China. P1 (M4-5, female) and P2 (M1-15, male) were crossed to generate the F1 generation. F1 was further selfed to obtain the F2 generation. In a greenhouse at Northeast Agricultural University’s Xiangyang Experiment Agricultural Station in Harbin, China (44°049′ N, 125°429′ E), 271 F2 progenies, M4-5 (n = 10), M1-15 (n = 10), and their F1 (n = 10) hybrids were planted in 2021. In 2022, F2 (n = 393) and M4-5 (n = 10), and M1-15 (n = 10) and F1 (n = 10) were planted in the greenhouse of the Facility Horticulture Engineering Center, Northeast Agricultural University, Harbin (45°774′ N, 126°727′ E), China. For Harbin’s normal climatic circumstances, watering, extirpating weed, and vermin control were performed in accordance with industry standards. According to the climacteric or non-climacteric behavior of the fruit, different combinations of harvesting indicators are used for fruit harvesting. In the fruits of our F2 population, there are both climactic and non-climactic fruits. Our harvesting index is based on the method of Obando-Ulloa et al. [30], wherein the melon fruit is picked when the fruit pedicel begin to split and an aromatic scent can be smelled.

2.2. Determination of Fruit Traits

A GY-4 digital fruit firmness tester with an 11 mm diameter probe (Aipli, China) was used to determine the firmness of the inner and outer peels of the same fruit three times each, and the average value calculated was represented as the hardness index (kg/cm2). The juice in the middle of the fruit was taken and measured with a BM-02 digital display refraction instrument (Dongmei, China); light was avoided during the measurement. All measurements were repeated three times, and the average value was recorded.

2.3. Genomic DNA Sequencing

Fresh, 2-week-old leaves of the M4-5, M1-15, F1 and F2 populations were quick-frozen in liquid nitrogen, and gDNA was extracted using a modified cetyltrimethylammonium bromide (CTAB) method [31]. DNA concentration and quality were then determined using SMA3000 spectrophotometer (Plextech, Shenzhen, China) and 1% agarose gel electrophoresis, respectively. On a high-throughput Illumina sequencing platform, libraries prepared from the genomic DNA of the two parents, M4-5 and M1-15, was sequenced.

2.4. SNP Development, Annotation and CAPS Marker Development

The high-quality resequencing data of the parental were obtained using the preprocessing software FASTX-Toolkit (v0.0.13). The resequencing data were aligned with the Melon (DHL92) v3.6.1 Genome [32] using the Burrows–Wheeler Aligner (BWA). The parental resequencing data were aligned with the melon reference genome to the identified SNP sites using SAMtools (v1.12)-mpileup software. SNPs in the resequencing data were detected using VarScan (v2.0) to generate VCF files. SnpEff (v4.3) was used to export SNPs to web-based generated HTML, and according to their genetic variation effects introns, exons, start-stop codons, upstream-downstream regions, splice regions, and 5’ to 3’ end UTR regions for annotation.
For the development of CAPS markers, a total of 10–15 random SNP sites before and after 500 base pair sequences with suitable restriction endonucleases were mined across each chromosome using the SNP2CAPS [33]. The potential SNP sequences were transformed into CAPS markers following the manual settings of molecular parameters of the Primer Premier (v6.0) program.

2.5. CAPS Genotype Analysis

The CAPS primers were designed using Primer Premier (v6.0) program (The CAPS marker primer sequences used to construct the genetic linkage map are listed in Supplementary Table S1) and PCR amplification was performed for the parents and F1 population. The obtained PCR products were cut to detect polymorphisms in the parents and F1 population. CAPS markers with uniform location distribution and clear bands were selected for genotyping of the F2 population. The components and concentrations of the PCR reaction system are shown in Supplementary Table S2. Three restriction enzymes were used to cleave the PCR products (EcoR I, Hind III, and BamH I, 10 U/μL, TAKARA). According to the manufacturer’s instructions, a mixture of 5 μL of PCR product, 0.2 μL of restriction enzyme (10 U/μL), 1.5 μL of enzyme-specific buffer, and 8.3 μL of sterile double distilled water was used for reaction in a 37 °C incubator for 4–5 h. All CAPS markers and products of both parents and F1 generation were verified and examined using electrophoresis with 1% agarose gel. Images from gel electrophoresis were obtained using an image analysis system (Champ Gel 6000, Saizhi Entrepreneurship, Beijing, China).

2.6. Genetic Linkage Map Construction

QTL IciMapping (v4.0) and R/qtl (v1.5) [34] were used to construct linkage maps for the F2 population. The genome-wide LOD threshold at α = 0.05 was estimated using 1000 repeat replacement tests. LOD > 2.5 is used as the threshold for detecting the presence of QTLs. Composite interval mapping was used to scan the whole genome at a walking speed of 1.0 cM. The identified QTLs were coded using abbreviations for the traits, followed by the linkage group number and QTL number.

2.7. Statistical Analysis

All data were presented as mean ± SD and ranges. Analyses of distributions and correlations were performed using R (v4.2.0), for the correlation analysis of SSC, EF, and EPF. SPSS (v23.0) was used for the analysis of fruit quality traits in the parental lines and the F1 and F2 generations. Frequency distributions of SSC, EF, and EPF in the M4-5 and M1-15 derived F2 populations were calculated based on counts. Microsoft Excel (v2021) was used to record band information and trait data (SSC, EF, and EPF) after enzyme digestion. GraphPad Prism (v8.0) software was used for SSC6.1 CAPS marker genotype and SSC phenotype analysis.

3. Results

3.1. Phenotyping of Melon Morphological Traits

Two melon parental lines, M4-5 (P1, female) and M1-15 (P2, male), were selected as the experimental materials. The exocarp and pericarp firmness of M4-5 was 14.51 ± 0.37 kg/cm2 and 4.17 ± 0.18 kg/cm2, respectively; the SSC for M4-5 was 8.64 ± 0.30%. The exocarp and pericarp firmness of M1-15 was 14.11 ± 0.13 kg/cm2 and 6.11 ± 0.14 kg/cm2, respectively; the SSC for M1-15 was 10.21 ± 0.30%. The outer and longitudinal sections of both parents and F1 melons are shown in Figure 1.

3.1.1. Exocarp Firmness (EF) and Edible Pericarp Firmness (EPF)

EF of the two parental lines were quite similar, 14.51 ± 0.37 kg/cm2 and 14.11 ± 0.13 kg/cm2 for M4-5 and M1-15, respectively. The EF of the F1 generation (15.46 ± 0.17 kg/cm2) was higher than that of M4-5 and M1-15 (Table 1). The EF of the F2 population was diverse, ranging from 6.20 kg/cm2 to 25.20 kg/cm2 (Figure 2A). M4-5 and M1-15 had an EPF of 4.17 ± 0.18 kg/cm2 and 6.11 ± 0.14 kg/cm2, respectively. The F1 generation had an EPF of 5.14 ± 0.10 kg/cm2, which was comparable to the parental lines (i.e., M4-5 and M1-15). The EPF of the F2 population was diverse, ranging from 2.60 kg/cm2 to 14.60 kg/cm2 (Figure 2B).

3.1.2. Soluble Solid Content (SSC)

In a previous study [29], SSC of the parental lines, i.e., M4-5 and M1-15 lines, and the F1 population were 9.24 ± 0.43%, 10.69 ± 0.26%, and 7.74 ± 0.58%, respectively (Table 2). In the F2 population, SSC ranged from 4.00% to 14.00% (Supplementary Figure S1).
In 2021, we measured the SSC of the parents and their F1 and F2 populations. SSC of M1-15 (10.21 ± 0.30%) was higher than that of M4-5 (8.64 ± 0.30%). SSC of F1 (7.93 ± 0.27%) was lower than that of M4-5 and M1-15 (Table 2). SSC of the F2 population was diverse, ranging from 2.60% to 14.60% (Figure 2C).
In 2022, we further measured the SSC of the parents and their F1 and F2 populations. The SSC value of the two parents and F1 population in 2022 was consistent with that from the previous two years (i.e., 2018 and 2021). However, the SSC value of the F2 population in 2022 was lower than that of the previous two years. SSC of the F2 generation showed continuous normal distribution (Figure 2D, Table 2).

3.1.3. Correlation Analysis

The correlation analysis showed that these fruit traits have a good relationship with each other (Table 3). Specifically, SSC was significantly correlated with EF, whereas EPF and EF, and SSC and EPF, were negatively correlated with each other.

3.2. Single Nucleotide Polymorphisms (SNPs) and CAPS Marker Analysis

The genome sequencing revealed 53.85% non-synonymous SNPs and 46.15% polymorphic SNPs, of which 44.68%, 21.39%, 22.27%, 0.01%, 0.01%, 0.17%, 0.74%, 0.51%, 8.01%, and 2.21% were located in the intergenic, downstream, upstream, splice acceptor, splice donor, splice region, 3′ UTR, 5′ UTR, intron, and exon regions, respectively (Figure 3).
The total length of the whole genome was 375,360,399 bp. The SNP variant density was calculated in the chromosome region with a 1-Mb size window. A total of 2,388,036 SNP variants were detected, of which the highest number of SNP mutations were found on chromosome 1 (270,720), and the lowest number of SNP mutations on chromosome 9 (150,871). The SNP variant density in the whole genome was calculated using the CMplot R package, and the sequences of the two parental lines were compared with that of the melon reference genome (v3.6.1) (Supplementary Table S3, Figure 4).
A total of 290 CAPS markers were designed, verified by P1, P2 and F1, of which 116 CAPS markers were polymorphic, and the polymorphic rate was 40%. The restriction endonucleases (EcoR I, Hind III, and BamH I, 10 U/μL, TAKARA) were used to cut the PCR products, which were examined using electrophoresis with 1% agarose gel.

3.3. Construction of Genetic Linkage Map

The genetic linkage maps of the 2021 F2 populations of M4-5 and M1-15 were constructed with the 116 SNP-CAPS markers (Figure 5). Table 3 shows the marker distribution on each chromosome. The linkage map consisted of 12 linkage groups, with the largest number of CAPS markers located on chromosome 6, which has a total length of 118.34 cM and an average CAPS marker distance of 9.10 cM. The average genetic distance of the 116 CAPS markers was 12.20 cM, whereas the overall genetic distance of the 12 linkage maps (whole genome) was 1414.88 cM (Table 4).

3.4. QTLs Related to the Quality Traits of Melon

Using the melon genotype and phenotype data, six putative QTLs potentially related to melon fruit traits were identified, which are distributed on multiple chromosomes (Table 5; Figure 5). Specifically, two QTLs (SSC6.1 and SSC11.1) were mapped on chromosomes 6 and 11 (Table 5 and Figure 5). Among all the six QTLs, SSC6.1 had the highest logarithm of odds (LOD) score of 9.81, with an additive effect of −1.3466 and percentage phenotype variance (PVE%) of 16.32. It was positioned at 18 cM from the starting site of the flanking CAPS markers, M6H4-M6E8 (21,063,516 bp–31,537,693 bp) (genetic confidence interval of 8.36 cM and physical interval of 10.47 Mb).
Two different QTL software (QTL IciMapping (v4.0) and R/qtl v1.5), identified a major effective QTL between CAPS markers M6H4 and M6E8 that is closely linked to the SSC trait. The intervals of CAPS markers in both software were roughly the same (Figure 6A,B).
To locate the SSC6.1 more precisely, based on QTL analysis in 2021, a larger F2 population (n = 393) was planted in 2022 and eight new CAPS markers were identified in the flanking regions of the M6H4-M6E8 markers. As a result, the range was narrowed to M6D-M6E (25,232,480–28,148,360 bp), and the physical distance was narrowed to 2.92 Mb (Figure 6C). The intervals (i.e., M6H4-M6E8) obtained using both software, i.e., R/qtl and QTL IciMapping, were the same (Figure 6D). The consistent interval calculated using the two software was similar, with LOD scores of 10.19 and 10.5, respectively.
On chromosome 12, a QTL (EF12.1) linked to EF was found at 56 cM (Table 5; Figure 5). The genetic distance between markers M12H2 and M12E4 was 29.98 cM, and a total of 6.45% PVE was detected at an LOD score of 2.77.
Three QTLs (EPF3.1, EPF3.2, and EPF7.1) were identified on chromosomes 3 and 7 (Table 5; Figure 5), with LOD scores of 3.56, 3.58, and 2.90; the additive effect values of 0.0041, 0.7995, and 0.9399; and the PVE% values of individual effect of 6.14, 5.64, and 4.89, respectively. On chromosome 3, the two QTLs for EPF3.1 and EPF3.2 were identified, with locations at 26 cM and 61 cM, and the genetic distance between the two markers at 11.82 cM (M3H2-M3E4) and 36.25 cM (M3E8-M3E7), respectively. One QTL (EPF7.1) is located at 75 cM on chromosome 7, and the genetic interval of the flanking markers M7H6-M7E9 is 24.39 cM.

3.5. Marker Verification

Three markers flanking mapped QTL region and linked to the fruit SSC (Figure 7) were used to analyze the genotype–phenotype correlation of 2022 F2 population to verify the accuracy of the QTL mapping results. The P1, P2, and F1 populations had genotype A (low SSC), genotype B (high SSC), and genotype H (SSC between P1 and P2), respectively. In the F2 population, the significance of M6H7 and M6E among the three markers was most prominent, showing a greater probability of QTL between these two loci. These results further demonstrated the reliability of the QTL findings.

4. Discussion

Melon, a popular, horticultural crop, exhibits significant phenotypic variations. DNA-based genetic markers in the last few decades has been used to elucidate fruit quality traits in watermelon, melon and cucumber [35,36,37,38,39]. In this present study, we constructed a genetic linkage map using F2 mapping populations over a three-year period at three distinct locations using genome-wide SNP-CAPS markers, and genetically mapped putative loci contributing to melon traits, such as exocarp and pericarp firmness and SSC (Figure 5).
In addition to the influence of external factors, such as cultivation environment and agronomic measures, the complex quantitative feature of sugar buildup in melon fruit is reportedly regulated by several genes [40]. In one study aimed to identify the genetic loci responsible for the sugar content, many QTLs and genes related to sugar content in melon fruit were identified [41]. However, at present, the reported QTLs related to the sugar content trait in melon can only explain a low level of phenotypic variation, which is unstable in different generations and under different environments and can interact with environmental factors, severely limiting the in-depth study of genetic mechanisms regulating this trait [42,43]. In previous studies, QTLs for SSC were found on chromosomes 2, 6, 7, and 9 [29]. However, in our 2021 and 2022 experiments, QTLs for SSC were found only on chromosome 6, in contrast to previous trials [29], and no QTLs for SSC were found on chromosomes 2, 7, and 9. Thus, we hypothesize that environmental factors may affect the phenotypes and interfere with the identification of the genetic loci contributing to the SSC trait.
Fruit SSC serves as a useful indicator for melon maturity. Chace et al. [44] proposed SSC as an objective quality indicator, and Mutton et al. [45] showed that both SSC and pulp firmness are key indicators for evaluating the quality of melons. Soluble solid content is usually expressed in % [45]. According to UNECE [46], SSC in the middle of the flesh of Charentais melons is ≥10%, whereas that of other types is ≥8%. In this experiment, the SSC ranges of the P1, P2, F1, and F2 populations were 8.64–9.73%, 10.21–10.85%, 7.74–7.93%, and 2.8–14.6%, respectively. According to several cultivar experiments, the reported SSC range of Galia melons was 10.2–16.1%, of melons was 11.0–14.6%, of Oriental crisp melons was 9.7–17.2%, of Canary melons was 10.4–15.2%, and of oriental melons was 10.5–14.2% [47,48,49].
The type, content, and composition of sugar can significantly affect fruit quality [5,50]. Thus, it is of practical significance to understand the genetic mechanism regulating sugar content in melon, which may be used in the breeding of high-quality melon varieties. Thus far, researchers have identified many QTLs in the sugar accumulation trait in melons, suggesting that this trait is highly complex and can be regulated by multiple genes [51,52]. Using the F2 and DHL populations from a hybrid between the Piel de Sapo (PS) variety and the Korean germplasm PI161375 and using composite interval mapping, five QTLs related to SSC were identified [43]. By generating RILs from the parents of the melon varieties, TopMark and USDA-846-1, ten SSC-related QTLs were identified [22]. In the present study, two SSC related QTLs were identified and located on chromosomes 6 and 11 from the experiment performed in the first year (2021), with LOD and PVE% of 9.81 and 16.32% for SSC6.1, respectively. From the experiment performed in the second year, we have developed eight CAPS markers around SSC6.1, and expanded the F2 population, which yielded significant results, with LOD and PVE% of 10.19 and 12.30%, respectively, exerting a strong potential influence on SSC.
Several mapping populations were established to investigate SSC traits in melon, and many QTLs related to the fruit sugar content trait were discovered. Currently, reported QTLs related to melon sugar content traits can only explain the low levels of phenotypic variation and exhibit inconsistency across different generations and environments; strong genotype–environment interaction further makes it challenging to investigate the genetic mechanism regulating this trait [42]. In this study, using SNP–CAPS markers established from the F2 populations, and a QTL mapping strategy at three sites over a period of three years, we identified a stable QTL (SSC6.1) for SSC (The research results of 2018 are shown in Supplementary Figure and Table).
The exocarp and pericarp firmness of melons is particularly important for consumer choice as it is closely related to transportation and shelving. In particular, EF, which relates to shelf life and market price, is a significant index. Fruit firmness is an illustration of a complex quantitative attribute impacted by genes that regulate cell wall, cell dilatation, and stratum trait [53,54,55]. In a study by Moreno et al. [11], five QTLs (FF2.2, FF3.5, FF8.2, FF8.4, and FF10.2) related to flesh firmness were detected using PI 161375 (SC) and Piel de Sapo (PS). In another study by Harel-Beja et al. [50], using the RIL population developed by crossing two melon subspecies, PI414723 (agrestis subspecies) and Dulce (melo subspecies), they identified QTLs related to the fruit firmness on chromosomes 1 and 5. Herein, three QTLs related to fruit firmness were identified on chromosomes 3 and 7, including two QTLs present on chromosome 3. The LOD score of the two QTLs on chromosome 3 was 3.58 and 3.56, respectively, higher than that of the one on chromosome 7 (2.90). Among these, the position of EPF3.2 is similar to that of FF3.5 in the previous study by Moreno et al. [11].
Numerous studies have thoroughly examined the influences of genetic factors on traits, such as melon fruit firmness and other qualities. According to Beaulieu and Lea [56], melons get softer by 51.9% in 13 days between blooming and harvesting, with nearly a third of the softening process occurring between 35 and 38 days after flowering. The ethylene (ETH)-dependent regulation of cell wall-modifying proteins involved in melon ripening is linked to the maturation of ETH production. This is demonstrated by the observation that inhibition of 1-aminocyclopropane-1-carboxylate oxidase (ACO) gene expression can inhibit the hardness of transgenic fruits. However, after exogenous ETH administration, ACO expression was recovered and phenotype was restored [57]. Moreover, treatment with the ETH inhibitor 1-methylcyclopropene can delay the softening process of physiologically ripe melon fruit [58]. In previous studies [11], FF3.5 and ETH (ETH3.5) were both identified on chromosome 3; FF3.5 was a QTL related to fruit firmness, and ETH3.5 was a QTL related to ETH content of fruits at maturity, leading to softening and reduction in fruit firmness. The QTL (EPF3.2) identified in our study was similar to FF3.5 [11] (i.e., two QTLs positions are similar), indicating the reliability of our results.
Recent studies on watermelons have shown that tissue lignification promotes the formation of pericarp stone cells, thus increasing the firmness of the pericarp [59]. Different studies have been conducted exploring the molecular mechanisms underlying fruit firmness, mainly focusing on the ripening of fruit and the softening of cell walls caused by increased enzyme activity [53,60]. For example, β-d-xylosidase is involved in the breakdown of xylans and regulates fruit development and ripening in tomatoes [61] and Japanese pears [62]. This gene might also contribute to melon fruit firmness by controlling skin thickness and external pressure. Potential genes that can provide further molecular insights for upcoming CAPS marker-assisted selection breeding may be identified among the genetic loci we have identified.

5. Conclusions

NGS data can significantly improve the validity of genetic linkage maps and CAPS markers. Our constructed genetic linkage map covered 12 chromosomes, with a total genetic distance of 1414.88 cM. We mapped six QTLs related to fruit quality traits (EF, EPF and SSC). The presence of the QTL, SSC6.1, was verified in the F2 populations in three independent experiments and at three different locations, which can facilitate MAS of potential genes in the breeding of different melon varieties.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/cimb45040224/s1, Supplementary Figure and Table: The position of the fruit traits QTL in the genetic linkage map in the previous research and QTL information for fruit traits. Supplementary Figure S1: Frequency distribution of BRC in F2 population derived from M4-5 and M1-15 (2018). Supplementary Table S1: CAPS makers primer sequence. Supplementary Table S2: The PCR reaction system. Supplementary Table S3: Summary of detected SNP variants distribution in re-sequenced parental lines of melon.

Author Contributions

Conceptualization, data curation, formal analysis, investigation, and writing—original draft, H.Z.; investigation, X.M. and J.S.; formal analysis, T.Z.; software, C.Z.; supervision, writing—review and editing, P.G. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the National Nature Science Foundation of China (No. U21A20229).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data will be made available upon request from the corresponding author.

Acknowledgments

We appreciate the important support from the laboratory’s research group very much.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. National Watermelon and Melon Industry Development Plan (2015–2020). Available online: http://www.moa.gov.cn/nybgb/2015/san/201711/t20171129_5923446.htm (accessed on 3 January 2023).
  2. Mayobre, C.; Pereira, L.; Eltahiri, A.; Bar, E.; Lewinsohn, E.; Garcia-Mas, J.; Pujol, M. Genetic dissection of aroma biosynthesis in melon and its relationship with climacteric ripening. Food Chem. 2021, 353, 129484. [Google Scholar] [CrossRef] [PubMed]
  3. Adıgüzel, P.; Nyirahabimana, F.; Shimira, F.; Solmaz, İ.; Taşkın, H. Applied Biotechnological Approaches for Reducing Yield Gap in Melon Grown Under Saline and Drought Stresses: An Overview. J. Soil Sci. Plant Nutr. 2022, 23, 139–151. [Google Scholar] [CrossRef]
  4. Can, H.; TÜRkmen, Ö. Collection of local Kyrgyzstan Melon genotypes and determination of morphologicalrelationships between some Anatolian Melons. Turk. J. Agric. For. 2022, 46, 257–270. [Google Scholar] [CrossRef]
  5. Zeb, A.; Qureshi, W.S.; Ghafoor, A.; Malik, A.; Imran, M.; Iqbal, J.; Alanazi, E. Is this melon sweet? A quantitative classification for near-infrared spectroscopy. Infrared Phys. Technol. 2021, 114, 103645. [Google Scholar] [CrossRef]
  6. Argyris, J.M.; Diaz, A.; Ruggieri, V.; Fernandez, M.; Jahrmann, T.; Gibon, Y.; Pico, B.; Martin-Hernandez, A.M.; Monforte, A.J.; Garcia-Mas, J. QTL Analyses in Multiple Populations Employed for the Fine Mapping and Identification of Candidate Genes at a Locus Affecting Sugar Accumulation in Melon (Cucumis melo L.). Front. Plant Sci. 2017, 8, 1679. [Google Scholar] [CrossRef] [Green Version]
  7. Berüter, J.; Feusi, M.E.S.; Rüedi, P. Sorbitol and sucrose partitioning in the growing apple fruit. J. Plant Physiol. 1997, 151, 269–276. [Google Scholar] [CrossRef]
  8. Kyriacou, M.C.; Leskovar, D.I.; Colla, G.; Rouphael, Y. Watermelon and melon fruit quality: The genotypic and agro-environmental factors implicated. Sci. Hortic. 2018, 234, 393–408. [Google Scholar] [CrossRef]
  9. Pereira, L.; Santo Domingo, M.; Ruggieri, V.; Argyris, J.; Phillips, M.A.; Zhao, G.; Lian, Q.; Xu, Y.; He, Y.; Huang, S.; et al. Genetic dissection of climacteric fruit ripening in a melon population segregating for ripening behavior. Hortic. Res. 2020, 7, 187. [Google Scholar] [CrossRef]
  10. Dai, D.; Zeng, S.; Wang, L.; Li, J.; Ji, P.; Liu, H.; Sheng, Y. Identification of Fruit Firmness QTL ff2.1 by SLAF-BSA and QTL Mapping in melon. Euphytica 2021, 218. [Google Scholar] [CrossRef]
  11. Moreno, E.; Obando, J.M.; Dos-Santos, N.; Fernandez-Trujillo, J.P.; Monforte, A.J.; Garcia-Mas, J. Candidate genes and QTLs for fruit ripening and softening in melon. Appl. Genet. 2008, 116, 589–602. [Google Scholar] [CrossRef]
  12. Monforte, A.J.; Diaz, A.; Cano-Delgado, A.; van der Knaap, E. The genetic basis of fruit morphology in horticultural crops: Lessons from tomato and melon. J. Exp. Bot. 2014, 65, 4625–4637. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Chikh-Rouhou, H.; Mezghani, N.; Mnasri, S.; Mezghani, N.; Garcés-Claver, A. Assessing the Genetic Diversity and Population Structure of a Tunisian Melon (Cucumis melo L.) Collection Using Phenotypic Traits and SSR Molecular Markers. Agronomy 2021, 11, 1121. [Google Scholar] [CrossRef]
  14. Wang, C.; Li, H.; Long, Y.; Dong, Z.; Wang, J.; Liu, C.; Wei, X.; Wan, X. A Systemic Investigation of Genetic Architecture and Gene Resources Controlling Kernel Size-Related Traits in Maize. Int. J. Mol. Sci. 2023, 24, 1025. [Google Scholar] [CrossRef] [PubMed]
  15. Cui, H.; Fan, C.; Ding, Z.; Wang, X.; Tang, L.; Bi, Y.; Luan, F.; Gao, P. CmPMRl and CmPMrs are responsible for resistance to powdery mildew caused by Podosphaera xanthii race 1 in Melon. Appl. Genet. 2022, 135, 1209–1222. [Google Scholar] [CrossRef]
  16. Santo Domingo, M.; Mayobre, C.; Pereira, L.; Argyris, J.; Valverde, L.; Martin-Hernandez, A.M.; Garcia-Mas, J.; Pujol, M. Fruit Morphology and Ripening-Related QTLs in a Newly Developed Introgression Line Collection of the Elite Varieties ‘Vedrantais’ and ‘Piel de Sapo’. Plants 2022, 11, 3120. [Google Scholar] [CrossRef] [PubMed]
  17. Zhang, T.; Cui, H.; Luan, F.; Liu, H.; Ding, Z.; Amanullah, S.; Zhang, M.; Ma, T.; Gao, P. A recessive gene Cmpmr2F confers powdery mildew resistance in melon (Cucumis melo L.). Appl. Genet. 2023, 136, 1–16. [Google Scholar] [CrossRef]
  18. Pitrat, M. Linkage groups in Cucumis melo L. J. Hered. 1991, 82, 406–411. [Google Scholar] [CrossRef]
  19. Zalapa, J.E.; Staub, J.E.; McCreight, J.D.; Chung, S.M.; Cuevas, H. Detection of QTL for yield-related traits using recombinant inbred lines derived from exotic and elite US Western Shipping melon germplasm. Appl. Genet. 2007, 114, 1185–1201. [Google Scholar] [CrossRef]
  20. Fukino, N.; Ohara, T.; Monforte, A.J.; Sugiyama, M.; Sakata, Y.; Kunihisa, M.; Matsumoto, S. Identification of QTLs for resistance to powdery mildew and SSR markers diagnostic for powdery mildew resistance genes in melon (Cucumis melo L.). Appl. Genet. 2008, 118, 165–175. [Google Scholar] [CrossRef]
  21. Amanullah, S.; Osae, B.A.; Yang, T.; Abbas, F.; Liu, S.; Liu, H.; Wang, X.; Gao, P.; Luan, F. Mapping of genetic loci controlling fruit linked morphological traits of melon using developed CAPS markers. Mol. Biol. Rep. 2022, 49, 5459–5472. [Google Scholar] [CrossRef]
  22. Paris, M.K.; Zalapa, J.E.; McCreight, J.D.; Staub, J.E. Genetic dissection of fruit quality components in melon (Cucumis melo L.) using a RIL population derived from exotic × elite US Western Shipping germplasm. Mol. Breed. 2008, 22, 405–419. [Google Scholar] [CrossRef]
  23. Diaz, A.; Martin-Hernandez, A.M.; Dolcet-Sanjuan, R.; Garces-Claver, A.; Alvarez, J.M.; Garcia-Mas, J.; Pico, B.; Monforte, A.J. Quantitative trait loci analysis of melon (Cucumis melo L.) domestication-related traits. Appl. Genet. 2017, 130, 1837–1856. [Google Scholar] [CrossRef] [PubMed]
  24. Natarajan, S.; Kim, H.T.; Thamilarasan, S.K.; Veerappan, K.; Park, J.I.; Nou, I.S. Whole Genome Re-Sequencing and Characterization of Powdery Mildew Disease-Associated Allelic Variation in Melon. PLoS ONE 2016, 11, e0157524. [Google Scholar] [CrossRef]
  25. Oren, E.; Tzuri, G.; Dafna, A.; Meir, A.; Kumar, R.; Katzir, N.; Elkind, Y.; Freilich, S.; Schaffer, A.A.; Tadmor, Y.; et al. High-density NGS-based map construction and genetic dissection of fruit shape and rind netting in Cucumis melo. Appl. Genet. 2020, 133, 1927–1945. [Google Scholar] [CrossRef] [PubMed]
  26. Garcia-Mas, J.; Benjak, A.; Sanseverino, W.; Bourgeois, M.; Mir, G.; Gonzalez, V.M.; Henaff, E.; Camara, F.; Cozzuto, L.; Lowy, E.; et al. The genome of melon (Cucumis melo L.). Proc. Natl. Acad. Sci. USA 2012, 109, 11872–11877. [Google Scholar] [CrossRef] [Green Version]
  27. Ruggieri, V.; Alexiou, K.G.; Morata, J.; Argyris, J.; Pujol, M.; Yano, R.; Nonaka, S.; Ezura, H.; Latrasse, D.; Boualem, A.; et al. An improved assembly and annotation of the melon (Cucumis melo L.) reference genome. Sci. Rep. 2018, 8, 8088. [Google Scholar] [CrossRef] [Green Version]
  28. Amanullah, S.; Liu, S.; Gao, P.; Zhu, Z.; Zhu, Q.; Fan, C.; Luan, F. QTL mapping for melon (Cucumis melo L.) fruit traits by assembling and utilization of novel SNPs based CAPS markers. Sci. Hortic. 2018, 236, 18–29. [Google Scholar] [CrossRef]
  29. Zhang, T.; Ding, Z.; Liu, J.; Qiu, B.; Gao, P. QTL mapping of pericarp and fruit-related traits in melon (Cucumis melo L.) using SNP-derived CAPS markers. Sci. Hortic. 2020, 265, 109243. [Google Scholar] [CrossRef]
  30. Obando-Ulloa, J.M.; Moreno, E.; García-Mas, J.; Nicolai, B.; Lammertyn, J.; Monforte, A.J.; Fernández-Trujillo, J.P. Climacteric or non-climacteric behavior in melon fruit: 1. Aroma volatiles. Postharvest Biol. Technol. 2008, 49, 27–37. [Google Scholar] [CrossRef]
  31. Allen, G.C.; Flores-Vergara, M.A.; Krasynanski, S.; Kumar, S.; Thompson, W.F. A modified protocol for rapid DNA isolation from plant tissues using cetyltrimethylammonium bromide. Nat. Protoc. 2006, 1, 2320–2325. [Google Scholar] [CrossRef]
  32. Melon (DHL92) v3.6.1 Genome. Available online: http://cucurbitgenomics.org/organism/18 (accessed on 17 January 2023).
  33. Thiel, T.; Kota, R.; Grosse, I.; Stein, N.; Graner, A. SNP2CAPS: A SNP and INDEL analysis tool for CAPS marker development. Nucleic Acids Res. 2004, 32, e5. [Google Scholar] [CrossRef] [PubMed]
  34. Broman, K.W.; Wu, H.; Sen, S.; Churchill, G.A. R/qtl: QTL mapping in experimental crosses. Bioinformatics 2003, 19, 889–890. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Osae, B.A.; Amanullah, S.; Liu, H.; Liu, S.; Saroj, A.; Zhang, C.; Liu, T.; Gao, P.; Luan, F. CAPS marker-base genetic linkage mapping and QTL analysis for watermelon ovary, fruit and seed-related traits. Euphytica 2022, 218, 39. [Google Scholar] [CrossRef]
  36. Maragal, S.; Rao, E.S.; Reddy, D.C.L. Genetic mapping and meta-analysis identifies several candidate genes for watermelon (Citrullus lanatus) fruit quality traits. Sci. Hortic. 2023, 308, 111545. [Google Scholar] [CrossRef]
  37. Riahi, C.; Reig-Valiente, J.L.; Picó, B.; Díaz, A.; Gonzalo, M.J.; Monforte, A.J. Evidence of the Role of QTL Epistatic Interactions in the Increase of Melon Fruit Flesh Content during Domestication. Agronomy 2020, 10, 1064. [Google Scholar] [CrossRef]
  38. Fernandez-Silva, I.; Moreno, E.; Essafi, A.; Fergany, M.; Garcia-Mas, J.; Martín-Hernandez, A.M.; Álvarez, J.M.; Monforte, A.J. Shaping melons: Agronomic and genetic characterization of QTLs that modify melon fruit morphology. Theor. Appl. Genet. 2010, 121, 931–940. [Google Scholar] [CrossRef]
  39. Weng, Y.; Colle, M.; Wang, Y.; Yang, L.; Rubinstein, M.; Sherman, A.; Ophir, R.; Grumet, R. QTL mapping in multiple populations and development stages reveals dynamic quantitative trait loci for fruit size in cucumbers of different market classes. Theor. Appl. Genet. 2015, 128, 1747–1763. [Google Scholar] [CrossRef] [PubMed]
  40. Burger, Y.; Sa’ar, U.; Distelfeld, A.; Katzir, N.; Yeselson, Y.; Shen, S.; Schaffer, A.A. Development of Sweet Melon (Cucumis melo) Genotypes Combining High Sucrose and Organic Acid Content. J. Am. Soc. Hortic. Sci. Jashs 2003, 128, 537–540. [Google Scholar] [CrossRef] [Green Version]
  41. Pereira, L.; Santo Domingo, M.; Argyris, J.; Mayobre, C.; Valverde, L.; Martin-Hernandez, A.M.; Pujol, M.; Garcia-Mas, J. A novel introgression line collection to unravel the genetics of climacteric ripening and fruit quality in melon. Sci. Rep. 2021, 11, 11364. [Google Scholar] [CrossRef]
  42. Perpina, G.; Esteras, C.; Gibon, Y.; Monforte, A.J.; Pico, B. A new genomic library of melon introgression lines in a cantaloupe genetic background for dissecting desirable agronomical traits. BMC Plant Biol. 2016, 16, 154. [Google Scholar] [CrossRef]
  43. Monforte, A.J.; Oliver, M.; Gonzalo, M.J.; Alvarez, J.M.; Dolcet-Sanjuan, R.; Arus, P. Identification of quantitative trait loci involved in fruit quality traits in melon (Cucumis melo L.). Appl. Genet. 2004, 108, 750–758. [Google Scholar] [CrossRef] [PubMed]
  44. Chace, E.M.E.M.; Church, C.G.C.G.; Denny, F.E.F.E. Relation between the Composition of California Cantaloupes and Their Commercial Maturity; U.S. Dept. of Agriculture: Washington, DC, USA, 1924. [Google Scholar]
  45. Mutton, L.L.; Cullis, B.R.; Blakeney, A.B. The objective definition of eating quality in rockmelons (Cucumis melo). J. Sci. Food Agric. 1981, 32, 385–391. [Google Scholar] [CrossRef]
  46. Cantaloups, Honeydew, Honey Ball and Other Similar Melon. Available online: https://www.ams.usda.gov/sites/default/files/media/Cantaloup_Inspection_Instructions%5B1%5D.pdf (accessed on 23 January 2023).
  47. Guan, W.J.; Zhao, X.; Treadwell, D.D.; Alligood, M.R.; Huber, D.J.; Dufault, N.S. Specialty Melon Cultivar Evaluation under Organic and Conventional Production in Florida. HortTechnology 2013, 23, 905–912. [Google Scholar] [CrossRef] [Green Version]
  48. Schultheis, J.; Thompson, W. Specialty Melon Yield and Quality Response to Grafting in Trials Conducted in the Southeastern United States. Acta Hortic. 2015, 1086, 269–278. [Google Scholar] [CrossRef]
  49. Soteriou, G.A.; Papayiannis, L.C.; Kyriacou, M.C. Indexing melon physiological decline to fruit quality and vine morphometric parameters. Sci. Hortic. 2016, 203, 207–215. [Google Scholar] [CrossRef]
  50. Harel-Beja, R.; Tzuri, G.; Portnoy, V.; Lotan-Pompan, M.; Lev, S.; Cohen, S.; Dai, N.; Yeselson, L.; Meir, A.; Libhaber, S.E.; et al. A genetic map of melon highly enriched with fruit quality QTLs and EST markers, including sugar and carotenoid metabolism genes. Appl. Genet. 2010, 121, 511–533. [Google Scholar] [CrossRef]
  51. Burger, Y.; Saar, U.; Katzir, N.; Paris, H.S. A Single Recessive Gene for Sucrose Accumulation in Cucumis melo Fruit. J. Am. Soc. Hort. Sci. 2002, 127, 938–943. [Google Scholar] [CrossRef] [Green Version]
  52. Diaz, A.; Fergany, M.; Formisano, G.; Ziarsolo, P.; Blanca, J.; Fei, Z.; Staub, J.E.; Zalapa, J.E.; Cuevas, H.E.; Dace, G.; et al. A consensus linkage map for molecular markers and Quantitative Trait Loci associated with economically important traits in melon (Cucumis melo L.). BMC Plant Biol. 2011, 11, 111. [Google Scholar] [CrossRef] [Green Version]
  53. Zarid, M.; Garcia-Carpintero, V.; Esteras, C.; Esteva, J.; Bueso, M.C.; Canizares, J.; Pico, M.B.; Monforte, A.J.; Fernandez-Trujillo, J.P. Transcriptomic analysis of a near-isogenic line of melon with high fruit flesh firmness during ripening. J. Sci. Food Agric. 2021, 101, 754–777. [Google Scholar] [CrossRef]
  54. Naets, M.; Wang, Z.; Verboven, P.; Nicolaï, B.; Keulemans, W.; Geeraerd, A. Size does matter—Susceptibility of apple for grey mould is affected by cell size. Plant Pathol. 2019, 69, 60–67. [Google Scholar] [CrossRef]
  55. Sun, L.; Zhang, Y.; Cui, H.; Zhang, L.; Sha, T.; Wang, C.; Fan, C.; Luan, F.; Wang, X. Linkage Mapping and Comparative Transcriptome Analysis of Firmness in Watermelon (Citrullus lanatus). Front. Plant Sci. 2020, 11, 831. [Google Scholar] [CrossRef]
  56. Beaulieu, J.C.; Lea, J.M. Quality changes in cantaloupe during growth, maturation, and in stored fresh-cut cubes prepared from fruit harvested at various maturities. J. Am. Soc. Hortic. Sci. 2007, 132, 720–728. [Google Scholar] [CrossRef] [Green Version]
  57. Nishiyama, K.; Guis, M.; Rose, J.K.; Kubo, Y.; Bennett, K.A.; Wangjin, L.; Kato, K.; Ushijima, K.; Nakano, R.; Inaba, A.; et al. Ethylene regulation of fruit softening and cell wall disassembly in Charentais melon. J. Exp. Bot. 2007, 58, 1281–1290. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Pech, J.C.; Bouzayen, M.; Latché, A. Climacteric fruit ripening: Ethylene-dependent and independent regulation of ripening pathways in melon fruit. Plant Sci. 2008, 175, 114–120. [Google Scholar] [CrossRef] [Green Version]
  59. Yang, T.; Zhang, P.; Pan, J.; Amanullah, S.; Luan, F.; Han, W.; Liu, H.; Wang, X. Genome-Wide Analysis of the Peroxidase Gene Family and Verification of Lignin Synthesis-Related Genes in Watermelon. Int. J. Mol. Sci. 2022, 23, 642. [Google Scholar] [CrossRef]
  60. Brummell, D.A. Cell wall disassembly in ripening fruit. Funct. Plant Biol. 2006, 33, 103–119. [Google Scholar] [CrossRef]
  61. Itai, A.; Ishihara, K.; Bewley, J.D. Characterization of expression, and cloning, of beta-D-xylosidase and alpha-L-arabinofuranosidase in developing and ripening tomato (Lycopersicon esculentum Mill.) fruit. J. Exp. Bot. 2003, 54, 2615–2622. [Google Scholar] [CrossRef] [Green Version]
  62. Tateishi, A.; Mori, H.; Watari, J.; Nagashima, K.; Yamaki, S.; Inoue, H. Isolation, characterization, and cloning of alpha-L-Arabinofuranosidase expressed during fruit ripening of Japanese pear. Plant Physiol. 2005, 138, 1653–1664. [Google Scholar] [CrossRef] [Green Version]
Cimb 45 00224 g001 550
Figure 1. A picture of the melon parents (P1 M4-5, P2 M1-15) and F1 progeny, showcasing their corresponding fruit longitudinal and lateral profiles.
Figure 1. A picture of the melon parents (P1 M4-5, P2 M1-15) and F1 progeny, showcasing their corresponding fruit longitudinal and lateral profiles.
Cimb 45 00224 g001
Cimb 45 00224 g002 550

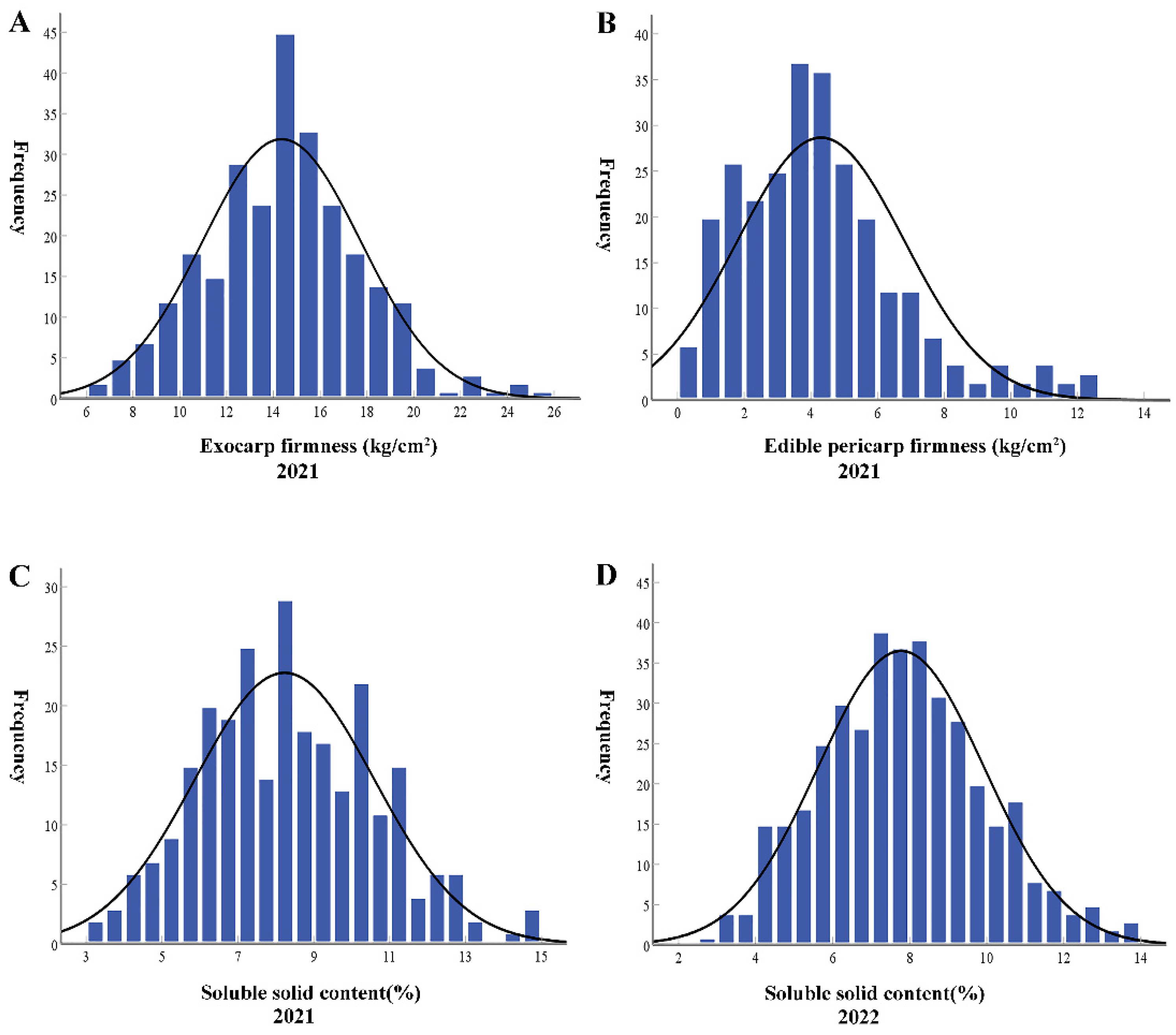

Figure 2. Distribution of EF (A), EPF (B), SSC 2021 (C), and SSC 2022 (D) frequencies in the F2 populations.
Figure 2. Distribution of EF (A), EPF (B), SSC 2021 (C), and SSC 2022 (D) frequencies in the F2 populations.
Cimb 45 00224 g002
Cimb 45 00224 g003 550

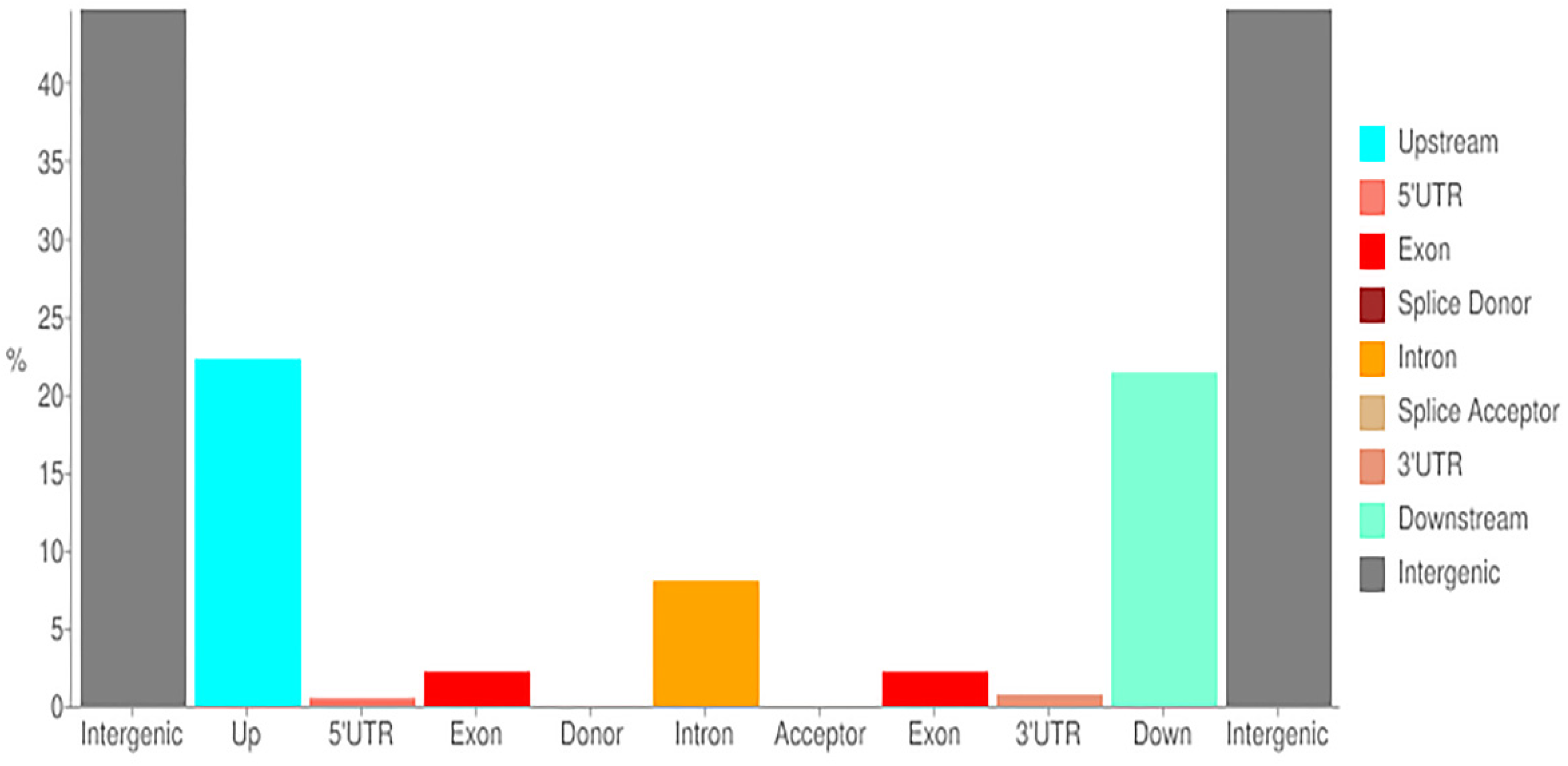

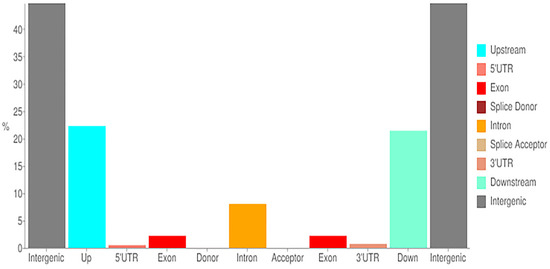

Figure 3. Location of various SNP variations found in newly sequenced areas of parental lines of melon. The x-axis represents the regions of distribution, and y-axis represents the proportion of SNPS in each location.
Figure 3. Location of various SNP variations found in newly sequenced areas of parental lines of melon. The x-axis represents the regions of distribution, and y-axis represents the proportion of SNPS in each location.
Cimb 45 00224 g003
Cimb 45 00224 g004 550

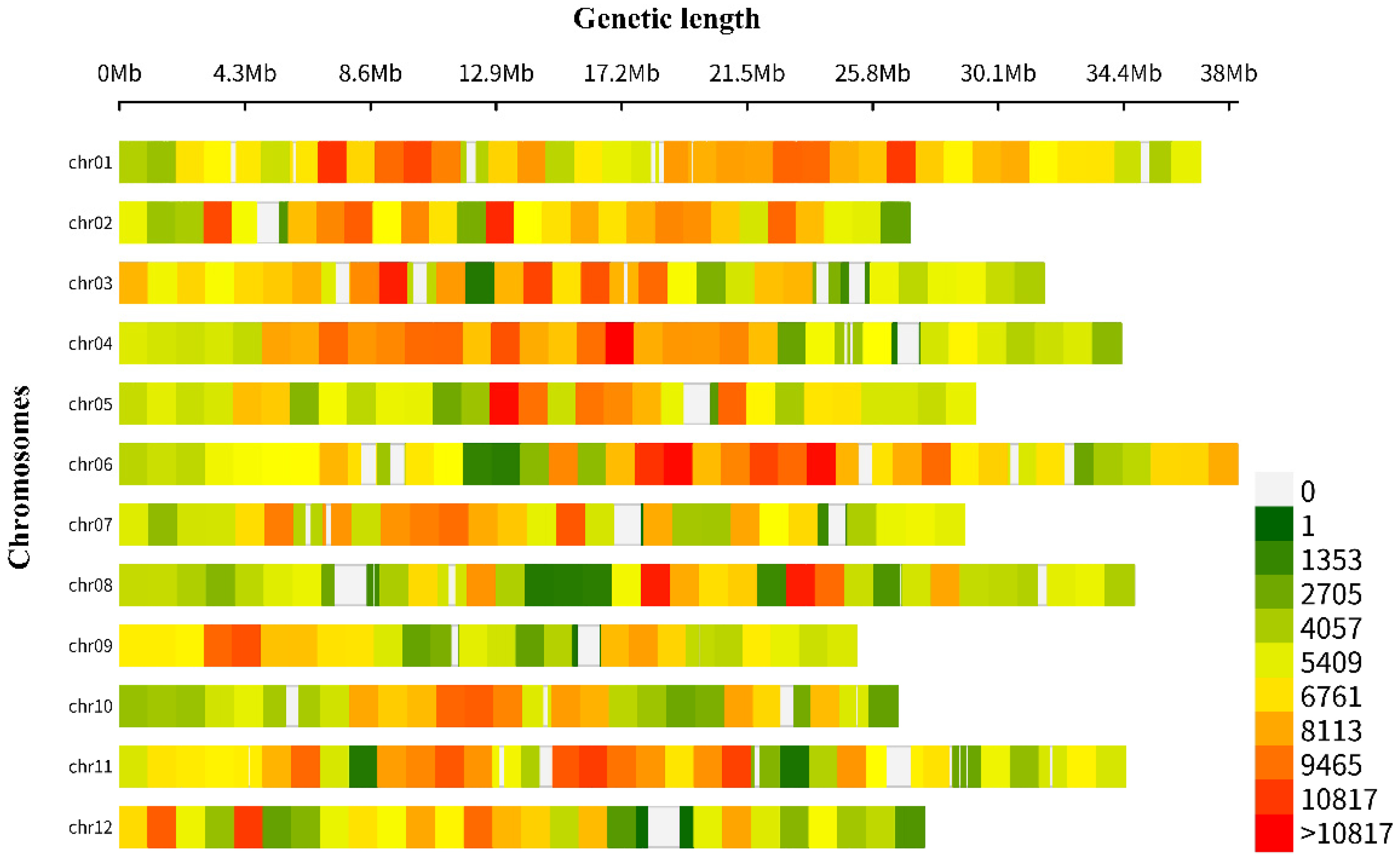

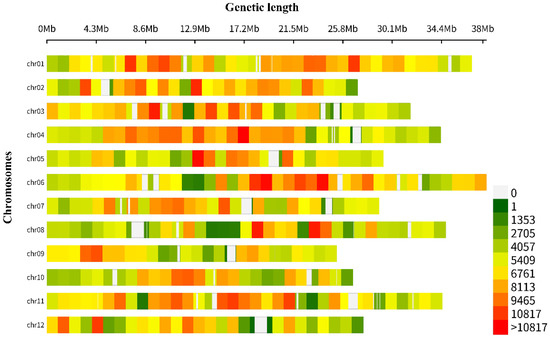

Figure 4. Total SNP variants detected within a 1-Mb window-sized chromosomal region of resequenced parental lines.
Figure 4. Total SNP variants detected within a 1-Mb window-sized chromosomal region of resequenced parental lines.
Cimb 45 00224 g004
Cimb 45 00224 g005 550

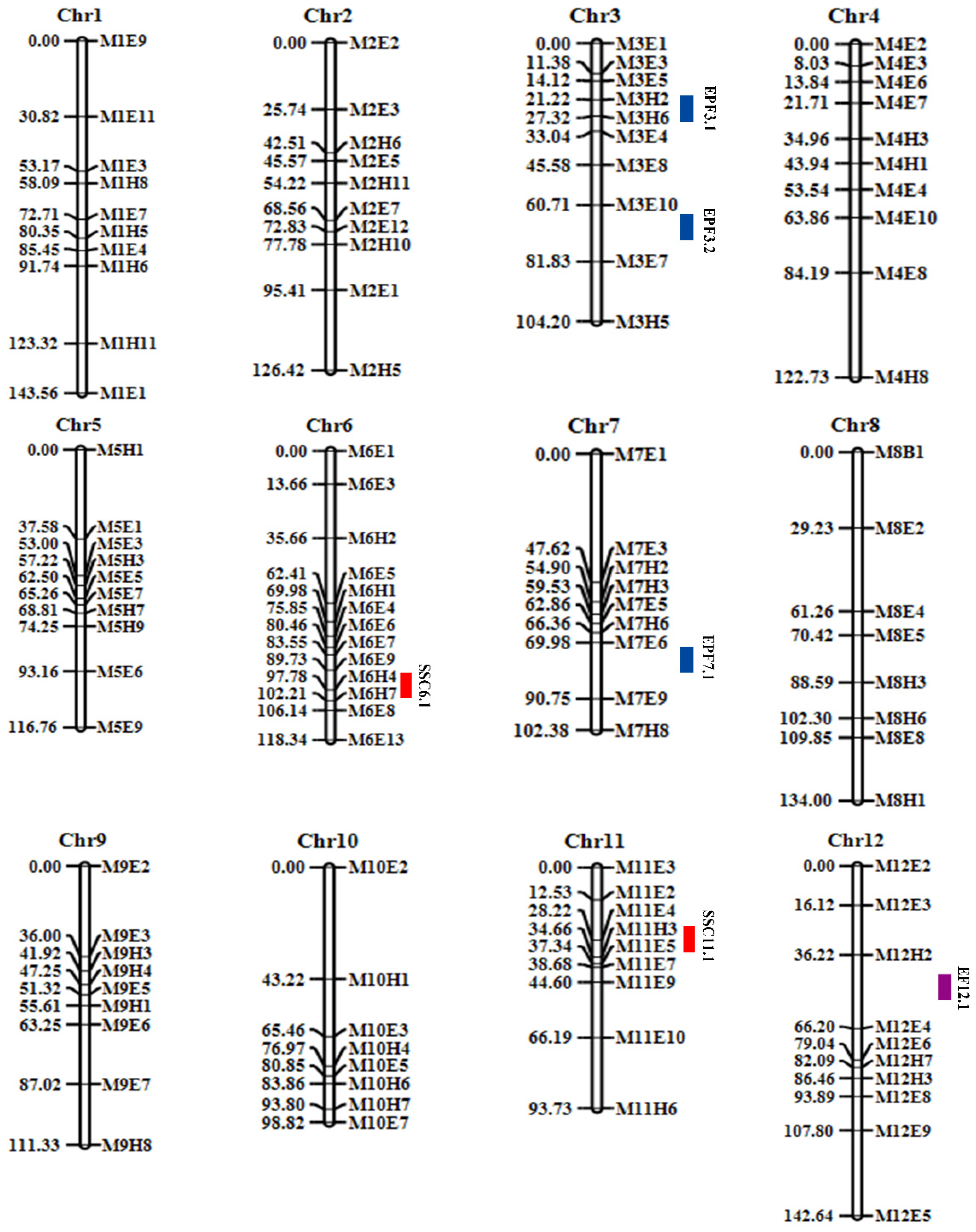

Figure 5. Based on the genotyping of 116 SNP-CAPS markers in the F2 population, the genetic map was established. Purple (EF), blue (EPF), and red (SSC) represent mapped QTL areas. The genetic location of each chromosome is aligned on the left side, and the marker position on each chromosome is aligned on the right side.
Figure 5. Based on the genotyping of 116 SNP-CAPS markers in the F2 population, the genetic map was established. Purple (EF), blue (EPF), and red (SSC) represent mapped QTL areas. The genetic location of each chromosome is aligned on the left side, and the marker position on each chromosome is aligned on the right side.
Cimb 45 00224 g005
Cimb 45 00224 g006 550

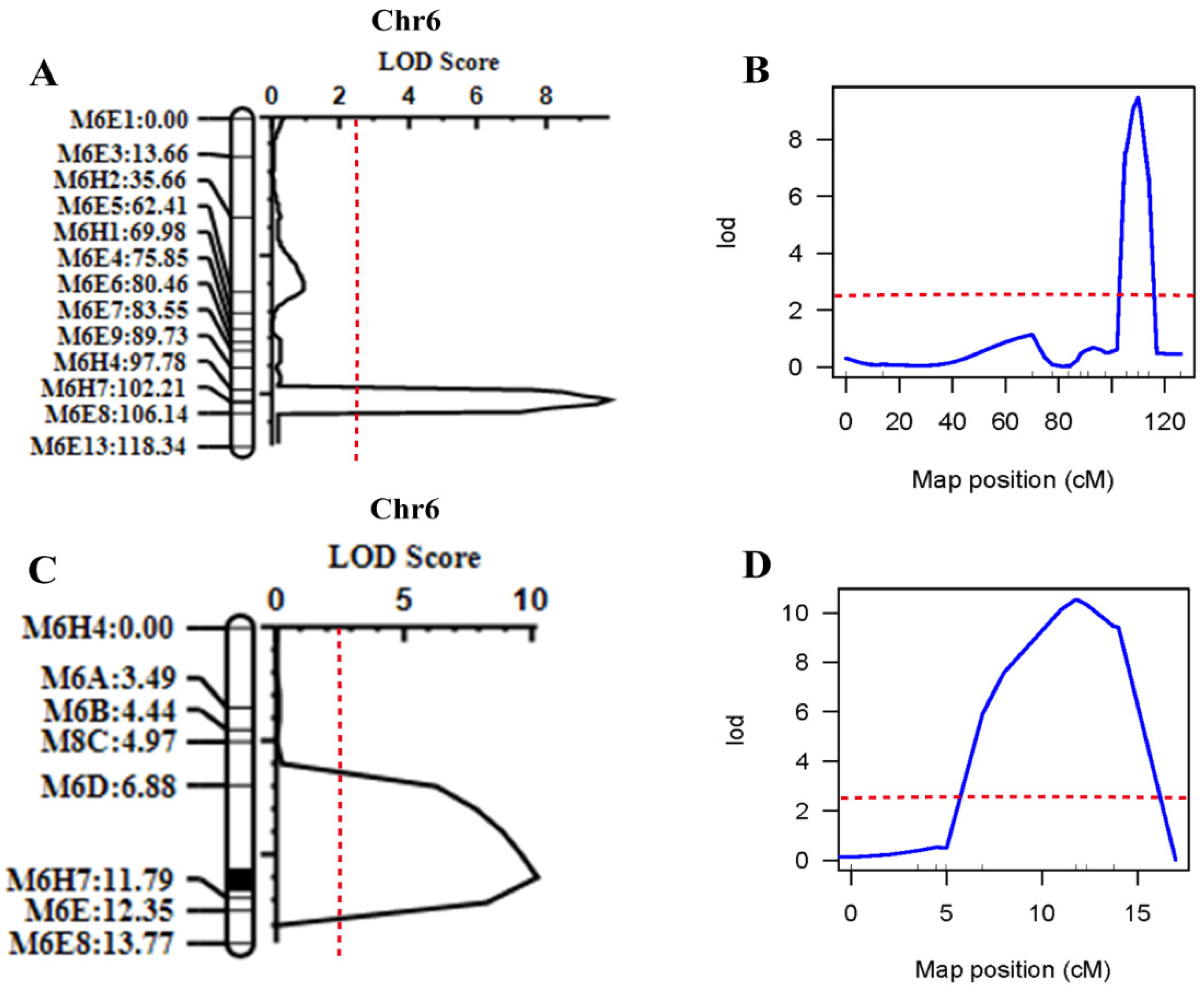

Figure 6. Positioning intervals for 2021 and 2022 SSC. (A) QTL IciMapping software 2021 QTL mapping results. (B) R/QTL software 2021 QTL mapping results. (C) QTL IciMapping software 2022 QTL mapping results. (D) R/QTL software 2022 QTL mapping results. The red dotted line indicates an LOD value of 2.5.
Figure 6. Positioning intervals for 2021 and 2022 SSC. (A) QTL IciMapping software 2021 QTL mapping results. (B) R/QTL software 2021 QTL mapping results. (C) QTL IciMapping software 2022 QTL mapping results. (D) R/QTL software 2022 QTL mapping results. The red dotted line indicates an LOD value of 2.5.
Cimb 45 00224 g006
Cimb 45 00224 g007 550

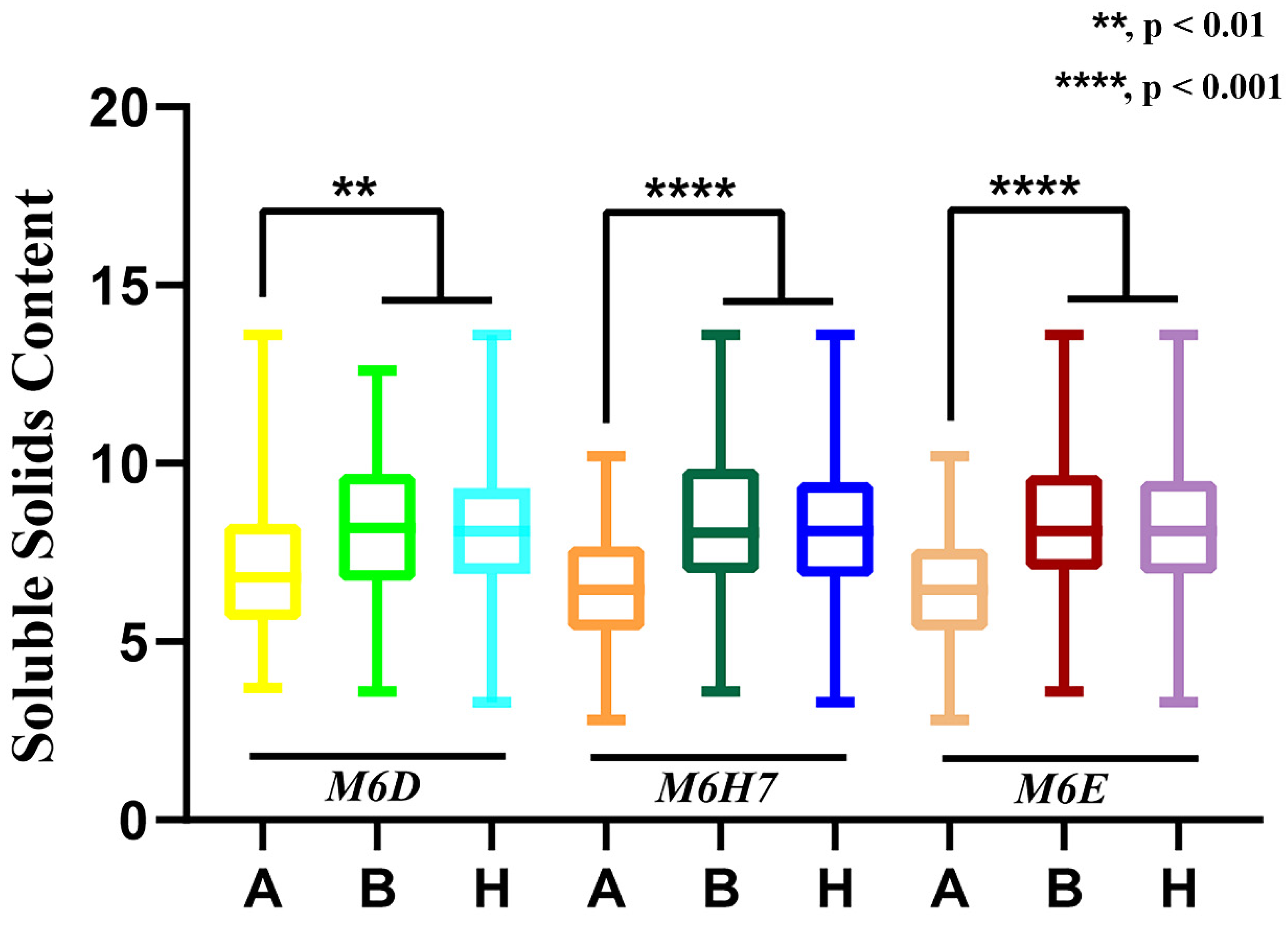

Figure 7. Three markers were used to conduct a correlation analysis between phenotypes and genotypes. The X-axis represents the three genotypes (A, B and H) of CAPS markers, and the Y-axis represents the value of SSC. Asterisk symbols (**, ****) represents the statistical significance; **, p < 0.01, ****, p < 0.001.
Figure 7. Three markers were used to conduct a correlation analysis between phenotypes and genotypes. The X-axis represents the three genotypes (A, B and H) of CAPS markers, and the Y-axis represents the value of SSC. Asterisk symbols (**, ****) represents the statistical significance; **, p < 0.01, ****, p < 0.001.
Cimb 45 00224 g007
Table
Table 1. Traits data analysis of EF (kg/cm2) and EPF (kg/cm2) in P1, P2, F1 and F2 generations (2018 [29], 2021, 2022).
Table 1. Traits data analysis of EF (kg/cm2) and EPF (kg/cm2) in P1, P2, F1 and F2 generations (2018 [29], 2021, 2022).
TraitsYearsP1P2F1F2
Mean ± SDRangeKurtosisSkewness
EF201814.29 ± 0.3414.12 ± 02715.92 ± 0.7614.64 ± 2.188.50–26.004.231.06
202114.51 ± 0.3714.11 ± 0.1315.46 ± 0.1714.35 ± 2.106.20–25.500.430.28
202214.40 ± 0.2713.56 ± 0.2015.72 ± 0.4517.87 ± 0.248.30–27.50−0.11−0.12
EPF20184.44 ± 0.376.06 ± 0.174.93 ± 0.235.15 ± 1.641.00–10.600.270.63
20214.17 ± 0.186.11 ± 0.145.14 ± 0.108.23 ± 2.372.60–14.60−0.250.17
20224.37 ± 0.216.28 ± 0.205.03 ± 0.334.25 ± 0.091.20–8.400.32−0.98
Table
Table 2. Mean ± standard deviation (SD) and range of SSC (%) in the P1, P2, F1, and F2 generations over three years.
Table 2. Mean ± standard deviation (SD) and range of SSC (%) in the P1, P2, F1, and F2 generations over three years.
YearP1P2F1F2
Mean ± SDRangeKurtosisSkewness
2018 [29]9.24 ± 0.4310.69 ± 0.267.74 ± 0.588.30 ± 2.204.00–14.00−0.280.44
20218.64 ± 0.3010.21 ± 0.307.93 ± 0.278.23 ± 2.372.60–14.60−0.250.17
20229.73 ± 0.1710.85 ± 0.077.77 ± 0.117.77 ± 2.152.80–13.60−0.210.23
Table
Table 3. Correlation analysis of fruit traits in the F2 plant population. *, p < 0.05.
Table 3. Correlation analysis of fruit traits in the F2 plant population. *, p < 0.05.
TraitsSSCEPFEF
SSC1––
EPF−0.021–
EF0.12 *−0.061
Table
Table 4. Details of the genetic linkage map (2021).
Table 4. Details of the genetic linkage map (2021).
Chr No.Marker No.Linkage Group Distance (cM)
Genetic DistanceAverage Distance
0110143.5614.35
0210126.4212.64
0310104.2010.42
0410122.7312.27
0510116.7611.68
0613118.3411.83
079102.3811.38
088134.0016.75
099111.3012.37
10898.8212.35
11993.7310.41
1210142.6414.26
Total1161414.8812.20
Table
Table 5. QTLs information of EF, EPF, and SSC.
Table 5. QTLs information of EF, EPF, and SSC.
TraitsQTLsChr No.Position (cM)Marker IntervalInterval MappingPhenotypic Effect
LODPVE%AdditiveDominance
EFEF12.11256M12H2-M12E42.776.450.63321.8113
EPFEPF3.1326M3H2-M3E43.566.140.00411.24
EPF3.2361M3E10-M3E73.585.640.79950.42
EPF7.1775M7H6-M7E92.904.890.9399−0.3579
SSCSSC6.16102M6H4-M6E89.8116.32−1.3466−0.0064
SSC11.11137M11H3-M11E72.726.27−0.71740.0751
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhao, H.; Zhang, T.; Meng, X.; Song, J.; Zhang, C.; Gao, P. Genetic Mapping and QTL Analysis of Fruit Traits in Melon (Cucumis melo L.). Curr. Issues Mol. Biol. 2023, 45, 3419-3433. https://doi.org/10.3390/cimb45040224

AMA Style

Zhao H, Zhang T, Meng X, Song J, Zhang C, Gao P. Genetic Mapping and QTL Analysis of Fruit Traits in Melon (Cucumis melo L.). Current Issues in Molecular Biology. 2023; 45(4):3419-3433. https://doi.org/10.3390/cimb45040224

Chicago/Turabian Style

Zhao, Haiyong, Taifeng Zhang, Xiaobing Meng, Jiayan Song, Chen Zhang, and Peng Gao. 2023. "Genetic Mapping and QTL Analysis of Fruit Traits in Melon (Cucumis melo L.)" Current Issues in Molecular Biology 45, no. 4: 3419-3433. https://doi.org/10.3390/cimb45040224

Article Metrics

Back to TopTop
