A Cluster-Based Architecture to Structure the Topology of Parallel Wireless Sensor Networks
Abstract
:1. Introduction and Related Works
2. Problem Formulation and Application Environments
- -
- They could have a different transceiver to connect to other cluster nodes but the same transceiver to connect to the cluster head node.
- -
- They could use a different wireless protocol to connect to other cluster nodes but the same transceiver to connect to the cluster head node.
- -
- They could be using different types of technology to connect to other cluster nodes but the same transceiver to connect to the cluster head node.
- -
- They could be transmitting different types of data that is not understandable by other types of nodes, only by the same type of node and the cluster head node.
- -
- They could have different types of profiles.
- -
- They could be different types of devices.
- -
- When a new sensor joins the architecture, it will belong to the zone of its nearest central cluster sensor.
- -
- Due to processing consumption issues, the number of connections to the central cluster sensor should be limited, so when it reaches the maximum number of connections, the new sensor has to create a new cluster.
- -
- Sensors will have connections only with the same type of sensors of neighboring groups in a predefined distance or coverage area, but not with nodes from other groups that are not neighbors.
- -
- For energy saving purposes, when there are several sensors from other clusters in the sensor's coverage area, the one with higher capacity (which depends on the energy between other parameters that will be presented later) will be chosen as a neighbor.
- -
- The network formed by sensors of the same type will have its own routing protocol algorithm.
- -
- It could be used in any kind of system where an event or alarm is based on what is happening in a specific zone, but conditioned to the events that are happening in neighboring zones. One example is a group-based system to measure the environmental impact of a place (forest, marine reef, etc.). It could be better measured if the measurements are taken from the plants and from the trees in that place with different type of sensors. Each kind of measurement could be taken from different groups of sensors, but those groups of sensors have to be connected with the same type of sensors in order to estimate the whole environmental impact.
- -
- It could be used in body area sensor networks. The devices used to sense the body could be several types of sensor (pulse sensors, skin sensors, sweat sensors, etc.). A sensor may need to be connected with the same type of sensors of other zones of the body to form their specialized network in order to check the measurements of a specific parameter.
- -
- It could be used to build networks of sensors with the same profile that come from different communities (each community will be a cluster).
- -
- It could be used to build networks whose cluster can be formed by different types of devices such as mobiles, PDAs, PCs, sensors, but the requirement is for networks formed by the same type of devices.
- -
- It could be used for virtual wireless sensor network creation too.

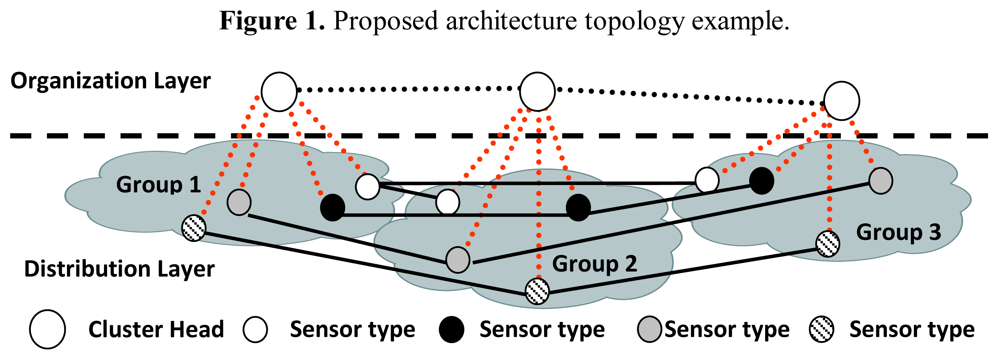

3. Architecture Proposal Description
3.1. Identifiers and Predefined Parameters
- -
- Max_con: Maximum number of supported connections from other nodes of the distribution layer.
- -
- Type: It identifies the type of node.
- -
- Max_distance: It is the maximum distance to be a neighbor. It is always shorter than or equal to the coverage area radius. It can be changed by the Received Signal Strength Indication (RSSI) value or by the Signal Noise Ratio (SNR) value. It is applied only to establish connections between CHs and their CMs and between CMs, but not between CHs because CH must have as many connections with other CHs as possible. We have proved in other works [31] that although inductive and hybrid methods provide higher reliable values, we are considering a hard environment where there might not be any previous training phase.
- -
- Position: It could be given manually or by GPS.
- -
- It will have other parameters that vary along its existence in the architecture:
- -
- Available_con: Number of available connections with other nodes of the distribution layer.
- -
- E: % of energy consumption.
- -
- L: % of available load. The load is the quantity of tasks the node is able to carry out at one time.

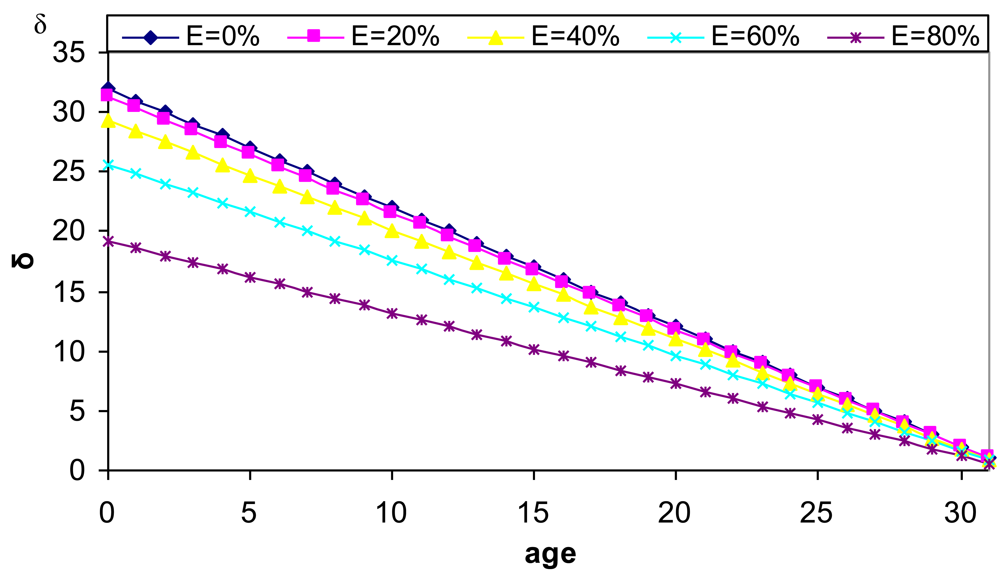

3.2. δ Parameter

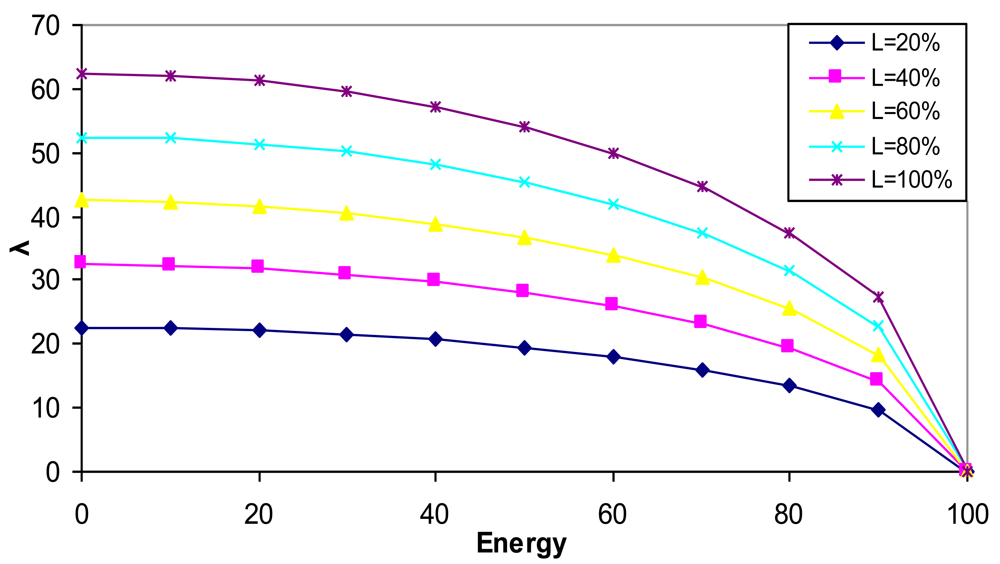

3.3. λ Parameter

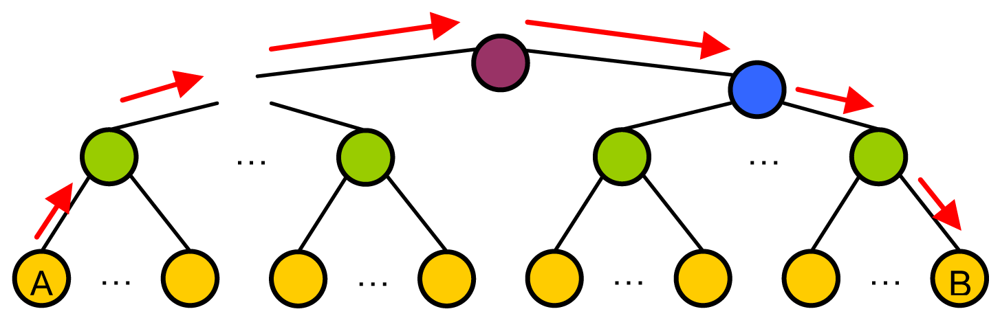

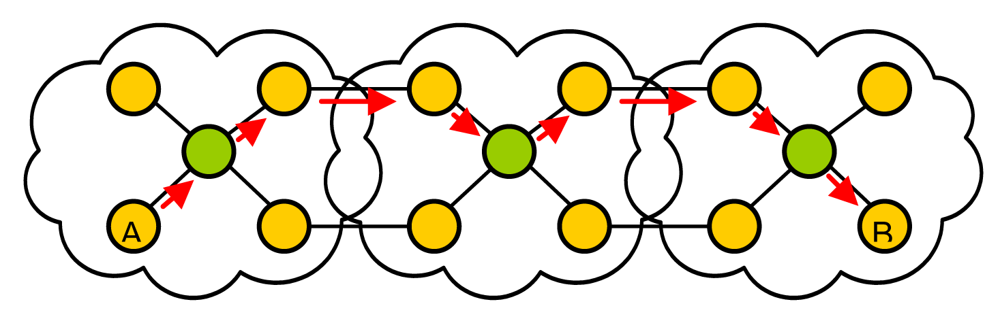

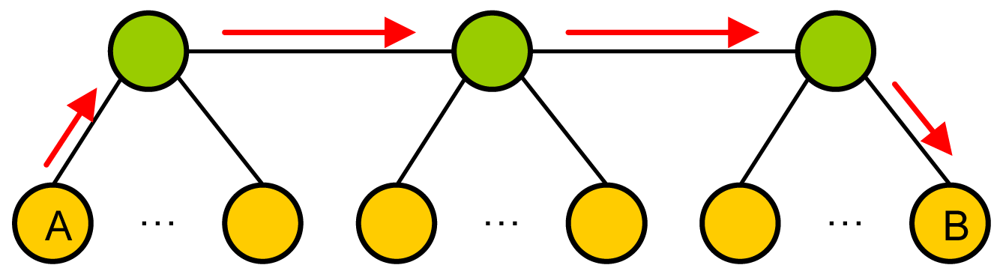

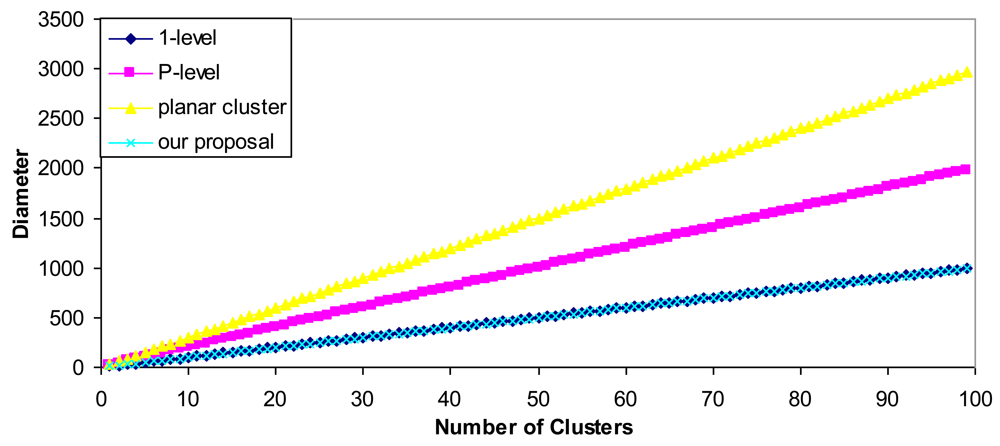

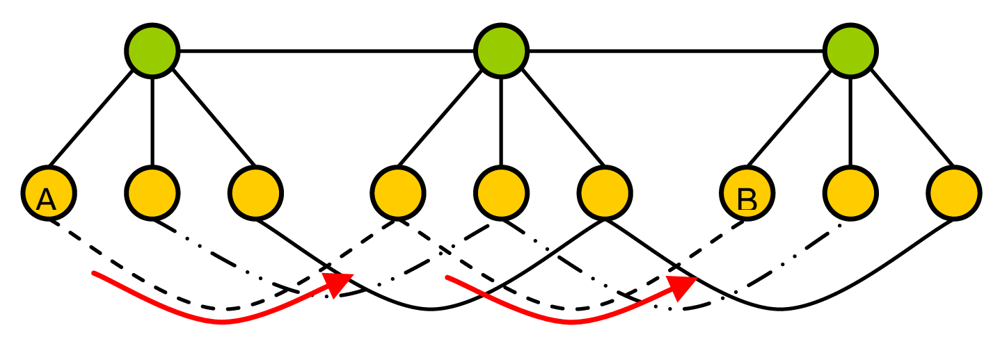

4. Scalability

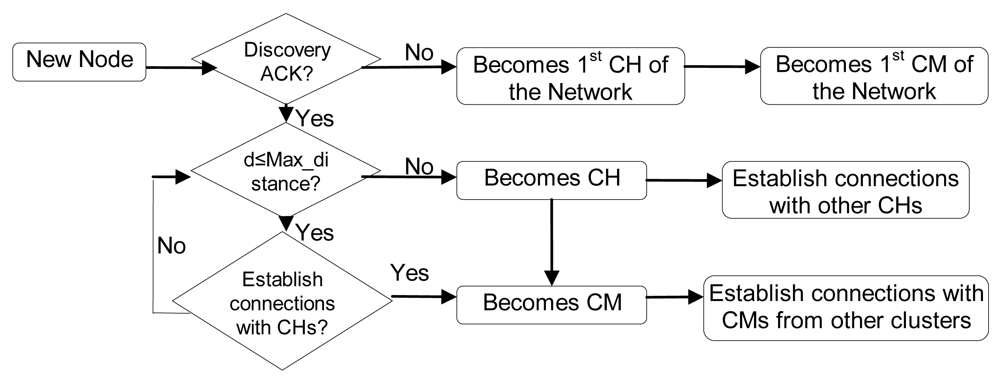

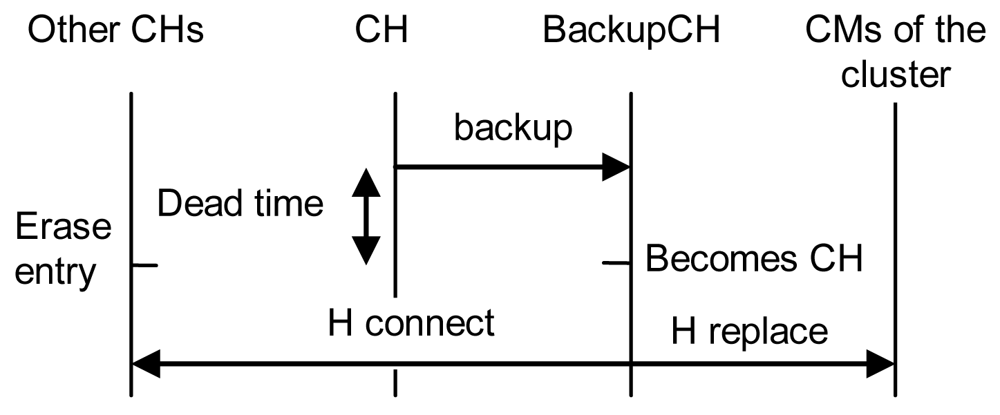

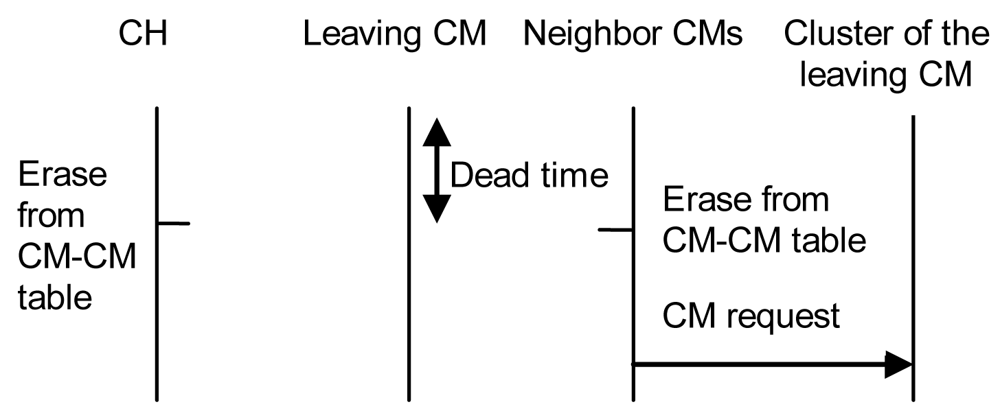

5. Architecture Proposal Operation and Fault Tolerance

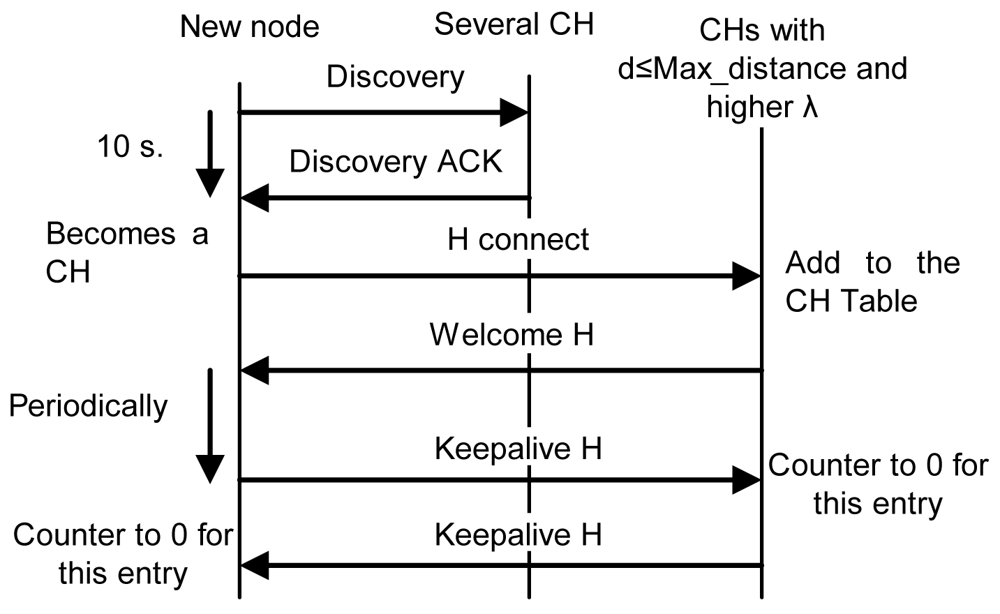

- If it does not receive any reply within 10 seconds, it becomes a CH, so it creates the cluster and waits for new nodes. Ten seconds have been chosen because it is enough time to receive a reply from a near node. Later replies will be from nodes which are either too far or too busy.
- If it receives some replies, but none of them are at a distance lower than the Max_distance, it becomes a CH and sends an “H connect” message to establish connections with selected CHs (based on their λ parameter). If the other CH confirms that connection, it adds this entry to its CH table and sends a “Welcome H” message with the last clusterID in the network. The CH will choose the next available clusterID for its cluster. Then, the new CH will send “Keepalive H” messages periodically with its clusterID to its neighbor CHs to indicate it is alive. If a CH does not receive a “Keepalive H” message from a CH for a dead time, it would erase that entry from the database. “Keepalive H” messages contain sender's clusterID and λ parameter. The CH also follows the new CM process described later. Messages sent in this case, when there is a new CH, are shown in Figure 9. Once the discovering process has finished CH node's network works as a regular OLSR network.

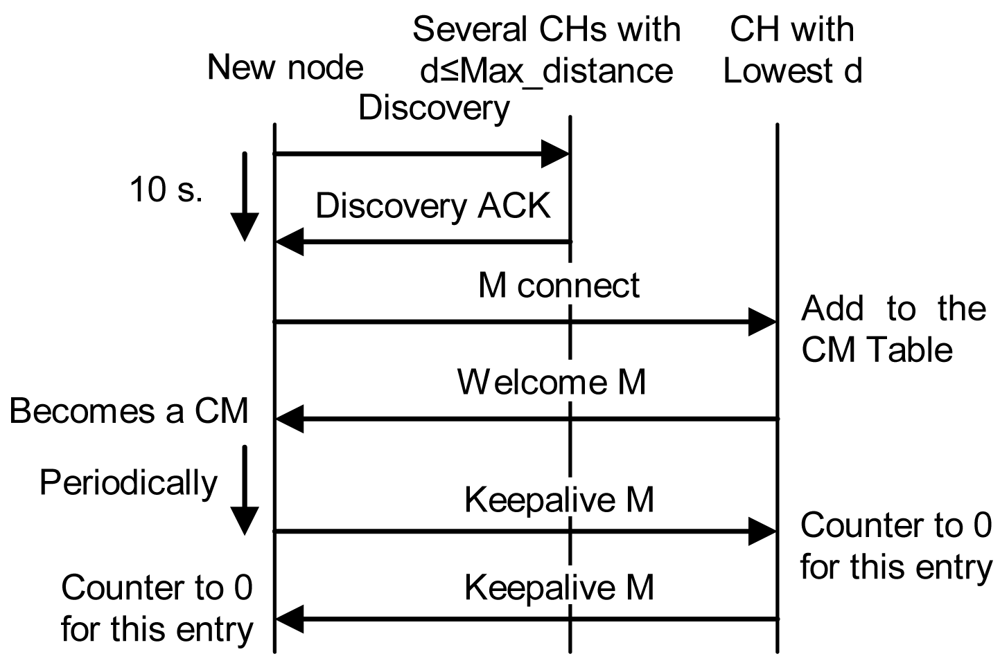

- If it receives one or several replies and all of them are within a distance lower than the Max_distance, it chooses the closest CH and in case of a draw, the one with highest λ parameter. Then, it sends an “M connect” message to establish a connection with the selected CH. If the other CH confirms that connection because it has not reached the maximum number of connections, it adds this entry to its CM table, sends a “Welcome M” message and the new node becomes a CM. If the CH does not agree the connection, the new node sends an “M connect” message to the second best CH and follows the same steps. This process is repeated until the new node reaches the last option. If the last option does not confirm the connection, the new node becomes a CH and follows the steps explained in case 2. When a CM receives a “Welcome M” message, it will know which its cluster is. It will send “Keepalive M” messages periodically to the CH to indicate it is alive. If the CH does not receive a “Keepalive M” message from a CM for a dead time, it will erase that entry from the database. “Keepalive M” messages contain the nodeID of the sender, its λ and its δ parameters. Steps followed when there is a new CM in this third case are shown in Figure 10.

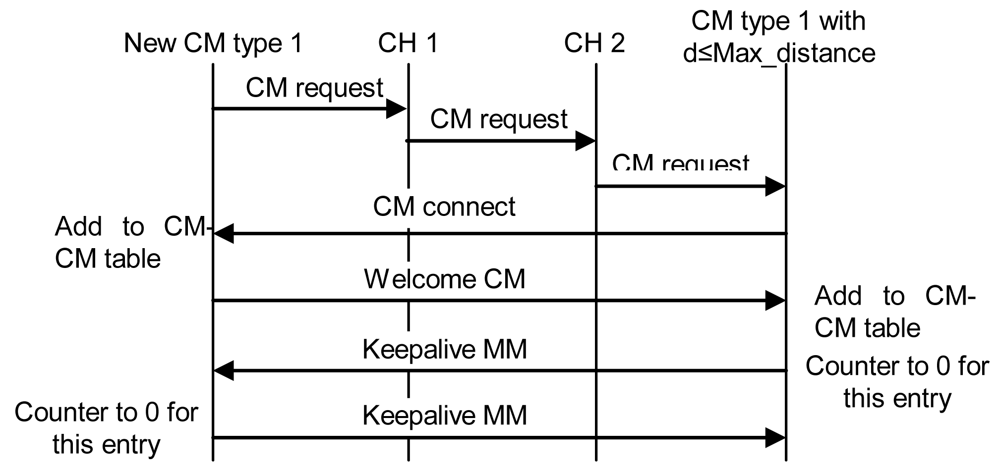

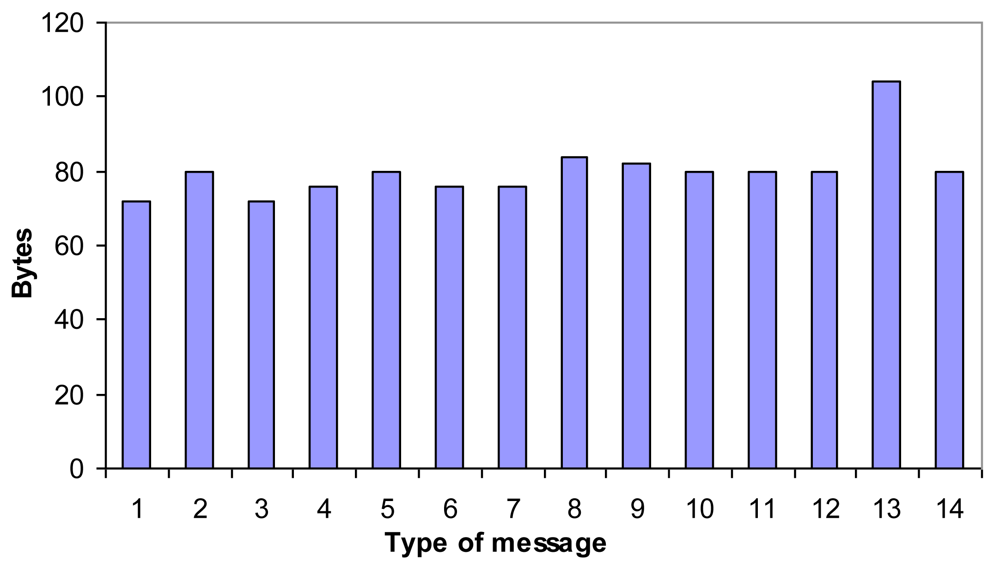

Protocol Messages
6. Architecture Measurements

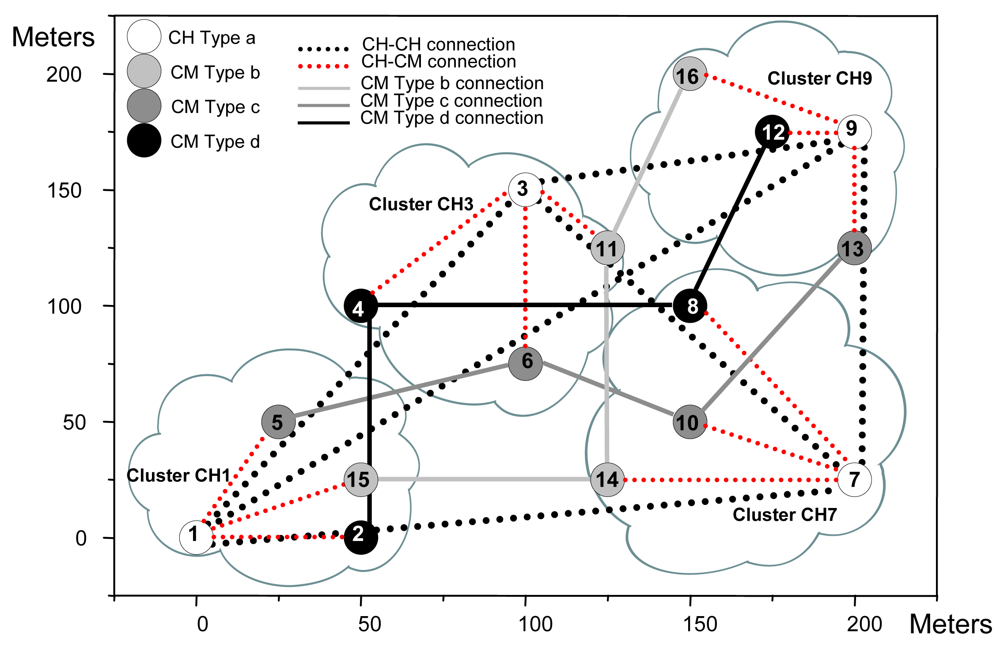

6.1. Test Bench

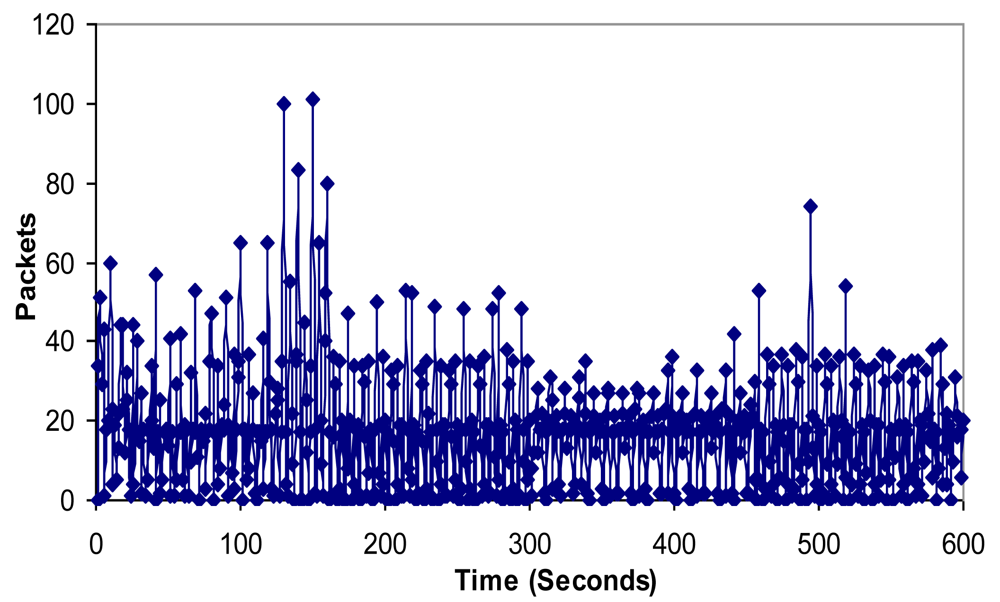

6.2. Network Measurements

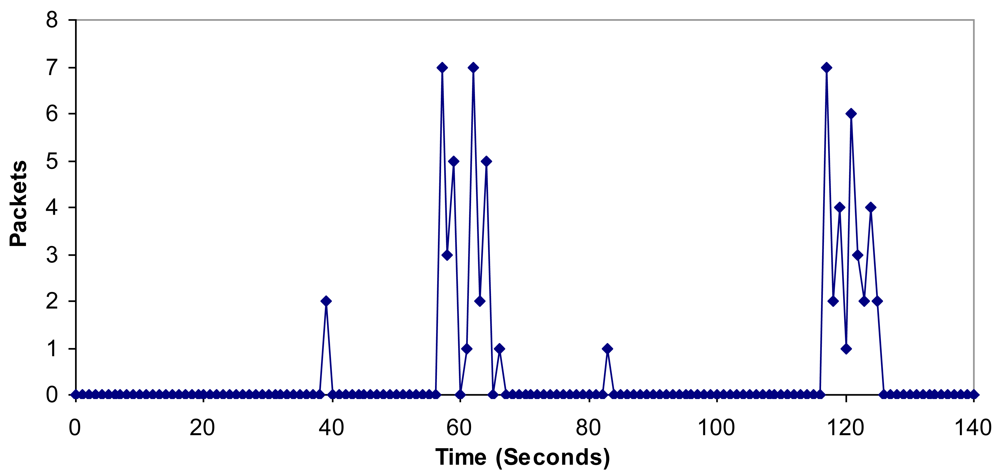

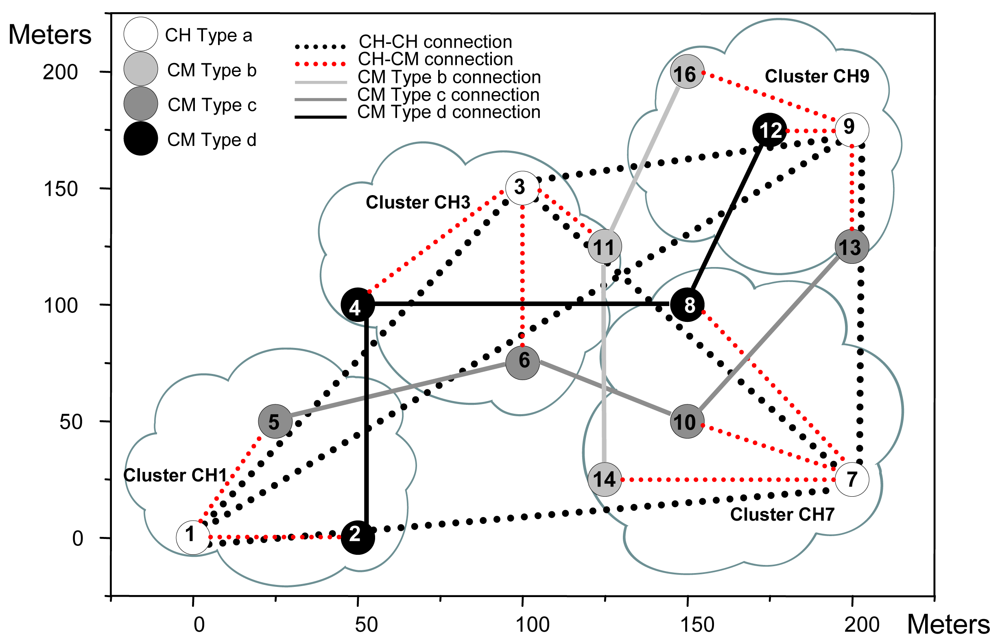

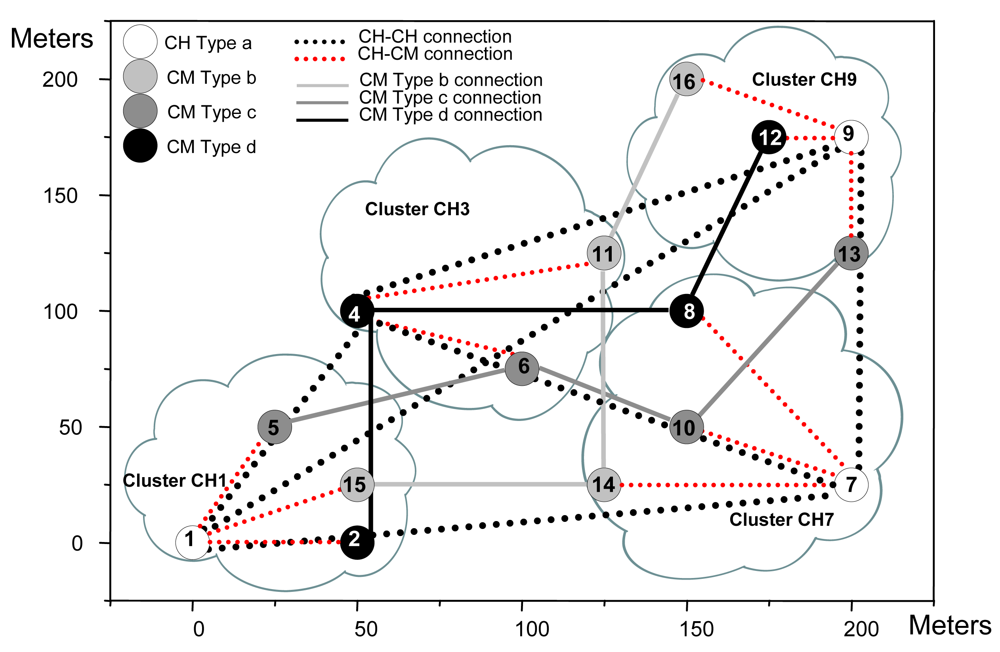

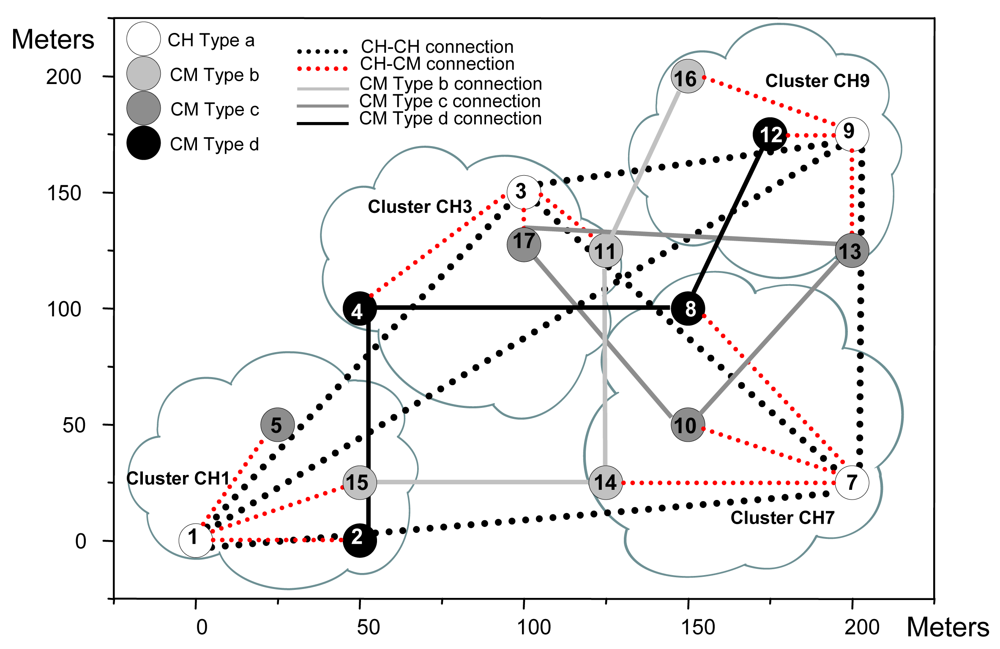

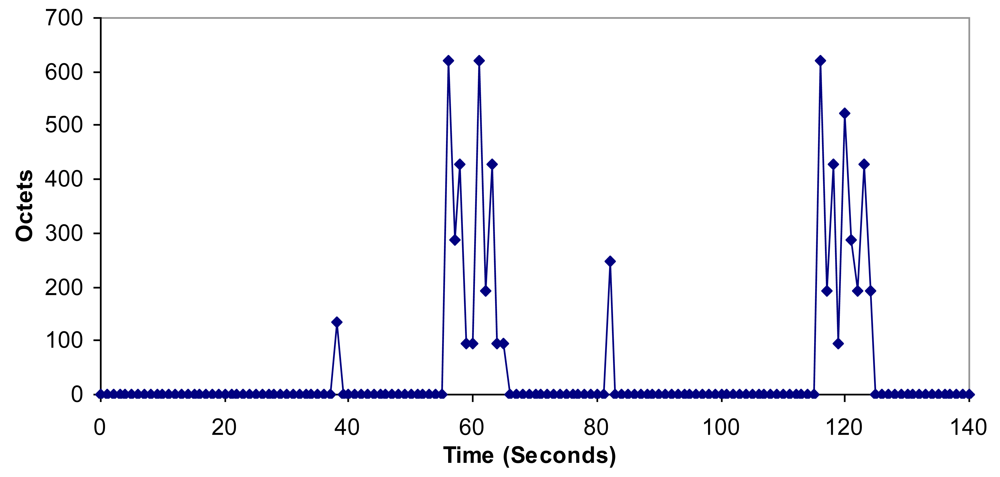

6.3. Fault Tolerant Procedure

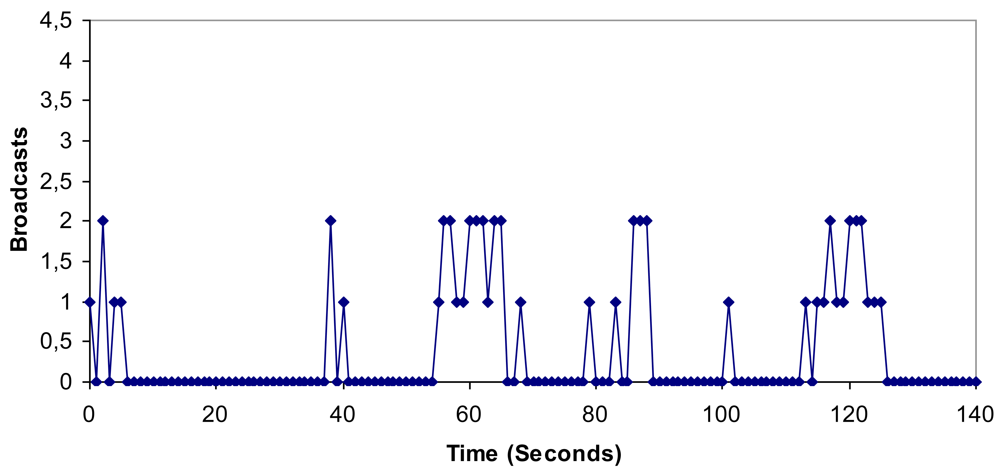

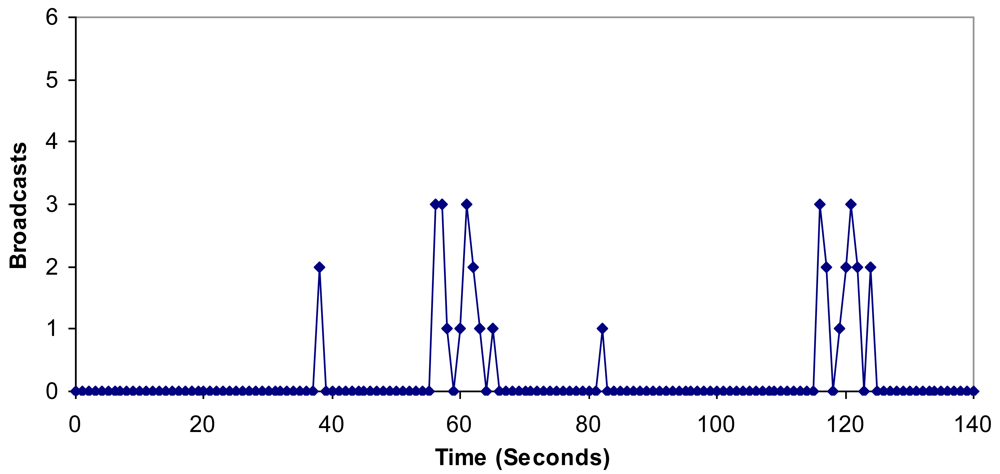

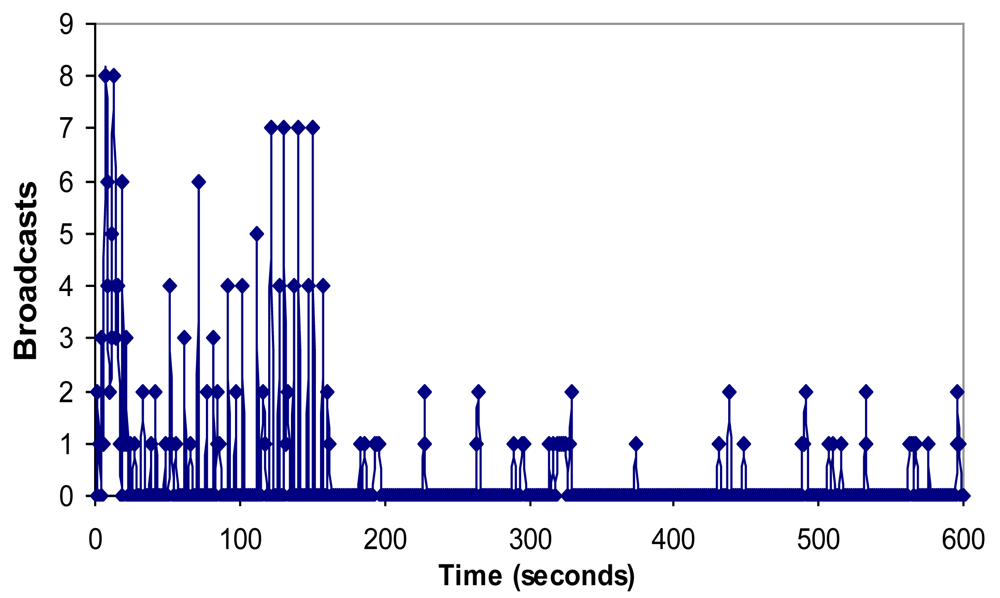

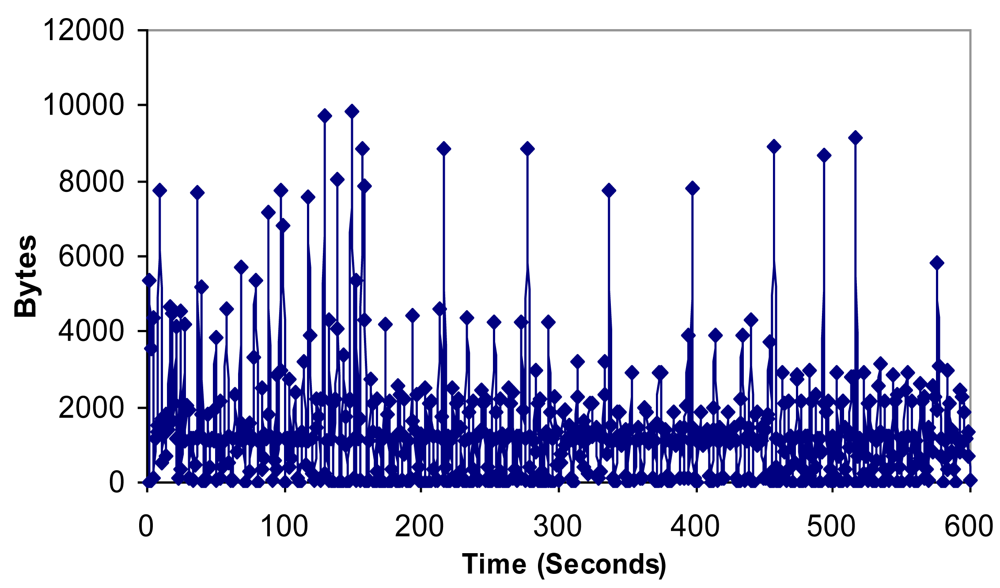

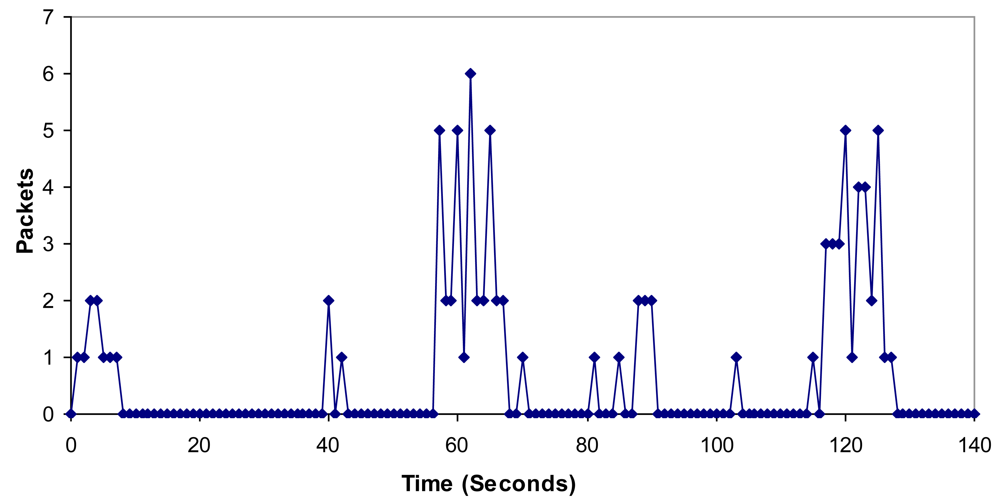

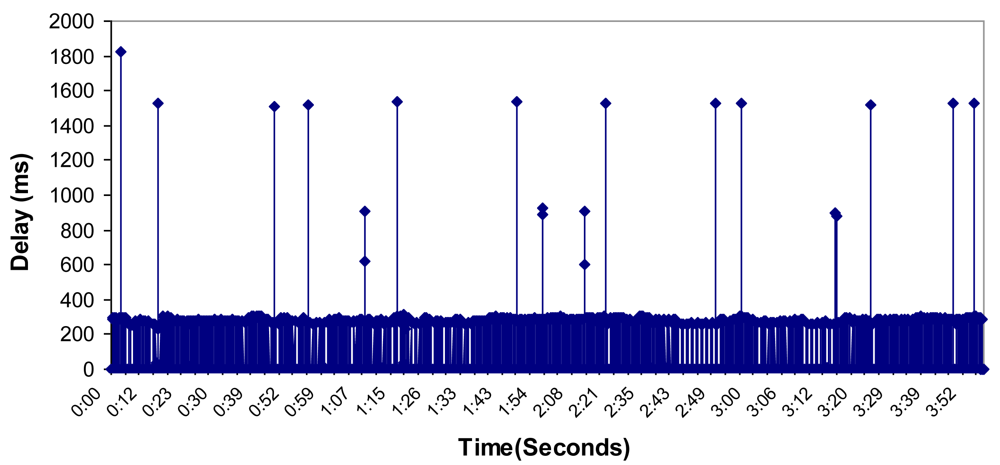

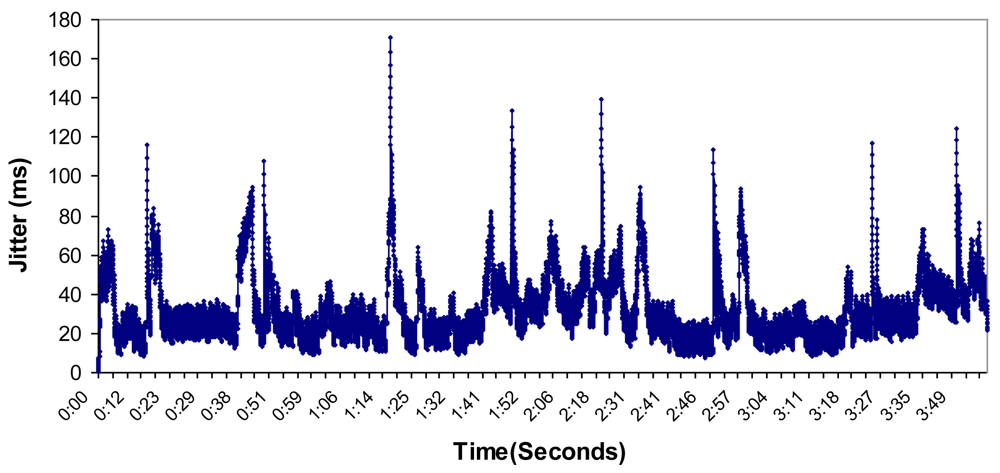

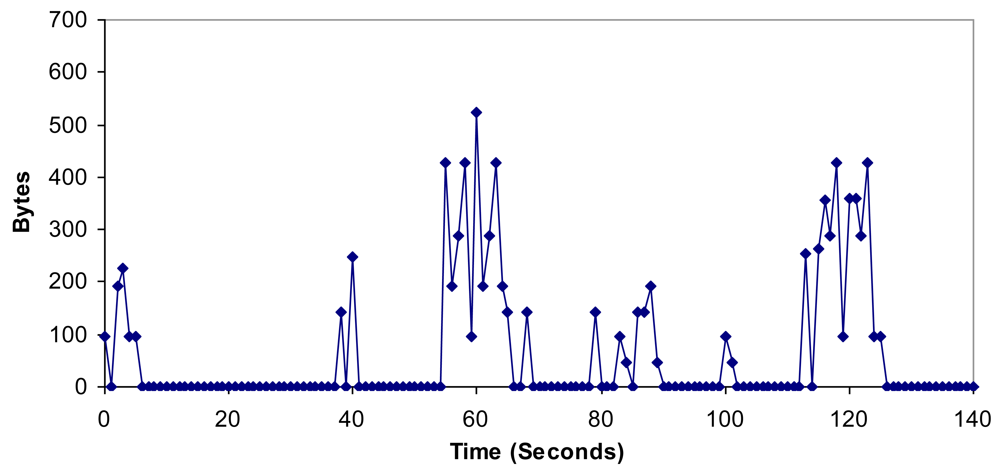

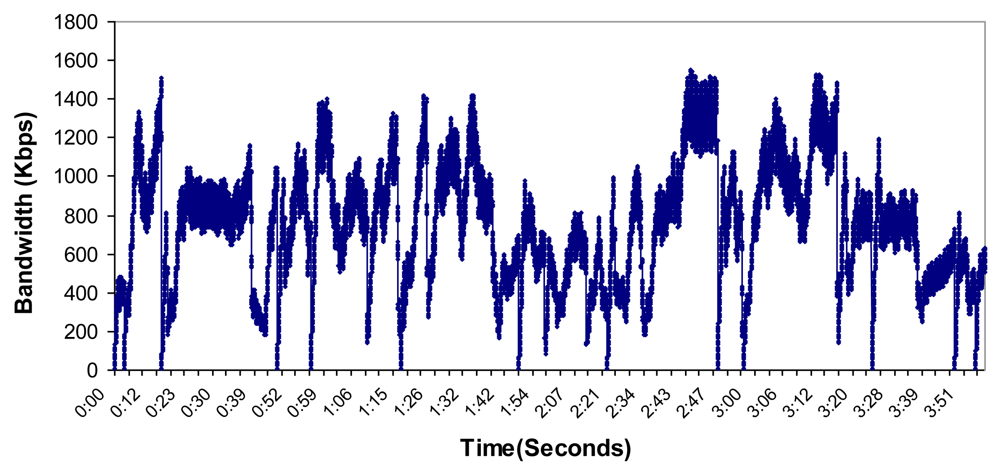

6.4. Bandwidth, Jitter, Delay, Lost Packets and Number of Packets with Errors
7. Protocol Comparisons
- -
- Topology updates overhead reduction.
- -
- The clustering structure is self-organized and adaptable.
- -
- Fully distributed operation.
- -
- New nodes do not have to be searched or initiated.
- -
- Broken routes cloud is repaired locally without rediscovery.
- -
- Reduction in the energy dissipation.
- -
- Broadcasts are done only by the boundary nodes.
- -
- The routing is source initiated.
- -
- Lower memory overhead.
- -
- Quite scalable.
7.1. Architecture Comparison
7.2. Measurement Comparisons
8. Conclusions
Acknowledgments
