1. Introduction
Instant messaging-based video call applications (IMVCAs) and Video Conferencing Applications (VCAs) have become essential tools in modern communication, transforming how we connect over distances. The COVID-19 pandemic has further accelerated the adoption of video conferencing across various domains, including work, healthcare, education, and personal interactions. IMVCAs have facilitated face-to-face video communication, primarily serving interpersonal communication needs. In addition, Their diverse features have enabled them to penetrate markets traditionally dominated by VCAs. For instance, a study highlighted WhatsApp’s utility in education during the COVID-19 pandemic, demonstrating its effectiveness by leveraging various features, including video calls, group chats, document sharing, and more [
1,
2,
3,
4,
5,
6]. As real-time video communication continues to gain popularity, ensuring a high Quality of Experience (QoE) for users across the variety of VCAs and IMVCAs is crucial. Studies [
7,
8] have shown that network conditions, such as throughput, latency, and packet loss, directly impact user-perceived experience. Traffic patterns can vary significantly, leading to various disruptions across different applications. Therefore, it is critical for Internet Service Providers (ISPs) to diagnose, predict, and address, hopefully ahead of time, the different issues related to the QoE of their users as part of efficient network functionality.
Due to the rise in the demand for privacy over the Internet, most of the traffic that is being transmitted over the Internet is encrypted. In addition, many IM applications, including WhatsApp, use an end-to-end encryption. While content providers (e.g., WhatsApp) have no difficulty assessing the QoE of their users (as they encrypt the data), ISPs must estimate user QoE using passive measurements of the encrypted traffic traversing their network.
In this study, we address the challenges faced by ISPs in evaluating user QoE using encrypted traffic data. We propose an approach for evaluating video quality metrics using an LLM-based agent that is able to predict the QoE of users based only on features that may be easily extracted from Internet traffic.
We validated our approach on WhatsApp IMVCA, and we compare it against models that are frequently used in this domain and provide SOTA results for QoE evaluation. WhatsApp neither provides quality metrics nor publicly discloses its communication protocol, emphasizing the necessity of our approach.
We develop an LLM-based framework for estimating video QoE metrics from encrypted traffic.
We conduct a pioneering study on WhatsApp, creating datasets of encrypted traffic and corresponding QoE metrics, thereby closing the gap in IMVCAs.
We provide a thorough analysis of the features that may be easily extracted from encrypted Internet traffic, serving as an assessment of the QoE of users who participate in the conversation.
Our final contribution is releasing the dataset together with the code for feature extraction and prediction in order to stimulate future research in this domain.
The remainder of this paper is structured as follows:
Section 2 reviews related work in the field of video QoE estimation.
Section 3 details our proposed methodology.
Section 4 presents the experimental setup and evaluation results.
Section 5 discusses the implications of our findings, and
Section 6 concludes this paper, with future research directions provided.
2. Related Work
Recent years have seen an expansion in research on video QoE inference from encrypted traffic. For example, Dubin et al. [
9] demonstrated an exceptional accuracy of 97% in the prediction of QoE in YouTube streaming services by analyzing the timing of line-traversing packets. In a latter study, Gutterman et al. [
10] trained a Decision Tree (DT) algorithm in an attempt to extended this work by trying to predict two additional metrics, viz., buffer warning and video state, which, by their assumption, should be indicative of the overall QoE of users. In this course, Mazhar and Shafiq in [
11] trained a DT classifier to predict the QoE of the users on YouTube, but their method had low granularity (i.e., “good”/“bad” QoE) and cannot be used in an online setting. Wasserman et al. [
12] predicted standard QoE Key Performance Indicators (KPIs), viz., stalling, initial delay, video resolution, and average video bitrate, using encrypted YouTube traffic. For this purpose, they used the recently developed Large Language Models (LLMs), which were initially developed for textual data analysis.
This approach was latter extended to work with data from other domains by introducing the Large Multimodal Models (LMMs) that are able to be efficiently applied on data from other domains, such as images [
13] and time series [
14].
LMMs were recently used by Ginige et al. [
15] to expand the prediction of hazardous Internet traffic from a closed setting (i.e., where the number of classes is determined in advance) to a more realistic open setting, where the types of the possible hazards are not known ahead of time. They operated on encrypted data and showed that, by the correct employment of LMMs, substantial improvements over other models used for this type of problem may be achieved.
Another study that employed an LMM-based agent is a recent work performed by Shaham et al. [
16], where the authors showed impressive performance in the task of feature interpretability and failure analysis. In their experiments, the trained, in an unsupervised way, an LMM-based agent to be able to choose correct features for experiments and then automatically fit models on these features. This work shows the great potential of LMMs and the special use cases they may be used for.
3. Methodology
In this section, we describe our methodology used to predict the QoE metrics of the IMVCA sessions. For this purpose, we chose four models that are widely used in previous studies for regression problems in tabular data, viz., Random Forest (RF), Support Vector Machine (SVM) [
17], Extreme Gradient Boosting (XGBoost) [
18], and Categorical Boost (CatBoost) [
19]. In addition, we designed a pipeline to employ the current LLM-based agent to perform the same prediction task. Next, we will describe each of the algorithms used in this research and its main features.
3.1. Random Forest
Random Forest (RF) combines multiple Decision Tree (DT) models into a single system that can be used for both regression and classification tasks. It operates in three main steps: (1) Bootstrapping: The original dataset is sampled with replacements to create multiple different subsets. (2) Model Training: A separate DT is trained on each dataset subset created in the previous step, resulting in a collection of “weak learner” models that vary slightly due to differences in training data. (3) Aggregating: For classification tasks, the final prediction is determined by a majority vote across all DTs, while for regression tasks, the predictions are calculated as an average of all predictions of the “weak learners”.
3.2. Support Vector Machines
Support Vector Machines (SVMs) are supervised machine learning algorithms that are primarily used for classification tasks, though they can also be applied to regression. In their basic form, SVMs construct a linear model, assuming that data points are linearly separable. However, this approach can be extended to handle non-linear relationships by employing kernel functions (a technique known as the “kernel trick”), which projects the data into a higher-dimensional space where linear separation is possible. At its core, an SVM fits a line (in 2D) or a hyperplane (in higher dimensions) that best separates the classes by maximizing the margin between them. SVMs are especially effective with high-dimensional data and are relatively robust to overfitting. However, they are sensitive to hyperparameter tuning and can be difficult to interpret in dimensions beyond three.
3.3. Extreme Gradient Boosting
Extreme Gradient Boosting (XGBoost) is an ensemble technique that is similar to RF but with a key difference: While RF trains DTs in parallel on different subsets of data, XGBoost trains the “weak learners” (typically a DT) sequentially, teaching them to correct the errors made by the previous ones. It employs techniques such as (lasso) and (ridge) regularization to reduce overfitting and uses tree pruning, parallelization, cache optimization, and efficient data structures for increased performance. In addition, it handles missing data automatically, and it uses custom loss functions for a flexible model design.
3.4. Categorical Boosting (CatBoost)
Categorical Boosting is a strong algorithm developed by Yandex for handling tabular data. This algorithm falls under the class of Gradient Boosting, and it is built on Decision Tree (DT) ensembles, like XGBoost, but it performs better over labels with several classes due to modifications made to make the DT more symmetric. Although this algorithm usually takes longer to train, it demonstrates better results over tabular data. Unlike XGBoost, CatBoost does not require hyperparameter tuning. It also handles regression problems very well, as any regression problem may be generalized to a classification with multiple classes.
3.5. Large Language Models (LLMs)
LLM is a special type of transformer model that is trained on a very large dataset of text that enables it, in a very efficient way, to answer text-based queries. The main strength of the LLM is the vast number of parameters it employs—while GPT-1 used 117 M parameters, the newest iteration of GPT, GPT-4, uses ∼1 T parameters. The basic principle that is used in the transformer ANN is the mechanism of attention, which concentrates the model on relevant information and discards irrelevant information. In other words, self-attention captures long-term dependencies rather than just local ones. Self-attention is computed using the tokens of the input prompt, and it is calculated using the following equation:
where
Q is called the “query”,
K denotes the “keys”, and
V denotes the corresponding “values”. The
measures the similarity between tokens, which are squashed into weights by the softmax function. Then, a weighted sum of the values is produced via multiplication by the
V term.
The normalization term
is used to stabilize the gradient froq and the learning procedure in cases of high-dimensional input, and it prevents the softmax function from saturating. As the transformer [
20] architecture employs layer normalization initialized with Xavier weight initialization (with weights initialized as
[
21]), it is valid to assume that the inputs have a zero mean and a standard deviation of 1, so the dot product between some query
and some key
will be
and the variance of
will be
Since we suppose that
, we get
which gives us a standard deviation of
. This situation may saturate the
function and make it put all weights on one particular entry and 0 for all other entries. This makes the gradients vanish and prevents the model from learning. To prevent this from happening, the dot product is normalized by
.
3.6. Large Multimodal Models (LMMs)
LLMs are breakthrough methods that are not less significant than the introduction of Convolutional Neural Networks (CNNs) in 2012 [
22]. The main difference in LMMs compared to the LLM is the ability of the former to be efficiently applied on non-textual data, like images, time series, audio, etc. Some of the best LMM models as of today are ChatGPT-4o (Omni) by OpenAI, Gemini 1.5 by Google DeepMind, and Flamingo by DeepMind, which can handle the input of text, images, or audio data; or BLIP-2 by Salesforce, Fuyu by Adept, and Kosmo-2 by Microsoft, which are limited to text and image data.
The LMMs function by using a combination of an LLM backbone, which interprets the queries of the user and encodes them; a data-specific encoder, which is used for non-textual input transformation; and a fusion mechanism used to blend all inputs together, transforming them into a form that can be used for output generation.
4. Data
In this section, we discuss the dataset used for the experiments, including its collection, exploration, and feature engineering.
4.1. Data Collection

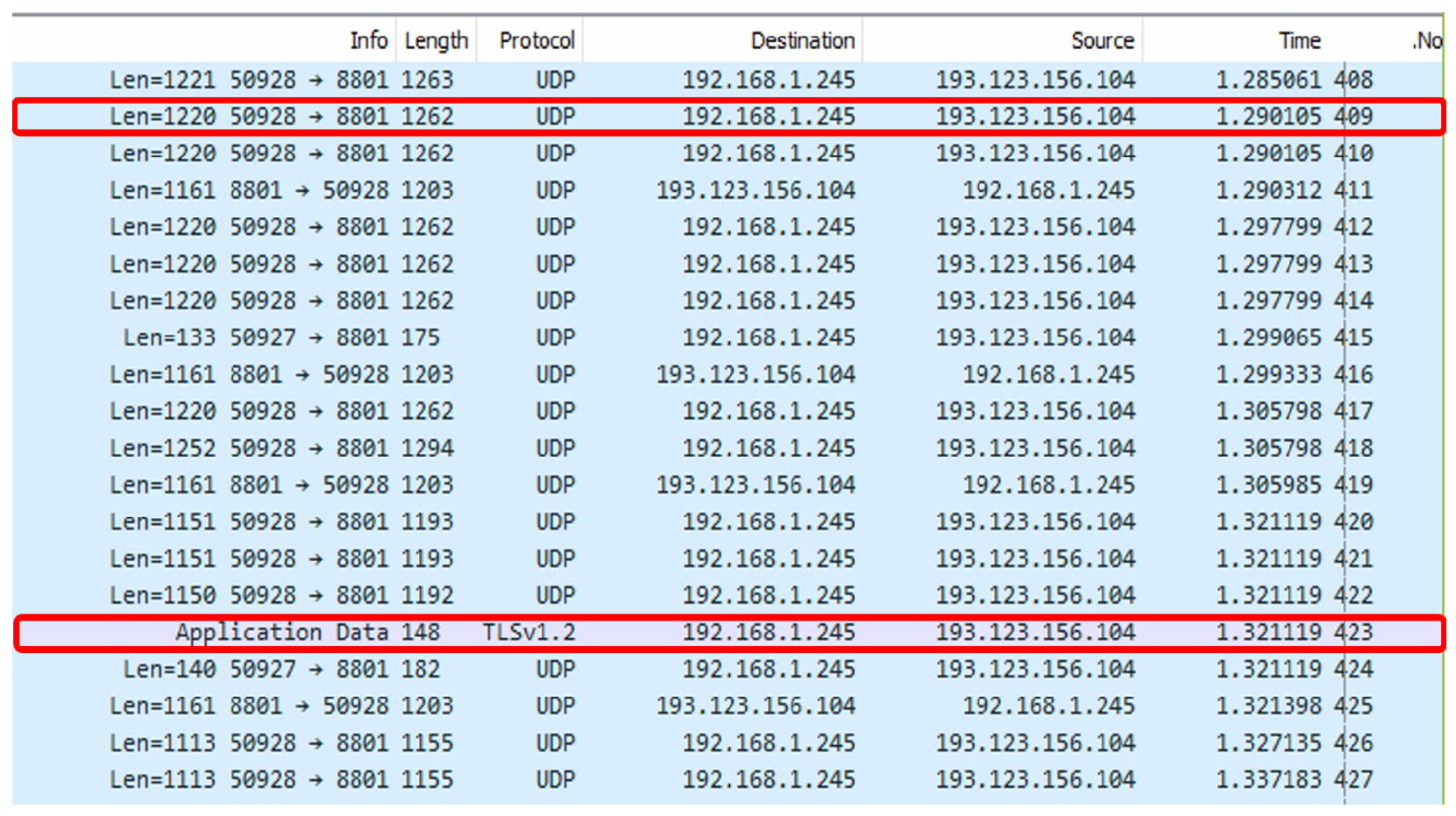

The data was collected in a controlled manner by instantiating calls via WhatsApp IMVCAs, lasting 4 min each. In each session, two roles were designated to the participants, viz., transmitter and receiver, where the former used a cellular device while the latter was connected through a WhatsApp’s desktop application that ran on a PC in the lab. The features were extracted using the WireShark application (see
Figure 1), and the extracted features are listed in
Table 1.
In addition, to be able to quantify the QoE of the session on the receiver side, we extracted the two types of screen captures as follows: (1) a high-resolution screenshot of the image seen by the receiver in a lossless format with a frame rate of 1 FPS and (2) a small portion of the screen with a low resolution but high frame rate. The first screen capture was used to evaluate the visual QoE by the means of two no-reference QoE metrics, viz., BRISQE and PIQE. The second type of capture enabled us to extract the third label of interest, which measures the temporal resolution of the interaction, i.e., the FPS.
As the BRISQUE, and PIQE QoE metrics use the spacial resolution of the image for their quality assessment, the type of sensor used by each side in the session plays a critical role in the final QoE. In our experiments, we used several models of cellular devices, as well as laptop models and ICams, to make our results more general. The models of the devices, together with the photo sensor’s specifications, are presented in
Table 2.
To simulate a realistic setting, we introduced three types of limiting parameters on the
receiver side, viz., packet loss, bandwidth limit, and sudden bandwidth drops, as described in
Table 3. To avoid bias towards a certain type of limitation, the same number of sessions was recorded from each type, and the limitations of packet loss and bandwidth drop were evenly distributed between the different values.
4.2. Feature Extraction
Similarly to Sharma et al. [
23], we extracted two types of features features, viz., features related to the size of the packets and ones related to the packet inter-arrival times (PIATs), as presented in
Table 4.
4.3. Video Stream Classification
The classification process applied to the collected data consisted of two steps. First, detect the packets related to the specific application stream. Second, isolate the video stream data from these packets. We identify the video application traffic by the packets’ IP addresses and subsequently extract only the video packet data, disregarding all other packet types. Previous studies on Zoom [
24,
25] have distinguished media types by utilizing RTP headers, specifically the RTP payload type, to classify packets into different categories, such as videos, screen sharing, and audio. In study [
23], Taveesh Sharma et al. differentiated packets by size based on the assumption that audio packets require fewer bits than video packets. Adopting this approach, we classify packets based on their size, ensuring the method’s applicability even when the RTP headers are encrypted or the payload type is modified by the application’s protocol changes. Upon investigating our WhatsApp dataset, we found that it used RTP payload type (PT) 97 for videos, PT 120 for audio, and PT 103 for video retransmission throughout the entire dataset. The ground truth distribution of packet lengths by RTP payload types in our entire dataset is shown in

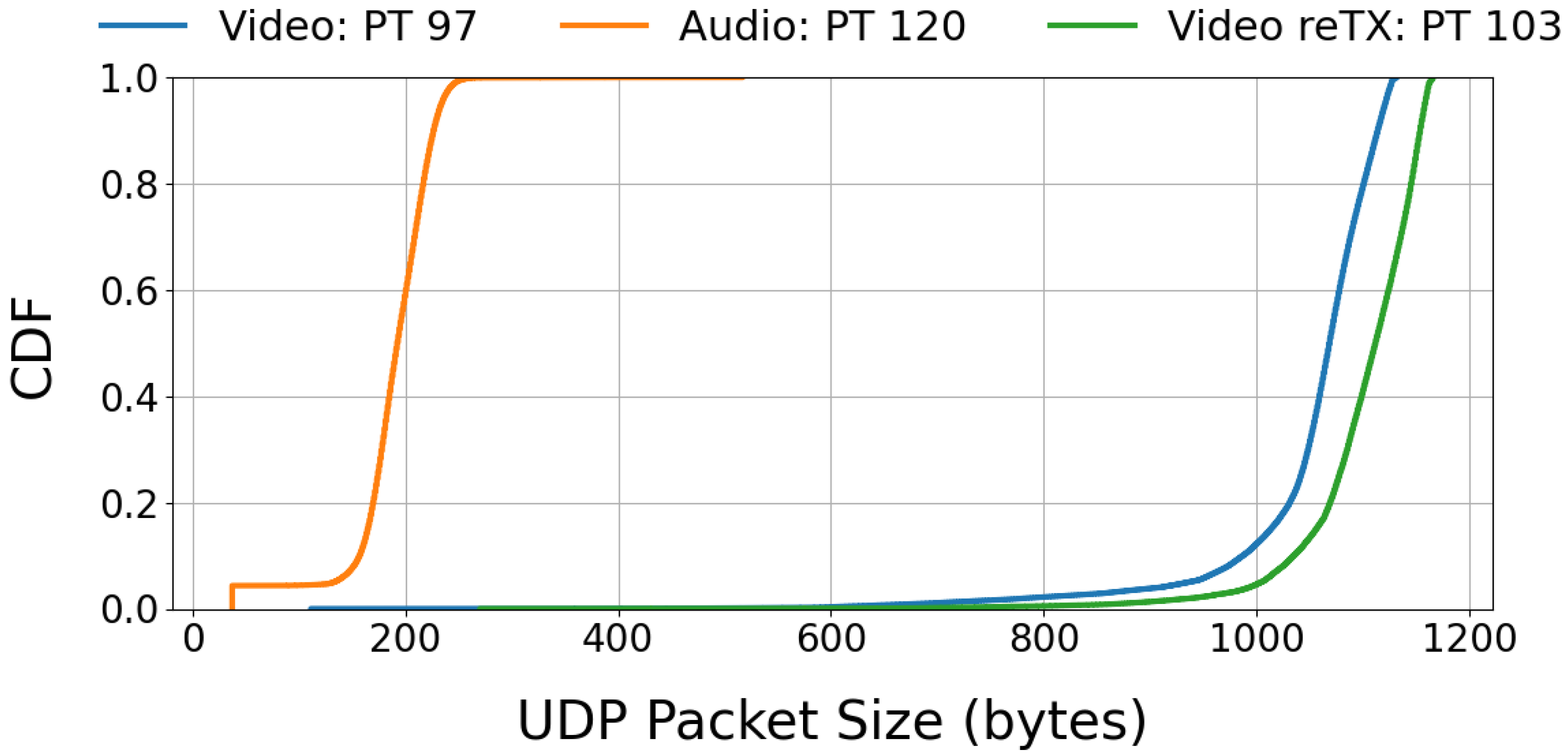

Figure 2. Our analysis revealed that the most effective classification threshold is 275 bytes, achieving a classification accuracy of 99.99%.
Table 5 presents the confusion matrix for video packet classification.
4.4. Ground Truth Metrics
4.4.1. Frame Rate
The procedure for determining the frame rate involves the following steps:
Creating a Unique Visual Identifier for Each Frame on the Transmitter Side: A screen displaying S changing signs is placed in the background of the participant. The signs change at rate V, which must be higher than the maximum frame rate of the video application. The number of signs S must satisfy , where T is the duration of the time slot in seconds. This ensures that each sign appears at most once within a time slot, making it a unique identifier for each frame.
Frame Rate Measurement on the Receiver Side: On the receiver’s end, successive window captures are taken of the specific area where the changing sign appears. These captures are performed at a rate V and are collected along with their corresponding timestamps. Consequently, there are more captures than frames within the time slot, with some duplication, ensuring that each frame is captured at least once.
Associating Frames with Time Slots Based on Arrival Times: At the end of each session, the program processes the collected images in chronological order, retaining only the first capture of each frame by removing all duplicates. Thus, each capture in this list represents a unique frame in the session, ensuring that all frames are represented. The captures are then grouped into time slots.
Calculating Frame Rate for Each Time Slot: For each time slot, the number of unique captures associated with it is summed. The frame-per-second rate for time slot
i is calculated as follows:
where
is the indicator function for a new frame,
T is the duration of the time slot in seconds,
i is the time slot number, and
k is the index of the capture.
The procedure is described in Algorithm 1.
Algorithm 1 Frame Rate Calculation |
Input: captures, endTimeSlots Output: frameRates captures.length uniqueCaptures (empty list) frameRates (empty dictionary) for endTime in endTimeSlots do frameRates[endTime] end for for i in 1:N do if captures[i].image ≠ captures[i-1].image then uniqueCaptures.append(captures[i]) end if end for for capture in uniqueCaptures do frameRates[⌈ capture.timeStamp ⌉] += 1 end for return frameRates
|
To validate the proposed method, we generated 30 distinct videos, each with a constant frame rate ranging from 1 to 30 frames per second (FPS). By concurrently playing these videos and executing the frame rate detection program on the same device, we eliminated network effects, ensuring precise frame rate display on the screen. The validation results demonstrated high accuracy across the entire tested FPS range, with a Mean Absolute Error (MAE) of 0.06 FPS and an accuracy of 97.5% within an error tolerance of 5% relative to the ground truth. The procedure’s requirement to introduce visual changes in the participant’s background ensures high accuracy in frame rate detection but adds complexity for the user during the video session. Practically, this requirement can be removed by leveraging the inherent dynamics within the video content if present. We are currently developing such an approach.
4.4.2. Spatial Quality Assessment
In order to obtain ground truth spatial quality metrics, we capture lossless screen frames at a 1 s rate during the session. For each frame, we calculate quality scores using two no-reference image quality assessment models: BRISQUE [
26] and PIQE [
27]. The BRISQE metric was acquired with the
brisqe() function of the
image-quality 1.2.7 python 3.9 package. As there is no stock implementation of the PIQE criterion in python, we used the MatLab 24.1 implementation of PIQE to acquire this metric.
Both models provide quality scores ranging from 0 to 100, with lower values indicating fewer distortions. BRISQUE evaluates spatial quality based on natural scene statistics, while PIQE assesses the perceptual aspects of local distortions in the spatial domain. For each model, the average score per time slot is used to create a quality score label.
Table 6 shows the rating scale of the PIQE and BRISQUE metrics used to assess the spatial quality rating for each time slot. The ratings are categorized as excellent, good, fair, poor, and bad. For PIQE, the quality scale and respective score ranges are assigned based on the experimental analysis in [
28]. For BRISQUE, due to the lack of a universally agreed-upon quality scale rating, we propose a linear quality scale.
4.5. Exploratory Data Analysis (EDA)
4.5.1. Label Analysis
Next, we present an analysis of the collected dataset.

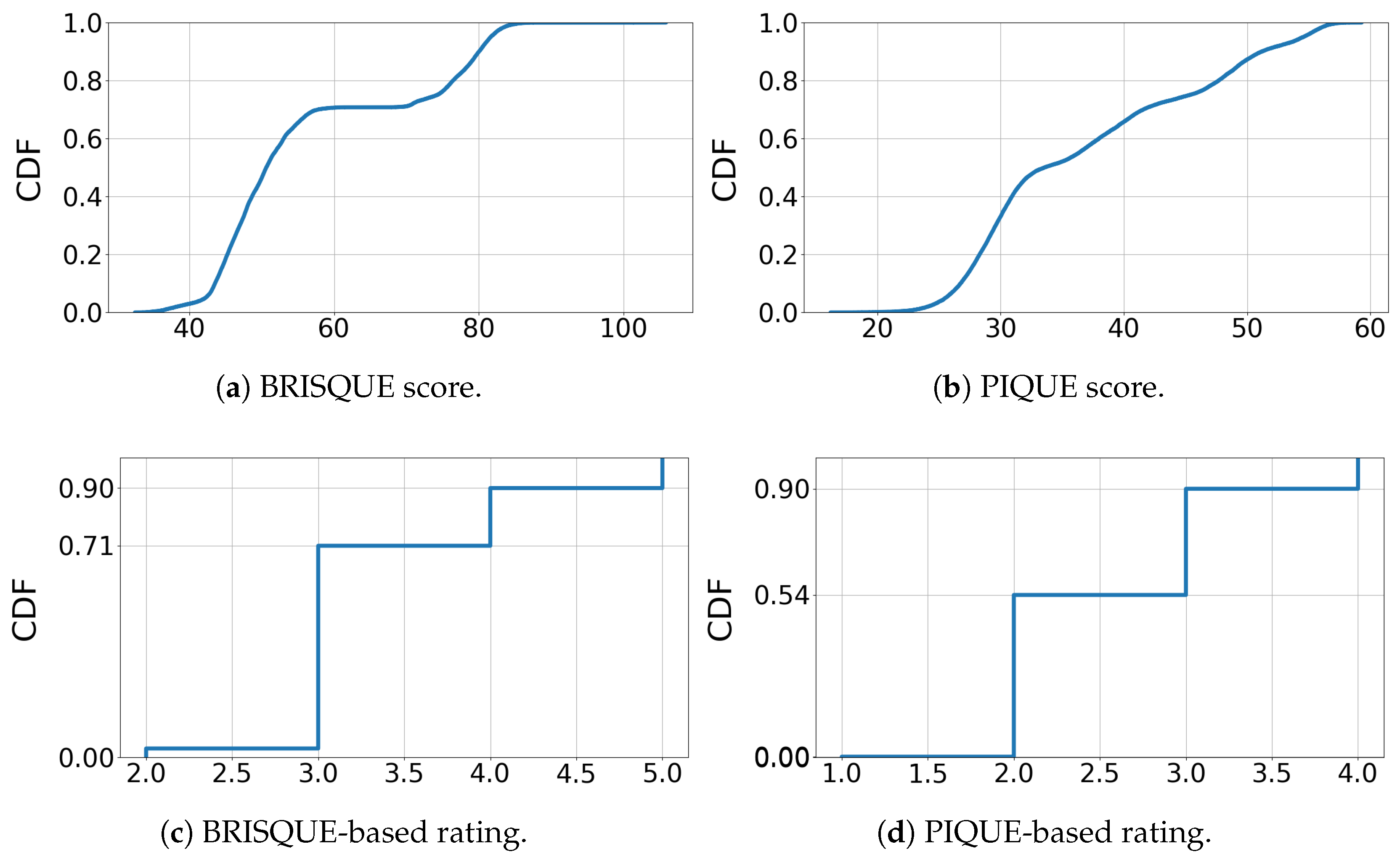

Figure 3 illustrates the spatial quality characteristics through cumulative distribution functions (CDFs) for the BRISQUE score, PIQE score, and BRISQUE- and PIQE-based quality ratings, as presented in
Table 6.
Figure 3a depicts the distribution of BRISQUE scores, showing two separate increases that indicate a distinction between two general quality groups obtained during the sessions. Correspondingly, the BRISQUE-based quality ratings are predominantly “average” (66%), aligning with the primary increase, while “poor” and “bad” ratings together account for 29%. The “good” quality rating is rare, comprising only 3%. The PIQE distribution in
Figure 3b shows a more continuous increase, indicating a more even distribution. For the PIQE ratings, most samples are classified as “good” (52%) and “fair” (37%), while the remaining samples are rated as “poor” (11%). As the PIQE-based quality rating is derived from experimental analysis, it offers a more reliable metric compared to the BRISQUE-based rating.

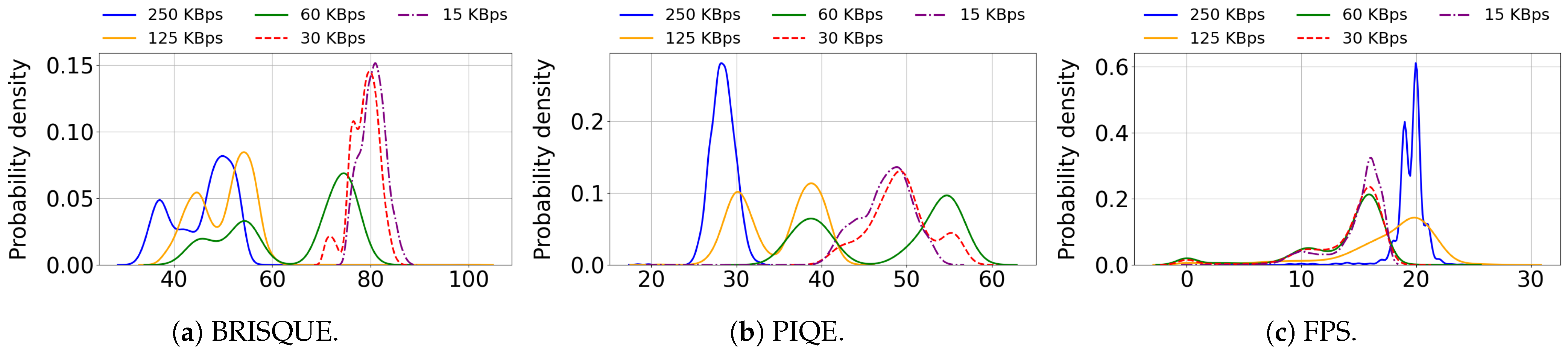

Figure 4 presents the probability density distributions of BRISQUE, PIQE, and frame rates under various bandwidth limitations, illustrating the strong correlation between spatial image quality and bandwidth in WhatsApp.
Figure 4b shows that the PIQE distribution for each bandwidth limit is concentrated around one or two central values. At 250 kBps, typically used by WhatsApp without network restrictions, the distribution is narrowly centered around a low value, indicating stable high quality. In contrast, at 125 kBps and 60 kBps, the distributions are centered around two distinct values for each bandwidth. This suggests different spatial adaptations employed by WhatsApp in response to bandwidth limitations.
Figure 4c shows that the frame rate distribution has two primary peaks: The 250 kBps distribution is narrowly centered around 20 FPS; the 125 kBps distribution is more widely centered around 20 FPS; the 60 kBps, 30 kBps, and 15 kBps distributions are centered around approximately 15 FPS. This finding is consistent with our analysis of WhatsApp logs, which revealed that the intended frame rates for video sessions are primarily 15 or 20 FPS, with actual frame rates fluctuating around these target values. This analysis suggests that WhatsApp prioritizes maintaining stable frame rates of 15 to 20 FPS while adjusting spatial quality to accommodate varying bandwidth conditions. Under constant bandwidth conditions, WhatsApp efficiently maintains continuous video, with only a minor density below 10 FPS, indicating minimal occurrences of frame freezes.

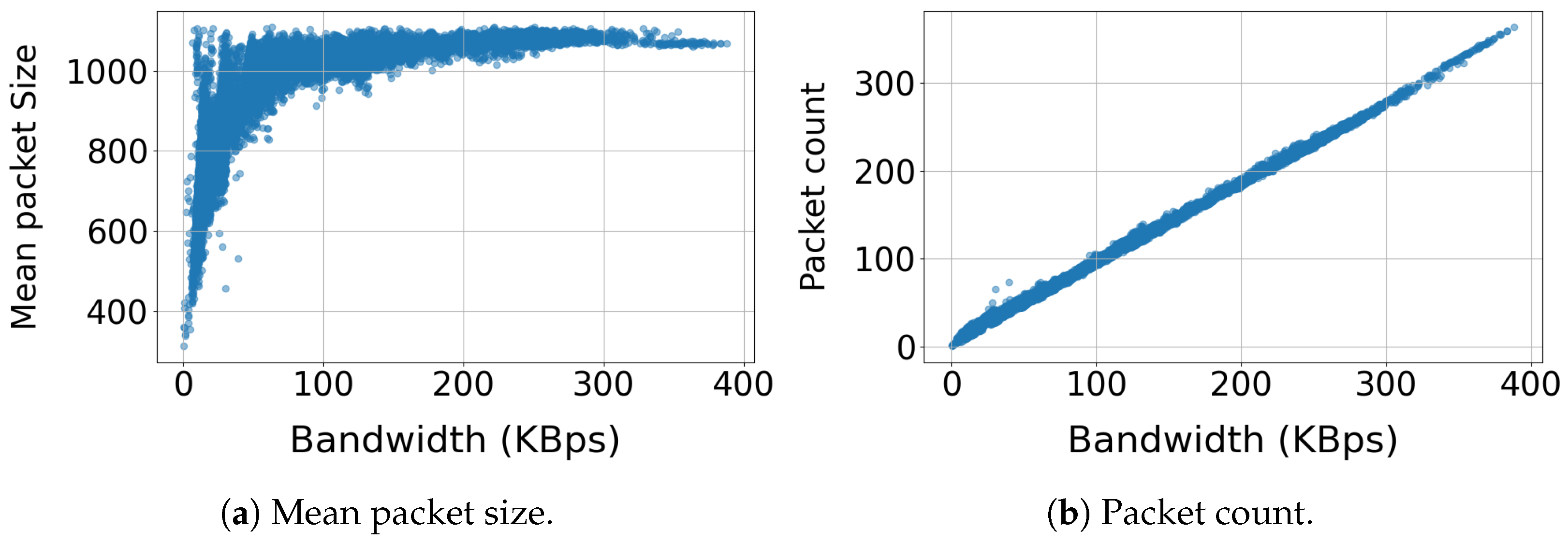

Figure 5 presents the relationship between packet size and packet count with utilized bandwidth.
Figure 5a demonstrates a logarithmic relationship between the packet size and utilized bandwidth. The majority of packets (82%) range between 900 and 1150 bytes, indicating consistent packet sizes for most of the utilized bandwidth range. Packet sizes below 700 bytes are infrequent (less than 5%) and are associated with low bandwidth utilization (below 40 kBps).
Figure 5b demonstrates a linear relationship between the packet count and utilized bandwidth, exhibiting perfect correlations.
4.5.2. Feature Correlation

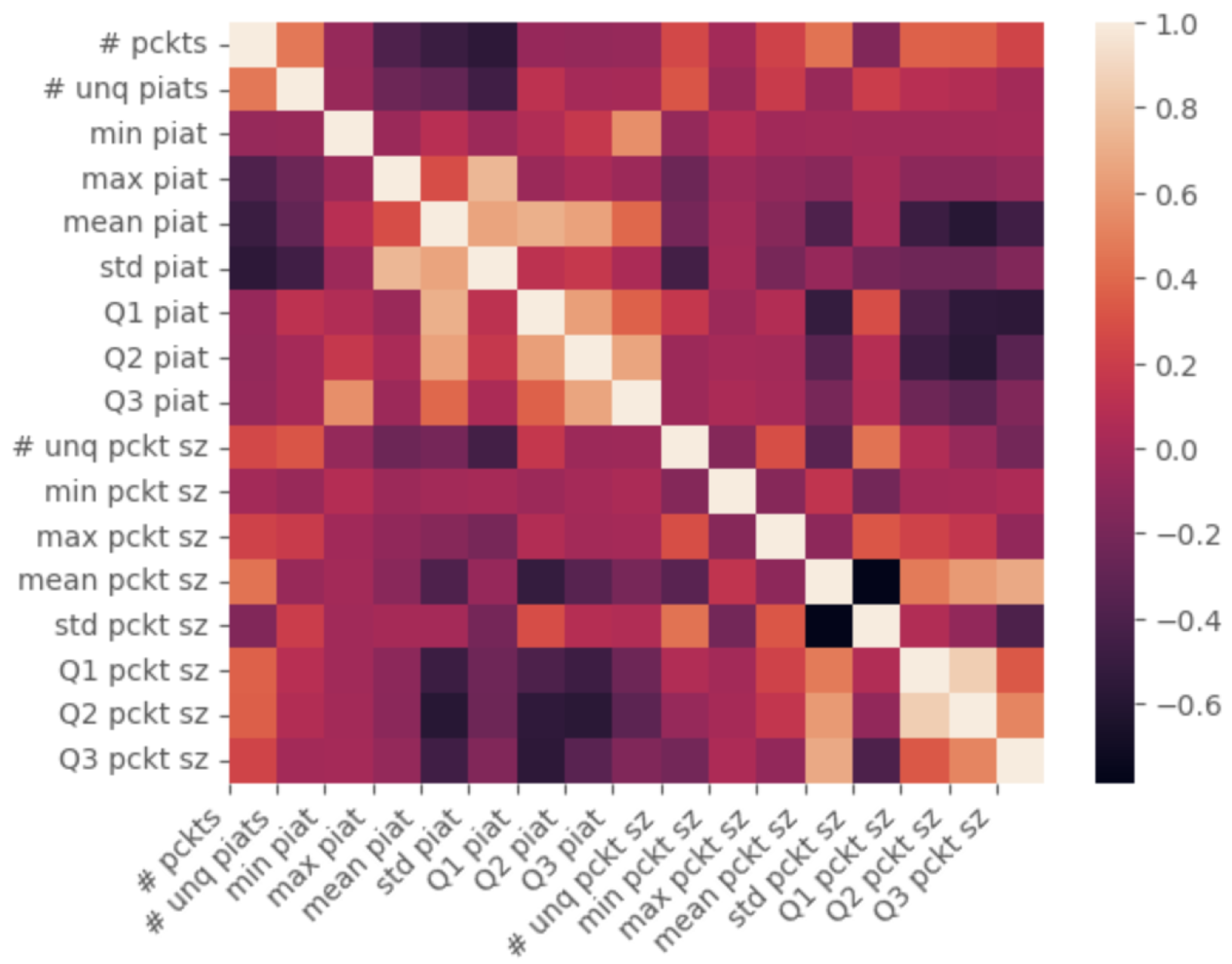

From the correlation heat map, first, we performed a Pearson correlation [
29] test of the extracted features, as presented in
Figure 6. From this analysis, we see that there is a clear “blocking” of features, i.e., the
PIAT features are inversely correlated to the
packet size features. This phenomenon follows, as the size of the packet is in a direct proportion to the time it takes to transmit it over the line:
The above equation measure ranges from , where 1 indicates a perfect positive correlation, i.e., an increase in one feature is associated with an increase in the other, while represents a perfect negative correlation. Features with correlation values close to are the most informative, as they suggest that the feature (or its inverse) has a strong influence on the predicted variable.
4.5.3. Feature Principle Component Analysis
Principal Component Analysis (PCA) [
30] is a widely used technique for dimensionality reduction and the visualization of high-dimensional data. It works by identifying, in an iterative manner, the axes (called Principal Components or
s) along which the data exhibits the highest variance. These axes are derived through a linear combination of the original coordinate system.
The first Principle Component () captures the direction of maximum variance in the data. Each subsequent is chosen to (1) account for the next higher variance, and (2) it should be orthogonal to all previously selected s. The result is a new coordinate system where the components are uncorrelated, and the total variance is sorted in descending order across the components.
As may be concluded from
Figure 7, a cumulative variance that exceeds 90% may be reached after the inclusion of the first 7 PCs, while a cumulative variance of greater than 99% is achieved only if we include the first 14 PCs. This analysis demonstrates that most of the features are necessary for the prediction of labels.
4.6. Feature Selection
To identify the most influential features, we employed Shapley analysis—a method derived from game theory—to quantify the contribution of each player (features in the dataset) in a cooperative game with respect to the final prize (the predicted label). The importance of each feature (i.e., its Shapley value) is calculated by averaging its marginal contribution over all possible cooperation possibilities (i.e., all possible ways a player i could join cooperation S) to the final model’s prediction.
For this matter, a predictive model
Y is first trained, and then, for each sample in the dataset, the Shapley value is calculated with the following formula:
where
N is the total number of features,
S represent the subset of features excluding feature
i (i.e., the one in question), and
represent the size of subset
S.
is the output of the model based on the features from
S, including the feature we test here, while
represents the output of the model, excluding feature
i. Intuitively, for each feature, we calculate the weighted gain this feature introduces into the final prediction of the model, and the final Shapley value is the average of this gain over all the possible ways this feature may be included in a cooperation instance with other features.

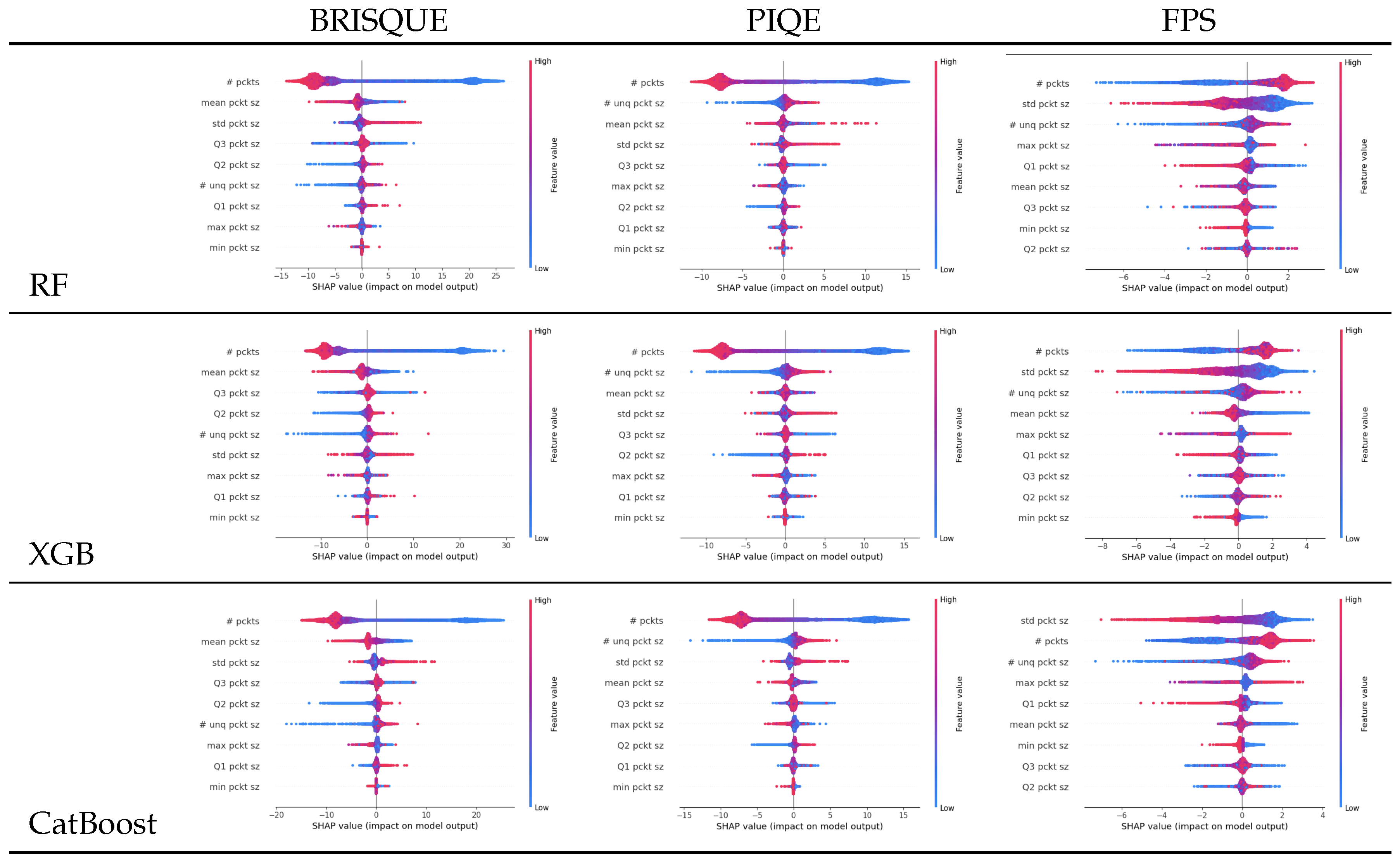

In our analysis, we highlight the importance of the number of packets as the most influential feature for all models and both settings (i.e., PIAT and packet size), as shown in

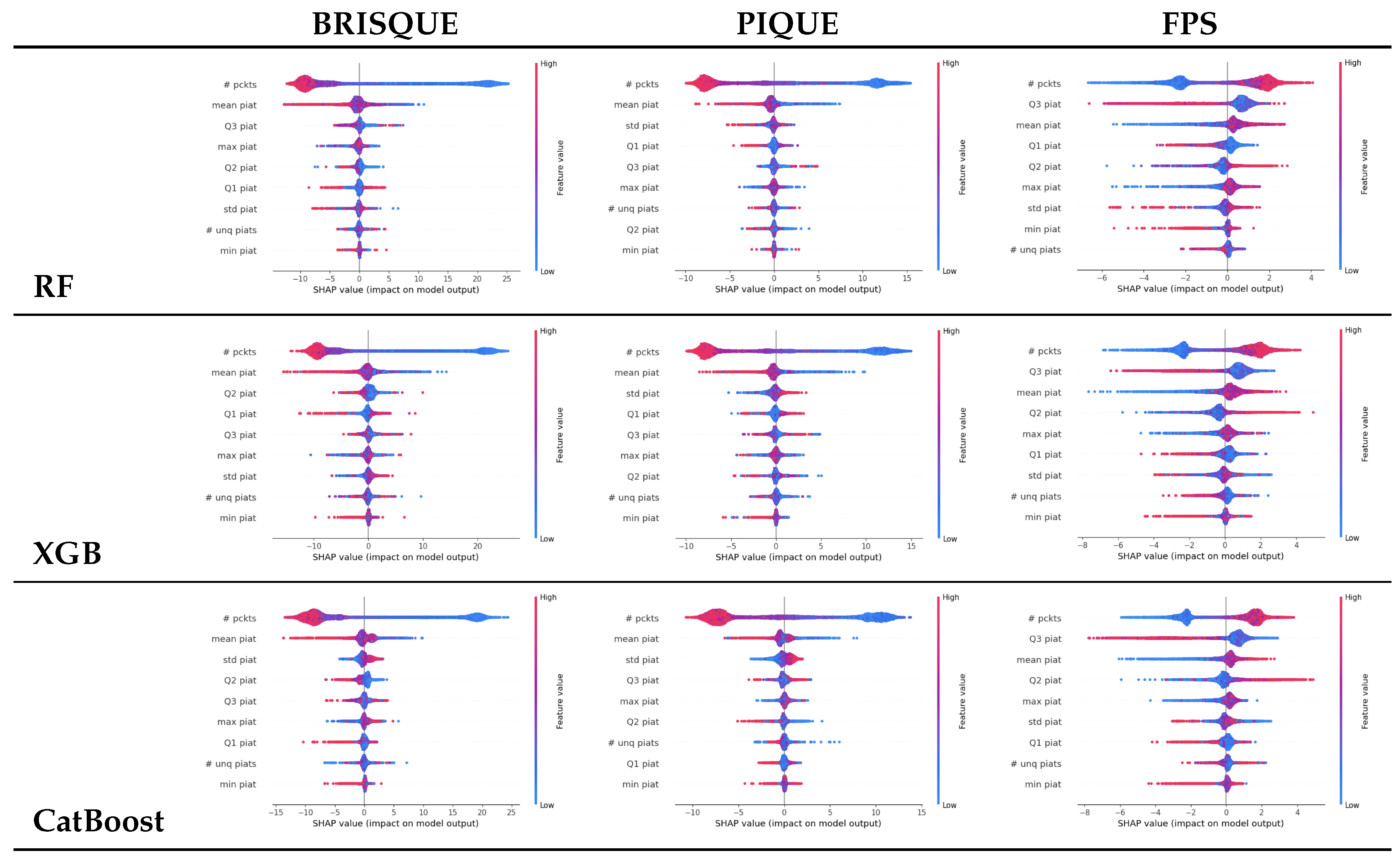

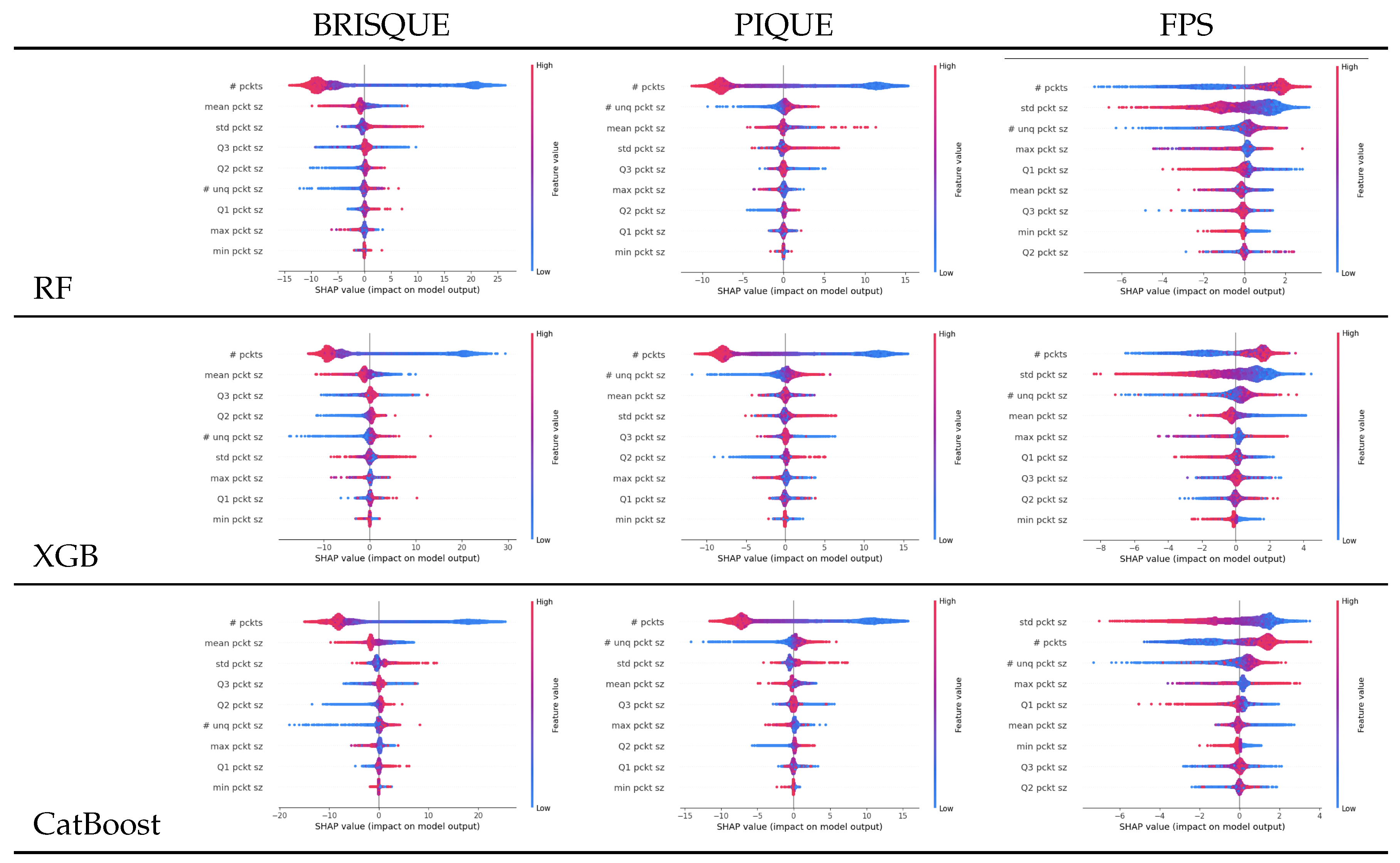

Figure 8 and
Figure 9. It should be noted that higher values (red color) are associated with larger increases in FPS and larger drops in BRISQEU and PIQE, as for these QoE metrics, lower values are better, while for the FPS, an opposite dependence holds.
5. Experiments
In this section, we describe the procedures that used to test the proposed models. We divided the data by the feature type that was used for the training of the model into two types, viz., PIAT and packet size features.
For each of the five models, we used 10-fold Cross-Validation (CV), and we calculated the mean error of each predicted QoE with respect to the test set. The mean results over all 10 CV folds are summarized in
Table 7. To test the importance of the two types of features that were extracted from the network pickup, we performed separate experiments for
PIAT and
packet size, and then, we performed experiments for
all features taken together.
5.1. ML Models
In each CV run, the training data were standardized (i.e., applying
on each feature), centering the data and cleaning outliers by removing all samples exceeding the mean by more than
. It is important to note that the test dataset was not cleaned of outliers, so the results in
Table 7 describe a scenario of the realistic application of the method on unconstrained data.
5.2. LMM-Based Agent
In our experiments, we used the latest and strongest ChatGPT LMM version—ChatGPT 4o (Omni). We chose this model due to its ease of application and possible use in production via the provided python API. In this study, we wished to demonstrate an easy way to train a model using the ChatGPT web-based client.
Training Procedure
We trained the model in an interactive way, as listed below:
Setting up the Context: As ChatGPT4o is a Large Multimodal Model (LMM), it may be applied for a multitude of tasks. To focus it on the task we are interested in, we perform what is called a “context setting” step
Figure 10, in which we describe, in general words, the type of “expert” we need the agent to become in order to answer our queries in the best way.

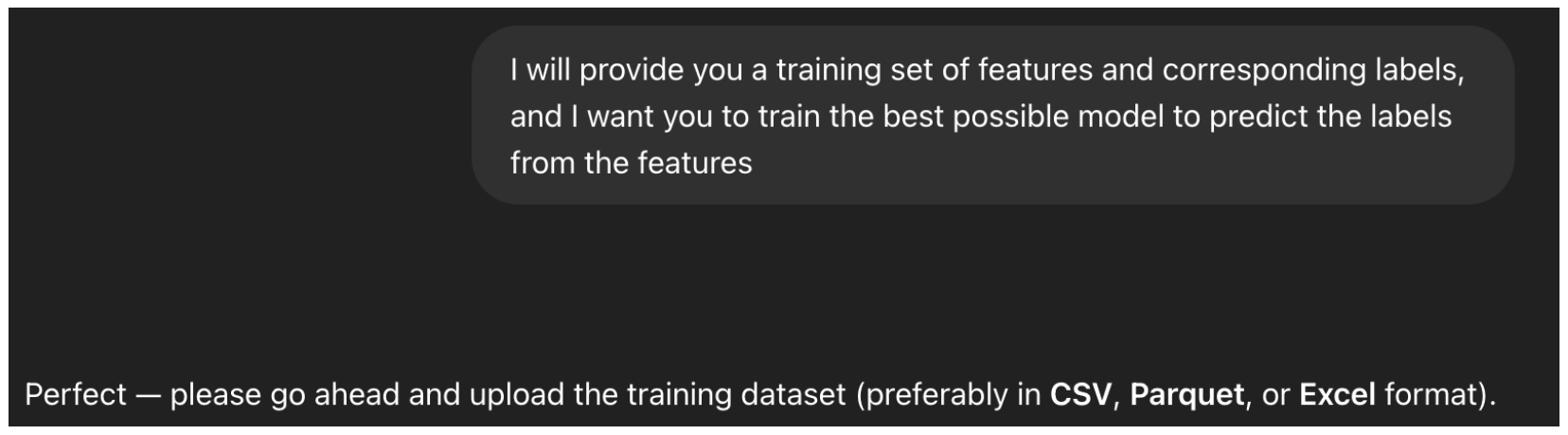

Training Query: As with other models, we need to provide the agent data to train the model. As presented in
Figure 11, we provide the agent with two csv files—one with features only (PIAT, packet size, or all) and a file that contains the corresponding labels (i.e., BRISQE, PIQE, FPS)—and explicitly ask it to carry out training on the provided dataset.

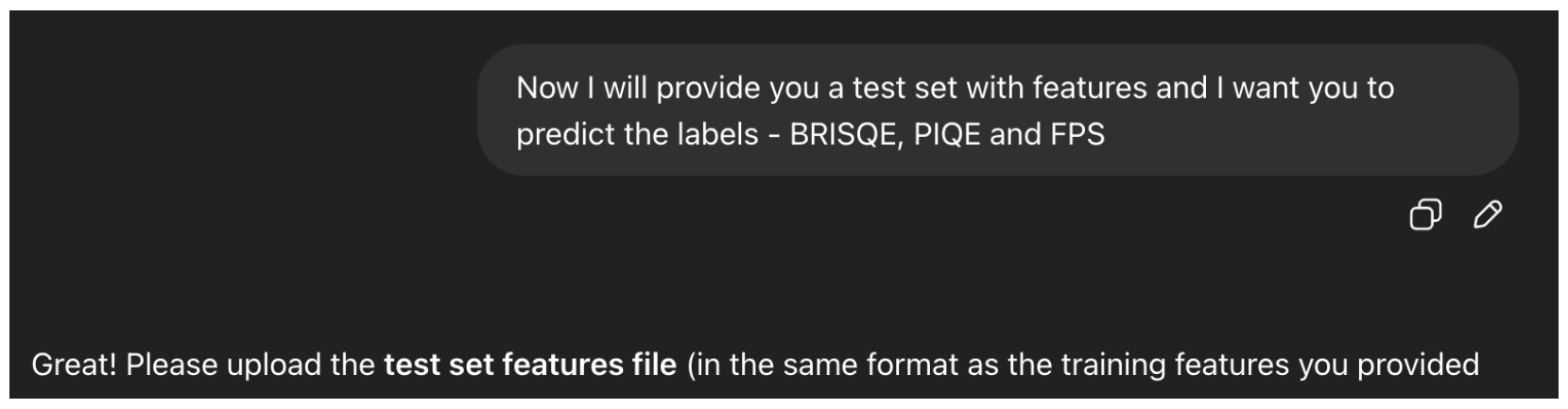

Test Query: To test the predictions of the model used by the agent, we provide it with another csv file with features only and ask it to produce labels for each of the entries
Figure 12, performing the same evaluation metric, as described in Equation (8), as for the other models.
Evaluation: As for the other models, we performed 10-fold CV, calculating the MAEP Equation (8) for each of the 10 test sets and training the model again on the training data for each of the 10 folds.
6. Results
In this section, we present the results of the experiments conducted to evaluate the performance of the proposed models. All experiments were carried out using the dataset collected by our team, as described in
Section 4.
To assess model performance, we computed the Mean Absolute Error Percentage (MAEP) between the predicted values and the ground truth labels, as defined in Equation (8).
Here, we present the results for the experiments that were conducted to test the proposed models. All experiments were performed using the data collected by our team, as described in
Section 4. We evaluated the performance of the proposed methods with two no-reference QoE metrics, viz., BRISQUE and PIQE, and one classical QoE evaluator, i.e, the FPS of the video, and we calculated the Mean Absolute Error Percentage (MAEP) of the predictions compared to the labels, as shown in Equation (8):
where
t denotes the true label, and
p denotes the predicted value.
We tested three feature settings via the following: (1) using only the features related to the packet inter-arrival times (PIATs); (2) using only features related to the packet sizes in traffic; and (3) using a combination of both. The results for all configurations and target metrics are summarized in
Table 7.
7. Conclusions and Future Work
In the current work, we analyzed a large dataset collected in a controlled setting on the WhatsApp IMVCA. We trained four ML algorithms and proposed an alternative approach for easy and precise predictions by employing a ChatGPT4o model, which is an LMM-based agent, improving the MAEP of the RF model by 24.3%, 17.7%, and 25.7% according to the SOTA method used for QoE predictions under encrypted settings.
The main strength of the proposed method lies in its ease of application, as it requires neither high-speed computational equipment nor high power demands to produce a highly accurate model for QoE prediction.
Regarding the drawbacks of the method proposed, we observe its lack of interpretability. Due to the proprietary nature of ChatGPT4o, neither the model used by it to generate the predictions nor the accurate settings for existing models that can produce comparable results are disclosed, as they constitute the intellectual property (IP) of OpenAI, the company behind ChatGPT.
In addition, as the models are stored online, the inference time is longer compared to other methods described in
Table 8, which makes this method less suitable for online applications.
As future work, we designate several lines of research as follows: (1) the exploration of other IMVCA applications under the encrypted traffic setting, as the applicability of our method to a specific application constitutes one of the main weaknesses of our work. (2) Another topic that may be further explored is the evaluation of other QoE metrics, such as the Mean Opinion Score (MOS). (3) Finally, other LMM agents besides ChatGPT may be employed in this domain.
Author Contributions
Conceptualization, M.S.; methodology, M.S.; software, M.S.; validation, M.S.; formal analysis, M.S., T.B., and J.S.; investigation, M.S., T.B., J.S., and R.B.; resources, M.S., R.B., and O.H.; data curation, M.S., T.B., and J.S.; writing—original draft preparation, M.S., T.B., and J.S.; writing—review and editing, M.S., T.B., J.S., R.B., and O.H.; visualization, M.S., T.B., and J.S.; supervision, R.B. and O.H.; project administration, R.B. and O.H.; funding acquisition, R.B. and O.H. All authors have read and agreed to the published version of the manuscript.
Funding
This research is part of the ENTM consortium, funded by the Israel Innovation Authority.
Data Availability Statement
Conflicts of Interest
The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.
References
- Chang, H.; Varvello, M.; Hao, F.; Mukherjee, S. Can you see me now? A measurement study of Zoom, Webex, and Meet. In Proceedings of the 21st ACM Internet Measurement Conference, Virtual, 2–4 November 2021; pp. 216–228. [Google Scholar]
- Feldmann, A.; Gasser, O.; Lichtblau, F.; Pujol, E.; Poese, I.; Dietzel, C.; Wagner, D.; Wichtlhuber, M.; Tapiador, J.; Vallina-Rodriguez, N.; et al. The lockdown effect: Implications of the COVID-19 pandemic on internet traffic. In Proceedings of the ACM Internet Measurement Conference, Virtual, 27–29 October 2020; pp. 1–18. [Google Scholar]
- Choi, A.; Karamollahi, M.; Williamson, C.; Arlitt, M. Zoom session quality: A network-level view. In Proceedings of the International Conference on Passive and Active Network Measurement, Virtual, 10–12 March 2022; pp. 555–572. [Google Scholar]
- Espin, A.; Rojas, C. The Impact of the COVID-19 Pandemic on the Use of Remote Meeting Technologies. Available at SSRN 3766889 2021. Available online: https://papers.ssrn.com/sol3/papers.cfm?abstract_id=3766889 (accessed on 13 July 2025).
- Nistico, A.; Markudova, D.; Trevisan, M.; Meo, M.; Carofiglio, G. A comparative study of RTC applications. In Proceedings of the 2020 IEEE International Symposium on Multimedia (ISM), Virtual, 2–4 December 2020; pp. 1–8. [Google Scholar]
- Fahrudin, S.; Winarni, R.; Winarno. Analysis of Learning Speaking Skills Using the WhatsApp Application in Elementary Schools. J. Phys. Conf. Ser. 2021, 1808, 012033. [Google Scholar] [CrossRef]
- MacMillan, K.; Mangla, T.; Saxon, J.; Feamster, N. Measuring the performance and network utilization of popular video conferencing applications. In Proceedings of the 21st ACM Internet Measurement Conference, Virtual, 23–27 August 2021; pp. 229–244. [Google Scholar] [CrossRef]
- Rao, N.; Maleki, A.; Chen, F.; Chen, W.; Zhang, C.; Kaur, N.; Haque, A. Analysis of the Effect of QoS on Video Conferencing QoE. In Proceedings of the 2019 15th International Wireless Communications & Mobile Computing Conference (IWCMC), Tangier, Morocco, 24–28 June 2019; pp. 1267–1272. [Google Scholar] [CrossRef]
- Dubin, R.; Hadar, O.; Richman, I.; Trabelsi, O.; Dvir, A.; Pele, O. Video quality representation classification of Safari encrypted DASH streams. In Proceedings of the 2016 Digital Media Industry & Academic Forum (DMIAF), Santorini, Greece, 4–6 July 2016; pp. 213–216. [Google Scholar]
- Gutterman, C.; Guo, K.; Arora, S.; Gilliland, T.; Wang, X.; Wu, L.; Katz-Bassett, E.; Zussman, G. Requet: Real-time QoE metric detection for encrypted YouTube traffic. ACM Trans. Multimed. Comput. Commun. Appl. (Tomm) 2020, 16, 1–28. [Google Scholar] [CrossRef]
- Mazhar, M.H.; Shafiq, Z. Real-time video quality of experience monitoring for https and quic. In Proceedings of the IEEE INFOCOM 2018-IEEE Conference on Computer Communications, Honolulu, HI, USA, 15–19 April 2018; pp. 1331–1339. [Google Scholar]
- Wassermann, S.; Seufert, M.; Casas, P.; Gang, L.; Li, K. Let me decrypt your beauty: Real-time prediction of video resolution and bitrate for encrypted video streaming. In Proceedings of the 2019 Network Traffic Measurement and Analysis Conference (TMA), Paris, France, 17–18 June 2019; pp. 199–200. [Google Scholar]
- Lu, J.; Batra, D.; Parikh, D.; Lee, S. Vilbert: Pretraining task-agnostic visiolinguistic representations for vision-and-language tasks. Adv. Neural Inf. Process. Syst. 2019, 32. Available online: https://proceedings.neurips.cc/paper_files/paper/2019/hash/c74d97b01eae257e44aa9d5bade97baf-Abstract.html (accessed on 13 July 2025).
- Jin, M.; Wang, S.; Ma, L.; Chu, Z.; Zhang, J.Y.; Shi, X.; Chen, P.Y.; Liang, Y.; Li, Y.F.; Pan, S.; et al. Time-llm: Time series forecasting by reprogramming large language models. arXiv 2023, arXiv:2310.01728. [Google Scholar]
- Ginige, Y.; Dahanayaka, T.; Seneviratne, S. TrafficGPT: An LLM Approach for Open-Set Encrypted Traffic Classification. In Proceedings of the Asian Internet Engineering Conference 2024, Sydney, NSW, Australia, 9 August 2024; pp. 26–35. [Google Scholar]
- Shaham, T.R.; Schwettmann, S.; Wang, F.; Rajaram, A.; Hernandez, E.; Andreas, J.; Torralba, A. A multimodal automated interpretability agent. In Proceedings of the Forty-first International Conference on Machine Learning, Vienna, Austria, 21–27 July 2024. [Google Scholar]
- Cortes, C.; Vapnik, V. Support-vector networks. Mach. Learn. 1995, 20, 273–297. [Google Scholar] [CrossRef]
- Vinayak, R.K.; Gilad-Bachrach, R. Dart: Dropouts meet multiple additive regression trees. In Proceedings of the Artificial Intelligence and Statistics, San Diego, CA, USA, 9–12 May 2015; pp. 489–497. [Google Scholar]
- Prokhorenkova, L.; Gusev, G.; Vorobev, A.; Dorogush, A.V.; Gulin, A. CatBoost: Unbiased boosting with categorical features. Adv. Neural Inf. Process. Syst. 2018, 31. Available online: https://proceedings.neurips.cc/paper/2018/hash/14491b756b3a51daac41c24863285549-Abstract.html (accessed on 13 July 2025).
- Vaswani, A.; Shazeer, N.; Parmar, N.; Uszkoreit, J.; Jones, L.; Gomez, A.N.; Kaiser, Ł.; Polosukhin, I. Attention is all you need. Adv. Neural Inf. Process. Syst. 2017, 30. Available online: https://proceedings.neurips.cc/paper/2017/hash/3f5ee243547dee91fbd053c1c4a845aa-Abstract.html (accessed on 13 July 2025).
- Glorot, X.; Bengio, Y. Understanding the difficulty of training deep feedforward neural networks. In Proceedings of the Thirteenth International Conference on Artificial Intelligence and Statistics, Sardinia, Italy, 13–15 May 2010; JMLR Workshop and Conference Proceedings. pp. 249–256. [Google Scholar]
- Krizhevsky, A.; Sutskever, I.; Hinton, G.E. Imagenet classification with deep convolutional neural networks. Adv. Neural Inf. Process. Syst. 2012, 25. Available online: https://proceedings.neurips.cc/paper/2012/hash/c399862d3b9d6b76c8436e924a68c45b-Abstract.html (accessed on 13 July 2025). [CrossRef]
- Sharma, T.; Mangla, T.; Gupta, A.; Jiang, J.; Feamster, N. Estimating WebRTC Video QoE Metrics Without Using Application Headers. In Proceedings of the 2023 ACM on Internet Measurement Conference, Montréal, QC, Canada, 24–26 October 2023; pp. 485–500. [Google Scholar] [CrossRef]
- Michel, O.; Sengupta, S.; Kim, H.; Netravali, R.; Rexford, J. Enabling passive measurement of zoom performance in production networks. In Proceedings of the 22nd ACM Internet Measurement Conference, Nice, France, 25–27 October 2022; pp. 244–260. [Google Scholar] [CrossRef]
- Marczak, B.; Scott-Railton, J. Move Fast and Roll Your Own Crypto: A Quick Look at the Confidentiality of Zoom Meetings; Technical Report 126; The Citizen Lab: Toronto, ON, Canada, 2020. [Google Scholar]
- Mittal, A.; Moorthy, A.K.; Bovik, A.C. No-Reference Image Quality Assessment in the Spatial Domain. IEEE Trans. Image Process. 2012, 21, 4695–4708. [Google Scholar] [CrossRef] [PubMed]
- Mittal, A.; Soundararajan, R.; Bovik, A.C. Making a “Completely Blind” Image Quality Analyzer. IEEE Signal Process. Lett. 2013, 20, 209–212. [Google Scholar] [CrossRef]
- Sheikh, H.R.; Wang, Z.; Cormack, L.; Bovik, A. LIVE Image Quality Assessment Database Release 2. 2005. Available online: https://live.ece.utexas.edu/research/quality (accessed on 20 July 2024).
- Pearson, K. VII. Note on regression and inheritance in the case of two parents. Proc. R. Soc. Lond. 1895, 58, 240–242. [Google Scholar] [CrossRef]
- Pearson, K. LIII. On lines and planes of closest fit to systems of points in space. Lond. Edinb. Dublin Philos. Mag. J. Sci. 1901, 2, 559–572. [Google Scholar] [CrossRef]
Figure 1.
An example of feature extraction with the WireShark application in the lab environment. Red boxes highlight the traffic passed from one user encrypted by Transport Layer Security (TLS) protocol.
Figure 1.
An example of feature extraction with the WireShark application in the lab environment. Red boxes highlight the traffic passed from one user encrypted by Transport Layer Security (TLS) protocol.
Figure 2.
Cumulative distribution function (CDF) of UDP packet size by payload type for the WhatsApp dataset. PT denotes payload type, and reTX denotes retransmission.
Figure 2.
Cumulative distribution function (CDF) of UDP packet size by payload type for the WhatsApp dataset. PT denotes payload type, and reTX denotes retransmission.
Figure 3.
Characterization of the spatial quality through CDFs.
Figure 3.
Characterization of the spatial quality through CDFs.
Figure 4.
Density distribution of BRISQUE, PIQE, and frame rate corresponding to each bandwidth limit: 250 kBps, 125 kBps, 60 kBps, 30 kBps, and 15 kBps.
Figure 4.
Density distribution of BRISQUE, PIQE, and frame rate corresponding to each bandwidth limit: 250 kBps, 125 kBps, 60 kBps, 30 kBps, and 15 kBps.
Figure 5.
Relationship between bandwidth and (a) mean packet size and (b) packet count.
Figure 5.
Relationship between bandwidth and (a) mean packet size and (b) packet count.
Figure 6.
A heatmap representing the correlation of the features extracted from the PCAP files, as presented in
Table 4.
Figure 6.
A heatmap representing the correlation of the features extracted from the PCAP files, as presented in
Table 4.
Figure 7.
The PCA of the features in the dataset.
Figure 7.
The PCA of the features in the dataset.
Figure 8.
Shapley analysis for the three algorithms RF, XGB, and CatBoost on the packet size’s statistical features.
Figure 8.
Shapley analysis for the three algorithms RF, XGB, and CatBoost on the packet size’s statistical features.
Figure 9.
Shapley analysis for Random Forest, XGBoost and CatBoost on packet inter-arrival time (PIAT) features, as shown in
Table 4.
Figure 9.
Shapley analysis for Random Forest, XGBoost and CatBoost on packet inter-arrival time (PIAT) features, as shown in
Table 4.
Figure 10.
The initialization query of ChatGPT, which sets the context of the model.
Figure 10.
The initialization query of ChatGPT, which sets the context of the model.
Figure 11.
The query used for the training procedure for each of the CV folds.
Figure 11.
The query used for the training procedure for each of the CV folds.
Figure 12.
The query used for the test procedure for each of the CV folds.
Figure 12.
The query used for the test procedure for each of the CV folds.
Table 1.
Description of the features that were recorded between the two participants in an IMVCA session.
Table 1.
Description of the features that were recorded between the two participants in an IMVCA session.
Name | Abbreviation | Data Type | Description |
---|
frame.time_epoch | TE | | The arrival time of the current frame |
frame.time_relative | RT | | The time passed since the start of the current time epoch |
ip.src | IP_SRC | | The source IP address of the packet |
ip.dst | IP_DST | | The destination IP address of the packet |
ip.proto | IP_PROTO | | The protocol of the IP packet |
ip.len | IP_LEN | | The length of the IP packet |
udp.srcport | UDP_SRC_PRT | | The source port of the UDP datagram |
udp.dstport | UDP_DST_PRT | | The destination port of the UDP datagram |
udp.length | UDP_LEN | | The length of the UDP datagram |
Table 2.
Specifications of the sensors of the cameras used in the experiments.
Table 2.
Specifications of the sensors of the cameras used in the experiments.
Device | Resolution | Sensor Size (Inches) |
---|
Iphone SE (2020) | 1.2 MP | |
Iphone 11 | 12 MP | |
Galaxy 9 | 8 MP | |
MacBook Air m1 | 720p | |
Asus ROG g17 | 720p | |
External Internet Camera | 1080p | |
Table 3.
The limitations imposed on the network line to simulate a realistic IMVCA session.
Table 3.
The limitations imposed on the network line to simulate a realistic IMVCA session.
Device | Description |
---|
Bandwidth limit | The maximal available bandwidth for the session was set to one of the following: 250, 125, 60, 30, or 15 kbps. The values were evenly distributed to avoidbias. |
Bandwidth drops | A random drop in bandwidth from 250 to 15 kbps was introduced into the session. |
Packet loss | The probability for losing a packet in the process of the session was chosen randomly and evenly distributed from 0%, 1%, 2%,5%, or 10%. |
Table 4.
The features extracted from the PCAP file of the IMVCA session. There are two types of features related to the size of the packets and to their inter-arrival timing.
Table 4.
The features extracted from the PCAP file of the IMVCA session. There are two types of features related to the size of the packets and to their inter-arrival timing.
Feature Type | Feature | Data Type | Description |
---|
General | #_pckts | | The number of packets in time window |
Packet Size | #_unq_pck_sz | | Number of unique packet sizes in time window |
min_pckt_sz | | Minimal packet size in time window |
max_pckt_sz | | Maximal packet size in time window |
mean_pckt_sz | | Mean packet size in time window |
std_pckt_sz | | Standard deviation of the packet sizes in
time window |
q1_pckt_sz | | Proportion of the packet sizes that are larger than 75% of the packet sizes |
q2_pckt_sz | | Proportion of the packet sizes that fall in range of 50–75% of the packet sizes |
q3_pckt_sz | | The lowest proportion of the packet sizes that are smaller than 25% of the packet sizes |
PIAT | #_unq_piats | | Number of unique PIATs in time window |
min_piat | | Minimal PIAT in time window |
max_piat | | Maximal PIAT in time window |
mean_piat | | Mean PIAT in time window |
std_piat | | Standard deviation of the PIAT in time window |
q1_piat | | Proportion of the PIATs that are larger than 75% of the packet sizes in the data |
q2_piat | | Proportion of the PIATs that fall in range of 50–75% of the packet sizes in the data |
q3_piat | | The lowest proportion of the PIATs that are smaller than 25% of the packet sizes |
Table 5.
Classification Accuracy of WhatsApp Packets.
Table 5.
Classification Accuracy of WhatsApp Packets.
Actual | Classified | Packet Count | Average Packet Size (Bytes) |
---|
| Non-Video | Video | | |
---|
Non-Video | 99.93% | 0.07% | 285,751 | 187 |
Video | 0.01% | 99.99% | 3,583,870 | 1054 |
Table 6.
Quality scale ratings of PIQE and BRISQUE.
Table 6.
Quality scale ratings of PIQE and BRISQUE.
PIQE Range | BRISQUE Range | Rating |
---|
0–20 | 0–20 | Excellent |
21–35 | 21–40 | Good |
36–50 | 41–60 | Fair |
51–80 | 61–80 | Poor |
81–100 | 81–100 | Bad |
Table 7.
Here, we present the performance of five different prediction models with respect to the task of QoE prediction expressed in MAEP Equation (8) on three popular QoE metrics, viz., BRISQUE, PIQE, and FPS. The results are grouped by the type of features used for prediction, where we present the best results in each subgroup using bold scripts.
Table 7.
Here, we present the performance of five different prediction models with respect to the task of QoE prediction expressed in MAEP Equation (8) on three popular QoE metrics, viz., BRISQUE, PIQE, and FPS. The results are grouped by the type of features used for prediction, where we present the best results in each subgroup using bold scripts.
Features Type | Algorithm | BRISQUE | PIQE | FPS |
---|
Packet Size | Random Forest | | | |
XGBoost | | | |
CatBoost | | | |
SVM | | | |
LMM Agent | 5.20
0.067 | 5.67
0.055 | 14.83 ± 1.222 |
PIAT | Random Forest | | | |
XGBoost | | | |
CatBoost | | | |
SVM | | | |
LMM Agent | 4.61
0.100 | 5.36
0.119 | 13.24 ± 0.733 |
All | Random Forest | 6.09
6.543 | 6.52 6.702 | |
XGBoost | | | |
CatBoost | | | |
SVM | | | |
LMM Agent | | | 16.51
0.788 |
Table 8.
Inference time for different models and feature settings expressed in milliseconds.
Table 8.
Inference time for different models and feature settings expressed in milliseconds.
Algorithm | Packet Size | PIAT | All |
---|
Random Forest | | | |
XGBoost | | | |
CatBoost | | | |
SVM | | | |
ChatGPT (4o) Agent | | | |
| Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2025 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
