A TSENet Model for Predicting Cellular Network Traffic
Abstract
:1. Introduction
2. Related Work

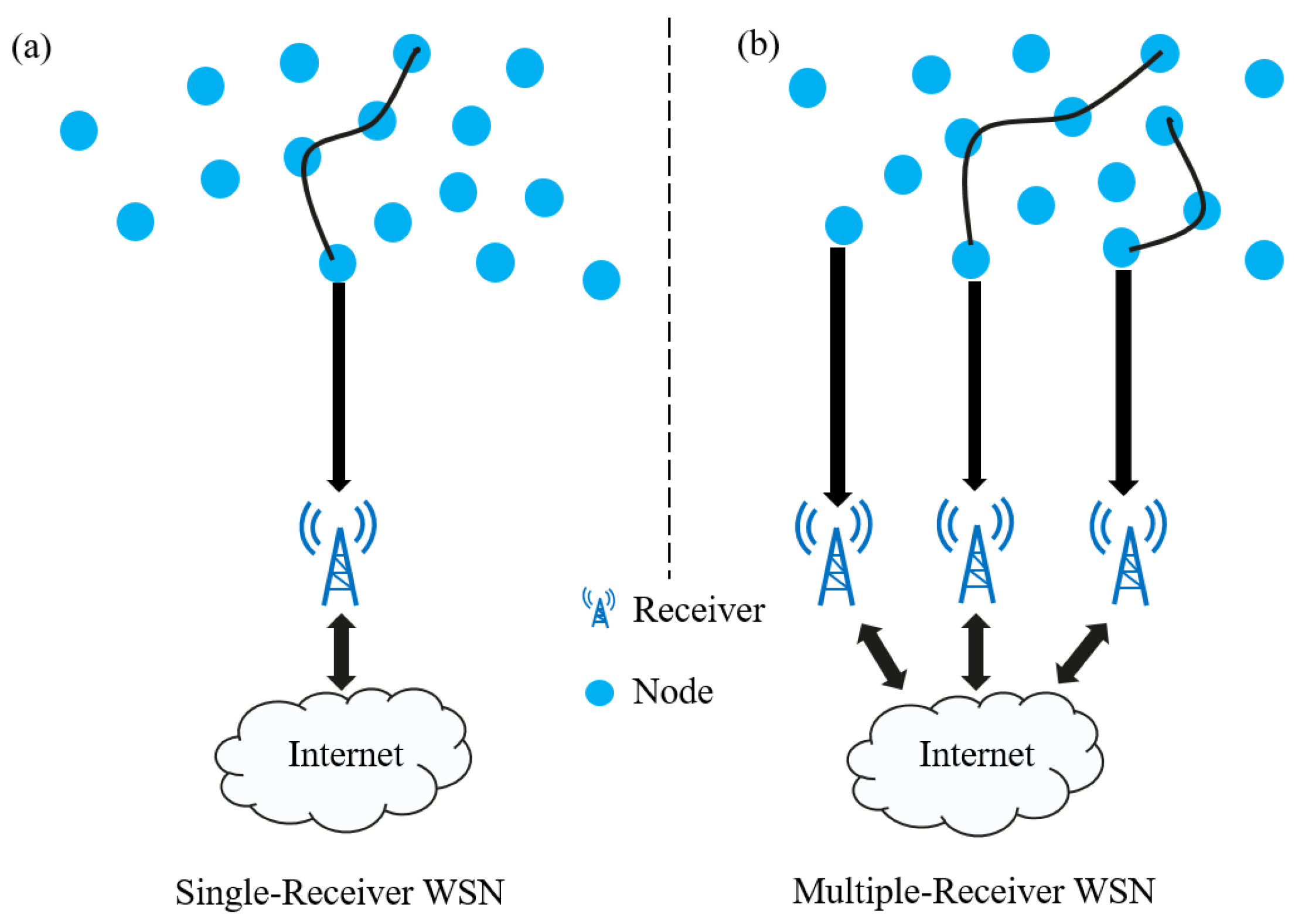

2.1. Wireless Sensor Networks
2.2. Network Traffic Prediction
2.3. Transformer
3. Method
3.1. The Proposed TSENet Framework
3.2. Spatial-Sequence Module
- (1)
- Grid arrangement: We sort each grid according to its correlation with other grids and select the top L largest grids. The value of L can be chosen based on experimental results. We employ the Pearson correlation coefficient to assess the correlation. The correlation between two grids A and B with equal traffic sequence lengths is calculated by the covariance of the variables and the product of their standard deviations:We concatenate the incoming data and outgoing data to form a matrix of dimensions . Subsequently, the correlation matrix is computed according to Equation. signifies the relevance between the i and j grids at the t interval.
- (2)

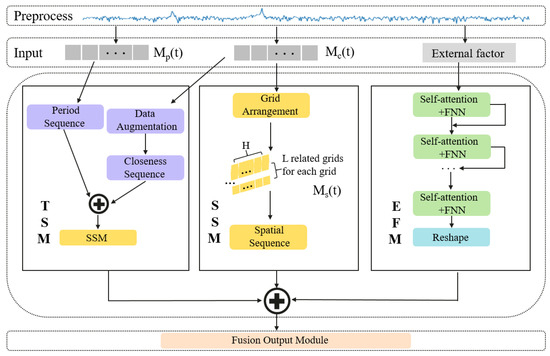

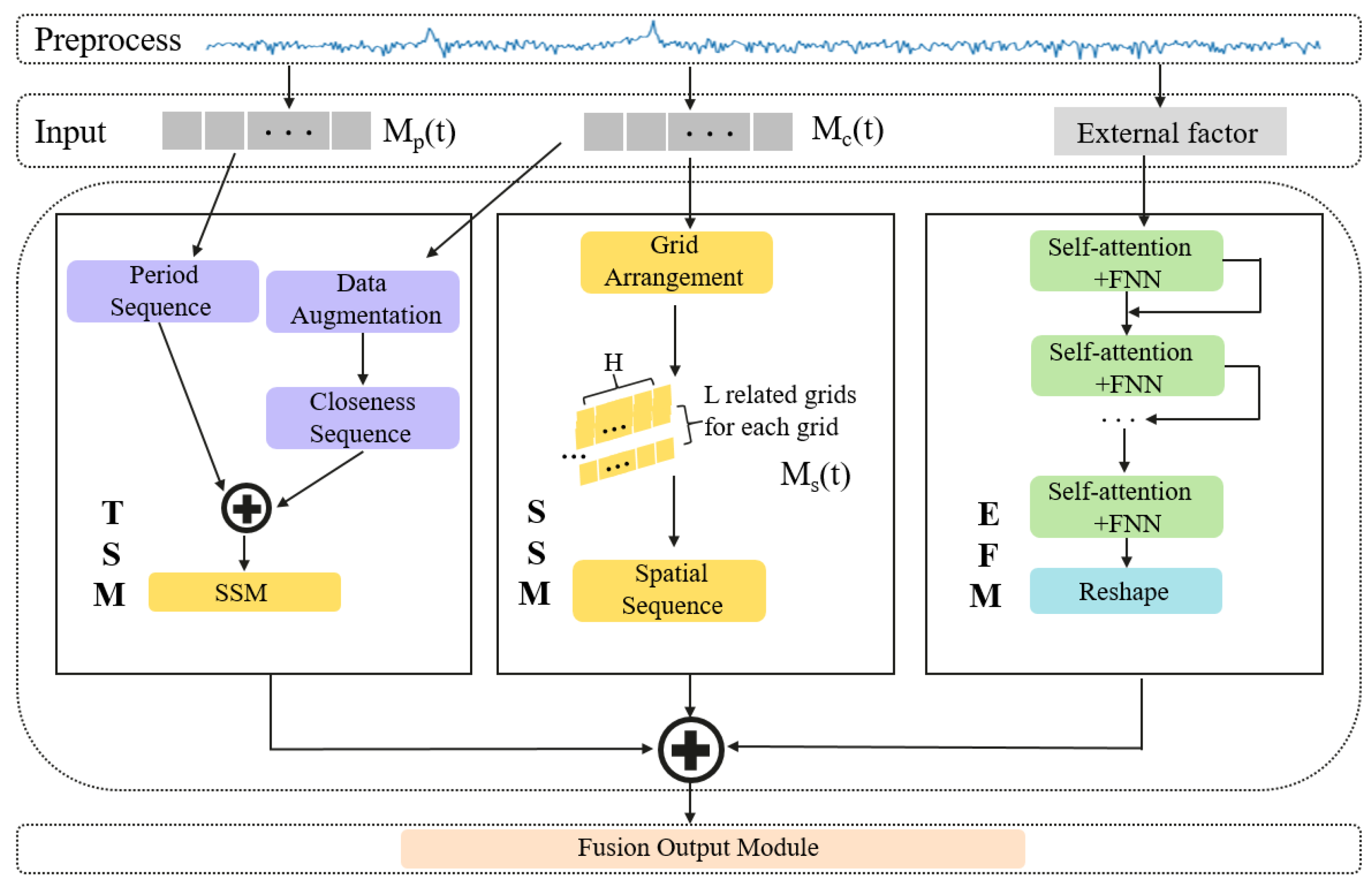

- Spatial sequence: As illustrated in Figure 2, the source sequence and the initial sequence serve as the principal inputs to the essential transformer. In natural language processing (NLP), the elements of the sequence involve more informative word embeddings, but the array of cellular traffic data results in the scarcity of information. We choose the two complementary input arrays to ensure the predictive performance of the transformer. The proximity matrix signifies the cellular communication states close to the target interval. The designed by encompasses real-time spatial features for the sequence with a length of L, serving as the source array, and is taken as the initial array with a length of 1, yielding the output of the SSM, . We omit positional encoding because there is no chronological order between spatial networks.
3.3. Time-Sequence Module
- (1)
- Closeness sequence: To harness additional information from the input data, is extended as the source sequence of the proximity sequence. During the enhancement procedure, we use the correlation matrix to select the topmost U correlated networks for each grid. We combine the selected data and the grid data and create a scalar with dimension , where U is a parameter determined through experimentation. This process enhances both the temporal features within the sequence elements and introduces a few space information in the original sequence, thereby enhancing the accuracy of predictions.In the closeness sequence, the averaging of the second dimension of yields an initial sequence of dimensions . We employ these averaged historical data as indicators for the traffic data levels in future time intervals. The closeness sequence produces the proximity time prediction, denoted as .
- (2)
- Periodic sequence: The periodic sequence is akin to the proximity sequence but lacks critical information. We employ as the original sequence, with serving as the initial sequence for the temporal sequence, thereby utilizing the compact time information included in to complement the period sequence. The outcome of the periodic time prediction is expressed as .

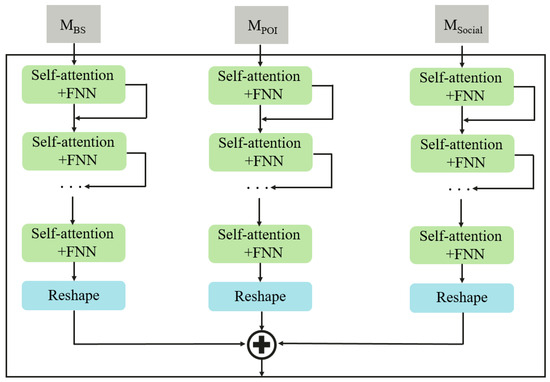

3.4. External-Factor Module

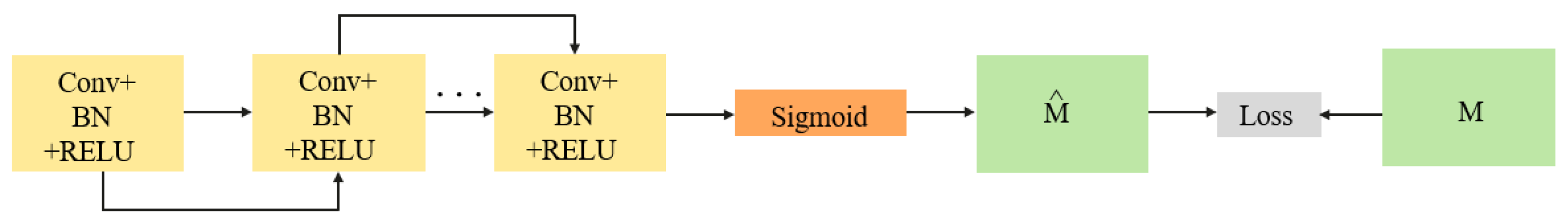

3.5. Fusion Output Module
4. Experiment
4.1. Dataset and Experimental Settings
4.2. Inner Parameters of Transformers
4.3. Analysis of Useful Temporal Features
4.4. Analysis of Useful Spatial Features
4.5. Experiment Analysis
4.6. Validation of Key Components
- (1)

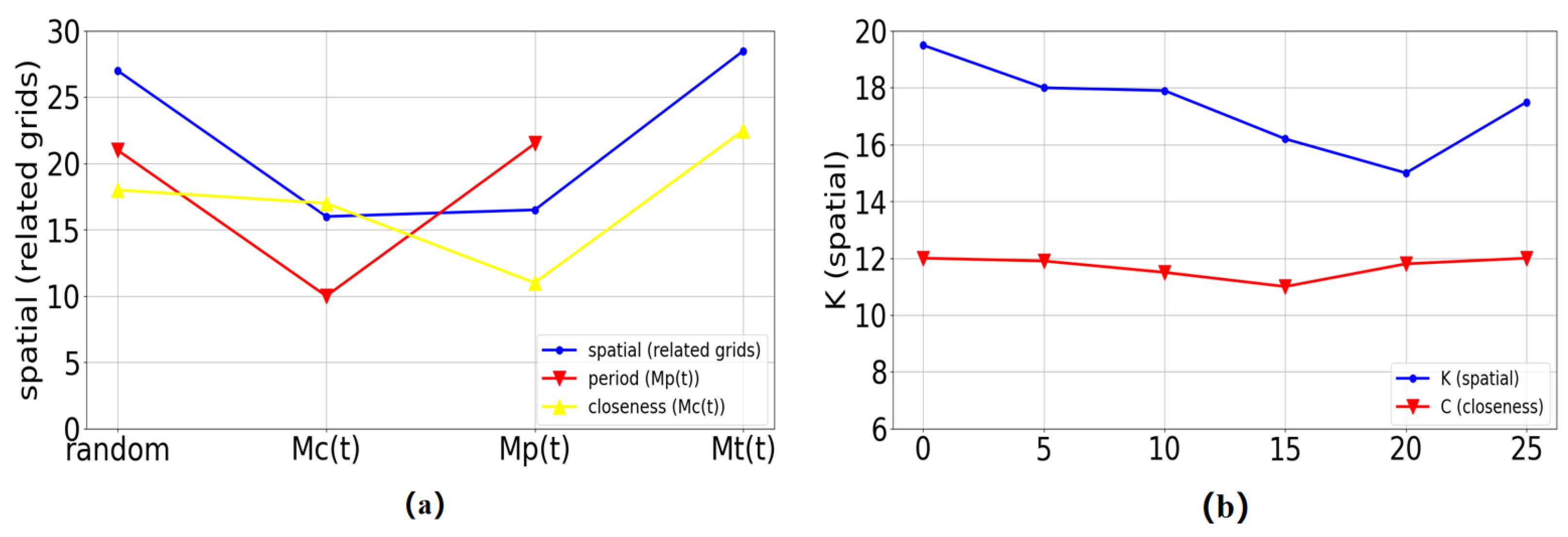

- Augmentation of data: When setting Q to zero, it is equivalent to omitting data augmentation from the TSM. As discerned from Figure 5, the augmentation of data enhanced the predictive outcomes, with the minimum value of MAE observed when Q was set to 15.
- (2)
- Grid selection: Setting K to one is comparable to removing grid selection from the set-top box. As evidenced in Figure 5, grid selection markedly enhanced predictive performance. Optimal performance was achieved when selecting 20 grids.
- (3)
- Spatial features in the SSM: In order to substantiate the significance of extracting spatial features, we conducted experiments solely utilizing the TSM. The outcomes of TSENet (TSM only) presented in Table 4 underscore the efficacy of capturing spatial relationships. Additionally, we utilized a graph convolutional network (GCN) [33] in lieu of the SSM to represent spatial features in TSENet, assessing the spatial modeling efficacy of the SSM through experiments. The results in Table 4 demonstrate that incorporating the SSM yielded better performance compared to a GCN, enhancing the overall model performance.
- (4)
- Temporal fusion with the SSM: We also trained TSENet (without SSM fusion), where SSM was excluded from TSM. As illustrated in Table 4, TSENet (excluding SSM fusion) demonstrated superior performance in anomalous scenarios, confirming the spatial transformer’s effectiveness in capturing real-time spatial dependence.
Methods | MAE | NRMSE | |
---|---|---|---|
TSENet (TSM only) | 10.3499 | 0.54258 | 0.82695 |
TSENet (with GCN) | 10.9125 | 0.57528 | 0.80473 |
TSENet (w/o SSM in fusion) | 9.9268 | 0.53369 | 0.83329 |
TSENet | 9.758 | 0.51858 | 0.84302 |
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
