Sensor-Enhanced Smart Gripper Development for Automated Meat Processing
Abstract
:1. Introduction
1.1. Background

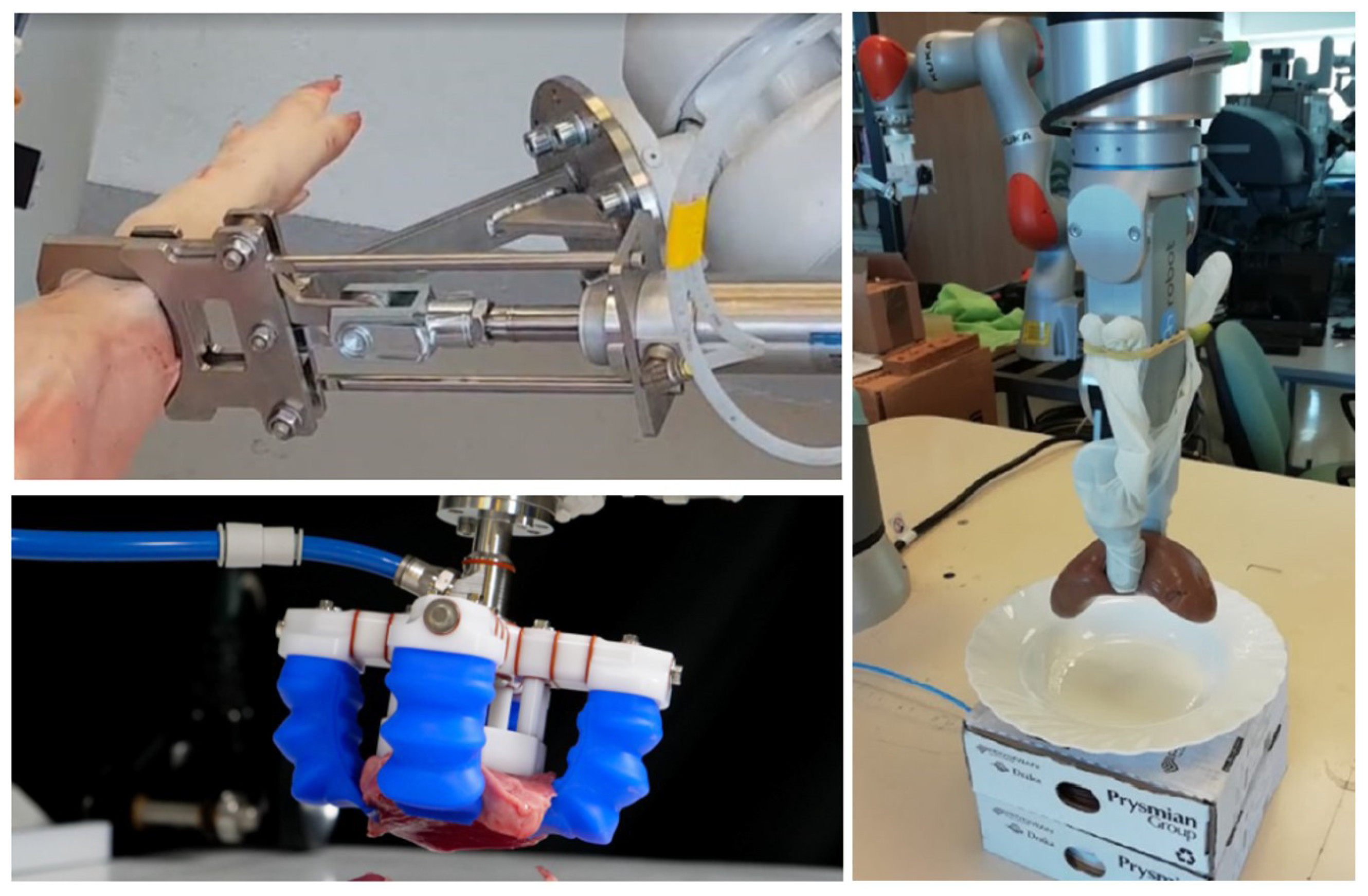

1.2. Meat Industry Grippers

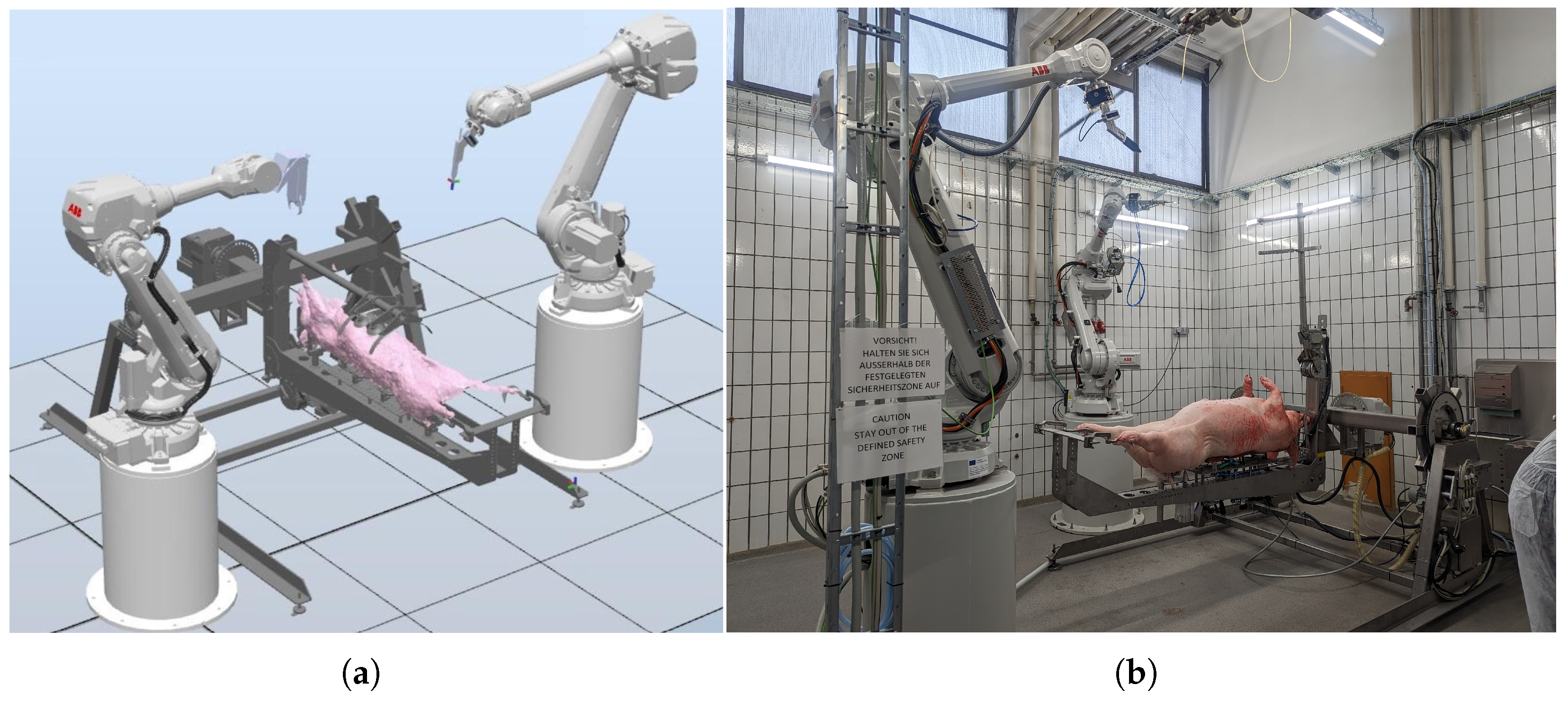

1.3. The RoBUTCHER Project
2. Materials and Methods
- Encircling gripping motion for target displacement tolerance;
- Cleanability, disinfectability, i.e., waterproof design;
- High payload (up to 30 kg);
- Fail-safe operation on power cut;
- Smart functionalities:
- -
- Force-controlled gripping;
- -
- Slip detection;
- -
- Wireless communication (for development and analysis);
- -
- Real-time feedback about successful grasping;
- -
- Real-time feedback about target displacement.
2.1. Requirements
- Reliable grasping of a cylindrical object with known position and orientation in space:
- -
- Diameter: 3–4 cm;
- -
- Might be a random mass of soft tissues, up to 6–8 cm across;
- -
- Slippery, wet surface;
- -
- Relatively high position and orientation error should be hypothesized;
- All parts of the gripper should withstand at least 400 N (tensile strength of the trachea);
- Made of food-grade materials;
- Easy-to-clean design; can be decontaminated with industrial methods;
- Can be applied onto an industrial manipulator robot as an end-effector (both mechanically and electronically);
- Smart functionalities:
- -
- Closing-force sensing and/or control;
- -
- Slip-detection;
- -
- Feedback to the robot cell regarding the grasping.

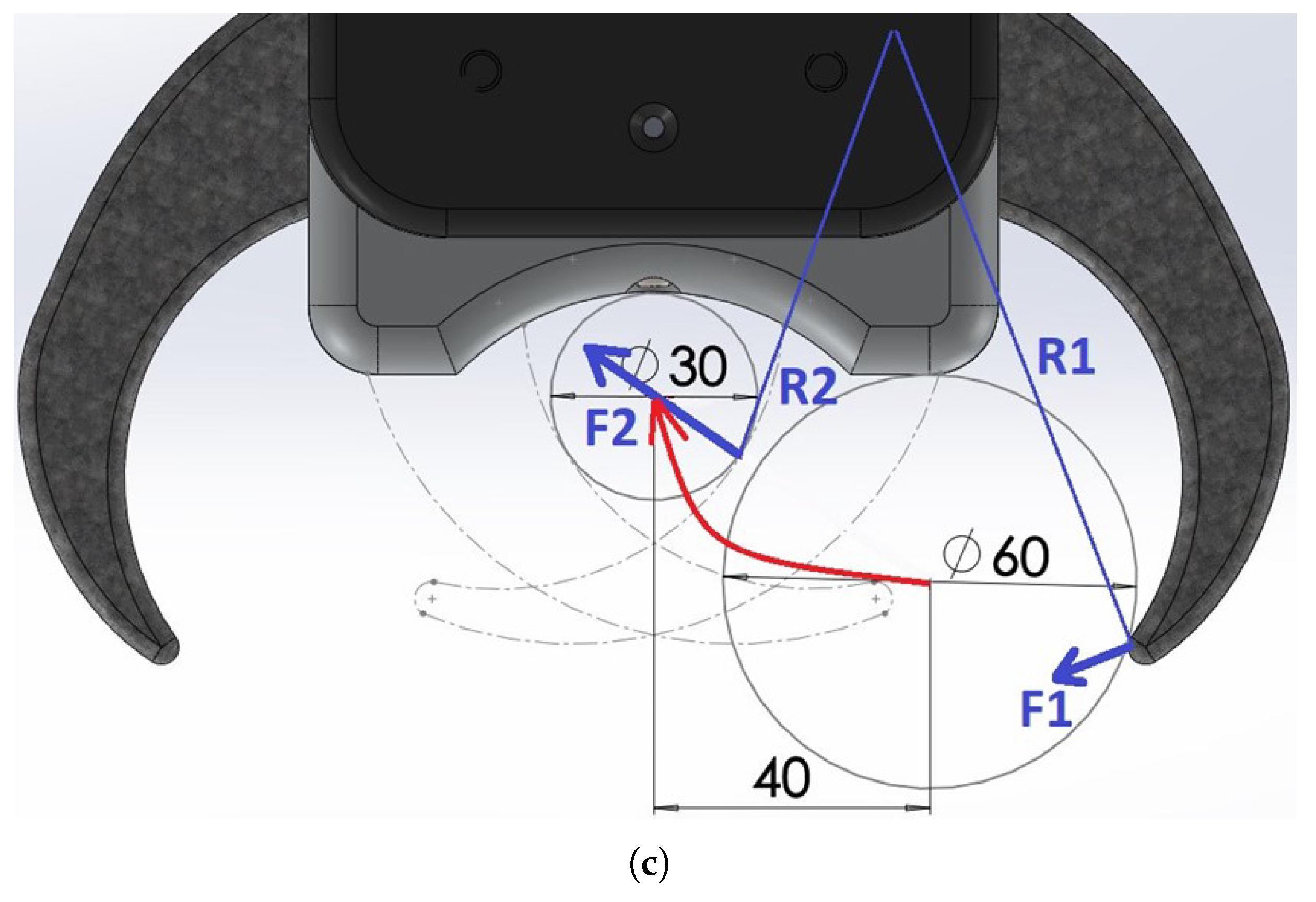

2.2. Mechanical Design
- The fingers can reach around, lock on and pull in the target object within a sufficient diameter-range;
- The encircling motion allows compensation for uncertainty in the gripper-positioning (displacement of the leg/trachea in a radial direction and angular error);
- The design is modular, the shape of the fingers can be optimized for future tasks as well, as they are easily replaced;
- Gripping force can be measured and controlled relatively easily compared to soft grippers.

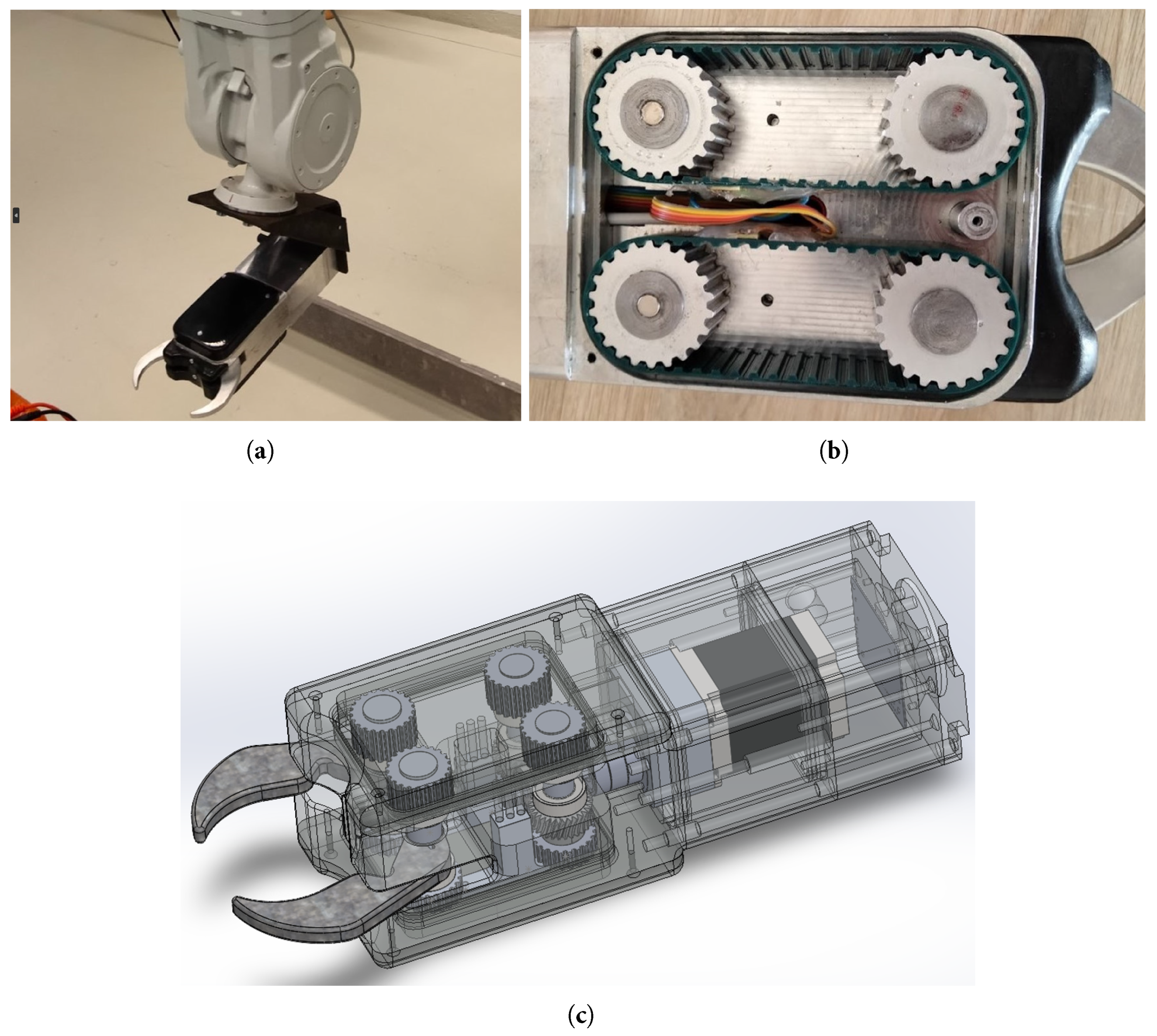

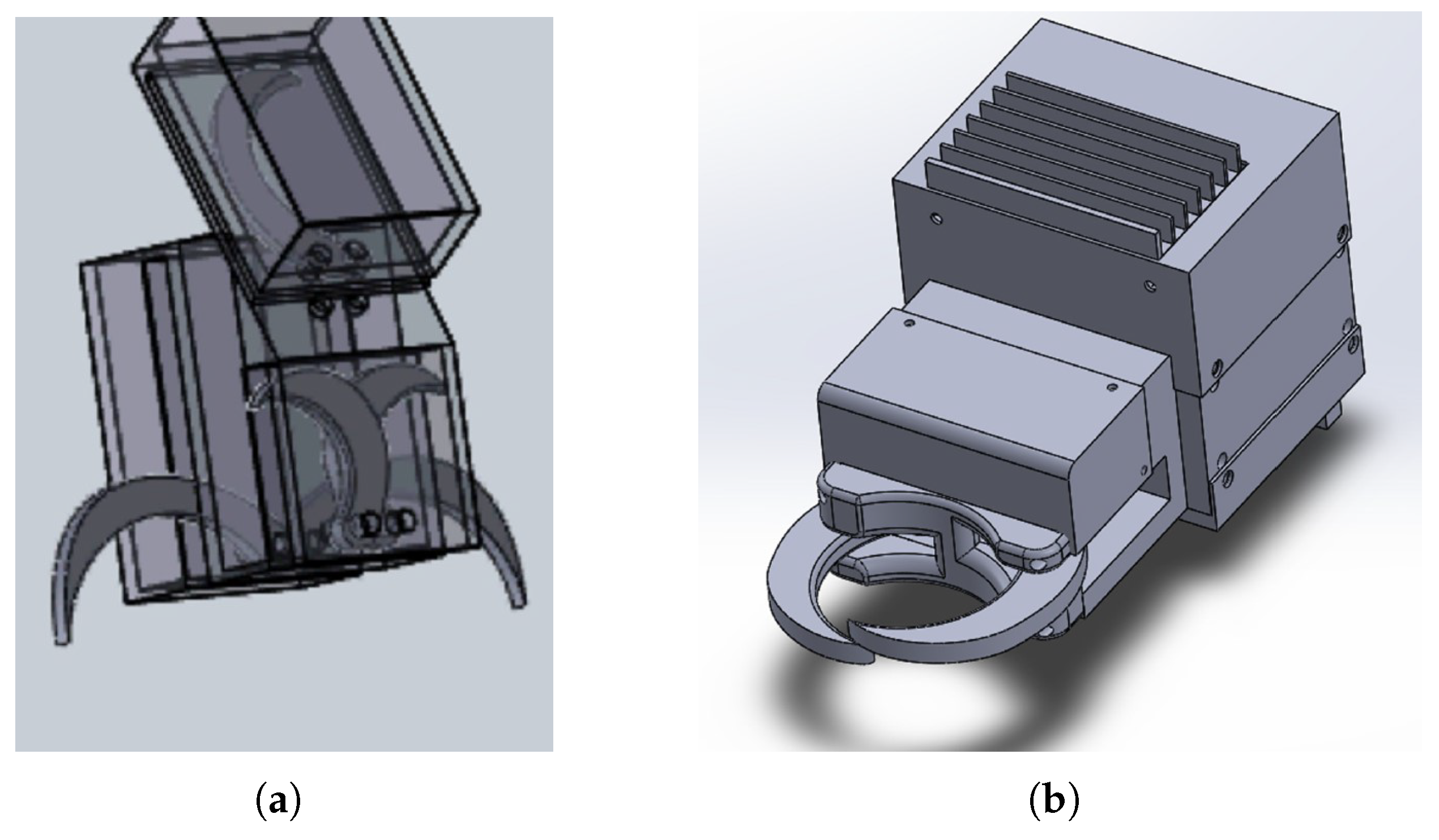

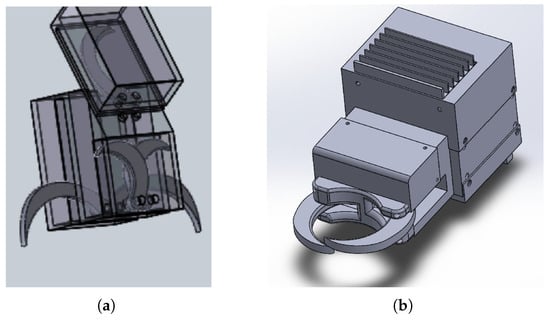

2.3. Final Gripper Design
- Elongated shape and an additional spacer for robot workspace optimization;
- Completely sealed design;
- Optimized finger-shape;
- Stronger motor;
- All electronic components are soldered on dedicated, manufactured PCBs;
- Different novel integrated gripping force sensing solutions implemented;
- Smart features implemented: slip detection, force control, 2-way communication with the robot cell.
2.4. Smart Features

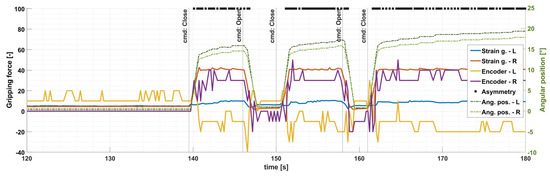

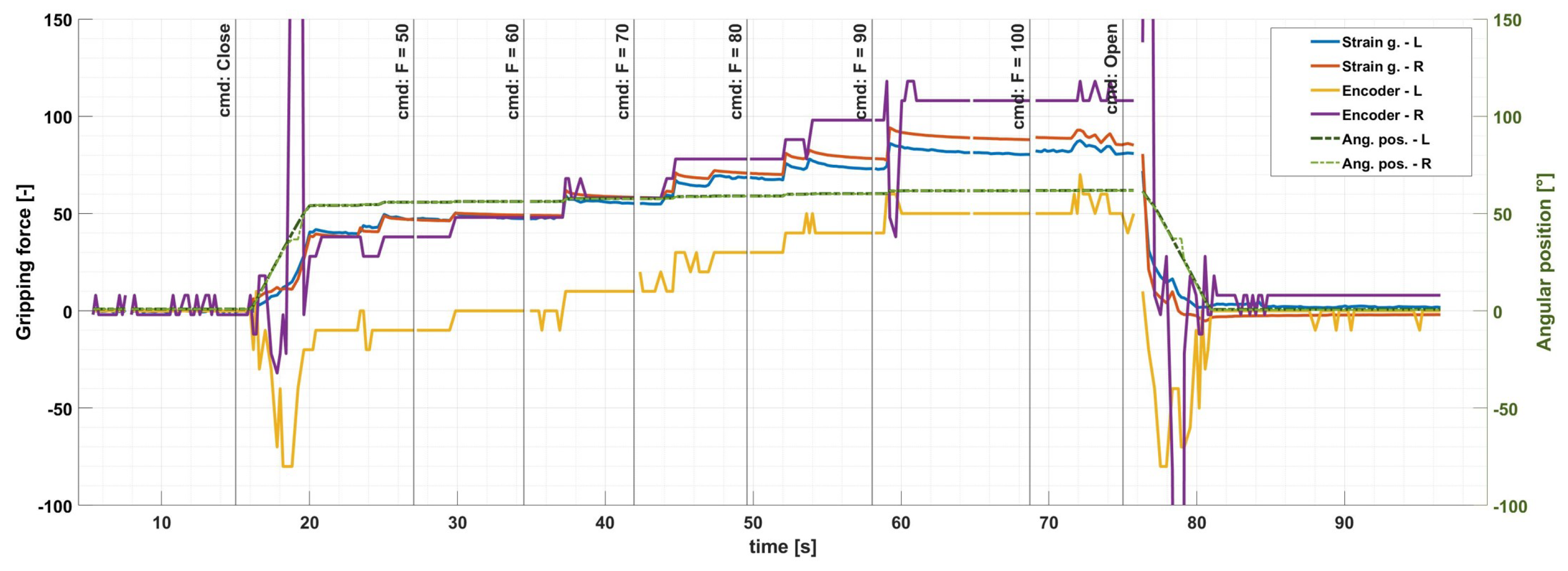

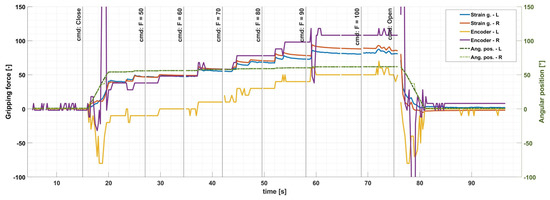

2.4.1. Force-Controlled Gripping

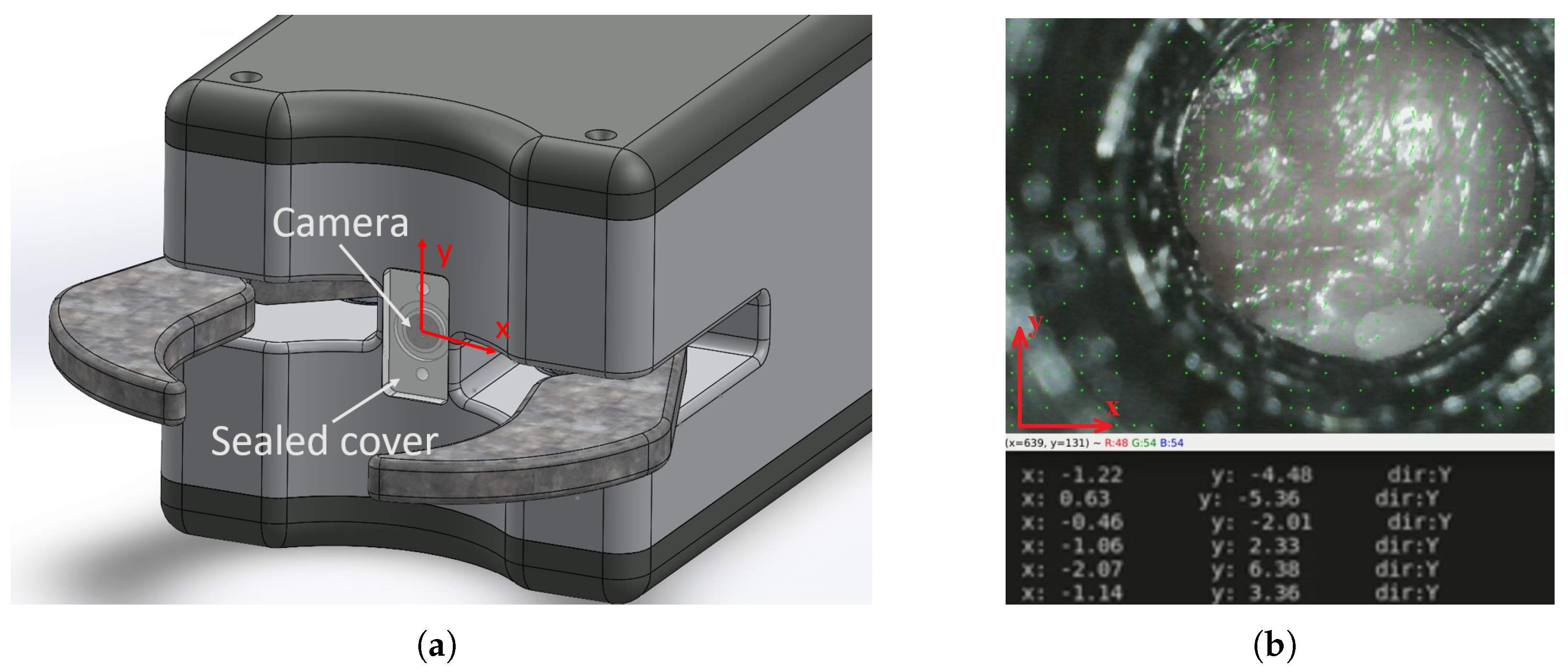

2.4.2. Slip Detection
3. Results
3.1. Mechanical Design

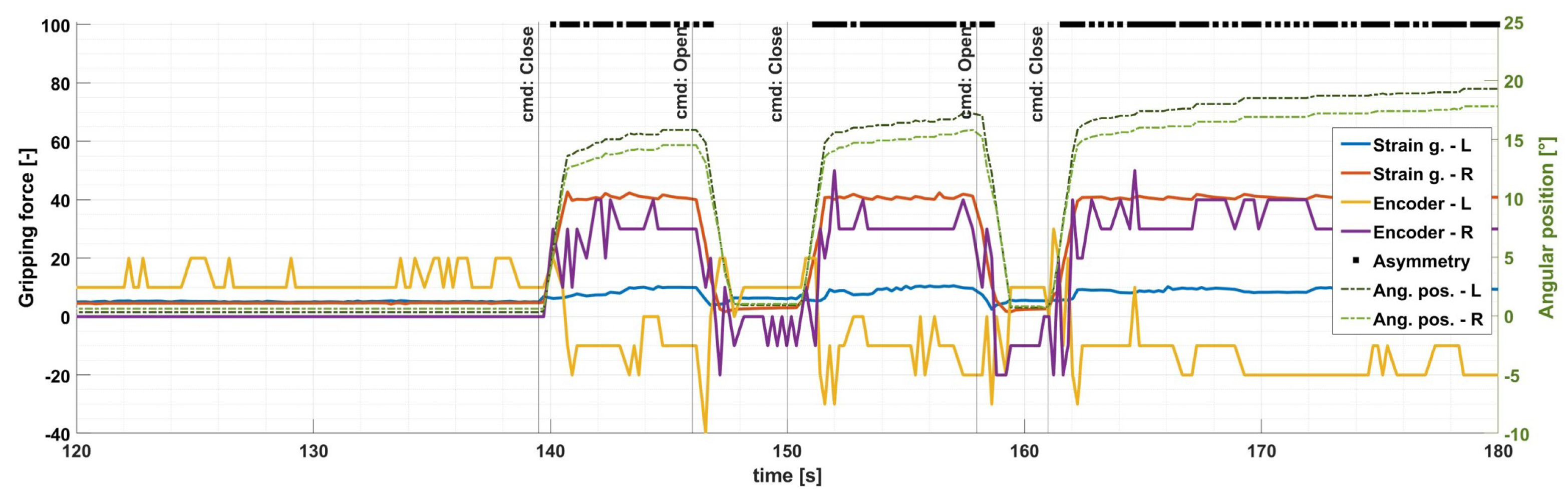

3.2. Smart Features
4. Discussion
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Data Availability Statement
Conflicts of Interest
Abbreviations
AI | Artificial Intelligence |
CAD | Computer-Aided Design |
CHU | Carcass Handling Unit |
DMRI | Danish Technological Institute |
DOF | Degrees of Freedom |
EOAT | End of Arm Tooling |
EU | European Union |
FPS | Frames per Second |
GPIO | General Purpose Input/Output |
MFC | Meat Factory Cell |
NMBU | Norwegian University of Life Sciences |
PCB | Printed Circuit Board |
ROI | Region of Interest |
RGB-D camera | Red-Green-Blue-Depth camera |
