A Narrowband IoT Personal Sensor for Long-Term Heart Rate Monitoring and Atrial Fibrillation Detection
Abstract
:1. Introduction
2. Materials and Methods

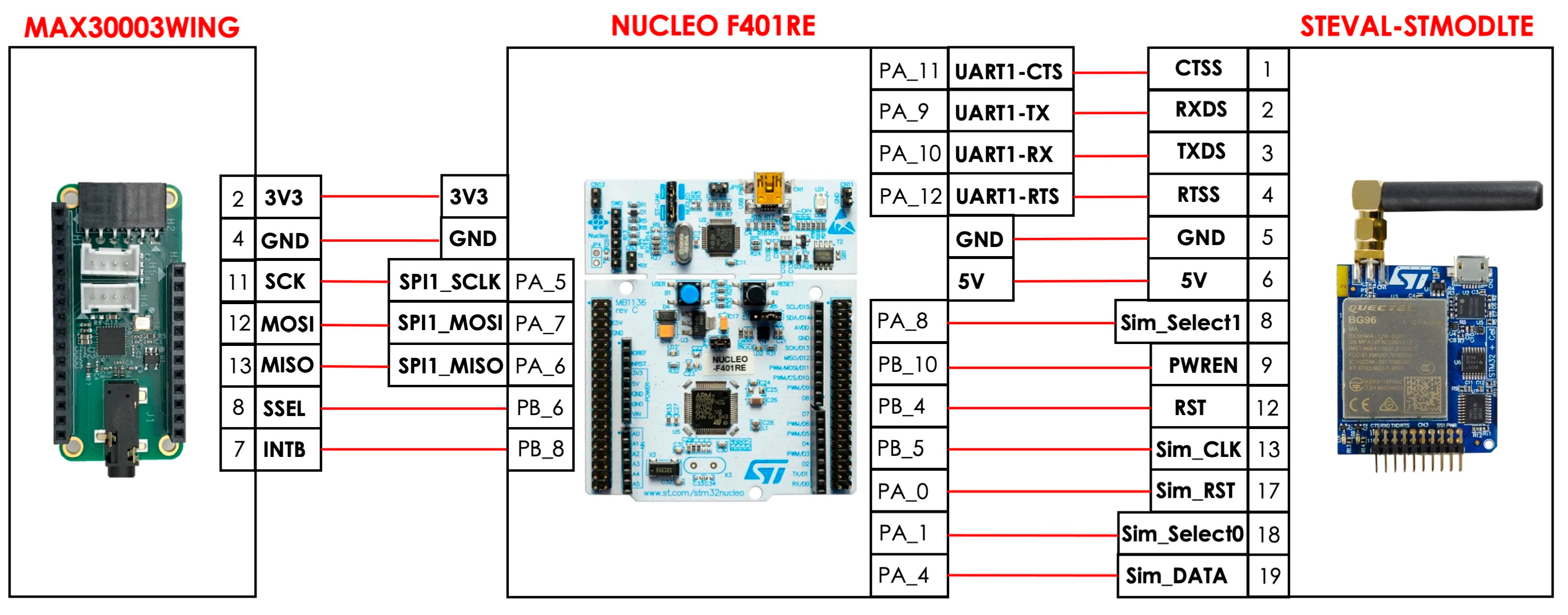

2.1. Personal Hardware Device
2.1.1. The MAX30003 Board
2.1.2. The NUCLEOF401RE Board
2.1.3. The STEVAL-STMODLTE Board
2.2. Cloud Platform
ThingSpeak IoT Service
2.3. Algorithms for Detecting AF

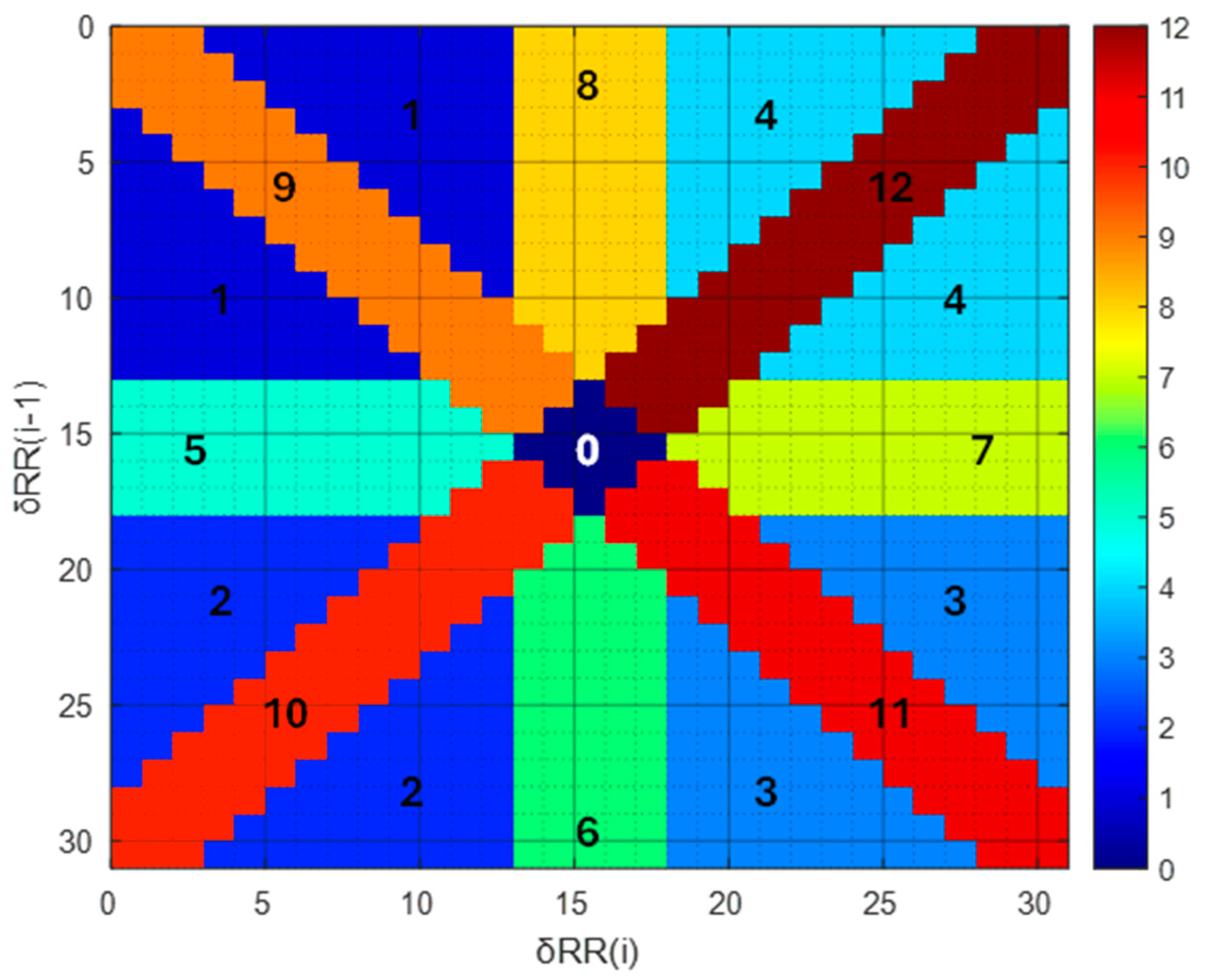

Lorenz Algorithm

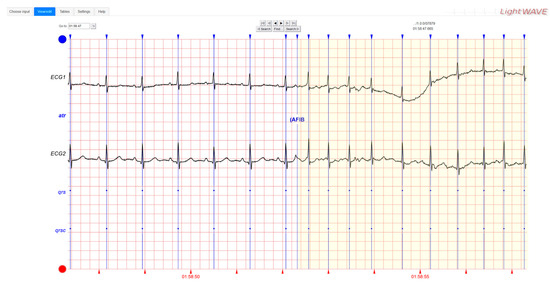

2.4. AF ECG Dataset

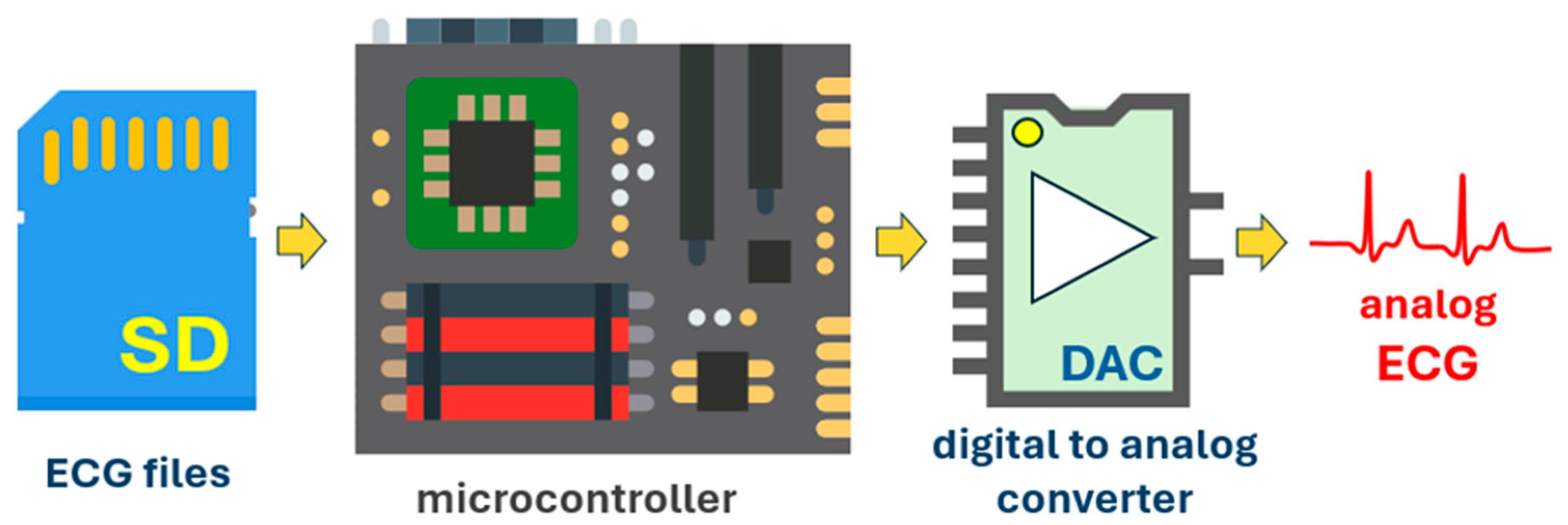

2.5. Patient Simulator
2.6. Statistical Analysis
3. Results
4. Discussion
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
Abbreviation
Acronym | Full Form |
AF | Atrial Fibrillation |
AT | Atrial Tachycardia |
DAC | Digital to Analog Converter |
DMA | Direct Memory Access |
ECG | Electrocardiography |
ELRs | External Loop Recorders |
FN | False Negative |
FP | False Positive |
ILRs | Implantable Loop Recorders |
IoT | Internet of Things |
LPWAN | Low-Power Wide-Area Network |
LTE | Long-Term Evolution |
mHealth | mobile Health devices |
mIoT | Internet of Things in the medical field |
NB-HIoT | Health monitoring based on NB-IoT |
NB-IoT | Narrowband Internet of Things |
NSR | Normal Sinus Rhythm |
POUF | Protocols, Operations, Usage, and Formats |
PPG | Photoplethysmography |
PUF | Physical Unclonable Function |
SW | Software |
TN | True Negative |
TP | True Positive |
References
- Benjamin, E.J.; Wolf, P.A.; D’Agostino, R.B.; Silbershatz, H.; Kannel, W.B.; Levy, D. Impact of Atrial Fibrillation on the Risk of Death: The Framingham Heart Study. Circulation 1998, 98, 946–952. [Google Scholar] [CrossRef] [PubMed]
- Kornej, J.; Börschel, C.S.; Benjamin, E.J.; Schnabel, R.B. Epidemiology of Atrial Fibrillation in the 21st Century: Novel Methods and New Insights. Circ. Res. 2020, 127, 4–20. [Google Scholar] [CrossRef] [PubMed]
- Wu, J.; Nadarajah, R.; Nakao, Y.M.; Nakao, K.; Wilkinson, C.; Mamas, M.A.; Camm, A.J.; Gale, C.P. Temporal Trends and Patterns in Atrial Fibrillation Incidence: A Population-Based Study of 3·4 Million Individuals. Lancet Reg. Health Eur. 2022, 17, 100386. [Google Scholar] [CrossRef] [PubMed]
- Schnabel, R.B.; Yin, X.; Gona, P.; Larson, M.G.; Beiser, A.S.; McManus, D.D.; Newton-Cheh, C.; Lubitz, S.A.; Magnani, J.W.; Ellinor, P.T.; et al. 50 Year Trends in Atrial Fibrillation Prevalence, Incidence, Risk Factors, and Mortality in the Framingham Heart Study: A Cohort Study. Lancet 2015, 386, 154–162. [Google Scholar] [CrossRef]
- Vinciguerra, M.; Dobrev, D.; Nattel, S. Atrial Fibrillation: Pathophysiology, Genetic and Epigenetic Mechanisms. Lancet Reg. Health Eur. 2024, 37, 100785. [Google Scholar] [CrossRef] [PubMed]
- Dilaveris, P.E.; Kennedy, H.L. Silent Atrial Fibrillation: Epidemiology, Diagnosis, and Clinical Impact. Clin. Cardiol. 2017, 40, 413–418. [Google Scholar] [CrossRef] [PubMed]
- Kornej, J.; Benjamin, E.J.; Magnani, J.W. Atrial Fibrillation: Global Burdens and Global Opportunities. Heart 2021, 107, 516–518. [Google Scholar] [CrossRef]
- Patten, M.; Pecha, S.; Aydin, A. Atrial Fibrillation in Hypertrophic Cardiomyopathy: Diagnosis and Considerations for Management. J. Atr. Fibrillation 2018, 10, 1556. [Google Scholar] [CrossRef] [PubMed]
- Linz, D.; Gawalko, M.; Betz, K.; Hendriks, J.M.; Lip, G.Y.H.; Vinter, N.; Guo, Y.; Johnsen, S. Atrial Fibrillation: Epidemiology, Screening and Digital Health. Lancet Reg. Health–Eur. 2024, 37, 100786. [Google Scholar] [CrossRef]
- Hagiwara, Y.; Fujita, H.; Oh, S.L.; Tan, J.H.; Tan, R.S.; Ciaccio, E.J.; Acharya, U.R. Computer-Aided Diagnosis of Atrial Fibrillation Based on ECG Signals: A Review. Inf. Sci. 2018, 467, 99–114. [Google Scholar] [CrossRef]
- Mubarik, A.; Iqbal, A.M. Holter Monitor. In StatPearls; StatPearls Publishing: Treasure Island, FL, USA, 2024. [Google Scholar]
- Kardia Mobile 6L. Available online: https://alivecor.com/products/kardiamobile6l (accessed on 25 June 2024).
- Krzowski, B.; Skoczylas, K.; Osak, G.; Żurawska, N.; Peller, M.; Kołtowski, Ł.; Zych, A.; Główczyńska, R.; Lodziński, P.; Grabowski, M.; et al. Kardia Mobile and ISTEL HR Applicability in Clinical Practice: A Comparison of Kardia Mobile, ISTEL HR, and Standard 12-Lead Electrocardiogram Records in 98 Consecutive Patients of a Tertiary Cardiovascular Care Centre. Eur. Heart J. Digit. Health 2021, 2, 467–476. [Google Scholar] [CrossRef] [PubMed]
- Tarakji, K.G.; Wazni, O.M.; Callahan, T.; Kanj, M.; Hakim, A.H.; Wolski, K.; Wilkoff, B.L.; Saliba, W.; Lindsay, B.D. Using a Novel Wireless System for Monitoring Patients after the Atrial Fibrillation Ablation Procedure: The iTransmit Study. Heart Rhythm. 2015, 12, 554–559. [Google Scholar] [CrossRef] [PubMed]
- Lee, R.; Mittal, S. Utility and Limitations of Long-Term Monitoring of Atrial Fibrillation Using an Implantable Loop Recorder. Heart Rhythm. 2018, 15, 287–295. [Google Scholar] [CrossRef]
- Kulkarni, M.B.; Rajagopal, S.; Prieto-Simón, B.; Pogue, B.W. Recent Advances in Smart Wearable Sensors for Continuous Human Health Monitoring. Talanta 2024, 272, 125817. [Google Scholar] [CrossRef] [PubMed]
- Bisignani, A.; De Bonis, S.; Mancuso, L.; Ceravolo, G.; Bisignani, G. Implantable Loop Recorder in Clinical Practice. J. Arrhythm. 2018, 35, 25–32. [Google Scholar] [CrossRef] [PubMed]
- Galli, A.; Ambrosini, F.; Lombardi, F. Holter Monitoring and Loop Recorders: From Research to Clinical Practice. Arrhythm. Electrophysiol. Rev. 2016, 5, 136–143. [Google Scholar] [CrossRef] [PubMed]
- Brignole, M.; Vardas, P.; Hoffman, E.; Huikuri, H.; Moya, A.; Ricci, R.; Sulke, N.; Wieling, W.; Auricchio, A.; Lip, G.Y.H.; et al. Indications for the Use of Diagnostic Implantable and External ECG Loop Recorders. EP Eur. 2009, 11, 671–687. [Google Scholar] [CrossRef]
- Li, S.; Xu, L.D.; Zhao, S. The Internet of Things: A Survey. Inf. Syst. Front. 2015, 17, 243–259. [Google Scholar] [CrossRef]
- Hofer-Schmitz, K.; Stojanović, B. Towards Formal Verification of IoT Protocols: A Review. Comput. Netw. 2020, 174, 107233. [Google Scholar] [CrossRef]
- Krichen, M. A Survey on Formal Verification and Validation Techniques for Internet of Things. Appl. Sci. 2023, 13, 8122. [Google Scholar] [CrossRef]
- Xu, T.; Wendt, J.B.; Potkonjak, M. Security of IoT Systems: Design Challenges and Opportunities. In Proceedings of the 2014 IEEE/ACM International Conference on Computer-Aided Design (ICCAD), San Jose, CA, USA, 2–6 November 2014; pp. 417–423. [Google Scholar]
- Fazeldehkordi, E.; Owe, O.; Noll, J. Security and Privacy in IoT Systems: A Case Study of Healthcare Products. In Proceedings of the 2019 13th International Symposium on Medical Information and Communication Technology (ISMICT), Oslo, Norway, 8–10 May 2019; pp. 1–8. [Google Scholar] [CrossRef]
- Chen, M.; Miao, Y.; Hao, Y.; Hwang, K. Narrow Band Internet of Things. IEEE Access 2017, 5, 20557–20577. [Google Scholar] [CrossRef]
- Mentsiev, A.U.; Magomaev, T.R. Security Threats of NB-IoT and Countermeasures. IOP Conf. Ser. Mater. Sci. Eng. 2020, 862, 052033. [Google Scholar] [CrossRef]
- Mekki, K.; Bajic, E.; Chaxel, F.; Meyer, F. A Comparative Study of LPWAN Technologies for Large-Scale IoT Deployment. ICT Express 2019, 5, 1–7. [Google Scholar] [CrossRef]
- Popli, S.; Jha, R.K.; Jain, S. A Survey on Energy Efficient Narrowband Internet of Things (NBIoT): Architecture, Application and Challenges. IEEE Access 2019, 7, 16739–16776. [Google Scholar] [CrossRef]
- Sneha; Malik, P.K.; Bilandi, N.; Gupta, A. Narrow Band-IoT and Long-Range Technology of IoT Smart Communication: Designs and Challenges. Comput. Ind. Eng. 2022, 172, 108572. [Google Scholar] [CrossRef]
- Migabo, E.M.; Djouani, K.D.; Kurien, A.M. The Narrowband Internet of Things (NB-IoT) Resources Management Performance State of Art, Challenges, and Opportunities. IEEE Access 2020, 8, 97658–97675. [Google Scholar] [CrossRef]
- Raza, U.; Kulkarni, P.; Sooriyabandara, M. Medical Internet of Things and Big Data in Healthcare. IEEE Commun. Surv. Tutor. 2017, 19, 855–873. [Google Scholar] [CrossRef]
- Dimitrov, D.V. Medical Internet of Things and Big Data in Healthcare. Healthc. Inform. Res. 2016, 22, 156–163. [Google Scholar] [CrossRef]
- Sultana, N.; Huq, F.; Razzaque, M.A.; Rahman, M.M. User Utility Maximization in Narrowband Internet of Things for Prioritized Healthcare Applications. Sensors 2022, 22, 1192. [Google Scholar] [CrossRef]
- Malik, H.; Alam, M.M.; Le Moullec, Y.; Kuusik, A. NarrowBand-IoT Performance Analysis for Healthcare Applications. Procedia Comput. Sci. 2018, 130, 1077–1083. [Google Scholar] [CrossRef]
- Routray, S.K.; Anand, S. Narrowband IoT for Healthcare. In Proceedings of the 2017 International Conference on Information Communication and Embedded Systems (ICICES), Chennai, India, 23–24 February 2017; pp. 1–4. [Google Scholar] [CrossRef]
- Manatarinat, W.; Poomrittigul, S.; Tantatsanawong, P. Narrowband-Internet of Things (NB-IoT) System for Elderly Healthcare Services. In Proceedings of the 2019 5th International Conference on Engineering, Applied Sciences and Technology (ICEAST), Luang Prabang, Laos, 2–5 July 2019; pp. 1–4. [Google Scholar] [CrossRef]
- Jin, X.; Chen, S.; Zhang, L.; Wan, J. A Pervasive Narrow-Band Internet of Things (NB-IoT) Based Health Monitoring Platform for Ambient Assisted Living. In Proceedings of the Advances in Artificial Intelligence and Security, Dublin, Ireland, 19–23 July 2023; Sun, X., Zhang, X., Xia, Z., Bertino, E., Eds.; Springer International Publishing: Cham, Switzerland, 2021; pp. 368–376. [Google Scholar]
- Almusallam, M.; Soudani, A. Embedded Solution for Atrial Fibrillation Detection Using Smart Wireless Body Sensors. IEEE Sens. J. 2019, 19, 5740–5750. [Google Scholar] [CrossRef]
- Huda, N.; Khan, S.; Abid, R.; Shuvo, S.B.; Labib, M.M.; Hasan, T. A Low-Cost, Low-Energy Wearable ECG System with Cloud-Based Arrhythmia Detection. In Proceedings of the 2020 IEEE Region 10 Symposium (TENSYMP), Dhaka, Bangladesh, 5–7 June 2020; pp. 1840–1843. [Google Scholar]
- Faust, O.; Kareem, M.; Shenfield, A.; Ali, A.; Acharya, U.R. Validating the Robustness of an Internet of Things Based Atrial Fibrillation Detection System. Pattern Recognit. Lett. 2020, 133, 55–61. [Google Scholar] [CrossRef]
- Shao, M.; Zhou, Z.; Bin, G.; Bai, Y.; Wu, S. A Wearable Electrocardiogram Telemonitoring System for Atrial Fibrillation Detection. Sensors 2020, 20, 606. [Google Scholar] [CrossRef]
- Cañón-Clavijo, R.E.; Montenegro-Marin, C.E.; Gaona-Garcia, P.A.; Ortiz-Guzmán, J. IoT Based System for Heart Monitoring and Arrhythmia Detection Using Machine Learning. J. Healthc. Eng. 2023, 2023, 6401673. [Google Scholar] [CrossRef] [PubMed]
- Reissenberger, P.; Serfözö, P.; Piper, D.; Juchler, N.; Glanzmann, S.; Gram, J.; Hensler, K.; Tonidandel, H.; Börlin, E.; D’Souza, M.; et al. Determine Atrial Fibrillation Burden with a Photoplethysmographic Mobile Sensor: The Atrial Fibrillation Burden Trial: Detection and Quantification of Episodes of Atrial Fibrillation Using a Cloud Analytics Service Connected to a Wearable with Photoplethysmographic Sensor. Eur. Heart J. Digit. Health 2023, 4, 402–410. [Google Scholar] [CrossRef] [PubMed]
- Banerjee, P.S.; Karmakar, A.; Dhara, M.; Ganguly, K.; Sarkar, S. A Novel Method for Predicting Bradycardia and Atrial Fibrillation Using Fuzzy Logic and Arduino Supported IoT Sensors. Med. Nov. Technol. Devices 2021, 10, 100058. [Google Scholar] [CrossRef]
- MAX30003WING Evaluation Board|Analog Devices. Available online: https://www.analog.com/en/resources/evaluation-hardware-and-software/evaluation-boards-kits/max30003wing.html#eb-overview (accessed on 25 June 2024).
- Pan, J.; Tompkins, W.J. A Real-Time QRS Detection Algorithm. IEEE Trans. Biomed. Eng. 1985, BME-32, 230–236. [Google Scholar] [CrossRef] [PubMed]
- NUCLEO-F401RE-STM32 Nucleo-64 Development Board with STM32F401RE MCU, Supports Arduino and ST Morpho Connectivity-STMicroelectronics. Available online: https://www.st.com/en/evaluation-tools/nucleo-f401re.html (accessed on 24 June 2024).
- Arm Cortex-M4-Microcontrollers-STMicroelectronics. Available online: https://www.st.com/content/st_com/en/arm-32-bit-microcontrollers/arm-cortex-m4.html (accessed on 24 June 2024).
- STEVAL-STMODLTE-LTE Connectivity Expansion Board for STMod+ Connector Compatible Evaluation Boards-STMicroelectronics. Available online: https://www.st.com/en/evaluation-tools/steval-stmodlte.html (accessed on 24 June 2024).
- Sarkar, S.; Ritscher, D.; Mehra, R. A Detector for a Chronic Implantable Atrial Tachyarrhythmia Monitor. IEEE Trans. Biomed. Eng. 2008, 55, 1219–1224. [Google Scholar] [CrossRef]
- ThingSpeak Documentation-MathWorks. Available online: https://it.mathworks.com/help/thingspeak/index.html?lang=en (accessed on 24 June 2024).
- Mainardi, L.; Sörnmo, L.; Cerutti, S. Understanding Atrial Fibrillation: The Signal Processing Contribution, Part II; Springer Nature: Berlin/Heidelberg, Germany, 2022; ISBN 978-3-031-01632-5. [Google Scholar]
- Babaeizadeh, S.; Gregg, R.E.; Helfenbein, E.D.; Lindauer, J.M.; Zhou, S.H. Improvements in Atrial Fibrillation Detection for Real-Time Monitoring. J. Electrocardiol. 2009, 42, 522–526. [Google Scholar] [CrossRef]
- Lake, D.E.; Moorman, J.R. Accurate Estimation of Entropy in Very Short Physiological Time Series: The Problem of Atrial Fibrillation Detection in Implanted Ventricular Devices. Am. J. Physiol. Heart Circ. Physiol. 2011, 300, H319–H325. [Google Scholar] [CrossRef]
- Colloca, R. Implementation and Testing of Atrial Fibrillation Detectors for a Mobile Phone Application-Master Thesis. Available online: https://www.politesi.polimi.it/handle/10589/78201 (accessed on 25 June 2024).
- Linker, D.T. Long-Term Monitoring for Detection of Atrial Fibrillation. U.S. Patent No. 7,630,756, 8 December 2009. [Google Scholar]
- Goldberger, A.L.; Amaral, L.A.; Glass, L.; Hausdorff, J.M.; Ivanov, P.C.; Mark, R.G.; Mietus, J.E.; Moody, G.B.; Peng, C.K.; Stanley, H.E. PhysioBank, PhysioToolkit, and PhysioNet: Components of a New Research Resource for Complex Physiologic Signals. Circulation 2000, 101, E215–E220. [Google Scholar] [CrossRef] [PubMed]
- Dash, S.; Chon, K.H.; Lu, S.; Raeder, E.A. Automatic Real Time Detection of Atrial Fibrillation. Ann. Biomed. Eng. 2009, 37, 1701–1709. [Google Scholar] [CrossRef]
- McGrath, M.J.; Scanaill, C.N. Regulations and Standards: Considerations for Sensor Technologies. In Sensor Technologies: Healthcare, Wellness, and Environmental Applications; McGrath, M.J., Scanaill, C.N., Eds.; Apress: Berkeley, CA, USA, 2013; pp. 115–135. ISBN 978-1-4302-6014-1. [Google Scholar]
- Zakerabasali, S.; Ayyoubzadeh, S.M. Internet of Things and Healthcare System: A Systematic Review of Ethical Issues. Health Sci. Rep. 2022, 5, e863. [Google Scholar] [CrossRef] [PubMed]
- Centracchio, J.; Parlato, S.; Esposito, D.; Bifulco, P.; Andreozzi, E. ECG-Free Heartbeat Detection in Seismocardiography Signals via Template Matching. Sensors 2023, 23, 4684. [Google Scholar] [CrossRef] [PubMed]
- Parlato, S.; Centracchio, J.; Esposito, D.; Bifulco, P.; Andreozzi, E. ECG-Free Heartbeat Detection in Seismocardiography and Gyrocardiography Signals Provides Acceptable Heart Rate Variability Indices in Healthy and Pathological Subjects. Sensors 2023, 23, 8114. [Google Scholar] [CrossRef] [PubMed]
- Parlato, S.; Centracchio, J.; Esposito, D.; Bifulco, P.; Andreozzi, E. Heartbeat Detection in Gyrocardiography Signals without Concurrent ECG Tracings. Sensors 2023, 23, 6200. [Google Scholar] [CrossRef]
- Andreozzi, E.; Fratini, A.; Esposito, D.; Naik, G.; Polley, C.; Gargiulo, G.D.; Bifulco, P. Forcecardiography: A Novel Technique to Measure Heart Mechanical Vibrations onto the Chest Wall. Sensors 2020, 20, 3885. [Google Scholar] [CrossRef] [PubMed]
- Andreozzi, E.; Centracchio, J.; Punzo, V.; Esposito, D.; Polley, C.; Gargiulo, G.D.; Bifulco, P. Respiration Monitoring via Forcecardiography Sensors. Sensors 2021, 21, 3996. [Google Scholar] [CrossRef]
- Centracchio, J.; Andreozzi, E.; Esposito, D.; Gargiulo, G.D.; Bifulco, P. Detection of Aortic Valve Opening and Estimation of Pre-Ejection Period in Forcecardiography Recordings. Bioengineering 2022, 9, 89. [Google Scholar] [CrossRef]
- Andreozzi, E.; Centracchio, J.; Esposito, D.; Bifulco, P. A Comparison of Heart Pulsations Provided by Forcecardiography and Double Integration of Seismocardiogram. Bioengineering 2022, 9, 167. [Google Scholar] [CrossRef]
- Centracchio, J.; Parlato, S.; Esposito, D.; Andreozzi, E. Accurate Localization of First and Second Heart Sounds via Template Matching in Forcecardiography Signals. Sensors 2024, 24, 1525. [Google Scholar] [CrossRef] [PubMed]
Model | Manufacturer | Board Size |
---|---|---|
Max30003Wing | Analog Devices | 50.8 × 23.6 mm |
NucleoF401RE | STMicroelectronics | 70.0 × 82.50 mm |
STEVAL-STMODLTE | STMicroelectronics | 78.0 × 40.0 mm |
MAX30003 Settings | |
FMSTR clocks | 32 kHz |
Current magnitude | 10 nA |
ECG Settings | |
Digital LPF cutoff | 40 Hz |
Digital HPF cutoff | 0.5 Hz |
ECG gain | 160 V/V |
Sample Rate | 250 sps |
R-to-R Settings | |
WNDW | 96 ms |
Model | Manufacturer | Board Size |
---|---|---|
MCP4724 | Microchip Technology | 15.0 × 15.0 mm |
NucleoF401RE | STMicroelectronics | 70.0 × 82.50 mm |
SD card | Gigastone | 15.0 × 11.0 mm |
Patient | Accuracy | Sensitivity | Specificity |
---|---|---|---|
04015 | 0.970 | 0.333 | 0.977 |
04043 | 0.816 | 0.141 | 1.00 |
04048 | 0.993 | 0.00 | 1.00 |
04126 | 0.951 | 0.00 | 0.993 |
04746 | 0.967 | 0.939 | 1.00 |
04908 | 0.935 | 0.269 | 0.996 |
04936 | 0.766 | 0.692 | 1.00 |
05091 | 1.00 | // | 1.00 |
05121 | 0.836 | 0.763 | 0.980 |
05261 | 1.00 | 1.00 | 1.00 |
06426 | 0.951 | 0.953 | 0.875 |
06453 | 0.993 | 0.500 | 0.996 |
06995 | 0.911 | 0.853 | 0.963 |
07162 | 1.00 | 1.00 | // |
07879 | 0.669 | 0.465 | 1.00 |
07910 | 0.997 | 0.979 | 1.00 |
08215 | 0.997 | 0.996 | 1.00 |
08219 | 0.823 | 0.333 | 0.995 |
08378 | 0.902 | 0.578 | 0.988 |
08405 | 0.905 | 0.868 | 1.00 |
08434 | 0.957 | 0.308 | 0.986 |
08455 | 0.832 | 0.754 | 1.00 |
Study | Type of Connection | Sensor | Signal Analyzed | AF Detection Platform | AF Detection Method | Evaluation Metrics |
---|---|---|---|---|---|---|
Present study | LTE | ECG sensor | Inter-beat intervals | Cloud | Lorenz algorithm | Accuracy, sensitivity, specificity |
[38] | Alarm notification to remote server | ECG sensor | ECG signal | On board | Algorithm based on RR irregularity and P-wave absence from ECG data | Sensitivity, specificity |
[39] | Bluetooth | ECG sensor (AD8232) | ECG signal | Cloud | Deep learning algorithm | Accuracy, sensitivity, specificity |
[40] | No | No | Heart rate signal | No | Deep learning algorithm | Accuracy |
[41] | Bluetooth connection to smartphone | ECG patch | ECG signal | Cloud | Machine learning algorithm | Accuracy, sensitivity, specificity |
[42] | Bluetooth connection to smartphone | Polar H10 ECG sensor | ECG signal | Cloud | No AF detection; ventricular arrhythmia detection via machine learning | Accuracy |
[43] | No | PPG sensor | PPG signal | On board | Analytical algorithm to detect AF burden | Accuracy |
[44] | Wi-Fi | Pulse sensor | Heart rate signal | Cloud | Algorithm developed by authors | – |
SUPPORT | OPPOSE | |
---|---|---|
Strengths | Weaknesses | |
INTERNAL |
|
|
Opportunities | Threats | |
EXTERNAL |
|
|
