# Spot Detection for Laser Sensors Based on Annular Convolution Filtering

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

#### Related Work and Our Contribution

## 2. Materials and Methods: Spot Detection Using Annular Convolution Filtering

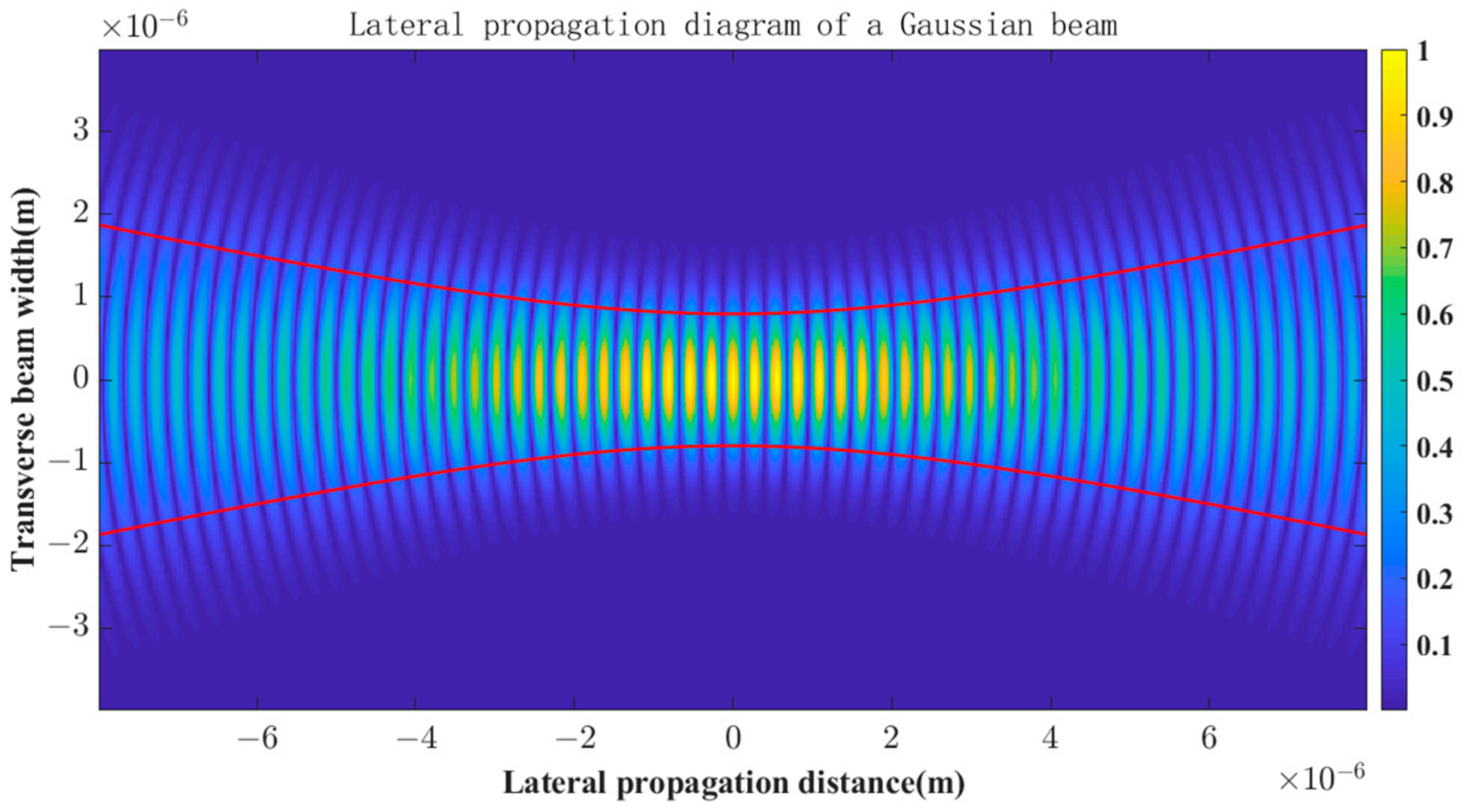

#### 2.1. The Gaussian Laser Spot

#### 2.2. ROI Determination

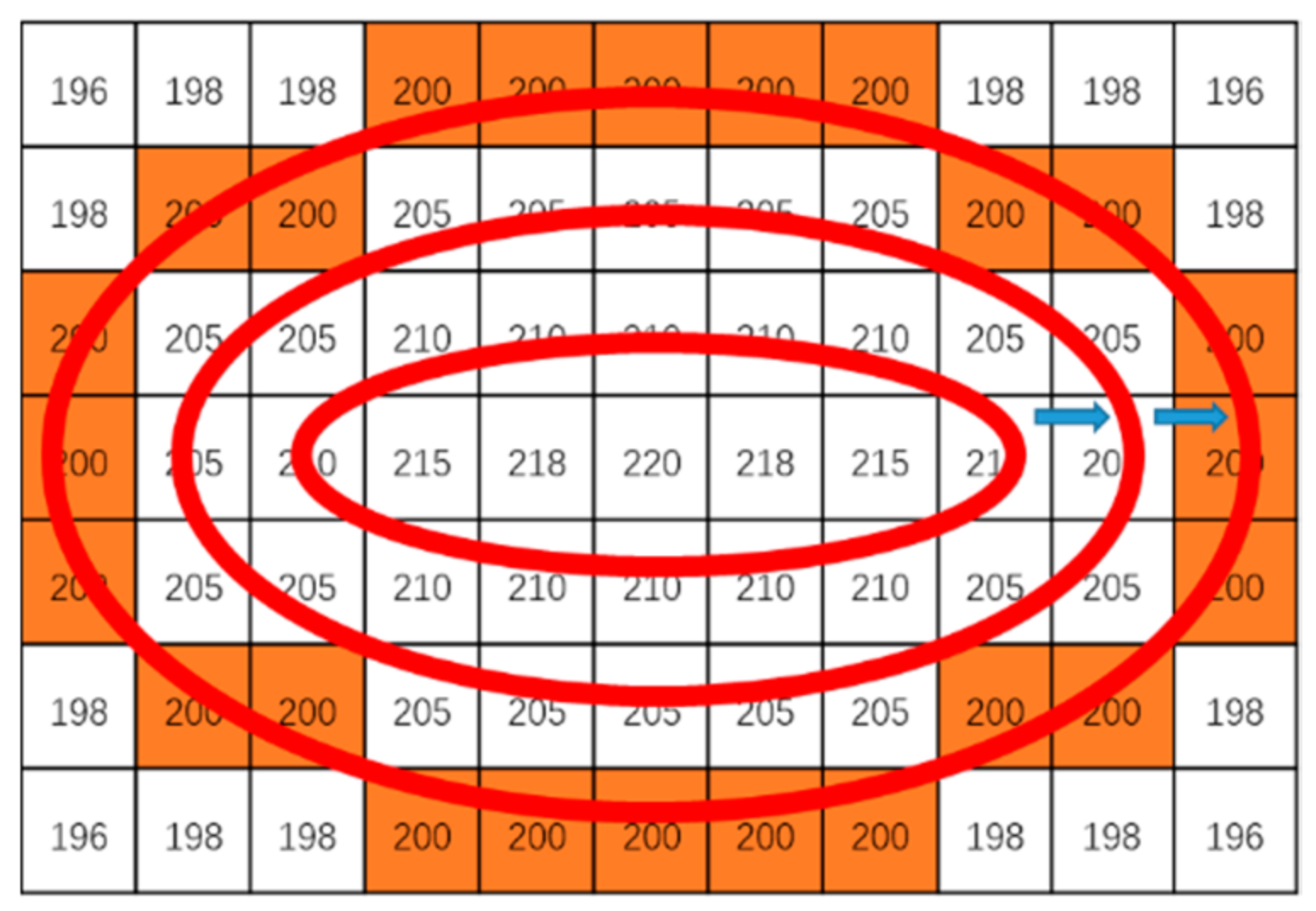

#### 2.3. Annular Convolution Strip

Algorithm 1: The proposed ACF algorithm. |

Input: original laser spot image with background light; |

Output: The long axis $\widehat{a}$ and the short axis $\widehat{b}$ of the estimated spot; |

Step 1: Calculate the ROI, the central coordinate, and tilt angle by using the method in Section 3.2; |

Step 2: Obtain the optimal ratio of the short axis and the long axis using the following iteration, where $a=l$, $b=1$ in the initialization; |

Set $i=1$; |

While $b<a$ |

Calculate ${r}_{i}=b/a$; |

Set $k=1$, $\overline{b}=b$; |

While $k<K$ |

Let ${a}_{ik}=a,{b}_{ik}=b$, calculate ${M}_{ik}$ by Equation (11); |

Update $a=a+\Delta a$; |

Update $b=a{r}_{i}$; |

Update $k=k+1$; |

End while |

Calculate the feature similarity ${S}_{i}$ by Equation (12); |

Update $a=l$; |

Update $b=\overline{b}+1$; |

Update $i=i+1$; |

End while |

Output the optimal ratio ${r}_{i}$ corresponding to the minimum value of S; |

Step 3: Fitting a new ellipse using the results in Step 1 and Step 2, where the ratio of the energy in this ellipse and that in ROI is chosen as the widely used value 86.5% (see [48]); |

Step 4: Output the long axis $\widehat{a}$ and the short axis $\widehat{b}$ of the ellipse in Step 3. |

**Remarks**

**1.**

## 3. Results

#### 3.1. Datasets

#### 3.1.1. Standard Dataset

#### 3.1.2. Test Dataset

#### 3.2. Compared Methods

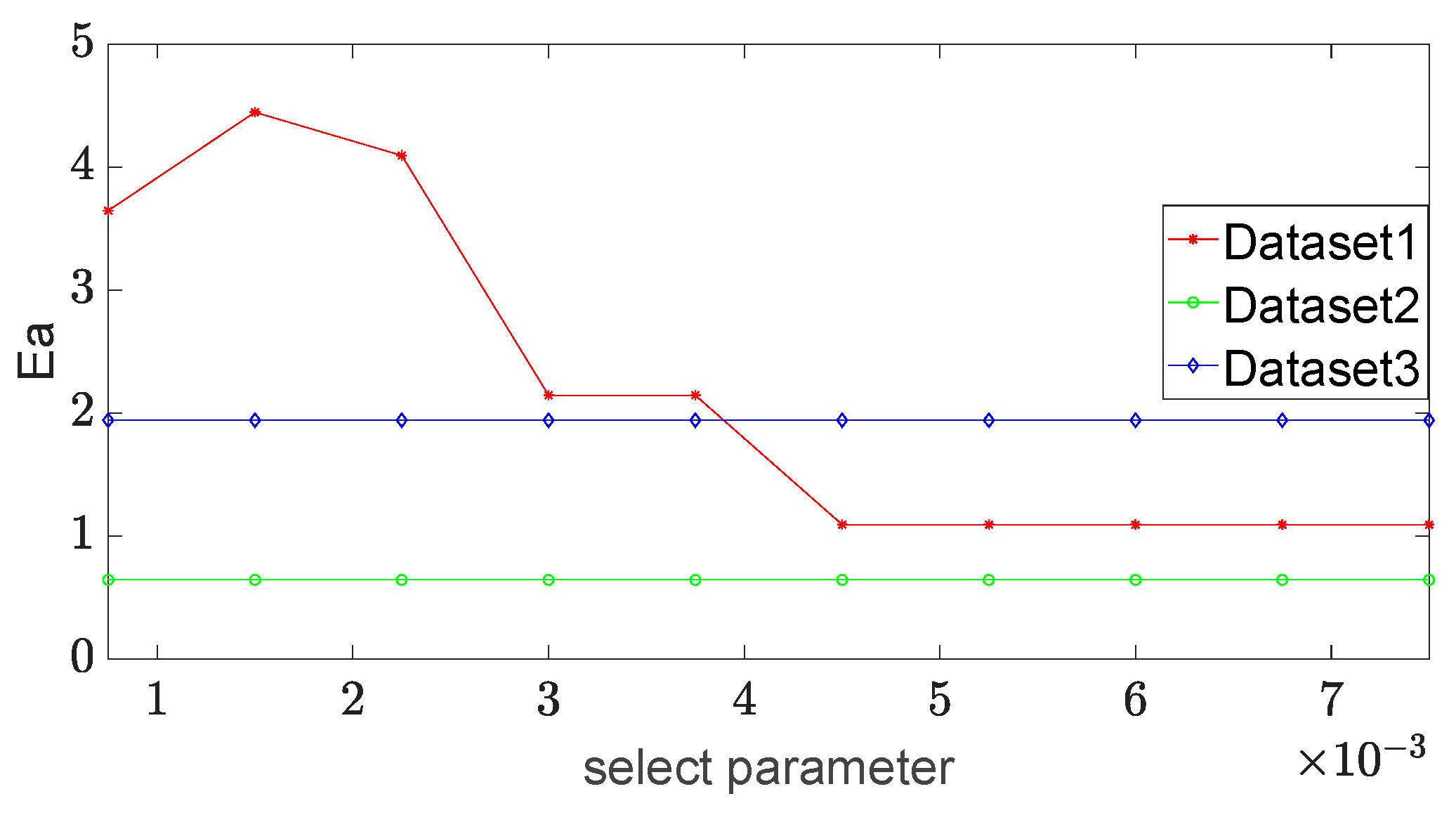

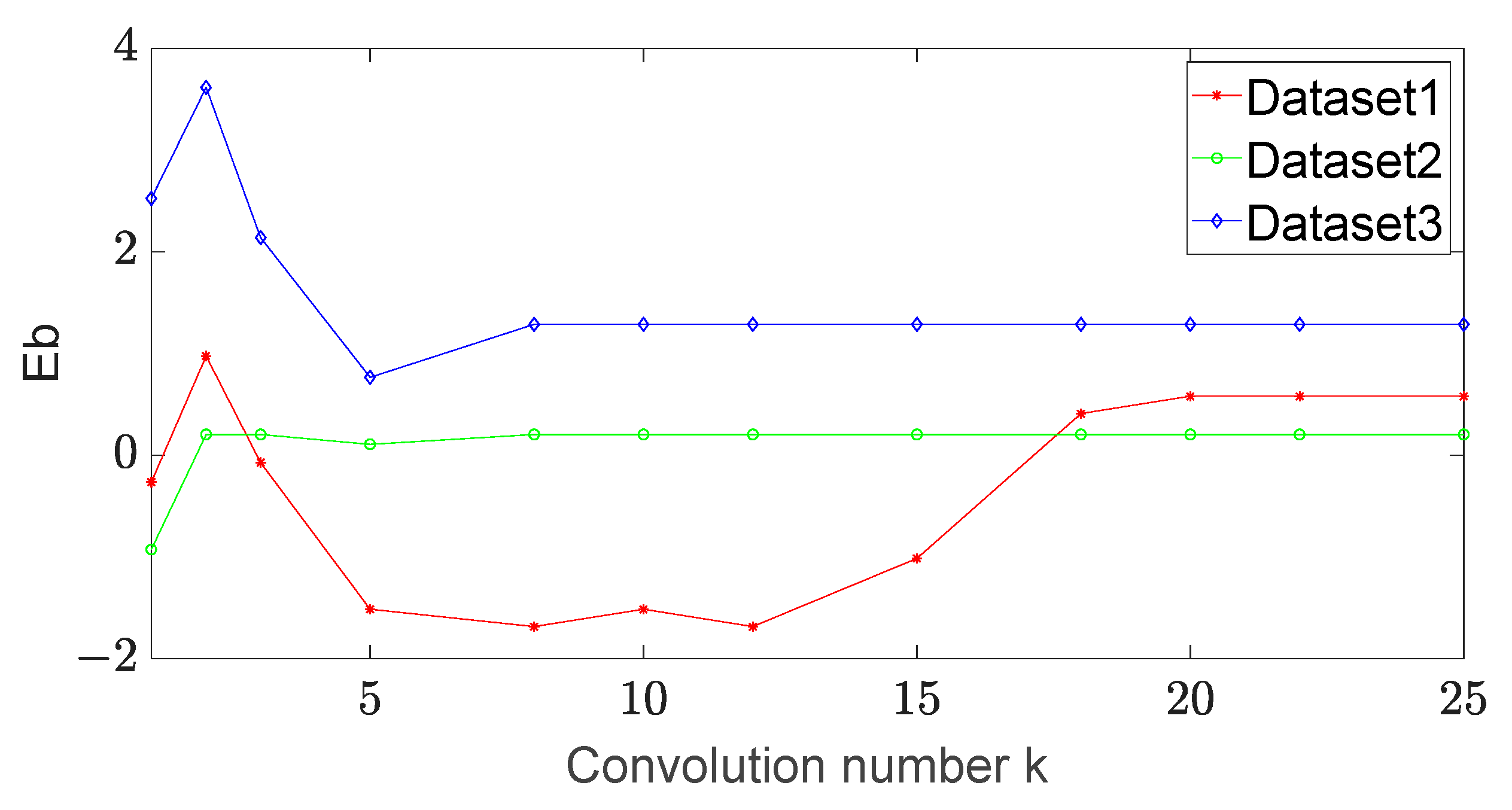

#### 3.3. Parametric Sensitive Analysis

#### 3.4. Compared Results

## 4. Discussion and Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Ding, K.; Ye, L. Simulation of Multiple Laser Shock Peening of a 35CD4 Steel Alloy. J. Mater. Process. Technol.
**2006**, 178, 162–169. [Google Scholar] [CrossRef] - Wang, J.T.; Zhang, Y.K.; Chen, J.F.; Zhou, J.Y.; Ge, M.Z.; Lu, Y.L.; Li, X.L. Effects of Laser Shock Peening on Stress Corrosion Behavior of 7075 Aluminum Alloy Laser Welded Joints. Mater. Sci. Eng. A
**2015**, 647, 7–14. [Google Scholar] [CrossRef] - Zhang, Y.K.; Lu, J.Z.; Ren, X.D.; Yao, H.B.; Yao, H.X. Effect of Laser Shock Processing on the Mechanical Properties and Fatigue Lives of the Turbojet Engine Blades Manufactured by LY2 Aluminum Alloy. Mater. Des.
**2009**, 30, 1697–1703. [Google Scholar] [CrossRef] - Tachmatzidis, T.; Dabarakis, N. Technology of Lasers and Their Applications in Oral Surgery: Literature Review. Balk. J. Dent. Med.
**2016**, 20, 131–137. [Google Scholar] [CrossRef] [Green Version] - Deppe, H.; Horch, H.-H. Laser Applications in Oral Surgery and Implant Dentistry. Lasers Med. Sci.
**2007**, 22, 217–221. [Google Scholar] [CrossRef] - Dmytryszyn, M.; Crook, M.; Sands, T. Preparing for Satellite Laser Uplinks and Downlinks. Science
**2020**, 2, 16. [Google Scholar] [CrossRef] [Green Version] - Baird, D. NASA Laser Communication Payload Undergoing Integration and Testing. Available online: https://www.nasa.gov/feature/goddard/2017/nasa-laser-communication-payload-undergoing-integration-and-testing (accessed on 9 March 2023).
- Siegman, A.E. Lasers; Published by Oxford University Press: Oxford, UK, 1986. [Google Scholar]
- Siegman, A.E. Defining the Effective Radius of Curvature for a Nonideal Optical Beam. IEEE J. Quantum Electron.
**1991**, 27, 1146–1148. [Google Scholar] [CrossRef] - Tsuji, S.; Matsumoto, F. Detection of Ellipses by a Modified Hough Transformation. IEEE Trans. Comput.
**1978**, C–27, 777–781. [Google Scholar] [CrossRef] - Tsuji, S.; Matsumoto, F. Detection of Elliptic and Linear Edges by Searching Two Parameter Spaces. In Proceedings of the IJCAI, Cambridge, MA, USA, 22–25 August 1977; pp. 700–705. [Google Scholar]
- Hu, Y.; Tian, F.; Zhang, W.; Song, A. Improvement of Mach-Zehnder Interferometry Base on Multi-CCD Detecting. J. Nanoelectron. Optoelectron.
**2019**, 14, 877–886. [Google Scholar] [CrossRef] - Cao, Y.; Gao, C. Analysis on the Accuracy of Beam Parameter Measurement by Using CCD Array. Opt. Tech.
**2004**, 30, 583–586. [Google Scholar] - Wang, Q. The Diffraction of Gaussian Laser Beam for Slit. Optik
**2019**, 179, 579–581. [Google Scholar] [CrossRef] - Kawagishi, N.; Kakinuma, R.; Yamamoto, H. Aerial Image Resolution Measurement Based on the Slanted Knife Edge Method. Opt. Express
**2020**, 28, 35518. [Google Scholar] [CrossRef] - Saban, I.; Faibish, S. Image Processing Techniques for Laser Images. In Proceedings of the 1996 Canadian Conference on Electrical and Computer Engineering, Calgary, AB, Canada, 26–29 May 1996; Volume 1, pp. 462–465. [Google Scholar]
- Cao, M.; Wang, X.; Yao, Q. Influence Analysis of Laser Spot Noise on the Measurement Accuracy of Laser Triangulation Method. Int. J. u-e-Serv. Sci. Technol.
**2016**, 9, 39–46. [Google Scholar] - Sun, Q.; Hou, Y.; Tan, Q. A Subpixel Edge Detection Method Based on an Arctangent Edge Model. Optik
**2016**, 127, 5702–5710. [Google Scholar] [CrossRef] - Sun, Q.; Qiao, Y.; Wu, H.; Wang, J. An Edge Detection Method Based on Adjacent Dispersion. Intern. J. Pattern Recognit. Artif. Intell.
**2016**, 30, 1655026. [Google Scholar] [CrossRef] - Singh, C.; Bala, A. A Local Zernike Moment-Based Unbiased Nonlocal Means Fuzzy C-Means Algorithm for Segmentation of Brain Magnetic Resonance Images. Expert. Syst. Appl.
**2019**, 118, 625–639. [Google Scholar] [CrossRef] - Dorobanţiu, A.; Brad, R. A Novel Contextual Memory Algorithm for Edge Detection. Pattern Anal. Appl.
**2020**, 23, 883–895. [Google Scholar] [CrossRef] - Septiarini, A.; Hamdani, H.; Hatta, H.R.; Anwar, K. Automatic Image Segmentation of Oil Palm Fruits by Applying the Contour-Based Approach. Sci. Hortic.
**2020**, 261, 108939. [Google Scholar] [CrossRef] - Liu, Y.; Xie, Z.; Liu, H. An Adaptive and Robust Edge Detection Method Based on Edge Proportion Statistics. IEEE Trans. Image Process.
**2020**, 29, 5206–5215. [Google Scholar] [CrossRef] - Ofir, N.; Galun, M.; Alpert, S.; Brandt, A.; Nadler, B.; Baasri, R. On Detection of Faint Edges in Noisy Images. IEEE Trans. Pattern Anal. Mach. Intell
**2020**, 42, 894–908. [Google Scholar] [CrossRef] [Green Version] - Zhou, X.; Cao, X.; Zhou, T.; Liu, Z. Research on Detection and Location of Weak Edge Signals. Signal. Image Video Process.
**2020**, 14, 1355–1360. [Google Scholar] [CrossRef] - Yu, X.; Wang, Z.; Wang, Y.; Zhang, C. Edge Detection of Agricultural Products Based on Morphologically Improved Canny Algorithm. Math. Probl. Eng.
**2021**, 2021, 6664970. [Google Scholar] [CrossRef] - Chen, M. Fractional-Order Adaptive P-Laplace Equation-Based Art Image Edge Detection. Adv. Math. Phys.
**2021**, 2021, 2337712. [Google Scholar] [CrossRef] - Li, W.-X.; Zhou, R.-G.; Yu, H. Quantum Image Edge Detection Based on Multi-Directions Gray-Scale Morphology. Int. J. Theor. Phys.
**2021**, 60, 4162–4176. [Google Scholar] [CrossRef] - Vázquez-Otero, A.; Khikhlukha, D.; Solano-Altamirano, J.; Dormido, R.; Duro, N. Laser Spot Detection Based on Reaction Diffusion. Sensors
**2016**, 16, 315. [Google Scholar] [CrossRef] [Green Version] - Zhang, W.; Guo, W.; Zhang, C.; Zhao, S. An Improved Method for Spot Position Detection of a Laser Tracking and Positioning System Based on a Four-Quadrant Detector. Sensors
**2019**, 19, 4722. [Google Scholar] [CrossRef] [Green Version] - Yu, J.; Li, Q.; Li, H.; Wang, Q.; Zhou, G.; He, D.; Xu, S.; Xia, Y.; Huang, Y. High-Precision Light Spot Position Detection in Low SNR Condition Based on Quadrant Detector. Appl. Sci.
**2019**, 9, 1299. [Google Scholar] [CrossRef] [Green Version] - Zhou, P.; Wang, X.; Huang, Q.; Ma, C. Laser Spot Center Detection Based on Improved Circled Fitting Algorithm. In Proceedings of the 2018 2nd IEEE Advanced Information Management, Communicates, Electronic and Automation Control Conference (IMCEC), Xi’an, China, 25–27 May 2018; pp. 316–319. [Google Scholar]
- Zhu, J.; Xu, Z.; Fu, D.; Hu, C. Laser Spot Center Detection and Comparison Test. Photonic Sens.
**2019**, 9, 49–52. [Google Scholar] [CrossRef] [Green Version] - Yang, R.; Guo, H.; Chen, Z.; Sun, J. Adaptive Subpixel Edge Detection for Locating the Center of Nut Screw Hole. Int. J. Precis. Eng. Manuf.
**2021**, 22, 1357–1364. [Google Scholar] [CrossRef] - Jiang, L. A fast and accurate circle detection algorithm based on random sampling. Future Gener. Comput. Syst.
**2021**, 123, 245–256. [Google Scholar] [CrossRef] - Zhao, H.; Wang, S.; Shen, W.; Jing, W.; Li, L.; Feng, X.; Zhang, W. Laser Spot Centering Algorithm of Double-Area Shrinking Iteration Based on Baseline Method. Appl. Sci.
**2022**, 12, 11302. [Google Scholar] [CrossRef] - Li, Y.; Cui, X.; Feng, C.; Wang, H.; Ding, H. Algorithm Improvement for the Surface Morphology Diagnostics Based on the Gram-Schmidt Orthonormalization and the Least Square Ellipse Fitting under the East-like Vibrational Environments. Nucl. Mater. Energy
**2023**, 35, 101397. [Google Scholar] [CrossRef] - Dong, H.; Zhou, J.; Qiu, C.; Prasad, D.K.; Chen, I.M. Robotic Manipulations of Cylinders and Ellipsoids by Ellipse Detection with Domain Randomization. IEEE Trans. Mechatron.
**2023**, 28, 302–313. [Google Scholar] [CrossRef] - Sun, Y.; Wang, B.; Zhang, Y. A Method of Detection and Tracking for Laser Spot. In Measuring Technology and Mechatronics Automation in Electrical Engineering; Springer: New York, NY, USA, 2012; pp. 43–49. [Google Scholar] [CrossRef]
- Fornaciari, M.; Prati, A.; Cucchiara, R. A Fast and Effective Ellipse Detector for Embedded Vision Applications. Pattern Recognit.
**2014**, 47, 3693–3708. [Google Scholar] [CrossRef] - Jia, Q.; Fan, X.; Luo, Z.; Song, L.; Qiu, T. A Fast Ellipse Detector Using Projective Invariant Pruning. IEEE Trans. Image Process.
**2017**, 26, 3665–3679. [Google Scholar] [CrossRef] [Green Version] - Dong, H.; Sun, G.; Pang, W.-C.; Asadi, E.; Prasad, D.K.; Chen, I.-M. Fast Ellipse Detection via Gradient Information for Robotic Manipulation of Cylindrical Objects. IEEE Robot. Autom. Lett.
**2018**, 3, 2754–2761. [Google Scholar] [CrossRef] - Liu, Z.; Liu, X.; Duan, G.; Tan, J. A Real-Time and Precise Ellipse Detector via Edge Screening and Aggregation. Mach. Vis. Appl.
**2020**, 31, 64. [Google Scholar] [CrossRef] - Meng, C.; Li, Z.; Bai, X.; Zhou, F. Arc Adjacency Matrix-Based Fast Ellipse Detection. IEEE Trans. Image Process.
**2020**, 29, 4406–4420. [Google Scholar] [CrossRef] - Lu, C.; Xia, S.; Shao, M.; Fu, Y. Arc-Support Line Segments Revisited: An Efficient High-Quality Ellipse Detection. IEEE Trans. Image Process.
**2020**, 29, 768–781. [Google Scholar] [CrossRef] - Thurnhofer-Hemsi, K.; López-Rubio, E.; Blázquez-Parra, E.B.; Ladrón-de-Guevara-Muñoz, M.C.; de-Cózar-Macias, Ó.D. Ellipse Fitting by Spatial Averaging of Random Ensembles. Pattern Recognit.
**2020**, 106, 107406. [Google Scholar] [CrossRef] - Yuill, R.S. The Standard Deviational Ellipse; An Updated Tool for Spatial Description. Geogr Ann. Ser. B
**1971**, 53, 28. [Google Scholar] [CrossRef] - Fm100-Focus-Monitor-100. Available online: http://www.metrolux.de/en/products/fm100-focus-monitor-100 (accessed on 9 March 2023).

Standard Data | ACF | TM | PM | AAMED | ASL | |
---|---|---|---|---|---|---|

Long axis $a$ (nm) | 158 | 159.09 | 156.41 | 167.2 | 165.93 | 168.97 |

Short axis $b$ (nm) | 132 | 132.57 | 124.63 | 133.75 | 132.75 | 135.03 |

Standard Data | ACF | TM | PM | AAMED | ASL | |
---|---|---|---|---|---|---|

Long axis $a$ (nm) | 158 | 158.64 | 154.95 | 168.1 | / | 168.53 |

Short axis $b$ (nm) | 132 | 132.2 | 123.29 | 134.05 | / | 135.1 |

Standard Data | ACF | TM | PM | AAMED | ASL | |
---|---|---|---|---|---|---|

Long axis $a$ (nm) | 158 | 159.94 | 156.7 | 171.4 | / | 169.64 |

Short axis $b$ (nm) | 132 | 133.28 | 125.17 | 137.25 | / | 136.54 |
