Article

Convergent Validity between Electromyographic Muscle Activity, Ultrasound Muscle Thickness and Dynamometric Force Measurement for Assessing Muscle

by
Umut Varol
1,
Marcos J. Navarro-Santana
2,3,
Juan Antonio Valera-Calero
2,3,*,
Sergio Antón-Ramírez
4,
Javier Álvaro-Martínez
4,
María José Díaz-Arribas
2,
César Fernández-de-las-Peñas
5,6 and
Gustavo Plaza-Manzano
2,3
1
Escuela Internacional de Doctorado, Universidad Rey Juan Carlos, 28933 Alcorcón, Spain
2
Department of Radiology, Rehabilitation and Physiotherapy, Faculty of Nursery, Physiotherapy and Podiatry, Complutense University of Madrid, 28040 Madrid, Spain
3
Grupo InPhysio, Instituto de Investigación Sanitaria San Carlos (IdISSC), 28040 Madrid, Spain
4
VALTRADOFI Research Group, Universidad Camilo José Cela, 28692 Villanueva de la Cañada, Spain
5
Department of Physical Therapy, Occupational Therapy, Rehabilitation and Physical Medicine, Universidad Rey Juan Carlos, 28922 Alcorcón, Spain
6
Cátedra Institucional en Docencia, Clínica e Investigación en Fisioterapia, Terapia Manual, Punción Seca y Ejercicio Terapéutico, Universidad Rey Juan Carlos, 28922 Alcorcón, Spain
*
Author to whom correspondence should be addressed.
Sensors 2023, 23(4), 2030; https://doi.org/10.3390/s23042030
Submission received: 7 December 2022 / Revised: 6 February 2023 / Accepted: 7 February 2023 / Published: 10 February 2023
(This article belongs to the Special Issue Ultrasound-Based Sensors for Physical Therapy Applications)
Browse Figures
Versions Notes

Abstract

:
Muscle fatigue is defined as a reversible decline in performance after intensive use, which largely recovers after a resting period. Surface electromyography (EMG), ultrasound imaging (US) and dynamometry are used to assess muscle activity, muscle morphology and isometric force capacity. This study aimed to assess the convergent validity between these three methods for assessing muscle fatigue during a manual prehension maximal voluntary isometric contraction (MVIC). A diagnostic accuracy study was conducted, enrolling 50 healthy participants for the measurement of simultaneous changes in muscle thickness, muscle activity and isometric force using EMG, US and a hand dynamometer, respectively, during a 15 s MVIC. An adjustment line and its variance (R2) were calculated. Muscle activity and thickness were comparable between genders (p > 0.05). However, men exhibited lower force holding capacity (p < 0.05). No side-to-side or dominance differences were found for any variable. Significant correlations were found for the EMG slope with US (r = 0.359; p < 0.01) and dynamometry (r = 0.305; p < 0.01) slopes and between dynamometry and US slopes (r = 0.227; p < 0.05). The sample of this study was characterized by comparable muscle activity and muscle thickness change between genders. In addition, fatigue slopes were not associated with demography or anthropometry. Our findings showed fair convergent associations between these methods, providing synergistic muscle fatigue information.

1. Introduction

Muscle contraction is produced by electric stimuli originating from the central nervous system (CNS) to motor neurons inserted into the muscle cells and branches. At this location, the electric stimulus produces the release of chemical neurotransmitters (acetylcholine) from synaptic vesicles to nicotinic receptors located on the motor endplate. This coupling induces muscle membrane depolarization, which is propagated to the sarcoplasmic reticulum to release the calcium ions needed for muscle contraction [1].
Although this physiological process is identical for all skeletal muscles, the endurance capacity for each muscle is not the same, as there are different muscle fibers described according to their properties and function [2]. Type I fibers contain several mitochondria and myoglobin, and are resilient and activated for sustained and prolonged submaximal demands (therefore, a high blood supply for this aerobic process is needed). In contrast, type II fibers provide more tension and more powerful forces during shorter times. As these are more anaerobic, less blood supply is needed (for this reason, they are also known as white muscle fibers) and they are characterized by rapid fatigue [3].
Muscle fatigue is defined as the reversible decline in performance after intensive use, which largely recovers after a resting period [4]. Chronic conditions including muscle atrophies (due to immobilization, sarcopenia or neurogenic etiology) or fiber type changes in chronic pain populations including neck pain [5] focused on muscle fatigue are a determinant factor affecting the functional capacity and quality of life of individuals [6].
Three methods widely used for assessing muscle performance are dynamometry, surface electromyography (EMG) and ultrasound imaging (US). These three methods can be used for monitoring changes in the applied force, electrical activity and muscle morphology, respectively, during a sustained maximum voluntary isometric contraction (MVIC) [7]. It should be noted that each method is characterized by its own strengths and limitations. For instance, US is portable, safe (as no ionizing radiation is used for acquiring the images), fast, accessible and provides real-time information, allowing the examination of immediate changes [8]. Due to these advantages and the range of imaging methods based on US (e.g., B-mode, M-mode, Doppler US, strain elastography, shear-wave elastography and panoramic US, among others [9]), it is a tool that is widely used in health sciences for the educational (i.e., teaching anatomy and pathologies [10]), research (i.e., to obtain objective measurements of muscle function, size, shape and composition [11]) and clinical settings (e.g., as a supportive tool for guiding needle interventions, visual feedback for motor control exercises or monitoring changes after interventions [12]). However, important limitations should be acknowledged. First, US is an operator-dependent method and certain exams require the examiner to be experienced so as to ensure good validity, reliability, sensibility and specificity [13]. Thus, due to the US interaction with the tissues (i.e., attenuation and refraction), some artifacts impede the visualization of some structures, including intra-articular elements or deep structures [14].
Regarding the strengths of EMG, its safety, ease and cost-effectivity should be highlighted. In contrast to needle EMG, it is not necessary to pierce the skin to record from single motor units to wide muscle areas [15]. This tool is not limited to providing the electrical activity difference between rest and contraction, facilitating cognition during motor control exercises [16], but also provides timing information, which is considered a determinant factor to differentiate clinical and asymptomatic populations [17]. The most important limitations of this tool are the limited ability to monitor muscle sites (as the neuromuscular system is complex, reducing the function to one or two channels may not represent the real function of the musculoskeletal system) [18], the possibility of “cross-talking” (a phenomenon where electrical activity from other muscles may bias the recording of the targeted muscle) and the need to normalize the data for correct interpretation [19].
Finally, hand dynamometers are characterized by their simplicity and portability for measuring the hand grip force and extrapolating the general strength level [20]. However, regular recalibrations are needed to ensure its accuracy and hand size is a determinant factor to be considered during the exams.
Despite previous research analyzing the association between US and EMG simultaneously with MVIC [21], evidence is limited regarding the convergent validity of these three methods for assessing simultaneously muscle fatigue during a sustained MVIC. Therefore, the aim of this study was to assess the association of the fatigue-adjusted line using US, EMG and dynamometry simultaneously during a sustained MVC to verify the association between isometric force capacity, electrical muscle activity and muscle morphology.

2. Materials and Methods

2.1. Study Design

This diagnostic accuracy study consisted of a single-group, cross-sectional concordance design. This study was conducted between October 2021 and February 2022 in a private university located in Madrid, Spain. Patients were evaluated once by two blinded examiners with +10 years of experience in each method. The study was conducted according to the directives of the Standards for Reporting of Diagnostic Accuracy Studies (STARD) [22] and the Enhancing the Quality and Transparency Of health Research (EQUATOR) guidelines and checklist [23]. All procedures were approved by a local Ethics Committee and conducted in accordance with the Declaration of Helsinki.

2.2. Participants

Healthy participants were recruited using fliers posted around the university campus. Participants had to be aged between 18 and 65 years and had to read and sign the informed consent form to be enrolled in the study. Exclusion criteria included (1) neurological, muscular, cardiovascular or any other condition contraindicating hand grip MVIC performance or contributing to pain appearance; (2) subjects with a body mass index (BMI) > 35 kg/m2 since this could bias the US and EMG measurements [21].

2.3. Sample Size Calculation

Sample size was calculated based on the only previous similar study analyzing simultaneously MVIC, US and EMG [21] (peak, but not fatigue) in healthy subjects. Accordingly, a minimum sample size of 38 participants could be considered appropriate. If this study was considered as a prognostic study, a range of 10 to 15 data points per potential predictor (with no more than five predictor variables) was recommended for avoiding overestimation of the results [24]. Therefore, considering the inclusion of 10 potential variables assessed in this study (excluding side and dominance as no differences are expected), the minimum sample size required was set at 100 measurements. Due to the cross-sectional nature of this study, no losses were considered.

2.4. Fatigue Measurement Instruments

Data collection procedures were performed using a dynamometer, a surface EMG device and a US device simultaneously and synchronized during a sustained 15 s MVIC. A single measurement from both sides was acquired. Previously, participants were familiarized with the dynamometer and the starting position (subjects placed the Jamar in their hand, with the arm beside the trunk, the shoulder in a neutral position and the elbow flexed at 90°, and pulled the metal bar with their fingers), performing 2–3 submaximal contractions (to avoid early fatigue appearance), as illustrated in Figure 1. All procedures were conducted following the instructions described by Trinidad-Fernández et al. [21], as they demonstrated acceptable reliability.

2.4.1. Ultrasound Imaging

All US procedures were conducted using the Alpinion Ecube i8 equipment (Gyeonggi-do, Republic of Korea) with a linear transducer E8-PB-L3-12T 3–12 MHz, setting the same parameters for all exams (frequency: 12 MHz; gain: 55 dB; dynamic range: 85 dB; brightness: 74), but the depth was adapted for each subject. Firstly, forearm length was determined as the distance from the elbow flexion crease to the wrist flexion crease [25]. The transducer was placed in the middle distance between these points, avoiding excessive pressure. In addition, this location was used to measure the forearm girth (Figure 1A). The transducer was glided medially to locate both the flexor digitorum superficialis and profundus and the cubital bone surface in the center of the image (Figure 1B).

2.4.2. Hand Grip Force

The Hand Grip Force test is a simple, fast, reliable and relatively inexpensive test for assessing grip strength [26]. A Jamar hand dynamometer (JLW Instruments, Chicago, IL, USA) was used (Figure 1B). The handle diameter was set at 19.7% of the participant’s hand length, as recommended by Kong et al. [27]. One researcher explained and demonstrated the procedure before proceeding with the data collection. Participants were placed in the sitting position, holding the Jamar in their hand, with the arm beside the trunk, the shoulder in a neutral position and the elbow flexed at 90°. This procedure was conducted bilaterally, asking the participants to pull the metal bar with their fingers as hard as they could (respecting the positioning explained) for 15 s.

2.4.3. Surface Electromyography

The surface electromyographic activity was collected using a mDurance Pro device (mDurance Solutions S.L., Granada, Spain). Data were transferred and processed using the mDurance software v.2.11.2 for Android 5.0. Prior to the electrodes’ placement, the skin was prepared following the recommendations provided by the Surface ElectroMyoGraphy for the Non-Invasive Assessment of Muscles [28]. Three 30-mm-diameter circular electrodes were used: one ground electrode was placed on the bone surface located at the medial humeral epicondyle and two reference electrodes were placed in line over the proximal third of the forearm to collect the muscle activity of the flexor digitorum superficialis and profundus as a single functional muscle (Figure 1B). This procedure followed the recommendations provided by the European Society of Electromyography regarding the spatial sensor characteristics and placement (reference electrodes located longitudinally to the fiber direction with an inter-electrode distance of 20 mm), electrode materials (Ag/AgCl) and signal conditioning (lower and upper cut-offs were set at 20 and 500 Hz, respectively, and sampling frequency was set at 1024 samples/second) and processing (root mean square, RMS) [29] based on previous studies assessing the same muscles during the same task [21,30,31].

2.5. Outcomes

2.5.1. Isometric Force Holding

The Hand Grip Dynamometry provided the force (expressed in kilograms) during the 15 s MVIC hand grip test. Data for each second were collected and analyzed to measure force changes due to muscle fatigue.

2.5.2. Muscle Thickness Change

M-mode ultrasound imaging provided information about the muscle thickness (Y-axis) per time (X-axis) (Figure 2A). Firstly, time frames of 1 s were marked in the M-mode images (where T0 corresponds to the contraction initiation). Then, muscle thickness was measured for each time point as the distance between the internal and superficial fascia of the flexor digitorum superficialis to the deep and internal fascia of the flexor digitorum profundi (Figure 2B).

2.5.3. Muscle Activity Change

The surface EMG provided the muscle activity (expressing the amplitude in μV) during the 15 s test. Previous studies demonstrated the use of the flexor digitorum muscle during this task [32,33]. Data for each 0.25 s were collected and analyzed to measure muscle activity fatigue.

2.6. Data Analysis

The adjusted line for the function of each measurement method (force holding capacity, muscle activity and muscle thickness changes in the Y-axis) by time (X-axis) was calculated to obtain the linear regression slope and variance (R2). Adjusted lines for each method are available in Figure 3.

2.7. Statistical Analysis

All statistical analyses were conducted using the Statistical Package for the Social Sciences (SPSS) v.27 for Mac OS (Armonk, NY, USA). Normal distribution of each variable was verified using the Kolmogorov–Smirnov test if p > 0.05. Then, descriptive statistics were used to summarize continuous variables as the mean and standard deviation (if normally distributed) or median and interquartile range (if non-normally distributed) and categorical variables as frequency and percentage.
Student’s t-tests for independent samples were used to identify differences in gender (demographic, anthropometric and fatigue variables), side and dominance (both anthropometric and fatigue variables).
Pearson’s correlation coefficients (r) were used to calculate a multivariate correlation matrix including all demographic, anthropometric and fatigue variables. Association strength was interpreted accordingly with the values obtained (0–0.3 were poor, 0.3–0.5 fairly, 0.5–0.7 moderate and 0.8–1.0 strong), and direction (for continuous variables) was interpreted depending on the r sign (negative values as indirect correlations and positive values as positive correlations) [34].

3. Results

From a total of 52 volunteers responding to the announcements, two participants were excluded due to exceeding the BMI considered for this study. All registered measurements (n = 100) from the 50 participants enrolled were included in the analyses.
Table 1 and Table 2 summarize all demographic and anthropometric data of the total sample and divided into groups (gender, left/right sides and side dominance). Although participants had a comparable age (p > 0.05), men showed a greater BMI (difference = 0.6 to 4.7 kg/m2; p < 0.05) and in general were taller and heavier (difference = 0.08 to 0.16 m; p < 0.001). Forearm length and girth were larger in men compared to women (difference = 1.1 to 3.0 and 2.0 to 4.2, respectively; both p < 0.001). However, no side-to-side or dominant–non-dominant statistically significant differences were found (p > 0.05).
Table 3, Table 4 and Table 5 show the slope decrease rate and variance for each instrument by gender, side and dominance, respectively. For instance, the muscle activity assessed with EMG in males decreased at a rate of 1.08 μV per second. Therefore, after the 15 s maneuver, a mean decrease of 16.2 μV was observed. Fatigability results obtained from EMG, US and dynamometry were compared by gender, dominance and side. No linear regression slope differences were found between males and females for fatigue properties measured with EMG or US (p = 0.508 and p = 0.693, respectively). However, females were more capable of holding the MVIC compared with males (p = 0.022), demonstrating lower fatigability. On the other hand, comparisons between the right and left hand and between dominant and non-dominant sides showed no significant differences for EMG, US and dynamometry slopes (all p < 0.05).
Table 6 contains the correlation matrix. In general, we found anthropometric characteristics to be associated with several demographic features. Forearm girth was associated with age, height, weight, BMI, forearm length and gender (all p < 0.01), and forearm length was associated with height, weight, BMI (all p < 0.01) and gender (p < 0.05). Muscle activity fatigue and thickness change during the MVIC showed no significant correlations with demography or anthropometry (all p > 0.05). However, isometric force holding capacity was negatively associated with height (p < 0.05), forearm girth (p < 0.01) and length (p < 0.05). In addition, male sex was associated with greater force fatigue (p < 0.05). Finally, significant correlations between all methods used for quantifying muscle fatigue were found (p < 0.05).

4. Discussion

This study aimed to analyze the convergent validity of muscle activity assessed with EMG, muscle thickness assessed with US and isometric prehensile force assessed with dynamometry for measuring muscle fatigue. To our knowledge, this is the first study using adjusted line slopes with these tools to compare the association between them for measuring fatigue indicators such as electrical activity, muscle thickness and force capacity. Our findings showed significant weak associations between all methods, suggesting the use of all of them to provide synergistic information in the fatigue assessment, as it seems to be sensitive to different aspects and overcomes the limitations introduced previously (e.g., use of US for evaluating deep muscles not accessible with EMG). These findings could assist both clinicians and researchers to acquire overall information. The rationale for selecting the forearm muscles was supported by the anatomical disposition, which allows the simultaneous assessment with EMG, US and dynamometry and highlights the clinical importance of this muscular group [35]. Previous studies highlighted the importance of hand grip force as it is associated with a greater impact of rheumatoid arthritis [36], fibromyalgia [20], sarcopenia [37], cancer [38] or diabetes [39]. Additionally, it is considered an important predictor of mortality associated with falls [40,41] and heart failure [42].
Ultrasound imaging is widely used for assessing muscle morphology, histology and function [43,44]. Previous research demonstrated this tool to be useful in fatigue assessment to provide strategies aiming to alleviate muscle [45] or tendon failure [46] based on echogenicity and strain features, or as a discriminative and reliable tool for identifying clinical populations based on their ability to maintain an isometric contraction [47]. In addition, M-mode US could be a potential tool to be used in rehabilitative exercise programs, providing more effective feedback than tactile, with or without verbal advisements, in both exercise performance and retention success [48].
Shi et al. [49] conducted a sonographic study analyzing the feasibility of the muscle thickness change in measuring muscle fatigue while monitoring muscle activity during biceps brachii isometric contractions (80% MVIC) in eight healthy participants. Although they demonstrated this muscle deformation to be valid for measuring muscle fatigue, the sample size was small, and the procedures used for assessing the muscle thickness change with B-mode US were complex and not readily applicable during the clinical practice (e.g., software was needed to display results frame by frame, requiring off-line assessments). M-mode is an easy-to-use, accessible and applicable imaging mode, allowing both the examiner and participant to obtain real-time feedback in measuring the muscle thickness changes [50] of individual muscles, even if they are overlapped. Despite these methodological procedures’ differences, our results were consistent.
In this study, we focused on the Hand Grip Force as it is a widely considered outcome in a wide range of populations with different ages, sexes, states of health and pathological conditions [51]. One possible reason may be that muscle weakness is a risk factor in developing disability and dependence during activities of daily life, frailty and mortality [52]. Although Trinidad-Fernández et al. [21] found moderate and strong associations between EMG and muscle thickness, this association was found for the maximum grip force peak with the EMG score (calculated as the difference between the maximum and minimum peaks). Differences in the strength of the correlations between the two methodologies may be explained by the activity demands in muscle fibers derived from the cross-sectional and longitudinal designs.
Finally, previous studies evaluated electromyographic changes occurring during sustained muscle contractions for assessing muscle endurance [53,54,55]. For instance, Falla et al. [53] reported existing slope differences between healthy subjects and neck pain patients at 25% and 50% of MVIC for the sternocleidomastoid and anterior scalene muscles, suggesting the greater presence of type II fibers and greater fatigability of superficial neck muscles in neck pain patients compared with healthy subjects. In addition, Robinson et al. [54] and Elfving et al. [55] demonstrated significant differences for fatigue slopes between patients with chronic low back pain and asymptomatic subjects.

Limitations

Although this study addressed many limitations of previous studies, several limitations remain. Firstly, this was a diagnostic accuracy study, and we limited this research to the agreement between methods and did not consider the fatigue demeanor. Further studies are needed assessing EMG, US and dynamometry differences between healthy and clinical populations for a better overall understanding of fatigue mechanisms. Secondly, we assessed both flexor digitorum muscles as a single unit, as we used surface EMG. Further studies should clarify whether there are muscle activity and thickness interactions between overlapped or adjacent muscles. Finally, fatigue assessments considering many other situations (e.g., populations, muscles, methods, contraction types and normalizations) would be of utility.

5. Conclusions

Our findings showed fair convergent associations between muscle thickness changes assessed with M-mode US, muscle activity changes assessed with surface EMG and hand grip force sustainment assessed with dynamometry. Although we found comparable muscle activity and muscle thickness changes between genders, men exhibited a greater decrease in force holding capacity. Fatigue slopes assessed with all methods were not associated with demography or anthropometry, but forearm girth and length were associated with force holding capacity. These findings suggest that these three methods assess different aspects of muscle fatigue, providing synergistic information about muscle activity, thickness and force capacity and allowing alternatives to overcome the limitations described previously for each method.

Author Contributions

Conceptualization, U.V. and J.A.V.-C.; methodology, U.V., M.J.N.-S., J.A.V.-C., S.A.-R., J.Á.-M., M.J.D.-A., C.F.-d.-l.-P. and G.P.-M.; software, U.V.; validation, U.V., M.J.N.-S., J.A.V.-C., S.A.-R., J.Á.-M., M.J.D.-A., C.F.-d.-l.-P. and G.P.-M.; formal analysis, J.A.V.-C.; investigation, U.V., M.J.N.-S., J.A.V.-C., S.A.-R., J.Á.-M., M.J.D.-A., C.F.-d.-l.-P. and G.P.-M.; resources, M.J.D.-A.; data curation, S.A.-R. and J.Á.-M.; writing—original draft preparation, J.A.V.-C. and C.F.-d.-l.-P.; writing—review and editing U.V., M.J.N.-S., J.A.V.-C., S.A.-R., J.Á.-M., M.J.D.-A., C.F.-d.-l.-P. and G.P.-M.; visualization, U.V., M.J.N.-S., J.A.V.-C., S.A.-R., J.Á.-M., M.J.D.-A., C.F.-d.-l.-P. and G.P.-M.; supervision, J.A.V.-C. and G.P.-M.; project administration, J.A.V.-C. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki and approved by the Institutional Review Board (or Ethics Committee) of Universidad de Alcalá (CEIM/HU/2016/13).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Harris, A.J.; Duxson, M.J.; Butler, J.E.; Hodges, P.W.; Taylor, J.L.; Gandevia, S.C. Muscle fiber and motor unit behavior in the longest human skeletal muscle. J. Neurosci. 2005, 25, 8528–8533. [Google Scholar] [CrossRef]
  2. Frontera, W.R.; Ochala, J. Skeletal muscle: A brief review of structure and function. Calcif. Tissue Int. 2015, 96, 183–195. [Google Scholar] [CrossRef] [PubMed]
  3. Exeter, D.; Connell, D.A. Skeletal muscle: Functional anatomy and pathophysiology. Semin. Musculoskelet. Radiol. 2010, 14, 97–105. [Google Scholar] [CrossRef] [PubMed]
  4. Allen, D.G.; Lamb, G.D.; Westerblad, H. Skeletal muscle fatigue: Cellular mechanisms. Physiol. Rev. 2008, 88, 287–332. [Google Scholar] [CrossRef] [PubMed]
  5. Schomacher, J.; Falla, D. Function and structure of the deep cervical extensor muscles in patients with neck pain. Man. Ther. 2013, 18, 360–366. [Google Scholar] [CrossRef]
  6. Constantin-Teodosiu, D.; Constantin, D. Molecular Mechanisms of Muscle Fatigue. Int. J. Mol. Sci. 2021, 22, 11587. [Google Scholar] [CrossRef]
  7. Vøllestad, N.K. Measurement of human muscle fatigue. J. Neurosci. Methods 1997, 74, 219–227. [Google Scholar] [CrossRef]
  8. Kossoff, G.; Garrett, W.J.; Carpenter, D.A.; Jellins, J.; Dadd, M.J. Principles and classification of soft tissues by grey scale echography. Ultrasound Med. Biol. 1976, 2, 89–111. [Google Scholar] [CrossRef]
  9. Varol, U.; Navarro-Santana, M.J.; Gómez-Sánchez, S.; Plaza-Manzano, G.; Sánchez-Jiménez, E.; Valera-Calero, J.A. Inter-Examiner Disagreement for Assessing Cervical Multifidus Ultrasound Metrics Is Associated with Body Composition Features. Sensors 2023, 23, 1213. [Google Scholar] [CrossRef]
  10. So, S.; Patel, R.M.; Orebaugh, S.L. Ultrasound imaging in medical student education: Impact on learning anatomy and physical diagnosis. Anat. Sci. Educ. 2017, 10, 176–189. [Google Scholar] [CrossRef]
  11. Varol, U.; Sánchez-Jiménez, E.; Leloup, E.A.A.; Navarro-Santana, M.J.; Fernández-de-las-Peñas, C.; Sánchez-Jorge, S.; Valera-Calero, J.A. Correlation between Body Composition and Inter-Examiner Errors for Assessing Lumbar Multifidus Muscle Size, Shape and Quality Metrics with Ultrasound Imaging. Bioengineering 2023, 10, 133. [Google Scholar] [CrossRef]
  12. Whittaker, J.L.; Ellis, R.; Hodges, P.W.; OSullivan, C.; Hides, J.; Fernandez-Carnero, S.; Arias-Buria, J.L.; Teyhen, D.S.; Stokes, M.J. Imaging with ultrasound in physical therapy: What is the PT’s scope of practice? A competency-based educational model and training recommendations. Br. J. Sports Med. 2019, 53, 1447–1453. [Google Scholar] [CrossRef]
  13. Valera-Calero, J.A.; Fernández-de-las-Peñas, C.; Fernández-Rodríguez, T.; Arias-Buría, J.L.; Varol, U.; Gallego-Sendarrubias, G.M. Influence of Examiners’ Experience and Region of Interest Location on Semi-quantitative Elastography Validity and Reliability. Appl. Sci. 2021, 11, 9247. [Google Scholar] [CrossRef]
  14. Shriki, J. Ultrasound physics. Crit. Care Clin. 2014, 30, 1–24. [Google Scholar] [CrossRef] [PubMed]
  15. Felici, F.; Del Vecchio, A. Surface Electromyography: What Limits Its Use in Exercise and Sport Physiology? Front. Neurol. 2020, 11, 578504. [Google Scholar] [CrossRef]
  16. Neblett, R. Surface Electromyographic (SEMG) Biofeedback for Chronic Low Back Pain. Healthcare 2016, 4, 27. [Google Scholar] [CrossRef]
  17. Santana-Mora, U.; López-Ratón, M.; Mora, M.J.; Cadarso-Suárez, C.; López-Cedrún, J.; Santana-Penín, U. Surface raw electromyography has a moderate discriminatory capacity for differentiating between healthy individuals and those with TMD: A diagnostic study. J. Electromyogr. Kinesiol. 2014, 24, 332–340. [Google Scholar] [CrossRef] [PubMed]
  18. Miller, R.V., Jr. Electromyography; uses and limitations. Calif. Med. 1958, 89, 250–252. [Google Scholar]
  19. Cram, J.R.; Kasman, G.S.; Holtz, J. Introduction to Surface Electromyography; Aspen Publishers: Boston, MA, USA, 1998. [Google Scholar]
  20. Cigarán-Méndez, M.; Úbeda-D’Ocasar, E.; Arias-Buría, J.L.; Fernández-de-Las-Peñas, C.; Gallego-Sendarrubias, G.M.; Valera-Calero, J.A. The hand grip force test as a measure of physical function in women with fibromyalgia. Sci. Rep. 2022, 12, 3414. [Google Scholar] [CrossRef]
  21. Trinidad-Fernández, M.; González-Molina, F.; Moya-Esteban, A.; Roldán-Jiménez, C.; González-Sánchez, M.; Cuesta-Vargas, A.I. Muscle activity and architecture as a predictor of hand-grip strength. Physiol. Meas. 2020, 41, 075008. [Google Scholar] [CrossRef]
  22. Cohen, J.F.; Korevaar, D.A.; Altman, D.G.; Bruns, D.E.; Gatsonis, C.A.; Hooft, L.; Irwig, L.; Levine, D.; Reitsma, J.B.; De Vet, H.C.; et al. STARD 2015 guidelines for reporting diagnostic accuracy studies: Explanation and elaboration. BMJ Open 2016, 6, e012799. [Google Scholar] [CrossRef]
  23. Faggion, C.M., Jr. EQUATOR reporting guidelines should also be used by clinicians. J. Clin. Epidemiol. 2020, 117, 149–150. [Google Scholar] [CrossRef]
  24. Beneciuk, J.M.; Bishop, M.D.; George, S.Z. Clinical prediction rules for physical therapy interventions: A systematic review. Phys. Ther. 2009, 89, 114–124. [Google Scholar] [CrossRef] [PubMed]
  25. Edmond, T.; Laps, A.; Case, A.L.; O’Hara, N.; Abzug, J.M. Normal Ranges of Upper Extremity Length, Circumference, and Rate of Growth in the Pediatric Population. Hand 2020, 15, 713–721. [Google Scholar] [CrossRef] [PubMed]
  26. Hamilton, G.F.; McDonald, C.; Chenier, T.C. Measurement of grip strength: Validity and reliability of the sphygmomanometer and jamar grip dynamometer. J. Orthop. Sports Phys. Ther. 1992, 16, 215–219. [Google Scholar] [CrossRef] [PubMed]
  27. Kong, Y.K.; Lowe, B.D. Optimal cylindrical handle diameter for grip force tasks. Int. J. Ind. Ergon. 2005, 35, 495–507. [Google Scholar] [CrossRef]
  28. Surface ElectroMyoGraphy for the Non-Invasive Assessment of Muscles. Available online: http://www.seniam.org (accessed on 24 January 2023).
  29. Stegeman, D.; Hermens, H. Standards for surface electromyography: The European project Surface EMG for non-invasive assessment of muscles (SENIAM). Enschede Roessingh Res. Dev. 2007, 10, 8–12. [Google Scholar]
  30. Hashemi Oskouei, A.; Paulin, M.G.; Carman, A.B. Intra-session and inter-day reliability of forearm surface EMG during varying hand grip forces. J. Electromyogr. Kinesiol. 2013, 23, 216–222. [Google Scholar] [CrossRef] [PubMed]
  31. Sorbie, G.G.; Hunter, H.H.; Grace, F.M.; Gu, Y.; Baker, J.S.; Ugbolue, U.C. An electromyographic study of the effect of hand grip sizes on forearm muscle activity and golf performance. Res. Sports Med. 2016, 24, 222–233. [Google Scholar] [CrossRef]
  32. Blackwell, J.R.; Kornatz, K.W.; Heath, E.M. Effect of grip span on maximal grip force and fatigue of flexor digitorum superficialis. Appl. Ergon. 1999, 30, 401–405. [Google Scholar] [CrossRef]
  33. Goislard de Monsabert, B.; Rossi, J.; Berton, E.; Vigouroux, L. Quantification of hand and forearm muscle forces during a maximal power grip task. Med. Sci. Sports Exerc. 2012, 44, 1906–1916. [Google Scholar] [CrossRef] [PubMed]
  34. Chan, Y.H. Biostatistics 104: Correlational analysis. Singap. Med. J. 2003, 44, 614–619. [Google Scholar]
  35. Robertson, L.D.; Mullinax, C.M.; Brodowicz, G.R.; Swafford, A.R. Muscular fatigue patterning in power grip assessment. J. Occup. Rehabil. 1996, 6, 71–85. [Google Scholar] [CrossRef] [PubMed]
  36. Crosby, L.J. Factors which contribute to fatigue associated with rheumatoid arthritis. J. Adv. Nurs. 1991, 16, 974–981. [Google Scholar] [CrossRef] [PubMed]
  37. Kenny, A.M.; Dawson, L.; Kleppinger, A.; Iannuzzi-Sucich, M.; Judge, J.O. Prevalence of sarcopenia and predictors of skeletal muscle mass in nonobese women who are long-term users of estrogen-replacement therapy. J. Gerontol. A Biol. Sci. Med. Sci. 2003, 58, M436–M440. [Google Scholar] [CrossRef] [PubMed]
  38. Stone, P.; Hardy, J.; Broadley, K.; Tookman, A.J.; Kurowska, A.; A’Hern, R. Fatigue in advanced cancer: A prospective controlled cross-sectional study. Br. J. Cancer 1999, 79, 1479–1486. [Google Scholar] [CrossRef]
  39. Petrofsky, J.; Prowse, M.; Remigio, W.; Raju, C.; Salcedo, S.; Sirichotiratana, M.; Madani, P.; Chamala, R.R.; Puckett, E.; Wong, M.; et al. The use of an isometric handgrip test to show autonomic damage in people with diabetes. Diabetes Technol. Ther. 2009, 11, 361–368. [Google Scholar] [CrossRef]
  40. Kwon, J.W.; Lee, B.H.; Lee, S.B.; Sung, S.; Lee, C.U.; Yang, J.H.; Park, M.S.; Byun, J.; Lee, H.M.; Moon, S.H. Hand grip strength can predict clinical outcomes and risk of falls after decompression and instrumented posterolateral fusion for lumbar spinal stenosis. Spine J. 2020, 20, 1960–1967. [Google Scholar] [CrossRef]
  41. Metter, E.J.; Talbot, L.A.; Schrager, M.; Conwit, R. Skeletal muscle strength as a predictor of all-cause mortality in healthy men. J. Gerontol. A Biol. Sci. Med. Sci. 2002, 57, B359–B365. [Google Scholar] [CrossRef]
  42. Sunnerhagen, K.S.; Cider, A.; Schaufelberger, M.; Hedberg, M.; Grimby, G. Muscular performance in heart failure. J. Card Fail. 1998, 4, 97–104. [Google Scholar] [CrossRef]
  43. Valera-Calero, J.A.; Arias-Buría, J.L.; Fernández-de-Las-Peñas, C.; Cleland, J.A.; Gallego-Sendarrubias, G.M.; Cimadevilla-Fernández-Pola, E. Echo-intensity and fatty infiltration ultrasound imaging measurement of cervical multifidus and short rotators in healthy people: A reliability study. Musculoskelet. Sci. Pract. 2021, 53, 102335. [Google Scholar] [CrossRef] [PubMed]
  44. Plaza-Manzano, G.; Navarro-Santana, M.J.; Valera-Calero, J.A.; Fabero-Garrido, R.; Fernández-de-Las-Peñas, C.; López-de-Uralde-Villanueva, I. Reliability of lumbar multifidus ultrasound assessment during the active straight leg raise test. Eur. J. Clin. Investig. 2022, 52, e13728. [Google Scholar] [CrossRef] [PubMed]
  45. Sheng, Z.; Sharma, N.; Kim, K. Quantitative Assessment of Changes in Muscle Contractility Due to Fatigue During NMES: An Ultrasound Imaging Approach. IEEE Trans. Biomed. Eng. 2020, 67, 832–841. [Google Scholar] [CrossRef] [PubMed]
  46. Schmidt, E.C.; Hullfish, T.J.; O’Connor, K.M.; Hast, M.W.; Baxter, J.R. Ultrasound echogenicity is associated with fatigue-induced failure in a cadaveric Achilles tendon model. J. Biomech. 2020, 105, 109784. [Google Scholar] [CrossRef]
  47. Wallwork, T.L.; Stanton, W.R.; Freke, M.; Hides, J.A. The effect of chronic low back pain on size and contraction of the lumbar multifidus muscle. Man. Ther. 2009, 14, 496–500. [Google Scholar] [CrossRef]
  48. Valera-Calero, J.A.; Fernández-de-Las-Peñas, C.; Varol, U.; Ortega-Santiago, R.; Gallego-Sendarrubias, G.M.; Arias-Buría, J.L. Ultrasound Imaging as a Visual Biofeedback Tool in Rehabilitation: An Updated Systematic Review. Int. J. Environ. Res. Public Health 2021, 18, 7554. [Google Scholar] [CrossRef]
  49. Shi, J.; Zheng, Y.P.; Chen, X.; Huang, Q.H. Assessment of muscle fatigue using sonomyography: Muscle thickness change detected from ultrasound images. Med. Eng. Phys. 2007, 29, 472–479. [Google Scholar] [CrossRef]
  50. Bunce, S.M.; Hough, A.D.; Moore, A.P. Measurement of abdominal muscle thickness using M-mode ultrasound imaging during functional activities. Man. Ther. 2004, 9, 41–44. [Google Scholar] [CrossRef]
  51. Bobos, P.; Nazari, G.; Lu, Z.; MacDermid, J.C. Measurement Properties of the Hand Grip Strength Assessment: A Systematic Review With Meta-analysis. Arch. Phys. Med. Rehabil. 2020, 101, 553–565. [Google Scholar] [CrossRef]
  52. Wang, D.X.M.; Yao, J.; Zirek, Y.; Reijnierse, E.M.; Maier, A.B. Muscle mass, strength, and physical performance predicting activities of daily living: A meta-analysis. J. Cachexia Sarcopenia Muscle 2020, 11, 3–25. [Google Scholar] [CrossRef]
  53. Falla, D.; Rainoldi, A.; Merletti, R.; Jull, G. Myoelectric manifestations of sternocleidomastoid and anterior scalene muscle fatigue in chronic neck pain patients. Clin. Neurophysiol. 2003, 114, 488–495. [Google Scholar] [CrossRef] [PubMed]
  54. Robinson, M.E.; Cassisi, J.E.; O’Connor, P.D.; MacMillan, M. Lumbar iEMG during isotonic exercise: Chronic low back pain patients versus controls. J. Spinal Disord. 1992, 5, 8–15. [Google Scholar] [CrossRef] [PubMed]
  55. Elfving, B.; Dedering, A.; Németh, G. Lumbar muscle fatigue and recovery in patients with long-term low-back trouble—Electromyography and health-related factors. Clin. Biomech. 2003, 18, 619–630. [Google Scholar] [CrossRef] [PubMed]
Sensors 23 02030 g001 550

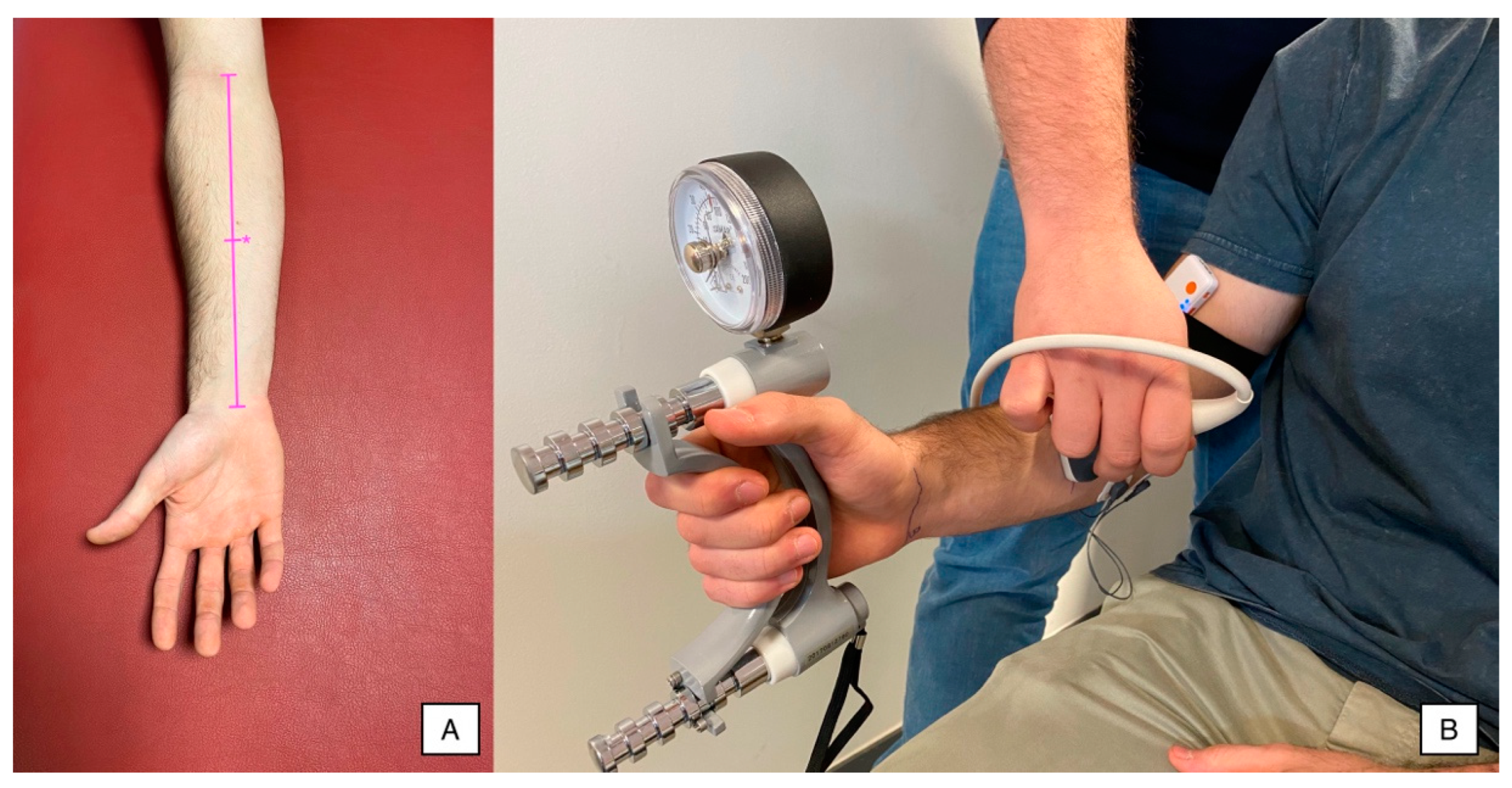

Figure 1. (A) Anthropometric references to identify the measurement point (*) and (B) EMG, US and hand dynamometry settings for simultaneous recording.
Figure 1. (A) Anthropometric references to identify the measurement point (*) and (B) EMG, US and hand dynamometry settings for simultaneous recording.
Sensors 23 02030 g001
Sensors 23 02030 g002 550

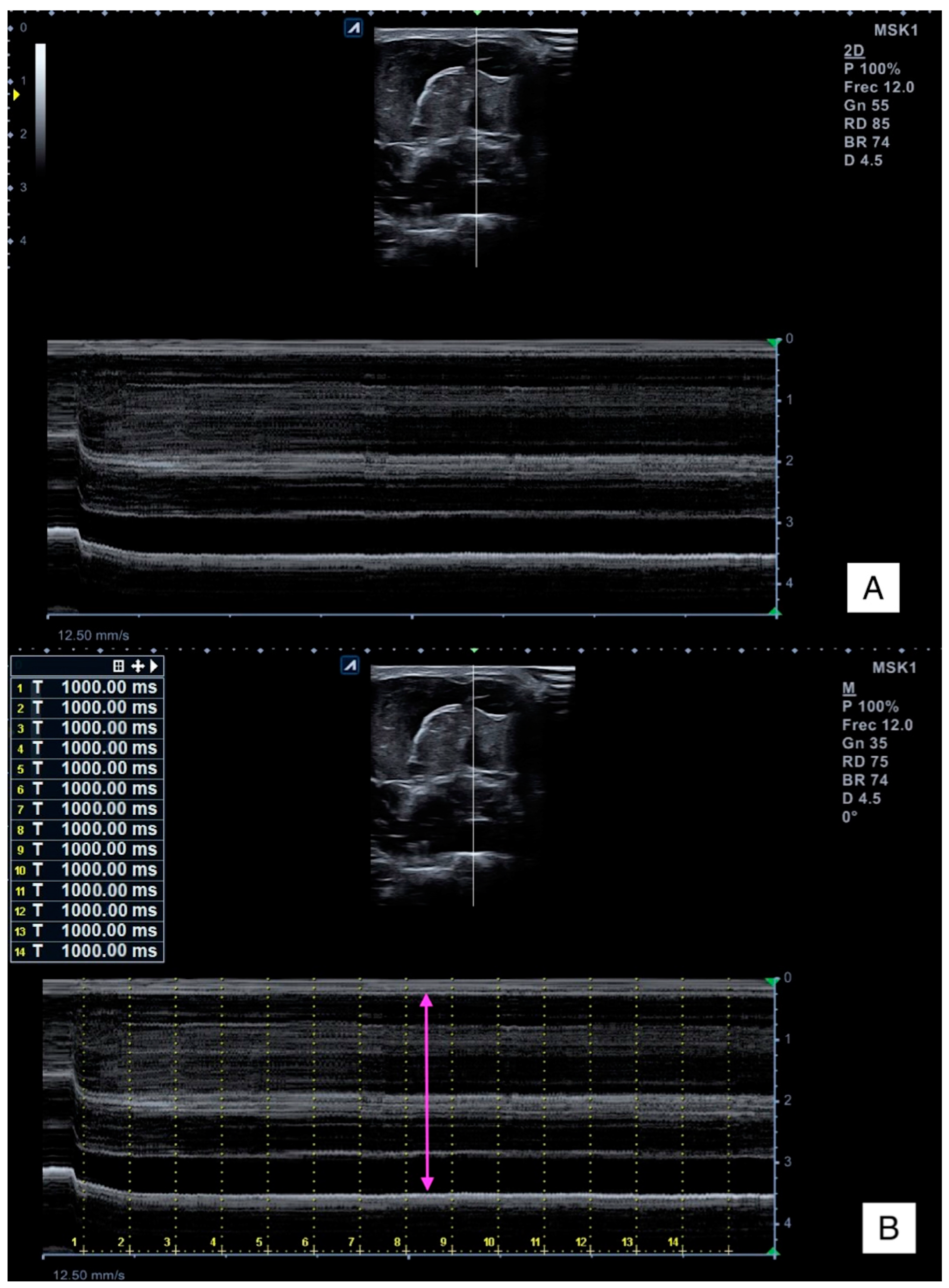

Figure 2. Raw M-mode ultrasound imaging (A) and thickness measurement (B).
Figure 2. Raw M-mode ultrasound imaging (A) and thickness measurement (B).
Sensors 23 02030 g002
Sensors 23 02030 g003a 550Sensors 23 02030 g003b 550

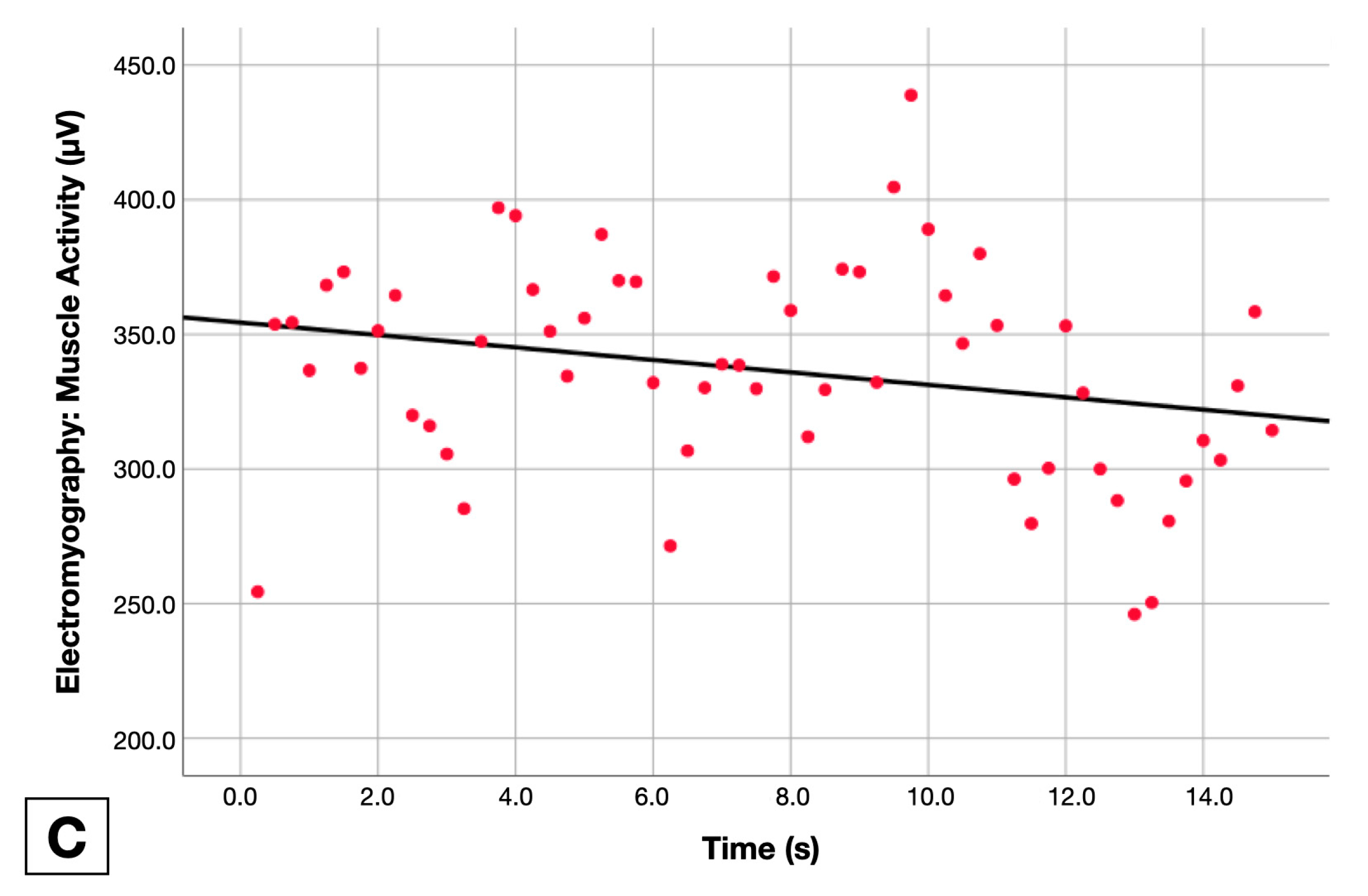

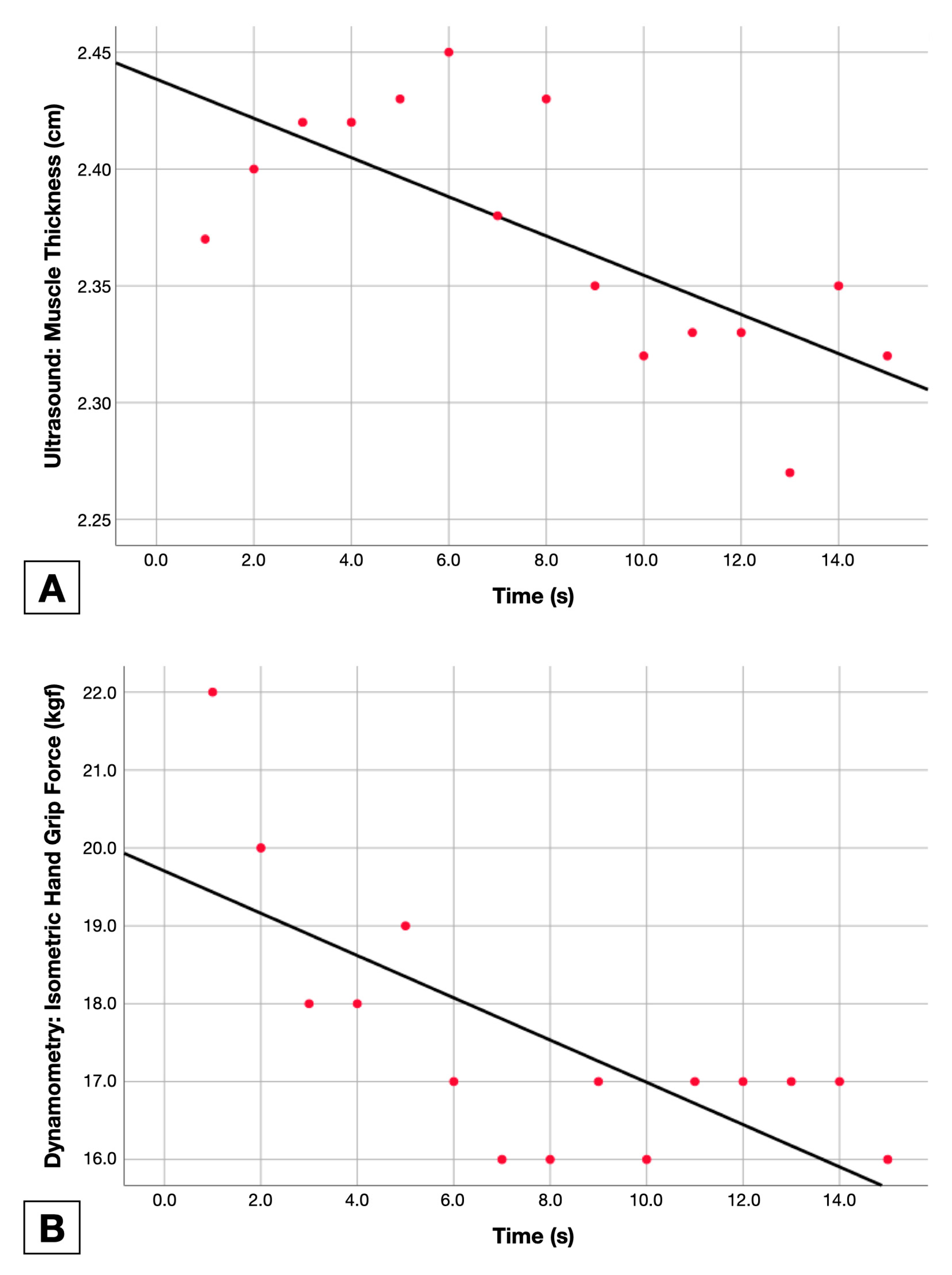

Figure 3. Fatigue measurement data points with adjusted line calculation using ultrasound imaging (A), Hand Grip Dynamometry (B) and electromyography (C).
Figure 3. Fatigue measurement data points with adjusted line calculation using ultrasound imaging (A), Hand Grip Dynamometry (B) and electromyography (C).
Sensors 23 02030 g003aSensors 23 02030 g003b
Table
Table 1. Participants’ demographic and anthropometric characteristics by gender.
Table 1. Participants’ demographic and anthropometric characteristics by gender.
VariablesTotal Sample
(n = 50)		Gender
Male
(n = 26)		Female
(n = 24)
Age (years)22.3 ± 5.423.7 ± 6.720.8 ± 2.9
Height (m)1.72 ± 0.091.78 ± 0.071.65 ± 0.06
Weight (kg)70.8 ± 17.379.7 ± 18.361.1 ± 9.5
BMI (kg/m2)23.5 ± 3.824.7 ± 4.222.1 ± 2.7
Forearm Length (cm)25.6 ± 1.926.6 ± 1.624.5 ± 1.6
Forearm Perimeter (cm)21.9 ± 2.423.4 ± 1.920.3 ± 1.9
Difference
Age (years) 2.9 (−0.1; 5.9) p = 0.057
Height (m) 0.12 (0.08; 0.16) p < 0.001
Weight (kg) 18.6 (10.1; 27.0) p < 0.001
BMI (kg/m2) 2.6 (0.6; 4.7) p = 0.013
Forearm Length (cm) 2.0 (1.1; 3.0) p < 0.001
Forearm Perimeter (cm) 3.1 (2.0; 4.2) p < 0.001
Baseline values are expressed as mean ± standard deviation; differences are expressed as mean (95% confidence interval).
Table
Table 2. Forearm anthropometric characteristic analyses by side and dominance.
Table 2. Forearm anthropometric characteristic analyses by side and dominance.
VariablesSideDominance
Left
(n = 50)		Right
(n = 50)		Dominant
(n = 50)		Non-Dominant
(n = 50)
Forearm Length (cm)25.6 ± 1.925.6 ± 1.925.6 ± 2.025.6 ± 1.9
Forearm Perimeter (cm)21.6 ± 2.422.2 ± 2.422.2 ± 2.521.6 ± 2.4
Difference
Forearm Length (cm)0.0 (−0.7; 0.8) p = 0.9270.0 (−0.7; 0.7) p = 0.967
Forearm Perimeter (cm)0.7 (−0.3; 1.6) p = 0.1890.6 (−0.4; 1.6) p = 0.218
Baseline values are expressed as mean ± standard deviation; differences are expressed as mean (95% confidence interval).
Table
Table 3. Fatigue assessments with EMG, US and dynamometry by gender.
Table 3. Fatigue assessments with EMG, US and dynamometry by gender.
VariablesGender
Male (n = 26)Female (n = 24)
Muscle Activity Changes: Surface Electromyography
Adjusted Line Slope−1.08 ± 3.33−0.70 ± 2.19
Difference−0.38 (−1.52; 0.76); p = 0.508
Variance (R2)0.29 ± 0.260.30 ± 0.26
Difference−0.006 (−0.11; 0.10); p = 0.910
Muscle Thickness Changes: Ultrasound Imaging
Adjusted Line Slope−0.0043 ± 0.0110−0.0036 ± 0.0062
Difference−0.00074 (−0.0048; 0.00299) p = 0.693
Variance (R2)0.37 ± 0.300.34 ± 0.27
Difference0.028 (−0.093; 0.149)
p = 0.644
Force Holding Capacity: Hand Grip Dynamometry
Adjusted Line Slope−1.39 ± 1.04−1.04 ± 0.59
Difference−0.35 (−0.69; −0.009); p = 0.022
Variance (R2)0.74 ± 0.210.76 ± 0.18
Difference−0.018 (−0.099; 0.063); p = 0.656
Table
Table 4. Fatigue assessments with EMG, US and dynamometry by side.
Table 4. Fatigue assessments with EMG, US and dynamometry by side.
VariablesSide
Left (n = 50)Right (n = 50)
Muscle Activity Changes: Surface Electromyography
Adjusted Line Slope −0.50 ± 2.42−1.27 ± 3.15
Difference−0.648 (−1.78; 0.48); p = 0.258
Variance (R2)0.26 ± 0.250.33 ± 0.27
Difference0.075 (−0.029; 0.181); p = 0.159
Muscle Thickness Changes: Ultrasound Imaging
Adjusted Line Slope−0.0033 ± 0.0079−0.0045 ± 0.0098
Difference−0.000863 (−0.004598; 0.002872); p = 0.647
Variance (R2)0.38 ± 0.290.33 ± 0.29
Difference0.273 (−0.188; 0.054); p = 0.272
Force Holding Capacity: Hand Grip Dynamometry
Adjusted Line Slope−1.22 ± 0.80−1.21 ± 0.93
Difference0.0173 (−0.3327; 0.3673); p = 0.922
Variance (R2)0.75 ± 0.19 0.76 ± 0.20
Difference−0.0078 (−0.0886; 0.0728); p = 0.847
Table
Table 5. Fatigue assessments with EMG, US and dynamometry by dominance.
Table 5. Fatigue assessments with EMG, US and dynamometry by dominance.
VariablesDominance
Dominant (n = 50)Non-Dominant (n = 50)
Muscle Activity Changes: Surface Electromyography
Adjusted Line Slope1.21 ± 3.19−0.57 ± 2.38
Difference−0.769 (−1.897; 0.358); p = 0.179
Variance (R2)0.33 ± 0.270.26 ± 0.25
Difference0.071 (−0.033; 0.177); p = 0.180
Muscle Thickness Changes: Ultrasound Imaging
Adjusted Line Slope−0.0044 ± 0.0099−0.0035 ± 0.0079
Difference−0.0012 (−0.0049; 0.0025); p = 0.524
Variance (R2)0.32 ± 0.290.39 ± 0.28
Difference−0.052 (−0.174; 0.068); p = 0.329
Force Holding Capacity: Hand Grip Dynamometry
Adjusted Line Slope−1.21 ± 0.94−1.22 ± 0.79
Difference0.006 (−0.344; 0.355); p = 0.974
Variance (R2)0.75 ± 0.210.76 ± 0.18
Difference0.0076 (−0.073; 0.088); p = 0.852
Table
Table 6. Pearson product moment correlation matrix.
Table 6. Pearson product moment correlation matrix.
Variables123456789
1. Age
2. Heightn.s.
3. Weightn.s.0.758 **
4. BMIn.s.0.455 **0.919 **
5. Forearm girth0.295 *0.577 **0.663 **0.600 **
6. Forearm lengthn.s.0.811 **0.473 **n.s.0.462 **
7. Gendern.s.−0.678 **−0.539 **−0.350 *−0.619 **−0.546 **
8. EMG slopen.s.n.s.n.s.n.s.n.s.n.s.n.s.
9. US slopen.s.n.s.n.s.n.s.n.s.n.s.n.s.0.359 **
10. Dynamometry slopen.s.−0.337 *n.s.n.s.−0.248 *−0.278 **0.202 *0.305 **0.227 *
* p < 0.05; ** p < 0.01.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Varol, U.; Navarro-Santana, M.J.; Valera-Calero, J.A.; Antón-Ramírez, S.; Álvaro-Martínez, J.; Díaz-Arribas, M.J.; Fernández-de-las-Peñas, C.; Plaza-Manzano, G. Convergent Validity between Electromyographic Muscle Activity, Ultrasound Muscle Thickness and Dynamometric Force Measurement for Assessing Muscle. Sensors 2023, 23, 2030. https://doi.org/10.3390/s23042030

AMA Style

Varol U, Navarro-Santana MJ, Valera-Calero JA, Antón-Ramírez S, Álvaro-Martínez J, Díaz-Arribas MJ, Fernández-de-las-Peñas C, Plaza-Manzano G. Convergent Validity between Electromyographic Muscle Activity, Ultrasound Muscle Thickness and Dynamometric Force Measurement for Assessing Muscle. Sensors. 2023; 23(4):2030. https://doi.org/10.3390/s23042030

Chicago/Turabian Style

Varol, Umut, Marcos J. Navarro-Santana, Juan Antonio Valera-Calero, Sergio Antón-Ramírez, Javier Álvaro-Martínez, María José Díaz-Arribas, César Fernández-de-las-Peñas, and Gustavo Plaza-Manzano. 2023. "Convergent Validity between Electromyographic Muscle Activity, Ultrasound Muscle Thickness and Dynamometric Force Measurement for Assessing Muscle" Sensors 23, no. 4: 2030. https://doi.org/10.3390/s23042030

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
