Naked-Eye Detection of Morphine by Au@Ag Nanoparticles-Based Colorimetric Chemosensors

by
Tahereh Rohani Bastami
1,*,
Mansour Bayat
1 and
Roberto Paolesse
2,*
1
Department of Chemical Engineering and Energy, Quchan University of Technology, Quchan 94771-67335, Iran
2
Department of Chemical Science and Technologies, University of Rome Tor Vergata, Via Della Ricerca Scientifica 1, 00133 Rome, Italy
*
Authors to whom correspondence should be addressed.
Sensors 2022, 22(5), 2072; https://doi.org/10.3390/s22052072
Submission received: 31 December 2021 / Revised: 18 February 2022 / Accepted: 4 March 2022 / Published: 7 March 2022
(This article belongs to the Collection Optical Chemical Sensors: Design and Applications)
Browse Figures
Versions Notes

Abstract

:
In this study, we report a novel and facile colorimetric assay based on silver citrate-coated Au@Ag nanoparticles (Au@AgNPs) as a chemosensor for the naked-eye detection of morphine (MOR). The developed optical sensing approach relied on the aggregation of Au@Ag NPs upon exposure to morphine, which led to an evident color variation from light-yellow to brown. Au@Ag NPs have been prepared by two different protocols, using high- and low-power ultrasonic irradiation. The sonochemical method was essential for the sensing properties of the resulting nanoparticles. This facile sensing method has several advantages including excellent stability, selectivity, prompt detection, and cost-effectiveness.

1. Introduction

Morphine (MOR) is a powerful central nervous system stimulant recommended by the World Health Organization (WHO) in 1998 to relieve cancer-related and severe pains. Today, a large proportion of MOR use has been reported, not as a drug, but as an abused drug. Therefore, the measurement of the MOR level in biological samples can help to determine the level of patients’ treatment, identify the causes of poisoning or death in clinical cases, and control its use/abuse [1].
The exploitation of analytical equipment, such as gas chromatography [2], high-performance liquid chromatography [3], mass spectrometry [4], immunoassay [5], electrochemical [6], and more advanced spectrophotometric methods [7] can allow the qualitative and quantitative detection of MOR with high accuracy and sensitivity.
Combining different methods of chromatography with mass-selective detection is one of the promising trends in the analysis of composite mixtures of unknown compositions, and these techniques are widely used in forensic expert examinations [8].
However, these methods suffer from important drawbacks, because they are bulky, expensive, require high volumes of samples for analysis, trained personnel, as well as long analysis time [9,10].
Chemical sensors can represent a promising solution to these requirements, because they are usually not expensive, simple to use, and can provide sufficient sensitivity and rapid response time, being an effective approach for analytical determination when it is impossible the use laboratory equipment.
Among the different sensor platforms, colorimetric devices based on metallic nanoparticles have been of increasing interest for the direct analysis of materials. These sensors are attractive due to their simplicity, high sensitivity, and low price, making possible in some cases even naked-eye detection.
So far, various colorimetric chemosensors have been developed for MOR detection and, among them, chiral colloidal CdSe quantum dots (CdSe-QDs) functionalized with l- and d-cysteine [11], antimorphine-functionalized graphene quantum dots (GQDs) [12], CdS quantum dots functionalized by antimorphine antibody [13], citrate-capped gold nanoparticles (AuNPs) [14], and melamine modified gold nanoparticles (MA-AuNPs) [15] have been reported.
In particular, silver and gold nanoparticles have been of interest for colorimetric sensor development, due to their chemical stability and their unique surface plasmon resonance (SPR) properties [16,17,18]. The SPR phenomenon facilitates the visual observation of the nanomaterial color changes upon the addition of the target analyte [19,20].
Although Au NPs have been intensively studied, it is important to note that the plasmonic properties of Ag NPs are far superior over Au NPs, due to the near-zero imaginary part of the dielectric function of Ag in a wide wavelength range. Moreover, the real part of the Ag dielectric function is more negative than that of Au [21]. Furthermore, Ag NPs are cheaper and more abundant than Au NPs [21]. Optical excitation of the surface plasmon resonance (SPR) of Ag NPs lies in the visible range at greater molar extinction coefficients and relevant scattering [22].
It is found that colorimetric detection based on the fabrication of core–shell structure in comparison with Au NPs and Ag NPs shows more brilliant color changes. It was suggested that the coating shell onto the inner core led to a change of the local dielectric of environment, the shift of the spectra, and realizing the target molecule detection [23,24].
Park et al. applied Au@Ag core–shell nanocubes for colorimetric detection of sulfur ions with a detection limit of 200 ppb and LSPR shifting in the band region of 500 to 800 nm, which showed a rich color change [25]. Gao et al. designed a novel Au@Ag nanorod for the detection of phosphatase activity. This chemosensor could achieve colorimetric detection with high resolution and the color change of the Au nanorod colloids from red to orange–yellow–green–blue–purple is visible to the naked eye [26].
Different methods have been recently developed for the preparation of noble metal nanoparticles, such as physical evaporation–condensation and laser ablation [27,28], chemical reduction [29], microemulsion techniques [30], microwave-assisted synthesis [31], biological method [32], and ultrasonic irradiation [33] can be mentioned.
Sonochemistry is a prominent approach to reduce metal precursors and produce homogeneous metal nanoparticles with uniform size. The impacts of ultrasound treatment can be assigned to the acoustic cavitation phenomenon. Upon exposure to ultrasound waves, bubbles will form, grow, and collapse in the liquid, leading to the burst of accumulated ultrasonic energy in a very short time. The high local temperature (>5000 K), pressure (>20 MPa), and high cooling rates (>1010 Ks−1) are highly appropriate for metal ions. Additionally, the shear forces due to acoustic cavitation can overcome the Van der Waals interactions [34,35,36].
In this work, we propose a mild, inexpensive, and environmentally friendly approach for the preparation of Au@Ag NPs exploited as rapid and sensitive nanoprobes for the naked-eye determination and selective detection of MOR. To the best of our knowledge, no reports on the sonochemical synthesis of chemical nanoprobes have been reported in the literature. In this regard, ultrasonic irradiation (high-power/low-power) was utilized for the synthesis of Au@Ag NPs. In the presence of MOR, the absorbance of Au@Ag NPs increased and a new red-shifted peak appears (620 nm), suggesting the Au@Ag NPs aggregation and increase in NPs concentration in presence of MOR. According to these results, the sonochemical irradiation in the synthetic route was essential for the sensing properties of the resulting nanoparticles. This facile sensing method has several advantages, including excellent stability, selectivity, prompt detection, and cost-effectiveness.

2. Materials and Methods

2.1. Materials

All reagents were obtained and applied as received without further purification. Trisodium citrate (SC) and glycerol were provided by Merck Company. Silver nitrate (AgNO3) and HAuCl4 solution (0.1 M, 3.4% w/v) were freshly bought from Kimia next Company (Isfahan, Iran). Morphine sulfate, acetaminophen (C8H9NO2), methadone (C21H27NO), methylphenidate (C14H19NO2), and tramadol (C16H25NO2) were obtained from Temad Pharmaceutical Company (Mashhad, Iran). The physicochemical features of morphine are listed in Table S1. Milli-Q water was employed whose minimum resistivity was 18.2 MΩcm−1.

2.2. Sonochemical Preparation of Silver Citrate Coated Au@Ag NPs

The silver citrate-coated Au@Ag NPs were sonochemically prepared using high- and low-power ultrasonic equipment. Sono-synthesis of Au@Ag NPs was carried under high-power ultrasonic equipment [Au-Ag (P)] using an ultrasonic horn (20 kHz, Branson Digital Sonifier-Connecticut, Danbury, Connecticut, USA, W-450 D) at 50 ± 1 °C for 30 min. Briefly, an aqueous solution including AgNO3 (5.0 × 10−3 M), HAuCl4 (1.0 × 10−5 M), trisodium citrate (1.0 × 10−2 M), and 3 mL of glycerol was prepared and exposed to ultrasonic irradiation. Different acoustic powers (20 W, 25 W, and 29 W) were tested. After 30 min of sono-reaction, the aqueous solution turned pale-yellow, showing the formation of Au@Ag NPs. The prepared nano-colloid samples were stored at room temperature in darkness; in these conditions, they were stable for longer than four months.
Sono-synthesis of Au@Ag NPs using low power ultrasonic equipment [Au-Ag (B)] was carried out using an ultrasonic bath (40 kHz, 5.7 Li, overall dimensions 325 × 175 × 290 mm; internal dimensions 300 × 153 × 150 mm). Ag/Au solution was similarly prepared, transferred into an Erlenmeyer, and placed in an ultrasonic bath. The temperature was adjusted to 50 ± 1 °C with an aging time of 30 min. The amount of energy transferred to the reaction is low (1–5 Wcm−2) [32]. The pale-yellow colloid samples were stored in the same conditions as above, showing similar stability.
An Au@Ag NPs sample was prepared using the conventional protocol without ultrasound treatment, by stirring an Ag/Au solution for 30 min and 50 ± 1 °C.

2.3. General Procedure for Colorimetric Assay of Morphine

Colorimetric detection of MOR was conducted using Au@Ag NPs as nanoprobes. Briefly, 0.5 mL of aqueous solutions with different concentrations of MOR (0–100 µg/mL) were added to 0.5 mL of Au@Ag NPs colloidal solutions and mixed. After 5 min, the change of the solution color was monitored by UV-visible spectroscopy, and photographs were recorded with a digital camera. The solution color from light-yellow turned dark-brown. Transmission electron microscopy (TEM) was used to measure the diameters and morphological changes of Au@Ag NPs in the presence of MOR, which confirmed their aggregation.

2.4. Morphine Assay in Real Sample

MOR-free human urine samples were collected from a healthy volunteer (32-year-old man, 83 kg and 180 cm) according to the institutional guidelines and “Ethics in Medical Research, Handbook of Good Practice”, published by the Center for Research in Medical Ethics and Medical History (Tehran, Iran). The aim of this project was informed to the participant and the consent form was delivered from him. The urine sample was diluted 100-fold with no further pretreatment. For drug determination in human urine, certain levels of MOR were added to all real samples using the standard additive method.

2.5. Characterization and Apparatus

The crystal structure of Au@Ag NPs was assessed by Bruker D8-Focus with Cu Kα radiation (λ = 0.154056 nm) in 2θ = 10–80°. Field Emission-Scanning Transmission Electron Microscopy (FE-STEM) images were recorded by Tecnai S-Twin 30, 300 keV, GIF-TRIDIEM. Energy-dispersive X-ray spectroscopy (EDS) results were obtained by the same device. TEM (CM30 Philips, Amsterdam, The Netherlands, 150 kV) was employed to assess the size and morphology of the specimens. Details of the chemical structures were assessed by X-ray photoelectron spectroscopy [XPS; 8025-BesTec XPS system (Berlin, Germany)]. The UV-vis data were recorded by an Evolution 201 Spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA). IR spectra were obtained by a Thermo Nicolet Avatar-370-FTIR Spectrometer (Thermo Fisher Scientific, Waltham, MA, USA). Zeta-potential assessments were achieved by Zeta Compact (CAD Instrumentation, Île-de, France). Dynamic Light Scattering (DLS) was carried out by Vasco Particle Size Analyzer (Cordouan Technologies, Pessac, France). The high-power ultrasonic equipment operated at 20 kHz and included a double cylindrical jacket (100 mL) for temperature control. The ultrasonic waves were released from the tip at a diameter of 1.1 cm at the end of the horn. The low-power ultrasonic procedure was conducted by Korea RoHs (DSA150-SK) ultrasonic cleaner (40 kHz, 5.7 Li, overall dimensions 325 × 175 × 290 mm, internal dimensions 300 × 153 × 150 mm).

3. Results

AgNO3 and HAuCl4 have been used as precursors for nanoparticle preparation, with citrate as a mild reducing agent and strong complexing stabilizer in Ag and Au reduction [21,37]. The ultrasound-assisted process is depicted in Scheme 1. In the ultrasonic irradiation, with high-temperature (5000 K) local hotspots were formed as a result of the rapid collapse of cavitation bubbles. As a result, the formation of H· [38], and radicals from glycerol pyrolysis occurs [39], and these strong reductants reduce Ag+ and Au3+ ions. The effect of different parameters such as ultrasonic amplitude (intensity), type of ultrasonic irradiation (direct irradiation/high power/probe type, indirect irradiation/low power/bath type), and types of additives (HAuCl4, glycerol) was explored on the synthesis of Au@Ag NPs and their sensor performance.

3.1. Optimization of Au@Ag NPs Synthesis Conditions

To optimize the synthesis of Au@Ag NPs, the addition of glycerol, acoustic intensity, and type of ultrasonic irradiation were investigated.
The results obtained are presented in Table 1. The performance of the sensors was evaluated by UV-vis spectra of nanoparticle suspensions, recording the redshifts observed upon addition of MOR (70 µg/mL) at pH = 6.5 (MOR-Au@Ag NPs) after 5 min.

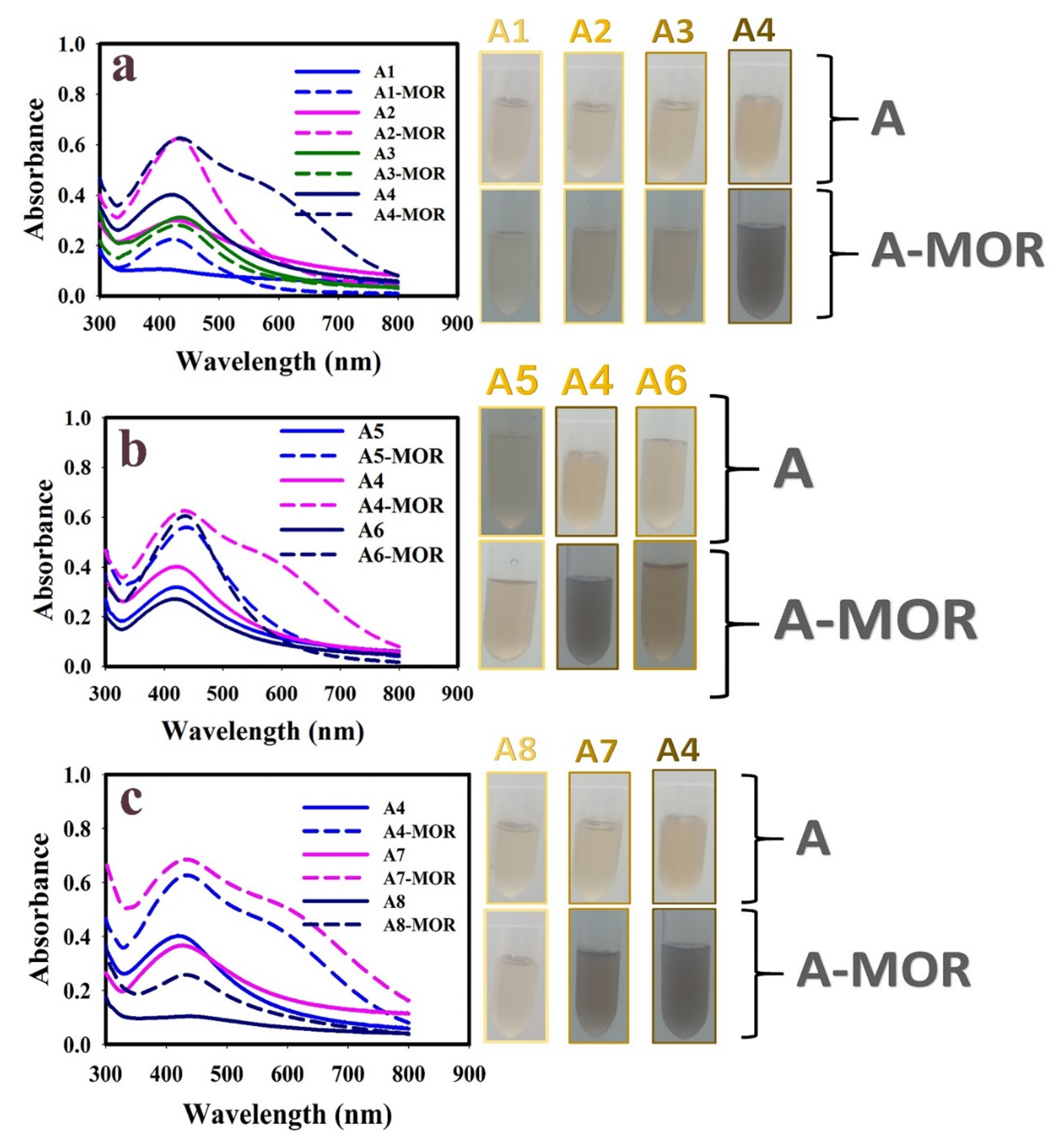

As shown in Figure 1 and Table 1, higher redshifts were observed in A4, A6, A7 samples in presence of MOR. The absorption maxima of metallic NPs are known to shift toward a longer wavelength upon the NPs growth. Therefore, the observed redshift in the Au@Ag NPs SPR peak upon MOR addition indicated the NPs aggregation. It is interesting to note that both HAuCl4 and glycerol are necessary to induce a significant redshift and consequently an evident color change of the Au@Ag NPs suspensions. Therefore, the protocol using HAuCl4 and glycerol additives, probe-type ultrasound synthesis at the intensity of 26 W/cm2, and bath type treatment were selected for subsequent experiments (samples A4 and A7).
The addition of HAuCl4 and glycerol led to an increase in NPs size, evidenced by a shift to a longer wavelength [40,41]. The formation mechanism of Au@Ag NPs in presence of Au3+ and glycerol can be expressed as follows: first, at pH ~6.0 ± 0.5 the particles are formed through the AuCl2(OH)2− and AuCl(OH)3− reduction, with a nucleation time of ~60 s followed by a low-pace growth [42]. The nucleation of Ag° from Ag+ in solution occurred onto the surface of the gold seeds, making the particles bigger via Ostwald ripening process. Glycerol can act as a binder to induce coalescence between particles and help the growth process.
In the absence of ultrasonic irradiation, no significant peak was observed. Therefore, it is suggested that ultrasonic irradiation accelerated the nucleation and growth process and increase the reaction rate leading to the rapid generation of NPs [43]. In addition, in the presence of high-power ultrasonic irradiation, some elongated shapes were obtained. It is suggested that high-power ultrasonic irradiation leads to enhancement of mass transfer and diffusion rate of precursors and the rapid growth of the active axis of NPs. Scheme 1 shows the synthesis strategy for Au@Ag NPs.

3.2. Characterization of the Optimized Au@Ag NPs

The Au@Ag NPs were characterized by different spectroscopic methods. Figure 1a,b depict the XRD patterns of Au@Ag (P) and Au@Ag (B). In both cases, the XRD peaks identified the cubic Ag-Au phase (JCPDS-04-0783).

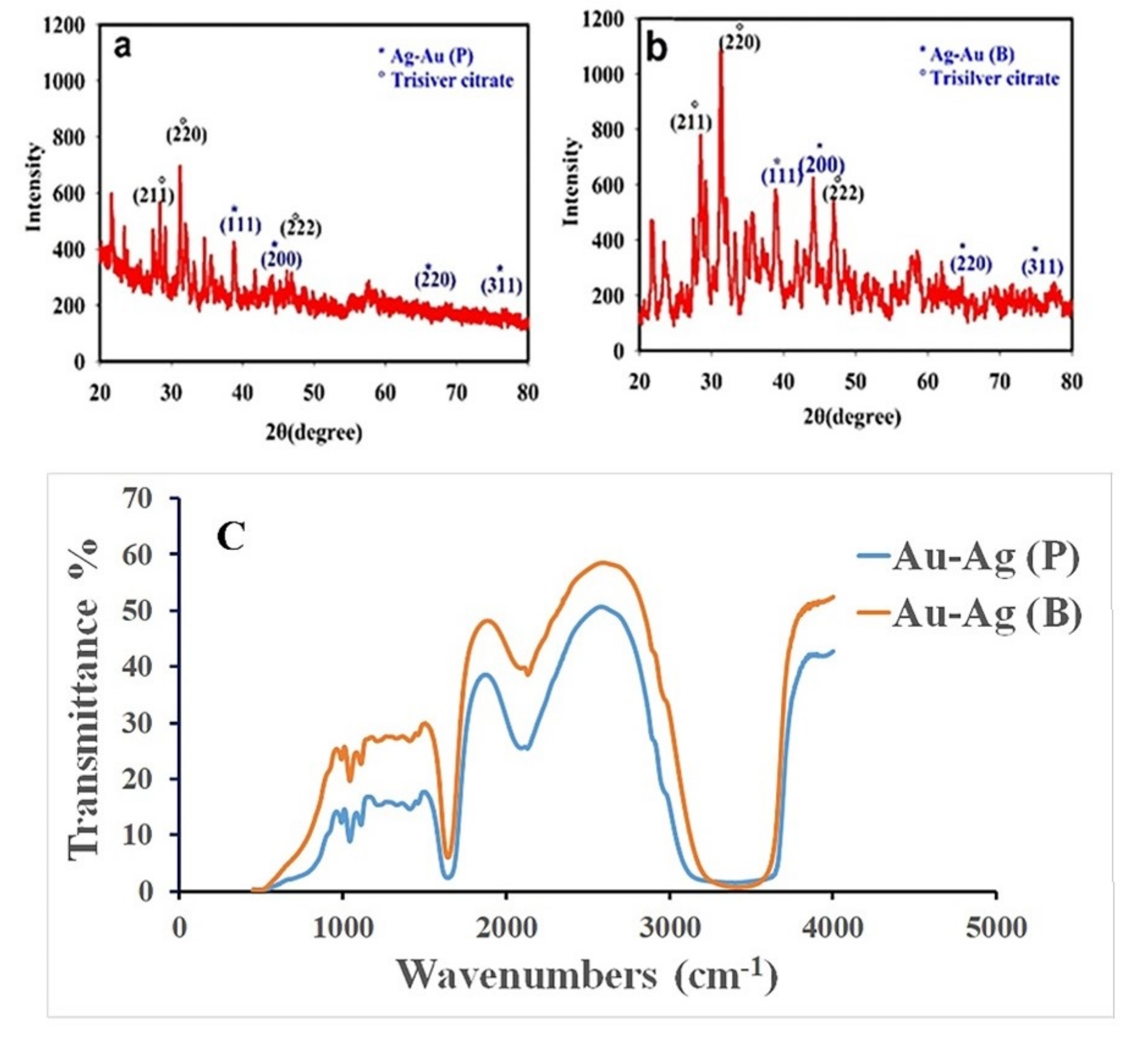

Some diffraction peaks can be assigned to Au@Ag NPs at 2θ values of 38.9°, 44.3°, 64.5°, and 77.5°, which correspond to (111), (200), (220), and (311) silver-gold-metal nanoparticles according to the Fm-3m space group, respectively [44,45]. However, more crystalline structures were found under low-power ultrasonic irradiation.
The peaks at 28.5°, 31.4°, and 46.97° can be attributed to Ag3C6H5O7, which correspond to (211), (220), and (222) trisilver citrate, respectively (JCPDS051-0945). The mild peaks can be attributed to organic residuals of the precursors and glycerol [46].
Pyrolysis of glycerol in the presence of ultrasonic irradiation led to the production of some organic impurities. CHNS analysis confirmed the presence of C = 14.4% and H = 1.13% in the NPs.
FTIR spectroscopy was carried out to confirm the formation of Au@Ag NPs under high-power (probe type) and low-power (bath type) ultrasonic treatments [Au@Ag (P), Au@Ag (B)].
The FT-IR spectra of samples (Figure 1c) exhibited a broad peak at 3435 cm−1, due to the O-H stretching vibrations attributable to the water adsorbed on the sample surface. Additionally, the characteristic peaks at (1047 cm−1 and 1045 cm−1), and (1653 cm−1 and 1644 cm−1) are related to C–O symmetric stretching, and C=O stretching vibrations, respectively [32]. Based on Figure 1c, in the case of Au@Ag (P), the peaks appeared at shorter wavelengths, confirming the stronger bonding of functional groups onto Au@Ag (P) surfaces [32].

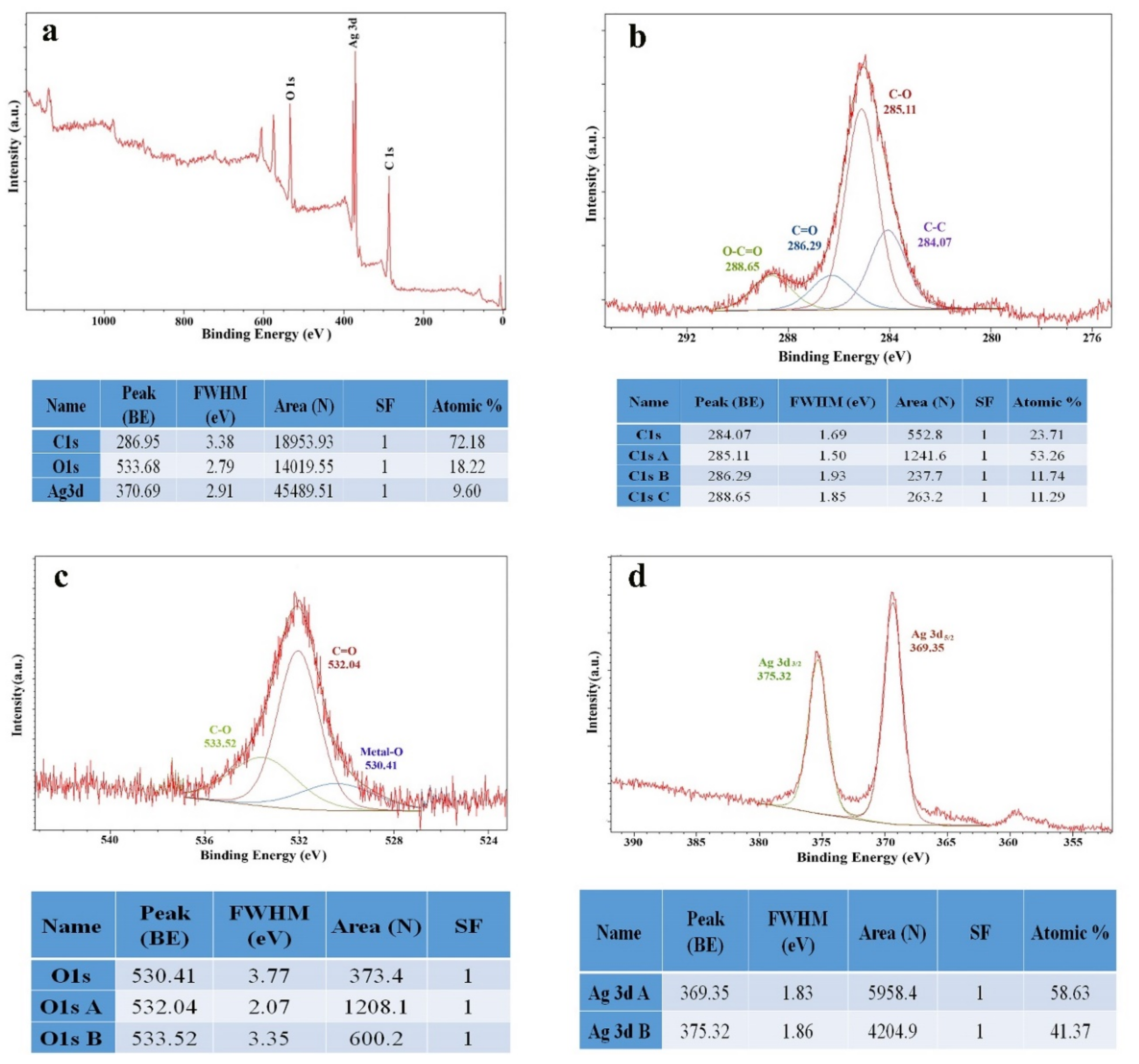

X-diffraction photoelectron spectroscopy was performed to determine the surface constituent elements of the Au@Ag (P). The sharp peaks in Figure 2a are related to the peaks of C1s, O1s, and Ag3d, due to the presence of carbon, oxygen, and silver with atomic percentages of 72.18%, 18.22%, and 9.60% in the synthesized structure, respectively. In the wide range of C1s, peaks of 284.07, 285.11, 286.29, and 288.65 eV can be assigned to the C-C, C-O, C=O, and O-C=O bands, respectively (Figure 2b). The C-O groups are consistent with the presence of citrate in the sample. In the wide range of O1s, the presence of peaks at 530.41, 532.04, and 532.52 eV can be attributed to metal-oxygen, C=O, and C-O, respectively (Figure 2c). Additionally, in the wide range of Ag3d, characteristic peaks at 369.35 and 375.32 eV confirm the presence of Ag 3d5/2.5 and Ag 3d3/2 on the surface of the composite structure (Figure 2) [47,48].
XPS results indicated no evident peaks related to Au, which further confirms the proposed mechanism of the formation of Au@Ag NPs in presence of Au3+. It was suggested that AuNPs act as seeds; due to the high concentration of Ag+ in the solution, silver ions are reduced on the surface of gold NPs (Figure 3).

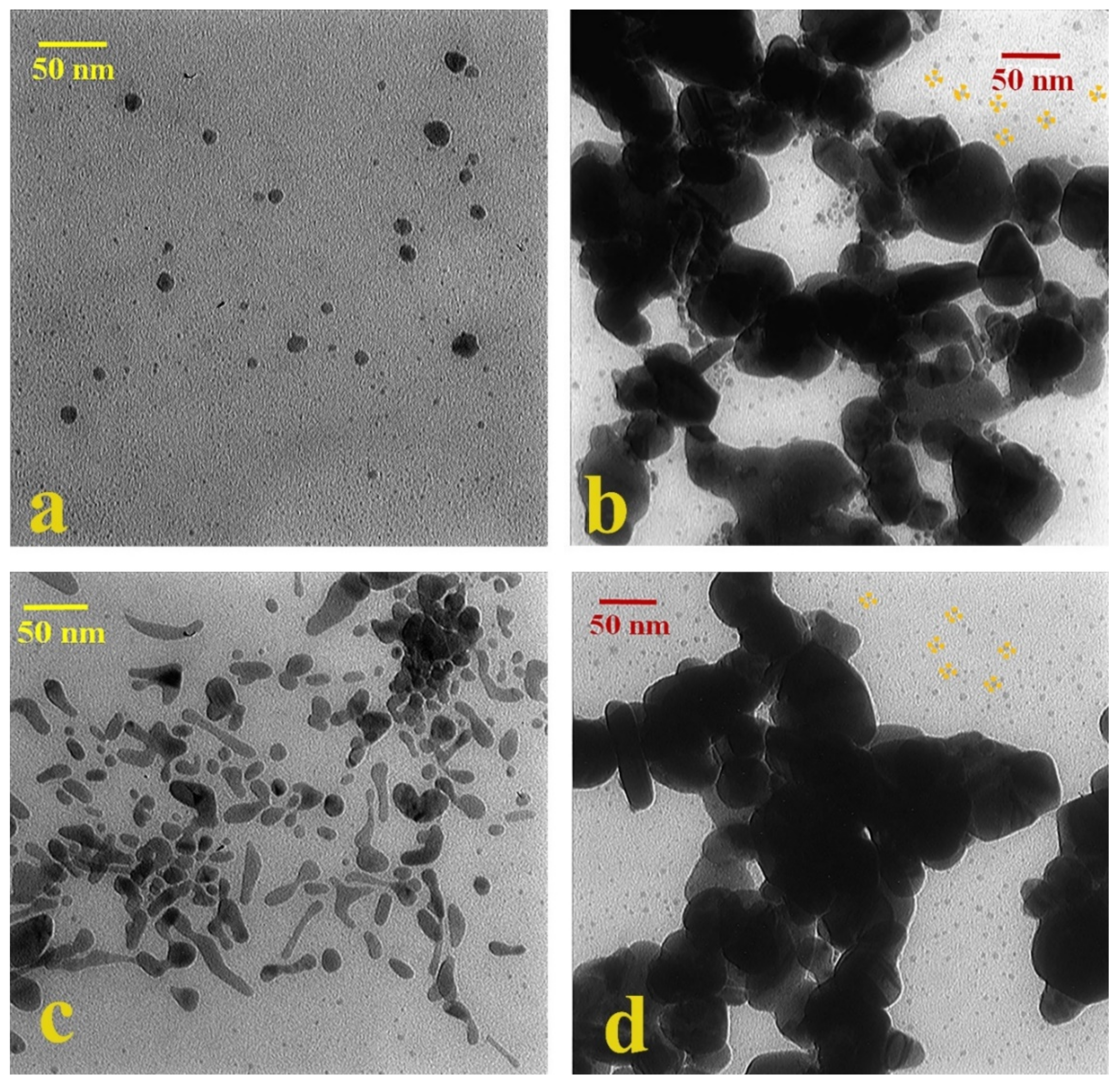

Figure 4 presents the TEM images of the as-prepared specimens. Based on Figure 4a, spherical Au@Ag NPs were formed with a mean diameter of 5 nm under low-power ultrasonic irradiation (bath type). In the case of Au@Ag NPs synthesized by probe-type ultrasonic irradiation, spherical (mean diameter of 10 nm), and elongated nanocrystals were observed. Most of the elongated particles had a diameter of 8 nm and a length of 28 nm.
At high-power ultrasonic irradiation, the shock waves and micro-jets induced by the bubble collapse promoted the mass transfer and diffusion of precursors and for this reason, the facets along the more active axis will be quickly grown, leading to the formation of 1D structures [29].
The aggregation of Au@Ag NPs upon exposure to MOR was assessed by TEM because the mean size of aggregated Au@Ag (B) and Au@Ag (P) was 39 and 60 nm, respectively (Table 2).
The SPR peaks of Au@Ag NPs after the addition of MOR showed a redshift with enhanced absorbance, which confirms the size and concentration of NPs increased.
After the addition of MOR, some NPs with 4–5 nm in diameter were observed (Figure 3b–d, yellow-marked NPs), confirming the nucleation of new NPs in presence of MOR and a high concentration of Ag+.
The aggregation process can be described as follows: hydroxyl groups and furan-like oxygen hybrid rings of MOR can form strong hydrogen bonds with citrate groups present onto the surface of Au@Ag NPs. As a consequence, the aggregation of Au@Ag NPs rapidly occurs, resulting in the color change from yellow to brown and a shift in the plasmon band energy. The other research works confirm the shift in SPR peak into longer wavelength due to aggregation of NPs [49].
The nucleation of NPs can be explained as follows: MOR is an electroactive molecule, that has nitrogen and oxygen atoms, and these atoms are electron-donating sites [50,51]. It is assumed that this electroactivity led to Lewis acid/base interactions between MOR and Ag (I) and Au (III) ions in the colloidal solution of chemical sensors and accelerate the NPs nucleation. The intensity of the SPR peak increased due to an increase in the concentration of NPs.
Figure 5a,b show the EDX spectra of Au@Ag (P) and Au@Ag (B). Ag, Au, C, and O were present in the Au@Ag NPs. C and O peaks are associated with trisilver citrate. These findings verified the formation of Ag NPs with a trace amount of Au. Moreover, the weight percentage of Ag and Au was 62.41% and 6.01% in the Au@Ag (P) and 58.67% and 5.6% in the Au@Ag (B), respectively.
Some impurities like Na, Cl can be observed, with low weight percent that may be due to poor cleaning conditions.
The ζ potential was measured to assess the surface potential of the as-prepared colloidal Au@Ag NPs suspension at pH = 6.5 ± 0.5 because the ζ potential indicates the suspension stability [52]. The mean ζ-potential of suspensions was −19.3 mV and −23 mV for Au@Ag (P) and Au@Ag (B), respectively. The negative surface charge of NPs can be assigned to the partial ionization of adsorbed citrate. The findings also justified the high colloidal stability (for several months) with no precipitation. The electrostatic repulsions among charged particles promoted particle dispersion with lower aggregation [52]. The FTIR results confirm this assumption. The average ζ-potential of suspensions after the aggregation of Au@Ag NPs in presence of MOR were −15.8 and −16.7 for Au@Ag (P) and Au@Ag (B), respectively. The interaction of MOR on the surface of NPs led to a less negative charge. The pKa for ionization of MOR molecules was 9.9 [53]. Therefore, at pH = 6.5 ± 0.5, MOR is in non-ionized form. Hence, ζ potential of Au@Ag NPs exhibited a lower negative charge after aggregation in the presence of MOR.
The DLS analysis was employed to evaluate the size distribution and hydrodynamic diameter of Au@Ag NPs in the aqueous solution. The average size of Au@Ag (P) and Au@Ag (B) was 39 nm and 36 nm, respectively. The mean size of aggregated Au@Ag (P) and Au@Ag (B) was 114 nm and 380 nm, respectively (Table 2).
High hydrodynamic diameter confirms the strong interaction of water on the NPs surface. Moreover, the higher dispersion stability can be assigned to the solvation of adsorbed glycerol onto the surface of Au@Ag NPs. As shown in TEM and DLS results, the average sizes of NPs in DLS results are higher than TEM analysis, which is a consequence of the NPs interaction with water molecules. Furthermore, DLS analysis obtains the hydrodynamic radius of NPs while in TEM this hydration layer is not present. As seen in Table 2 the average hydrodynamic size for Au@Ag (B) + MOR is higher than Au@Ag (P) + MOR. It is assumed that due to the stronger shock waves and micro-jets induced by the bubble collapse in high power ultrasonic irradiation (probe type) the adsorbed amounts of glycerol onto the surface of NPs were lower than NPs synthesized using low-power ultrasonic irradiation (bath type). Hence, the interaction of MOR with the surface of Au@Ag (B) was higher and caused a higher hydrodynamic diameter.

3.3. Optimization for Colorimetric Assay of Morphine

To optimize the Au@Ag NPs for MOR sensing, two parameters (pH, and incubation time) were investigated.

3.3.1. Effect of Sample pH Value

The effect of sample pH on the MOR sensing ability of Au@Ag NPs was explored (Figure 6). The significance of pH lies in the abundance of hydroxyl, carboxyl, and amine groups in drugs [53].
The pH of the starting Au@Ag NPs solution was 6.5 ± 0.5; the pH was adjusted to different values by the addition of NaOH and HCl solutions before the colorimetric assay of MOR. The results showed that Au@Ag NPs spontaneously aggregated at pH = 9.0 without the addition of MOR, which caused a dark brown colloidal solution (results not shown). In an alkaline medium, the formation of silver oxide occurs, according to the reaction:
2Ag+ + 2 OH− ⇆ Ag2O + H2O
The formed Ag2O deposits onto the NPs surface, removing the negatively charged layer and consequently inducing the NPs aggregation. Thus, a dark-brown color was obtained at higher pH without the addition of MOR.

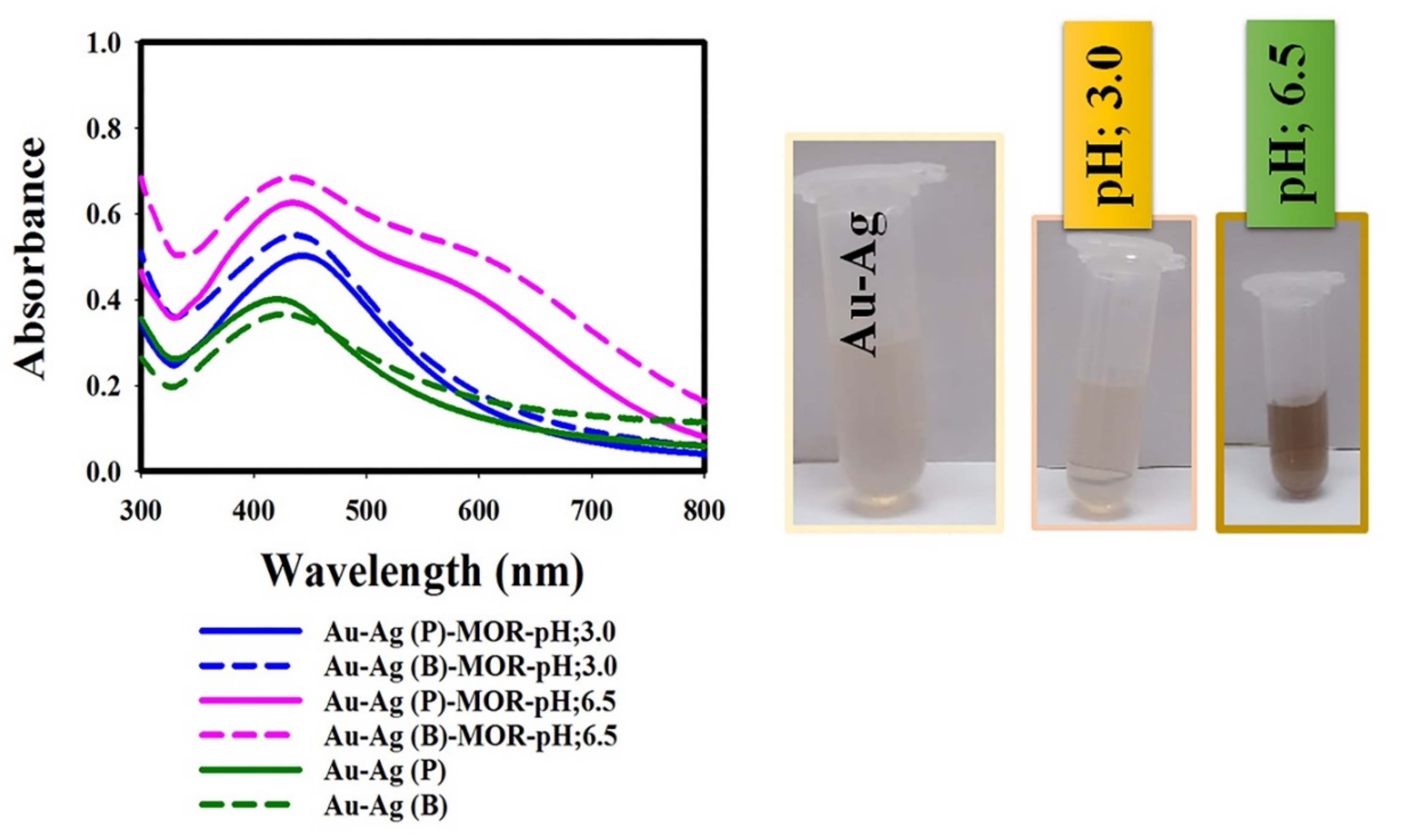

As shown in Figure 6, at pH = 6.5 ± 0.5, the intensity of the SPR peaks increased and a peak emerged at longer wavelengths (redshift). Furthermore, a greater color change of Au@Ag NPs from yellow to dark brown was detected. The surface negative charge of Au@Ag NPs at pH = 6.5 ± 0.5 and the positive charge of MOR molecules (pKa of MOR is 9.9) led to the electrostatic attraction and aggregation of nanoparticles. TEM and DLS analysis confirmed the increase in nanoparticle size in the presence of MOR. Additionally, no significant color change and red-shift in the UV-vis spectrum occurred at acidic pH (pH = 3.0). It is known that acidic pH increases the monodispersity of the Ag NPs reducing their concentration. Therefore, pH = 6.5 ± 0.5 was chosen for further studies.

3.3.2. Effect of Incubation Time

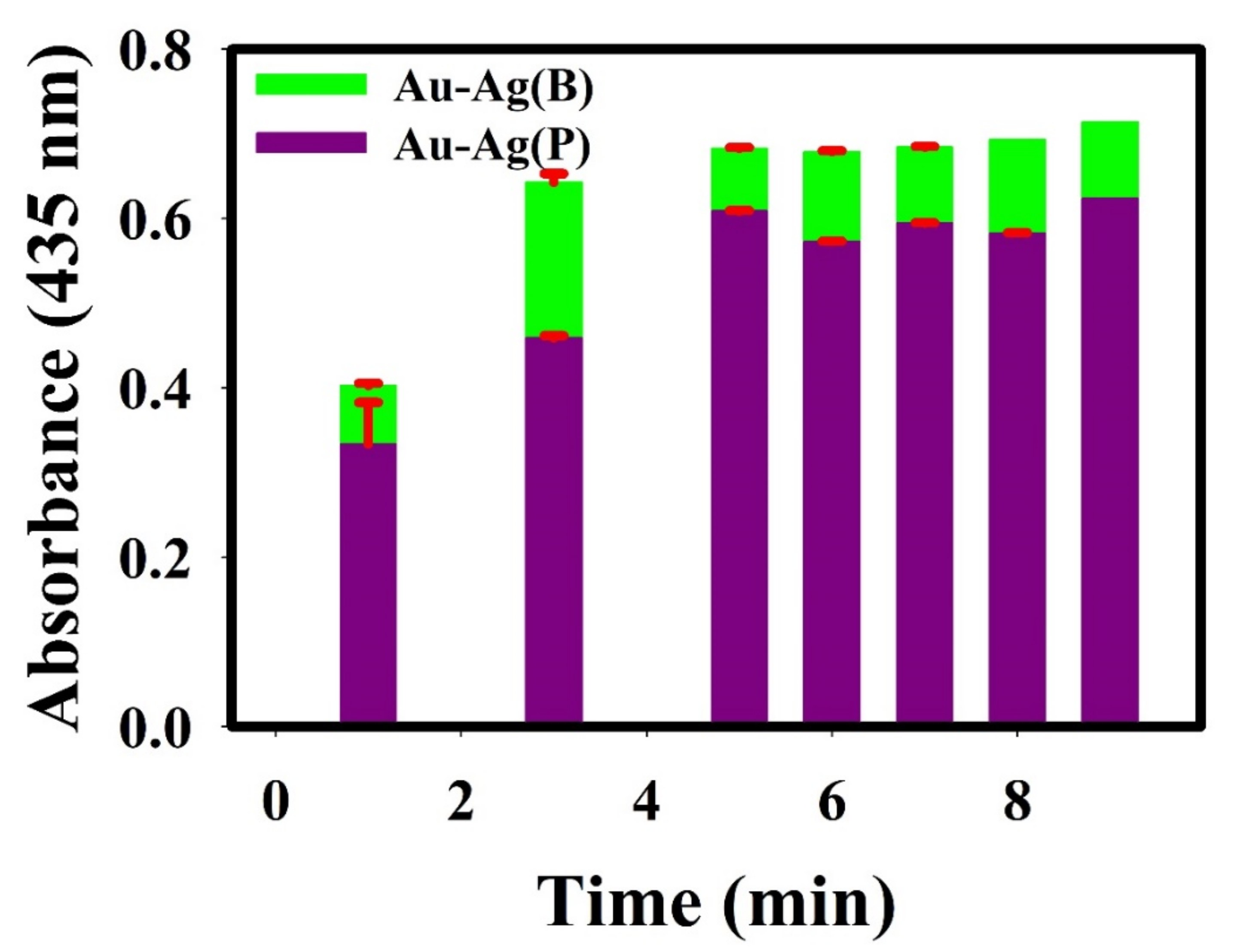

Various incubation times were evaluated for optimization. The Au@Ag NPs began aggregation immediately after mixing with MOR under optimal conditions, with stable spectral changes within 5 min (the optimal incubation time) (Figure 7).
According to the results for optimization, pH = 6.5 ± 0.5 and incubation = 5 min were chosen for further studies.

3.4. Linear Range of Calibration Curves

A typical calibration curve was determined under optimal conditions to detect MOR. The calibration curves exhibited a linear range of 0–50 and 0–30 µg/mL with y = 0.0088x + 0.2081 (R2 = 0.9855), and y = 0.0106x + 0.2462 (R2 = 0.9886), with a LOD of 0.100 µg/mL and 0.055 µg/mL for Au@Ag (P) and Au@Ag (B), respectively (Figure 8). A comparison between this method and the other methods is shown in Table 3.

3.5. Interference Effect

A proper Au@Ag NPs chemosensor must selectively bind to MOR in the presence of interfering species. The specificity and selectivity of the Au@Ag NPs were explored through a comparison of their color variations upon separate exposure to several drugs [methadone (MTD), acetaminophen (AP), tramadol (TRA), methylphenidate (MEPS), and codeine (COD)] and some potentially interfering substances in urine samples including various cations and anions (Ca2+, Zn2+, Na+, SO42−, Cl−, CO32−), and urea.
The choice of the mentioned drugs is because some of them (MEPS, TRA, and MTD) have been commonly consumed along with other over-the-counter drugs to reach similar analgesic effects.
To this end, these compounds were separately added to Au@Ag NPs colloidal solution (100 µg/mL). Results show that ions with a concentration of 100 µg/mL did not interfere.

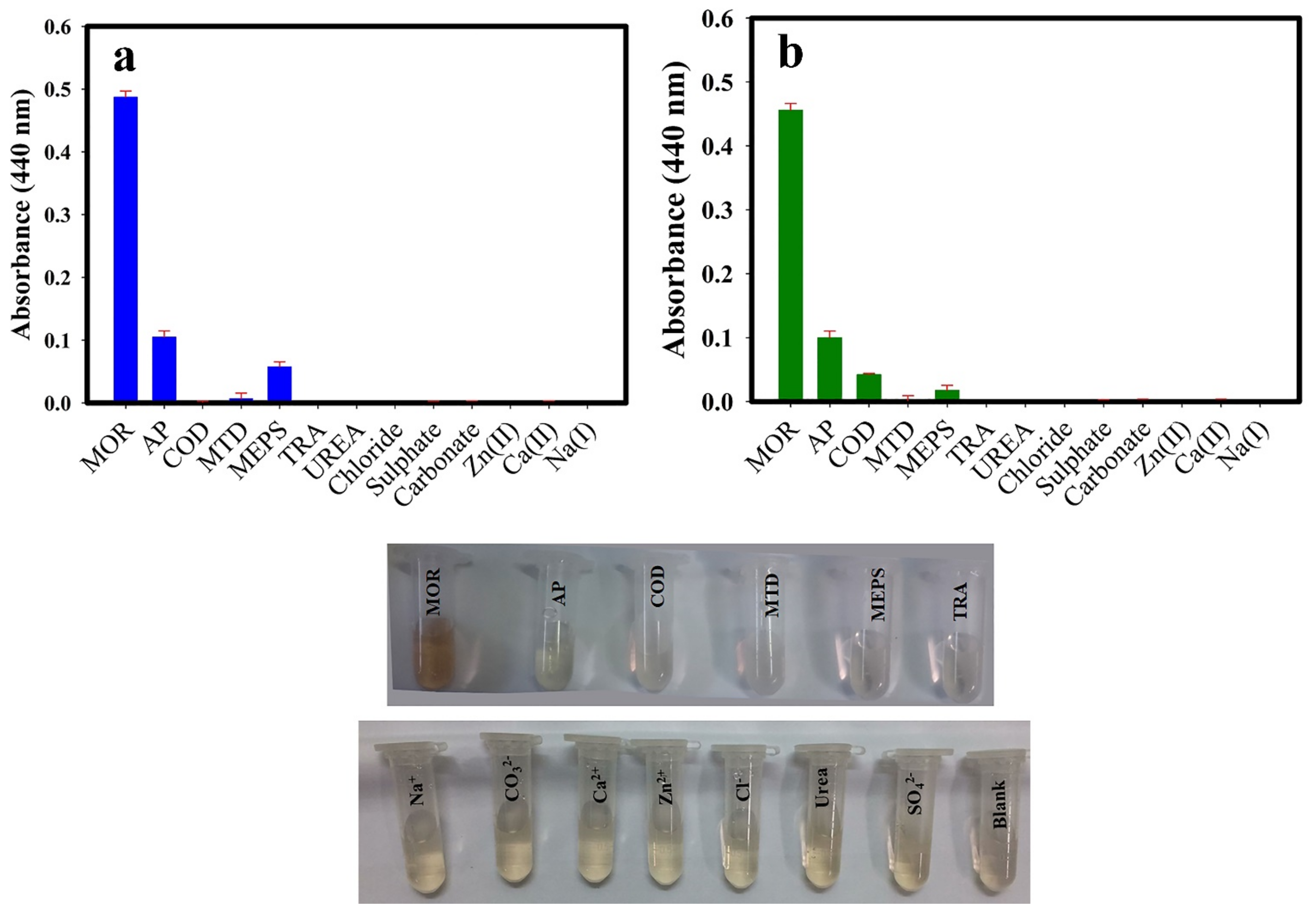

Figure 9 shows a significant color variation upon MOR addition with maximal shifts from 420 nm to 440 nm. Figure S1 also represents the chemical structure of other drugs. The hydroxyl groups and the furan-like oxygen ring allow MOR to have hydrogen bonds and donor-acceptor electron interactions with the Au@Ag NPs surface. Among the other drugs, only AP has one OH group and exhibited a weak interaction with Au@Ag NPs. Additionally, codein (COD) and MOR have similar structures, with COD having a O-CH3 instead of OH group in MOR (Figure S1). This subtle difference can lead to selective interaction between MOR and Au@Ag NPs.

3.6. Real Sample

The applicability of the proposed method in a real sample was assessed in determining the MOR content in spiked urine samples. The standard addition procedure was applied in order to circumvent the matrix effects. The urine sample was pretreated according to the procedure described in the Experimental section, and certain amounts of the drugs, which were previously verified to lie in the known linear range, individually spiked. UV-vis spectra of the solutions were measured after the incubation of 5 min. The obtained results showed good recoveries (87–104 ℅) (Table 4), suggesting the applicability of the proposed method for the detection of MOR.

3.7. Sensing Mechanism

The sensing mechanism of MOR in presence of Au@Ag NPs can be described by the following mechanism. Based on the ζ potential of Au@Ag NPs, they have a negative surface charge due to the presence of silver citrate and their oxygen functional groups. The pKa of MOR ionization was reported 9.9 [46] and it has been reported that, at pH = 6.5 ± 0.5, MOR is in a non-ionized form [48]. Furthermore, hydroxyl groups and furan-like oxygen hybrid rings of MOR can form strong hydrogen bonds with trisilver citrate and glycerol on the surface of NPs. Therefore, MOR interaction with Au@Ag NPs involves hydrogen bonding, and donor-acceptor electron complex, explaining the rapid aggregation of NPs in the presence of MOR. Scheme 2 shows the proposed interaction mechanism between the Au@Ag NPs and MOR.

4. Conclusions

A fast, facile, cost-effective, and selective chemosensor was developed for the quantitative detection of MOR in human-urine samples, based on the aggregation of Au@Ag NPs. The colorimetric nanoprobes were silver citrate-coated Au@Ag NPs synthesized by a sonochemical method. They showed a linear range of 0–50 µg/mL (R2 = 0.9855) and 0–30 µg/mL (R2 = 0.9886), with a LOD of 0.100 µg/mL and 0.055 µg/mL for Au@Ag NPs synthesized in presence of high-power and low-power ultrasonic irradiation, respectively. It is also worthwhile to note that no significant color changes were obtained in the presence of morphine using Au@Ag NPs synthesized without ultrasonic irradiation. From the obtained results in our research, we can see that the ultrasonic treatment dramatically improved the sensitivity for MOR determination. To the best of our knowledge, this is the first report on the colorimetric assay of MOR using sono-synthesized silver nanoparticles as a green method. Future work is now ongoing in our labs to explore a more selective narcotics detection.
