Method and Device of All-in-Focus Imaging with Overexposure Suppression in an Irregular Pipe
Abstract
:1. Introduction
2. Materials and Methods
2.1. Cross-Modal All-in-Focus Imaging Strategy

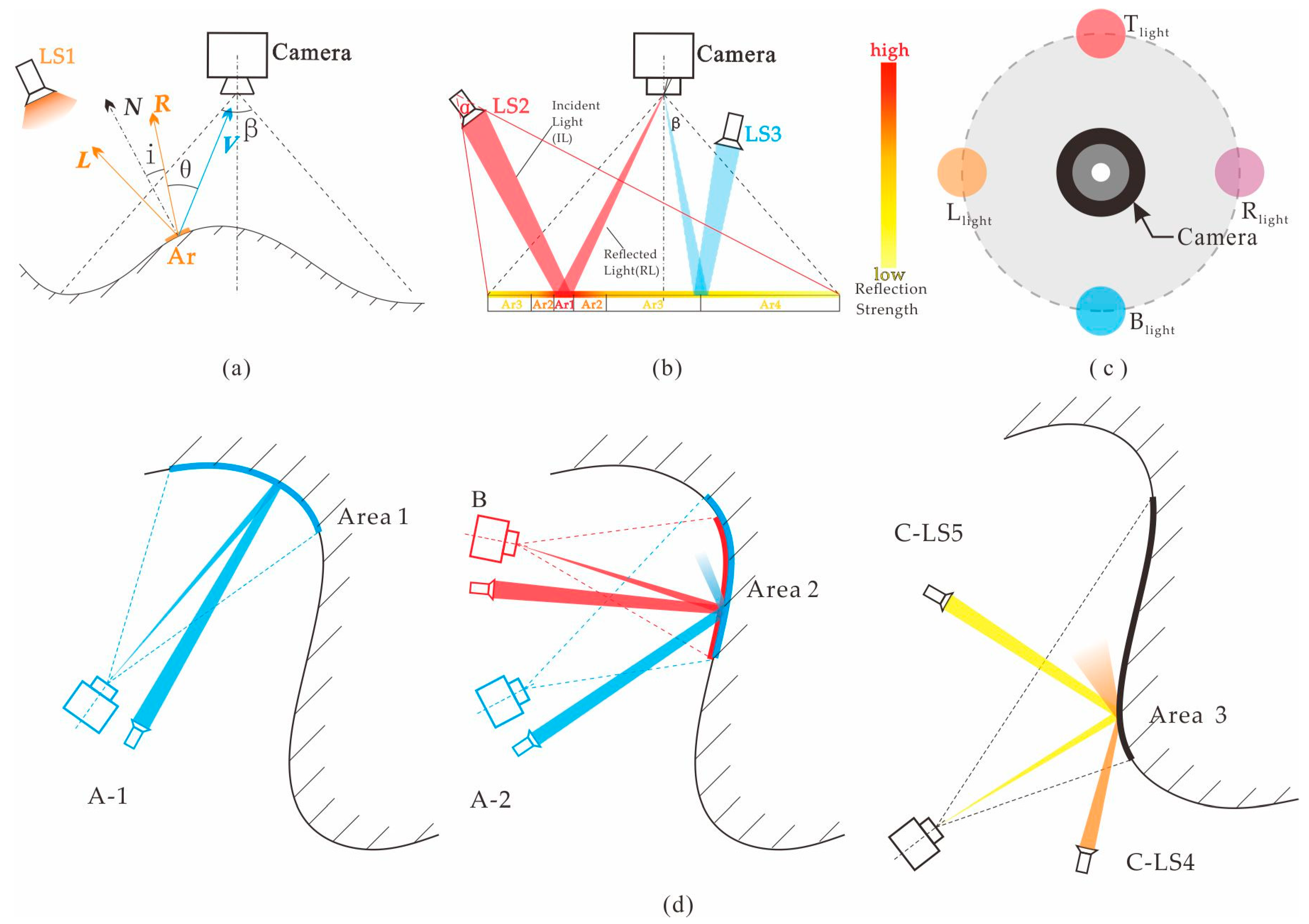

2.2. Lighting and Imaging Strategy of Overexposure Suppression
- Four light sources are used to separately provide illumination and pre-imaging.
- The reflection of the image formed under the illumination of each light source is calculated to obtain each source’s prior information.
- The prior information that produces the least high reflection is chosen.
- Condition-Ca: If a single light source, a or b(a, b∈{Tlight, Blight, Llight, Rlight}), can avoid the high-reflection overexposure, it is selected for supplementary light,
- Condition-Cb: If highly reflective overexposure cannot be avoided, a combined lighting scheme with dual light sources, a and b(a, b∈{Tlight, Blight, Llight, Rlight}), is selected for supplementary illumination, and the decision equation is expressed as
2.3. Imaging Control and Fusion Scheme
- Depth data acquisition and all-in-focus scheme: Using the depth sensor to obtain the depth distribution of the unknown curved surface in the current field of view, depth data are applied to Equation (7).
- Pre-imaging and lighting plan: Using the depth data, different light sources are used for single-exposure pre-imaging at a fixed photosensitive level at the middle depth of the current surface and analyzing quality by judging whether there is overexposure or calculating the exposure conditions. The acquired prior information of high reflectivity under each light source is used to form the lighting plan using Equations (9) and (10).
- Full-focus imaging under an optimal lighting scheme: The combination of four imaging scenarios is present (i.e., I: single-focus single-illumination scene with small DoF; II: single-focus dual-illumination scene with small DoF; III: multifocus single-illumination scene with large DoF; and Ⅳ: multifocus dual-illumination scene with large DoF). Then, the all-in-focus scheme of Step 1 and the lighting scheme of Step 2 are used to match one of the four preset combinations, execute the illumination scheme once, and image each object plane separately.
- Sequence image fusion: After acquiring the sequence images, a specific fusion scheme (e.g., multifocus or wavelet) is performed on the sequence images according to the combined method chosen in Step 3. The image fusion process in the four scenarios proceeds as described below.
3. Experimental Verification

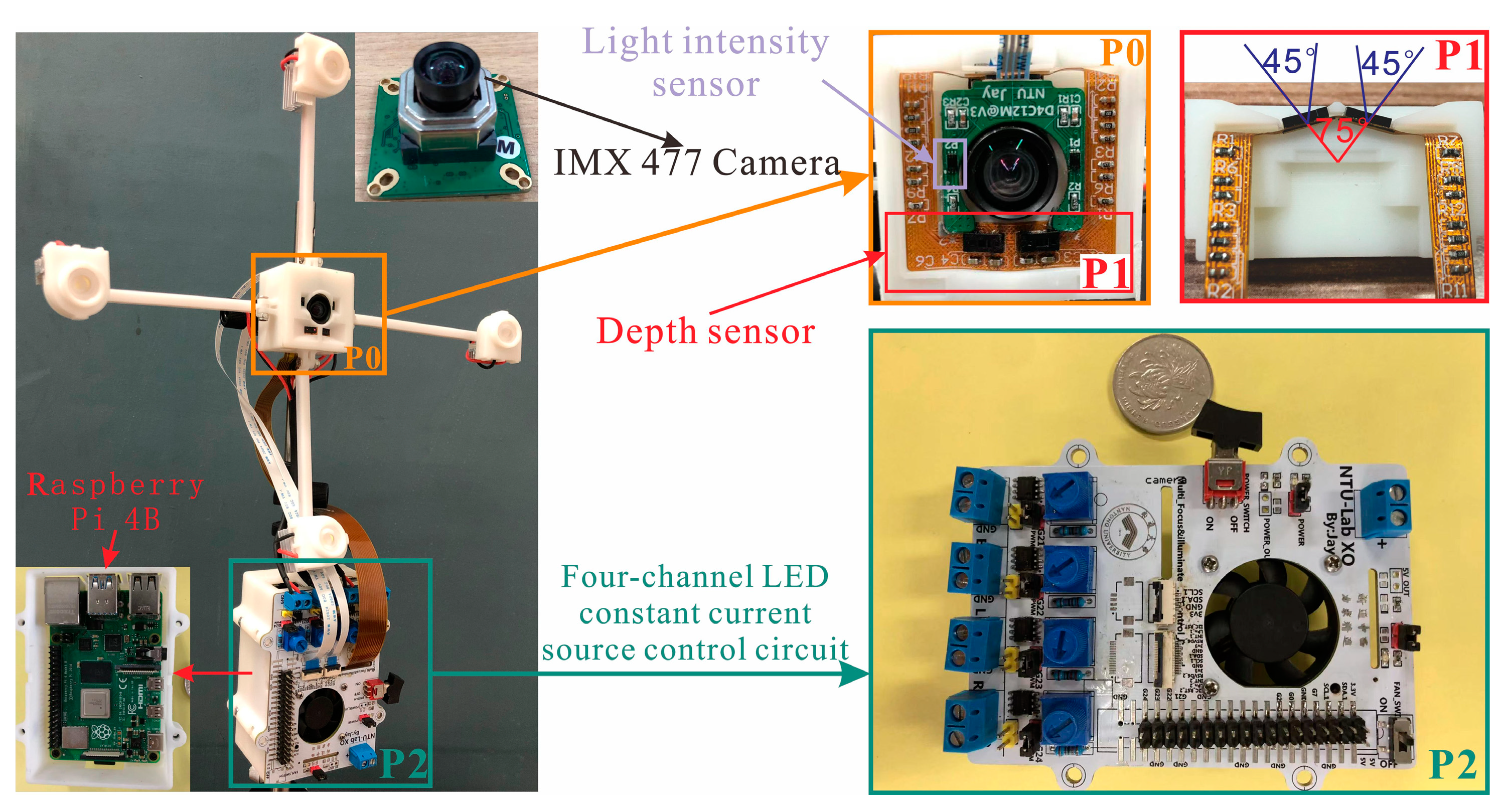

3.1. All-in-Focus Imaging Device with Overexposure Suppression

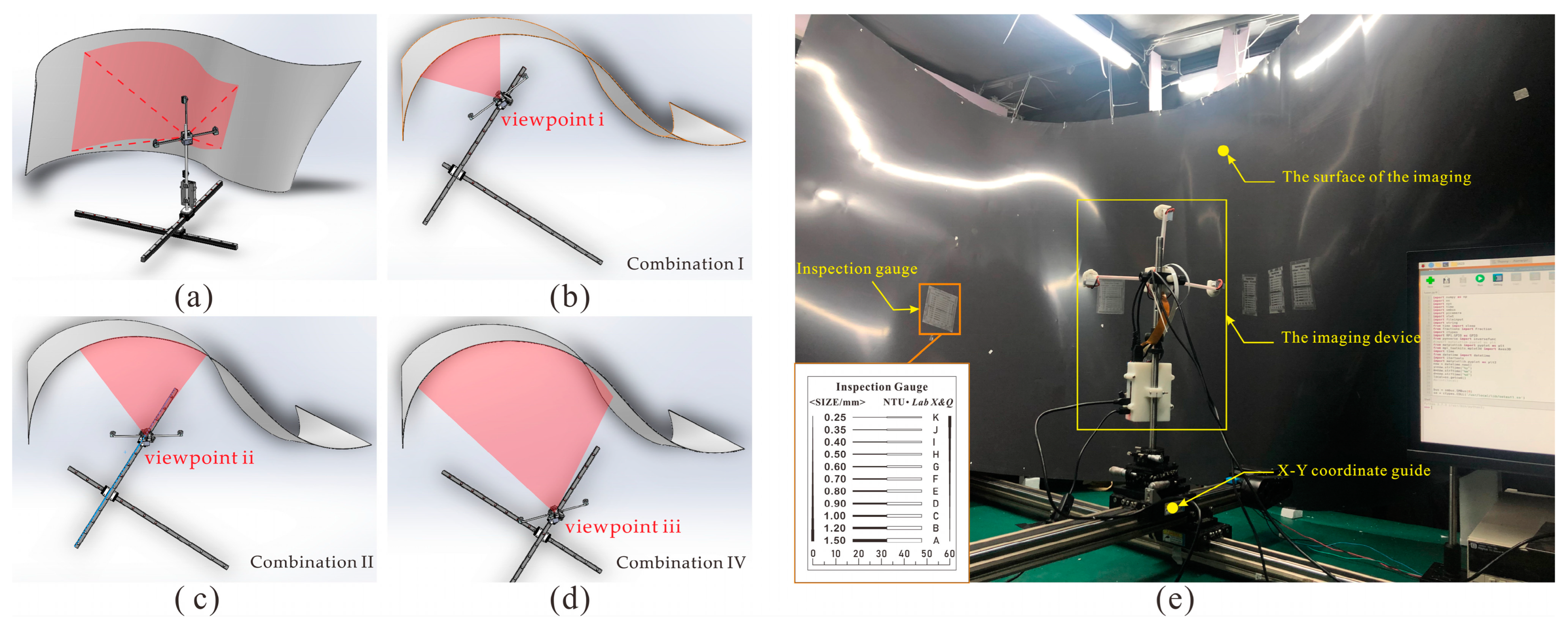

3.2. Imaging Experiments
3.2.1. Single-Focus and Illumination under Small DoF

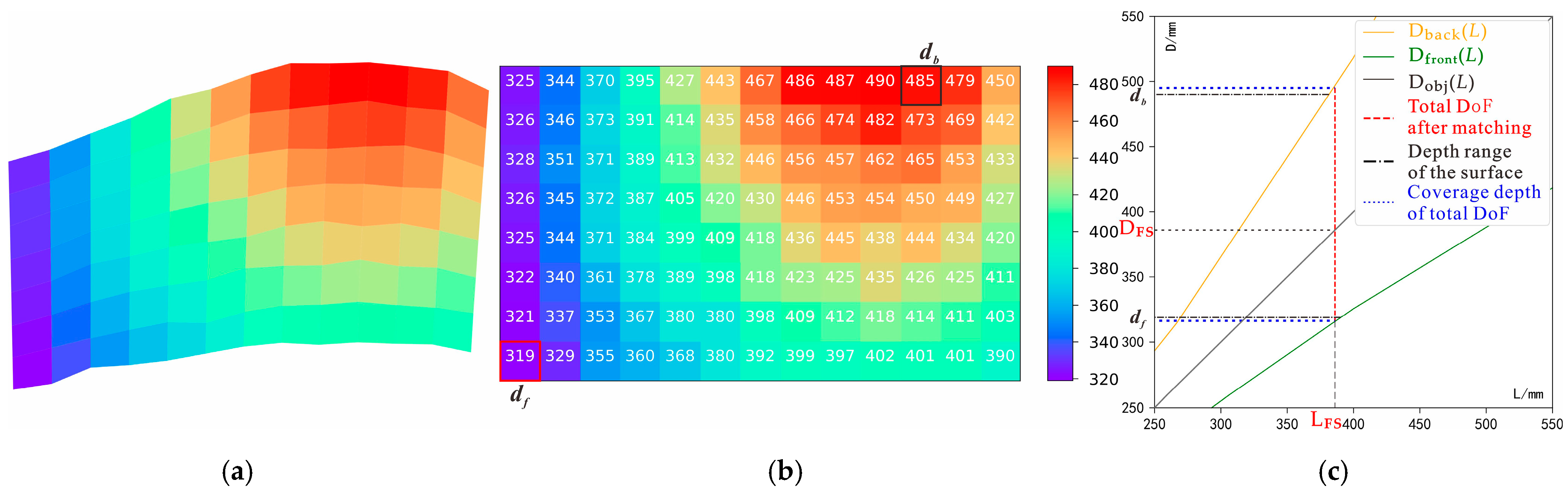

- As shown in Figure 7b, by detecting the depth distribution of the current Viewpoint i to obtain the contour surface-depth data matrix, the maximum and minimum depths are db = 485 mm and df = 319 mm, respectively, because Dfront−1(df) ≥ Dback−1(db), according to the all-in-focus imaging strategy of Equation (5). If the current mode is single-focus, then the camera automatically sets the depth plane as DFS = (Dfront−1(df) + Dback−1(db))/2 = 386 mm for the final all-in-focus imaging scheme, as shown in Figure 7c.

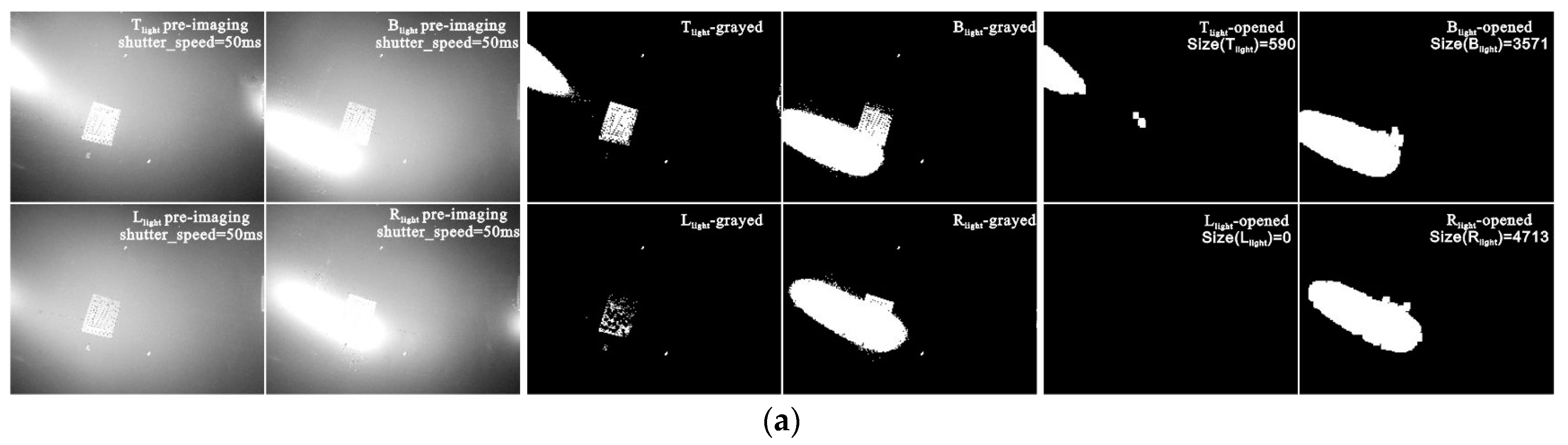

- After selecting the intermediate depth, Dmid = 402 mm, of the object plane, rapid pre-imaging under light sources of Tlight, Blight, Llight, and Rlight are controlled according to the parameters in Table 1.

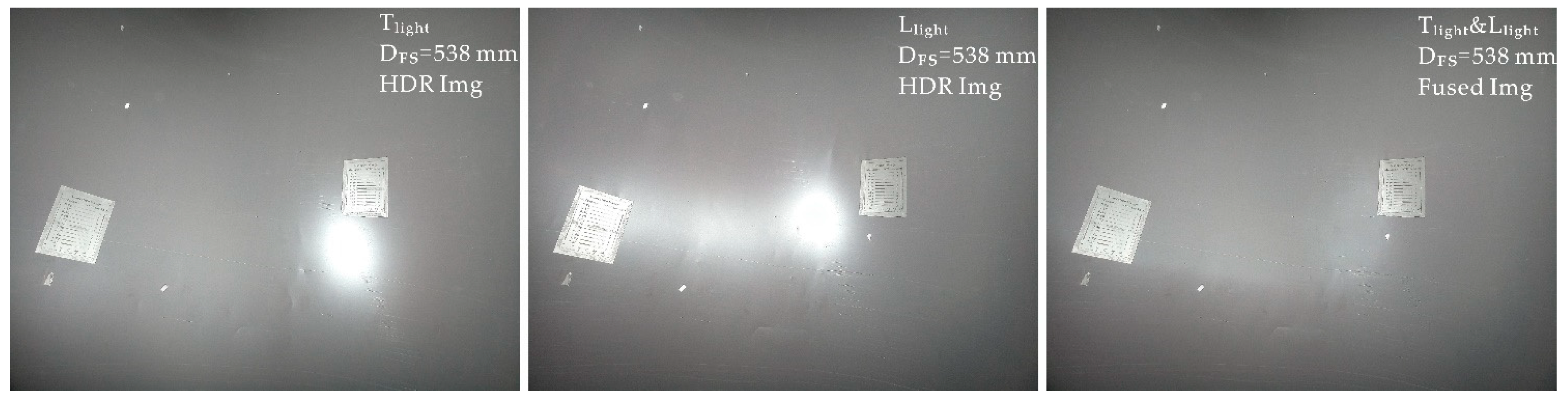

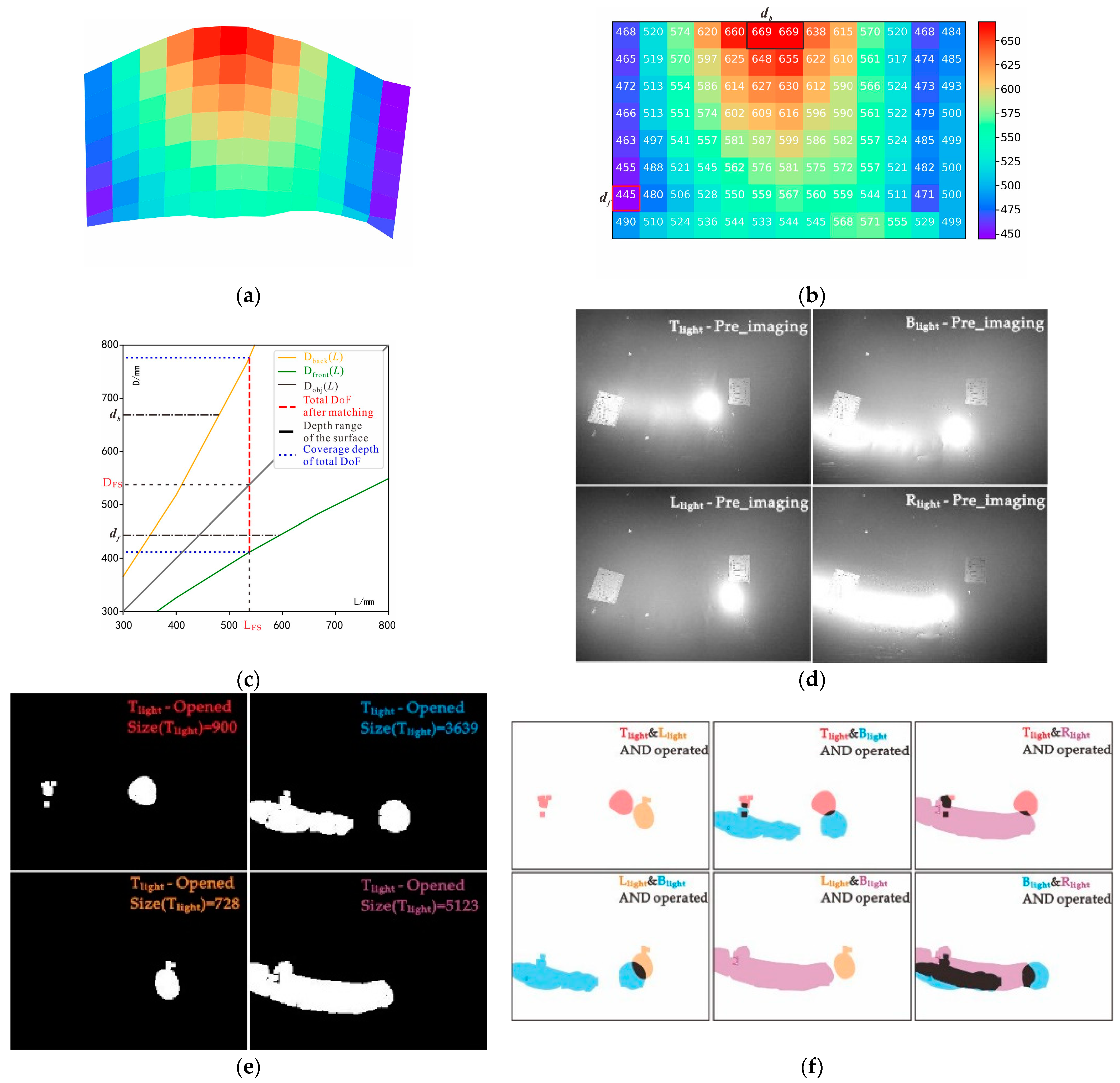

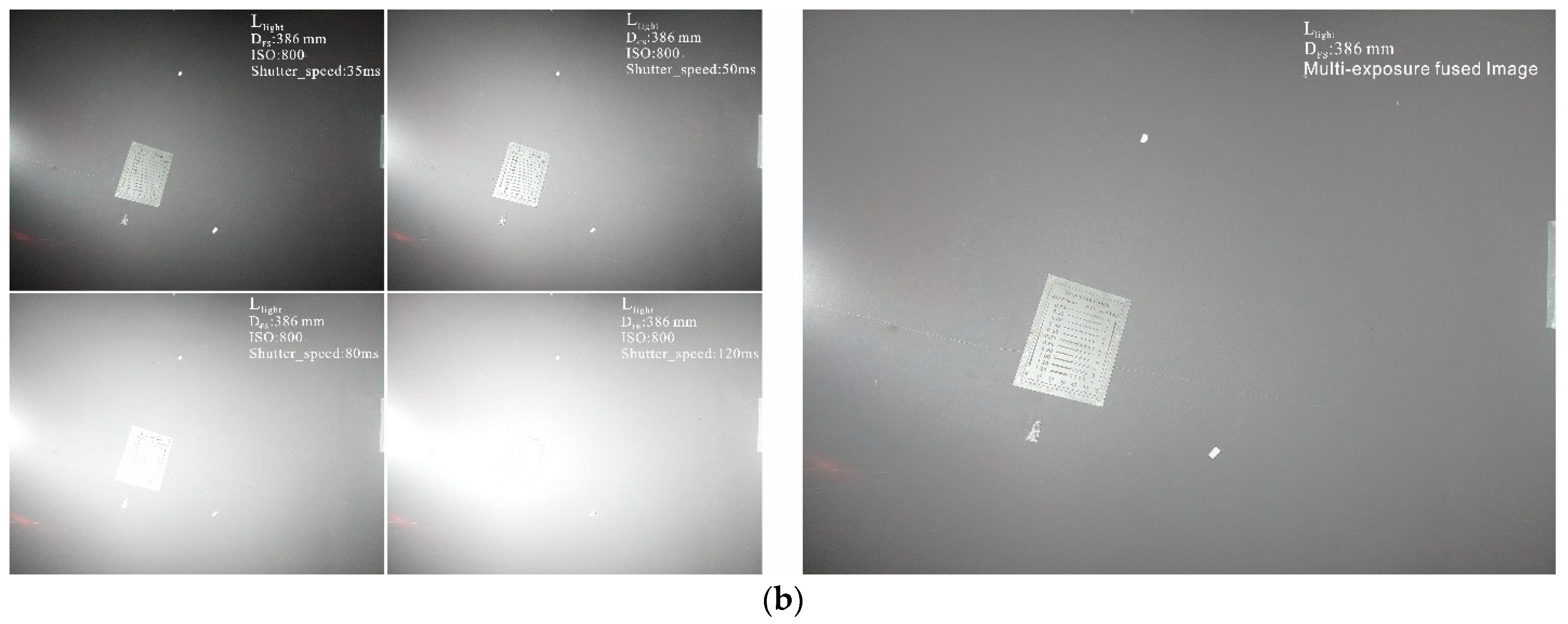

3.2.2. Single-Focus and Dual Illumination under Small DoFs
3.2.3. Multifocus and Dual Illumination under Large DoF

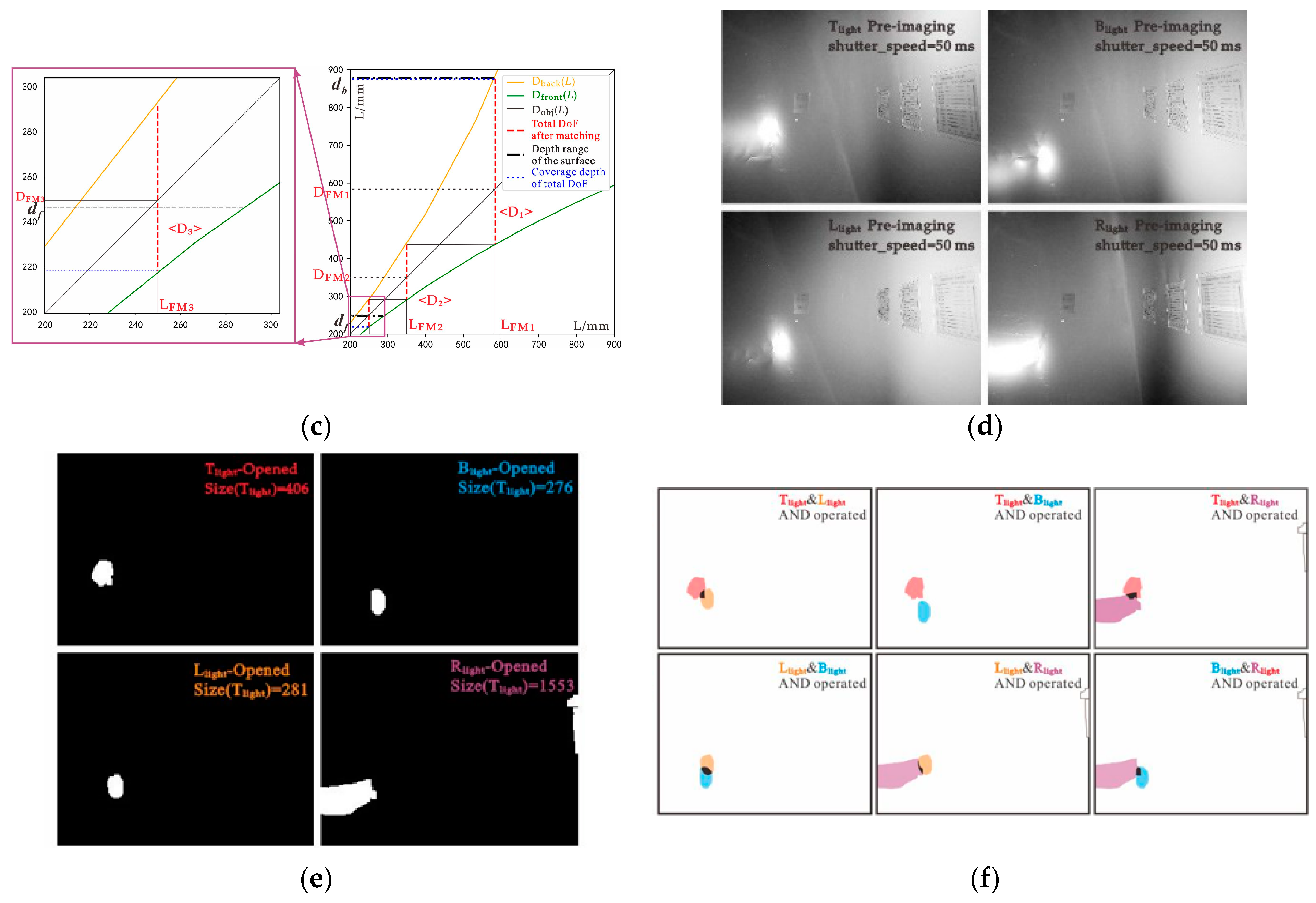

- According to Step 1, the ranges of the current depth as detected by the depth sensor were found to be df = 247 and db = 878. The depth matrix and surface diagram are shown in Figure 11a,b. As Dfront−1(df) < Dback−1(db), the current focus mode is selected. Then, according to Equation (7), the depth distribution data are used to segment the current surface with depth-matching (Figure 11c). The assignment results for the object plane depth of the final all-in-focusing scheme are listed in Table 5. Unlike Viewpoints i and ii, Viewpoint iii requires depths of DFM1 = 584 mm, DFM2 = 350 mm, and DFM3 = 250 mm, as shown in Table 5.
- Pre-imaging steps such as those in the previous experiments are performed to determine the lighting scheme. The pre-imaging and decision parameters are listed in Table 1 and Table 3, respectively, and the lighting decision-making process and data are shown in Figure 11d–f and Table 6, respectively. By comparing the LC results in Table 6, the combination of Tlight and Blight are selected as the required combination to provide lighting.

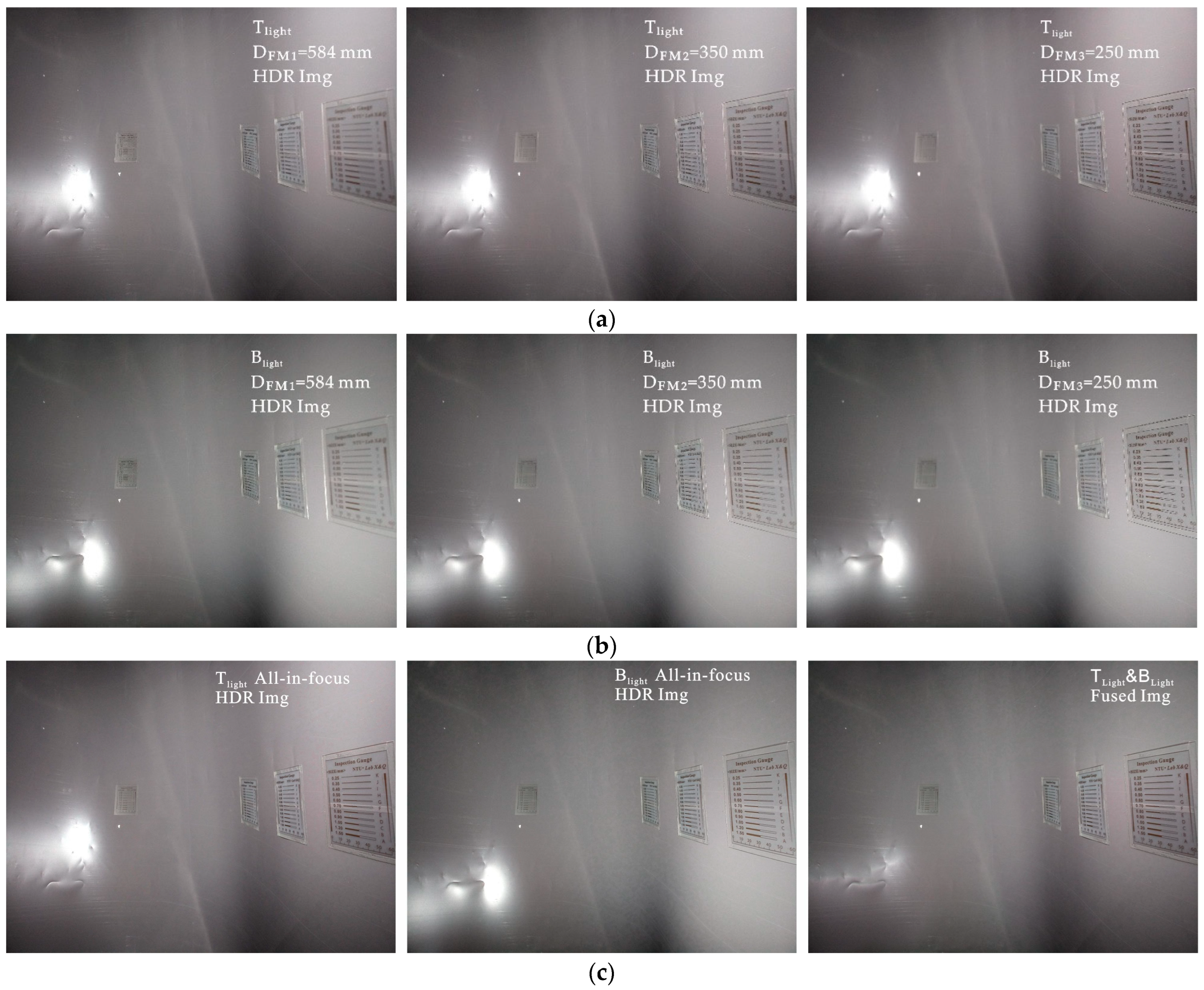

- As with Viewpoint ii, under Tlight and Blight, the multi-exposure image sequence at object plane depths of DFM1 = 584 mm, DFM3 = 350 mm, and DFM2 = 250 mm is acquired.
- According to the fusion process shown in Figure 4b, the multi-exposure sequence images are first fused to obtain the HDR image according to the combination of each object plane’s depth and light-source condition (Figure 12a,b). For the multifocus HDR images obtained from the same light source, the method in [17] is used to perform multifocus fusion to obtain the all-in-focus HDR image under Viewpoint iii, and a wavelet fusion operation like the one from Viewpoint ii is used on the all-in-focused HDR images under light sources of Tlight and Blight to suppress the high reflectivity and restore the information of the overexposed area. The final fusion results are shown in Figure 12c.
3.3. Effect Evaluation of All-in-Focus Imaging with Overexposure Suppression
3.3.1. Evaluation of the All-in-Focus Imaging Effect
Objective Evaluation of the All-in-Focus Effects
- ➀
- EOG function
- ➁
- Tenengrad function
- ➂
- Vollath function
- ➃
- Signal-to-noise ratio
- ➄
- Peak signal-to-noise ratio

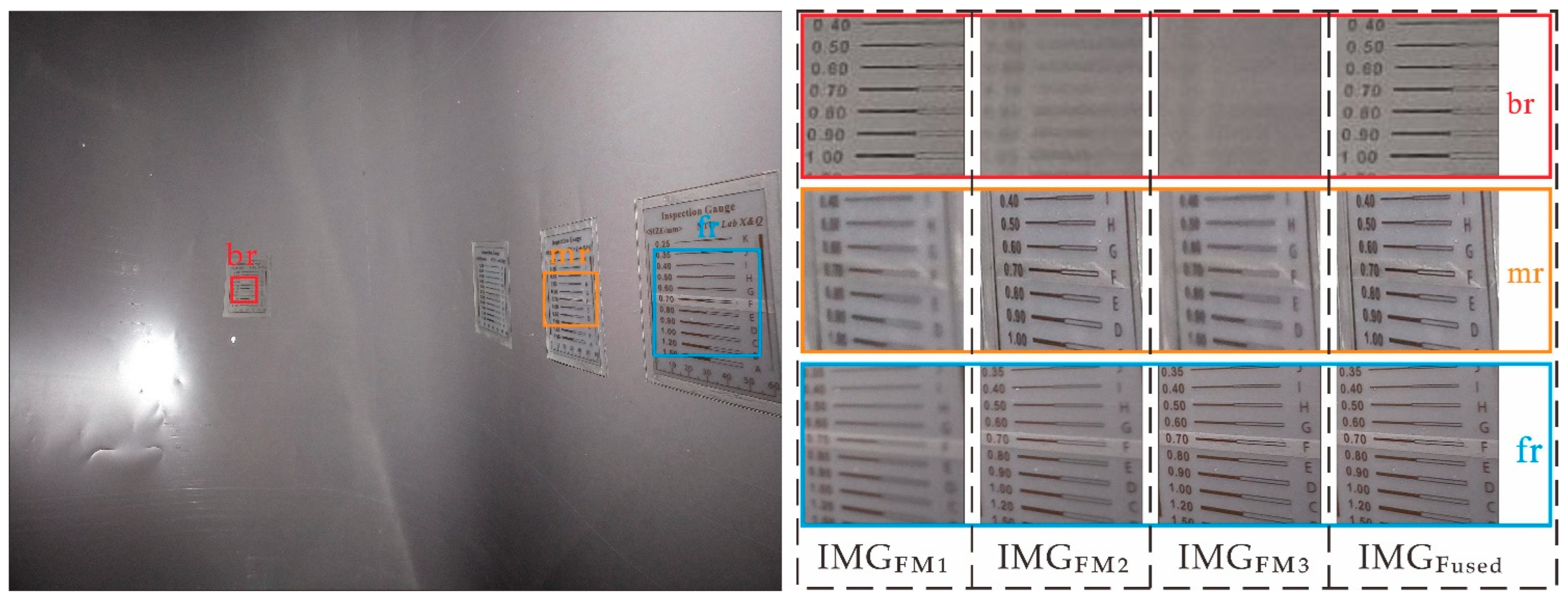

Subjective Evaluation of the Effects of All-in-Focus Fusion

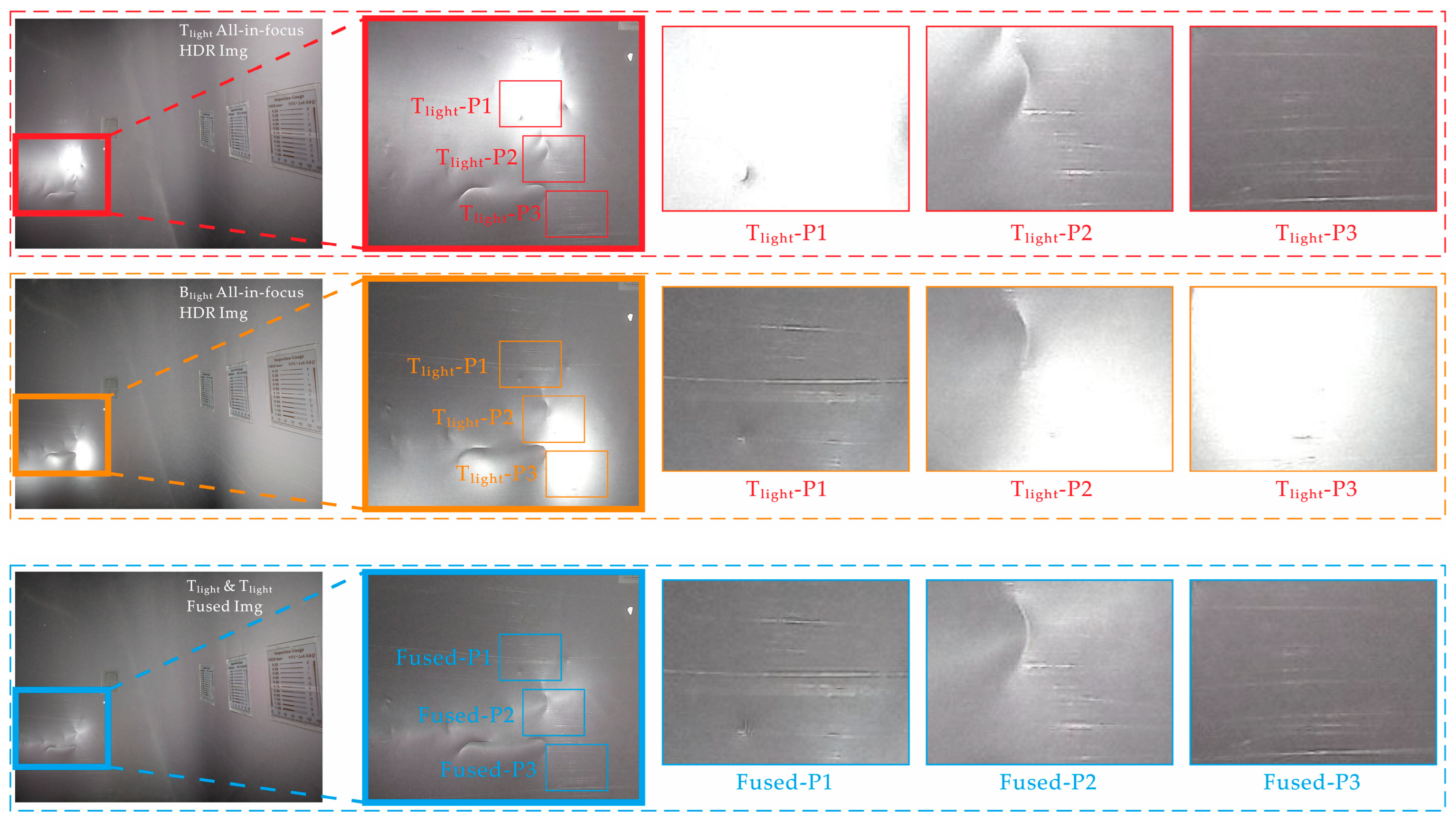

3.3.2. Evaluation of Information Recovery Effect after Suppressing Overexposure
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
