EEG-Validated Photobiomodulation Treatment of Dementia—Case Study
Abstract
:1. Introduction
1.1. Causes and Symptoms
1.2. Diagnostics
1.3. Treatment of AD

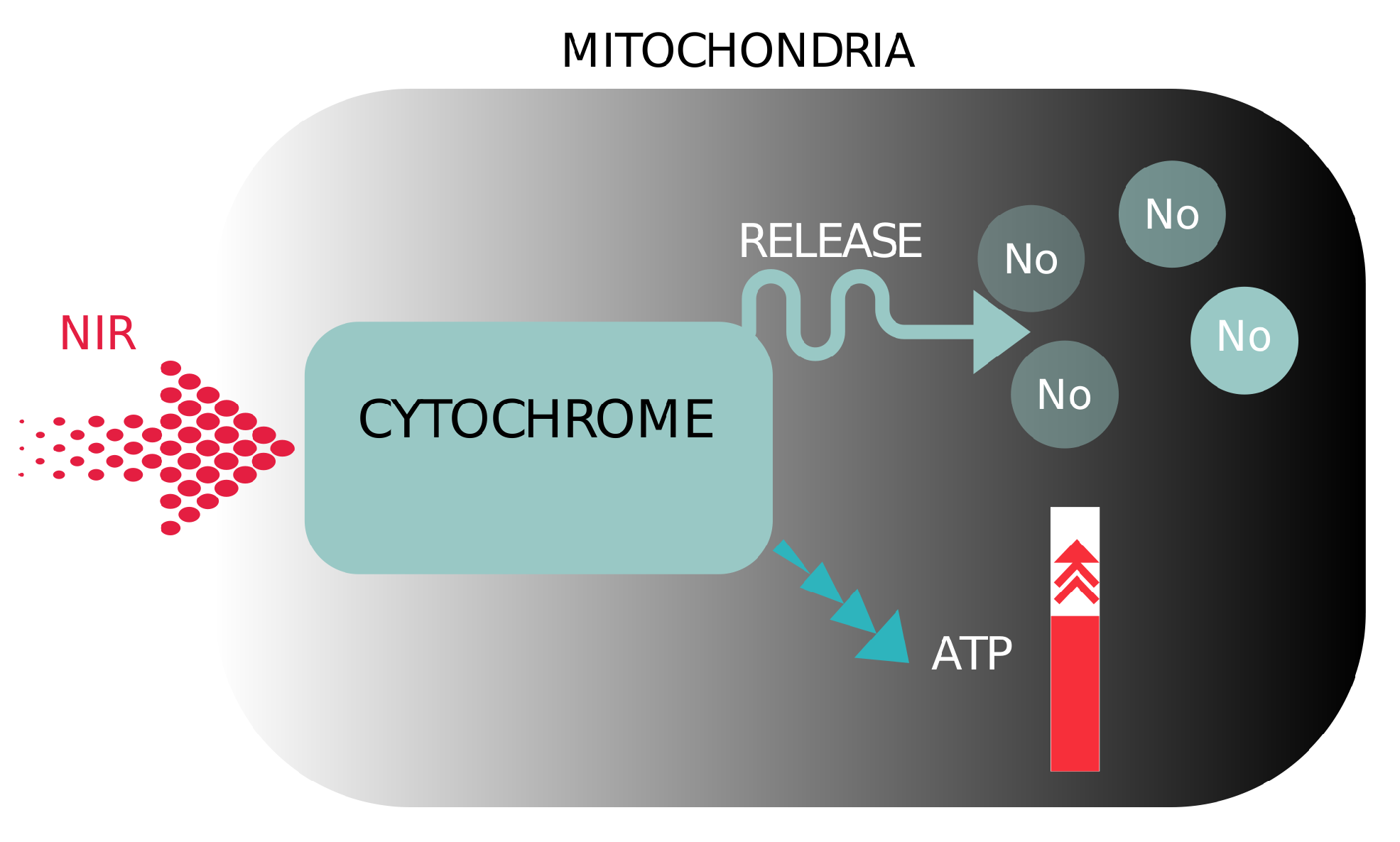

1.4. Photobiomodulation (PBM)
2. Materials and Methods

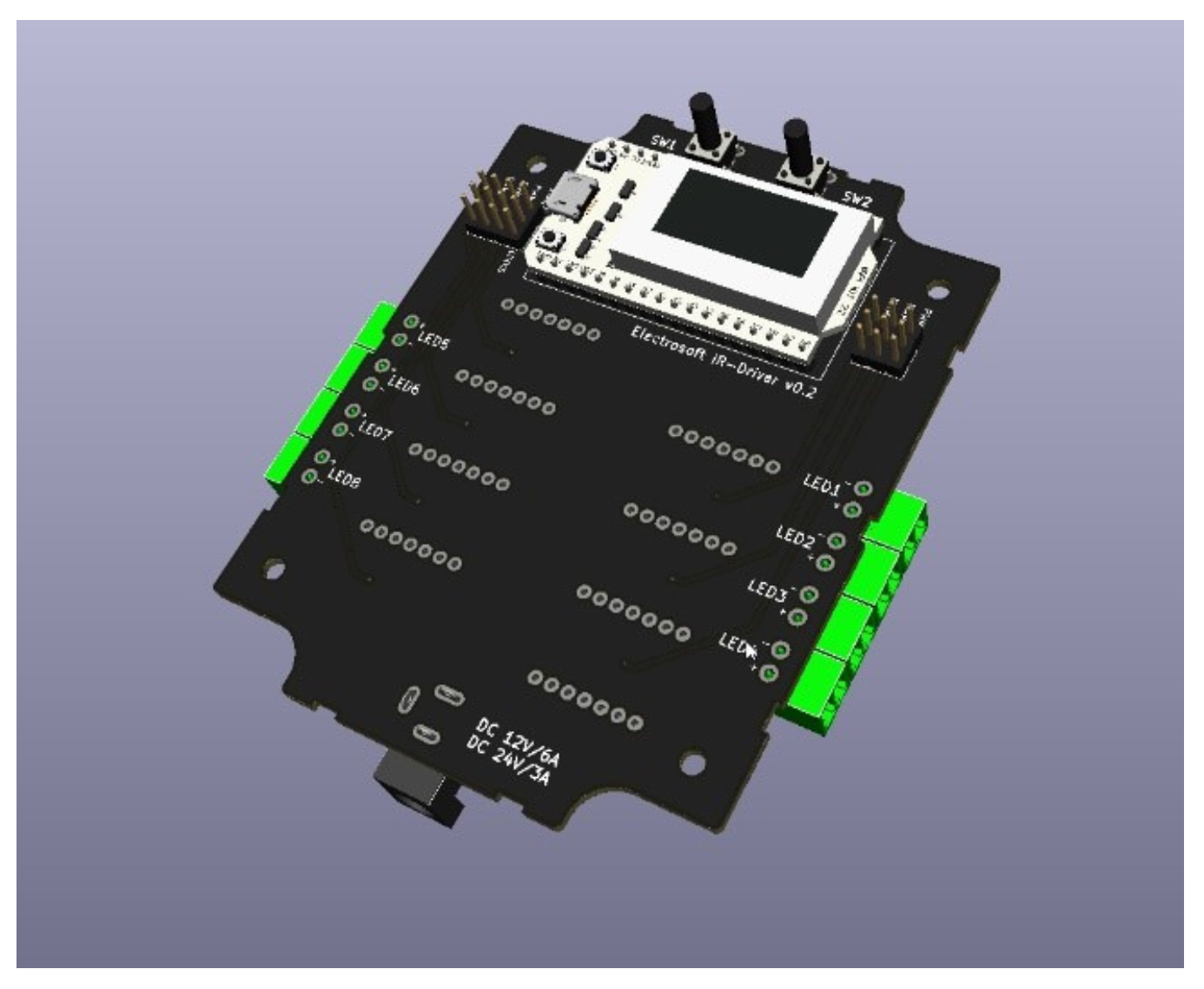

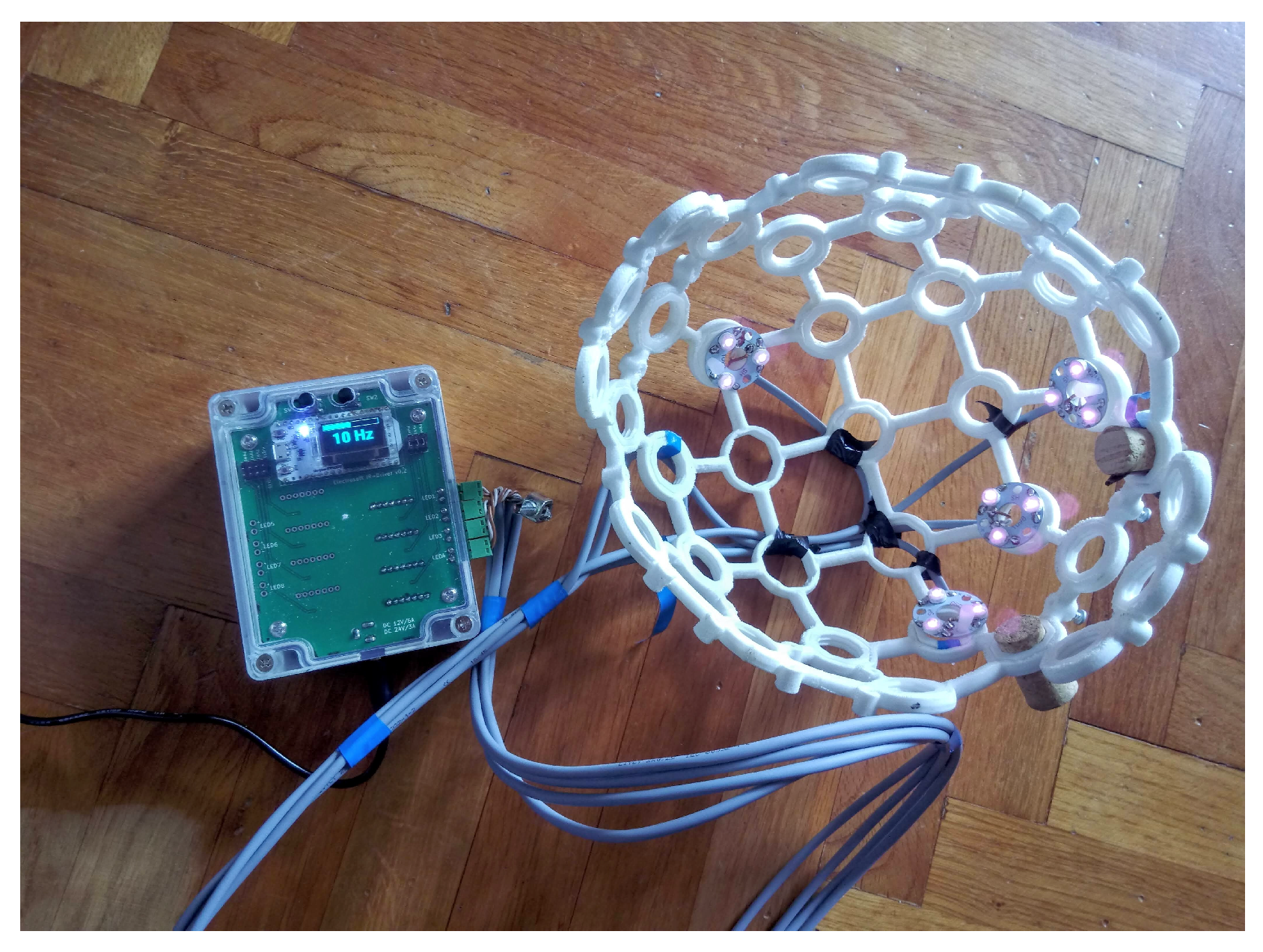

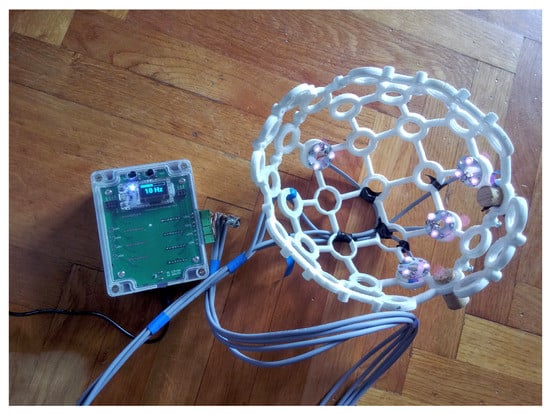

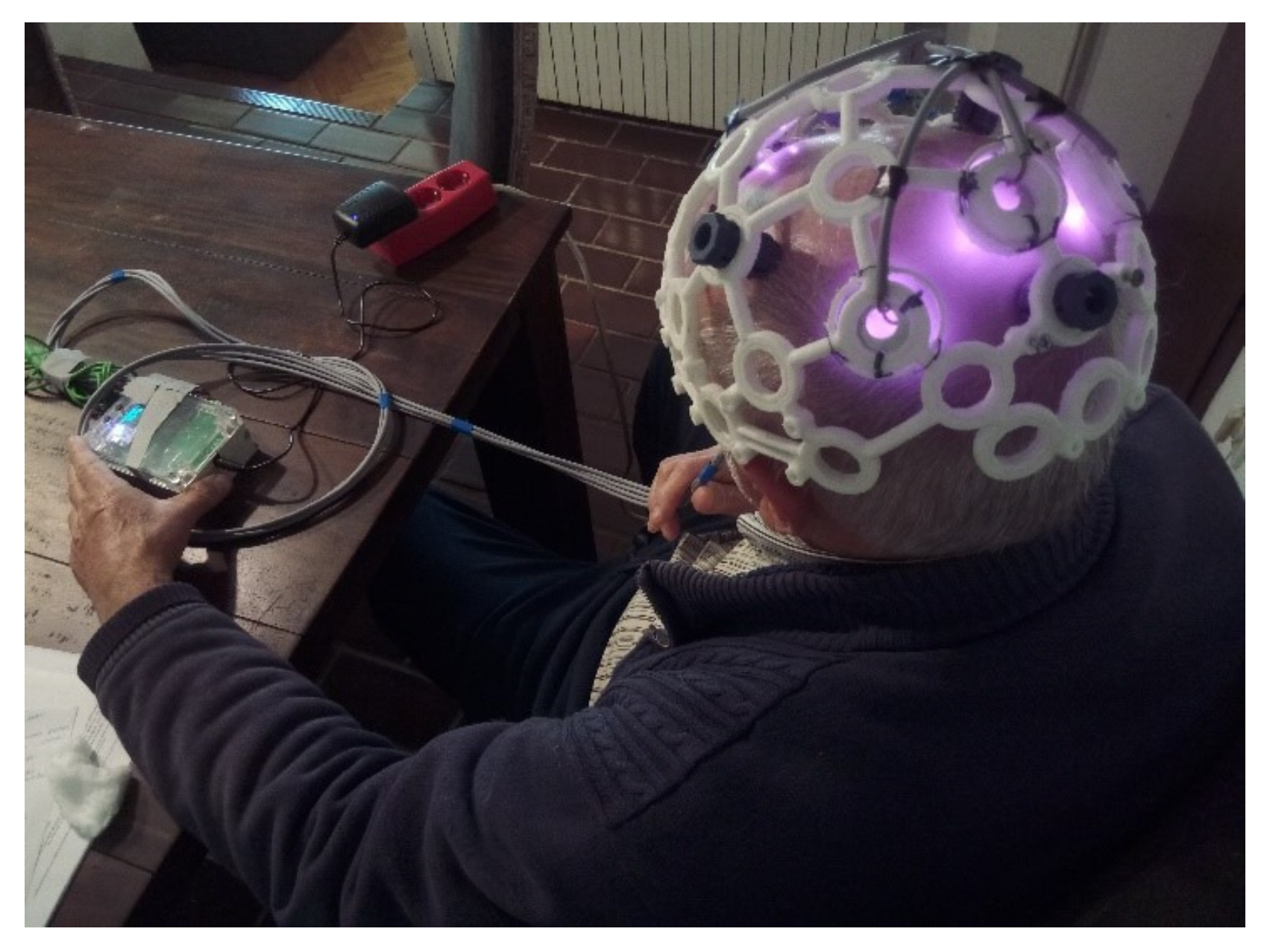

2.1. Near Infra Red (NIR) Device Prototype
- 1 W, 810 nm; DC IF: 700 mA; DC UF: typical: 1.6–2.2 V; beam angle 120–140.
2.2. Stimulation Protocol
2.3. EEG Acquisition

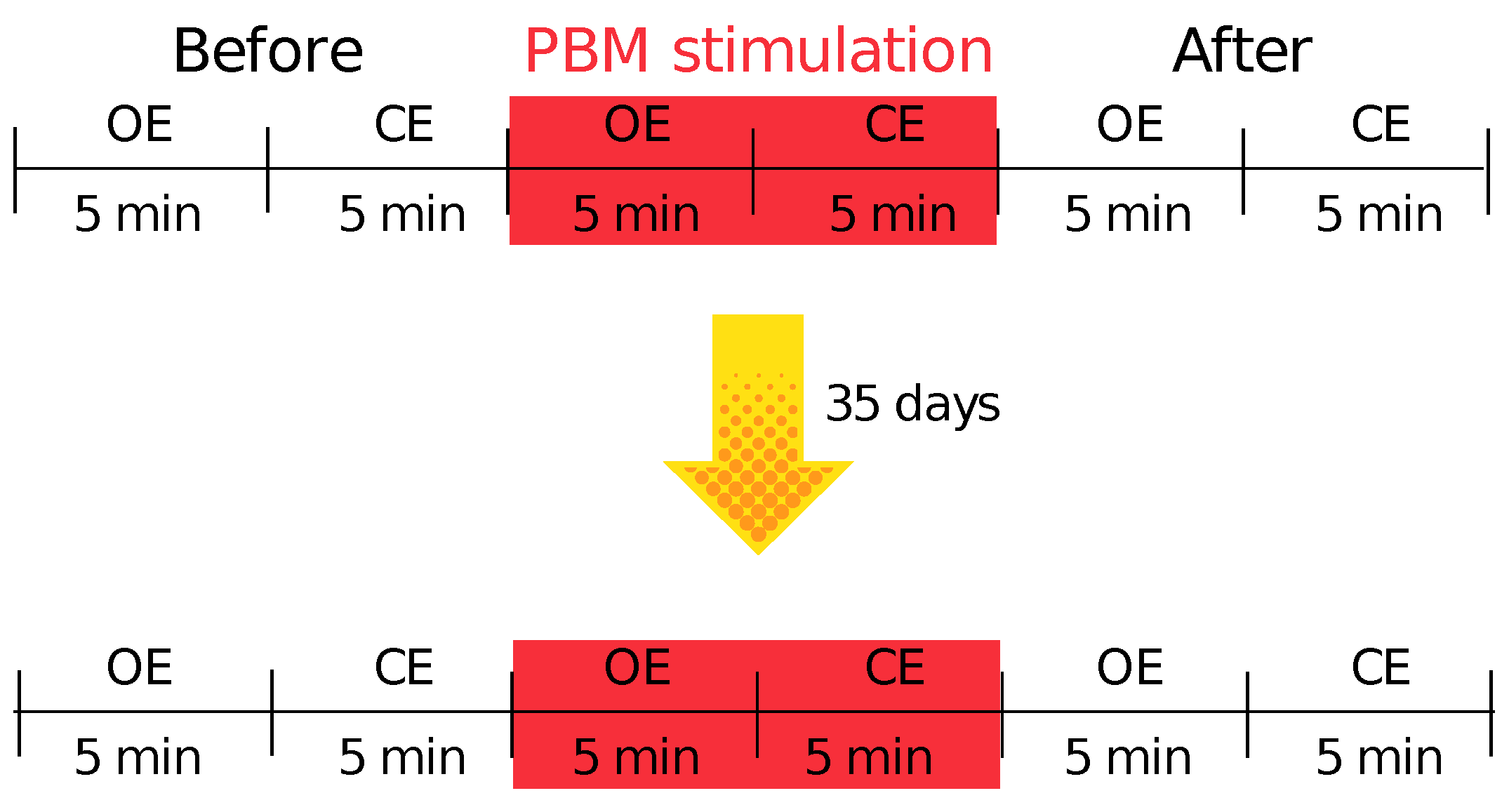

2.4. Description of the Pilot Study Design

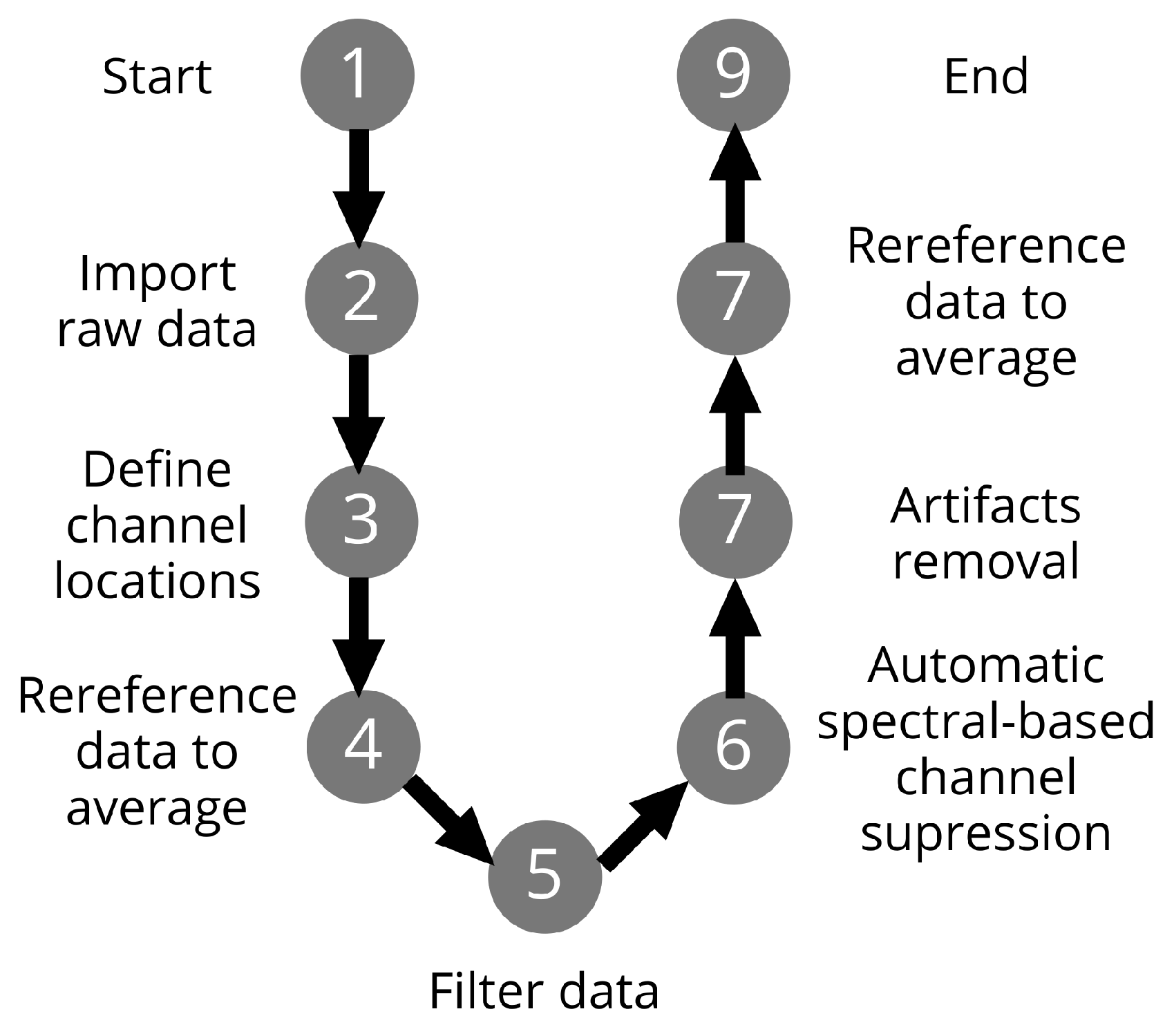

2.5. Offline Preprocessing
2.6. Analyses
2.6.1. Power Spectrum Analysis
2.6.2. Connectivity Analysis
3. Results

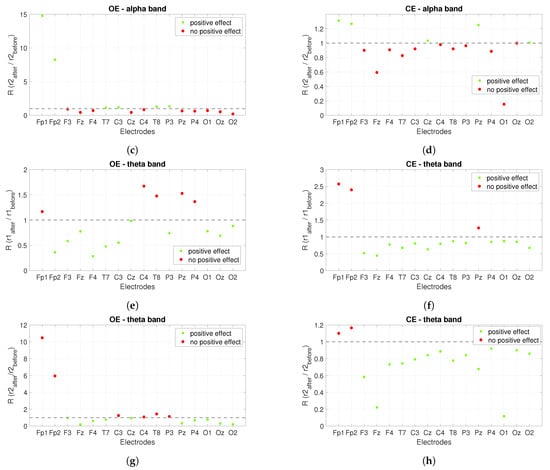

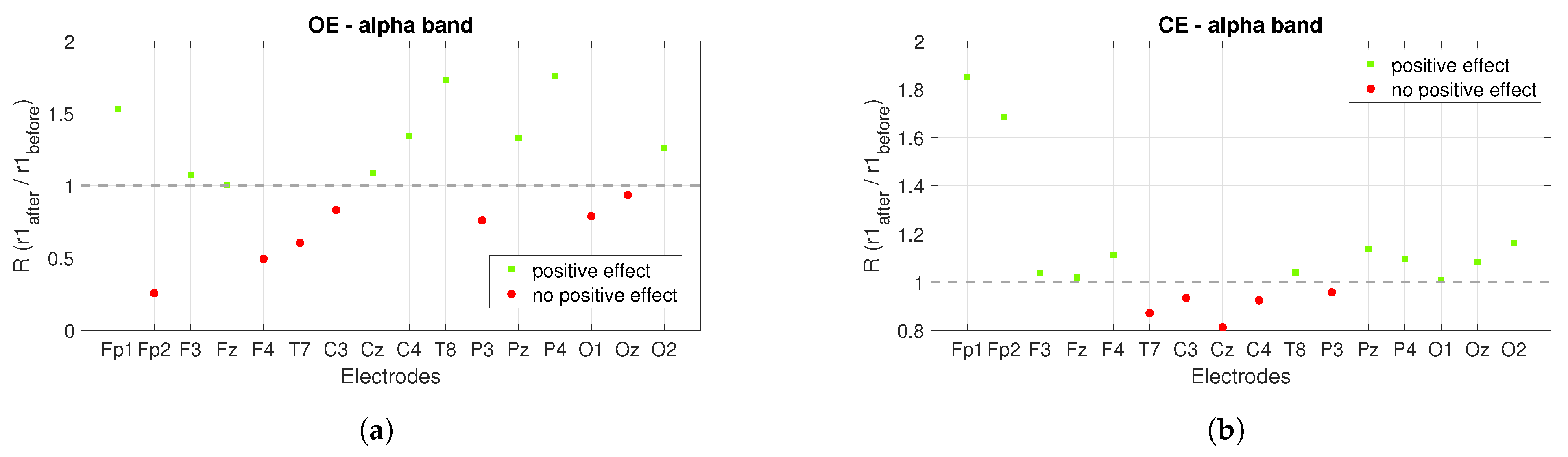

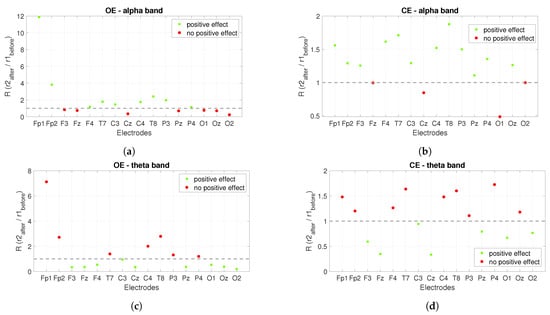

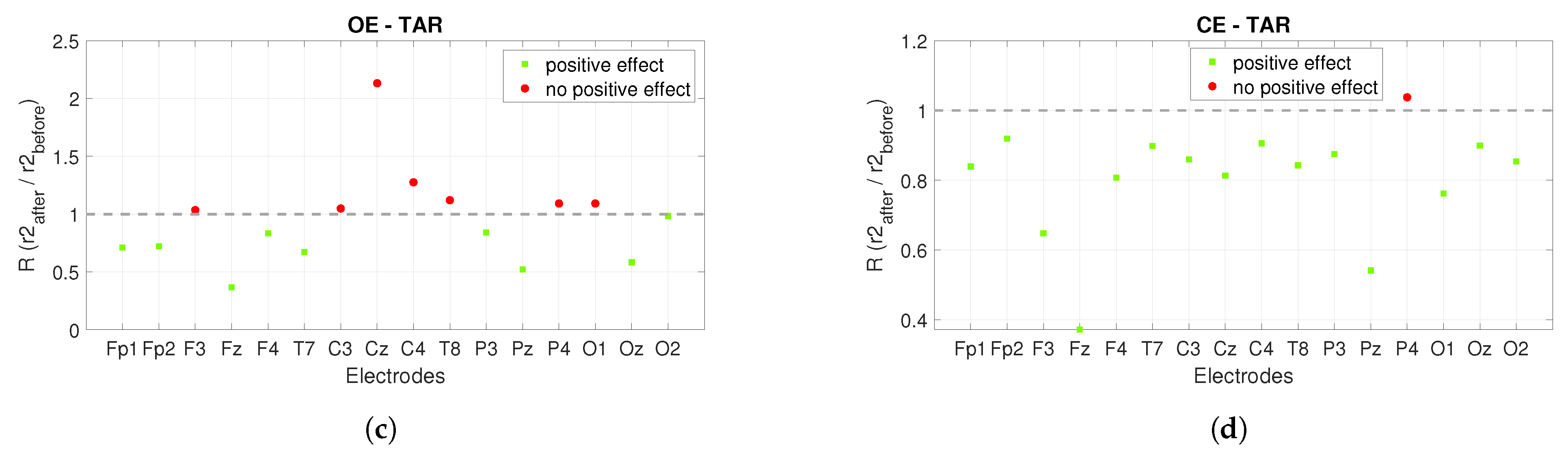

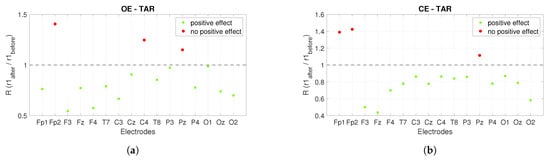

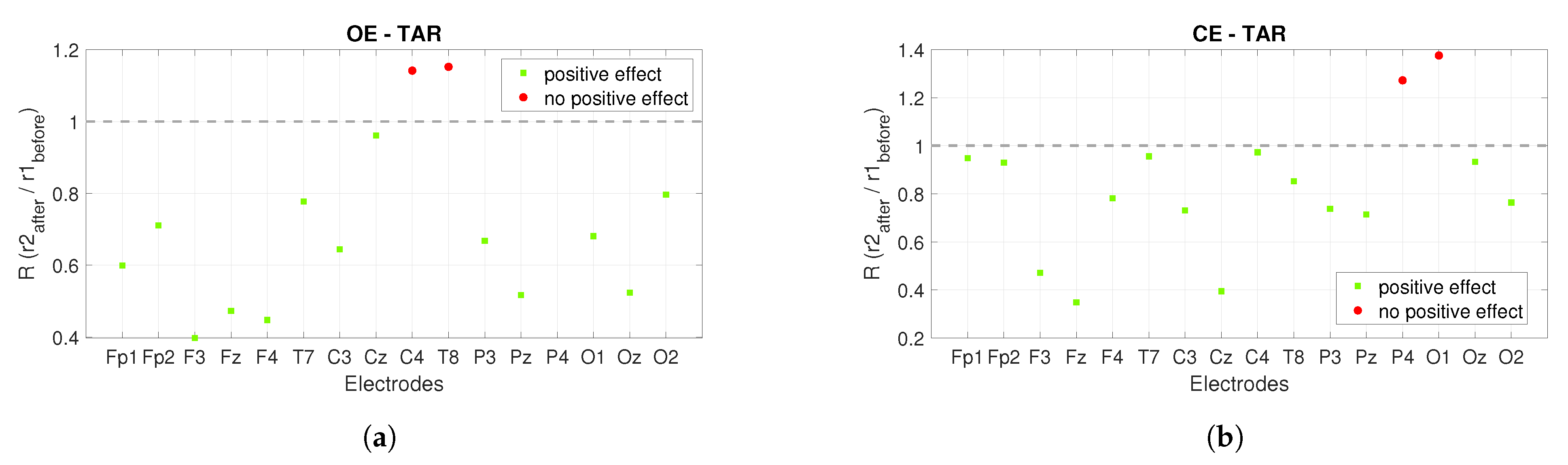

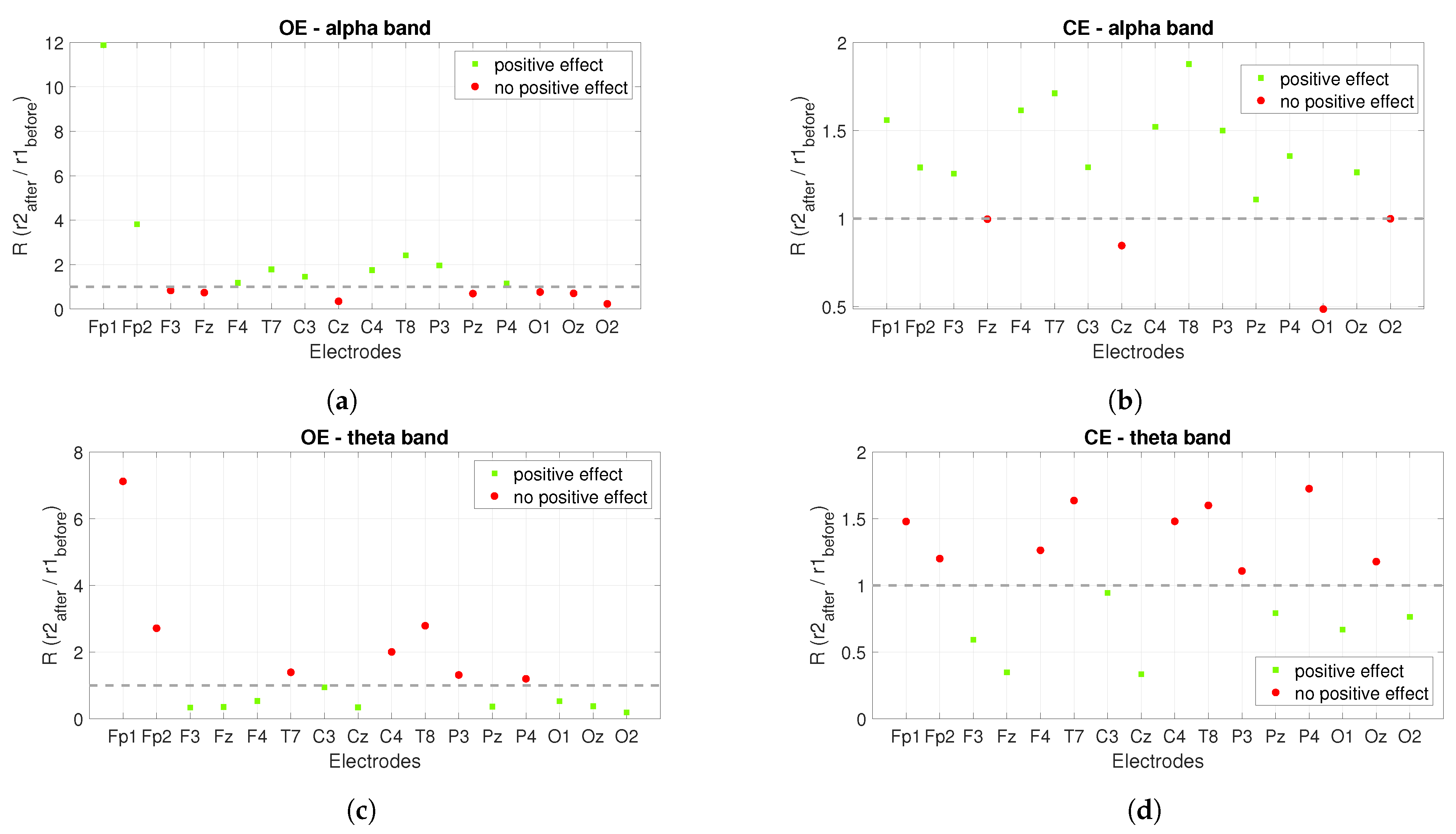

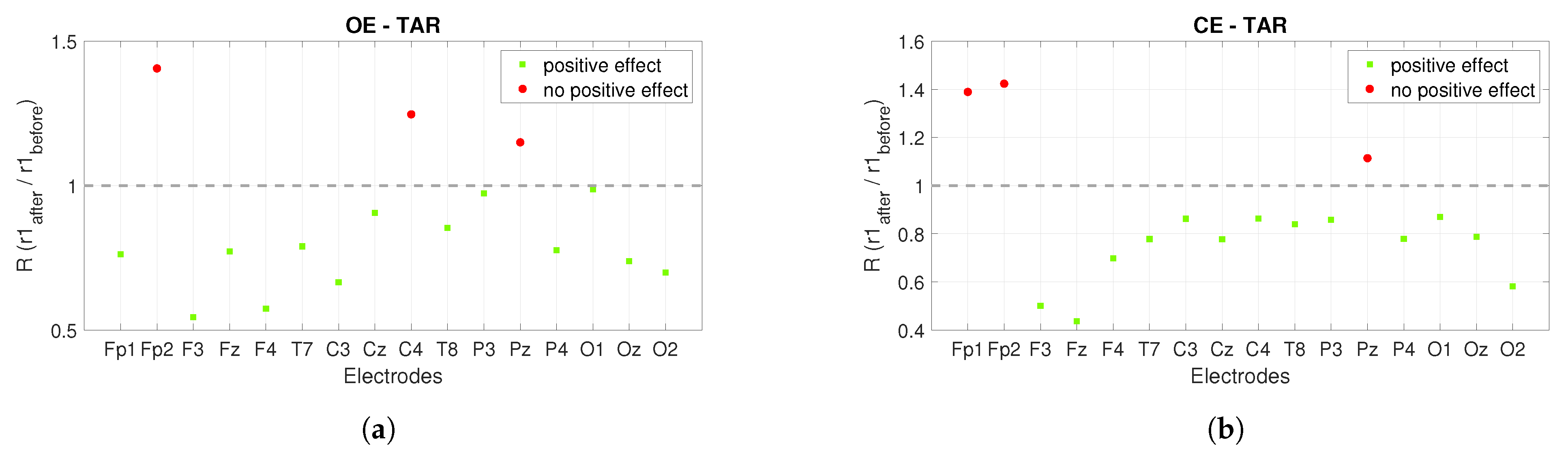

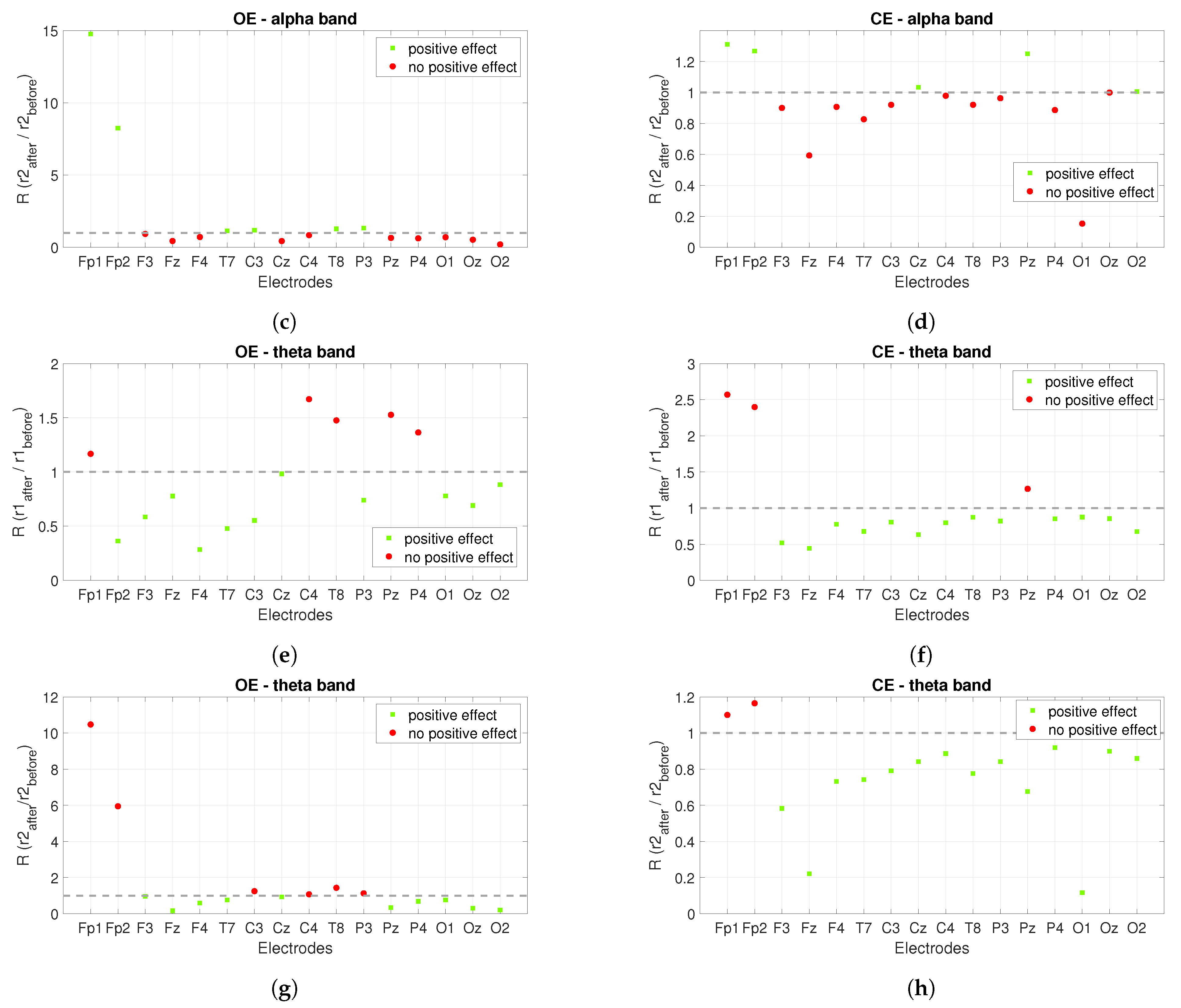

3.1. Power Spectrum Analysis

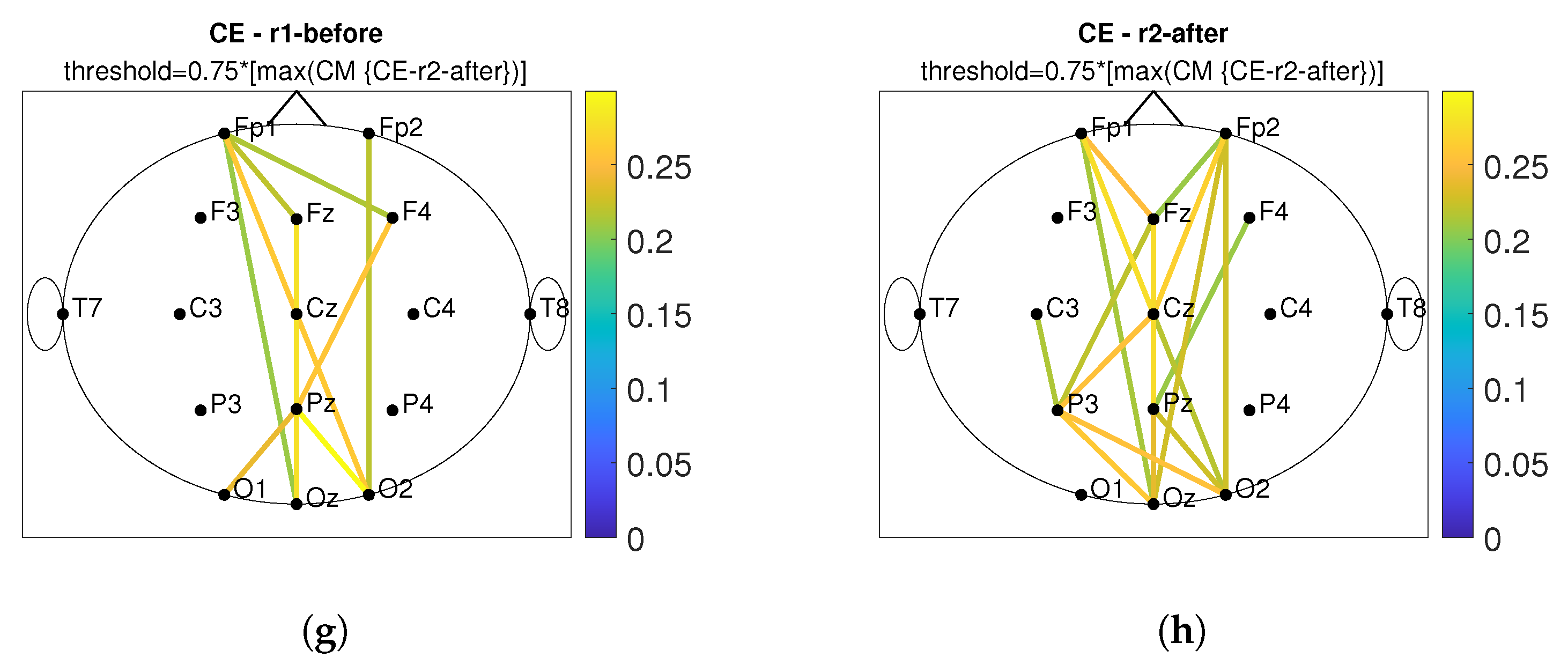

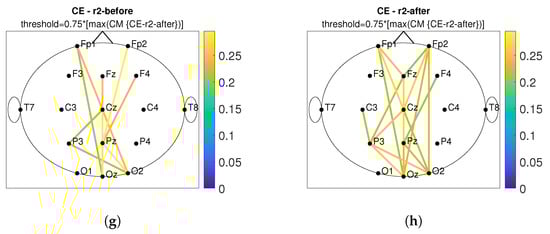

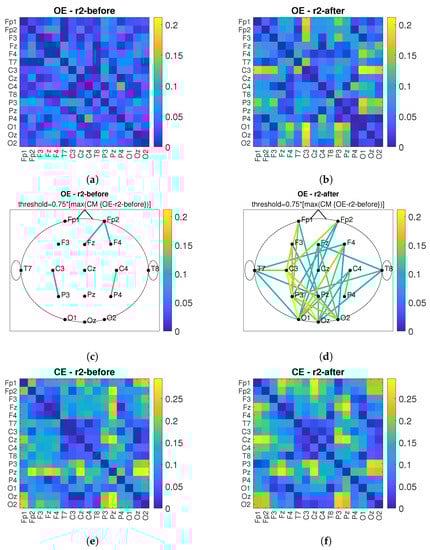

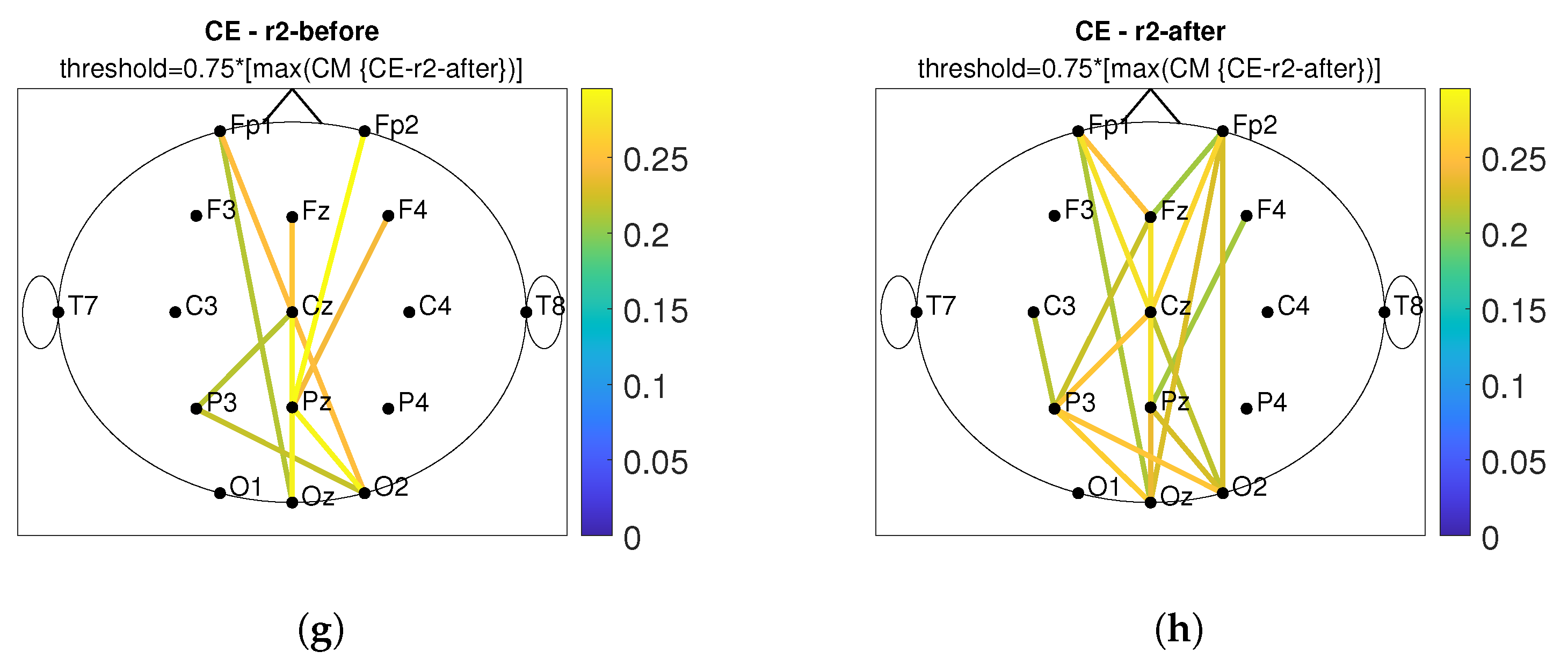

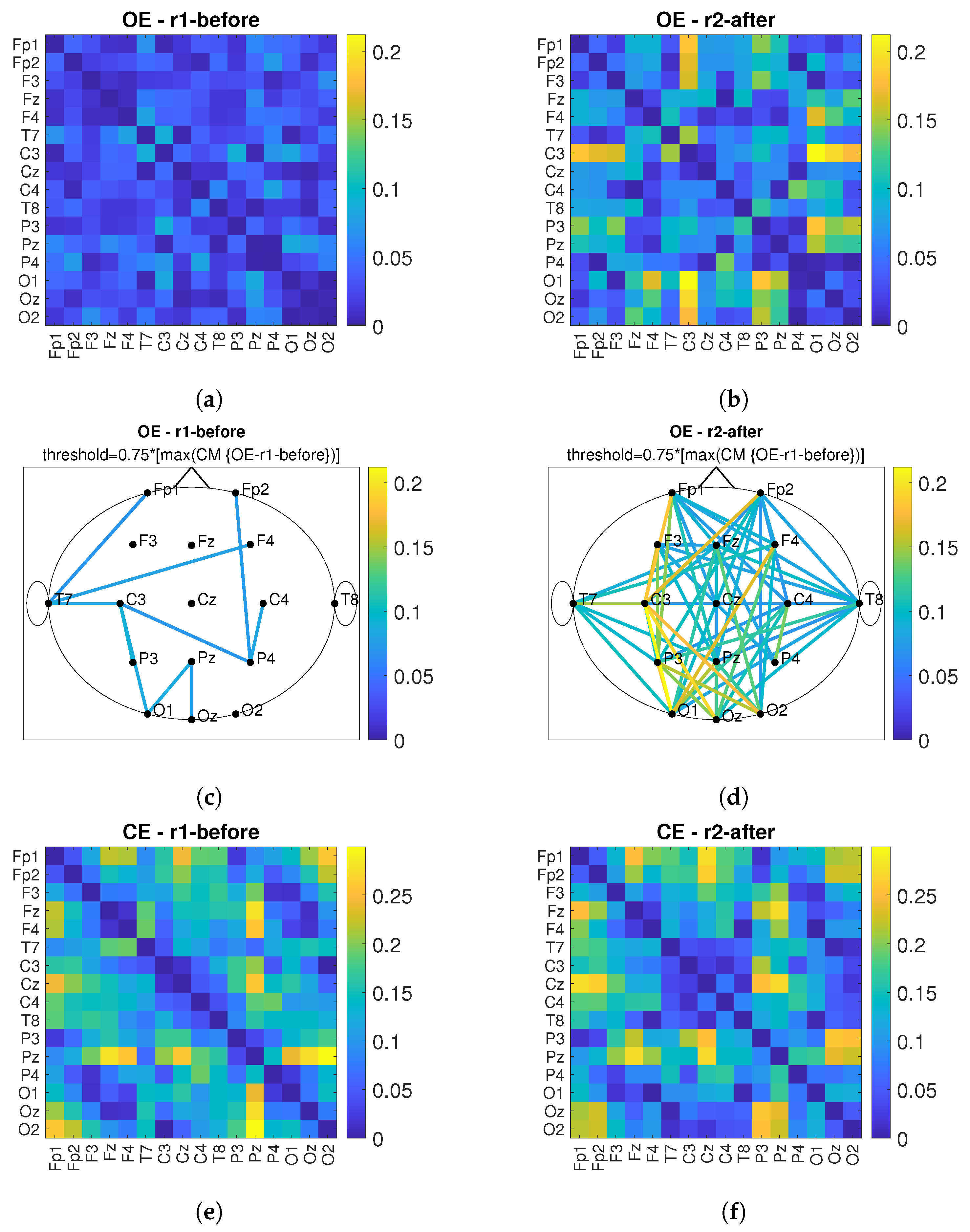

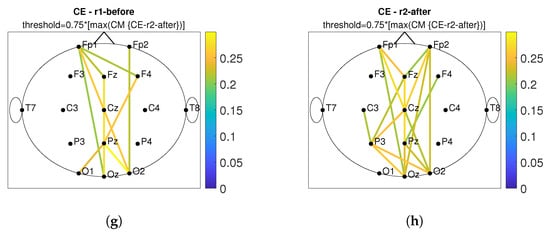

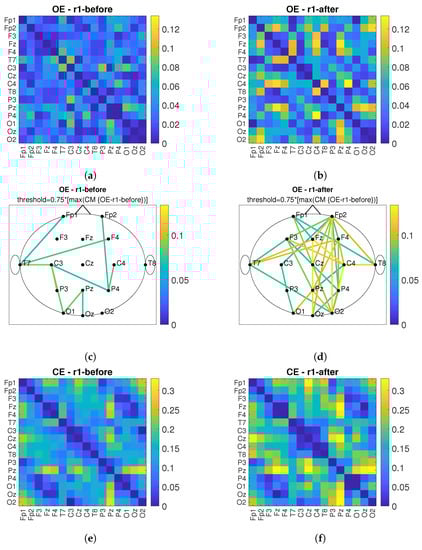

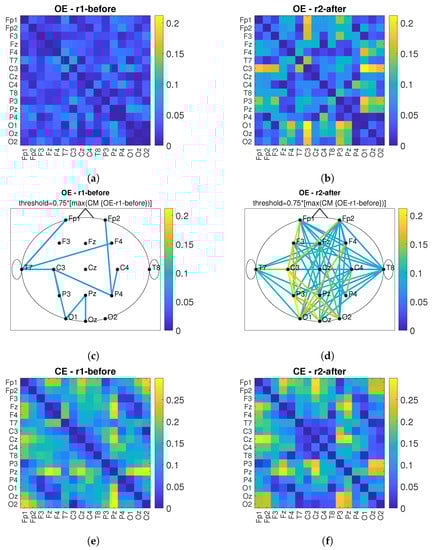

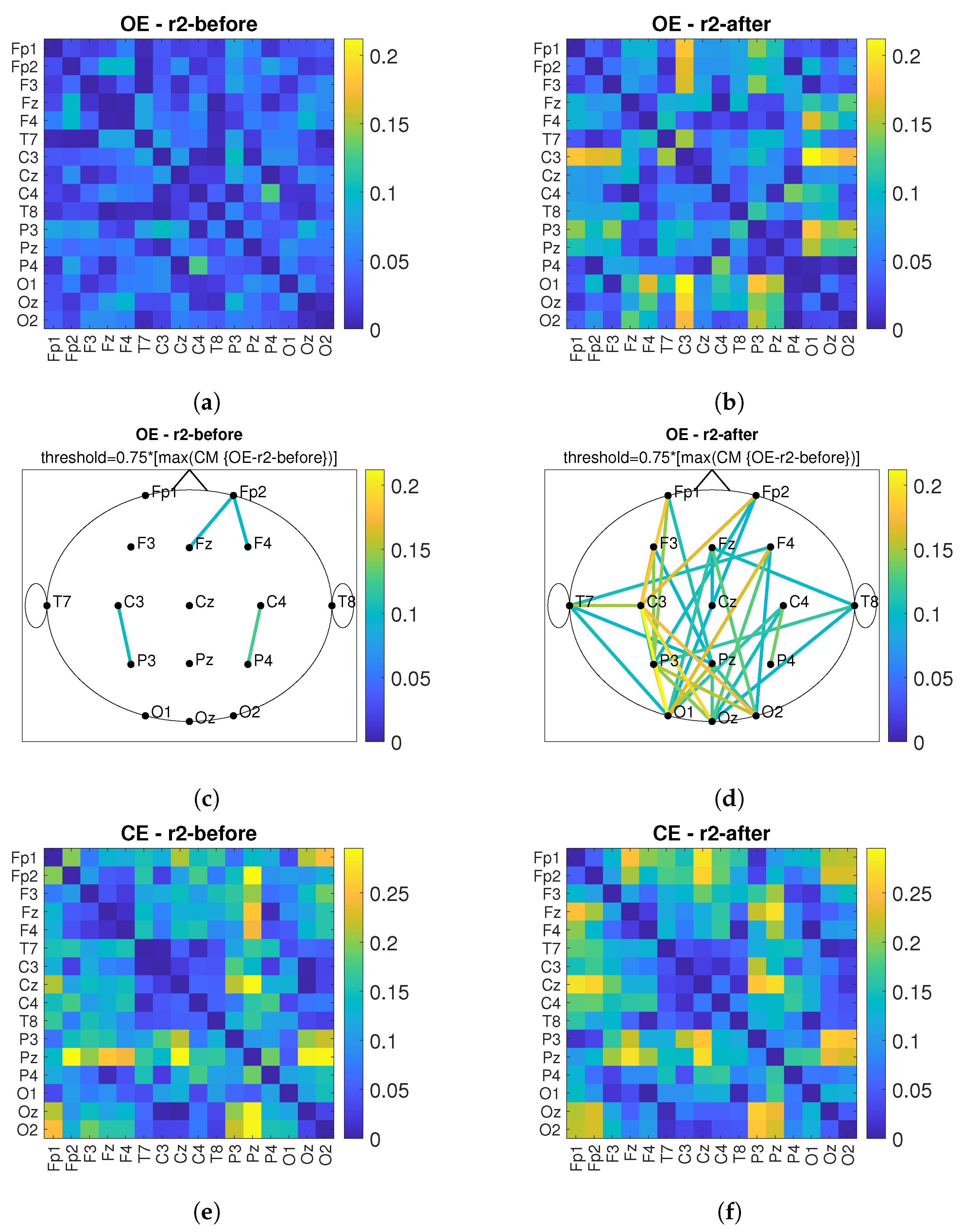

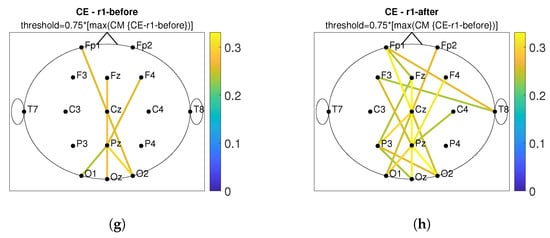

3.2. Connectivity Analysis
4. Discussion
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Conflicts of Interest
Abbreviations
absCPCC | absolute value of complex Pearson correlation coefficient |
AD | Alzheimer’s disease |
CE | closed eyes |
CM | connectivity matrix |
CPCC | Complex Pearson correlation coefficient |
CT | Computed tomography |
DBS | deep brain stimulation |
EEG | Electroencephalography |
FDA | U.S. Food and Drug Administration |
FFT | Fast Fourier transform |
GFS | Global Field Synchronization |
IR LED | infra-red Light Emitting Diode |
imCPCC | imaginary component of complex Pearson correlation coefficient |
LED | Light Emitting Diode |
MCI | mild cognitive impairment |
MEG | Magnetoencephalography |
MI | Mutual Information |
MMSE | Mini-Mental State Exam |
MRI | Magnetic Resonance Imaging |
NIR | near-infrared |
OE | opened eyes |
PBM | photobiomodulation |
PLI | Phase Lag Index |
PLV | Phase Locking Value |
r1 | First Recording |
r2 | Second Recording |
TAR | theta-alpha ratio |
tDCS | transcranial direct current stimulation |
TILS | transcranial infrared laser stimulation |
TMS | transcranial magnetic stimulation |
tPBM | transcranial photobiomodulation |
SAGE | Self Administered Gerocognitive Exam |
SCI | subjective cognitive impairment |
wPLI | Weighted Phase Lag Index |
