# Damage Detection Using Ultrasonic Techniques in Concrete-Filled Steel Tubes (CFSTs) Columns

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Preparation of Samples

#### 2.2. Experimental Setup

#### 2.3. Computational Algorithms

#### 2.3.1. Fast Fourier Transform and Short-Time Fourier Transform

#### 2.3.2. Broadband Ultrasound Attenuation Analysis

## 3. Results and Discussion

#### 3.1. FFT and STFT C-Scan Results

#### 3.2. BUA C-Scan Results

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Acknowledgments

## Conflicts of Interest

## Abbreviations

CFSTs | Concrete-filled steel tubes |

BUA | Broadband Ultrasound Attenuation |

CFST | Concrete-Filled Steel Tubular |

UPV | Ultrasonic pulse velocity method |

HL | Hull/Langton index |

FFT | Fast Fourier Transform |

STFT | Short-time Fourier transform |

## References

- Han, L.H.; Li, W.; Bjorhovde, R. Developments and advanced applications of concrete-filled steel tubular (CFST) structures: Members. J. Constr. Steel Res.
**2014**, 100, 211–228. [Google Scholar] [CrossRef] - Tao, Z.; Uy, B.; Han, L.H.; Wang, Z.B. Analysis and design of concrete-filled stiffened thin-walled steel tubular columns under axial compression. Thin Walled Struct.
**2009**, 47, 1544–1556. [Google Scholar] [CrossRef] - Oh, B.K.; Park, J.S.; Choi, S.W.; Park, H.S. Design model for analysis of relationships among CO2 emissions, cost, and structural parameters in green building construction with composite columns. Energy Build.
**2016**, 118, 301–315. [Google Scholar] [CrossRef] - Figueirido, D.H. Estudio Experimental del Pandeo de Perfiles Tubulares Rectangulares de Acero, Rellenos de Hormigón de Alta Resistencia, Bajo Carga Axial y Diagrama de Momentos Variables. Ph.D. Thesis, Universitat Politècnica de València, Valencia, Spain, 2012. [Google Scholar]
- Al Zand, A.W.; Badaruzzaman, W.H.W.; Al-Shaikhli, M.S.; Ali, M.M. Flexural performance of square concrete-filled steel tube beams stiffened with V-shaped grooves. J. Constr. Steel Res.
**2020**, 166, 105930. [Google Scholar] [CrossRef] - Al-Zand, A.W.; Badaruzzaman, W.W.; Ali, M.M.; Hasan, Q.A.; Al-Shaikhli, M.S. Flexural performance of cold-formed square CFST beams strengthened with internal stiffeners. Steel Compos. Struct. Int. J.
**2020**, 34, 123–139. [Google Scholar] - Xu, P.; Wang, Z.; Mou, B.; Gao, D. Seismic performance of CFST column to steel beam joint with outer annular stiffener. J. Build. Eng.
**2022**, 54, 104679. [Google Scholar] [CrossRef] - Climent, M.Á.; Miró, M.; Eiras, J.N.; Poveda, P.; de Vera, G.; Segovia, E.G.; Ramis, J. Early Detection of Corrosion-Induced Concrete Micro-cracking by Using Nonlinear Ultrasonic Techniques: Possible Influence of Mass Transport Processes. Corros. Mater. Degrad.
**2022**, 3, 235–257. [Google Scholar] [CrossRef] - Miró, M.; Eiras, J.N.; Poveda, P.; Climent, M.Á.; Ramis, J. Detecting cracks due to steel corrosion in reinforced cement mortar using intermodulation generation of ultrasonic waves. Constr. Build. Mater.
**2021**, 286, 122915. [Google Scholar] [CrossRef] - Liao, F.Y.; Han, L.H.; Tao, Z. Behaviour of CFST stub columns with initial concrete imperfection: Analysis and calculations. Thin Walled Struct.
**2013**, 70, 57–69. [Google Scholar] [CrossRef] - Liao, F.Y.; Han, L.H.; He, S.H. Behavior of CFST short column and beam with initial concrete imperfection: Experiments. J. Constr. Steel Res.
**2011**, 67, 1922–1935. [Google Scholar] [CrossRef] - Lu, Z.; Guo, C.; Li, G. Air void and ring gap effect on CFST arch bridges dynamic performance. J. Constr. Steel Res.
**2021**, 177, 106418. [Google Scholar] [CrossRef] - Han, L.H. The influence of concrete compaction on the strength of concrete filled steel tubes. Adv. Struct. Eng.
**2000**, 3, 131–137. [Google Scholar] [CrossRef] - Han, L.H.; Yao, G.H. Influence of concrete compaction on the strength of concrete-filled steel RHS columns. J. Constr. Steel Res.
**2003**, 59, 751–767. [Google Scholar] [CrossRef] - Guo, C.; Lu, Z. A Comprehensive Research of the Air-void Defect of Concrete-filled Steel Tube. Period. Polytech. Civ. Eng.
**2021**, 65, 474–485. [Google Scholar] [CrossRef] - Guo, C.; Lu, Z. CFST Rib with Circumferential Gap and SWS Composite Defects. Iran. J. Sci. Technol. Trans. Civ. Eng.
**2021**, 45, 1441–1456. [Google Scholar] [CrossRef] - Selleck, S.F.; Landis, E.N.; Peterson, M.L.; Shah, S.P.; Achenbach, J.D. Ultrasonic investigation of concrete with distributed damage. Mater. J.
**1998**, 95, 27–36. [Google Scholar] - Shah, A.; Ribakov, Y. Non-destructive evaluation of concrete in damaged and undamaged states. Mater. Des.
**2009**, 30, 3504–3511. [Google Scholar] [CrossRef] - Zhao, M.; Nie, Z.; Wang, K.; Liu, P.; Zhang, X. Nonlinear ultrasonic test of concrete cubes with induced crack. Ultrasonics
**2019**, 97, 1–10. [Google Scholar] [CrossRef] - Le, M.; Kim, J.; Kim, S.; Lee, J. B-scan ultrasonic testing of rivets in multilayer structures based on short-time Fourier transform analysis. Measurement
**2018**, 128, 495–503. [Google Scholar] [CrossRef] - Petro, J.T., Jr.; Kim, J. Detection of delamination in concrete using ultrasonic pulse velocity test. Constr. Build. Mater.
**2012**, 26, 574–582. [Google Scholar] [CrossRef] - Shiotani, T.; Aggelis, D.G. Wave propagation in cementitious material containing artificial distributed damage. Mater. Struct.
**2009**, 42, 377–384. [Google Scholar] [CrossRef] - Xu, J.; Wei, H. Ultrasonic testing analysis of concrete structure based on S transform. Shock Vib.
**2019**, 2019, 2693141. [Google Scholar] [CrossRef] - Chai, H.; Momoki, S.; Kobayashi, Y.; Aggelis, D.; Shiotani, T. Tomographic reconstruction for concrete using attenuation of ultrasound. NDT E Int.
**2011**, 44, 206–215. [Google Scholar] [CrossRef] - Sharma, G.K.; Kumar, A.; Rao, C.B.; Jayakumar, T.; Raj, B. Short time Fourier transform analysis for understanding frequency dependent attenuation in austenitic stainless steel. NDT E Int.
**2013**, 53, 1–7. [Google Scholar] [CrossRef] - Mutlib, N.K.; Ismael, M.N.; Baharom, S. Damage Detection in CFST Column by Simulation of Ultrasonic Waves Using STFT-Based Spectrogram and Welch Power Spectral Density Estimate. Struct. Durab. Health Monit.
**2021**, 15, 227. [Google Scholar] [CrossRef] - Langton, C.; Palmer, S.; Porter, R. The measurement of broadband ultrasonic attenuation in cancellous bone. Eng. Med.
**1984**, 13, 89–91. [Google Scholar] [CrossRef][Green Version] - Maia, J.M.; Costa, E.T.; Neto, J.F.M.; Button, V.L. Broadband ultrasound attenuation in the calcaneal region: A comparative study of single-position versus scanning systems. IEEE Trans. Ultrason. Ferroelectr. Freq. Control.
**2008**, 55, 64–73. [Google Scholar] [CrossRef] - Strelitzki, R.; Evans, J. An investigation of the measurement of broadband ultrasonic attenuation in trabecular bone. Ultrasonics
**1996**, 34, 785–791. [Google Scholar] [CrossRef] - Töyräs, J.; Nieminen, M.; Kröger, H.; Jurvelin, J. Bone mineral density, ultrasound velocity, and broadband attenuation predict mechanical properties of trabecular bone differently. Bone
**2002**, 31, 503–507. [Google Scholar] [CrossRef] - Tasinkevych, Y.; Falińska, K.; Lewin, P.A.; Litniewski, J. Improving broadband ultrasound attenuation assessment in cancellous bone by mitigating the influence of cortical bone: Phantom and in-vitro study. Ultrasonics
**2019**, 94, 382–390. [Google Scholar] [CrossRef] [PubMed] - Chappard, C.; Laugier, P.; Fournier, B.; Roux, C.; Berger, G. Assessment of the relationship between broadband ultrasound attenuation and bone mineral density at the calcaneus using BUA imaging and DXA. Osteoporos. Int.
**1997**, 7, 316–322. [Google Scholar] [CrossRef] - Langton, C.; Ali, A.; Riggs, C.; Evans, G.; Bonfield, W. A contact method for the assessment of ultrasonic velocity and broadband attenuation in cortical and cancellous bone. Clin. Phys. Physiol. Meas.
**1990**, 11, 243. [Google Scholar] [CrossRef] - Hodgskinson, R.; Njeh, C.; Whitehead, M.; Langton, C. The non-linear relationship between BUA and porosity in cancellous bone. Phys. Med. Biol.
**1996**, 41, 2411. [Google Scholar] [CrossRef] - Hull, J.; Langton, C.; Barker, S.; Jones, A. Identification and characterisation of materials by broadband ultrasonic attenuation analysis. J. Mater. Process. Technol.
**1996**, 56, 148–157. [Google Scholar] [CrossRef] - Da Costa, R.; Maia, J.M.; Assef, A.A.; Pichorim, S.F.; Gewehr, P.M.; Costa, E.T. Defect Detection in Aluminum Bars Using Impedance and Ultrasonic Attenuation. IEEE Sens. J.
**2020**, 20, 7400–7413. [Google Scholar] [CrossRef] - Vergara, L.; Miralles, R.; Gosálbez, J.; Juanes, F.; Ullate, L.; Anaya, J.; Hernández, M.; Izquierdo, M. NDE ultrasonic methods to characterise the porosity of mortar. NDT E Int.
**2001**, 34, 557–562. [Google Scholar] [CrossRef] - Iba nez, C.; Hernández-Figueirido, D.; Piquer, A. Shape effect on axially loaded high strength CFST stub columns. J. Constr. Steel Res.
**2018**, 147, 247–256. [Google Scholar] [CrossRef]

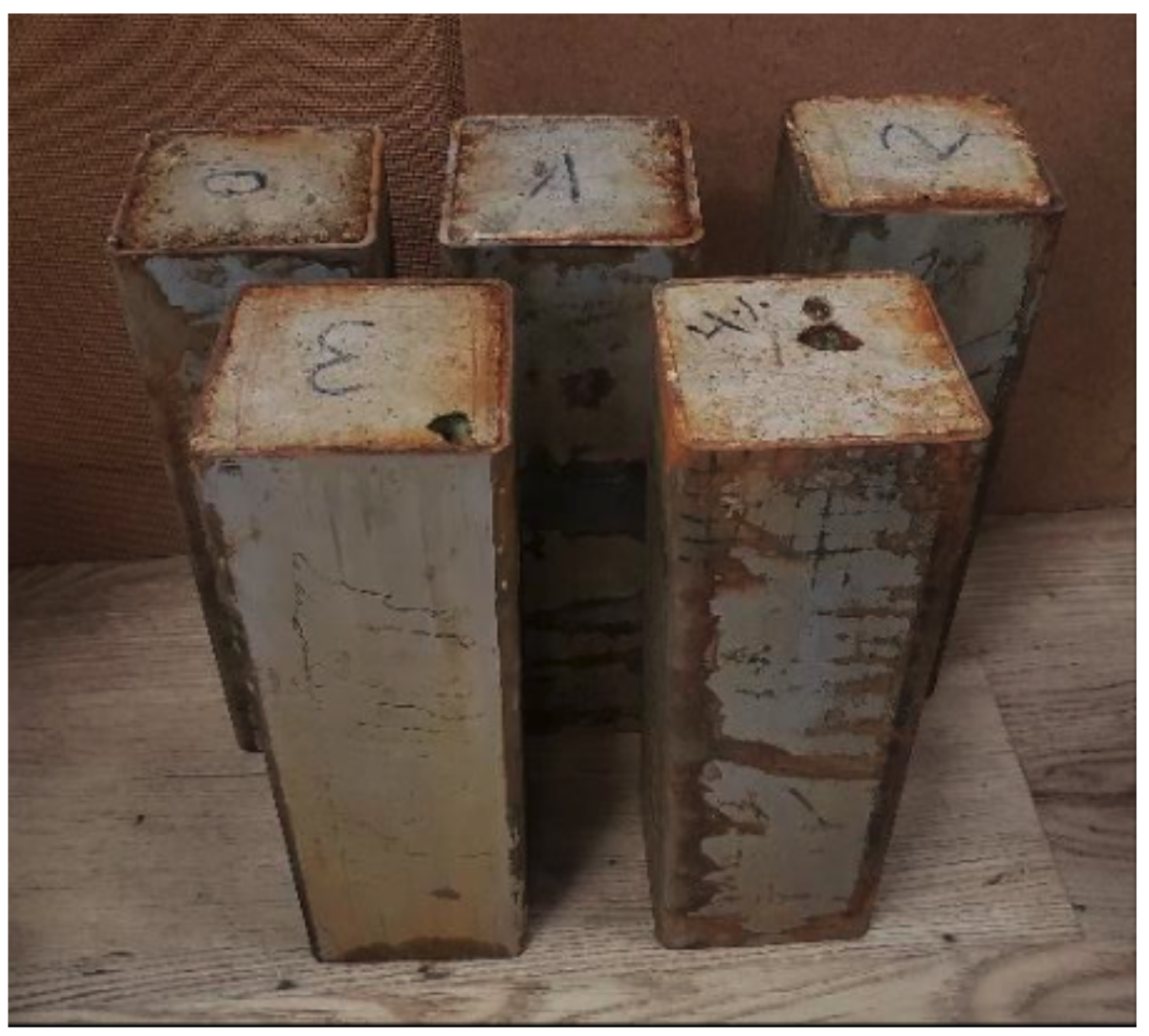

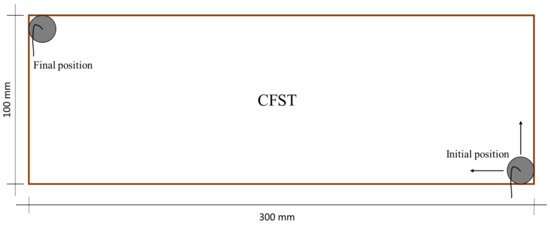

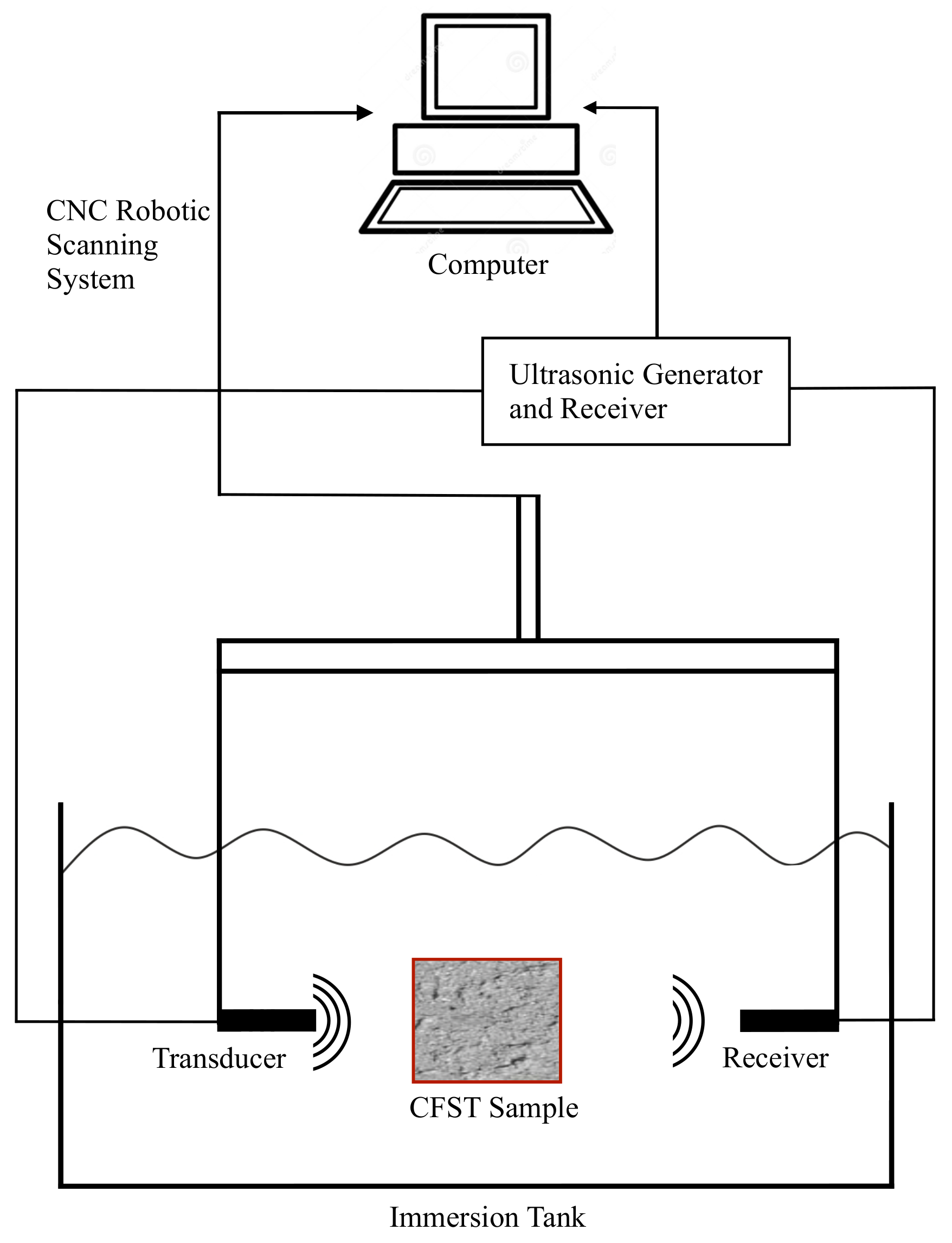

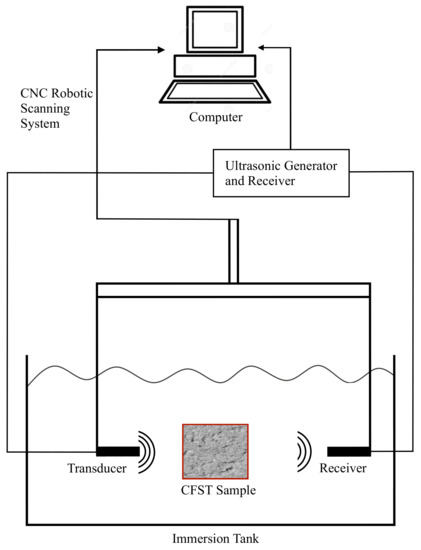

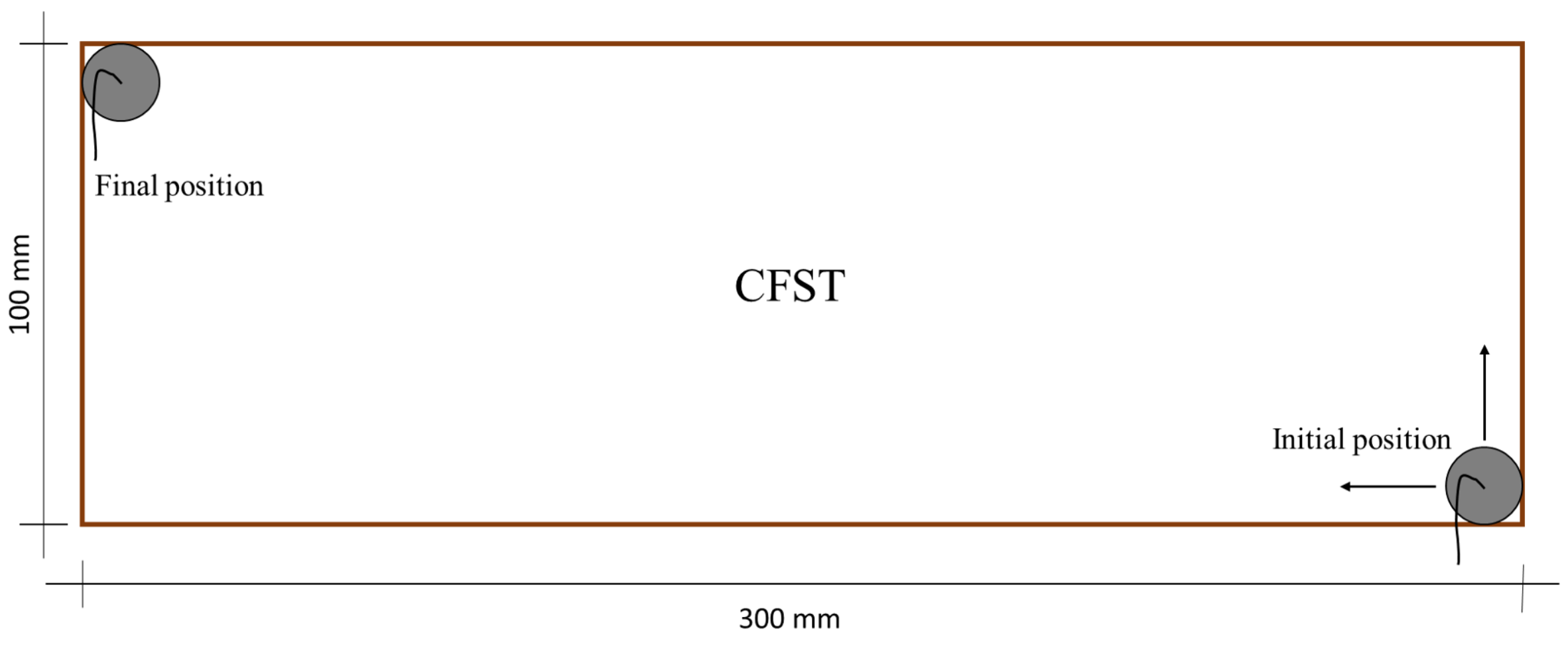

**Figure 3.**Schematic path of transducers during the scanning process. The gray circles represent the diameter of the transducers. The arrows show the directions of movement of the same.

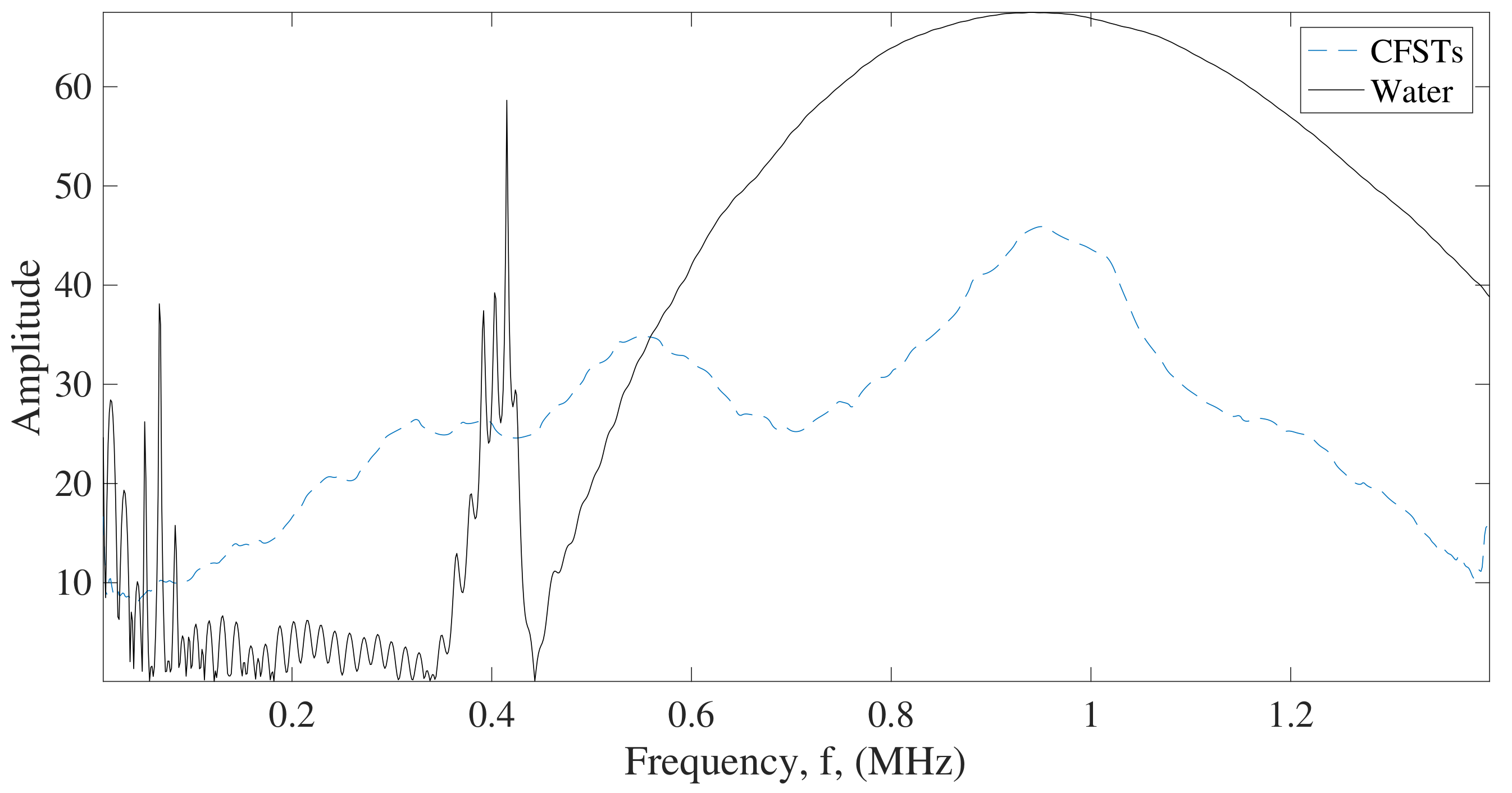

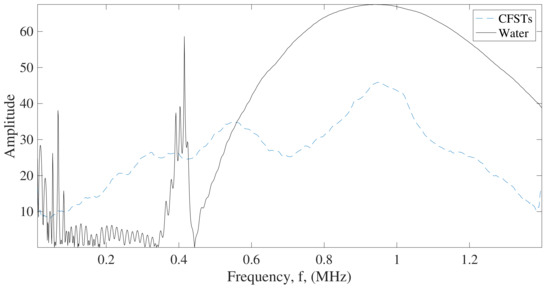

**Figure 4.**Representation of frequency spectra of reference material (degassed water) and CFST sample (dashed line).

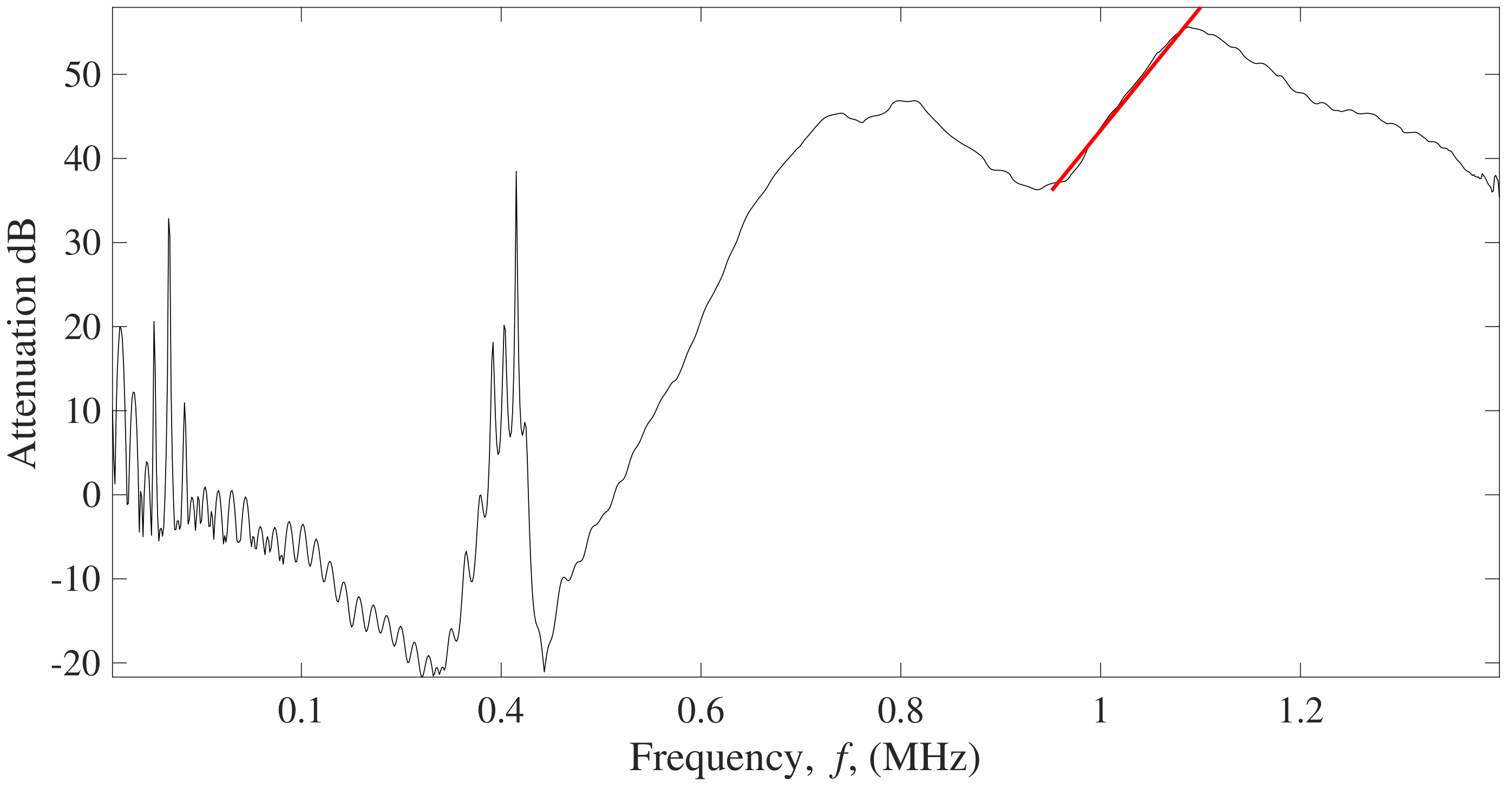

**Figure 5.**Example of the attenuation versus frequency curve (black solid line) with regression slope (red solid line).

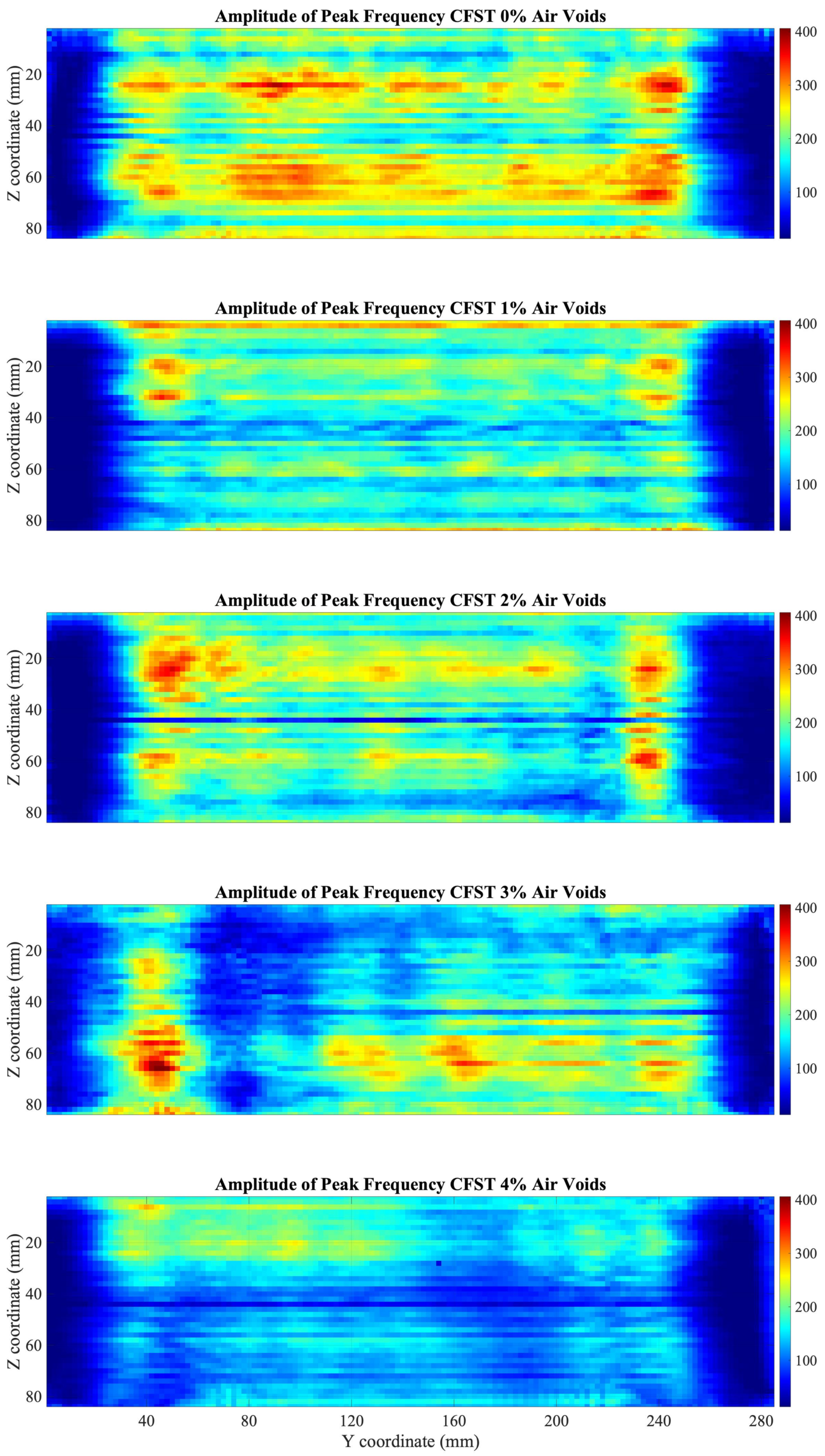

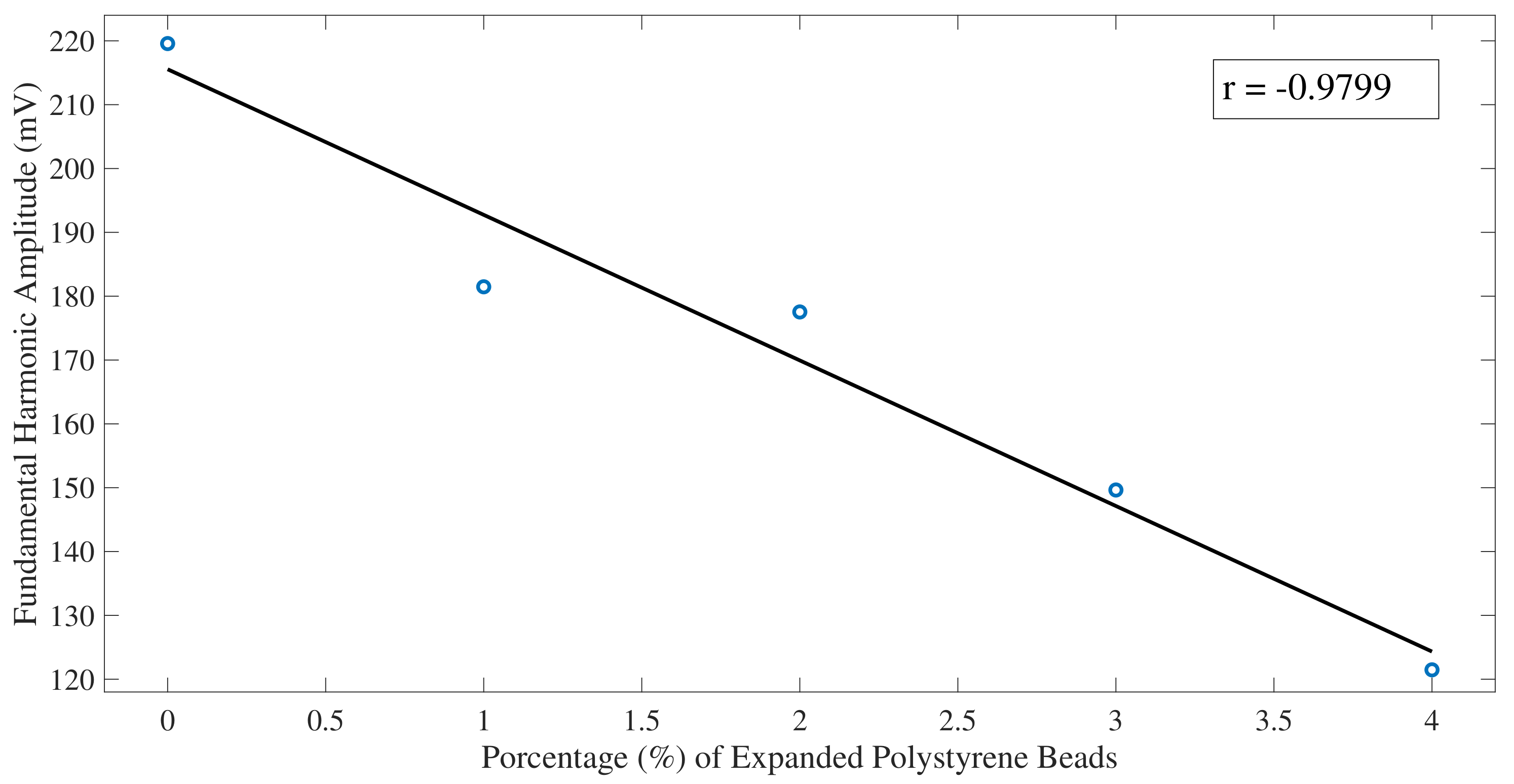

**Figure 7.**Fundamental harmonic amplitude averages over the window of the CFST samples using the FFT algorithm. The solid black line is a linear fit of the data. Pearson correlation coefficient r = −0.9799.

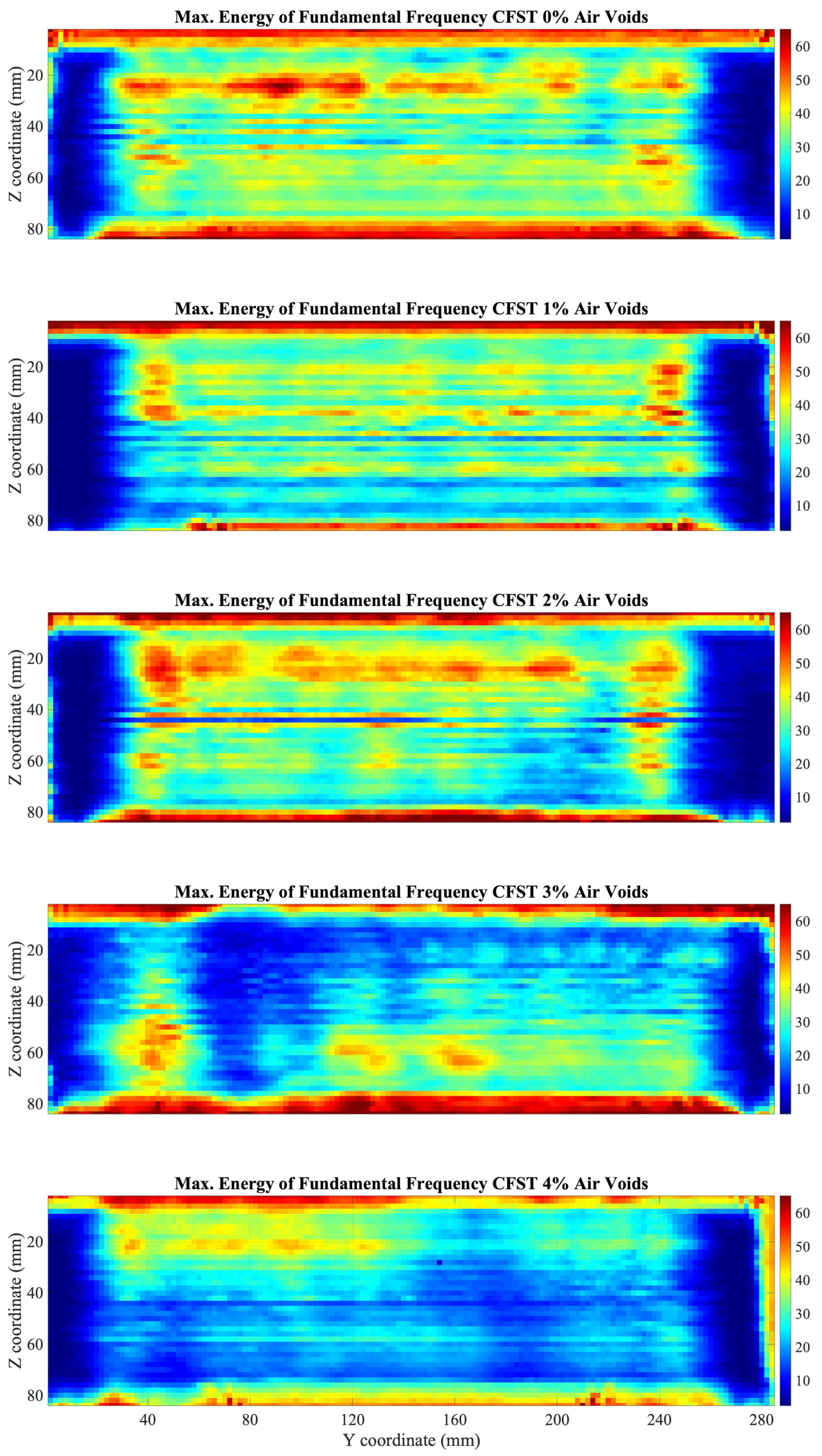

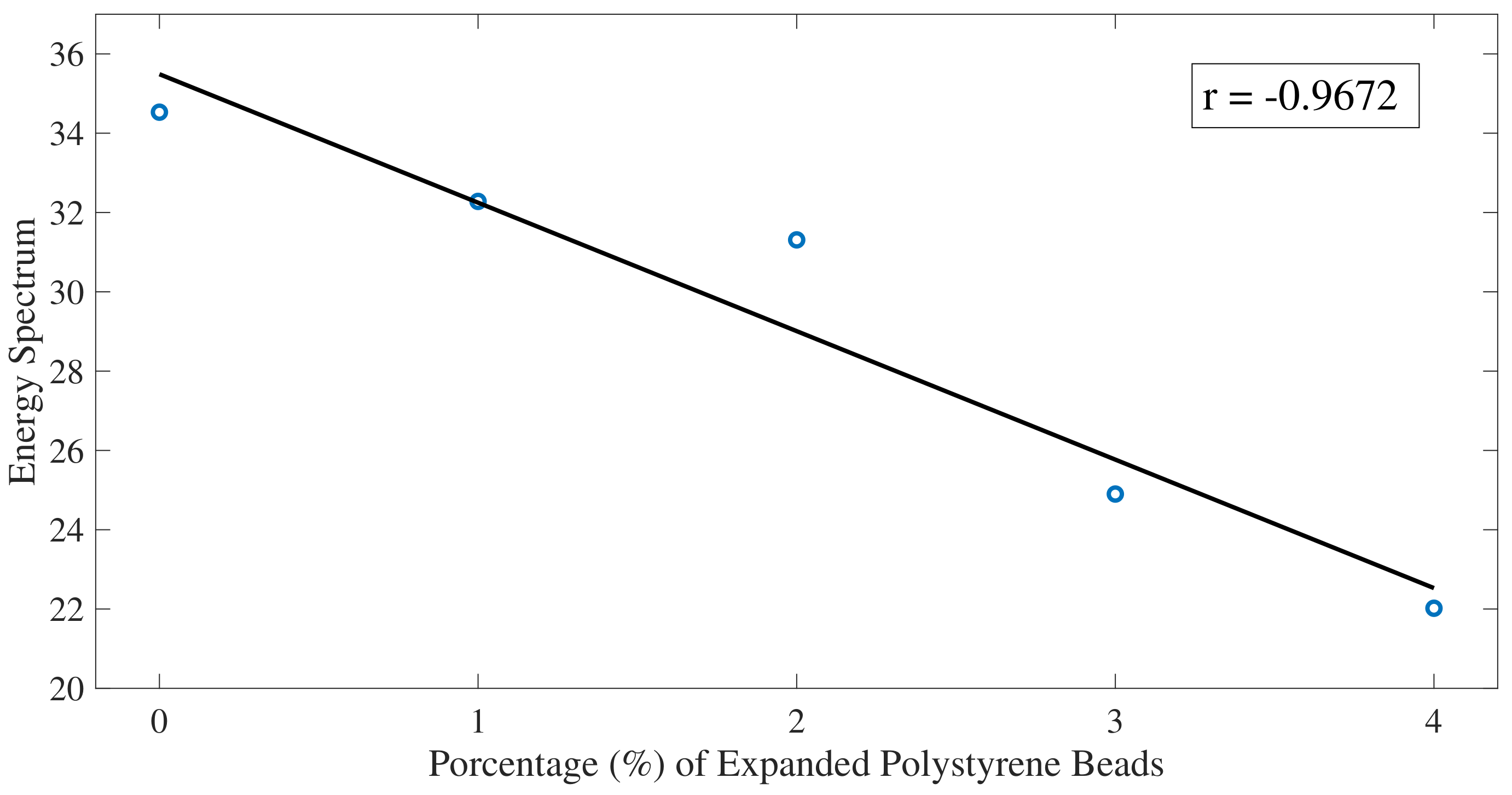

**Figure 9.**Fundamental harmonic amplitude averages over the window of the CFST samples using the STFT algorithm. The solid black line is a linear fit of the data. Pearson correlation coefficient r = −0.9672.

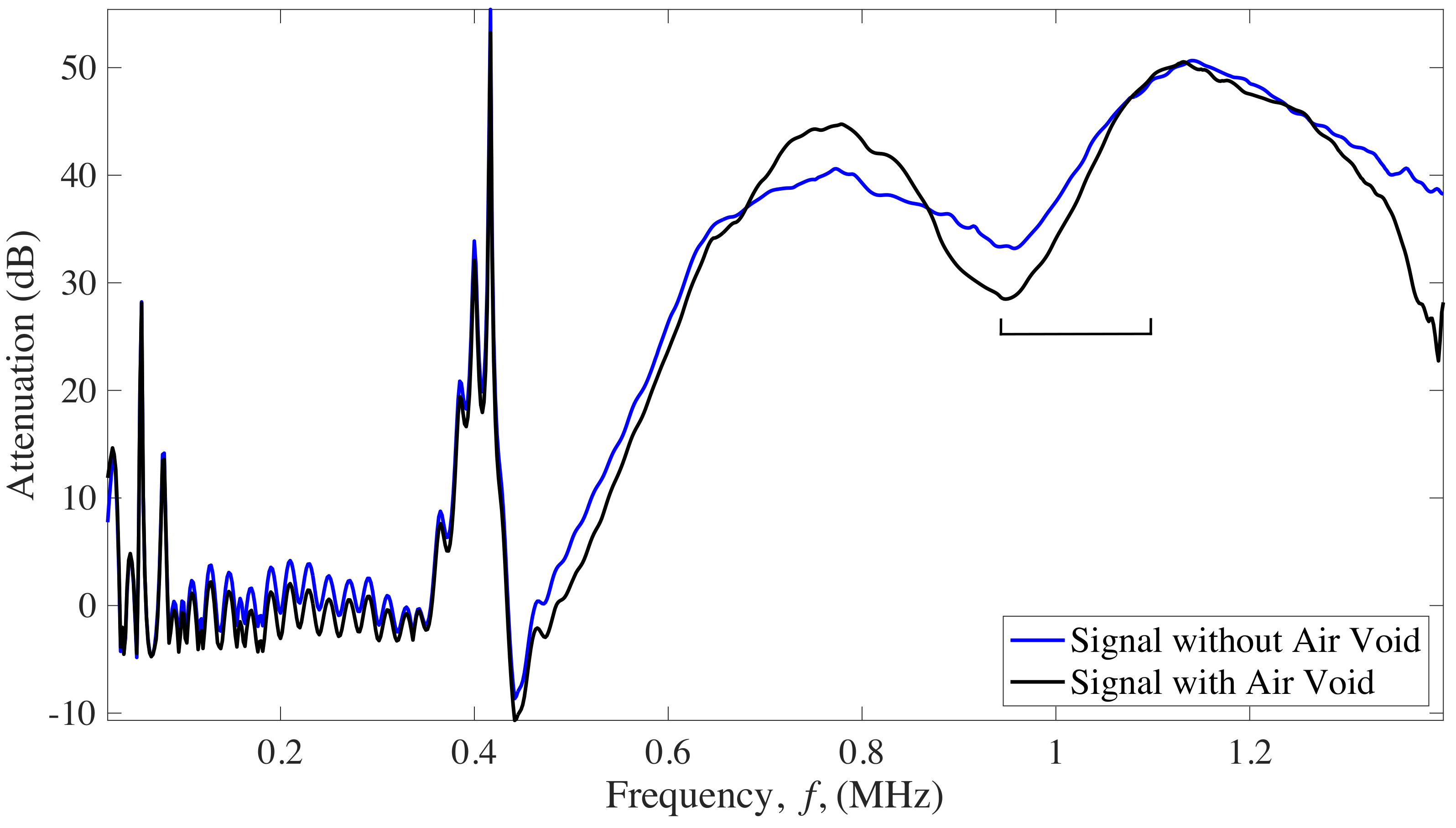

**Figure 10.**Attenuation versus frequency curve from ultrasound signals measured in the 5 CFST samples. The square bracket indicates the frequency range in which the linear regression is performed.

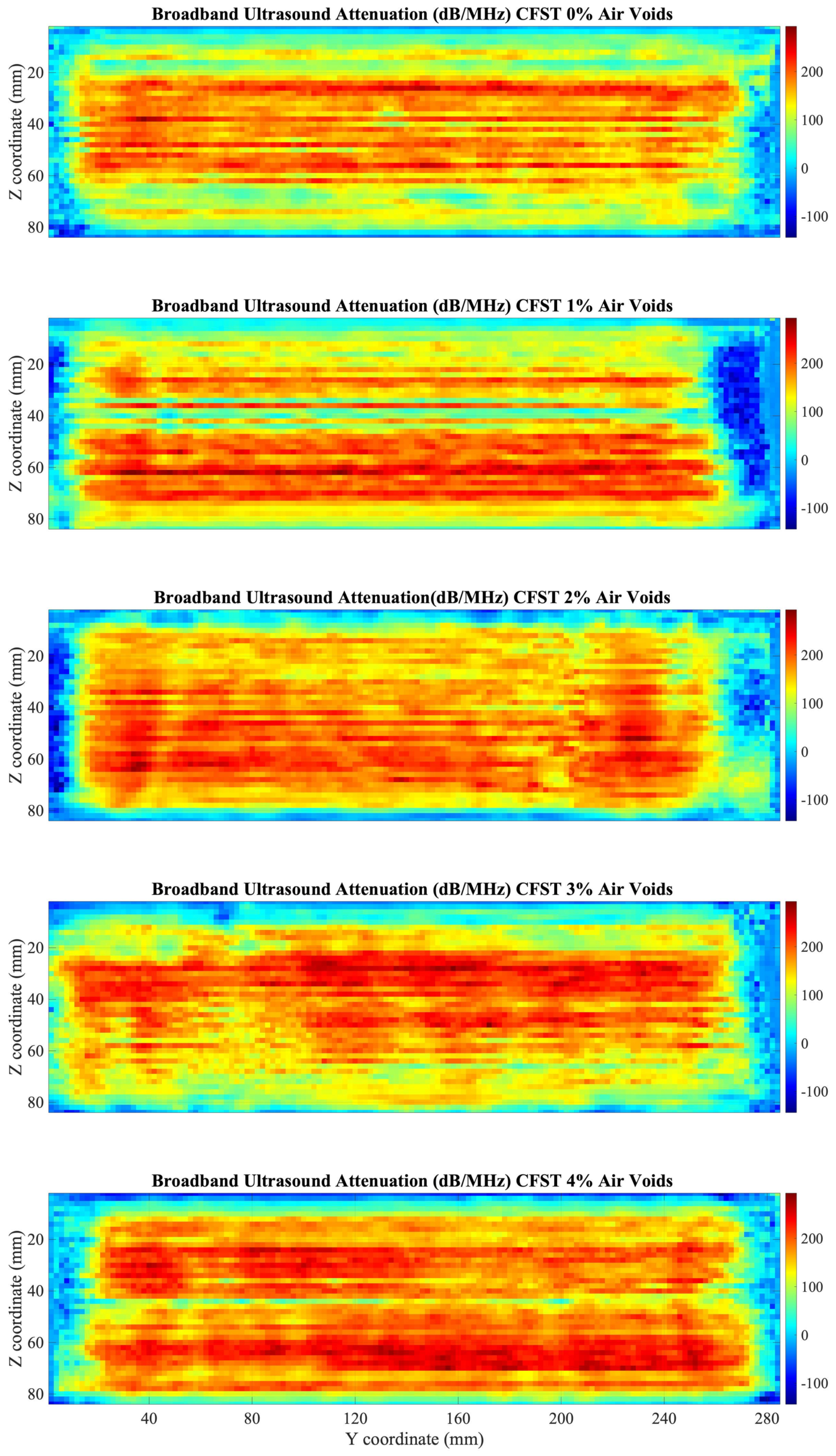

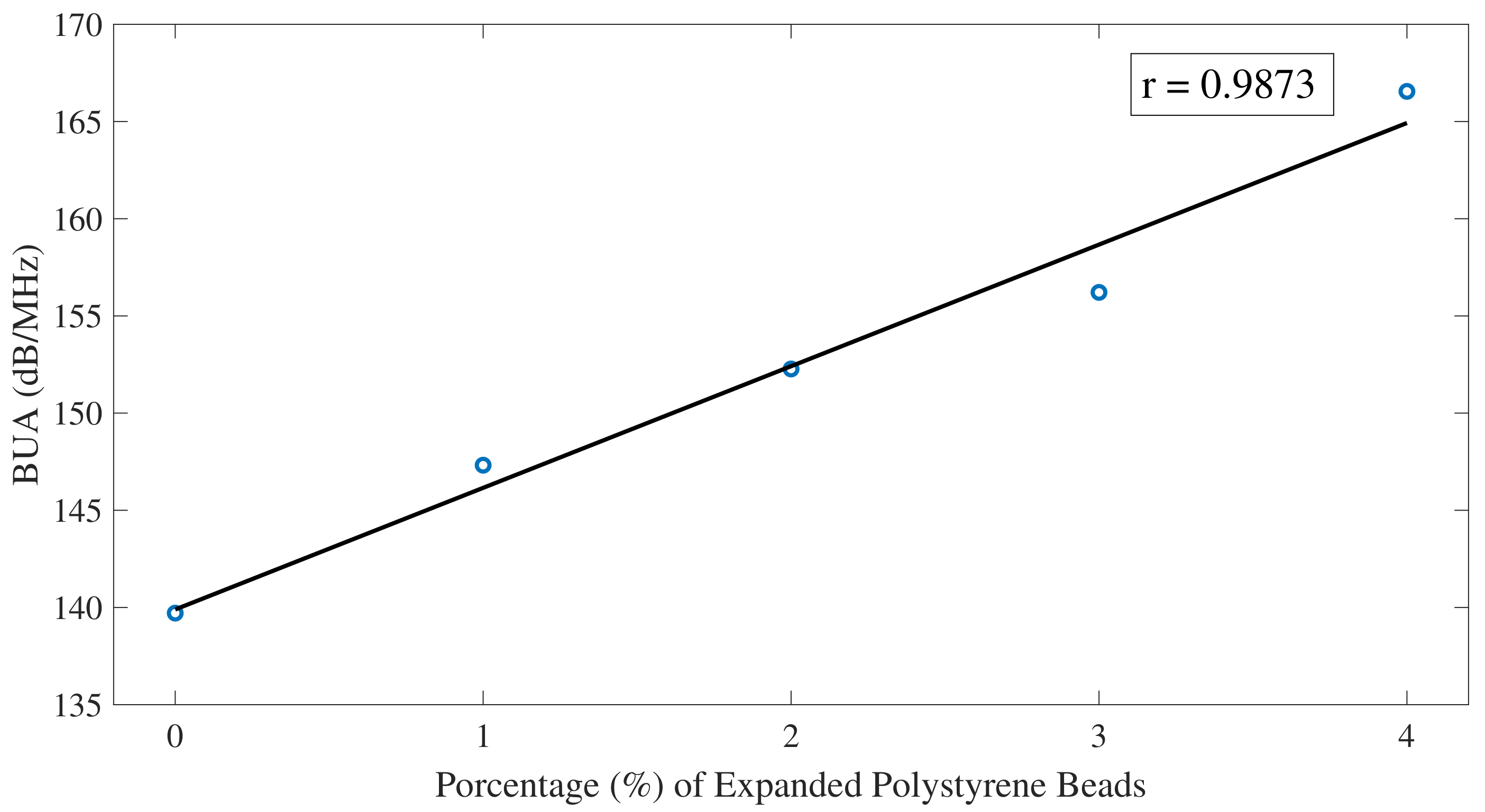

**Figure 12.**BUA averages over the window of the CFST samples. The solid black line is a linear fit of the data. Pearson correlation coefficient r = 0.9873.

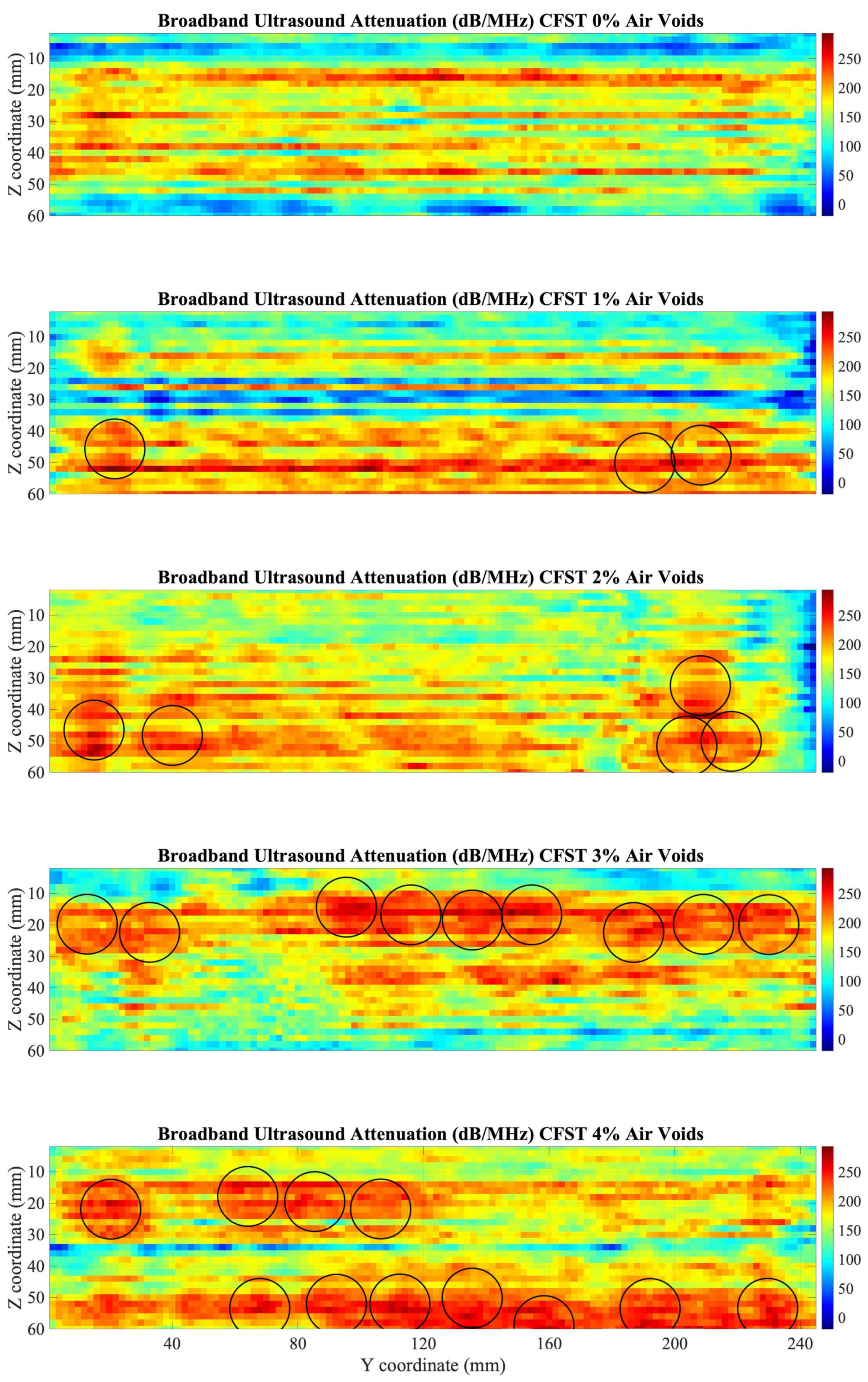

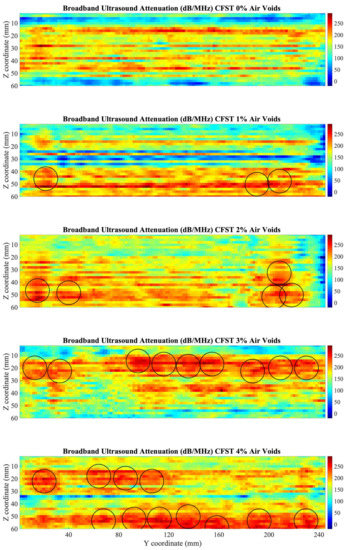

**Figure 13.**C-Scan of BUA values in dB/MHz at the center of the five CFST samples. The circles represent the position of the air voids calculated by the proposed algorithm.

Percentage of Air Voids | Polystyrene Beads |
---|---|

0% | 0 |

1% | 3 |

2% | 6 |

3% | 9 |

4% | 12 |

Infill | Proportions |
---|---|

Cement (kg/m${}^{3}$) | 348 |

Water (l/m${}^{3}$) | 220 |

Sand (kg/m${}^{3}$) | 1065 |

Gravel (kg/m${}^{3}$) | 666 |
