Plasma Generator with Dielectric Rim and FSS Electrode for Enhanced RCS Reduction Effect

,
,
,
,
,
,
,
,
…
1
Department of Electrical and Electronic Engineering, Yonsei University, Seoul 03722, Korea
2
Department of Physics, Chungnam National University, Daejeon 34134, Korea
3
Agency for Defense Development (ADD), Daejeon 34186, Korea
*
Author to whom correspondence should be addressed.
This article belongs to the Section Remote Sensors

Abstract

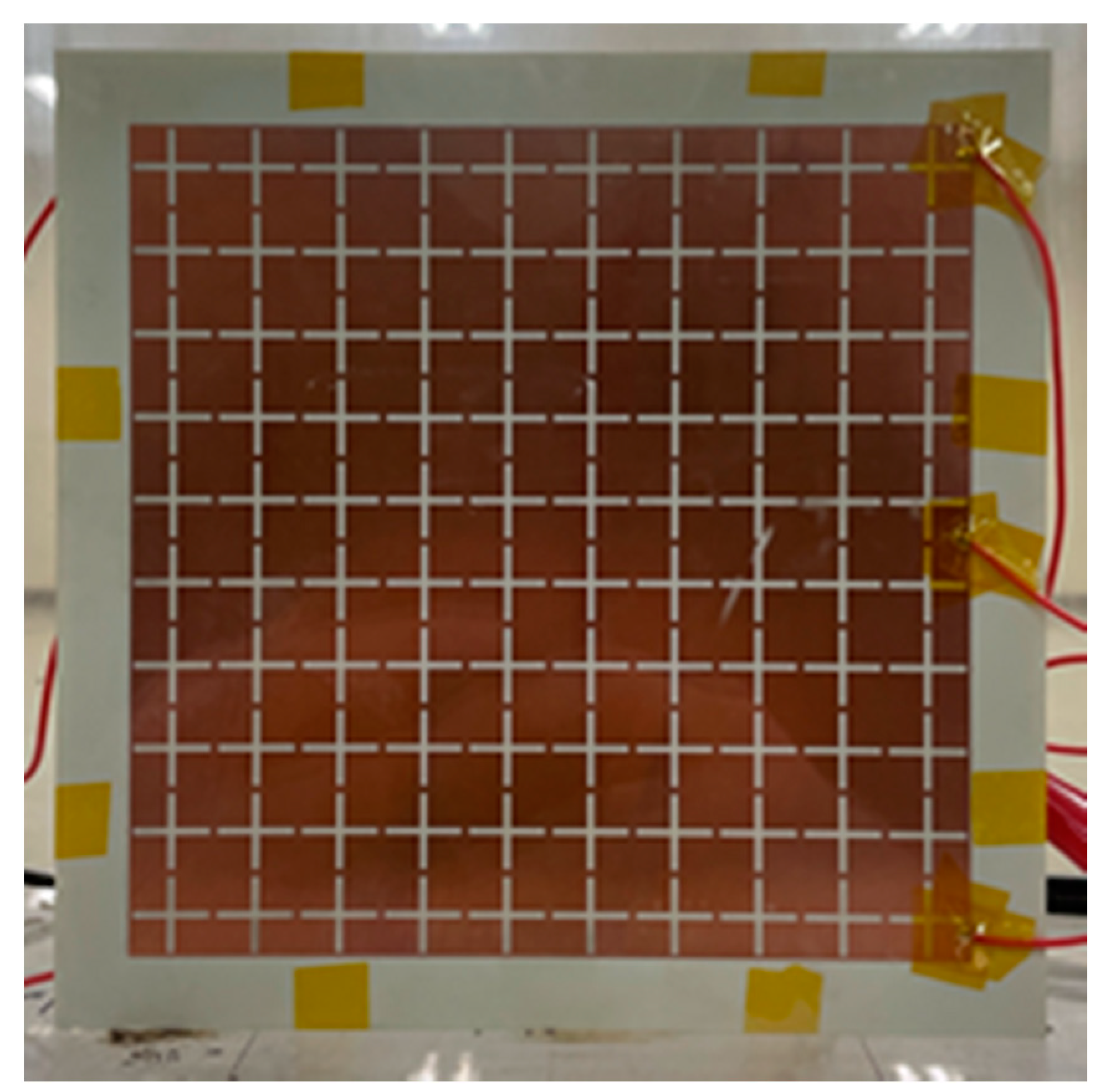

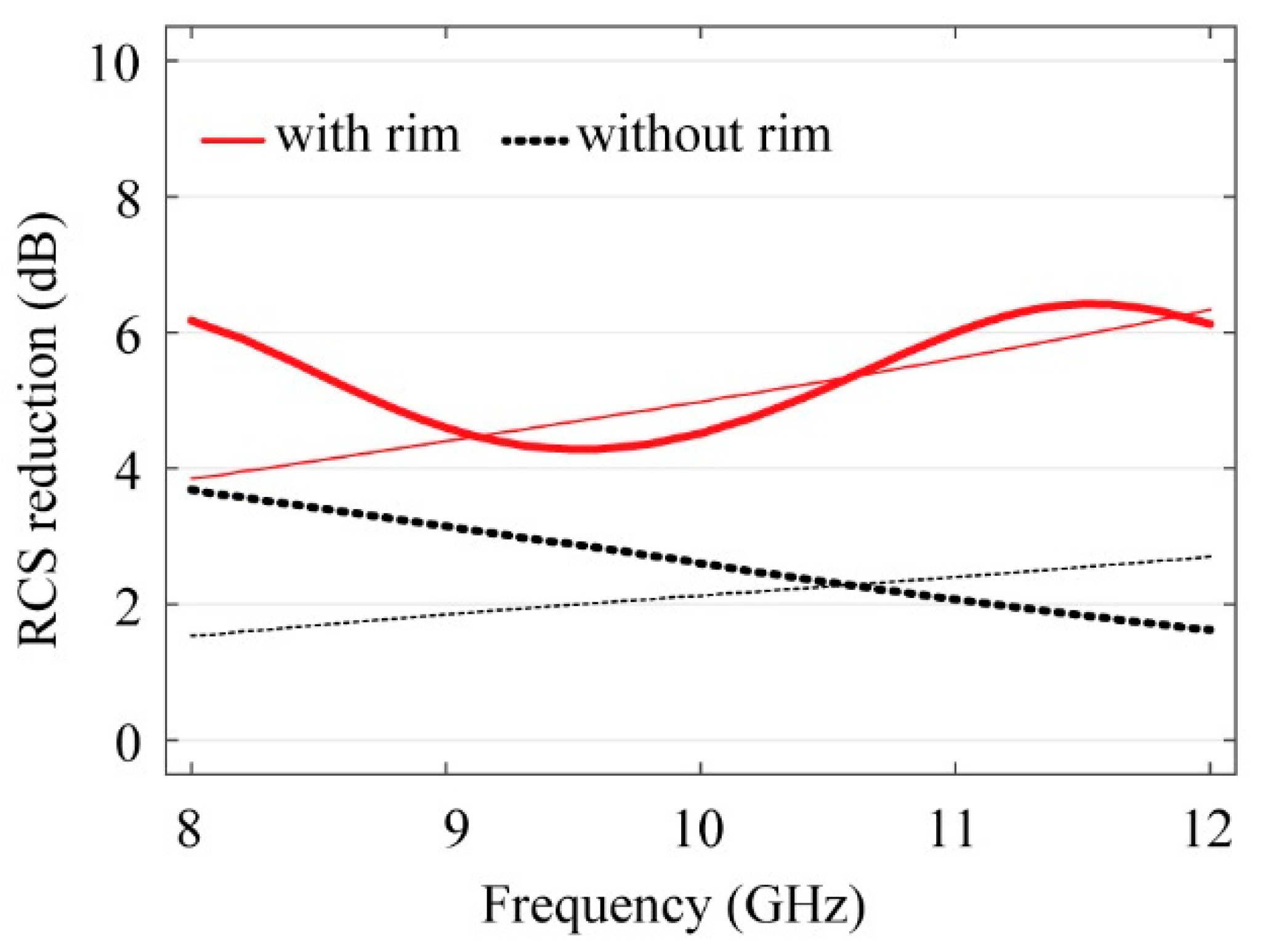

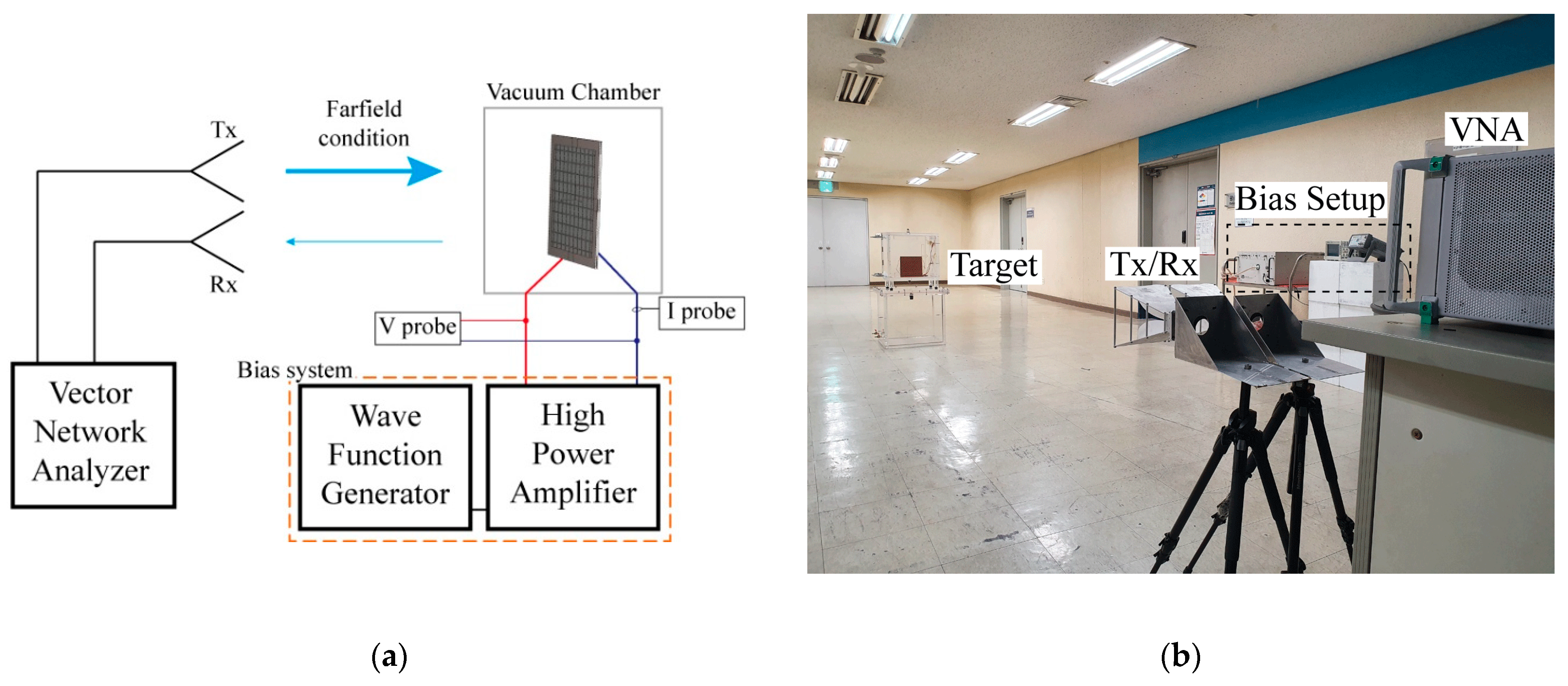

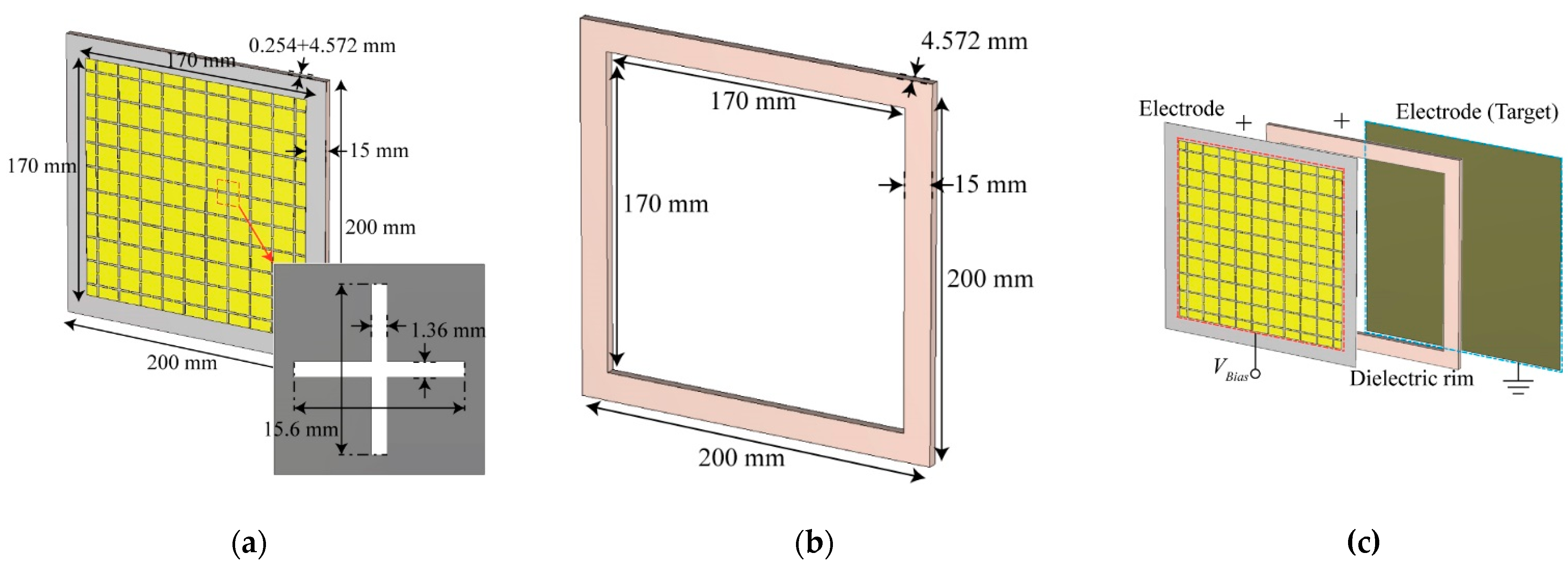

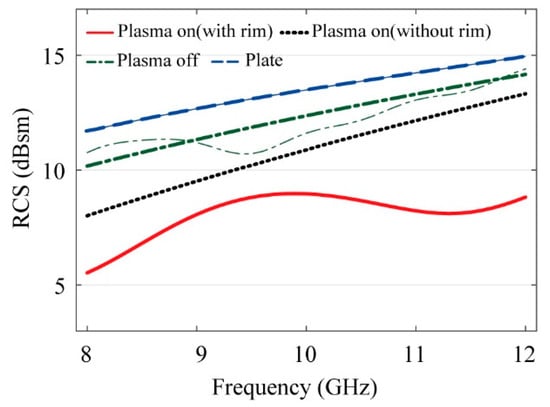

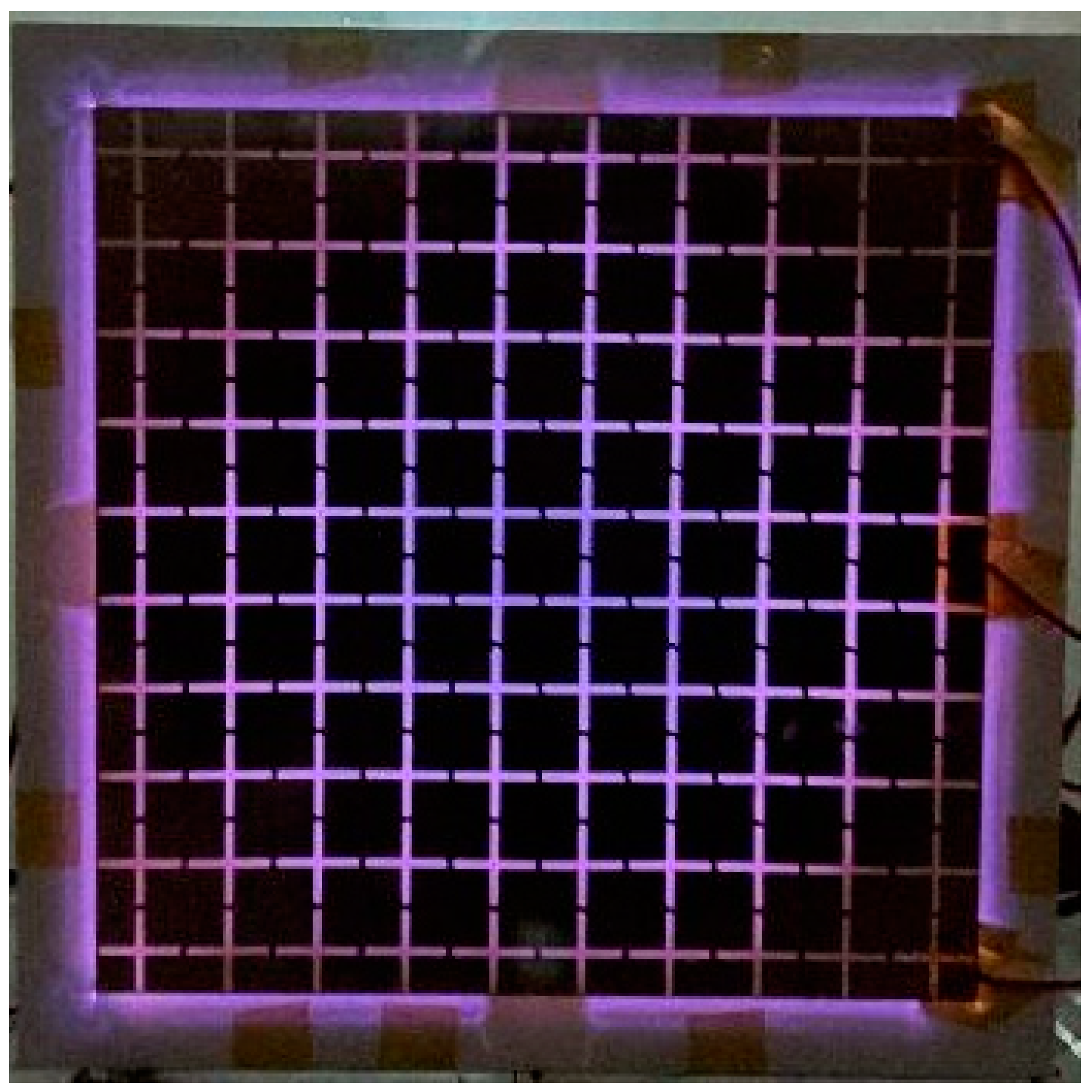

In this study, a method was experimentally verified for further reducing the radar cross-section (RCS) of a two-dimensional planar target by using a dielectric rim in a dielectric barrier discharge (DBD) plasma generator using a frequency selective surface (FSS) as an electrode. By designing the frequency selective surface such that the passbands of the radar signal match, it is possible to minimize the effect of the conductor electrode, in order to maximize the RCS reduction effect due to the plasma. By designing the FSS to be independent of the polarization, the effect of RCS reduction can be insensitive to the polarization of the incoming wave. Furthermore, by introducing a dielectric rim between the FSS electrode and the target, an additional RCS reduction effect is achieved. By fabricating the proposed plasma generator, an RCS reduction effect of up to 6.4 dB in X-band was experimentally verified.
