Carbon/Silicone Nanocomposite-Enabled Soft Pressure Sensors with a Liquid-Filled Cell Structure Design for Low Pressure Measurement

by
Fei Wang
and
Xiaoming Tao
*
Research Institute of Intelligent Wearable Systems, Institute of Textiles and Clothing, The Hong Kong Polytechnic University, Hung Hom, Hong Kong 999077, China
*
Author to whom correspondence should be addressed.
Sensors 2021, 21(14), 4732; https://doi.org/10.3390/s21144732
Submission received: 25 May 2021 / Revised: 23 June 2021 / Accepted: 8 July 2021 / Published: 10 July 2021
(This article belongs to the Special Issue The Nanocomposites-Based Sensors)
Browse Figures
Versions Notes

Abstract

:
In the fields of humanoid robots, soft robotics, and wearable electronics, the development of artificial skins entails pressure sensors that are low in modulus, high in sensitivity, and minimal in hysteresis. However, few sensors in the literature can meet all the three requirements, especially in the low pressure range (<10 kPa). This article presents a design for such pressure sensors. The bioinspired liquid-filled cell-type structural design endows the sensor with appropriate softness (Young’s modulus < 230 kPa) and high sensitivity (highest at 0.7 kPa−1) to compression forces below 0.65 N (6.8 kPa). The low-end detection limit is ~0.0012 N (13 Pa), only triple the mass of a bee. Minimal resistance hysteresis of the pressure sensor is 7.7%. The low hysteresis is attributed to the study on the carbon/silicone nanocomposite, which reveals the effect of heat treatment on its mechanical and electromechanical hysteresis. Pressure measurement range and sensitivity of the sensor can be tuned by changing the structure and strain gauge parameters. This concept of sensor design, when combined with microfluidics technology, is expected to enable soft, stretchable, and highly precise touch-sensitive artificial skins.

1. Introduction

Recent years have seen extensive research in humanoid robots [1], soft robotics [2,3], prosthetic limbs [4], as well as wearable electronics [5]. All these fields are in great need of reliable soft pressure sensors which, when in the form of a sensor matrix or as an artificial skin, may enable many devices with new functionalities. For example, touch-sensitive humanoid robots with improved safety for human–machine interaction [1], soft robotics with real-time feedback of force and position [6], prosthetic limbs with tactile perceptions [4], as well as pressure-sensitive mannequins for garment comfort [7] and compression evaluation [8]. Therefore, a growing body of research has been conducted on soft pressure sensors [9]. The flexible capacitive pressure sensor with micro-structured rubber dielectric layers [10] measured a pressure as low as 3 Pa. The transparent triboelectric and self-powered pressure sensor [11] was sensitive to 0.4 Pa with a low-end detection limit of ~13 mPa. Further, the flexible pressure-sensitive organic thin film transistors [12] exhibited a maximum sensitivity of 8.4 kPa−1 in the low pressure range. On the other hand, soft pressure sensors with superior deformation capabilities have also been developed. A soft pressure sensor using embedded micro-channels and liquid conductors [13] was functional up to strains of ~250%, and pressure sensors with carbon-nanotube-inlaid conductors [14] were functional up to strains of 300%, which are well beyond the 44.6% strain limit of the human skin [15]. These highly stretchable sensors, however, were insufficient in pressure sensitivity. In 2020, the liquid metal conductor-based pressure sensor [16] was made thinner, but its sensitivity was not improved much.
An ideal artificial skin should be not only be touch-sensitive, but also as soft as the human skin, so as to ensure accuracy, safety, and comfort in human–machine interaction. Indeed, to emulate the pressure sensation of a natural skin, large arrays of soft pressure sensors on a flexible and stretchable substrate are required [10]. Therefore, it is vital to include both high sensitivity and low modulus. Unfortunately, few sensors in previous research satisfied both. Most researchers put too much emphasis on high or even ultrahigh sensitivity, despite that excessively high sensitivity can introduce more noise and make calibration difficult, leading to lower measurement accuracy.
Apart from high sensitivity and low modulus, low hysteresis is also crucial for precise pressure measurement. In soft resistive sensors, hysteresis and resistance relaxation are interrelated, both of which arise from the viscoelastic ingredients of materials. In fact, resistance relaxation or resistance viscosity [17] remains one of the greatest challenges that hamper soft resistive sensors from providing accurate measurements [18]. Fan et al. reported liquid-capsule flexible pressure sensors with a hysteresis of 11.5% [19], which, however, are only partly soft. In 2019, Liang et al. further demonstrated an elastomeric pressure sensor using Cr/Au strain elements with negligible hysteresis. Unfortunately, the sensor was made from polymer with a modulus of 2 MPa [6], two orders of magnitude larger than that of the human skin (30–70 kPa) [20]. In 2020 and 2021, wearable capacitive pressure sensors that are flexible [21] or highly elastic [22] both demonstrated a hysteresis virtually close to zero. The key sensing materials were ionic gel/Au-coated pillars and carbon black/elastomer, respectively. However, these capacitive sensors are relatively demanding in electromagnetic shielding and complex in readout circuits.
Therefore, few of the previous sensors are approaching the force receptors of the human skin in terms of both sensitivity and softness. It remains challenging to acquire high sensitivity, softness, and low hysteresis altogether for one pressure sensor, especially in the low pressure range (<10 kPa). This article will try to address this issue by studying a cell-structured soft pressure sensor. A benchmark of our bio-inspired sensor design against typical sensors in the literature is given in Table 1.

2. Concept of Sensor Design

2.1. Design Strategy

One of the effective design strategies for pressure sensors is to convert pressure into strain by using a conversion structure and then measure signals from the strain gauge. The strategy endows the traditional rigid load cells with high accuracy and low cost [28], by virtue of the well-established strain gauge technology. The strategy, combined with fabric strain gauge technology, has also been applied to the design of soft pressure sensors. In 2011, soft pressure sensors with a conversion structure of two tooth-structured silicone layers and a fabric strain gauge in them were demonstrated sensitive to a pressure between 0 and 2 MPa [29]. Furthermore, in 2014, a conversion structure of silicone pillar enabled soft pressure sensors for high-speed impact force monitoring. The sensitivity was 1 MPa−1 for a pressure up to 8 MPa [30]. Unfortunately, it is difficult for the previous conversion structures to convert low pressure below 10 kPa into measurable strain, due to the limitation of material hardness and strain gauge. Therefore, it is necessary to design a new conversion structure.

2.2. Inspiration

The conversion structure of our sensor is inspired by the skin of toads. Although both frogs and toads are amphibians, frogs have thin and smooth skins, whereas the skin of a toad (Figure 1a) is always dry and warty-looking (Figure 1b). Under the warty bumps, there are mucous and granular glands, which are responsible for the production of mucus and toxic secretions, respectively [31]. The mucous glands are smaller and their secretory portion is composed of a cuboidal or columnar epithelium, while the larger granular glands are made up of a gland alveolus formed by a secretory layer covered externally by a myoepithelial layer. Such warty-looking morphology inspired us to explore artificial skin dotted with spherical bumps (warts), which are actually pressure sensors protruding out from the surface. Figure 1c is a schematic drawing of the pressure sensor arrays. There is a resistive strain gauge on each sensor unit. Because the bioinspired design is no longer confined to a flat surface, it shall facilitate small pressure measurement and possibly three-dimensional pressure mapping—challenging tasks for conventional pressure sensors.

2.3. Analysis of Conversion Structure

The spherical bumps, i.e., the conversion structures of the pressure sensor, include at least three types of design: hollow (air-filled), cell (liquid-filled), and solid structures. In this research, a liquid-filled cell structure was chosen because it will endow the pressure sensor with large deformation and high sensitivity. (1) The deformation of the outer surface can be larger than that of hollow structures, because oil is incompressible and air is compressible. (2) It will be much more sensitive to small pressures than a solid structure. Owing to the zero shear modulus of liquid, the nominal elastic modulus of the structure can be much lower, and the structural deformation is primarily membrane tensile deformation rather than compression of a monolithic solid block. (3) According to Pascal’s law, pressure change at any point in a confined fluid at rest is transmitted undiminished to all points in the fluid, which theoretically ensures a uniform latitudinal deformation and an effective transfer function from pressure to strain. (4) When liquid volume exceeds that of a hemisphere, the conversion structure will have an equator which, in theory, possesses a larger latitudinal strain under compression, hence a higher sensitivity.

3. Hysteresis of the Materials for Strain Gauge

Many materials for soft strain gauges have been developed, including Ag nanowire aerogels [32], stick-on hydrogel [33], cellulose nanocrystalline hydrogel [34], carbon black/EcoflexTM (Smooth-On, Inc., Macungie, PA, USA) composite [35], carbon nanotube/styrene-butadiene-styrene [36], as well as carbon black/silicone composite [19]. Herein, a carbon/silicone nanocomposite developed in our previous research [37] will be printed onto the conversion structure as strain gauges, owing to its sufficient sensitivity, good linearity, and excellent repeatability for a strain up to 50%, as well as its low cost and compatibility with silicone. Despite that, while it may increase hysteresis of the pressure sensors, hysteresis of this nanocomposite stain gauge has not been fully understood yet,. Therefore, we first explored the electromechanical hysteresis of the carbon/silicone nanocomposite in a material’s perspective.

3.1. Preparation of Composite Samples

Materials of the nanocomposite include carbon black (CB, Carbon® ECP600JD, Akzo Nobel, Amsterdam, The Netherlands), silicone elastomer (SE, ELASTOSIL® LR6200 A and B, Wacker Chemie AG, Munich, Germany), and silicone oil (SO, nontoxic dimethyl, Che Scientific Co., Kwai Chung, Hong Kong, China).
In total, 25 samples were made from SE, SE/SO, and SE/SO/CB, as listed in Table 2. The control groups of SE and SE/SO were included to help ascertain the origin of hysteresis. Uniform mixtures of each formulation were cast onto a polytetrafluoroethylene (PTFE, Teflon®, Chemours, Wilmington, DE, USA) mold, flattened with a draw knife, and vulcanized in a convection oven at 100 °C for 25 min (SE) or 15 min (the other formulations). Samples #11–#15 and #21–#25 were further heated at 100 °C for 34 h to ensure thorough evaporation of SO, as, after 34 h, the mass remained unchanged. Because all the samples were made using identical molds, they were of the same initial dimension, 0.5 mm × 50 mm × 20 mm. When SO evaporated, the composite shrank in dimension and decreased in weight accordingly. The shrinkage of samples #11–#15 was slightly higher than that of samples #21–#25, due to the existence of porous CB nanoparticles that hold the SO in the latter group.
After mold release, the samples were fixed between two cardboards with 30 mm × 25 mm hollow areas. For each conductive sample, two silver plated nylon yarns (70D × 2) were parallel glued in advance on one cardboard at a distance of 36 mm. Figure 2a,b shows all the 25 samples held in cardboards.

3.2. Testing Method

The samples were tested using a coupled electromechanical setup, including an Instron 5944 (Instron Corp., Binghamton, NY, USA), an integrated versa channel, a voltage divider (excitation voltage was 10 V), and a computer for data acquisition, display, and storage. The tensile deformation and force, and the output voltage of the samples, were measured by Instron and the versa channel, respectively, in a synchronized manner. Electrical resistance of the sensor can be derived according to formula Rsen = Rref × V/(10 − V), where V is the output voltage of the sensor. The reference resistor was 1 MΩ.
The samples were mounted between two clamping heads on Instron 5944. Once on Instron, the two arms of cardboards were cut off. The sample gauge length was 30 mm. All the samples were given 3 mm (10% strain), 6 mm (20% strain), and 9 mm (30% strain) extensions for 10 cycles, respectively. The extension speed was 60 mm/min and there was an interval of 6 s when the maximum extension distance changed. Extension-load and extension-resistance curves for the 25 samples were plotted. Typical curves are displayed in Figure 2c,d. Hysteresis will be calculated according to the 2nd cycle at each tensile strain because, from the 2nd cycle on, the hysteresis became stable.

3.3. Mechanical Hysteresis

Figure 2e depicts the mechanical hysteresis of all the samples. Hysteresis of pure SE was 1.74% due to its weak plasticity. When SO was added, it dropped to 0.57% because the smaller SO molecules saturated in the cross-linked PDMS network serve as a lubricant, weakening the internal friction. After heat treatment, hysteresis rebounded to 1.85% due to the volatilization of SO and increased porosity of the nanocomposite.
In comparison, hysteresis of CB/SE/SO was large at 6.38%, indicating the complex mechanical interactions between PDMS network and CB aggregates with fractal structures. The SO inside CB/SE/SO may have alleviated this friction or interaction. After further heat treatment, a lot of the SO volatilized. Consequently, the hysteresis of CB/SE/SO surged to 13.4%, which implies higher energy dissipation. For the CB/SE/SO samples, this dissipation was believed to be related with the slippage of entanglements in the transition layer between the CB-bounded SE layer and the mobile SE layer phase [38], and partially the release of elastically immobilized SE trapped within the CB filler network or agglomerates [39].

3.4. Electromechanical Hysteresis

Figure 2f compares the mechanical and electromechanical hysteresis of CB/SE/SO samples with and without a thorough heat treatment. Before analyzing the results, we need to consider the conduction mechanism and the morphology of the CB/SE/SO nanocomposite. (1) The conductive fillers, i.e., the carbon blacks, formed an electrically conductive network according to the percolation theory [40]. The resistance was determined by the shortest effective conductive path. There was destruction and formation of the paths (breakdown and re-agglomeration of filler–filler bonds) at every moment during the cyclic tensile tests, which made the conductive paths random and complex. The ever-changing conductive paths were directly related to real-time strains. (2) The electrical conduction between adjacent CB aggregates or agglomerates was dominated by the electron tunneling effect [41] as electrons could go through a potential barrier in a thin insulating film [42]. In tunneling resistance, the neighboring conductive particles needed to be close enough; its cut-off distance was called electron-tunneling distance [43]. The distance was generally below 10.0 Å [43,44]. (3) The SO molecule used here had a volume of 225.64 Å3, while the CB particle was approximately 30 nm in diameter (1.1 × 108 Å3 in volume) with a void volume over 80%. Therefore, it was easy for the SO or part of the SE molecules to penetrate into the CB particles before vulcanization, forming a stable interface between the CB and the matrix after vulcanization. The penetration of SO and SE into CB was proven through scanning electron microscope in our previous study [37].
The SO molecules were small enough to fit both inside and between CB aggregates, but the nanocomposites could remain conductive since the dimension of the SO molecule is below the cut-off distance of 10.0 Å. The SO molecules between CB helped to reduce the friction. So, the mechanical hysteresis increased from 6.38% to 13.4% after baking. The 38.5% hysteresis in resistance was sixfold that of the mechanical hysteresis, which should be a result of the flow of SO. The SO molecules between neighboring CB particles or aggregates may provide electron tunneling resistance at 0% strain. However, after a tensile cycle, the SO inside the CB or from elsewhere may come into the interface, disabling the tunneling. Alternatively, the shape and structure of CB aggregates changed due to flow of SO. Thus, there was destruction and formation of the paths in a complicated manner. Interestingly, hysteresis dropped significantly to only 8.08% after heat treatment, which was even smaller than the 13.4% mechanical hysteresis of the same material. The reason could be that, after volatilization of the SO, CB particles and aggregates were easy to come into direct contact with each other during tensile tests, making the reformation of conductive paths quicker, hence ensuring less viscosity in resistance.
Therefore, heat treatment helped to decrease the electromechanical hysteresis by removing excess SO. The lowest hysteresis was 8.08%. As a consequence, the hysteresis limit of the cell-structured pressure sensors should be around 8.08%.

4. Materials and Fabrication of Pressure Sensors

4.1. Materials

Polydimethylsiloxane (PDMS, SILASTIC® 3483 Mold Making Rubber, Dow Corning, Midland, MI, USA), was used to construct the conversion structure. This PDMS has an elongation at break as high as 600% and its Young’s modulus was 230 kPa, approaching that of the human skin. The CB/SE/SO nanocomposite was used as strain gauges, owing to its advantages as explained in Section 3. Silver-coated nylon yarns (SCNY) (70D × 2/24F/2, Xiamen Unibest Import and Export Co., Ltd. China) were used as conductive wires. Finally, edible corn oil (Lion & Globe Corn Oil, Hop Hing Oils & Fats Company, Yuen Long, Hong Kong, China.) was used as liquid in the cell. It was observed that the filling liquid should not diffuse through the cell wall nor should it cause swelling of the PDMS. Corn (maize) oil was successfully used as a filling material within silicone elastomers [45,46], since the chemical component of corn oil makes it less affined to the silicone matrix. This small affinity or low solubility resulted from a major discrepancy in the cohesive energy density of the two materials [47]. Besides corn oil, silicone grease was also suggested for superior stability with SE [46]. However, it was predicted that the viscosity of silicone grease would cause much internal friction and energy dissipation, leading to significant mechanical hysteresis of the pressure sensor. In comparison, the shear modulus of liquid was zero, which implies least mechanical hysteresis.
A schematic diagram of the cell-type pressure sensor is shown in Figure 3a. The cell made from PDMS was filled with corn oil. The cell size can be adjusted by the volume of oil. On the cell wall, a carbon/silicone strain gauge was printed along the equator. Owing to the incompressibility of oil, when the cell was under compression, its equator was expected to expand greatly, leading to a stretch on the strain gauge. There were SCNYs connecting the strain gauge to external devices for resistance recording.

4.2. Fabrication

The carbon/silicone nanocomposite was prepared using a three-roll mill (PTR 65, Puhler, Köln, Germany) [37]. Then, a pair of PDMS layers was fabricated, as shown in Figure 3b. A sealing ring was deployed to ensure sealing of the conversion structure. The next step was to weigh 100 parts of SILASTIC® 3483 Base and 7.5 parts of SILASTIC® 83 Curing Agent in a clean container. After 2 min of intense mechanical mixing, the uniform mixture was cast onto two sets of PTFE molds and degassed in a vacuum chamber for 10 min in a 30 inHg vacuum. The material cured into two thick rubber layers within 24 h under ambient conditions. It may take another 6 days to reach final mechanical properties, during which the PDMS hardens. The final Young’s modulus was 230 kPa. The two layers excluding the sealing rings were 1 mm and 2 mm in thickness, respectively.
Next was the oil injection (Figure 3(b2)) and the sealing processes (Figure 3(b3)). After mold release, the bottom layer was pasted onto a clean glass slide using SE. By injecting corn oil between the two PDMS layers clamped together by splints with round perforations, a spherical cell was produced, that is, the conversion structure. Then, the whole structure was heated at 100 °C for 1 h to cure the SE (before injection, a small amount of SE was applied uniformly between the layers except the cell region), and glue the two layers together.
Finally, the conductive nanocomposite was printed onto the cell wall, and connected with wires (Figure 3(b4)). It is difficult to apply patterning technologies including ink-jet printing [48], screen printing [49], 3D printing [50], and photolithography (stencil printing) [51] here. Due to the high viscosity and poor fluidity of the nanocomposite, it is not viable for ink-jet printing and 3D printing. Neither stencil nor screen printing was applicable, because the conversion structure was spherical. Therefore, a method similar to offset printing was adopted. The next stage was to dip a SCNY into the composite, take the yarn out and keep it under a fixed tension, flip the yarn twice to remove excess mixture, and slowly move the strained yarn towards the spherical cell. When the yarn approached the cell, the paste was printed into a line on the equator. SCNYs were then embedded at two ends of the strain gauge and the composite was vulcanized at 100 °C for 5 min. An as-made soft pressure sensor on a glass slide is shown in Figure 3c.
The off-set printing determines the shape and size of the strain gauge, hence the sensing performance of the pressure sensor. To investigate the effect of printing, two types of SCNYs, 70D × 2 and 70D, were adopted. Among the samples made, we selected three representative ones, labelled samples A, B and C. Sample A was printed using 70D × 2 yarns, while B and C used 70D yarns.

5. Evaluation of Pressure Sensors

The three sensor samples were evaluated using the same coupled electromechanical setup as in Section 3. A load was applied where the specimen was compressed by 0.5–2.0 mm and released for five cycles. There were one-minute or ten-second intervals between the compression groups. A loading and unloading speed of 60 mm/min was used for all the cycles.

5.1. Sensitivity

Figure 4a shows typical force-resistance curves of soft pressure sensor, sample A. The PDMS layers were not fully hardened when being injected. The sample was highly sensitive to compression forces from 0 to 0.15 N (1.6 kPa) with the resistance doubled. The sensitivity was 0.7 kPa−1, higher than 0.55 kPa−1 of flexible pressure sensors with micro-structured rubber dielectric layers [10]. The lowest detectable force was 0.0012 N (13 Pa, see inset), which is triple the mass of a bee of 40 mg [52] and six times the mass of a bluebottle fly [10] or a feather of 20 mg [11]. The peak force in the first five compressive cycles was 0.018 N, corresponding to a pressure of 0.19 kPa (diameter of the cell structure was ~11 mm). Therefore, in terms of small force measurement, this type of sensor is approaching previously reported highly sensitive pressure sensors [10,11,52]. Most importantly, the sensors for benchmark are only flexible, neither soft nor stretchable; whereas our sensor is both soft and highly sensitive.

5.2. Pressure Measurement Range

The performance of a representative sensor printed using a 70D yarn is depicted in Figure 4b, where inset is a picture of sample B. The PDMS layers fully hardened when they were injected. Similar to sample A, this sensor was highly sensitive to forces from 0 to 0.65 N with the resistance doubled. The interval between compressive groups was set at 10 s so that the curves within each group can be shown more clearly in the panorama. It should be noted that the larger force measuring range of 0.65 N than that of sample A was not a result of the off-set printing process, but due to different rigidities of the cell structures. In the molding process, the mixture cured within 24 h. However, it takes another 6 days to reach final mechanical properties (according to product information from Dow Corning). The injection for sample A was carried out within 2 days of molding while sample B was 7 days after molding. Therefore, sample A had a lower rigidity. In this regard, the timing of injection can be adopted as a method to tune the pressure measuring range of the sensor, which may at least range between 0.15 N and 0.65 N (1.6–6.8 kPa). Besides, the measurement range can also be adjusted by changing the thickness of the upper layer and the volume of corn oil injected. An increase in either of the two parameters will lead to a larger rigidity of cell structure, hence a larger pressure range. For example, when only the former parameter is changed, a thicker upper layer will produce a thicker cell wall, and the overall hardness of the structure will increase, so as to withstand a larger normal pressure. Likewise, when more corn oil is injected, the cell will expand, stiffening the PDMS layer.

5.3. Mechanical Hysteresis

Although both samples, A and B, were highly sensitive to a low pressure, their time-dependent viscoelasticity incurred two adverse effects in electric output signals: relaxation behavior between compression cycles, and hysteresis behavior within compression cycles. As shown in Figure 4b, when the compressive load returned to zero at each cycle, the electrical resistance took a longer time to recover. In other words, the sensor had a noticeable electrical relaxation but a very small mechanical relaxation. Therefore, the electrical relaxation should come from the carbon/silicone strain gauge itself rather than from the oil-filled cell structure. Similarly, the electrical hysteresis values for the two samples were 16.5% and 18.6%, respectively, whereas mechanical hysteresis was too small to be neglected. Therefore, it was again confirmed that the electrical hysteresis arises from the carbon/silicone strain gauge rather than from the irreversible mechanical energy dissipation of the cell-type conversion structure.

5.4. Electromechanical Hysteresis

The resistive hysteresis of sample A was the lowest among those printed by 70D × 2 yarns, being around 30%. When scrutinizing the sample, we found that, different from the uniform printings of the others, there were variations of the width and thickness on the printed track. These variations were probably caused by excessive contact force during the printing process and the twist structure of the 70D × 2 yarns. In comparison, most sensors printed using 70D yarns showed a hysteresis between 15% and 20%, and the conductive printings were generally uniform in appearance. Based on the above results, it was hypothesized that a dimension effect may come into play: narrower and thinner printed tracks lead to a smaller hysteresis.
The hypothesis of dimension effect was tested and confirmed by sample C, the performance of which is summarized in Figure 4d. The sensor demonstrated a hysteresis as low as 7.7% in 0.5 mm and 1.0 mm cyclic compressions (see the two small insets). Almost all the resistance values came back along the same path, which was strikingly different from the pressure-resistance curves of the previous samples. According to the hypothesis, the strain gauge on this sensor should be sufficiently thin and narrow. As given in inset picture, there was a noticeable defect, an extremely thin and narrow part (~50 μm), on the right side of the strain gauge (printed using a 70D yarn). This major defect further verified the hypothesis of the dimension effect. It is also because of this defect that the initial resistance of sample C was around 1 MΩ, 1.67 times that of sample A and B, despite that the length of printing on C was only ~1/7 times those of the other two.
It is worth noting that the 7.7% hysteresis of sample C was very close to the resistance hysteresis of 8.08% for the carbon/silicone nanocomposite in Section 4, which suggests that this design of pressure sensor makes full advantage of this strain gauge. This low hysteresis of 7.7% has not only double confirmed the hypothesis of the dimension effect, but also validated the results in Section 4. In other words, the dimension effect is closely related with the amount of residual SO. Thinner printings lead to less residual SO, hence a low hysteresis.

5.5. Sample Consistency

Sample consistency is the uniformity among different sensor samples. In order to realize a pressure sensor array, as depicted in Figure 1c, it is important to ensure a high sample consistency. The sample consistency is a prerequisite to process signals from sensor arrays with normalized transfer functions. Unfortunately, in this study, the sensor samples showed a poor consistency in sensitivity. In this case, when sensors are used as a sensor array, each sensing element needs to be calibrated individually and a unique transfer function will be used for each element.
The low consistency mainly comes from the manual transfer printing process. The strain gauges printed in this method were inconsistent in length, width, thickness, and morphology, as demonstrated in Figure 4. Therefore, it is recommended to improve the uniformity of printing by exploring other printing techniques, such as stencil printing before cell formation and ink-jet printing after cell formation in future research.

6. Conclusions

In summary, we have designed, fabricated, and evaluated soft pressure sensors with a bioinspired conversion structure. The sensors with liquid-filled cells were highly sensitive to compression forces below 0.65 N (6.8 kPa). The lowest detectable force was ~0.0012 N (13 Pa), three times the mass of a bee [52] and six times the mass of a bluebottle fly [10] or a feather [11]. Sensitivity of the sensor can be as high as 0.7 kPa−1, even higher than 0.55 kPa−1 of flexible pressure sensors with micro-structured rubber dielectric layers [10]. Most importantly, the sensor was soft (elastic modulus below 230 kPa) rather than being only flexible. Pressure measurement range and sensitivity of the sensor can be easily tuned by changing the thickness of the cell wall, the volume of oil injected, and strain gauge parameters. Hysteresis of the sensors can be as low as 7.7% (or ±3.85%), owing to a very thin strain gauge, which also suggests the necessity of miniaturization towards micrometer scale. Besides, experiments in materials revealed that the electromechanical hysteresis of SE/SO/CB declined significantly from 38.5% to 8.08% after heat treatment, which agrees well with the lowest hysteresis of 7.7% for the pressure sensors.
Future work may include the application of microfluidic technology to manufacture smaller cell units and may focus on how to arrange strain-sensing elements on cells in a consistent and repeatable manner, as well as the packaging technology. Fully elastic connectors need to be developed to replace the silver plated yarns, so that the whole device can be both soft and stretchable as real skin.

Author Contributions

Conceptualization, X.T.; Methodology, F.W.; Fabrication and Evaluation, F.W.; Writing, review and editing, F.W. and X.T. All authors have read and agreed to the published version of the manuscript.

Funding

The work was partially supported by The Hong Kong Polytechnic University under Endowed Professorship Scheme. F.W. acknowledges a postgraduate scholarship received from the same university.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Connolly, C. Touch-sensitive skins for Japanese health care robots. Sensor Rev. 2009, 29, 104–106. [Google Scholar] [CrossRef]
  2. Tolley, M.T.; Shepherd, R.; Mosadegh, B.; Galloway, K.C.; Wehner, M.; Karpelson, M.; Wood, R.J.; Whitesides, G.M. A Resilient, Untethered Soft Robot. Soft Robot. 2014, 1, 213–223. [Google Scholar] [CrossRef]
  3. Rus, D.; Tolley, M.T. Design, fabrication and control of soft robots. Nature 2015, 521, 467–475. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Marasco, P.D.; Kim, K.; Colgate, J.E.; Peshkin, M.A.; Kuiken, T.A. Robotic touch shifts perception of embodiment to a prosthesis in targeted reinnervation amputees. Brain 2011, 134, 747–758. [Google Scholar] [CrossRef] [Green Version]
  5. Zeng, W.; Shu, L.; Li, Q.; Chen, S.; Wang, F.; Tao, X.-M. Fiber-Based Wearable Electronics: A Review of Materials, Fabrication, Devices, and Applications. Adv. Mater. 2014, 26, 5310–5336. [Google Scholar] [CrossRef]
  6. Liang, Z.; Cheng, J.; Zhao, Q.; Zhao, X.; Han, Z.; Chen, Y.; Ma, Y.; Feng, X. High-Performance Flexible Tactile Sensor Enabling Intelligent Haptic Perception for a Soft Prosthetic Hand. Adv. Mater. Technol. 2019, 4, 1900317. [Google Scholar] [CrossRef]
  7. Mengna, G.; Kuzmichev, V.E. Pressure and Comfort Perception in the System “Female Body-Dress”. Autex Res. J. 2013, 13, 71–78. [Google Scholar] [CrossRef] [Green Version]
  8. Yang, B.; Wang, X.; Xiong, Y.; Liu, S.; Liu, S.-R.; Guo, X.; Tao, X.-M. Smart bionic morphing leg mannequin for pressure assessment of compression garment. Smart Mater. Struct. 2020, 29, 055041. [Google Scholar] [CrossRef]
  9. Yang, T.; Xie, D.; Li, Z.; Zhu, H. Recent advances in wearable tactile sensors: Materials, sensing mechanisms, and device performance. Mater. Sci. Eng. R Rep. 2017, 115, 1–37. [Google Scholar] [CrossRef]
  10. Mannsfeld, S.C.B.; Tee, B.C.K.; Stoltenberg, R.M.; Chen, C.V.H.H.; Barman, S.; Muir, B.V.O.; Sokolov, A.N.; Reese, C.; Bao, Z.N. Highly sensitive flexible pressure sensors with microstructured rubber dielectric layers. Nat. Mater. 2010, 9, 859–864. [Google Scholar] [CrossRef] [PubMed]
  11. Fan, F.R.; Lin, L.; Zhu, G.; Wu, W.Z.; Zhang, R.; Wang, Z.L. Transparent Triboelectric Nanogenerators and Self-Powered Pressure Sensors Based on Micropatterned Plastic Films. Nano. Lett. 2012, 12, 3109–3114. [Google Scholar] [CrossRef] [Green Version]
  12. Schwartz, G.; Tee, B.C.K.; Mei, J.G.; Appleton, A.L.; Kim, D.H.; Wang, H.L.; Bao, Z.N. Flexible polymer transistors with high pressure sensitivity for application in electronic skin and health monitoring. Nat. Commun. 2013, 4, 1859. [Google Scholar] [CrossRef]
  13. Park, Y.L.; Chen, B.R.; Wood, R.J. Design and Fabrication of Soft Artificial Skin Using Embedded Microchannels and Liquid Conductors. IEEE Sens. J. 2012, 12, 2711–2718. [Google Scholar] [CrossRef]
  14. Wang, X.L.; Li, T.J.; Adam, J.; Yang, J. Transparent, stretchable, carbon-nanotube-inlaid conductors enabled by standard replication technology for capacitive pressure, strain and touch sensors. J. Mater. Chem. A 2013, 1, 3580–3586. [Google Scholar] [CrossRef]
  15. Wessendorf, A.M.; Newman, D.J. Dynamic Understanding of Human-Skin Movement and Strain-Field Analysis. IEEE Trans. Bio. Med. Eng. 2012, 59, 3432–3438. [Google Scholar] [CrossRef] [PubMed]
  16. Wu, H.; Zhang, L.; Jiang, S.; Zhang, Y.; Zhang, Y.; Xin, C.; Ji, S.; Zhu, W.; Li, J.; Hu, Y.; et al. Ultrathin and High-Stress-Resolution Liquid-Metal-Based Pressure Sensors with Simple Device Structures. ACS Appl. Mater. Interfaces 2020, 12, 55390–55398. [Google Scholar] [CrossRef]
  17. Fuss, F.K.; Tan, A.M.; Weizman, Y. ‘Electrical viscosity’ of piezoresistive sensors: Novel signal processing method, assessment of manufacturing quality, and proposal of an industrial standard. Biosens. Bioelectron. 2019, 141, 111408. [Google Scholar] [CrossRef] [PubMed]
  18. Gao, Y.; Li, Q.; Dong, A.; Wang, F.; Wang, X. Characterizing the Resistance Relaxation of the Fabric-based Resistive Sensors Based on an Electro-mechanical Model. Sens. Actuators A Phys. 2020, 310, 112041. [Google Scholar] [CrossRef]
  19. Fan, X.; Huang, Y.; Ding, X.; Luo, N.; Li, C.; Zhao, N.; Chen, S.-C. Alignment-Free Liquid-Capsule Pressure Sensor for Cardiovascular Monitoring. Adv. Funct. Mater. 2018, 28, 1805045. [Google Scholar] [CrossRef]
  20. Groves, R.B.; Coulman, S.A.; Birchall, J.C.; Evans, S.L. Quantifying the mechanical properties of human skin to optimise future microneedle device design. Comput. Methods Biomech. Biomed. Eng. 2012, 15, 73–82. [Google Scholar] [CrossRef] [PubMed]
  21. Lu, P.; Wang, L.; Zhu, P.; Huang, J.; Wang, Y.; Bai, N.; Wang, Y.; Li, G.; Yang, J.; Xie, K.; et al. Iontronic pressure sensor with high sensitivity and linear response over a wide pressure range based on soft micropillared electrodes. Sci. Bull. 2021, 66, 1091–1100. [Google Scholar] [CrossRef]
  22. Devaraj, H.; Schober, R.; Picard, M.; Teo, M.Y.; Lo, C.-Y.; Gan, W.C.; Aw, K.C. Highly elastic and flexible multi-layered carbon black/elastomer composite based capacitive sensor arrays for soft robotics. Meas. Sens. 2019, 2–4, 100004. [Google Scholar] [CrossRef]
  23. Tan, Y.; Ivanov, K.; Mei, Z.; Li, H.; Li, H.; Lubich, L.; Wang, C.; Wang, L. A Soft Wearable and Fully-Textile Piezoresistive Sensor for Plantar Pressure Capturing. Micromachines 2021, 12, 110. [Google Scholar] [CrossRef]
  24. Lo, L.-W.; Shi, H.; Wan, H.; Xu, Z.; Tan, X.; Wang, C. Inkjet-Printed Soft Resistive Pressure Sensor Patch for Wearable Electronics Applications. Adv. Mater. Technol. 2020, 5, 1900717. [Google Scholar] [CrossRef]
  25. Shi, H.; Al-Rubaiai, M.; Holbrook, C.M.; Miao, J.; Pinto, T.; Wang, C.; Tan, X. Screen-Printed Soft Capacitive Sensors for Spatial Mapping of Both Positive and Negative Pressures. Adv. Funct. Mater. 2019, 29, 1809116. [Google Scholar] [CrossRef]
  26. Kim, J.; Chou, E.-F.; Le, J.; Wong, S.; Chu, M.; Khine, M. Soft Wearable Pressure Sensors for Beat-to-Beat Blood Pressure Monitoring. Adv. Healthc. Mater. 2019, 8, 1900109. [Google Scholar] [CrossRef] [PubMed]
  27. Han, S.; Liu, C.; Huang, Z.; Zheng, J.; Xu, H.; Chu, S.; Wu, J.; Liu, C. High-Performance Pressure Sensors Based on 3D Microstructure Fabricated by a Facile Transfer Technology. Adv. Mater. Technol. 2019, 4, 1800640. [Google Scholar] [CrossRef]
  28. Lee, D.; Hong, H.P.; Lee, M.J.; Park, C.W.; Min, N.K. A prototype high sensitivity load cell using single walled carbon nanotube strain gauges. Sens. Actuators A Phys. 2012, 180, 120–126. [Google Scholar] [CrossRef]
  29. Wang, Y.; Hua, T.; Zhu, B.; Li, Q.; Yi, W.; Tao, X. Novel fabric pressure sensors: Design, fabrication, and characterization. Smart Mater. Struct. 2011, 20, 065015. [Google Scholar] [CrossRef]
  30. Wang, F.; Zhu, B.; Shu, L.; Tao, X. Flexible pressure sensors for smart protective clothing against impact loading. Smart Mater. Struct. 2013, 23, 015001. [Google Scholar] [CrossRef]
  31. Toledo, R.C.; Jared, C. Cutaneous Granular Glands and Amphibian Venoms. Comp. Biochem. Phys. A 1995, 111, 1–29. [Google Scholar] [CrossRef]
  32. Cheng, R.; Zeng, J.; Wang, B.; Li, J.; Cheng, Z.; Xu, J.; Gao, W.; Chen, K. Ultralight, flexible and conductive silver nanowire/nanofibrillated cellulose aerogel for multifunctional strain sensor. Chem. Eng. J. 2021, 424, 130565. [Google Scholar] [CrossRef]
  33. Cheng, S.; Narang, Y.S.; Yang, C.; Suo, Z.; Howe, R.D. Stick-On Large-Strain Sensors for Soft Robots. Adv. Mater. Interfaces 2019, 6, 1900985. [Google Scholar] [CrossRef]
  34. Wang, H.; Li, J.; Yu, X.; Yan, G.; Tang, X.; Sun, Y.; Zeng, X.; Lin, L. Cellulose nanocrystalline hydrogel based on a choline chloride deep eutectic solvent as wearable strain sensor for human motion. Carbohydr. Polym. 2021, 255, 117443. [Google Scholar] [CrossRef]
  35. Dang, Y.; Devaraj, H.; Stommel, M.; Cheng, L.K.; McDaid, A.J.; Xu, W. Experimental Investigation into the Dynamics of a Radially Contracting Actuator with Embedded Sensing Capability. Soft Robot. 2020, 7, 478–490. [Google Scholar] [CrossRef]
  36. Sencadas, V.; Mutlu, R.; Alici, G. Large area and ultra-thin compliant strain sensors for prosthetic devices. Sens. Actuators A Phys. 2017, 266, 56–64. [Google Scholar] [CrossRef] [Green Version]
  37. Yi, W.J.; Wang, Y.Y.; Wang, G.F.; Tao, X.M. Investigation of carbon black/silicone elastomer/dimethylsilicone oil composites for flexible strain sensors. Polym. Test 2012, 31, 677–684. [Google Scholar] [CrossRef]
  38. Heinrich, G.; Vilgis, T.A. Contribution of entanglements to the mechanical properties of carbon black-filled polymer networks. Macromolecules 1993, 26, 1109–1119. [Google Scholar] [CrossRef]
  39. Wang, M.-J. The Role of Filler Networking in Dynamic Properties of Filled Rubber. Rubber Chem. Technol. 1999, 72, 430–448. [Google Scholar] [CrossRef]
  40. Bauhofer, W.; Kovacs, J.Z. A review and analysis of electrical percolation in carbon nanotube polymer composites. Compos. Sci. Technol. 2009, 69, 1486–1498. [Google Scholar] [CrossRef]
  41. Li, C.; Thostenson, E.T.; Chou, T.-W. Dominant role of tunneling resistance in the electrical conductivity of carbon nanotube–based composites. Appl. Phys. Lett. 2007, 91, 223114. [Google Scholar] [CrossRef]
  42. Simmons, J.G. Electric Tunnel Effect between Dissimilar Electrodes Separated by a Thin Insulating Film. J. Appl. Phys. 1963, 34, 2581–2590. [Google Scholar] [CrossRef]
  43. Oskouyi, A.B.; Sundararaj, U.; Mertiny, P. Tunneling Conductivity and Piezoresistivity of Composites Containing Randomly Dispersed Conductive Nano-Platelets. Materials 2014, 7, 2501–2521. [Google Scholar] [CrossRef]
  44. Jung, S.; Choi, H.W.; Mocanu, F.C.; Shin, D.-W.; Chowdhury, M.F.; Han, S.D.; Suh, Y.-H.; Cho, Y.; Lee, H.; Fan, X.; et al. Modeling Electrical Percolation to optimize the Electromechanical Properties of CNT/Polymer Composites in Highly Stretchable Fiber Strain Sensors. Sci. Rep. 2019, 9, 20376. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Carpi, F.; Frediani, G.; Tarantino, S.; De Rossi, D. Millimetre-scale bubble-like dielectric elastomer actuators. Polym. Int. 2010, 59, 407–414. [Google Scholar] [CrossRef]
  46. Carpi, F.; Frediani, G.; Nanni, M.; De Rossi, D. Granularly Coupled Dielectric Elastomer Actuators. IEEE ASME Trans. Mech. 2011, 16, 16–23. [Google Scholar] [CrossRef]
  47. Lee, J.N.; Park, C.; Whitesides, G.M. Solvent Compatibility of Poly(dimethylsiloxane)-Based Microfluidic Devices. Anal. Chem. 2003, 75, 6544–6554. [Google Scholar] [CrossRef] [PubMed]
  48. Lessing, J.; Glavan, A.C.; Walker, S.B.; Keplinger, C.; Lewis, J.A.; Whitesides, G.M. Inkjet Printing of Conductive Inks with High Lateral Resolution on Omniphobic "R-F Paper" for Paper-Based Electronics and MEMS. Adv. Mater. 2014, 26, 4677–4682. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Wang, L.L.; Tay, B.K.; See, K.Y.; Sun, Z.; Tan, L.K.; Lua, D. Electromagnetic interference shielding effectiveness of carbon-based materials prepared by screen printing. Carbon 2009, 47, 1905–1910. [Google Scholar] [CrossRef]
  50. Leigh, S.J.; Bradley, R.J.; Purssell, C.P.; Billson, D.R.; Hutchins, D.A. A Simple, Low-Cost Conductive Composite Material for 3D Printing of Electronic Sensors. PLoS ONE 2012, 7, e49365. [Google Scholar] [CrossRef]
  51. Lu, N.S.; Lu, C.; Yang, S.X.; Rogers, J. Highly Sensitive Skin-Mountable Strain Gauges Based Entirely on Elastomers. Adv. Funct. Mater. 2012, 22, 4044–4050. [Google Scholar] [CrossRef]
  52. Wang, X.W.; Gu, Y.; Xiong, Z.P.; Cui, Z.; Zhang, T. Silk-Molded Flexible, Ultrasensitive, and Highly Stable Electronic Skin for Monitoring Human Physiological Signals. Adv. Mater. 2014, 26, 1336–1342. [Google Scholar] [CrossRef] [PubMed]
Sensors 21 04732 g001 550
Figure 1. (a) Picture of a toad. (b) Warty texture of a toad’s skin. (c) Schematic of bioinspired pressure sensor arrays with spherical bumps. The black lines are strain gauges.
Figure 1. (a) Picture of a toad. (b) Warty texture of a toad’s skin. (c) Schematic of bioinspired pressure sensor arrays with spherical bumps. The black lines are strain gauges.
Sensors 21 04732 g001
Sensors 21 04732 g002 550

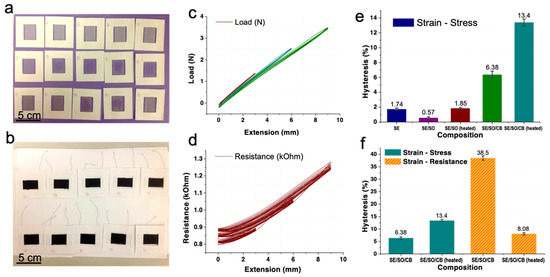

Figure 2. (a,b) Pictures of sample #1 to #25 fixed in cardboards. They were rowed as in Table 2. (c) The extension-load curves of sample #1. (d) the extension-resistance curves of sample #25. (e) Mechanical hysteresis of all the samples. (f) Comparison between mechanical and electromechanical hysteresis of the samples.
Figure 2. (a,b) Pictures of sample #1 to #25 fixed in cardboards. They were rowed as in Table 2. (c) The extension-load curves of sample #1. (d) the extension-resistance curves of sample #25. (e) Mechanical hysteresis of all the samples. (f) Comparison between mechanical and electromechanical hysteresis of the samples.
Sensors 21 04732 g002
Sensors 21 04732 g003 550

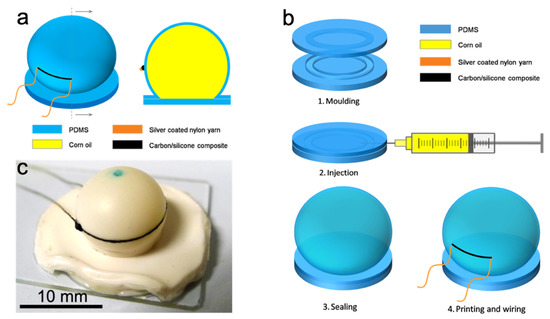

Figure 3. (a) Schematic of a cell-type pressure sensor. Left is an oblique view and right is a front view of the cross section. (b) Fabrication process of the cell-type pressure sensors. (1) Molding of the PDMS layers; (2) Injection of the corn oil; (3) Sealing of the cell; (4) Printing of the strain gauge and connection of the wires. (c) Picture of an as-made soft cell-type pressure sensor. The diameter of the cell is 11 mm. The green marking on top is for contraposition in fabrication.
Figure 3. (a) Schematic of a cell-type pressure sensor. Left is an oblique view and right is a front view of the cross section. (b) Fabrication process of the cell-type pressure sensors. (1) Molding of the PDMS layers; (2) Injection of the corn oil; (3) Sealing of the cell; (4) Printing of the strain gauge and connection of the wires. (c) Picture of an as-made soft cell-type pressure sensor. The diameter of the cell is 11 mm. The green marking on top is for contraposition in fabrication.
Sensors 21 04732 g003
Sensors 21 04732 g004 550

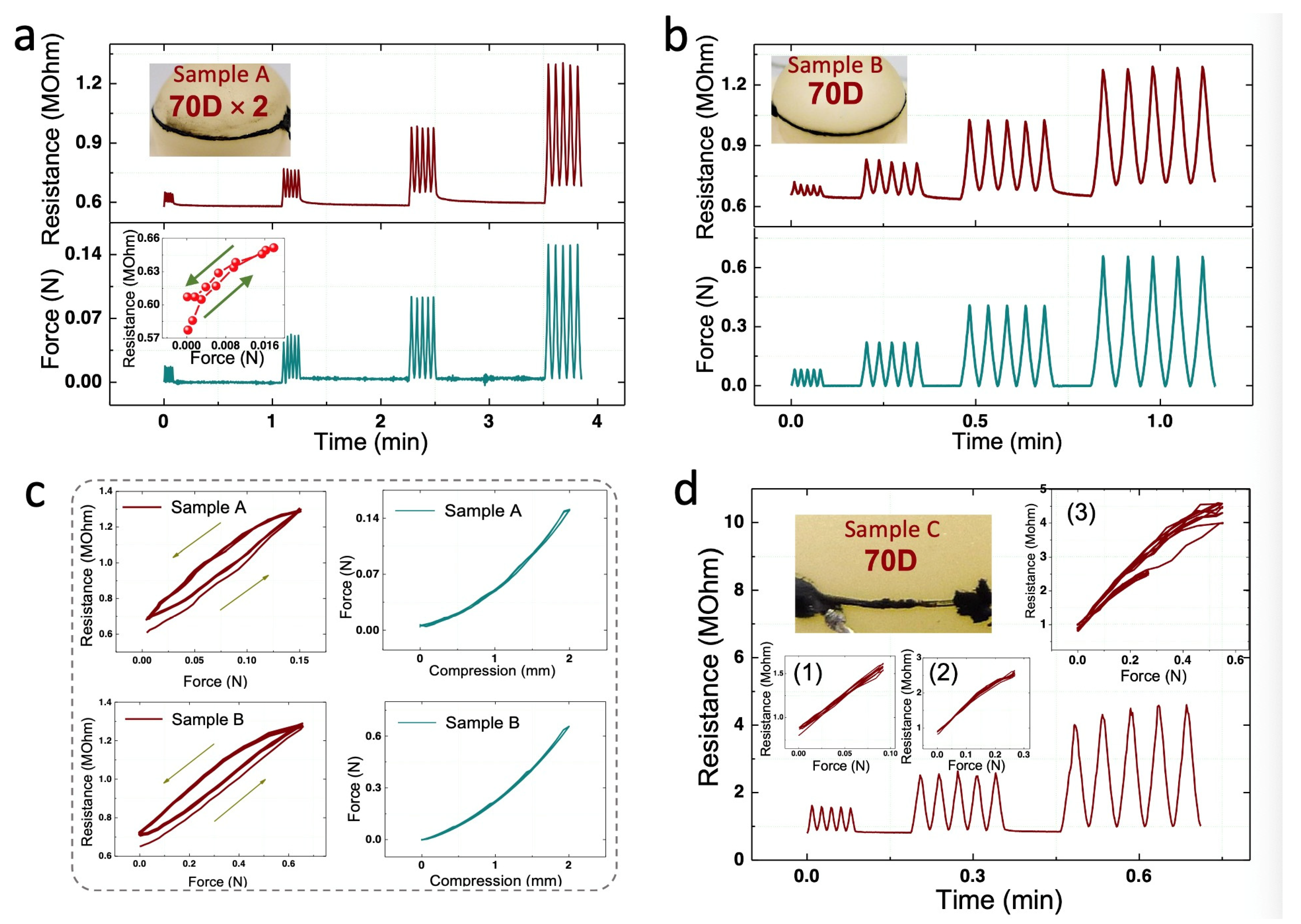

Figure 4. (a)Typical force and resistance curves of pressure sensor sample A under cyclic compression. The strain gauge, as pictured in the upper inset, was printed using 70D × 2 yarns. Lower inset is the force-resistance curve of the first 0.5 mm compressive cycle. (b) The force and resistance curves in cyclic compression tests. Inset is a picture of the sample B. Strain gauge on this sensor was printed using a 70D yarn. (c) Electrical and mechanical curves of A and B in the 2 mm compressions. (d) Resistance change of pressure sensor sample C. There were major defects on the gauge. (1) and (2) are force-resistance curves in the 0.5 mm and 1.0 mm cyclic compressions, respectively. (3) Force-resistance curves in 0.5 mm, 1.0 mm, and 1.5 mm cyclic compressions. The maximum force of 0.6 N corresponds to a pressure around 7 kPa.
Figure 4. (a)Typical force and resistance curves of pressure sensor sample A under cyclic compression. The strain gauge, as pictured in the upper inset, was printed using 70D × 2 yarns. Lower inset is the force-resistance curve of the first 0.5 mm compressive cycle. (b) The force and resistance curves in cyclic compression tests. Inset is a picture of the sample B. Strain gauge on this sensor was printed using a 70D yarn. (c) Electrical and mechanical curves of A and B in the 2 mm compressions. (d) Resistance change of pressure sensor sample C. There were major defects on the gauge. (1) and (2) are force-resistance curves in the 0.5 mm and 1.0 mm cyclic compressions, respectively. (3) Force-resistance curves in 0.5 mm, 1.0 mm, and 1.5 mm cyclic compressions. The maximum force of 0.6 N corresponds to a pressure around 7 kPa.
Sensors 21 04732 g004
Table
Table 1. Benchmark of the cell-structured sensor against typical sensors in the literature.
Table 1. Benchmark of the cell-structured sensor against typical sensors in the literature.
Soft/FlexibleYoung’s Modulus (kPa)Working Range (kPa)Sensitivity (kPa−1)HysteresisResearch
Soft30–70 *0–10—0Target
Soft<2300.013–6.80.77.7%This work
Soft20000.055–240.000876% **[6]
Soft6325–500.25 **28% **[13]
Soft—0–1240.59—[14]
Soft—0–30——[16]
Flexible—0–504.211.5%[19]
Flexible—0–67.49—[21]
Soft—0–20.00952~0%[22]
Flexible—0–363.9628.6%[23]
Flexible—0–6.50.48—[24]
Soft—−60–200.0047—[25]
Soft—0–100.148—[26]
Soft—0.02–56.13—[27]
* Young’s modulus of the human skin [20]. ** Recalculated according to the pressure-resistance curves in the literature.
Table
Table 2. Sample specification and processing parameters for strain gauge characterization.
Table 2. Sample specification and processing parameters for strain gauge characterization.
Sample IDComposition * (CB/SE/SO)Dimension After Baking (mm)Baking Time (hour)Final Mass (mg)Initial Resistance (kΩ)
#1–#50/100/00.48 (±0.02) × 50 × 200.42500 (±16)+∞
#6–#100/91/1500.41 (±0.02) × 50 × 200.25370 (±28)+∞
#11–#150/91/1500.36 (±0.03) × 42.6 (±0.19) × 17.3 (±0.19)34270 (±5)+∞
#16–#209/91/1500.45 (±0.01) × 50 × 200.25490 (±9)0.72 (±0.03)
#21–#259/91/1500.45 (±0.04) × 43.5 (±0.4) × 17.6 (±0.2)34350 (±11)1.71 (±0.09)
* The composition is displayed in weight ratio.
