A Wide Frequency Scanning Printed Bruce Array Antenna with Bowtie and Semi-Circular Elements †

1
Antenna and High-Frequency Research Centre, Technological University Dublin, Dublin, Ireland
2
CONNECT—Ireland’s Research Centre for Future Networks and Communications, Westland Row 34, Dublin, Ireland
*
Author to whom correspondence should be addressed.
This paper is an extended version of Ahmed, Z.; Hoang, M.H.; McEvoy, P.; Ammann, M.J. Millimetre-wave Planar Bruce Array Antenna. In Proceedings of the 2020 International Workshop on Antenna Technology (iWAT), Bucharest, Romania, 25–28 February 2020.
Sensors 2020, 20(23), 6796; https://doi.org/10.3390/s20236796
Received: 26 October 2020 / Revised: 17 November 2020 / Accepted: 25 November 2020 / Published: 27 November 2020
(This article belongs to the Special Issue Antennas and Propagation)

Abstract

:
A printed edge-fed counterpart of the wire Bruce array antenna, for frequency scanning applications, is presented in this paper. The unit-cell of the proposed antenna consists of bowtie and semi-circular elements to achieve wide bandwidth from below 22 GHz to above 38 GHz with open-stopband suppression. The open-stopband suppression enables a wide seamless scanning range from backward, through broadside, to forward endfire. A sidelobe threshold level of −10 dB is maintained to evaluate efficient scanning performance of the antenna. The antenna peak realized gain is 15.30 dBi, and, due to its compact size, has the ability to scan from −64° to 76°.

1. Introduction

In 1931, Edmond Bruce patented the idea of the Bruce array antenna (BAA) in which a long wire antenna was bent in equal and periodic meandered intervals. The antenna was designed for amateur radio applications in which bi-directional broadside radiation and high gain are required. Figure 1 shows a typical BAA fed from the center of the structure using a twin-line feed mechanism. In the figure, the lengths and directions of the arrows are representations of the magnitudes and flow of the current, respectively. The horizontal and vertical segments of the meander line were both kept equal in size, i.e., approximately λ/4 for ham radio applications, except for the last two inward bent segments, which are half the length of the other segments. The currents in the horizontal segments, represented by light grey colored arrows in Figure 1, flow in opposite directions so as to add together destructively, thus cancelling out radiation in ideal circumstances. These horizontal elements are, therefore, considered interconnecting segments. The currents in the vertical segments flow in the same direction, adding constructively in phase to give broadside radiation, which is why these segments are termed radiating elements. The half-length segments, which are bent inward on either ends of the structure, have little to no magnitude of current; therefore, they maintain reasonably low cross-polarized radiation [1]. As the number of radiating elements are added to the structure, the half power beamwidth (HPBW) becomes sharp with the increase in peak realized gain and the radiation pattern in the broadside becomes so compressed and narrow that it can be classified as a highly directive fan-beam radiation pattern. The BAA offers reduced complexity, substantially greater bandwidth than other wire antennas (such as the bobtail curtain and half-square antennas), and, for a relatively low height requirement, it can achieve the maximum possible gain in a given area [2]. Suited to a particular installation, the wire BAA can also be fed at points other than the center, the lengths can be varied to tune the resonant frequency, and while it usually does not require a ground system, an extensive ground system can be deployed under the BAA to mitigate the losses if there is adequate space [2].
The BAA has been around for over a century, but, in spite of its simplicity, modern researchers have overlooked its development and utilization in modern day antenna applications. There are only a handful of ideas proposed to make use of the structure, some of which include Nakano et al.’s concatenation of the Bruce and Franklin antennas’ performance at 12.50 GHz [3], Chen’s twin-line fed slot-type BAA planar equivalent [4], a tri-band mm-wave printed counterpart of BAA [5], and an edge-fed printed BAA [6].
In 1940, W. W. Hansen patented the first waveguide-based leaky-wave antenna (LWA) [7]. Several other researchers later elaborated the concept in their research [8,9,10,11], but it was A. A. Oliner who streamlined the working mechanism in 1984 [12]. In IEEE standard 145-2013, an LWA is defined as “An antenna that couples power in small increments per unit length, either continuously or discretely, from a travelling-wave structure to free space” [13]. LWAs are generally divided into two categories, namely uniform and periodic LWAs [14], the latter of which are widely used in mm-wave frequency regions as well as other scanning applications because of their ability to scan a wider area than the uniform LWAs [15]. Planar periodic LWAs are low-profile, relatively easier to fabricate, and can scan in the backward or the forward endfire direction with a fan-beam radiation pattern with frequency tuning. Several types of LWAs based on a range of technologies have been proposed in the scientific literature, including periodically meandered rampart array [16], sharpening the bends [17], squarely modulated reactance surface (SquMRS) [18], composite right/left-handed structures (CRLH) [19,20], slot or coplanar lines [21], substrate integrated waveguide (SIW) structures [22,23,24,25,26,27], Goubau line structures [24], spoof plasmon transmission line (SSP-TL) structures [25], and periodically loaded microstrip structures [26].
In the case of periodic LWAs, a steep gain-drop is usually observed around the broadside when scanning from the backward to forward endfire, because of which the antenna suffers from pattern degradation. This is because of the presence of the so-called open-stopband (OSB) at which the LWA, which usually supports a traveling-wave, exhibits standing-wave characteristics with equal excitation of the unit-cells. At OSB frequency, the incident power from the unit-cell that is supposed to radiate outwards instead reflects into the source due to the coupling of a contra-directional pair of space harmonics (Floquet modes) [28]. There are numerous periodic LWAs that have either overcome or suppressed this problem. Balanced transmission lines are used in Metamaterial LWAs to enable seamless scanning through the broadside [29,30]. Other than that, SIW structures use shorting vias [31], unequal width in transversal elements of meander lines [16], and non-identical elements in their unit-cells [32]. A lattice-network based TL model [33] has also been reported to suppress the OSB.
This paper presents a modification of planar, edge-fed, periodic array using meandering concept of wire BAA geometry and the suppression of the OSB around the broadside by replacing horizontal and vertical segments with semi-circular and novel bowtie elements, respectively. The unit-cell is the repetitive part of the structure designed at the broadside frequency. The optimizations and simulations were performed using CST Microwave Studio, in which the dielectric and metallization losses were considered. Finally, the prototype antenna was fabricated and measured responses were compared against the simulated results, from which a satisfactory agreement was attained.

2. Unit-Cell and Antenna Geometry

The configuration of the unit-cell of modified printed BAA is shown in Figure 2. The vertical and horizontal segments of the meander-line BAA antenna, shown in Figure 1, were replaced with bowtie and semi-circular elements, respectively. Either ends of the bowtie had the same width as the semi-circular segment, i.e., wc. Compared to the BAA, the meandered segments’ lengths are approximately λ/4, but in the mm-wave region, this corresponds to a very small size which gives rise to coupling between the vertical segments; therefore, these lengths are varied. However, the length and diameter of the unit-cell, lv and lc, respectively, are kept the same, as shown in Table 1. The periodic unit-cell’s dominant mode does not radiate on its own because of its slow-wave characteristics; the free space wavenumber, k0, is less than the phase constant (β > k0). Floquet’s theorem states that as the unit-cells are combined in series, the periodicity introduces an infinite number of Floquet modes in a leaky-wave structure. These Floquet modes are represented by phase constant βn [14].
β n p u n i t =   β 0 p u n i t + 2 π n ;   n = 0 ,   ± 1 ,   ± 2 ,   ± 3
where punit is the period of the unit-cell defined by 4 × (lcwc/2), n is the nth number space harmonic, and β0 is the phased constant of the dominant mode of the now modulated and uniform waveguide. From Equation (1) the β0 is slow-wave, but the structure is designed in a way that the other modes are fast. In order to scan a single beam in a directive manner, the first space harmonic, i.e., n = −1, is substituted into Equation (1) and is written as
β 1 p u n i t =   β 0 p u n i t 2 π
The scanning direction of the periodic LWA can be expressed using [14]
sin θ m =   β 1 k 0
where θm is the maximum beam angle deviation from the broadside and k0 is the free space wave number. Subsequently, the beamwidth is given by
Δ θ     1 L λ 0 cos θ m
where L is the overall length of the leaky-wave antenna structure.
The geometry of the periodic modified BAA antenna, with vertical bowtie and horizontal semi-circular segments, is presented in Figure 3a. As is the case with linear arrays, the addition of unit-cells in series increases the gain and decreases the beamwidth along the length of the antenna, but a large number of unit-cells prevents the increase in gain due to the lower power delivered to the last unit-cells. Thirteen unit-cell elements, presented in Figure 2, were connected in series, and the configuration presented in Table 1 was used for simulation and prototyping of the structure. The periodic modulation of the geometry assisted with radiation along the length of the antenna. The structure was fed using transmission line of length 6.18 mm and width 0.76 mm; the last unit-cell element was terminated using a similar transmission line and another 50 Ω port that acted like a resistor to avoid reflections. Arlon DiClad 880 substrate, with a thickness of 0.254 mm, εr = 2.2 and tan δ = 0.0009, was used to fabricate the prototype presented in Figure 3b; the measurements were performed using a Rhode and Schwarz Vector Network Analyzer (ZVA40). The overall dimensions of the antenna were 83.60 × 18.0 × 0.254 mm3.

3. Parametric Analysis

Figure 4 shows the effects on |S11| for the structure with 13 unit-cell elements presented in Figure 3 by simultaneously varying lv and lc with wv = 0.76 mm, without the vertical bowtie element. The multiplying factor of the wire BAAs, λ/4, was increased to avoid unwanted resonances in the mm-wave region, due to close separation distance at λ/4 between vertical elements; it varied from 1.69 × λ/4 to 1.89 × λ/4 (3.30 mm to 3.70 mm). With this configuration, mismatching was observed around the broadside frequencies, for which |S11| > −10 dB indicated the presence of OSB. Additionally, an increase in lv and lc by 0.1 mm tuned down the OSB mismatched region by approximately 1 GHz. The |S11| above and below the OSB, between 20 GHz and 40 GHz, remained less than −10 dB.
The effect of parameters associated with the vertical bowtie segments, wv and lt, of the 13 unit-cell structure, on |S11|, is shown in Figure 5. The other parameters, presented in Table 1, remain unchanged. A noticeable improvement in impedance matching, around the OSB region, was observed as the width, wv, was increased from 0.50 mm to 0.60 mm, with lt fixed at 1.68 mm, in which |S11| improved from −7.24 dB to −3.54 dB at 28.0 GHz. In the other case, where wv was kept constant at 0.65 mm, the variation in lt from 1.45 mm to 1.65 mm improved the impedance matching significantly without any upward or downward tuning of frequency.
Figure 6 shows the effect of independently varying lv and lc with the fixed wv = 0.65 mm bowtie vertical unit-cell segment on |S11|. The frequency was tuned down by approximately 1.15 GHz and the impedance matching deteriorated when lv was increased by 0.20 mm, between 3.40 mm and 3.60 mm, and lc was kept constant at 3.50 mm. A downward shift in frequency of 0.70 GHz was observed when lv was fixed at 3.50 mm and lc was increased from 3.40 mm to 3.60 mm, with a minute effect on impedance matching.
Figure 7 shows the realized gain of the 13 unit-cell antenna structure without the vertical bowtie element at between 22 GHz and 38 GHz with lv = lc = 3.50 mm and wv = 0.76 mm. The gain rose gradually between 23.0 GHz and 26.0 GHz and, while still under 12.0 dBi at 26.0 GHz, a sharp gain drop was observed around 28.0 GHz. The realized gain around 28.0 GHz was considerably less than the realized gain in the rest of the forward endfire region. This is consistent with the OSB region, identified in Figure 4, where |S11| > −10 dB.

4. Results and Discussion

Figure 8 shows the simulated and measured response of the |S11| of the 13-element structure with the bowtie vertical segment unit-cells that were shown in Figure 2 and the parameters presented in Table 1. The mismatched OSB frequency range, for when lv and lc is 3.50 mm (~1.79 × λ/4) and wv = 0.76 mm as presented in Figure 4, improved without any frequency tuning, resulting in the mitigation of the OSB. The |S11|, at 28.0 GHz, improved to −12.01 dB with the vertical bowtie element, compared to −7.73 dB without the bowtie element. With the bowtie element, the |S11|was ≤ −10 dB from below 22.0 GHz and above 40.0 GHz with a fractional bandwidth of more than 67%.
Figure 9 shows the realized gain plot of the antenna structure with the modified bowtie unit-cell shown in Figure 2. The sharp decline in realized gain around 28.0 GHz region, shown in Figure 7, considerably improved with this arrangement using the parameters presented in Table 1. The gain profile gradually increased around 23.0 GHz, and onwards, with peak realized gain of 15.30 dBi at 35.0 GHz.
The 3D radiation patterns for the simulation of the 13-element structure, with bowtie and semi-circular unit-cell, are presented for backward endfire, broadside and forward endfire regions in Figure 10a–c, respectively. The patterns, at 24.0 GHz, 28.0 GHz and 35.0 GHz, showed a fan-beam scanning with an increase in frequency and radiation angles of −42°, 0° and 56°, respectively. The scanning range of the proposed antenna is presented in Figure 11. Figure 11a shows the scanning range from backward endfire approaching towards the broadside. The antenna scanned from −64° at 22.87 GHz. Figure 11b shows the scanning range from the broadside to the forward endfire. The antenna scanned seamlessly through the broadside, due to the mitigation of OSB, until 76°, i.e., 37.0 GHz.
Figure 12 shows the main beam direction and sidelobe level (SLL), in the yz-plane, of the proposed antenna. From Figure 8, it can be seen that the antenna has wide bandwidth below 22.87 GHz and above 37.0 GHz, but these frequencies are not considered as part of the scanning range in Figure 11 because an SLL threshold of −10 dB is maintained to efficiently define the scanning region which. As the mainlobe of the scanning range approaches forward endfire after 76°, the rise in the antenna’s backlobe and the increase in SLL makes it unsuitable to scan in a single direction as efficient as the rest of the considered bandwidth.
Figure 13 shows the radiation efficiency of the proposed antenna array. The antenna had more than 60% radiation efficiency throughout the scanning range, and, between 25.0 GHz and 37.0 GHz, the efficiency was more than 80%. The HPBW in both xz and yz-planes, across the entire scanning range, is also shown in the figure. As the beam approaches broadside from backward endfire, the HPBW in xz-plane increased and stabilized before dropping again as it approached forward endfire shown in Figure 10c. From the yz-plane, it can be seen that the antenna had a narrow radiation beam throughout the scanning range which can be classified as fan-beam radiation pattern.
The performance of the proposed antenna’s scanning characteristics was compared with other antennas in the scientific literature and is presented in Table 2. The proposed antenna had wider bandwidth and scanning range along with the peak realized gain than [34,35,36,37] and in [35], only the SLL at the broadside is mentioned. There is no mention of SLL threshold for efficient scanning in any articles except [6,27,38,39]. The presented antenna had better scanning range than the first continuous scanning range of [6]. In [39], although the realized gain and bandwidth are better, it has overall dimensions of 133 × 93 × 21 mm3, with a narrower scanning range; it is also difficult to fabricate geometry compared to the presented structure. If not for the SLL ≤ −10 dB threshold maintained throughout this work, the proposed antenna may have had a wider scanning range due to the available bandwidth below 22.87 GHz in the backward endfire and above 37.0 GHz in the forward endfire. The proposed antenna can thus be used for 28 GHz 5G and Ka-Band millimeter-wave imaging applications [40].

5. Conclusions

A wide backward to forward endfire scanning leaky-wave antenna is proposed in this paper, as well as a discussion of the results. The initial concept to design the unit-cell of the antenna is taken from meandered wire Bruce array antenna and transformed to printed geometry. The horizontal and vertical segments of the meandered unit-cell were replaced with semi-circular and bowtie segments, respectively, of which the latter assists in the mitigation of the open-stopband at broadside. The length and diameter of both vertical and horizontal segments, respectively, are kept equal at 3.50 mm. The proposed antenna has a wide operational bandwidth from below 22.0 GHz to above 38.0 GHz; however, an SLL threshold of −10 dB was enforced to define an efficient scanning range between 22.87 GHz and 37.0 GHz. The 13 unit-cell periodic antenna has a compact size, offers a scanning range between −64° to 76°, and has peak gain of 15.30 dBi.

Author Contributions

Conceptualization, Z.A.; methodology, Z.A.; software, Z.A.; validation, Z.A.; formal analysis, Z.A.; investigation, Z.A.; resources, Z.A., P.M., and M.J.A.; data curation, Z.A.; writing—original draft preparation, Z.A.; writing—review and editing, Z.A., P.M., and M.J.A.; visualization, Z.A.; supervision, P.M. and M.J.A.; project administration, Z.A. and M.J.A.; funding acquisition, M.J.A. All authors have read and agreed to the published version of the manuscript.

Funding

This publication has emanated from research conducted with the financial support of Science Foundation Ireland (SFI) and is co-funded under the European Regional Development Fund under Grant Number 13/RC/2077.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bruce, E. Aerial System. U.S. Patent 1813143, 7 July 1931. [Google Scholar]
  2. Straw, R.D. Multielement Arrays. In The ARRL Antenna Book, 19th ed.; The American Radio Relay League: Newington, CT, USA, 2000; pp. 8–47. [Google Scholar]
  3. Nakano, H.; Odachi, N.; Mimaki, H.; Yamauchi, J. An array of Franklin and Bruce antennas. In Proceedings of the IEEE Antennas and Propagation Society International Symposium: 1996 Digest, Baltimore, MD, USA, 21–26 July 1996; IEEE: Piscataway, NJ, USA, 1996; Volume 2, pp. 1130–1133. [Google Scholar]
  4. Chen, S. Broadband Slot-Type Bruce Array Fed by a Microstrip-to-Slotline T-Junction. IEEE Antennas Wirel. Propag. Lett. 2009, 8, 116–119. [Google Scholar] [CrossRef]
  5. Ahmed, Z.; Hoang, M.H.; McEvoy, P.; Ammann, M.J. Millimetre-wave Planar Bruce Array Antenna. In Proceedings of the 2020 International Workshop on Antenna Technology (iWAT), Bucharest, Romania, 25–28 February 2020; pp. 1–3. [Google Scholar]
  6. Ahmed, Z.; John, M.; McEvoy, P.; Ammann, M.J. Investigation of Frequency Scanning Printed Bruce Array Antenna. IEEE Access 2020, 8, 189003–189012. [Google Scholar] [CrossRef]
  7. Hansen, W.W. Radiating Electromagnetic Wave Guide. U.S. Patent 2402622, 25 June 1946. [Google Scholar]
  8. Hines, J.N.; Upson, J.R. A Wide Aperture Tapered-Depth Scanning Antenna; Report 667-7; Ohio State Univ. Res. Found.: Columbus, OH, USA, 1957. [Google Scholar]
  9. Trentini, G.V. Partially reflecting sheet arrays. IRE Trans. Antennas Propag. 1956, 4, 666–671. [Google Scholar] [CrossRef]
  10. Rotman, W.; Karas, N. The sandwich wire antenna: A new type of microwave line source radiator. In Proceedings of the 1958 IRE International Convention Record, New York, NY, USA, 21–25 March 1957; pp. 166–172. [Google Scholar]
  11. Rotman, W.; Oliner, A. Asymmetrical trough waveguide antennas. IRE Trans. Antennas Propag. 1959, 7, 153–162. [Google Scholar] [CrossRef]
  12. Oliner, A.A. Historical Perspectives on Microwave Field Theory. IEEE Trans. Microw. Theory Tech. 1984, 32, 1022–1045. [Google Scholar] [CrossRef][Green Version]
  13. Roederer, A.; Farr, E.; Foged, L.J.; Francis, M.; Hansen, R.; Haupt, R.; Warnick, K. IEEE Standard for Definitions of Terms for Antennas. IEEE Std 145-2013 (Revision of IEEE Std 145-1993); IEEE: New York, NY, USA, 2014; pp. 1–50. [Google Scholar]
  14. Xu, F.; Wu, K. Understanding Leaky-Wave Structures: A Special Form of Guided-Wave Structure. IEEE Microw. Mag. 2013, 14, 87–96. [Google Scholar] [CrossRef]
  15. Huo, X.; Wang, J.; Li, Z.; Li, Y.; Chen, M.; Zhang, Z. Periodic Leaky-Wave Antenna with Circular Polarization and Low-SLL Properties. IEEE Antennas Wirel. Propag. Lett. 2018, 17, 1195–1198. [Google Scholar] [CrossRef]
  16. Cheng, S.; Li, Y.; Liang, Z.; Zheng, S.; Long, Y. An Approximate Circuit Model to Analyze Microstrip Rampart Line in OSB Suppressing. IEEE Access 2019, 7, 90412–90417. [Google Scholar] [CrossRef]
  17. Kandwal, A.; Nie, Z.; Wang, L.; Liu, L.W.Y.; Das, R. Realization of low profile leaky wave antennas using the bending technique for frequency scanning and sensor applications. Sensors 2019, 19, 2265. [Google Scholar] [CrossRef][Green Version]
  18. Yu, H.; Zhang, K.; Ding, X.; Wu, Q. A Dual-Beam Leaky-Wave Antenna Based on Squarely Modulated Reactance Surface. Appl. Sci. 2020, 10, 962. [Google Scholar] [CrossRef][Green Version]
  19. Xie, S.; Li, J.; Deng, G.; Feng, J.; Xiao, S. A Wide-Angle Scanning Leaky-Wave Antenna Based on a Composite Right/Left-Handed Transmission Line. Appl. Sci. 2020, 10, 1927. [Google Scholar] [CrossRef][Green Version]
  20. Jiang, W.; Liu, C.; Zhang, B.; Menzel, W. K-Band Frequency-Scanned Leaky-Wave Antenna Based on Composite Right/Left-Handed Transmission Lines. IEEE Antennas Wirel. Propag. Lett. 2013, 12, 1133–1136. [Google Scholar] [CrossRef]
  21. Zhu, L. Guided-wave characteristics of periodic coplanar waveguides with inductive loading - unit-length transmission parameters, IEEE Trans. Microw. Theory Tech. 2003, 51, 2133–2138. [Google Scholar]
  22. Zheng, D.; Lyu, Y.; Wu, K. Longitudinally Slotted SIW Leaky-Wave Antenna for Low Cross-Polarization Millimeter-Wave Applications. IEEE Trans. Antennas Propag. 2020, 68, 656–664. [Google Scholar] [CrossRef]
  23. Lyu, Y.; Liu, X.; Wang, P.; Erni, D.; Wu, Q.; Wang, C.; Kim, N.; Meng, F. Leaky-Wave Antennas Based on Noncutoff Substrate Integrated Waveguide Supporting Beam Scanning From Backward to Forward. IEEE Trans. Antennas Propag. 2016, 64, 2155–2164. [Google Scholar] [CrossRef]
  24. Zhang, G.; Zhang, Q.; Chen, Y.; Murch, R.D. High-Scanning-Rate and Wide-Angle Leaky-Wave Antennas Based on Glide-Symmetry Goubau Line. IEEE Trans. Antennas Propag. 2020, 68, 2531–2540. [Google Scholar] [CrossRef]
  25. Yang, Z.; Guan, D.; Zhang, Q.; You, P.; Huang, X.; Hou, X.; Xu, S.; Yong, S. Low-Loss Spoof Surface Plasmon Polariton Based on Folded Substrate Integrated Waveguide. IEEE Antennas Wirel. Propag. Lett. 2019, 18, 222–225. [Google Scholar] [CrossRef]
  26. Baccarelli, P.; Paulotto, S.; Jackson, D.R.; Oliner, A.A. Analysis of printed periodic structures on a grounded substrate: A new Brillouin dispersion diagram. In Proceedings of the IEEE MTT-S International Microwave Symposium Digest 2005, Long Beach, CA, USA, 17 June 2005; p. 4. [Google Scholar]
  27. Rezaee, S.; Memarian, M. Analytical Study of Open-Stopband Suppression in Leaky-Wave Antennas. IEEE Antennas Wirel. Propag. Lett. 2020, 19, 363–367. [Google Scholar] [CrossRef]
  28. Jackson, D.R.; Caloz, C.; Itoh, T. Leaky-Wave Antennas. Proc. IEEE 2012, 100, 2194–2206. [Google Scholar] [CrossRef]
  29. Cao, W.; Chen, Z.N.; Hong, W.; Zhang, B.; Liu, A. A Beam Scanning Leaky-Wave Slot Antenna with Enhanced Scanning Angle Range and Flat Gain Characteristic Using Composite Phase-Shifting Transmission Line. IEEE Trans. Antennas Propag. 2014, 62, 5871–5875. [Google Scholar] [CrossRef]
  30. Yang, Q.; Zhao, X.; Zhang, Y. Design of CRLH Leaky-Wave Antenna with Low Sidelobe Level. IEEE Access 2019, 7, 178224–178234. [Google Scholar] [CrossRef]
  31. Zhou, W.; Liu, J.; Long, Y. Investigation of Shorting Vias for Suppressing the Open Stopband in an SIW Periodic Leaky-Wave Structure. IEEE Trans. Microw. Theory Tech. 2018, 66, 2936–2945. [Google Scholar] [CrossRef]
  32. Liu, J.; Zhou, W.; Long, Y. A Simple Technique for Open-Stopband Suppression in Periodic Leaky-Wave Antennas Using Two Nonidentical Elements Per Unit Cell. IEEE Trans. Antennas Propag. 2018, 66, 2741–2751. [Google Scholar] [CrossRef]
  33. Otto, S.; Rennings, A.; Solbach, K.; Caloz, C. Transmission Line Modeling and Asymptotic Formulas for Periodic Leaky-Wave Antennas Scanning Through Broadside. IEEE Trans. Antennas Propag. 2011, 59, 3695–3709. [Google Scholar] [CrossRef]
  34. Lyu, Y.; Meng, F.; Yang, G.; Wu, Q.; Wu, K. Leaky-Wave Antenna with Alternately Loaded Complementary Radiation Elements. IEEE Antennas Wirel. Propag. Lett. 2018, 17, 679–683. [Google Scholar] [CrossRef]
  35. Rahmani, M.H.; Deslandes, D. Backward to Forward Scanning Periodic Leaky-Wave Antenna with Wide Scanning Range. IEEE Trans. Antennas Propag. 2017, 65, 3326–3335. [Google Scholar] [CrossRef]
  36. Zhang, A.; Yang, R.; Li, D.; Hu, B.; Lei, Z.; Jiao, Y. Metasurface-Based Tapered Waveguide Slot Array Antennas for Wide Angular Scanning in a Narrow Frequency Band. IEEE Trans. Antennas Propag. 2018, 66, 4052–4059. [Google Scholar] [CrossRef]
  37. Li, Y.; Xue, Q.; Tan, H.; Long, Y. The Half-Width Microstrip Leaky Wave Antenna with the Periodic Short Circuits. IEEE Trans. Antennas Propag. 2011, 59, 3421–3423. [Google Scholar] [CrossRef]
  38. Williams, J.T.; Baccarelli, P.; Paulotto, S.; Jackson, D.R. 1-D Combline Leaky-Wave Antenna with the Open-Stopband Suppressed: Design Considerations and Comparisons with Measurements. IEEE Trans. Antennas Propag. 2013, 61, 4484–4492. [Google Scholar] [CrossRef]
  39. You, Y.; Lu, Y.; You, Q.; Wang, Y.; Huang, J.; Lancaster, M.J. Millimeter-Wave High-Gain Frequency-Scanned Antenna Based on Waveguide Continuous Transverse Stubs. IEEE Trans. Antennas Propag. 2018, 66, 6370–6375. [Google Scholar] [CrossRef]
  40. Sheen, D.M.; McMakin, D.L.; Hall, T.E. Three-dimensional millimeter-wave imaging for concealed weapon detection. IEEE Trans. Microw. Theory Tech. 2001, 49, 1581–1592. [Google Scholar] [CrossRef]

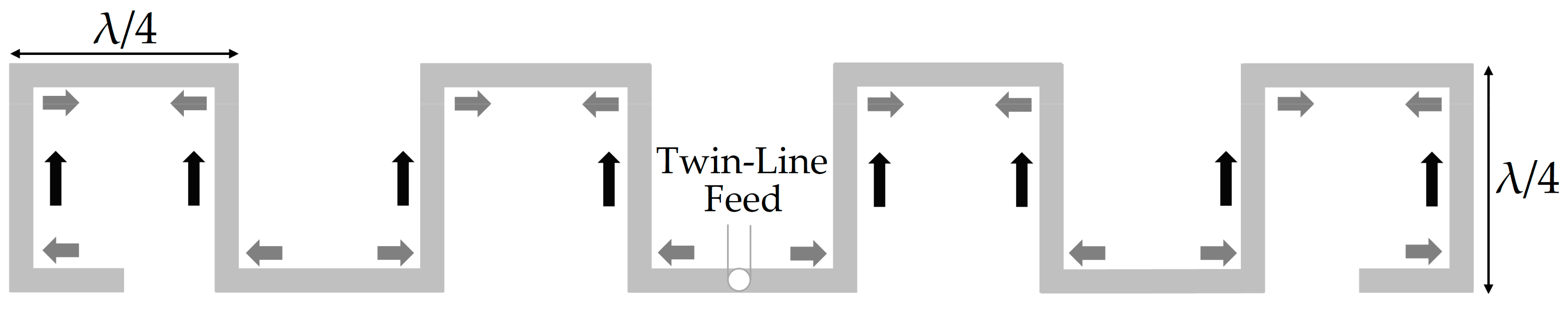

Figure 1. A typical twin-line fed 8-element wire Bruce array antenna (BAA).
Figure 1. A typical twin-line fed 8-element wire Bruce array antenna (BAA).
Sensors 20 06796 g001

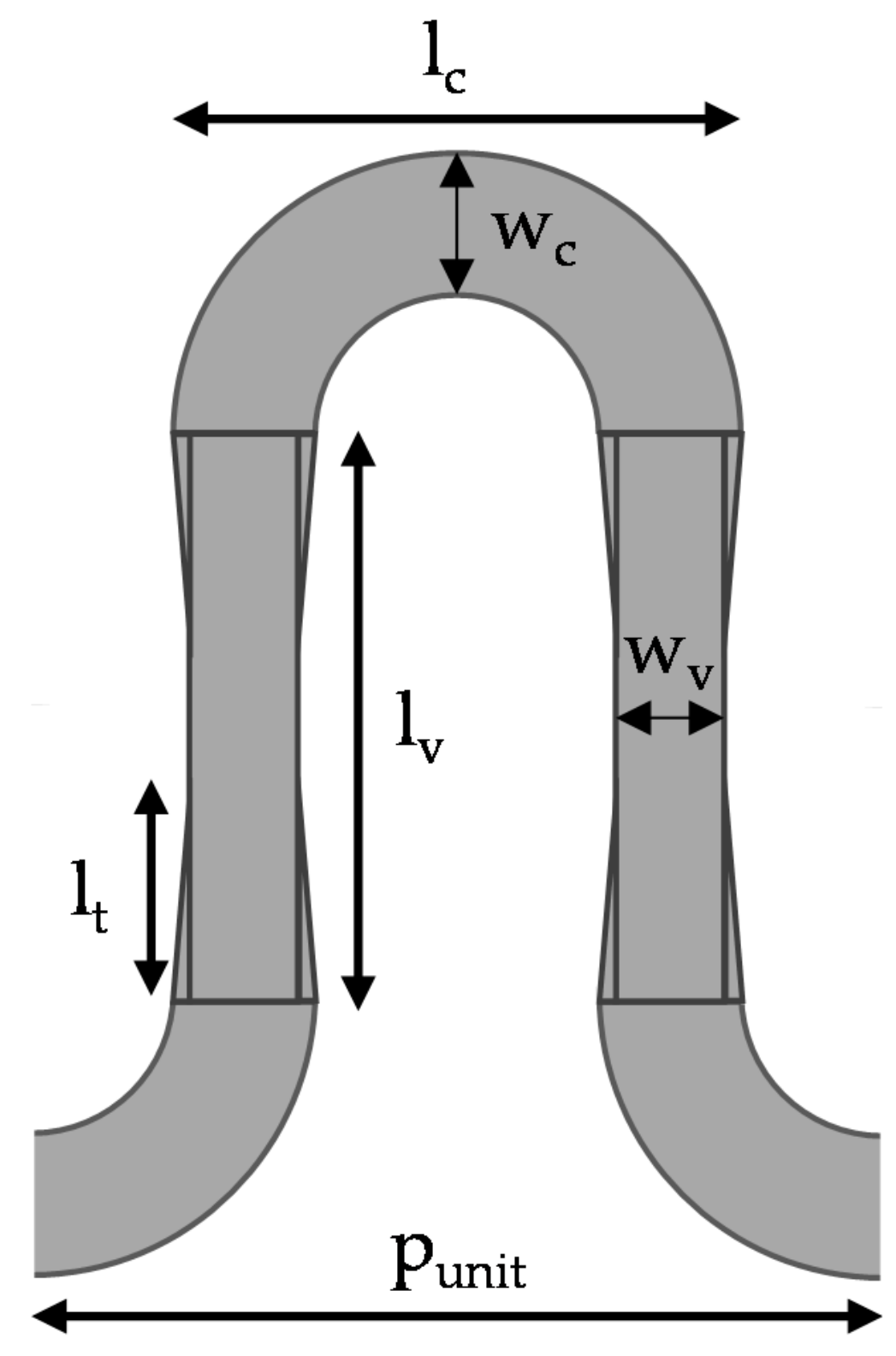

Figure 2. Geometry of the modified BAA unit-cell with vertical bowtie and horizontal semi-circular segments printed on a 0.254 mm thick grounded Arlon DiClad 880.
Figure 2. Geometry of the modified BAA unit-cell with vertical bowtie and horizontal semi-circular segments printed on a 0.254 mm thick grounded Arlon DiClad 880.
Sensors 20 06796 g002

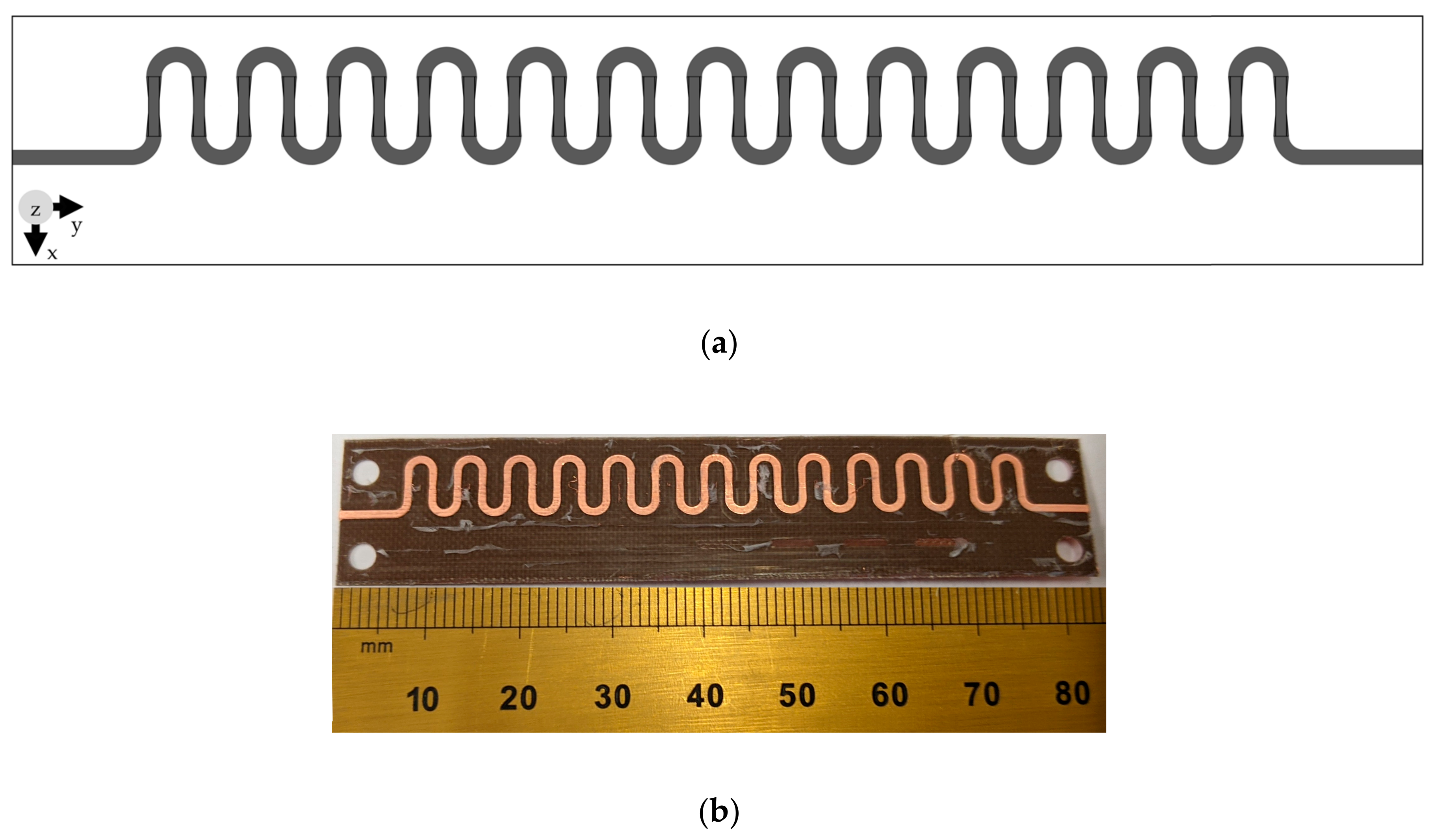

Figure 3. Top view of the proposed periodic 13 unit-cell antenna fabricated on 0.254 mm thick grounded Arlon DiClad 880 substrate. (a) Geometry. (b) Prototype.
Figure 3. Top view of the proposed periodic 13 unit-cell antenna fabricated on 0.254 mm thick grounded Arlon DiClad 880 substrate. (a) Geometry. (b) Prototype.
Sensors 20 06796 g003

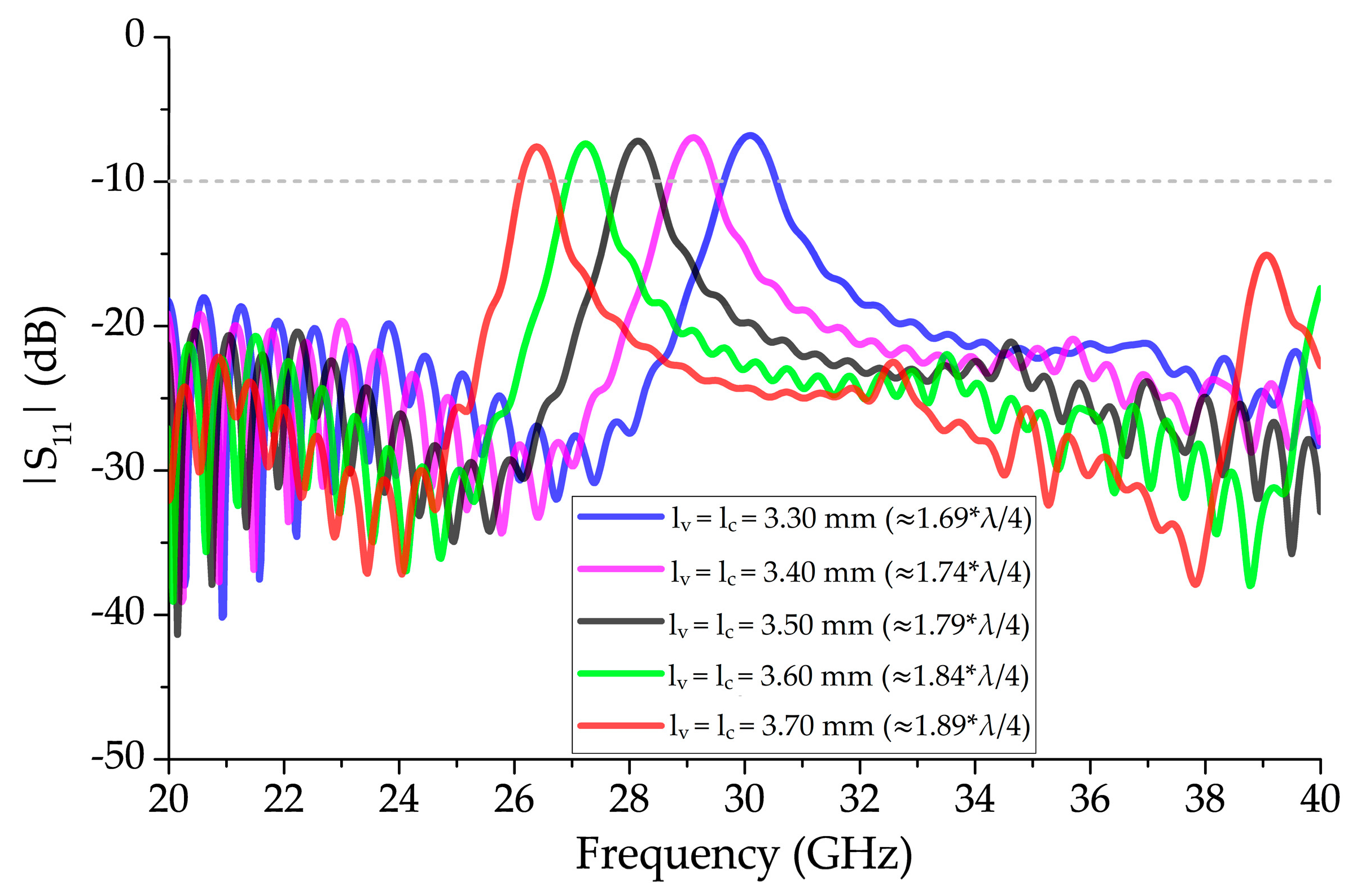

Figure 4. Effect of varying length, lv, and diameter, lc, simultaneously for a 13 unit-cell element periodic structure with wv = 0.76 mm unit-cell segments on |S11|.
Figure 4. Effect of varying length, lv, and diameter, lc, simultaneously for a 13 unit-cell element periodic structure with wv = 0.76 mm unit-cell segments on |S11|.
Sensors 20 06796 g004

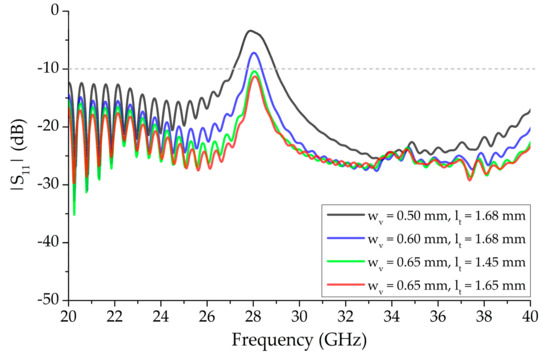

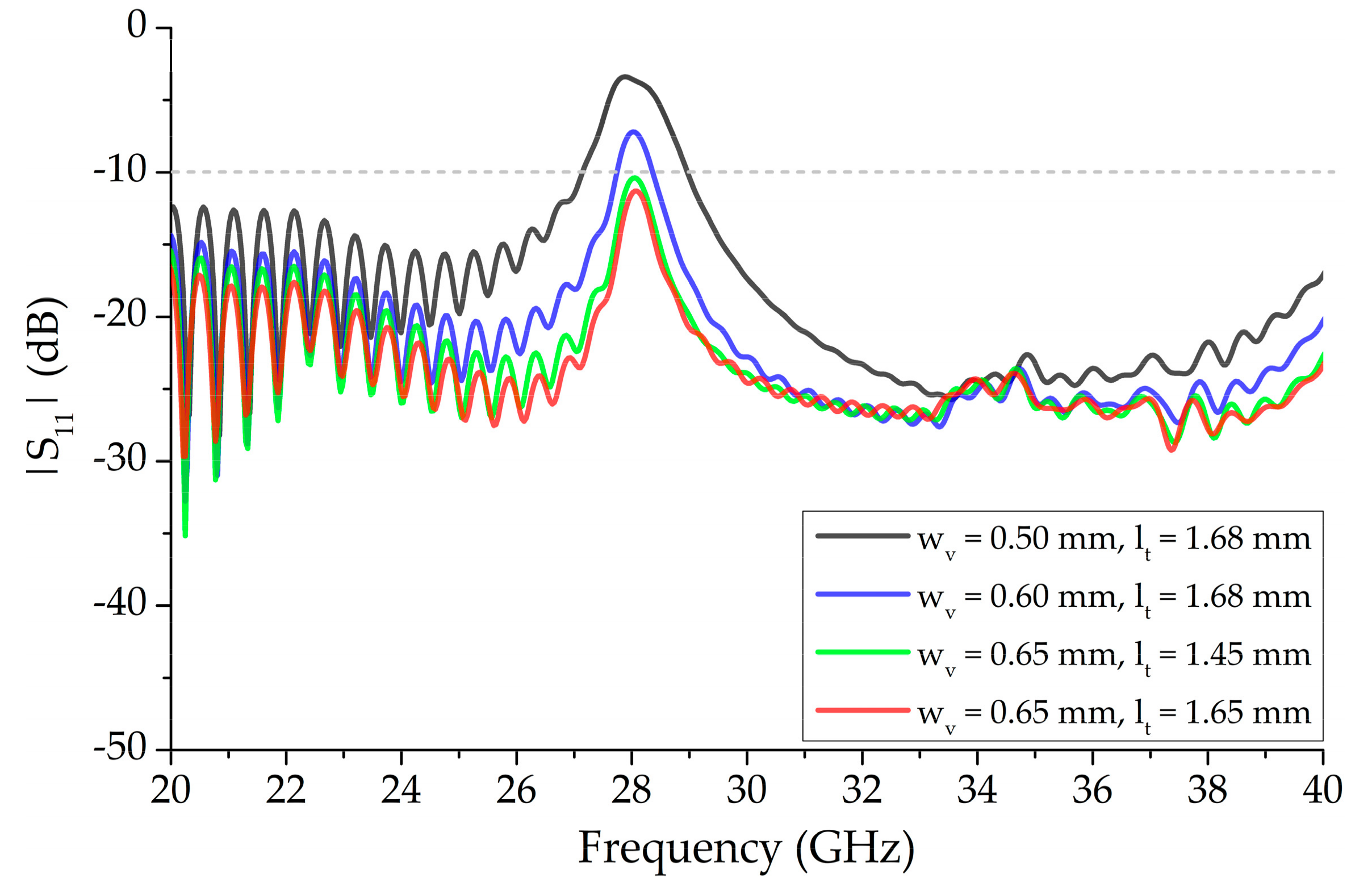

Figure 5. Effect of varying vertical bowtie segment parameters, wv and lt, of 13 unit-cell element periodic structure independently on |S11| while the other parameters remain the same as Table 1.
Figure 5. Effect of varying vertical bowtie segment parameters, wv and lt, of 13 unit-cell element periodic structure independently on |S11| while the other parameters remain the same as Table 1.
Sensors 20 06796 g005

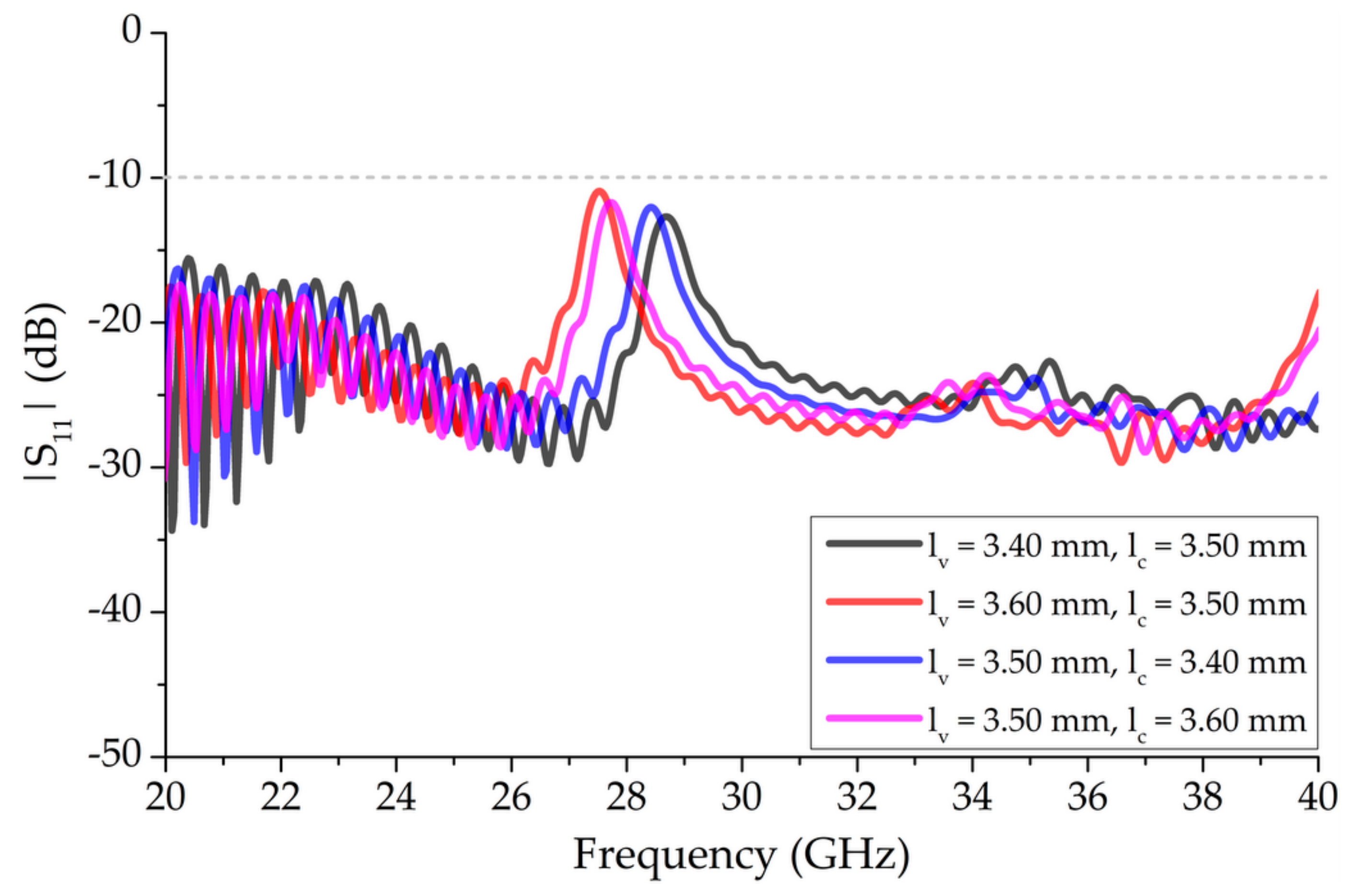

Figure 6. Effect of varying length, lv, and diameter, lc, independently of 13 unit-cell element periodic structure with fixed wv = 0.65 mm bowtie segments on |S11|.
Figure 6. Effect of varying length, lv, and diameter, lc, independently of 13 unit-cell element periodic structure with fixed wv = 0.65 mm bowtie segments on |S11|.
Sensors 20 06796 g006

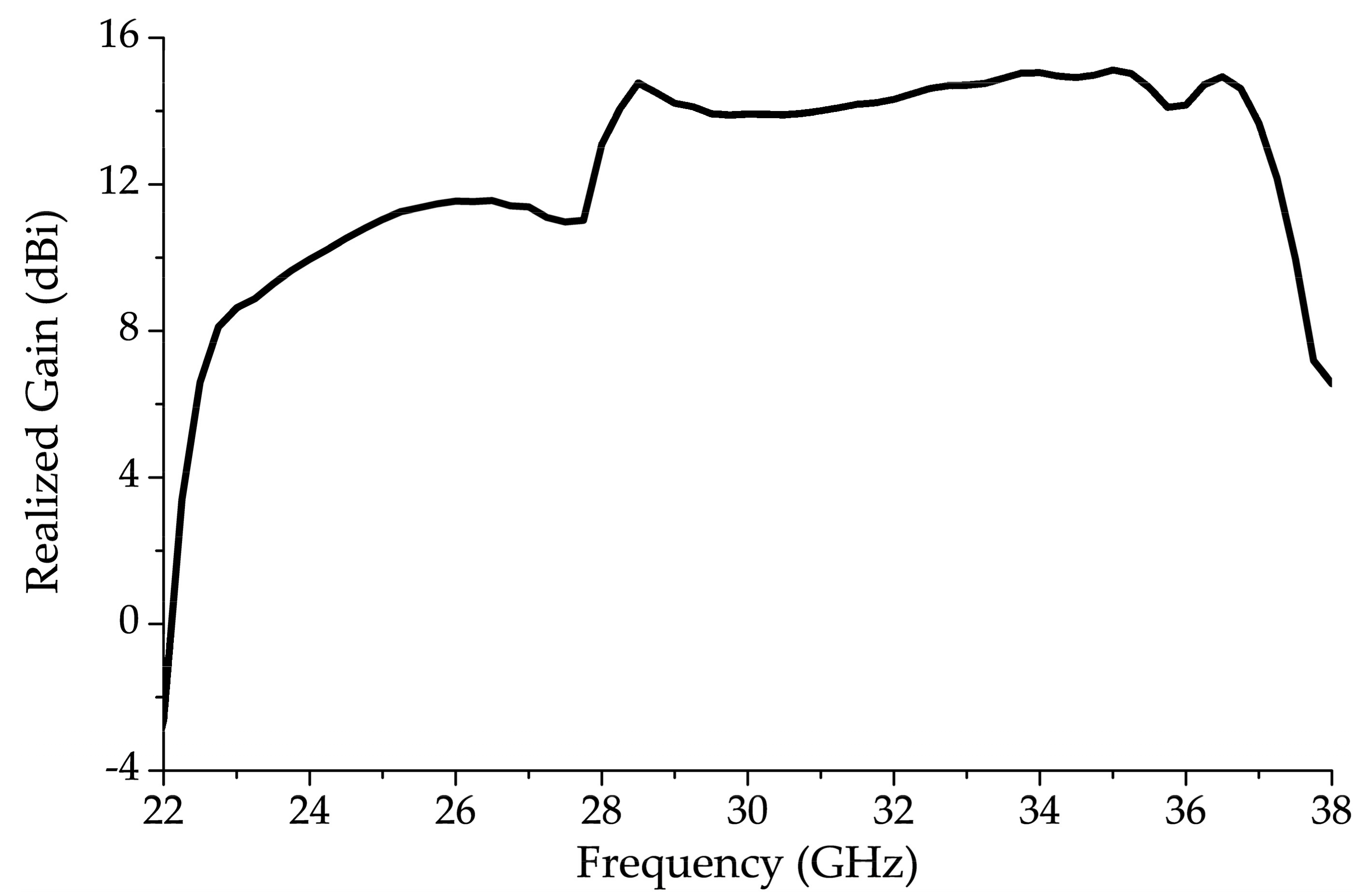

Figure 7. Realized gain of 1-D periodic BAA-LWA with lv = lc = 3.50 mm and wv = 0.76 mm unit-cell showing gain degradation around 28.0 GHz.
Figure 7. Realized gain of 1-D periodic BAA-LWA with lv = lc = 3.50 mm and wv = 0.76 mm unit-cell showing gain degradation around 28.0 GHz.
Sensors 20 06796 g007

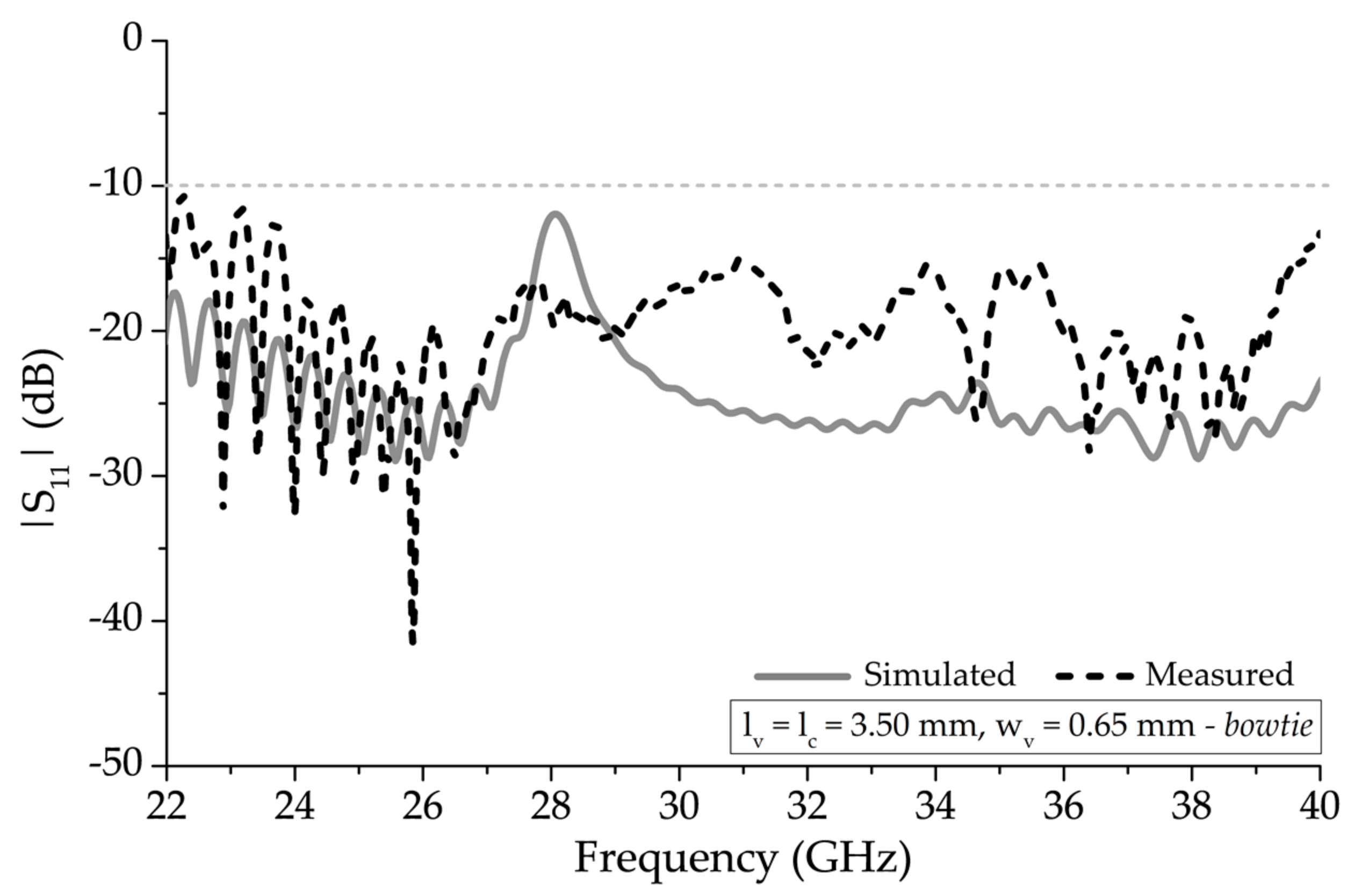

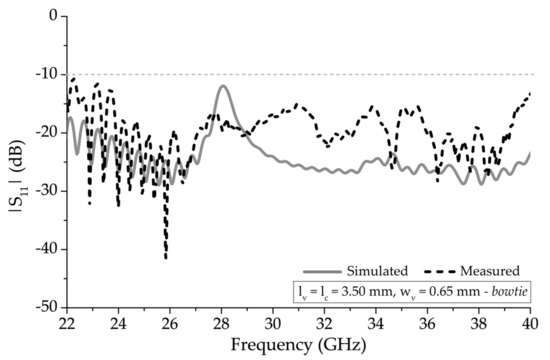

Figure 8. Simulated and measured |S11| of 13 unit-cell element periodic structure with bowtie vertical unit-cell segments.
Figure 8. Simulated and measured |S11| of 13 unit-cell element periodic structure with bowtie vertical unit-cell segments.
Sensors 20 06796 g008

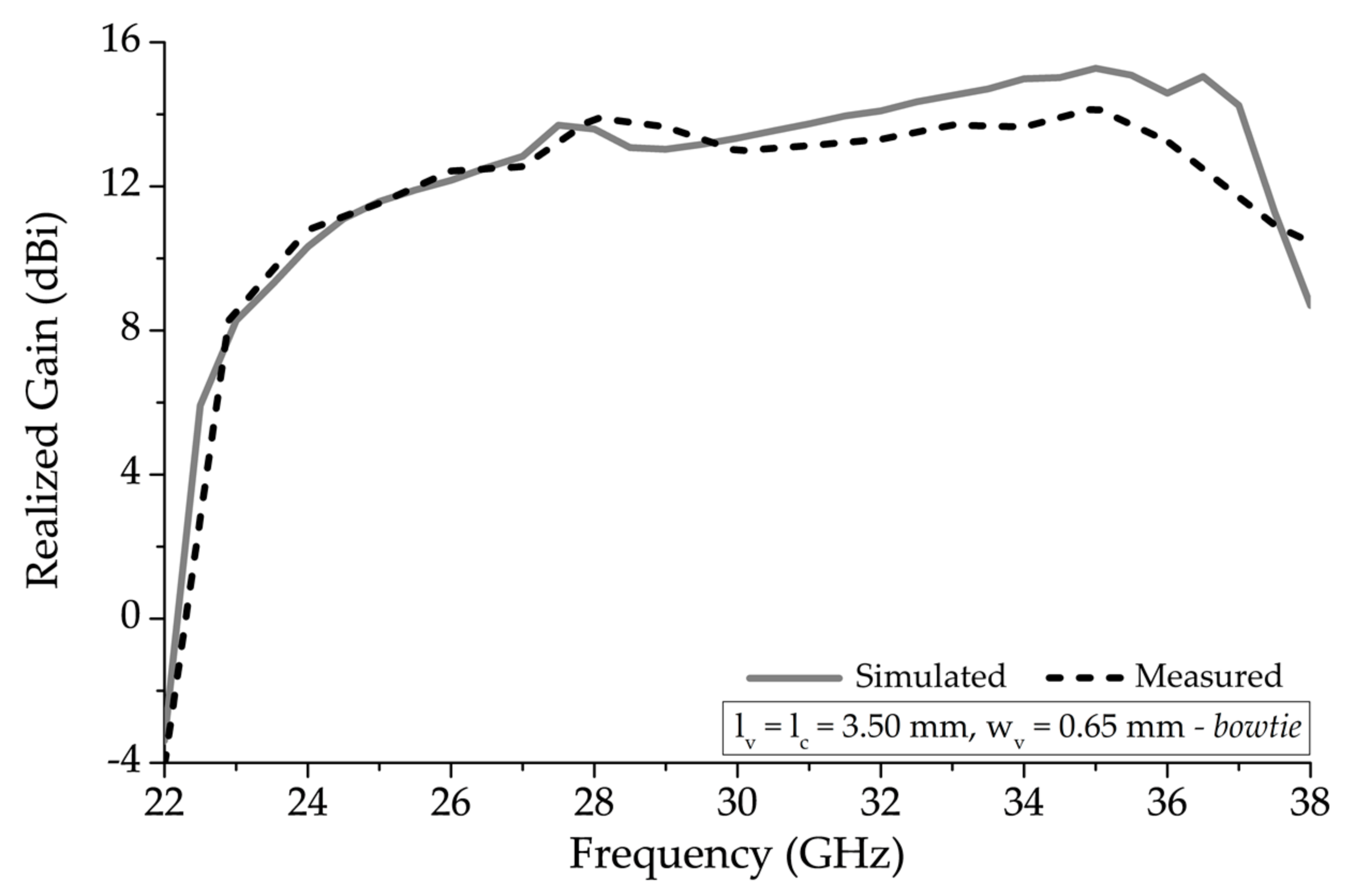

Figure 9. Simulated and measured realized gain comparison of a 13 unit-cell element periodic structure with wv = 0.76 mm and a modified bowtie vertical unit-cell segments.
Figure 9. Simulated and measured realized gain comparison of a 13 unit-cell element periodic structure with wv = 0.76 mm and a modified bowtie vertical unit-cell segments.
Sensors 20 06796 g009

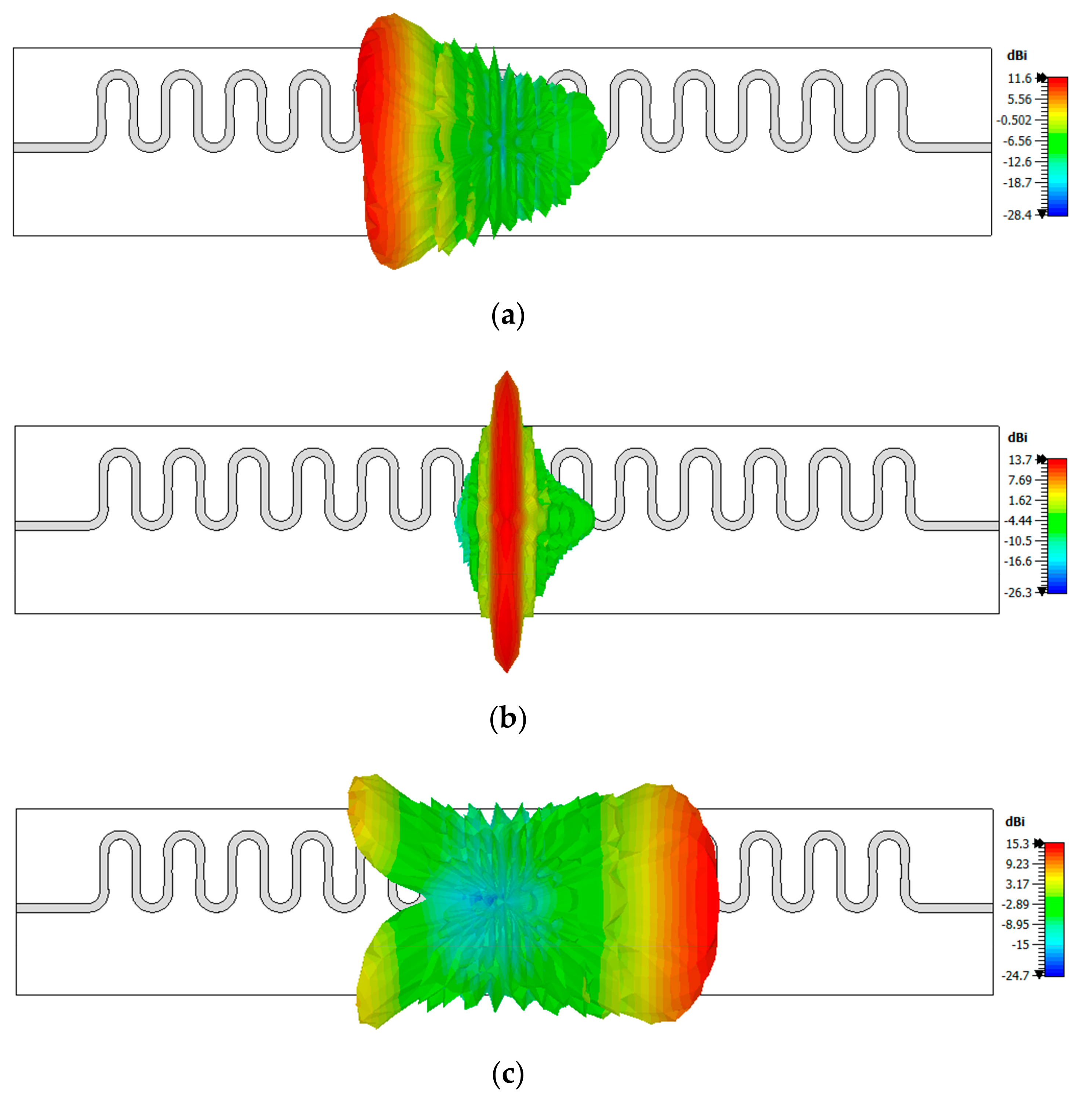

Figure 10. Three-dimensional radiation pattern visualizing scanning at (a) 24.0 GHz, (b) 28.0 GHz, and (c) 35.0 GHz.
Figure 10. Three-dimensional radiation pattern visualizing scanning at (a) 24.0 GHz, (b) 28.0 GHz, and (c) 35.0 GHz.
Sensors 20 06796 g010

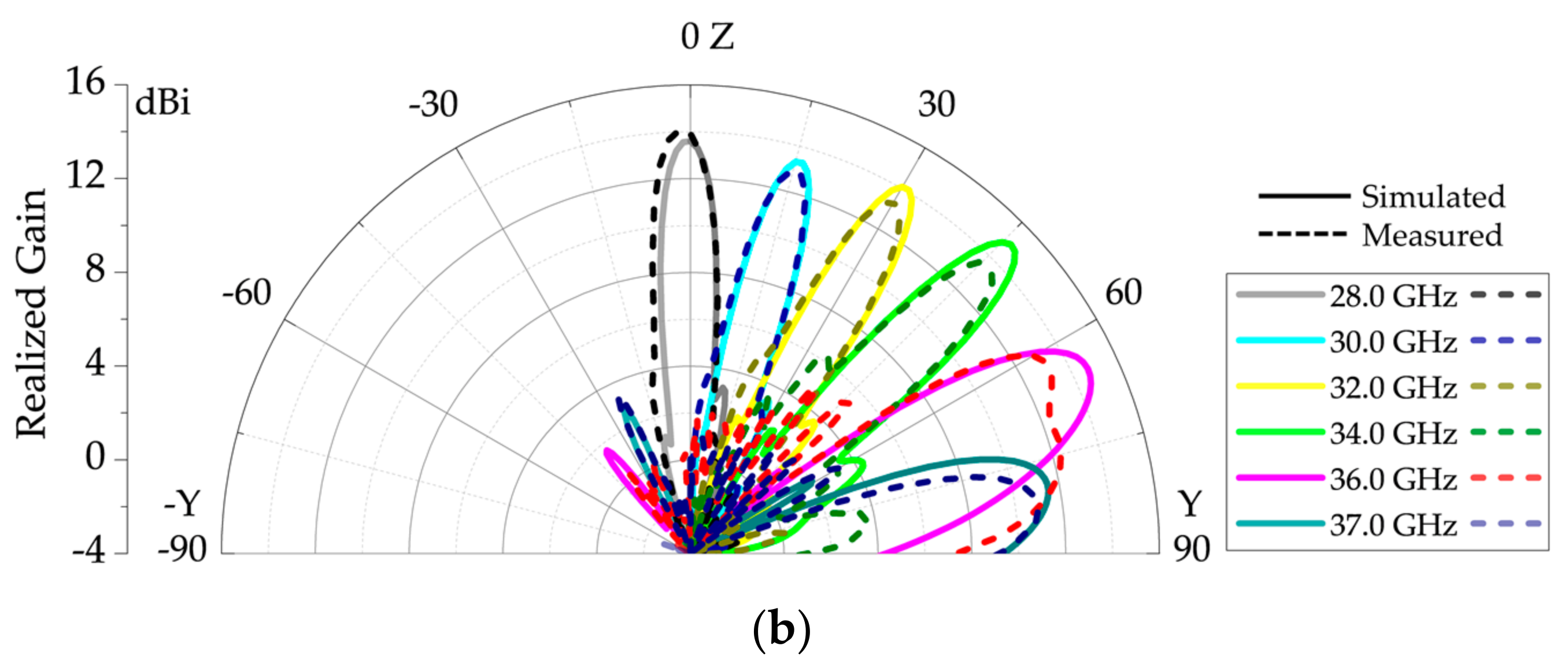

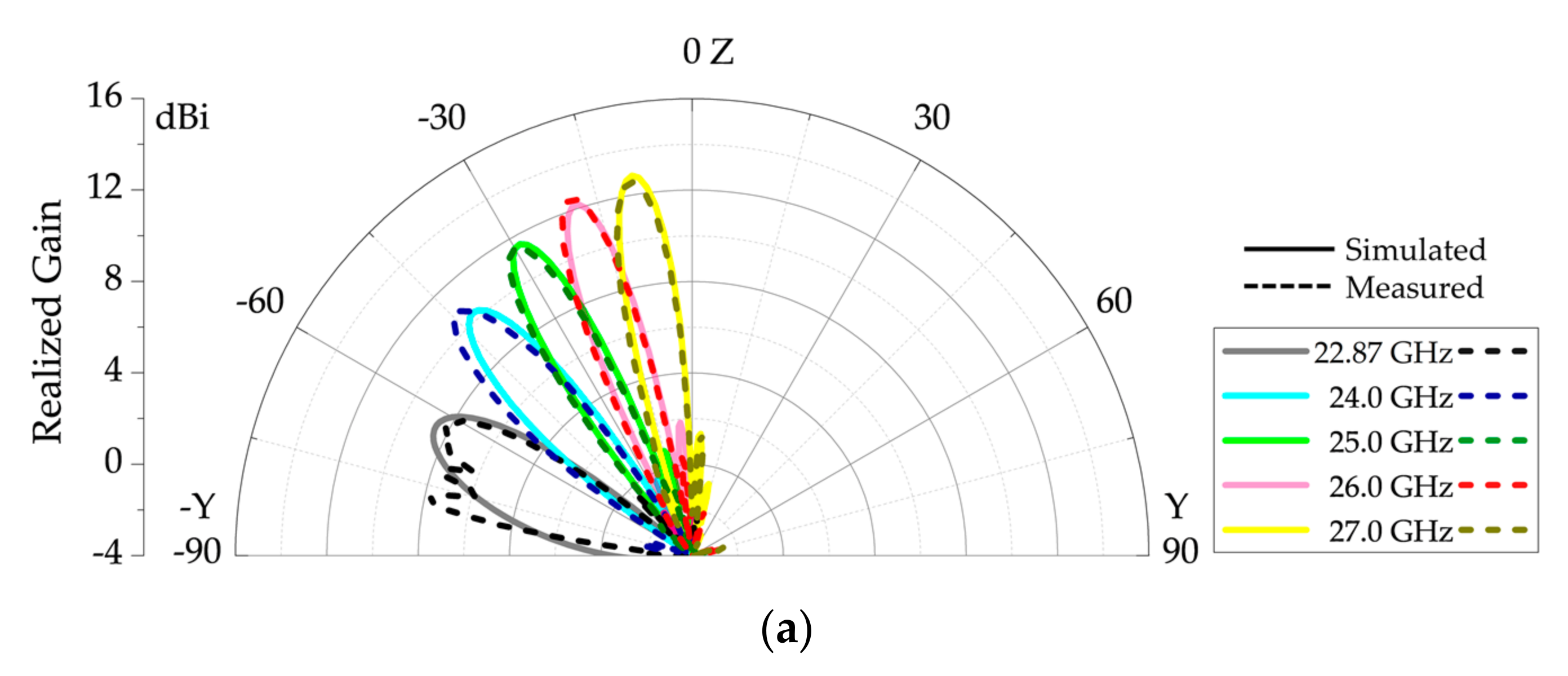

Figure 11. Scanning range of the proposed 1-D periodic modified BAA-LWA with bowtie and semi-circular unit-cell (a) backward quadrant and (b) forward quadrant.
Figure 11. Scanning range of the proposed 1-D periodic modified BAA-LWA with bowtie and semi-circular unit-cell (a) backward quadrant and (b) forward quadrant.
Sensors 20 06796 g011aSensors 20 06796 g011b

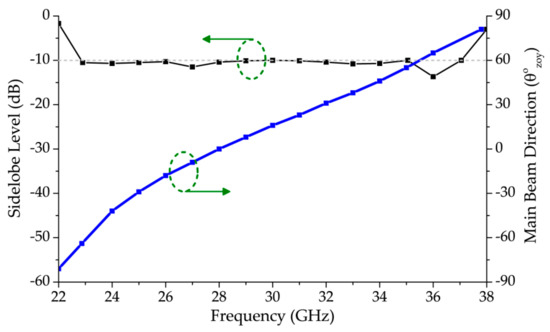

Figure 12. Sidelobe level and main beam direction in the yz-plane of the proposed LWA.
Figure 12. Sidelobe level and main beam direction in the yz-plane of the proposed LWA.
Sensors 20 06796 g012

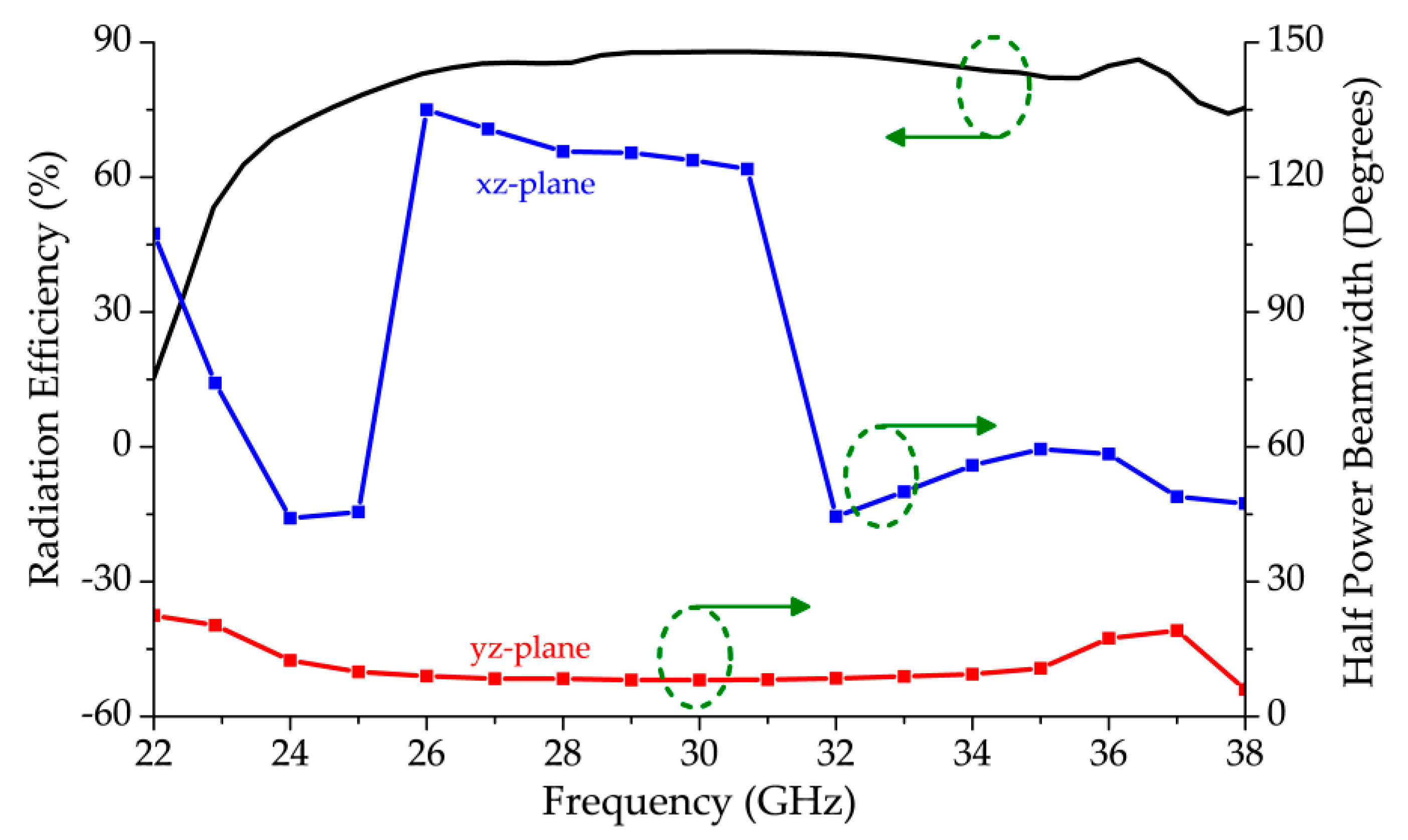

Figure 13. Radiation efficiency and half power beamwidth (HPBW) plots of the proposed LWA.
Figure 13. Radiation efficiency and half power beamwidth (HPBW) plots of the proposed LWA.
Sensors 20 06796 g013
Table 1. Table of parameters of unit-cell.
Table 1. Table of parameters of unit-cell.
ParameterSize (mm)
lc = lv 3.50
lt1.68
wc0.76
wv0.65
punit5.48
Table 2. Table of performance comparison between proposed LWA and LWAs in literature.
Table 2. Table of performance comparison between proposed LWA and LWAs in literature.
Ref.Antenna Type Total   Length   ( λ 0 ) Bandwidth (GHz)Scanning RangeRealized Gain (dBi)SLL Threshold (dB)
[6]Periodic dual BAA6.8018.0–38.63−38° to 54°10.60–16.4410
−32° to−5°16.20–18.61
[16]Periodic microstrip3.683.70–6.8055° to 63°10.0 (Peak)N/A
[20]Multilayered CRLH TL11.5820.0–30.0−25° to 50°10.0–14.0N/A
[27]Half-mode SIW≈9.3013.50–16.50−30° to 30°10.0 (Peak)–10
[34]Periodic CREN/A13.0–19.45−48° to 35°≈12.0–14.0N/A
[35]Periodic microstrip7.4820.0–29.0−50° to 45°12.20 (Peak)−13 (Broadside)
[36]Metasurface LWA15.8515.50–16.2047° to 7°15.10 (Peak)N/A
[37]* Periodic HW-MLWA3.994.40–8.80144° to 41°≈1.0–8.0N/A
[38]Periodic combline29.498.0–11.40−25° to 10°21.0 (Peak)−10
[39]WG-CTS15.0826.0–42.0−56° to 2°≈22.90–29.20−12.6
This
Work
Bowtie and semi-circular periodic BAA7.8022.87–37.0−64° to 76°8.57–15.30−10
CRE—complimentary radiation elements; TL—transmission line; HW-MLWA—half width microstrip LWA; WG—waveguide; CTS—continuous transverse stub; N/A—not available; * OSB from 5.30 GHz to 6.20 GHz.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ahmed, Z.; McEvoy, P.; Ammann, M.J. A Wide Frequency Scanning Printed Bruce Array Antenna with Bowtie and Semi-Circular Elements. Sensors 2020, 20, 6796. https://doi.org/10.3390/s20236796

AMA Style

Ahmed Z, McEvoy P, Ammann MJ. A Wide Frequency Scanning Printed Bruce Array Antenna with Bowtie and Semi-Circular Elements. Sensors. 2020; 20(23):6796. https://doi.org/10.3390/s20236796

Chicago/Turabian Style

Ahmed, Zeeshan, Patrick McEvoy, and Max J. Ammann. 2020. "A Wide Frequency Scanning Printed Bruce Array Antenna with Bowtie and Semi-Circular Elements" Sensors 20, no. 23: 6796. https://doi.org/10.3390/s20236796

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
