On Vulnerability of Selected IoT Systems to Radio Jamming—A Proposal of Deployment Practices
Abstract
:1. Introduction
2. The Paper Organization
3. The Problem Statement
4. Related Works
5. Presentation of the Selected IoT Systems: The Weightless and the Sigfox

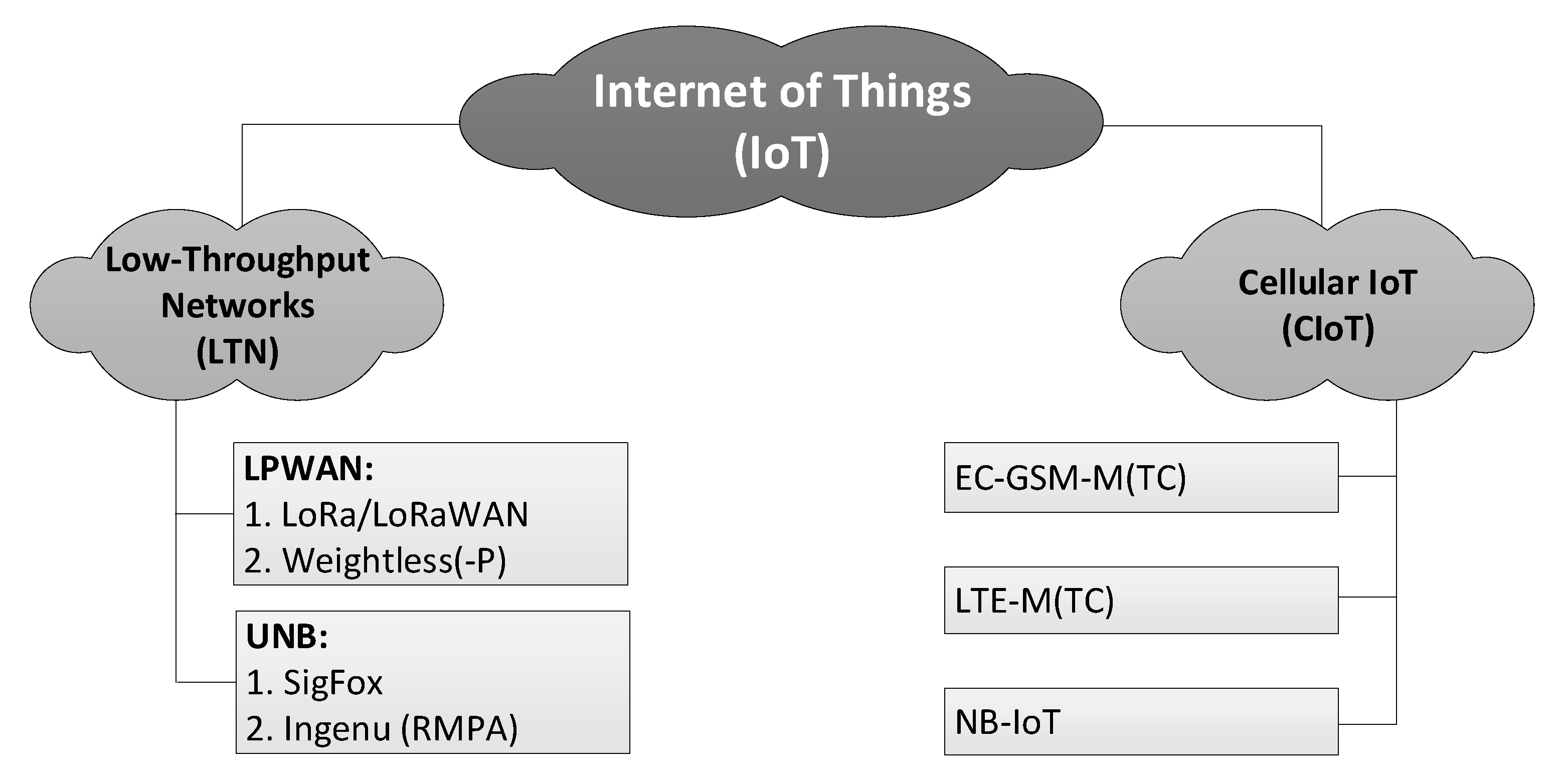

5.1. Systematics of IoT Systems
5.2. Weightless
- ‘M’ sub-band: 868–868.60 MHz, ERP = 25 mW, DC ≤ 1%;
- ‘P’ sub-band: 869.40–869.65 MHz, ERP = 500 mW, DC ≤ 10%.
5.3. SigFox

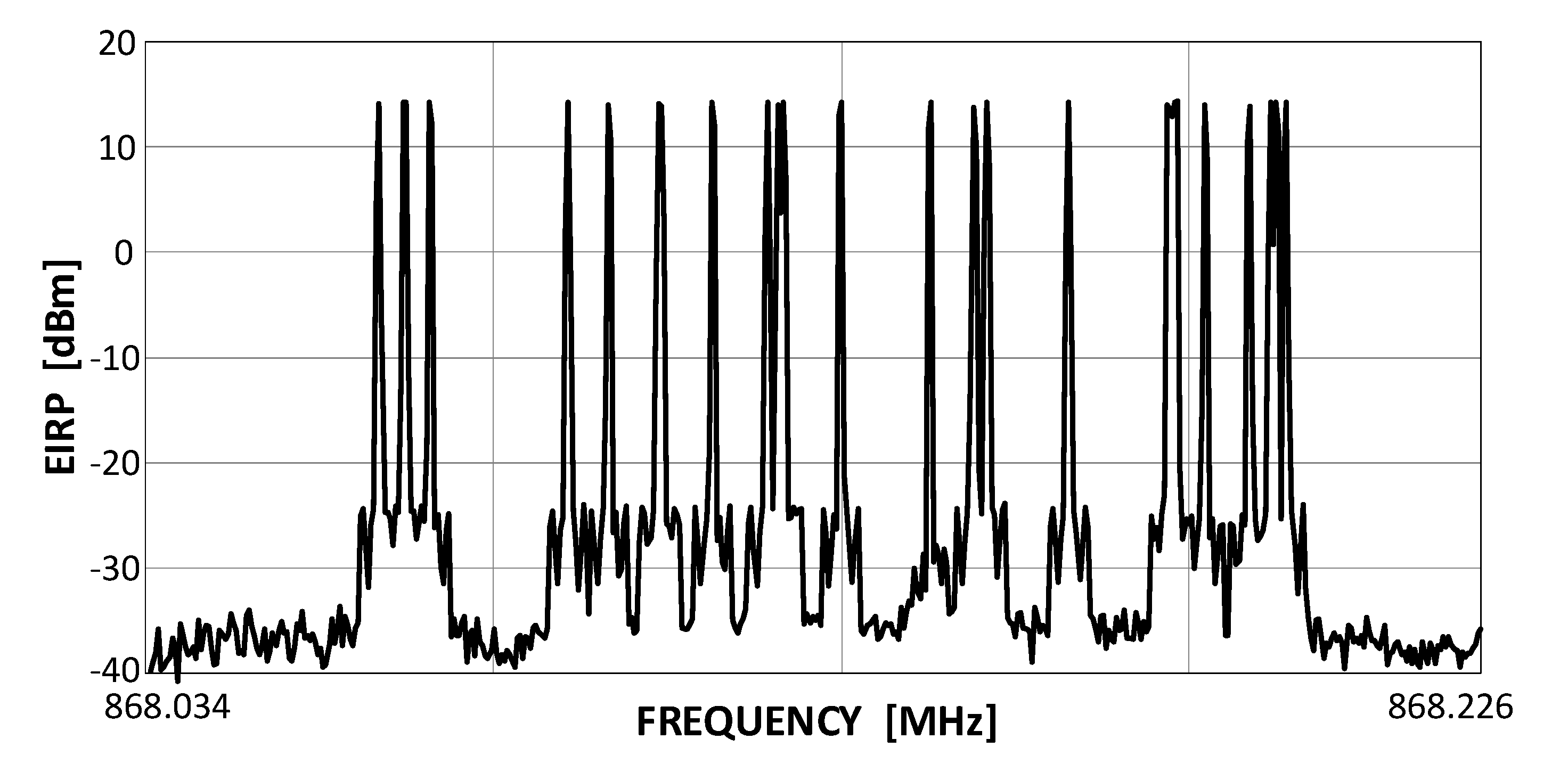

- the frequency range 868.034 MHz–868.226 (yielding 192 kHz of the total band);
- uplink (UL) bandwidth, BW: 100 Hz;
- downlink (DL) bandwidth, BW: 600 Hz;
- network topology: star;
- maximum EIRP: 14 dBm (25 mW);
- modulations: Differential Binary Phase Shift Keying (DBPSK) in UL, GFSK in DL;
- maximum transmission rate Rb in UL: 100 b/s;
- maximum transmission rate Rb in DL: 600 b/s;
- sensitivity Pmin equal to −144 dBm in UL and −134 dBm in DL (assuming the Signal-to-Noise Ratio, SNR =7 dB, Gp = 4.8 dB and a noise factor (NF) equal to 5 dB and 3 dB in DL and UL, respectively).

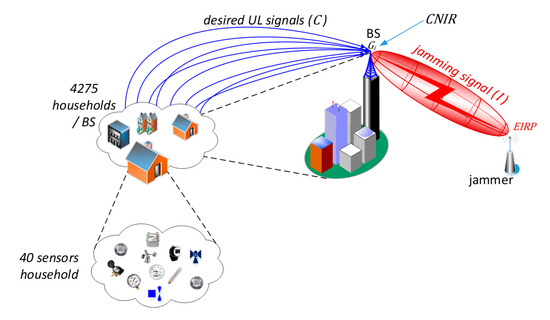

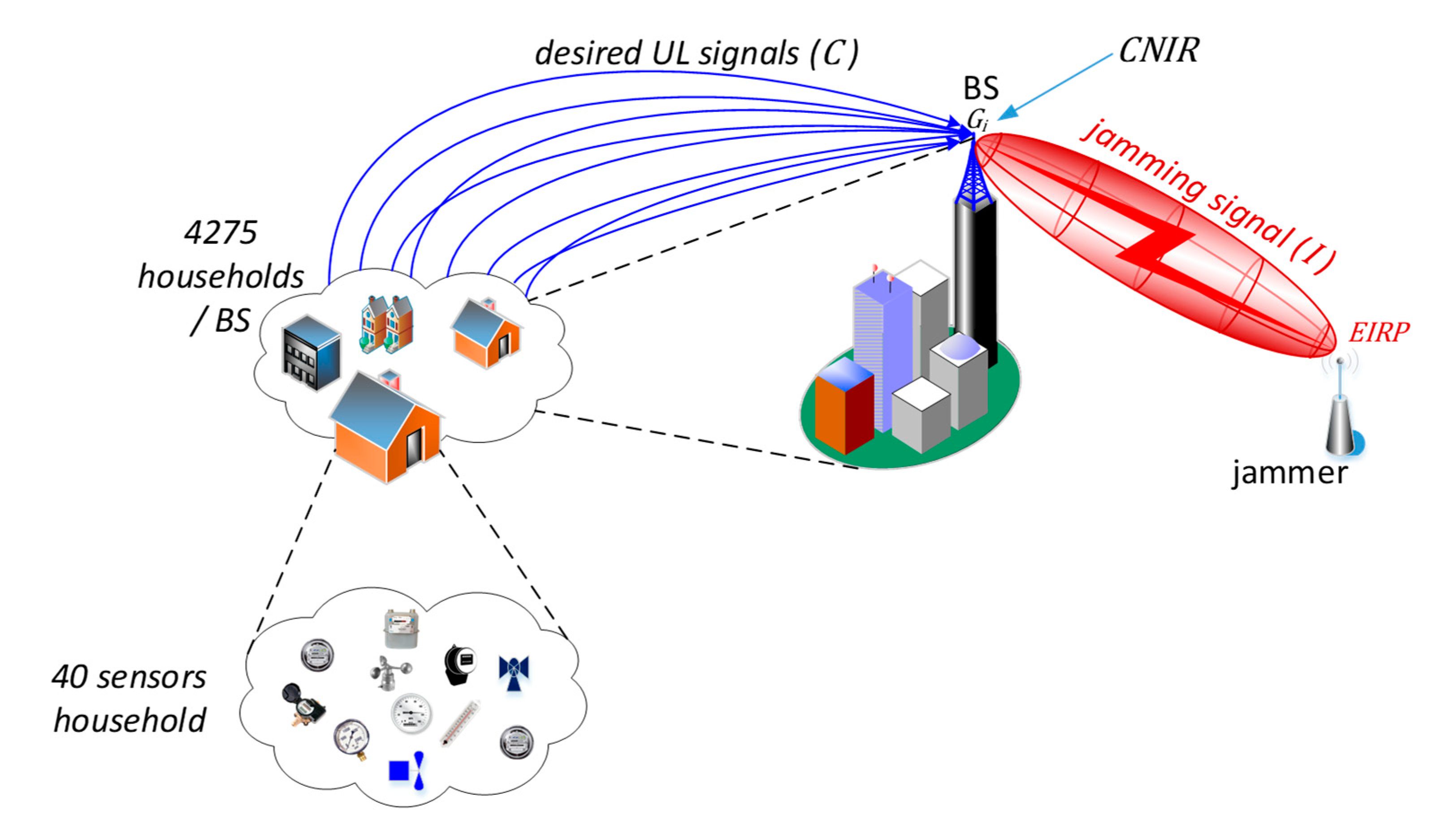

6. The Measurement of the Weightless and Sigfox Susceptibility to Interference

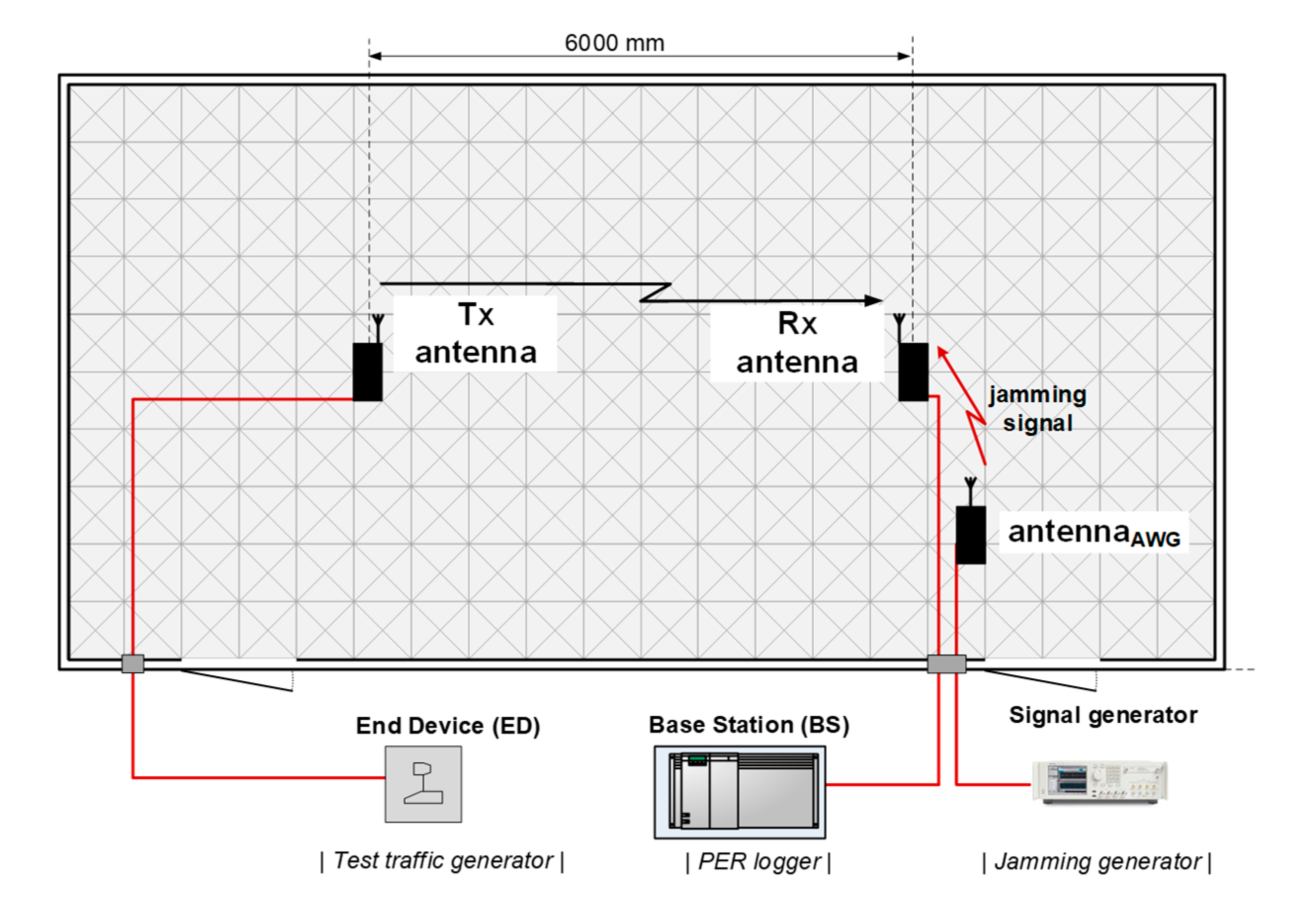

6.1. The Measurement Set-Up

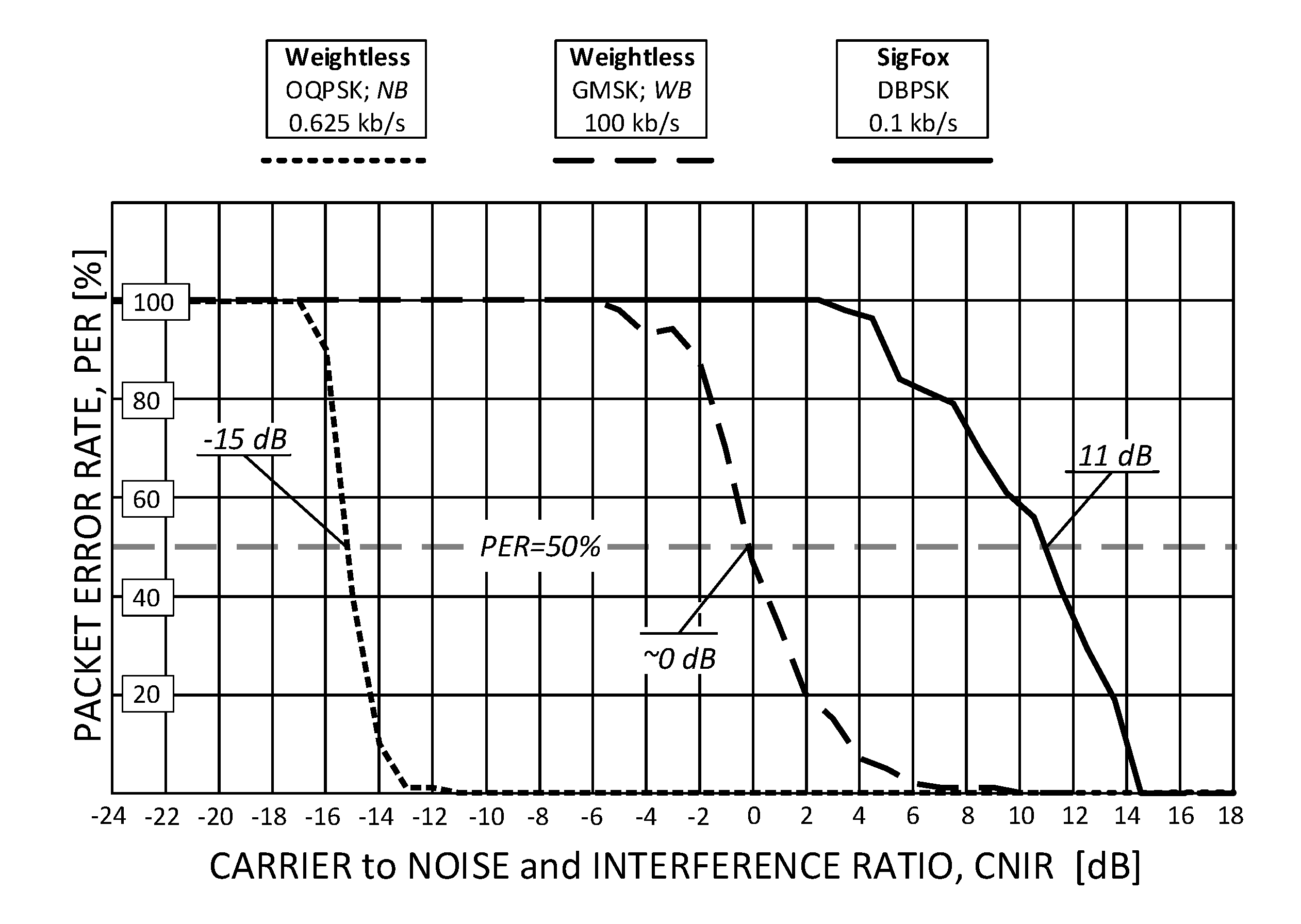

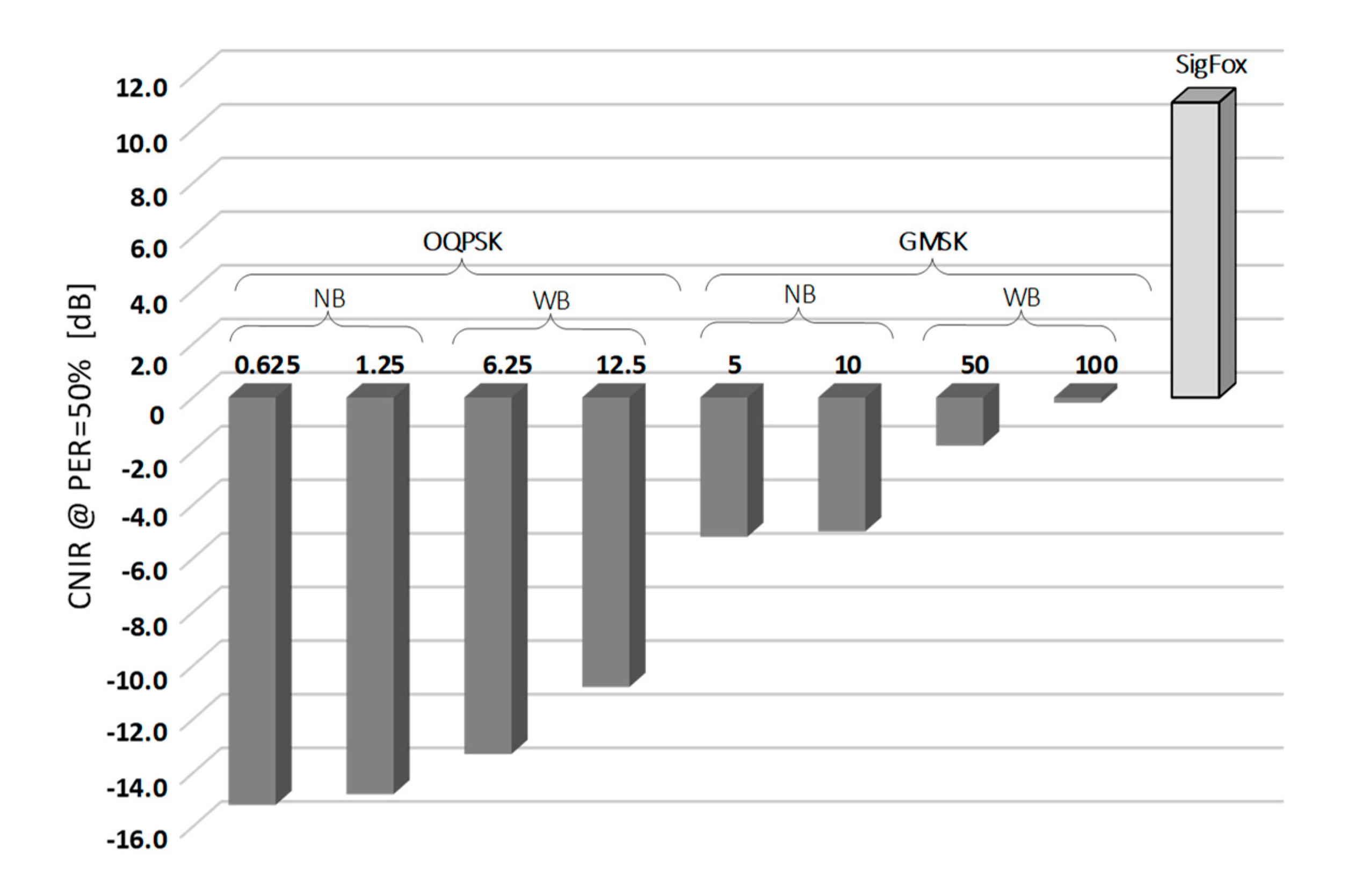

6.2. Discussion of Results

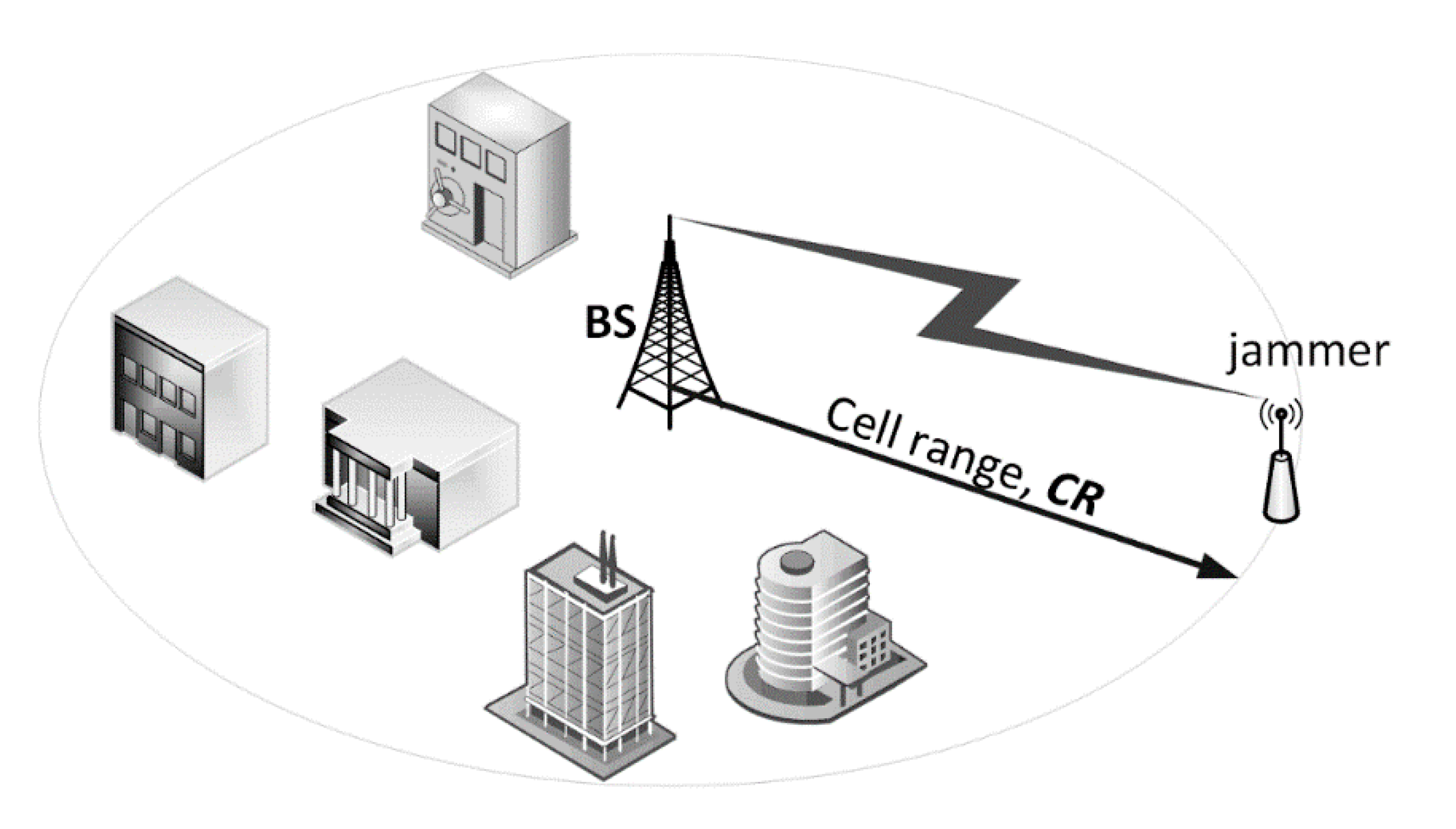

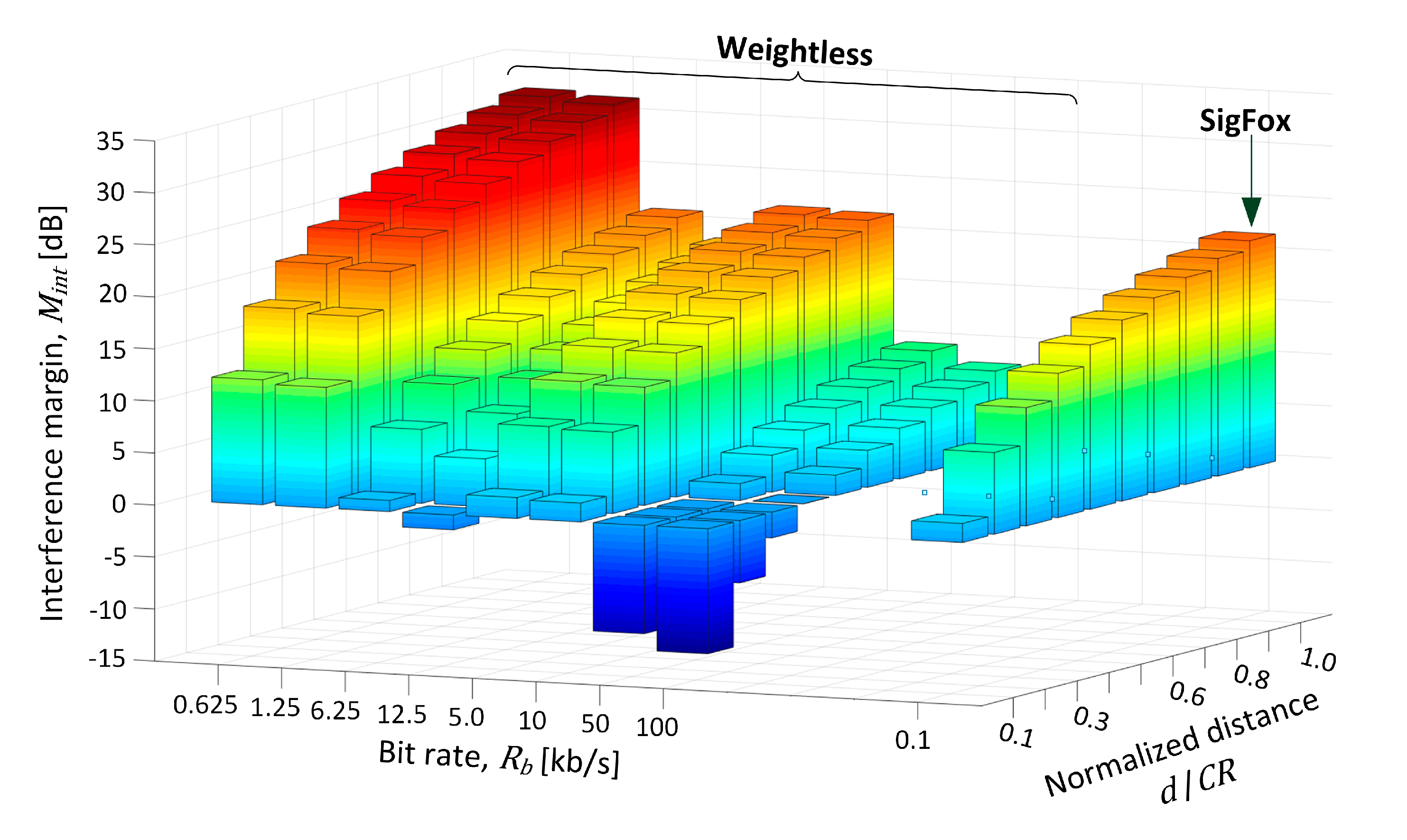

7. Calculations of the Interference Margin Based on CNIR (PER) Measurements
8. Conclusions
8.1. Practical Recommendations
- the “slowest” Weightless modes that use OQPSK modulation, particularly narrowband (0.625/1.25 kb/s) are at the same time the most robust in terms of resistance to jamming. Thus, these two data rate settings can be recommended for use in networks for their immunity to “legal-jamming”, as one particularly problematic to detect since the jammer’s signal does not exceed lawful limits, which makes it practically untraceable, as opposed to strong jammers;
- on the far end of immunity lie the two fastest Weightless modes, i.e., 50/100 kb/s, experiencing disruption in communication, expressed by negative Mint, with the jammer placed at the at distances between 0.1 and 0.3 d/CR with respect to BS;
- in SigFox there exists a sufficient safety margin for jamming even at proximity between the jammer and the BS, which leaves some space for additional attenuation, e.g., due to vegetation or buildings;
- the idea of low throughput has proved correct for use in the Internet of Things systems. Not only because it provides low receiver noise (due to narrow channels, here: 12.5 kHz in Weightless, and 100 Hz in SigFox) but also due to increased immunity to EM cyberattacks. Their appearance is recognized to be a growing threat as the massive machine-type traffic becomes more and more prevalent in the years to come and as it conveys increasingly more crucial data concerning our living environment.
8.2. Further Research
Author Contributions
Funding
Conflicts of Interest
References
- European Telecommunications Standards Institute. Machine-To-Machine Communications (M2M); Smart Metering Use Cases; ETSI TR 102 691 V1.1.1; European Telecommunications Standards Institute: Valbonne, France, 2019. [Google Scholar]
- Cellular System Support for Ultra Low Complexity and Low Throughput Internet of Things; The 3rd Generation Partnership Project; 3GPP, TR 45.820 V2.1.0; 3GPP Organizational Partners: Valbonne, France, 2015.
- Staniec, K. Radio Interfaces in the Internet of Things Systems. Performance Studies; Springer International Publishing: Berlin/Heidelberg, Germany, 2020. [Google Scholar] [CrossRef]
- Namvar, N.; Saad, W.; Bahadori, N.; Kelley, B. Jamming in the Internet of Things: A Game-Theoretic Perspective. In Proceedings of the IEEE Global Communications Conference (GLOBECOM), Washington, DC, USA, 4–8 December 2016. [Google Scholar]
- Hoang, D.T.; Nguyen, D.N.; Alsheikh, M.A.; Gong, S.; Dutkiewicz, E.; Niyato, D.; Han, Z. Borrowing Arrows with Thatched Boats: The Art of Defeating Reactive Jammers in IoT Networks. IEEE Wirel. Commun. 2020, 27, 79–87. [Google Scholar] [CrossRef]
- Gouissem., A.; Abualsaud, K.; Yaacoub, E.; Khattab, T.; Guizani, M. IoT Anti-Jamming Strategy Using Game Theory and Neural Network. In Proceedings of the International Wireless Communications and Mobile Computing (IWCMC), Limassol, Cyprus, 15–19 June 2020. [Google Scholar]
- Wang, Q.; Xu, P.; Ren, K.; Li, X.-Y. Towards optimal adaptive UFH-based anti-jamming wireless communication. IEEE J. Sel. Areas Commun. 2012, 30, 16–30. [Google Scholar] [CrossRef]
- Hanawal, M.K.; Abdel-Rahman, M.J.; Krunz, M. Joint adaptation of frequency hopping and transmission rate for anti-jamming wireless systems. IEEE Trans. Mobile Comput. 2016, 15, 2247–2259. [Google Scholar] [CrossRef]
- Atya, A.O.F.; Aqil, A.; Singh, S.; Broustis, I.; Sundaresan, K.; Krishnamurthy, S.V. Exploiting subcarrier agility to alleviate active jamming attacks in wireless networks. IEEE Trans. Mobile Comput. 2015, 14, 2488–2501. [Google Scholar] [CrossRef]
- D’Oro, S.; Ekici, E.; Palazzo, S. Optimal power allocation and scheduling under jamming attacks. IEEE/ACM Trans. Netw. 2017, 25, 1310–1323. [Google Scholar] [CrossRef]
- Liu, V.; Parks, A.; Talla, V.; Gollakota, S.; Wetherall, D.; Smith, J.R. Ambient Backscatter: Wireless Communication Out of Thin Air. In Proceedings of the ACM SIGCOMM, Hong Kong, China, 12–16 August 2013. [Google Scholar]
- Kimionis, J.; Bletsas, A.; Sahalos, J.N. Increased Range Bistatic Scatter Radio. IEEE Trans. Commun. 2014, 62, 1091–1104. [Google Scholar] [CrossRef]
- Van-huynh, N.; Nguyen, D.N.; Hoang, D.T.; Dutkiewicz, E. Jam me if you can: Defeating jammer with deep dueling neural network architecture and ambient backscattering augmented communications. IEEE J. Sel. Areas Commun. 2019, 37, 2603–2620. [Google Scholar] [CrossRef] [Green Version]
- Van Huynh, N.; Nguyen, D.N.; Hoang, D.T.; Dutkiewicz, E.; Mueck, M.; Srikanteswara, S. Defeating Jamming Attacks with Ambient Backscatter Communications. In Proceedings of the International Conference on Computing, Networking and Communications (ICNC), Big Island, HI, USA, 17–20 February 2020. [Google Scholar]
- Ikpehai, A.; Adebisi, B.; Rabie, K.M.; Anoh, K.; Ande, R.E.; Hammoudeh, M.; Gacanin, H.; Mbanaso, M.U. Low-Power Wide Area Network Technologies for Internet-of-Things: A Comparative Review. IEEE Internet Things J. 2019, 6, 2225–2240. [Google Scholar] [CrossRef] [Green Version]
- Xu, J.; Yao, J.; Wang, L.; Ming, Z.; Wu, K.; Chen, L. Narrowband Internet of Things: Evolutions. Technologies, and Open Issues. IEEE Internet Things J. 2018, 5, 1449–1462. [Google Scholar] [CrossRef]
- Li, Y.; Cheng, X.; Cao, Y.; Wang, D.; Yang, L. Smart Choice for the Smart Grid: Narrowband Internet of Things (NB-IoT). IEEE Internet Things J. 2017, 5, 1505–1515. [Google Scholar] [CrossRef]
- European Telecommunications Standards Institute. Low Throughput Networks (LTN); Protocols and Interfaces; ETSI GS LTN 003 V1.1.1; European Telecommunications Standards Institute: Valbonne, France, 2014. [Google Scholar]
- European Telecommunications Standards Institute. Low Throughput Networks (LTN); Use Cases for Low Throughput Networks; ETSI GS LTN 001 V1.1.1; European Telecommunications Standards Institute: Valbonne, France, 2014. [Google Scholar]
- European Telecommunications Standards Institute. Low Throughput Networks (LTN); Functional Architecture; ETSI GS LTN 002 V1.1.1; European Telecommunications Standards Institute: Valbonne, France, 2014. [Google Scholar]
- European Telecommunications Standards Institute. System Reference Document (SRdoc); Short Range Devices (SRD); Technical Characteristics for Ultra Narrow Band (UNB) SRDs Operating in the UHF Spectrum below 1 GHz; ETSI TR 103 435 V1.1.1; European Telecommunications Standards Institute: Valbonne, France, 2017. [Google Scholar]
- Sornin, N.; Luis, M.; Eirich, T.; Kramp, T.; Hersent, O. LoRaWAN Specification, version: V1.0.2; Lora Alliance: San Ramon, CA, USA, 2016. [Google Scholar]
- Semtech. LoRa Modulation Basics. Application Note AN1200.22. 2015. Available online: https://www.semtech.com/uploads/documents/an1200.22.pdf (accessed on 28 October 2020).
- Staniec, K.; Kowal, M. LoRa Performance under Variable Interference and Heavy-Multipath Conditions. Wirel. Commun. Mob. Comput. 2018, 2018, 1–9. [Google Scholar] [CrossRef]
- Weightless, System Specification; Version 1.03; Weightless SIG: Cambridge, UK, 2017.
- Electronic Communications Committee. The European table of frequency allocations and applications in the frequency range 8.3 kHz to 3000 GHz (ECA Table). In Proceedings of European Conference of Postal and Telecommunications Administrations; Electronic Communications Committee: Copenhagen, Denmark, 2013. [Google Scholar]
- Available online: https://www.sigfox.com/en (accessed on 28 October 2020).
- SigFox. SigFox Technical Overview. 2017. Available online: https://www.disk91.com/wp-content/uploads/2017/05/4967675830228422064.pdf (accessed on 28 October 2020).
- Staniec, K.; Jóskiewicz, Z.; Janukiewicz, J.; Więckowski, T. Review of applications of the laboratory for electromagnetic compatibility infrastructure. Int. J. Electron. Telecommun. 2020, 66, 107–123. [Google Scholar]
- Pomianek, A.; Staniec, K.; Jóskiewicz, Z. Practical remarks on measurement and simulation methods to emulate the wireless channel in the reverberation chamber. Prog. Electromagn. Res. 2010, 105, 49–69. [Google Scholar] [CrossRef] [Green Version]
- Staniec, K. Evaluation of the Zigbee Transmission Repetition Mechanism in the Variably-Loaded Reverberation Chamber. Prog. Electromagn. Res. 2012, 132, 297–314. [Google Scholar] [CrossRef] [Green Version]
- International Telecommunication Union. The Concept of Transmission Loss for Radio Links; P Series, Radiowave Propagation, ITU-R. P.341-7 (08/2019); International Telecommunication Union: Geneva, France, 2019. [Google Scholar]
- Technical Specification Group Radio Access Network; Evolved Universal Terrestrial Radio Access (E-UTRA); Base Station (BS) radio transmission and reception (Release 16); The 3rd Generation Partnership Project; 3GPP, TS 36.104 V16.5.0; 3GPP Organizational Partners: Valbonne, France, 2020.
Channel Bandwidth BW | Modulation MOD | Coding Rate R | Spreading Factor, SF | Data Rate [kb/s] Rb |
---|---|---|---|---|
12.5 kHz (narrowband, NB) | OQPSK | 0.5 | 8 | 0.625 |
0.5 | 4 | 1.25 | ||
GMSK | 0.5 | 1 | 5 | |
1 | 1 | 10 | ||
100 kHz (wideband, WB) | OQPSK | 0.5 | 8 | 6.25 |
0.5 | 4 | 12.5 | ||
GMSK | 0.5 | 1 | 50 | |
1 | 1 | 100 |
A Set-up Element | Parameter | Value/Type |
---|---|---|
| An arbitrary signal generator Output power, Pgen
| Tektronix AWG 70002 14, 13, 12… −16 dBm
|
The measurement infrastructure | Localization | An anechoic chamber |
| EIRP Channel bandwidth, BW
| 14 dBm 12.5 kHz, 100 kHz
|
Data rate, Rb Spreading factor, SF Modulation, MOD
| 0.625 kb/s, 100 kb/s 8 and 1 OQPSK, GMSK
| |
SigFox | EIRP Channel bandwidth, BW Frequency band Data rate, Rb Modulation, MOD
| 14 dBm 100 Hz 868.034–868.226 MHz 100 b/s DBPSK
|
Weightless | SigFox | ||||||||
---|---|---|---|---|---|---|---|---|---|
OQPSK | GMSK | DBPSK | |||||||
NB | WB | NB | WB | ||||||
Data Rate Mode, Rb [kb/s] | |||||||||
0.625 | 1.25 | 6.25 | 12.5 | 5 | 10 | 50 | 100 | 0.1 | |
1.0 | 32.0 | 31.6 | 21.1 | 18.6 | 22.0 | 21.8 | 9.6 | 8.0 | 21.8 |
0.9 | 31.1 | 30.7 | 20.2 | 17.7 | 21.1 | 20.9 | 8.7 | 7.1 | 20.9 |
0.8 | 30.1 | 29.7 | 19.1 | 16.6 | 20.1 | 19.9 | 7.6 | 6.0 | 19.9 |
0.7 | 28.9 | 28.5 | 18.0 | 15.5 | 18.9 | 18.7 | 6.5 | 4.9 | 18.7 |
0.6 | 27.6 | 27.2 | 16.6 | 14.1 | 17.6 | 17.4 | 5.1 | 3.5 | 17.4 |
0.5 | 26.0 | 25.6 | 15.1 | 12.6 | 16.0 | 15.8 | 3.6 | 2.0 | 15.8 |
0.4 | 24.1 | 23.7 | 13.1 | 10.6 | 14.1 | 13.9 | 1.6 | 0.0 | 13.9 |
0.3 | 21.6 | 21.2 | 10.6 | 8.1 | 11.6 | 11.4 | −0.9 | −2.5 | 11.4 |
0.2 | 18.0 | 17.6 | 7.1 | 4.6 | 8.0 | 7.8 | −4.4 | −6.0 | 7.9 |
0.1 | 12.0 | 11.6 | 1.1 | −1.4 | 2.0 | 1.8 | −10.4 | −12.0 | 1.8 |
