A Graph Convolutional Network-Based Deep Reinforcement Learning Approach for Resource Allocation in a Cognitive Radio Network
Abstract
:1. Introduction

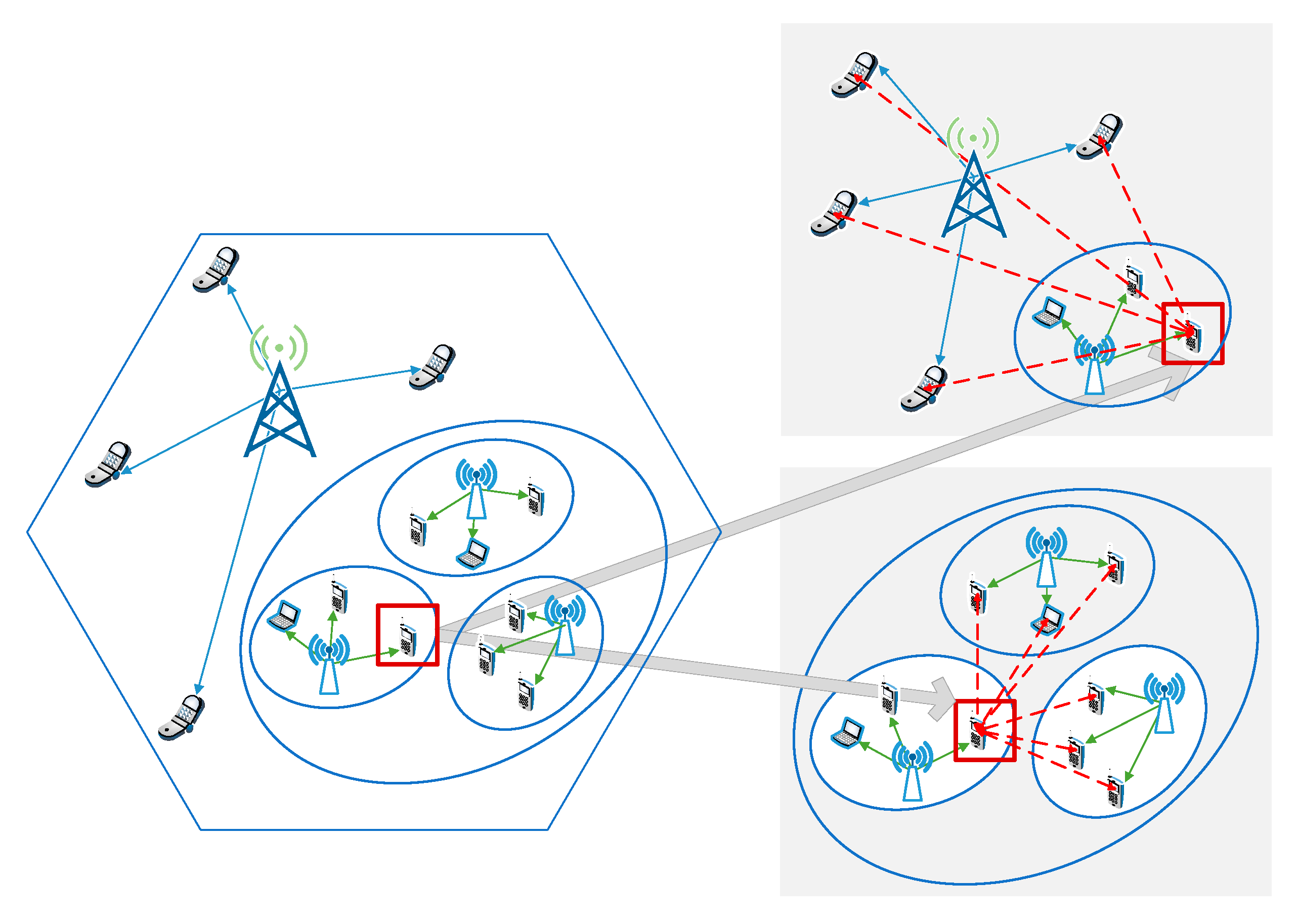

- We propose a method of constructing the topology of the underlay CRN based on a dynamic graph. The dynamics of the communication graph is mainly reflected in two aspects: One is to adopt the random walk model to simulate the users’ movements, which indicates the dynamics of the position of vertices; the other is the dynamics of the topology caused by the different resource occupation results. Moreover, a novel mapping method is also presented. We regard the signal links as vertices and interference links as edges. This simplifies the complexity of the graph, and is more suitable for extracting the desired interference information.
- Considering that it is difficult to obtain accurate CSI, we suggest an RL algorithm that utilizes graph data as state inputs. To make the state conditions looser, we model the path loss based on the user distance information inherent in the graph. Hence, the state can be defined by the user distance distribution and resource occupation, which substitute CSI. Additionally, the actions are two-objective, including channel selection and power adaptation, to achieve spectrum sharing and interference mitigation.
- We explore the performance of the resource allocation strategies with the “GCN+DRL” framework. Here, we design an end-to-end model by stacking the graph convolutional layers, to learn the structural information and attribute the information of the CRN communication graph. In this design, the convolutional layers are mainly used to extract interference features, and the fully connected layers are responsible for allocating the channel and power. The end-to-end learning model can automatically extract effective features, avoiding the mismatch between features and tasks. In this way, the reward of RL can simultaneously guide the learning process of feature representation and resource assignment.
2. System Model and Problem Formulation

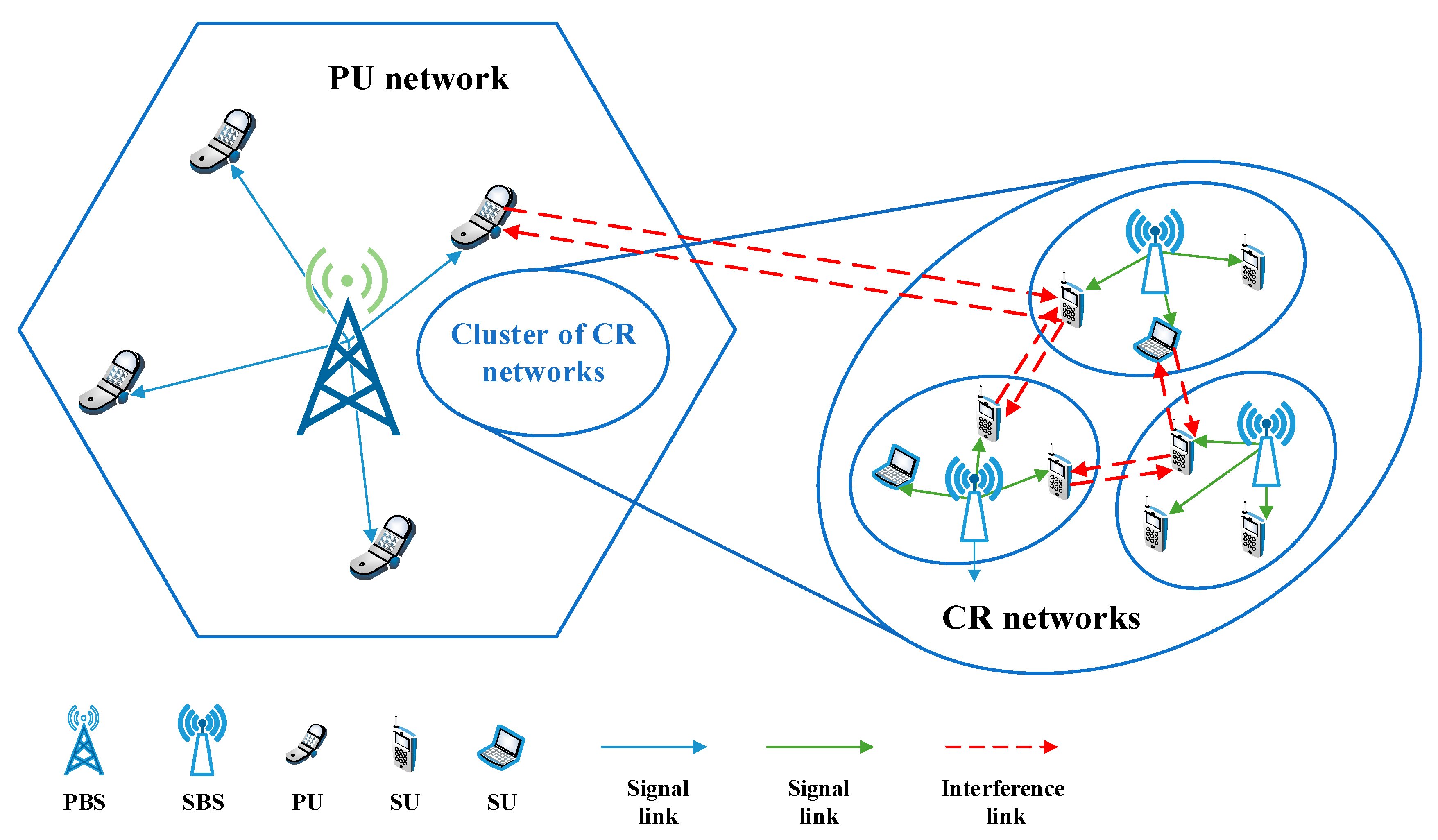

2.1. System Model
2.1.1. Path Loss Model

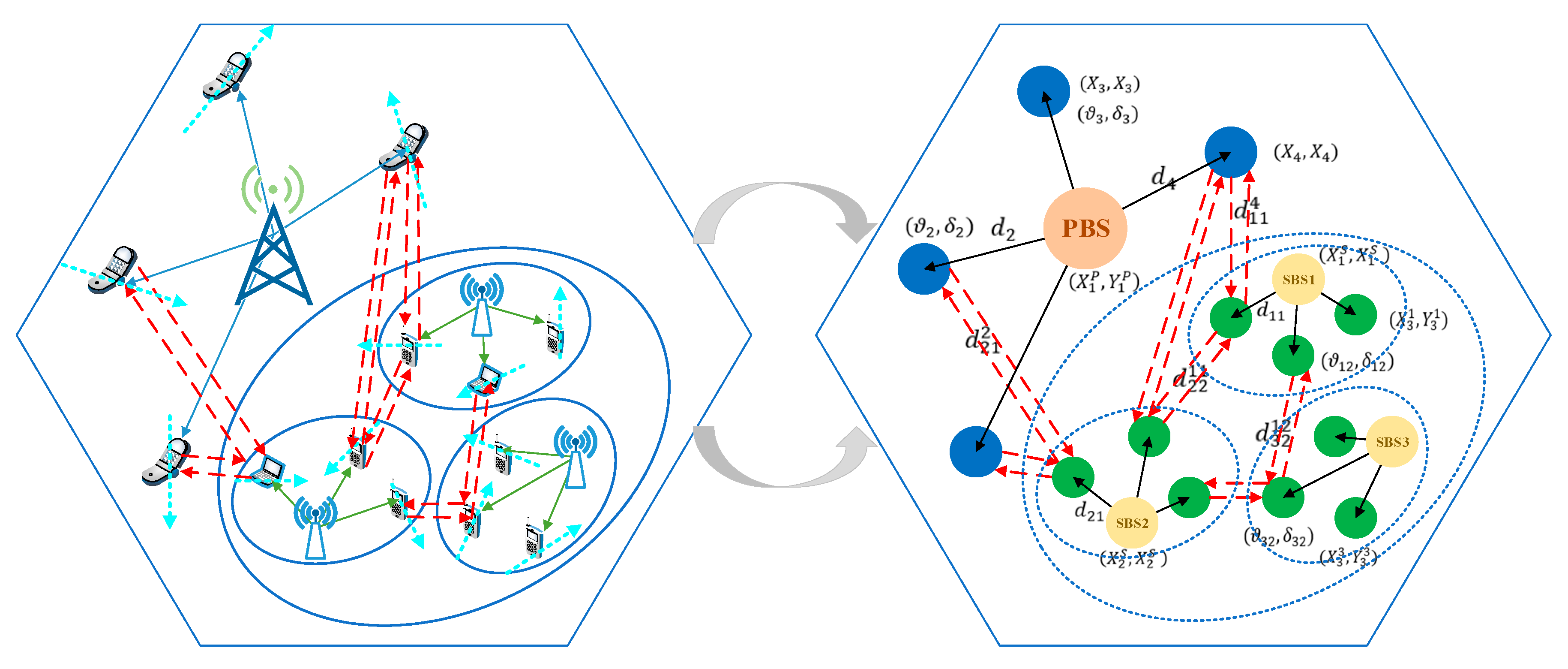

2.1.2. Dynamic Graph Construction Based on Users’ Mobility Model
2.2. Problem Formulation
3. Graph Convolutional Network-Based Deep Reinforcement Learning Approach for Resource Allocation in Cognitive Radio Network
3.1. Preliminaries
3.1.1. Reinforcement Learning
3.1.2. Graph Neural Networks
3.2. Definition of RL Elements of the CRN Environment

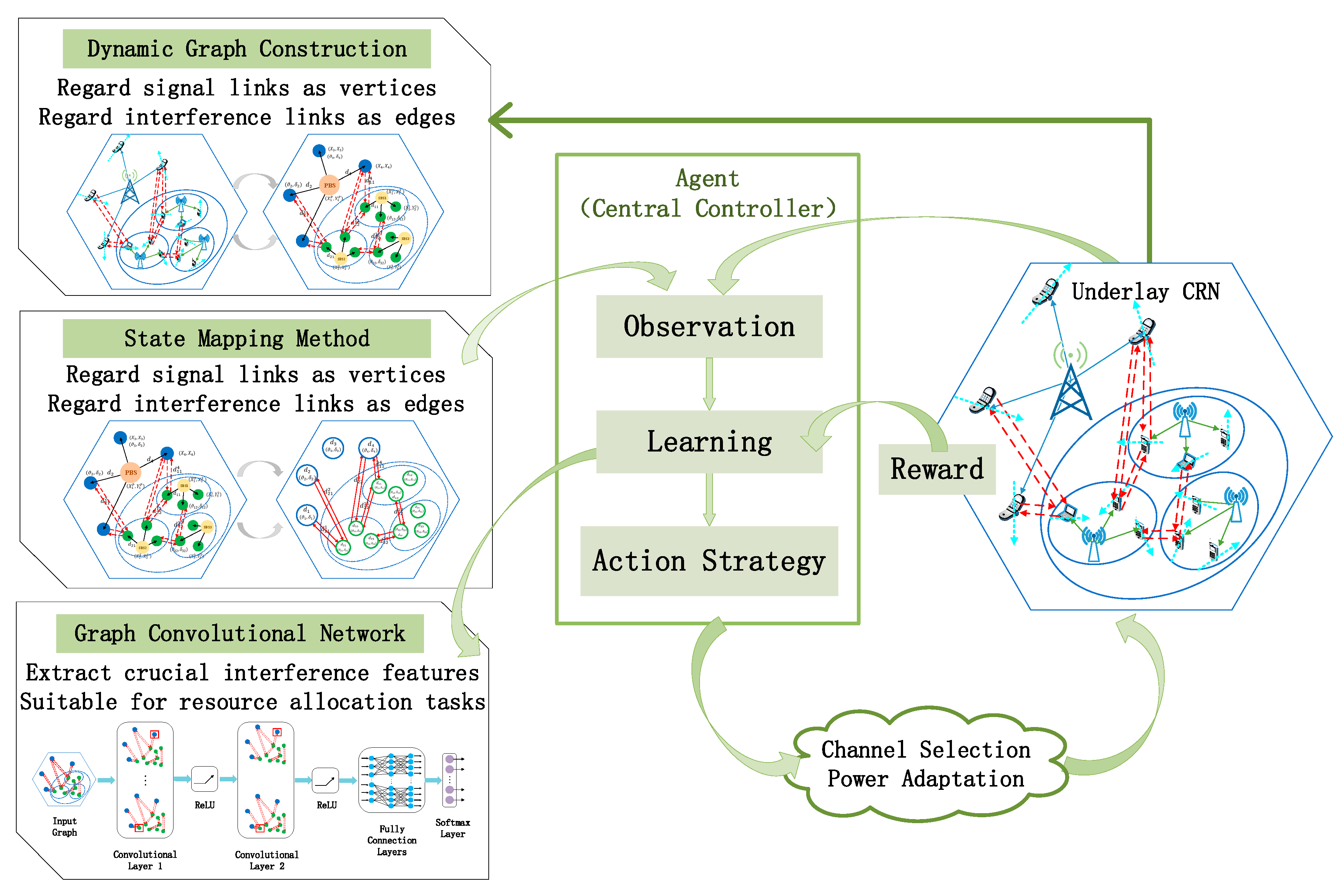

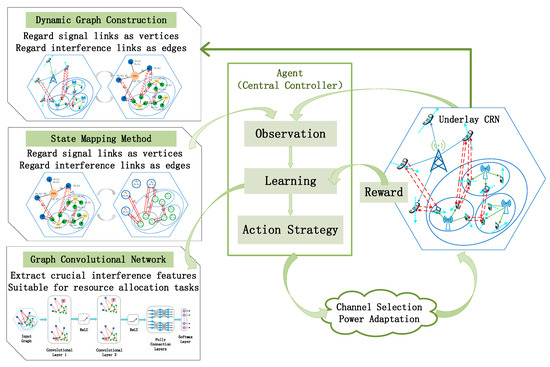

- Agent: Based on the “GCN+DRL” framework, a central controller is treated as the agent. In other words, our work adopts a centralized RL algorithm. Interacting with the environment, the agent has the ability to learn and make decisions. The central controller is responsible for scheduling spectrum and power resource for PUs and SUs in the underlay CRN.
- State: The state in the RL framework represents the information that the agent can acquire from the environment. To design effective states for the resource allocation problem in a CRN environment, the important insight is that, the sum data rate of the CRNs is significantly influenced by the CCI. Further, the CCI, including co-layer interference among SUs and cross-layer interference between SUs and PUs, is the result of the user distance distribution and resource occupation.
- Action: An action is a valid resource allocation process to satisfy users’ request. At every single step, we define the actions as channel and power allocation of all PUs and SUs, which can be expressed as:
- Reward: Instead of following a predefined label, the learning agent optimizes the behavior of the algorithm by constantly receiving rewards from the external environment. The principle of the “reward” mechanism is to tell the agent how good the current action is doing relatively. That is to say, the reward function guides the optimizing direction of the algorithm. Hence, if we correlate the design of the reward function with the optimization goal, the performance of the system will be improved driven by the reward.
3.3. Resource Allocation Algorithm Based on a Graph Convolutional Network

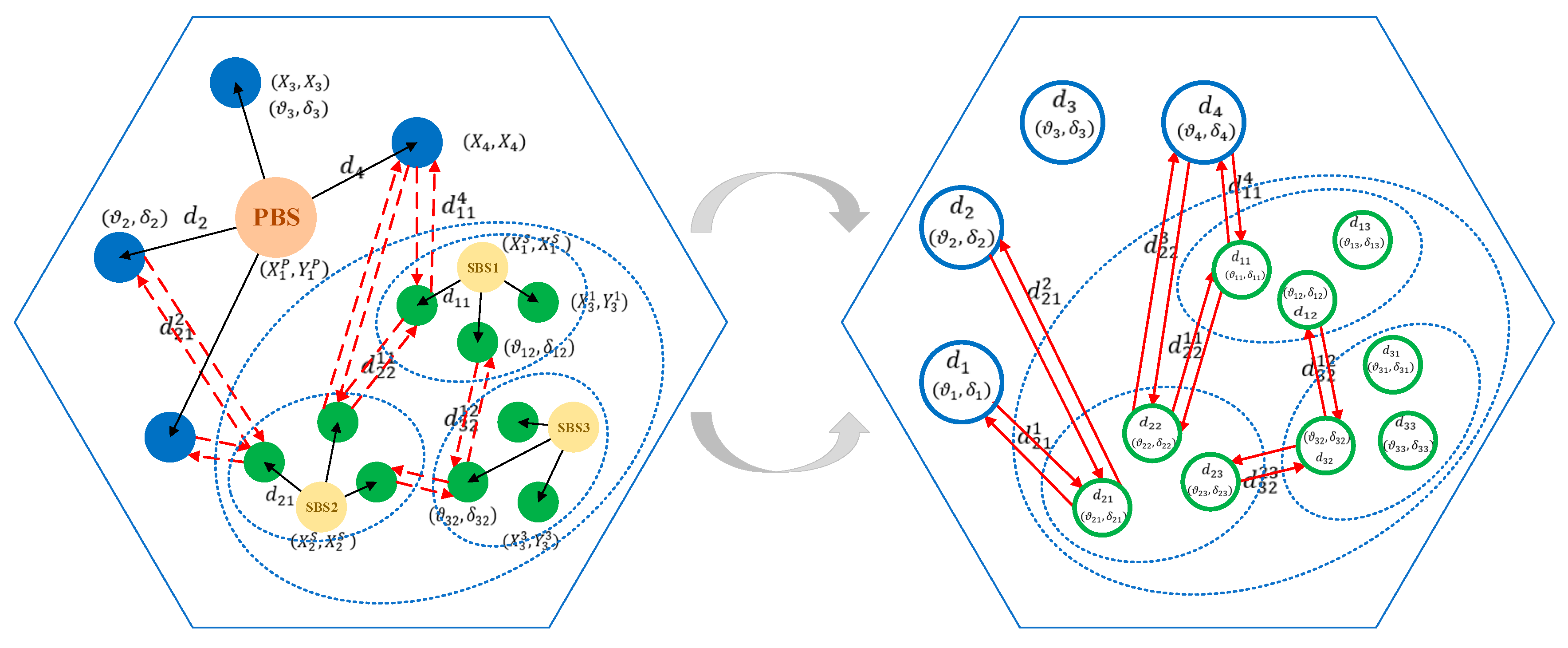

3.3.1. State Mapping Method Based on a Dynamic Graph

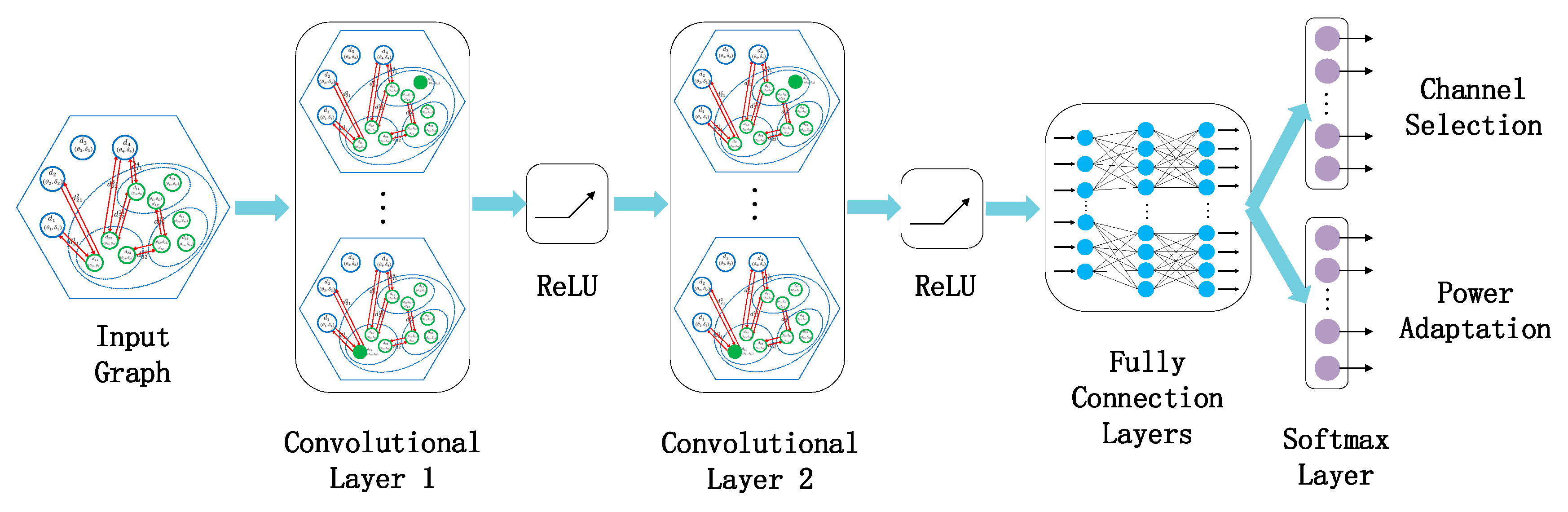

3.3.2. End-to-End Learning Model Integrated Feature Extraction and Policy Generation
3.3.3. Learning Process based on the Policy Gradient Algorithm
Algorithm 1: Resource Allocation Algorithm Based GCN+DRL in the Underlay CRN |
begin |
Initialization: |
Each user is dropped randomly with an arbitrary speed and direction of movement |
The parameter of CRN system model is initialized, and CSI is set to a random value |
All RBs are initialized to the idle state |
The policy network parameter is initialized |
Processing: |
For in Z, do |
Initialize the underlay CRN environment |
For in , do |
Construct the graph of current CRN topology |
Observe the state from the communication graph, including user distance distribution and resource occupation |
Select channel , according to the |
Select power level , according to the |
Perform channel selection and power control, and obtain the reward according to the data rate of the CR networks |
Check SINR to guarantee QoS of users according to constraints |
Establish the actual interference links based on the resource allocation result |
End for |
Calculate the loss of channel selection and power adaptation, and |
Calculate the total loss |
Update the network parameter with the gradient descent method |
End for |
end |

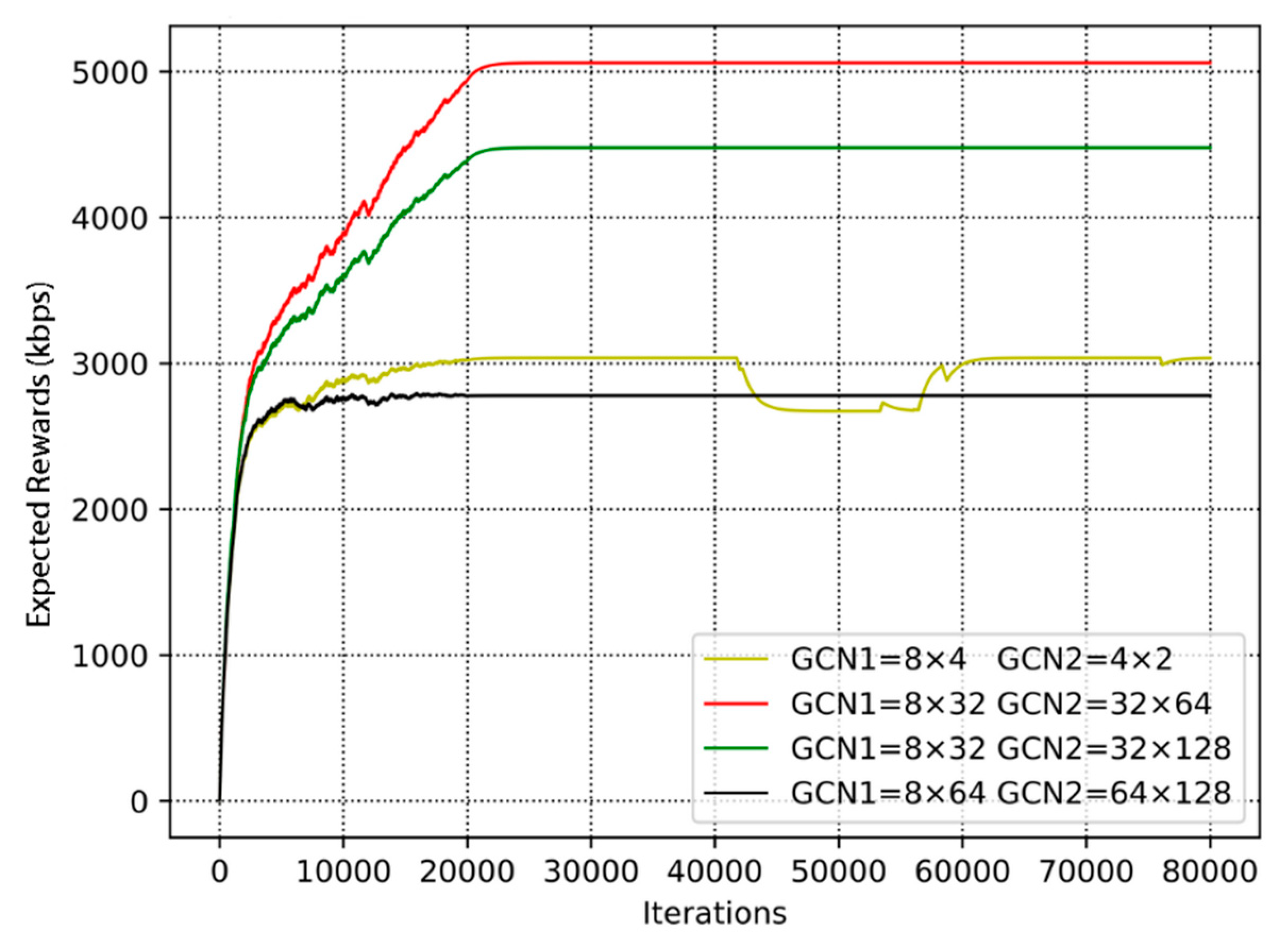

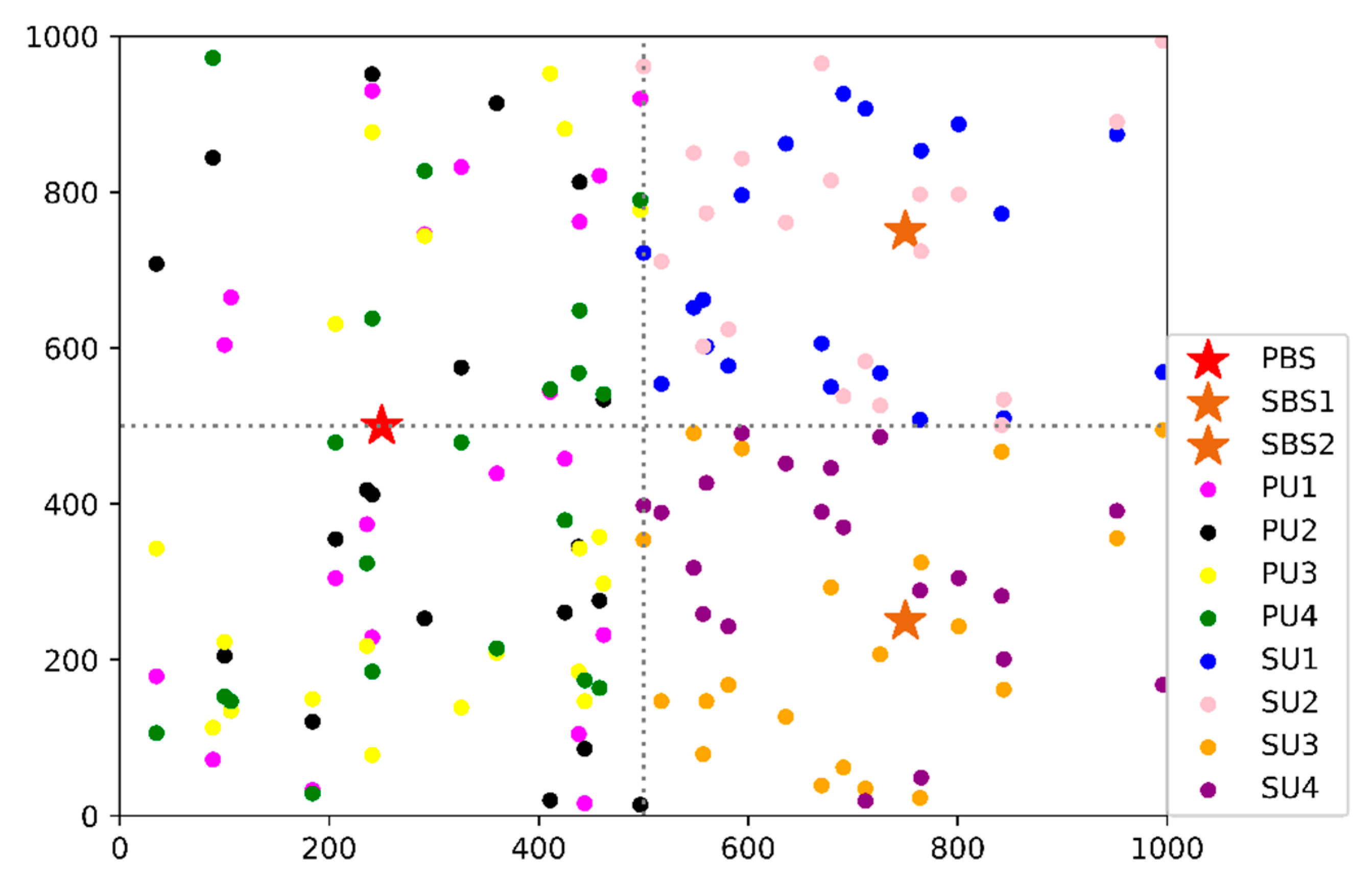

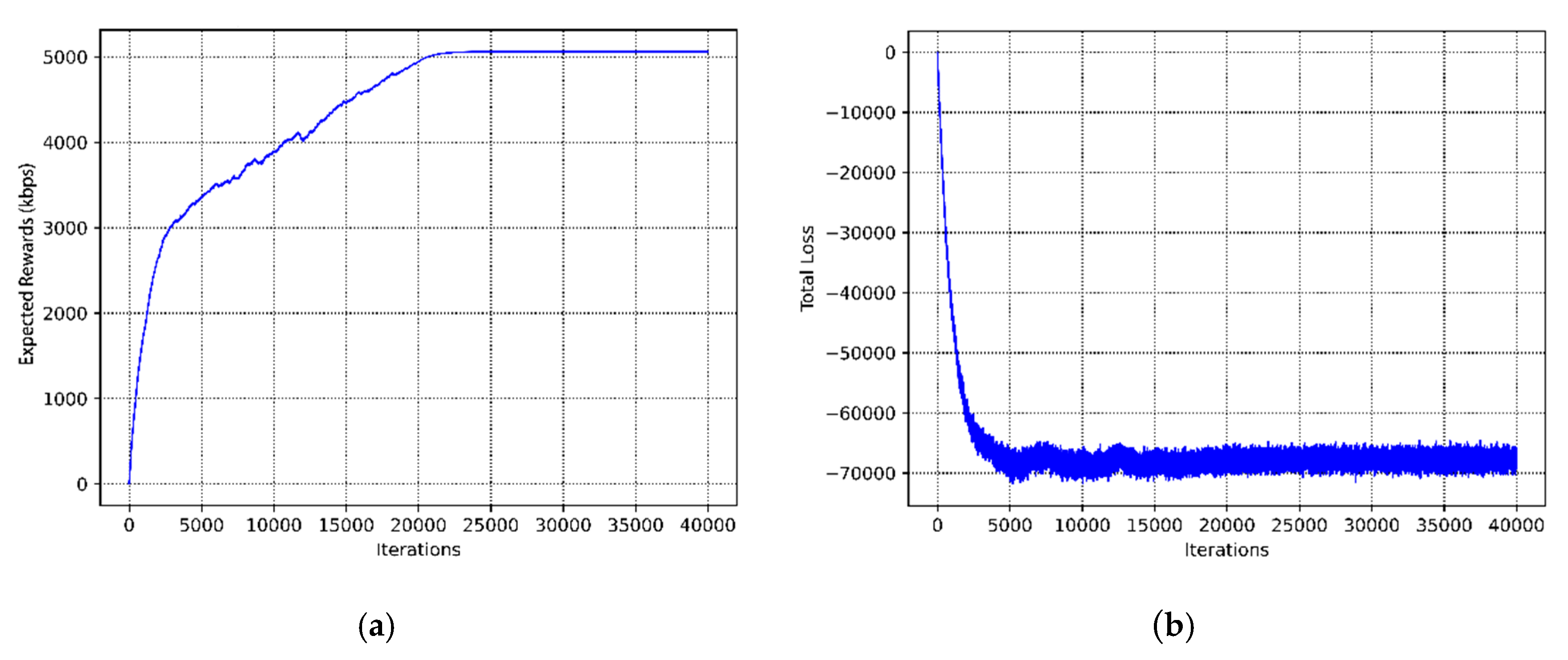

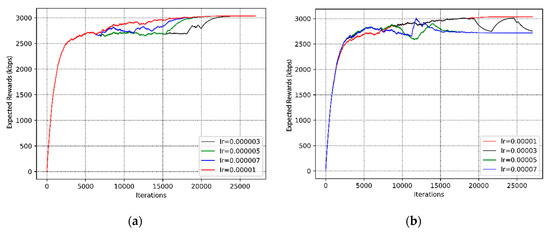

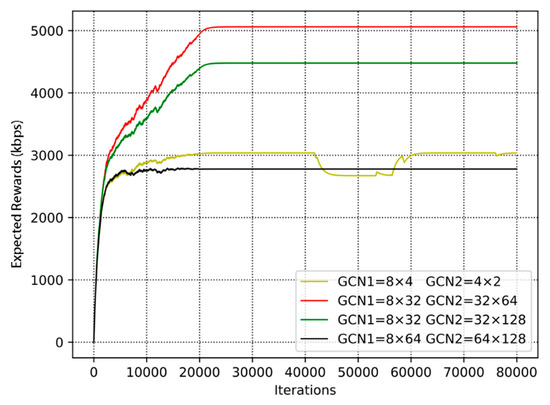

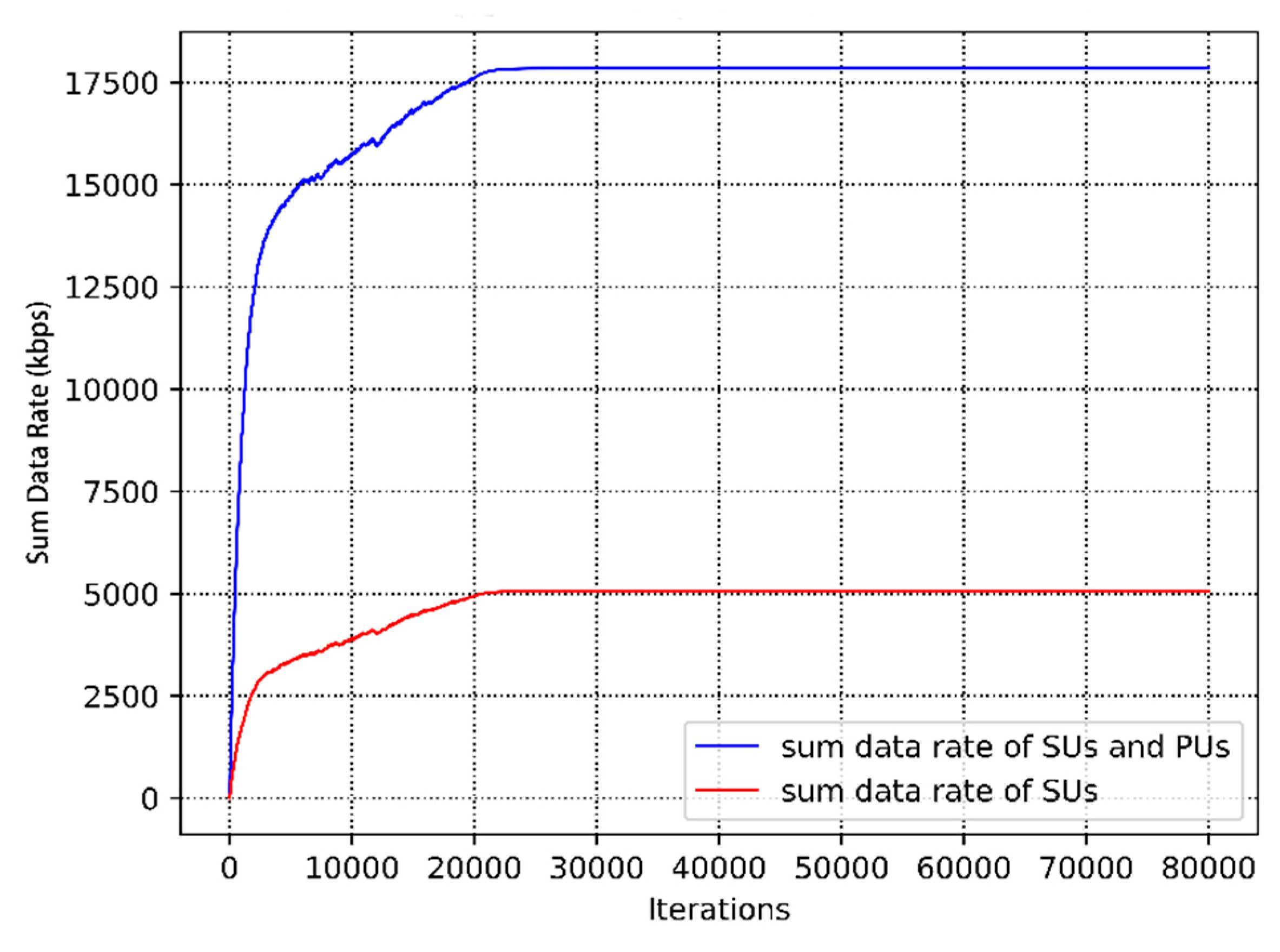

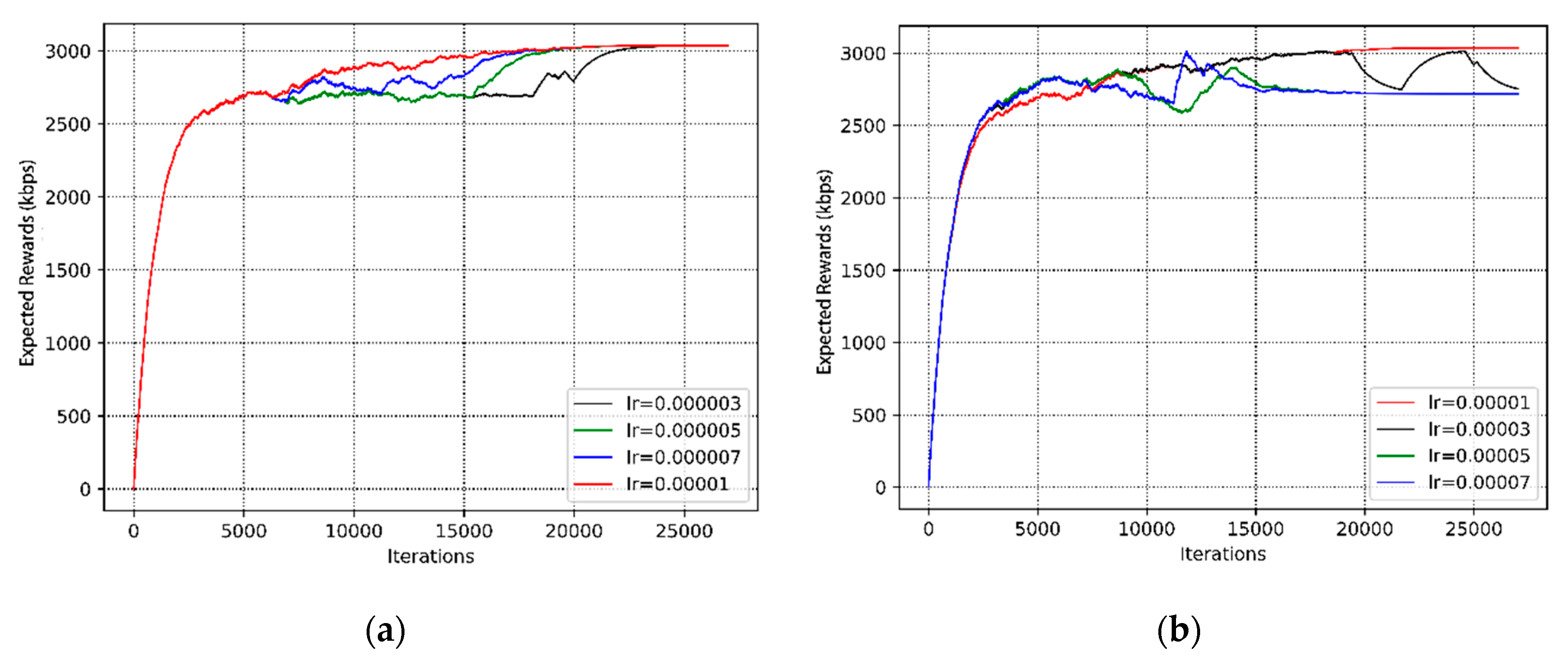

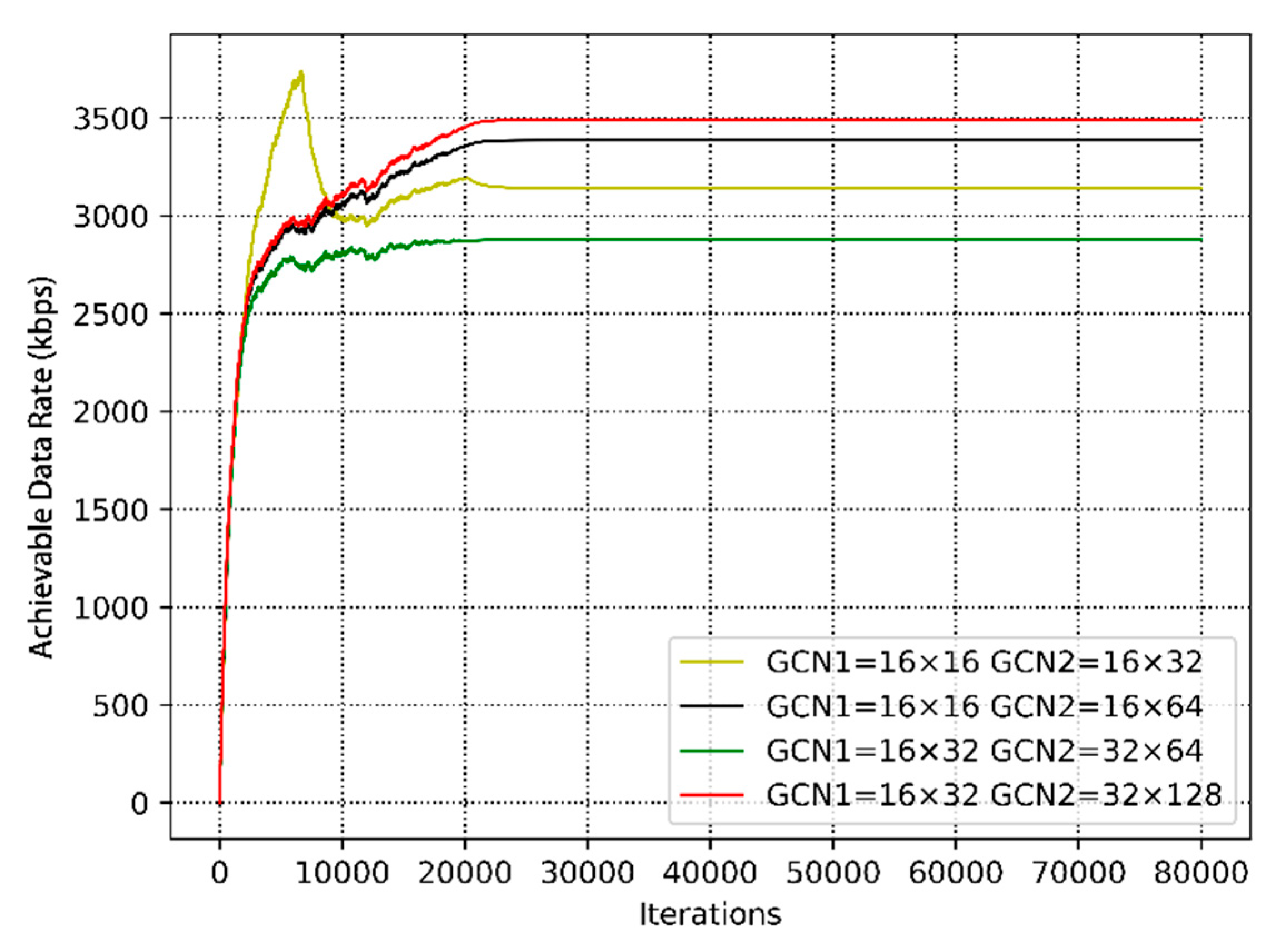

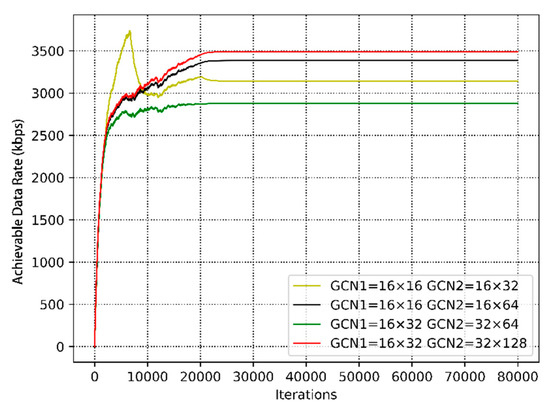

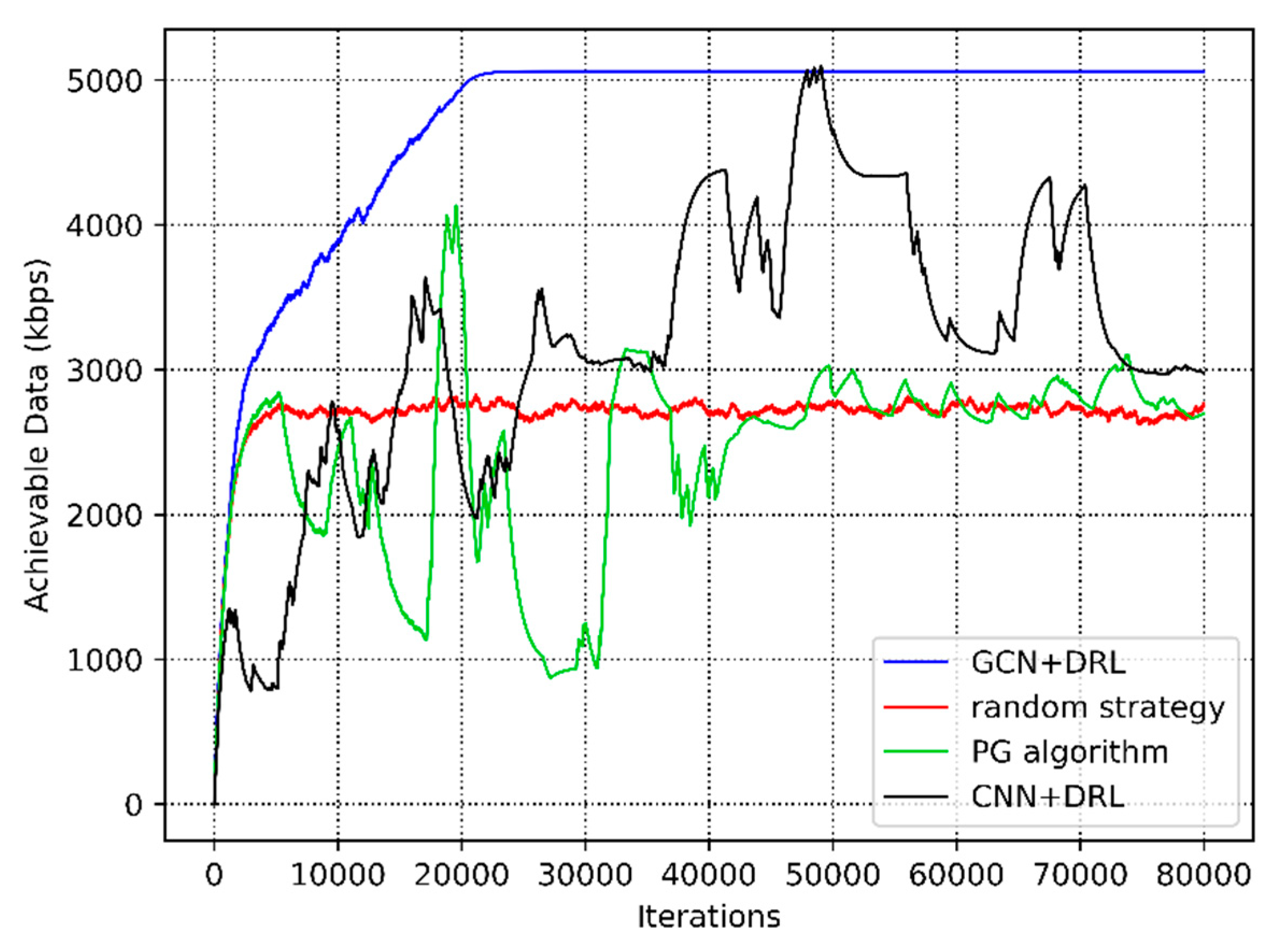

4. Simulation and Evaluation
5. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
Appendix A
Notations | Variables | Descriptions |
---|---|---|
the distances from PBS to PUs | ||
the distances between PUs | ||
the distances between PUs and SUs | ||
is the transpose matrix of . | ||
the distances from SBSs to SUs | ||
the distances between SUs under the same SBS | ||
the distances between SUs covered by different SBSs |
Notations | Variables | Descriptions |
---|---|---|
indicator variables that represent the status of the resource blocks occupied by PUs | ||
indicator variables that represent the status of the resource blocks occupied by SUs |
