Human Motion Recognition of Knitted Flexible Sensor in Walking Cycle

Engineering Research Center for Knitting Technology, Ministry of Education, Jiangnan University, Wuxi 214122, China
*
Author to whom correspondence should be addressed.
Sensors 2020, 20(1), 35; https://doi.org/10.3390/s20010035
Received: 8 November 2019 / Revised: 1 December 2019 / Accepted: 17 December 2019 / Published: 19 December 2019
(This article belongs to the Special Issue Sensors for Gait, Human Movement Analysis, and Health Monitoring)

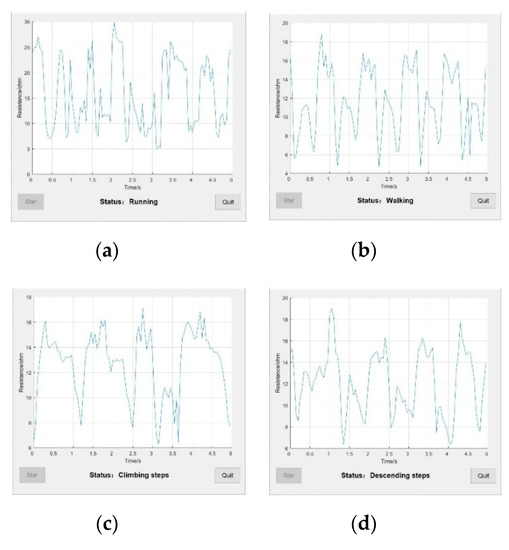

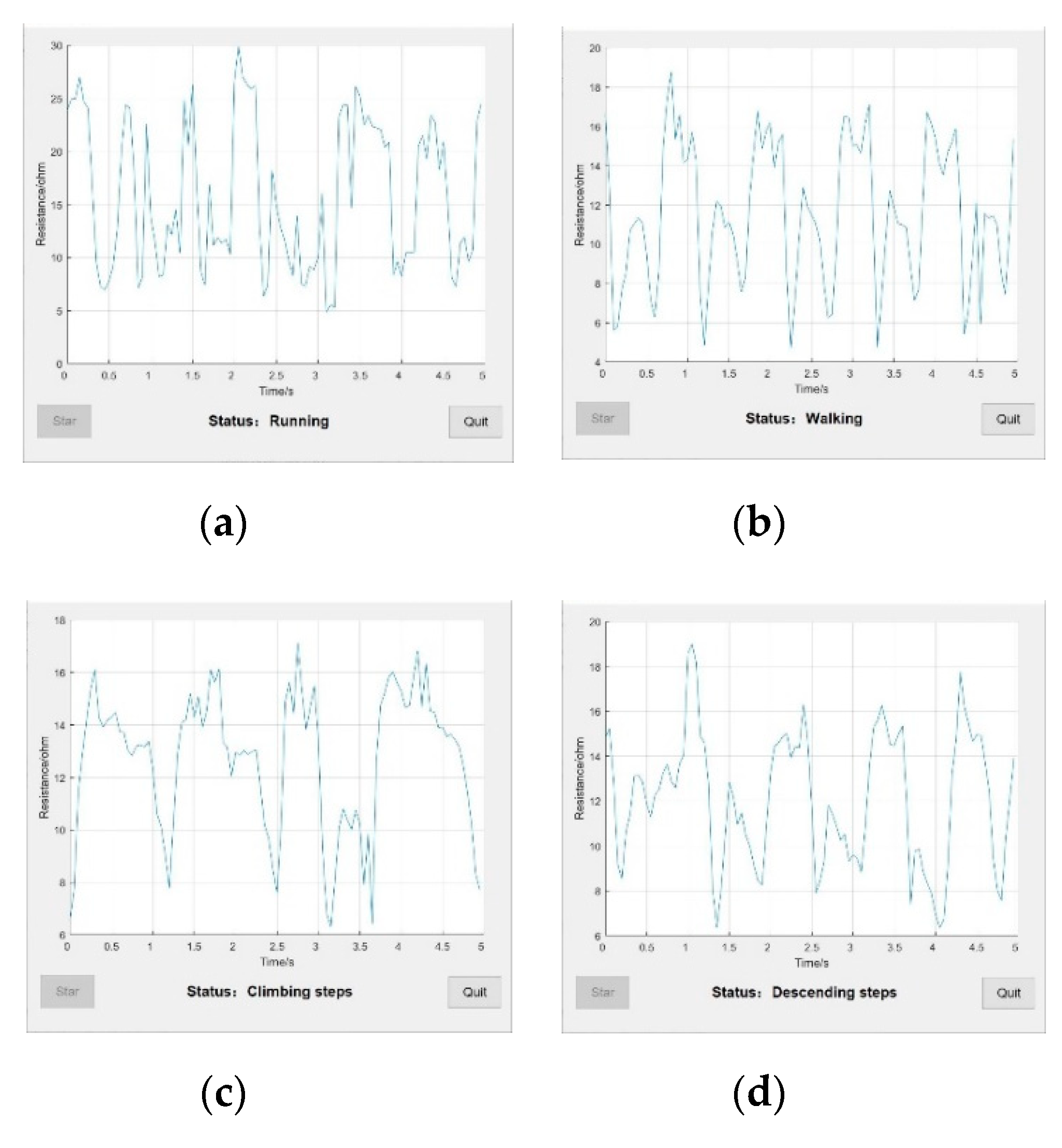

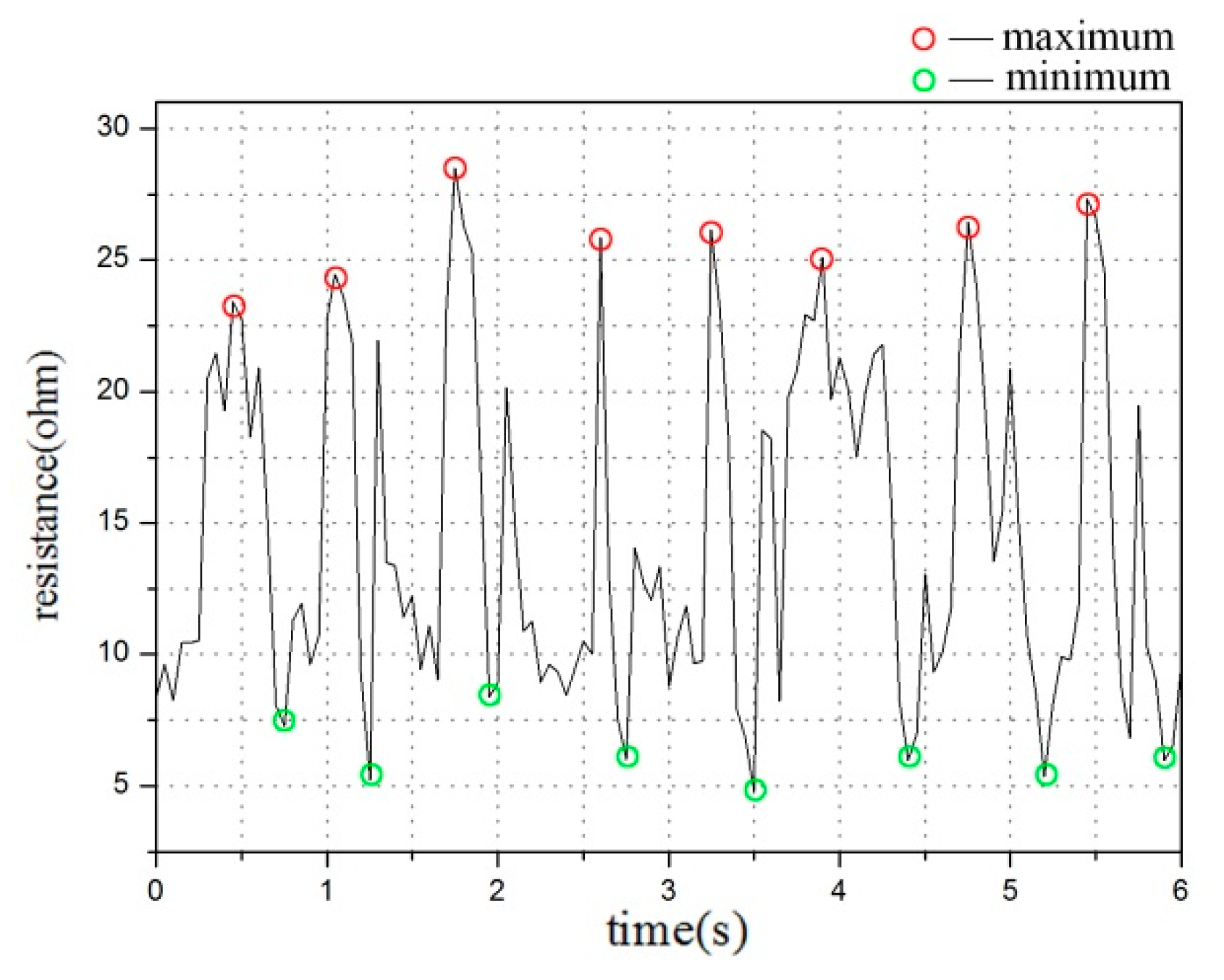

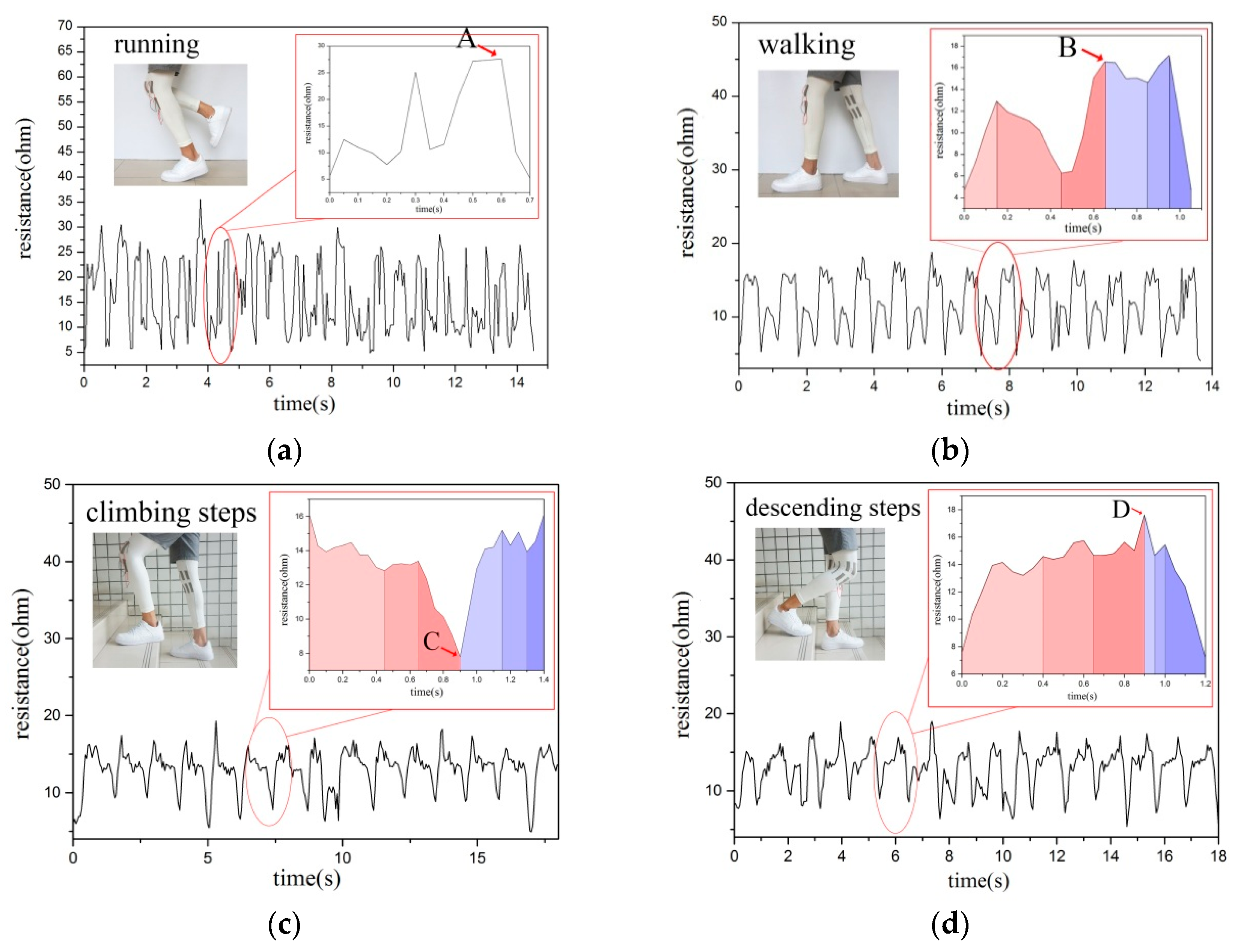

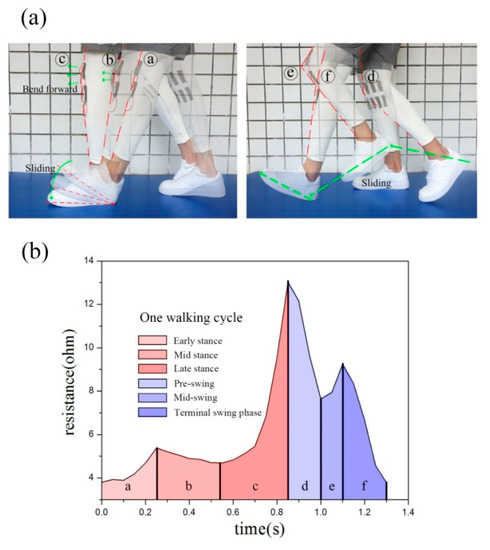

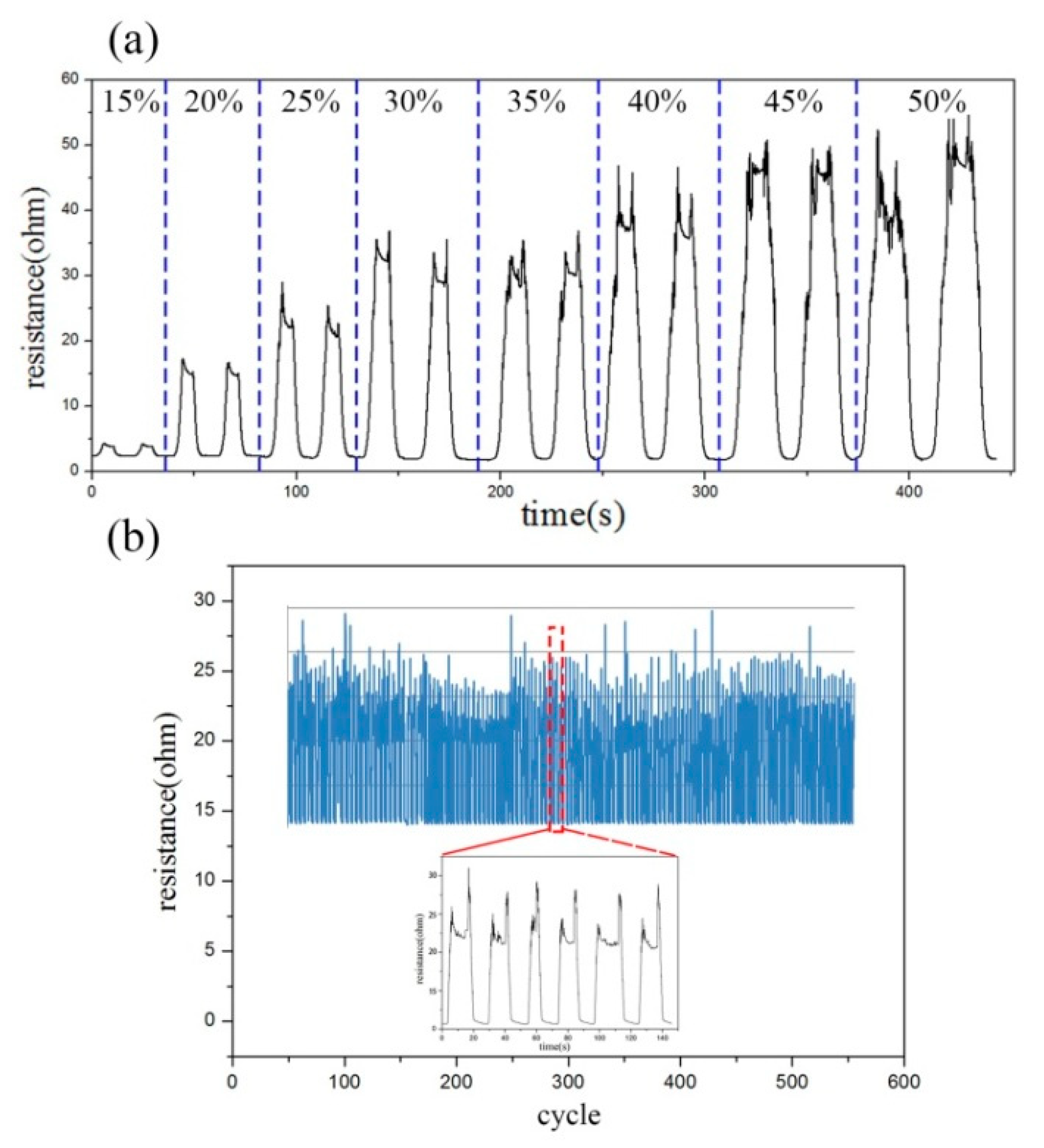

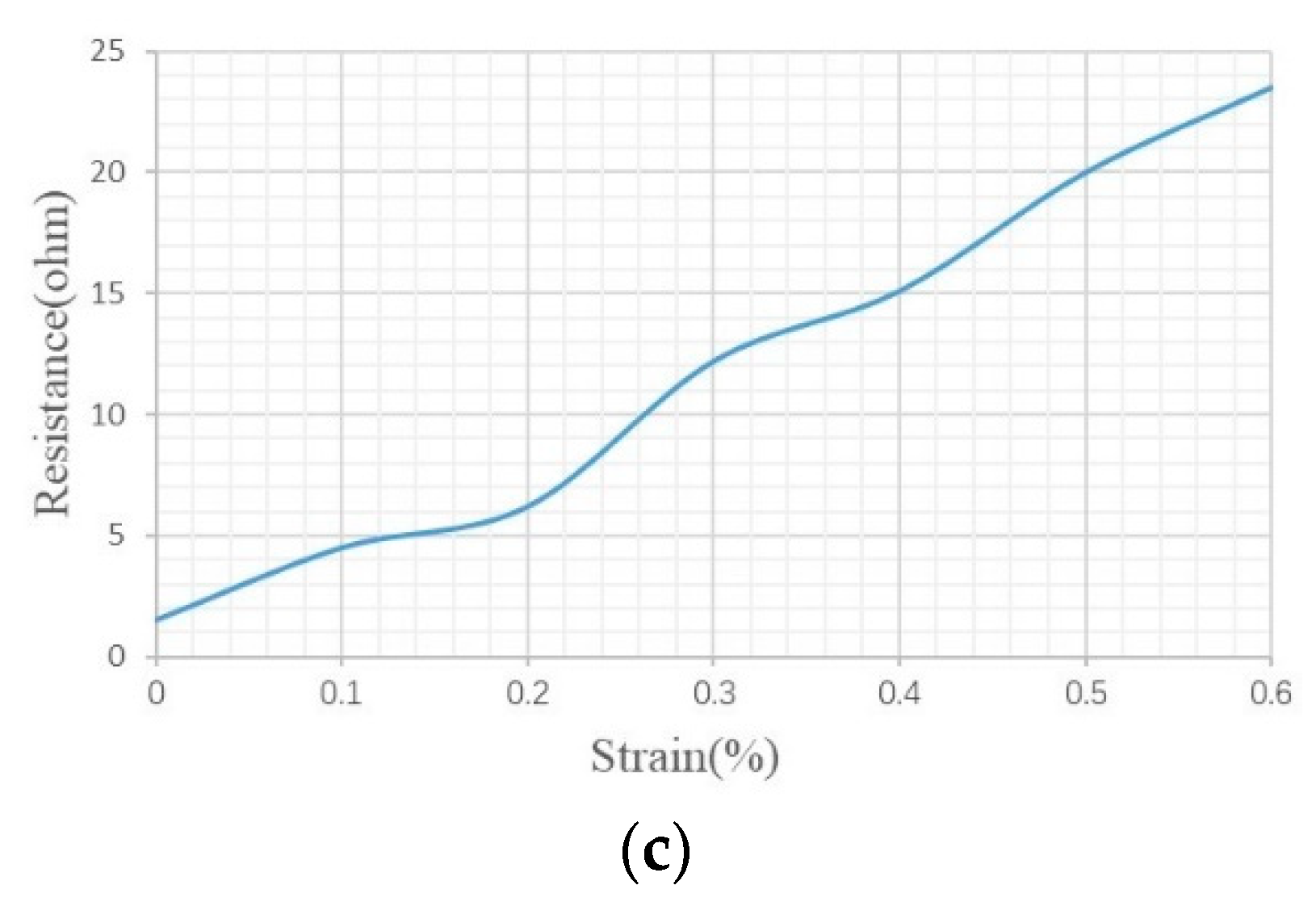

Knitted fabric sensors have been widely used as strain sensors in the sports health field and its large strain performance and structure are suitable for human body movements. When a knitted structure is worn, different human body movements are reflected through the large strain deformation of fabric structure and consequently change the electrical signal. Here, the mechanical and electrical properties of highly elastic knitted sweatpants were tested under large strain. This sensor has good sensitivity and stability during movement. Compared with traditional motion monitoring, this technique divides the walking cycle into two stages, namely, stance and swing phases, which can be further subdivided into six stages. The corresponding resistance characteristic values can accurately distinguish the gait cycle. Analysis on hysteresis and repeatability revealed that the sensor exhibits a constant electrical performance. Four kinds of motion postures were predicted and judged by comparing the resistance characteristic range value, peak value calculation function and time axis. The measured sensor outputs were transferred to a computer via 4.0 Bluetooth. Matlab language was used to detect the status through a rule-based algorithm and the sensor outputs.
View Full-Text
Keywords: knitted fabric; large strain sensor; flexible sensor; motion recognition; gait cycle knitted fabric; large strain sensor; flexible sensor; motion recognition; gait cycle
Show Figures

Graphical abstract

MDPI and ACS Style

Li, Y.; Miao, X.; Niu, L.; Jiang, G.; Ma, P. Human Motion Recognition of Knitted Flexible Sensor in Walking Cycle. Sensors 2020, 20, 35.
