Mathematical Modelling of the Electrode Process of Azithromycin Using Cyclic Voltammetry at Hanging Mercury Drop Electrode

Abstract

A theoretical treatment is presented to predict the kinetic behaviour of azithromycin at the surface of hanging mercury drop electrode using cyclic voltammetry. A model is developed to incorporate the occurrence of adsorption of the oxidized and reduced species of azithromycin at the surface of mercury drop electrode. An analytical solution was obtained using MATHEMATICA (V-3, Wolfram Research, Inc.) to predict the cyclic voltammetric profiles by calculating the currents resulting after applying variable potentials ranging –1.9 to –1.3 V versus Ag/AgCl. Simulation runs at different initial concentrations of azithromycin and different scan rates showed good agreement with experimental findings. However, this model should be modified to describe a multilayer adsorption with irreversible electrochemical reaction.

Introduction

Macrolide antibiotics are currently gaining prominence in view of their activity in the treatment of various bacterial infections in humans and animals. Generations of macrolide antibiotics such as clarithromycin, roxithromycin and azithromycin are currently used due to their acid stability and wide distribution in tissues.^1-5 Interest in the electrochemical behaviour of active drug constituents has also been steadily increasing.^6-8 Investigation of electrode processes involving oxidation or reduction reactions may shed more light on in-vivo redox processes.^{9, 10} Several researchers have studied the kinetics of electrode processes pertaining to macrolide antibiotics under idealized experimental conditions.^11-14 However, work is still needed to describe the actual redox behaviour of the surface of electrodes. This work is aimed to study the adsorption behaviour of azithromycin on the surface of hanging mercury drop electrode (HMDE) and correlate the in-vitro experimental findings with the theoretical prediction of the suggested process.

Experimental

Chemical and Reagents

A reference standard azithromycin (944 μg/mg, expiration date 2004) was kindly donated by AL Fares Pharmaceuticals, Damascus-Syria. Sodium acetate trihydrate (99.5%, Scharlau, Spain) and acetic acid (99.9% Aristar, BDH-England) were used without further purification. Mercury (99.99%, Fluka-Switzerland) was used after filtration. Methanol was HPLC grade (Romil-England). Deaeration was accomplished by using high purity nitrogen (Air product 99.999%). Deionized water was prepared at the Pharmaceutical Research Unit/ Royal Scientific Society by initiating a reversed osmosis procedure prior to distillation and deionization using an elgacan filter, (C-114 <0.7 μS). Acetate buffer solutions were freshly prepared as a supporting electrolyte (0.1 M, pH 4.64). Stock standard solutions were freshly prepared to contain 1×10^-2 M of azithromycin dissolved in methanol. The stock solution was used to prepare dilute working standard covering the range 2.5×10^-5 M to 1.35×10^-3 M.

Instruments and Apparatus

A 746 Metrohm Electrochemical Trace Analyzer and a 747 VA stand (Metrohm-Herisau-Switzerland). The stand consists of a multi mode electrode (MMD), comprising a Dropping Mercury Electrode (DME), a Static Mercury Drop Electrode (SMDE) and a Hanging Mercury Drop Electrode (HMDE). An Ag/AgCl reference electrode and platinum wire auxiliary electrode completed the three-electrode potentiostat. A universal titration-measuring vessel, which allows working with a total of 5.0 to 10.0 ml volume, was employed. A digital pH-meter (Hi 9321-Hanna) and an analytical balance (AE 2400, Mettler) were also used.

Procedure

Aliquots of stock solutions of azithromycin were individually spiked into the titration vessel containing an acetate buffer solution to make up a total of 10.0 ml volume. Concentrations ranging from 2.5×10^-5 to 1.35×10^-3 M were employed. Deaeration was initiated by bubbling high purity oxygen-free nitrogen for 10.0 min through the measuring vessel. Cyclic voltammetry experiments using HMDE were recorded for each of the investigated solutions.

Theory

Generally, the observed reaction mechanism together with the corresponding electrochemical behaviour of macrolide antibiotics, at the surface of the hanging mercury drop electrode (HMDE), may involve a reversible one-electron process. The reactant and the product may adsorb at the mercury surface and exists in equilibrium with its corresponding dissolved species as illustrated in the equations 1-a, 1-b, and 1-c.

O_{so ln} ⇔ O_ads

(1-a)

O + ne⁻ ⇔ R

(1-b)

R_{so ln} ⇔ R_ads

(1-c)

where: O_soln and R_soln are the oxidized and reduced species dissolved in the bulk, and O_ads and R_ads are the oxidized and reduced species adsorbed at the electrode surface, respectively.

The diffusion behaviour of the reactant within the mercury drop is described as

(2)

where: Co(r,t) is the concentration of reactant at distance r from the center of the mercury drop at time t, and Do is the diffusion coefficient of the reactant within the mercury drop. Similarly, the product, R, diffuses out of the mercury drop; its diffusion may thus be described by

(3)

where: C_R(r, t) is the concentration of the reduced species at distance r from the center of the spherical mercury drop and at time t. D_R is the diffusion coefficient of the reduced species within the mercury drop.

To solve equations (2) and (3), the following initial and boundary condition applies:

(4)

C_R = 0 (t = 0, r ≥ 0)

(5)

(6)

(7)

(8)

(9)

Where is the bulk concentration of the reactant initially present, r_o is the radius of the mercury drop, n is the number of electrons involved in the reaction, F is the Faraday constant, E^o is the formal reduction potential of the reactant, and E is the potential of the electrode which can be related to the scan rate, ν, as in equations (10) and (11).

E = E_i − νt (0 ≤ t ≤ t_R)

(10)

E = E_i − 2νt_R + νt (t ≥ t_R)

(11)

where: E_i is the initial potential of the electrode, and t_R is the time when the scan is reversed to the opposite direction in the cyclic voltammetry. For very low surface concentrations of absorbable ions or molecules, Henry’s adsorption isotherm is applied which shows a linear relation between q_o or q_R and the bulk adsorbate concentration C. At low concentration levels, the available adsorption sites at the surface will be partially covered. However, at high concentrations, a complete monolayer may be formed. As the bulk concentration of the adsorbates increase, a multilayer may also form. The amount of reactant, q_o, and product, q_R, adsorbed at the surface of the HMDE are related to the solution concentration of the reactant and product, C_o and C_R, respectively. Therefore, any of the isotherm models such as Langmuir’s, Fruendlich’s, or the Brunauer-Emmett-Teller (BET) model may apply.

Although each of the proposed models can describe the adsorption isotherm, none can perfectly fit the experimentally observed data. If Langmuir’s adsorption isotherm is assumed, then equations 12 and 13 hold;

(12)

(13)

where and (mole/ cm²) are the saturation concentrations of the reactant and the product initially present, which cover the monolayer of the electrode surface. The terms k_o and k_r are constants that depend on the electrode potential.

The initial equilibrium conditions can be summarized by equations 14 and 15 as

(14)

q_R = 0 (t = 0, r ≥ 0)

(15)

Equations (2) and (3) have been solved using Laplace Transformation and a MATHEMATICA software (v3.0, Wolfram Research, Inc.) to obtain the concentration of the oxidized and reduced species as a function of time and distance from the centre of the mercury drop in accordance with the following:

(16)

and

(17)

The constant c₁ and c₃ have been evaluated by applying boundary conditions specified in (8) and (9), both were zeros and can thus be eliminated. Equations (16) and (17), however, were substituted into equations (6) and (7) to obtain the following two-non linear equations with c₂ and c₄ as independent variables

(18)

and

(19)

At a given time t and scan rate ν , equations (10) (11) (18) and (19) have been solved simultaneously to obtain the constants c₂ and c₄. Consequently equations (16) and (17) have been evaluated. The total currents (i_R and i_P), therefore, can be evaluated using equation (20)

(20)

By substituting the expressions for C_O, C_R^, q_O and q_R, the peak currents for the oxidized, i_R, and the reduced species, i_P, at various E_1/2 values are obtained as

(21)

and

(22)

Results and Discussion

The cyclic voltammograms shown in Figure 1 and Figure 2 illustrate the profiles recorded for low and high concentration ranges obtained at solution pH 4.64. Figure 1 shows cyclic voltammograms that were recorded for 8 successive additions of azithromycin (25 μL each, 1.0×10^-2 M) to cover the concentration range 2.5×10^-5 to 2.2×10^-4 M. These were recorded at a scan rate of 20 V/s. Figure 2, however, illustrates the cyclic voltammograms covering the high concentration range 1.99×10^-4 to 1.35×10^-3 M. From the voltammograms, two well-defined cathodic peaks appeared at –1.64 and 0.012 V versus Ag/AgCl. Other anodic peaks were also recorded at –1.79 and –0.18 V versus Ag/AgCl, respectively. As the concentration of azithromycin increases from 2.5×10^-5 to 7.39×10^-4, the cathodic peak at –1.64 V increased. At higher concentration, however, this peak decreased with increasing concentration. This was accompanied by a cathodic shift as illustrated in Figure 2. This observation may be explained by an adsorption process, which takes place at the surface of the mercury drop electrode. At lower concentrations, many active sites are available at the surface of the mercury electrode; as a result peak current was directly proportional to concentration. At higher concentrations, however, the surface of mercury drop became saturated and the total charge flowing during the reduction was thus constant because of the adsorbed azithromycin molecules. The total charge due to diffusion, therefore, continued to increase with concentration, and thus the fraction of the peak current decrease with increasing concentrations.^15-17

Using the proposed model, profiles of current versus potential (-1.3 to –2.0 V) were generated for fixed azithromycin concentrations of 2.4×10^-5, 9.6×10^-5, and 1.74×10^-4. Figure 3 and Table 1 show the simulated cyclic voltammograms together with their corresponding adsorption parameters. It appears that as the concentration increased from 2.4×10^-5 to 9.6×10^-5, the cathodic peak current increased linearly from 7μA to 16μA. At higher concentration (~1.74×10^-4 M), the cathodic peak current sharply increased to 38μA. This could be attributed to a formation of an azithromycin multilayer on the surface of the mercury drop. This necessitates a model replacement of Langmuir’s to BET adsorption isotherms. This was authenticated from the values of q_o and q_R, since a dramatic change from 1.0×10^-8 and 1.0×10^-9 mole/cm² to 1.0×10^-5 and 1.0×10^-3 mole/cm² were obtained after changing the concentration from 2.4×10^-5 to 1.74×10^-4 M.

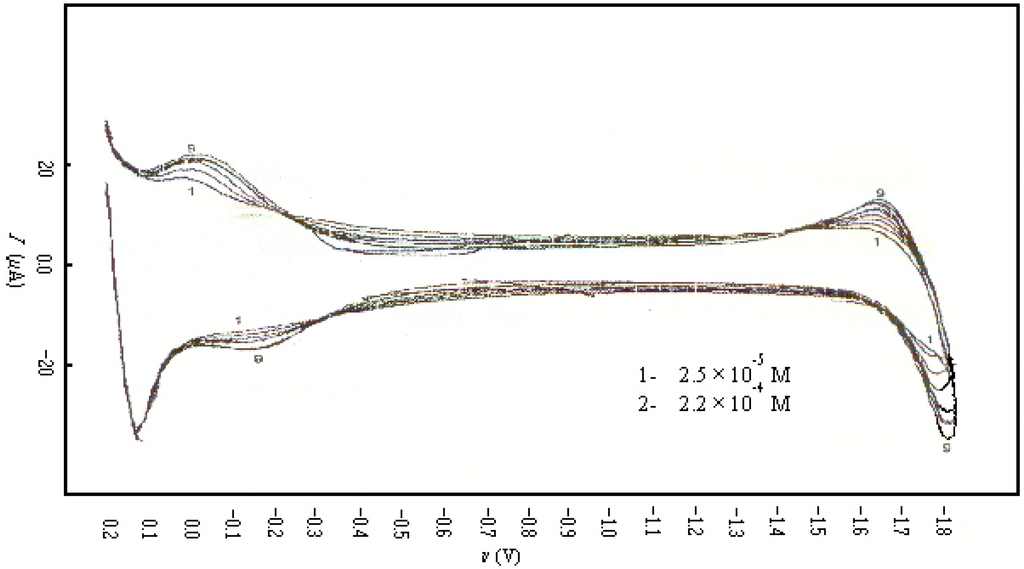

Figure 1. Cyclic voltammograms for the effect of azithromycin concentrations (2.5×10^-5–2.2×10^-4 M) at the HMDE and a scan rate of 20 V/s.

Figure 1. Cyclic voltammograms for the effect of azithromycin concentrations (2.5×10^-5–2.2×10^-4 M) at the HMDE and a scan rate of 20 V/s.

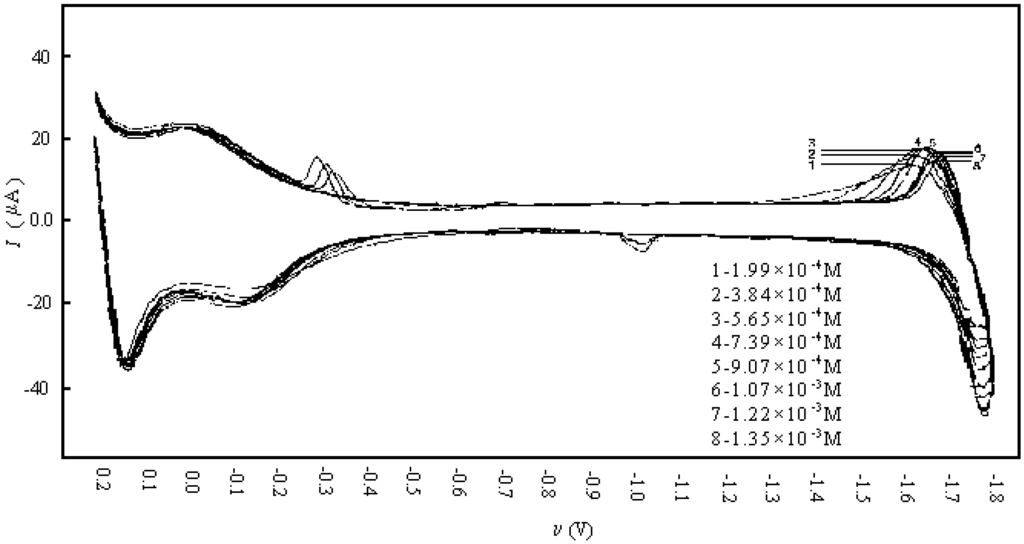

Figure 2. Cyclic voltammograms for the effect of azithromycin concentrations (1.99×10^-4– 1.35×10^-3 M) at the HMDE and a scan rate of 20 V/s.

Figure 2. Cyclic voltammograms for the effect of azithromycin concentrations (1.99×10^-4– 1.35×10^-3 M) at the HMDE and a scan rate of 20 V/s.

Table 1. Values of Langmuir’s model obtained from the simulated model at different initial concentration.

CONCENTRATION (M)	KO	KR	qo (mol/cm2)	qR (mol/cm2)
2.4×10-5	1.0	10	1.0×10-8	1.0×10-8
9.6×10-5	10	10	1.0×10-5	5.0×10-3
1.74×10-4	10	10	1.0×10-5	5.0×10-3

Table 1. Values of Langmuir’s model obtained from the simulated model at different initial concentration.

CONCENTRATION (M)	KO	KR	qo (mol/cm2)	qR (mol/cm2)
2.4×10-5	1.0	10	1.0×10-8	1.0×10-8
9.6×10-5	10	10	1.0×10-5	5.0×10-3
1.74×10-4	10	10	1.0×10-5	5.0×10-3

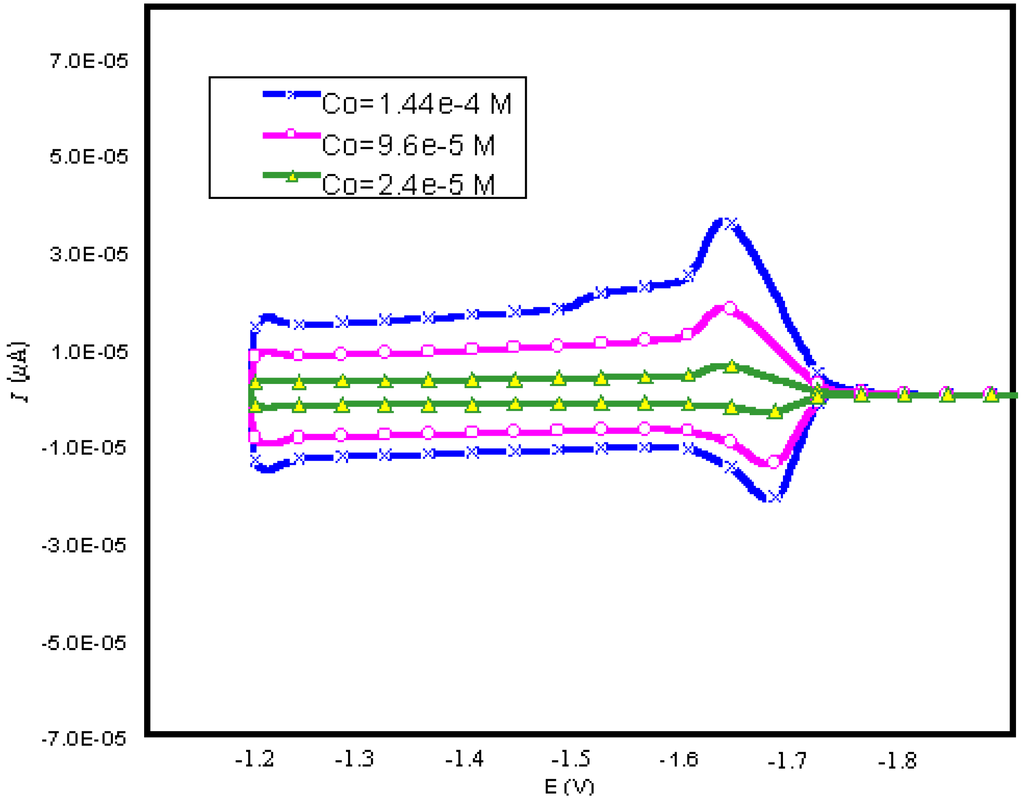

Figure 3. Simulated cyclic voltammograms for the effect of azithromycin concentration obtained at 20V/s.

Figure 3. Simulated cyclic voltammograms for the effect of azithromycin concentration obtained at 20V/s.

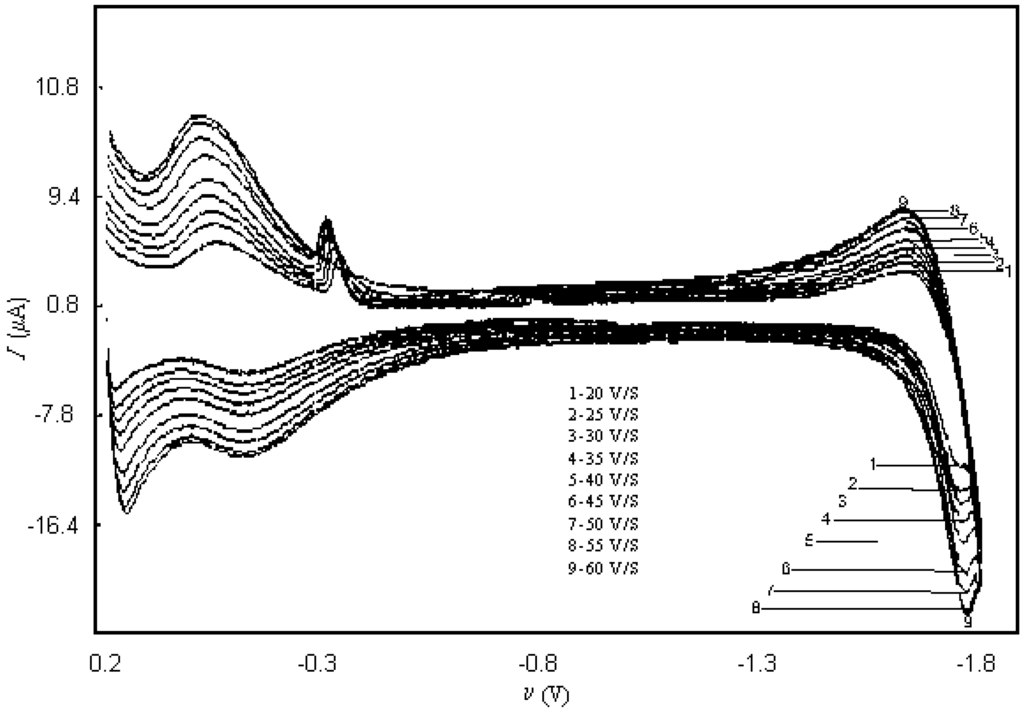

Figure 4. Cyclic voltammograms for azithromycin (1.9×10^-4 M) obtained at different scan rates.

Figure 4. Cyclic voltammograms for azithromycin (1.9×10^-4 M) obtained at different scan rates.

Figure 4 illustrates the cyclic voltammograms for azithromycin after varying the san rate from 20 to 60 V/s. A difference of 108 mV was observed between the anodic and cathodic potential (ΔE = E_pa − E_pc) when the scan rate was 20 V/s. This difference was larger for scan rates higher than 20 V/s. The electrochemical reaction may thus be regarded as an irreversible at a scan rate higher than 20 V/s. The observed CV profiles were compared with those simulated from the proposed model at scan rates of 30, 50 and 80 V/s (Figure 5). The proposed model, in contrast, demonstrated a quasireversible behaviour. Indeed, this is not unexpected since the developed model applies only to described reversible behaviour. Values pertaining to the adsorption isotherm from the simulated model are illustrated in Table 2. These values remained constant after changing the scan rate. This is due to the fact that increasing the scan rate have decreased the time required for the desired amount of azithromycin to get saturated at the surface of the mercury drop, but did not increase that amount per unit surface area of the electrode.

Table 2. Values of Langmuir’s model obtained from the simulated model at different scan rates.

SCAN RATE(V/ s)	KO	KR	qo (mol/cm2)	qR (mol/cm2)
30	10	10	1.0×10-5	1.0×10-5
50	10	10	1.0×10-5	1.0×10-5
80	10	10	1.0×10-5	1.0×10-5

Table 2. Values of Langmuir’s model obtained from the simulated model at different scan rates.

SCAN RATE(V/ s)	KO	KR	qo (mol/cm2)	qR (mol/cm2)
30	10	10	1.0×10-5	1.0×10-5
50	10	10	1.0×10-5	1.0×10-5
80	10	10	1.0×10-5	1.0×10-5

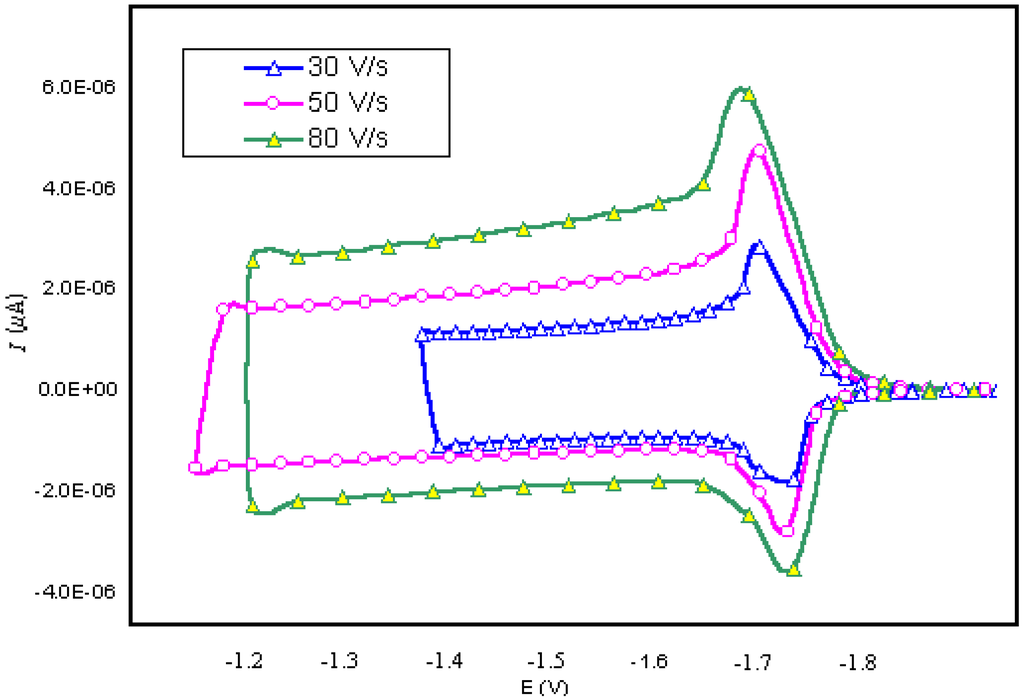

Figure 5. Simulated cyclic voltammograms for azithromycin (1.9×10^-4 M) at different scan rates.

Figure 5. Simulated cyclic voltammograms for azithromycin (1.9×10^-4 M) at different scan rates.
