A Survey on Congestion Control for RPL-Based Wireless Sensor Networks
Abstract
:1. Introduction
2. Overview of RPL

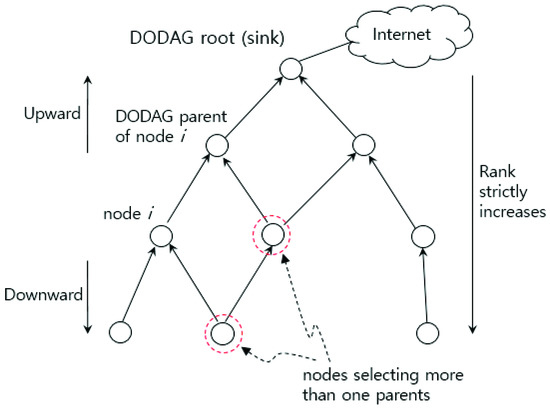

2.1. DODAG Construction for Multipoint-to-Point Traffic Flows
2.2. Route Construction for Point-to-Multipoint and Point-to-Point Traffic Flows
2.3. Objective Function and Routing Metrics in RPL
2.4. Supporting Multiple RPL Instances
3. Classification of Schemes for Congestion Control and Load Balancing in RPL
- Congestion detection
- Congestion notification
- Congestion mitigation
- Traffic pattern (upward, downward, and any-to-any)
- Routing metrics
- Adopting cross-layer approaches
- Utilizing path diversity
- Resource control: Resource control is related to provisioning network resources to mitigate congestion. Alternative path selection schemes, multipath schemes, power control, and so on, belong in this category. Most RPL schemes proposed for congestion control adopt resource control approaches including route change, multipath forwarding, power control, and multisink.
- Resource control combined with traffic control: A traffic control approach attempts to mitigate congestion by adjusting the sending rate. Since the primary role of a network layer protocol is to find a good route, RPL schemes are rarely related to adaptation of the sending rate. Nevertheless, some schemes, such as GTCC [16] and OHCA [20], adopt both resource control and traffic control approaches.
4. Congestion Control Schemes for RPL
4.1. Schemes Forwarding Packets via a Single Parent
4.1.1. GTCC
4.1.2. QU-RPL
4.1.3. Residual Energy-Aware Congestion Control
4.1.4. PC-RPL
4.1.5. CA-OF
4.1.6. OHCA
4.1.7. CoAR
4.1.8. MAC-Aware Routing Metrics
4.1.9. Congestion Control using Multiple Sinks
4.2. Schemes Exploiting Path Diversity
4.2.1. BRPL
4.2.2. Multipath Opportunistic RPL Algorithms
4.2.3. LB-RPL
4.2.4. RPL using the Heuristic Load Distribution Algorithm
4.2.5. Energy-Aware Load Balancing
4.2.6. M-RPL
4.2.7. Bird Flocking Congestion Control Algorithm
4.2.8. CA-RPL
4.2.9. H-RPL
4.3. Congestion Control for DAO Packets
5. Discussion
6. Conclusions
Funding
Conflicts of Interest
References
- Winter, T.; Thubert, P.; Brandt, A.; Hui, J.; Kelsey, R.; Levis, P.; Pister, K.; Struik, R.; Vasseur, J.P.; Alexander, R. RPL: IPv6 Routing Protocol for Low-Power and Lossy Networks. RFC 6550. 2012. Available online: https://tools.ietf.org/html/rfc6550 (accessed on 25 January 2019). [CrossRef]
- Dohler, M.; Watteyne, T.; Winter, T.; Barthel, D. Routing Requirements for Urban Low-Power and Lossy Networks. RFC 5548. 2009. Available online: https://tools.ietf.org/html/rfc5548 (accessed on 25 January 2019). [CrossRef]
- Pister, K.; Thubert, P.; Dwars, S.; Phinney, T. Industrial Routing Requirements in Low-Power and Lossy Networks, RFC 5673. 2009. Available online: https://tools.ietf.org/html/rfc5673 (accessed on 25 January 2019). [CrossRef]
- Brandt, A.; Buron, J.; Porcu, G. Home Automation Routing Requirements in Low-Power and Lossy Networks, RFC 5826. 2010. Available online: https://tools.ietf.org/html/rfc5826 (accessed on 25 January 2019). [CrossRef]
- Martocci, J.; de Mil, P.; Riou, N.; Vermeylen, W. Building Automation Routing Requirements in Low-Power and Lossy Networks, RFC 5867. 2010. Available online: https://tools.ietf.org/html/rfc5867 (accessed on 25 January 2019). [CrossRef]
- Iova, O.; Picco, G.P.; Istomin, T.; Kiraly, C. RPL, the Routing Standard for the Internet of Things … or is it? IEEE Commun. Mag. 2016, 54, 16–22. [Google Scholar] [CrossRef]
- Kim, H.; Ko, J.; Culler, D.E.; Paek, J. Challenging the IPv6 Routing Protocol for Low-Power and Lossy Networks (RPL): A Survey. IEEE Commun. Surv. Tut. 2017, 19, 2502–2525. [Google Scholar] [CrossRef]
- Kamgueu, P.O.; Nataf, E.; Ndie, T.D. Survey on RPL enhancements: A focus on topology, security and mobility. Comput. Comuun. 2018, 120, 10–21. [Google Scholar] [CrossRef]
- Ghaleb, B.; Al-Dubai, A.; Ekonomou, E.; Alsarhan, A.; Nasser, Y.; Mackenzie, L.; Boukerche, A. A Survey of Limitations and Enhancements of the IPv6 Routing Protocol for Low-power and Lossy Networks: A Focus on Core Operations. IEEE Commun. Surv. Tut. 2018, 21, 1607–1635. [Google Scholar] [CrossRef]
- Levis, P.; Calusen, T.; Hui, J.; Gnawali, O.; Ko, J. The Trickle Algorithm, RFC 6206. 2011. Available online: https://tools.ietf.org/html/rfc6206 (accessed on 25 January 2019). [CrossRef]
- Goyal, M.; Baccelli, E.; Philipp, M.; Brandt, A.; Martocci, J. Reactive Discovery of Point-to-Point Routes in Low-Power and Lossy Networks, RFC 6997. 2013. Available online: https://tools.ietf.org/html/rfc6997 (accessed on 25 January 2019). [CrossRef]
- Goyal, M.; Baccelli, E.; Brandt, A.; Martocci, J. A Mechanism to Measure the Routing Metrics along a Point-to-Point Route in a Low-Power and Lossy Network, RFC 6998. 2013. Available online: https://tools.ietf.org/html/rfc6998 (accessed on 25 January 2019). [CrossRef]
- Vasseur, J.P.; Kim, M.; Pister, K.; Dejean, N.; Barthel, D. Routing Metrics Used for Path Calculation in Low-Power and Lossy Networks, RFC 6551. 2012. Available online: https://tools.ietf.org/html/rfc6551 (accessed on 25 January 2019). [CrossRef]
- Thubert, P. Objective Function Zero for the Routing Protocol for Low-Power and Lossy Networks (RPL), RFC 6552. 2012. Available online: https://tools.ietf.org/html/rfc6552 (accessed on 25 January 2019). [CrossRef]
- Gnawali, O.; Levis, P. The Minimum Rank with Hysteresis Objective Function, RFC 6719. 2012. Available online: https://tools.ietf.org/html/rfc6719 (accessed on 25 January 2019). [CrossRef]
- Sheu, J.; Hsu, C.; Ma, C.A. Game Theory Based Congestion Control Protocol for Wireless Personal Area Networks. In Proceedings of the IEEE 39th Annual Computer Software and Applications Conference (COMPSAC), Taichung, Taiwan, 1–5 July 2015. [Google Scholar]
- Kim, H.; Paek, J.; Bahk, S. QU-RPL: Queue Utilization based RPL for Load Balancing in Large Scale Industrial Applications. In Proceedings of the 12th Annual IEEE International Conference on Sensing, Communication, and Networking (SECON), Seattle, WA, USA, 22–25 June 2015. [Google Scholar]
- Ullah, R.; Faheem, Y.; Kim, B.-S. Energy and Congestion-Aware Routing Metric for Smart Grid AMI Networks in Smart City. IEEE Access 2017, 5, 13799–13810. [Google Scholar] [CrossRef]
- Kim, H.-S.; Bhak, S.; Paek, J.; Culler, D. Do Not Lose Bandwidth: Adaptive Transmission Power and Multihop Topology Control. In Proceedings of the 13th IEEE International Conference on Distributed Computing in Sensor Systems (DCOSS), Ottawa, ON, Canada, 5–7 June 2017. [Google Scholar]
- Al-Kashoash, H.A.A.; Amer, H.M.; Mihaylova, L.; Kemp, A.H. Optimization-Based Hybrid Congestion Alleviation for 6LoWPAN Networks. IEEE Internet Things 2017, 4, 2070–2081. [Google Scholar] [CrossRef]
- Bhandari, K.S.; Hosen, A.S.M.; Cho, G.H. CoAR: Congestion-Aware Routing Protocol for Low Power and Lossy Networks for IoT Applications. Sensors 2018, 18, 3838. [Google Scholar] [CrossRef]
- Lodhi, M.A.; Rehman, A.; Khan, M.M.; Hussain, F.B. Multiple Path RPL for Low Power Lossy Networks. In Proceedings of the IEEE Asia Pacific Conference on Wireless and Mobile, Bandung, Indonesia, 27–29 August 2015. [Google Scholar]
- Sergiou, C.; Antoniou, P.; Vassiliou, V. A Comprehensive Survey of Congestion Control Protocols in Wireless Sensor Networks. IEEE Commun. Surv. Tut. 2014, 16, 1839–1859. [Google Scholar] [CrossRef]
- Kafi, M.A.; Djenouri, D.; Ben-Othman, J.; Badache, N. Congestion Control Protocols in Wireless Sensor Networks: A Survey. IEEE Commun. Surv. Tut. 2014, 16, 1369–1390. [Google Scholar] [CrossRef]
- Ghaffari, A. Congestion control mechanisms in wireless sensor networks: A survey. J. Netw. Comput. Appl. 2015, 52, 101–115. [Google Scholar] [CrossRef]
- Tripathi, J.; de Oliveira, J.C. On adaptive timers for improved RPL operation in low-power and lossy sensor networks. In Proceedings of the IEEE 5th International Conference on Communication Systems and Networks (COMSNETS), Bangalore, India, 7–10 January 2013. [Google Scholar]
- Duquennoy, S.; Landsiedel, O.; Voigt, T. Let the Tree Bloom: Scalable Opportunistic Routing with ORPL. In Proceedings of the 11th ACM Conference on Embedded Networked Sensor Systems (SenSys), Roma, Italy, 11–15 November 2013. [Google Scholar]
- Al-kashoash, H.A.A.; Al-Nidawi, Y.; Kemp, A.H. Congestion-Aware RPL for 6LowPAN Networks. In Proceedings of the IEEE Wireless Telecommunications Symposium (WTS), London, UK, 18–20 April 2016. [Google Scholar]
- Marco, P.D.; Athanasiou, G.; Mekikis, P.; Fischione, C. MAC-aware routing metrics for the internet of things. Comput. Comuun. 2016, 74, 77–86. [Google Scholar] [CrossRef] [Green Version]
- Farooq, M.O.; Sreenan, C.J.; Brown, K.N.; Kunz, T. RPL-based routing protocols for multi-sink wireless sensor networks. In Proceedings of the IEEE 11th International Conference on Wireless and Mobile Computing, Networking and Communications (WiMob), Abu Dhabi, UAE, 19–21 October 2015. [Google Scholar]
- Tahir, Y.; Yang, S.; McCann, J. BRPL: Backpressure RPL for High-Throughput and Mobile IoTs. IEEE Trans. Mob. Comput. 2018, 17, 29–43. [Google Scholar] [CrossRef]
- Pavković, B.; Theoleyre, F.; Duda, A. Multipath opportunistic RPL routing over IEEE 802.15.4. In Proceedings of the 14th ACM International Conference on Modeling, Analysis and Simulation of Wireless and Mobile Systems (MSWiM), Miami, FL, USA, 31 October–4 November 2011. [Google Scholar]
- Michel, M.; Duquennoy, S.; Quoitin, B.; Voigt, T. Load-Balanced Data Collection through Opportunistic Routing. In Proceedings of the IEEE International Conference on Distributed Computing in Sensor Systems (DCOSS′15), Fortaleza, Brazil, 10–12 June 2015. [Google Scholar]
- Kang, D.; Kim, H.; Bahk, S. ORPL-DT: Opportunistic Routing for Diverse Traffic in Multihop IoT Networks. In Proceedings of the GLOBECOM IEEE Global Communications Conference, Singapore, 4–8 December 2017. [Google Scholar]
- Liu, X.; Guo, J.; Bhatti, G.; Orlik, P.; Parsons, K. Load balanced routing for low power and lossy networks. In Proceedings of the IEEE Wireless Communications and Networking Conference (WCNC), Shanghai, China, 7–10 April 2013. [Google Scholar]
- Moghadam, M.N.; Taheri, H. High Throughput Load Balanced Multipath Routing in Homogeneous Wireless Sensor Networks. In Proceedings of the IEEE 22nd Iranian Conference on Electrical Engineering (ICEE), Tehran, Iran, 22–24 May 2014. [Google Scholar]
- Iova, O.; Theoleyre, F.; Noel, T. Exploiting Multiple Parents in RPL to Improve both the Network Lifetime and its Stability. In Proceedings of the IEEE ICC, London, UK, 8–12 June 2015. [Google Scholar]
- Nassiri, M.; Boujari, M.; Azhari, S.V. Energy-aware and load-balanced parent selection in RPL routing for wireless sensor networks. Int. J. Wirel. Mob. Comput. 2015, 9, 231–239. [Google Scholar] [CrossRef]
- Hellaoui, H.; Koudil, M. Bird Flocking Congestion Control for COAP/RPL/6LoWPAN Network. In Proceedings of the ACM IoT-Sys’15 Workshop on IoT challenges in Mobile and Industrial Systems, Lille, France, 14–15 October 2015. [Google Scholar]
- Tang, W.; Ma, X.; Huang, J.; Wei, J. Toward Improved RPL: A Congestion Avoidance Multipath Routing Protocol with Time Factor for Wireless Sensor Networks. J. Sens. 2016, 2016. [Google Scholar] [CrossRef]
- Guo, J.; Orlik, P.; Ishibashi, K. Resource Aware Hierarchical Routing in Heterogeneous Wireless IoT Networks. In Proceedings of the IEEE ICUFN, Vienna, Austria, 5–8 July 2016. [Google Scholar]
- Parasuram, A. An Analysis of the RPL Routing Standard for Low Power and Lossy Networks; Electrical Engineering and Computer Sciences University of California at Berkeley: Berkeley, CA, USA, 2016. [Google Scholar]
- Srivastava, V.; Motani, M. Cross-Layer Design: A Survey and the Road Ahead. IEEE Commun. Mag. 2005, 43, 112–119. [Google Scholar] [CrossRef]
- Al-Kashoash, H.A.A.; Hafeez, M.; Kemp, A.H. Congestoin-Aware RPL for 6LoWPAN Networks: A Game Theoretic Framework. IEEE Internet Things 2017, 4, 760–771. [Google Scholar] [CrossRef]
- Michopoulos, V.; Guan, L.; Oikonomou, G.; Phillips, I. DCCC6: Duty cycle-aware congestion control for 6LoWPAN network. In Proceedings of the IEEE International Conference on Pervasive Computing and Communications Workshops, Lugano, Switzerland, 19–23 March 2012. [Google Scholar]
- Marco, P.D.; Fischione, C.; Athanasiou, G.; Mekikis, P. MAC-aware Routing Metrics for Low Power and Lossy Networks. In Proceedings of the IEEE Conference on Computer Communications Workshops (INFOCOM WKSHPS) Student Poster Session, Turin, Italy, 14–19 April 2013. [Google Scholar]
- Moeller, S.; Sridharan, A.; Krishnamachari, B.; Gnawali, O. Routing without routes: The backpressure collection protocol. In Proceedings of the 9th ACM/IEEE International Conference in Information Processing in Sensor Networks (IPSN), Stockholm, Sweden, 12–16 April 2010. [Google Scholar]
- FIT IoT-LAB. Available online: https://www.iot-lab.info/ (accessed on 25 January 2019).
- Ghadimi, E.; Landsiedel, O.; Soldati, P.; Johansson, M. A Metric for Opportunistic Routing in Duty Cycled Wireless Sensor Networks. In Proceedings of the 9th Annual IEEE Communications Society Conference on Sensor, Mesh and Ad Hoc Communications and Networks (SECON), Seoul, South Korea, 18–21 June 2012. [Google Scholar]
- Indriya. Available online: https:// www.comp.nus.edu.sg/~chanmc/papers/indriya-testbed.pdf (accessed on 25 January 2019).
- Gnawali, O.; Fonseca, R.; Jamieson, K.; Moss, D.; Levis, P. Collection Tree Protocol. In Proceedings of the 7th ACM Conference on Embedded Networked Sensor Systems (Sensys), Berkeley, CA, USA, 4–6 November 2009. [Google Scholar]
- Ghadimi, E.; Landsiedel, O.; Soldati, P.; Duquennoy, S.; Johansson, M. Opportunistic Routing in Low Duty-Cycled Wireless Sensor Networks. ACM Trans. Sens. Newt. 2014, 10, 67. [Google Scholar]
- Ferrari, F.; Zimmerling, M.; Mottola, L.; Thiele, L. Low-Power Wireless Bus. In Proceedings of the 10th ACM Conference on Embedded Network Sensor Systems (Sensys), Toronto, ON, Canada, 6–9 November 2012. [Google Scholar]
- Antoniou, P.; Pitsillides, A.; Blackwell, T.; Engelbrecht, A.; Michael, L. Congestion control in wireless sensor networks based on bird flocking behavior. Comput. Netw. 2013, 57, 1167–1191. [Google Scholar] [CrossRef] [Green Version]
- Kim, H.-S.; Andersen, M.P.; Chen, K.; Kumar, S.; Zhao, W.J.; Ma, K.; Culler, D.E. System Architecture Directions for Post-SoC/32-bit Networked Sensors. In Proceedings of the 16th ACM Conference on Embedded Networked Sensor Systems (SenSys), Shenzhen, China, 4–7 November 2018. [Google Scholar]
- Cam-Winget, N.; Hui, J.; Popa, D. RPL Applicability for AMI, RFC 8036. 2017. Available online: https://tools.ietf.org/html/rfc8036 (accessed on 25 January 2019). [CrossRef]
- Rajalingham, G.; Gao, Y.; Ho, Q.-D.; Le-Ngoc, T. Quality of Service Differentiation for Smart Grid Neighbor Area Networks through Multiple RPL Instances. In Proceedings of the 10th ACM Symposium on QoS and Security for Wireless and Mobile Networks (Q2SWinet), Montreal, QC, Canada, 21–26 September 2014. [Google Scholar]
- Banh, M.; Mac, H.; Nguyen, N.; Phung, K.-H.; Thanh, N.H.; Steenhaut, K. Performance Evaluation of multiple RPL routing tree instances for Internet of Things applications. In Proceedings of the International Conference on Advanced Technologies for Communications (ATC′15), Ho Chi Minh City, Vietnam, 14–16 October 2015. [Google Scholar]
- Nassar, J.; Berthome, M.; Dubrulle, J.; Gouvy, N.; Mitton, N.; Quoitin, B. Multiple Instances QoS Routing in RPL: Application to Smart Grids. Sensors 2018, 18, 2472. [Google Scholar] [CrossRef] [PubMed]
- Gomez, C.; Crowcroft, J.; Scharf, M. TCP Usage Guide in the Internet of Things (IoT). Draft-Ietf-Lwig-Tcp-Constrained-Node-Networks-04. October 2018. Available online: https://tools.ietf.org/id/draft-ietf-lwig-tcp-constrained-node-networks-04.html (accessed on 25 January 2019).
- Kim, H.-S.; Im, H.; Lee, M.-S.; Paek, J.; Bahk, S. A Measurement Study of TCP over RPL in Low-power and Lossy Networks. J. Commun. Netw. 2015, 17, 647–655. [Google Scholar] [CrossRef]
- Kumar, S.; Andersen, M.; Kim, H.-S.; Culler, D. TCPlp: System Design and Analysis of Full-Scale TCP in Low-Power Networks. arXiv 2018, arXiv:1811.02721. [Google Scholar]
- Nahm, K.; Helmy, A.; Kuo, C.-C.J. Cross-layer interaction of TCP and ad hoc routing protocols in multihop IEEE 802.11 networks. IEEE Trans. Mob. Comput. 2008, 7, 458–469. [Google Scholar] [CrossRef]
Schemes | Congestion Detection Metrics |
---|---|
GTCC [16] | Packet generation rate subtracted by packet service rate |
QU-RPL [17] | Queue utilization |
Ullah et al. [18] | Queue utilization |
PC-RPL [19] | Packet losses |
OHCA [20] | Ratio of packet interarrival time to packet service time |
CoAR [21] | Queue utilization, ratio of incoming traffic rate to outgoing traffic rate |
M-RPL [22] | Packet delivery ratio |
HC | ETX | EDC | QU | Link delay | LQI | RSSI | Loss Rate | Traffic Rate | RE | Additional Metrics | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|
GTCC | [16] | √ | √ | |||||||||
QU-RPL | [17] | √ | √ | √ | ||||||||
Ullah et al. | [18] | √ | √ | √ | √ | |||||||
PC-RPL | [19] | √ | √ | √ | √ | subtree size | ||||||
CA-OF | [28] | √ | √ | |||||||||
OHCA | [20] | √ | √ | √ | ||||||||
CoAR | [21] | √ | √ | √ | no. of potential children/no. of neighbor nodes | |||||||
Marco et al. | [29] | √ | √ | busy channel prob., reliability constraint | ||||||||
Farooq et al. | [30] | √ | √ | √ | √ | available bandwidth | ||||||
BRPL | [31] | √ | √ | logical link layer channel capacity, change of no. of one-hop neighbors | ||||||||
Pavkovic et al. | [32] | √ | √ | √ | deadline constraints | |||||||
ORPL | [27] | √ | ||||||||||
ORPL-LB | [33] | √ | duty cycle | |||||||||
ORPL-DT | [34] | √ | ||||||||||
LB-RPL | [35] | √ | √ | |||||||||
Moghadam et al. | [36] | √ | √ | √ | ||||||||
Iova et al. | [37] | √ | √ | √ | ||||||||
Nassiri | [38] | √ | √ | √ | √ | superframe distance | ||||||
M-RPL | [22] | PDR | ||||||||||
Hellaoui et al. | [39] | √ | ||||||||||
CA-RPL | [40] | √ | √ | √ | wake-up interval | |||||||
H-RPL | [41] | √ | √ | available/required memory |
Direction of Information Flow | Relevant Metrics and Parameters | How the Layered Architecture is Violated | Objectives | |
---|---|---|---|---|
GTCC [16] | Upward | LQI | Calculating the rank considering LQI | To detect congestion and node failure and unavailability |
Ullah et al. [18], CoAR [21] | Upward | Residual energy | Parent selection considering remaining energy | To avoid selecting energy-constrained nodes |
PC-RPL [19] | Back and forth | RSSI | Jointly controlling transmission power and routing topology | To address the hidden terminal problem |
Marco et al. [29] | Upward, Downward | LQI, Busy channel probability, Max. no. of backoffs and retransmissions at the MAC layer, Reliability constraint | Calculating link reliability and traffic load distribution considering bad channel probability (LQI), busy channel probability, MAC parameters, and power consumption, reliability constraint given by the application | To extend reliability metric by considering packet losses due to MAC contention To distribute load while keeping the minimum reliability required by the application |
Pavkovic et al. [32] | Downward | Deadline constraints | Selecting a node that satisfies the deadline constraint which is assigned on packet generation | To meet the deadline that is assigned to each packet |
ORPL-LB [33] | Back and forth | Wake-up interval | Adapting the wake-up interval by comparing the current duty cycle and the target duty cycle | To balance load by adjusting nodes’ wake-up intervals |
Iova et al. [37] | Upward | Residual energy | Identifying the bottleneck nodes in terms of Expected Lifetime metric (=time until a node will run out of energy) | To detect energy bottleneck nodes and to spread the traffic among them |
Nassiri [38] | Upward | RSSI, Residual energy, Superframe distance, | Using RSSI for the initial DODAG construction and considering the upstream energy estimate and superframe distance for periodic parent selection | To prevent selecting parents with low quality or low energy and to reduce end-to-end delay in the beacon-enabled mode |
H-RPL [41] | Upward | Residual energy, Available/required memory | Determining the routing type adaptively considering the critical resource status such as residual energy and available/required memory | To balance the routing workload between nodes considering the resource status and requirement |
Main Feature | Routing Metrics & Constraints | Evaluation Tool | Evaluation Metrics | |
---|---|---|---|---|
GTCC [16] | Designing the parent change procedure using a potential game. Detecting congestion based on the difference of packet transmission rate and the packet service rate. Notifying congestion explicitly by sending a DIO packet with the CN bit set. | Link quality indicator (LQI), transmission rate | Cooja simulation | Packet losses, throughput, average hop count |
QU-RPL [17] | Selecting a parent based on queue utilization, hop count, and ETX | ETX, queue utilization, hop count | Real testbed experiment | PDR, routing overhead, scalability |
Ullah et al. [18] | Selecting a parent based on queue utilization, residual energy, and ETX | ETX, queue utilization, residual energy | Cooja simulation | PDR, power consumption |
PC-RPL [19] | Addressing the hidden terminal problem and load imbalance by jointly controlling transmission power and routing topology | Hop count, ETX, queue losses, link losses, RSSI | Real testbed experiment | PRR, hop count, end-to-end ETX, parent change frequency, routing overhead, total transmission count |
CA-OF [28] | Using a weighted sum of ETX and buffer occupancy | ETX, buffer occupancy | Cooja simulation | PDR, number of lost packets, throughput, energy consumption |
OHCA [20] | Adopting both resource control (parent change if available) and traffic control (sending rate adaptation). Detecting congestion by monitoring if the arrival rate exceeds the service rate | Buffer occupancy, ETX, queuing delay | Cooja simulation | Throughput, weighed fairness index, end-to-end delay, energy consumption, number of lost packets |
CoAR [21] | Using TOPSIS to select the best alternative parent. Adjusting the threshold for congestion detection according to the buffer occupancy and the incoming/outgoing traffic | ETX, queue utilization, residual energy, neighborhood index | Cooja simulation | PRR, end-to-end delay, packet loss rate, throughput, power consumption |
Marco et al. [29,46] | Proposing two metrics exploiting the information from the MAC layer: R-metric representing end-to-end reliability and Q-metric representing the optimal traffic for balanced energy consumption | LQI, busy channel probability, traffic rate | Testbed experiment (using TelosB platforms) | End-to-end node reliability, average node power consumption |
Farooq et al. [30] | Extending the original RPL for a wireless sensor network with multiple sinks | Hop count and tie-breaking metrics (available bandwidth, delay, MAC layer queue occupancy, ETX) | Cooja simulation | PDR, delay, total retransmissions |
Main Feature | Routing Metrics & Constraints | Evaluation Tool | Evaluation Metrics | |
---|---|---|---|---|
BRPL [31] | Switching smoothly and adaptively between the RPL OF with backpressure routing. Considering mobility. | Queue backlogs, ETX | Cooja simulation, FIT IoT-LAB testbed | Packet loss, end-to-end delay, communication overhead |
Pavkovic et al. [32] | Opportunistically forwarding packets over multiple parents satisfying the delay constraint on a per-packet basis | Delay to the sink, deadline constraints, ETX | WSNet/Worldsens | PDR, incurred delay, overhead |
ORPL [27] | Opportunistic routing protocol supporting upward, downward, and any-to-any on-demand traffic | EDC (Estimated Duty Cycled wake-ups) | Indriya testbed experiment | PDR, latency, duty cycle |
ORPL-LB [33] | Opportunistic forwarding. Adjusting the wake-up interval depending on the traffic load | EDC, average duty cycle | Indriya testbed experiment | PDR, latency, duty cycle, |
ORPL-DT [34] | Opportunistic forwarding. Improving the reliability of routes by updating the routing metric using both upward and downward traffic | EDC | Real testbed experiment | Uplink/downlink packet reception ratio (PRR), PRR fairness, no. of routing messages |
LB-RPL [35] | Forwarding data using multiple parent nodes. Setting the DIO message transmission timer in proportion to workload | Packet drop probability, buffer utilization counter | Ns-2 simulation | Packet delivery ratio, packet loss, packet delivery delay |
Moghadam et al. [36] | Equalizing traffic load share between parents of an equal depth from the sink while minimizing transmission cost | Hop count, ETX | Simulation using MATLAB, OMNET++ | Network life time, throughput, collisions, link drops |
Iova et al. [37] | Splitting traffic between multiple parents to spread traffic load uniformly among energy bottleneck nodes | ELT (Expected Lifetime) | WSNet | PDR, energy consumption, network lifetime, no. of parent changes |
Nassiri [38] | Adopting a cross-layer approach using RSSI and superframe distance. | RSSI, superframe distance, remaining energy, load | WSNet | PDR, Delay, Lifetime |
M-RPL [22] | Initially establishing a single path but providing temporary multipath routing during period of congestion. Detecting congestion relying on average PDR | Cooja simulation | Throughput, end-to-end delay, energy consumption | |
Hellaoui et al. [39] | Using a bird flocking model | Buffer filling ratio | Cooja simulation | Latency, Packet loss ratio |
CA-RPL [40] | Using a delay metric calculated considering the duty cycle at the MAC layer. Splitting traffic over two best parents | ETX, minimized delay to the DODAG root, no. of received packets | Cooja simulation | Throughput, packet loss ratio, latency |
H-RPL [41] | Allowing heterogeneous, mixed, adaptive routing types based on available/required resource. Shifting routing workload from nodes with less resource to nodes with more resources. Load balancing based on queue utilization. | Available/memory, required memory, expected routing lifetime | Ns-2 simulation | PDR, energy consumption, network lifetime |
