Acetone Sensing Properties and Mechanism of SnO2 Thick-Films

by
Yanping Chen
1,2,
Hongwei Qin
1,*,
Yue Cao
1,
Heng Zhang
1 and
Jifan Hu
1,*
1
School of Physics, State Key Laboratory for Crystal Materials, Shandong University, Jinan 250100, China
2
School of Science, Shandong Jianzhu University, Jinan 250101, China
*
Authors to whom correspondence should be addressed.
Sensors 2018, 18(10), 3425; https://doi.org/10.3390/s18103425
Submission received: 1 September 2018 / Revised: 7 October 2018 / Accepted: 7 October 2018 / Published: 12 October 2018
(This article belongs to the Special Issue VOC Sensors Applicable to IoT and Healthcare)
Browse Figures
Versions Notes

Abstract

:
In the present work, we investigated the acetone sensing characteristics and mechanism of SnO2 thick-films through experiments and DFT calculations. SnO2 thick film annealed at 600 °C could sensitively detect acetone vapors. At the optimum operating temperature of 180 °C, the responses of the SnO2 sensor were 3.33, 3.94, 5.04, and 7.27 for 1, 3, 5, and 10 ppm acetone, respectively. The DFT calculation results show that the acetone molecule can be adsorbed on the five-fold-coordinated Sn and oxygen vacancy (VO) sites with O-down, with electrons transferring from acetone to the SnO2 (110) surface. The acetone molecule acts as a donor in these modes, which can explain why the resistance of SnO2 or n-type metal oxides decreased after the acetone molecules were introduced into the system. Molecular dynamics calculations show that acetone does not convert to other products during the simulation.

1. Introduction

Over a period of three decades, semiconductor metal oxide gas sensors have been extensively investigated due to their stable chemical transduction properties, which can reversibly convert chemical interactions on a surface to change the conductivity. Surface conduction is regulated by the adsorption and desorption of gas molecules on the surface of materials. Among the semiconductor metal oxides used in gas sensors, SnO2 has received considerable attention in science and technology for many years. SnO2 with a wide band gap of 3.6 eV is a significant functional material applicable for solar cells, catalysis, transparent electrodes, and, particularly, in gas sensor devices because of its unique optical, catalytic, and electrical properties [1,2,3,4,5,6]. It has been widely used to detect toxic chemicals such as CH4, H2, C2H5OH, gasoline, CO, C2H2, NO2, NO, and H2S [7]. As the most promising sensor, it is highly desirable to improve the sensing properties of SnO2 and meet the needs of sensors to work in more complicated environments. The sensing ability of the sensor to specific gas depends on the interaction between the gas molecules and the sensor surface. The reactivity of the surface is critically dependent on the doping or defect structures. Notably, it has been proven that proper doping is one of the most effective ways to enhance the gas sensing properties by modifying the geometric and electronic structures of the surface.
Oxygen-related gas sensing generally involves the chemisorption of oxygen on the surface of SnO2, which then undergoes charge transfer during the reaction of chemisorbed oxygen with the target gas molecules, thereby changing the surface resistance of the sensor element [8]. The electrons trapped by oxygen deplete the surface of the charge carrier and form a surface potential to act as a potential barrier against electron flow. Inside the sensor, current flows through the conjunction parts (grain boundary) of SnO2 microcrystals. The adsorbed oxygen forms a potential barrier at the grain boundary that prevents the free movement of carriers, and the increase in resistance of the SnO2 film is attributed to this potential barrier. If a reducing gas is present in the air sample, it reacts with the adsorbed oxygen species. In this way, free electrons are released back to the conduction band, and the surface density of negatively charged oxygen decreases. As a result, both the grain boundary barrier height and the sensor resistance are reduced [9,10,11,12,13].
Acetone is a commonly used reagent in industry and laboratories. It is highly unstable and is greatly harmful to human health and biology. Inhalation of acetone can cause headaches, allergies, fatigue, and even narcosis [14,15,16,17], and can be harmful to the nervous system. Therefore, for the sake of safety, it is urgent to monitor the concentration of acetone in the environment and workplace. In addition, the use of exhaled gas from humans to diagnose diabetes has great promise as it is non-invasive [18]. Acetone can be used as a breath marker for the diagnosis of diabetes because the concentration of acetone in healthy individuals’ breath varies from 0.3 to 0.9 ppm and in the exhaled air of diabetic patients exceeds 1.8 ppm [18]. A chemiresistive type sensor using SnO2 is considered as an exhalation gas sensor because of its excellent reactivity with volatile organic compounds (VOCs), easy fabrication processes, and the possibility of miniaturization of portable integration [3,4,19,20,21,22,23,24,25,26]. For example, L. Cheng et al. [3] have developed Y-doped SnO2 hollow nanofibers for the detection of acetone. L.P. Qin et al. [4] reported the effect of temperature on the acetone-sensing properties of SnO2 nanowires. Also, J. Zhao et al. [19] reported the acetone vapor sensing performance of SnO2 thin films prepared by dip-coating. In addition, as reported by S.B. Patil et al. [20], the addition of cobalt to the SnO2 thin films can help increase the active surface area and thereby increase the absorption of test gases. S. Singkammo et al. [21] also developed Ni-doped SnO2 sensors for the detection of acetone, in which the SnO2 nanoparticles were prepared by spin-coating. The understanding of gas-surface interactions at the atomic level and the study of SnO2 semiconductor gas sensor mechanisms have attracted more and more attention [27,28,29,30,31,32,33]. Among them, density functional methods have been successfully used to study surface geometry [27,28,29,30,31], the electronic and chemical properties of bulk and surface systems [32], and the reaction processes of adsorbents, such as H2 [30], O2 [33], NOx [34], and C2H5OH [35] on a stoichiometric or oxygen-deficient SnO2 (110) surface.
In this paper, the acetone sensing characteristics and mechanism of SnO2 thick film are reported from experiments and first-principles methods. The microstructure and morphology of the as-synthesized SnO2 particles were analyzed by XRD and TEM. The sensing mechanism of the above SnO2 thick film is also discussed.

2. Materials and Methods

The nanocrystalline SnO2 powders were prepared by a co-precipitation method. SnCl4∙5H2O (99%, obtained from Beijing 57601 Chemical (Beijing, China)) was dissolved in deionized water. An appropriate amount of NH3 (25–28%, obtained from Kangde Chemical (Laiyang, China)) was added dropwise to the vigorously stirred solution. All materials were used without further purification. The final pH value was adjusted to approximately eight to promote a complete precipitation. The resulting slurry was filtered, washed with distilled water repeatedly, and finally dried in air at 120 °C for 20 h. The dried powders were milled and preheated at 350 °C for 4 h. Then, the powders obtained above were annealed in an oven at 400, 500, 600, 700, and 800 °C for 5 h to obtain the SnO2 nanoparticles. The structures of the resultant powders were characterized by means of X-ray powder diffraction (XRD, Model: Smart APEX II X-ray diffractometer with CuKα source: λ = 0.15418 nm) and transmission electron microscopy (TEM, Model: Tecnai G2 F20).
The powders were mixed with deionized water to form a paste. The obtained paste was then coated onto a prefabricated Al2O3 tube to form a thick film and air-dried for 1 h. The length and diameter of the tube were 4 mm and 1.2 mm, respectively. Two Au electrodes were installed at each end of the ceramic tube. Electric contacts were made with two platinum wires attached to the electrodes. A Ni-Cr heating wire was placed through the tube to control the operating temperature. The sensors were annealed at 240 °C for 48 h on the aging equipment in ambient air. The schematic diagram of a typical gas sensor and a photo of the prepared sensor are shown in Figure 1, respectively. The gas sensing tests were carried out on a computer-controlled WS-30A system (Wei Sheng Electronics Co. Ltd., Zhengzhou, China), and the measurement (upgraded and modified according to our experimental needs) was processed by a static process. The sensors were put into a glass chamber (20 L) at the beginning. When the resistances of all the sensors were stable (relative humidity was approximately 27%), the calculated amount of the acetone liquid was injected into the glass chamber by a micro-injector and mixed with air. After the sensor resistances reached a new constant value, the test chamber was opened to recover the sensors in air. The temperature of the sensor was also controlled by a computer. The sensor resistance and response values were acquired by the analysis system automatically. The various environmental relative humidities (RH) for the sensor response measurement in a closed test chamber were achieved at room temperature. Three elements were prepared for each sample, and the average gas sensitivity of the three elements was taken as the gas sensitivity of the sample. The gas-sensing response S in the experiment was defined as Ra/Rg, where Ra and Rg were the electric resistance in air and test gas, respectively.

3. Results and Discussion

The X-ray diffraction patterns of the powders annealed at 400, 500, 600, 700, and 800 °C for 5 h are shown in Figure 2. As can be seen from the figure, the tin oxide annealed at 400 °C is amorphous. The powders annealed at other temperatures crystallized as one single phase with the tetragonal SnO2 rutile structure with lattice constants of a = 4.738 Å and c = 3.188 Å (JCPDS file No: 21–1250) [36]. The average grain size D was estimated by means of the Scherrer method. The Scherrer equation is as follows:
D = K λ β cos θ
where λ is the wavelength of the incoming X-ray, β is the integral width of diffraction peaks, and θ is the Bragg diffraction Angle. When β is equal to half the width of the diffraction peak, k = 1 [37]. The obtained D values were about 19 nm, 10.1 nm, 11 nm, 17.6 nm, and 12.8 nm for SnO2 annealed at different temperatures.
It is well-known that the response of resistive sensors is considerably affected by the operating temperature, and it is obtained by performing the gas sensing experiments at different temperatures. The response characteristic of the SnO2 thick-films as a function of the operating temperature in the range 140–260 °C at 0.5 ppm of acetone vapor in air is shown in Figure 3. It can be seen that SnO2 may potentially be used as a sensing material for the detection of acetone at low concentrations. The responses of all SnO2 samples initially increase and attain the highest value and then decline with the operating temperature. The amount of gas adsorbed reaches an equilibrium at the appropriate temperature. Above this temperature, this equilibrium is interrupted, and the gas response is reduced [38]. This behavior can be explained from the kinetics and mechanics of gas adsorption and desorption on the surface of SnO2 [39]. The quantity of the chemically adsorbed gas species on the surface gradually increases with an increase in the operating temperature until the rate of desorption becomes equal to that of adsorption. The maximum amount of chemisorption is reached at the temperature with the highest gas response. If the temperature is further increased above this temperature, the balance will move to desorption, as the chemisorption is an exothermic reaction. Then the amount of adsorbed gas is reduced, resulting in a decreased gas response [40,41]. The response of SnO2 samples annealed at 400 °C and 500 °C attained a maximum value at 220 °C and the corresponding responses were 1.073 and 1.035, while SnO2 samples annealed at 600 °C, 700 °C, and 800 °C attained the maximum value at 180 °C and the corresponding responses are 1.582, 1.477, and 1.358, respectively. Therefore, 600 °C is the optimum annealing temperature and 180 °C is the optimum operating temperature. The data are summarized in Table 1. The optimum operating temperature of SnO2 shifts to a lower optimal working temperature when annealed at 600 °C, 700 °C, and 800 °C. The reduction of the optimal operating temperature of SnO2 may be caused by the large specific surface area, which increases the concentration of chemisorbed oxygen. Compared to others annealed at a higher temperature, the SnO2 sample annealed at 600 °C exhibits the highest acetone response. This may be ascribed to the smaller particle size of the SnO2 sample annealed at 600 °C. At 180 °C, the responses are 1.582, 1.477, and 1.273 for SnO2 sensors annealed at 600 °C, 700 °C, and 800 °C with 0.5 ppm acetone. Hereafter, we mainly conducted the gas sensing investigations of SnO2 sensors annealed at 600 °C.
The response of the SnO2 sensor annealed at 600 °C to different concentrations of acetone in relation to the operating temperature is shown in Figure 4. TA is the annealing temperature. We can see that the response increases continuously with an increase in the acetone concentration. This is attributable to the increased surface coverage of the acetone molecules on the membrane at higher concentrations, which promotes a subsequent reaction between acetone and atmospheric oxygen on the membrane surface, leading to a rapid chemical reaction and thus increasing the response. At the optimal operating temperature (TO) of 180 °C, the response of the SnO2 sensor was 3.333, 3.936, 5.043, and 7.274 for 1, 3, 5, and 10 ppm acetone gas, respectively.
Figure 5a–c shows the typical TEM observations of SnO2 nanoparticles annealed at 600 °C. A low-magnification TEM image, shown in Figure 5a, exhibited several typical SnO2 nanoparticles with diameters of 5.7 to 14.3 nm. A typical HRTEM image of a SnO2 nanoparticle is shown in Figure 5b, suggesting that the SnO2 nanoparticle was a single crystal. The interplanar distance value of ca. 0.279 nm can be readily assigned to the reflections from the (110) plane of tetragonal SnO2 [3,42]. The corresponding selected area diffraction (SAED) pattern, shown in Figure 5c, reveals a tetragonal SnO2 crystal with characteristic electron diffraction peaks of the (110), (101), (200), (211), and (301) planes, indicating high crystallinity of SnO2 nanoparticles in good agreement with the XRD data [9,42,43].
Figure 6 shows the responses of the SnO2 sensor for 5, 10, 20, and 50 ppm acetone at the optimal operating temperature of 180 °C. It can be observed that the sensing response increases when the concentration of acetone increases from 5 to 50 ppm. After injection of 5 ppm, 10 ppm, 20 ppm, and 50 ppm acetone, the response of the sensor increased abruptly, corresponding to the responses of 5.043, 7.221, 10.6, and 16.898, respectively. The response then decreased rapidly and recovered to its initial value within a few minutes after the test gas was released. When injected with 5, 10, 20, and 50 ppm acetone, the response times of the sensor were 70, 38, 41, and 95 s, while the recovery times were 64, 90, 100, and 77 s, respectively. The response time and recovery time of SnO2 reported in the literature are summarized in Table 2. L. Cheng et al. [42] have reported that the response time and recovery time of three-dimensional hierarchical SnO2 nanoflowers for 500 ppm are 9 s and 7 s, respectively. V.V. Krivetsky et al. [43] have reported the response time and recovery time of the SnO2-based sensor for 1800 ppm acetone were 100 s and 500 s, respectively. Compared with the response-recovery time of SnO2 with the same morphology in the literature, the response time and recovery time of SnO2 in the prepared sample were reduced. For acetone vapor sensing, the oxygen species (O−, O2−, O2−) adsorbed on the SnO2 surface play an important role in the electrical transport properties. During the reaction process, acetone molecules donate electrons to the previously adsorbed oxygen species. Thus, the conductance of SnO2 will increase as acetone vapor is introduced into the test chamber due to the exchange of electrons between the oxygen species and SnO2 itself.
At the optimal operating temperature of 180 °C, the relationship between the sensitivity of the SnO2 thick film and the acetone vapor concentration is shown in Figure 7. With an increase in the acetone concentration, the response growth amplitude of the SnO2 sensor declines. The SnO2 sensor is more sensitive to low concentrations of acetone vapors which may be attributed to the availability of a sufficient number of sensing sites on the film to act. In comparison with the previous SnO2 reports [3,4,19,20,42,43,44,45,46,47,48,49,50], the corresponding properties for some other SnO2 sensors to acetone are shown in Table 2. After comparison, we can conclude that the SnO2 sensor we made can detect low concentrations with a high response at low temperature. Since the sensor is operated at elevated temperatures (180 °C), an additional circuit for temperature compensation should be included in the measurement setup.
Selectivity is another important factor for gas sensors. The sensor selectivity was tested by exposing it to 1 ppm of different gases at 180 °C, and the test results are shown in Figure 8. It can be seen that the sensor shows a high response to acetone compared to other gases. The results indicate that the SnO2 based sensor shows good selectivity for acetone. Long-term stability is another important parameter for the gas sensor. The stability of the SnO2 sensor is measured at 1 ppm of acetone for 33 days, as shown in Figure 9. The result indicates that SnO2 annealed at 600 °C has good long-term stability, which benefits its practical application.
Figure 10 shows the humidity dependence of the sensing response to 1 ppm acetone at an operating temperature of 180 °C for SnO2 annealed at 600 °C. Relative humidity is measured at room temperature. The responses of SnO2 at 180 °C to 1 ppm acetone are 3.333%, 3.4%, 3.458%, 3.606%, and 3.767 in an air environment with the relative humidity of 27% RH, 40% RH, 52% RH, 63% RH, and 72% RH. We can see that as the humidity increases from 27 to 72% RH, the sensing response of the SnO2 sensor to 1 ppm acetone increases from 3.333 to 3.487. The humidity of the environment promotes the SnO2 response to acetone, which is similar to LaNi0.5Ti0.5O3 [51] sensing properties to acetone in a humid environment. However, by comparison, the magnitude of responses in wet air (~27% RH) and wet air (~72% RH) are at the same level. The small change in response value (0.154) demonstrates that the tested environmental humidity has little effect on the SnO2 sensing properties of acetone vapor. This performance of SnO2 is different from the acetone response of La-doped α-Fe2O3 [52] and Si-doped WO3 [53], which decreased with increasing relative humidity.
It is well known that theoretical studies are used as a complementary tool to understand molecular reactions at an atomic level. Many DFT investigations on the sensing performance of SnO2 have been performed. To describe the sensitization mechanism of acetone and the SnO2 surface with greater clarity, we performed DFT calculations. All calculations were carried out by DFT using the program package DMol3 [54,55]. Calculations were performed with a generalized gradient approximation through the Perdew–Burke–Ernzerhof method to describe the exchange and correlation energy. Double numerical basis sets with polarization functions were adopted. The convergence criteria of optimal geometry for energy, force, and displacement were 2 × 10−5 Ha, 4 × 10−3 Ha/Å, and 5 × 10−3 Å, respectively. The Brillouin zone was sampled using a 3 × 3 × 1 Monkhorst Pack grid, which generated converged results for all properties. Charge transfer was calculated based on a Mulliken population analysis [56].
SnO2 crystal with a tetragonal structure (Pmnm (41)) was calculated with 48 atoms in the supercell. Lattice constants were a = 4.73735 Å, b = 4.73735 Å, and c = 3.18640 Å, and atomic fractional coordinates were Sn (0.0000, 0.0000, 0.0000), and O (0.30562, 0.30562, 0). The (110) surface was cleaved from the optimized SnO2 bulk, and a 10 Å vacuum was added to the layers. We chose the (110) surface of SnO2 because this was the most thermodynamically stable surface and has been extensively studied both experimentally and theoretically [27,30,31,33,34,35,54,55]. The optimized SnO2 (110) surface is shown in Figure 11. CO/H2-sensing behaviors and mechanisms have been experimentally found to strongly depend on the oxygen amount in the ambient, and the surface configuration of SnO2 reportedly depends strongly on oxygen concentration [57,58]. In the following, we investigate the adsorption of acetone for the stoichiometric, the defective and the oxygen species adsorbed SnO2 surface.
The sign of adsorption energy can be used to clarify the possibility of the adsorption mode. Adsorption energy can be expressed as follows:
E a d s = E s u b s t r a t e + E a d s o r b a t e − E s u b s t r a t e − a d s o r b a t e
where E s u b s t r a t e and E a d s o r b a t e is the total energy of the adsorbate-substrate system in the equilibrium state; E s u b s t r a t e and E a d s o r b a t e are the total energy of substrate and adsorbate, respectively. In general, positive Eads indicates that the interaction between the molecule and SnO2 surface is an exothermic process. We first chose the SnO2 (110) stoichiometric surface to study the reaction between acetone molecule and SnO2 (110). The optimized geometry is shown in Figure 11. For the stoichometric SnO2 surface, the acetone molecule can only be adsorbed on the five-fold-coordinated Sn, as shown in mode C1, see Figure 12. In other modes, the calculated results showed that the acetone molecule is located remotely from the SnO2 (110) surface after optimization. This implied that the surface sites except the five-fold-coordinated Sn of the SnO2 (110) stoichiometric surface were inadaptable for the acetone molecule to be absorbed. From Table 3, we could see that the optimized Sn-Oacetone bond length in the adsorption state was 2.23 Å, which is longer than the Sn-O bond length of SnO2 which is 2.11 Å. The adsorbed energy is 1.61 eV, and there are charges of 0.21 e transferred from the acetone molecule to the SnO2 surface during the adsorption process. In this mode, the acetone molecule acts as a donor, resulting in an increased electron concentration and reduced electrical resistance. This is consistent with previous experimental reports on n-type metal oxide semiconductors.
We then chose a 2 × 4 SnO2 (110) stoichiometric surface to study the reaction between the acetone molecule and SnO2 (110). The optimized geometries are shown in Figure 13. From the calculation results, we can see that the acetone molecule can be adsorbed on a five-fold-coordinated Sn through the O atom. The geometry is similar to acetone which is adsorbed on a 2 × 2 SnO2 (110) stoichiometric surface. As shown in Table 3, the optimized bond length of O-Sn in equilibrium is 2.22 Å. From Table 3, we also can see that the acetone molecule acts as a donor when it is adsorbed on the Sn site on the SnO2 surface. In the adsorption process, the number of transferred electrons is 0.24 e. In addition, the adsorption energy Eads is 1.63 eV, which is located in the energy range of chemisorptions. The calculated results mentioned above are similar to that of acetone adsorbed on the SnO2 (110) stoichiometric surface, shown in mode C1. Therefore, the supercell of the surface with three layers is sufficient for acetone. Thus, we chose a 2 × 2 SnO2 (110) surface as the sample investigated in the present paper since the structure of this composition can be easily modeled using our calculating computer system.
In the following, we investigate the interaction between acetone molecule and SnO2 (110) surface with an oxygen vacancy. The bridge-bonded oxygen vacancy was created by removing one bridge O (Ob) from the corresponding stoichiometric surface. The adsorption of acetone on the defective surface resulted in two stable geometries (mode C2 and C3), as shown in Figure 12. The bond lengths in the optimized configurations, the calculated adsorption energies, and the charge transfer are listed in Table 3. In mode C2, see Figure 12, the molecularly-adsorbed acetone binds to the surface at the five-coordinated Sn site, via the C-down mode. The adsorption energy for the molecule at this site is 1.47 eV. This value demonstrates that this is a chemical adsorption process. In mode C3, see Figure 12, the O of acetone occupies the oxygen vacancy site, bonding with the two six-coordinated Sn atoms. In this structure, the adsorption energy is 1.64 eV. The two Sn-Oacetone distances are 2.45 Å and 2.41 Å, which are longer than the corresponding Sn-Ob (bridge O) bond distance of 2.03 Å in SnO2 because of the decreasing covalent bond interaction between Sn and Oacetone atoms. Charges of 0.18 e and 0.17 e transferring from the acetone to SnO2 surface, respectively.
Experimental results suggest that there are adsorbed oxygen species, O2− or O−, on the SnO2 surface. In order to understand the effect of adsorbed oxygen species on SnO2 for acetone gas sensing, we investigated the possible interaction modes between acetone and the SnO2 (110) surface with pre-adsorbed oxygen species O2− and O−. For the O2− adsorbed surface, the acetone can be only adsorbed on the five-fold-coordinated Sn, with the O-down mode as shown in mode C4, see Figure 12. This implies that the surface Sn site on the O2− pre-adsorbed SnO2 (110) surface is the only adaptable site for the acetone molecule to be absorbed. The bond length of Sn-Oacetone is 2.31 Å. The bond length was slightly bigger than that of SnO2 (2.07 Å), which demonstrates that the bond interaction is becoming weaker. The adsorption energy is 1.61 eV. During the interaction process, there are charges of 0.21 e transferring from acetone to the O2− adsorbed SnO2 surface. Simulation results showed that the acetone molecule kept far away from the O− pre-adsorption SnO2 (110) surface after optimization, which demonstrates that the O- pre-adsorption SnO2 (110) surface was inadaptable for the acetone molecule to be absorbed.
In order to have a clear understanding of the acetone sensing mechanism for the SnO2 (110) surface, we plotted the corresponding density of states (DOSs). Figure 14 showed the DOSs of a free acetone molecule and an adsorbed acetone molecule for the above modes, as shown in Figure 12. The bond energy states of adsorbed acetone molecules shifted to lower energy states compared to that of the free acetone molecules. The density of states (DOSs) of acetone molecules in C3 mode changed greatly, implying that this mode belonged to chemical adsorption. The bridging oxygen vacancy is more favorable for the adsorption of acetone than the five-fold-coordinated Sn on the SnO2 surface. Overall, adsorption on the vacancy is more stable than on the corresponding stoichiometric surface and the pre-adsorbed oxygen species surface. For mode C3, it could be seen from Figure 15a that there was an overlap of DOSs peaks of O (originating from acetone) and Sn. A similar phenomenon could also be seen for PDOSs peaks of O-s/O-p (originating from acetone) and Sn-s/Sn-p, as shown in Figure 15b. The results implied that there is a strong orbital hybridization between Oacetone orbitals and Sn orbitals.
From the above calculation results, we can conclude that on the stoichiometric surface and the O2− adsorbed SnO2 surface, there is only one site for acetone adsorption; this is the five-fold-coordinated Sn site. On the other hand, the vacancy (VO) of the defective surface is also available for acetone to be adsorbed. During all the adsorption processes, electrons were transferred from acetone molecules to SnO2 surface, which resulted in a decrease in the resistances of the SnO2 sensors. Since the operating temperature has an enormous effect on the sensitivity of the sensor in real experiments, we attempt to further consider the effect of the optimal operating temperature (513 K obtained from experiments) using molecular dynamics (MD) simulation with NVT ensemble for the optimized structures, see Figure 12. The simulation results are inconsistent with the expected reactions in which the acetone will be oxidized into CO2 and other products. The heat-treatment applied in the simulation is perhaps inappropriate. In our following work, we will continue to investigate the gas sensing mechanism between acetone and SnO2.

4. Conclusions

In this work, we investigated the acetone sensing properties and mechanism of SnO2 thick-films. SnO2 thick film based on nanocrystalline co-precipitation powders annealed at 600 °C could sensitively detect acetone vapor. At the optimal operating temperature of 180 °C, the responses were 3.33, 3.94, 5.04, and 7.27 for SnO2 sensors with 1, 3, 5, and 10 ppm acetone, respectively. The density functional theory is also used to explore the acetone sensing characteristics and mechanism for n-type SnO2 material. DFT calculation results show that the acetone molecule can be adsorbed onto the five-fold-coordinated Sn and oxygen vacancy (VO) sites with O-down, accompanied by electron transfer from acetone to the SnO2 (110) surface. The acetone molecule acts as a donor in these modes, which is consistent with the experimental results. This could explain the reason why the resistance of SnO2 or n-type metal oxide decreased after the acetone molecule was introduced into the system. Molecular dynamic calculations showed that the acetone didn’t dissociate into other products such as CO2.

Author Contributions

This research paper was completed by all authors. H.Q. and J.H. designed the experiments and the DFT calculations. Y.C. (Yanping Chen) performed the experiments and DFT calcualtions, and wrote the paper with the assistance of Y.C. (Yue Cao) and H.Z.

Funding

This work was supported by National Natural Science Foundation of China (Nos. 51472145, 51272133 and 51772174), Shandong Natural Science Foundation (No. ZR2013EMM016).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Leite, E.R.; Weber, I.T.; Longo, E.; Varela, J.A. A new method to control particle size and particle size distribution of SnO2 nanoparticles for gas sensor applications. Adv. Mater. 2000, 12, 965–968. [Google Scholar] [CrossRef]
  2. Liu, G.; Wang, Z.; Chen, Z.; Yang, S.; Fu, X.; Huang, R.; Li, X.; Xiong, J.; Hu, Y.; Gu, H. Remarkably Enhanced Room-Temperature Hydrogen Sensing of SnO2 Nanoflowers via Vacuum Annealing Treatment. Sensors 2018, 18, 949. [Google Scholar] [CrossRef] [PubMed]
  3. Cheng, L.; Ma, S.Y.; Li, S.Y.; Luo, J.; Li, W.Q.; Li, F.M.; Mao, Y.Z.; Wang, T.T.; Li, Y.F. Highly sensitive acetone sensors based on Y-doped SnO2 prismatic hollow nanofibers synthesized by electrospinning. Sens. Actuators B Chem. 2014, 200, 181–190. [Google Scholar] [CrossRef]
  4. Suematsu, K.; Ma, N.; Watanabe, K.; Yuasa, M.; Kida, T.; Shimanoe, K. Effect of Humid Aging on the Oxygen Adsorption in SnO2 Gas Sensors. Sensors 2018, 18, 254. [Google Scholar] [CrossRef] [PubMed]
  5. Lian, X.; Li, Y.; Tong, X.; Zou, Y.; Liu, X.; An, D.; Wang, Q. Synthesis of Ce-doped SnO2 nanoparticles and their acetone gas sensing properties. Appl. Surf. Sci. 2017, 407, 447–455. [Google Scholar] [CrossRef]
  6. Song, P.; Wang, Q.; Yang, Z. Preparation, characterization and acetone sensing properties of Ce-doped SnO2 hollow spheres. Sens. Actuators B Chem. 2012, 173, 839–846. [Google Scholar] [CrossRef]
  7. Sun, Y.; Huang, X.; Meng, F.; Liu, J. Study of influencing factors of dynamic measurements based on SnO2 gas sensor. Sensors 2004, 4, 95–104. [Google Scholar] [CrossRef]
  8. Heo, Y.W.; Varadarajan, V.; Kaufman, M.; Kim, K.; Norton, D.P.; Ren, F.; Fleming, P.H. Site-specific growth of ZnO nanorods using catalysis driven molecular-beam epitaxy. Appl. Phys. Lett. 2002, 81, 3046–3048. [Google Scholar] [CrossRef]
  9. Bagal, L.K.; Patil, J.Y.; Bagal, K.N.; Mulla, I.S.; Suryavanshi, S.S. Acetone vapour sensing characteristics of undoped and Zn, Ce doped SnO2 thick film gas sensor. Mater. Res. Innov. 2013, 17, 98–105. [Google Scholar] [CrossRef]
  10. Zhao, N.; Chen, Z.; Zeng, W. Enhanced H2S sensor based on electrospun mesoporous SnO2 nanotubes. J. Mater. Sci. Mater. Electron. 2015, 26, 9152–9157. [Google Scholar] [CrossRef]
  11. Ge, Q.; Ma, S.Y.; Xu, Y.B.; Xu, X.L.; Chen, H.; Qiang, Z.; Yang, H.M.; Ma, L.; Zeng, Q.Z. Preparation, characterization and gas sensing properties of Pr-doped ZnO/SnO2 nanoflowers. Mater. Lett. 2017, 191, 5–9. [Google Scholar] [CrossRef]
  12. Srivastava, V.; Jain, K. At room temperature graphene/SnO2 is better than MWCNT/SnO2 as NO2 gas sensor. Mater. Lett. 2016, 169, 28–32. [Google Scholar] [CrossRef]
  13. Zeng, W.; Li, T.; Li, T.; Hao, J.; Li, Y. Template-free synthesis of highly ethanol-response hollow SnO2 spheres using hydrothermal process. J. Mater. Sci. Mater. Electron. 2015, 26, 1192–1197. [Google Scholar] [CrossRef]
  14. Godish, T. Indoor Air Pollution Control; Lewis Publishers: Pearl River, NY, USA, 1991. [Google Scholar]
  15. Shen, J.; Zhang, L.; Ren, J.; Wang, J.; Yao, H.; Li, Z. Highly enhanced acetone sensing performance of porous C-doped WO3 hollow spheres by carbon spheres as templates. Sens. Actuators B Chem. 2017, 239, 597–607. [Google Scholar] [CrossRef]
  16. Deng, L.; Zhao, X.; Ma, Y.; Chen, S.; Xu, G. Low cost acetone sensors with selectivity over water vapor based on screen printed TiO2 nanoparticles. Anal. Methods 2013, 5, 3709–3713. [Google Scholar] [CrossRef]
  17. Navale, S.T.; Yang, Z.B.; Liu, C.; Cao, P.J.; Patil, V.B.; Ramgir, N.S.; Mane, R.S.; Stadler, F.J. Enhanced acetone sensing properties of titanium dioxide nanoparticles with a sub-ppm detection limit. Sens. Actuators B Chem. 2018, 255, 1701–1710. [Google Scholar] [CrossRef]
  18. Makisimovich, N.; Vorottyntsev, V.; Nikitina, N.; Kaskevich, O.; Karabum, P.; Martynenko, F. Adsorption semiconductor sensor for diabetic ketoacidosis diagnosis. Sens. Actuators B Chem. 1996, 36, 419. [Google Scholar] [CrossRef]
  19. Zhao, J.; Huo, L.H.; Gao, S.; Zhao, H.; Zhao, J.G. Alcohols and acetone sensing properties of SnO2 thin films deposited by dip-coating. Sens. Actuators B Chem. 2006, 115, 460–464. [Google Scholar] [CrossRef]
  20. Patil, S.B.; Patil, P.P.; More, M.A. Acetone vapour sensing characteristics of cobalt-doped SnO2 thin films. Sens. Actuators B Chem. 2007, 125, 126–130. [Google Scholar] [CrossRef]
  21. Singkammo, S.; Wisitsoraat, A.; Sriprachuabwong, C.; Tuantranont, A.; Phanichphant, S.; Liewhiran, C. Electrolytically exfoliated graphene-loaded flame-made Ni-doped SnO2 composite film for acetone sensing. ACS Appl. Mater. Inter. 2015, 7, 3077–3092. [Google Scholar] [CrossRef] [PubMed]
  22. Zhu, S.; Zhang, D.; Gu, J.; Xu, J.; Dong, J.; Li, J. Biotemplate fabrication of SnO2 nanotubular materials by a sonochemical method for gas sensors. J. Nanopart. Res. 2010, 12, 1389. [Google Scholar] [CrossRef]
  23. Qin, L.; Xu, J.; Dong, X.; Pan, Q.; Cheng, Z.; Xiang, Q.; Li, F. The template-free synthesis of square-shaped SnO2 nanowires: The temperature effect and acetone gas sensors. Nanotechnology 2008, 19, 185705. [Google Scholar] [CrossRef] [PubMed]
  24. Li, L.; Lin, H.; Qu, F. Synthesis of mesoporous SnO2 nanomaterials with selective gas-sensing properties. J. Sol Gel Sci. Technol. 2013, 67, 545. [Google Scholar] [CrossRef]
  25. Yu, H.; Wang, S.; Xiao, C.; Xiao, B.; Wang, P.; Li, Z.; Zhang, M. Enhanced acetone gas sensing properties by aurelia-like SnO2 micronanostructures. Cryst. Eng. Comm. 2015, 17, 4316. [Google Scholar] [CrossRef]
  26. Sun, P.; Cai, Y.; Du, S.; Xu, X.; You, L.; Ma, J.; Liu, F.; Liang, X.; Sun, Y.; Lu, G. Hierarchical α-Fe2O3/SnO2 semiconductor composites: Hydrothermal synthesis and gas sensing properties. Sens. Actuators B Chem. 2013, 182, 336. [Google Scholar] [CrossRef]
  27. Wang, X.; Qin, H.; Chen, Y.; Hu, J. Sensing mechanism of SnO2 (110) surface to CO: Density functional theory calculations. J. Phys. Chem. C 2014, 118, 28548–28561. [Google Scholar] [CrossRef]
  28. Bârsan, N.; Weimar, U. Understanding the fundamental principles of metal oxide based gas sensors; the example of CO sensing with SnO2 sensors in the presence of humidity. J. Phys. Condens. Matter. 2003, 15, R813. [Google Scholar] [CrossRef]
  29. Ayesh, A.I.; Mahmoud, S.T.; Ahmad, S.J.; Haik, Y. Novel hydrogen gas sensor based on Pd and SnO2 nanoclusters. Mater. Lett. 2014, 128, 354–357. [Google Scholar] [CrossRef]
  30. Chen, Y.; Wang, X.; Shi, C.; Li, L.; Qin, H.; Hu, J. Sensing mechanism of SnO2 (110) surface to H2: Density functional theory calculations. Sens. Actuators B Chem. 2015, 220, 279–287. [Google Scholar] [CrossRef]
  31. Wang, D.; Chen, Y.; Liu, Z.; Li, L.; Shi, C.; Qin, H.; Hu, J. CO2-sensing properties and mechanism of nano-SnO2 thick-film sensor. Sens. Actuators B Chem. 2016, 227, 73–84. [Google Scholar] [CrossRef]
  32. Oviedo, J.; Gillan, M.J. Energetics and Structure of Stoichiometric SnO2 Surfaces Studied by First-principles Calculations. Surf. Sci. 2000, 463, 93–101. [Google Scholar] [CrossRef]
  33. Oviedo, J.; Gillan, M.J. First-principles Study of the Interaction of Oxygen with the SnO2 (110) Surface. Surf. Sci. 2001, 490, 221–236. [Google Scholar] [CrossRef]
  34. Prades, J.D.; Cirera, A.; Morante, J.R.; Pruneda, J.M.; Ordejon, P. Ab Initio Study of NOx Compounds Adsorption on SnO2 Surface. Sens. Actuators B Chem. 2007, 126, 62–67. [Google Scholar] [CrossRef] [Green Version]
  35. Yue, J.; Jiang, X.C.; Yu, A.B. Adsorption of the OH Group on SnO2 (110) Oxygen Bridges: A Molecular Dynamics and Density Functional Theory Study. J. Phys. Chem. C. 2013, 117, 9962–9969. [Google Scholar] [CrossRef]
  36. Yang, M.R.; Chu, S.Y.; Chang, R.C. Synthesis and study of the SnO2 nanowires growth. Sens. Actuators B Chem. 2007, 122, 269–273. [Google Scholar] [CrossRef]
  37. Cullity, B.D. Elements of X-ray Diffraction, 2nd ed.; Addison-Wesley: Boston, MA, USA, 1978; p. 102. [Google Scholar]
  38. Chikhale, L.P.; Patil, J.Y.; Rajgure, A.V.; Shaikh, F.I.; Mulla, I.S.; Suryavanshi, S.S. Coprecipitation synthesis of nanocrytalline SnO2: Effect of Fe doping on structural, morphological, optical and ethanol vapor response properties. Measurement 2014, 57, 46–52. [Google Scholar] [CrossRef]
  39. Yamazoe, N.; Fuchigami, J.; Kishikawa, M.; Seiyama, T. Interactions of tin oxide surface with O2, H2O and H2. Surf. Sci. 1979, 86, 335–344. [Google Scholar] [CrossRef]
  40. Xu, J.Q.; Jia, X.H.; Lou, X.D.; Xi, G.X.; Han, J.J.; Gao, Q.H. Selective detection of HCHO gas using mixed oxides of ZnO/ZnSnO3. Sens. Actuators B Chem. 2007, 120, 694–699. [Google Scholar] [CrossRef]
  41. Tan, W.; Ruan, X.; Yu, Q.; Yu, Z.; Huang, X. Fabrication of a SnO2-based acetone gas sensor enhanced by molecular imprinting. Sensors 2015, 15, 352. [Google Scholar] [CrossRef] [PubMed]
  42. Cheng, L.; Ma, S.Y.; Wang, T.T.; Luo, J. Synthesis and enhanced acetone sensing properties of 3D porous flower-like SnO2 nanostructures. Mater. Lett. 2015, 143, 84–87. [Google Scholar] [CrossRef]
  43. Krivetsky, V.V.; Petukhov, D.V.; Eliseev, A.A.; Smirnov, A.V.; Rumyantseva, M.N.; Gaskov, A.M. Acetone Sensing by Modified SnO2 Nanocrystalline Sensor Materials. Nanotechnol. Basis Adv. Sens. 2011, 409–421. [Google Scholar]
  44. Li, J.; Tang, P.; Zhang, J.; Feng, Y.; Luo, R.; Chen, A.; Li, D. Facile synthesis and acetone sensing performance of hierarchical SnO2 Hollow microspheres with controllable size and shell thickness. Ind. Eng. Chem. Res. 2016, 55, 3588–3595. [Google Scholar] [CrossRef]
  45. Li, W.Q.; Ma, S.Y.; Luo, J.; Mao, Y.Z.; Cheng, L.; Gengzang, D.J.; Xu, X.L.; Yan, S.H. Synthesis of hollow SnO2 nanobelts and their application in acetone sensor. Mater. Lett. 2014, 132, 338–341. [Google Scholar] [CrossRef]
  46. Bagal, L.K.; Patil, J.Y.; Mulla, I.S.; Suryavanshi, S.S. Studies on the resistive response of nickel and cerium doped SnO2 thick films to acetone vapor. Ceram. Int. 2012, 38, 6171–6179. [Google Scholar] [CrossRef]
  47. Srivastava, J.K.; Pandey, P.; Mishra, V.N.; Dwivedi, R. Structural and micro structural studies of PbO-doped SnO2 sensor for detection of methanol, propanol and acetone. J. Nat. Gas Chem. 2011, 20, 179–183. [Google Scholar] [CrossRef]
  48. Choi, S.J.; Jang, B.H.; Lee, S.J.; Min, B.K.; Rothschild, A.; Kim, I.D. Selective detection of acetone and hydrogen sulfide for the diagnosis of diabetes and halitosis using SnO2 nanofibers functionalized with reduced graphene oxide nanosheets. ACS Appl. Mater. Inter. 2014, 6, 2588–2597. [Google Scholar] [CrossRef] [PubMed]
  49. Yan, S.H.; Ma, S.Y.; Xu, X.L.; Li, W.Q.; Luo, J.; Jin, W.X.; Wang, T.T.; Jiang, X.H.; Lu, Y.; Song, H.S. Preparation of SnO2-ZnO hetero-nanofibers and their application in acetone sensing performance. Mater. Lett. 2015, 159, 447–450. [Google Scholar] [CrossRef]
  50. Wen, Z.; Tian-Mo, L. Gas-sensing properties of SnO2-TiO2-based sensor for volatile organic compound gas and its sensing mechanism. Phys. B Condens. Matter. 2010, 405, 1345–1348. [Google Scholar] [CrossRef]
  51. Yang, M.; Huo, L.; Zhao, H.; Gao, S.; Rong, Z. Electrical properties and acetone-sensing characteristics of LaNi1−xTixO3 perovskite system prepared by amorphous citrate decomposition. Sens. Actuators B Chem. 2009, 143, 111–118. [Google Scholar] [CrossRef]
  52. Shan, H.; Liu, C.; Liu, L.; Li, S.; Wang, L.; Zhang, X.; Bo, X.; Chi, X. Highly sensitive acetone sensors based on La-doped α-Fe2O3 nanotubes. Sens. Actuators B Chem. 2013, 184, 243–247. [Google Scholar] [CrossRef]
  53. Righettoni, M.; Tricoli, A.; Pratsinis, S.E. Si:WO3 Sensors for Highly Selective Detection of Acetone for Easy Diagnosis of Diabetes by Breath Analysis. Anal. Chem. 2010, 82, 3581–3587. [Google Scholar] [CrossRef] [PubMed]
  54. Delley, B. An All-electron Numerical Method for Solving the Local Density Functional for Polyatomic Molecules. J. Chem. Phys. 1990, 92, 508–517. [Google Scholar] [CrossRef]
  55. Delley, B. From Molecules to Solids with the DMol Approach. J. Chem. Phys. 2000, 113, 7756–7764. [Google Scholar] [CrossRef]
  56. Mulliken, R.S. Electronic Population Analysis on LCAO-MO Molecular Wave Functions. J. Chem. Phys. 1955, 23, 1833–1840. [Google Scholar] [CrossRef]
  57. Maki-Jaskari, M.A.; Rantala, T.T. Band structure and optical parameters of the SnO2 (110) surface. Phys. Rev. B 2001, 64, 075407. [Google Scholar] [CrossRef]
  58. Maki-Jaskari, M.A.; Rantala, T.T.; Golovanov, V.V. Computational study of charge accumulation at SnO2 (110) surface. Surf. Sci. 2005, 577, 127–138. [Google Scholar] [CrossRef]
Sensors 18 03425 g001 550

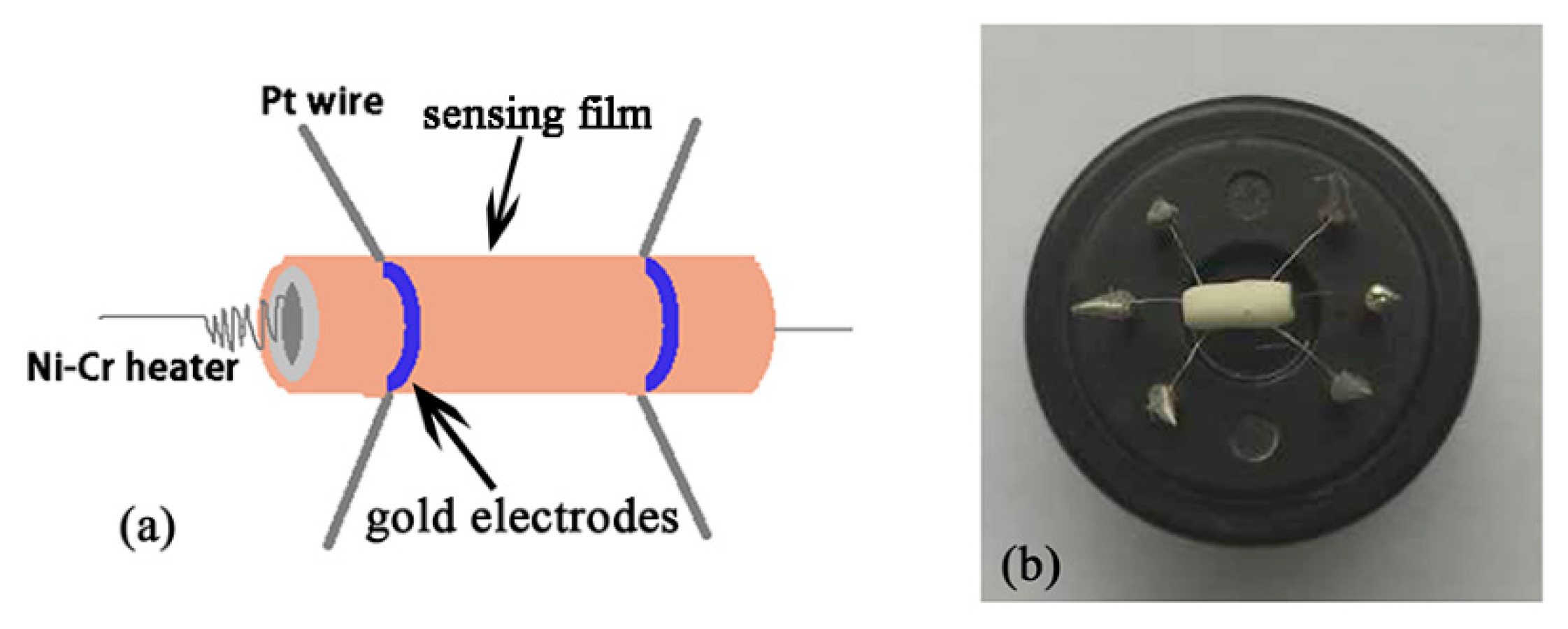

Figure 1. (a) The schematic diagram of a typical gas sensor; (b) the photo of the prepared sensor.
Figure 1. (a) The schematic diagram of a typical gas sensor; (b) the photo of the prepared sensor.
Sensors 18 03425 g001
Sensors 18 03425 g002 550

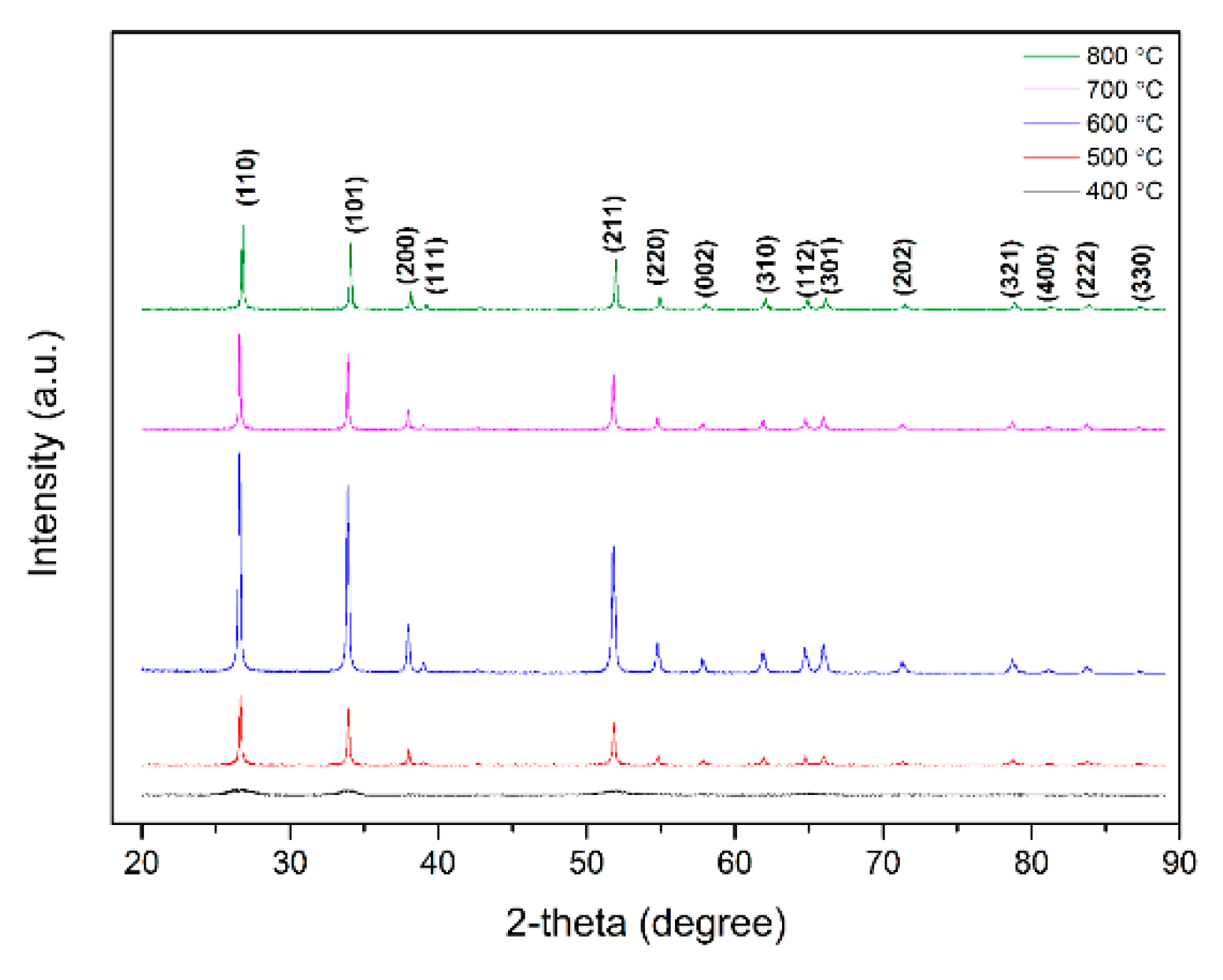

Figure 2. The X-ray diffraction pattern of the as-obtained SnO2 annealed at different temperatures.
Figure 2. The X-ray diffraction pattern of the as-obtained SnO2 annealed at different temperatures.
Sensors 18 03425 g002
Sensors 18 03425 g003 550

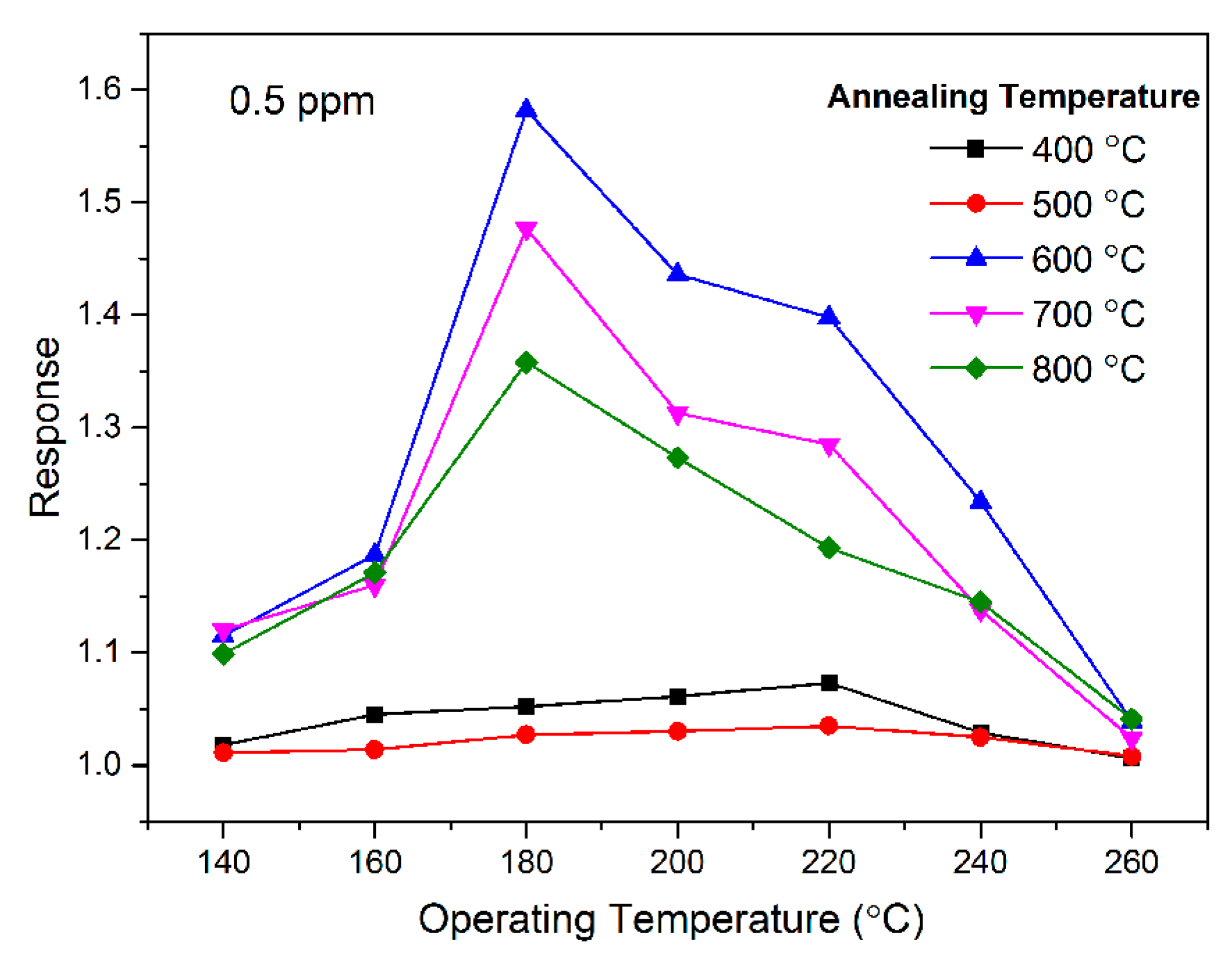

Figure 3. The response characteristics of the SnO2 thick-films as a function of the operating temperature.
Figure 3. The response characteristics of the SnO2 thick-films as a function of the operating temperature.
Sensors 18 03425 g003
Sensors 18 03425 g004 550

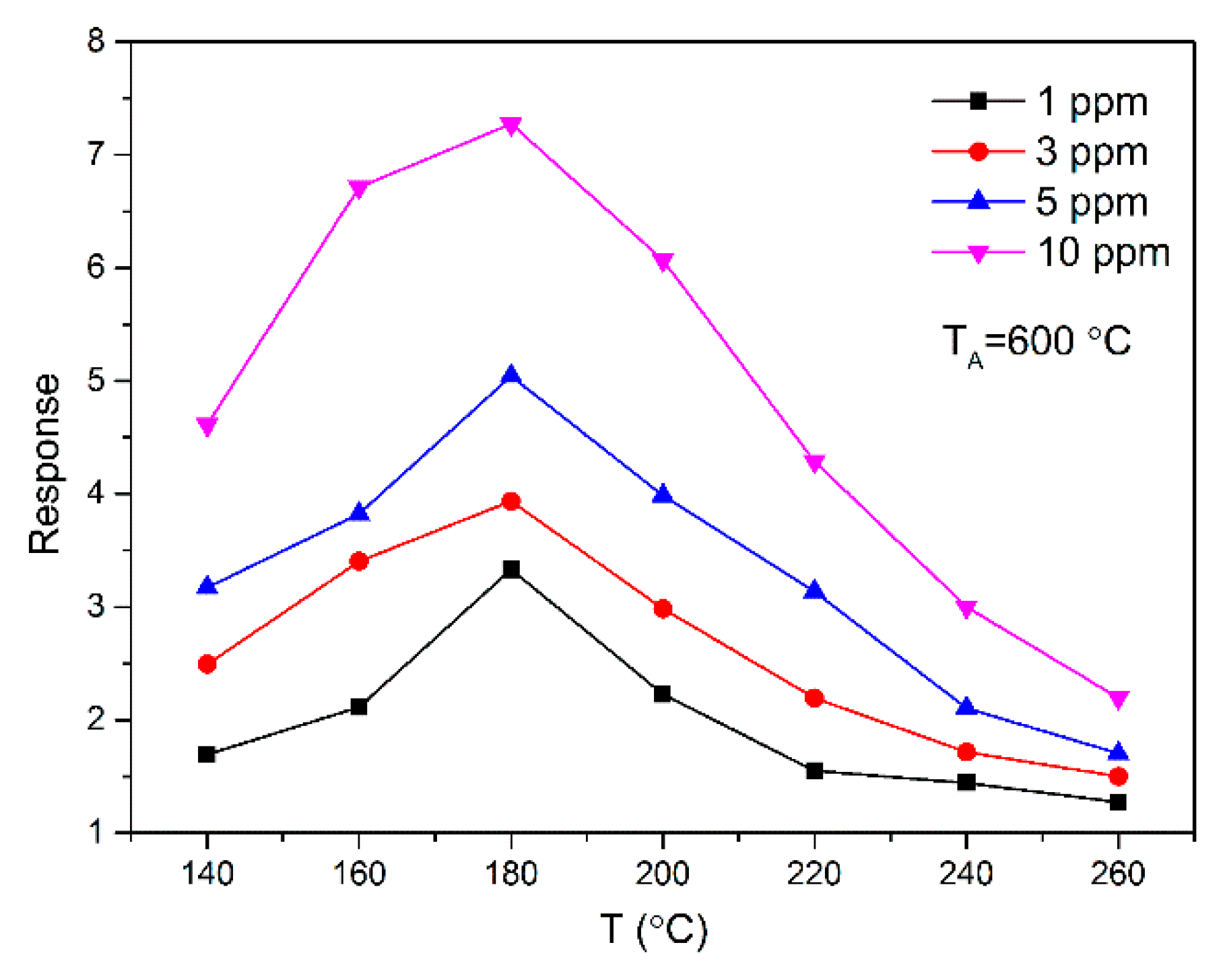

Figure 4. Response of sensors based on SnO2 nanoparticles versus operating temperature to 1, 3, 5, and 10 ppm acetone, respectively.
Figure 4. Response of sensors based on SnO2 nanoparticles versus operating temperature to 1, 3, 5, and 10 ppm acetone, respectively.
Sensors 18 03425 g004
Sensors 18 03425 g005 550

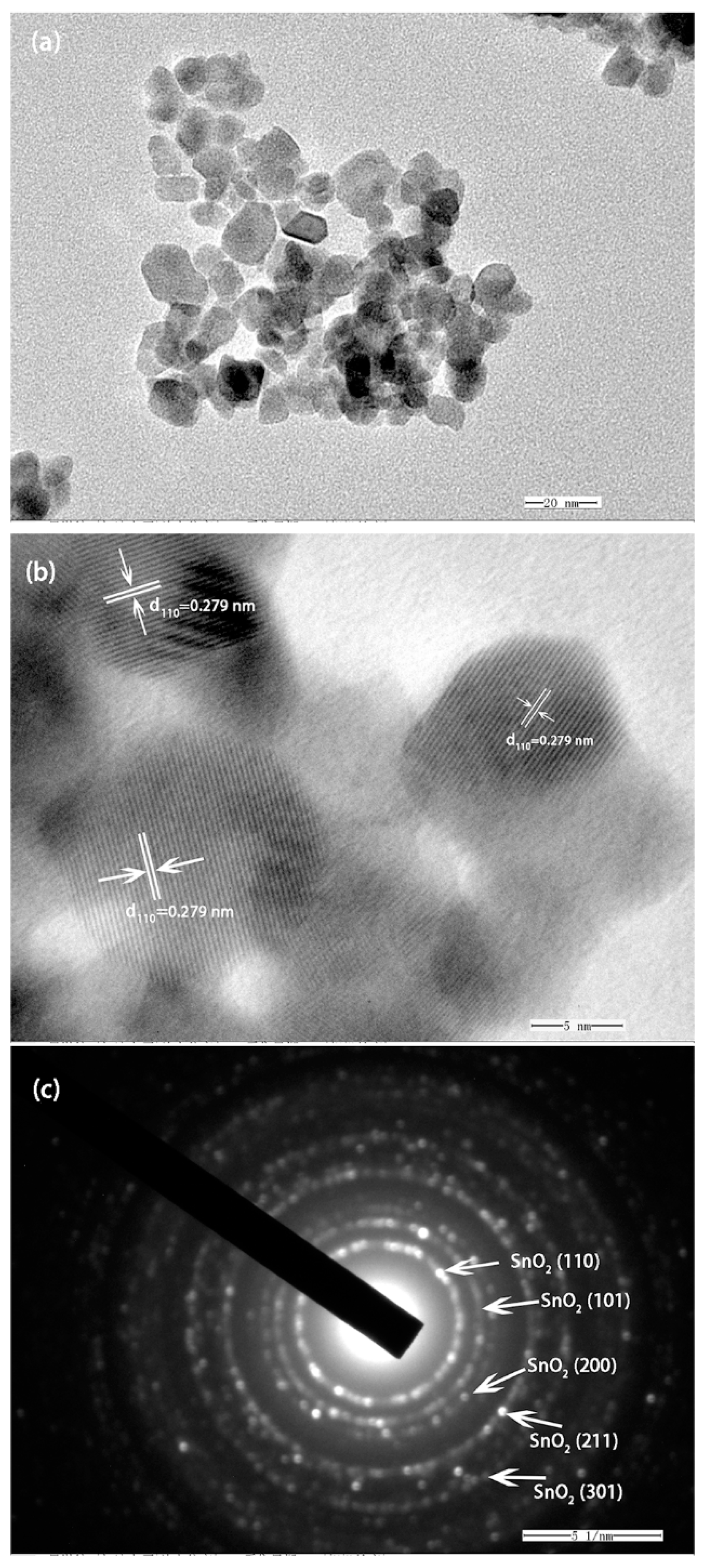

Figure 5. (a) TEM image of the SnO2; (b) HRTEM image of as-obtained SnO2 particles; (c) The selected area diffraction pattern of SnO2 particle.
Figure 5. (a) TEM image of the SnO2; (b) HRTEM image of as-obtained SnO2 particles; (c) The selected area diffraction pattern of SnO2 particle.
Sensors 18 03425 g005
Sensors 18 03425 g006 550

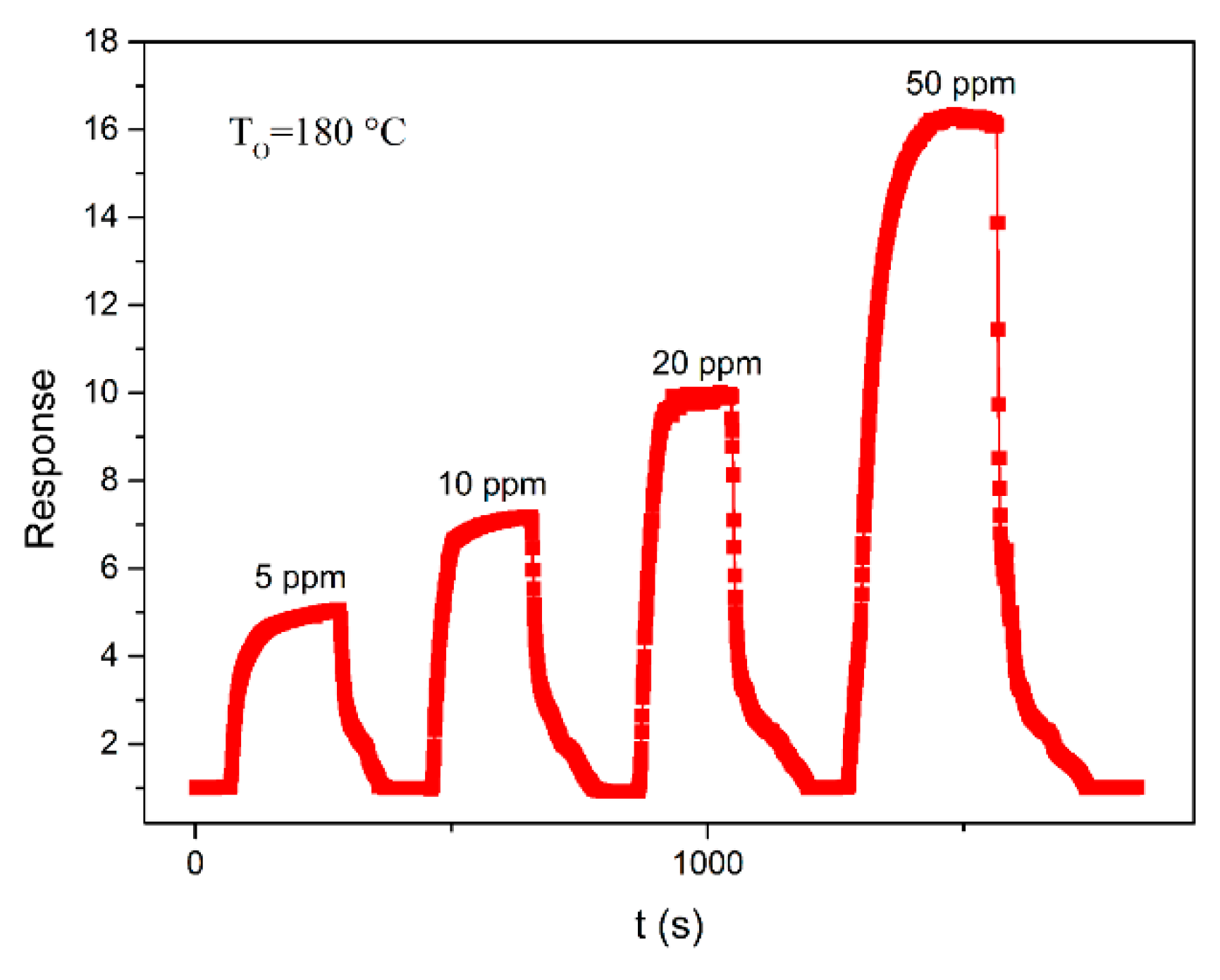

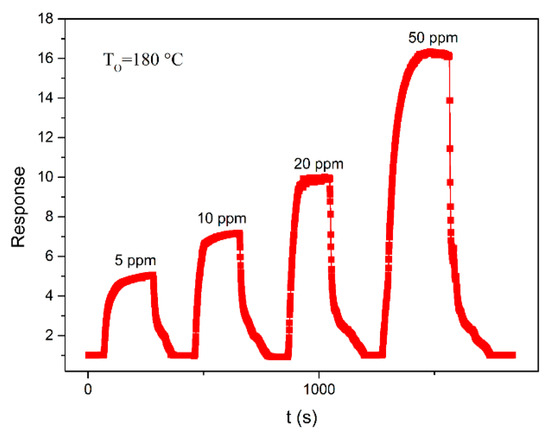

Figure 6. The dynamic sensing characteristics of the SnO2 sensor exposed to 5 ppm, 10 ppm, 20 ppm and 50 ppm acetone at an operating temperature of 180 °C.
Figure 6. The dynamic sensing characteristics of the SnO2 sensor exposed to 5 ppm, 10 ppm, 20 ppm and 50 ppm acetone at an operating temperature of 180 °C.
Sensors 18 03425 g006
Sensors 18 03425 g007 550

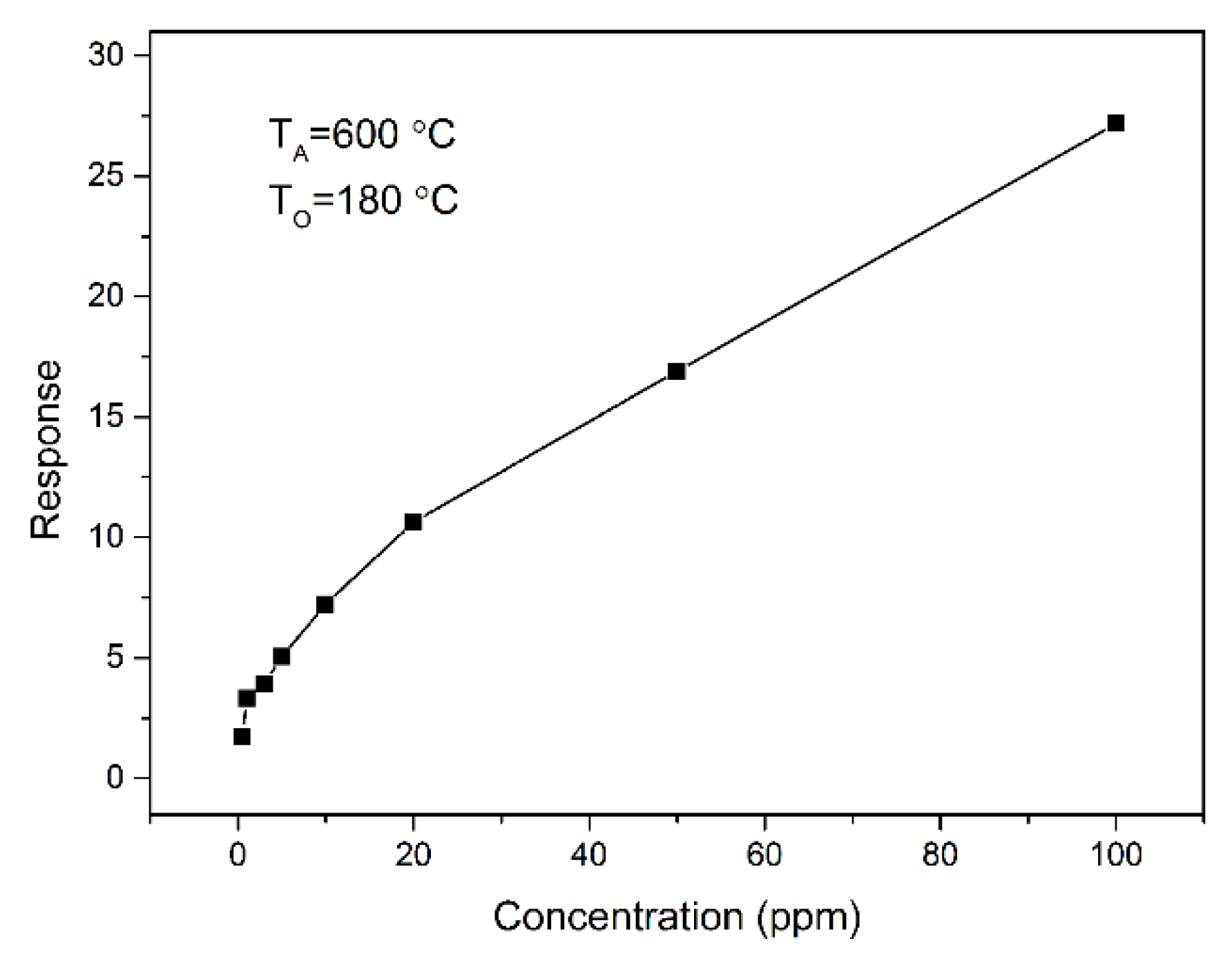

Figure 7. The response dependence on the acetone concentration for SnO2 powders at the operating temperature of 180 °C.
Figure 7. The response dependence on the acetone concentration for SnO2 powders at the operating temperature of 180 °C.
Sensors 18 03425 g007
Sensors 18 03425 g008 550

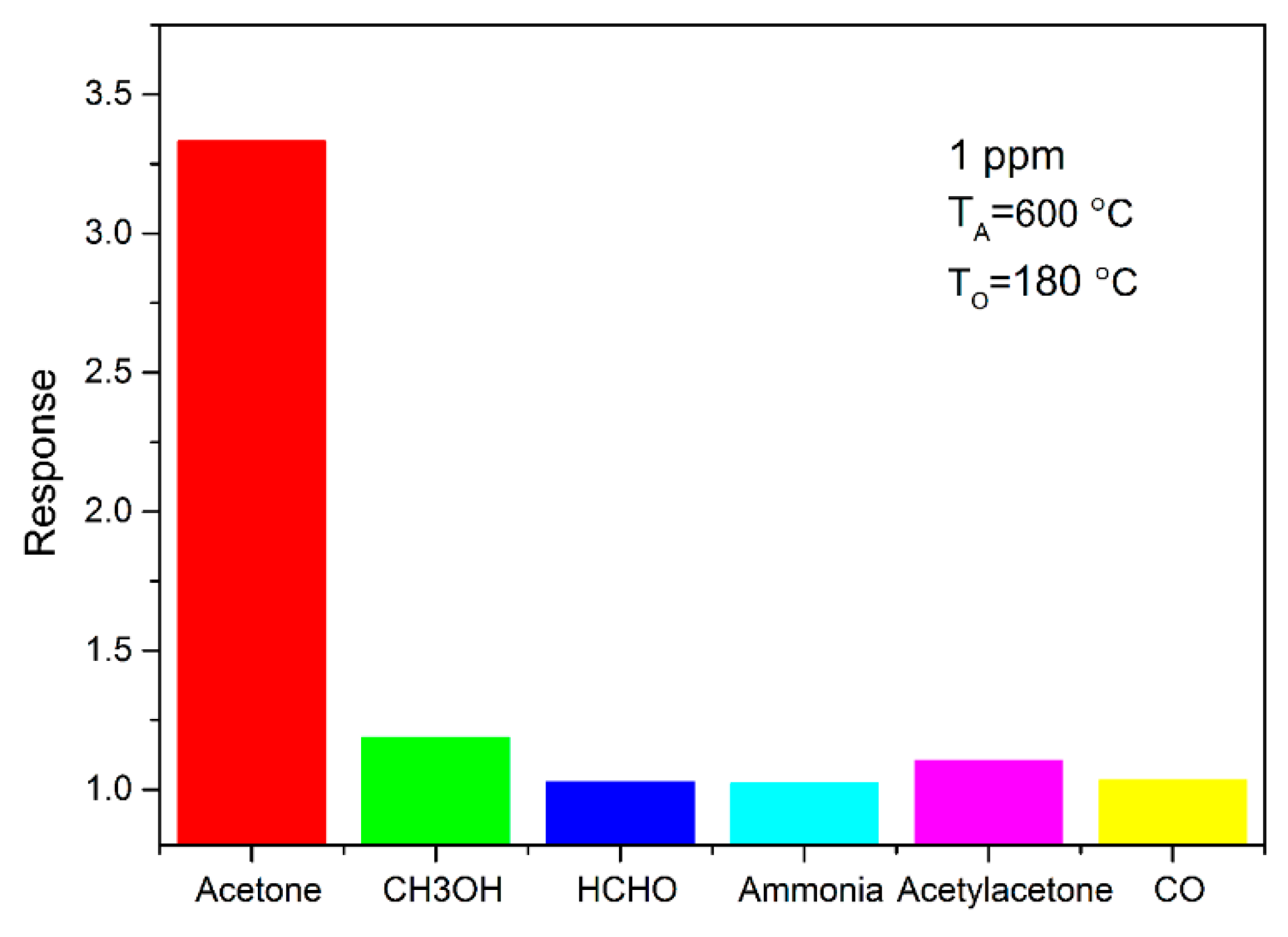

Figure 8. The response of SnO2 thick film to different gases with a concentration of 1 ppm at 180 °C.
Figure 8. The response of SnO2 thick film to different gases with a concentration of 1 ppm at 180 °C.
Sensors 18 03425 g008
Sensors 18 03425 g009 550
Figure 9. Response stability of SnO2 thick film sensor measured upon exposure to 1 ppm acetone gas for 33 days.
Figure 9. Response stability of SnO2 thick film sensor measured upon exposure to 1 ppm acetone gas for 33 days.
Sensors 18 03425 g009
Sensors 18 03425 g010 550

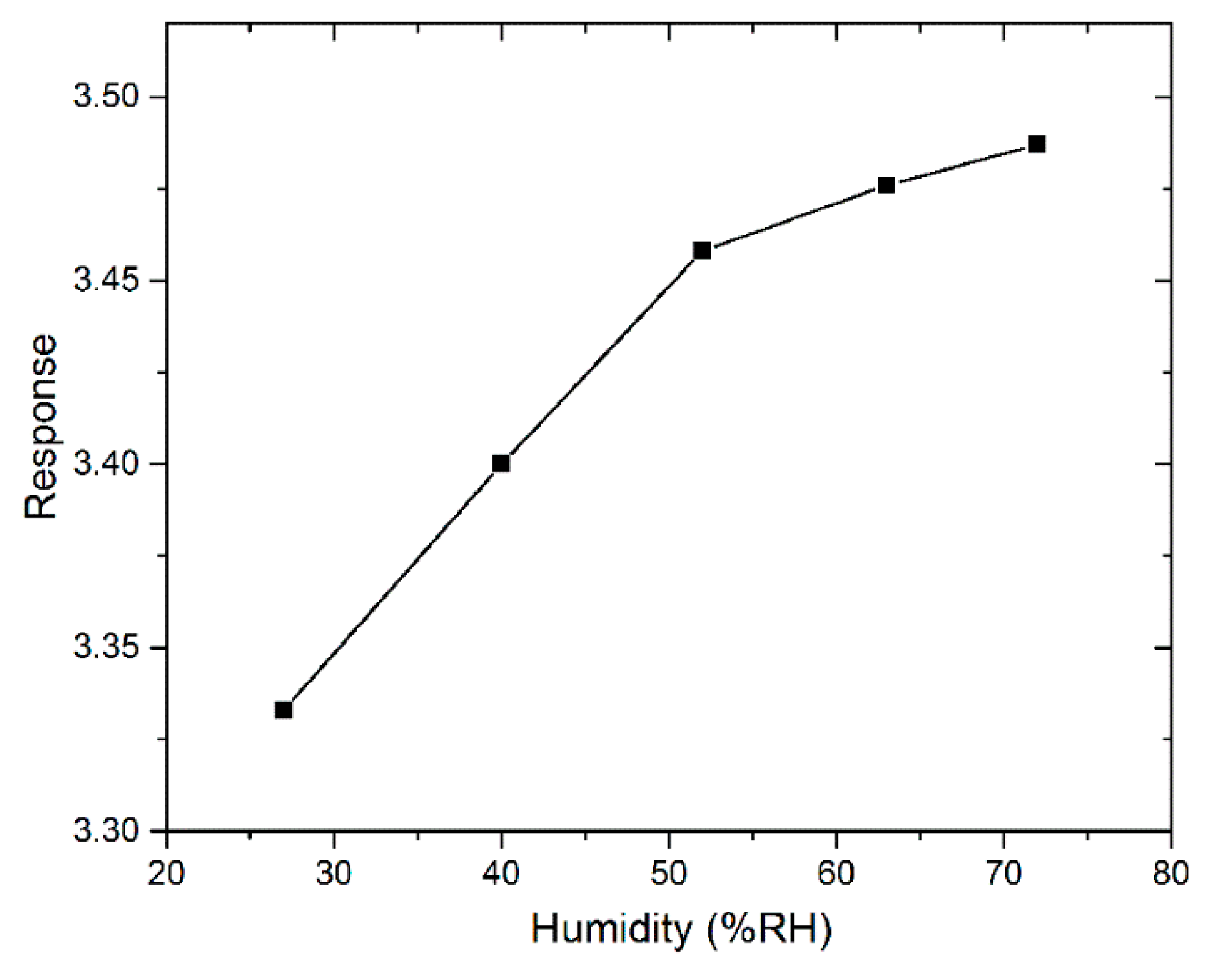

Figure 10. The humidity dependence of the sensing response to 1 ppm acetone at the operating temperature of 180 °C for SnO2 annealed at 600 °C.
Figure 10. The humidity dependence of the sensing response to 1 ppm acetone at the operating temperature of 180 °C for SnO2 annealed at 600 °C.
Sensors 18 03425 g010
Sensors 18 03425 g011 550

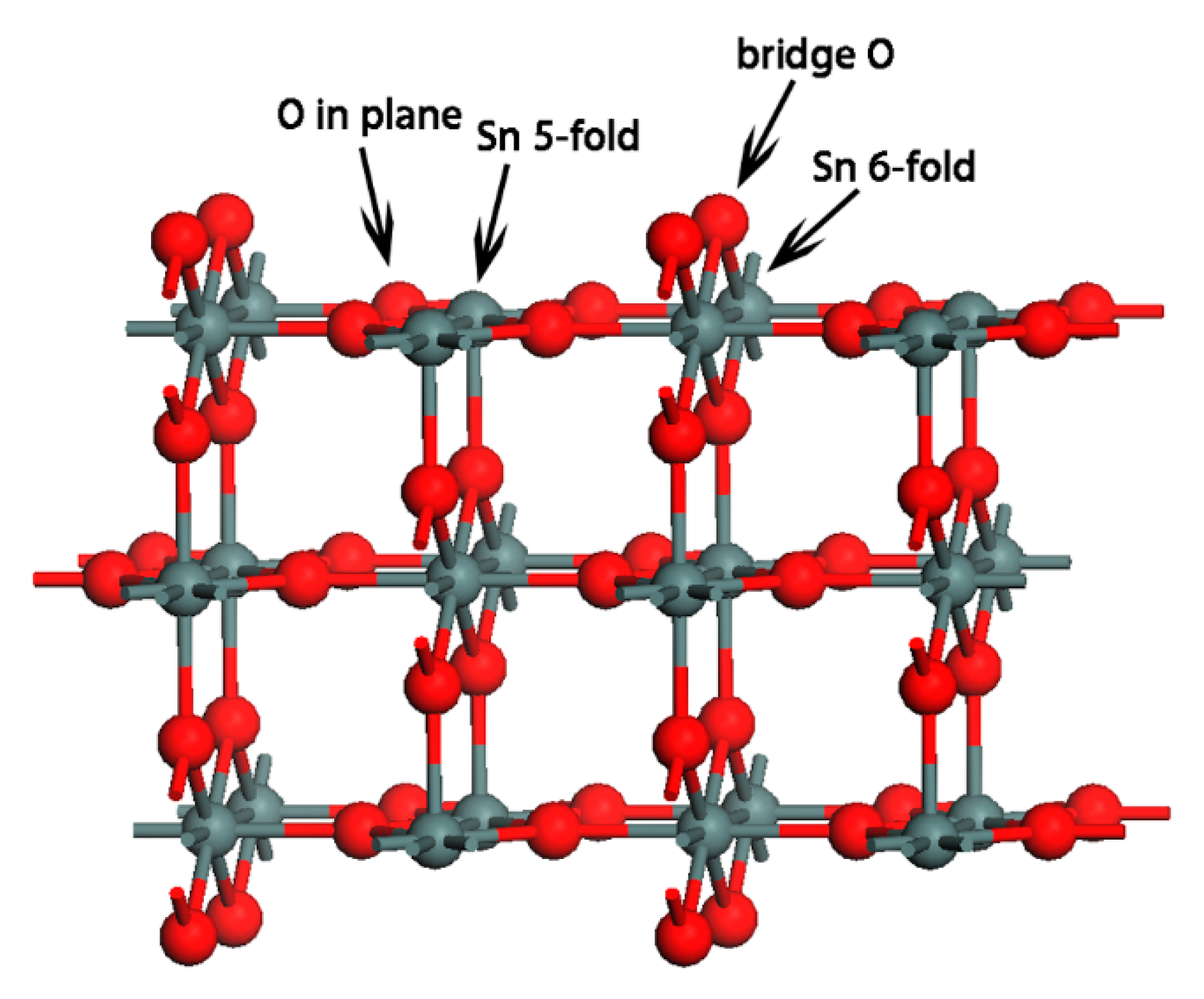

Figure 11. The optimized SnO2 (110) surface.
Figure 11. The optimized SnO2 (110) surface.
Sensors 18 03425 g011
Sensors 18 03425 g012 550

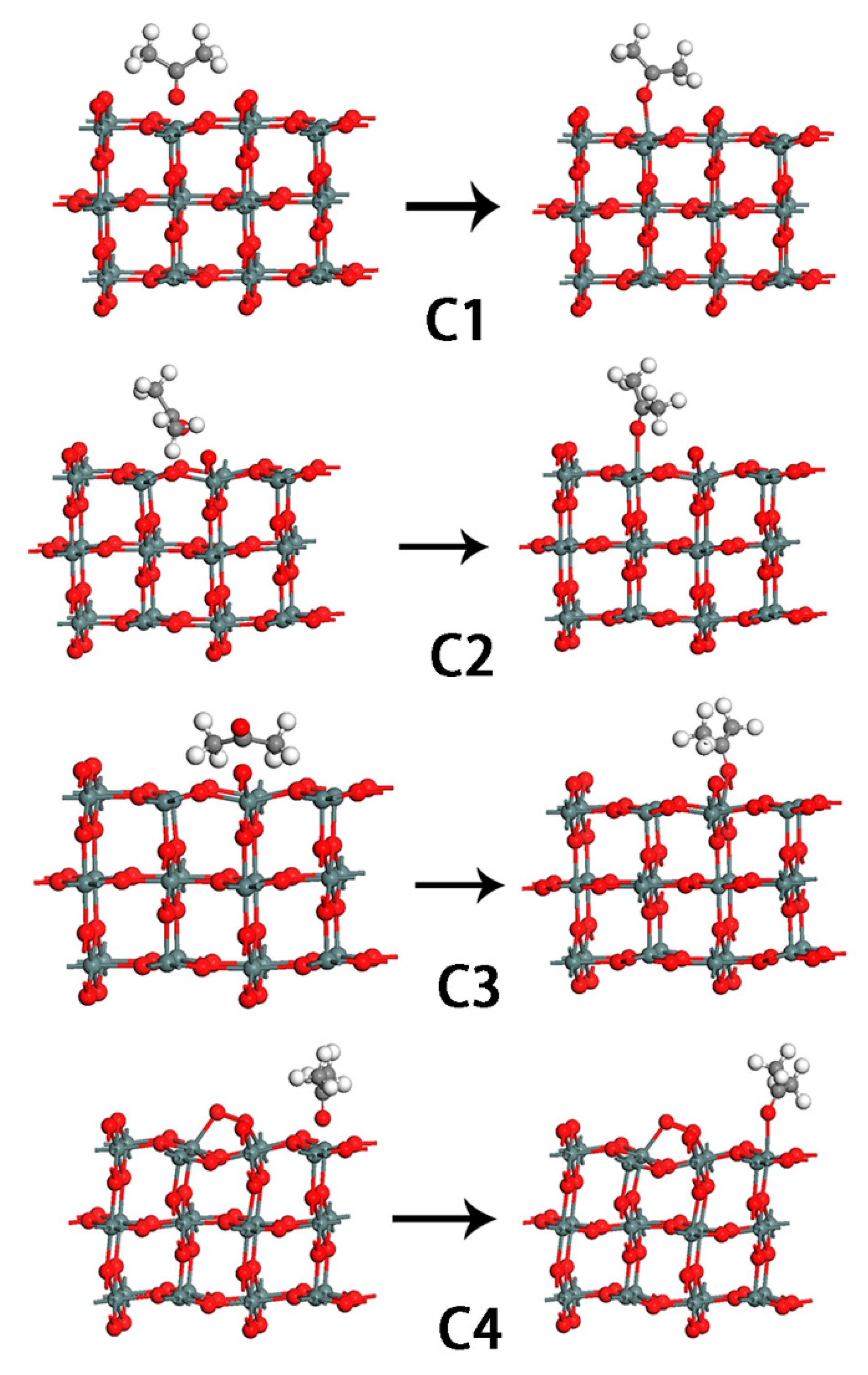

Figure 12. The four different adsorption configurations of acetone molecule on 2 × 2 SnO2 (110) surface. C1: on stoichiometric SnO2 surface; C2, C3: on defective SnO2 surface; C4: on O2 pre-adsorbed SnO2 surface.
Figure 12. The four different adsorption configurations of acetone molecule on 2 × 2 SnO2 (110) surface. C1: on stoichiometric SnO2 surface; C2, C3: on defective SnO2 surface; C4: on O2 pre-adsorbed SnO2 surface.
Sensors 18 03425 g012
Sensors 18 03425 g013 550

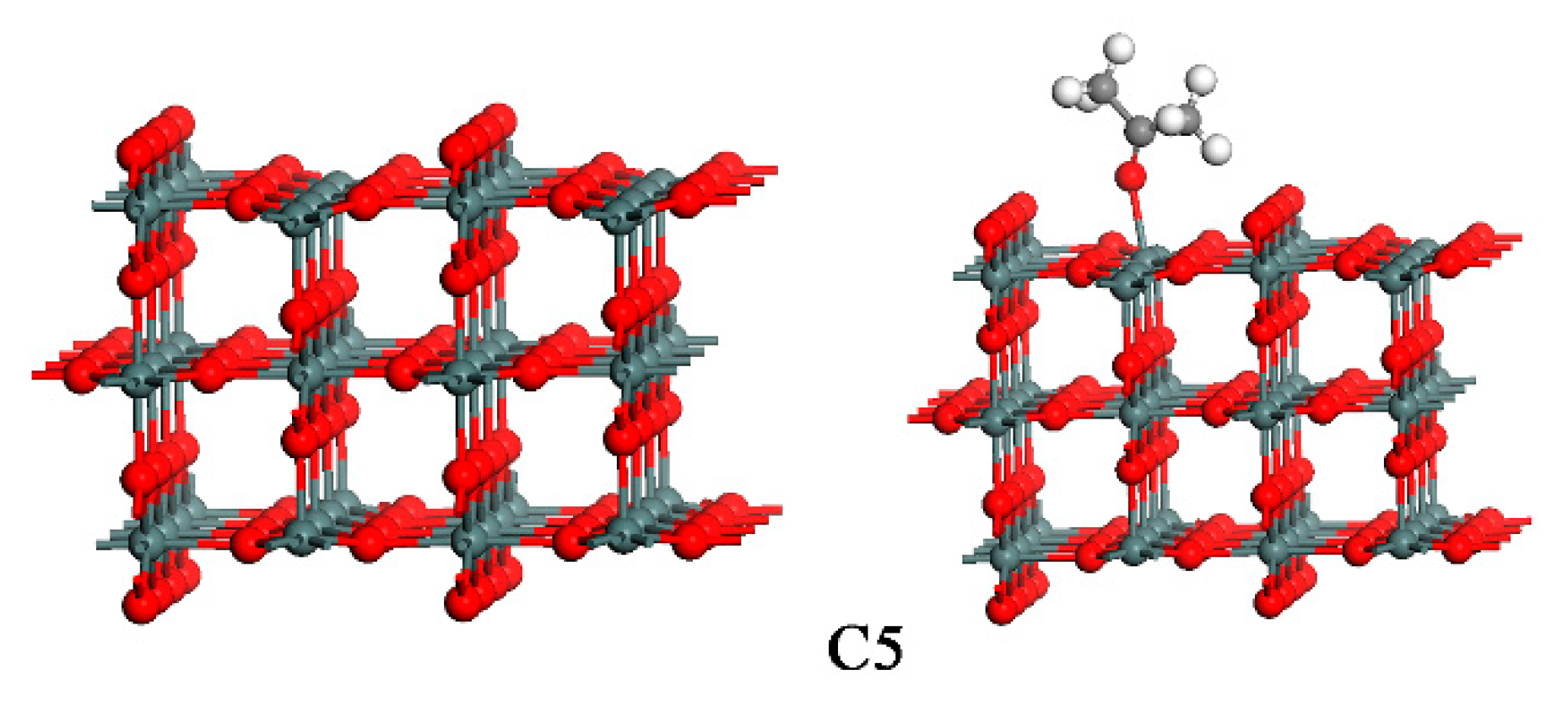

Figure 13. The optimized geometry of a 2 × 4 SnO2 (110) stoichiometric surface and the adsorption configuration of the acetone molecule on the surface.
Figure 13. The optimized geometry of a 2 × 4 SnO2 (110) stoichiometric surface and the adsorption configuration of the acetone molecule on the surface.
Sensors 18 03425 g013
Sensors 18 03425 g014 550

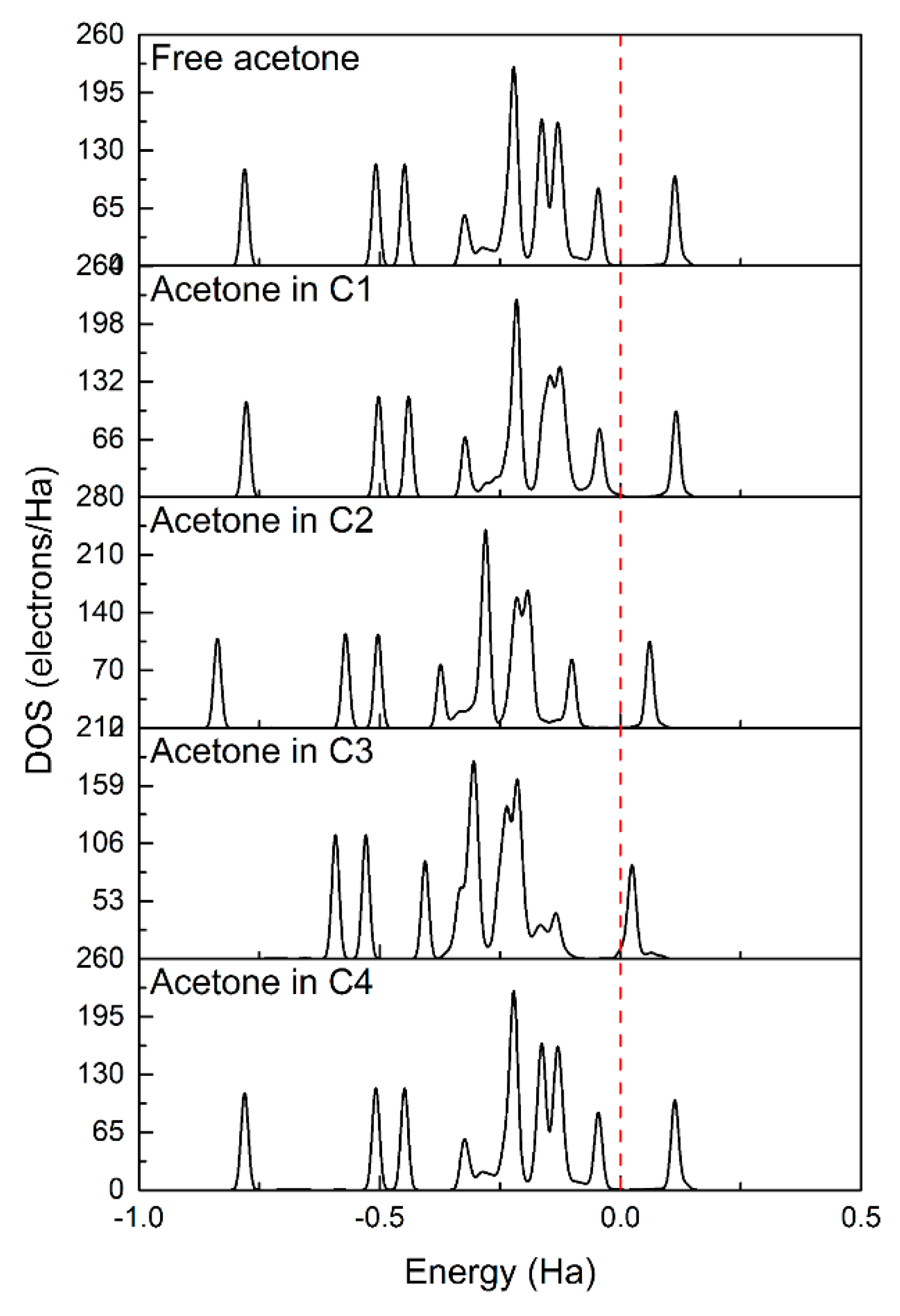

Figure 14. Total density of states (DOSs) of free acetone molecule and the adsorbed acetone in C1, C2, C3, and C4 mode. The vertical dotted line indicates the Fermi energy level.
Figure 14. Total density of states (DOSs) of free acetone molecule and the adsorbed acetone in C1, C2, C3, and C4 mode. The vertical dotted line indicates the Fermi energy level.
Sensors 18 03425 g014
Sensors 18 03425 g015 550

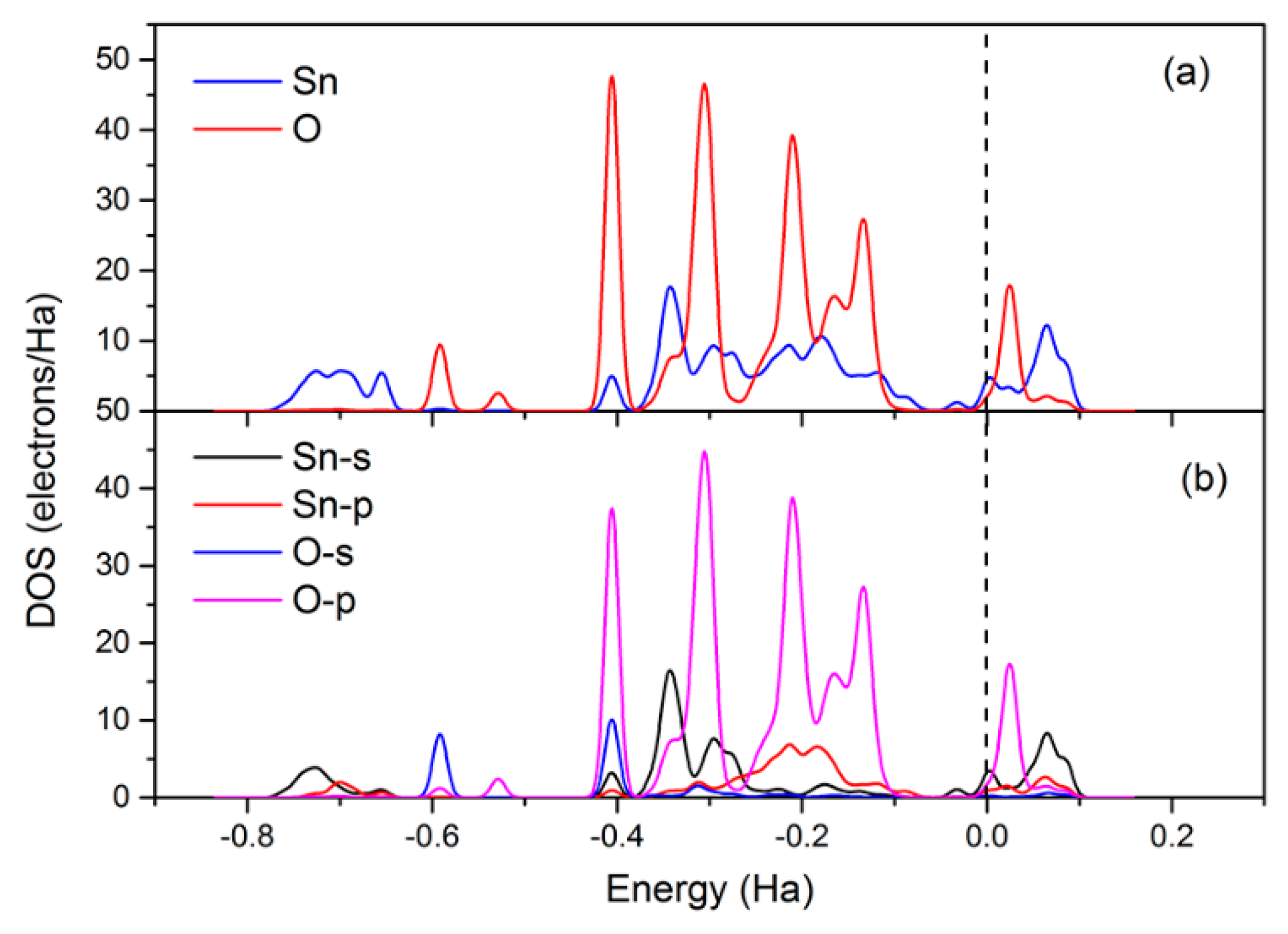

Figure 15. The (a) total density of states (DOSs) and (b) partial density of states (PDOSs) of O (originating from acetone) and Sn. The vertical dotted line indicates the Fermi energy level.
Figure 15. The (a) total density of states (DOSs) and (b) partial density of states (PDOSs) of O (originating from acetone) and Sn. The vertical dotted line indicates the Fermi energy level.
Sensors 18 03425 g015
Table
Table 1. Maximum acetone sensing response and optimum operating temperature of SnO2 sensors.
Table 1. Maximum acetone sensing response and optimum operating temperature of SnO2 sensors.
Annealing Temperature (°C)400500600700800
Maximum Response1.0731.0351.5821.4771.358
Optimum Operating Temperature (°C)220220180180180
Table
Table 2. Acetone sensing properties for various SnO2 semiconductor sensors.
Table 2. Acetone sensing properties for various SnO2 semiconductor sensors.
MaterialsPreparation MethodResponseConcentration (ppm)TO (°C)Response Time/Recovery Time (s)Ref
Y-doped SnO2 hollow nanofiberselectrospinning12.150300-/-[3]
SnO2 nanowireshydrothermal approach6.820290-/-[4]
0.1 wt% Ni-SnO2spin-coating technique54.2200350-/-[14]
SnO2 hollow microsphereshydrothermal method1650200-/-[18]
SnO2 nanotubehydrothermal method6.42035010/9[22]
SnO2 nanowireshydrothermal method5.5202907/10[23]
Aurelia-like SnO2hydrothermal method4.7102402/23[25]
α-Fe2O3/SnO2 compositeshydrothermal method16.81002503/90[26]
SnO2 thin filmsdip-coating198room temperature-/-[28]
Co-SnO2 thin filmsspray pyrolysis technique200.1330-/-[29]
SnO2 nanobeltselectrospinning method6.75260-/-[36]
Ni and Ce doped SnO2 thick filmsco-precipitation route7.7100300-/-[38]
PbO-doped SnO2 thick filmsol-gel process13.53500250-/-[39]
RGO doped SnO2 nanofiberselectrospinning105350-/-[40]
SnO2 nanomaterialthermal synthesis18.51002504.3/156.3[41]
SnO2-ZnO hetero-nanofiberselectrospinning851003009/7[42]
SnO2-TiO2sol-gel method55200340100/500[43]
SnO2 thick filmsco-precipitation route5.043518070/64Present work
Table
Table 3. The calculated results of different configurations: dO-Sn is the Oacetone-Sn bond length; Eads is the adsorption energy; Qacetone is the net charge transfer from acetone molecule to SnO2 surface.
Table 3. The calculated results of different configurations: dO-Sn is the Oacetone-Sn bond length; Eads is the adsorption energy; Qacetone is the net charge transfer from acetone molecule to SnO2 surface.
ModeldO-Sn (Å)Eads (eV)Qacetone (e)
C12.231.610.21
C22.341.470.18
C32.451.640.17
C42.311.610.21
C52.221.630.24

Share and Cite

MDPI and ACS Style

Chen, Y.; Qin, H.; Cao, Y.; Zhang, H.; Hu, J. Acetone Sensing Properties and Mechanism of SnO2 Thick-Films. Sensors 2018, 18, 3425. https://doi.org/10.3390/s18103425

AMA Style

Chen Y, Qin H, Cao Y, Zhang H, Hu J. Acetone Sensing Properties and Mechanism of SnO2 Thick-Films. Sensors. 2018; 18(10):3425. https://doi.org/10.3390/s18103425

Chicago/Turabian Style

Chen, Yanping, Hongwei Qin, Yue Cao, Heng Zhang, and Jifan Hu. 2018. "Acetone Sensing Properties and Mechanism of SnO2 Thick-Films" Sensors 18, no. 10: 3425. https://doi.org/10.3390/s18103425

APA Style

Chen, Y., Qin, H., Cao, Y., Zhang, H., & Hu, J. (2018). Acetone Sensing Properties and Mechanism of SnO2 Thick-Films. Sensors, 18(10), 3425. https://doi.org/10.3390/s18103425

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
