A Novel Differential Time-of-Arrival Estimation Technique for Impact Localization on Carbon Fiber Laminate Sheets

Department of Information Engineering, University of Florence, Via S. Marta 3, 50139 Firenze, Italy
*
Author to whom correspondence should be addressed.
Received: 22 September 2017 / Revised: 28 September 2017 / Accepted: 30 September 2017 / Published: 3 October 2017
(This article belongs to the Special Issue State-of-the-Art Sensors Technology in Italy 2017)
Full-Text   |   PDF [2794 KB, uploaded 9 October 2017]   |

Abstract

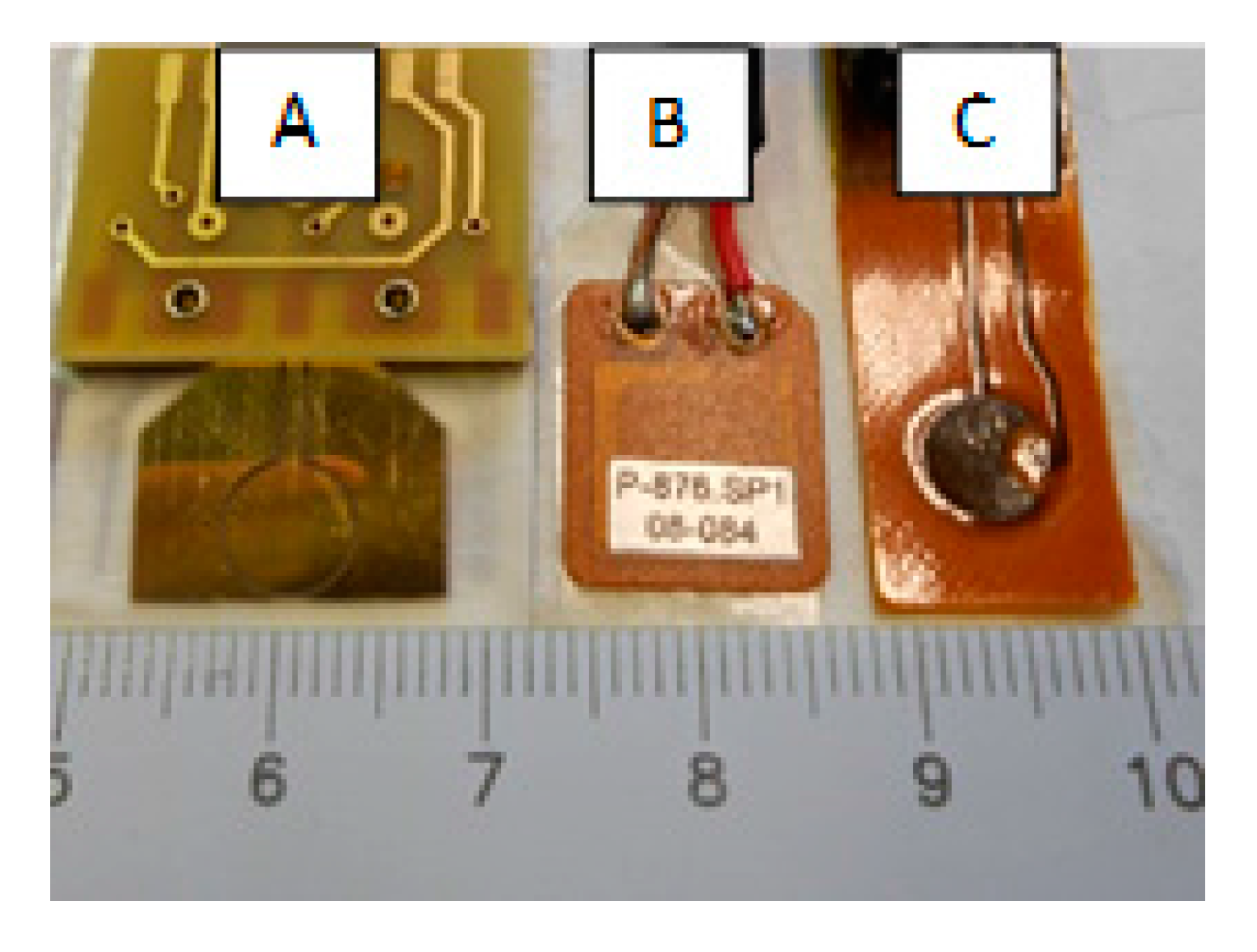

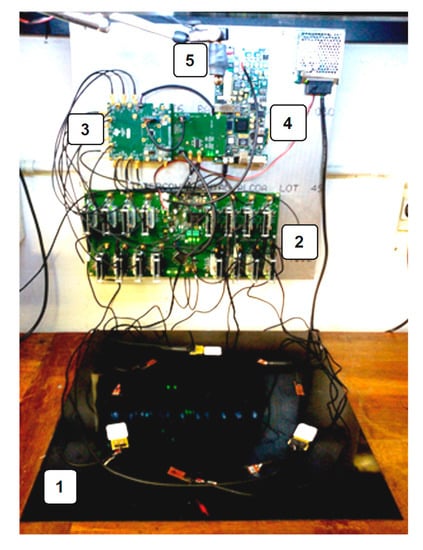

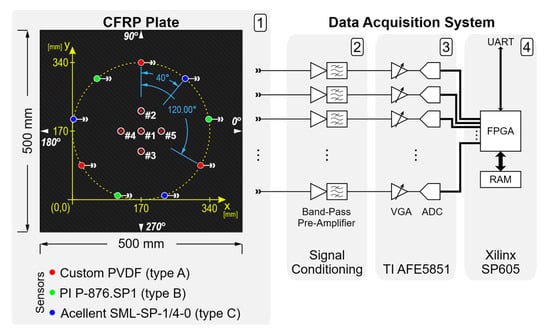

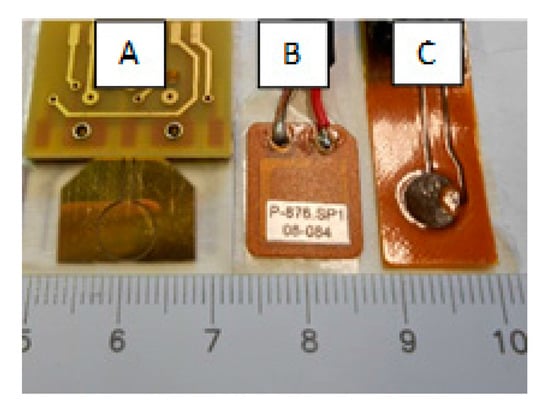

Composite material structures are commonly used in many industrial sectors (aerospace, automotive, transportation), and can operate in harsh environments where impacts with other parts or debris may cause critical safety and functionality issues. This work presents a method for improving the accuracy of impact position determination using acoustic source triangulation schemes based on the data collected by piezoelectric sensors attached to the structure. A novel approach is used to estimate the Differential Time-of-Arrival (DToA) between the impact response signals collected by a triplet of sensors, overcoming the limitations of classical methods that rely on amplitude thresholds calibrated for a specific sensor type. An experimental evaluation of the proposed technique was performed with specially made circular piezopolymer (PVDF) sensors designed for Structural Health Monitoring (SHM) applications, and compared with commercial piezoelectric SHM sensors of similar dimensions. Test impacts at low energies from 35 mJ to 600 mJ were generated in a laboratory by free-falling metal spheres on a 500 mm × 500 mm × 1.25 mm quasi-isotropic Carbon Fiber Reinforced Polymer (CFRP) laminate plate. From the analysis of many impact signals, the resulting localization error was improved for all types of sensors and, in particular, for the circular PVDF sensor an average error of 20.3 mm and a standard deviation of 8.9 mm was obtained. View Full-Text
Keywords: piezoelectric ceramic sensors; structural health monitoring; piezopolymer sensors; CFRP laminates; impact localization piezoelectric ceramic sensors; structural health monitoring; piezopolymer sensors; CFRP laminates; impact localization
Figures

Figure 1
