A Neural Network-Based Gait Phase Classification Method Using Sensors Equipped on Lower Limb Exoskeleton Robots

Robot Group, Korea Institute of Industrial Technology, 143 Hanggaul-ro, Sanrok-gu, Ansan-si, Gyeonggi-do 15588, Korea
School of Electrical and Electronic Engineering, Yonsei University, 50 Yonsei-ro, Seodaemun-gu, Seoul 03722, Korea
School of Intelligent Robots, University of Science and Technology, 217 Gajeong-ro, Yuseong-gu, Daejeon 34113, Korea
System Industry PD Group, Korea Evaluation Institute of Industrial Technology, 32 Cheomdan-ro 8-gil, Dong-gu, Daegu 41069, Korea
Author to whom correspondence should be addressed.
Academic Editor: Ning Xi
Sensors 2015, 15(11), 27738-27759;
Received: 27 August 2015 / Revised: 21 October 2015 / Accepted: 29 October 2015 / Published: 30 October 2015
(This article belongs to the Special Issue Sensors for Robots)
PDF [1752 KB, uploaded 30 October 2015]

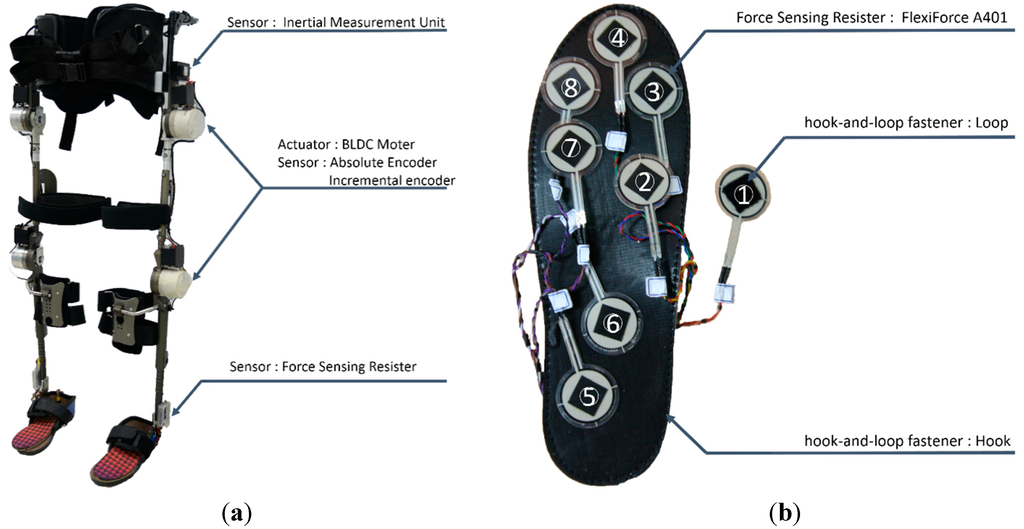

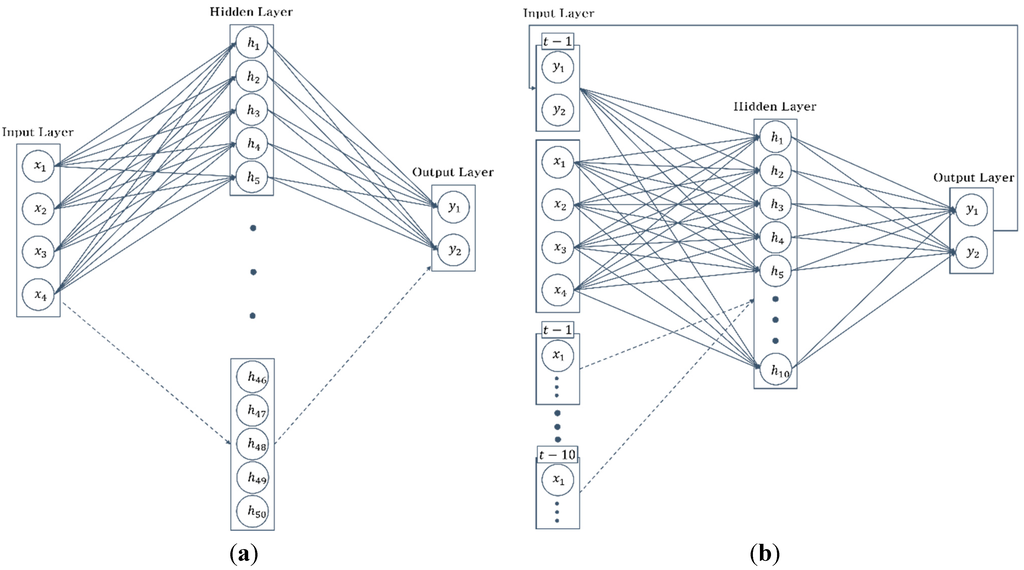

An exact classification of different gait phases is essential to enable the control of exoskeleton robots and detect the intentions of users. We propose a gait phase classification method based on neural networks using sensor signals from lower limb exoskeleton robots. In such robots, foot sensors with force sensing registers are commonly used to classify gait phases. We describe classifiers that use the orientation of each lower limb segment and the angular velocities of the joints to output the current gait phase. Experiments to obtain the input signals and desired outputs for the learning and validation process are conducted, and two neural network methods (a multilayer perceptron and nonlinear autoregressive with external inputs (NARX)) are used to develop an optimal classifier. Offline and online evaluations using four criteria are used to compare the performance of the classifiers. The proposed NARX-based method exhibits sufficiently good performance to replace foot sensors as a means of classifying gait phases. View Full-Text
Keywords: exoskeleton robots; gait phase classification; neural network; MLP; NARX exoskeleton robots; gait phase classification; neural network; MLP; NARX

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Jung, J.-Y.; Heo, W.; Yang, H.; Park, H. A Neural Network-Based Gait Phase Classification Method Using Sensors Equipped on Lower Limb Exoskeleton Robots. Sensors 2015, 15, 27738-27759.
