Sensors 2010, 10(11), 10105-10127; doi:10.3390/s101110105

Article
Feasibility of Fiber Bragg Grating and Long-Period Fiber Grating Sensors under Different Environmental Conditions
1
Department of Construction Engineering, National Yunlin University of Science and Technology, Douliou 64002, Taiwan
2
Department of Physics, National Chung Cheng University, Chia-Yi 62102, Taiwan
*
Authors to whom correspondence should be addressed.
Received: 22 October 2010; in revised form: 3 November 2010 / Accepted: 8 November 2010 / Published: 10 November 2010

Abstract

: This paper presents the feasibility of utilizing fiber Bragg grating (FBG) and long-period fiber grating (LPFG) sensors for nondestructive evaluation (NDE) of infrastructures using Portland cement concretes and asphalt mixtures for temperature, strain, and liquid-level monitoring. The use of hybrid FBG and LPFG sensors is aimed at utilizing the advantages of two kinds of fiber grating to implement NDE for monitoring strains or displacements, temperatures, and water-levels of infrastructures such as bridges, pavements, or reservoirs for under different environmental conditions. Temperature fluctuation and stability tests were examined using FBG and LPFG sensors bonded on the surface of asphalt and concrete specimens. Random walk coefficient (RWC) and bias stability (BS) were used for the first time to indicate the stability performance of fiber grating sensors. The random walk coefficients of temperature variations between FBG (or LPFG) sensor and a thermocouple were found in the range of −0.7499 °C/ h to −1.3548 °C/ h. In addition, the bias stability for temperature variations, during the fluctuation and stability tests with FBG (or LPFG) sensors were within the range of 0.01 °C/h with a 15–18 h time cluster to 0.09 °C/h with a 3–4 h time cluster. This shows that the performance of FBG or LPFG sensors is comparable with that of conventional high-resolution thermocouple sensors under rugged conditions. The strain measurement for infrastructure materials was conducted using a packaged FBG sensor bonded on the surface of an asphalt specimen under indirect tensile loading conditions. A finite element modeling (FEM) was applied to compare experimental results of indirect tensile FBG strain measurements. For a comparative analysis between experiment and simulation, the FEM numerical results agreed with those from FBG strain measurements. The results of the liquid-level sensing tests show the LPFG-based sensor could discriminate five stationary liquid-levels and exhibits at least 1,050-mm liquid-level measurement capacity. Thus, the hybrid FBG and LPFG sensors reported here could benefit the NDE development and applications for infrastructure health monitoring such as strain, temperature and liquid-level measurements.
Keywords:
nondestructive evaluation (NDE); fiber Bragg grating (FBG); long-period fiber grating (LPFG); temperature, strain; liquid-level; finite element model; random walk coefficient
PACS:
07.60.Vg; 42.81.-i.; 07.05.-t

1. Introduction

Technologies for real-time non-destructive evaluation (NDE) of engineering structures are very important to access the performance of in-service infrastructures. It is very difficult to carry out on-line infrastructure integrity monitoring using classical NDE methods. Fiber optic sensors (FOSs) in smart structures provide a special opportunity for real-time-multiplexed monitoring of the health status of infrastructure using surface-bonded or embedded sensors. FOSs are very important sensors used in smart materials and structures because of their advantages compared with commonly used NDE technologies [1]. FOSs used for the NDE of advanced materials and structures have been demonstrated to be feasible for the measurement of material changes during fabrication, the in-service lifetime measurement of strain, temperature, and other physical perturbations, and the eventual detection of damage or material degradation [2]. Smart materials and structures provide the real possibility of structural integrity monitoring on-line, in situ or in vivo. FOSs in smart structures are an enabling technology that will allow engineers to establish a nervous or feedback system in their designs, in which the system performs structural damage monitoring and assessment, whereas it is difficult to accomplish the above tasks with common NDE technologies [3].

The advantages of fiber optic sensors include light weight, small size, geometrical versatility, immunity to electromagnetic interference (EMI), large bandwidth, environmental ruggedness, and electrical and optical multiplexing. Thus, fiber optic sensors are ideal sensors for potential smart structure and material applications. In recent years, the technology of fiber optic sensors has been applied to the field of structural monitoring, infrastructure assessment, and some industrial sectors [36]. The most attractive feature of fiber optic sensors is their inherent ability to serve as both the sensing element and the signal transmission medium, allowing the electronic instrumentation to be located remotely from the measurement site. This is especially useful for remote monitoring of the condition of infrastructures.

In this work, a reference dual-wavelength grating FBG and LPFGs were examined to evaluate typical infrastructure materials, such as Portland cement concretes and asphalt mixtures, for temperature, strain, and liquid-level measurements as these three physical measurements are the common measurands for infrastructure materials regarding thermal effects, mechanical response, and liquid-level monitoring. The experimental results presented here include temperature fluctuation and stability tests using both FBG and LPFG, respectively. An indirect tensile strain test using a FBG sensor as well as finite element modeling were carried out for comparative analysis. Liquid-level measurements using a sensor constructed by cascading five different wavelength LPFGs are presented. The use of hybrid FBG and LPFG sensors are shown to combine the advantages of both kinds of fiber grating to work on nondestructive evaluation of infrastructures such as bridges, pavements, and reservoirs for strains or displacements, temperatures, and water-levels under different environmental conditions. Thus, researchers or engineers could potentially use FBG and LPFG sensors with the same measurement apparatus, such as the ASE light source and optical spectrum analyzer (OSA), to monitor changes of strain, temperature, and liquid-level over time.

2. Fiber Grating Sensors

We used fiber grating sensors, FBG and LPFG sensors, as FOSs for the NDE of smart infrastructure materials. Figure 1(a) shows a schematic of the experimental setup of a reference dual-wavelength grating FBG sensing system. The FBG sensors were used to examine the temperature and strain responses of infrastructure materials. The fiber sensor was consisted of a bare grating pair (λ1 and λ2) and a packaged reference grating (λ3). The bare grating pair was constructed by fusion splicing two fiber Bragg gratings in cascade with different Bragg wavelengths. The three fiber Bragg gratings at wavelengths of λ1, λ2, λ3 were interrogated using a broadband ASE source and an OSA. A fiber coupler was used for coupling the reflected light signals of the sensor to the OSA. The reference grating was used to measure only the temperature effect. The change in the Bragg center wavelengths Δλi of the two gratings from the changes in temperature (ΔTi) and strain (Δεi) could be obtained using Equation (1).

Figure 1(b) displays the schematic of experimental setup of an LPFG sensing system. The LPFG sensors were used to examine the temperature and liquid-level responses of infrastructure materials. The LPFG sensors were used as either a temperature sensor (wavelength of λ4) or a liquid-level sensor with five LPFGs in cascade with different wavelengths (wavelengths of λ5, λ6, λ7, λ8, and λ9, about 20-nm wavelength interval).

2.1. Fiber Bragg Grating Sensors

For discriminating the strain and temperature effects, the use of reference grating [7], the use of dual wavelength gratings [8], and the use of two sensors associated with different strain and temperature responses were reported [914]. Another approach is to use the dual wavelength technique involving writing two superimposed Bragg gratings [8], in which the responses to temperature (κ1T2T) and strain (κ) at the same location on the structure are different. The change in the Bragg center wavelengths Δλi of the two gratings from the changes in temperature (ΔTi) and strain (Δεi) is given by the following matrix expression:

Δ λ i = κ i ɛ Δ ɛ i + κ iT Δ T i                   i = 1 , 2
where κ = ∂λ/∂εi is the strain coefficient of material related to the Poisson ratio, photoelastic constant and effective refractive index, and κiT = ∂λ/∂Ti is the temperature coefficient related to the thermal expansion and thermo-optic coefficients. The above matrix can be inverted to give temperature and strain provided that the ratio of temperature responses of the two gratings is different from that of their strain responses.

We have developed a simple and low-cost FBG sensor for monitoring civil infrastructure. Figure 1a shows the configuration of the sensor and the detection system, in which the proposed sensor was connected to the output port of a fiber coupler. The three fiber Bragg gratings at wavelengths of λ1, λ2, λ3 were interrogated using a broadband amplified spontaneous emission (ASE) fiber source and an optical spectrum analyzer. The reference grating was used to measure only the temperature effect. The shift in Bragg wavelength λ3 from temperature changes is given by:

Δ λ 3 = κ 3 T Δ T

The strain coefficient of the sensor was obtained by varying the applied strain from 200 to 2,200 με while keeping the temperature constant. An excellent linear response of wavelength shifts to applied strains was found. The slope of the linear fit to the measured wavelength shifts at various strain changes was determined as the strain coefficient (pm/με) of the investigated fiber sensor (for λ1 and λ2). For the second series of tests, those sensors were kept under strain-free conditions and temperature variations from 25 °C to 80 °C. Again, an excellent linear response of wavelength shifts to applied temperature variations was shown and the slope of the linear fit to the measured wavelength shifts at various temperature changes was determined as the temperature coefficient (pm/°C) of the investigated fiber sensor for those wavelengths of λ1, λ2, λ3, and λ4. Table 1 summarizes the experimental coefficients of the optical fiber grating sensors. The measured root mean squared errors for temperature T and strain ε were estimated to be 0.13 °C and 6 με, respectively. Using the estimation of expanded uncertainty at 95% confidence level with a coverage factor of k = 2.205, temperature and strain measurement uncertainties of the FBG sensor have been evaluated as 2.60 °C and 32.05 με, respectively. Figure 2 shows the 3-D surface plot of strain variation and temperature variation for simultaneous strain and temperature measurements within the temperature range 30–120 °C and strain range of 0–1,500 με [15]. If temperature and strain change, the FBG sensor system or the so-called reference dual-wavelength grating presented in this paper could measure temperature and strain separately.

2.2. Long-Period Fiber Grating Sensors

In general, an LPFG usually has a photo-induced periodic modulation of refractive index along the core of a single-mode fiber, with a typical perturbation of Δn ∼ 10−4, periods between 100 μm–1 mm and length of 2–4 cm. The LPFG couples light from a guided fundamental core mode (LP01) to different forward-propagating cladding modes (HE1m) in an optical fiber, which is given by phase-matching condition [16]:

β core 01 β cladding 1 m = 2 π Λ m = 2 , 3 , 4 , ....
where β core 01 and β cladding 1 m are propagating constants of the fundamental core mode and mth cladding mode, respectively, and Λ is the period of grating. The coupling of the light into the cladding region generates a series of resonant bands centered at wavelength λm in the transmission spectrum. The center wavelengths λm of an attenuation band are solutions of the following equation [16]:
λ m = [ n ¯ core 01 ( n 1 , n 2 , λ m ) n cladding 1 m ( n 2 , n s , λ m ) ] Λ
where n ¯ core 01 ( n 1 , n 2 , λ m ) is the effective index of the fundamental core mode at the wavelength of λm, which is also dependent on the core refractive index n1 and cladding refractive index n2. In Equation (4) n cladding 1 m ( n 2 , n s , λ m ) is the effective refractive of the mth cladding mode at the wavelength λm, which is related to cladding refractive index n2 and the refractive index of the surrounding medium ns.

When the concentration or the refractive index of the surrounding medium changes, also n cladding 1 m ( n 2 , n s , λ m ) changes and a shift in the central wavelength can be obtained. The cladding modes are very sensitive to change in the refractive index of the ambient (surrounding) environment.

The fabrication of LPFGs, for λ4, has been reported elsewhere [17,18]. The LPFGs, for λ5 to λ9, were fabricated by the electric-arc discharge method [19] with hydrogen-free Corning SMF-28 fibers. LPFGs are especially suitable for measurements and applications when liquids or solutions undergo a change in temperature or refractive index (RI) which can be used for sensing temperatures, liquid-levels, and chloride ions [1723].

The experimental setup for LPFGs fabrication consists of a computer-controlled electric-arc discharge associated with a translation stage, a broadband ASE fiber source and a high-resolution OSA (ANDO AQ6315A) used to in situ monitor the transmission loss as the grating was written. The electric-arc discharge-induced LPFGs were about 2.2–3.6 mm long and their grating periods were about 600 μm, written with a computer-controlled electric-arc discharge system. The transmission spectrum was interrogated during the writing and its characteristics such as insertion loss, resonance peak wavelength, and peak depth were analyzed after the grating was written. With suitable fabrication parameters such as electric-arc discharge power, discharge time, grating period, and scan speed, the resulting resonance wavelengths ranging from 1,200 nm to 1,600 nm with a greater than about 20 dB peak depth were obtained.

In this study, each transmission spectrum was referenced to the background spectrum of a bare fiber in air. The 3 dB bandwidth was determined by finding the peak of the ASE spectrum, and rising by 3 dB on each side. The spectral width of the ASE spectrum was determined by the separation of these two points because each has a power spectral density equal to one half the peak power spectral densities. The resonance wavelength was calculated as the average of two wavelengths determined in the 3 dB bandwidth measurements.

3. Materials and Experimental Setup

FBG and LPFG sensors were surface-bonded on Portland cement concrete and asphalt mixture specimens to evaluate temperature and strain measurements. The above three physical measurands are the common measurements for infrastructures or corresponding materials. The experimental study includes temperature tests, indirect tensile strain test, and liquid-level test, using both FBG and LPFG, respectively. The temperature tests focused on not only monitoring the temperature variations of the infrastructure but also assessing the performance of FOSs. An indirect tensile strain test using a packaged FBG, which could monitor and assess the strains of infrastructures, as well as a finite element modeling were conducted to compare FBG and FEM results. Liquid-level measurements were conducted using a sensor constructed by cascading five different wavelength LPFGs, which could monitor and assess the liquid-level such as reservoirs, pipelines, tanks, and channels.

3.1. Infrastructure Materials

Portland cement concretes and asphalt mixtures are typical infrastructure materials. The plain-concrete specimen used was 150 mm in diameter and 300 mm in height. The maximum aggregate size was 19 mm and all aggregates were crushed siliceous materials from river deposits. Type I cement was used to fabricate the cylinder specimens. The 28-day compressive strength of this concrete specimen was 24.15 kPa. Figure 3(a) shows the surface-bonded FBG and LPFG sensors on a cylindrical concrete specimen.

The asphalt specimen was 150 mm in diameter and about 116 mm in height. The maximum aggregate size was 19 mm and a PG 64-22 asphalt binder was used to fabricate the asphalt specimen. The specimen was compacted by superior performing asphalt pavement (Superpave) gyratory compactor and the aggregate structure belonged to Superpave coarse gradation (below the restricted zone) [24,25]. Both FBG and LPFG sensors were bonded on the surface of asphalt and concrete specimens as presented in Figure 3(b).

3.2. Temperature Tests

The temperature tests include temperature fluctuation and temperature stability tests using both FBG and LPFG sensors, respectively. Random walk coefficient (RWC) is defined as the slope of Allan variance plot (Allan deviations of temperature differences between the FOS sensor and a thermocouple versus time clusters) before Allan deviation approaches the minimum value. Bias stability (BS) is then obtained as the minimum Allan deviation and occurs at the corresponding time cluster and BS is typically described within the minimum Allan deviation with the corresponding time cluster [2628]. These two parameters were used to evaluate the sensing performance of FOSs for all temperature tests.

3.2.1. Temperature Fluctuation Tests

Temperature fluctuation tests aimed at the simulation of infrastructure materials under 24-hour temperature changes repeatedly going up and down and they could be used to assess the reliability of FOSs. Both concrete and asphalt specimen were investigated for fluctuation testing. The asphalt and concrete specimens were placed at an oven in which the temperature was employed to simulate the infrastructure temperature fluctuation conditions. Several temperature cycles were applied for a long period of time (at least one day). One temperature cycle was carried out by ramping the oven from room temperature up to a designed temperature at a rate of 3 °C/h and then rapidly down to the room temperature, normally taking 12 hours to finish one cycle. For comparison, a traditional thermocouple was also mounted near the surface of specimens during the testing, as shown in Figure 3. The temperature fluctuation tests were performed using both FBG and LPFG sensors for asphalt and concrete specimens for more than 24 hours and 48 hours, respectively.

3.2.2. Temperature Stability Tests

Temperature stability tests focused on the simulation of infrastructure materials under constant temperature and they could be used to assess the stability of FOSs. Thus, the stability tests using both FBG and LPFG sensors were performed at a fixed temperature of 55 °C and 38 °C for concrete and asphalt specimens for 48 and 19 hours, respectively.

3.3. Indirect Tensile Strain Test

The indirect tensile strain test for infrastructure materials was conducted using a packaged FBG sensor bonded with an epoxy glue on the surface of an asphalt specimen under the indirect tensile loading condition. Figure 4 shows the experimental setup and an asphalt specimen with a packaged FBG sensor. The strain coefficients and measurement errors of the packaged grating sensor was measured to be 1.1 pm/με and 8.6 με. The packaged FBG sensor was bonded on the surface of asphalt specimens to measure the strains with the indirect tensile loading kit (steel frames and strips). A series of static loads of 98 N, 196 N, 294 N and 392 N, were applied on the loading strip vertically. One top vertical and two-side horizontal (along the diameter) dial gauges (accuracy of 0.01 mm) were used to monitor the corresponding deformations and ensure that the relationship between applied loads and measured deformations is indirect tensile and linear-elastic. Due to the relatively lower stiffness of asphalt, it is almost impossible to bond the general-purpose strain gauge on the surface of asphalt specimens. Therefore, in this study we compared the FBG measurements with numerical simulation results.

3.4. Liquid-Level Test

Our experimental setup for the LPFG liquid-level sensing system is shown in Figure 5. A 150 mm-inside diameter, 1,200 mm-high, and hollow cylindrical storage tank having at least a 1,000 mm liquid-level capacity was used for sensing tests. We focused on a liquid-level sensor constructed by cascading five different wavelength LPFGs (wavelengths of Nos 1–5: 1,505 nm, 1,524 nm, 1,549 nm, 1,570 nm, and 1,606 nm, respectively). The liquid-level sensing tests included five levels, or five LPFGs in series with Nos. 1–5 and their corresponding fixed liquid-levels were about 230 mm, 430 mm, 640 mm, 850 mm, and 1,050 mm (from bottom to top, see Figure 5). For each liquid-level, the sensing measurements were conducted for both measurements in air and immersed in water, respectively. The wavelength shift of the LPFG has been shown to be a reliable, repeatable, and accurate measurand for several different field applications [20]. Thus, the changes of wavelengths are suggested for clearly identifying the changes and eliminating experimental errors. We performed five times liquid-level tests, in which Nos. 1–5 were all immersed in water, to identify the changes of resonance wavelength shifts for the sensor constructed by cascading five different wavelength LPFGs.

4. Finite Element Simulation

The FEM simulation was carried out with FEMLAB computer software and a 3-D linear static analysis was conducted to verify the feasibility of strain measurement using a FBG sensor surface-bonded on an asphalt specimen subjected to an indirect tensile loading.

4.1. Geometry Modeling and Meshing

In this work, 3-D indirect tensile loading simulation was used to model the strain measurement using a packaged FBG sensor bonded on the surface of an asphalt specimen under different indirect tensile loads. The physical model consists of an asphalt concrete cylinder specimen (150 mm in diameter and approximately 116 mm in height) and two strips (approximately 19 mm in width, 12 mm in thickness and 116 mm in height) with a FBG sensor horizontally centered along the diameter. The sensor was glued from positions at x = −40 mm to x = 40 mm. We created a 3D solid object using the Cartesian coordinate with the functions of geometry modeling and CAD tools. Figure 6a shows the geometry plot for FBG sensing with loading strips for modeling infrastructures or structures using asphalt mixtures subjected to a tensile load. The tetrahedral mesh element, Lagrange-quadratic element, was selected to create the model meshes. Three different mesh resolutions were used for the FEM simulation, corresponding to coarser, coarse, and normal model meshes that possessed a total of 4,826, 7,067, and 11,456 elements, respectively. The maximum element size default was 1/10 of the size of the geometry. The maximum element size scaling factor defaults value was 1.0. The element growth ratio was 1.4., the mesh curvature factor was 0.4, and the mesh curvature coefficient was 0.01. Figure 6(b) displays the schematic plot for a normal mesh for the asphalt specimen and loading strips. These models were used to simulate cylinders subjected to a tensile load.

Material properties of the steel loading strips are assumed to be homogeneous and isotropic. The steel loading strips possess an elastic modulus of 200 GPa, a Poisson’s ratio of 0.30, and a density of 7,850 kg/m3. The asphalt mixture specimen has a Poisson’s ratio of 0.35 and a density of 2,500 kg/m3. The elastic modulus of asphalt mixture specimen was about 0.21 GPa. The used solver was Direct (Spools), an effective direct solver for symmetric and unsymmetrical systems, based on Gaussian elimination method to solve this linear stationary problem. Table 2 summarizes the material properties of steel strips and a cylindrical asphalt mixture specimen.

4.2. Simulation of Cylinders Subjected to Indirect Tensile Loading

Different loading conditions were performed to determine whether the strains measured from the packaged FBG sensor agree with those obtained from FEM results. The top vertical displacements, ν, and horizontal normal strains, εx, of the asphalt specimen along the x-direction were calculated using FEM method under a series of loads of 98-N, 196-N, 294-N and 392-N loading conditions. This aimed at simulating the strain measurements using the packaged FBG sensor under different indirect tensile loads.

5. Results and Discussion

5.1. Temperature Measurements

The responses of temperature fluctuation with time for both asphalt and concrete specimens are shown in Figures 7 and 8, respectively. The results of temperature fluctuation tests using FBG and LPFG sensors are summarized in Table 3. The random walk coefficients of temperature variations between FBG sensor and thermocouple were found as −0.9134 °C/ h and −1.1293 °C/ h for asphalt and concrete specimens, respectively. This shows that the performance of this FBG sensor is comparable with that of conventional high-resolution sensors such as thermocouple. In addition, the bias stability for temperature variations during the fluctuation tests with FBG sensor were within 0.02 °C/h with 4–5 h time cluster and 0.09 °C/h with 3–4 h time cluster for asphalt and concrete specimens, respectively.

Using the measurements from the pair of gratings, λ1 and λ2, one can determine the residual strains on the surface of the specimens at the same location, which should be near zero for these tests. In fact, a small amount of RMS strain variations were found, less than 13 με (or ∼1 °C) in all cases, as indicated in Table 3, which were all within our experimental errors.

Furthermore, the random walk coefficients of temperature variations between LPFG sensor and thermocouple were found as −1.3548 °C/ h and −0.9994 °C/ h for asphalt and concrete specimens, respectively. The bias stability for temperature variations during the fluctuation tests with LPFG sensor were within 0.03 °C/h with a 5–8 h time cluster and 0.06 °C/h with a 4–6 h time cluster for asphalt and concrete specimens, respectively. Obviously, both the FBG and LPFG sensors exhibited as the same temperature variations compared with a thermocouple.

The results of temperature stability tests using FBG and LPFG sensors are summarized in Table 3 and the responses of temperature stability with time for both asphalt and concrete specimens are shown in Figures 9 and 10, respectively. With the FBG sensor, the random walk coefficients of temperature variations were −0.7499 °C/ h and −0.9944 °C/ h compared with the measurements of asphalt and concrete specimens, respectively. It can be seen that the bias stability values were 0.04 °C/h with 12–15 h time cluster and 0.01 °C/h with 15–18 h time cluster for asphalt and concrete specimens. By contrast, the random walk coefficients of temperature variations between the LPFG sensor and a thermocouple were −1.0144 °C/ h and −0.8360 °C/ h compared with the measurements of asphalt and concrete specimens, respectively. Moreover, the bias stability values were 0.05 °C/h with 7–8 h time cluster and 0.03 °C/h with 15–20 h time cluster measured for asphalt and concrete specimens, respectively. Results presented here illustrate that the monitoring of temperature fluctuation and stability using FBG and LPFG sensors, was capable of measuring temperature with accuracy in the range of −0.7499 °C/ h to −1.3548 °C/ h.

In addition, the bias stability for temperature variations, during the temperature fluctuation and stability tests with FBG (or LPFG) sensors were within the range of 0.01 °C/h with 15–18 h time cluster to 0.09 °C/h with 3–4 h time cluster. The excellent performance of FBG and LPFG sensors has made it possible to monitor infrastructure or structures under rugged conditions at a reasonable accuracy for a very long period of time (the fiber optic sensor is normally designed to work for at least 10 years).

5.2. Comparative Analysis of Indirect Tensile Strain Measurement

Based on the results of FEM analysis, Figure 11 shows the plot of vertical displacements, horizontal displacements, and horizontal (diametrical) normal strains of an asphalt specimen subjected to a 294-N load, respectively. The FEM horizontal normal strains were compared with indirect tensile strains using a packaged FBG sensor. Figure 12 compares FBG experimental measurements and three different FEM mesh modeling results, which included coarser, coarse and normal mesh modeling. The measured horizontal normal strains, εx, from the packaged FBG sensor agreed well with three FEM simulation predictions. In Figure 12, we used measurement error of 8.6 με as the error bar of FBG strains. It is clear that the numerical values were all located within the FBG measurements error ranges. In addition, the strain differences between the packaged FBG sensor and FEM model predictions were in the range of 4.2–6.8%. There was no significant difference among the coarser, coarse, and normal mesh models for simulating infrastructures or structures subjected to an indirect tensile loading. The study presented here demonstrates that the FBG sensor could offer the potential of simultaneous measurement of strain and temperature for monitoring infrastructure materials.

5.3. Liquid-Level Measurements

The liquid-level sensing tests included five liquid levels, or five LPFGs in series indexed with Nos. 15 and their corresponding liquid-level were about 230 mm, 430 mm, 640 mm, 850 mm, and 1,050 mm. Figures 13a and 13b show transmission spectra of the liquid-level sensor with LPFGs Nos. 1–2 and Nos. 1–5 immersed in water, respectively.

After performing liquid-level tests five times, the average values (with standard deviations) of the resonance wavelength shifts for Nos. 1–5 were about 2.0 nm (within 0.16 nm), 1.3 nm (within 0.25 nm), 2.2 nm (within 0.07 nm), 3.7 nm (within 0.07 nm), and 9.2 nm (within 0.29 nm), respectively. These results are plotted in Figure 14. The wavelength shifts of resonance wavelengths showed the LPFG-based sensor could be used to measure five different liquid levels and had at least 1050-mm liquid-level measurement capacity.

6. Conclusions

This paper illustrates the great potential of fundamental structural health monitoring using optical fiber grating sensors (FBG and LPFG sensors) for NDE of infrastructure materials, such as Portland cement concretes and asphalt mixtures. Three physical measurands based on different configurations of FBG and LPFG sensors were exploited, including temperature, strain, and liquid-level detection. Experimental results of two long-term stability performance parameters, random walk coefficient and bias stability, which show that the performance of a FBG (or LPFG) sensor is comparable with that of conventional high-resolution sensors such as thermocouple under rugged conditions were introduced and reported for the first time. The FEM simulation of strain measurements using a packaged FBG sensor for an asphalt specimen under indirect tensile loading conditions was shown to agree well with those experimental data at a reasonable range of errors (4.2% to 6.8%). We have also demonstrated the capacity of sensitive liquid level measurements utilizing a cascading LPFG sensor with water 105 cm-high for five different levels in a tank. For the first time, to our knowledge, based on a few simple FBG or LPFG sensor configurations, the feasibility of efficiently estimating measurement errors and monitoring long-term stability performance for simultaneous strain-temperature or liquid-level sensing of NDE for infrastructures with fiber grating sensors has been shown. Results presented here successfully demonstrate that the combination of FBG and LPFG technology has produced a surface mounted NDE based fiber sensor system capable of continuously monitoring or assessing the status of the integrity of smart structures or their components with a high level of confidence and reliability. The advantage of this type of fiber sensor is that it is more sensitive and durable than conventional sensors and is particularly well suited for on-site and remote sensing.

Acknowledgments

The authors thank Hsiang-Ping Chang for his laboratory assistance. The partial support of the National Science Council (NSC) of Taiwan under Contract Nos. NSC 95-2122-M-194-013, NSC 95-3114-P-194-001-MY3, NSC 96-2112-M-194- 004-MY3, NSC 95-2111-E-224-066, NSC 96-2221-E-224-059, NSC 97-2111-E-224-050, NSC 98-2111-E-224-060, and NSC 99-2221-E-224-055-MY2 is gratefully acknowledged.

References

  1. Leng, J; Asundi, A. Structural health monitoring of smart composite materials by using the EFPI and FBG sensors. Sens. Actuat. A Phys 2003, 103, 330–340. [Google Scholar]
  2. Leng, J; Asundi, A. Non-destructive evaluation of smart materials by using extrinsic Fabry—Perot interferometric and fiber Bragg grating sensors. NDT E. Int 2002, 35, 273–276. [Google Scholar]
  3. Leng, J; Asundi, A. Real-time cure monitoring of smart composite materials using extrinsic Fabry-Perot interferometer and fiber Bragg grating sensors. Smart Mater. Struct 2002, 11, 249–255. [Google Scholar]
  4. Udd, E. Fiber Optic Smart Structures; Wiley: New York, NY, USA, 1995. [Google Scholar]
  5. Culshaw, B; Dakin, J. Optical Fiber Sensors: Applications, Analysis, and Future; Artech House: Boston, MA, USA, 1997. [Google Scholar]
  6. Moyoa, P; Brownjohnb, JMW; Sureshc, R; Tjinc, SC. Development of fiber Bragg grating sensors for monitoring civil infrastructure. Eng. Struct 2005, 27, 1828–1834. [Google Scholar]
  7. Kersey, AD; Berkoff, TA; Morey, WW. Fiber-optic Bragg grating strain sensor with phase sensitive detection. Proceedings of the 1st European Conference on Smart Structures and Materials, Glasgow, UK, 12–14 May 1992; pp. 61–67.
  8. Xu, MG; Archambault, JL; Reekie, L; Dakin, JP. Discrimination between strain and temperature effects using dual-wavelength fiber grating sensors. Electron. Lett 1994, 30, 1085–1087. [Google Scholar]
  9. Kanellopouslos, SE; Handerek, VA; Rogers, AJ. Simultaneous strain and temperature sensing with photogenerated in-fiber gratings. Opt. Lett 1995, 20, 333–335. [Google Scholar]
  10. Patrick, HJ; Williams, GM; Kersey, AD; Pedrazzani, JR; Vengsarkar, AM. Hybrid fiber Bragg grating/long period fiber grating sensors for strain/temperature discrimination. IEEE Photonic. Technol. Lett 1996, 8, 1223–1225. [Google Scholar]
  11. James, SW; Dockney, ML; Tatam, RP. Simultaneous independent temperature and strain measurement using in-fiber Bragg grating sensors. Electron. Lett 1996, 32, 1133–1134. [Google Scholar]
  12. Jung, J; Park, N; Lee, B. Simultaneous measurement of strain and temperature using a single FBG grating with erbium-dopped fiber amplifier. Appl. Opt 2000, 39, 1118–1120. [Google Scholar]
  13. Davis, MA; Kersey, AD. Simultaneous measurement of temperature and strain using fiber Bragg grating and Brillouin scattering. IEE Proc. Optoelectron 1997, 144, 151–155. [Google Scholar]
  14. Othonos, A; Kalli, K. Fiber Bragg Grating: Fundamentals and Applications in Telecommunications and Sensing; Artech House Inc.: Norwood, MA, USA, 1999. [Google Scholar]
  15. Tang, J-L; Wang, J-N. Error analysis and measurement uncertainty for a fiber grating strain-temperature sensor. Sensors 2010, 10, 6582–6593. [Google Scholar]
  16. Patrick, H; Kersey, A; Bucholtz, F. Analysis of the response of long period fiber gratings to external index of refraction. J. Lightwave Technol 1998, 16, 1606–1612. [Google Scholar]
  17. Tang, J-L; Wang, J-N. Measurement of chloride ion concentration in concrete structures with long-period grating technology. Smart Mater. Struct 2007, 16, 665–672. [Google Scholar]
  18. Tang, J-L; Wang, J-N. Chemical sensing sensitivity of long-period grating sensor enhanced by colloidal gold nanoparticles. Sensors 2008, 7, 100–118. [Google Scholar]
  19. Rego, G; Okhotnikov, O; Dianov, E; Sulimov, V. High temperature stability of long-period fiber gratings produced using an electric arc. J. Lightwave Technol 2001, 19, 1574–1579. [Google Scholar]
  20. James, SW; Tatam, RP. Optical fibre long-period grating sensors: Characteristics and application. Meas. Sci. Technol 2003, 14, R49–R61. [Google Scholar]
  21. Bhatia, V; Campbell, DK; Sherr, D; Tiffanie, GD; Noel, AZ; Gregory, A; Kent, AM; Clau, RO. Temperature-insensitive and strain-insensitive long-period gratings sensor for smart structures. Opt. Eng 1997, 36, 1872–1876. [Google Scholar]
  22. Bhatia, V; Tiffanie, GD; Noel, AZ; Clau, RO. Temperature-insensitive long-period grating for strain and refractive index sensing. Proc. SPIE 1997, 3042, 194–202. [Google Scholar]
  23. Khaliq, S; James, SW; Tatam, RP. Fiber-optic liquid-level sensor using a long-period grating. Opt. Lett 2001, 26, 1224–1226. [Google Scholar]
  24. McGennis, RB; Anderson, RM; Kennedy, TW; Solaimanian, M. Background of Superpave Asphalt Mixture Design and Analysis; US Department of. Transportation, Federal Highway Administration: Washington, D.C. USA, 1995; Publication No. FHWA-SA-95-003. [Google Scholar]
  25. Wang, J-N; Kennedy, TW; McGennis, RB. Volumetric and mechanical performance properties of the Superpave mixtures. J. Mater. Civil Eng. ASCE 2000, 12, 238–244. [Google Scholar]
  26. Sabatini, AM. A wavelet-based bootstrap method applied to inertial sensor stochastic error modelling using the Allan variance. Meas. Sci. Technol 2006, 17, 2980–2988. [Google Scholar]
  27. IEEE, Standard 952-1997. IEEE Standard Specification Format Guide and Test Procedure for Single-Axis Interferometric Fiber Optic Gyros. 1997. [Google Scholar]
  28. Stockwell, W. Bias Stability Measurement: Allan Variance; Crossbow Technology Inc.: Milpitas, CA, USA, 2004. Available online: http://www.xbow.com/Support/Supportpdffiles/BiasStabilityMeasurement.pdf (accessed on 28 September 2010).

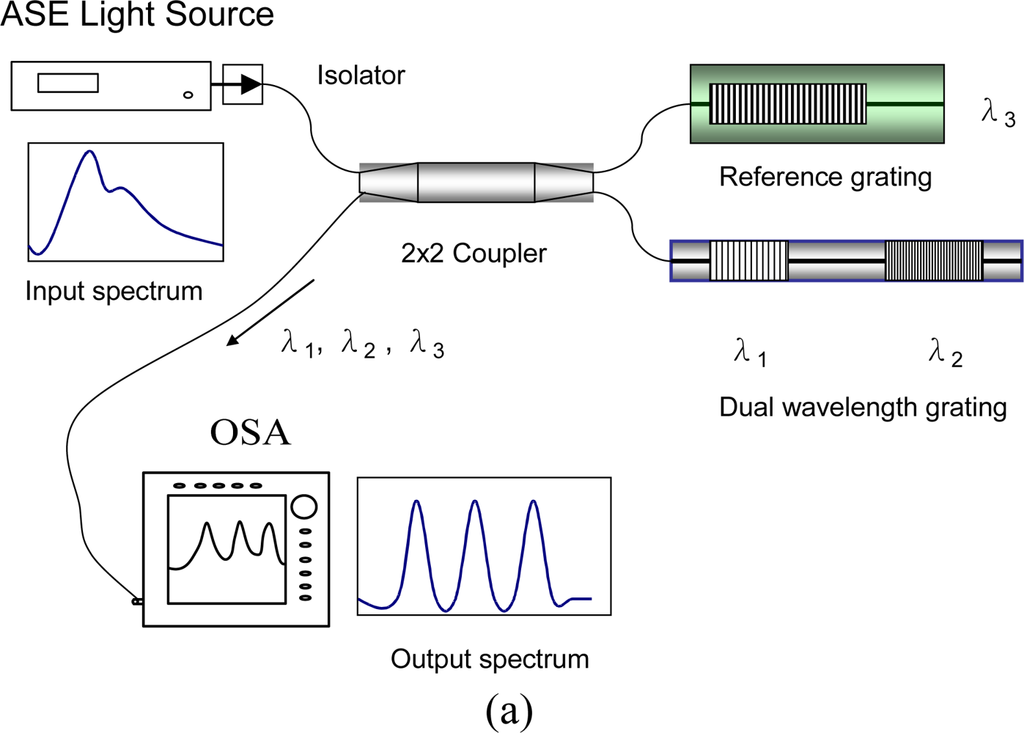

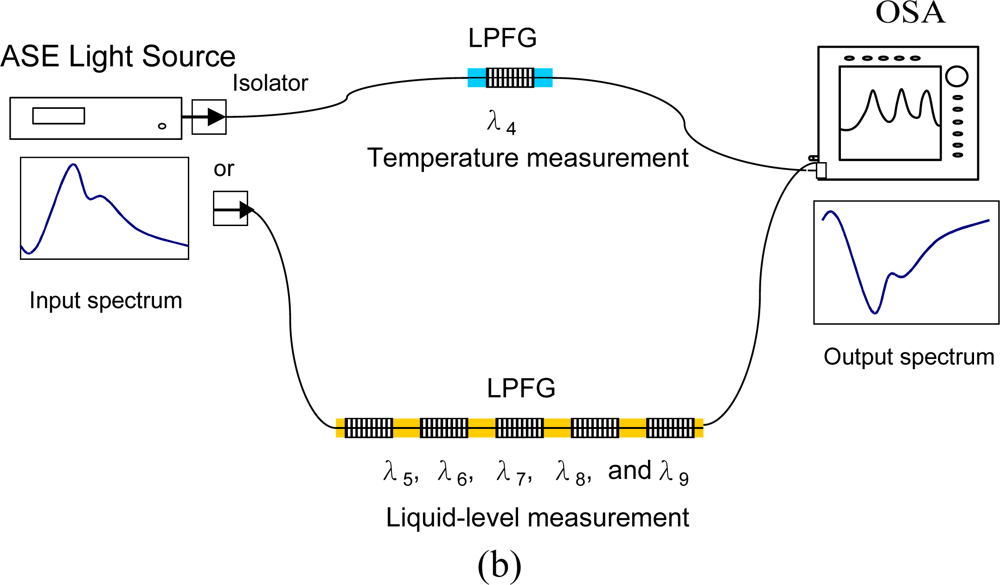

Figure 1. Schematic of experimental setup of (a) a reference dual-wavelength grating FBG sensing system for temperature and strain measurements; (b) an LPFG sensing system either for temperature or liquid-level measurements.
Figure 1. Schematic of experimental setup of (a) a reference dual-wavelength grating FBG sensing system for temperature and strain measurements; (b) an LPFG sensing system either for temperature or liquid-level measurements.
Sensors 10 10105f1a 1024Sensors 10 10105f1b 1024
Figure 2. 3-D Surface plot of (a) strain variation and (b) temperature variation of simultaneous strain and temperature measurements within the temperature range 30–120 °C and strain range of 0–1,500 με.
Figure 2. 3-D Surface plot of (a) strain variation and (b) temperature variation of simultaneous strain and temperature measurements within the temperature range 30–120 °C and strain range of 0–1,500 με.
Sensors 10 10105f2 1024

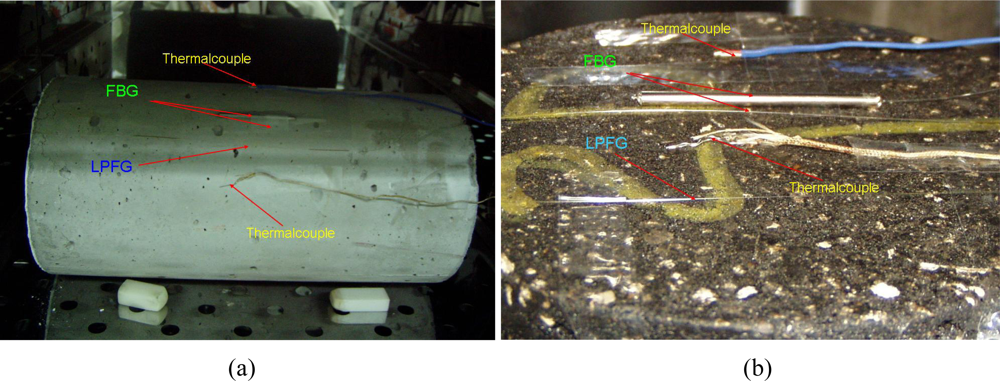

Figure 3. FBG and LPFG sensors bonded on the surface of infrastructure materials: (a) a cylindrical concrete specimen; (b) an asphalt mixture specimen.
Figure 3. FBG and LPFG sensors bonded on the surface of infrastructure materials: (a) a cylindrical concrete specimen; (b) an asphalt mixture specimen.
Sensors 10 10105f3 1024
Figure 4. Indirect tensile test of an asphalt specimen with a packaged FBG sensor: (a) experimental setup; (b) asphalt mixture specimen.
Figure 4. Indirect tensile test of an asphalt specimen with a packaged FBG sensor: (a) experimental setup; (b) asphalt mixture specimen.
Sensors 10 10105f4 1024

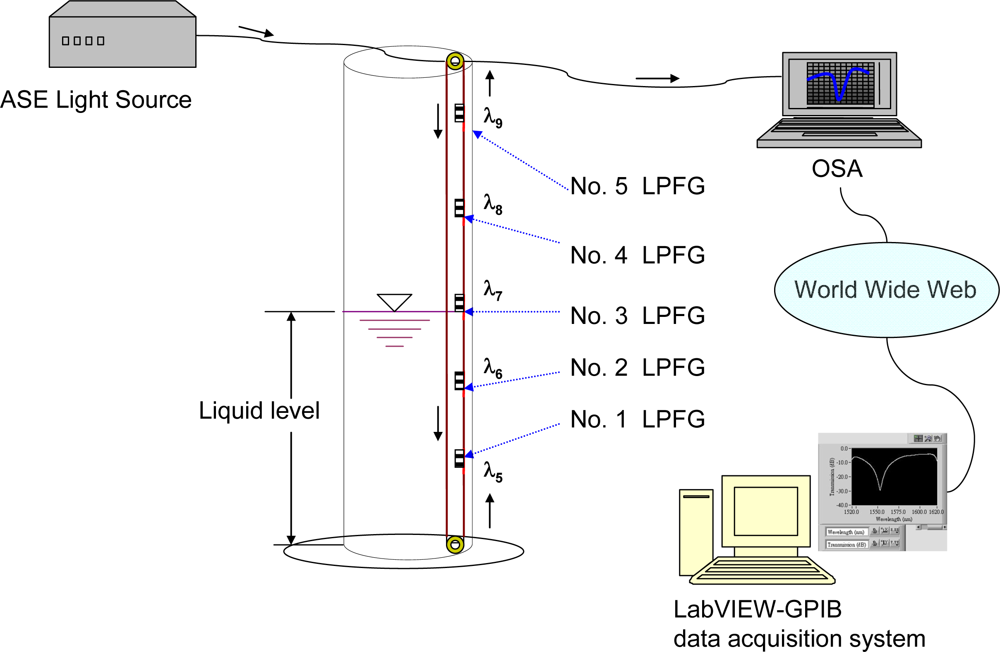

Figure 5. Schematic of experimental setup for liquid-level sensor constructed by cascading five different wavelength LPFGs.
Figure 5. Schematic of experimental setup for liquid-level sensor constructed by cascading five different wavelength LPFGs.
Sensors 10 10105f5 1024
Figure 6. Modeling of an asphalt cylindrical specimen subjected to an indirect tensile load: (a) geometry plot for FBG sensing with loading strips; (b) normal mesh for asphalt specimen and strips.
Figure 6. Modeling of an asphalt cylindrical specimen subjected to an indirect tensile load: (a) geometry plot for FBG sensing with loading strips; (b) normal mesh for asphalt specimen and strips.
Sensors 10 10105f6 1024

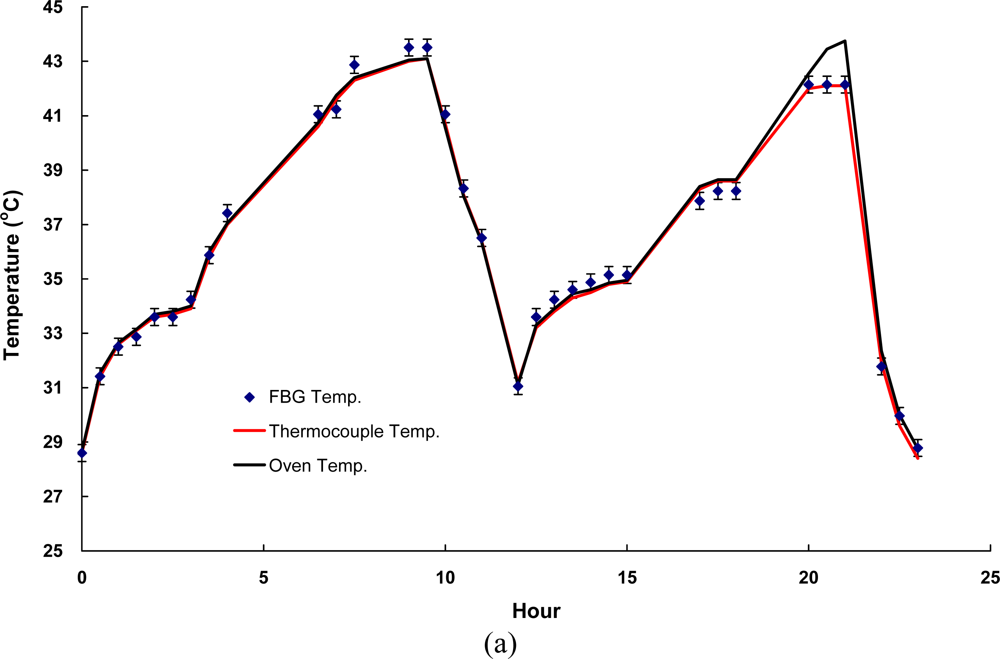

Figure 7. Responses of temperature fluctuation tests using FBG sensor surface-bonded on (a) a cylindrical asphalt mixture specimen; (b) a cylindrical concrete specimen.
Figure 7. Responses of temperature fluctuation tests using FBG sensor surface-bonded on (a) a cylindrical asphalt mixture specimen; (b) a cylindrical concrete specimen.
Sensors 10 10105f7a 1024Sensors 10 10105f7b 1024

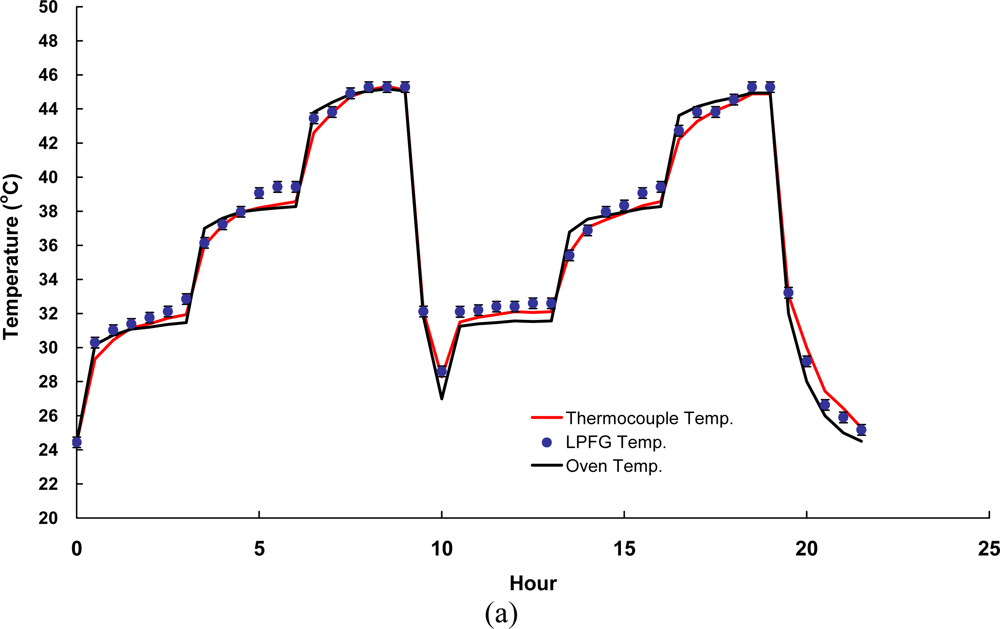

Figure 8. Responses of temperature fluctuation tests using LPFG sensor surface-bonded on (a) a cylindrical asphalt mixture specimen; (b) a cylindrical concrete specimen.
Figure 8. Responses of temperature fluctuation tests using LPFG sensor surface-bonded on (a) a cylindrical asphalt mixture specimen; (b) a cylindrical concrete specimen.
Sensors 10 10105f8a 1024Sensors 10 10105f8b 1024

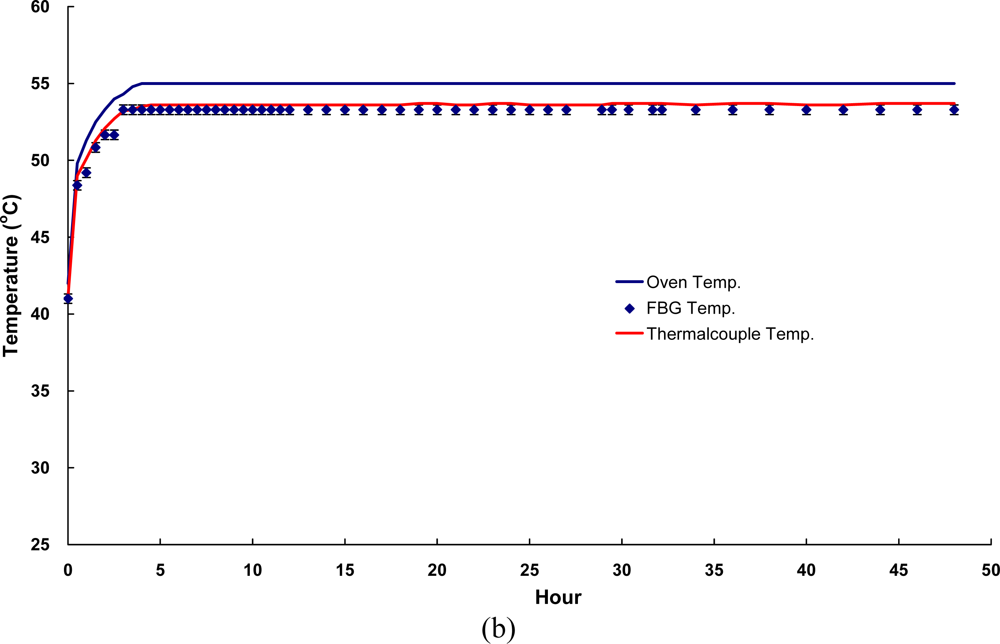

Figure 9. Responses of temperature stability tests using FBG sensor surface-bonded on (a) a cylindrical asphalt mixture specimen; (b) a cylindrical concrete specimen.
Figure 9. Responses of temperature stability tests using FBG sensor surface-bonded on (a) a cylindrical asphalt mixture specimen; (b) a cylindrical concrete specimen.
Sensors 10 10105f9a 1024Sensors 10 10105f9b 1024

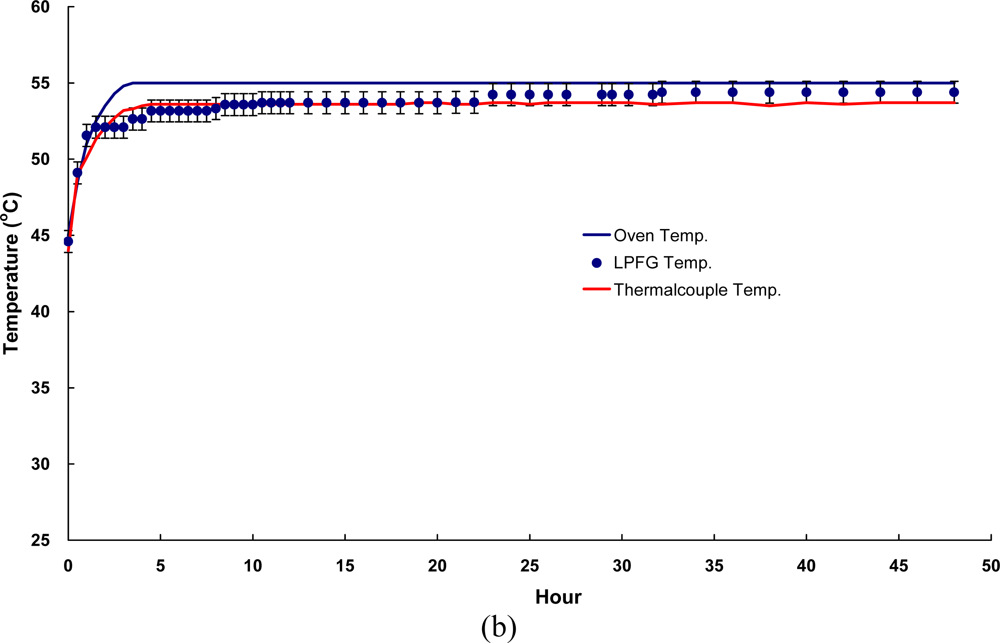

Figure 10. Responses of temperature stability tests using LPFG sensor surface-bonded on (a) a cylindrical asphalt mixture specimen; (b) a cylindrical concrete specimen.
Figure 10. Responses of temperature stability tests using LPFG sensor surface-bonded on (a) a cylindrical asphalt mixture specimen; (b) a cylindrical concrete specimen.
Sensors 10 10105f10a 1024Sensors 10 10105f10b 1024

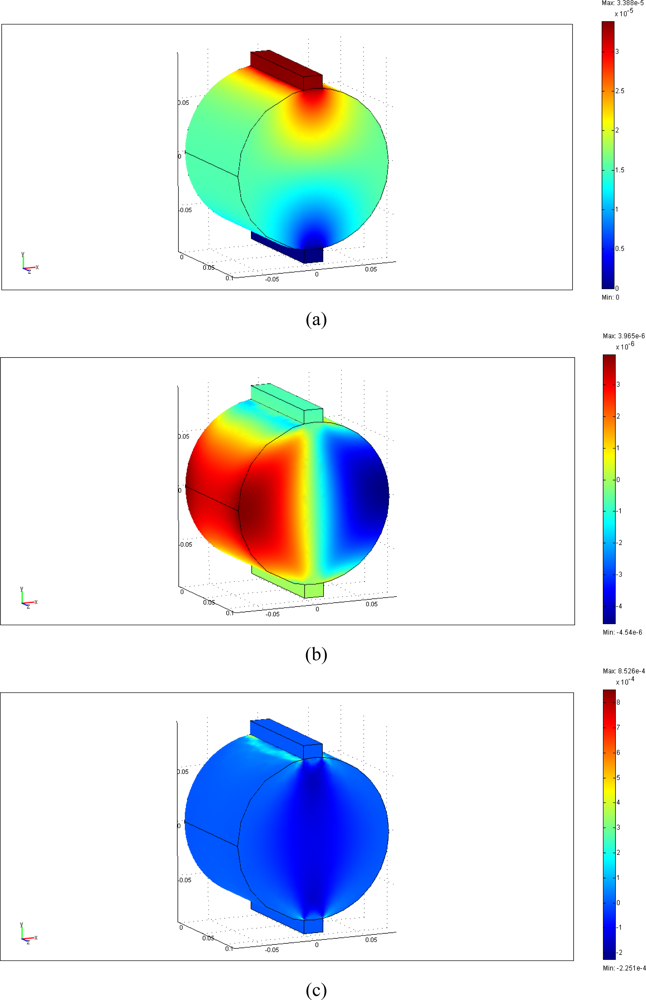

Figure 11. Plots of (a) vertical displacements; (b) horizontal displacements; and (c) horizontal normal strains of an asphalt specimen subjected to a 294-N load.
Figure 11. Plots of (a) vertical displacements; (b) horizontal displacements; and (c) horizontal normal strains of an asphalt specimen subjected to a 294-N load.
Sensors 10 10105f11 1024

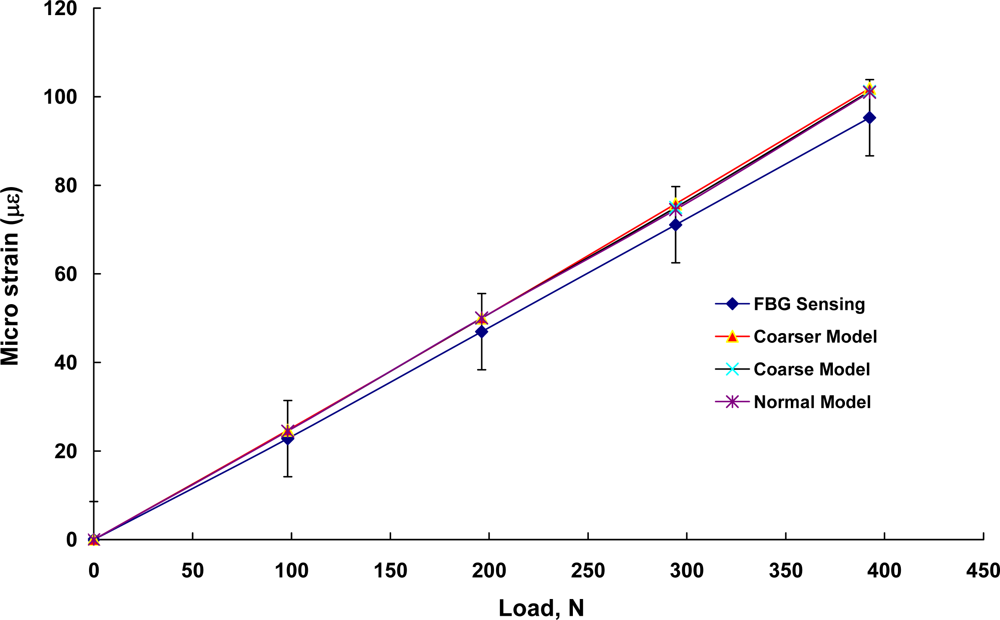

Figure 12. Comparison of FBG strain measurements with three different FEM modeling results.
Figure 12. Comparison of FBG strain measurements with three different FEM modeling results.
Sensors 10 10105f12 1024

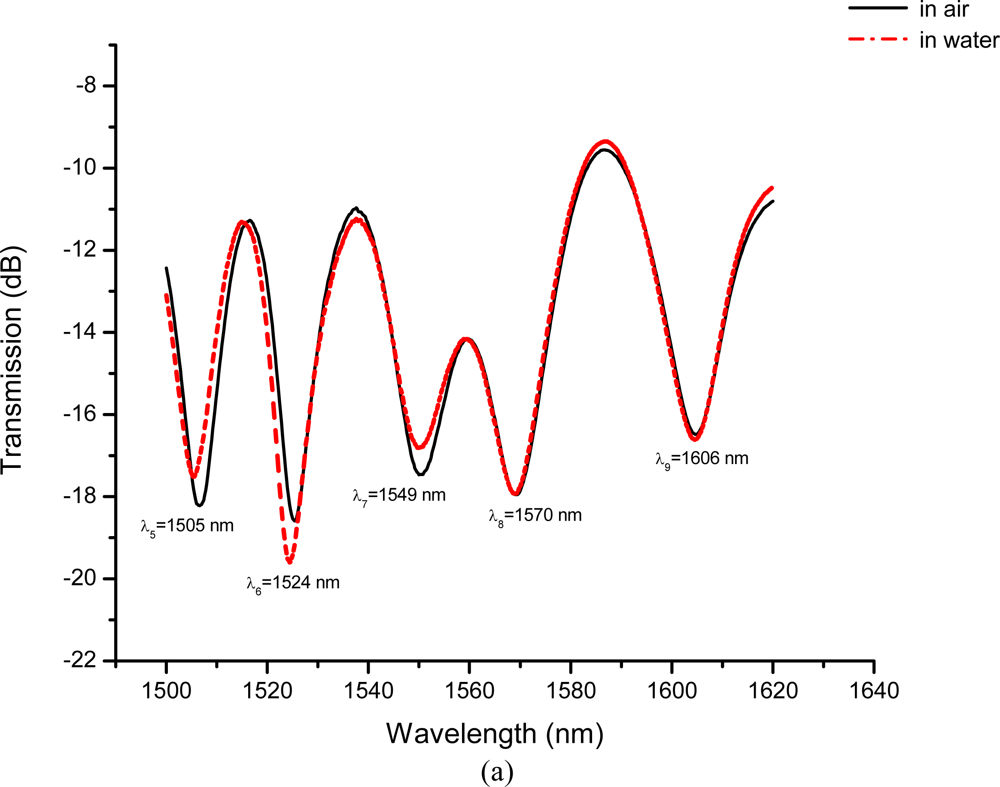

Figure 13. Transmission spectra of a liquid-level sensor constructed by cascading five LPFGs with different resonant wavelengths: (a) Nos. 1–2 immersed in water; (b) Nos. 1–5 immersed in water.
Figure 13. Transmission spectra of a liquid-level sensor constructed by cascading five LPFGs with different resonant wavelengths: (a) Nos. 1–2 immersed in water; (b) Nos. 1–5 immersed in water.
Sensors 10 10105f13a 1024Sensors 10 10105f13b 1024

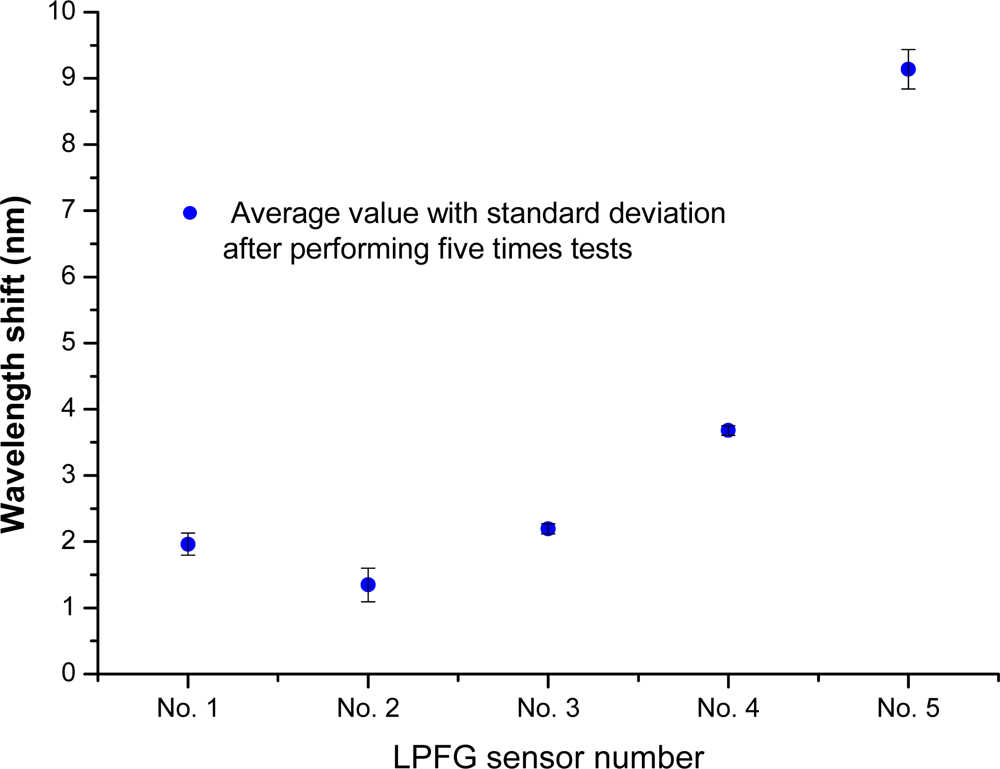

Figure 14. Average wavelength shifts and corresponding standard deviations by performing five times liquid-level tests (Nos. 1–5 immersed in water).
Figure 14. Average wavelength shifts and corresponding standard deviations by performing five times liquid-level tests (Nos. 1–5 immersed in water).
Sensors 10 10105f14 1024
Table 1. Experimental coefficients of optical fiber grating sensors.
Table 1. Experimental coefficients of optical fiber grating sensors.
Fiber Bragg grating (FBG)Long period fiber grating (LPFG)

Resonance wavelengthStrain coefficient (pm/με)Temperature coefficient, (pm/°C)Resonance wavelengthTemperature coefficient, (pm/°C)

λ1 (1,548 nm)0.91410.4λ42 (1,591 nm)63.6
λ2 (1,554 nm)0.91812.1λ53 (1,505 nm)N/A1
λ3 (1,551 nm)N/A112.1λ6 (1,524 nm)N/A
λ7 (1,549 nm)N/A
λ8 (1,570 nm)N/A
λ9 (1,606 nm)N/A

Note:1N/A: not applicable;2λ4: CO2-induced LPFG for temperature measurement only;3λ5–λ9: electric-arc induced LPFGs for liquid level measurement only.

Table 2. Material properties of steel strips and a cylindrical asphalt mixture specimen.
Table 2. Material properties of steel strips and a cylindrical asphalt mixture specimen.
Material propertiesSteel stripAsphalt mixture
Density (ρ, kg/m3)7,8502,500
Elastic modulus (E, GPa)2000.21
Poisson’s ratio0.300.35
Mass damping parameter11
Stiffness damping parameter0.0010.001
Table 3. Summary of temperature-induced testing with optical fiber grating sensors.
Table 3. Summary of temperature-induced testing with optical fiber grating sensors.
TestingFOS sensorMaterial typeTemperature range (°C)Random walk coefficient1 (°C/ h)Bias stability2 (°C/h, with the corresponding time cluster)RMSD3, με

δε14δε25

Fluctuation testsFBGAsphalt25–45−0.91340.02, 4–5 h5.708.20
Concrete25–115−1.12930.09, 3–4 h12.8011.20

LPFGAsphalt25–45−1.35480.03, 5–8 hN/A6N/A
Concrete25–100−0.99940.06, 4–6 hN/AN/A

Stability testsFBGAsphalt24–37−0.74990.04, 12–15 hN/AN/A
Concrete28–55−0.99440.01, 15–18 h7.3011.20

LPFGAsphalt21–38−1.01440.05, 7–8 hN/AN/A
Concrete28–55−0.83600.03, 15–20 hN/AN/A

Notes:1Random walk coefficient (RWC): RWC is defined as the slope of Allan variance plot (Allan deviations of temperature differences between the FOS sensor and a thermocouple) versus time clusters.2Bias stability (BS): BS is obtained as the minimum Allan Deviation and occurs at the corresponding time cluster and it typically is described within the minimum Allan deviation with the corresponding time cluster.3RMSD: the root mean square deviation (RMSD) of measurements.4δε1: back-calculated micro strain variation for λ15δε2: back-calculated micro strain variation for λ2.6N/A: not applicable
