Diversity 2019, 11(4), 56; https://doi.org/10.3390/d11040056
Communities and Attachment Networks Associated with Primary, Secondary and Alternative Foundation Species; A Case Study of Stressed and Disturbed Stands of Southern Bull Kelp
Centre for Integrative Ecology; Marine Ecology Research Group, School of Biological Sciences, University of Canterbury, Private Bag 4800, Christchurch 8140, New Zealand
UWA Oceans Institute and School of Plant Biology, University of Western Australia, Hackett Drive, Crawley 6009, WA, Australia
Cawthron Institute, 98 Halifax Street East, Nelson 7010, New Zealand
Author to whom correspondence should be addressed.
Received: 13 March 2019 / Accepted: 3 April 2019 / Published: 10 April 2019
Southern bull kelps (Durvillaea spp., Fucales) are ‘primary’ foundation species that control community structures and ecosystem functions on temperate wave-exposed rocky reefs. However, these large foundation species are threatened by disturbances and stressors, including invasive species, sedimentation and heatwaves. It is unknown whether ‘alternative’ foundation species can replace lost southern bull kelps and its associated communities and networks. We compared community structure (by quantifying abundances of different species) and attachment-interaction networks (by quantifying which species were attached to other species) among plots dominated by Durvillaea spp. and plots where Durvillaea spp. were lost either through long-term repeated experimental removals or by recent stress from a marine heatwave. Long-term experimental removal plots were dominated by ‘alternative’ foundation species, the canopy-forming Cystophora spp. (Fucales), whereas the recent heatwave stressed plots were dominated by the invasive kelp Undaria pinnatifida (Laminariales). A network analysis of attachment interactions showed that communities differed among plots dominated by either Durvillaea spp., Cystophora spp. or U. pinnatifida, with different relationships between the primary, or alternative, foundation species and attached epiphytic ‘secondary’ foundation species. For example, native Cystophora spp. were more important as hosts for secondary foundation species compared to Durvillaea spp. and U. pinnatifida. Instead, Durvillaea spp. facilitated encrusting algae, which in turn provided habitat for gastropods. We conclude that (a) repeated disturbances and strong stressors can reveal ecological differences between primary and alternative foundation species, (b) analyses of abundances and attachment-networks are supplementary methods to identify linkages between primary, alternative and secondary foundation species, and (c) interspersed habitats dominated by different types of foundation species increase system-level biodiversity by supporting different species-abundance patterns and species-attachment networks.
Keywords:Network analysis; community analysis; epibiosis; habitat cascades; facilitation cascade; foundation species; biodiversity; marine heatwave
1.1. Primary, Secondary and Alternative Foundation Species
Some species are ecologically more important than others in controlling species-interactions, ecosystem functions, community structures and biogeochemical cycling [1,2,3,4,5,6,7,8,9]. Typically, these ecologically important ‘foundation species’ are large, abundant, and long-lived species that dominate and define habitats and have significant per capita effects on other organisms and ecosystem functions [10,11]. Ecologists have traditionally studied the ecological importance of foundation species by combining species abundance data with species removal or addition-experiments to quantify per capita effects [12,13,14,15,16,17]. These classical methods can be supplemented with network analyses to identify how foundation species may modify networks of different types of ecological interactions [18,19]. Most network analyses in ecology have focused on trophic species interactions  or mutualistic pollination and seed dispersal webs in terrestrial systems , and with marine examples for fish, sea anemones and shrimps [22,23,24,25]. Many studies have also analysed bipartite attachment networks between trees and epiphytes [26,27,28,29,30,31,32,33,34]. Similar host-epiphyte interactions are prevalent in marine ecosystems [9,13,14,35], but we are not aware of studies that have analysed these attachment-interactions with community-wide network metrics.
Large host organisms, such as trees, corals and canopy-forming macroalgae (seaweeds), are sometimes considered ‘primary’ (or basal) foundation species because they control biodiversity and abiotic conditions, and can provide attachment space for epiphytes . However, the epiphytes themselves can also be foundation species when and where they increase biodiversity and alter species interactions [36,37,38,39,40]. Epiphytes can therefore sometimes be considered ‘secondary’ (or intermediate) foundation species, because their ‘foundation-species-effect’ requires the presence of the primary foundation species [13,41,42,43,44,45]. Host-epiphyte studies emphasise that foundation species can co-exist in a hierarchy of structural dependencies, thereby increasing biodiversity through facilitation and habitat cascades [41,44]. More recently, it has been shown that longer chains of structural dependencies can occur with co-existing primary (e.g., cockles or clams), secondary (e.g., seaweed or barnacles), tertiary (e.g., snails or tunicates) and higher order (e.g., bryozoans and other seaweeds) foundation species, resulting in long habitat cascades [14,46]. However, past studies have only (a) documented interactions between a few species from a larger community, (b) emphasised ‘linear’ chains of interactions, and (c) have not been analysed in a framework of community-wide network metrics.
Primary foundation species, such as trees and canopy-forming macroalgae, are critical for maintaining ecosystem functions and services but are threatened by anthropogenic activities, such as habitat alterations, climate change, resource extraction, pollution and invasive species [15,47,48]. However, in many cases, when primary foundation species are lost because of human activities, other biological organisms, such as fast-growing shrubs , non-native marsh plants [50,51], or turfing or invasive macroalgae [52,53,54] can colonise the vacated areas. These new dominant species can also be large organisms that can control biodiversity and modify abiotic conditions and could possibly replace many ecosystem functions and services. Here, we refer to these new large and dominant species as ‘alternative foundation species’, because their foundation-species-effects only effectuate after the primary foundation species has been lost due to physical disturbances or physiological stressors. Here, physical disturbances are processes that cause the instantaneous removal of biomass, such as when storms dislodge individuals or herbivorous fish take bites out of kelp fronds. By comparison, stress effects reflect slower processes that limit physiological performance. For example, heat stress can increase respiration, promote heat stress proteins, increase susceptibility to diseases, and can eventually lead to death [55,56,57]. The replacement of primary foundation species with alternative foundation species mirrors switches between alternative stable states [58,59], except that the alternative foundation species here become dominant if the primary foundation species is increasingly (not randomly) stressed or disturbed. In this context, alternative foundations species are ‘passengers’ or ‘back-seat drivers’ of ecological change, rather than their direct drivers [60,61,62,63].
1.2. Disturbances and Stress to Southern Bull Kelps
Large and long-lived canopy-forming macroalgae such as fucoids and kelps are typical foundation species because they control biodiversity, abiotic conditions, and ecosystem functions through habitat formation, shading and whiplash, high primary productivity and nursery provisioning [64,65,66,67,68,69,70]. However, fucoids and kelps are threatened by climate change, marine heatwaves, acidification, invasive species, increased turbidity, and sediment smothering [53,71,72,73,74]. It is therefore critical for ecologists and managers to understand how systems dominated by these macroalgae may change when they are exposed to stressors and disturbances.
In New Zealand, wave-exposed rocky shores are often dominated by the southern bull kelps, Durvillaea poha, D. antarctica and D. willana (hereafter ‘Durvillaea spp.’). These fucoid species are some of the world’s largest macroalgae; they can live up to 10 years, grow to 10 m in length and weigh up to 70 kg per individual [70,75,76]. Southern bull kelps are classic primary foundation species because their large, heavy fronds control community structures through whiplash and shading, and their complex perennial holdfast provides biogenic habitats to highly diverse invertebrate communities [68,70,75,76,77,78]. However, although the ecology of southern bull kelps as a primary foundation species has been studied in detail (see  and references therein), and diebacks following seismic uplifts, marine heatwaves and storms have been described [52,80,81,82], it is unknown whether any alternative foundation species replace lost Durvillaea spp.
The aim of our study was to identify primary, alternative and secondary foundation species in intertidal stands of southern bull kelp exposed to repeated experimental disturbances (since 2012) or heatwave-induced stress (since 2017). Today, these stands are dominated by either Durvillaea spp. (primary foundation species) or other large canopy-forming macroalgae (alternative foundation species, the native fucoids Cystophora spp., or the invasive laminarialean kelp Undaria pinnatifida) and smaller epiphytes (secondary foundation species). We hypothesise that (i) southern bull kelps are the primary foundation species because they directly control biodiversity, abundances of alternative and secondary foundation species, and attachment-networks, and (ii) where southern bull kelps have been lost, other canopy-forming macroalgae can become alternative foundation species, resulting in different sets of associated species and attachment-networks.
2.1. Study Site, Model Organisms, Experimental Conditions and Data Clustering
This study was done on the Moeraki Peninsula (45° 25’ S, 170° 51’ E) in south-eastern New Zealand. The peninsula comprises semi-exposed limestone and conglomerate rock platforms. The low intertidal zone is dominated by Durvillaea poha, D. antarctica and D. willana and is occupied by at least seven other fucalean species, including three species of Cystophora (C. retroflexa, C. scalaris, C. torulosa), and the invasive kelp, Undaria pinnatifida.
We assessed species-abundances and host-epiphyte attachments in plots dominated by either Durvillaea spp., Cystophora spp. or U. pinnatifida that had arisen through experimental removals or climatic events over the preceding 6 years. Here, Durvillaea spp. were considered to be the primary foundation species, whereas Cystophora spp. and U. pinnatifida were considered to be alternative foundation species because they only colonised plots in the absence of Durvillaea spp. (see introduction for more detail). In 2012, we established 20 plots of 1 m2 in size in healthy and extensive southern bull kelp forests (all plots had 100% cover) in the low intertidal zone. Ten of the plots were randomly assigned to a repeated removal treatment in which we removed all Durvillaea spp. including their holdfasts, recruits and all overhanging blades from all adjacent areas. The repeated removal was maintained by removing Durvillaea spp. recruits and re-growing neighbouring southern bull kelp blades at least twice a year, until the plots were monitored in September 2018. All our removal plots were free of whiplash and shading effects from southern bull kelp throughout the experiment. The remaining 10 plots were left as un-manipulated controls but the extreme hot summer of 2017–2018 reduced canopy cover of Durvillaea spp. in Moeraki  and caused 100% canopy loss in four of the 10 undisturbed control plots. Therefore, in 2018 we also sampled 10 interspersed unmarked full-canopy Durvillaea spp. plots that had survived the heatwave (see section on study limitation in the discussion for details), which, given the size and longevity of individuals within these plots, were most likely southern bull kelp habitat in 2012 when the original plots were established. Data from the 30 plots sampled in 2018 were re-classified into three types of habitats that were either dominated by Durvillaea spp. (n = 16), Cystophora spp. (n = 7), or U. pinnatifida (n = 7). All plots dominated by Cystophora spp. arose following the long-term repeated removals, whereas the U. pinnatifida dominated plots comprised three plots where southern bull kelp was lost from repeated removals and the four plots where southern bull kelp was lost following the hot summer of 2017/18.
Abundances of macroscopic taxa (>5 mm) were quantified in situ in 0.5 × 0.5 m quadrats placed haphazardly near the centre of each plot during low tide. All plots were separated by more than 1 m horizontally (typically 5–10 m) and had less than 0.3 m vertical differences (mean, SE, maximum and minimum elevation of 20 plots, measured with a Trimble RTK GPS = −0.60, 0.02, −0.93 and −0.76 m above mean low water). Abundances were quantified by estimating percent cover of sessile taxa and counting mobile taxa in 0.5 × 0.5 m quadrats divided into 100 cells. Attachments were quantified in 0.25 × 0.25 m quadrats by recording all species-combinations of plants and animals (epibionts) attached to biogenic hosts (including dead shells). For example, coralline turf attached to the snail Lunella smaragda, L. smaragda attached to another L. smaragda, and L. smaragda attached to coralline turf represent three different attachment-interactions. Note that mobile animals were considered ‘attached’ to the host on which they were observed, although mobile species can move among hosts. Note also that we did not remove any algal material, including holdfasts, thereby excluding very small and/or cryptic taxa hiding underneath and within these complex biogenic habitats from our analysis. Most taxa were identified to the species level, except for sponges, encrusting and turfing coralline algae, and small cryptic filamentous algae that were identified to coarser taxonomic groups. Sampling was carried out over five consecutive day-time low tides. However, because abundances and attachments were quantified at different low tides using different sized quadrats that were placed haphazardly around the plot centre, the two data sets do not align in a complete one-to-one match.
The network analysis was done as a single community analysis that included both sessile and mobile species (i.e., sessile species were recorded attached to mobile species and vice versa). We therefore also standardised abundances of mobile vs. sessile taxa into a single community analysis . Specifically, the abundances of mobile and sessile species were standardised by dividing a species’ abundance in a quadrat with the summed abundance of either all sessile or all mobile organisms enumerated in the 30 sampled quadrats. This standardization method preserves the dominance patterns among species across all the samples for both sessile and mobile taxonomic groups, and only relies on the supposition that mobile organisms are of equal importance to sessile organisms. We included the measured abundances and attachment-interactions of Durvillaea spp., Cystophora spp. and U. pinnatifida in statistical analyses because (a) the data were mensurative (we did not control heatwave stress or the colonization of Cystophora spp. and U. pinnatifida), and (b) we compared habitats dominated by different types of foundation species where the attributes of the foundation species themselves have ecological relevance [84,85,86,87]. This is a relatively common analytical approach (particularly in mensurative studies) when the test object of interest (i.e., the foundation species) can be an integrated part of the response [see 84 for a detailed discussion].
2.2. Analyses of Community Structures From Abundance Data
First, we tested whether diversity, community structure, and abundances of common taxa varied among the three habitats types (i.e., plots dominated by Durvillaea spp., Cystophora spp. or U. pinnatifida). Three univariate diversity metrics (richness, evenness and Shannon’s diversity) were calculated for each plot and used to analyse the effect of habitat type with single factor analyses of variance (ANOVA; variances were homogeneous: p > 0.05 in Levine’s test). Significant analyses were followed by post hoc Student–Newman–Keuls (SNK) tests to identify differences among the treatments. Multivariate community structure was analysed with Analysis of Similarities (ANOSIM) using the Bray Curtis dissimilarity index derived from square root transformed cover-data to downplay the importance of the most abundant taxa. The results were visualised with a multidimensional scaling plot (MDS) with vector overlays (calculated from Pearson’s ranked correlation coefficients) of the taxa that contributed to 50% of the total multivariate structure. Finally, the similarity of percentages (SIMPER) routine was used to identify taxa that represented 90% of the community structure for each of the three habitats. Abundances of all these taxa were compared visually with means plus standard error graphs.
2.3. Analyses of Community Structures From Attachment Data
Network metrics were calculated and analysed to examine whether diversity and community structure varied among the three types of habitats based on attachment data. Again, three univariate metrics (betweenness centrality, average neighbour degrees and total degrees, see online supplement for descriptions) were calculated for each plot and the effect of habitat was analysed with single factor ANOVAs (variances were homogeneous: p > 0.05 in Levine’s test) followed by post hoc SNK tests to identify significant differences among treatments. These metrics were calculated per plot allowing us to calculate means and standard errors, and test for effects between treatments with different sample sizes . We analysed for multivariate community structure with ANOSIM on the total number of links for each species in the assemblage (the only significant univariate network metric—see results). Multivariate data were square root transformed prior to analysis to downplay the importance of the most connected taxa. Analyses were done using the Bray Curtis dissimilarity index and visualised with an MDS plot with vector overlays of the taxa that contributed to 50% of the total multivariate structure. We also identified the most connected taxa (with >3 in- or out-going links) and visualised the mean density (+SE) of links per plot for each of the three habitats. For this analysis, in- and out-going links were analysed separately to identify important hosts (= outgoing links) and attached plants and animals (= ingoing links). Finally, all attachment interactions within and among the three habitats were visualised with standard network plots to highlight the position of mobile and sessile species in these networks. Note that the full Durvillaea spp. network could include more interactions compared to the Cystophora spp. and U. pinnatifida networks, simply because it is derived from a larger sample size [19,88].

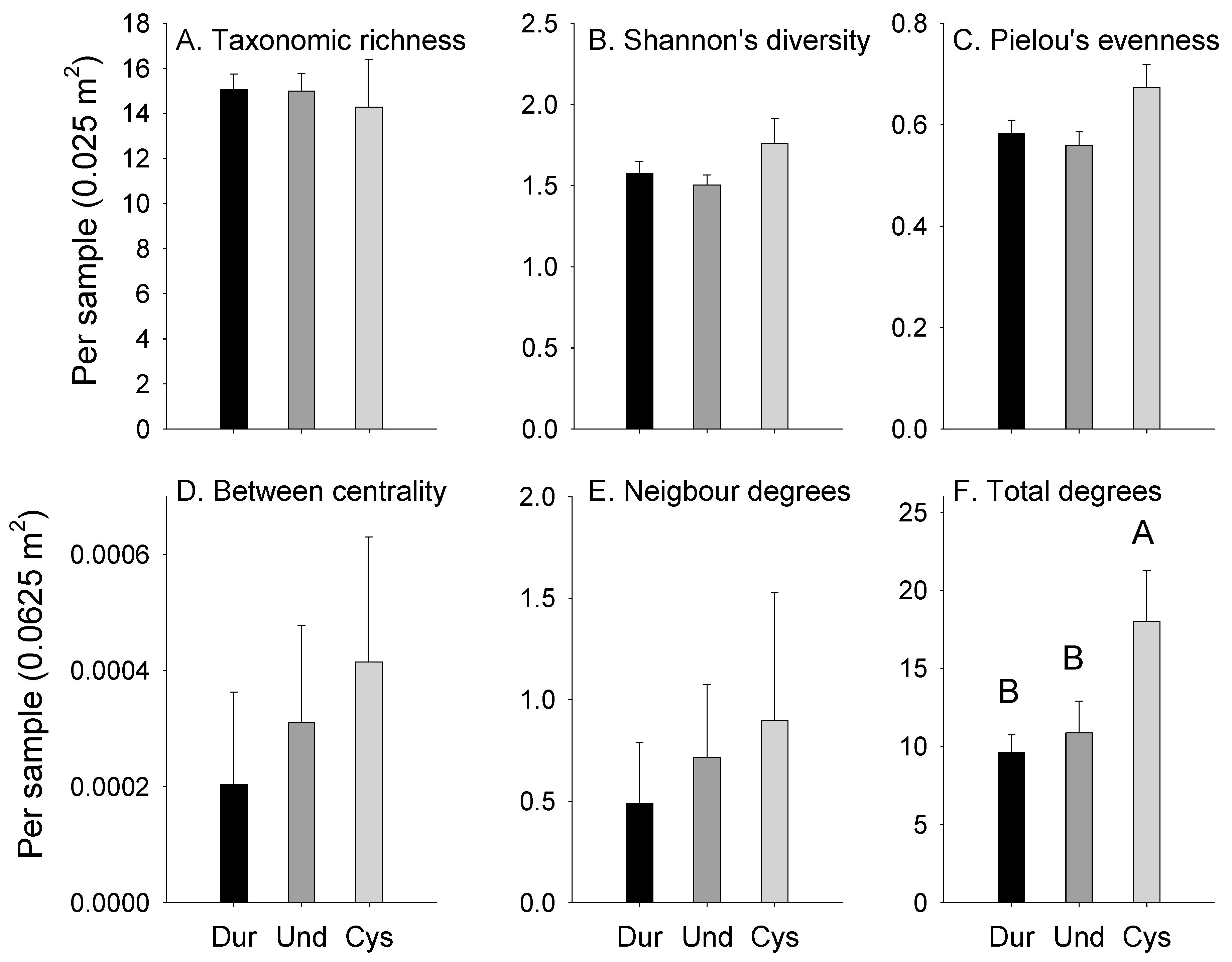

There were no effects on richness (Figure 1A, F2,29 = 0.127, p = 0.881), Shannon diversity (Figure 1B, F2,29 = 1.337, p = 0.278), or evenness (Figure 1C, F2,29 = 2.615, p = 0.091) between plots dominated by primary or alternative foundations species. However, multivariate assemblage structures were significantly different among the three habitat types (Figure 2A, Rglobal = 0.78, p = 0.1%; p for all pairwise comparisons <0.4%). The Durvillaea spp. habitat was dominated by the Durvillaea spp. themselves and encrusting coralline algae that correlated positively with the abundance of the diminutive (<5 mm) turf-forming red algae Gelidium microphyllum (Figure 2A and Figure 3A). In plots where Undaria pinnatifida was dominant, coralline turf was abundant and there were positive correlations with the gastropod L. smaragda and the brown turfing alga Halopteris congesta. Finally, in the plots dominated by Cystophora spp., coralline turf was again abundant and positively correlated with the abundance of several red algae including Jania sphaeroramosa and Lophothamnion hirtum as well as the snails Cantharidella spp. (Figure 2A and Figure 3A).
There were no effects of habitat among those dominated by either primary or alternative foundations species on betweenness centrality (Figure 1D, F2,29 = 0.332, p = 0.720) or neighbour degrees (Figure 1E, F2,29 = 0.268, p = 0.767). However, total degrees were significantly greater in plots dominated by Cystophora spp. compared to plots dominated by Durvillaea spp. or U. pinnatifida (Figure 1F, F2,29 = 5.145, p = 0.013). In addition, multivariate assemblages were significantly different among all three habitats dominated by either primary or alternative foundations species (Figure 2B, Rglobal = 0.361, p = 0.1%; p for all pairwise comparisons <3.5%). Vector overlays (Figure 2B) showed that attachment interactions of encrusting corallines, Chaetomorpha coliformis, Callophyllis calibletharoides, Ballia hirsuta and Notoacmea spp. correlated positively with plots dominated by Durvillaea spp. By comparison, C. torulosa, C. scalaris, coralline turf, J. sphaeroramosa, Heterosiphonia sp. and L, hirtum were positively correlated with plots dominated by Cystophora spp., with a mixture of similar species correlating positively with plots dominated by U. pinnatifida (Figure 2B).

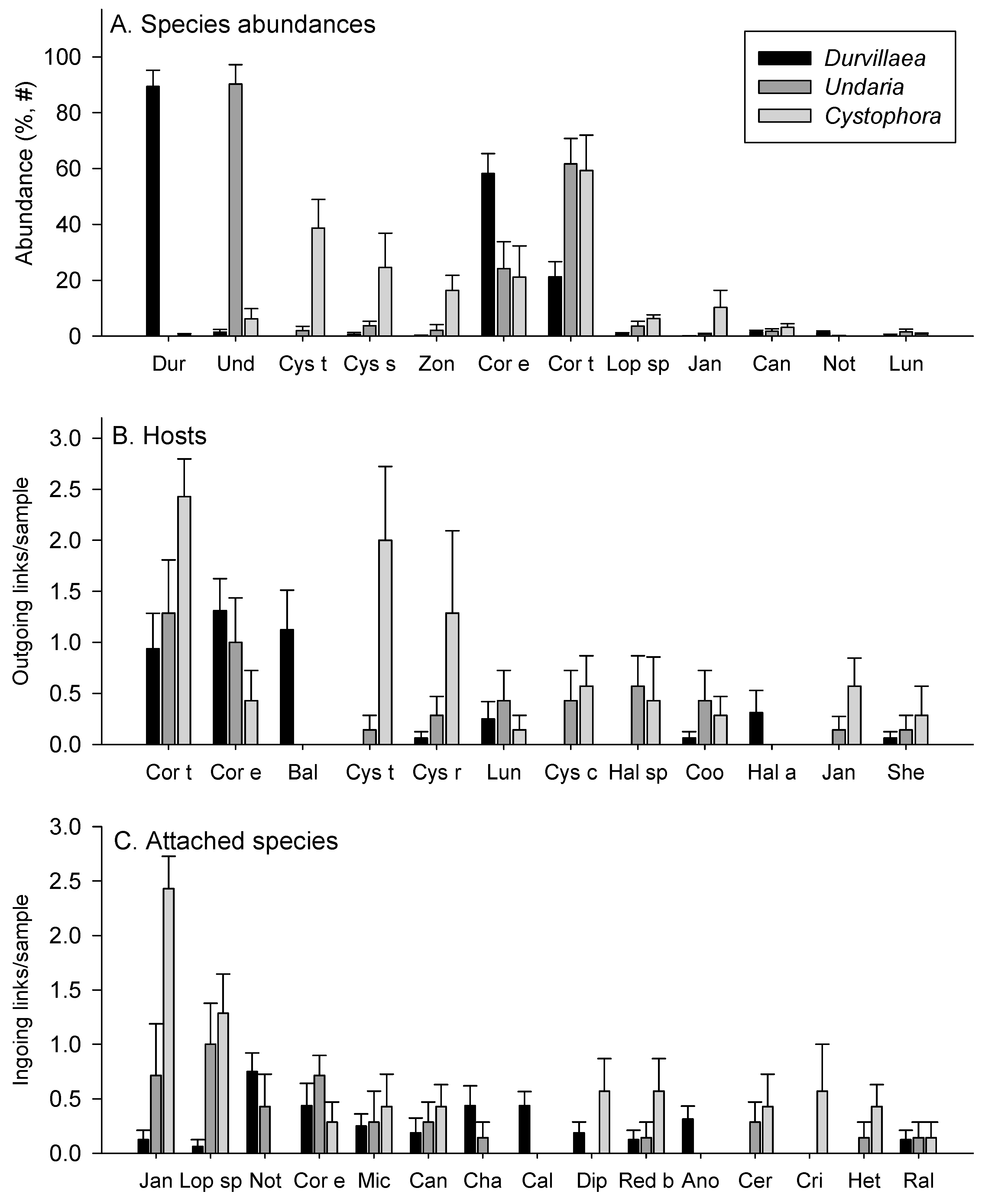

The most common outgoing links (hosts) in plots dominated by Cystophora spp. were C. scalaris, C. retroflexa, coralline turf and J. sphaeroramosa (Figure 3B). By comparison, plots dominated by Durvillaea spp. had fewer host species that were represented by small macroalgae like B. hirsuta, the abalone Haliotis australis and coralline turf. Plots dominated by U. pinnatifida, had a mixture of common host species that included coralline turf, encrusting corallines, Cystophora spp. and H. congesta. In contrast to Cystophora spp., neither Durvillaea spp. nor U. pinnatifida were themselves recorded as host species in any of the 16 Durvillaea spp. or 7 U. pinnatifida plots (Figure 3B).
The number of (attached) ingoing links were also higher in plots dominated by Cystophora spp. compared to plots dominated by Durvillaea spp. or U. pinnatifida (Figure 3C). Common attached species in the Cystophora spp. plots included J. sphaeroramosa, L. hirtum, Micrelenchus spp., Cantharidella spp., Dipterosiphonia heteroclada, Ceramium spp., Cricophorus nutrix, Heterosiphonia sp. and an unidentified diminutive red alga. By comparison, U. pinnatifida had intermediate, and Durvillaea spp. low numbers of ingoing links, characterised by small macroalgae (C. coliformis, C. calibletharoides and Anotrichium crinitum) and the diminutive limpet Notoacmea spp. (Figure 3C).

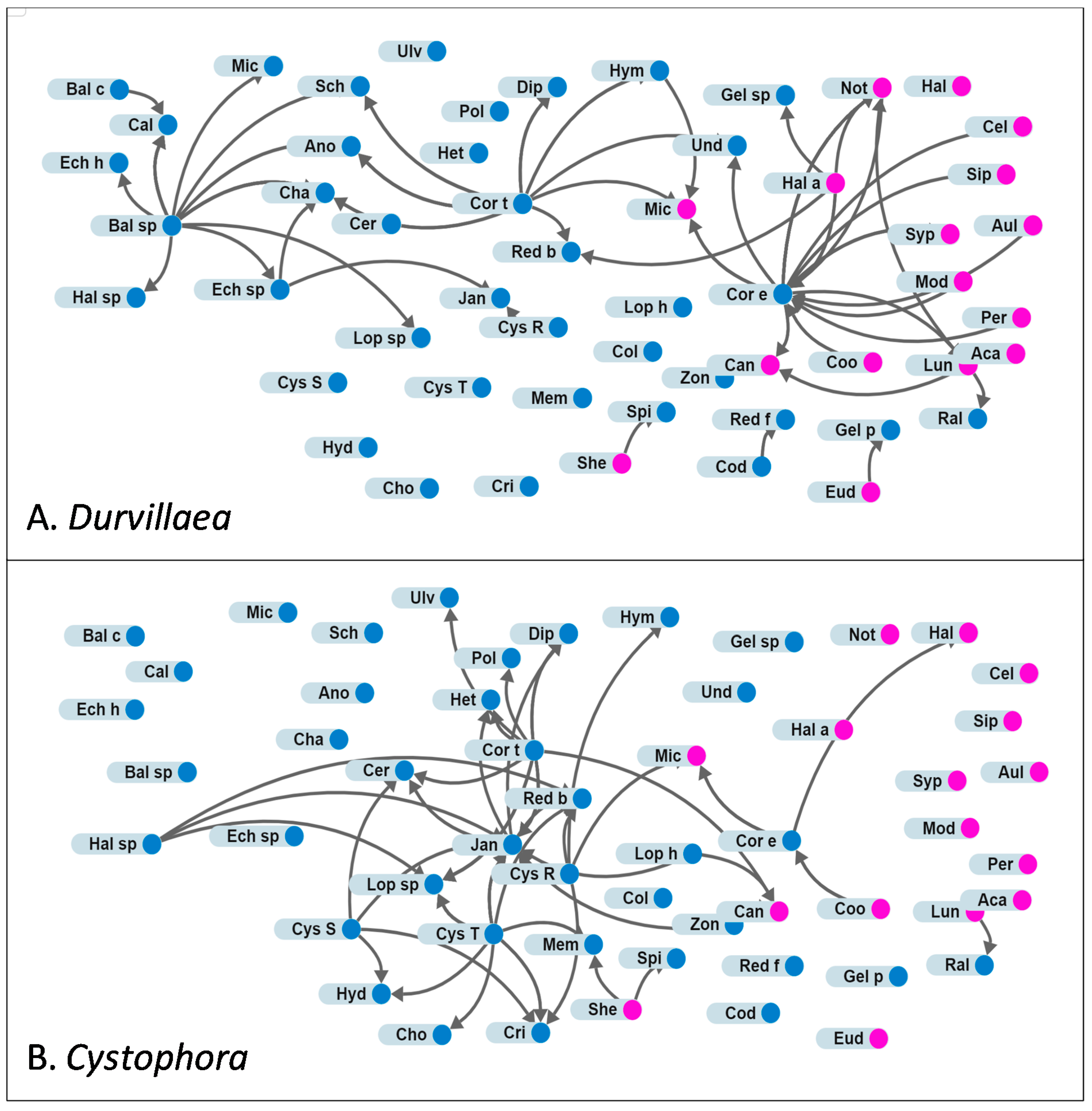

Finally, there appeared to be a separation in the total network between habitats dominated by Durvillaea spp. (Figure 4A) and Cystophora spp. (Figure 4B). For example, Durvillaea spp. was absent from ‘its own network’, which instead was dominated by a few central nodes around B. hirsuta and encrusting corallines (Figure 4A). By comparison, the total U. pinnatifida network was more variable and encapsulated many of the species and their interactions that were encountered in both the Durvillaea spp. and Cystophora spp. networks (Figure 4C). Finally, the entire ‘landscape’ network that encompassed all the three habitat types (Figure 4D) highlighted in a single graph (a) the central nodes around B. hirsuta, coralline turf and encrusting corallines, (b) the absence of Durvillaea spp. from attachment interactions, and (c) the many links to mobile species that included snails, limpets, and chitons.
Foundation species are often identified from species-abundance data and per capita effects derived from experimental manipulations [2,12,92,93]. Here, we used classical abundance data to show that the southern bull kelps are ‘primary’ foundation species, because these abundant and large species had strong control over community structure [52,70,75,76,81]. Indeed, when southern bull kelps were physically removed over six years, or recently lost following a marine heatwave, communities changed dramatically resulting in replacement by other large canopy-forming macroalgae (alternative foundation species) with different associated epiphytes (secondary foundation species) and understory species, as has been shown in other experiments [70,79]. Furthermore, supplementary analyses of attachment interaction networks between primary and alternative foundation species highlighted different relationships among plots dominated by Durvillaea spp., Cystophora spp. and U. pinnatifida [14,46]. For example, the overlooked, apparently obligate, southern bull kelp-associated alga B. hirsuta, was a host for a range of epiphytes and thereby magnified local biodiversity, only to be lost along with the canopy of Durvillaea. This attachment network analysis showed similarities to terrestrial networks on pollinator visitations (≅ attachment) and seed dispersers in mutualistic networks [21,94,95,96], or epiphytes on trees in commensal networks [26,28,31,32,34]. However, in contrast to these bipartite networks, where organisms A and B attach to organisms C or D (but not vice versa), our attachment network is bidirectional, allowing for reciprocal attachments between many species, highlighting low host-specificity of marine organisms [14,46,97,98,99].
4.2. Comparing Habitats Dominated by Durvillaea spp., Undaria pinnatifida or Cystophora spp.
The loss of Durvillaea spp. resulted in large changes in abundances of many other taxa, highlighting that southern bull kelps are the primary foundation species that control sub-canopy biodiversity, as previously shown for this region . Following their loss, Durvillaea spp. were replaced by other canopy-forming macroalgae that could also be considered (alternative) foundation species. However, the alternative foundation species did not entirely replace the ecological function of Durvillaea spp. because encrusting coralline algae, low-lying foliose taxa and small grazers were almost absent in the new habitats . Instead, different assemblages developed with high cover of coralline turf and a suite of epiphytic algae that were either rare or absent in Durvillaea spp. dominated plots. These differences in assemblages are likely due to differences in morphology, sizes and growth rates between primary and alternative foundation species. For example, Durvillaea spp. are much larger, heavier and therefore have stronger whiplash and shading effects compared to Cystophora spp. and U. pinnatifida [70,100,101]. Interestingly, Durvillaea spp. was not a host for epiphytes, probably because its smooth heavy blade and continued wave action result in strong whiplash effects [64,70,79,102,103]. It is also possible that Durvillaea spp. have chemical defences against epiphytes . However, the Cystophora spp. that replaced Durvillaea spp. can also control patterns of diversity [61,93]. Our results show that Cystophora spp. were alternative foundation species, because they modified the abundances of other species and played a central role in attachment networks. In other words, Cystophora spp. both modify and create habitat. The many plants and animals found attached to Cystophora spp. may be related to their complex perennial morphology with many short branchlets and distinct retroflexed main axes and stipes [105,106] that provide attachment points and favourable microclimates . By comparison, U. pinnatifida appears to be an alternative foundation species only in terms of its own high abundance . Perhaps this large kelp should not be considered a foundation species at all, because U. pinnatifida has a relatively low impact on community structure, mainly reducing the abundance of small ephemeral or seasonal algae [84,101,107,108]. Furthermore, U. pinnatifida was host to only a few attached species (Figure 3A), likely because of its short-lived macroscopic frond (4–7 months), rapid growth, simple blade morphology and slippery texture that can prevent attachment. Note, however, that taxa concealed within the holdfasts were not enumerated here. Biodiversity associated with the large and complex holdfast structures of Durvillaea spp. and U. pinnatifida could increase the importance of these two species as primary and alternative foundation species, compared to Cystophora spp. that only have small and structurally simple holdfasts [109,110,111,112].
In this study, coralline algae were abundant primary (host) and secondary (epiphyte) species. Coralline algae are common in marine systems and can be hosts to many invertebrate and algal species [113,114,115,116,117]. Encrusting coralline algae were likely indirectly facilitated by Durvillaea spp., as larger and stronger macroalgal competitors are often excluded by canopy-forming kelps through shading and whiplash effects [53,69,70,102,118,119,120]. These encrusting algae were important hosts for mobile invertebrates such as the diminutive limpets Notoacmea spp., and the abalone, Haliotis australis, but became less common when Durvillaea spp. (and associated encrusting corallines) were replaced by Cystophora spp. and U. pinnatifida and their understories of turfs. Limpets can increase their movements to avoid such complex substrates [121,122] and may also have experienced increased predation by fish and crustaceans in the absence of the Durvillaea spp. canopy . Alternatively, the encrusting coralline algae (or biofilms thereon) could have been primary food resource for the limpets with their abundance declining in relation to their food source .
The subsequent increase of coralline turfs following the loss of Durvillaea spp. facilitated several algal taxa that recruited and attached to its fronds [114,115]. As such, coralline algae turfs could perhaps also be considered alternative foundation species, especially because they can also inhibit recruitment of larger canopy-forming algae [53,71,125,126,127,128] including Durvillaea spp. Furthermore, coralline turfs can colonise space soon after disturbances [70,79]. It is possible that the expansion of turfs in repeated removal plots prevented recovery of southern bull kelps. It was therefore surprising that Cystophora spp., with similar reproductive strategies to southern bull kelp , became dominant in several plots with high turf cover. The mechanisms underpinning the successful colonization of Cystophora spp. in this turf habitat require further scrutiny.
In addition to coralline algae that were abundant and common central host species across plots, there were several unexpected central host species whose abundances and interactions varied among the three types of habitat. In the Durvillaea spp. habitat, the small, red alga B. hirsuta was an important host for small algae such as the red blade C. calibletharoides and the tubular green alga C. colliformis, despite its low abundance (<1 % cover). Furthermore, B. hirsuta and its epiphyte C. calibletharoides, appear to be obligate understory species that were not detected outside of the Durvillaea spp. habitat, highlighting how different types of foundation species interact to maintain biodiversity . This demonstrates that species we know little about (e.g., B. hirsuta, A. crinitum, C. coliformis) can provide functions that are overlooked in abundance surveys. Finally, several shell-forming snails, including L. smaragda and Notoacmea spp, were found to be mobile primary (hosts) and secondary (attached) foundation species that were embedded within the larger macroalgal habitats. This result supports the findings of other studies that suggest that snails can be mobile foundation species that control small-scale patterns of biodiversity [41,129,130,131,132]. In our study, the relative importance of shell-formers varied among habitats. For example, shells were more important as hosts for encrusting coralline algae, Ralfsia sp. and Notoacmea spp. in plots dominated by U. pinnatifida or Cystophora spp.
Two of the most important epiphytes were the articulated coralline alga J. sphaeroramosa and the bushy red alga L. hirtum. The success of J. sphaeroramosa and L. hirtum in plots dominated by U. pinnatifida and Cystophora spp. are likely due to their low substrate affinities allowing them to recruit to a wide range of host species including the long-lived and abundant Cystophora spp. [100,133]. However, J. sphaeroramosa and L. hirtum are likely limited by shading and whiplash in the Durvillaea spp. habitat . Finally, some species, like J. sphaeroramosa and L. hirtum, had dual roles as hosts and attached species. These dual roles suggest that even species that are often considered subordinate, such as L. hirtum , can be central links in habitat cascades and play an important role in biodiversity networks [13,14,46,134].
Our experiment had a few limitations. First, we did not control the abundance of Cystophora spp. or U. pinnatifida (and other possible co-varying factors) that potentially could explain their effects. For example, Cystophora spp. and U. pinnatifida plots where also characterised by different periods of time since Durvillaea spp. was lost, and effects may therefore represent successional sequences. Second, we did not control the heatwave, and our study, like most heatwave studies [53,135,136] is a natural experiment . Although other factors could have contributed to the recent loss of Durvillaea spp., we argue that high temperature was the most important stress factor [see 52 for details]. Finally, we did not control which species of Durvillaea survived and which died following the heatwave. All plots had similar elevation but other factors, like micro-topography of the substrate or Durvillaea spp. patch sizes may have co-varied with heat-stress effects. Nevertheless, irrespective of any co-variation, our experiment unequivocally demonstrated that plots dominated by Durvillaea spp. in 2012 can transform into habitats dominated by either Cystophora spp. or U. pinnatifida.
4.3. The Future of Durvillaea Beds in New Zealand
The future of some New Zealand Durvillaea spp. populations is presently in doubt due to heatwave-induced die-backs and dramatic changes in shore height following seismic uplift in central New Zealand [52,80]. Durvillaea spp. are cold-water macroalgae with a circumpolar distribution that could be restricted in a warmer ocean [138,139]. Our results suggest that future losses of Durvillaea spp. may result in increased cover of alternative foundation species that are presently uncommon beneath full Durvillaea spp. canopies . These alternative foundation species include the perennial canopy-forming species such as Cystophora spp. or weedy species such as U. pinnatifida. However, it is also possible that Durvillaea spp. will be replaced by much smaller ephemeral or foliose turf-forming species as warmer waters promote ephemeral, weedy algae . There is increasing concern worldwide that canopy-forming macroalgae are becoming less resilient to physical disturbances and physiological stress and are being replaced by small and weedy turfing species . In our study, the original habitat, dominated by Durvillaea spp., encrusting coralline understory and small invertebrates, was replaced by other canopy-forming macroalgae, an understory of coralline turf, and many more epiphytes. This expansion of turf will likely compound the effects of canopy loss by creating an unfavourable habitat for Durvillaea spp. to recolonise, despite nearby reproductive populations in the intact Durvillaea spp. habitat [71,141]. Furthermore, colonizing Durvillaea recruits can experience intense herbivory from the butterfish, Odax pullus that typically grazes outside of dense stands of Durvillaea spp. .
4.4. Research Gaps and Conclusions
We documented changes to different types of foundation species based on two types of supplementary data that are relatively simple to collect in the field. However, to better understand the functioning of foundation species in marine benthic systems, future studies should also examine how and why secondary foundation species are attached to and affect their primary foundation species hosts. A further important line of research should asses how specific linkages between hosts and attached species modify ecosystem stability and resilience. For example, documenting whether secondary foundation species select primary foundation species because of facilitative properties (e.g., habitat modification) or to avoid enemies or stress, will provide insight into underpinning mechanisms that control attachment networks and facilitation and habitat cascades [14,46,97,98,99,142,143]. In addition, incorporating impacts of modified drag, shading, nutrient levels or hydrodynamic regimes from secondary foundation species  would enhance our understanding of ecosystem functioning, resilience and stability . Finally, new insight into how foundation species affect biodiversity could arise by combining attachment networks with traditional trophic and competition networks, and by studying their relative importance along environmental stress gradients (e.g., desiccation and temperature stress along elevation and latitudinal gradients).
We found that Durvillaea spp., Cystophora spp. and U. pinnatifida can be co-occurring foundation species on wave-exposed intertidal rocky shores in New Zealand. In addition, Cystophora spp. and U. pinnatifida can benefit from stressors and disturbance that reduce the cover of Durvillaea spp. However, Durvillaea spp., Cystophora spp. and U. pinnatifida can be considered foundation species for different reasons. Durvillaea spp. controlled the abundances of other species and local biodiversity networks whereas Cystophora spp. became abundant in the absence of Durvillaea spp. but played a central role as a host to many epiphytes. By contrast, U. pinnatifida was mainly important due to its high abundance, with less effect on attachment networks, suggesting that it is less important in controlling biodiversity. Finally, we recommend that future studies should combine supplementary sampling and analytical methods to identify different types of foundation species, such as the abundance and network analyses used in this study, to better understand processes that control biodiversity and ecosystem functions.
The following are available online at https://www.mdpi.com/1424-2818/11/4/56/s1, Table S1: List of taxa found in abundance and attachment surveys, Table S2: Network terminology and measured metrics.
Formal analysis, M.S.T.; Investigation, M.S.T. and P.M.S.; Methodology, M.S.T. and P.M.S.; Writing—original draft, M.S.T.; Writing—review & editing, M.S.T. and P.M.S.
This study was funded by the Marsden Fund of The Royal Society of New Zealand (13-UOC-106) and the Brian Mason Trust (Impacts of an unprecedented marine heatwave on bull kelp forests and implications for conservation and restoration) to MST. PMS is funded by Cawthron Institute.
Conflicts of Interest
The authors declare no conflict of interest.
