Diversity 2019, 11(10), 194; https://doi.org/10.3390/d11100194

Article
Bacteria with Different Assemblages in the Soil Profile Drive the Diverse Nutrient Cycles in the Sugarcane Straw Retention Ecosystem
1
Key Laboratory of Sugarcane Biology and Genetic Breeding, Ministry of Agriculture, Fujian Agriculture and Forestry University, Fuzhou 350002, China
2
College of Agriculture, Fujian Agriculture and Forestry University, Fuzhou 350002, China
3
College of Geographical Sciences, Fujian Normal University, Fuzhou 350007, China
*
Author to whom correspondence should be addressed.
Received: 5 September 2019 / Accepted: 14 October 2019 / Published: 15 October 2019

Abstract

:
Straw retention, an alternative to artificial fertilization, commonly mitigates soil degradation and positively affects soil fertility. In this study, we investigated the succession of soil bacteria during two sugarcane straw retention treatments (control (CK) and sugarcane straw retention (SR)) and at four depths (0–10, 10–20, 20–30, and 30–40 cm) in fallow soil in a sugarcane cropping system. Using an Illumina MiSeq (16S rRNA) and soil enzyme activity, we explored the SR influence on soil bacterial communities and enzyme activities and its inclusive impact on soil fertility, with an emphasis on topsoil (0–10 cm) and subsoil (10–40 cm). Our results show that SR effectively improved soil fertility indicators (C, N, and P), including enzyme activities (C and N cycling), throughout the soil profile: these soil parameters greatly improved in the topsoil compared to the control. Sugarcane straw retention and soil depth (0–10 cm vs. 10–40 cm) were associated with little variation in bacterial species richness and alpha diversity throughout the soil profile. Subsoil and topsoil bacterial communities differed in composition. Compared to the CK treatment, SR enriched the topsoil with Proteobacteria, Verrucomicrobia, Actinobacteria, Chloroflexi, and Nitrospirae, while the subsoil was depleted in Nitrospirae and Acidobacteria. Similarly, SR enriched the subsoil with Proteobacteria, Verrucomicrobia, Actinobacteria, Chloroflexi, Gemmatimonadetes, and Bacteroidetes, while the topsoil was depleted in Acidobacteria, Gemmatimonadetes, and Planctomycetes compared to the CK. At the genus level, SR enriched the topsoil with Gp1, Gp2, Gp5, Gp7, Gemmatimonas, Kofleria, Sphingomonas, and Gaiella, which decompose lignocellulose and contribute to nutrient cycling. In summary, SR not only improved soil physicochemical properties and enzyme activities but also enriched bacterial taxa involved in lignocellulosic decomposition and nutrient cycling (C and N) throughout the soil profile. However, these effects were stronger in topsoil than in subsoil, suggesting that SR enhanced fertility more in topsoil than in subsoil in fallow land.
Keywords:
soil profile; sugarcane straw retention; soil enzymes; soil fertility; 16S rRNA gene amplicon; bacterial communities

1. Introduction

Soil microbes not only recycle nutrients, degrade pollutants, and decompose organic matter, but also maintain groundwater quality, thereby improving ecosystem functions [1,2]. There is a complex web of microorganisms in soil, and their diversity and composition vary in space [3]. Topsoil (0–10 cm) has great microbial diversity and biomass; however, a large volume of subsoil (below 10 cm) on a depth-weighted basis also leads to substantial microbial diversity and abundance [4,5]. Soil microbial composition varies with increasing soil depth, and microbial diversity commonly declines with depth [5,6]. Advanced intensive agriculture systems have made a considerable contribution to enhancing crop production and meeting the world’s food demands [7,8]. Despite the positive impact on crop production, maintaining soil health and biodiversity has become an increasingly severe obstacle to modern agricultural systems [9,10].
Fertilization, an essential agricultural practice based on organic and inorganic fertilizers, is commonly adopted to improve the supply of plant nutrients, causing simultaneous changes in soil properties and microbial communities [11,12,13]. Though artificial fertilization, particularly nitrogen, positively influences crop yield [14], it also adversely affects the environmental and soil quality via soil acidification, reduced soil microbial activity, enhanced nitrification, and nitrate leaching [10,15,16,17]. In contrast, low-input agricultural systems based on organic materials appear to be an alternative to inorganic fertilizers in ensuring agricultural sustainability, crop yield, food security, and human health [18,19,20,21,22,23,24]. For example, low-input agricultural systems rely on straw retention (SR), particularly 3.75 t ha−1 wheat straw returned by deep tillage, as well as inorganic fertilizers, which usually increase microbial biomass, diversity, and activity [25]. In addition, SR maintains or even improves soil fertility, mitigates greenhouse gas emissions, and inhibits soil-borne pathogens, thereby ensuring soil ecosystem sustainability and crop productivity [25,26,27,28,29]. Nutrient addition by SR may directly shift the composition and abundance of topsoil microbial communities [29,30,31,32,33]. These microbial parameters in the subsoil are shifted indirectly through the leakage of soluble nutrients from topsoil [34].
Specific bacterial taxa (phylum and genus level) have shown predictable responses to environmental variables [35]. For example, SR increases the abundance of Proteobacteria and Acidobacteria in topsoil, whereas the abundance of Gemmatimonadetes decreases [32]. However, there is a limited understanding of SR regarding specific soil bacterial populations at low taxonomic levels (e.g., genus and species) in the subsoil. SR appears to select particular microbial groups at low taxonomic levels that commonly survive on organic substrates and multiply significantly, shifting the soil nutrient status and microbial community composition [29,36]. Therefore, particular microbial taxa whose abundance is enhanced by SR should have some degree of relationship with soil nutrients. The predictable response of these distinct microbial populations makes them potentially suitable indicators of soil nutrient status and sustainability [37]. Furthermore, the microbial communities that contain these specific microbial taxa form a complicated interaction in soil ecosystems, and the knowledge of such interactions is essential for exploring the complexity of functional processes [38].
Soil enzymatic activities are identified as a sensitive indicator of soil fertility because they not only catalyze vital biochemical reactions (e.g., nutrient cycling, degradation of xenobiotics and organic nutrients) but also sustain soil fertility [13,22,31,39]. Numerous studies about the effects of SR on soil enzyme activities have shown that SR increases the activities of C- and N-cycling enzymes in the topsoil [40,41]. These observations have focused on surface soil because SR has a direct impact on crop plants and soil fertility [42,43], but spatial variability and the characterization of microbial communities coupled with soil enzymatic activity in deep soil remain scarce. In particular, there is a limited understanding of the interactions between these communities and the soil physiochemical properties in deep soil profiles. To bridge these gaps, this study focused on bacterial communities and their activities in four soil layers (0–10, 10–20, 20–30, and 30–40 cm) in a system with straw retention and investigated the association between soil nutrients and bacterial communities through a soil profile. Our previous research on this clay loamy soil showed that SR increased soil fertility, enzymatic activities, and plant beneficial microbes in a pot experiment [29,31]. Assuming that sugarcane straw retention affects soil nutrient status and soil physicochemical attributes in a soil profile, we hypothesized that these fluctuations might strongly affect soil bacterial communities and their activities, with a positive impact on soil fertility in the soil profile. Adopting a multidisciplinary approach combining the soil enzymatic activities (C, N, and P cycles) and bacterial communities determined by deep 16S amplicon sequencing, we aimed to compare the influence of SR in improving soil fertility in topsoil and subsoil. The aims of this investigation were (i) to reveal the effect of SR on shifts in bacterial communities in topsoil and subsoil, (ii) to appraise the impact of different bacterial communities on C, N, and P cycle-related enzymes, and (iii) to examine interactions between bacterial community compositions and soil properties in a soil profile.

2. Materials and Methods

2.1. Study Site, Experimental Design, and Soil Sampling

The field experiment was carried out in March 2017 at the Sugarcane Experimental Farm (latitude: 26°05′9.60″ N; longitude: 119°14′3.60″ E) of Fujian Agriculture and Forestry University, Fuzhou, Fujian, China. The area has a subtropical monsoon climate with an annual average temperature of 20 °C and rainfall of 1369 mm. The raw soil has a clay loam texture: other physicochemical properties of the topsoil and sugarcane straw before the experiment were detailed in previous studies [29]. The sugarcane straw was collected from an experimental sugarcane farm and crushed into small pieces according to a previous study [31]. Two treatments ((i) a control (CK), which was a moldboard plow 40 cm deep in a fallow field without sugarcane straw retention, and (ii) sugarcane straw retention (SR), which was a moldboard plow 40 cm deep in a fallow field with 30 t·ha−1 of sugarcane straw retention) were laid out in a split-plot design and replicated three times. After SR, all field plots remained unplanted for one year without any fertilization. For soil sampling from CK and SR plots, different soil depths (0–10, 10–20, 20–30, and 30–40 cm) were selected because soil microbial community composition also varies due to excessive soil volume on a depth-weighted basis [4,5,6]. In 2018, five sampling locations were randomly selected in each replicate plot and pooled into a composite sample, as used by Gu et al. [6]. Finally, a total of 24 soil samples were collected from the experimental farm. After removing the straw and visible roots and stones, the composite samples were homogenized and separated into two portions. One sample portion was placed in sterile plastic bags, transferred to the laboratory in an icebox, and stored at −80 °C to analyze soil microbial composition and enzyme activity. The other sample portion was sieved through 2-mm mesh and air-dried to analyze the soil physiochemical properties.

2.2. Measurements of Soil Physiochemical Properties

Soil pH was determined by a PB-10 pH meter (Sartorius, Gottingen, Germany) in the suspension (water/dry soil, 2.5:1) [44]. Soil total nitrogen (TN) and total carbon (TC) were determined by using a Flash Smart elemental analyzer (Thermo Scientific™, Waltham, MA, USA). Ammonium acetate and sodium bicarbonate were used for extracting soil available potassium (AK) and phosphorus (AP), and their concentrations were determined using flame photometry and the molybdenum blue method, respectively [45,46].

2.3. Measurements of Soil Enzyme Activities

Soil enzyme activities were determined according to Tayyab et al. [31] and Sun et al. [47]. After the incubation of soil with buffered sodium carboxymethylcellulose solution, cellulase (glucose, mg/g 24 h, 37 °C) activity was calculated colorimetrically by quantifying a decrease in 3,5-dinitrosalicylic acid from reducing sugar. Soil urease activity (NH3-N, mg/g, 24 h, 37 °C) was determined by using improved sodium phenolate and sodium hypochlorite colorimetry. A nitrophenyl phosphate disodium substrate was used to determine acid phosphatase activity (phenol, ug/g, 1 h, 37 °C). After buffering the soil with p-nitrophenyl-β-glucopyranoside, the β-glucosidase activity (p-nitrophenol, ug/g, 1 h, 37 °C) was calculated based on a colorimetric p-nitrophenol assay.

2.4. Soil DNA Extraction

Total genomic DNA was extracted from fresh soil samples using a Fast DNATM Spin Kit (MP Biomedicals, LLC, Santa Ana, USA) per the manufacturer’s specifications. The quantity and quality of extracts were determined by calculating their absorbance (A260 and 280 nm) using a spectrophotometer, and extracts were then preserved at −20 °C until sequencing.

2.5. PCR Amplification and Illumina MiSeq Sequencing

Amplification of the hypervariable V3–V4 region of the 16S rRNA gene was carried out by using bacterial primers 341F and 805R. The PCR reactions were carried out in a 50-μL mixture with 1 mM dNTPs (deoxynucleoside triphosphate), 1 × PCR buffer, 1 U Platinum Taq, 5 μM per primer, and 10 ng of template DNA. The PCR amplification included an initial denaturation at 94 °C for 3 min, denaturation (5 cycles at 94 °C) for 30 s, annealing at 45 °C for 20 s, an extension at 65 °C for 30 s, denaturation (20 cycles at 94 °C) for 20 s, annealing at 55 °C for 20 s, an extension at 72 °C for 30 s, and a final extension at 72 °C for 5 min. After purification and quantification, the PCR product of the V3–V4 region of the 16S rRNA gene was determined by an Illumina MiSeq sequencer (Sangon Biotech Shanghai Co., Ltd., Shanghai, China).

2.6. Processing and Analyzing of Sequencing Data

Raw sequences were processed using the QIIME (version 1.17) software package [48] and UPARSE software (version 7.1). Low-quality sequences (quality score <20, length <250 bp) or reads containing ambiguous characters were eliminated. After overlapped sequences longer than 10 bp in size were assembled based on their sequence overlaps, unassembled sequence reads were removed, and sequences with ≥97% similarity were clustered into operational taxonomic units (OTUs), while chimeric sequences were identified and removed through the UCHIME method [49]. For each OTU, representative sequences were selected, and a Ribosomal Database Project (RDP) classifier [50] was used to annotate the taxonomic information for each representative sequence. The species richness (ACE and Chao1 indexes) [51,52], number of observed OTUs, and diversity (Shannon index) [53] were used for estimating the abundance and diversity of the microbial communities in every soil sample using the Mothur pipeline [54]. Nonmetric multidimensional scale (NMDS) analysis was conducted to estimate differences in bacterial community structure across the soil profile [6,55]. Analysis of similarity (ANOSIM) was used to test the dissimilarity in the microbial community structures in topsoil (0–10 cm) and in subsoil (10–40 cm) using Bray–Curtis dissimilarities. Redundancy analysis (RDA) was also carried out for a quantification of the soil factors’ influence on bacterial community composition. A Pearson’s correlation was calculated separately for the topsoil and subsoil to determine the interaction between soil properties and bacterial taxa (phylum and genus), which was displayed by R-software [56]. The test data were analyzed by ANOVA using DPS software (version 7.05, www.dpssoftware.co.uk), and the differences between the mean values of each treatment were compared by Tukey’s procedure at a 5% level [6].

3. Results

3.1. Soil Physiochemical Properties

Compared to the CK treatments, SR significantly increased (p < 0.05) soil pH in two soil layers (0–10 and 30–40 cm) (Figure 1A). Moreover, the total soil carbon (TC) in two soil layers (10–20 and 20–30 cm) under SR was significantly higher (p < 0.05) than in the CK (Figure 1B). Compared to the CK treatments, SR significantly increased (p < 0.05) the total nitrogen (TN) and available potassium (AK) contents in soil layers (10–20 cm and 0–10 cm, respectively) (Figure 1C,E). However, compared to the CK, SR did not considerably alter the TC/TN and available phosphorus (AP) content of the whole soil profile (Figure 1D,F). Compared to the topsoil, the soil TN and TC in the SR and CK treatments were significantly lower in subsoil (10–40 cm) (p < 0.05) (Figure 1A–C). Compared to the topsoil, the soil AP contents in the SR treatments were lower in the subsoil (10–40 cm) (Figure 1F).

3.2. Soil Enzyme Activities

Compared to the CK, SR significantly reduced the acid phosphatase activity of the entire soil profile (0–40 cm), while urease activity showed the opposite trend, except for in the soil layer from 20 to 30 cm (Figure 2B,C). Compared to the CK, SR did not increase significantly β-glucosidase and cellulase activity in the whole soil profile (0–40 cm) (Figure 2A,D). All enzyme activities showed a decreasing trend with depth, and compared to the subsoil, the soil enzyme activity was higher in the topsoil in the SR treatments (Figure 2).

3.3. Bacterial Community Structural Diversity and Similarity

A total of 1,032,476 (average of 43,019) bacterial filtered reads were obtained from all the soil samples. The sequencing depth was adequate to capture richness and diversity from all the soil samples (Figure S1; Table S1). Compared to the CK, SR showed little variation not only in the species richness indices (Chao1 and ACE), but also in the alpha diversity index (Shannon) in the soil profile. As soil depth increased, soils in the CK and SR treatments showed little variation in species richness and alpha diversity indices (Table S2).
A nonmetric multidimensional scaling (NMDS) analysis showed that topsoil samples (0–10 cm) were separated from the subsoil samples (10–20, 20–30, and 30–40 cm) (Figure 3). An analysis of similarities (ANOSIM) further confirmed significant differences (p = 0.26, p < 0.05) between the topsoil and subsoil. On the basis of the NMDS results, a redundancy analysis (RDA) was performed in two sample groups (topsoil (0–10 cm), subsoil (10–40 cm)) to quantify the effects of soil factors on bacterial community composition [6], indicating that pH (R2 = 0.82, p < 0.05) and AK (R2 = 0.83, p < 0.05) were the main drivers of shifting bacterial community composition in the topsoil (Figure 4A). In the subsoil, pH (R2 = 0.44, p < 0.05), AK (R2 = 0.42, p < 0.05), and TC (R2 = 0.48, p < 0.05) were strongly and significantly correlated with bacterial community composition variation (p < 0.05) (Figure 4B).

3.4. Relative Abundance of Dominant Phyla and Genera

The relative abundances of bacteria were examined at the phylum and genus levels for inspecting their responses to SR and different soil depths. Proteobacteria (31.5–37.5%) and Acidobacteria (25.9–26.7%) were the highly abundant bacterial phyla in topsoil, followed by Verrucomicrobia (4.9–12.5%), Actinobacteria (3.3–3.5%), Chloroflexi (3.3–4.2%), Gemmatimonadetes (2.1–3.1%), Planctomycetes (3.3–4.0%), Nitrospirae (1.5–2.2%), Bacteroidetes (1.3–1.7%), and Latescibacteria (1.6–1.8%) (Figure 5). The bacterial phyla in the subsoil were altered in terms of relative abundance in both the CK and SR treatments in comparison to topsoil (Figure 5). However, compared to the CK, SR increased the relative abundance of Proteobacteria, Verrucomicrobia, Actinobacteria, Chloroflexi, and Nitrospirae, but reduced it for Acidobacteria, Gemmatimonadetes, Planctomycetes, and Bacteroidetes in the topsoil (Figure 6A). In particular, compared to the CK, SR increased the relative abundance of Proteobacteria such as Alphaproteobacteria, Betaproteobacteria, and Gammaproteobacteria and reduced the relative abundance of Deltaproteobacteria in topsoil (Figure 7). In comparison to the CK, SR enriched the subsoil with Proteobacteria, Verrucomicrobia, Actinobacteria, Chloroflexi, Gemmatimonadetes, and Bacteroidetes, whereas the abundance of Nitrospirae and Acidobacteria decreased (Figure 6A). With SR, the Verrucomicrobia relative abundance was 2.5-fold higher than in the CK in topsoil and 5.30-fold higher than in the CK in subsoil. At the genus level, compared to the CK, SR enriched the topsoil with Gp1, Gp2, Gp5, Gp7, Gemmatimonas, Kofleria, Sphingomonas, and Gaiella compared to the subsoil. Compared to the CK, SR enriched the subsoil with Gp6, Gp4, Gp7, Subdivision3_genera_incertae_sedis, Geobacter, Anaeromyxobacter, Kofleria, and Sphingomonas compared to the topsoil (Table S3; Figure 6B).

3.5. Pearson’s Correlation between Soil Attributes and Relative Abundance of Soil Bacterial Taxa

Pearson correlation coefficients were calculated to assess the association between soil physiochemical properties and abundant bacterial taxa (phyla and genera) in topsoil and subsoil. The relationships between these taxa and physiochemical properties were also estimated to explore the potentially important microbial groups in straw decomposition and nutrient cycling. Related heat maps showed that soil physiochemical factors significantly affected the relative abundance of bacterial taxa (phyla and genera) in topsoil and subsoil (Figure 8). At the phylum level, soil pH had a significant and positive correlation with the relative abundance of Proteobacteria and Bacteroidetes in topsoil and subsoil and Gemmatimonadetes in subsoil; however, this correlation was observed to be strongest for Proteobacteria in subsoil. In topsoil, TN and TC were significantly and positively correlated with the relative abundance of Gemmatimonadetes, and soil pH was significantly and positively associated with this phylum only. In subsoil, Actinobacteria and Verrucomicrobia were significantly and positively correlated with TN and TC, whereas Verrucomicrobia showed a positive correlation with AK. In addition, the relative abundance of Nitrospirae was significantly and negatively correlated with soil pH and TN (Figure 8A,B). At the genus level, in topsoil, the relative abundance of Gemmatimonas was significantly and positively correlated with soil TN and TC, and in subsoil, it showed a significant and positive correlation with soil pH. The relative abundance of Sphingomonas was significantly and positively correlated with soil pH in topsoil, whereas Latescibacteria_genera_incertae_sedis was significantly and positively correlated with soil AP in topsoil (Figure 8C). The relative abundance of Gp6 was positively and significantly correlated with soil TC and AK. The relative abundance of Nitrospira was significantly and negatively correlated with soil pH, AK, and TN in subsoil (Figure 8D).

4. Discussion

SR in agricultural systems has been known as an alternative to inorganic fertilization, with the benefits of improving soil fertility and productivity and reducing soil degradation. However, information regarding SR influence on soil microbiota, their diversity, and their effects on soil fertility as they change with soil depth remains scarce. Hence, the current study contributes to understanding the SR impact on soil bacterial communities and enzymatic activities, including the overall effect on soil fertility, with a particular spotlight on deep soil profiles.
This study revealed that SR is a practical approach in terms of improving soil fertility indicators, such as soil pH, TC, TN, and AK, which is consistent with our previous findings [29,31]. Regarding soil depth, soil physiochemical properties are strongly dependent on soil depth [6]. Additionally, reduced-tillage practices, such as sweep and disc plowing, and the application of chemical fertilizers are the main factors in terms of reducing the pH of topsoil [33,57]. Similarly, the study presented here showed that soil pH in the CK treatment was lower in topsoil than in subsoil. On the other hand, SR efficiently enhanced the soil pH across the soil profile, which was significantly more increased in topsoil than in subsoil. The probable explanation is that SR practice leads to nitrate immobilization, which in turn enhances the pH of topsoil [58]. In addition, the increase in subsoil pH can be attributed to a decline in base cation concentrations and the decomposition of organic anions present in dissolved organic carbon [34]. Generally, topsoil has higher TN and TC concentrations than subsoil because crop straw and manure frequently accumulate in topsoil. In the CK treatment, the AP concentration in topsoil was higher than in subsoil, which might have been due to the low solubility of phosphorus in slightly alkaline soils [59] and the greater accumulation of organic matter on the soil surface [40,60]. In summary, SR effectively increased soil pH and improved soil quality indicators such as TC, TN, and AK in the soil profile compared to the CK, particularly in the topsoil layer.
Soil enzyme activities are identified as sensitive indicators of soil fertility because they not only catalyze vital biochemical reactions (e.g., nutrient cycling, the degradation of xenobiotics, and the decomposition of organic matter) but also sustain soil fertility [39,61]. In the present study, enzyme activities associated with N and C cycles were higher in topsoil than in subsoil, suggesting that topsoil could show a more significant improvement in C and N turnover and fertility than subsoil could. The activity of these enzymes was enhanced due to the SR treatment, increasing the difference in C and N turnover and the fertility between the topsoil and subsoil. The increased substrate availability and C demand by autochthonous microorganisms in the topsoil could have been the reason for the higher activity of C-cycle enzymes in the topsoil compared to the subsoil. It has been reported that in agricultural soils, SR increases the activity of C- and N-cycle enzymes in topsoil [40,41]. Compared to the CK, SR decreased the enzyme activity for P cycling in the soil profile, which was consistent with the findings of Tayyab et al. [31], wherein soil phosphatase activity decreased with SR treatment in pots. In summary, SR enhanced the activities of N- and C-cycle enzymes in the soil profile compared to the CK (most strongly in topsoil). However, soil enzyme activities decreased with increasing soil depth, which could have been due to a decrease in TC and TN [62].
Compared to the CK, SR showed little variation in species richness and alpha diversity in the soil profile. The little variation in bacterial diversity in the subsoil was attributed to the large volume of soil on a depth-weighted basis. Bacterial community structural diversity was not attributed to straw decomposition. However, in the SR and CK soils, the subsoil and topsoil bacterial communities differed in structure and composition, which was consistent with previous findings [5,6].
Compared to subsoil, SR caused the topsoil to be rich in Proteobacteria: the members of this phylum have been identified as copiotrophs [63,64]. In this study, SR resulted in a high availability of C and N in the topsoil, which in turn could enrich the topsoil with this phylum. Similarly, in comparison to subsoil, the increased abundance of Betaproteobacteria in the topsoil could have been due to a greater availability of C in the SR treatment because it has been documented that this class proliferates in an environment with a high C content [65]. Regarding Alphaproteobacteria, most members of this class play a role in N2 fixation [66]. SR increased the abundance of Alphaproteobacteria in the topsoil and therefore could have improved the fixation of N2 in the topsoil. The obvious enrichment of well-known N2-fixing genera such as Sphingomonas [67] in the topsoil further supported this suggestion. Compared to the topsoil, SR increased the abundance of Geobacter in the subsoil (this genus tends to grow in anaerobic environments) [68], which in turn enriched the subsoil with Deltaproteobacteria.
Actinobacteria decompose organic matter in soil, such as chitin and cellulose [69], contributing to the N cycle and proliferating in aerobic environments [70]. A greater availability of soil organic matter after straw application and the aerobic environment in topsoil could have been the reasons for the increased abundance of Actinobacteria in the topsoil [5]. In addition, Gaiella (belonging to Actinobacteria) is involved in the N cycle [63,71], and enrichment with this genus in the SR treatment might have had a positive impact on the N cycle in the topsoil.
Nitrospirae play an essential part in regulating the nitrite oxidation process in soil. This result is due to the high affinity of this phylum substrate [64,72,73]. Because this phylum participates in nitrite oxidation [74], the enrichment of this phylum in the topsoil in the SR treatment suggests that this treatment could positively influence nitrification in topsoil. The genus Nitrospira has been identified as a mixed-nutrient type and tends to proliferate in deep soils with low C and N [75], indicating that SR reduced Nitrospira. SR decreased the relative abundance of Acidobacteria in the soil profile in comparison to the CK: this phylum has several oligotrophic members and tends to grow in acidic soil [64,76,77].
At the genus level, compared to topsoil, SR enriched the Acidobacteria genera Gp1, Gp2, Gp3, Gp5, and Gp7 in subsoil [6,63,78], likely because they prefer to grow in an environment with limited nutrients [6]. In contrast, SR increased the abundance of Gp4, Gp5, Gp6, and Gp7 in topsoil: these genera live at a higher soil pH and play a vital role in disease suppression [79,80], indicating that the topsoil was healthier than the subsoil.
The phyla Gemmatimonadetes and Verrucomicrobia were found to be more abundant in subsoil in the SR treatment. It is challenging to associate the phylum Gemmatimonadetes with its possible functions in ecosystems because it is still difficult to characterize [81]. However, due to its relatively high abundance and a rapid response of this phylum to SR, its ecology, including a role in the environment, must be uncovered. Nearly all Verrucomicrobia cultured from soil have been free-living [82], and most are mesophilic, facultatively or obligatory anaerobic [83], and saccharolytic [84]. Under a range of conditions, Gemmatimonas regulates carbon and nitrogen intake based on metabolic needs and shows dominance in soils treated with pyrogenic organic material [85,86], indicating that it can decompose polycyclic aromatic hydrocarbons. Moreover, Gemmatimonas is considered to be a polyphosphate-accumulating genus [87] whose stimulation can be attributed to organic fertilizers [63]. Our findings also support these results, since Gemmatimonas was enriched in the soil profile more by SR than in the CK. Gemmatimonas was also involved in straw decomposition and soil nutrient cycling [63,88], indicating that a high abundance of Gemmatimonas might contribute to the rapid decay of straw and soil nutrient cycling. In summary, the results of the study presented here show that specific bacterial populations involved in lignocellulosic decomposition and nutrient cycling, especially of C and P, were substantially depleted or enriched in the topsoil and subsoil after the SR treatment.
Soil physiochemical properties have an essential role in shaping microbial community composition and structure [29,31,89]. In the present study, compared to AP and TC/TN, the soil pH and AK were the main driving forces in terms of changing bacterial community compositions in topsoil. Regarding subsoil, the soil pH, AK, and TC were the main factors shaping bacterial communities. On a similar note, soil properties such as TC, TN, and soil pH are known as the main drivers influencing soil microbial communities in response to SR because these soil properties can impact the abundance of some vital bacterial taxa [62]. However, these soil properties were different in the topsoil and subsoil, which may have changed the bacterial groups not only at the highest classification level but also at a low classification level (phylum and genus) in the topsoil and subsoil.

5. Conclusions

SR effectively improved soil enzyme activity (those involved in N and C cycles) and nutrient status (mainly C, N, and P) in the soil profile. SR and the soil depth affected bacterial community composition. In addition, specific bacterial groups involved in the decomposition of organic compounds and soil nutrient cycling (mainly C, N, and P) were significantly enriched or depleted in the topsoil and subsoil by SR. These changes were more obvious in the topsoil, leading to speculation that SR stimulates soil fertility in topsoil more than in subsoil. Metagenomics studies coupled with microbial function-related studies are likely to enhance our understanding of the complexity of soil microbial communities and their interactions with biogeochemical factors.

Supplementary Materials

The following are available online at https://www.mdpi.com/1424-2818/11/10/194/s1, Table S1. Distribution of the number of tags across the soil samples; Table S2. Alpha diversity index; Table S3. The relative abundance (%) of selected genera in high-abundance phyla at 0-10 and 10-40 cm depths in the sugarcane straw retention (SR) and the control (CK) treatments; Figure S1. The species accumulation curves presenting the adequacy for sample size.

Author Contributions

All authors contributed to intellectual input and provided assistance for this study and for manuscript preparation. C.Z., H.Z., A.Y.A., and J.L. designed the research and conducted the experiments. C.Z., Z.L., S.L., Z.Y., Z.P., N.F., J.L., and X.F. analyzed the data. M.T. and C.Z. wrote the manuscript. M.T., W.I., and H.Z. reviewed the manuscript. M.T. and H.Z. supervised the work and approved the manuscript for publication.

Funding

This research was funded by the Public Welfare Industrial Research Project of China (grant number 20150311904-01) and the Earmarked Fund for the Modern Agriculture Technology of China via grant number CARS-17.

Acknowledgments

We acknowledge the Public Welfare Industrial Research Project of China (20150311904-01) and the Earmarked Fund for the Modern Agriculture Technology of China (CARS-17). We want to praise the donor agencies of China for supporting this project.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lourenço, K.S.; Suleiman, A.K.A.; Pijl, A.; van Veen, J.A.; Cantarella, H.; Kuramae, E.E. Resilience of the resident soil microbiome to organic and inorganic amendment disturbances and to temporary bacterial invasion. Microbiome 2018, 6, 142. [Google Scholar] [CrossRef] [PubMed]
  2. Altieri, M.A. The ecological role of biodiversity in agroecosystems. Agric. Ecosyst. Environ. 1999. [Google Scholar] [CrossRef]
  3. Canfora, L.; Vendramin, E.; Felici, B.; Tarricone, L.; Florio, A.; Benedetti, A. Vineyard microbiome variations during different fertilisation practices revealed by 16s rRNA gene sequencing. Appl. Soil Ecol. 2018. [Google Scholar] [CrossRef]
  4. Will, C.; Thürmer, A.; Wollherr, A.; Nacke, H.; Herold, N.; Schrumpf, M.; Gutknecht, J.; Wubet, T.; Buscot, F.; Daniell, R. Horizon-specific bacterial community composition of german grassland soils, as revealed by pyrosequencing-based analysis of 16S rRNA genes. Appl. Environ. Microbiol. 2010, 76, 6751–6759. [Google Scholar] [CrossRef] [PubMed]
  5. Li, C.; Yan, K.; Tang, L.; Jia, Z.; Li, Y. Change in deep soil microbial communities due to long-term fertilization. Soil Biol. Biochem. 2014, 75, 264–272. [Google Scholar] [CrossRef]
  6. Gu, Y.; Wang, Y.; Lu, S.; Xiang, Q.; Yu, X.; Zhao, K.; Zou, L.; Chen, Q.; Tu, S.; Zhang, X. Long-term fertilization structures bacterial and archaeal communities along soil depth gradient in a paddy soil. Front. Microbiol. 2017, 8. [Google Scholar] [CrossRef] [PubMed]
  7. Tilman, D.; Balzer, C.; Hill, J.; Befort, B.L. Global food demand and the sustainable intensification of agriculture. Proc. Natl. Acad. Sci. USA 2011. [Google Scholar] [CrossRef]
  8. Dari, B.; Sihi, D.; Bal, S.K.; Kunwar, S. Performance of direct-seeded rice under various dates of sowing and irrigation regimes in semi-arid region of India. Paddy Water Environ. 2017, 15, 395–401. [Google Scholar] [CrossRef]
  9. Chen, X.P.; Ju, X.T.; Yin, B.; Zhang, L.J.; Zhang, F.S.; Zhu, Z.L.; Xing, G.X.; Christie, P.; Cui, Z.L.; Zhang, S.L.; et al. Reducing environmental risk by improving N management in intensive Chinese agricultural systems. Proc. Natl. Acad. Sci. USA 2009, 106, 3041–3046. [Google Scholar] [CrossRef]
  10. Arafat, Y.; Tayyab, M.; Khan, M.U.; Chen, T.; Amjad, H.; Awais, S.; Lin, X.; Lin, W.; Lin, S. Long-Term Monoculture Negatively Regulates Fungal Community Composition and Abundance of Tea Orchards. Agronomy 2019, 9, 466. [Google Scholar] [CrossRef]
  11. Marschner, P.; Kandeler, E.; Marschner, B. Structure and function of the soil microbial community in a long-term fertilizer experiment. Soil Biol. Biochem. 2003. [Google Scholar] [CrossRef]
  12. Saha, S.; Gopinath, K.A.; Mina, B.L.; Gupta, H.S. Influence of continuous application of inorganic nutrients to a Maize-Wheat rotation on soil enzyme activity and grain quality in a rainfed Indian soil. Eur. J. Soil Biol. 2008, 44, 521–531. [Google Scholar] [CrossRef]
  13. Sihi, D.; Dari, B.; Sharma, D.K.; Pathak, H.; Nain, L.; Sharma, O.P. Evaluation of soil health in organic vs. conventional farming of basmati rice in North India. J. Plant Nutr. Soil Sci. 2017, 180, 389–406. [Google Scholar] [CrossRef]
  14. Seufert, V.; Ramankutty, N.; Foley, J.A. Comparing the yields of organic and conventional agriculture. Nature 2012, 485, 229–232. [Google Scholar] [CrossRef]
  15. Barak, P.; Jobe, B.O.; Krueger, A.R.; Peterson, L.A.; Laird, D.A. Effects of long-term soil acidification due to nitrogen fertilizer inputs in Wisconsin. Plant Soil 1997, 197, 61–69. [Google Scholar] [CrossRef]
  16. Nowinski, N.S.; Trumbore, S.E.; Schuur, E.A.G.; MacK, M.C.; Shaver, G.R. Nutrient addition prompts rapid destabilization of organic matter in an arctic tundra ecosystem. Ecosystems 2008, 11, 16–25. [Google Scholar] [CrossRef]
  17. Ramirez, K.S.; Lauber, C.L.; Knight, R.; Bradford, M.A.; Fierer, N. Consistent effects of nitrogen fertilization on soil bacterial communities in contrasting systems. Ecology 2010, 91, 3463–3470. [Google Scholar] [CrossRef]
  18. Kravchenko, A.N.; Snapp, S.S.; Robertson, G.P. Field-scale experiments reveal persistent yield gaps in low-input and organic cropping systems. Proc. Natl. Acad. Sci. USA 2017, 114, 926–931. [Google Scholar] [CrossRef]
  19. Dai, H.; Chen, Y.; Yang, X.; Cui, J.; Sui, P. The effect of different organic materials amendment on soil bacteria communities in barren sandy loam soil. Environ. Sci. Pollut. Res. 2017, 24, 24019–24028. [Google Scholar] [CrossRef]
  20. Das, S.S.; Jeong, S.T.; Das, S.S.; Kim, P.J. Composted cattle manure increases microbial activity and soil fertility more than composted swine manure in a submerged rice paddy. Front. Microbiol. 2017, 8, 1702. [Google Scholar] [CrossRef]
  21. Nair, V.D.; Nair, P.K.R.; Dari, B.; Freitas, A.M.; Chatterjee, N.; Pinheiro, F.M. Biochar in the agroecosystem-climate-change-sustainability Nexus. Front. Plant Sci. 2017. [Google Scholar] [CrossRef] [PubMed]
  22. Jiang, Y.; Arafat, Y.; Letuma, P.; Ali, L.; Tayyab, M.; Waqas, M.; Li, Y.; Lin, W.; Lin, S.; Lin, W. Restoration of long-term monoculture degraded tea orchard by green and goat manures applications system. Sustainability 2019, 11, 1011. [Google Scholar] [CrossRef]
  23. Tayyab, M.; Caifang, Z.; Islam, W.; Khalil, F.; Ziqin, P.; Caifang, Z.; Arafat, Y.; Hui, L.; Rizwan, M.; Ahmad, K.; et al. Biochar: An efficient way to manage low water availability in plants. Appl. Ecol. Environ. Res. 2018, 16, 2565–2583. [Google Scholar] [CrossRef]
  24. Sarfraz, R.; Shakoor, A.; Abdullah, M.; Arooj, A.; Hussain, A.; Xing, S. Impact of integrated application of biochar and nitrogen fertilizers on maize growth and nitrogen recovery in alkaline calcareous soil. Soil Sci. Plant Nutr. 2017, 63, 488–498. [Google Scholar] [CrossRef]
  25. Liu, E.; Yan, C.; Mei, X.; He, W.; Bing, S.H.; Ding, L.; Liu, Q.; Liu, S.; Fan, T. Long-term effect of chemical fertilizer, straw, and manure on soil chemical and biological properties in northwest China. Geoderma 2010, 158, 173–180. [Google Scholar] [CrossRef]
  26. Wang, Q.; Wang, S.; He, T.; Liu, L.; Wu, J. Response of organic carbon mineralization and microbial community to leaf litter and nutrient additions in subtropical forest soils. Soil Biol. Biochem. 2014, 71, 13–20. [Google Scholar] [CrossRef]
  27. Fanin, N.; Bertrand, I. Aboveground litter quality is a better predictor than belowground microbial communities when estimating carbon mineralization along a land-use gradient. Soil Biol. Biochem. 2016, 94, 48–60. [Google Scholar] [CrossRef]
  28. John, K.; Degtyarev, M.; Gorbunova, A.; Korobushkin, D.; Knöss, H.; Wolters, V.; Zaitsev, A.S. Enchytraeids simultaneously stimulate rice straw degradation and mitigate CO2 release in a paddy soil. Soil Biol. Biochem. 2019. [Google Scholar] [CrossRef]
  29. Tayyab, M.; Islam, W.; Lee, C.; Pang, Z.; Khalil, F.; Lin, S.; Lin, W.; Zhang, H. Short-Term Effects of Different Organic Amendments on Soil Fungal Composition. Sustainability 2019, 11, 198. [Google Scholar] [CrossRef]
  30. Guo, L.; Zheng, S.; Cao, C.; Li, C. Tillage practices and straw-returning methods affect topsoil bacterial community and organic C under a rice-wheat cropping system in central China. Sci. Rep. 2016, 6, 33155. [Google Scholar] [CrossRef]
  31. Tayyab, M.; Islam, W.; Arafat, Y.; Pang, Z.; Zhang, C.; Lin, Y.; Waqas, M.; Lin, S.; Lin, W.; Zhang, H. Effect of sugarcane straw and goat manure on soil nutrient transformation and bacterial communities. Sustainability 2018, 10, 2361. [Google Scholar] [CrossRef]
  32. Chen, Y.; Xin, L.; Liu, J.; Yuan, M.; Liu, S.; Jiang, W.; Chen, J.; Chen, Y.; Xin, L.; Liu, J.; et al. Changes in bacterial community of soil induced by long-term straw returning. Sci. Agric. 2017, 74, 349–356. [Google Scholar] [CrossRef]
  33. Yu, D.; Wen, Z.; Li, X.; Song, X.; Wu, H.; Yang, P. Effects of straw return on bacterial communities in a wheat-maize rotation system in the North China Plain. PLoS ONE 2018, 13, e0198087. [Google Scholar] [CrossRef] [PubMed]
  34. Wang, L.; Butterly, C.R.; Chen, Q.; Mu, Z.; Wang, X.; Xi, Y.; Zhang, J.; Xiao, X. Surface Amendments Can Ameliorate Subsoil Acidity in Tea Garden Soils of High-Rainfall Environments. Pedosphere 2016. [Google Scholar] [CrossRef]
  35. Philippot, L.; Andersson, S.G.E.; Battin, T.J.; Prosser, J.I.; Schimel, J.P.; Whitman, W.B.; Hallin, S. The ecological coherence of high bacterial taxonomic ranks. Nat. Rev. Microbiol. 2010, 8, 523–529. [Google Scholar] [CrossRef] [PubMed]
  36. Nie, S.; Lei, X.; Zhao, L.; Brookes, P.C.; Wang, F.; Chen, C.; Yang, W.; Xing, S. Fungal communities and functions response to long-term fertilization in paddy soils. Appl. Soil Ecol. 2018, 130, 251–258. [Google Scholar] [CrossRef]
  37. Hartman, W.H.; Richardson, C.J.; Vilgalys, R.; Bruland, G.L. Environmental and anthropogenic controls over bacterial communities in wetland soils. Proc. Natl. Acad. Sci. USA 2008. [Google Scholar] [CrossRef]
  38. Faust, K.; Raes, J. Microbial interactions: From networks to models. Nat. Rev. Microbiol. 2012, 10, 538–550. [Google Scholar] [CrossRef]
  39. Nannipieri, P.; Giagnoni, L.; Renella, G.; Puglisi, E.; Ceccanti, B.; Masciandaro, G.; Fornasier, F.; Moscatelli, M.C.; Marinari, S. Soil enzymology: Classical and molecular approaches. Biol. Fertil. Soils 2012, 48, 743–762. [Google Scholar] [CrossRef]
  40. Akhtar, K.; Wang, W.; Ren, G.; Khan, A.; Feng, Y.; Yang, G. Changes in soil enzymes, soil properties, and maize crop productivity under wheat straw mulching in Guanzhong, China. Soil Tillage Res. 2018. [Google Scholar] [CrossRef]
  41. Zhao, S.; Li, K.; Zhou, W.; Qiu, S.; Huang, S.; He, P. Changes in soil microbial community, enzyme activities and organic matter fractions under long-term straw return in north-central China. Agric. Ecosyst. Environ. 2016, 216, 82–88. [Google Scholar] [CrossRef]
  42. Zhu, L.; Hu, N.; Yang, M.; Zhan, X.; Zhang, Z. Effects of different tillage and straw return on soil organic carbon in a rice-wheat rotation system. PLoS ONE 2014. [Google Scholar] [CrossRef] [PubMed]
  43. Song, K.; Yang, J.; Xue, Y.; Lv, W.; Zheng, X.; Pan, J. Influence of tillage practices and straw incorporation on soil aggregates, organic carbon, and crop yields in a rice-wheat rotation system. Sci. Rep. 2016. [Google Scholar] [CrossRef] [PubMed]
  44. Bi, X.; Ren, L.; Gong, M.; He, Y.; Wang, L.; Ma, Z. Transfer of cadmium and lead from soil to mangoes in an uncontaminated area, Hainan Island, China. Geoderma 2010. [Google Scholar] [CrossRef]
  45. Watanabe, F.S.; Olsen, S.R. Test of an ascorbic acid method for determining phosphorus in water and NaHCO3 extracts from soil. Soil Sci. Soc. Am. J. 1965, 29, 677–678. [Google Scholar] [CrossRef]
  46. Pansu, M.; Gautheyrou, J. Handbook of Soil Analysis: Mineralogical, Organic and Inorganic Methods; Springer Science & Business Media: Berlin, Germany, 2007; ISBN 3540312110. [Google Scholar]
  47. Sun, J.; Zhang, Q.; Zhou, J.; Wei, Q. Pyrosequencing technology reveals the impact of different manure doses on the bacterial community in apple rhizosphere soil. Appl. Soil Ecol. 2014, 78, 28–36. [Google Scholar] [CrossRef]
  48. Jiang, J.; Song, Z.; Yang, X.; Mao, Z.; Nie, X.; Guo, H.; Peng, X. Microbial community analysis of apple rhizosphere around Bohai Gulf. Sci. Rep. 2017, 7. [Google Scholar] [CrossRef]
  49. Edgar, R.C.; Haas, B.J.; Clemente, J.C.; Quince, C.; Knight, R. UCHIME improves sensitivity and speed of chimera detection. Bioinformatics 2011. [Google Scholar] [CrossRef]
  50. Wang, Q.; Garrity, G.M.; Tiedje, J.M.; Cole, J.R. Naive Bayesian classifier for rapid assignment of rRNA\nsequences into the new bacterial taxonomy. Appl. Environ. Microbiol. 2007, 73, 5261–5267. [Google Scholar] [CrossRef]
  51. Chao, A. Non-parametric estimation of the number of classes in a population. Scand. J. Stat. 1984, 20, 265–270. [Google Scholar]
  52. Chao, A.; Lee, S.M. Estimating the number of classes via sample coverage. J. Am. Stat. Assoc. 1992, 87, 210–217. [Google Scholar] [CrossRef]
  53. Keylock, C.J. Simpson diversity and the Shannon-Wiener index as special cases of a generalized entropy. Oikos 2005, 109, 203–207. [Google Scholar] [CrossRef]
  54. Schloss, P.D.; Westcott, S.L.; Ryabin, T.; Hall, J.R.; Hartmann, M.; Hollister, E.B.; Lesniewski, R.A.; Oakley, B.B.; Parks, D.H.; Robinson, C.J.; et al. Introducing mothur: Open-source, platform-independent, community-supported software for describing and comparing microbial communities. Appl. Environ. Microbiol. 2009, 75, 7537–7541. [Google Scholar] [CrossRef] [PubMed]
  55. Legendre, P.; Gallagher, E.D. Ecologically meaningful transformations for ordination of species data. Oecologia 2001. [Google Scholar] [CrossRef] [PubMed]
  56. R Development Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2013; p. 2014. [Google Scholar]
  57. Ghimire, R.; Machado, S.; Bista, P. Soil pH, soil organic matter, and crop yields in winter wheat–summer fallow systems. Agron. J. 2017, 109, 706–717. [Google Scholar] [CrossRef]
  58. Cai, Z.; Xu, M.; Wang, B.; Zhang, L.; Wen, S.; Gao, S. Effectiveness of crop straws, and swine manure in ameliorating acidic red soils: A laboratory study. J. Soils Sediments 2018. [Google Scholar] [CrossRef]
  59. El-Baruni, B.; Olsen, S.R. Effect of manure on solubility of phosphorus in calcareous soils. Soil Sci. 1979, 128, 219–225. [Google Scholar] [CrossRef]
  60. Díaz-Zorita, M.; Grove, J.H. Duration of tillage management affects carbon and phosphorus stratification in phosphatic Paleudalfs. Soil Tillage Res. 2002. [Google Scholar] [CrossRef]
  61. Nannipieri, P.; Kandeler, E.; Ruggiero, P. Enzyme activities and microbiological and biochemical processes in soil. In Enzymes in the Environment: Activity, Ecology, and Applications; Marcel Dekker: New York, NY, USA, 2002; pp. 1–33. ISBN 9780824706142. [Google Scholar]
  62. Štursová, M.; Baldrian, P. Effects of soil properties and management on the activity of soil organic matter transforming enzymes and the quantification of soil-bound and free activity. Plant Soil 2011. [Google Scholar] [CrossRef]
  63. Li, F.; Chen, L.; Zhang, J.; Yin, J.; Huang, S. Bacterial community structure after long-term organic and inorganic fertilization reveals important associations between soil nutrients and specific taxa involved in nutrient transformations. Front. Microbiol. 2017, 8. [Google Scholar] [CrossRef]
  64. Fierer, N.; Bradford, M.A.; Jackson, R.B. Toward an ecological classification of soil bacteria. Ecology 2007, 88, 1354–1364. [Google Scholar] [CrossRef] [PubMed]
  65. Das, S.; Adhya, T.K. Effect of combine application of organic manure and inorganic fertilizer on methane and nitrous oxide emissions from a tropical flooded soil planted to rice. Geoderma 2014, 213, 185–192. [Google Scholar] [CrossRef]
  66. Lopes, A.R.; Manaia, C.M.; Nunes, O.C. Bacterial community variations in an alfalfa-rice rotation system revealed by 16S rRNA gene 454-pyrosequencing. FEMS Microbiol. Ecol. 2014, 87, 650–663. [Google Scholar] [CrossRef] [PubMed]
  67. Xu, J.; Kloepper, J.W.; Huang, P.; McInroy, J.A.; Hu, C.H. Isolation and characterization of N2-fixing bacteria from giant reed and switchgrass for plant growth promotion and nutrient uptake. J. Basic Microbiol. 2018, 58, 459–471. [Google Scholar] [CrossRef] [PubMed]
  68. Mahadevan, R.; Palsson, B.; Lovley, D.R. In situ to in silico and back: Elucidating the physiology and ecology of Geobacter spp. using genome-scale modelling. Nat. Rev. Microbiol. 2011, 9, 39. [Google Scholar] [CrossRef] [PubMed]
  69. Sykes, G.; Skinner, F.A. Actinomycetales: Characteristics and Practical Importance; Academic Press: Cambridge, MA, USA, 1973; ISBN 0126799504. [Google Scholar]
  70. Hamamura, N.; Olson, S.H.; Ward, D.M.; Inskeep, W.P. Microbial population dynamics associated with crude-oil biodegradation in diverse soils. Appl. Environ. Microbiol. 2006. [Google Scholar] [CrossRef] [PubMed]
  71. Albuquerque, L.; França, L.; Rainey, F.A.; Schumann, P.; Nobre, M.F.; Da Costa, M.S. Gaiella occulta gen. nov., sp. nov., a novel representative of a deep branching phylogenetic lineage within the class Actinobacteria and proposal of Gaiellaceae fam. nov. and Gaiellales ord. nov. Syst. Appl. Microbiol. 2011. [Google Scholar] [CrossRef] [PubMed]
  72. Freitag, T.E.; Chang, L.; Clegg, C.D.; Prosser, J.I. Influence of inorganic nitrogen management regime on the diversity of nitrite-oxidizing bacteria in agricultural grassland soils. Appl. Environ. Microbiol. 2005. [Google Scholar] [CrossRef]
  73. Xia, S.; Li, J.; Wang, R.; Li, J.; Zhang, Z. Tracking composition and dynamics of nitrification and denitrification microbial community in a biofilm reactor by PCR-DGGE and combining FISH with flow cytometry. Biochem. Eng. J. 2010. [Google Scholar] [CrossRef]
  74. Lucker, S.; Wagner, M.; Maixner, F.; Pelletier, E.; Koch, H.; Vacherie, B.; Rattei, T.; Damste, J.S.S.; Spieck, E.; Le Paslier, D.; et al. A Nitrospira metagenome illuminates the physiology and evolution of globally important nitrite-oxidizing bacteria. Proc. Natl. Acad. Sci. USA 2010. [Google Scholar] [CrossRef]
  75. Le Roux, X.; Bouskill, N.J.; Niboyet, A.; Barthes, L.; Dijkstra, P.; Field, C.B.; Hungate, B.A.; Lerondelle, C.; Pommier, T.; Tang, J.; et al. Predicting the responses of soil nitrite-oxidizers to multi-factorial global change: A trait-based approach. Front. Microbiol. 2016. [Google Scholar] [CrossRef] [PubMed]
  76. Nemergut, D.R.; Cleveland, C.C.; Wieder, W.R.; Washenberger, C.L.; Townsend, A.R. Plot-scale manipulations of organic matter inputs to soils correlate with shifts in microbial community composition in a lowland tropical rain forest. Soil Biol. Biochem. 2010. [Google Scholar] [CrossRef]
  77. Wei, C.; He, W.; Wei, L.; Ma, J.; Li, C. The performance and microbial communities of biodegradation- electron transfer with sulfur metabolism integrated process for flue gas desulfurization wastewater treatment. Bioprocess Biosyst. Eng. 2017. [Google Scholar] [CrossRef] [PubMed]
  78. Liu, J.; Sui, Y.; Yu, Z.; Shi, Y.; Chu, H.; Jin, J.; Liu, X.; Wang, G. High throughput sequencing analysis of biogeographical distribution of bacterial communities in the black soils of northeast China. Soil Biol. Biochem. 2014, 70, 113–122. [Google Scholar] [CrossRef]
  79. Wei, Z.; Hu, X.; Li, X.; Zhang, Y.; Jiang, L.; Li, J.; Guan, Z.; Cai, Y.; Liao, X. The rhizospheric microbial community structure and diversity of deciduous and evergreen forests in Taihu Lake area, China. PLoS ONE 2017, 12, e0174411. [Google Scholar] [CrossRef]
  80. Shen, Z.; Ruan, Y.; Xue, C.; Zhong, S.; Li, R.; Shen, Q. Soils naturally suppressive to banana Fusarium wilt disease harbor unique bacterial communities. Plant Soil 2015, 393, 21–33. [Google Scholar] [CrossRef]
  81. Hou, S.; Makarova, K.S.; Saw, J.H.W.; Senin, P.; Ly, B.V.; Zhou, Z.; Ren, Y.; Wang, J.; Galperin, M.Y.; Omelchenko, M.V.; et al. Complete genome sequence of the extremely acidophilic methanotroph isolate V4, Methylacidiphilum infernorum, a representative of the bacterial phylum Verrucomicrobia. Biol. Direct 2008. [Google Scholar] [CrossRef]
  82. Schlesner, H.; Jenkins, C.; Staley, J.T. The Phylum Verrucomicrobia: A Phylogenetically Heterogeneous Bacterial Group. In The Prokaryotes; Springer: New York, NY, USA, 2006. [Google Scholar]
  83. Chin, K.J.; Liesack, W.; Janssen, P.H. Opitutus terrae gen. nov., sp. nov., to accommodate novel strains of the division “Verrucomicrobia” isolated from rice paddy soil. Int. J. Syst. Evol. Microbiol. 2001, 51, 1965–1968. [Google Scholar] [CrossRef]
  84. Hengstmann, U.; Chin, K.J.; Janssen, P.H.; Liesack, W. Comparative phylogenetic assignment of environmental sequences of genes encoding 16S rRNA and numerically abundant culturable bacteria from an anoxic rice paddy soil. Appl. Environ. Microbiol. 1999, 65, 5050–5058. [Google Scholar]
  85. Carbonetto, B.; Rascovan, N.; Álvarez, R.; Mentaberry, A.; Vázquez, M.P. Structure, composition and metagenomic profile of soil microbiomes associated to agricultural land use and tillage systems in Argentine Pampas. PLoS ONE 2014. [Google Scholar] [CrossRef]
  86. Xu, H.J.; Wang, X.H.; Li, H.; Yao, H.Y.; Su, J.Q.; Zhu, Y.G. Biochar impacts soil microbial community composition and nitrogen cycling in an acidic soil planted with rape. Environ. Sci. Technol. 2014. [Google Scholar] [CrossRef] [PubMed]
  87. Su, J.Q.; Ding, L.J.; Xue, K.; Yao, H.Y.; Quensen, J.; Bai, S.J.; Wei, W.X.; Wu, J.S.; Zhou, J.; Tiedje, J.M.; et al. Long-term balanced fertilization increases the soil microbial functional diversity in a phosphorus-limited paddy soil. Mol. Ecol. 2015. [Google Scholar] [CrossRef] [PubMed]
  88. Bastian, F.; Bouziri, L.; Nicolardot, B.; Ranjard, L. Impact of wheat straw decomposition on successional patterns of soil microbial community structure. Soil Biol. Biochem. 2009. [Google Scholar] [CrossRef]
  89. Arafat, Y.; Wei, X.; Jiang, Y.; Chen, T.; Saqib, H.S.A.; Lin, S.; Lin, W. Spatial distribution patterns of root-associated bacterial communities mediated by root exudates in different aged ratooning tea monoculture systems. Int. J. Mol. Sci. 2017, 18, 1727. [Google Scholar] [CrossRef]

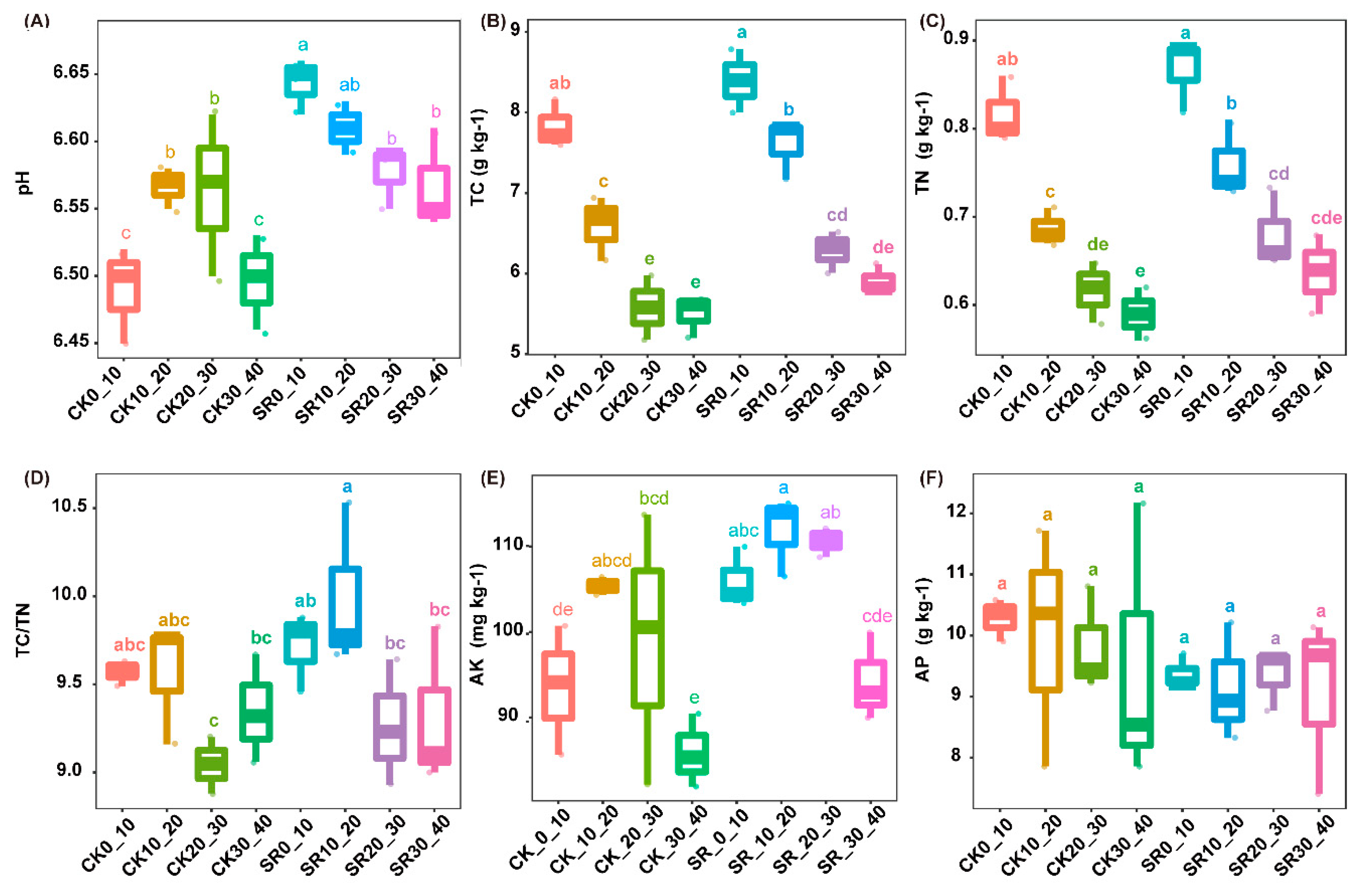

Figure 1. Soil physiochemical properties at 0–40-cm depths in the sugarcane straw retention (SR) treatment compared to the control (CK). Error bars in the boxplots with different lowercase letters show significant differences between treatments (Tukey test, p < 0.05). (A) pH, potential hydrogen; (B) TC, total soil carbon; (C) TN, total nitrogen; (D) C/N, carbon/nitrogen ratio; (E) AK, available potassium; (F) AP, available phosphorus.
Figure 1. Soil physiochemical properties at 0–40-cm depths in the sugarcane straw retention (SR) treatment compared to the control (CK). Error bars in the boxplots with different lowercase letters show significant differences between treatments (Tukey test, p < 0.05). (A) pH, potential hydrogen; (B) TC, total soil carbon; (C) TN, total nitrogen; (D) C/N, carbon/nitrogen ratio; (E) AK, available potassium; (F) AP, available phosphorus.
Diversity 11 00194 g001

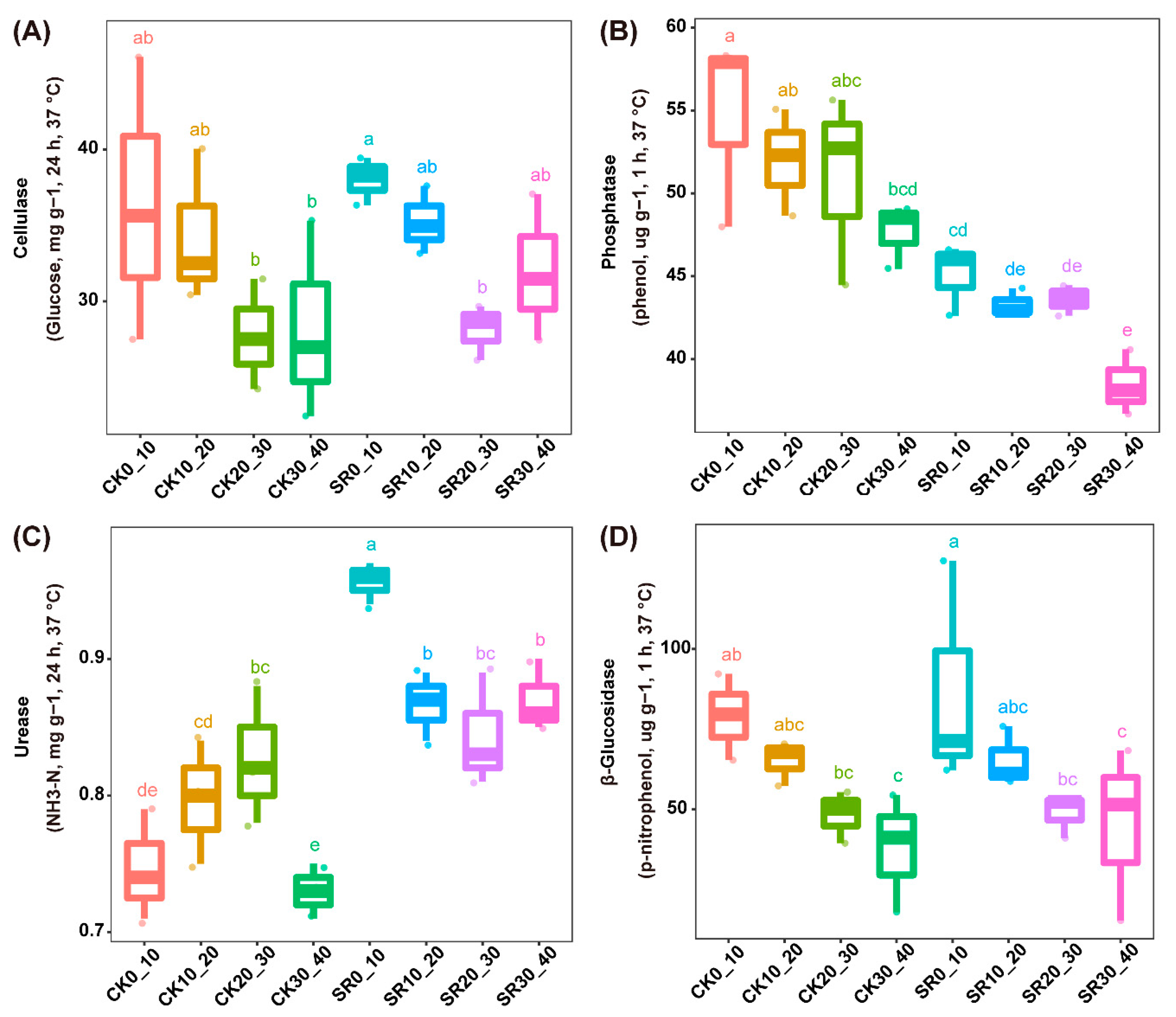

Figure 2. Soil enzymatic activities such as cellulase (A), phosphatase (B), urease (C) and β-glucosidase (D) at 0–40-cm depths under sugarcane straw retention (SR) compared to the control (CK). Error bars in boxplots with different lowercase letters show significant differences between treatments (Tukey test, p < 0.05).
Figure 2. Soil enzymatic activities such as cellulase (A), phosphatase (B), urease (C) and β-glucosidase (D) at 0–40-cm depths under sugarcane straw retention (SR) compared to the control (CK). Error bars in boxplots with different lowercase letters show significant differences between treatments (Tukey test, p < 0.05).
Diversity 11 00194 g002

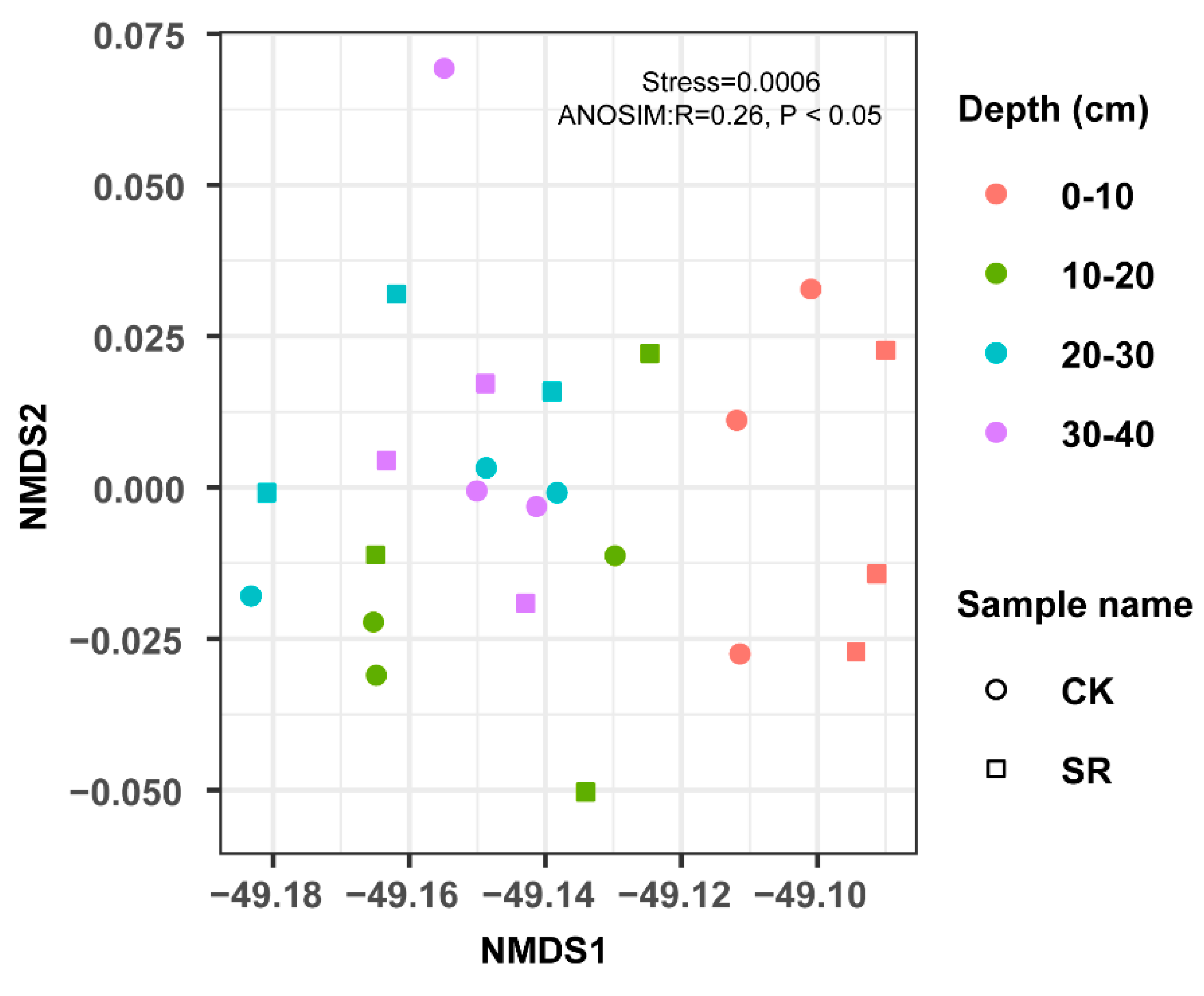

Figure 3. Analysis of nonparametric multidimensional scaling (NMDS) of the bacterial communities in the soil samples at 0–10-cm, 10–20-cm, 20-30-cm, and 30–40-cm depths. CK, control; SR, sugarcane straw retention.
Figure 3. Analysis of nonparametric multidimensional scaling (NMDS) of the bacterial communities in the soil samples at 0–10-cm, 10–20-cm, 20-30-cm, and 30–40-cm depths. CK, control; SR, sugarcane straw retention.
Diversity 11 00194 g003

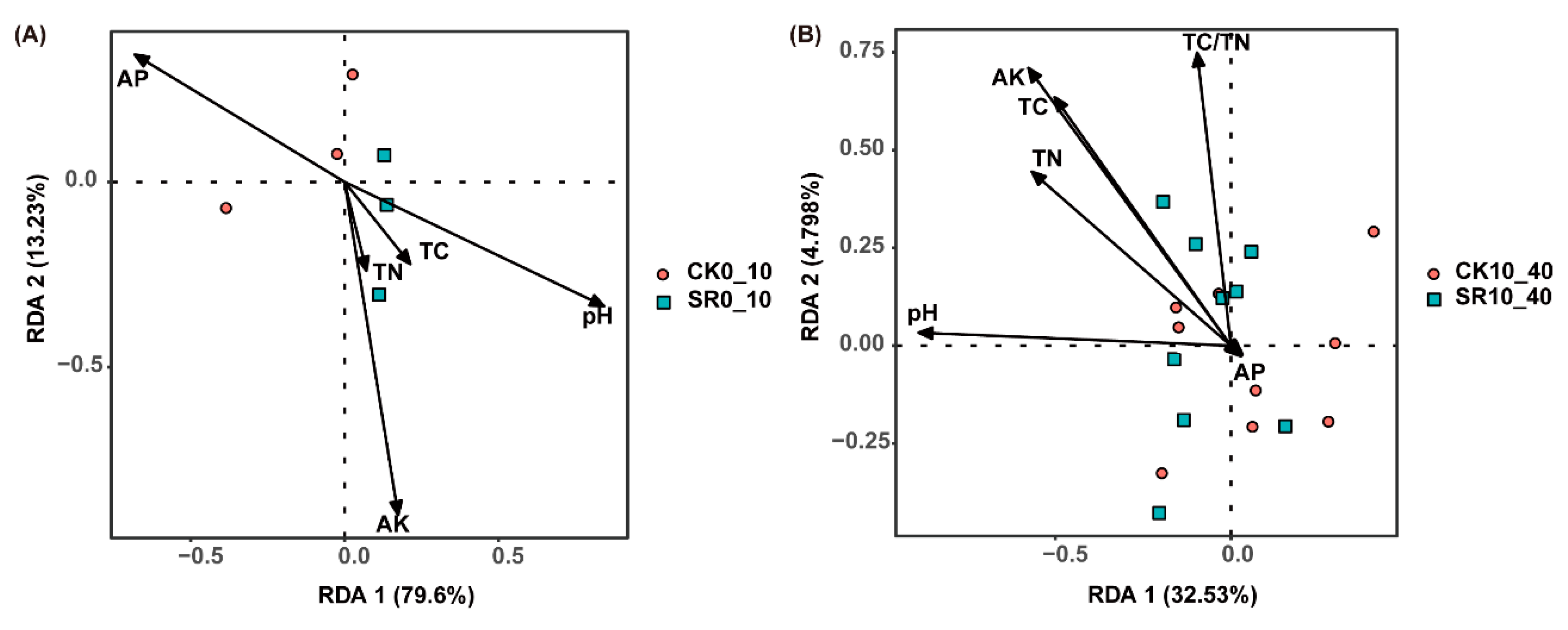

Figure 4. Redundancy analysis (RDA) of bacterial communities and measured soil properties at 0–10-cm (A) and 10–40-cm (B) depths. CK, control; SR, sugarcane straw retention.
Figure 4. Redundancy analysis (RDA) of bacterial communities and measured soil properties at 0–10-cm (A) and 10–40-cm (B) depths. CK, control; SR, sugarcane straw retention.
Diversity 11 00194 g004

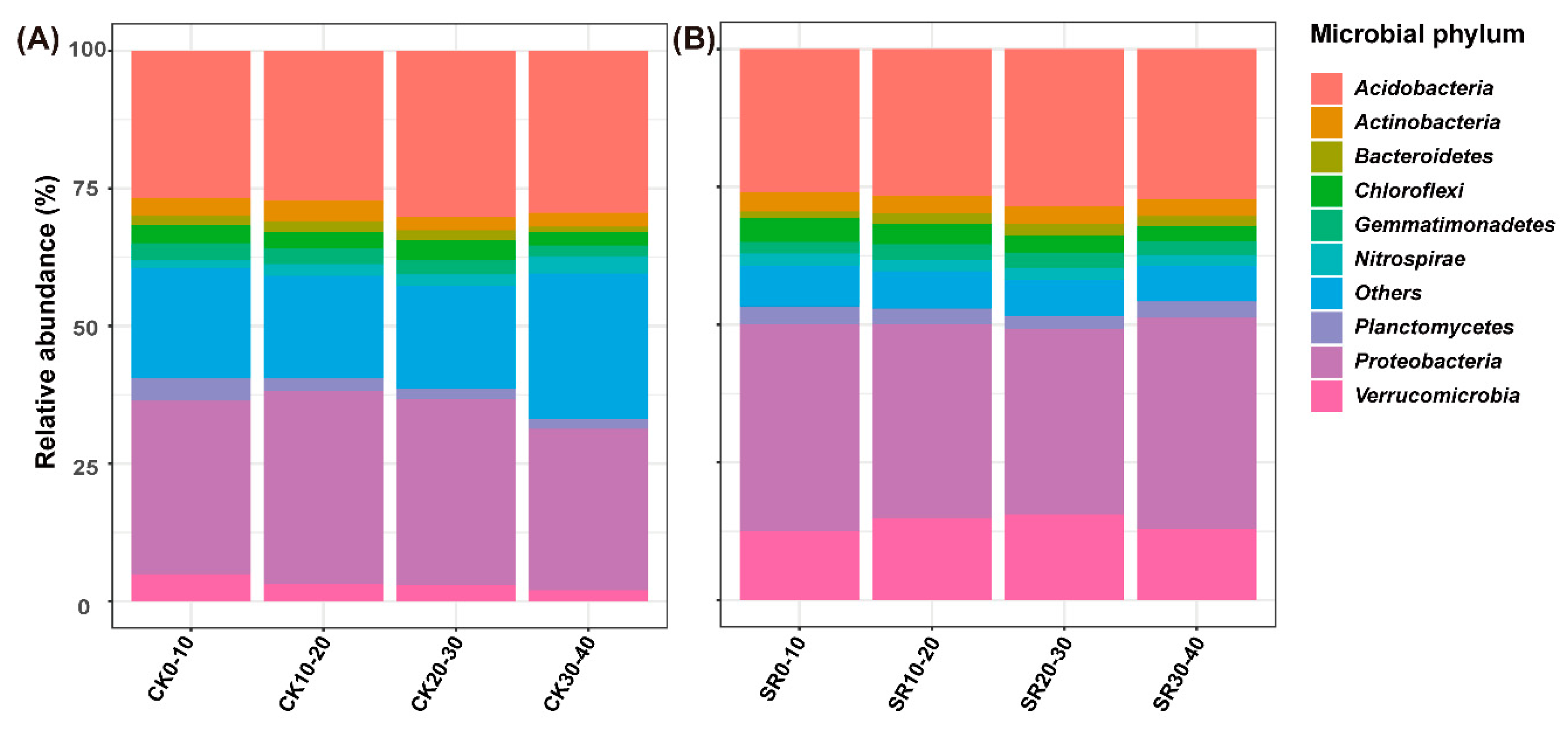

Figure 5. Relative abundances of the top 10 microbial phyla at different depths (A) in the sugarcane straw retention (SR) and control (CK) treatments (B). “Others” refers to those identified phyla that were beyond the top 10 phyla. CK, control; and SR, sugarcane straw retention.
Figure 5. Relative abundances of the top 10 microbial phyla at different depths (A) in the sugarcane straw retention (SR) and control (CK) treatments (B). “Others” refers to those identified phyla that were beyond the top 10 phyla. CK, control; and SR, sugarcane straw retention.
Diversity 11 00194 g005

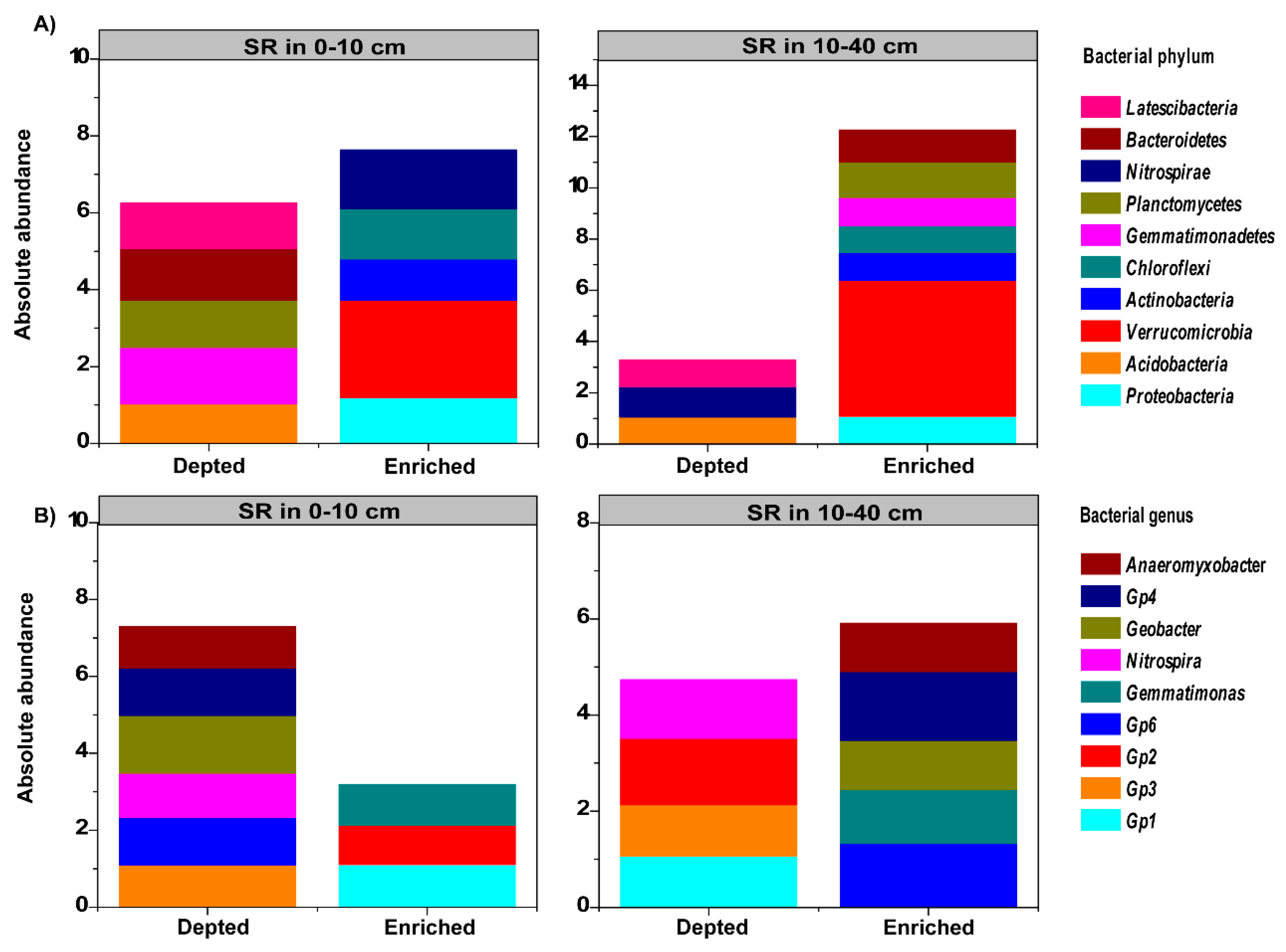

Figure 6. Sugarcane straw retention (SR) depleted or enriched of abundant phyla (A) and genera (B) at depths of 0–10 and 10–40 cm compared to the control (CK).
Figure 6. Sugarcane straw retention (SR) depleted or enriched of abundant phyla (A) and genera (B) at depths of 0–10 and 10–40 cm compared to the control (CK).
Diversity 11 00194 g006

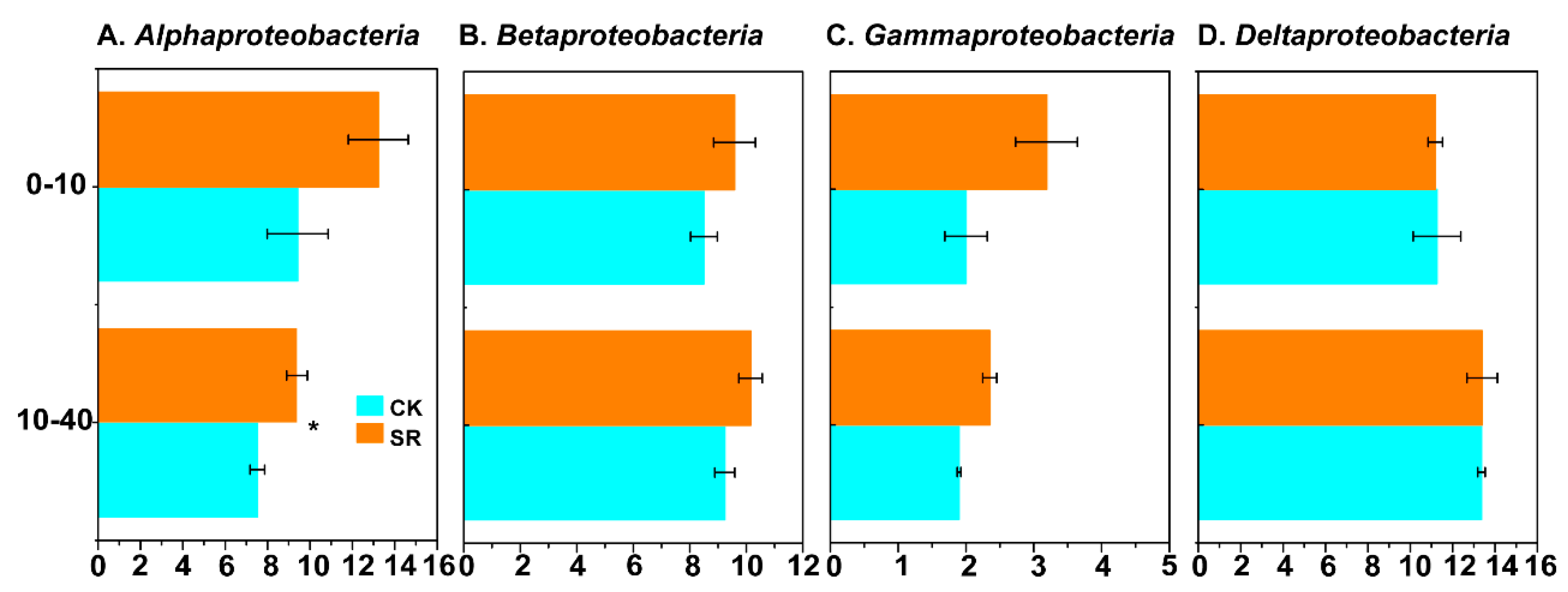

Figure 7. Relative abundances of Alphaproteobacteria (A), Betaproteobacteria (B), Gammaproteobacteria (C), and Deltaproteobacteria (D) at depths of 0–10 and 10–40 cm in sugarcane straw retention (SR) and control (CK) treatments. The values at depths of 10–40 cm are weighted means. The heat map specified by “*” shows statistical significance: * p < 0.05.
Figure 7. Relative abundances of Alphaproteobacteria (A), Betaproteobacteria (B), Gammaproteobacteria (C), and Deltaproteobacteria (D) at depths of 0–10 and 10–40 cm in sugarcane straw retention (SR) and control (CK) treatments. The values at depths of 10–40 cm are weighted means. The heat map specified by “*” shows statistical significance: * p < 0.05.
Diversity 11 00194 g007

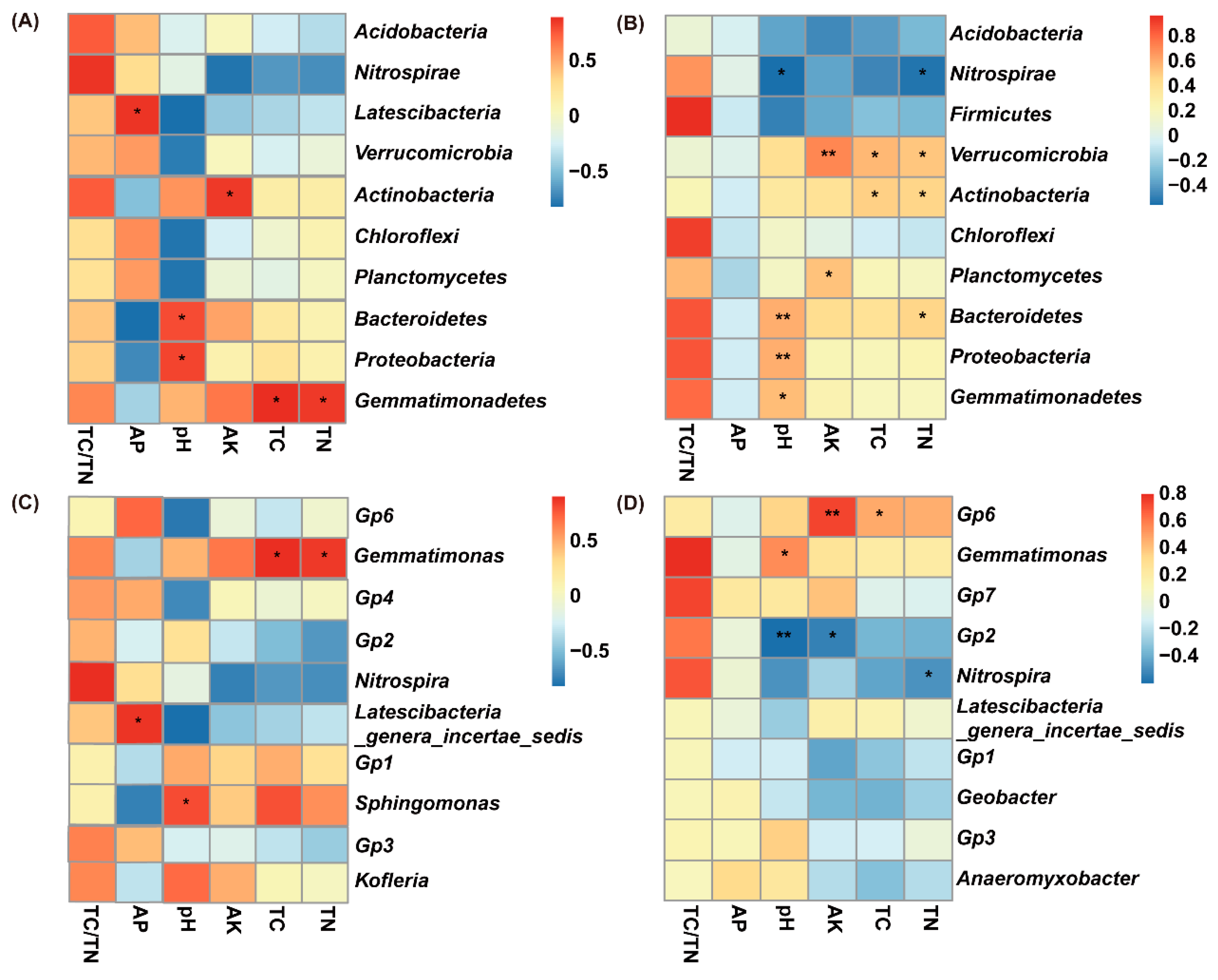

Figure 8. Pearson correlation coefficients for soil physiochemical properties and the most abundant bacterial phyla at 0–10-cm (A) and 10–40-cm (B) depths. Pearson correlation coefficients for soil physiochemical properties and most abundant bacterial genera at 0–10-cm (C) and 10–40-cm (D) depths. The heatmap cells marked by “*” or “**” are statistically significant: * p < 0.05 and ** p < 0.01.
Figure 8. Pearson correlation coefficients for soil physiochemical properties and the most abundant bacterial phyla at 0–10-cm (A) and 10–40-cm (B) depths. Pearson correlation coefficients for soil physiochemical properties and most abundant bacterial genera at 0–10-cm (C) and 10–40-cm (D) depths. The heatmap cells marked by “*” or “**” are statistically significant: * p < 0.05 and ** p < 0.01.
Diversity 11 00194 g008

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Back to TopTop
