Communication

Synthesis of Novel Pyrazolo[3,4-b]pyridines with Affinity for β-Amyloid Plaques

by
Veroniki P. Vidali
1,*,
Georgia Nigianni
1,2,
Georgia D. Athanassopoulou
1,3,
Aleksander Canko
1,4,
Barbara Mavroidi
5,
Dimitris Matiadis
5,
Maria Pelecanou
5 and
Marina Sagnou
5,*
1
Natural Products Synthesis & Bioorganic Chemistry Laboratory, Institute of Nanoscience & Nanotechnology, National Center for Scientific Research “Demokritos”, Patr. Grigoriou & Neapoleos 27, 153 41 Athens, Greece
2
Department of Chemistry, University of Patras, Rio Campus, Rio, 265 04 Patra, Greece
3
School of Health Sciences, Department of Pharmacy, Division of Pharmaceutical Chemistry, National and Kapodistrian University of Athens, Panepistimiopolis-Zografou, 157 71 Athens, Greece
4
Department of Food Science and Human Nutrition, Agricultural University of Athens, Iera Odos 75, 118 55 Athens, Greece
5
Institute of Biosciences & Applications, National Center for Scientific Research “Demokritos”, Patr. Grigoriou & Neapoleos 27, 153 41 Athens, Greece
*
Authors to whom correspondence should be addressed.
Molbank 2022, 2022(1), M1343; https://doi.org/10.3390/M1343
Submission received: 23 January 2022 / Revised: 11 February 2022 / Accepted: 16 February 2022 / Published: 22 February 2022
Browse Figures
Versions Notes

Abstract

:
Three novel pyrazolo[3,4-b]pyridines were synthesized via the cyclization of 5-amino-1-phenylpyrazole with the corresponding unsaturated ketone in the catalytic presence of ZrCl4. The ketones were afforded by modifying a stabilized ylide facilitated Wittig reaction in fairly high yields. The novel compounds exhibited exciting photophysical properties with the dimethylamine phenyl-bearing pyrazolopyridine showing exceptionally large Stoke’s shifts. Finally, both the dimethylamino- and the pyrene-substituted compounds demonstrated high and selective binding to amyloid plaques of Alzheimer’s disease (AD) patient brain slices upon fluorescent confocal microscopy observation. These results reveal the potential application of pyrazolo[3,4-b]pyridines in the development of AD amyloid plaque probes of various modalities for AD diagnosis.

Graphical Abstract

1. Introduction

Pyrazolo[3,4-b]pyridines constitute a group of fused heterocyclic systems with outstanding chemical, biological and medicinal significance. This is witnessed by the fact that numerous pharmaceutically active compounds have the pyrazolo[3,4-b]pyridine core incorporated in their structure (Figure 1). They were shown to exhibit a broad range of biological activities and clinical applications. These include antiviral [1], antibacterial [2], antimalarial [3], antitrypanosomal [4], anti-inflammatory [5], anti-hypertension and pulmonary hypertension [6,7] and anti-tumour activity with various mechanisms of action [8,9,10,11,12,13,14]. Interestingly, some structurally related pyrazolo[3,4-b]pyridines were reported to exhibit neuroprotective, antidepressant, anxiolytic and anti-Alzheimer’s properties [15,16,17,18].
Alzheimer’s disease (AD), the most common type of dementia, is a progressive and irreversible disorder that affects millions of people over the age of 65 and is associated with memory loss, cognitive deficit, behavioral alterations and death [19]. Currently, AD is among the deadly diseases worldwide for which no effective therapeutic treatment is available, and early diagnosis remains a challenge [20]. Consequently, a tremendous effort was made to understand the pathogenesis of the disease for early diagnosis and treatment [21]. One of the major neuropathological characteristics of AD is the deposition of abnormal and misfolded proteins resulting in the formation of extracellular senile plaques and intracellular neurofibrillary tangles (NFTs). The primary constituent of senile plaques is the beta-amyloid peptide (Aβ) [22]. An increasing amount of evidence suggests that amyloid plaque imaging can improve diagnostic accuracy, increase diagnostic certainty and result in therapeutic alterations and disease monitoring [23,24,25,26]. To this end, Pittsburgh compound B (Figure 1), which exhibited a nanomolar affinity for fibrillar amyloid, was the first amyloid tracer described for Positron Emission Tomography (PET) imaging of amyloid plaques and is the most extensively studied among the clinically used tracers [27,28]. Newer amyloid PET tracers were also developed, including [18F]Florbetapir (trade name: AMYViD), [18F]Florbetaben (trade name: Neuraceq) and [18F]Flutemetamol (trade name: Vizamyl), to provide semi-quantitative information about amyloid deposition in patients [29]. Collectively, these molecules are benzothiazole derivatives and stilbene type of compounds. They are small, planar, rigid and conjugated molecules with interesting fluorescent properties which have readily revealed their binding to amyloid plaques with fluorescent microscopy techniques. Still, their clinical application suffers several limitations such as off-target binding, low signal-to-noise ratio and others that prompt further exploitation of novel tracers [30]. With regard to pyrazolo[3,4-b]pyridines, to the best of our knowledge, there are no reports connecting them with a high affinity to amyloid plaques for either imaging or therapy of AD. Etazolate (Figure 2) is the only pyrazolo[3,4-b]pyridine clinically investigated for its efficacy as an anti-Alzheimer acting agent, as an α-secretase inhibitor for mild to moderate AD [31].
As part of our ongoing research on the synthesis of molecules and complexes with high affinity for senile plaques [32,33,34,35], we would like to report herein the synthesis of three novel pyrazolo[3,4-b]pyridines (Figure 1) as potential probes for Aβ amyloid plaques. To the best of our knowledge, this particular substitution pattern on the pyrazolo[3,4-b]pyridine core was not previously reported.
Bearing in mind that this type of fused conjugated privileged scaffold exhibits fascinating photophysical properties [36], and some living cell imaging applications were reported [37]. The absorption and fluorescence properties of the molecules were initially assessed. Consequently, these novel pyrazolopyridines were evaluated for selective binding to amyloid plaques using fluorescence confocal microscopy of human AD brain sections.

2. Results and Discussion

2.1. Synthesis of the Novel Derivatives

The designed pyrazolo[3,4-b]pyridine derivatives (5a–c) were synthesized in a two-step procedure from readily available starting materials and cheap reagents, as depicted in Scheme 1.
More specifically, the synthesis commenced by subjecting aldehydes 6a–c to a high-yielding Wittig reaction to afford the (E)-4-aryl but-3-en-2-ones 8a–c, employing the stabilized ylide 7 [38] in toluene and a catalytic amount of benzoic acid. The latter accelerated the reaction significantly due to the increased aldehyde electrophilicity. The products were readily available by a simple concentration of the reaction mixture and short column chromatography. Moreover, the (E)-geometry of the α,β-unsaturated ketones was confirmed by the high J coupling constants of the protons of the double bond (8a: J = 16.1 Hz, 8b: J = 16.5 Hz, 8c: J = 15.9 Hz). Subsequent condensation of 8a–c with 5-amino-1-phenylpyrazole (9) [39] in the catalytic presence of ZrCl4 established the pyrazolo[3,4-b]pyridine core and afforded the final compounds 5a–c. ZrCl4 is a green Lewis acid catalyst of high applicability due to its low toxicity, high availability, low cost, air and water stability and ease of handling. After a series of investigations, the solvent mixture of EtOH/DMF (1:1) was found to be the optimum one to sufficiently dissolve all the reactants and facilitate the reaction progress. Despite the low yields obtained for these derivatives, due to the incomplete condensation of the reactants and the formation of intermediate products, the method allowed the preparation and isolation of the target compounds 5a–c in a pure form via a two-step procedure from readily available starting materials and cheap reagents. It should be noted that although condensation of 9 and its 3-alkyl or aryl derivatives with chalcones and other unsaturated carbonyl compounds are reported in the literature [40,41,42,43,44,45], no examples of 9 with (E)-4-aryl but-3-en-2-ones were found. Studies towards the deeper understanding of the reaction mechanism and progress, the improvement of the yields and further exploitation of methods for the synthesis of modified derivatives are currently underway.
The final products 5a–c were characterized by NMR spectroscopy (1H, 13C NMR and 1H-1H COSY), as well as FTIR and HRMS. In all cases, the signals of the pyrazole phenyl group and the R group originating from ketones 8a–c in the 1H NMR spectra of all products 5a–c were the primary indication that the pyrazole moiety was incorporated with the monocarbonyl starting material. Moreover, the formation of the pyrazolo[3,4-b]pyridine ring was witnessed by the appearance of characteristic chemical shifts of the singlets corresponding to H-3 at δH 7.26 (5a), 7.28 (5b) and 7.36 (5c) ppm and H-5 at δH 8.48 (5a), 8.39 (5b) and 7.89 (5c) ppm of pyridine and pyrazole moieties, respectively. Additionally, the signal of the CH3 group as a singlet in the 1H NMR spectra of the products at δH 2.87 (5a), 2.79 (5b) and 2.88 (5c) ppm indicated that it is adjacent to C-6.

2.2. Photochemical Properties

The UV-Vis spectra of compounds 5a–c are shown in Figure 3. Compound 5a displays an absorption maximum at 364 nm, and the absorption tail extends to longer than 400 nm. The UV-Vis spectrum of 5c is characterized by the presence of pyrene absorption bands at 348 nm and 356 nm, though they appear red-shifted compared to the pyrene molecule due to the extended conjugation provided via the pyrazolopyridine substitution of the pyrene moiety [46]. Similarly, 5b exhibited three distinct peaks at 350 nm, 368 nm and 388 nm, which are very close to the absorption peaks of the anthracene molecule itself. This result is in good agreement with the observations reported by Becker et al., who investigated the relationship of the molecular geometry of various anthracene molecules with excited-state properties and witnessed the characteristic anthracene pattern in all derivatives tested [47]. The observed lower excitation may be related to some restriction in the charge transfer properties of the molecule [48]. It is very interesting to note that 5a displayed an absorption maximum wavelength of higher magnitude to the polycyclic pyrene and anthracene derivatives. This effect may be attributed to the strongly electron-donating character of the dimethylamine substituent at the para position of the phenyl ring. Indeed, 5a has the highest absorption of the three making it a very efficiently excitable molecule and an attractive candidate for microscopy observation.
The emission spectra of all synthesized compounds are presented in Figure 4. The data revealed 5c emission peaks at 421 nm (blue), whereas 5a and 5b emission peaks occur at 452 and 465 nm (black and red), respectively. It is remarkable that 5a showed very large Stoke’s shifts (101 nm), as presented in Table 1. This may be related to the geometrical differences between the ground state and the emitting excited state, suggesting that the anthracene- and pyrene-substituted molecules are more coplanar to the pyrazolopyridine core compared to the smaller and more flexible dimethylaminobenzene derivative [47].

2.3. β-Amyloid Plaque Staining

Taking advantage of the interesting absorption and emission properties, the binding affinity for β-amyloid plaques of AD was examined following standard staining procedures [35]. Figure 5 show the confocal microscopy images of the in vitro staining of human post-mortem AD fixed brain sections with pyrazolopyridines 5a and 5c. Both compounds bind selectively to the amyloid plaques, allowing clear visualization of both diffused and dense core ones. In the case of anthracene derivative, severe precipitation due to solubility limitations was observed during the staining procedure, which did not allow for any imaging at all. According to the literature, sufficient conjugation and electron-donor substitution on rigid molecules with planar configuration are the common desirable features of most of the molecules serving as Aβ imaging probes with high affinity to amyloid fibrils and plaques [49]. Therefore, our results, in full agreement with the literature, suggest that the dimethylamino- substituted compound 5a and the pyrenyl-bearing 5c exhibit the favorable structural characteristics for high amyloid affinity to enable both selective binding and effective imaging of amyloid deposits. The pyrazolopyridine core is a rigid, flat, conjugated and lipophilic unit. In addition, extensive conjugation is acquired by the pyrene moiety, whereas the electron donor dimethylamino- substitution enhances e-delocalization for π-stacking.

3. Materials and Methods

3.1. General Remarks

All reactions were carried out using dry, freshly distilled solvents unless otherwise noted. Yields refer to chromatographically and spectroscopically (1H NMR) homogeneous materials unless otherwise stated. All reagents were purchased at the highest commercial quality from Sigma-Aldrich (Taufkirchen, Germany) or Alfa-Aesar (Kandel, Germany) and used without further purification unless otherwise stated. All reactions were monitored by thin-layer chromatography (TLC) carried out on 0.25 mm Merck silica gel plates (60 F254), using UV light as visualizing agent and ethanolic phosphomolybdic acid, p-anisaldehyde or potassium permanganate solutions and heat as developing agents. Purifications with flash column chromatography were carried out using Merck silica gel (60, particle size 0.040–0.063 mm) and elution systems as stated in each experimental procedure. Melting points were determined with a Gallenkamp MFB-595 melting point apparatus (Weiss Gallenkamp, London, UK). NMR spectra were recorded on Bruker Avance DRX-500 or Bruker Advance II 250 MHz instruments (Rheinstetten, Germany) at 25 °C. The following abbreviations were used to explain NMR signal multiplicities: s: singlet, d: doublet, t: triplet, m: multiplet, dd: doublet of doublets, brt: broad triplet. Assignment of 1H NMR spectra was based on 2D experiments, and the numbering of final compounds is depicted in the Supplementary Materials. Samples were dissolved in CDCl3. UV-Vis spectra were recorded with a Hitachi U-3010 spectrophotometer (Mannheim, Germany). Fluorescence spectra were recorded using a HITACHI F-2500 spectrofluorometer at 25 °C in the wavelength range 350–800 nm. Excitation wavelengths of the samples were 320 nm, scan speed was 300 nm/min, and both excitation and emission slit widths were 2.5 nm. HRMS spectra were recorded on UHPLC LC-MSn Orbitrap Velos-Thermo instrument (Thermo Scientific; Bremen, Germany) in the Institute of Biology, Medicinal Chemistry and Biotechnology of the National Hellenic Research Foundation. Fluorescent staining observation was performed with a Leica TCS SP8 MP (Wetzlar, Germany) confocal microscope equipped with an Argon laser (excitation lines at 458, 476, 488, 496 and 514 nm), a DPSS 561 laser (excitation line at 561 nm) and an IR MaiTai DeepSee Ti:Sapphire laser (Spectra-Physics, Santa Clara, CA, USA) for multiphoton applications. Images were acquired with the LAS X software (Version 5.0.3, Leica Microsystems CMS GmbH, Wetzlar, Germany) and are presented without any postprocessing.

3.2. Synthesis of Compounds

3.2.1. General Procedure for the Preparation of (E)-4-aryl But-3-en-2-ones (8a–c) with Wittig Reaction

To a solution of the aldehyde 6a–c (3.35 mmol) in toluene (7 mL), ylide 7 (4.2 mmol, 1.25 eq) and a catalytic amount of benzoic acid (41 mg, 0.335 mmol) were added, and the reaction mixture was refluxed overnight. Upon completion of the reaction (monitored by TLC), the mixture was concentrated in vacuo. The solid residue was subjected to a short flash column chromatography to afford the target product.
(E)-4-(4-(N,N-dimethylamino)phenyl)but-3-en-2-one (8a) [50]
Light yellow solid. Yield: 86%. Rf: 0.26 (n-hexane:EtOAc 8:2); Mp: 340–341 °C; 1H NMR (500 MHz, CDCl3): δ 7.46 (d, J = 16.1 Hz, 1H; Ar-CH=CH-), 7.44 (d, J = 8.9 Hz, 2H; Ar-H), 6.68 (d, J = 8.9 Hz, 2H; Ar-H), 6.54 (d, J = 16.1 Hz, 1H; Ar-CH=CH-), 3.03 (s, 6H; Ar-N(CH3)3 ), 2.34 (s, 3H; CH3CO-) ppm; 13C NMR (126 MHz, CDCl3): δ 198.6, 152.1, 144.5, 130.2, 122.6, 122.2, 112.0, 40.2, 27.3 ppm; MS (ESI) [M+H]+ m/z 190.05.
(E)-4-(anthracen-9-yl)but-3-en-2-one (8b) [51]
Yellow solid. Yield: 90%. Rf: 0.35 (n-hexane:EtOAc 9:1); Mp: 109–111 °C; 1H NMR (500 MHz, CDCl3): δ 8.49 (d, J = 16.5 Hz, 1H; Ar-CH=CH-), 8.48 (s, 1H; H10 of anthracene), 8.21 (dd, J = 9.0, 1.8 Hz, 2H; H1, H8 of anthracene), 8.03 (dd, J = 8.1, 1.7 Hz, 2H; H4, H5 of anthracene), 7.51 (m, 4H; H2, H3, H6, H7 of anthracene), 6.72 (d, J = 16.5 Hz, 1H; -CH=CH-CO(CH3)), 2.56 (s, 3H; CH3CO-) ppm; 13C NMR (126 MHz, CDCl3): δ 198.0, 140.6, 136.1, 131.4, 129.5, 129.4, 129.1, 128.63, 126.6, 125.6, 125.2, 28.2 ppm; MS (ESI) [M+H] +m/z 247.05.
(E)-4-(pyren-1-yl)but-3-en-2-one (8c) [52]
Yellow solid. Yield: 83%. Rf: 0.38 (n-hexane:EtOAc 8:3); Mp: 82–83 °C 1H NMR (500 MHz, CDCl3): δ 8.69 (d, J = 15.9 Hz, 1H; Ar-CH=CH-), 8.48 (d, J = 9.3 Hz, 1H; Ar-H), 8.30 (d, J = 8.1 Hz, 1H; Ar-H), 8.26–8.11 (m, 5H; Ar-H), 8.10–8.02 (m, 2H; Ar-H), 7.02 (d, J = 15.9 Hz, 1H; Ar-CH=CH-), 2.54 (s, 3H; CH3CO-) ppm; 13C NMR (126 MHz, CDCl3): δ 198.2, 139.9, 133.0, 131.4, 130.8, 130.1, 129.0, 128.8 (2C), 128.3, 127.4, 126.4, 126.2, 126.0, 125.2, 125.0, 124.7, 124.3, 122.4, 28.3 ppm; MS (ESI) [M+H]+m/z 271.00.

3.2.2. General Procedure for the Preparation of 4-Substituted 6-methyl-1-phenyl-1H-pyrazolo[3,4-b]pyridines (5a–c)

To a solution of the α,β-unsaturated ketones 8a–c (0.5 mmol) in DMF (0.5 mL) a solution of 5-amino-1-phenyl-pyrazole (9) (102 mg, 0.5 mmol) in EtOH (0.5 mL) was added at 25 °C. The reaction mixture was degassed, and ZrCl4 (35 mg, 0.15 mmol) was added. The reaction mixture was vigorously stirred at 95 °C for 16 h. After completion of the reaction, the mixture was concentrated in vacuo, and CHCl3 and water were added. The two phases were separated, and the aqueous phase was washed with CHCl3 twice. The combined organic extracts were washed with H2O and brine, dried over Na2SO4 and concentrated in vacuo. The residue was subjected to flash column chromatography to afford the target compounds 5a–c in pure form.
4-(4-N,N-dimethylaminophenyl)-6-methyl-1-phenyl-1H-pyrazolo[3,4-b]pyridine (5a)
Off-white solid. Yield: 28%. Rf = 0.40 (n-hexane/EtOAc 8:2); FTIR (KBr, cm–1): 3048, 2982, 2847, 1740, 1567, 1509, 1351, 1193, 956, 812, 740; 1H NMR (500 MHz, CDCl3): δ = 8.48 (d, J = 7.4 Hz, s overlapping, 3H; H1′,H5′, H3), 7.84 (d, J = 7.5 Hz, 2H; H2″, H6″ or H3″, H5″), 7.67 (brt, J = 7.4 Hz, 2H; H2′, H4′), 7.43 (m, 1H; H3′), 7.26 (s overlapping with CDCl3, 1H; H5), 7.00 (d, J = 7.5 Hz, 2H; H2″, H6″ or H3″, H5″), 3.19 (s, 6H; -N(CH3)2), 2.87 (s, 3H; Ar-CH3) ppm; 13C NMR (126 MHz, CDCl3): δ = 159.1 (C), 151.3 (C), 144.4 (C), 140.1 (C), 133.9 (C), 129.5 (CH), 129.1 (CH), 125.8 (CH), 124.9 (C), 121.5 (CH), 115.5 (CH), 113.5 (C), 112.6 (CH), 40.5 (CH3), 25.4 (CH3) ppm; HRMS (ESI) [M+H]+ m/z Calcd. C21H21N4 329.1766; Found 329.1752
4-(9-anthryl)-6-methyl-1-phenyl-1H-pyrazolo[3,4-b]pyridine (5b)
Yellow solid. Yield: 13%. Rf = 0.4 (n-hexane/EtOAc 9:1); FTIR (KBr, cm–1): 3048, 2918, 2839, 1725, 1675, 1588, 1502, 1345, 1182, 956, 818, 740; 1H NMR (500 MHz, CDCl3): δ = 8.60 (s, 1H; H10″), 8.39 (s, 1H; H3), 8.38 (d, J = 9.7 Hz, 1H; H1′, H5′), 8.10 (d, J = 8.5 Hz, 2H; H1″, H8″), 7.69 (d, J = 8.8 Hz, 2H; H5″, H4″), 7.49 (t, J = 7.6 Hz, 2H; H2′, H4′), 7.44–7.35 (m, 4H; H2″, H3″, H6″, H7″), 7.28 (s, 1H; H5), 7.21 (t, J = 7.4 Hz, 1H; H3′), 2.79 (s, 3H; -CH3) ppm; 13C NMR (63 MHz, CDCl3): δ = 158.1 (C), 150.7 (C), 142.2 (C), 140.0 (C), 135.5 (C), 132.9 (CH), 131.5 (CH), 130.3 (CH), 129.2 (CH), 128.6 (CH), 127.8 (CH), 126.4 (CH), 126.0 (CH), 125.9 (CH), 125.3 (CH), 122.1 (C, CH, 2C), 117.2 (C), 111.5 (C), 18.8 (CH3) ppm; HRMS (ESI) [M+H]+ m/z Calcd. C27H20N3 386.1657; Found 386.1643 6-methyl-1-phenyl-4-(pyren-1-yl)-1H-pyrazolo[3,4-b]pyridine (5c)
Yellow solid. Yield: 20%. Rf = 0.22 (n-hexane/EtOAc 95:5); FTIR (KBr, cm–1): 3041, 2980, 2845, 1735, 1574, 1500, 1339, 1188, 949, 821, 743; 1H NMR (500 MHz, CDCl3): δ = 8.38 (d, J = 7.8 Hz, 2H; H2′, H4′), 8.32 (d, J = 7.8 Hz, 1H; H- of pyrene), 8.27 (d, J = 7.7 Hz, 1H; H- of pyrene), 8.23 (d, J = 7.6 Hz, 1H; H- of pyrene), 8.19 (d, J = 8.9 Hz, 1H; H- of pyrene), 8.17 (d, J = 8.8 Hz, 1H; H- of pyrene), 8.13–8.04 (m, 4H; H- of pyrene), 7.89 (s, 1H; H5) 7.58 (t, J = 7.8 Hz, 2H; H2′, H4′), 7.36 (s, t overlapping, 2H; H3′, H3), 2.88 (s, 3H; -CH3) ppm; 13C NMR (126 MHz, CDCl3): δ = 159.2 (C), 150.8 (C), 144.1 (C), 140.0 (C), 134.1 (CH), 132.4 (C), 131.9 (C), 131.6 (C), 131.0 (C), 129.2 (CH), 128.7 (C), 128.4(CH, 2C), 127.5 (CH), 127.4 (CH), 126.5 (CH), 126.1 (CH), 125.9 (CH), 125.6 (CH), 125.2 (C), 125.0 (CH), 124.9 (C), 124.7, 121.5, 119.9, 116.2 (C), 25.4 (CH3) ppm; HRMS (ESI) [M+H]+ m/z Calcd. C29H20N3 410.1657; Found 410.1642.

3.3. In Vitro Binding to Amyloid Plaques

AD patient sections (6 μm thick) from temporal cortex mounted on albumin-coated glass slides were deparaffinized (xylene, 2 × 5 min) and then rehydrated (5 min in 100%, 80%, 60%, then 0% ethanol–water v/v), followed by phosphate-buffered solution incubation (PBS; 1.3 mΜ NaCl, 27 mM KCl, 81 mM Na2HPO4, 14.7 mM KH2PO4, pH 7) for 30 min. The tissue preparations were treated with pyrazolopyridine solutions in dimethyl sulfoxide (DMSO, 200 μΜ) for 1 h. The sections were finally washed with 40% ethanol for 2 min, followed by rinsing with tap water for 30 s and observation was performed using fluorescence confocal microscopy (Leica TCS SP8 MP, Wetzlar, Germany).

4. Conclusions

In this work, the successful synthesis of three novel pyrazolo[3,4-b]pyridines is reported for the first time. The target molecules are small, rigid and have extensive electron delocalization. Their absorption and fluorescence properties resulted in an exceptionally high Stroke’s shift effect in the case of dimethylaminophenyl substitution of the pyridine core. Both the pyrene- and dimethylamine-substituted pyrazolopyridines successfully “stained” the amyloid plaques of AD patients’ brain microscopy slices. The results clearly show the potential of the pyrazolo[3,4-b]pyridine core to act as an AD amyloid plaque probe and prompt us to optimize the synthetic procedure to evaluate the effect of various substitutions on the biological activities of the new compounds

Supplementary Materials

All the spectroscopic data of the title compounds 5a–c namely are available online.

Author Contributions

Conceptualization, M.S. and V.P.V.; methodology and data analysis, M.S., V.P.V., M.P., D.M, G.N., G.D.A., A.C. and B.M.; 2D NMR analysis V.P.V.; writing—original draft preparation, D.M., V.P.V. and M.S.; writing—review and editing, resources, M.P.; supervision, M.S., V.P.V. and M.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors would like to acknowledge the Manchester Brain Bank, which is part of the Brains for Dementia Research Initiative, jointly funded by Alzheimer’s Society and Alzheimer’s Research UK, for supplying brain tissue samples.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Xing, E.; Zuo, J.; Krogstad, P.; Jung, M.E. Synthesis and Structure−Activity relationship (SAR) studies of novel pyrazolopyridine derivatives as inhibitors of enterovirus replication. J. Med. Chem. 2018, 61, 1688–1703. [Google Scholar] [CrossRef] [PubMed]
  2. El-Gohary, N.S.; Gabra, M.T.; Shaaban, M.I. Synthesis, molecular modeling and biological evaluation of new pyrazolo[3,4-b]pyridine analogs as potential antimicrobial, antiquorum-sensing and anticancer agents. Bioorg. Chem. 2019, 89, 102976. [Google Scholar] [CrossRef] [PubMed]
  3. Eagon, S.; Hammill, J.T.; Sigal, M.S.; Ahn, K.J.; Tryhorn, J.E.; Koch, G.; Belanger, B.; Chaplan, C.A.; Loop, L.; Kashtanova, A.S.; et al. Synthesis and structure-activity relationship of dual-stage antimalarial pyrazolo[3,4-b]pyridines. J. Med. Chem. 2020, 63, 11902–11919. [Google Scholar] [CrossRef] [PubMed]
  4. Ribeiro, J.L.S.; Soares, J.C.A.V.; Portapilla, G.B.; Providello, M.V.; Lima, C.H.S.; Muri, E.M.F.; de Albuquerque, S.; Dias, L.R.S. Trypanocidal activity of new 1,6-diphenyl-1H-pyrazolo[3,4-b]pyridine derivatives: Synthesis, in vitro and in vivo studies. Bioorg. Med. Chem. 2021, 29, 115855. [Google Scholar] [CrossRef]
  5. Mohamed, L.W.; Shaabana, M.A.; Zahera, A.F.; Alhamaky, S.M.; Elsahar, A.M. Synthesis of new pyrazoles and pyrozolo[3,4-b] pyridines as anti-inflammatory agents by inhibition of COX-2 enzyme. Bioorg. Chem. 2019, 83, 47–54. [Google Scholar] [CrossRef]
  6. Hu, L.; Li, L.; Chang, Q.; Fu, S.; Qin, J.; Chen, Z.; Li, X.; Liu, Q.; Hu, G.; Li, Q. Discovery of novel pyrazolo[3,4-b] pyridine derivatives with dual activities of vascular remodeling inhibition and vasodilation for the treatment of pulmonary arterial hypertension. J. Med. Chem. 2020, 63, 11215–11234. [Google Scholar] [CrossRef]
  7. Cappelli, A.; Nannicini, C.; Gallelli, A.; Giuliani, G.; Valenti, S.; la Pericot Mohr, G.; Anzini, M.; Mennuni, L.; Ferrari, F.; Caselli, G.; et al. Design, synthesis, and biological evaluation of AT1 angiotensin II receptor antagonists based on the pyrazolo[3,4-b]pyridine and related heteroaromatic bicyclic systems. J. Med. Chem. 2008, 51, 2137–2146. [Google Scholar] [CrossRef]
  8. Eissa, I.H.; El-Naggar, A.M.; El-Hashash, M.A. Design, synthesis, molecular modeling and biological evaluation of novel 1H-pyrazolo[3,4-b]pyridine derivatives as potential anticancer agents. Bioorg. Chem. 2016, 67, 43–56. [Google Scholar] [CrossRef]
  9. Papastathopoulos, A.; Lougiakis, N.; Kostakis, I.K.; Marakos, P.; Pouli, N.; Pratsinis, H.; Kletsas, D. New bioactive 5-arylcarboximidamido pyrazolo[3,4-c]pyridines: Synthesis, cytotoxic activity, mechanistic investigation and structure activity relationships. Eur. J. Med. Chem. 2021, 218, 113387. [Google Scholar] [CrossRef]
  10. Michailidou, M.; Giannouli, V.; Kotsikoris, V.; Papadodima, O.; Kontogianni, G.; Kostakis, I.K.; Lougiakis, N.; Chatziioannou, A.; Kolisis, F.N.; Marakos, P.; et al. Novel pyrazolopyridine derivatives as potential angiogenesis inhibitors: Synthesis, biological evaluation and transcriptome-based mechanistic analysis. Eur. J. Med. Chem. 2016, 121, 143–157. [Google Scholar] [CrossRef]
  11. Uno, T.; Kawai, Y.; Yamashita, S.; Oshiumi, H.; Yoshimura, C.; Mizutani, T.; Suzuki, T.; Chong, K.T.; Shigeno, K.; Ohkubo, M.; et al. Discovery of 3-Ethyl-4-(3- isopropyl-4-(4-(1-methyl-1H-pyrazol-4-yl)-1H-imidazole-1-yl)-1H-pyrazolo[3,4-b]pyridin-1-yl) benzamide (TAS-116) as a potent, selective, and orally available HSP90 inhibitor. J. Med. Chem. 2019, 62, 531–551. [Google Scholar] [CrossRef] [PubMed]
  12. Hao, S.-Y.; Qi, Z.-Y.; Wang, S.; Wang, X.-R.; Chen, S.-W. Synthesis and bioevaluation of N-(3,4,5-trimethoxyphenyl)-1H-pyrazolo[3,4-b]pyridin-3- amines as tubulin polymerization inhibitors with anti-angiogenic effects. Bioorg. Med. Chem. 2021, 31, 115985. [Google Scholar] [CrossRef] [PubMed]
  13. Zhai, M.; Liu, S.; Gao, M.; Wang, L.; Sun, J.; Du, J.; Guan, Q.; Bao, K.; Zuo, D.; Wu, Y.; et al. 3,5-Diaryl-1H-pyrazolo[3,4-b]pyridines as potent tubulin polymerization inhibitors: Rational design, synthesis and biological evaluation. Eur. J. Med. Chem. 2019, 168, 426–435. [Google Scholar] [CrossRef] [PubMed]
  14. Wenglowsky, S. Pyrazolo[3,4-b]pyridine kinase inhibitors: A patent review (2008—present). Expert Opin. Ther. Pat. 2013, 23, 3. [Google Scholar] [CrossRef]
  15. Ankur, J.; Mahesh, R.; Bhatt, S. Anxiolytic-like effect of etazolate, a type 4 phosphodiesterase inhibitor in experimental models of anxiety. Indian. J. Exp. Biol. 2013, 51, 444–449. [Google Scholar]
  16. Siopi, E.; Llufriu-Daben, G.; Cho, A.H.; Vidal-Lletjos, S.; Plotkine, M.; Marchand-Leroux, C.; Jafarian-Tehrani, M. Etazolate, an alpha-secretase activator, reduces neuroinflammation and offers persistent neuroprotection following traumatic brain injury in mice. Neuropharmacology 2013, 67, 183–192. [Google Scholar] [CrossRef]
  17. Marcade, M.; Bourdin, J.; Loiseau, N.; Peillon, H.; Rayer, A.; Drouin, D.; Schweighoffer, F.; Desire, L. Etazolate, a neuroprotective drug linking GABA(A) receptor pharmacology to amyloid precursor protein processing. J. Neurochem. 2008, 106, 392–404. [Google Scholar] [CrossRef]
  18. Vellas, B.; Sol, O.; Snyder, P.J.; Ousset, P.-J.; Haddad, R.; Maurin, M.; Lemarie, J.-C.; Desire, L.; Pando, M.P. EHT0202 in Alzheimer’s disease: A 3-month, randomized, placebo-controlled, double-blind study. Curr. Alzheimer Res. 2011, 8, 203–212. [Google Scholar] [CrossRef]
  19. Lynch, C. World Alzheimer Report 2019: Attitudes to dementia, a global survey. Alzheimer’s Dement. 2020, 16, e038255. [Google Scholar] [CrossRef]
  20. Wisniewski, T.; Drummond, E. Future horizons in Alzheimer’s disease research. Prog. Mol. Biol. Transl. Sci. 2019, 168, 223–241. [Google Scholar] [CrossRef]
  21. Tiwari, S.; Atluri, V.; Kaushik, A.; Yndart, A.; Nair, M. Alzheimer’s disease: Pathogenesis, diagnostics, and therapeutics. Int. J. Nanomed. 2019, 14, 5541–5554. [Google Scholar] [CrossRef] [Green Version]
  22. Cras, P.; Kawai, M.; Lowery, D.; Gonzalez-DeWhitt, P.; Greenberg, B.; Perry, G. Senile plaque neurites in Alzheimer disease accumulate amyloid precursor protein. Proc. Natl. Acad. Sci. USA 1991, 88, 7552–7556. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Grundman, M.; Pontecorvo, M.J.; Salloway, S.P.; Doraiswamy, P.M.; Fleisher, A.S.; Sadowsky, C.H.; Nair, A.K.; Siderowf, A.; Lu, M.; Arora, A.K.; et al. Potential impact of amyloid imaging on diagnosis and intended management in patients with progressive cognitive decline. Alzheimer Dis. Assoc. Disord. 2013, 27, 4–15. [Google Scholar] [CrossRef] [PubMed]
  24. Zwan, M.D.; Bouwman, F.H.; Konijnenberg, E.; van der Flier, W.M.; Lammertsma, A.A.; Verhey, F.R.J.; Aalten, P.; van Berckel, B.N.M.; Scheltens, P. Diagnostic impact of [18F] flutemetamol PET in early-onset dementia. Alzheimer’s Res. Ther. 2017, 9, 2. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Boccardi, M.; Altomare, D.; Ferrari, C.; Festari, C.; Guerra, U.P.; Paghera, B.; Pizzocaro, C.; Lussignoli, G.; Geroldi, C.; Zanetti, O.; et al. Assessment of the Incremental Diagnostic Value of Florbetapir F 18 Imaging in Patients With Cognitive Impairment. JAMA Neurol. 2016, 73, 1417–1424. [Google Scholar] [CrossRef] [Green Version]
  26. Ishii, K.; Ishibashi, K.; Sakata, M.; Wagatsuma, K.; Toyohara, J.; Murayama, S. P4-332: Clinical Impact of Amyloid PET with [C-11] Pittsburgh Compound b on the Diagnosis of Early Onset Dementias. Alzheimer’s Dement. 2016, 12, 1161–1162. [Google Scholar] [CrossRef]
  27. Klunk, W.E.; Engler, H.; Nordberg, A.; Wang, Y.; Blomqvist, G.; Holt, D.P.; Bergström, M.; Savitcheva, I.; Huang, G.F.; Estrada, S.; et al. Imaging brain amyloid in Alzheimer’s disease with Pittsburgh Compound-B. Ann. Neurol. 2004, 55, 306–319. [Google Scholar] [CrossRef]
  28. Yamin, G.; Teplow, D.B. Pittsburgh Compound-B (PiB) binds amyloid β-protein protofibrils. J. Neurochem. 2017, 140, 210–215. [Google Scholar] [CrossRef] [Green Version]
  29. van Waarde, S.A.; Marcolini, P.P.; de Deyn, R.; Dierckx, R.A.J.O. PET agents in dementia: An overview. Semin. Nucl. Med. 2021, 51, 196–229. [Google Scholar] [CrossRef]
  30. Chandra, A.; Valkimadi, P.E.; Pagano, G.; Cousins, O.; Dervenoulas, G.; Politis, M. Applications of amyloid, tau, and neuroinflammation PET imaging to Alzheimer’s disease and mild cognitive impairment. Hum. Brain. Mapp. 2019, 40, 5424–5442. [Google Scholar] [CrossRef] [Green Version]
  31. Elmaleh, D.R.; Farlow, M.R.; Conti, P.S.; Tompkins, R.G.; Kundakovic, L.; Tanzi, R.E. Developing Effective Alzheimer’s Disease Therapies: Clinical Experience and Future Directions. J. Alzheimer’s Dis. 2019, 71, 715–732. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Sagnou, M.; Mavroidi, B.; Shegani, A.; Paravatou-Petsotas, M.; Raptopoulou, C.; Psycharis, V.; Pirmettis, I.; Papadopoulos, M.S.; Pelecanou, M. Remarkable Brain Penetration of Cyclopentadienyl M(CO)3+ (M = 99mTc, Re) Derivatives of Benzothiazole and Benzimidazole Paves the Way for Their Application as Diagnostic, with Single-Photon-Emission Computed Tomography (SPECT), and Therapeutic Agents for Alzheimer’s Disease. J. Med. Chem. 2019, 62, 2638–2650. [Google Scholar] [CrossRef] [PubMed]
  33. Triantis, C.; Tsotakos, T.; Tsoukalas, C.; Sagnou, M.; Raptopoulou, C.; Terzis, A.; Psycharis, V.; Pelecanou, M.; Pirmettis, I.; Papadopoulos, M. Synthesis and characterization of fac-[M(CO)3(P)(OO)] and cis-trans-[M(CO)2(P)2(OO)] complexes (M = Re, 99mTc) with acetylacetone and curcumin as OO donor bidentate ligands. Inorg. Chem. 2013, 52, 12995–13003. [Google Scholar] [CrossRef] [PubMed]
  34. Sagnou, M.; Tzanopoulou, S.; Raptopoulou, C.P.; Psycharis, V.; Braband, H.; Alberto, R.; Pirmettis, I.C.; Papadopoulos, M.; Pelecanou, M. A phenylbenzothiazole conjugate with the tricarbonyl fac-M(I)(CO)3+ (M = Re, 99Tc, 99mTc) core for imaging of β-amyloid plaques. Eur. J. Inorg. Chem. 2012, 27, 4279–4286. [Google Scholar] [CrossRef]
  35. Sagnou, M.; Benaki, D.; Triantis, C.; Tsotakos, T.; Psycharis, V.; Raptopoulou, C.P.; Pirmettis, I.; Papadopoulos, M.; Pelecanou, M. Curcumin as the OO Bidentate Ligand in “2 + 1” Complexes with the [M(CO)3] (M = Re, 99mTc) Tricarbonyl Core for Radiodiagnostic Applications. Inorg. Chem. 2011, 50, 1295–1303. [Google Scholar] [CrossRef]
  36. Orrego-Hernández, J.; Lizarazo, C.; Cobo, J.; Portilla, J. Pyrazolo-fused 4-azafluorenones as key reagents for the synthesis of fluorescent dicyanovinylidene-substituted derivatives. RSC Adv. 2019, 9, 27318–27323. [Google Scholar] [CrossRef] [Green Version]
  37. Chen, J.; Liu, W.; Ma, J.; Xu, H.; Wu, J.; Tang, X.; Fan, Z.; Wang, P. Synthesis and Properties of Fluorescence Dyes: Tetracyclic Pyrazolo[3,4-b]Pyridine-Based Coumarin Chromophores with Intramolecular Charge Transfer Character. J. Org. Chem. 2012, 77, 3475–3482. [Google Scholar] [CrossRef]
  38. Wube, A.A.; Hüfner, A.; Thomaschitz, C.; Blunder, M.; Kollroser, M.; Bauer, R.; Bucar, F. Design, synthesis and antimycobacterial activities of 1-methyl-2-alkenyl-4(1H)-quinolones. Bioorg. Med. Chem. 2011, 19, 567–579. [Google Scholar] [CrossRef] [Green Version]
  39. Silva, T.B.; Bernardino, A.M.; Maria de Lourdes, G.F.; Rogerio, K.R.; Carvalho, L.J.; Boechat, N.; Pinheiro, L.C. Design, synthesis and anti-P. falciparum activity of pyrazolopyridine—sulfonamide derivatives. Bioorg. Med. Chem. 2016, 24, 4492–4498. [Google Scholar] [CrossRef]
  40. El-Enany, M.M.; El-Meligie, S.E.; Abdou, N.A.; El-Nassan, H.B. Synthesis of pyrazolo[3,4-b]pyridine and pyrido[2′,3′:3,4]pyrazolo[1,5-a]pyrimidine derivatives. J. Chem. Res. 2010, 34, 470–474. [Google Scholar] [CrossRef]
  41. Liu, M.; Yin, G. ZrCl4-catalysed synthesis of new 4-(2-hydroxyphenyl)pyrazolo[3,4-b]pyridine derivatives. J. Chem. Res. 2015, 39, 263–266. [Google Scholar] [CrossRef]
  42. Kolos, N.N.; Kovalenko, L.U.; Borovskoy, V.A. Reactions of 3-acryloates with α-aminoazoles. Chem. Heterocycl. Comp. 2011, 47, 983–988. [Google Scholar] [CrossRef]
  43. Shi, D.-Q.; Zhou, Y.; Liu, H. An Efficient Synthesis of Pyrazolo[3,4-b]pyridine Derivatives in Ionic Liquid. Synth. Commun. 2010, 40, 3660–3668. [Google Scholar] [CrossRef]
  44. Orlov, V.D.; Kiroga, K.; Kolos, N.N. Synthesis of aromatic pyrazolo[4,5-b]pyridine derivatives. Chem. Heterocycl. Compd. 1987, 23, 997–1000. [Google Scholar] [CrossRef]
  45. Joshi, K.C.; Pathak, V.N.; Sareen, V.; Garg, U. Synthesis of some new fluorine-containing 5-amino-1,3-disubstituted pyrazoles and 1H-pyrazolo[3,4-b]pyridines. J. Heterocycl. Chem. 1979, 16, 1141–1145. [Google Scholar] [CrossRef]
  46. Mohan, M.; James, J.; Satyanarayan, M.N.; Trivedi, D.R. Functionalized pyrene-based AIEgens: Synthesis, photophysical characterization and density functional theory studies. Luminescence 2019, 34, 715–723. [Google Scholar] [CrossRef] [PubMed]
  47. Becker, H.D.; Andersson, K. On the relationship between molecular geometry and excited-state properties of 9-anthrylalkenes. J. Org. Chem. 1983, 48, 4542–4549. [Google Scholar] [CrossRef]
  48. Santoro, A.; Tuyèras, F.; Dupeyre, G.; Laine, P.P.; Ciofini, I.; Nastasi, F.; Fausto, P.; Campagna, S. Pyrimidyl-substituted anthracene fluorophores: Syntheses, absorption spectra, and photophysical properties. Dyes Pigment. 2018, 159, 619–636. [Google Scholar] [CrossRef]
  49. Jia, J.; Zhang, L.; Song, J.; Dai, J.; Cui, M. Discovery of Diphenoxy Derivatives with Flexible Linkers as Ligands for β-Amyloid Plaques. Mol. Pharm. 2020, 17, 4089–4100. [Google Scholar] [CrossRef]
  50. Kim, S.; Kumari, N.; Lim, J.; Dubbu, S.; Kumar, A.; Lee, I.S. Silica Jar-with-Lid as Chemo-Enzymatic Nano-Compartment for Enantioselective Synthesis inside Living Cells. Angew. Chem. Int. Ed. Engl. 2021, 60, 16337–16342. [Google Scholar] [CrossRef]
  51. Mase, N.; Takabe, K.; Tanaka, F. Erratum to “Fluorogenic probes for chemical transformations: 9-anthracene derivatives for monitoring reaction progress by an increase in fluorescence”. Tetrahedron Lett. 2013, 54, 5140. [Google Scholar] [CrossRef]
  52. Magoulas, G.E.; Bariamis, S.E.; Athanassopoulos, C.M.; Haskopoulos, A.; Dedes, P.G.; Krokidis, G.M.; Karamanos, K.N.; Kletsas, D.; Papaioannou, D.; Maroulis, G. Syntheses, antiproliferative activity and theoretical characterization of acitretin-type retinoids with changes in the lipophilic part. Eur. J. Med. Chem. 2011, 46, 721–737. [Google Scholar] [CrossRef] [PubMed]
Molbank 2022 m1343 g001 550

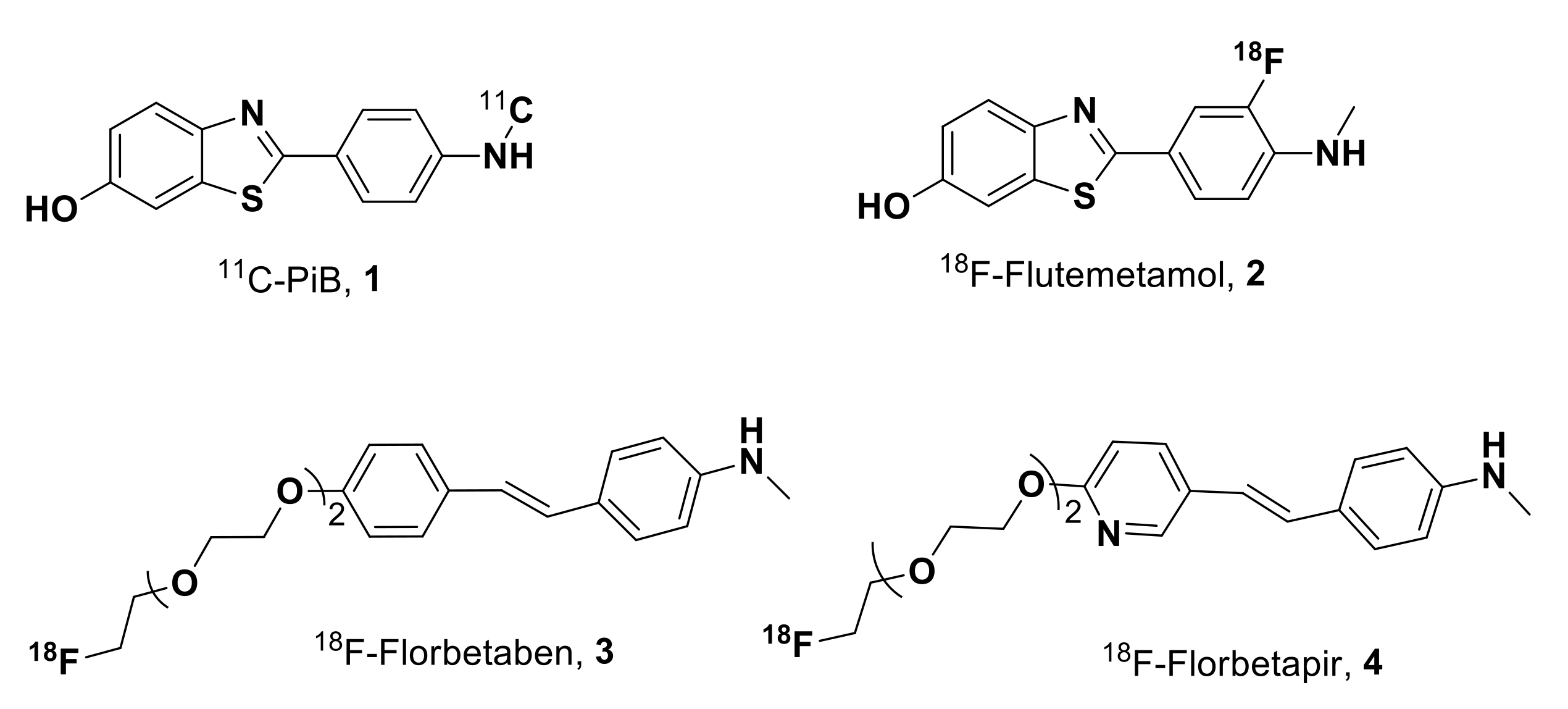

Figure 1. The chemical structures of some clinically used AD tracers.
Figure 1. The chemical structures of some clinically used AD tracers.
Molbank 2022 m1343 g001
Molbank 2022 m1343 g002 550

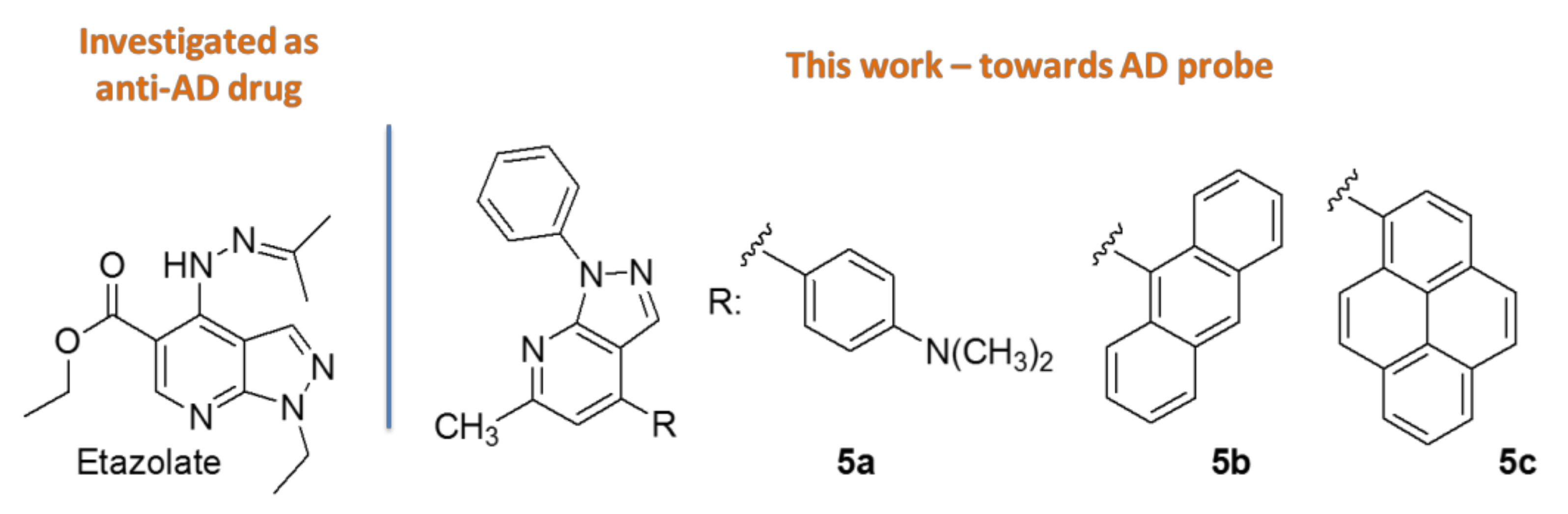

Figure 2. The structures of pyrazolo[3,4-b]pyridines Etazolate and the target compounds of this work, 5a–c.
Figure 2. The structures of pyrazolo[3,4-b]pyridines Etazolate and the target compounds of this work, 5a–c.
Molbank 2022 m1343 g002
Molbank 2022 m1343 sch001 550

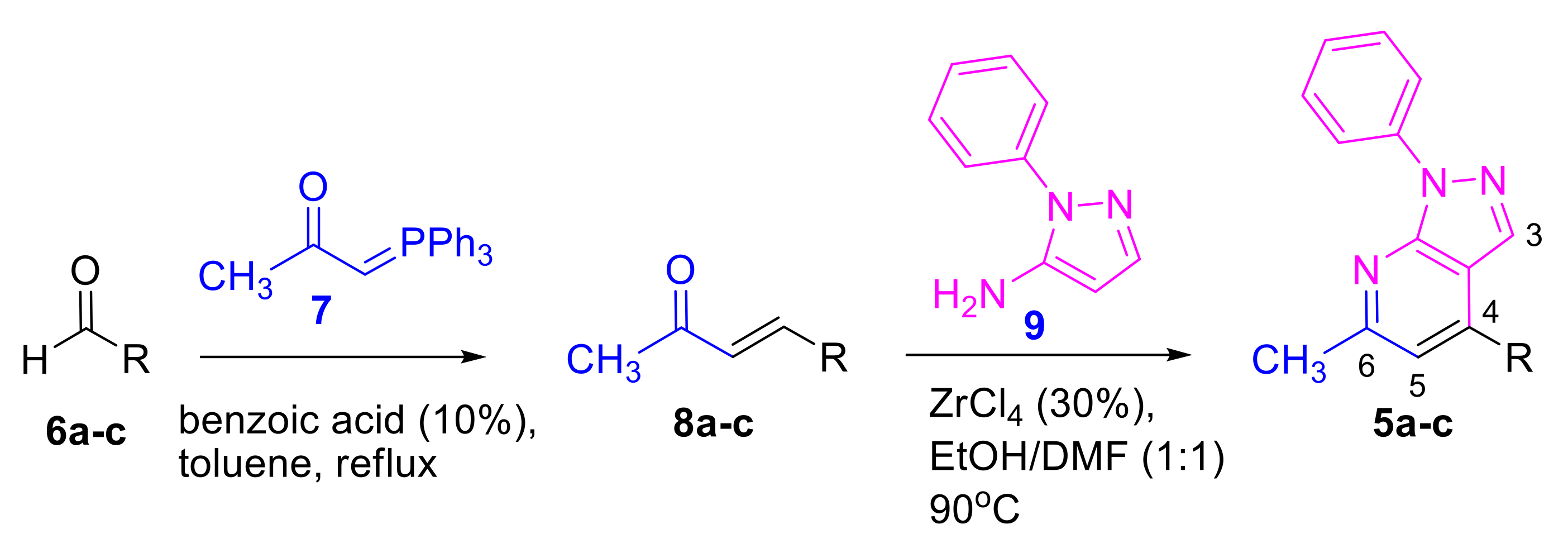

Scheme 1. Synthesis of pyrazolo[3,4-b]pyridine derivatives (5a–c). 8a: R = 4-(N,N-dimethylamino)-phenyl-, 86%; 8b: R = 9-anthryl-, 90%; 8c: R = 1-pyrenyl-, 83%; 5a: R = 4-(N,N-dimethylamino)-phenyl-, 28%; 5b: R = 9-anthryl-, 13%; 5c: R = 1-pyrenyl-, 20%.
Scheme 1. Synthesis of pyrazolo[3,4-b]pyridine derivatives (5a–c). 8a: R = 4-(N,N-dimethylamino)-phenyl-, 86%; 8b: R = 9-anthryl-, 90%; 8c: R = 1-pyrenyl-, 83%; 5a: R = 4-(N,N-dimethylamino)-phenyl-, 28%; 5b: R = 9-anthryl-, 13%; 5c: R = 1-pyrenyl-, 20%.
Molbank 2022 m1343 sch001
Molbank 2022 m1343 g003 550

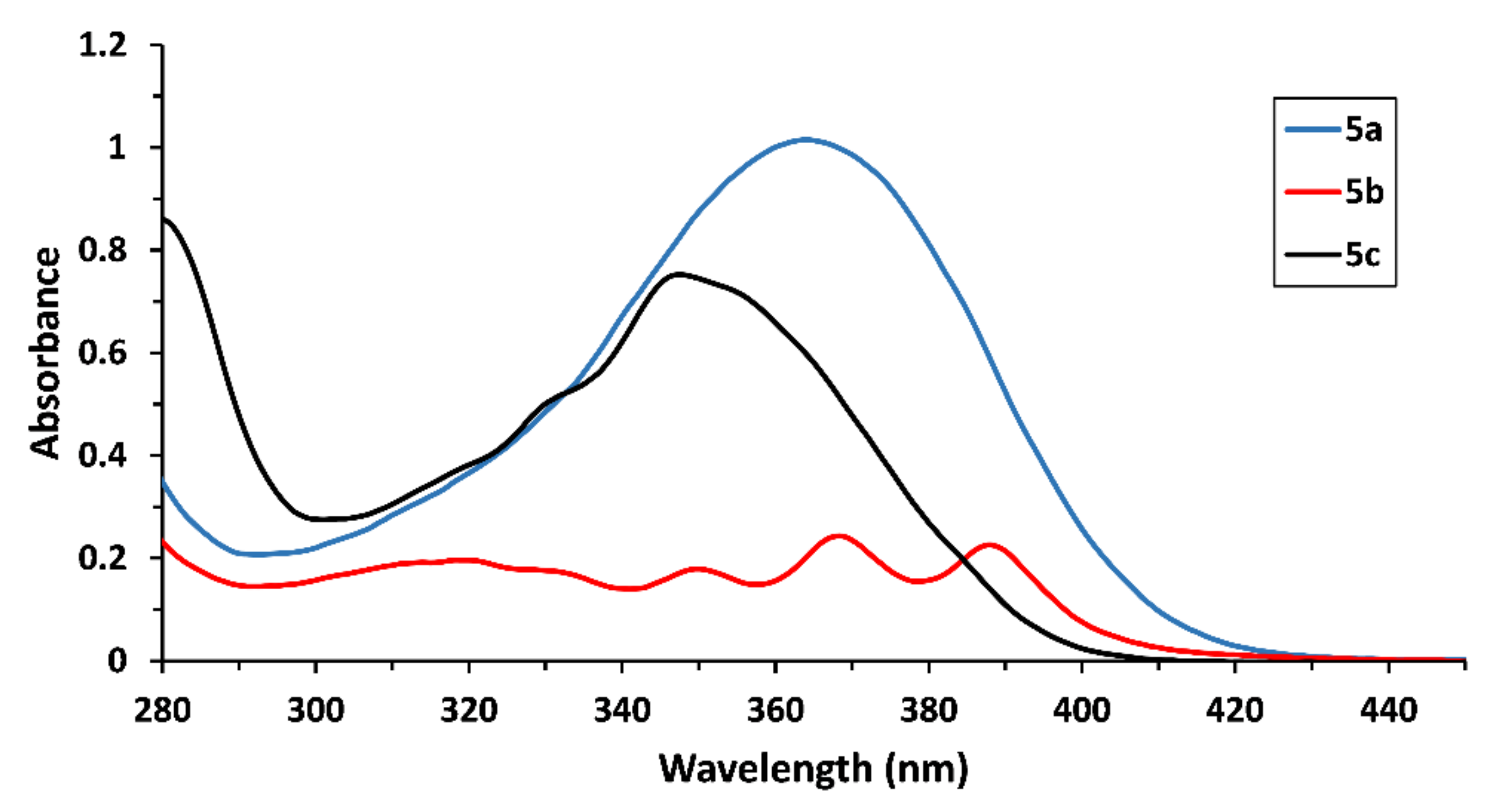

Figure 3. Absorption spectra of 5a–c in DMSO (50 μM). 5b was only partially dissolved, and 5 μM concentration was used.
Figure 3. Absorption spectra of 5a–c in DMSO (50 μM). 5b was only partially dissolved, and 5 μM concentration was used.
Molbank 2022 m1343 g003
Molbank 2022 m1343 g004 550

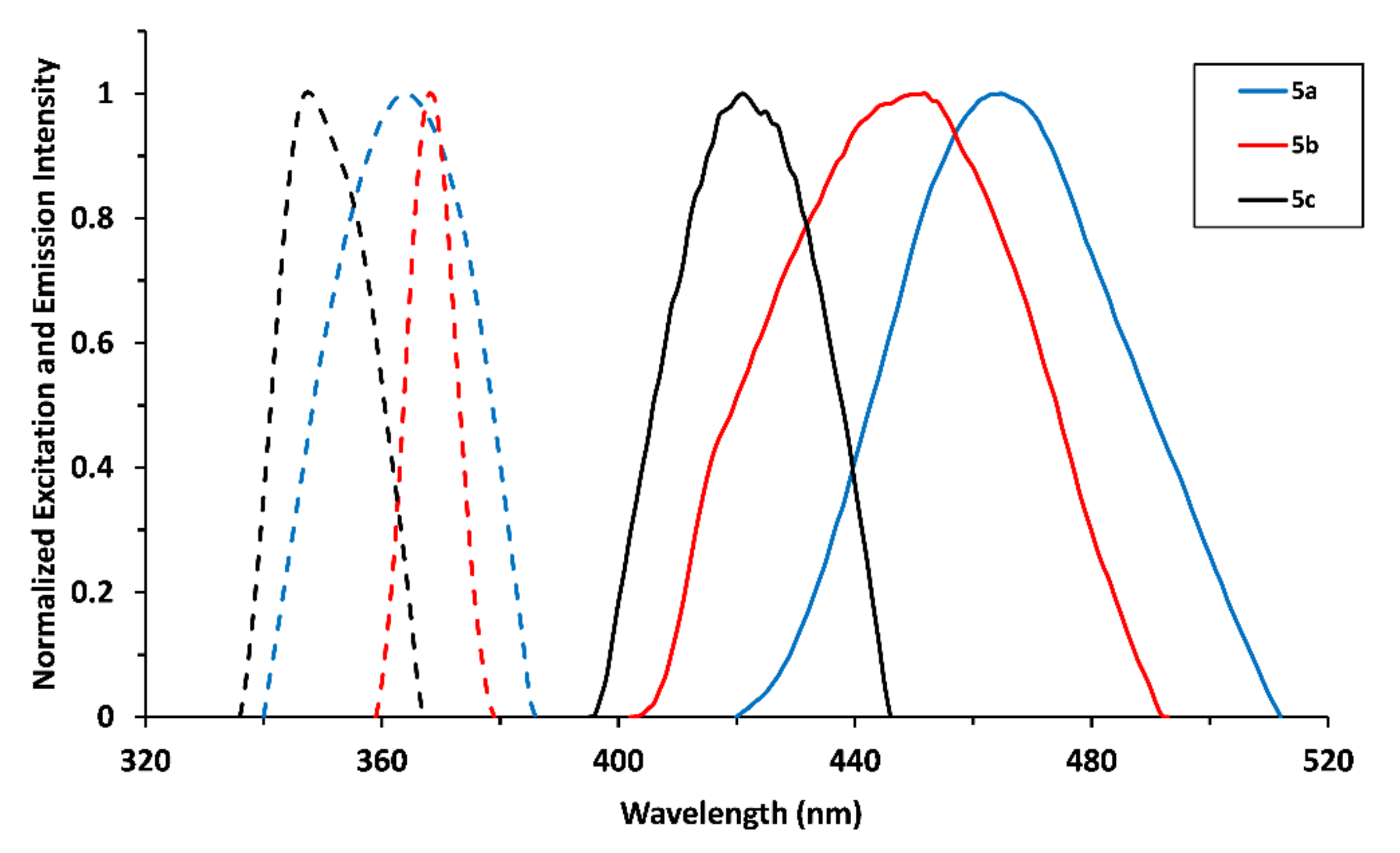

Figure 4. Normalized emission spectra of 5a–c in DMSO. 5a was recorded at 0.5 μM, and 5b,c were recorded at 5 μM. Excitation curves are displayed as dashed lines. All compounds were excited at their absorbance λmax values.
Figure 4. Normalized emission spectra of 5a–c in DMSO. 5a was recorded at 0.5 μM, and 5b,c were recorded at 5 μM. Excitation curves are displayed as dashed lines. All compounds were excited at their absorbance λmax values.
Molbank 2022 m1343 g004
Molbank 2022 m1343 g005 550
Figure 5. Confocal Fluorescence microscopy images (DAPI filter- λex = 360 nm, λem = 420 nm), magnification ×20, (A) and (B); ×40 (C) and (D) of human post-mortem AD fixed brain sections treated with (A,C) compound 5a, (B,D) compound 5c (200 μΜ). Dotted circles mark indicative “stained” plaques.
Figure 5. Confocal Fluorescence microscopy images (DAPI filter- λex = 360 nm, λem = 420 nm), magnification ×20, (A) and (B); ×40 (C) and (D) of human post-mortem AD fixed brain sections treated with (A,C) compound 5a, (B,D) compound 5c (200 μΜ). Dotted circles mark indicative “stained” plaques.
Molbank 2022 m1343 g005
Table
Table 1. Optical properties of compounds 5a–c. All compounds were excited at their absorbance λmax values.
Table 1. Optical properties of compounds 5a–c. All compounds were excited at their absorbance λmax values.
Compoundλabs (nm)λem (nm)Δλ (nm)
5a364465101
5b36845284
5c34842173
