Synthesis of 4-(2H-[1,2,4]-Triazol-5-ylsulfanyl)-1,2-dihydropyrazol-3-one via Ring-Switching Hydrazinolysis of 5-Ethoxymethylidenethiazolo [3,2-b][1,2,4]triazol-6-one

Abstract

4-(1H-[1,2,4]-Triazol-5-ylsulfanyl)-1,2-dihydropyrazol-3-one (4) was synthesized with a yield of 55% via ring-switching hydrazinolysis of 5-ethoxymethylidenethiazolo[3,2-b][1,2,4] triazol-6-one (3) in ethanol medium. The initial 1H-[1,2,4]-triazole-3-thiol (1) was modified via a two-step reaction: S-alkylation with chloroacetic acid under Williamson reaction conditions, and further one-pot cyclization–condensation with triethylorthoformate in the acetic anhydride medium, yielding compound 3. The structures of compounds 3 and 4 were confirmed by LC-MS, NMR spectra and a single X-ray diffraction analysis (for compound 4).

1. Introduction

Recyclization and transformation reactions are powerful and useful tools in modern organic and medicinal chemistry for the synthesis of hard-to-reach heterocycles. The compounds with an “enone” system in their structure, such as 3-alkylaminopropen-1-one fragments, combine the ambident nucleophilicity of enamines with the ambident eletrophilicity of enones. Due to these properties, “enones” are often used as C₃ building blocks for ring-switching reactions, yielding condensed and non-condensed heterocycles [1,2,3]. However, the synthetic pathways for 3-alkylaminepropene-1-one derivatives may be accompanied by a number of undesirable parallel processes such as methylation, the formation of major side products, and difficulties in isolating the target compounds. At the same time, the modification of 3-alkoxypropene-1-ones as the equivalent of 3-alkylaminepropene-1-one for the construction of heterocycles in the recyclization reactions is undescribed. Therefore, the utilization of 3-alkoxypropene-1-one analogs of corresponding enaminones can be a promising alternative for the preparative organic chemistry of “enones”. To extend our work in the development of effective synthetic methods for biologically active molecules based on functionalized 4-thiazolidinones and thiazolo[3,2-b][1,2,4]triazol-6-one [4,5,6,7], in this paper, we described the synthesis of hard-to-reach 4-(2H-[1,2,4]-triazol-5-ylsulfanyl)-1,2-dihydropyrazol-3-one (4) from the derivative with a 3-alkoxypropene-1-one moiety, namely 5-ethoxymethylidenethiazolo[3,2-b][1,2,4]triazol-6-one (3).

2. Results and Discussion

2.1. Chemistry

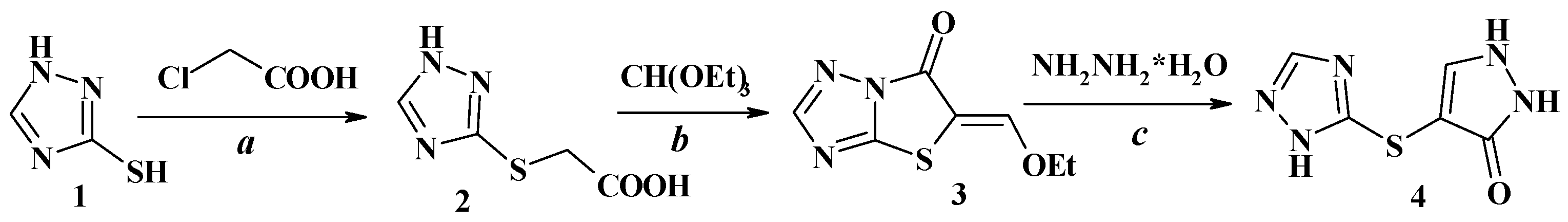

1H-[1,2,4]-triazole-3-thiol (1) was used as the starting reagent for the synthesis of the target compounds (Scheme 1). In the first step (2H-[1,2,4]-triazol-3-ylsulfanyl)-acetic acid (2) was synthesized under Williamson reaction conditions from compound 1 via alkylation with chloroacetic acid. Compound 2 was utilized without any purification in reaction with triethylorthoformate in acetic anhydride, yielding 5-ethoxymethylidenethiazolo[3,2-b][1,2,4]triazol-6-one (3). In this case, acetic anhydride plays a dual role as a cyclization agent for the thiazolo[3,2-b][1,2,4]triazol-6-one system formation and as a catalyst for the condensation of a methylene group with triethylorthoformate. Finally, compound 3 was refluxed with hydrazine hydrate in ethanol for 15 min, producing pyrazol-3-one derivative 4 with a 55% yield.

The structure and purity of compounds 3 and 4 were confirmed by LC-MS, ¹H and ¹³C NMR spectra (copies of spectra are presented in Supplementary). In the ¹H NMR spectra of compounds 3 and 4, protons of the triazol ring appeared as singlets at 8.50 (C-3) and 8.26 ppm (C-2), respectively. A chemical shift in the methylidene group of compound 3 has been assigned in a weak magnetic field at 8.41 ppm. A signal of the pyrazole ring proton at C-5 of compound 4 was observed as a singlet at 7.71 ppm.

2.2. X-ray Crystallographic Analysis of the Compound 4

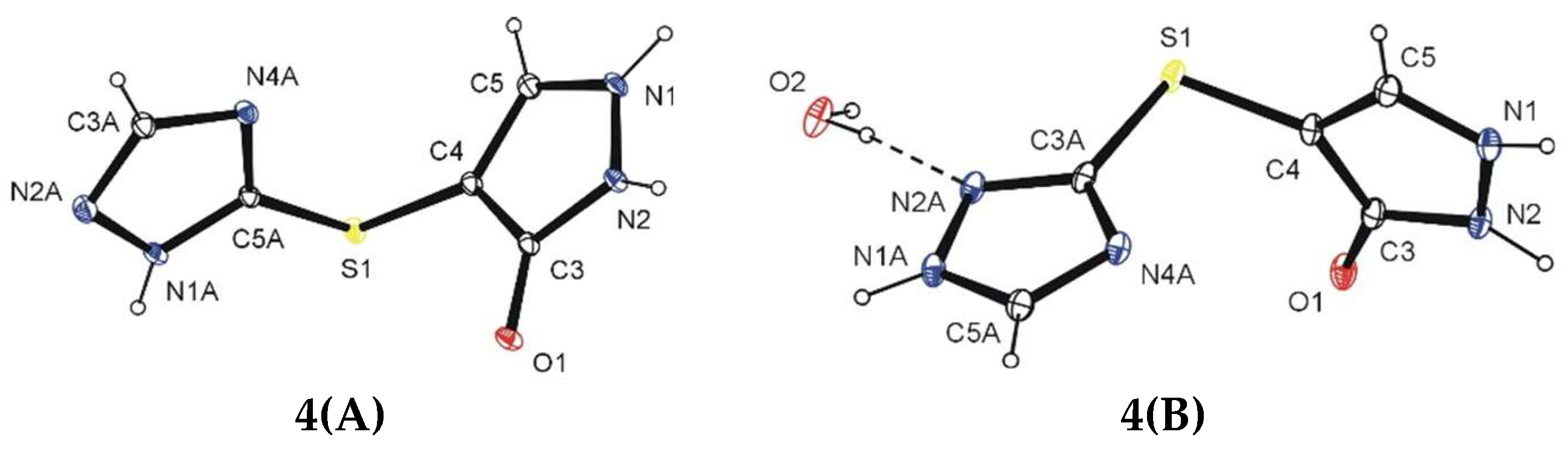

X-ray analysis was used for the structure determination of compound 4. The ORTEP drawing and atomic numbering are shown in Figure 1. The performed X-ray studies revealed that the 1,2,4-triazole system in the molecule of compound 4 undergoes a tautomeric transition in a solution. The crystals 4(A) (lath shape) and 4(B) (prism shape), obtained simultaneously from the same solution of CH₃OH and H₂O mixed at a 1:1 ratio, prove this conclusion. The lath-shaped crystals, 4(A), have the tautomeric hydrogen atoms at N2′ while the prism-shaped ones, 4(B), have these hydrogen atoms located at N1 (Figure 1).

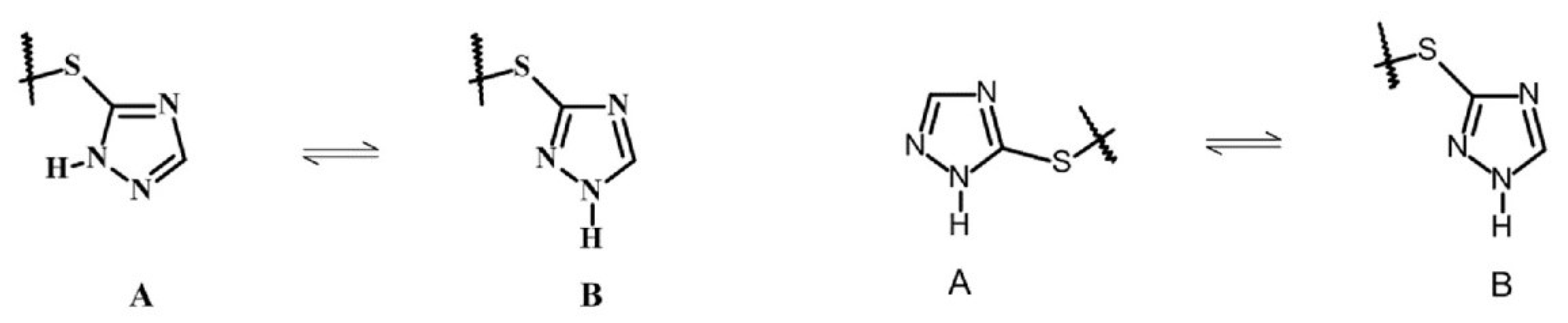

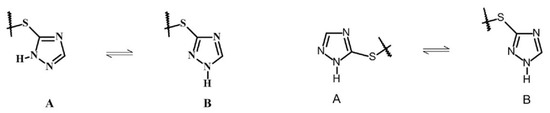

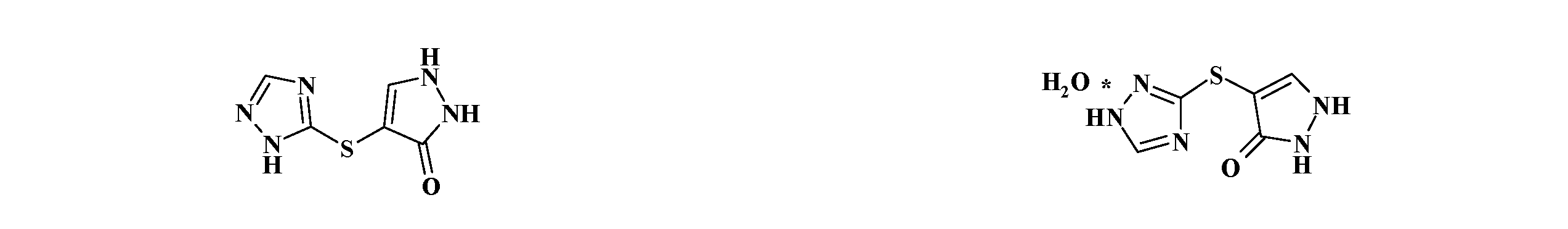

The X-ray studies has shown that proton tautomerism is observed in the 1,2,4-triazole system. In the first case (crystal 4(A)), the 1,2,4-triazole system has a tautomeric structure with hydrogen located at N1A and 4-sulfanyl-1,2-dihydro-3H-pyrazol-3-one moiety located at the C5 atom (form A) while in the other one (crystal 4(B)), the hydrogen atom is located at N1A and the 4-sulfanyl-1,2-dihydro-3H-pyrazol-3-one moiety at the C3 atom (form B) (Scheme 2).

The positions of protons connected to N atoms in both heterocyclic systems of molecules in crystals 4(A) and 4(B), i.e., 1,2-dihydro-3H-pyrazol-3-one and 1,2,4-triazole systems, were obtained from the difference Fourier maps and were refined freely. The presence of the H atom in the 1,3,4-triazole system at N1A (the molecules in the crystal 4(A)) and at N1A (the molecules in the crystal 4(B)) is supported by intermolecular hydrogen bonds N1A–H1A∙∙∙O1ⁱⁱ (

Table 1. Hydrogen-bond geometry (Å, °) for 4(A) and 4(B).

Crystal Structure	D–H∙∙∙A	D–H	H∙∙∙A	D∙∙∙A	D–H∙∙∙A
4(A) 1	N1–H1∙∙∙N4Ai	0.88(3)	1.91(2)	2.7746(19)	168(3)
	N1A–H1A∙∙∙O1ii	0.89(3)	1.86(3)	2.7309(19)	166(2)
	N2–H2∙∙∙O1iii	0.83(3)	1.87(3)	2.7034(19)	176(2)
	C3A–H3A∙∙∙O1iv	0.95(3)	2.44(3)	3.177(2)	134.4(19)
4(B) 2	N1–H1∙∙∙N4Ai	0.85(3)	1.91(3)	2.753(2)	169(3)
	N1A–H1A∙∙∙O1ii	0.88(3)	1.83(3)	2.7087(19)	178(4)
	N2–H2∙∙∙O2iii	0.93(3)	1.81(3)	2.736(2)	177(3)
	O2–H21∙∙∙N2A	0.83(3)	2.09(3)	2.9145(19)	173(3)
	O2–H22∙∙∙O1iv	0.81(3)	2.04(3)	2.8546(19)	178(4)

Symmetry codes: ^{1 (i)} 2 − x, 1 − y, 2 − z; ⁽ⁱⁱ⁾ 1 − x, 1 − y, 1 − z; ⁽ⁱⁱⁱ⁾ 2 − x, 2 − y, 2 − z; ^(iv) 2 − x, 1 − y, 1 − z. ^{2 (i)} 1 − x, 1 − y, 1 − z; ⁽ⁱⁱ⁾ 1 − x, 1 − y, 2 − z; ⁽ⁱⁱⁱ⁾ −1 + x, y, −1 + z; ^(iv) 1 − x, 2 − y, 2 − z.

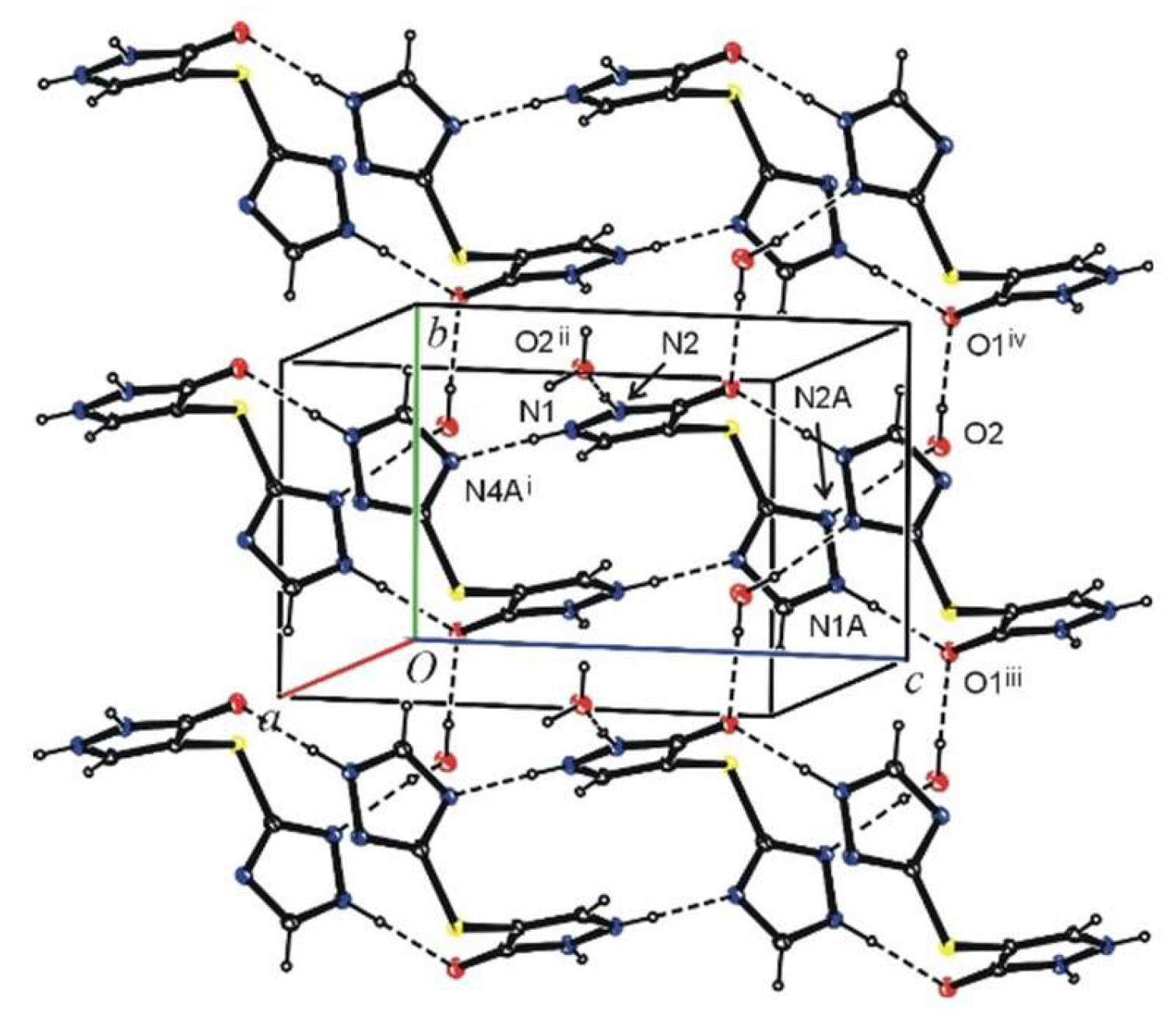

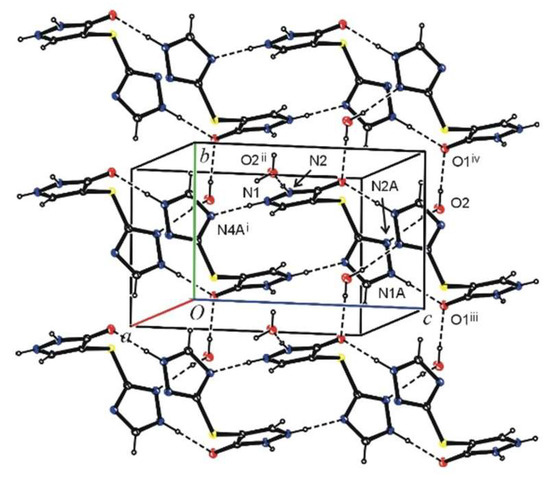

, Figure 2) and N1A–H1A∙∙∙O1ⁱⁱ (Table 1, Figure 3). In the mentioned bonds, the oxygen atom from the carbonyl group (O1) acts as a proton acceptor.

The molecules of the investigated compound 4 in crystals 4(A) and 4(B) display similar conformations. The dihedral angle between the heterocyclic rings is 89.51(6)° and 89.02(7)° in crystals 4(A) and 4(B), respectively. Moreover, the torsion angles of C4–S1–C5A–N1A (crystal 4(A)) and C4–S1–C3A–N2A (crystal 4(B)) adopt values of −152.08(13)° and −159.47(14)°, respectively. The study revealed that the C3=O1 bond lengths in 4a and 4b are 1.2763(19) and 1.273(2)°, respectively, which indicates a significant elongation with respect to the value in the literature of the (C*)₂-C=O bond length 1.210(1) Å [8]. On the other hand, the observed values are typical when compared to C=O bonds in the structures with 1,2-dihydro-3H-pyrazol-3-one system deposited in Cambridge Structural Database, Version 5.39 (refcodes: CASJIQ, CIHNAI, HIFXOJ, HMBINZ, HUFWUB, IKABAY, IKALIQ, MPYAZO10, MPYAZO11, PIDSEB, QAKJUJ, TUPHAO, VEYVEA, VUZQEN) [9].

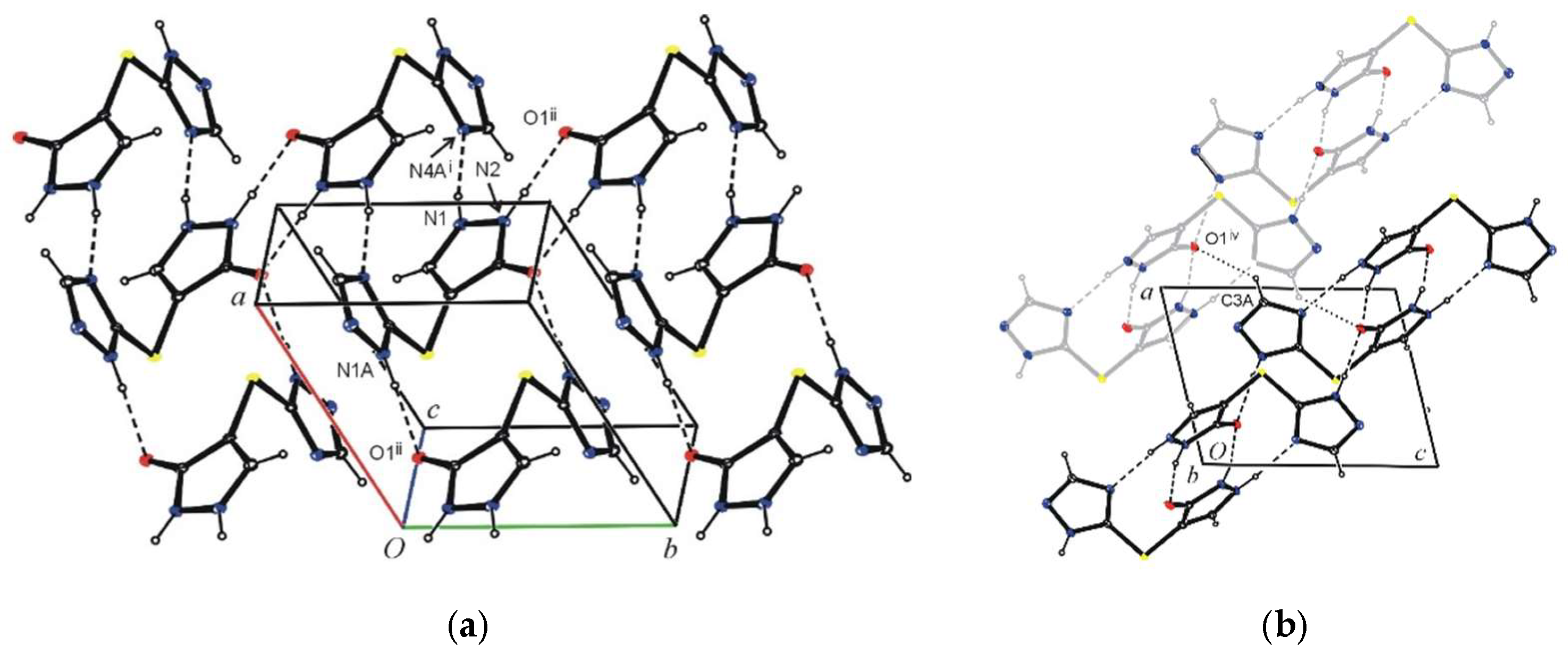

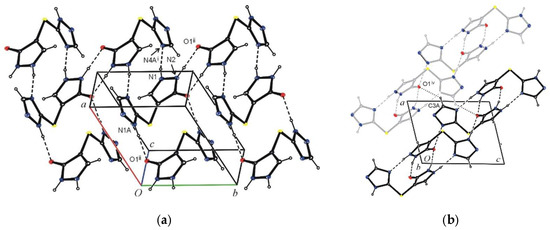

In crystal 4(A), the molecules are connected by N1–H1∙∙∙N4Aⁱ and N2–H2∙∙∙O1ⁱⁱⁱ hydrogen bonds into columns extending along the [101] direction. The columns are further connected by N1A–H1A∙∙∙O1ⁱⁱ hydrogen bonds into layers parallel to (101) plane. The layers linked with C3A–H3A∙∙∙O1^iv hydrogen bonds form three-dimensional network (Table 1, Figure 2a,b). Crystal 4(B) has a form of a hydrate. The asymmetric unit contains one solute molecule (host) and one water molecule (guest). In the crystal solute, molecules are connected by N1–H1∙∙∙N4Aⁱ and N1A–H1A∙∙∙O1ⁱⁱ hydrogen bonds into columns as in crystal 4(A), but in this case, they extend along the c axis. Water molecules are also involved in the hydrogen bond formation. They act as a proton donor twice and as a proton acceptor once. Taking part in N2–H2∙∙∙O2ⁱⁱⁱ, O2–H21∙∙∙N2A and O2–H22∙∙∙O1^iv hydrogen bonds, water molecules are a link connecting the mentioned columns into a three-dimensional network (Table 1, Figure 3).

3. Experimental Setup

3.1. Materials and Methods

Melting points were measured in open capillary tubes on a BŰCHI B-545 melting point apparatus (BÜCHI Labortechnik AG, Flawil, Switzerland) and are uncorrected. The elemental analyses (C, H, N) were performed using the Perkin–Elmer 2400 CHN analyzer (PerkinElmer, Waltham, MA, USA) and were within ±0.4% of the theoretical values. The ¹H and ¹³C NMR spectra were recorded on a Varian Gemini spectrometer (Agilent, Santa Clara, CA, USA) at 400 and 100 MHz, respectively, using DMSO-d₆ as a solvent and TMS as an internal standard. Chemical shift values are reported in ppm units with use of δ scale. LC–MS spectra were obtained on a Finnigan MAT INCOS-50 (Thermo Finnigan LLC, San Jose, CA, USA). Solvents and reagents that are commercially available were used without further purification. Compound 3 (CAS 2111914-32-8) is also commercially available from Ambinter [10]; Aurora Fine Chemicals [11]; Zerenex Molecular Ltd. [12] and compound 4 (CAS 2176338-67-1) is also commercially available from Aurora Fine Chemicals [11] although it is rather expensive.

3.2. Synthesis of 5-ethoxymethylidenethiazolo[3,2-b][1,2,4]triazol-6-one (3)

A mixture of (2H-[1,2,4]triazol-3-yflsulfanyl)-acetic acid (2) (10.0 mmol) and triethylorthoformate (12.5 mmol) refluxed for 2 h in the 10 mL of acetic anhydride. Reaction mixture was cooled to the room temperature and light brown precipitate was filtered off, washed with small portion of cold water and recrystallized from ethanol.

Light brown needle-like crystals had the following yields: 78%, M.p.: 169–173 °C. ¹Н NMR (400 MHz, DMSO-d₆), δ: 8.50 (s, 1Н, СН, triazole), 8.41 (s, 1Н, СН), 4.47 (q, J = 6.9 Hz, 2Н, OСН₂), 1.32 (t, J = 6.9 Hz, 3Н, СН₃). ¹³C NMR (100 MHz, DMSO-d₆), δ: 162.4, 159.5, 158.7, 156.8, 104.0, 73.7, 15.7. LC-MS: m/z 198 (100%, (M + H)⁺). Anal. Calcd for C₇H₇N₃O₂S (197): C 42.63, H 3.58, N 21.31. Found: C 42.40, H 3.50, N 21.50.

3.3. Synthesis of 4-(2H-[1,2,4]-triazol-5-ylsulfanyl)-1,2-dihydropyrazol-3-one (4)

A mixture of 5-ethoxymethylidenethiazolo[3,2-b][1,2,4]triazol-6-one (3) (10.0 mmol) and hydrazine hydrate (10.0 mmol) were refluxed for 15 min in 10 mL of ethanol. After cooling to room temperature, white precipitate was filtered off, washed with ethanol, recrystallized from a mixture of DMFA–ethanol (1:1) and dried under vacuum.

White crystals had the following yields: 55%, M.p.: 223–225 °C. ¹Н NMR (400 MHz, DMSO-d₆), δ: 8.26 (br.s, 1Н, СН, triazole), 7.71 (s, 1Н, СН, pyrazol). ¹³C NMR (100 MHz, DMSO-d₆), δ: 167.4, 161.8, 157.8, 136.1, 101.6. LC-MS: m/z 184 (100%, (M + H)⁺). Anal. Calcd for C₅H₅N₅OS (183): C 32.78, H 2.75, N 38.23. Found: C 32.90, H 2.90, N 38.40.

3.4. X-ray Diffraction Studies

3.4.1. Crystal Structure Determination of 4(A)

Crystal data. C₅H₅N₅OS, M_r = 183.20, triclinic, space group P-1, a = 6.8457(4), b = 6.9769(5), c = 8.4306(5) Å, α = 105.028(5), β = 96.908(5), γ = 111.870(6)°, V = 350.18(4) ų, T = 130.1(1) K, Z = 2.

Data collection. A colourless prism (MeOH/H₂O) crystal of 0.13 mm × 0.13 mm × 0.03 mm was used to record 5773 (Cu Kα radiation, θ_max = 76.42°) intensities on a Rigaku SuperNova Dual Atlas diffractometer [13] using mirror monochromatized Cu Kα radiation from a high-flux microfocus source. Accurate unit cell parameters were determined by least-squares techniques from the θ values of 3460 reflections, θ range 5.56–76.32°. The data were corrected for Lorentz polarization and for absorption effects [13]. The 1460 total unique reflections (R_int = 0.026) were used for structure determination.

Structure solution and refinement. The structure was solved by a dual-space algorithm (SHELXT) [14], and refined against F² for all data (SHELXL-97) [15]. The positions of all H atoms were obtained from the difference Fourier maps and were refined freely. Final refinement converged with R = 0.029 (for 1392 data with F² > 4σ(F²)), wR = 0.078 (on F² for all data), and S = 1.048 (on F² for all data). The largest difference peak and hole was 0.325 and −0.325 eų. The molecular illustrations were drawn using ORTEP-3 for Windows [16].

The crystallographic data in the CIF form are available as Electronic Supplementary data from the Cambridge Crystallographic Data Centre, deposition number CCDC-1859739; http://www.ccdc.cam.ac.uk/conts/retrieving.html (or from the Cambridge Crystallographic Data Centre, 12 Union Road, Cambridge, CB2 1EZ, UK; fax: 44 1223 336033; e-mail: [email protected]).

3.4.2. Crystal Structure Determination of 4(B)

Crystal data. C₅H₅N₅OS·H₂O, M_r = 201.22, triclinic, space group P-1, a = 6.3934(4), b = 6.7817(5), c = 10.0195(7) Å, α = 92.181(6), β = 107.435(6), γ = 102.234(6)°, V = 402.65(5) ų, T = 130.1(1) K, Z = 2.

Data collection. A colourless lath (MeOH/H₂O) crystal of 0.22 mm × 0.15 mm × 0.03 mm was used to record 6319 (Cu Kα radiation, θ_max = 76.75°) intensities on a Rigaku SuperNova Dual Atlas diffractometer [13] using mirror monochromatized Cu Kα radiation from a high-flux microfocus source. Accurate unit cell parameters were determined by least-squares techniques from the θ values of 2958 reflections, θ range 7.42–75.94°. The data were corrected for Lorentz polarization and for absorption effects [13]. The 1646 total unique reflections (R_int = 0.050) were used for structure determination.

Structure solution and refinement. The structure was solved by dual-space algorithm (SHELXT) [14], and refined against F² for all data (SHELXL-97) [15]. The positions of all H atoms obtained from the difference Fourier maps and were refined freely. Final refinement converged with R = 0.035 (for 1519 data with F² > 4σ(F²)), wR = 0.096 (on F² for all data), and S = 1.066 (on F² for all data). The largest difference peak and hole was 0.494 and −0.399 eų. The molecular illustrations were drawn using ORTEP-3 for Windows [16].

The crystallographic data in the CIF form are available as Electronic Supplementary data from the Cambridge Crystallographic Data Centre, deposition number CCDC-1859740; http://www.ccdc.cam.ac.uk/conts/retrieving.html (or from the Cambridge Crystallographic Data Centre, 12 Union Road, Cambridge, CB2 1EZ, UK; fax: 44 1223 336033; e-mail: [email protected]).

4. Conclusions

We have described a simply executable synthetic method for 4-(2H-[1,2,4]triazol-5-ylsulfanyl)-1,2-dihydropyrazol-3-one via ring-switching hydrazinolysis of 5-ethoxymethylidenethiazolo[3,2-b][1,2,4]triazol-6-one. All studied reactions are convenient due to their conditions, short time, and simple working procedures and allowed us to obtain the target products with high yields.
