2,3-Dimethylbenzoxazolium Methosulfate

Abstract

An economically benign solvent-free approach to synthesise 2,3-dimethylbenzoxazolium methosulfate is reported in the present work. The title compound is derived from 2-methylbenzoxazole reacting with a slight excess of dimethylsulfate, at room temperature. The reaction proceeds via an intrinsic exothermic reaction, and the benzoxazolium salt crystallized after a short time into a white crystalline form. The product was filtered off and washed with acetone and diethyl ether to provide the desired product in 89% yield. The target compound was evaluated by ESI/MS analysis.

1. Introduction

2,3-Dimethylbenzoxazolium methosulfate finds noumerous applications, including the synthesis of cyanine dyes [1,2,3,4,5]. The anion of the benzoxazolium salt can readily be exchanged with iodide [5], tosylate [6], perchlorate [7], or tetrafluoroborate [8]. According to literature [9], only one publication reports the synthesis of 2,3-dimethylbenzoxazolium methosulfate, in which the product is obtained by heating 2-methylbenzoxazole with dimethylsulfate for 30–40 min in trichloroethylene. Although the authors of this paper claim that the product of quaternization is very pure, they do not mention that methosulfate crystals are in general considered as very hygroscopic.

The stability of quaternary benzoxazolium compounds is a common issue found in both their synthesis, as well as structural studies [10]. These compounds are reported to be very sensitive to basic reagents and moisture, since the quaternary benzoxazolium compounds undergo transformation into phenols via ring opening [11,12,13]. This is the main reason why NMR spectra of such compounds cannot be evaluated in polar solvents including deuterated DMSO or methanol. Cationic compounds are also almost insoluble in other common NMR solvents such as deuterated chloroform of dichloromethane.

Herein we report that 2,3-dimethylbenzoxazolium methosulfate can be obtained by a solvent-free procedure, providing a very simple, economically and effective way, without heating, to obtain the desired product by a green approach. By mixing 2-methylbenzoxazole and a slight excess of dimethylsulfate, a spontaneous exothermic reaction occurred and the reaction mixture became very viscous. After 45 min, the reaction mixture was cooled down to room temperature, it completely crystallized. Filtration, followed by washing with acetone and diethyl ether, gave white crystals in a very high yield.

2. Experimental Section

2.1. General

Unless otherwise stated, all reagents and solvents used in the synthesis and analysis, were obtained from Sigma-Aldrich (St. Louis, MO, USA), Alfa-Aesar (Haverhill, MA, USA), as commercial products of analytical grade, and used without further purification. The ESI/MS spectra was recorded on an HPLC Agilent 1200 Series (Santa Clara, CA, USA), coupled with triple quadrupole mass spectrometer Agilent 6410. The melting point was determined on a Kofler bench and was uncorrected.

2.2. Experimental Procedure for the Preparation of 2,3-Dimethylbenzoxazolium Methosulfate

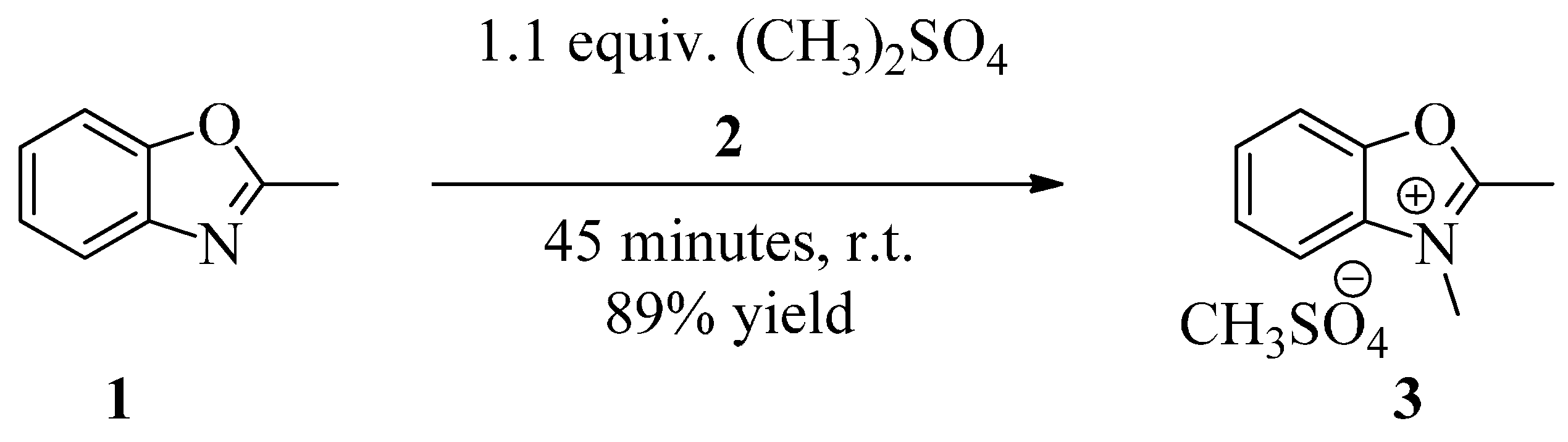

2-Methylbenzoxazole 1 (11.87 mL, 0.1 mol) and dimethylsulfate 2 (10.42 mL, 0.11 mol) (purified according to [14]) were mixed together in a 50 mL open flask. All operations were performed in a well-ventilated hood. After 15–20 min the reaction mixture became very viscous and self-warmed. The flask content crystallized completely after 45 minutes. The flask content was vacuum-filtered, washed with acetone and diethyl ether, and air dried yielding the product in 89%, as white crystals (Scheme 1). M.p. of product 3 = 195–196 °C, lit. m.p. = 200 °C [6]. The product is very hygroscopic, as it becomes semisolid if left outside a desiccator. ESI: m/z: Found [M⁺] 148.2; C₉H₁₀NO⁺ requires [M⁺] 148.08; Found [CH₃O₄S⁻] 110.9 requires [CH₃O₄S⁻] 110.98; Copies of mass ESI/MS spectra are provided in the Supplimentary Materials.
